5. Global TrustZone® controller (GTZC)

5.1 Introduction

This section describes the global TrustZone controller (GTZC) block, containing the following subblocks:

These subblocks are used to configure TrustZone system security in a product having bus agents with programmable-security and privileged attributes such as:

5.2 GTZC main features

The GTZC main features are listed below:

GTZC TrustZone system architecture

The Armv8-M supports security per TrustZone-M model with isolation between:

The TrustZone architecture is extended beyond AHB and Armv8-M with:

AHB and APB peripherals can be categorized as:

Application information

The TZSC (MPCWM), TZIC, and MPCBB can be used in one of the following ways:

The Armv8-M security architecture with secure, securable, and TrustZone-aware peripherals is shown in the figure below.

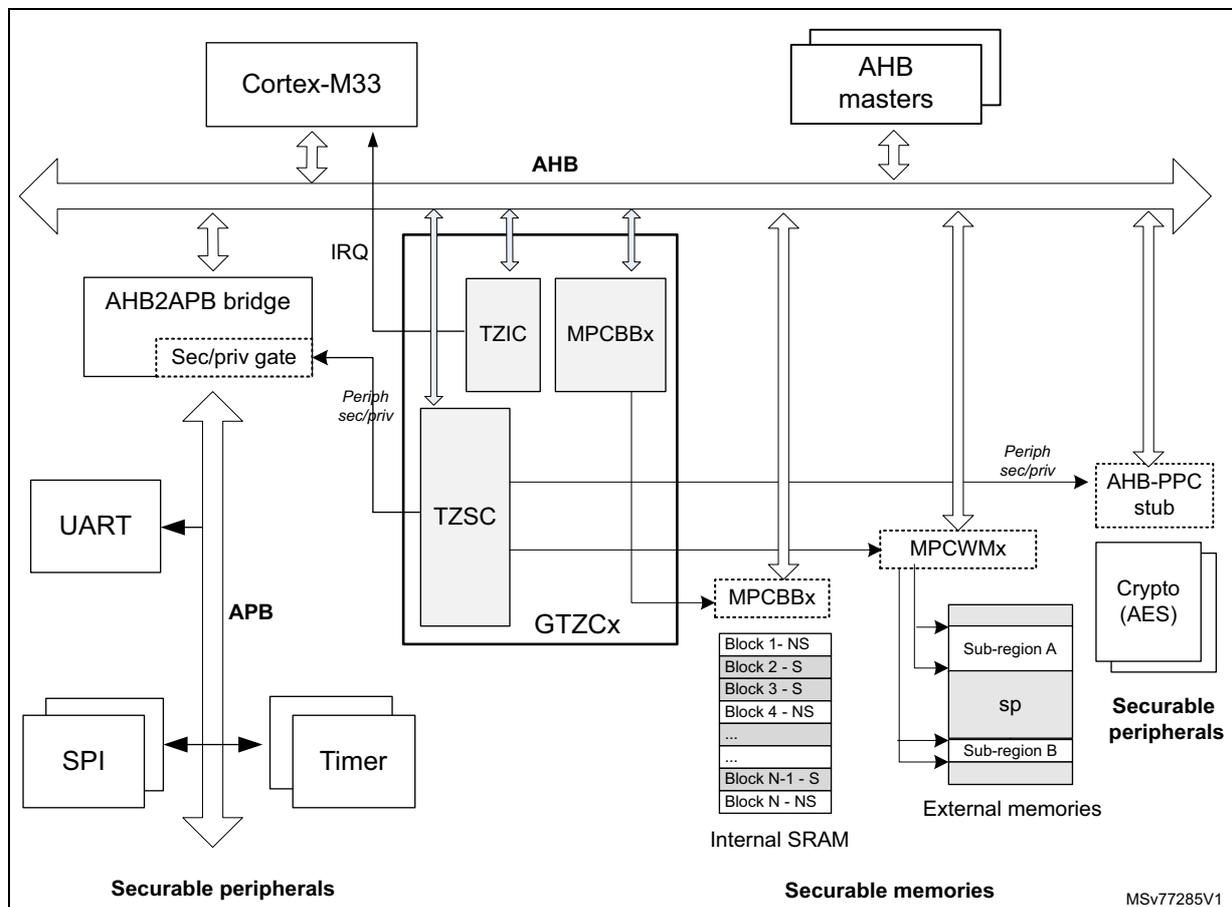

Figure 13. GTZC in Armv8-M subsystem block diagram

Figure 13. GTZC in Armv8-M subsystem block diagram. This block diagram illustrates the system architecture including the Cortex-M33 processor, AHB masters, AHB and APB buses, and various peripherals. The Cortex-M33 is connected to the AHB bus and receives an interrupt (IRQ) from the TZIC block. AHB masters are also connected to the AHB bus. The AHB bus connects to an AHB2APB bridge, which includes a 'Sec/priv gate'. This bridge connects to the APB bus, which in turn connects to securable peripherals: UART, SPI, and Timer. The AHB bus also connects to the GTZC sub-blocks: TZIC, MPCBBx, TZSC, and GTZCx. The TZSC block is connected to the APB bus and has a 'Periph sec/priv' signal. The GTZCx block is connected to the AHB bus and has a 'Periph sec/priv' signal. The GTZCx block is connected to the MPCBBx block, which is connected to the Internal SRAM. The Internal SRAM is divided into blocks: Block 1- NS, Block 2 - S, Block 3 - S, Block 4 - NS, ..., Block N-1 - S, Block N - NS. The GTZCx block is also connected to the MPCWMx block, which is connected to the External memories. The External memories are divided into Sub-region A and Sub-region B, with a 'sp' (secure) region. The MPCWMx block is connected to the AHB-PPC stub, which is connected to the Crypto (AES) peripheral. The Crypto (AES) peripheral is a securable peripheral. The diagram is labeled with 'Securable peripherals' and 'Securable memories' at the bottom. The reference MSV77285V1 is shown in the bottom right corner.
Figure 13. GTZC in Armv8-M subsystem block diagram. This block diagram illustrates the system architecture including the Cortex-M33 processor, AHB masters, AHB and APB buses, and various peripherals. The Cortex-M33 is connected to the AHB bus and receives an interrupt (IRQ) from the TZIC block. AHB masters are also connected to the AHB bus. The AHB bus connects to an AHB2APB bridge, which includes a 'Sec/priv gate'. This bridge connects to the APB bus, which in turn connects to securable peripherals: UART, SPI, and Timer. The AHB bus also connects to the GTZC sub-blocks: TZIC, MPCBBx, TZSC, and GTZCx. The TZSC block is connected to the APB bus and has a 'Periph sec/priv' signal. The GTZCx block is connected to the AHB bus and has a 'Periph sec/priv' signal. The GTZCx block is connected to the MPCBBx block, which is connected to the Internal SRAM. The Internal SRAM is divided into blocks: Block 1- NS, Block 2 - S, Block 3 - S, Block 4 - NS, ..., Block N-1 - S, Block N - NS. The GTZCx block is also connected to the MPCWMx block, which is connected to the External memories. The External memories are divided into Sub-region A and Sub-region B, with a 'sp' (secure) region. The MPCWMx block is connected to the AHB-PPC stub, which is connected to the Crypto (AES) peripheral. The Crypto (AES) peripheral is a securable peripheral. The diagram is labeled with 'Securable peripherals' and 'Securable memories' at the bottom. The reference MSV77285V1 is shown in the bottom right corner.

5.3 GTZC implementation

The devices embed the following GTZC features.

Table 25. GTZC features

GTZC sub-blocksGTZC
TZSCX
TZICX
MPCWM (number of MPCWM)X (1)
MPCBB (number of MPCBB)X (2)

The tables below show the GTZC subblocks address offset versus GTZC base address (refer to Section 2.3.2: Memory map and register boundary addresses for GTZC base address).

Table 26. GTZC sub-blocks address offset

GTZC sub-blocksAddress offset
GTZC1_TZSC (including MPCWM)0x0000
GTZC1_TZIC0x0400
GTZC1_MPCBB10x0800
GTZC1_MPCBB20x0C00

The table below describes the characteristics of the available MPCWM.

Table 27. MPCWM resource assignment

MPCResourceNumber of regionsWatermark granularity (bytes)STM32WBA23STM32WBA25
MPCWM1XSPI1 memory2128 K-X

The table below describes the characteristics of the available MPCBB.

Table 28. MPCBB resource assignment

MPCResourceMemory size (Kbytes)Block size (bytes)Number of blocksNumber of super-blocks
MPCBB1SRAM1645121284
MPCBB2SRAM232512642

5.4 GTZC functional description

5.4.1 GTZC block diagram

Figure 14 describes the combined feature of TZSC (MPCWM), TZIC, and MPCBB. Each subblock is controlled by its own AHB configuration port.

The TZSC defines which peripheral is secured and/or privileged. The privileged configuration bit of a peripheral can be modified by a secure privileged transaction when the peripheral is configured as secure. Otherwise, a privileged transaction (nonsecure) is sufficient.

On the opposite, the secure configuration bit of a peripheral can be modified only with a secure privileged transaction if the peripheral is configured as privileged. Otherwise, a secure transaction (unprivileged) is sufficient.

The MPCBB secure configuration bit of a given SRAM block can be modified only with a secure privileged transaction if the same SRAM block is configured as privileged. Otherwise, a secure transaction (unprivileged) is sufficient.

The TZIC gathers illegal events generated within the system when an illegal access is detected. TZIC can then generate a secure interrupt towards the CPU if needed.

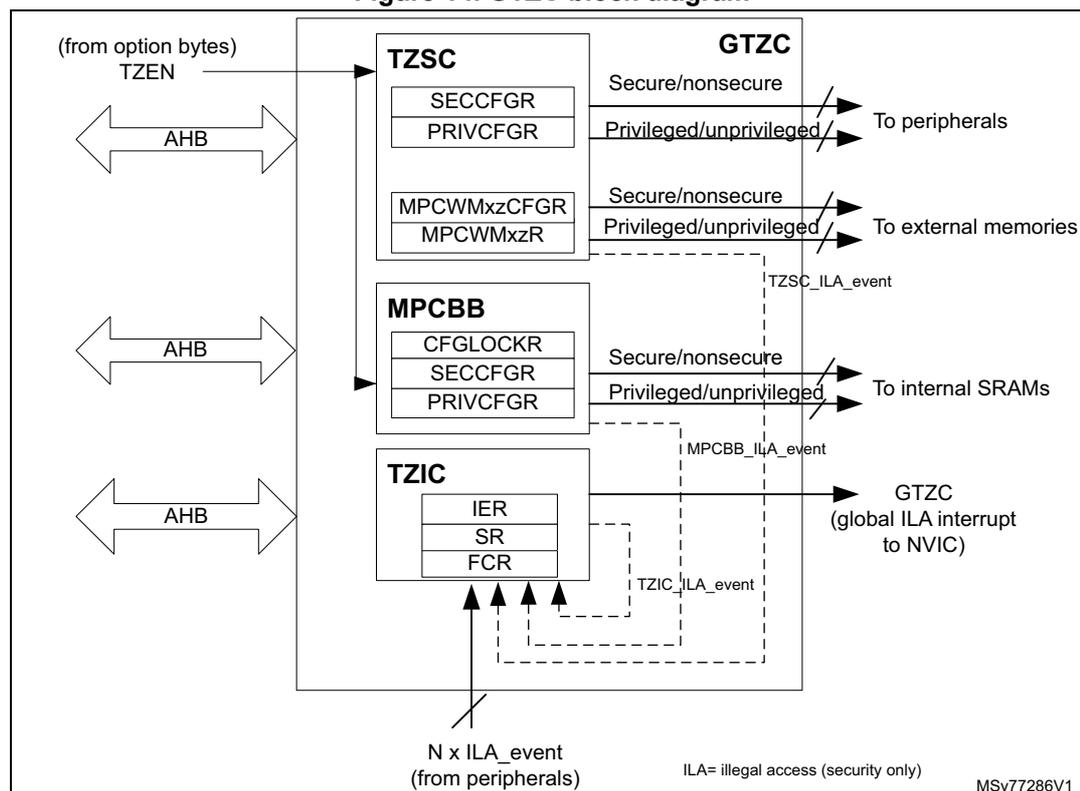

Figure 14. GTZC block diagram

Figure 14. GTZC block diagram. The diagram shows the internal structure of the Global TrustZone Controller (GTZC). It consists of three main functional blocks: TZSC, MPCBB, and TZIC. The TZSC block contains registers SECCFGR, PRIVCFGR, MPCWMxzCFGR, and MPCWMxzR. The MPCBB block contains registers CFGLOCKR, SECCFGR, and PRIVCFGR. The TZIC block contains registers IER, SR, and FCR. The GTZC block is the overall container for these three blocks. The diagram shows connections to various system components: AHB buses connect to the TZSC, MPCBB, and TZIC blocks; a TZEN signal from option bytes connects to the TZSC block; outputs from the TZSC block go to peripherals and external memories; outputs from the MPCBB block go to internal SRAMs; outputs from the TZIC block go to the GTZC (global ILA interrupt to NVIC). Dashed lines indicate illegal access (ILA) events from the TZSC, MPCBB, and TZIC blocks to the GTZC block. The legend indicates that ILA = illegal access (security only). The diagram is labeled MSV77286V1.
Figure 14. GTZC block diagram. The diagram shows the internal structure of the Global TrustZone Controller (GTZC). It consists of three main functional blocks: TZSC, MPCBB, and TZIC. The TZSC block contains registers SECCFGR, PRIVCFGR, MPCWMxzCFGR, and MPCWMxzR. The MPCBB block contains registers CFGLOCKR, SECCFGR, and PRIVCFGR. The TZIC block contains registers IER, SR, and FCR. The GTZC block is the overall container for these three blocks. The diagram shows connections to various system components: AHB buses connect to the TZSC, MPCBB, and TZIC blocks; a TZEN signal from option bytes connects to the TZSC block; outputs from the TZSC block go to peripherals and external memories; outputs from the MPCBB block go to internal SRAMs; outputs from the TZIC block go to the GTZC (global ILA interrupt to NVIC). Dashed lines indicate illegal access (ILA) events from the TZSC, MPCBB, and TZIC blocks to the GTZC block. The legend indicates that ILA = illegal access (security only). The diagram is labeled MSV77286V1.

5.4.2 Illegal access definition

Three different types of illegal access (ILA) exist:

Any nonsecure transaction trying to write a secure resource is considered as illegal: consequently, the addressed resource generates an illegal access interrupt for illegal write access and a bus error for illegal fetch access. Some exceptions exist on secure and privileged configuration registers: the latter ones authorize nonsecure read access

to secure registers (see GTZC1_TZSC_SECCFG n and GTZC1_TZSC_PRIVCFG n ).

Any secure transaction trying to access a nonsecure block in internal block-based SRAM or watermarked memory is considered as illegal.

Correct TZIC settings enable the capture of the associated event and then generate the GTZC1_TZIC interrupt to the NVIC. This applies to read, write, and execute accesses.

Concerning the MPCBB controller, there is an option to ignore secure data read/write access on nonsecure SRAM blocks, by setting the SRWILADIS bit in the GTZC1_MPCBB x _CR register. Secure read and write data transactions are then allowed on nonsecure SRAM blocks, while secure execution access remains not allowed.

Any secure execute transaction trying to access a nonsecure peripheral register is considered as illegal and generates a bus error.

Any unprivileged transaction trying to access a privileged resource is considered as illegal. There is no illegal access event generated for illegal read and write access. The addressed resource follows a silent-fail behavior, returning all zero data for read and ignoring any write. No bus error is generated. A bus error is generated when any unprivileged execute transaction tries to access a privileged memory.

5.4.3 TrustZone security controller (TZSC)

The TZSC is composed of a configurable set of registers, providing the following features:

A control register for each subregion can be used to enable/disable the watermark memory protection controller as well as defining the right attributes of each subregion.

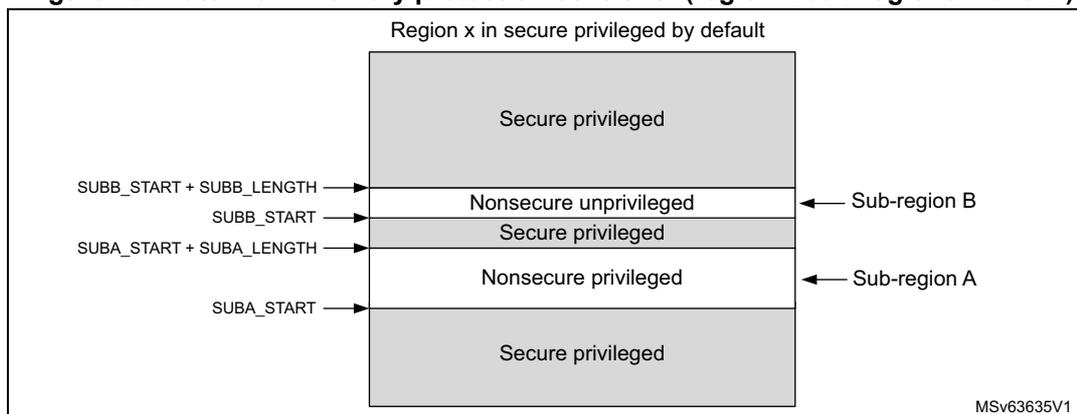

Figure 15. Watermark memory protection controller (region x/sub-regions A and B)

Diagram of Watermark memory protection controller showing region x and sub-regions A and B. Region x is 'Secure privileged' by default. Sub-region B is defined by SUBB_START and SUBB_LENGTH, and Sub-region A is defined by SUBA_START and SUBA_LENGTH. The diagram shows the overlap of these sub-regions within region x, with various security and privilege settings (Secure privileged, Nonsecure unprivileged, Nonsecure privileged).

The diagram illustrates the memory protection configuration for region x and its sub-regions A and B. Region x is initially 'Secure privileged'. Sub-region B is defined by SUBB_START and SUBB_LENGTH , and Sub-region A is defined by SUBA_START and SUBA_LENGTH . The diagram shows the overlap of these sub-regions within region x, with various security and privilege settings (Secure privileged, Nonsecure unprivileged, Nonsecure privileged). The diagram is labeled MSv63635V1.

Diagram of Watermark memory protection controller showing region x and sub-regions A and B. Region x is 'Secure privileged' by default. Sub-region B is defined by SUBB_START and SUBB_LENGTH, and Sub-region A is defined by SUBA_START and SUBA_LENGTH. The diagram shows the overlap of these sub-regions within region x, with various security and privilege settings (Secure privileged, Nonsecure unprivileged, Nonsecure privileged).

In the figure above, region x represents the external memory region (such as XSPI1 bank). Secure and privileged attributes of subregions A and B are independently configurable. When no subregions are defined or enabled on the region x, then the default attribute of the region x is set as “secure-privileged”.

The tables below describe the secure/privileged properties of the common area of subregion A and B when an overlap exists.

Table 29. Secure properties of sub-regions A and B

Sub-region ASub-region BProperties of overlapped region A and B
NonsecureNonsecureNonsecure
NonsecureSecureNonsecure
SecureNonsecureNonsecure
SecureSecureSecure

Table 30. Privileged properties of sub-regions A and B

Sub-region ASub-region BProperties of overlapped region A and B
UnprivilegedUnprivilegedUnprivileged
UnprivilegedPrivilegedUnprivileged
PrivilegedUnprivilegedUnprivileged
PrivilegedPrivilegedPrivileged

5.4.4 Memory protection controller - block based (MPCBB)

The MPCBB is composed of a configurable set of registers allowing security and privileged policy to be defined for internal SRAM memories. The security and privileged policy can be individually configured per each 512-byte block of SRAM.

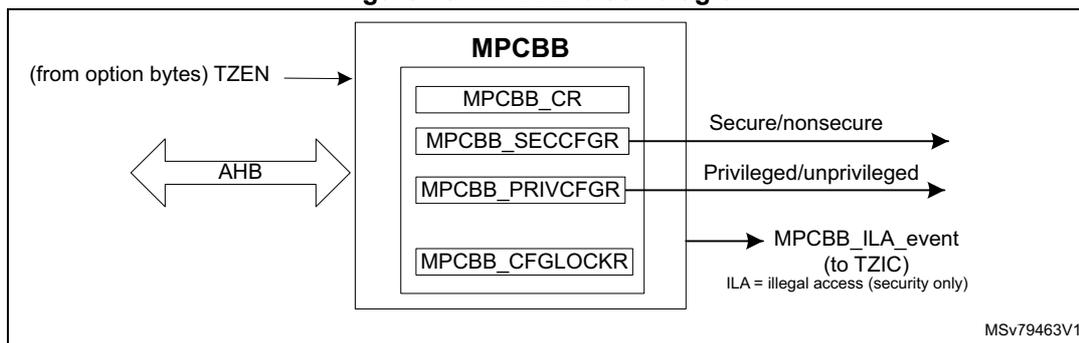

Figure 16. MPCBB block diagram

Figure 16. MPCBB block diagram. The diagram shows the MPCBB block connected to an AHB bus. The MPCBB block contains four registers: MPCBB_CR, MPCBB_SECCFGR, MPCBB_PRIVCFGR, and MPCBB_CFGLOCKR. The MPCBB_CR register is connected to the AHB bus. The MPCBB_SECCFGR register outputs 'Secure/nonsecure' signals. The MPCBB_PRIVCFGR register outputs 'Privileged/unprivileged' signals. The MPCBB_CFGLOCKR register outputs an 'MPCBB_ILA_event (to TZIC)' signal. A note indicates that ILA = illegal access (security only). The diagram also shows a 'TZEN' signal from option bytes entering the MPCBB block. The reference 'MSv79463V1' is shown in the bottom right corner.
Figure 16. MPCBB block diagram. The diagram shows the MPCBB block connected to an AHB bus. The MPCBB block contains four registers: MPCBB_CR, MPCBB_SECCFGR, MPCBB_PRIVCFGR, and MPCBB_CFGLOCKR. The MPCBB_CR register is connected to the AHB bus. The MPCBB_SECCFGR register outputs 'Secure/nonsecure' signals. The MPCBB_PRIVCFGR register outputs 'Privileged/unprivileged' signals. The MPCBB_CFGLOCKR register outputs an 'MPCBB_ILA_event (to TZIC)' signal. A note indicates that ILA = illegal access (security only). The diagram also shows a 'TZEN' signal from option bytes entering the MPCBB block. The reference 'MSv79463V1' is shown in the bottom right corner.

In order to set up the MPCBB, the following actions are needed (for example at boot time):

An MPCBB superblock is made of 32 consecutive blocks. For each superblock, a secure application can lock all related secure/privileged bits using the correct bits in GTZC1_MPCBBx_CFGLOCK. This lock remains active until the next system reset.

Note: The block size is 512 bytes. The superblock size is 512 x 32 = 16 Kbytes.

5.4.5 TrustZone illegal access controller (TZIC)

The TZIC concentrates all illegal access source events. It is used only when the system is TrustZone enabled (TZEN = 1).

TZIC allows the trace (flag) of which event triggered the secure illegal access interrupt. Register masks (GTZC1_TZIC_IERx) are available to filter unwanted events. On an unmasked illegal event, TZIC generates the GTZC1_IRQn interrupt to the NVIC.

For each illegal event source, a status flag and a clear bit exist (respectively within GTZC1_TZIC_SRx and GTZC1_TZIC_FCRx). The reset value of mask registers (GTZC1_TZIC_IERx) is such that all events are masked.

5.4.6 Power-on/reset state

The power-on and reset state of the TZSC clear to 0 all bits of GTZC1_TZSC_SECCFGRn and GTZC1_TZSC_PRIVCFGRn, meaning that all securable peripherals are respectively set to nonsecure and unprivileged.

For internal SRAMs, all GTZC1_MPCBBx_SECCFGRn and GTZC1_MPCBBx_PRIVCFGRn are set:

For external memories MPCWMx:

Secure boot code can then program the security settings, making components secure or not as needed.

5.5 GTZC interrupts

TZIC is a secure peripheral, which systematically generates an illegal access event when accessed by a nonsecure access. The MPCBB and TZSC are TrustZone-aware peripherals, meaning that secure and nonsecure registers coexist within the peripheral.

Table 31. GTZC interrupt request

Interrupt acronymInterrupt eventEvent flagEnable control bitInterrupt clear methodExit Sleep modeExit Stop modeExit Standby mode
GTZCIllegal accessAll flags in GTZC1_TZIC_SRxAll bits in GTZC1_TZIC_IERxWrite 1 in the bit GTZC1_TZIC_FCRxYesNoNo

5.6 GTZC1 TZSC registers

All registers can only be accessed in words (32-bit).

5.6.1 GTZC1 TZSC control register (GTZC1_TZSC_CR)

Address offset: 0x000

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
1514131211109876543210
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.LCK
rs

Bits 31:1 Reserved, must be kept at reset value.

Bit 0 LCK : Lock the configuration of GTZC1_TZSC_SECCFGRn and GTZC1_TZSC_PRIVCFGRn registers until next reset

This bit is cleared by default and once set, it can not be reset until system reset.

0: Configuration of all GTZC1_TZSC_SECCFGRn and GTZC1_TZSC_PRIVCFGRn registers not locked

1: Configuration of all GTZC1_TZSC_SECCFGRn and GTZC1_TZSC_PRIVCFGRn registers locked

5.6.2 GTZC1 TZSC secure configuration register 1 (GTZC1_TZSC_SECCFGR1)

Address offset: 0x010

Reset value: 0x0000 0000

Write-secure access only.

This register can be written only by secure privileged transaction when the corresponding GTZC1_TZSC_PRIVCFGR1 register bit is set to 1. If a given PRIV bit is not set, the equivalent SEC bit can be written by secure unprivileged transaction.

Read accesses are authorized for any type of transactions, secure or not, privileged or not.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.LPTIM2
SEC
Res.
1514131211109876543210
Res.Res.I2C1SE
C
Res.Res.Res.Res.Res.IWDGS
EC
Res.Res.Res.Res.Res.Res.TIM2S
EC
r/wr/wr/w

Bits 31:18 Reserved, must be kept at reset value.

Bit 17 LPTIM2SEC : Secure access mode for LPTIM2

0: Nonsecure

1: Secure

Bits 16:14 Reserved, must be kept at reset value.

Bit 13 I2C1SEC : Secure access mode for I2C1

0: Nonsecure

1: Secure

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 IWDGSEC : Secure access mode for IWDG

0: Nonsecure

1: Secure

Bits 6:1 Reserved, must be kept at reset value.

Bit 0 TIM2SEC : Secure access mode for TIM2

0: Nonsecure

1: Secure

5.6.3 GTZC1 TZSC secure configuration register 2 (GTZC1_TZSC_SECCFGR2)

Address offset: 0x014

Reset value: 0x0000 0000

Write-secure access only.

This register can be written only by a secure privileged transaction when the corresponding GTZC1_TZSC_PRIVCFGR2 register bit is set to 1. If a given PRIV is not set, the equivalent SEC bit can be written by a secure unprivileged transaction.

Read accesses are authorized for any type of transactions, secure or not, privileged or not.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.ADC4SECRes.Res.Res.Res.LPTIM1SECI2C3SECLPUART1SECSPI3SEC
rwrwrwrwrw
1514131211109876543210
USB1SECRes.Res.Res.Res.Res.Res.Res.SAI1SECTIM17SECTIM16SECRes.USART1SECRes.Res.Res.
rwrwrwrwrw

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 ADC4SEC : Secure access mode for ADC4

0: Nonsecure

1: Secure

Bits 23:20 Reserved, must be kept at reset value.

Bit 19 LPTIM1SEC : Secure access mode for LPTIM1

0: Nonsecure

1: Secure

Bit 18 I2C3SEC : Secure access mode for I2C3

0: Nonsecure

1: Secure

Bit 17 LPUART1SEC : Secure access mode for LPUART1

0: Nonsecure

1: Secure

Bit 16 SPI3SEC : Secure access mode for SPI3

0: Nonsecure

1: Secure

Bit 15 USB1SEC : Secure access mode for USB1

0: Nonsecure

1: Secure

Note: This bit is reserved on STM32WBA23xx devices

Bits 14:8 Reserved, must be kept at reset value.

Bit 7 SAI1SEC : Secure access mode for SAI1

0: Nonsecure

1: Secure

Bit 6 TIM17SEC : Secure access mode for TIM17

0: Nonsecure

1: Secure

Bit 5 TIM16SEC : Secure access mode for TIM16

0: Nonsecure

1: Secure

Bit 4 Reserved, must be kept at reset value.

Bit 3 USART1SEC : Secure access mode for USART1

0: Nonsecure

1: Secure

Bits 2:0 Reserved, must be kept at reset value.

5.6.4 GTZC1 TZSC secure configuration register 3 (GTZC1_TZSC_SECCFGR3)

Address offset: 0x018

Reset value: 0x0000 0000

Write-secure access only.

This register can be written only by a secure privileged transaction when the corresponding GTZC1_TZSC_PRIVCFGR3 register bit is set to 1. If a given PRIV is not set, the equivalent SEC bit can be written by a secure unprivileged transaction.

Read accesses are authorized for any type of transactions, secure or not, privileged or not.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.PTACONVSECRADIOSECRAMCFGSECRes.XSPI1SECRes.Res.Res.PKASEC
rwrwrwrwrw
1514131211109876543210
Res.Res.RNGSECHASHSECAESSECRes.Res.Res.Res.ICACHESECRes.Res.CRCSECRes.Res.Res.
rwrwrwrwrw

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 PTACONVSEC : Secure access mode for PTACONV

0: Nonsecure

1: Secure

Bit 23 RADIOSEC : Secure access mode for 2.4 GHz RADIO

0: Nonsecure

1: Secure

Bit 22 RAMCFGSEC : Secure access mode for RAMCFG

0: Nonsecure

1: Secure

Bit 21 Reserved, must be kept at reset value.

Bit 20 XSPI1SEC : Secure access mode for XSPI1 and DLYBXS1

0: Nonsecure

1: Secure

Bits 19:17 Reserved, must be kept at reset value.

Bit 16 PKASEC : Secure access mode for PKA

0: Nonsecure

1: Secure

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 RNGSEC : Secure access mode for RNG

0: Nonsecure

1: Secure

Bit 12 HASHSEC : Secure access mode for HASH

0: Nonsecure

1: Secure

Bit 11 AESSEC : Secure access mode for AES

0: Nonsecure

1: Secure

Bits 10:7 Reserved, must be kept at reset value.

Bit 6 ICACHE_REGSEC : Secure access mode for ICACHE registers

0: Nonsecure

1: Secure

Bits 5:4 Reserved, must be kept at reset value.

Bit 3 CRCSEC : Secure access mode for CRC

0: Nonsecure

1: Secure

Bits 2:0 Reserved, must be kept at reset value.

5.6.5 GTZC1 TZSC privilege configuration register 1 (GTZC1_TZSC_PRIVCFGR1)

Address offset: 0x020

Reset value: 0x0000 0000

Write-privileged access only.

This register can be written only by a secure privileged transaction when the corresponding GTZC1_TZSC_SECCFGR1 register bit is set to 1. If a given SEC bit is not set, the equivalent PRIV bit can be written by a nonsecure privileged transaction.

Read accesses are authorized for any type of transactions, secure or not, privileged or not.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.LPTIM2
PRIV
Res.
1514131211109876543210
Res.Res.I2C1PR
IV
Res.Res.Res.Res.Res.IWDGP
RIV
Res.Res.Res.Res.Res.Res.TIM2P
RIV
rwrwrw

Bits 31:18 Reserved, must be kept at reset value.

Bit 17 LPTIM2PRIV : Privileged access mode for LPTIM2

0: Unprivileged

1: Privileged

Bits 16:14 Reserved, must be kept at reset value.

Bit 13 I2C1PRIV : Privileged access mode for I2C1

0: Unprivileged

1: Privileged

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 IWDGPRIV : Privileged access mode for IWDG

0: Unprivileged

1: Privileged

Bits 6:1 Reserved, must be kept at reset value.

Bit 0 TIM2PRIV : Privileged access mode for TIM2

0: Unprivileged

1: Privileged

5.6.6 GTZC1 TZSC privilege configuration register 2 (GTZC1_TZSC_PRIVCFGR2)

Address offset: 0x024

Reset value: 0x0000 0000

Write-privileged access only.

This register can be written only by a secure privileged transaction when the corresponding GTZC1_TZSC_SECCFGR2 register bit is set to 1. If a given SEC bit is not set, the equivalent PRIV bit can be written by a nonsecure privileged transaction.

Read accesses are authorized for any type of transactions, secure or not, privileged or not.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.ADC4P
RIV
Res.Res.Res.Res.LPTIM1
PRIV
I2C3PR
IV
LPUART
1PRIV
SPI3P
RIV
1514131211109876543210
USBPR
IV
Res.Res.Res.Res.Res.Res.Res.SAI1P
RIV
TIM17P
RIV
TIM16P
RIV
Res.USART
1PRIV
Res.Res.Res.
rwrwrwrwrw

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 ADC4PRIV : Privileged access mode for ADC4

0: Unprivileged

1: Privileged

Bits 23:20 Reserved, must be kept at reset value.

Bit 19 LPTIM1PRIV : Privileged access mode for LPTIM1

0: Unprivileged

1: Privileged

Bit 18 I2C3PRIV : Privileged access mode for I2C3

0: Unprivileged

1: Privileged

Bit 17 LPUART1PRIV : Privileged access mode for LPUART1

0: Unprivileged

1: Privileged

Bit 16 SPI3PRIV : Privileged access mode for SPI3

0: Unprivileged

1: Privileged

Bit 15 USBPRIV : Privileged access mode for USB

0: Unprivileged

1: Privileged

Note: This bit is reserved on STM32WBA23xx devices

Bits 14:8 Reserved, must be kept at reset value.

Bit 7 SAI1PRIV : Privileged access mode for SAI1

0: Unprivileged

1: Privileged

Bit 6 TIM17PRIV : Privileged access mode for TIM17

0: Unprivileged

1: Privileged

Bit 5 TIM16PRIV : Privileged access mode for TIM16

0: Unprivileged

1: Privileged

Bit 4 Reserved, must be kept at reset value.

Bit 3 USART1PRIV : Privileged access mode for USART1

0: Unprivileged

1: Privileged

Bits 2:0 Reserved, must be kept at reset value.

5.6.7 GTZC1 TZSC privilege configuration register 3 (GTZC1_TZSC_PRIVCFGR3)

Address offset: 0x028

Reset value: 0x0000 0000

Write-privileged access only.

This register can be written only by a secure privileged transaction when the corresponding GTZC1_TZSC_SECCFGR3 register bit is set to 1. If a given SEC bit is not set, the equivalent PRIV bit can be written by a nonsecure privileged transaction.

Read accesses are authorized for any type of transactions, secure or not, privileged or not.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.PTACONVPRIVRADIOPRIVRAMCFGPRIVRes.XSPI1PRIVRes.Res.Res.PKAPRIV
rwrwrwrwrw
1514131211109876543210
Res.Res.RNGPRIVHASHPRIVAESPRIVRes.Res.Res.Res.ICACHE_REG_PRIVRes.Res.CRCPRIVRes.Res.Res.
rwrwrwrwrw

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 PTACONVPRIV : Privileged access mode for PTACONV

0: Unprivileged

1: Privileged

Bit 23 RADIOPRIV : Privileged access mode for 2.4 GHz RADIO

0: Unprivileged

1: Privileged

Bit 22 RAMCFGPRIV : Privileged access mode for RAMCFG

0: Unprivileged

1: Privileged

Bit 21 Reserved, must be kept at reset value.

Bit 20 XSPI1PRIV : Privileged access mode for XSPI1 and DLYBXS1

0: Unprivileged

1: Privileged

Bits 19:17 Reserved, must be kept at reset value.

Bit 16 PKAPRIV : Privileged access mode for PKA

0: Unprivileged

1: Privileged

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 RNGPRIV : Privileged access mode for RNG

0: Unprivileged

1: Privileged

Bit 12 HASHPRIV : Privileged access mode for HASH

0: Unprivileged

1: Privileged

Bit 11 AESPRIV : Privileged access mode for AES

0: Unprivileged

1: Privileged

Bits 10:7 Reserved, must be kept at reset value.

Bit 6 ICACHE_REGPRIV : Privileged access mode for ICACHE registers

0: Unprivileged

1: Privileged

Bits 5:4 Reserved, must be kept at reset value.

Bit 3 CRCPRIV : Privileged access mode for CRC

0: Unprivileged

1: Privileged

Bits 2:0 Reserved, must be kept at reset value.

5.6.8 GTZC1 TZSC memory 1 subregion z watermark configuration register (GTZC1_TZSC_MPCWM1zCFGR) (z = A to B)

Address offset: Block A: 0x040

Address offset: Block B: 0x048

Reset value: 0x0000 0000

Secure privilege access only.

Note: Some registers are only available on some devices in the STM32WBA2. Refer to the device datasheet for availability of its associated memory region.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
1514131211109876543210
Res.Res.Res.Res.Res.Res.PRIVSECRes.Res.Res.Res.Res.Res.SRLOCKSREN
rwrwrsrw

Bits 31:10 Reserved, must be kept at reset value.

Bit 9 PRIV : Privileged sub-region z

This bit is taken into account only if SREN is set.

0: Privileged and unprivileged accesses are granted in sub-region z.

1: Only privileged accesses are granted in sub-region z.

Bit 8 SEC : Secure sub-region z

This bit is taken into account only if SREN is set.

0: Only nonsecure data accesses are granted to sub-region z.

1: Only secure data accesses are granted to sub-region z.

Bits 7:2 Reserved, must be kept at reset value.

Bit 1 SRLOCK : Sub-region z lock

This bit, once set, can be cleared only by a system reset.

0: GTZC1_TZSC_MPCWM1zCFGR, GTZC1_TZSC_MPCWM1zR can be written.

1: Writes to GTZC1_TZSC_MPCWM1zCFGR, GTZC1_TZSC_MPCWM1zR are ignored.

Bit 0 SREN : Sub-region z enable

0: Sub-region z is disabled. Access control applies to any access between this sub-region start- and end-addresses.

1: Sub-region z is enabled. Access control defined in GTZC1_TZSC_MPCWM1zCFGR applies to any access between this sub-region start- and end-addresses, defined in GTZC1_TZSC_MPCWM1zR.

5.6.9 GTZC1 TZSC memory 1 subregion A watermark register (GTZC1_TZSC_MPCWM1AR)

Address offset: 0x044

Reset value: 0x0000 0000

Secure privilege access only.

When SUBA_START + SUBA_LENGTH is higher than the maximum size allowed for the memory, a saturation of SUBA_LENGTH is applied automatically.

When an overlap of subregion A and B exists, secure/privileged attributes of both sub-regions apply on the common section (see Section 5.4.3 ).

Note: Some registers are only available on some devices in the STM32WBA2 series. Refer to the device datasheet for availability of its associated memory region.

31302928272625242322212019181716
Res.Res.Res.Res.SUBA_LENGTH[11:0]
rwrwrwrwrwrwrwrwrwrwrwrw
1514131211109876543210
Res.Res.Res.Res.Res.SUBA_START[10:0]
rwrwrwrwrwrwrwrwrwrwrw

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:16 SUBA_LENGTH[11:0] : Length of sub-region A

This field defines the length of the sub-region A, to be multiplied by the granularity defined in Table 27 .

When SUBA_START + SUBA_LENGTH is higher than the maximum size allowed for the memory, a saturation of SUBA_LENGTH is applied automatically.

If SUBA_LENGTH = 0, the sub-region A is disabled. (SREN bit in GTZC1_TZSC_MPCMW1ACFGR is cleared).

Bits 15:11 Reserved, must be kept at reset value.

Bits 10:0 SUBA_START[10:0] : Start of sub-region A

This field defines the address offset of the sub-region A, to be multiplied by the granularity defined in Table 27 , versus the start of memory bank base address.

5.6.10 GTZC1 TZSC memory 1 subregion B watermark register (GTZC1_TZSC_MPCWM1BR)

Address offset: 0x04C

Reset value: 0x0000 0000

Secure privilege access only.

When SUBB_START + SUBB_LENGTH is higher than the maximum size allowed for the memory, a saturation of SUBB_LENGTH is applied automatically.

When an overlap of subregion A and B exists, secure/privileged attributes of both subregions apply on the common section (see Section 5.4.3 ).

Note: Some registers are only available on some devices in the STM32WBA2. Refer to the device datasheet for availability of its associated memory region.

31302928272625242322212019181716
Res.Res.Res.Res.SUBB_LENGTH[11:0]
rwrwrwrwrwrwrwrwrwrwrwrw
1514131211109876543210
Res.Res.Res.Res.Res.SUBB_START[10:0]
rwrwrwrwrwrwrwrwrwrwrw

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:16 SUBB_LENGTH[11:0] : Length of sub-region B

This field defines the length of the sub-region B, to be multiplied by the granularity defined in Table 27 .

When SUBB_START + SUBB_LENGTH is higher than the maximum size allowed for the memory, a saturation of SUBB_LENGTH is applied automatically.

If SUBB_LENGTH = 0, the sub-region B is disabled. (SREN bit in GTZC1_TZSC_MPCMW1BCFGR is cleared).

Bits 15:11 Reserved, must be kept at reset value.

Bits 10:0 SUBB_START[10:0] : Start of sub-region B

This field defines the address offset of the sub-region B, to be multiplied by the granularity defined in Table 27 , versus the start of the of memory bank base address.

5.6.11 GTZC1 TZSC register map

Table 32. GTZC1 TZSC register map and reset values

OffsetRegister313029282726252423222120191817161514131211109876543210
0x000GTZC1_TZSC_CRResResResResResResResResResResResResResResResResResResResResResResResResResResResResResResRes0 LCK
Reset value
0x004 to 0x00CReserved
0x010GTZC1_TZSC_SECCFGGR1ResResResResResResResResResResResResResResLPTIM2SECResResResResI2C1SECResResResResResResResResResResRes0 TIM2SEC
Reset value000
0x014GTZC1_TZSC_SECCFGGR2ResResResResResResResResResResResResResResResResResResResResResResResResResResResResResResRes0
Reset value0
0x018GTZC1_TZSC_SECCFGGR3ResResResResResResResResResResResResResResResResResResResResResResResResResResResResResResRes0
Reset value0
0x01CReservedReserved
0x020GTZC1_TZSC_PRIVCFGGR1ResResResResResResResResResResResResResResLPTIM2PRIVResResResResI2C1PRIVResResResResResResResResResResRes0 TIM2PRIV
Reset value000
0x024GTZC1_TZSC_PRIVCFGGR2ResResResResResResResResResResResResResResResResResResResResResResResResResResResResResResRes0
Reset value0
0x028GTZC1_TZSC_PRIVCFGGR3ResResResResResResResResResResResResResResResResResResResResResResResResResResResResResResRes0
Reset value0
0x02C to 0x03CReserved
0x040GTZC1_TZSC_MPCWM1ACFGGRResResResResResResResResResResResResResResResResResResResResResResResPRIVSECResResResResRes0 SRLOCK
Reset value000 SREN
0x044GTZC1_TZSC_MPCWM1ARResResResResResResResResResResResResResResResResResResResResResResResSUBA_LENGTH[11:0]
Reset value00000000
0x048GTZC1_TZSC_MPCWM1BCFGGRResResResResResResResResResResResResResResResResResResResResResResResPRIVSECResResResResRes0 SRLOCK
Reset value000 SREN

Table 32. GTZC1 TZSC register map and reset values (continued)

OffsetRegister313029282726252423222120191817161514131211109876543210
0x04CGTZC1_TZSC_MPCWM1BRResResResResSUBB_LENGTH[11:0]ResResResResResSUBB_START[10:0]
Reset value00000000000000000000000

Refer to Table 26: GTZC sub-blocks address offset .

5.7 GTZC1 TZIC registers

All registers can only be accessed in words (32 bits).

5.7.1 GTZC1 TZIC interrupt enable register 1 (GTZC1_TZIC_IER1)

Address offset: 0x000

Reset value: 0x0000 0000

Secure privileged access only.

This register is used to enable interrupt of illegal access.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.LPTIM2IERes.
rw
1514131211109876543210
Res.Res.I2C1IERes.Res.Res.Res.Res.IWDGIERes.Res.Res.Res.Res.Res.TIM2IE
rwrwrw

Bits 31:18 Reserved, must be kept at reset value.

Bit 17 LPTIM2IE : Illegal access interrupt enable for LPTIM2

0: Interrupt disabled

1: Interrupt enabled

Bits 16:14 Reserved, must be kept at reset value.

Bit 13 I2C1IE : Illegal access interrupt enable for I2C1

0: Interrupt disabled

1: Interrupt enabled

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 IWDGIE : Illegal access interrupt enable for IWDG

0: Interrupt disabled

1: Interrupt enabled

Bits 6:1 Reserved, must be kept at reset value.

Bit 0 TIM2IE : Illegal access interrupt enable for TIM2

0: Interrupt disabled

1: Interrupt enabled

5.7.2 GTZC1 TZIC interrupt enable register 2 (GTZC1_TZIC_IER2)

Address offset: 0x004

Reset value: 0x0000 0000

Secure privileged access only.

This register is used to enable interrupt of illegal access.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.ADC4IERes.Res.Res.Res.LPTIM1IEI2C3IELPUART1IESPI3IE
rwrwrwrwrw
1514131211109876543210
USBIERes.Res.Res.Res.Res.Res.Res.SAI1IETIM17IETIM16IERes.USART1IERes.Res.Res.
rwrwrwrwrw

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 ADC4IE : Illegal access interrupt enable for ADC4

0: Interrupt disabled

1: Interrupt enabled

Bits 23:20 Reserved, must be kept at reset value.

Bit 19 LPTIM1IE : Illegal access interrupt enable for LPTIM1

0: Interrupt disabled

1: Interrupt enabled

Bit 18 I2C3IE : Illegal access interrupt enable for I2C3

0: Interrupt disabled

1: Interrupt enabled

Bit 17 LPUART1IE : Illegal access interrupt enable for LPUART1

0: Interrupt disabled

1: Interrupt enabled

Bit 16 SPI3IE : Illegal access interrupt enable for SPI3

0: Interrupt disabled

1: Interrupt enabled

Bit 15 USBIE : Illegal access interrupt enable for USB

0: Interrupt disabled

1: Interrupt enabled

Note: This bit is reserved on STM32WBA23xx devices

Bits 14:8 Reserved, must be kept at reset value.

Bit 7 SAI1IE : Illegal access interrupt enable for SAI1

0: Interrupt disabled

1: Interrupt enabled

Bit 6 TIM17IE : Illegal access interrupt enable for TIM17

0: Interrupt disabled

1: Interrupt enabled

Bit 5 TIM16IE : Illegal access interrupt enable for TIM16

0: Interrupt disabled

1: Interrupt enabled

Bit 4 Reserved, must be kept at reset value.

Bit 3 USART1IE : Illegal access interrupt enable for USART1

0: Interrupt disabled

1: Interrupt enabled

Bits 2:0 Reserved, must be kept at reset value.

5.7.3 GTZC1 TZIC interrupt enable register 3 (GTZC1_TZIC_IER3)

Address offset: 0x008

Reset value: 0x0000 0000

Secure privileged access only.

This register is used to enable interrupt of illegal access.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.PTACONVIERADIOIERAMCFGIERes.XSPI1IERes.Res.Res.PKAIE
rwrwrwrwrw
1514131211109876543210
Res.Res.RNGIEHASH1IEAES1IERes.Res.Res.Res.ICACHE_REGIERes.Res.CRCIERes.Res.Res.
rwrwrwrwrw

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 PTACONVIE : Illegal access interrupt enable for PTACONV

0: Interrupt disabled

1: Interrupt enabled

Bit 23 RADIOIE : Illegal access interrupt enable for 2.4 GHz RADIO

0: Interrupt disabled

1: Interrupt enabled

Bit 22 RAMCFGIE : Illegal access interrupt enable for RAMCFG

0: Interrupt disabled

1: Interrupt enabled

Bit 21 Reserved, must be kept at reset value.

Bit 20 XSPI1IE : Illegal access interrupt enable for XSPI1 and DLYBXS1

0: Interrupt disabled

1: Interrupt enabled

Bits 19:17 Reserved, must be kept at reset value.

Bit 16 PKAIE : Illegal access interrupt enable for PKA

0: Interrupt disabled

1: Interrupt enabled

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 RNGIE : Illegal access interrupt enable for RNG

0: Interrupt disabled

1: Interrupt enabled

Bit 12 HASHIE : Illegal access interrupt enable for HASH

0: Interrupt disabled

1: Interrupt enabled

Bit 11 AESIE : Illegal access interrupt enable for AES

0: Interrupt disabled

1: Interrupt enabled

Bits 10:7 Reserved, must be kept at reset value.

Bit 6 ICACHE_REGIE : Illegal access interrupt enable for ICACHE registers

0: Interrupt disabled

1: Interrupt enabled

Bits 5:4 Reserved, must be kept at reset value.

Bit 3 CRCIE : Illegal access interrupt enable for CRC

0: Interrupt disabled

1: Interrupt enabled

Bits 2:0 Reserved, must be kept at reset value.

5.7.4 GTZC1 TZIC interrupt enable register 4 (GTZC1_TZIC_IER4)

Address offset: 0x00C

Reset value: 0x0000 0000

Secure privileged access only.

This register is used to enable interrupt of illegal access.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.MPCB
B2IE
SRAM2
IE
MPCB
B1IE
SRAM1
IE
Res.MPCW
M1ME
M1IE
Res.Res.Res.Res.
rwrwrwrwrw
1514131211109876543210
TZICIETZSCIEEXTIIERes.RCCIEPWRIETAMPI
E
RTCIESYSCF
GIE
Res.Res.Res.OTFDE
C1IE
FLASH
_REGIE
FLASHIELPDMA
1IE
rwrwrwrwrwrwrwrwrwrwrwrw

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 MPCBB2IE : Illegal access interrupt enable for MPCBB2

0: Interrupt disabled

1: Interrupt enabled

Bit 24 SRAM2IE : Illegal access interrupt enable for SRAM2

0: Interrupt disabled

1: Interrupt enabled

  1. Bit 23 MPCBB1IE : Illegal access interrupt enable for MPCBB1
    0: Interrupt disabled
    1: Interrupt enabled
  2. Bit 22 SRAM1IE : Illegal access interrupt enable for SRAM1
    0: Interrupt disabled
    1: Interrupt enabled
  3. Bit 21 Reserved, must be kept at reset value.
  4. Bit 20 MPCWM1MEM1IE : Illegal access interrupt enable for MPCWM1 protected external memory on XSPI1
    0: Interrupt disabled
    1: Interrupt enabled
  5. Bits 19:16 Reserved, must be kept at reset value.
  6. Bit 15 TZICIE : Illegal access interrupt enable for GTZC1 TZIC
    0: Interrupt disabled
    1: Interrupt enabled
  7. Bit 14 TZSCIE : Illegal access interrupt enable for GTZC1 TZSC
    0: Interrupt disabled
    1: Interrupt enabled
  8. Bit 13 EXTIIE : Illegal access interrupt enable for EXTI
    0: Interrupt disabled
    1: Interrupt enabled
  9. Bit 12 Reserved, must be kept at reset value.
  10. Bit 11 RCCIE : Illegal access interrupt enable for RCC
    0: Interrupt disabled
    1: Interrupt enabled
  11. Bit 10 PWRIE : Illegal access interrupt enable for PWR
    0: Interrupt disabled
    1: Interrupt enabled
  12. Bit 9 TAMPIE : Illegal access interrupt enable for TAMP
    0: Interrupt disabled
    1: Interrupt enabled
  13. Bit 8 RTCIE : Illegal access interrupt enable for RTC
    0: Interrupt disabled
    1: Interrupt enabled
  14. Bit 7 SYSCFGIE : Illegal access interrupt enable for SYSCFG
    0: Interrupt disabled
    1: Interrupt enabled
  15. Bits 6:4 Reserved, must be kept at reset value.
  16. Bit 3 OTFDEC1IE : Illegal access interrupt enable for OTFDEC1
    0: Interrupt disabled
    1: Interrupt enabled
  17. Bit 2 FLASH_REGIE : Illegal access interrupt enable for FLASH interface
    0: Interrupt disabled
    1: Interrupt enabled

Bit 1 FLASHIE : Illegal access interrupt enable for FLASH memory

0: Interrupt disabled

1: Interrupt enabled

Bit 0 LPDMA1IE : Illegal access interrupt enable for LPDMA1

0: Interrupt disabled

1: Interrupt enabled

5.7.5 GTZC1 TZIC status register 1 (GTZC1_TZIC_SR1)

Address offset: 0x010

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.LPTIM2
F
Res.
1514131211109876543210
Res.Res.I2C1FRes.Res.Res.Res.Res.IWDGFRes.Res.Res.Res.Res.Res.TIM2F
rrr

Bits 31:18 Reserved, must be kept at reset value.

Bit 17 LPTIM2F : Illegal access flag for LPTIM2

0: No illegal access event

1: Illegal access event

Bits 16:14 Reserved, must be kept at reset value.

Bit 13 I2C1F : Illegal access flag for I2C1

0: No illegal access event

1: Illegal access event

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 IWDGF : Illegal access flag for IWDG

0: No illegal access event

1: Illegal access event

Bits 6:1 Reserved, must be kept at reset value.

Bit 0 TIM2F : Illegal access flag for TIM2

0: No illegal access event

1: Illegal access event

5.7.6 GTZC1 TZIC status register 2 (GTZC1_TZIC_SR2)

Address offset: 0x014

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.ADC4FRes.Res.Res.Res.LPTIM1FI2C3FLPUART1FSPI3F
rrrrr
1514131211109876543210
USB1FRes.Res.Res.Res.Res.Res.Res.SAI1FTIM17FTIM16FRes.USART1FRes.Res.Res.
rrrrr

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 ADC4F : Illegal access flag for ADC4

0: No illegal access event

1: Illegal access event

Bits 23:20 Reserved, must be kept at reset value.

Bit 19 LPTIM1F : Illegal access flag for LPTIM1

0: No illegal access event

1: Illegal access event

Bit 18 I2C3F : Illegal access flag for I2C3

0: No illegal access event

1: Illegal access event

Bit 17 LPUART1F : Illegal access flag for LPUART1

0: No illegal access event

1: Illegal access event

Bit 16 SPI3F : Illegal access flag for SPI3

0: No illegal access event

1: Illegal access event

Bit 15 USB1F : Illegal access flag for USB1

0: No illegal access event

1: Illegal access event

Note: This bit is reserved on STM32WBA23xx devices

Bits 14:8 Reserved, must be kept at reset value.

Bit 7 SAI1F : Illegal access flag for SAI1

0: No illegal access event

1: Illegal access event

Bit 6 TIM17F : Illegal access flag for TIM17

0: No illegal access event

1: Illegal access event

Bit 5 TIM16F : Illegal access flag for TIM16

0: No illegal access event

1: Illegal access event

Bit 4 Reserved, must be kept at reset value.

Bit 3 USART1F : Illegal access flag for USART1

0: No illegal access event

1: Illegal access event

Bits 2:0 Reserved, must be kept at reset value.

5.7.7 GTZC1 TZIC status register 3 (GTZC1_TZIC_SR3)

Address offset: 0x018

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.PTACO
NVF
RADIO
F
RAMC
FGF
Res.XSPI1FRes.Res.Res.PKAF
rrrrr
1514131211109876543210
Res.Res.RNGFHASHFAESFRes.Res.Res.Res.ICACH
E_REG
F
Res.Res.CRCFRes.Res.Res.
rrrrr

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 PTACONVF : Illegal access flag for PTACONV

0: No illegal access event

1: Illegal access event

Bit 23 RADIOF : Illegal access flag for 2.4 GHz RADIO

0: No illegal access event

1: Illegal access event

Bit 22 RAMCFGF : Illegal access flag for RAMCFG

0: No illegal access event

1: Illegal access event

Bit 21 Reserved, must be kept at reset value.

Bit 20 XSPI1F : Illegal access flag for XSPI1 and DLYBXS1

0: No illegal access event

1: Illegal access event

Bits 19:17 Reserved, must be kept at reset value.

Bit 16 PKAF : Illegal access flag for PKA

0: No illegal access event

1: Illegal access event

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 RNGF : Illegal access flag for RNG

0: No illegal access event

1: Illegal access event

Bit 12 HASHF : Illegal access flag for HASH

0: No illegal access event

1: Illegal access event

Bit 11 AESF : Illegal access flag for AES

0: No illegal access event

1: Illegal access event

Bits 10:7 Reserved, must be kept at reset value.

Bit 6 ICACHE_REGF : Illegal access flag for ICACHE registers

0: No illegal access event

1: Illegal access event

Bits 5:4 Reserved, must be kept at reset value.

Bit 3 CRCF : Illegal access flag for CRC

0: No illegal access event

1: Illegal access event

Bits 2:0 Reserved, must be kept at reset value.

5.7.8 GTZC1 TZIC status register 4 (GTZC1_TZIC_SR4)

Address offset: 0x01C

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.MPCB
B2F
SRAM2
F
MPCB
B1F
SRAM1
F
Res.MPCW
M1ME
MF
Res.Res.Res.Res.
rrrrr
1514131211109876543210
TZICFTZSCFEXTIFRes.RCCFPWRFTAMPFRTCFSYSCF
GF
Res.Res.Res.OTFDE
C1F
FLASH
_REGF
FLASH
F
LPDMA
1F
rrrrrrrrrrrr

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 MPCBB2F : Illegal access flag for MPCBB2

0: No illegal access event

1: Illegal access event

Bit 24 SRAM2F : Illegal access flag for SRAM2

0: No illegal access event

1: Illegal access event

Bit 23 MPCBB1F : Illegal access flag for MPCBB1

0: No illegal access event

1: Illegal access event

Bit 22 SRAM1F : Illegal access flag for SRAM1

0: No illegal access event

1: Illegal access event

Bit 21 Reserved, must be kept at reset value.

Bit 20 MPCWM1MEMF : Illegal access flag for MPCWM1 protected external memory

0: No illegal access event

1: Illegal access event

Bits 19:16 Reserved, must be kept at reset value.

Bit 15 TZICF : Illegal access flag for GTZC1 TZIC

0: No illegal access event

1: Illegal access event

Bit 14 TZSCF : Illegal access flag for GTZC1 TZSC

0: No illegal access event

1: Illegal access event

Bit 13 EXTIF : Illegal access flag for EXTI

0: No illegal access event

1: Illegal access event

Bit 12 Reserved, must be kept at reset value.

Bit 11 RCCF : Illegal access flag for RCC

0: No illegal access event

1: Illegal access event

Bit 10 PWRF : Illegal access flag for PWR

0: No illegal access event

1: Illegal access event

Bit 9 TAMPF : Illegal access flag for TAMP

0: No illegal access event

1: Illegal access event

Bit 8 RTCF : Illegal access flag for RTC

0: No illegal access event

1: Illegal access event

Bit 7 SYSCFGF : Illegal access flag for SYSCFG

0: No illegal access event

1: Illegal access event

Bits 6:4 Reserved, must be kept at reset value.

Bit 3 OTFDEC1F : Illegal access flag for OTFDEC1

0: No illegal access event

1: Illegal access event

Bit 2 FLASH_REGF : Illegal access flag for FLASH interface

0: No illegal access event

1: Illegal access event

Bit 1 FLASHF : Illegal access flag for FLASH memory

0: No illegal access event

1: Illegal access event

Bit 0 LPDMA1F : Illegal access flag for LPDMA1

0: No illegal access event

1: Illegal access event

5.7.9 GTZC1 TZIC flag clear register 1 (GTZC1_TZIC_FCR1)

Address offset: 0x020

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.CLPTI
M2F
Res.
w
1514131211109876543210
Res.Res.CI2C1FRes.Res.Res.Res.Res.CIWDG
F
Res.Res.Res.Res.Res.Res.CTIM2
F
www

Bits 31:18 Reserved, must be kept at reset value.

Bit 17 CLPTIM2F : Clear the illegal access flag for LPTIM2

0: No action

1: Status flag cleared

Bits 16:14 Reserved, must be kept at reset value.

Bit 13 CI2C1F : Clear the illegal access flag for I2C1

0: No action

1: Status flag cleared

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 CIWDGF : Clear the illegal access flag for IWDG

0: No action

1: Status flag cleared

Bits 6:1 Reserved, must be kept at reset value.

Bit 0 CTIM2F : Clear the illegal access flag for TIM2

0: No action

1: Status flag cleared

5.7.10 GTZC1 TZIC flag clear register 2 (GTZC1_TZIC_FCR2)

Address offset: 0x024

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.CADC4
F
Res.Res.Res.Res.CLPTI
M1F
CI2C3FCLPUA
RT1F
CSPI3F
wwwww
1514131211109876543210
CUSBFRes.Res.Res.Res.Res.Res.Res.CSAI1FCTIM1
7F
CTIM1
6F
Res.CUSAR
T1F
Res.Res.Res.
wwwww

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 CADC4F : Clear the illegal access flag for ADC4

0: No action

1: Status flag cleared

Bits 23:20 Reserved, must be kept at reset value.

Bit 19 CLPTIM1F : Clear the illegal access flag for LPTIM1

0: No action

1: Status flag cleared

Bit 18 CI2C3F : Clear the illegal access flag for I2C3

0: No action

1: Status flag cleared

Bit 17 CLPUART1F : Clear the illegal access flag for LPUART1

0: No action

1: Status flag cleared

Bit 16 CSPI3F : Clear the illegal access flag for SPI3

0: No action

1: Status flag cleared

Bit 15 CUSBF : Clear the illegal access flag for USB

0: No action

1: Status flag cleared

Note: This bit is reserved on STM32WBA23xx devices

Bits 14:8 Reserved, must be kept at reset value.

Bit 7 CSA1F : Clear the illegal access flag for SAI1

0: No action

1: Status flag cleared

Bit 6 CTIM17F : Clear the illegal access flag for TIM17

0: No action

1: Status flag cleared

Bit 5 CTIM16F : Clear the illegal access flag for TIM16

0: No action

1: Status flag cleared

Bit 4 Reserved, must be kept at reset value.

Bit 3 CUSART1F : Clear the illegal access flag for USART1

0: No action

1: Status flag cleared

Bits 2:0 Reserved, must be kept at reset value.

5.7.11 GTZC1 TZIC flag clear register 3 (GTZC1_TZIC_FCR3)

Address offset: 0x028

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.CPTAC
ONVF
CRADI
OF
CRAM
CFGF
Res.CXSPI
1F
Res.Res.Res.CPKAF
wwwww
1514131211109876543210
Res.Res.CRNG
F
CHASH
F
CAESFRes.Res.Res.Res.CICAC
HE_RE
GF
Res.Res.CCRCFRes.Res.Res.
wwwww

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 CPTACONVF : Clear the illegal access flag for PTACONV

0: No action

1: Status flag cleared

Bit 23 CRADIOF : Clear the illegal access flag for 2.4 GHz RADIO

0: No action

1: Status flag cleared

Bit 22 CRAMCFGF : Clear the illegal access flag for RAMCFG

0: No action

1: Status flag cleared

Bit 21 Reserved, must be kept at reset value.

Bit 20 CXSPI1F : Clear the illegal access flag for XSPI1 and DLYBXS1

0: No action

1: Status flag cleared

Bits 19:17 Reserved, must be kept at reset value.

Bit 16 CPKAF : Clear the illegal access flag for PKA

0: No action

1: Status flag cleared

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 CRNGF : Clear the illegal access flag for RNG

0: No action

1: Status flag cleared

Bit 12 CHASHF : Clear the illegal access flag for HASH

0: No action

1: Status flag cleared

Bit 11 CAESF : Clear the illegal access flag for AES

0: No action

1: Status flag cleared

Bits 10:7 Reserved, must be kept at reset value.

Bit 6 CICACHE_REGF : Clear the illegal access flag for ICACHE registers

0: No action

1: Status flag cleared

Bits 5:4 Reserved, must be kept at reset value.

Bit 3 CCRCF : Clear the illegal access flag for CRC

0: No action

1: Status flag cleared

Bits 2:0 Reserved, must be kept at reset value.

5.7.12 GTZC1 TZIC flag clear register 4 (GTZC1_TZIC_FCR4)

Address offset: 0x02C

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.CMPC
BB2F
CSRA
M2F
CMPC
BB1F
CSRA
M1F
Res.CMPC
WM1M
EM1F
Res.Res.Res.Res.
wwwww

1514131211109876543210
CTZIC
F
CTZSC
F
CEXTI
F
Res.CRCCFCPWR
F
CTAMP
F
CRTCFCSYSC
FGF
Res.Res.Res.COTFD
EC1F
CFLAS
H_REG
F
CFLAS
HF
CLPDM
A1F
wwwwwwwwwwww

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 CMPCBB2F : Clear the illegal access flag for MPCBB2

0: No action

1: Status flag cleared

Bit 24 CSRAM2F : Clear the illegal access flag for SRAM2

0: No action

1: Status flag cleared

Bit 23 CMPCBB1F : Clear the illegal access flag for MPCBB1

0: No action

1: Status flag cleared

Bit 22 CSRAM1F : Clear the illegal access flag for SRAM1

0: No action

1: Status flag cleared

Bit 21 Reserved, must be kept at reset value.

Bit 20 CMPCWM1MEM1F : Clear the illegal access flag for MPCWM1 protected external memory

0: No action

1: Status flag cleared

Bits 19:16 Reserved, must be kept at reset value.

  1. Bit 15 CTZICF : Clear the illegal access flag for GTZC1 TZIC
    0: No action
    1: Status flag cleared
  2. Bit 14 CTZSCF : Clear the illegal access flag for GTZC1 TZSC
    0: No action
    1: Status flag cleared
  3. Bit 13 CEXTIF : Clear the illegal access flag for EXTI
    0: No action
    1: Status flag cleared
  4. Bit 12 Reserved, must be kept at reset value.
  5. Bit 11 CRCCF : Clear the illegal access flag for RCC
    0: No action
    1: Status flag cleared
  6. Bit 10 CPWRF : Clear the illegal access flag for PWR
    0: No action
    1: Status flag cleared
  7. Bit 9 CTAMPF : Clear the illegal access flag for TAMP
    0: No action
    1: Status flag cleared
  8. Bit 8 CRTCF : Clear the illegal access flag for RTC
    0: No action
    1: Status flag cleared
  9. Bit 7 CSYSCFGF : Clear the illegal access flag for SYSCFG
    0: No action
    1: Status flag cleared
  10. Bits 6:4 Reserved, must be kept at reset value.
  11. Bit 3 COTFDEC1F : Clear the illegal access flag for OTFDEC1
    0: No action
    1: Status flag cleared
  12. Bit 2 CFLASH_REGF : Clear the illegal access flag for FLASH interface
    0: No action
    1: Status flag cleared
  13. Bit 1 CFLASHF : Clear the illegal access flag for FLASH memory
    0: No action
    1: Status flag cleared
  14. Bit 0 CLPDMA1F : Clear the illegal access flag for LPDMA1
    0: No action
    1: Status flag cleared

5.7.13 GTZC1 TZIC register map

Table 33. GTZC1 TZIC register map and reset values

OffsetRegister313029282726252423222120191817161514131211109876543210
0x000GTZC1_TZIC_IER1Res.LPTIM2IERes.I2C1IERes.IWDGIERes.TIM2IE
0000
0x004GTZC1_TZIC_IER2Res.ADC4IERes.LPTIM1IEI2C3IELPUART1IESPI3IEUSBIERes.SAI1IETIM17IETIM16IERes.USART1IERes.
0000000000
0x008GTZC1_TZIC_IER3Res.PTACONVIERADIOIERAMCFGIERes.XSP1I1ERes.PKAIERes.RNGIEHASHIEAESIERes.ICACHE_REGIERes.CRCIERes.
0000000000
0x00CGTZC1_TZIC_IER4Res.MPCBB2IESRAM2IEMPCBB1IESRAM1IEMPCWM1MEMIERes.TZICIETZSCIEEXTIIERes.RCCIEPWRIETAMPIERTCIESYSCFGIERes.OTFDEC1IEFLASH_REGIEFLASHIELPDMA1IE
00000000000000000
0x010GTZC1_TZIC_SR1Res.LPTIM2FRes.I2C1FRes.IWDGFRes.TIM2F
0000
0x014GTZC1_TZIC_SR2Res.ADC4FRes.LPTIM1FI2C3FLPUART1FSPI3FUSBFRes.SAI1FTIM17FTIM16FRes.USART1FRes.
0000000000
0x018GTZC1_TZIC_SR3Res.PTACONVFRADIOFRAMCFGFRes.XSP1I1FRes.PKAFRes.RNGFHASHFAESFRes.ICACHE_REGFRes.CRCFRes.
0000000000
0x01CGTZC1_TZIC_SR4Res.MPCBB2FSRAM2FMPCBB1FSRAM1FMPCWM1MEM1FRes.TZICFTZSCFEXTIFRes.RCCFPWRFTAMPFRTCFSYSCFGFRes.OTFDEC1FFLASH_REGFFLASHFLPDMA1F
00000000000000000
0x020GTZC1_TZIC_FCR1Res.CLPTIM2FRes.CI2C1FRes.CIWDGFCWWDGFRes.CTIM2F
00000
0x024GTZC1_TZIC_FCR2Res.CADC4FRes.CLPTIM1FCI2C3FCLPUART1FCSPI3FCUSBFRes.CSAI1FCTIM17FCTIM16FRes.CUSART1FRes.
0000000000

Table 33. GTZC1 TZIC register map and reset values (continued)

OffsetRegister313029282726252423222120191817161514131211109876543210
0x028GTZC1_TZIC_FCR3Res.Res.Res.Res.Res.Res.Res.CPTACONVFCRADIOFCRAMCFGFRes.CXSP1FRes.Res.Res.CPKAFRes.Res.CRNGFCHASHFCAESFRes.Res.Res.Res.CICACHE_REGFRes.Res.CCRCFRes.Res.Res.
Reset value0000000000
0x02CGTZC1_TZIC_FCR4Res.Res.Res.Res.Res.Res.CMPCB2FCSRAM2FCMPCB1FCSRAM1FRes.CMPCWVM1MEMFRes.Res.Res.Res.CTZICFCTZSCFCEXTIFRes.CRCOFCPWRFCTAMPFCRTCFCSYSCFGFRes.Res.Res.OTFDEC1FCFLASH_REGFCFLASHFCLPDMATF
Reset value00000000000000000

Refer to Table 26: GTZC sub-blocks address offset .

5.8 GTZC1 MPCBB registers

All registers can only be accessed in words (32 bits).

5.8.1 GTZC1 MPCBB control register (GTZC1_MPCBBx_CR) (x = 1 to 2)

Address offset: 0x000

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
SRWILADISINVSECSTATERes.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
rwrw
1514131211109876543210
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.GLOCK
rs

Bit 31 SRWILADIS : secure read/write illegal access disable

This bit disables the detection of an illegal access when a secure read/write transaction access a nonsecure blocks of the block-based SRAMx (secure fetch on nonsecure block is always considered illegal).

0: enabled, secure read/write access not allowed on nonsecure SRAMx block

1: disabled, secure read/write access allowed on nonsecure SRAMx block

Bit 30 INVSECSTATE : SRAM clocks security state

This bit is used to define the internal SRAM clocks control in RCC as secure or not.

0: SRAM clock is secured if a secure area exists in the MPCBBx. It is nonsecure if there is no secure area.

1: SRAM clock is nonsecure even if a secure area exists in the MPCBBx, and secure even if no secure block is set in the MPCBBx.

Bits 29:1 Reserved, must be kept at reset value.

Bit 0 GLOCK : Lock the control register of the MPCBBx until next reset

This bit is cleared by default and once set, it can not be reset until system reset.

0: Control register not locked

1: Control register locked

5.8.2 GTZC1 MPCBB1 configuration lock register
(GTZC1_MPCBB1_CFGLOCK)

Address offset: 0x010

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
1514131211109876543210
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.SPLCK
3
SPLCK
2
SPLCK
1
SPLCK
0
rsrsrsrs

Bits 31:4 Reserved, must be kept at reset value.

Bits 3:0 SPLCK[3:0] : Security/privilege configuration lock super-block (n = 0 to 3)

This bit is set by software and can be cleared only by system reset.

0: GTZC1_MPCBB1_SECCFGGRn and GTZC1_MPCBB1_PRIVCFGGRn can be written.

1: Writes to GTZC1_MPCBB1_SECCFGGRn and GTZC1_MPCBB1_PRIVCFGGRn are ignored

5.8.3 GTZC1 MPCBB2 configuration lock register
(GTZC1_MPCBB2_CFGLOCK)

Address offset: 0x010

Reset value: 0x0000 0000

Secure privileged access only.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
1514131211109876543210
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.SPLCK
1
SPLCK
0
rsrs

Bits 31:2 Reserved, must be kept at reset value.

Bits 1:0 SPLCK[1:0] : Security/privilege configuration lock super-block (n = 0 to 1)

This bit is set by software and can be cleared only by system reset.

0: GTZC1_MPCBB2_SECCFGn and GTZC1_MPCBB2_PRIVCFGn can be written.

1: Writes to GTZC1_MPCBB2_SECCFGn and GTZC1_MPCBB2_PRIVCFGn are ignored

5.8.4 GTZC1 MPCBB security configuration for superblock n register (GTZC1_MPCBBx_SECCFGn) (x = 1 to 2)

Address offset: 0x100 + 0x04 * n, (n = 0 to 1)

Reset value: 0xFFFF FFFF

The given reset value is valid when TZEN = 1. The reset value is 0x0000 0000 when TZEN = 0.

Write access to this register is secure only. Any read is allowed.

31302928272625242322212019181716
SEC31SEC30SEC29SEC28SEC27SEC26SEC25SEC24SEC23SEC22SEC21SEC20SEC19SEC18SEC17SEC16
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

1514131211109876543210
SEC15SEC14SEC13SEC12SEC11SEC10SEC9SEC8SEC7SEC6SEC5SEC4SEC3SEC2SEC1SEC0
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

Bits 31:0 SEC[31:0] : Security configuration for block y (y = 0 to 31) in super block n

0: Nonsecure access only to block y, belonging to super-block n. Secure access is also allowed if the SRWILADIS bit is set in GTZC1_MPCBBx_CR.
1: Secure access only to block y, belonging to super-block n.

Unprivileged write to this bit is ignored if PRIVy bit is set in GTZC1_MPCBBx_PRIVCFGn.

Writes are ignored if SPLCKn bit is set in GTZC1_MPCBBx_CFGLOCK.

5.8.5 GTZC1 MPCBB1 security configuration for superblock n register (GTZC1_MPCBB1_SECCFGn)

Address offset: 0x100 + 0x04 * n, (n = 2 to 3)

Reset value: 0xFFFF FFFF

The given reset value is valid when TZEN = 1. The reset value is 0x0000 0000 when TZEN = 0.

Write access to this register is secure only. Any read is allowed.

31302928272625242322212019181716
SEC31SEC30SEC29SEC28SEC27SEC26SEC25SEC24SEC23SEC22SEC21SEC20SEC19SEC18SEC17SEC16
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

1514131211109876543210
SEC15SEC14SEC13SEC12SEC11SEC10SEC9SEC8SEC7SEC6SEC5SEC4SEC3SEC2SEC1SEC0
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

Bits 31:0 SEC[31:0] : Security configuration for block y (y = 0 to 31) in super block n

0: Nonsecure access only to block y, belonging to super-block n. Secure access is also allowed if the SRWILADIS bit is set in GTZC1_MPCBB1_CR.

1: Secure access only to block y, belonging to super-block n.

Unprivileged write to this bit is ignored if PRIVy bit is set in GTZC1_MPCBB1_PRIVCFGRn.

Writes are ignored if SPLCKn bit is set in GTZC1_MPCBB1_CFGLOCK.

5.8.6 GTZC1 MPCBB privileged configuration for superblock n register (GTZC1_MPCBBx_PRIVCFGRn) (x = 1 to 2)

Address offset: 0x200 + 0x04 * n, (n = 0 to 1)

Reset value: 0xFFFF FFFF

The given reset value is valid when TZEN = 1. The reset value is 0x0000 0000 when TZEN = 0.

Write access to this register is privileged only. Any read is allowed.

31302928272625242322212019181716
PRIV31PRIV30PRIV29PRIV28PRIV27PRIV26PRIV25PRIV24PRIV23PRIV22PRIV21PRIV20PRIV19PRIV18PRIV17PRIV16
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw
1514131211109876543210
PRIV15PRIV14PRIV13PRIV12PRIV11PRIV10PRIV9PRIV8PRIV7PRIV6PRIV5PRIV4PRIV3PRIV2PRIV1PRIV0
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

Bits 31:0 PRIV[31:0] : Privileged configuration for block y (y = 0 to 31), belonging to super-block n.

0: Privileged and unprivileged access to block y, belonging to super-block n

1: Only privileged access to block y, belonging to super-block n

Nonsecure write to this bit is ignored if SECy bit is set in GTZC1_MPCBBx_SECCFGRn.

Writes are ignored if SPLCKn bit is set in GTZC1_MPCBBx_CFGLOCK.

5.8.7 GTZC1 MPCBB1 privileged configuration for superblock n register (GTZC1_MPCBB1_PRIVCFGRn)

Address offset: 0x200 + 0x04 * n, (n = 2 to 3)

Reset value: 0xFFFF FFFF

The given reset value is valid when TZEN = 1. The reset value is 0x0000 0000 when TZEN = 0.

Write access to this register is privileged only. Any read is allowed.

31302928272625242322212019181716
PRIV31PRIV30PRIV29PRIV28PRIV27PRIV26PRIV25PRIV24PRIV23PRIV22PRIV21PRIV20PRIV19PRIV18PRIV17PRIV16
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw
1514131211109876543210
PRIV15PRIV14PRIV13PRIV12PRIV11PRIV10PRIV9PRIV8PRIV7PRIV6PRIV5PRIV4PRIV3PRIV2PRIV1PRIV0
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

Bits 31:0 PRIV[31:0] : Privileged configuration for block y (y = 0 to 31), belonging to super-block n.

0: Privileged and unprivileged access to block y, belonging to super-block n

1: Only privileged access to block y, belonging to super-block n

Nonsecure write to this bit is ignored if SECy bit is set in GTZC1_MPCBB1_SECCFGFn.

Writes are ignored if SPLCKn bit is set in GTZC1_MPCBB1_CFGLOCK.

5.8.8 GTZC1 MPCBB1 register map

Table 34. GTZC1 MPCBB1 register map and reset values

OffsetRegister313029282726252423222120191817161514131211109876543210
0x000GTZC1_MPCBB1_CRSRWILADISINVSECSTATERes.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.GLOCK
Reset value000
0x004 to 0x00CReserved
0x010GTZC1_MPCBB1_CFGLOCKRes.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.SPLCK3SPLCK2SPLCK1SPLCK0
Reset value0000
0x014 to 0x0FCReserved
0x100GTZC1_MPCBB1_SECCFG0SEC31SEC30SEC29SEC28SEC27SEC26SEC25SEC24SEC23SEC22SEC21SEC20SEC19SEC18SEC17SEC16SEC15SEC14SEC13SEC12SEC11SEC10SEC9SEC8SEC7SEC6SEC5SEC4SEC3SEC2SEC1SEC0
Reset value11111111111111111111111111111111
0x104GTZC1_MPCBB1_SECCFG1SEC31SEC30SEC29SEC28SEC27SEC26SEC25SEC24SEC23SEC22SEC21SEC20SEC19SEC18SEC17SEC16SEC15SEC14SEC13SEC12SEC11SEC10SEC9SEC8SEC7SEC6SEC5SEC4SEC3SEC2SEC1SEC0
Reset value11111111111111111111111111111111
0x108GTZC1_MPCBB1_SECCFG2SEC31SEC30SEC29SEC28SEC27SEC26SEC25SEC24SEC23SEC22SEC21SEC20SEC19SEC18SEC17SEC16SEC15SEC14SEC13SEC12SEC11SEC10SEC9SEC8SEC7SEC6SEC5SEC4SEC3SEC2SEC1SEC0
Reset value11111111111111111111111111111111
0x10CGTZC1_MPCBB1_SECCFG3SEC31SEC30SEC29SEC28SEC27SEC26SEC25SEC24SEC23SEC22SEC21SEC20SEC19SEC18SEC17SEC16SEC15SEC14SEC13SEC12SEC11SEC10SEC9SEC8SEC7SEC6SEC5SEC4SEC3SEC2SEC1SEC0
Reset value11111111111111111111111111111111
0x110 to 0x1FCReserved
0x200GTZC1_MPCBB1_PRIVCFG0PRIV31PRIV30PRIV29PRIV28PRIV27PRIV26PRIV25PRIV24PRIV23PRIV22PRIV21PRIV20PRIV19PRIV18PRIV17PRIV16PRIV15PRIV14PRIV13PRIV12PRIV11PRIV10PRIV9PRIV8PRIV7PRIV6PRIV5PRIV4PRIV3PRIV2PRIV1PRIV0
Reset value11111111111111111111111111111111
0x204GTZC1_MPCBB1_PRIVCFG1PRIV31PRIV30PRIV29PRIV28PRIV27PRIV26PRIV25PRIV24PRIV23PRIV22PRIV21PRIV20PRIV19PRIV18PRIV17PRIV16PRIV15PRIV14PRIV13PRIV12PRIV11PRIV10PRIV9PRIV8PRIV7PRIV6PRIV5PRIV4PRIV3PRIV2PRIV1PRIV0
Reset value11111111111111111111111111111111
0x208GTZC1_MPCBB1_PRIVCFG2PRIV31PRIV30PRIV29PRIV28PRIV27PRIV26PRIV25PRIV24PRIV23PRIV22PRIV21PRIV20PRIV19PRIV18PRIV17PRIV16PRIV15PRIV14PRIV13PRIV12PRIV11PRIV10PRIV9PRIV8PRIV7PRIV6PRIV5PRIV4PRIV3PRIV2PRIV1PRIV0
Reset value11111111111111111111111111111111
0x20CGTZC1_MPCBB1_PRIVCFG3PRIV31PRIV30PRIV29PRIV28PRIV27PRIV26PRIV25PRIV24PRIV23PRIV22PRIV21PRIV20PRIV19PRIV18PRIV17PRIV16PRIV15PRIV14PRIV13PRIV12PRIV11PRIV10PRIV9PRIV8PRIV7PRIV6PRIV5PRIV4PRIV3PRIV2PRIV1PRIV0
Reset value11111111111111111111111111111111
0x210 to 0x3FCReserved

Refer to Table 26: GTZC sub-blocks address offset .

Table 35. GTZC1 MPCBB2 register map and reset values

OffsetRegister313029282726252423222120191817161514131211109876543210
0x000GTZC1_MPCBB2_CRSRWLADISINVSESTATERes.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.GLOCK
Reset value000
0x004 to 0x00CReserved
0x010GTZC1_MPCBB2_CFGLOCKRes.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.SPLCK1
Reset value0
0x014 to 0x0FCReserved
0x100GTZC1_MPCBB2_SECCFG0SEC31SEC30SEC29SEC28SEC27SEC26SEC25SEC24SEC23SEC22SEC21SEC20SEC19SEC18SEC17SEC16SEC15SEC14SEC13SEC12SEC11SEC10SEC9SEC8SEC7SEC6SEC5SEC4SEC3SEC2SEC0
Reset value1111111111111111111111111111111
0x104GTZC1_MPCBB2_SECCFG1SEC31SEC30SEC29SEC28SEC27SEC26SEC25SEC24SEC23SEC22SEC21SEC20SEC19SEC18SEC17SEC16SEC15SEC14SEC13SEC12SEC11SEC10SEC9SEC8SEC7SEC6SEC5SEC4SEC3SEC2SEC0
Reset value1111111111111111111111111111111
0x108 to 0x1FCReserved
0x200GTZC1_MPCBB2_PRIVCFG0PRIV31PRIV30PRIV29PRIV28PRIV27PRIV26PRIV25PRIV24PRIV23PRIV22PRIV21PRIV20PRIV19PRIV18PRIV17PRIV16PRIV15PRIV14PRIV13PRIV12PRIV11PRIV10PRIV9PRIV8PRIV7PRIV6PRIV5PRIV4PRIV3PRIV2PRIV0
Reset value1111111111111111111111111111111
0x204GTZC1_MPCBB2_PRIVCFG1PRIV31PRIV30PRIV29PRIV28PRIV27PRIV26PRIV25PRIV24PRIV23PRIV22PRIV21PRIV20PRIV19PRIV18PRIV17PRIV16PRIV15PRIV14PRIV13PRIV12PRIV11PRIV10PRIV9PRIV8PRIV7PRIV6PRIV5PRIV4PRIV3PRIV2PRIV0
Reset value1111111111111111111111111111111
0x208 to 0x3FCReserved

Refer to Section 2.3: Memory organization for the register boundary addresses.
