23. Comparator (COMP)

23.1 COMP introduction

The device embeds two ultra-low-power comparators, COMP1 and COMP2. These comparators can be used for a variety of functions including:

• Wake-up from low-power mode triggered by an analog signal
• Analog signal conditioning
• Cycle-by-cycle current control loop when combined with a PWM output from a timer

23.2 COMP main features

• Each comparator has configurable plus and minus inputs used for flexible voltage selection:
- – Multiplexed I/O pins
- – Internal reference voltage and three sub-multiple values (1/4, 1/2, 3/4) provided by a scaler (buffered voltage divider)
• Programmable hysteresis
• Programmable speed/consumption
• Outputs that can be redirected to an I/O or to timer inputs for triggering break events for fast PWM shutdowns
• Comparator outputs with blanking source
• Comparators that can be combined as a window comparator
• Interrupt generation capability for each comparator with wake-up from Sleep and Stop 0 and Stop 1 modes (through the EXTI controller)

23.3 COMP implementation

Table 168. COMP instances on devices

COMP features ⁽¹⁾	COMP1	COMP2
STM32WBA62/63/65xx	X	X
STM32WBA64xx	X	-

1. X = supported.

23.4 COMP functional description

23.4.1 COMP block diagram

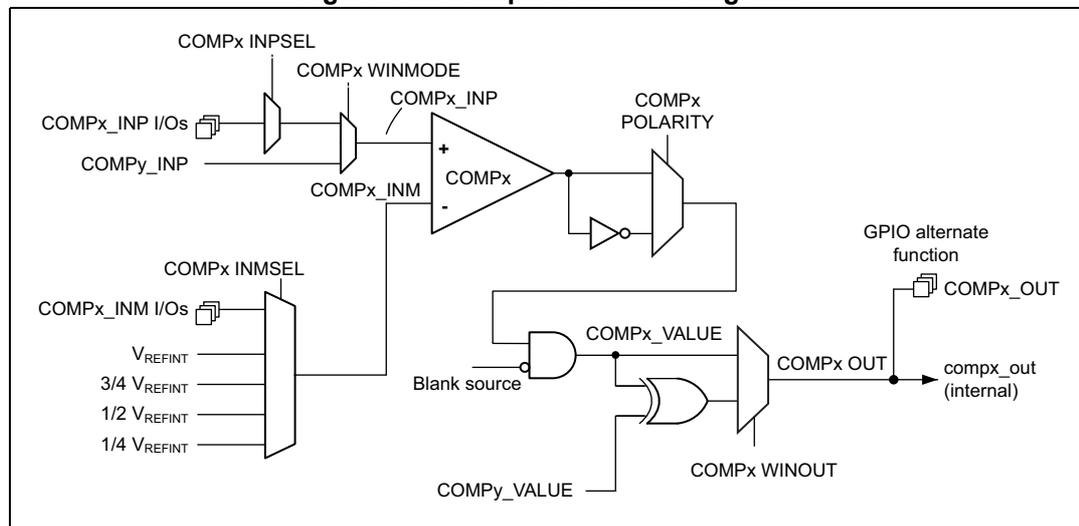

Figure 103. Comparator block diagrams

Figure 103. Comparator block diagrams. The diagram shows the internal architecture of a comparator (COMPx). It includes two input multiplexers: COMPx_INPSEL for the non-inverting input (+) and COMPx_INMSEL for the inverting input (-). The non-inverting input can be selected from COMPx_INP I/Os, COMPy_INP, or COMPx_INM. The inverting input can be selected from COMPx_INM I/Os, V_REFINT, 3/4 V_REFINT, 1/2 V_REFINT, or 1/4 V_REFINT. The comparator core (COMPx) compares these inputs. The output is controlled by COMPx_POLARITY and can be connected to a GPIO alternate function (COMPx_OUT) or internally (compx_out (internal)). The output is also influenced by COMPx_VALUE, a blank source, and COMPx_WINOUT. COMPx_WINMODE is also shown as an input to the comparator core.

23.4.2 COMP pins and internal signals

The I/Os used as comparators inputs must be configured in analog mode in the GPIOs registers.

The comparator output can be connected to the I/Os using the alternate function channel given in “Alternate function mapping” table in the datasheet.

The output can also be internally redirected to a variety of timer input for the following purposes:

• Emergency shut-down of PWM signals, using BKIN and BKIN2 inputs
• Cycle-by-cycle current control, using OCREF_CLR inputs
• Input capture for timing measures

The comparator output can be simultaneously redirected internally and externally.

Table 169. COMP1 non-inverting input assignment

COMP1_INP	COMP1_INPSEL[2:0]
COMP1_INP1	00
Open	01
Open	10
Open	11

Table 170. COMP1 inverting input assignment

COMP1_INM	COMP1_INMSEL[3:0]
$\frac{1}{4} V_{REFINT}$	0000
$\frac{1}{2} V_{REFINT}$	0001
$\frac{3}{4} V_{REFINT}$	0010
$V_{REFINT}$	0011
Open	0100
Open	0101
COMP1_INM1	0110
Open	0111
Open	1000
Reserved	> 1000

Table 171. COMP2 non-inverting input assignment

COMP2_INP	COMP2_INPSEL[1:0]
COMP2_INP1	00
Open	01
Open	10
Open	11

Table 172. COMP2 inverting input assignment

COMP2_INM	COMP2_INMSEL[3:0]
$\frac{1}{4} V_{REFINT}$	0000
$\frac{1}{2} V_{REFINT}$	0001
$\frac{3}{4} V_{REFINT}$	0010
$V_{REFINT}$	0011
Open	0100
Open	0101
COMP2_INM1	0110
Open	0111
Open	1000
Reserved	> 1000

Table 173. COMP1 output-blanking PWM assignment

PWM output	COMP1_BLANKSEL[4:0]
None (no blanking)	00000
tim1_oc5	xxxx1
tim2_oc3	xxx1x
tim3_oc3	xx1xx
Reserved	Others

Table 174. COMP2 output-blanking PWM assignment

PWM output	COMP2_BLANKSEL[4:0]
None (no blanking)	00000
tim3_oc4	xxxx1
Reserved	Others

23.4.3 Comparator LOCK mechanism

The comparators can be used for safety purposes, such as over-current or thermal protection. For applications having specific functional safety requirements, the comparator programming must not be altered in case of spurious register access or program counter corruption. For this purpose, the comparator control and status registers can be write-protected (read-only).

Once the programming is completed, the COMPxLOCK bit can be set to 1. This causes the whole COMPx_CSR register to become read-only, including the COMPxLOCK bit.

The write protection can be reset only by an MCU reset.

23.4.4 Window comparator

The purpose of the window comparator is to monitor if the analog voltage is within the range defined by the lower and upper thresholds.

The two embedded comparators can be used to create a window comparator. The monitored analog voltage is connected to the non-inverting (plus) inputs of the two comparators. The upper and lower threshold voltages are connected to the inverting (minus) inputs of the comparators.

Two non-inverting inputs can be connected internally by enabling the WINMODE bit to save one IO for other purposes.

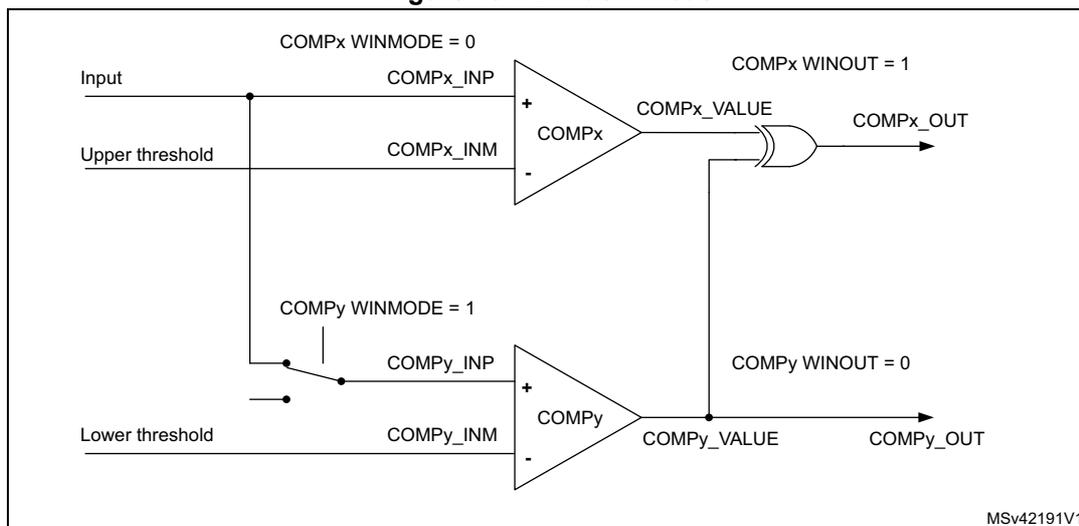

Figure 104. Window mode

The diagram illustrates the window mode configuration. It features two comparators, COMPx and COMPy, and an OR gate. COMPx is configured with WINMODE = 0. Its non-inverting input (COMPx_INP) is connected to a common 'Input' line, and its inverting input (COMPx_INM) is connected to an 'Upper threshold'. The output of COMPx is labeled COMPx_VALUE. COMPy is configured with WINMODE = 1. Its non-inverting input (COMPy_INP) is connected to the common 'Input' line through a switch, and its inverting input (COMPy_INM) is connected to a 'Lower threshold'. The output of COMPy is labeled COMPy_VALUE. The outputs COMPx_VALUE and COMPy_VALUE are connected to the inputs of an OR gate. The output of the OR gate is labeled COMPx_OUT. Labels indicate COMPx WINOUT = 1 and COMPy WINOUT = 0. The diagram is labeled MSv42191V1.

Schematic diagram of window mode showing two comparators, COMPx and COMPy, and an OR gate. COMPx has WINMODE = 0 and its output COMPx_VALUE is connected to one input of the OR gate. COMPy has WINMODE = 1 and its output COMPy_VALUE is connected to the other input of the OR gate. The OR gate output is COMPx_OUT. The diagram also shows input connections for upper and lower thresholds.

23.4.5 Hysteresis

The comparator includes a programmable hysteresis to avoid spurious output transitions in case of noisy signals. The hysteresis can be disabled if not needed (for instance when exiting a low-power mode), to be able to force the hysteresis value using external components.

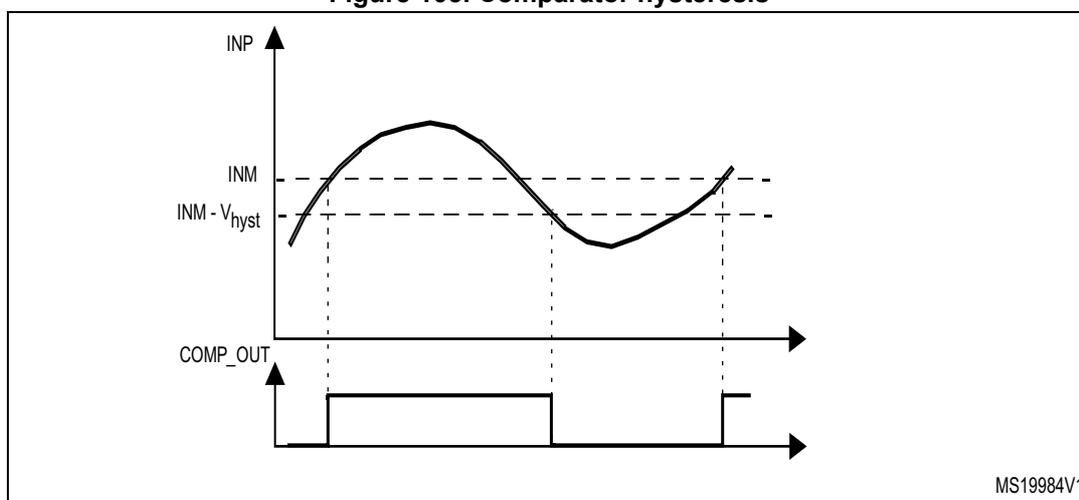

Figure 105. Comparator hysteresis

The figure shows a timing diagram for comparator hysteresis. The top graph plots the inverting input (INP) as a sinusoidal signal against a reference level (INM). The hysteresis is indicated by two dashed lines: INM - V _hystand INM + V _hyst. The bottom graph shows the output (COMP_OUT) as a digital signal. The output transitions from a low state to a high state when the input crosses the INM - V _hystlevel and returns to a low state when the input crosses the INM + V _hystlevel. The diagram is labeled MS19984V1.

Timing diagram showing a sinusoidal input signal (INP) crossing a reference level (INM) with hysteresis. The output (COMP_OUT) is a digital signal that switches state based on the input crossing the hysteresis levels (INM - Vhyst and INM + Vhyst).

23.4.6 Comparator output-blanking function

The blanking function prevents the current regulation to trip upon short current spikes at the beginning of the PWM period (typically the recovery current in power switches antiparallel diodes). This blanking function consists of a selection of a blanking window that is a timer output compare signal. The selection is done by software (refer to the comparator register description for possible blanking signals).

The complementary of the blanking signal is AND-ed with the comparator output to provide the wanted comparator output (see the example in Figure 106).

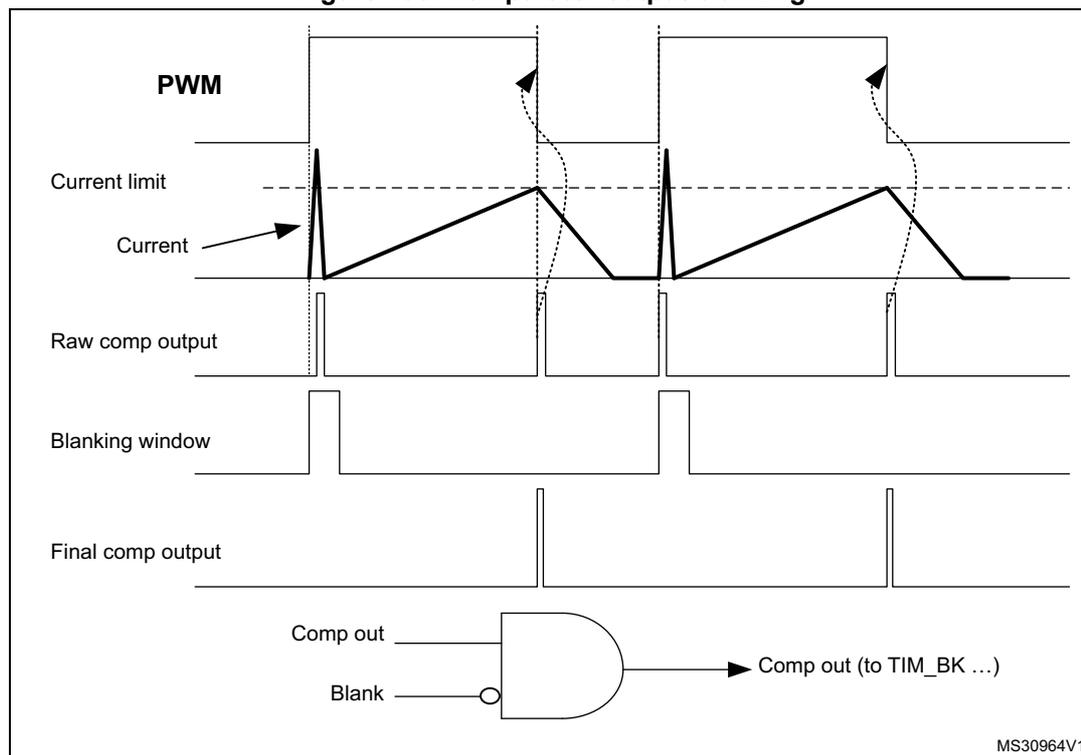

Figure 106. Comparator output blanking

The figure illustrates the comparator output blanking mechanism. The top part is a timing diagram showing the relationship between the PWM signal, the current limit, the actual current, the raw comparator output, the blanking window, and the final comparator output. The bottom part is a logic schematic showing that the final output is the AND of the raw output and the inverted blanking signal.

Timing diagram and logic schematic for comparator output blanking. The timing diagram shows five waveforms: PWM, Current limit, Current, Raw comp output, and Final comp output. The PWM signal is a square wave. The Current limit is a dashed horizontal line. The Current signal is a sawtooth-like waveform that rises linearly and then drops sharply. The Raw comp output is a pulse that goes high when the current exceeds the current limit. The Blanking window is a pulse that is high during the rising edge of the current. The Final comp output is a pulse that is the AND of the raw comp output and the inverse of the blanking window. The logic schematic shows a 2-input AND gate with inputs 'Comp out' and 'Blank' (inverted). The output is 'Comp out (to TIM_BK ...)'.

23.4.7 COMP power and speed modes

COMP1 and COMP2 power consumption versus propagation delay can be adjusted to have the optimum trade-off for a given application.

23.4.8 Scaler function

The scaler block provides the different voltage reference levels to the comparator inputs. This block is based on an amplifier driving a resistor bridge. The amplifier input is connected to the internal voltage reference. The amplifier and the resistor bridge are enabled by setting the INMSEL value in the COMP_CFGRx registers, to connect the corresponding inverting input to the scaler output.

When the divided voltage is not used, the resistor bridge and the amplifier are disabled to reduce power consumption. When the resistor bridge is disconnected, the 1/4 VREF_COMP, 1/2 VREF_COMP, and 3/4 VREF_COMP levels are equal to VREF_COMP.

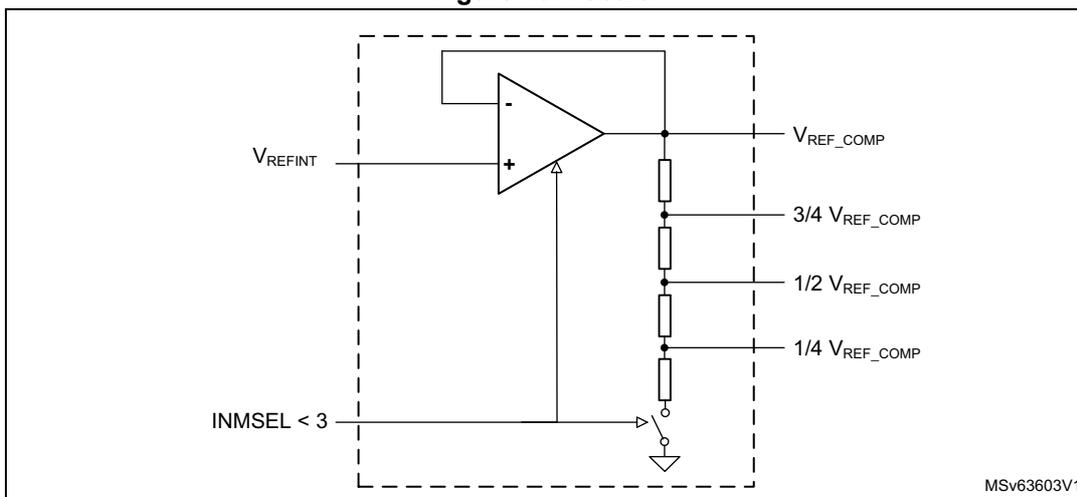

Figure 107. Scaler

Circuit diagram of the comparator scaler. A comparator is shown with its non-inverting input (+) connected to VREFINT and its inverting input (-) connected to the output. The output is connected to a resistor ladder that produces four reference voltage levels: VREF_COMP, 3/4 VREF_COMP, 1/2 VREF_COMP, and 1/4 VREF_COMP. A switch labeled INMSEL < 3 is connected to the bottom of the ladder and can be switched between ground and a higher reference level. The entire circuit is enclosed in a dashed box labeled MSV63603V1.

23.5 COMP low-power modes

Table 175. Comparator behavior in the low-power modes

Mode	Description
Sleep	No effect on the comparators. Comparator interrupts cause the device to exit Sleep mode.
Stop 0 and Stop 1	No effect on the comparators. Comparator interrupts cause the device to exit Stop mode.
Stop 2
Standby	COMP registers are powered down and must be reinitialized after exiting the mode.

23.6 COMP interrupts

The comparator outputs are internally connected to the extended interrupts and events controller (EXTI). Each comparator has its own EXTI line and can generate either interrupts or events. The same mechanism is used to exit the low-power modes.

Refer to Section 19: Extended interrupts and event controller (EXTI) for more details.

To enable the COMPx interrupt, follow this sequence:

1. Configure and enable the EXTI line corresponding to the COMPx output event in interrupt mode and select the rising, falling or both edges sensitivity.
2. Configure and enable the NVIC IRQ channel mapped to the corresponding EXTI lines.
3. Enable the COMPx.

Table 176. Interrupt control bits

Interrupt event	Event flag	Enable control bit	Exit Sleep mode	Exit Stop 0 and Stop 1 modes	Exit Stop 2 and Standby modes
COMP1 output	In EXTI	Through EXTI	Yes	Yes	No
COMP2 output	In EXTI	Through EXTI	Yes	Yes	No

23.7 COMP registers

23.7.1 COMP1 control and status register (COMP1_CSR)

Address offset: 0x00

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
LOCK	VALUE	Res.	Res.	Res.	Res.	Res.	BLANKSEL[4:0]					PWRMODE[1:0]	HYST[1:0]
rw	r						rw	rw	rw	rw	rw	rw	rw	rw	rw

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
POLARITY	WIN OUT	Res.	Res.	WIN MODE	INPSEL[2:0]			INMSEL[3:0]				Res.	Res.	Res.	EN
rw	rw			rw	rw	rw	rw	rw	rw	rw	rw				rw

Bit 31 LOCK : COMP1_CSR register lock

This bit is set by software and cleared by reset. It locks the whole content of COMP1_CSR.

0: COMP1_CSR read/write bits can be written by software.

1: COMP1_CSR bits can be read but not written by software.

Bit 30 VALUE : COMP1 output status

This bit is read-only. It reflects the level of the COMP1 output after the polarity selector and blanking (see Figure 106 ).

Bits 29:25 Reserved, must be kept at reset value.

Bits 24:20 BLANKSEL[4:0] : COMP1 blanking source selector

This field is controlled by software (if not locked) and selects the blanking source:

00000: None (no blanking)

xxx1: tim1_oc5

xxx1x: tim2_oc3

xx1xx: tim3_oc3

Others: Reserved

Bits 19:18 PWRMODE[1:0] : COMP1 power mode selector

Controlled by software (if not locked), selects the power consumption and, as a consequence, the speed of the COMP1.

00: High speed

01: Intermediate speed and power

10: Medium speed and power

11: Ultra-low-power

Bits 17:16 HYST[1:0] : COMP1 hysteresis selector
Controlled by software (if not locked), selects the COMP1 hysteresis.
00: None
01: Low hysteresis
10: Medium hysteresis
11: High hysteresis
Bit 15 POLARITY : COMP1 polarity selector
Controlled by software (if not locked), selects the COMP1 output polarity.
0: Noninverted
1: Inverted
Bit 14 WINOUT : COMP1 output selector
Controlled by software (if not locked), selects the COMP1 output.
0: COMP1_VALUE
1: COMP1_VALUE XOR COMP2_VALUE (required for window mode, see Figure 104 )
Bits 13:12 Reserved, must be kept at reset value.
Bit 11 WINMODE : COMP1 noninverting input selector for window mode
Controlled by software (if not locked), selects the signal for the COMP1_INP input of the COMP1.
0: Signal selected with INPSEL[1:0]
1: COMP2_INP signal of COMP2 (required for window mode, see Figure 104 )
Bits 10:8 INPSEL[2:0] : COMP1 signal selector for noninverting input
Controlled by software (if not locked), selects the signal for the noninverting input COMP1_INP (see Table 169 for the assignment).
Bits 7:4 INMSEL[3:0] : COMP1 signal selector for inverting input INM
Controlled by software (if not locked), selects the signal for the inverting input COMP1_INM (see Table 170 for the assignment).
Bits 3:1 Reserved, must be kept at reset value.
Bit 0 EN : COMP1 enable
Controlled by software (if not locked), enables COMP1.
0: COMP1 disabled
1: COMP1 enabled

23.7.2 COMP2 control and status register (COMP2_CSR)

Address offset: 0x04

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
LOCK	VALUE	Res.	Res.	Res.	Res.	Res.	BLANKSEL[4:0]					PWRMODE[1:0]	HYST[1:0]
rw	r						rw	rw	rw	rw	rw	rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
POLARITY	WIN OUT	Res.	Res.	WIN MODE	Res.	INPSEL[1:0]		INMSEL[3:0]				Res.	Res.	Res.	EN
rw	rw			rw		rw	rw	rw	rw	rw	rw				rw

Bit 31 LOCK : COMP2_CSR register lock

This bit is set by software and cleared by reset. It locks the whole content of COMP2_CSR.

0: COMP2_CSR read/write bits can be written by software.

1: COMP2_CSR bits can be read but not written by software.

Bit 30 VALUE : COMP2 output status

This bit is read-only. It reflects the level of the COMP2 output after the polarity selector and blanking (see Figure 106 ).

Bits 29:25 Reserved, must be kept at reset value.

Bits 24:20 BLANKSEL[4:0] : COMP2 blanking source selector

Controlled by software (if not locked) and selects the blanking source:

00000: None (no blanking)

xxxx1: tim3_oc4

Others: Reserved

Bits 19:18 PWRMODE[1:0] : COMP2 power mode selector

Controlled by software (if not locked), selects the power consumption and, as a consequence, the speed of the COMP2.

00: High speed

01: Intermediate speed and power

10: Medium speed and power

11: Ultra-low-power

Bits 17:16 HYST[1:0] : COMP2 hysteresis selector

Controlled by software (if not locked), selects the COMP2 hysteresis.

00: None

01: Low hysteresis

10: Medium hysteresis

11: High hysteresis

Bit 15 POLARITY : COMP2 polarity selector

Controlled by software (if not locked), selects the COMP2 output polarity.

0: Noninverted

1: Inverted

Bit 14 WINOUT : COMP2 output selector

Controlled by software (if not locked), selects the COMP2 output.

0: COMP2_VALUE

1: COMP1_VALUE XOR COMP2_VALUE (required for window mode, see Figure 104 )

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WINMODE : COMP2 noninverting input selector for window mode

Controlled by software (if not locked), selects the signal for the COMP2_INP input of the COMP2.

0: Signal selected with INPSEL[1:0]

1: COMP1_INP signal of COMP1 (required for window mode, see Figure 104 )

Bit 10 Reserved, must be kept at reset value.

Bits 9:8 INPSEL[1:0] : COMP2 signal selector for noninverting input

Controlled by software (if not locked), selects the signal for the noninverting input COMP2_INP (see Table 171 for the assignment).

Bits 7:4 INMSEL[3:0] : COMP2 signal selector for inverting input INM

Controlled by software (if not locked), selects the signal for the inverting input COMP2_INM (see Table 172 for the assignment).

Bits 3:1 Reserved, must be kept at reset value.

Bit 0 EN : COMP2 enable

Controlled by software (if not locked), enables COMP2.

0: COMP2 disabled

1: COMP2 enabled

23.7.3 COMP register map

Table 177. COMP register map and reset values

Offset	Register name	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
0x00	COMP1_CSR	LOCK	VALUE	Res.	Res.	Res.	Res.	Res.	BLANKSEL[4:0]					PWRMODE [1:0]	HYST [1:0]	POLARITY	WINOUT	Res.	Res.	WINMODE	INPSEL [2:0]	INPSEL[3:0]					Res.	Res.	Res.	EN
0x00	Reset value	0	0						0	0	0	0	0	0	0	0	0	0	0		0	0	0	0	0	0	0	0	0	0	0	0	0
0x04	COMP2_CSR ⁽¹⁾	LOCK	VALUE	Res.	Res.	Res.	Res.	Res.	BLANKSEL[4:0]					PWRMODE [1:0]	HYST [1:0]	POLARITY	WINOUT	Res.	Res.	WINMODE	INPSEL [1:0]	INPSEL[3:0]					Res.	Res.	Res.	EN
0x04	Reset value	0	0						0	0	0	0	0	0	0	0	0	0	0		0	0	0	0	0	0	0	0	0	0	0	0

1. Register only available on STM32WBA62/63/65xx devices.

Refer to Section 2.3: Memory organization for the register boundary addresses.
