12. Extended interrupt and event controller (EXTI)

The Extended interrupt and event controller (EXTI) manages the CPU and system wake-up through configurable and direct event inputs (lines). It provides wake-up requests to the power control, and generates an interrupt request to the CPU NVIC and events to the CPU event input. For the CPU an additional event generation block (EVG) is needed to generate the CPU event signal.

The EXTI wake-up requests allow the system to be woken up from Stop modes.

The interrupt request and event request generation can also be used in Run modes.

The EXTI also includes the EXTI I/O port mux.

12.1 EXTI main features

The EXTI main features are the following:

• System wake-up upon event on any input
• Wake-up flag and CPU interrupt generation for events not having a wake-up flag in their source peripheral
• Configurable events (from I/Os, peripherals not having an associated interrupt pending status bit, or peripherals generating a pulse)
- – Selectable active trigger edge
- – Independent rising and falling edge interrupt pending status bits
- – Individual interrupt and event generation mask, used for conditioning the CPU wake-up, interrupt and event generation
- – SW trigger possibility
• Direct events (from peripherals having an associated flag and interrupt pending status bit)
- – Fixed rising edge active trigger
- – No interrupt pending status bit in the EXTI
- – Individual interrupt and event generation mask for conditioning the CPU wake-up and event generation
- – No SW trigger possibility
• I/O port selector

12.2 EXTI block diagram

The EXTI consists of a register block accessed via an AHB interface, the event input trigger block, the masking block, and EXTI mux as shown in Figure 26 .

The register block contains all the EXTI registers.

The event input trigger block provides an event input edge trigger logic.

The masking block provides the event input distribution to the different wake-up, interrupt and event outputs, and the masking of these.

The EXTI mux provides the I/O port selection on to the EXTI event signal.

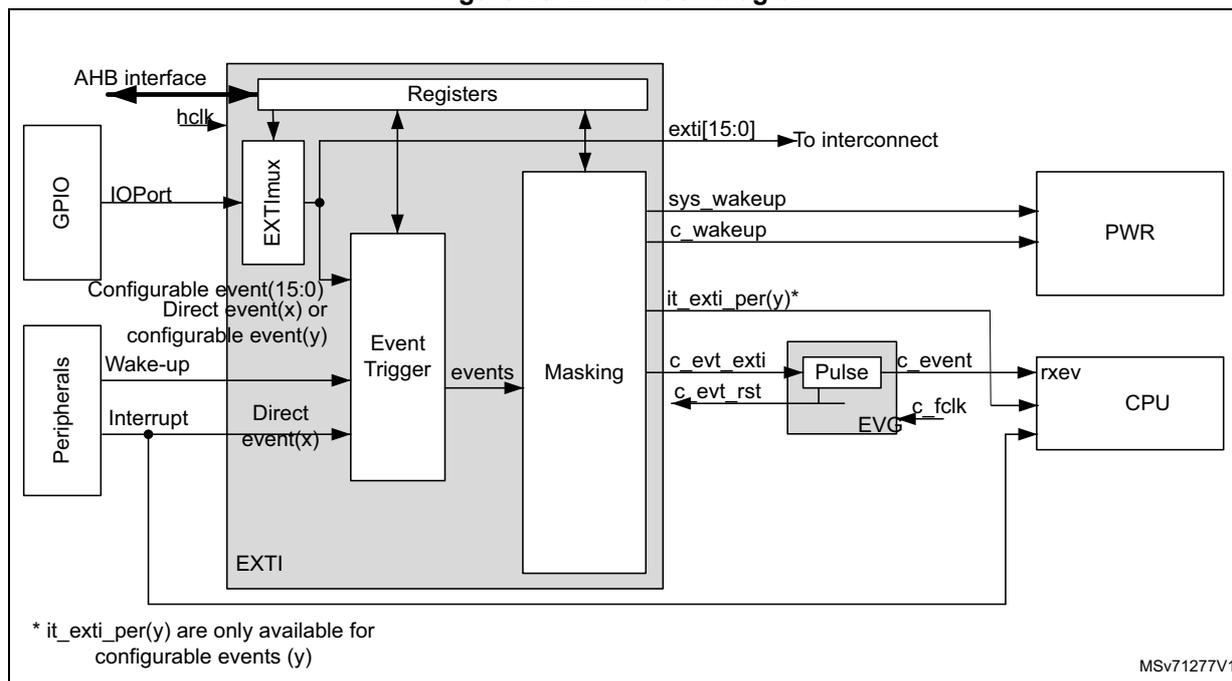

Figure 26. EXTI block diagram

EXTI block diagram showing internal components like Registers, EXTImux, Event Trigger, and Masking, and external connections to GPIO, Peripherals, PWR, and CPU. It includes signal names like hclk, IOPort, Configurable event(15:0), Direct event(x), Wake-up, Interrupt, exti[15:0], sys_wakeup, c_wakeup, it_exti_per(y)*, c_evt_exti, c_evt_rst, c_event, c_fclk, and rxev.

* it_exti_per(y) are only available for configurable events (y)

MSV71277V1

EXTI block diagram showing internal components like Registers, EXTImux, Event Trigger, and Masking, and external connections to GPIO, Peripherals, PWR, and CPU. It includes signal names like hclk, IOPort, Configurable event(15:0), Direct event(x), Wake-up, Interrupt, exti[15:0], sys_wakeup, c_wakeup, it_exti_per(y)*, c_evt_exti, c_evt_rst, c_event, c_fclk, and rxev.

Table 56. EXTI signal overview

Signal name	I/O	Description
AHB interface	I/O	EXTI register bus interface. When one event is configured to allow security, the AHB interface support secure accesses
hclk	I	AHB bus clock and EXTI system clock
Configurable event(y)	I	Asynchronous wake-up events from peripherals that do not have an associated interrupt and flag in the peripheral
Direct event(x)	I	Synchronous and asynchronous wake-up events from peripherals having an associated interrupt and flag in the peripheral
IOPort(n)	I	GPIO ports[15:0]
exti[15:0]	O	EXTI output port to trigger other IPs
it_exti_per (y)	O	Interrupts to the CPU associated with configurable event (y)
c_evt_exti	O	High-level sensitive event output for CPU synchronous to hclk
c_evt_rst	I	Asynchronous reset input to clear c_evt_exti
sys_wakeup	O	Asynchronous system wake-up request to PWR for ck_sys and hclk
c_wakeup	O	Wake-up request to PWR for CPU, synchronous to hclk

Table 57. EVG pin overview

Pin name	I/O	Description
c_fclk	I	CPU free-running clock
c_evt_in	I	High-level sensitive event input from EXTI, asynchronous to CPU clock

Table 57. EVG pin overview (continued)

Pin name	I/O	Description
c_event	O	Event pulse, synchronous to CPU clock
c_evt_rst	O	Event reset signal, synchronous to CPU clock

12.2.1 EXTI connections between peripherals and CPU

The peripherals able to generate wake-up or interrupt events when the system is in Stop mode are connected to the EXTI.

• Peripheral wake-up signals that generate a pulse or that do not have an interrupt status bits in the peripheral, are connected to an EXTI configurable line. For these events the EXTI provides a status pending bit which requires to be cleared. It is the EXTI interrupt associated with the status bit that interrupts the CPU.
• Peripheral interrupt and wake-up signals that have a status bit in the peripheral which requires to be cleared in the peripheral, are connected to an EXTI direct line. There is no status pending bit within the EXTI. The interrupt or wake-up is cleared by the CPU in the peripheral. It is the peripheral interrupt that interrupts the CPU directly.
• All GPIO ports input to the EXTI multiplexer, allowing to select a port to wake up the system via a configurable event.

The EXTI configurable event interrupts are connected to the NVIC(a) of the CPU.

The dedicated EXTI/EVG CPU event is connected to the CPU rxeiv input.

The EXTI CPU wake-up signals are connected to the PWR block, and are used to wake up the system and CPU sub-system bus clocks.

12.3 EXTI functional description

Depending on the EXTI line type and wake-up target(s), different logic implementations are used. The applicable features and control or status registers are:

• rising and falling edge event enable through
- – EXTI rising trigger selection register (EXTI_RTSR1)
- – EXTI falling trigger selection register 1 (EXTI_FTSR1)
• software trigger through EXTI software interrupt event register 1 (EXTI_SWIER1)
• pending interrupt flagging through
- – EXTI rising edge pending register 1 (EXTI_RPR1)
- – EXTI falling edge pending register 1 (EXTI_FPR1)
- – EXTI external interrupt selection register x (EXTI_EXTICRx)
• CPU wake-up and interrupt enable through
- – EXTI CPU wake-up with interrupt mask register (EXTI_IMR1)
- – EXTI CPU wake-up with interrupt mask register (EXTI_IMR2)
• CPU wake-up and event enable through
- – EXTI CPU wake-up with event mask register (EXTI_EM1)
- – EXTI CPU wake-up with event mask register (EXTI_EM2)

Table 58. EXTI event input configurations and register control

Event input type	Logic implementation	EXTI_RTSR1	EXTI_FTSR1	EXTI_SWIER1	EXTI_R/FPR1	EXTI_IMRx	EXTI_EMRx
Configurable	Configurable event input wake-up logic	x	x	x	x	x	x
Direct	Direct event input wake-up logic	-	-	-	-	x	x

12.3.1 EXTI configurable event input wake-up

Figure 27 is a detailed representation of the logic associated with configurable event inputs which wake up the CPU sub-system bus clocks and generated an EXTI pending flag and interrupt to the CPU and or a CPU wake-up event.

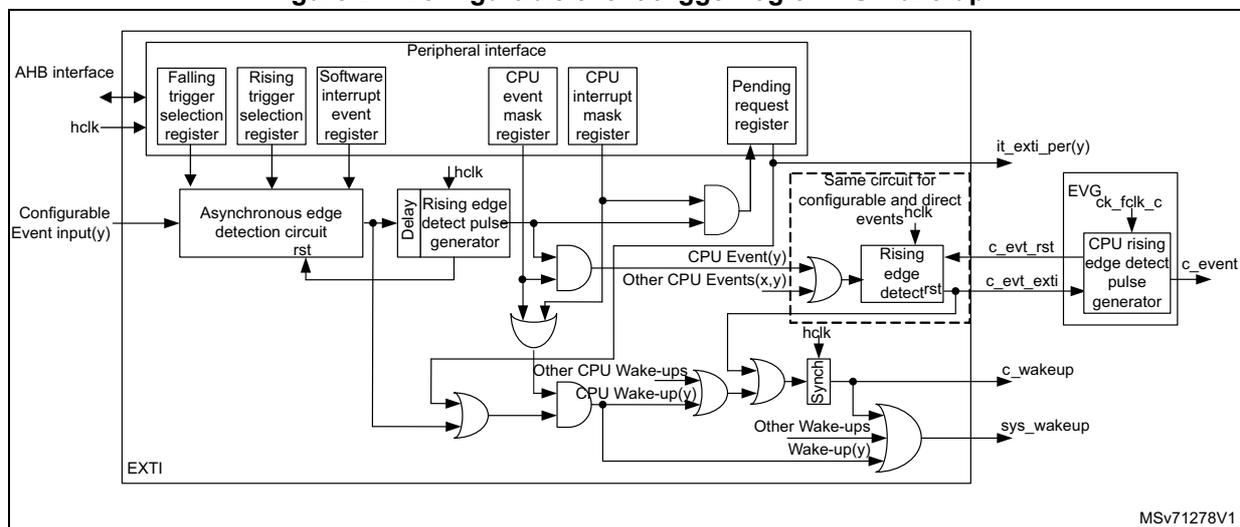

Figure 27. Configurable event trigger logic CPU wake-up

Figure 27: Configurable event trigger logic CPU wake-up. This block diagram illustrates the internal logic of the EXTI for configurable events. On the left, an 'AHB interface' and 'hclk' clock are shown. The 'Configurable Event input(y)' enters an 'Asynchronous edge detection circuit' which is reset by 'rst'. The output of this circuit goes to a 'Delay' block and a 'Rising edge detect pulse generator'. The 'Delay' block output goes to an OR gate for 'CPU Event(y)'. The 'Rising edge detect pulse generator' output goes to another OR gate for 'CPU Event(y)'. Both OR gates are also influenced by 'CPU event mask register' and 'CPU interrupt mask register'. The 'CPU Event(y)' OR gate output goes to a 'Pending request register' and an OR gate for 'Other CPU Events(x,y)'. The 'Other CPU Events(x,y)' OR gate output goes to a 'Rising edge detect pulse generator' (part of a 'Same circuit for configurable and direct events'). The output of this circuit goes to an 'EVG_ck_fclk_c' block, which generates 'c_event'. The 'c_event' signal also goes to a 'CPU rising edge detect pulse generator', which generates 'c_evt_rst' and 'c_evt_exti'. The 'c_evt_rst' signal goes to the 'Asynchronous edge detection circuit'. The 'c_evt_exti' signal goes to an OR gate for 'CPU Wake-up(y)'. The 'CPU Wake-up(y)' OR gate output goes to a 'Sync' block, which generates 'c_wakeup'. The 'c_wakeup' signal also goes to an OR gate for 'Other CPU Wake-ups'. The 'Other CPU Wake-ups' OR gate output goes to an OR gate for 'sys_wakeup'. The 'sys_wakeup' signal is the final output. The 'Pending request register' also has an output 'it_exti_per(y)'.

The software interrupt event register allows triggering configurable events by software, writing the corresponding register bit, irrespective of the edge selection setting.

The rising edge and falling edge selection registers allow to enable and select the configurable event active trigger edge or both edges.

The CPU has its dedicated interrupt mask register and a dedicated event mask registers. The enabled event allows generating an event on the CPU. All events for a CPU are OR-ed together into a single CPU event signal. The event pending registers (EXTI_RPR1 and EXTI_FPR1) is not set for an unmasked CPU event.

The configurable events have unique interrupt pending request registers, shared by the CPU. The pending register is only set for an unmasked interrupt. Each configurable event provides a common interrupt to the CPU. The configurable event interrupts need to be acknowledged by software in the EXTI_RPR1 and/or EXTI_FPR1 registers.

When a CPU interrupt or CPU event is enabled, the asynchronous edge detection circuit is reset by the clocked delay and rising edge detect pulse generator. This guarantees the wake-up of the EXTI hclk clock before the asynchronous edge detection circuit is reset.

Note: A detected configurable event interrupt pending request can be cleared by the CPU. The system cannot enter low-power modes as long as an interrupt pending request is active.

12.3.2 EXTI direct event input wake-up

Figure 28 is a detailed representation of the logic associated with direct event inputs waking up the system.

The direct events do not have an associated EXTI interrupt. The EXTI only wakes up the system and CPU sub-system clocks and may generate a CPU wake-up event. The peripheral synchronous interrupt, associated with the direct wake-up event wakes up the CPU.

The EXTI direct event is able to generate a CPU event. This CPU event wakes up the CPU. The CPU event may occur before the interrupt flag of the associated peripheral is set.

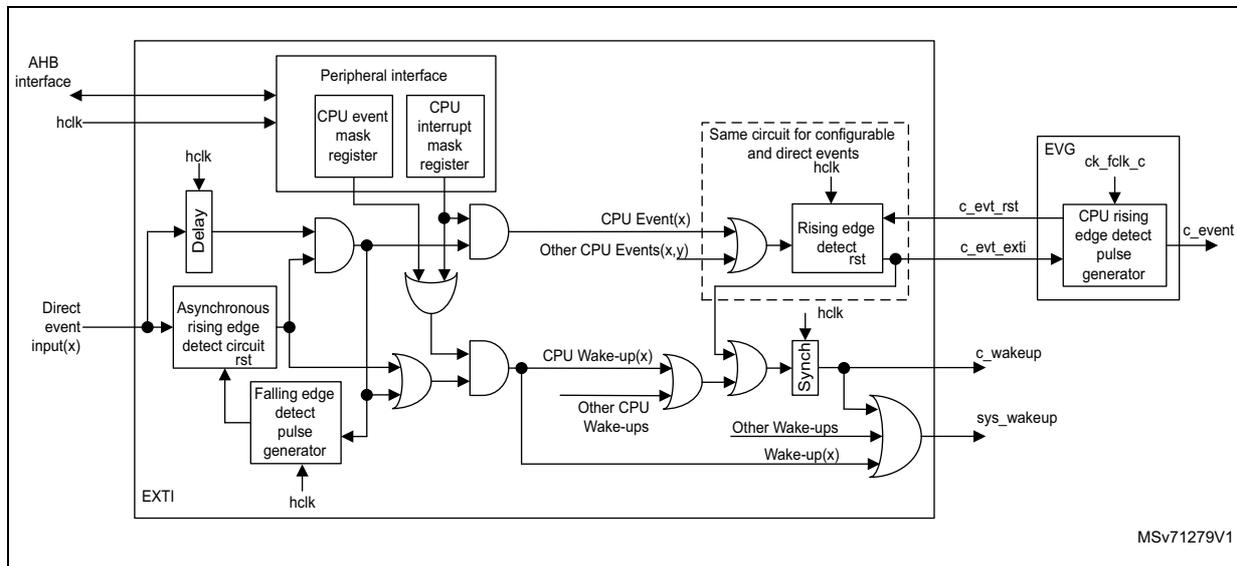

Figure 28. Direct event trigger logic CPU wake-up

Figure 28: Direct event trigger logic CPU wake-up. This block diagram illustrates the logic for generating CPU events and wake-ups from direct event inputs. On the left, 'Direct event input(x)' enters a block containing a 'Delay' element and an 'Asynchronous rising edge detect circuit rst'. The 'Delay' output goes to an OR gate. The 'Asynchronous rising edge detect circuit rst' output goes to a 'Falling edge detect pulse generator' (which also receives 'hclk') and to another OR gate. The 'Falling edge detect pulse generator' output goes to a third OR gate. These three OR gates are part of a larger logic structure. Above them, a 'Peripheral interface' block contains 'CPU event mask register' and 'CPU interrupt mask register', which receive 'hclk' and have an 'AHB interface'. The 'CPU event mask register' output goes to an AND gate, which also receives input from the 'Delay' block. The 'CPU interrupt mask register' output goes to an OR gate. The 'AND gate' output is labeled 'CPU Event(x)'. The 'OR gate' output is labeled 'Other CPU Events(x,y)'. Both 'CPU Event(x)' and 'Other CPU Events(x,y)' enter a dashed box labeled 'Same circuit for configurable and direct events hclk', which contains a 'Rising edge detect rst' block. This block also receives 'hclk' and outputs 'c_evt_rst' and 'c_evt_exti'. These signals enter an 'EVG' block containing 'ck_fclk_c' and a 'CPU rising edge detect pulse generator', which outputs 'c_event'. Below the 'Rising edge detect rst' block, the 'OR gate' output from the 'Falling edge detect pulse generator' goes to a 'Synch' block, which also receives 'hclk'. The 'Synch' block outputs 'c_wakeup'. This signal and 'Other CPU Wake-ups' (from 'CPU Wake-up(x)') enter an OR gate, which outputs 'sys_wakeup'. The diagram is labeled 'MSV71279V1' in the bottom right corner.

12.3.3 EXTI mux

The EXTI mux allows selecting GPIOs as interrupts and wake-up. The GPIOs are connected via 16 EXTI mux lines to the first 16 EXTI events as configurable event. The selection of GPIO port as EXTI mux output is controlled through the EXTI external interrupt selection register x (EXTI_EXTICRx) register.

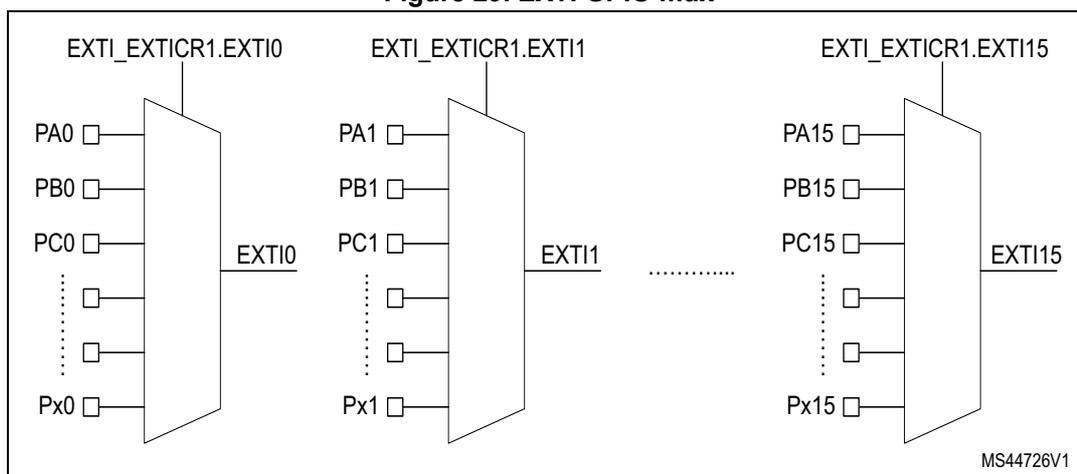

Figure 29. EXTI GPIO mux

Figure 29. EXTI GPIO mux diagram showing three multiplexers for EXTI lines 10, 11, and 15. Each multiplexer selects between multiple GPIO pins (PA, PB, PC, Px) to produce a single EXTI signal output. The diagram shows the internal structure of the EXTI GPIO multiplexers, with inputs labeled PA0, PB0, PC0, ..., Px0 for EXTI10; PA1, PB1, PC1, ..., Px1 for EXTI11; and PA15, PB15, PC15, ..., Px15 for EXTI15. The outputs are labeled EXTI10, EXTI11, and EXTI15. A reference code MS44726V1 is present in the bottom right corner.

The EXTI mux outputs are available as output signals from the EXTI, to trigger other functional blocks. The EXTI mux outputs are available independently of mask setting through the EXTI_IMR and EXTI_EMR registers.

The EXTI lines (event inputs) are connected as shown in the following table.

Table 59. EXTI line connections⁽¹⁾

EXTI line	Line source	Line type
0-15	GPIO	Configurable
16	PVD output	Configurable
17	COMP1 output	Configurable
18	COMP2 output	Configurable
19	V _DDUSBmonitoring	Configurable
20	ADC supply monitoring	Configurable
21	DAC supply monitoring	Configurable
22	LCD wake-up	Direct
23	I2C3 wake-up	Direct
24	LPTIM1 wake-up	Direct
25	LPTIM2 wake-up	Direct
26	LPTIM3 wake-up	Direct
27	LSE_CSS	Direct
28	RTC	Direct
29	TAMP	Direct
30	LPUART1 wake-up	Direct
31	LPUART2 wake-up	Direct
32	LPUART3 wake-up	Direct
33	I2C1 wake-up	Direct

Table 59. EXTI line connections⁽¹⁾(continued)

EXTI line	Line source	Line type
34	USART1 wake-up	Direct
35	USART2 wake-up	Direct
36	USB	Direct
37	WWDG	Direct

1. EXTI lines 18, 19, 22, 26, 32 and 36 are reserved on STM32U031xx devices.

12.4 EXTI functional behavior

The direct event inputs are enabled in the respective peripheral generating the wake-up event. The configurable events are enabled by enabling at least one of the trigger edges.

Once an event input is enabled, the generation of a CPU wake-up is conditioned by the CPU interrupt mask and CPU event mask.

Table 60. Masking functionality

CPU interrupt enable IMn of EXTI_IMR	CPU event enable EMn of EXTI_EMR	Configurable event inputs RPIFn of EXTI_RPR, FPIFn of EXTI_FPR	exti(n) interrupt ⁽¹⁾	CPU event	CPU wake-up
0	0	No	Masked	Masked	Masked
0	1	No	Masked	Yes	Yes
1	0	Status latched	Yes	Masked	Yes ⁽²⁾
1	1	Status latched	Yes	Yes	Yes

1. The single exti(n) interrupt goes to the CPU. If no interrupt is required for CPU, the exti(n) interrupt must be masked in the CPU NVIC.

2. Only if CPU interrupt is enabled in EXTI_IMR.IMn.

For configurable event inputs, upon an edge on the event input, an event request is generated if that edge (rising or/and falling) is enabled. When the associated CPU interrupt is unmasked, the corresponding RPIFn and/or FPIFn bit is/are set in the EXTI_RPR or/and EXTI_FPR register, waking up the CPU subsystem and activating CPU interrupt signal. The RPIFn and/or FPIFn pending bit is cleared by writing 1 to it, which clears the CPU interrupt request.

For direct event inputs, when enabled in the associated peripheral, an event request is generated on the rising edge only. There is no corresponding CPU pending bit in the EXTI. When the associated CPU interrupt is unmasked, the corresponding CPU subsystem is woken up. The CPU is woken up (interrupted) by the peripheral synchronous interrupt.

The CPU event must be unmasked to generate an event. Upon an enabled edge occurring on an event input, a CPU event pulse is generated. There is no event pending bit.

For the configurable event inputs, the software can generate an event request by setting the corresponding bit of the software interrupt/event register EXTI_SWIER1, which has the

effect of a rising edge on the event input. The pending rising edge event flag is set in the EXTI_RPR1 register, irrespective of the EXTI_RTSR1 register setting.

12.5 EXTI registers

The EXTI register map is divided in the following sections:

Table 61. EXTI register map sections

Address	Description
0x000 - 0x01C	General configurable event [31:0] configuration
0x060 - 0x06C	EXTI I/O port multiplexer
0x080 - 0x0BC	CPU input event configuration

All the registers can be accessed with word (32-bit), half-word (16-bit) and byte (8-bit) access.

12.5.1 EXTI rising trigger selection register (EXTI_RTSR1)

Address offset: 0x000

Reset value: 0x0000 0000

Contains only register bits for configurable events.

Res.

RT21

RT20

RT19

RT18

RT17

RT16

RT15

RT14

RT13

RT12

RT11

RT10

RT9

RT8

RT7

RT6

RT5

RT4

RT3

RT2

RT1

RT0

Bits 31:22 Reserved, must be kept at reset value.

Bits 21:0 RTx : Rising trigger event configuration bit of configurable line x (x = 21 to 0)

Each bit enables/disables the rising edge trigger for the event and interrupt on the corresponding line.

0: Disable

1: Enable

Bits 18 and 19 are available only on STM32U0x3xx devices. They are reserved on STM32U031xx devices.

12.5.2 EXTI falling trigger selection register 1 (EXTI_FTSR1)

Address offset: 0x004

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	FT21	FT20	FT19	FT18	FT17	FT16
										rw	rw	rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
FT15	FT14	FT13	FT12	FT11	FT10	FT9	FT8	FT7	FT6	FT5	FT4	FT3	FT2	FT1	FT0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:22 Reserved, must be kept at reset value.

Bits 21:0 FTx : Falling trigger event configuration bit of configurable line x (x = 21 to 0)

Each bit enables/disables the falling edge trigger for the event and interrupt on the corresponding line.

0: Disable

1: Enable

Bits 18 and 19 are available only on STM32U0x3xx devices. They are reserved on STM32U031xx devices.

12.5.3 EXTI software interrupt event register 1 (EXTI_SWIER1)

Address offset: 0x008

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	SWI21	SWI20	SWI19	SWI18	SWI17	SWI16
										rw	rw	rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
SWI15	SWI14	SWI13	SWI12	SWI11	SWI10	SWI9	SWI8	SWI7	SWI6	SWI5	SWI4	SWI3	SWI2	SWI1	SWI0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:22 Reserved, must be kept at reset value.

Bits 21:0 SWIx : Software rising edge event trigger on line x (x = 21 to 0)

Setting of any bit by software triggers a rising edge event on the corresponding line x, resulting in an interrupt, independently of EXTI_RTSR1 and EXTI_FTSR1 settings. The bits are automatically cleared by HW. Reading of any bit always returns 0.

0: No effect

1: Rising edge event generated on the corresponding line, followed by an interrupt

Bits 18 and 19 are available only on STM32U0x3xx devices. They are reserved on STM32U031xx devices.

12.5.4 EXTI rising edge pending register 1 (EXTI_RPR1)

Address offset: 0x00C

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	RPIF21	RPIF20	RPIF19	RPIF18	RPIF17	RPIF16
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
RPIF15	RPIF14	RPIF13	RPIF12	RPIF11	RPIF10	RPIF9	RPIF8	RPIF7	RPIF6	RPIF5	RPIF4	RPIF3	RPIF2	RPIF1	RPIF0
rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1

Bits 31:22 Reserved, must be kept at reset value.

Bits 21:0 RPIFx : Rising edge event pending for configurable line x (x = 21 to 0)

Each bit is set upon a rising edge event generated by hardware or by software (through the EXTI_SWIER1 register) on the corresponding line. Each bit is cleared by writing 1 into it.

0: No rising edge trigger request occurred

1: Rising edge trigger request occurred

Bits 18 and 19 are available only on STM32U0x3xx devices. They are reserved on STM32U031xx devices.

12.5.5 EXTI falling edge pending register 1 (EXTI_FPR1)

Address offset: 0x010

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	FPIF21	FPIF20	FPIF19	FPIF18	FPIF17	FPIF16
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
FPIF15	FPIF14	FPIF13	FPIF12	FPIF11	FPIF10	FPIF9	FPIF8	FPIF7	FPIF6	FPIF5	FPIF4	FPIF3	FPIF2	FPIF1	FPIF0
rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1

Bits 31:22 Reserved, must be kept at reset value.

Bits 21:0 FPIFx : Falling edge event pending for configurable line x (x = 21 to 0)

Each bit is set upon a falling edge event generated by hardware or by software (through the EXTI_SWIER1 register) on the corresponding line. Each bit is cleared by writing 1 into it.

0: No falling edge trigger request occurred

1: Falling edge trigger request occurred

Bits 18 and 19 are available only on STM32U0x3xx devices. They are reserved on STM32U031xx devices.

12.5.6 EXTI external interrupt selection register x (EXTI_EXTICRx)

Address offset: 0x060 + 0x4 * (x - 1), (x = 1 to 4)

Reset value: 0x0000 0000

The bitfields related to port E are available only on the STM32U0x3xx devices.

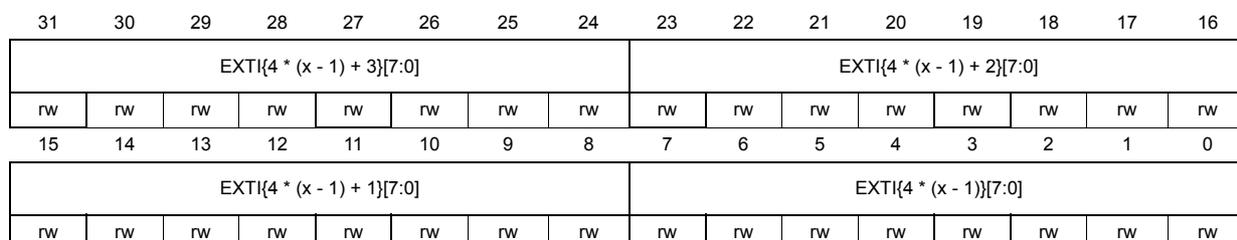

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
EXTI{4 * (x - 1) + 3}[7:0]								EXTI{4 * (x - 1) + 2}[7:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
EXTI{4 * (x - 1) + 1}[7:0]								EXTI{4 * (x - 1)}[7:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:24 EXTI{4 * (x - 1) + 3}[7:0] : EXTI{4 * (x - 1) + 3} GPIO port selection

These bits are written by software to select the source input for EXTI{4 * (x - 1) + 3} external interrupt.

0x00: PA[4 * (x - 1) + 3] pin

0x01: PB[4 * (x - 1) + 3] pin

0x02: PC[4 * (x - 1) + 3] pin

0x03: PD[4 * (x - 1) + 3] pin

0x04: PE[4 * (x - 1) + 3] pin

0x05: PF[4 * (x - 1) + 3] pin

Others: reserved, must not be used

Bits 23:16 EXTI{4 * (x - 1) + 2}[7:0] : EXTI{4 * (x - 1) + 2} GPIO port selection

These bits are written by software to select the source input for EXTI{4 * (x - 1) + 2} external interrupt.

0x00: PA[4 * (x - 1) + 2] pin

0x01: PB[4 * (x - 1) + 2] pin

0x02: PC[4 * (x - 1) + 2] pin

0x03: PD[4 * (x - 1) + 2] pin

0x04: PE[4 * (x - 1) + 2] pin

0x05: PF[4 * (x - 1) + 2] pin

Others: reserved, must not be used

Bits 15:8 EXTI{4 * (x - 1) + 1}[7:0] : EXTI{4 * (x - 1) + 1} GPIO port selection

These bits are written by software to select the source input for EXTI{4 * (x - 1) + 1} external interrupt.

0x00: PA[4 * (x - 1) + 1] pin

0x01: PB[4 * (x - 1) + 1] pin

0x02: PC[4 * (x - 1) + 1] pin

0x03: PD[4 * (x - 1) + 1] pin

0x04: PE[4 * (x - 1) + 1] pin

0x05: PF[4 * (x - 1) + 1] pin

Others: reserved, must not be used

Bits 7:0 EXTI{4 * (x - 1)}[7:0] : EXTI{4 * (x - 1)} GPIO port selection

These bits are written by software to select the source input for EXTI{4 * (x - 1)} external interrupt.

0x00: PA[4 * (x - 1)] pin
0x01: PB[4 * (x - 1)] pin
0x02: PC[4 * (x - 1)] pin
0x03: PD[4 * (x - 1)] pin
0x04: PE[4 * (x - 1)] pin
0x05: PF[4 * (x - 1)] pin
Others: reserved, must not be used

12.5.7 EXTI CPU wake-up with interrupt mask register (EXTI_IMR1)

Address offset: 0x080

Reset value: 0xFFF8 0000

Contains register bits for configurable events and direct events.

The reset value is set such as to, by default, enable interrupt from direct lines, and disable interrupt from configurable lines.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
IM31	IM30	IM29	IM28	IM27	IM26	IM25	IM24	IM23	IM22	IM21	IM20	IM19	IM18	IM17	IM16
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
IM15	IM14	IM13	IM12	IM11	IM10	IM9	IM8	IM7	IM6	IM5	IM4	IM3	IM2	IM1	IM0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:0 IMx : CPU wake-up with interrupt mask on line x (x = 31 to 0)

Setting/clearing each bit unmask/masks the CPU wake-up with interrupt, by an event on the corresponding line.

0: wake-up with interrupt masked
1: wake-up with interrupt unmasked

Bits 18, 19, 22 and 26 are available only on STM32U0x3xx devices, they are reserved on STM32U031xx devices.

12.5.8 EXTI CPU wake-up with event mask register (EXTI_EMR1)

Address offset: 0x084

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
EM31	EM30	EM29	EM28	EM27	EM26	EM25	EM24	EM23	EM22	EM21	EM20	EM19	EM18	EM17	EM16
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
EM15	EM14	EM13	EM12	EM11	EM10	EM9	EM8	EM7	EM6	EM5	EM4	EM3	EM2	EM1	EM0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:0 EMx : CPU wake-up with event generation mask on line x (x = 31 to 0)

Setting/clearing each bit unmask/mask the CPU wake-up with event generation on the corresponding line.

0: wake-up with event generation masked

1: wake-up with event generation unmasked

Bits 18, 19, 22 and 26 are available only on STM32U0x3xx devices, they are reserved on STM32U031xx devices.

12.5.9 EXTI CPU wake-up with interrupt mask register (EXTI_IMR2)

Address offset: 0x090

Reset value: 0xFFFF FFFF

Contains register bits for configurable events and direct events.

The reset value is set such as to, by default, enable interrupt from direct lines, and disable interrupt from configurable lines.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	IM37	IM36	IM35	IM34	IM33	IM32
										rw	rw	rw	rw	rw	rw

Bits 31:6 Reserved, must be kept at reset value.

Bits 5:0 IMx : CPU wake-up with interrupt mask on line x (x = 37 to 32)

Setting/clearing this bit unmask/mask the CPU wake-up with interrupt, by an event on the corresponding line.

0: wake-up with interrupt request from Line x is masked

1: wake-up with interrupt request from Line x is unmasked

Bit IM36 is available only on STM32U0x3xx devices, it is reserved on STM32U031xx devices.

12.5.10 EXTI CPU wake-up with event mask register (EXTI_EMR2)

Address offset: 0x094

Reset value: 0x0000 0000

Contains register bits for configurable events and direct events.

The reset value is set such as to, by default, enable interrupt from direct lines, and disable interrupt from configurable lines.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	EM37	EM36	EM35	EM34	EM33	EM32
										rw	rw	rw	rw	rw	rw

Bits 31:6 Reserved, must be kept at reset value.

Bits 5:0 EMx : CPU wake-up with event generation mask on line x, (x = 37 to 32)

Setting/clearing each bit unmasks/masks the CPU wake-up with event generation on the corresponding line.
0: wake-up with event generation masked
1: wake-up with event generation unmasked

Bit IM36 is available only on STM32U0x3xx devices, it is reserved on STM32U031xx devices.

12.5.11 EXTI register map

The following table gives the EXTI register map and the reset values.

Table 62. EXTI controller register map and reset values

Offset	Register	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Offset	Register	0x000	EXTI_RTSR1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	RT[21:0]
Reset value											0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x004	EXTI_FTSR1	0x000	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	FT[21:0]
0x004	Reset value											0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x008	EXTI_SWIER1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	SWI[21:0]
0x008	Reset value											0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x00C	EXTI_RPR1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	RPIF[21:0]
0x00C	Reset value											0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x010	EXTI_FPR1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	FPIF[21:0].
0x010	Reset value											0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x014-0x05C	Reserved	Res.
0x060	EXTI_EXTICR1	EXTI3[7:0]								EXTI2[7:0]								EXTI1[7:0]								EXTI0[7:0]
0x060	Reset value	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x064	EXTI_EXTICR2	EXTI7[7:0]								EXTI6[7:0]								EXTI5[7:0]								EXTI4[7:0]
0x064	Reset value	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x068	EXTI_EXTICR3	EXTI11[7:0]								EXTI10[7:0]								EXTI9[7:0]								EXTI8[7:0]
0x068	Reset value	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x06C	EXTI_EXTICR4	EXTI15[7:0]								EXTI14[7:0]								EXTI13[7:0]								EXTI12[7:0]
0x06C	Reset value	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x070-0x07C	Reserved	Res.
0x080	EXTI_IMR1	IM[31:0]
0x080	Reset value	1	1	1	1	1	1	1	1	1	1	1	1	1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0

Table 62. EXTI controller register map and reset values (continued)

Offset	Register	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
0x084	EXTI_EMR1	EM[31:0]
0x084	Reset value	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x088- 0x08C	Reserved	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
0x090	EXTI_IMR2	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	IM37	IM36	IM35	IM34	IM33	IM32
0x090	Reset value																												1	1	1	1	1	1
0x094	EXTI_EMR2	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	EM37	EM36	EM35	EM34	EM33	EM32
0x094	Reset value																												0	0	0	0	0	0

Refer to Section 2.2 on page 55 for the register boundary addresses.
