24. Real-time clock (RTC)

24.1 Introduction

The RTC provides an automatic wake-up to manage all low-power modes.

The real-time clock (RTC) is an independent BCD timer/counter. The RTC provides a time-of-day clock/calendar with programmable alarm interrupts.

As long as the supply voltage remains in the operating range, the RTC never stops, regardless of the device status (Run mode, low-power mode or under reset).

24.2 RTC main features

The RTC supports the following features (see Figure 221: RTC block diagram ):

• • Calendar with subsecond, seconds, minutes, hours (12 or 24 format), week day, date, month, year, in BCD (binary-coded decimal) format.
• • Automatic correction for 28, 29 (leap year), 30, and 31 days of the month.
• • One programmable alarm.
• • On-the-fly correction from 1 to 32767 RTC clock pulses. This can be used to synchronize it with a master clock.
• • Reference clock detection: a more precise second source clock (50 or 60 Hz) can be used to enhance the calendar precision.
• • Digital calibration circuit with 0.95 ppm resolution, to compensate for quartz crystal inaccuracy.
• • Timestamp feature which can be used to save the calendar content. This function can be triggered by an event on the timestamp pin.

The RTC clock sources can be:

• • A 32.768 kHz external crystal (LSE)
• • An external resonator or oscillator (LSE)
• • The internal low power RC oscillator (LSI, with typical frequency of 32 kHz)
• • The high-speed external clock (HSE), divided by a prescaler in the RCC.

The RTC is functional in all low-power modes except Standby and Shutdown when it is clocked by the LSE or LSI.

All RTC events (Alarm, Timestamp) can generate an interrupt and wake-up the device from the low-power modes.

24.3 RTC functional description

24.3.1 RTC block diagram

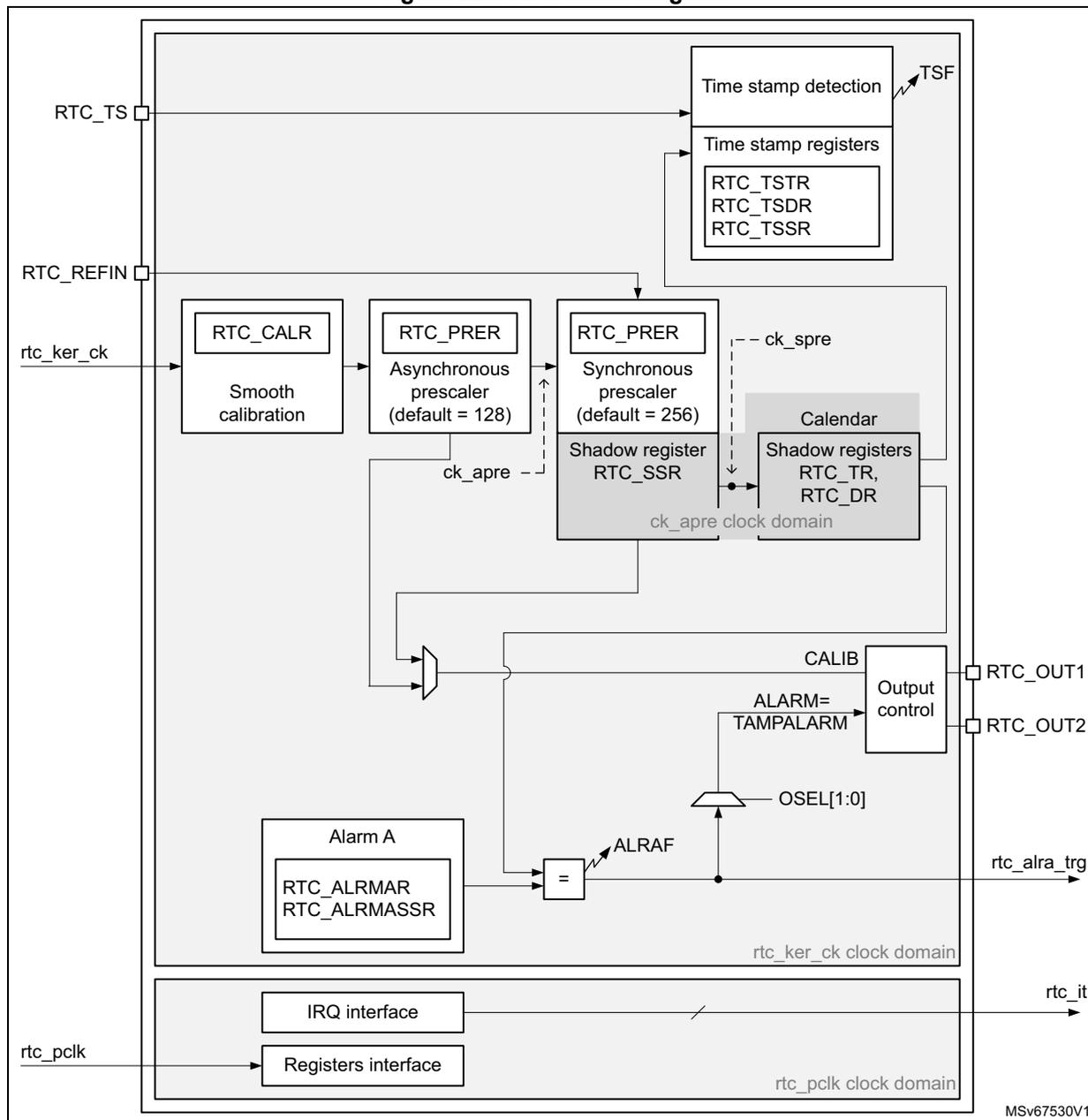

Figure 221. RTC block diagram

24.3.2 RTC pins and internal signals

Table 97. RTC input/output pins

• • RTC_OUT1 and RTC_OUT2 which selects one of the following two outputs:
  • – CALIB: 512 Hz or 1 Hz clock output (with an LSE frequency of 32.768 kHz). This output is enabled by setting the COE bit in the RTC_CR register.
  • – TAMPALRM: This output is the ALARM output.

ALARM is enabled by configuring the OSEL[1:0] bits in the RTC_CR register which select the alarm A output.

Table 98. RTC internal input/output signals

The RTC kernel clock is usually the LSE at 32.768 kHz although it is possible to select other clock sources in the RCC (refer to RCC for more details).

The triggers outputs can be used as triggers for other peripherals.

24.3.3 GPIO controlled by the RTC

RTC_OUT1 and RTC_TS are mapped on the same pin.

This pin output mechanism follows the priority order shown in Table 99 .

1. OD: open drain; PP: push-pull.

2. In this configuration the GPIO must be configured in input.

In addition, it is possible to output RTC_OUT2 thanks to OUT2EN bit. The different functions are mapped on RTC_OUT1 or on RTC_OUT2 depending on OSEL, COE and OUT2EN configuration, as show in table Table 100 .

Table 100. RTC_OUT mapping

24.3.4 Clock and prescalers

The RTC clocks must respect this ratio: \( \text{frequency(PCLK)} \geq 2 \times \text{frequency(RTCCLK)} \) .

The RTC clock source (RTCCLK) is selected through the clock controller among the LSE clock, the LSI oscillator clock, and the HSE clock. For more information on the RTC clock source configuration, refer to Section 6: Reset and clock control (RCC) .

A programmable prescaler stage generates a 1 Hz clock which is used to update the calendar. To minimize power consumption, the prescaler is split into 2 programmable prescalers (see Figure 221: RTC block diagram ):

• • A 7-bit asynchronous prescaler configured through the PREDIV_A bits of the RTC_PRER register.
• • A 15-bit synchronous prescaler configured through the PREDIV_S bits of the RTC_PRER register.

Note: When both prescalers are used, it is recommended to configure the asynchronous prescaler to a high value to minimize consumption.

The asynchronous prescaler division factor is set to 128, and the synchronous division factor to 256, to obtain an internal clock frequency of 1 Hz (ck_spre) with an LSE frequency of 32.768 kHz.

The minimum division factor is 1 and the maximum division factor is \( 2^{22} \) .

This corresponds to a maximum input frequency of around 4 MHz.

\( f_{\text{ck\_apre}} \) is given by the following formula:

The ck_apre clock is used to clock the binary RTC_SSR subseconds downcounter. When it reaches 0, RTC_SSR is reloaded with the content of PREDIV_S.

\( f_{ck\_spre} \) is given by the following formula:

24.3.5 Real-time clock and calendar

The RTC calendar time and date registers are accessed through shadow registers which are synchronized with PCLK (APB clock). They can also be accessed directly in order to avoid waiting for the synchronization duration.

• • RTC_SSR for the subseconds
• • RTC_TR for the time
• • RTC_DR for the date

Every RTCCLK periods, the current calendar value is copied into the shadow registers, and the RSF bit of RTC_ICSR register is set (see Section 24.6.9: RTC shift control register (RTC_SHIFTR) ). The copy is not performed in Stop and Standby mode. When exiting these modes, the shadow registers are updated after up to 4 RTCCLK periods.

When the application reads the calendar registers, it accesses the content of the shadow registers. It is possible to make a direct access to the calendar registers by setting the BYPSHAD control bit in the RTC_CR register. By default, this bit is cleared, and the user accesses the shadow registers.

When reading the RTC_SSR, RTC_TR or RTC_DR registers in BYPSHAD = 0 mode, the frequency of the APB clock ( \( f_{APB} \) ) must be at least 7 times the frequency of the RTC clock ( \( f_{RTCCLK} \) ).

The shadow registers are reset by system reset.

24.3.6 Programmable alarms

The RTC unit provides programmable alarm: alarm A.

The programmable alarm function is enabled through the ALRAE bit in the RTC_CR register.

The ALRAF is set to 1 if the calendar subseconds, seconds, minutes, hours, date or day match the values programmed in the alarm registers RTC_ALRMASSR and RTC_ALRMAR. Each calendar field can be independently selected through the MSKx bits of the RTC_ALRMAR register, and through the MASKSSx bits of the RTC_ALRMASSR register.

The alarm interrupt is enabled through the ALRAIE bit in the RTC_CR register.

Caution: If the seconds field is selected (MSK1 bit reset in RTC_ALRMAR), the synchronous prescaler division factor set in the RTC_PRER register must be at least 3 to ensure correct behavior.

Alarm A (if enabled by bits OSEL[1:0] in RTC_CR register) can be routed to the TAMPALRM output. TAMPALRM output polarity can be configured through bit POL the RTC_CR register.

24.3.7 RTC initialization and configuration

RTC register access

The RTC registers are 32-bit registers. The APB interface introduces two wait states in RTC register accesses except on read accesses to calendar shadow registers when BYPSHAD = 0.

RTC register write protection

After Power-on reset, some of the RTC registers are write-protected.

Writing to the protected RTC registers is enabled by writing a key into the Write Protection register, RTC_WPR.

The following steps are required to unlock the write protection on the protected RTC registers.

1. 1. Write 0xCA into the RTC_WPR register.
2. 2. Write 0x53 into the RTC_WPR register.

Writing a wrong key reactivates the write protection.

The protection mechanism is not affected by system reset.

Calendar initialization and configuration

To program the initial time and date calendar values, including the time format and the prescaler configuration, the following sequence is required:

1. 1. Set INIT bit to 1 in the RTC_ICSR register to enter initialization mode. In this mode, the calendar counter is stopped and its value can be updated.
2. 2. Poll INITF bit of in the RTC_ICSR register. The initialization phase mode is entered when INITF is set to 1. It takes around 2 RTCCLK clock cycles (due to clock synchronization).
3. 3. To generate a 1 Hz clock for the calendar counter, program both the prescaler factors in RTC_PRER register.
4. 4. Load the initial time and date values in the shadow registers (RTC_TR and RTC_DR), and configure the time format (12 or 24 hours) through the FMT bit in the RTC_CR register.
5. 5. Exit the initialization mode by clearing the INIT bit. The actual calendar counter value is then automatically loaded and the counting restarts after 4 RTCCLK clock cycles.

When the initialization sequence is complete, the calendar starts counting.

Note: After a system reset, the application can read the INITS flag in the RTC_ICSR register to check if the calendar has been initialized or not. If this flag equals 0, the calendar has not been initialized since the year field is set at its Power-on reset default value (0x00). To read the calendar after initialization, the software must first check that the RSF flag is set in the RTC_ICSR register.

Daylight saving time

The daylight saving time management is performed through bits SUB1H, ADD1H, and BKP of the RTC_CR register.

Using SUB1H or ADD1H, the software can subtract or add one hour to the calendar in one single operation without going through the initialization procedure.

In addition, the software can use the BKP bit to memorize this operation.

Programming the alarm

A similar procedure must be followed to program or update the programmable alarms. The procedure below is given for alarm A.

1. 1. Clear ALRAE in RTC_CR to disable alarm A.
2. 2. Program the alarm A registers (RTC_ALRMASSR/RTC_ALRMAR).
3. 3. Set ALRAE in the RTC_CR register to enable alarm A again.

Note: Each change of the RTC_CR register is taken into account after around 2 RTCCLK clock cycles due to clock synchronization.

24.3.8 Reading the calendar

When BYPSHAD control bit is cleared in the RTC_CR register

To read the RTC calendar registers (RTC_SSR, RTC_TR and RTC_DR) properly, the APB1 clock frequency ( \( f_{PCLK} \) ) must be equal to or greater than seven times the RTC clock frequency ( \( f_{RTCCLK} \) ). This ensures a secure behavior of the synchronization mechanism.

If the APB1 clock frequency is less than seven times the RTC clock frequency, the software must read the calendar time and date registers twice. If the second read of the RTC_TR gives the same result as the first read, this ensures that the data is correct. Otherwise a third read access must be done. In any case the APB1 clock frequency must never be lower than the RTC clock frequency.

The RSF bit is set in RTC_ICSR register each time the calendar registers are copied into the RTC_SSR, RTC_TR and RTC_DR shadow registers. The copy is performed every RTCCLK cycles. To ensure consistency between the 3 values, reading either RTC_SSR or RTC_TR locks the values in the higher-order calendar shadow registers until RTC_DR is read. In case the software makes read accesses to the calendar in a time interval smaller than 1 RTCCLK periods: RSF must be cleared by software after the first calendar read, and then the software must wait until RSF is set before reading again the RTC_SSR, RTC_TR and RTC_DR registers.

After waking up from low-power mode (Stop or Standby), RSF must be cleared by software. The software must then wait until it is set again before reading the RTC_SSR, RTC_TR and RTC_DR registers.

The RSF bit must be cleared after wake-up and not before entering low-power mode.

After a system reset, the software must wait until RSF is set before reading the RTC_SSR, RTC_TR and RTC_DR registers. Indeed, a system reset resets the shadow registers to their default values.

After an initialization (refer to Calendar initialization and configuration on page 652 ): the software must wait until RSF is set before reading the RTC_SSR, RTC_TR and RTC_DR registers.

After synchronization (refer to Section 24.3.10: RTC synchronization ): the software must wait until RSF is set before reading the RTC_SSR, RTC_TR and RTC_DR registers.

When the BYPSHAD control bit is set in the RTC_CR register (bypass shadow registers)

Reading the calendar registers gives the values from the calendar counters directly, thus eliminating the need to wait for the RSF bit to be set. This is especially useful after exiting from low-power modes (Stop or Standby), since the shadow registers are not updated during these modes.

When the BYPSHAD bit is set to 1, the results of the different registers might not be coherent with each other if an RTCCLK edge occurs between two read accesses to the registers. Additionally, the value of one of the registers may be incorrect if an RTCCLK edge occurs during the read operation. The software must read all the registers twice, and then compare the results to confirm that the data is coherent and correct. Alternatively, the software can just compare the two results of the least-significant calendar register.

Note: While BYPSHAD = 1, instructions which read the calendar registers require one extra APB cycle to complete.

24.3.9 Resetting the RTC

The calendar shadow registers (RTC_SSR, RTC_TR and RTC_DR) and some bits of the RTC status register (RTC_ICSR) are reset to their default values by all available system reset sources.

On the contrary, the following registers are reset to their default values by a Power-on reset and are not affected by a system reset: the RTC current calendar registers, the RTC control register (RTC_CR), the prescaler register (RTC_PRER), the RTC calibration register (RTC_CALR), the RTC shift register (RTC_SHIFT), the RTC timestamp registers (RTC_TSSSR, RTC_TSTR and RTC_TSDR) and the alarm A registers (RTC_ALRMASSR/RTC_ALRMAR).

In addition, when clocked by LSE, the RTC keeps on running under system reset if the reset source is different from the Power-on reset one (refer to RCC for details about RTC clock sources not affected by system reset). When a Power-on reset occurs, the RTC is stopped and all the RTC registers are set to their reset values.

24.3.10 RTC synchronization

The RTC can be synchronized to a remote clock with a high degree of precision. After reading the sub-second field (RTC_SSR or RTC_TSSSR), a calculation can be made of the precise offset between the times being maintained by the remote clock and the RTC. The RTC can then be adjusted to eliminate this offset by “shifting” its clock by a fraction of a second using RTC_SHIFT.

RTC_SSR contains the value of the synchronous prescaler counter. This allows one to calculate the exact time being maintained by the RTC down to a resolution of \( 1 / (PREDIV\_S + 1) \) seconds. As a consequence, the resolution can be improved by increasing the synchronous prescaler value (PREDIV_S[14:0]). The maximum resolution allowed (30.52 µs with a 32768 Hz clock) is obtained with PREDIV_S set to 0x7FFF.

However, increasing PREDIV_S means that PREDIV_A must be decreased in order to maintain the synchronous prescaler output at 1 Hz. In this way, the frequency of the asynchronous prescaler output increases, which may increase the RTC dynamic consumption.

The RTC can be finely adjusted using the RTC shift control register (RTC_SHIFTR). Writing to RTC_SHIFTR can shift (either delay or advance) the clock by up to a second with a resolution of \( 1 / (PREDIV\_S + 1) \) seconds. The shift operation consists of adding the SUBFS[14:0] value to the synchronous prescaler counter SS[15:0]: this will delay the clock. If at the same time the ADD1S bit is set, this results in adding one second and at the same time subtracting a fraction of second, so this will advance the clock.

Caution: Before initiating a shift operation, the user must check that SS[15] = 0 in order to ensure that no overflow will occur.

As soon as a shift operation is initiated by a write to the RTC_SHIFTR register, the SHPF flag is set by hardware to indicate that a shift operation is pending. This bit is cleared by hardware as soon as the shift operation has completed.

Caution: This synchronization feature is not compatible with the reference clock detection feature: firmware must not write to RTC_SHIFTR when REFCKON = 1.

24.3.11 RTC reference clock detection

The update of the RTC calendar can be synchronized to a reference clock, RTC_REFIN, which is usually the mains frequency (50 or 60 Hz). The precision of the RTC_REFIN reference clock should be higher than the 32.768 kHz LSE clock. When the RTC_REFIN detection is enabled (REFCKON bit of RTC_CR set to 1), the calendar is still clocked by the LSE, and RTC_REFIN is used to compensate for the imprecision of the calendar update frequency (1 Hz).

Each 1 Hz clock edge is compared to the nearest RTC_REFIN clock edge (if one is found within a given time window). In most cases, the two clock edges are properly aligned. When the 1 Hz clock becomes misaligned due to the imprecision of the LSE clock, the RTC shifts the 1 Hz clock a bit so that future 1 Hz clock edges are aligned. Thanks to this mechanism, the calendar becomes as precise as the reference clock.

The RTC detects if the reference clock source is present by using the 256 Hz clock (ck_apre) generated from the 32.768 kHz quartz. The detection is performed during a time window around each of the calendar updates (every 1 s). The window equals 7 ck_apre periods when detecting the first reference clock edge. A smaller window of 3 ck_apre periods is used for subsequent calendar updates.

Each time the reference clock is detected in the window, the asynchronous prescaler which outputs the ck_spre clock is forced to reload. This has no effect when the reference clock and the 1 Hz clock are aligned because the prescaler is being reloaded at the same moment. When the clocks are not aligned, the reload shifts future 1 Hz clock edges a little for them to be aligned with the reference clock.

If the reference clock halts (no reference clock edge occurred during the 3 ck_apre window), the calendar is updated continuously based solely on the LSE clock. The RTC then waits for the reference clock using a large 7 ck_apre period detection window centered on the ck_spre edge.

When the RTC_REFIN detection is enabled, PREDIV_A and PREDIV_S must be set to their default values:

• • PREDIV_A = 0x007F
• • PREDIV_S = 0x00FF

Note: RTC_REFIN clock detection is not available in Standby mode.

24.3.12 RTC smooth digital calibration

The RTC frequency can be digitally calibrated with a resolution of about 0.954 ppm with a range from -487.1 ppm to +488.5 ppm. The correction of the frequency is performed using series of small adjustments (adding and/or subtracting individual RTCCLK pulses). These adjustments are fairly well distributed so that the RTC is well calibrated even when observed over short durations of time.

The smooth digital calibration is performed during a calibration cycle of about \( 2^{20} \) RTCCLK pulses, or 32 seconds when the input frequency is 32768 Hz. This cycle is maintained by a 20-bit counter, cal_cnt [19:0], clocked by RTCCLK.

The smooth calibration register (RTC_CALR) specifies the number of RTCCLK clock cycles to be masked during the calibration cycle:

• • Setting the bit CALM[0] to 1 causes exactly one pulse to be masked during the calibration cycle.
• • Setting CALM[1] to 1 causes two additional cycles to be masked
• • Setting CALM[2] to 1 causes four additional cycles to be masked
• • and so on up to CALM[8] set to 1 which causes 256 clocks to be masked.

Note: CALM[8:0] (RTC_CALR) specifies the number of RTCCLK pulses to be masked during the calibration cycle. Setting the bit CALM[0] to 1 causes exactly one pulse to be masked during the calibration cycle at the moment when cal_cnt [19:0] is 0x80000; CALM[1] = 1 causes two other cycles to be masked (when cal_cnt is 0x40000 and 0xC0000); CALM[2] = 1 causes four other cycles to be masked ( cal_cnt = 0x20000/0x60000/0xA0000/ 0xE0000); and so on up to CALM[8] = 1 which causes 256 clocks to be masked ( cal_cnt = 0xXX800).

While CALM allows the RTC frequency to be reduced by up to 487.1 ppm with fine resolution, the bit CALP can be used to increase the frequency by 488.5 ppm. Setting CALP to 1 effectively inserts an extra RTCCLK pulse every \( 2^{11} \) RTCCLK cycles, which means that 512 clocks are added during every calibration cycle.

Using CALM together with CALP, an offset ranging from -511 to +512 RTCCLK cycles can be added during the calibration cycle, which translates to a calibration range of -487.1 ppm to +488.5 ppm with a resolution of about 0.954 ppm.

The formula to calculate the effective calibrated frequency ( F _CAL ) given the input frequency ( F _RTCCLK ) is as follows:

Calibration when PREDIV_A < 3

The CALP bit can not be set to 1 when the asynchronous prescaler value (PREDIV_A bits in RTC_PRER register) is less than 3. If CALP was already set to 1 and PREDIV_A bits are set to a value less than 3, CALP is ignored and the calibration operates as if CALP was equal to 0.

To perform a calibration with PREDIV_A less than 3, the synchronous prescaler value (PREDIV_S) should be reduced so that each second is accelerated by 8 RTCCLK clock cycles, which is equivalent to adding 256 clock cycles every calibration cycle. As a result, between 255 and 256 clock pulses (corresponding to a calibration range from 243.3 to 244.1 ppm) can effectively be added during each calibration cycle using only the CALM bits.

With a nominal RTCCLK frequency of 32768 Hz, when PREDIV_A equals 1 (division factor of 2), PREDIV_S should be set to 16379 rather than 16383 (4 less). The only other

interesting case is when PREDIV_A equals 0, PREDIV_S should be set to 32759 rather than 32767 (8 less).

If PREDIV_S is reduced in this way, the formula given the effective frequency of the calibrated input clock is as follows:

In this case, CALM[7:0] equals 0x100 (the midpoint of the CALM range) is the correct setting if RTCCLK is exactly 32768.00 Hz.

Verifying the RTC calibration

RTC precision is ensured by measuring the precise frequency of RTCCLK and calculating the correct CALM value and CALP values. An optional 1 Hz output is provided to allow applications to measure and verify the RTC precision.

Measuring the precise frequency of the RTC over a limited interval can result in a measurement error of up to 2 RTCCLK clock cycles over the measurement period, depending on how the digital calibration cycle is aligned with the measurement period.

However, this measurement error can be eliminated if the measurement period is the same length as the calibration cycle period. In this case, the only error observed is the error due to the resolution of the digital calibration.

• By default, the calibration cycle period is 32 seconds.

Using this mode and measuring the accuracy of the 1 Hz output over exactly 32 seconds guarantees that the measure is within 0.477 ppm (0.5 RTCCLK cycles over 32 seconds, due to the limitation of the calibration resolution).

• CALW16 bit of the RTC_CALR register can be set to 1 to force a 16- second calibration cycle period.

In this case, the RTC precision can be measured during 16 seconds with a maximum error of 0.954 ppm (0.5 RTCCLK cycles over 16 seconds). However, since the calibration resolution is reduced, the long term RTC precision is also reduced to 0.954 ppm: CALM[0] bit is stuck at 0 when CALW16 is set to 1.

• CALW8 bit of the RTC_CALR register can be set to 1 to force a 8-second calibration cycle period.

In this case, the RTC precision can be measured during 8 seconds with a maximum error of 1.907 ppm (0.5 RTCCLK cycles over 8 s). The long term RTC precision is also reduced to 1.907 ppm: CALM[1:0] bits are stuck at 00 when CALW8 is set to 1.

Re-calibration on-the-fly

The calibration register (RTC_CALR) can be updated on-the-fly while RTC_ICSR/INITF = 0, by using the follow process:

1. Poll the RTC_ICSR/RECALPF (re-calibration pending flag).
2. If it is set to 0, write a new value to RTC_CALR, if necessary. RECALPF is then automatically set to 1
3. Within three ck_apre cycles after the write operation to RTC_CALR, the new calibration settings take effect.

24.3.13 Timestamp function

Timestamp is enabled by setting the TSE or ITSE bits of RTC_CR register to 1.

When TSE is set:

The calendar is saved in the timestamp registers (RTC_TSSSR, RTC_TSTR, RTC_TSDR) when a timestamp event is detected on the RTC_TS pin.

When a timestamp event occurs, the timestamp flag bit (TSF) in RTC_SR register is set.

By setting the TSIE bit in the RTC_CR register, an interrupt is generated when a timestamp event occurs.

If a new timestamp event is detected while the timestamp flag (TSF) is already set, the timestamp overflow flag (TSOVF) flag is set and the timestamp registers (RTC_TSTR and RTC_TSDR) maintain the results of the previous event.

Note: TSF is set 2 ck_apre cycles after the timestamp event occurs due to synchronization process.

There is no delay in the setting of TSOVF. This means that if two timestamp events are close together, TSOVF can be seen as '1' while TSF is still '0'. As a consequence, it is recommended to poll TSOVF only after TSF has been set.

Caution: If a timestamp event occurs immediately after the TSF bit is supposed to be cleared, then both TSF and TSOVF bits are set. To avoid masking a timestamp event occurring at the same moment, the application must not write 0 into TSF bit unless it has already read it to 1.

24.3.14 Calibration clock output

When the COE bit is set to 1 in the RTC_CR register, a reference clock is provided on the CALIB device output.

If the COSEL bit in the RTC_CR register is reset and PREDIV_A = 0x7F, the CALIB frequency is \( f_{RTCCLK}/64 \) . This corresponds to a calibration output at 512 Hz for an RTCCLK frequency at 32.768 kHz. The CALIB duty cycle is irregular: there is a light jitter on falling edges. It is therefore recommended to use rising edges.

When COSEL is set and "PREDIV_S+1" is a non-zero multiple of 256 (i.e.: PREDIV_S[7:0] = 0xFF), the CALIB frequency is \( f_{RTCCLK}/(256 * (PREDIV\_A+1)) \) . This corresponds to a calibration output at 1 Hz for prescaler default values (PREDIV_A = 0x7F, PREDIV_S = 0xFF), with an RTCCLK frequency at 32.768 kHz.

Note: When COSEL is cleared, the CALIB output is the output of the 6 ^th stage of the asynchronous prescaler.

When COSEL is set, the CALIB output is the output of the 8 ^th stage of the synchronous prescaler.

24.3.15 Alarm output

The OSEL[1:0] control bits in the RTC_CR register are used to activate the alarm output TAMPALRM, and to select the function which is output. These functions reflect the contents of the corresponding flag in the RTC_SR register.

The polarity of the TAMPALRM output is determined by the POL control bit in RTC_CR so that the opposite of the selected flags bit is output when POL is set to 1.

TAMPALRM output

The TAMPALRM pin can be configured in output open drain or output push-pull using the control bit TAMPALRM_TYPE in the RTC_CR register. It is possible to apply the internal pull-up in output mode thanks to TAMPALRM_PU in the RTC_CR.

Note: Once the TAMPALRM output is enabled, it has priority over CALIB on RTC_OUT1.

24.4 RTC low-power modes

Table 101. Effect of low-power modes on RTC

The table below summarizes the RTC pins and functions capability in all modes.

Table 102. RTC pins functionality over modes

24.5 RTC interrupts

The interrupt channel is set in the masked interrupt status register. The interrupt output is also activated.

Table 103. Interrupt requests

1. 1. The event flags are in the RTC_SR register.
2. 2. The interrupt masked flags (resulting from event flags AND enable control bits) are in the RTC_MISR register.
3. 3. Wake-up from Stop mode is possible only when the RTC clock source is LSE or LSI.

24.6 RTC registers

Refer to Section 1.2 on page 41 of the reference manual for a list of abbreviations used in register descriptions.

The peripheral registers can be accessed by words (32-bit).

24.6.1 RTC time register (RTC_TR)

The RTC_TR is the calendar time shadow register. This register must be written in initialization mode only. Refer to Calendar initialization and configuration on page 652 and Reading the calendar on page 653 .

This register is write protected. The write access procedure is described in RTC register write protection on page 652 .

Address offset: 0x00

Power-on reset value: 0x0000 0000

System reset value: 0x0000 0000 (when BYPSHAD = 0, not affected when BYPSHAD = 1)

Bits 31:23 Reserved, must be kept at reset value.

Bit 22 PM : AM/PM notation
0: AM or 24-hour format
1: PM

Bits 21:20 HT[1:0] : Hour tens in BCD format

Bits 19:16 HU[3:0] : Hour units in BCD format

Bit 15 Reserved, must be kept at reset value.

Bits 14:12 MNT[2:0] : Minute tens in BCD format

Bits 11:8 MNU[3:0] : Minute units in BCD format

Bit 7 Reserved, must be kept at reset value.

Bits 6:4 ST[2:0] : Second tens in BCD format

Bits 3:0 SU[3:0] : Second units in BCD format

24.6.2 RTC date register (RTC_DR)

The RTC_DR is the calendar date shadow register. This register must be written in initialization mode only. Refer to Calendar initialization and configuration on page 652 and Reading the calendar on page 653 .

This register is write protected. The write access procedure is described in RTC register write protection on page 652 .

Address offset: 0x04

Power-on reset value: 0x0000 2101

System reset value: 0x0000 2101 (when BYPSHAD = 0, not affected when BYPSHAD = 1)

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:20 YT[3:0] : Year tens in BCD format

Bits 19:16 YU[3:0] : Year units in BCD format

Bits 15:13 WDU[2:0] : Week day units

000: forbidden

001: Monday

...

111: Sunday

Bit 12 MT : Month tens in BCD format

Bits 11:8 MU[3:0] : Month units in BCD format

Bits 7:6 Reserved, must be kept at reset value.

Bits 5:4 DT[1:0] : Date tens in BCD format

Bits 3:0 DU[3:0] : Date units in BCD format

Note: The calendar is frozen when reaching the maximum value, and can't roll over.

24.6.3 RTC sub second register (RTC_SSR)

Address offset: 0x08

Power-on reset value: 0x0000 0000

System reset value: 0x0000 0000 (when BYPSHAD = 0, not affected when BYPSHAD = 1)

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 SS[15:0] : Sub second value

SS[15:0] is the value in the synchronous prescaler counter. The fraction of a second is given by the formula below:

Second fraction = (PREDIV_S - SS) / (PREDIV_S + 1)

Note: SS can be larger than PREDIV_S only after a shift operation. In that case, the correct time/date is one second less than as indicated by RTC_TR/RTC_DR.

24.6.4 RTC initialization control and status register (RTC_ICSR)

This register is write protected. The write access procedure is described in RTC register write protection on page 652 .

Address offset: 0x0C

Power-on reset value: 0x0000 0007

System reset value: 0bxxxx xxxx xxxx xxxx xxxx xxxx 000x xxxx (not affected, except INIT, INITF, and RSF bits which are cleared to 0)

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 RECALPF : Recalibration pending Flag

The RECALPF status flag is automatically set to 1 when software writes to the RTC_CALR register, indicating that the RTC_CALR register is blocked. When the new calibration settings are taken into account, this bit returns to 0. Refer to Re-calibration on-the-fly .

Bits 15:8 Reserved, must be kept at reset value.

0: Free running mode

1: Initialization mode used to program time and date register (RTC_TR and RTC_DR), and prescaler register (RTC_PRER). Counters are stopped and start counting from the new value when INIT is reset.

When this bit is set to 1, the RTC is in initialization state, and the time, date and prescaler registers can be updated.

0: Calendar registers update is not allowed

1: Calendar registers update is allowed

This bit is set by hardware each time the calendar registers are copied into the shadow registers (RTC_SSR, RTC_TR and RTC_DR). This bit is cleared by hardware in initialization mode, while a shift operation is pending (SHPF = 1), or when in bypass shadow register mode (BYPSHAD = 1). This bit can also be cleared by software.

It is cleared either by software or by hardware in initialization mode.

0: Calendar shadow registers not yet synchronized

1: Calendar shadow registers synchronized

This bit is set by hardware when the calendar year field is different from 0 (Power-on reset state).

0: Calendar has not been initialized

1: Calendar has been initialized

This flag is set by hardware as soon as a shift operation is initiated by a write to the RTC_SHIFTR register. It is cleared by hardware when the corresponding shift operation has been executed. Writing to the SHPF bit has no effect.

0: No shift operation is pending

1: A shift operation is pending

Bits 2:1 Reserved, must be kept at reset value.

This bit is set by hardware when alarm A values can be changed, after the ALRAE bit has been set to 0 in RTC_CR.

It is cleared by hardware in initialization mode.

0: Alarm A update not allowed

1: Alarm A update allowed

24.6.5 RTC prescaler register (RTC_PRER)

This register must be written in initialization mode only. The initialization must be performed in two separate write accesses. Refer to Calendar initialization and configuration on page 652 .

This register is write protected. The write access procedure is described in RTC register write protection on page 652 .

Address offset: 0x10

Power-on reset value: 0x007F 00FF

System reset: not affected

Bits 31:23 Reserved, must be kept at reset value.

Bits 22:16 PREDIV_A[6:0] : Asynchronous prescaler factor
This is the asynchronous division factor:
\( ck\_apre\ frequency = RTCCLK\ frequency / (PREDIV\_A + 1) \)

Bit 15 Reserved, must be kept at reset value.

Bits 14:0 PREDIV_S[14:0] : Synchronous prescaler factor
This is the synchronous division factor:
\( ck\_spre\ frequency = ck\_apre\ frequency / (PREDIV\_S + 1) \)

24.6.6 RTC control register (RTC_CR)

This register is write protected. The write access procedure is described in RTC register write protection on page 652 .

Address offset: 0x18

Power-on reset value: 0x0000 0000

System reset: not affected

Bit 31 OUT2EN : RTC_OUT2 output enable

Setting this bit allows to remap the RTC outputs on RTC_OUT2 as follows:

OUT2EN = 0 : RTC output 2 disable

If OSEL ≠ 00 or TAMPOE = 1: TAMPALRM is output on RTC_OUT1

If OSEL = 00 and TAMPOE = 0 and COE = 1: CALIB is output on RTC_OUT1

OUT2EN = 1 : RTC output 2 enable

If (OSEL ≠ 00 or TAMPOE = 1) and COE = 0: TAMPALRM is output on RTC_OUT2

If OSEL = 00 and TAMPOE = 0 and COE = 1: CALIB is output on RTC_OUT2

If (OSEL ≠ 00 or TAMPOE = 1) and COE = 1: CALIB is output on RTC_OUT2 and TAMPALRM is output on RTC_OUT1.

Bit 30 TAMPALRM_TYPE : TAMPALRM output type

0: TAMPALRM is push-pull output

1: TAMPALRM is open-drain output

Bit 29 TAMPALRM_PU : TAMPALRM pull-up enable

0: No pull-up is applied on TAMPALRM output

1: A pull-up is applied on TAMPALRM output

Bits 28:24 Reserved, must be kept at reset value.

Bit 23 COE : Calibration output enable

This bit enables the CALIB output

0: Calibration output disabled

1: Calibration output enabled

Bits 22:21 OSEL[1:0] : Output selection

These bits are used to select the flag to be routed to TAMPALRM output.

00: Output disabled

01: Alarm A output enabled

10: Reserved

11: Reserved

Bit 20 POL : Output polarity

This bit is used to configure the polarity of TAMPALRM output.

0: The pin is high when ALRAF is asserted (depending on OSEL[1:0]).

1: The pin is low when ALRAF is asserted (depending on OSEL[1:0]).

Bit 19 COSEL : Calibration output selection

When COE = 1, this bit selects which signal is output on CALIB.

0: Calibration output is 512 Hz

1: Calibration output is 1 Hz

These frequencies are valid for RTCCLK at 32.768 kHz and prescalers at their default values (PREDIV_A = 127 and PREDIV_S = 255). Refer to Section 24.3.14: Calibration clock output .

Bit 18 BKP : Backup

This bit can be written by the user to memorize whether the daylight saving time change has been performed or not.

Bit 17 SUB1H : Subtract 1 hour (winter time change)

When this bit is set outside initialization mode, 1 hour is subtracted to the calendar time if the current hour is not 0. This bit is always read as 0.

Setting this bit has no effect when current hour is 0.

0: No effect

1: Subtracts 1 hour to the current time. This can be used for winter time change.

Bit 16 ADD1H : Add 1 hour (summer time change)

When this bit is set outside initialization mode, 1 hour is added to the calendar time. This bit is always read as 0.

0: No effect

1: Adds 1 hour to the current time. This can be used for summer time change

Bit 15 TSIE : Timestamp interrupt enable

0: Timestamp interrupt disable

1: Timestamp interrupt enable

Bits 14:13 Reserved, must be kept at reset value.

Bit 12 ALRAIE : Alarm A interrupt enable

0: Alarm A interrupt disabled

1: Alarm A interrupt enabled

Bit 11 TSE : timestamp enable

0: timestamp disable

1: timestamp enable

Bits 10:9 Reserved, must be kept at reset value.

Bit 8 ALRAE : Alarm A enable

0: Alarm A disabled

1: Alarm A enabled

Bit 7 Reserved, must be kept at reset value.

Bit 6 FMT : Hour format

0: 24 hour/day format

1: AM/PM hour format

Bit 5 BYPSHAD : Bypass the shadow registers

0: Calendar values (when reading from RTC_SSR, RTC_TR, and RTC_DR) are taken from the shadow registers, which are updated once every two RTCCLK cycles.

1: Calendar values (when reading from RTC_SSR, RTC_TR, and RTC_DR) are taken directly from the calendar counters.

Note: If the frequency of the APB1 clock is less than seven times the frequency of RTCCLK, BYPSHAD must be set to 1.

Bit 4 REFCKON : RTC_REFIN reference clock detection enable (50 or 60 Hz)

0: RTC_REFIN detection disabled

1: RTC_REFIN detection enabled

Note: PREDIV_S must be 0x00FF.

Bit 3 TSEDGE : Timestamp event active edge

0: RTC_TS input rising edge generates a timestamp event

1: RTC_TS input falling edge generates a timestamp event

TSE must be reset when TSEDGE is changed to avoid unwanted TSF setting.

Bits 2:0 Reserved, must be kept at reset value.

Note: Bits 6 and 4 of this register can be written in initialization mode only (RTC_ICSR/INITF = 1). It is recommended not to change the hour during the calendar hour increment as it could mask the incrementation of the calendar hour.

ADD1H and SUB1H changes are effective in the next second.

24.6.7 RTC write protection register (RTC_WPR)

Address offset: 0x24

Reset value: 0x0000 0000

Bits 31:8 Reserved, must be kept at reset value.

Bits 7:0 KEY[7:0] : Write protection key

• This byte is written by software.
• Reading this byte always returns 0x00.
• Refer to RTC register write protection for a description of how to unlock RTC register write protection.

24.6.8 RTC calibration register (RTC_CALR)

This register is write protected. The write access procedure is described in RTC register write protection on page 652 .

Address offset: 0x28

Power-on reset value: 0x0000 0000

System reset: not affected

Bits 31:16 Reserved, must be kept at reset value.

• Bit 15 CALP : Increase frequency of RTC by 488.5 ppm
  • 0: No RTCCLK pulses are added.
  • 1: One RTCCLK pulse is effectively inserted every \( 2^{11} \) pulses (frequency increased by 488.5 ppm).

This feature is intended to be used in conjunction with CALM, which lowers the frequency of the calendar with a fine resolution. if the input frequency is 32768 Hz, the number of RTCCLK pulses added during a 32-second window is calculated as follows: \( (512 \times \text{CALP}) - \text{CALM} \) .

Refer to Section 24.3.12: RTC smooth digital calibration .

• Bit 14 CALW8 : Use an 8-second calibration cycle period

  When CALW8 is set to 1, the 8-second calibration cycle period is selected.

  Note: CALM[1:0] are stuck at 00 when CALW8 = 1. Refer to Section 24.3.12: RTC smooth digital calibration .

• Bit 13 CALW16 : Use a 16-second calibration cycle period

  When CALW16 is set to 1, the 16-second calibration cycle period is selected. This bit must not be set to 1 if CALW8 = 1.

  Note: CALM[0] is stuck at 0 when CALW16 = 1. Refer to Section 24.3.12: RTC smooth digital calibration .

Bits 12:9 Reserved, must be kept at reset value.

• Bits 8:0 CALM[8:0] : Calibration minus

  The frequency of the calendar is reduced by masking CALM out of \( 2^{20} \) RTCCLK pulses (32 seconds if the input frequency is 32768 Hz). This decreases the frequency of the calendar with a resolution of 0.9537 ppm.

  To increase the frequency of the calendar, this feature should be used in conjunction with CALP. See Section 24.3.12: RTC smooth digital calibration on page 656 .

24.6.9 RTC shift control register (RTC_SHIFTR)

This register is write protected. The write access procedure is described in RTC register write protection on page 652 .

Address offset: 0x2C

Power-on reset value: 0x0000 0000

System reset: not affected

Bit 31 ADD1S : Add one second

0: No effect

1: Add one second to the clock/calendar

This bit is write only and is always read as zero. Writing to this bit has no effect when a shift operation is pending (when SHPF = 1, in RTC_ICSR).

This function is intended to be used with SUBFS (see description below) in order to effectively add a fraction of a second to the clock in an atomic operation.

Bits 30:15 Reserved, must be kept at reset value.

Bits 14:0 SUBFS[14:0] : Subtract a fraction of a second

These bits are write only and is always read as zero. Writing to this bit has no effect when a shift operation is pending (when SHPF = 1, in RTC_ICSR).

The value which is written to SUBFS is added to the synchronous prescaler counter. Since this counter counts down, this operation effectively subtracts from (delays) the clock by:

Delay (seconds) = SUBFS / (PREDIV_S + 1)

A fraction of a second can effectively be added to the clock (advancing the clock) when the ADD1S function is used in conjunction with SUBFS, effectively advancing the clock by:

Advance (seconds) = (1 - (SUBFS / (PREDIV_S + 1))).

Note: Writing to SUBFS causes RSF to be cleared. Software can then wait until RSF = 1 to be sure that the shadow registers have been updated with the shifted time.

24.6.10 RTC timestamp time register (RTC_TSTR)

The content of this register is valid only when TSF is set to 1 in RTC_SR. It is cleared when TSF bit is reset.

Address offset: 0x30

Power-on reset value: 0x0000 0000

System reset: not affected

Bits 31:23 Reserved, must be kept at reset value.

Bit 22 PM : AM/PM notation

0: AM or 24-hour format

1: PM

Bits 21:20 HT[1:0] : Hour tens in BCD format.

Bits 19:16 HU[3:0] : Hour units in BCD format.

Bit 15 Reserved, must be kept at reset value.

Bits 14:12 MNT[2:0] : Minute tens in BCD format.

Bits 11:8 MNU[3:0] : Minute units in BCD format.

Bit 7 Reserved, must be kept at reset value.

Bits 6:4 ST[2:0] : Second tens in BCD format.

Bits 3:0 SU[3:0] : Second units in BCD format.

24.6.11 RTC timestamp date register (RTC_TSDR)

The content of this register is valid only when TSF is set to 1 in RTC_SR. It is cleared when TSF bit is reset.

Address offset: 0x34

Power-on reset value: 0x0000 0000

System reset: not affected

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:13 WDU[2:0] : Week day units

Bit 12 MT : Month tens in BCD format

Bits 11:8 MU[3:0] : Month units in BCD format

Bits 7:6 Reserved, must be kept at reset value.

Bits 5:4 DT[1:0] : Date tens in BCD format

Bits 3:0 DU[3:0] : Date units in BCD format

24.6.12 RTC timestamp sub second register (RTC_TSSSR)

The content of this register is valid only when TSF is set to 1 in RTC_SR. It is cleared when the TSF bit is reset.

Address offset: 0x38

Power-on reset value: 0x0000 0000

System reset: not affected

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 SS[15:0]: Sub second value

SS[15:0] is the value of the synchronous prescaler counter when the timestamp event occurred.

24.6.13 RTC alarm A register (RTC_ALRMAR)

This register can be written only when ALRAWF is set to 1 in RTC_ICSR, or in initialization mode.

This register is write protected. The write access procedure is described in RTC register write protection on page 652 .

Address offset: 0x40

Power-on reset value: 0x0000 0000

System reset: not affected

Bit 31 MSK4 : Alarm A date mask

0: Alarm A set if the date/day match

1: Date/day don't care in alarm A comparison

Bit 30 WDSEL : Week day selection

0: DU[3:0] represents the date units

1: DU[3:0] represents the week day. DT[1:0] is don't care.

Bits 29:28 DT[1:0] : Date tens in BCD format

Bits 27:24 DU[3:0] : Date units or day in BCD format

Bit 23 MSK3 : Alarm A hours mask

0: Alarm A set if the hours match

1: Hours don't care in alarm A comparison

Bit 22 PM : AM/PM notation

0: AM or 24-hour format

1: PM

Bits 21:20 HT[1:0] : Hour tens in BCD format

Bits 19:16 HU[3:0] : Hour units in BCD format

Bit 15 MSK2 : Alarm A minutes mask

0: Alarm A set if the minutes match

1: Minutes don't care in alarm A comparison

Bits 14:12 MNT[2:0] : Minute tens in BCD format

Bits 11:8 MNU[3:0] : Minute units in BCD format

Bit 7 MSK1 : Alarm A seconds mask

0: Alarm A set if the seconds match

1: Seconds don't care in alarm A comparison

Bits 6:4 ST[2:0] : Second tens in BCD format.

Bits 3:0 SU[3:0] : Second units in BCD format.

24.6.14 RTC alarm A sub second register (RTC_ALRMASSR)

This register can be written only when ALRAWF is set to 1 in RTC_ICSR, or in initialization mode.

This register is write protected. The write access procedure is described in RTC register write protection on page 652 .

Address offset: 0x44

Power-on reset value: 0x0000 0000

System reset: not affected

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:24 MASKSS[3:0] : Mask the most-significant bits starting at this bit

0: No comparison on sub seconds for alarm A. The alarm is set when the seconds unit is incremented (assuming that the rest of the fields match).

1: SS[14:1] are don't care in alarm A comparison. Only SS[0] is compared.

2: SS[14:2] are don't care in alarm A comparison. Only SS[1:0] are compared.

3: SS[14:3] are don't care in alarm A comparison. Only SS[2:0] are compared.

...

12: SS[14:12] are don't care in alarm A comparison. SS[11:0] are compared.

13: SS[14:13] are don't care in alarm A comparison. SS[12:0] are compared.

14: SS[14] is don't care in alarm A comparison. SS[13:0] are compared.

15: All 15 SS bits are compared and must match to activate alarm.

The overflow bits of the synchronous counter (bits 15) is never compared. This bit can be different from 0 only after a shift operation.

Note: The overflow bits of the synchronous counter (bits 15) is never compared. This bit can be different from 0 only after a shift operation.

Bits 23:15 Reserved, must be kept at reset value.

Bits 14:0 SS[14:0] : Sub seconds value

This value is compared with the contents of the synchronous prescaler counter to determine if alarm A is to be activated. Only bits 0 up to MASKSS-1 are compared.

24.6.15 RTC status register (RTC_SR)

Address offset: 0x50

Power-on reset value: 0x0000 0000

System reset: not affected

Bits 31:5 Reserved, must be kept at reset value.

Bit 4 TSOVF : Timestamp overflow flag

This flag is set by hardware when a timestamp event occurs while TSF is already set.

It is recommended to check and then clear TSOVF only after clearing the TSF bit. Otherwise, an overflow might not be noticed if a timestamp event occurs immediately before the TSF bit is cleared.

Bit 3 TSF : Timestamp flag

This flag is set by hardware when a timestamp event occurs.

Bits 2:1 Reserved, must be kept at reset value.

Bit 0 ALRAF : Alarm A flag

This flag is set by hardware when the time/date registers (RTC_TR and RTC_DR) match the alarm A register (RTC_ALRMAR).

Note: The bits of this register are cleared few APB clock cycles after setting their corresponding clear bit in the RTC_SCR register. After clearing the flag, read it until it is read at 0 before leaving the interrupt routine.

24.6.16 RTC masked interrupt status register (RTC_MISR)

Address offset: 0x54

Power-on reset value: 0x0000 0000

System reset: not affected

Bits 31:5 Reserved, must be kept at reset value.

Bit 4 TSOVF : Timestamp overflow masked flag

This flag is set by hardware when a timestamp interrupt occurs while TSMF is already set. It is recommended to check and then clear TSOVF only after clearing the TSF bit. Otherwise, an overflow might not be noticed if a timestamp event occurs immediately before the TSF bit is cleared.

Bit 3 TSMF : Timestamp masked flag

This flag is set by hardware when a timestamp interrupt occurs.

Bits 2:1 Reserved, must be kept at reset value.

Bit 0 ALRAMF : Alarm A masked flag

This flag is set by hardware when the alarm A interrupt occurs.

Note: The bits of this register are cleared few APB clock cycles after setting their corresponding clear bit in the RTC_SCR register. After clearing the flag, read it until it is read at 0 before leaving the interrupt routine.

24.6.17 RTC status clear register (RTC_SCR)

Address offset: 0x5C

Power-on reset value: 0x0000 0000

System reset: not affected

Bits 31:5 Reserved, must be kept at reset value.

Bit 4 CTSOVF : Clear timestamp overflow flag

Writing 1 in this bit clears the TSOVF bit in the RTC_SR register. It is recommended to check and then clear TSOVF only after clearing the TSF bit. Otherwise, an overflow might not be noticed if a timestamp event occurs immediately before the TSF bit is cleared.

Bit 3 CTSF : Clear timestamp flag

Writing 1 in this bit clears the TSOVF bit in the RTC_SR register.

Bits 2:1 Reserved, must be kept at reset value.

Bit 0 CALRAF : Clear alarm A flag

Writing 1 in this bit clears the ALRAF bit in the RTC_SR register.

24.6.18 RTC register map

Table 104. RTC register map and reset values

Table 104. RTC register map and reset values (continued)
