14. Extended interrupt and event controller (EXTI)

The Extended interrupt and event controller (EXTI) manages the CPU and system wake-up through configurable and direct event inputs (lines). It provides wake-up requests to the power control, and generates an interrupt request to the CPU NVIC and events to the CPU event input. For the CPU an additional event generation block (EVG) is needed to generate the CPU event signal.

The EXTI wake-up requests allow the system to be woken up from Stop modes.

The interrupt request and event request generation can also be used in Run mode.

The EXTI also includes the EXTI I/O port multiplexer.

14.1 EXTI main features

The EXTI main features are the following:

• System wake-up upon event on any input
• Wake-up flag and CPU interrupt generation for events not having a wake-up flag in their source peripheral
• Configurable events (from I/Os, peripherals not having an associated interrupt pending status bit, or peripherals generating a pulse)
- – Selectable active trigger edge
- – Independent rising and falling edge interrupt pending status bits
- – Individual interrupt and event generation mask, used for conditioning the CPU wake-up, interrupt and event generation
- – SW trigger possibility
• Direct events (from peripherals having an associated flag and interrupt pending status bit)
- – Fixed rising edge active trigger
- – No interrupt pending status bit in the EXTI
- – Individual interrupt and event generation mask for conditioning the CPU wake-up and event generation
- – No SW trigger possibility
• I/O port selector

14.2 EXTI block diagram

The EXTI consists of a register block accessed via an AHB interface, the event input trigger block, the masking block, and EXTI multiplexer as shown in Figure 25 .

The register block contains all the EXTI registers.

The event input trigger block provides an event input edge trigger logic.

The masking block provides the event input distribution to the different wake-up, interrupt and event outputs, and the masking of these.

The EXTI multiplexer provides the I/O port selection on to the EXTI event signal.

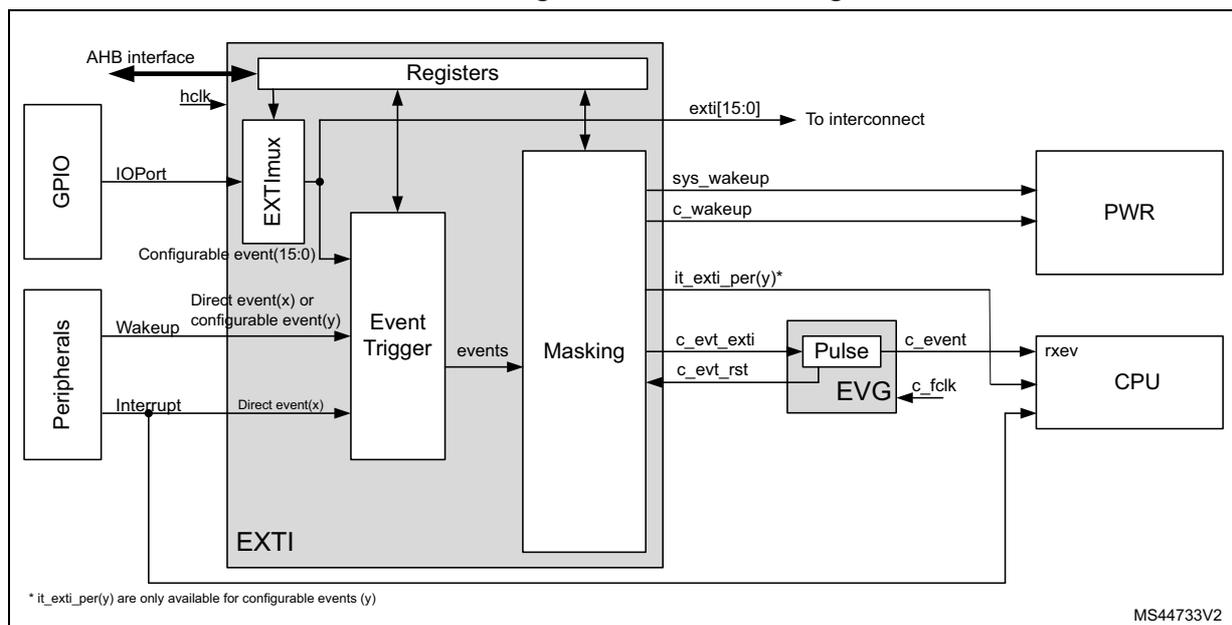

Figure 25. EXTI block diagram

Figure 25. EXTI block diagram. The diagram shows the internal architecture of the EXTI block. On the left, GPIO and Peripherals are connected to the EXTI block. GPIO is connected via IOPort to the EXTI mux. Peripherals are connected via Wakeup and Interrupt signals to the Event Trigger. The EXTI block contains an AHB interface, Registers, EXTI mux, Event Trigger, and Masking. The AHB interface is connected to the Registers and hclk. The Registers are connected to the EXTI mux, Event Trigger, and Masking. The EXTI mux is connected to the Registers and Event Trigger. The Event Trigger is connected to the EXTI mux, Registers, and Masking. The Masking is connected to the Registers and Event Trigger. The EXTI block outputs are: exti[15:0] to the interconnect, sys_wakeup and c_wakeup to the PWR block, and it_exti_per(y)*, c_evt_exti, and c_evt_rst to the CPU block. The CPU block contains an EVG (Event Generator) which includes a Pulse block. The EVG is connected to the Masking, c_evt_exti, c_evt_rst, c_event, and c_fclk signals. The PWR block is connected to the sys_wakeup and c_wakeup signals. The AHB interface is connected to the Registers and hclk. The Registers are connected to the EXTI mux, Event Trigger, and Masking. The EXTI mux is connected to the Registers and Event Trigger. The Event Trigger is connected to the EXTI mux, Registers, and Masking. The Masking is connected to the Registers and Event Trigger. The EXTI block outputs are: exti[15:0] to the interconnect, sys_wakeup and c_wakeup to the PWR block, and it_exti_per(y)*, c_evt_exti, and c_evt_rst to the CPU block. The CPU block contains an EVG (Event Generator) which includes a Pulse block. The EVG is connected to the Masking, c_evt_exti, c_evt_rst, c_event, and c_fclk signals. The PWR block is connected to the sys_wakeup and c_wakeup signals. * it_exti_per(y) are only available for configurable events (y). MS44733V2

Table 56. EXTI signal overview

Signal name	I/O	Description
AHB interface	I/O	EXTI register bus interface. When one event is configured to allow security, the AHB interface support secure accesses
hclk	I	AHB bus clock and EXTI system clock
Configurable event(y)	I	Asynchronous wake-up events from peripherals that do not have an associated interrupt and flag in the peripheral
Direct event(x)	I	Synchronous and asynchronous wake-up events from peripherals having an associated interrupt and flag in the peripheral
IOPort(n)	I	GPIO ports[15:0]
exti[15:0]	O	EXTI output port to trigger other IPs
it_exti_per (y)	O	Interrupts to the CPU associated with configurable event (y)
c_evt_exti	O	High-level sensitive event output for CPU synchronous to hclk
c_evt_rst	I	Asynchronous reset input to clear c_evt_exti
sys_wakeup	O	Asynchronous system wake-up request to PWR for ck_sys and hclk
c_wakeup	O	Wake-up request to PWR for CPU, synchronous to hclk

Table 57. EVG pin overview

Pin name	I/O	Description
c_fclk	I	CPU free-running clock
c_evt_in	I	High-level sensitive event input from EXTI, asynchronous to CPU clock
c_event	O	Event pulse, synchronous to CPU clock
c_evt_rst	O	Event reset signal, synchronous to CPU clock

14.2.1 EXTI connections between peripherals and CPU

The peripherals able to generate wake-up or interrupt events when the system is in Stop mode are connected to the EXTI.

• Peripheral wake-up signals that generate a pulse or that do not have an interrupt status bits in the peripheral, are connected to an EXTI configurable line. For these events the EXTI provides a status pending bit which requires to be cleared. It is the EXTI interrupt associated with the status bit that interrupts the CPU.
• Peripheral interrupt and wake-up signals that have a status bit in the peripheral which requires to be cleared in the peripheral, are connected to an EXTI direct line. There is no status pending bit within the EXTI. The interrupt or wake-up is cleared by the CPU in the peripheral. It is the peripheral interrupt that interrupts the CPU directly.
• All GPIO ports input to the EXTI multiplexer, allowing to select a port to wake up the system via a configurable event.

The EXTI configurable event interrupts are connected to the NVIC(a) of the CPU.

The dedicated EXTI/EVG CPU event is connected to the CPU rxeve input.

The EXTI CPU wake-up signals are connected to the PWR block, and are used to wake up the system and CPU sub-system bus clocks.

14.3 EXTI functional description

Depending on the EXTI line type and wake-up target(s), different logic implementations are used. The applicable features and control or status registers are:

• rising and falling edge event enable through
- – EXTI rising trigger selection register 1 (EXTI_RTSR1)
- – EXTI falling trigger selection register 1 (EXTI_FTSR1)
• software trigger through EXTI software interrupt event register 1 (EXTI_SWIER1)
• pending interrupt flagging through
- – EXTI rising edge pending register 1 (EXTI_RPR1)
- – EXTI falling edge pending register 1 (EXTI_FPR1)
- – EXTI external interrupt selection register (EXTI_EXTICRx)
• CPU wake-up and interrupt enable through
- – EXTI CPU wake-up with interrupt mask register 1 (EXTI_IMR1)
• CPU wake-up and event enable through
- – EXTI CPU wake-up with event mask register (EXTI_EMR1)

Table 58. EXTI event input configurations and register control

Event input type	Logic implementation	EXTI_RTSR1	EXTI_FTSR1	EXTI_SWIER1	EXTI_R/FPR1	EXTI_IMR1	EXTI_EMR1
Configurable	Configurable event input wake-up logic	x	x	x	x	x	x
Direct	Direct event input wake-up logic	-	-	-	-	x	x

14.3.1 EXTI configurable event input wake-up

Figure 26 is a detailed representation of the logic associated with configurable event inputs which wake up the CPU sub-system bus clocks and generated an EXTI pending flag and interrupt to the CPU and or a CPU wake-up event.

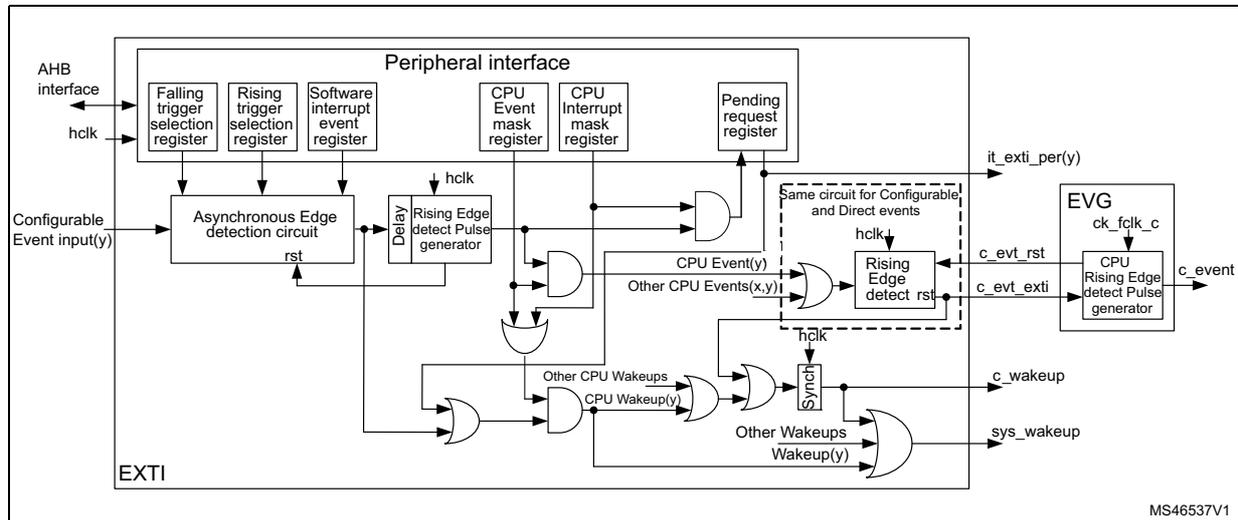

Figure 26. Configurable event trigger logic CPU wake-up

Figure 26: Configurable event trigger logic CPU wake-up. This block diagram shows the internal logic of the EXTI for configurable events. On the left, an 'AHB interface' and 'hclk' clock are connected to a 'Peripheral interface' block. This block contains several registers: 'Falling trigger selection register', 'Rising trigger selection register', 'Software interrupt event register', 'CPU Event mask register', 'CPU Interrupt mask register', and 'Pending request register'. A 'Configurable Event input(y)' enters from the left and is processed by an 'Asynchronous Edge detection circuit' which is reset by 'rst'. The output of this circuit goes to a 'Delay' block and a 'Rising Edge detect Pulse generator' (which also takes 'hclk'). The pulse generator's output goes to an AND gate. Another AND gate combines the output of the 'Software interrupt event register' with the 'CPU Event mask register'. The outputs of these AND gates are OR-ed together to form 'CPU Event(y)'. This signal goes to a 'Rising Edge detect' block (part of a 'Same circuit for Configurable and Direct events' which also takes 'hclk'). The output of this block is 'c_evt_rst', which is also input to an 'EVG' (Event Generator) block. The 'EVG' block takes 'ck_fclk_c' and 'c_evt_exti' and produces 'c_event'. The 'CPU Event(y)' signal also goes to an OR gate that produces 'Other CPU Events(x,y)'. This signal is OR-ed with 'CPU Wakeup(y)' to produce 'Other CPU Wakeups'. These signals are then processed through a 'Sync' block to produce 'c_wakeup' and 'sys_wakeup' outputs. The 'Pending request register' is also shown in the peripheral interface block. The diagram is labeled 'EXTI' at the bottom left and 'MS46537V1' at the bottom right.

The software interrupt event register allows triggering configurable events by software, writing the corresponding register bit, irrespective of the edge selection setting.

The rising edge and falling edge selection registers allow to enable and select the configurable event active trigger edge or both edges.

The CPU has its dedicated interrupt mask register and a dedicated event mask registers. The enabled event allows generating an event on the CPU. All events for a CPU are OR-ed together into a single CPU event signal. The event pending registers (EXTI_RPR1 and EXTI_FPR1) is not set for an unmasked CPU event.

The configurable events have unique interrupt pending request registers, shared by the CPU. The pending register is only set for an unmasked interrupt. Each configurable event provides a common interrupt to the CPU. The configurable event interrupts need to be acknowledged by software in the EXTI_RPR1 and/or EXTI_FPR1 registers.

When a CPU interrupt or CPU event is enabled, the asynchronous edge detection circuit is reset by the clocked delay and rising edge detect pulse generator. This guarantees the wake-up of the EXTI hclk clock before the asynchronous edge detection circuit is reset.

Note: A detected configurable event interrupt pending request can be cleared by the CPU. The system cannot enter low-power modes as long as an interrupt pending request is active.

14.3.2 EXTI direct event input wake-up

Figure 27 is a detailed representation of the logic associated with direct event inputs waking up the system.

The direct events do not have an associated EXTI interrupt. The EXTI only wakes up the system and CPU sub-system clocks and may generate a CPU wake-up event. The peripheral synchronous interrupt, associated with the direct wake-up event wakes up the CPU.

The EXTI direct event is able to generate a CPU event. This CPU event wakes up the CPU. The CPU event may occur before the interrupt flag of the associated peripheral is set.

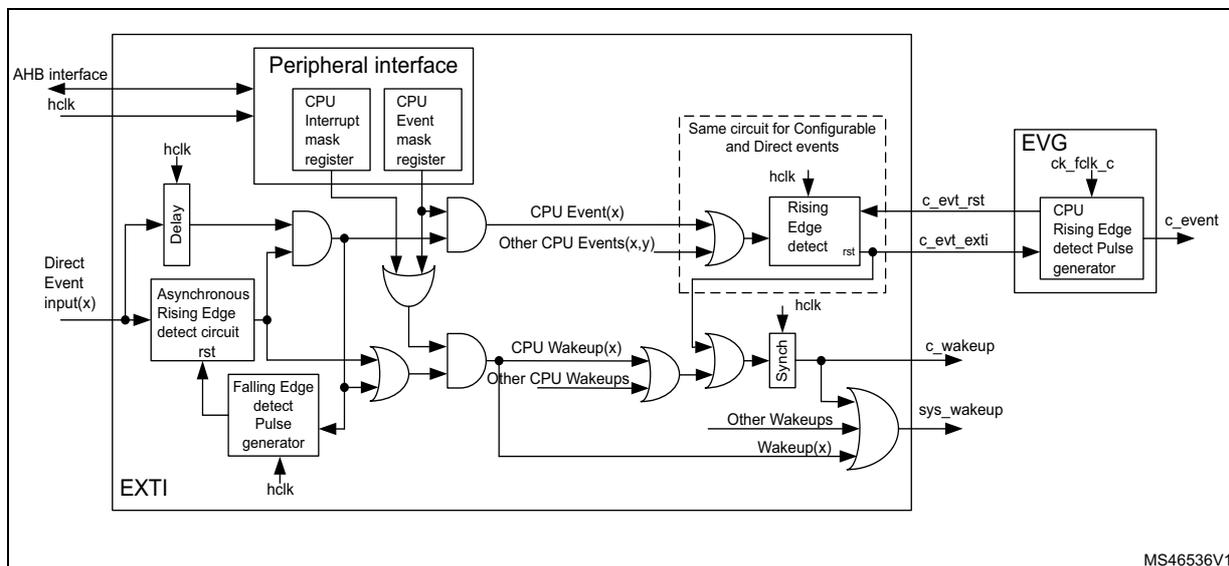

Figure 27. Direct event trigger logic CPU wake-up

Figure 27: Direct event trigger logic CPU wake-up. This block diagram shows the internal logic of the EXTI. On the left, an 'AHB interface' provides 'hclk' to a 'Peripheral interface' block containing 'CPU Interrupt mask register' and 'CPU Event mask register'. 'Direct Event input(x)' signals pass through a 'Delay' block and an 'Asynchronous Rising Edge detect circuit' (with 'rst' input). These signals are ANDed with the 'CPU Event mask register' output to produce 'CPU Event(x)'. Simultaneously, 'Direct Event input(x)' signals pass through a 'Falling Edge detect Pulse generator' (with 'hclk' input) to produce 'CPU Wakeup(x)'. These are ANDed with the 'CPU Interrupt mask register' output. The 'CPU Event(x)' and 'Other CPU Events(x,y)' signals are ORed and then passed through a 'Rising Edge detect' block (part of a 'Same circuit for Configurable and Direct events' with 'hclk' input) to generate 'c_evt_rst'. The 'CPU Wakeup(x)' and 'Other CPU Wakeups' signals are ORed and passed through a 'Synch' block (with 'hclk' input) to generate 'c_wakeup'. Both 'c_evt_rst' and 'c_wakeup' are ORed to produce 'sys_wakeup'. Finally, 'c_evt_rst' is passed through an 'EVG' (External Voltage Generator) block with 'ck_folk_c' input to a 'CPU Rising Edge detect Pulse generator' which outputs 'c_event'. The entire logic is contained within an 'EXTI' block. Reference MS46536V1 is at the bottom right.

14.3.3 EXTI multiplexer

The EXTI multiplexer allows selecting GPIOs as interrupts and wake-up. The GPIOs are connected via 16 EXTI multiplexer lines to the first 16 EXTI events as configurable event. The selection of GPIO port as EXTI multiplexer output is controlled through the EXTI external interrupt selection register (EXTI_EXTICRx) register.

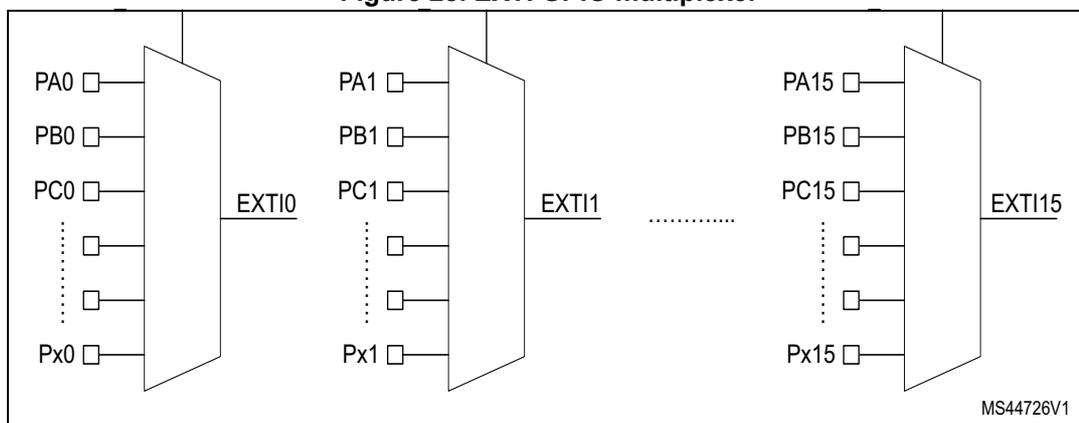

Figure 28. EXTI GPIO multiplexer

Figure 28: EXTI GPIO multiplexer. This diagram shows three multiplexer blocks. The first block selects between PA0, PB0, PC0, ..., Px0 to produce the 'EXTI0' signal. The second block selects between PA1, PB1, PC1, ..., Px1 to produce the 'EXTI1' signal. The third block, after an ellipsis, selects between PA15, PB15, PC15, ..., Px15 to produce the 'EXTI15' signal. Each multiplexer has 16 inputs corresponding to the pins of a specific port. Reference MS44726V1 is at the bottom right.

The EXTI multiplexer outputs are available as output signals from the EXTI, to trigger other functional blocks. The EXTI multiplexer outputs are available independently of mask setting through the EXTI_IMR and EXTI_EMR registers.

The EXTI lines (event inputs) are connected as shown in the following table.

Table 59. EXTI line connections

EXTI line	Line source	Line type
0-15	GPIO	Configurable
16	Reserved	-
17	Reserved	-
18	Reserved	-
19	RTC	Direct
20	Reserved	-
21	Reserved	-
22	Reserved	-
23	I2C1 wake-up	Direct
24	Reserved	-
25	USART1 wake-up	Direct
26	Reserved	-
27	Reserved	-
28	Reserved	-
29	Reserved	-
30	Reserved	-
31	LSE_CSS	Direct
32	Reserved	-
33	Reserved	-
34	VDDIO2 monitoring	Configurable
35	Reserved	-
36	USB wake-up	Direct

14.4 EXTI functional behavior

The direct event inputs are enabled in the respective peripheral generating the wake-up event. The configurable events are enabled by enabling at least one of the trigger edges.

Once an event input is enabled, the generation of a CPU wake-up is conditioned by the CPU interrupt mask and CPU event mask.

Table 60. Masking functionality

CPU interrupt enable EXTI_IMR.IMn	CPU event enable EXTI_EMR.EMn	Configurable event inputs EXTI_RPR.RPIFn EXTI_FPR.FPIFn	exti(n) interrupt ⁽¹⁾	CPU event	CPU wake-up
0	0	No	Masked	Masked	Masked
0	1	No	Masked	Yes	Yes

Table 60. Masking functionality (continued)

CPU interrupt enable EXTI_IMR.IMn	CPU event enable EXTI_EMR.EMn	Configurable event inputs EXTI_RPR.RPIFn EXTI_FPR.FPIFn	exti(n) interrupt ⁽¹⁾	CPU event	CPU wake-up
1	0	Status latched	Yes	Masked	Yes ⁽²⁾
1	1	Status latched	Yes	Yes	Yes

1. The single exti(n) interrupt goes to the CPU. If no interrupt is required for CPU, the exti(n) interrupt must be masked in the CPU NVIC.

2. Only if CPU interrupt is enabled in EXTI_IMR.IMn.

For configurable event inputs, upon an edge on the event input, an event request is generated if that edge (rising or/and falling) is enabled. When the associated CPU interrupt is unmasked, the corresponding RPIFn and/or FPIFn bit is/are set in the EXTI_RPR or/and EXTI_FPR register, waking up the CPU subsystem and activating CPU interrupt signal. The RPIFn and/or FPIFn pending bit is cleared by writing 1 to it, which clears the CPU interrupt request.

For direct event inputs, when enabled in the associated peripheral, an event request is generated on the rising edge only. There is no corresponding CPU pending bit in the EXTI. When the associated CPU interrupt is unmasked, the corresponding CPU subsystem is woken up. The CPU is woken up (interrupted) by the peripheral synchronous interrupt.

The CPU event must be unmasked to generate an event. Upon an enabled edge occurring on an event input, a CPU event pulse is generated. There is no event pending bit.

For the configurable event inputs, the software can generate an event request by setting the corresponding bit of the software interrupt/event register EXTI_SWIER1, which has the effect of a rising edge on the event input. The pending rising edge event flag is set in the EXTI_RPR1 register, irrespective of the EXTI_RTSR1 register setting.

14.5 EXTI registers

The EXTI register map is divided in the following sections:

Table 61. EXTI register map sections

Address	Description
0x000 - 0x01C	General configurable event [31:0] configuration
0x060 - 0x06C	EXTI I/O port multiplexer
0x080 - 0x0BC	CPU input event configuration

All the registers can be accessed with word (32-bit), half-word (16-bit) and byte (8-bit) access.

14.5.1 EXTI rising trigger selection register 1 (EXTI_RTSR1)

Address offset: 0x000

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
RT15	RT14	RT13	RT12	RT11	RT10	RT9	RT8	RT7	RT6	RT5	RT4	RT3	RT2	RT1	RT0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 RTx : Rising trigger event configuration bit of configurable line x (x = 15 to 0)

Each bit enables/disables the rising edge trigger for the event and interrupt on the corresponding line.

0: Disable

1: Enable

Note: The configurable lines are edge triggered; no glitch must be generated on these inputs. If a rising edge on the configurable line occurs during writing of the register, the associated pending bit is not set. Rising edge trigger can be set for a line with falling edge trigger enabled. In this case, both edges generate a trigger.

14.5.2 EXTI falling trigger selection register 1 (EXTI_FTSR1)

Address offset: 0x004

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
FT15	FT14	FT13	FT12	FT11	FT10	FT9	FT8	FT7	FT6	FT5	FT4	FT3	FT2	FT1	FT0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 FTx : Falling trigger event configuration bit of configurable line x (x = 15 to 0).

Each bit enables/disables the falling edge trigger for the event and interrupt on the corresponding line.

0: Disable

1: Enable

Note: The configurable lines are edge triggered; no glitch must be generated on these inputs. If a falling edge on the configurable line occurs during writing of the register, the associated pending bit is not set. Falling edge trigger can be set for a line with rising edge trigger enabled. In this case, both edges generate a trigger.

14.5.3 EXTI software interrupt event register 1 (EXTI_SWIER1)

Address offset: 0x008

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
SWI15	SWI14	SWI13	SWI12	SWI11	SWI10	SWI9	SWI8	SWI7	SWI6	SWI5	SWI4	SWI3	SWI2	SWI1	SWI0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 SWIx : Software rising edge event trigger on line x (x = 15 to 0)

Setting of any bit by software triggers a rising edge event on the corresponding line x, resulting in an interrupt, independently of EXTI_RTSR1 and EXTI_FTSR1 settings. The bits are automatically cleared by HW. Reading of any bit always returns 0.

0: No effect

1: Rising edge event generated on the corresponding line, followed by an interrupt

14.5.4 EXTI rising edge pending register 1 (EXTI_RPR1)

Address offset: 0x00C

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
RPIF15	RPIF14	RPIF13	RPIF12	RPIF11	RPIF10	RPIF9	RPIF8	RPIF7	RPIF6	RPIF5	RPIF4	RPIF3	RPIF2	RPIF1	RPIF0
rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 RPIFx : Rising edge event pending for configurable line x (x = 15 to 0)

Each bit is set upon a rising edge event generated by hardware or by software (through the EXTI_SWIER1 register) on the corresponding line. Each bit is cleared by writing 1 into it.

0: No rising edge trigger request occurred

1: Rising edge trigger request occurred

14.5.5 EXTI falling edge pending register 1 (EXTI_FPR1)

Address offset: 0x010

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
FPIF15	FPIF14	FPIF13	FPIF12	FPIF11	FPIF10	FPIF9	FPIF8	FPIF7	FPIF6	FPIF5	FPIF4	FPIF3	FPIF2	FPIF1	FPIF0
rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 FPIFx : Falling edge event pending for configurable line x (x = 15 to 0)

Each bit is set upon a falling edge event generated by hardware or by software (through the EXTI_SWIER1 register) on the corresponding line. Each bit is cleared by writing 1 into it.

0: No falling edge trigger request occurred

1: Falling edge trigger request occurred

14.5.6 EXTI rising trigger selection register 2 (EXTI_RTSR2)

This register is only available on STM32C071xx. On the other devices, it is reserved.

Address offset: 0x020

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	RT34	Res.	Res.
													rw

Bits 31:3 Reserved, must be kept at reset value.

Bit 2 RT34 : Rising trigger event configuration bit of configurable line 34

Each bit enables/disables the rising edge trigger for the event and interrupt on the line 34.

0: Disable

1: Enable

Note: This configurable line is edge triggered; no glitch must be generated on this inputs. If a rising edge on the configurable line occurs during writing of the register, the associated pending bit is not set. Rising edge trigger can be set for a line with falling edge trigger enabled. In this case, both edges generate a trigger.

Bits 1:0 Reserved, must be kept at reset value.

14.5.7 EXTI falling trigger selection register 2 (EXTI_FTSR2)

This register is only available on STM32C071xx. On the other devices, it is reserved.

Address offset: 0x024

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	FT34	Res.	Res.
													nw

Bits 31:3 Reserved, must be kept at reset value.

Bit 2 FT34 : Falling trigger event configuration bit of configurable line 34.

Each bit enables/disables the falling edge trigger for the event and interrupt on the line 34.

0: Disable

1: Enable

Bits 1:0 Reserved, must be kept at reset value.

14.5.8 EXTI software interrupt event register 2 (EXTI_SWIER2)

This register is only available on STM32C071xx. On the other devices, it is reserved.

Address offset: 0x028

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	SWI34	Res.	Res.
													nw

Bits 31:3 Reserved, must be kept at reset value.

Bit 2 SWI34 : Software rising edge event trigger on line 34

Setting of any bit by software triggers a rising edge event on the line 34, resulting in an interrupt, independently of EXTI_RTSR2 and EXTI_FTSR2 settings. The bits are automatically cleared by HW. Reading of any bit always returns 0.

0: No effect

1: Rising edge event generated on the corresponding line, followed by an interrupt

Bits 1:0 Reserved, must be kept at reset value.

14.5.9 EXTI rising edge pending register 2 (EXTI_RPR2)

This register is only available on STM32C071xx. On the other devices, it is reserved.

Address offset: 0x02C

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	RPIF34	Res.	Res.
													rc_w1

Bits 31:3 Reserved, must be kept at reset value.

Bit 2 RPIF34 : Rising edge event pending for configurable line 34

Each bit is set upon a rising edge event generated by hardware or by software (through the EXTI_SWIER2 register) on the line 34. Each bit is cleared by writing 1 into it.

0: No rising edge trigger request occurred

1: Rising edge trigger request occurred

Bits 1:0 Reserved, must be kept at reset value.

14.5.10 EXTI falling edge pending register 2 (EXTI_FPR2)

This register is only available on STM32C071xx. On the other devices, it is reserved.

Address offset: 0x030

Reset value: 0x0000 0000

Contains only register bits for configurable events.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	FPIF34	Res.	Res.
													rc_w1

Bits 31:3 Reserved, must be kept at reset value.

Bit 2 FPIF34 : Falling edge event pending for configurable line 34

Each bit is set upon a falling edge event generated by hardware or by software (through the EXTI_SWIER2 register) on the line 34. Each bit is cleared by writing 1 into it.

0: No falling edge trigger request occurred

1: Falling edge trigger request occurred

Bits 1:0 Reserved, must be kept at reset value.

14.5.11 EXTI external interrupt selection register (EXTI_EXTICRx)

Address offset: 0x060 + 0x4 * (x - 1), (x = 1 to 4)

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
EXTI{4*(x-1)+3}[7:0]								EXTI{4*(x-1)+2}[7:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
EXTI{4*(x-1)+1}[7:0]								EXTI{4*(x-1)}[7:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:24 EXTI{4*(x-1)+3}[7:0]: EXTI{4*(x-1)+3} GPIO port selection

These bits are written by software to select the source input for EXTI{4*(x-1)+3} external interrupt.

0x00: PA[{4*(x-1)+3}] pin

0x01: PB[{4*(x-1)+3}] pin

0x02: PC[{4*(x-1)+3}] pin

0x03: PD[{4*(x-1)+3}] pin

0x04: reserved

0x05: PF[{4*(x-1)+3}] pin

Other: reserved

Bits 23:16 EXTI{4*(x-1)+2}[7:0]: EXTI{4*(x-1)+2} GPIO port selection

These bits are written by software to select the source input for EXTI{4*(x-1)+2} external interrupt.

0x00: PA[{4*(x-1)+2}] pin

0x01: PB[{4*(x-1)+2}] pin

0x02: PC[{4*(x-1)+2}] pin

0x03: PD[{4*(x-1)+2}] pin

0x04: reserved

0x05: PF[{4*(x-1)+2}] pin

Other: reserved

Bits 15:8 EXTI{4*(x-1)+1}[7:0]: EXTI{4*(x-1)+1} GPIO port selection

These bits are written by software to select the source input for EXTI{4*(x-1)+1} external interrupt.

0x00: PA[{4*(x-1)+1}] pin

0x01: PB[{4*(x-1)+1}] pin

0x02: PC[{4*(x-1)+1}] pin

0x03: PD[{4*(x-1)+1}] pin

0x04: reserved

0x05: PF[{4*(x-1)+1}] pin

Other: reserved

Bits 7:0 EXTI{4*(x-1)}[7:0]: EXTI{4*(x-1)} GPIO port selection

These bits are written by software to select the source input for EXTI{4*(x-1)} external interrupt.

0x00: PA[{4*(x-1)}] pin

0x01: PB[{4*(x-1)}] pin

0x02: PC[{4*(x-1)}] pin

0x03: PD[{4*(x-1)}] pin

0x04: reserved

0x05: PF[{4*(x-1)}] pin

Other: reserved

14.5.12 EXTI CPU wake-up with interrupt mask register 1 (EXTI_IMR1)

Address offset: 0x080

Reset value: 0xFFF8 0000

Contains register bits for configurable events and direct events.

The reset value is set such as to, by default, enable interrupt from direct lines, and disable interrupt from configurable lines.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
IM31	Res.	Res.	Res.	Res.	Res.	IM25	Res.	IM23	Res.	Res.	Res.	IM19	Res.	Res.	Res.
rw						rw		rw				rw

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
IM15	IM14	IM13	IM12	IM11	IM10	IM9	IM8	IM7	IM6	IM5	IM4	IM3	IM2	IM1	IM0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bit 31 IM31 : CPU wake-up with interrupt mask on line 31

Setting/clearing this bit unmask/mask the CPU wake-up with interrupt, by an event on the corresponding line.

0: wake-up with interrupt masked

1: wake-up with interrupt unmasked

Bits 30:26 Reserved, must be kept at reset value.

Bit 25 IM25 : CPU wake-up with interrupt mask on line 25

Setting/clearing each bit unmask/mask the CPU wake-up with interrupt, by an event on the corresponding line.

0: wake-up with interrupt masked

1: wake-up with interrupt unmasked

Bit 24 Reserved, must be kept at reset value.

Bit 23 IM23 : CPU wake-up with interrupt mask on line 23

Setting/clearing each bit unmask/mask the CPU wake-up with interrupt, by an event on the corresponding line.

0: wake-up with interrupt masked

1: wake-up with interrupt unmasked

Bits 22:20 Reserved, must be kept at reset value.

Bit 19 IM19 : CPU wake-up with interrupt mask on line 19

Setting/clearing this bit unmask/mask the CPU wake-up with interrupt, by an event on the corresponding line.

0: wake-up with interrupt masked

1: wake-up with interrupt unmasked

Bits 18:16 Reserved, must be kept at reset value.

Bits 15:0 IMx : CPU wake-up with interrupt mask on line x (x = 15 to 0)

Setting/clearing each bit unmask/mask the CPU wake-up with interrupt, by an event on the corresponding line.

0: wake-up with interrupt masked

1: wake-up with interrupt unmasked

14.5.13 EXTI CPU wake-up with event mask register (EXTI_EMR1)

Address offset: 0x084

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
EM31	Res.	Res.	Res.	Res.	Res.	EM25	Res.	EM23	Res.	Res.	Res.	EM19	Res.	Res.	Res.
rw						rw		rw				rw

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
EM15	EM14	EM13	EM12	EM11	EM10	EM9	EM8	EM7	EM6	EM5	EM4	EM3	EM2	EM1	EM0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bit 31 EM31 : CPU wake-up with event generation mask on line 31

Setting/clearing this bit unmask/masks the CPU wake-up with event generation on the corresponding line.

0: wake-up with event generation masked

1: wake-up with event generation unmasked

Bits 30:26 Reserved, must be kept at reset value.

Bit 25 EM25 : CPU wake-up with event generation mask on line 25

Setting/clearing this bit unmask/masks the CPU wake-up with event generation on the corresponding line.

0: wake-up with event generation masked

1: wake-up with event generation unmasked

Bit 24 Reserved, must be kept at reset value.

Bit 23 EM23 : CPU wake-up with event generation mask on line 23

Setting/clearing this bit unmask/masks the CPU wake-up with event generation on the corresponding line.

0: wake-up with event generation masked

1: wake-up with event generation unmasked

Bits 22:20 Reserved, must be kept at reset value.

Bit 19 EM19 : CPU wake-up with event generation mask on line 19

Setting/clearing this bit unmask/masks the CPU wake-up with event generation on the corresponding line.

0: wake-up with event generation masked

1: wake-up with event generation unmasked

Bits 18:16 Reserved, must be kept at reset value.

Bits 15:0 EMx : CPU wake-up with event generation mask on line x (x = 15 to 0)

Setting/clearing each bit unmask/masks the CPU wake-up with event generation on the corresponding line.

0: wake-up with event generation masked

1: wake-up with event generation unmasked

14.5.14 EXTI CPU wake-up with interrupt mask register 2 (EXTI_IMR2)

This register is only available on STM32C071xx. On the other devices, it is reserved.

Address offset: 0x090

Reset value: 0x0000 0000

Contains register bits for configurable events and direct events.

The reset value is set such as to, by default, enable interrupt from direct lines, and disable interrupt from configurable lines.

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	IM36	Res.	IM34	Res.	Res.
											rw		rw

Bits 31:5 Reserved, must be kept at reset value.

Bit 4 IM36 : CPU wake-up with interrupt mask on line 36

Setting/clearing the bit unmaskes/masks the CPU wake-up with interrupt request from the line 36.

0: wake-up with interrupt masked

1: wake-up with interrupt unmasked

Bit 3 Reserved, must be kept at reset value.

Bit 2 IM34 : CPU wake-up with interrupt mask on line 34

Setting/clearing the bit unmaskes/masks the CPU wake-up with interrupt request from the line 34.

0: wake-up with interrupt masked

1: wake-up with interrupt unmasked

Bits 1:0 Reserved, must be kept at reset value.

14.5.15 EXTI CPU wake-up with event mask register 2 (EXTI_EMR2)

This register is only available on STM32C071xx. On the other devices, it is reserved.

Address offset: 0x094

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	EM36	Res.	EM34	Res.	Res.
											rw		rw

Bits 31:5 Reserved, must be kept at reset value.

Bit 4 EM36 : CPU wake-up with event generation mask on line 36

Setting/clearing this bit unmasks/masks the CPU wake-up with event generation on the line 36.
0: wake-up with event generation masked
1: wake-up with event generation unmasked

Bit 3 Reserved, must be kept at reset value.

Bit 2 EM34 : CPU wake-up with event generation mask on line 34

Setting/clearing this bit unmasks/masks the CPU wake-up with event generation on the line 34.
0: wake-up with event generation masked
1: wake-up with event generation unmasked

Bits 1:0 Reserved, must be kept at reset value.

14.5.16 EXTI register map

The following table gives the EXTI register map and the reset values.

Table 62. EXTI controller register map and reset values

Offset	Register	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
0x000	EXTI_RTSR1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	RT15	RT14	RT13	RT12	RT11	RT10	RT9	RT8	RT7	RT6	RT5	RT4	RT3	RT2	RT1	RT0
0x000	Reset value																	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x004	EXTI_FTSR1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	FT15	FT14	FT13	FT12	FT11	FT10	FT9	FT8	FT7	FT6	FT5	FT4	FT3	FT2	FT1	FT0
0x004	Reset value																	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x008	EXTI_SWIER1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	SW15	SW14	SW13	SW12	SW11	SW10	SW9	SW8	SW7	SW6	SW5	SW4	SW3	SW2	SW1	SW0
0x008	Reset value																	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x00C	EXTI_RPR1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	RPIF15	RPIF14	RPIF13	RPIF12	RPIF11	RPIF10	RPIF9	RPIF8	RPIF7	RPIF6	RPIF5	RPIF4	RPIF3	RPIF2	RPIF1	RPIF0
0x00C	Reset value																	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x010	EXTI_FPR1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	FPIF15	FPIF14	FPIF13	FPIF12	FPIF11	FPIF10	FPIF9	FPIF8	FPIF7	FPIF6	FPIF5	FPIF4	FPIF3	FPIF2	FPIF1	FPIF0
0x010	Reset value																	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x014- 0x01C	Reserved	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
0x020	EXTI_RTSR2	Res.																													RT34	Res.
0x020	Reset value																														0
0x024	EXTI_FTSR2	Res.																													FT34	Res.
0x024	Reset value																														0
0x028	EXTI_SWIER2	Res.																													SW34	Res.
0x028	Reset value																														0

Table 62. EXTI controller register map and reset values (continued)

Offset	Register	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
0x02C	EXTI_RPR2	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	RFPIF34	Res.
0x02C	Reset value																															0
0x030	EXTI_FPR2	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	FPFIF34	Res.
0x030	Reset value																															0
0x034- 0x05C	Reserved	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
0x060	EXTI_EXTICR1	EXTI3[7:0]							EXTI2[7:0]								EXTI1[7:0]								EXTI0[7:0]
0x060	Reset value	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x064	EXTI_EXTICR2	EXTI7[7:0]							EXTI6[7:0]								EXTI5[7:0]								EXTI4[7:0]
0x064	Reset value	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x068	EXTI_EXTICR3	EXTI11[7:0]							EXTI10[7:0]								EXTI9[7:0]								EXTI8[7:0]
0x068	Reset value	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x06C	EXTI_EXTICR4	EXTI15[7:0]							EXTI14[7:0]								EXTI13[7:0]								EXTI12[7:0]
0x06C	Reset value	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x070- 0x07C	Reserved	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
0x080	EXTI_IMR1	IM31	Res.	Res.	Res.	Res.	Res.	IM25	Res.	IM23	Res.	Res.	Res.	IM19	Res.	Res.	Res.	IM15	IM14	IM13	IM12	IM11	IM10	IM9	IM8	IM7	IM6	IM5	IM4	IM3	IM2	IM1	IM0
0x080	Reset value	1						1		1				1				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x084	EXTI_EMR1	EM31	Res.	Res.	Res.	Res.	Res.	EM25	Res.	EM23	Res.	Res.	Res.	EM19	Res.	Res.	Res.	EM15	EM14	EM13	EM12	EM11	EM10	EM9	EM8	EM7	EM6	EM5	EM4	EM3	EM2	EM1	EM0
0x084	Reset value	0						0		0				0				0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x088- 0x08C	Reserved	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
0x090	EXTI_IMR2	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	IM36	Res.	IM34	Res.	Res.
0x090	Reset value																												0		0
0x094	EXTI_EMR2	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	EM36	Res.	EM34	Res.	Res.
0x094	Reset value																												0		0

Refer to Section 2.2 on page 45 for the register boundary addresses.
