6. Reset and clock control (RCC)

6.1 Reset

There are three types of reset, defined as system reset, power reset and RTC domain reset.

6.1.1 Power reset

A power reset is generated when one of the following events occurs:

• • power-on reset (POR) or brown-out reset (BOR)
• • exit from Standby mode
• • exit from Shutdown mode

Power and brown-out reset set all registers to their reset values.

When exiting Standby mode, all registers in the \( V_{CORE} \) domain are set to their reset value. Registers outside the \( V_{CORE} \) domain (WKUP, IWDG, and Standby/Shutdown mode control) are not impacted.

When exiting Shutdown mode, the brown-out reset is generated, resetting all registers.

6.1.2 System reset

System reset sets all registers to their reset values except the reset flags in the RCC control/status register 2 (RCC_CSR2) and the registers in the RTC domain.

System reset is generated when one of the following events occurs:

• • low level on NRST (external reset)
• • window watchdog event (WWDG reset)
• • independent watchdog event (IWDG reset)
• • software reset (SW reset) (see Software reset )
• • low-power mode security reset (see Low-power mode security reset )
• • option byte loader reset (see Option byte loader reset )
• • power-on reset

The reset source can be identified by checking the reset flags in the RCC_CSR register (see Section 6.4.23: RCC control/status register 2 (RCC_CSR2) ).

NRST (external reset)

Through specific option bits, the PF2-NRST pin is configurable for operating as:

• • Reset input/output (default at device delivery)

Valid reset signal on the pin is propagated to the internal logic, and each internal reset source is led to a pulse generator the output of which drives this pin. The GPIO functionality (PF2) is not available. The pulse generator guarantees a minimum reset pulse duration of 20 µs for each internal reset source to be output on the NRST pin. An internal reset holder option can be used, if enabled in the FLASH option register (FLASH_OPTR) , to ensure that the pin is pulled low until its voltage meets \( V_{IL} \) threshold. This function allows the detection of internal reset sources by external components when the line faces a significant capacitive load. The BOOT0 pin is

sampled on NRST rising edge, regardless whether caused by internal or external resets.

• • Reset input

In this mode, any valid reset signal on the NRST pin is propagated to device internal logic, but resets generated internally by the device are not visible on the pin. The GPIO functionality (PF2) is not available. The BOOT0 pin is sampled on POR and any subsequent NRST rising edge, caused by external resets. Other internal resets do not trigger new BOOT0 sampling.

• • GPIO

In this mode, the pin can be used as PF2 GPIO. The reset function of the pin is not available. Reset is only possible from device internal reset sources and it is not propagated to the pin. Refer to Section 8.3.15: Reset pin (PF2-NRST) in GPIO mode for additional considerations for this mode. The BOOT0 pin is sampled on the POR NRST rising edge only. Subsequent internal resets or transitions on the PF2 GPIO do not trigger new BOOT0 sampling.

Caution: Upon power reset or wake-up from Standby or Shutdown mode, the NRST pin is configured as Reset input/output and driven low by the system until it is reconfigured to the expected mode when the option bytes are loaded, in the fourth clock cycle after the end of \( t_{RSTTEMPO} \) time (see datasheet).

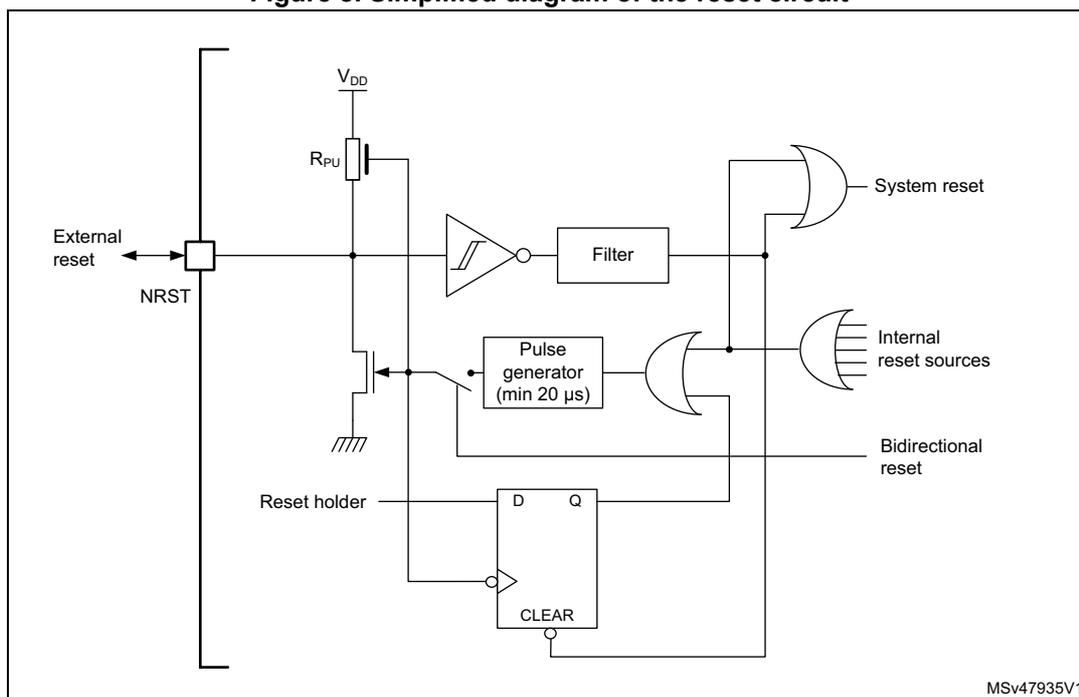

Figure 8. Simplified diagram of the reset circuit

Software reset

The SYSRESETREQ bit in Cortex ^® -M0+ Application interrupt and reset control register must be set to force a software reset on the device (refer to the programming manual PM0223).

Low-power mode security reset

To prevent that critical applications mistakenly enter a low-power mode, low-power mode security resets are available. If enabled in option bytes, the resets are generated in the following conditions:

• • Entering Standby mode

This type of reset is enabled by resetting nRST_STDBY bit in user option bytes. In this case, whenever a Standby mode entry sequence is successfully executed, the device is reset instead of entering Standby mode.

• • Entering Stop mode

This type of reset is enabled by resetting nRST_STOP bit in user option bytes. In this case, whenever a Stop mode entry sequence is successfully executed, the device is reset instead of entering Stop mode.

• • Entering Shutdown mode

This type of reset is enabled by resetting nRST_SHDW bit in user option bytes. In this case, whenever a Shutdown mode entry sequence is successfully executed, the device is reset instead of entering Shutdown mode.

For further information on the user option bytes, refer to Section 4.4.1: FLASH option byte description .

Option byte loader reset

The option byte loader reset is generated when the OBL_LAUNCH bit is set in the FLASH_CR register. This bit is used to launch the option byte loading by software.

6.1.3 RTC domain reset

The RTC domain has two specific resets.

A RTC domain reset is generated when one of the following events occurs:

• • Software reset , triggered by setting the RTCRST bit of the RCC control/status register 1 (RCC_CSR1) .
• • V _DD power on .

RTC domain reset only affects the LSE oscillator, the RTC, and the RCC control/status register 1.

6.2 Clocks

The device provides the following clock sources producing primary clocks:

• • HSI48 RC - a high-speed fully-integrated RC oscillator producing HSI48 clock (48 MHz)
• • HSIUSB48 RC - - a high-speed fully-integrated RC oscillator producing HSIUSB48 clock for USB (about 48 MHz)
• • HSE OSC - a high-speed oscillator with external crystal/ceramic resonator or external clock source, producing HSE clock (4 to 48 MHz)
• • LSI RC - a low-speed fully-integrated RC oscillator producing LSI clock (about 32 kHz)
• • LSE OSC - a low-speed oscillator with external crystal/ceramic resonator or external clock source, producing LSE clock (accurate 32.768 kHz or external clock up to 1 MHz)
• • I2S_CKIN - pin for direct clock input for I2S1 peripheral

Each oscillator can be switched on or off independently when it is not used, to optimize power consumption. Check sub-sections of this section for more functional details. For electrical characteristics of the internal and external clock sources, refer to the device datasheet.

The device produces secondary clocks by dividing the primary clocks:

• • HSISYS - a clock derived from HSI48 through division by a factor programmable from 1 to 128
• • SYSCLK - a clock obtained through selecting one of LSE, LSI, HSE, HSIUSB48, and HSISYS clocks
• • HSIKER - a clock derived from HSI48 through division by a factor programmable from 1 to 8
• • HCLK - a clock derived from SYSCLK through division by a factor programmable from 1 to 512
• • HCLK8 - a clock derived from HCLK through division by eight
• • PCLK - a clock derived from HCLK through division by a factor programmable from 1 to 16
• • TIMPCLK - a clock derived from PCLK, running at PCLK frequency if the APB prescaler division factor is set to 1, or at twice the PCLK frequency otherwise

More secondary clocks are generated by fixed division of HSE, HSI48 and HCLK clocks.

The HSISYS is used as system clock source after startup from reset, with the division by four (producing 12 MHz frequency).

The HCLK clock and PCLK clock are used for clocking the AHB and the APB domains, respectively. Their maximum allowed frequency is 48 MHz.

The peripherals are clocked with the clocks from the bus they are attached to (HCLK for AHB, PCLK for APB) except:

• • TIMx
  • – TIMPCLK running at PCLK frequency if the APB prescaler division factor is set to 1, or at twice the PCLK frequency otherwise

• • USART1 , with these clock sources to select from:

• – SYSCLK (system clock)
• – HSIKER
• – LSE
• – PCLK (APB clock)

The wake-up from Stop mode is supported only when the clock is HSI148 or LSE.

• • ADC , with these clock sources to select from:

• – SYSCLK (system clock)
• – HSIKER

• • I2C1 , with these clock sources to select from:

• – SYSCLK (system clock)
• – HSIKER
• – PCLK (APB clock)

The wake-up from Stop mode is supported only when the clock is HSI148.

• • I2S1 , with these clock sources to select from:

• – SYSCLK (system clock)
• – HSIKER
• – I2S_CKIN pin

• • RTC , with these clock sources to select from:

• – LSE
• – LSI
• – HSE clock divided by 32

The functionality in Stop mode (including wake-up) is supported only when the clock is LSI or LSE.

• • IWDG , always clocked with LSI clock.

• • USB , with these clock sources to select from:

• – HSE
• – HSIUSB48

• • FDCAN1 , with these clock sources to select from:

• – PCLK
• – HSIKER
• – HSE

• • SysTick (Cortex ^® core system timer), with these clock sources to select from:

• – HCLK (AHB clock)
• – HCLK clock divided by 8

The selection is done through SysTick control and status register.

HCLK is used as Cortex ^® -M0+ free-running clock (FCLK). For more details, refer to the programming manual PM0223.

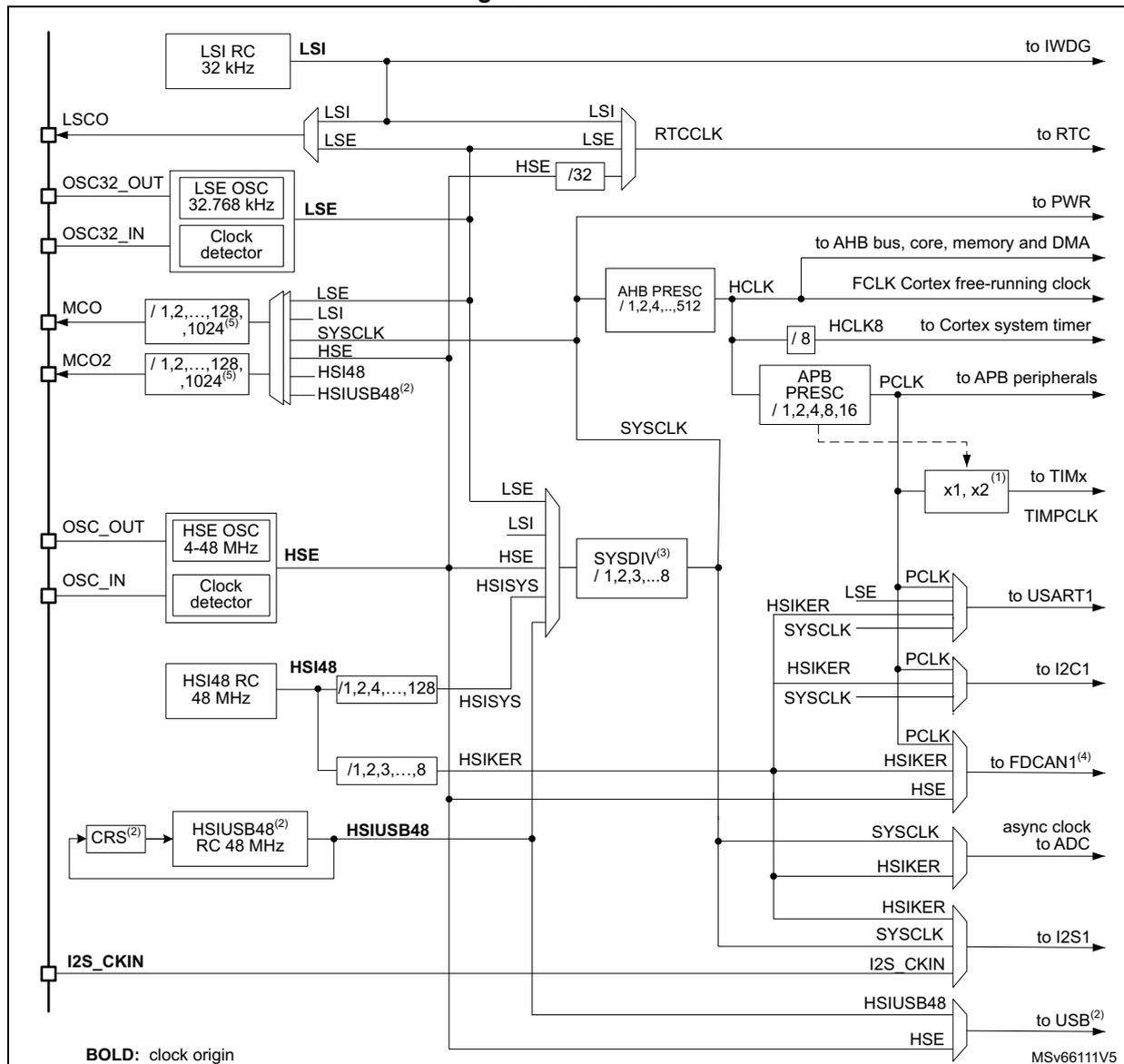

Figure 9. Clock tree

1. TIMPCLK runs at PCLK frequency if the APB prescaler division factor is set to 1, or at twice the PCLK frequency otherwise.

2. Only applies to STM32C071xx.

3. Only applies to STM32C051xx, STM32C071xx, and STM32C091xx/92xx.

4. Only applies to STM32C092xx.

5. 128 for STM32C011xx and STM32C031xx, 1024 for STM32C051xx, STM32C071xx, STM32C091xx, and STM32C092xx.

6.2.1 HSE clock

The high speed external clock signal (HSE) can be generated from two possible clock sources:

• • HSE external crystal/ceramic resonator
• • HSE user external clock

The resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and startup stabilization time. The loading capacitance values must be adjusted according to the selected oscillator.

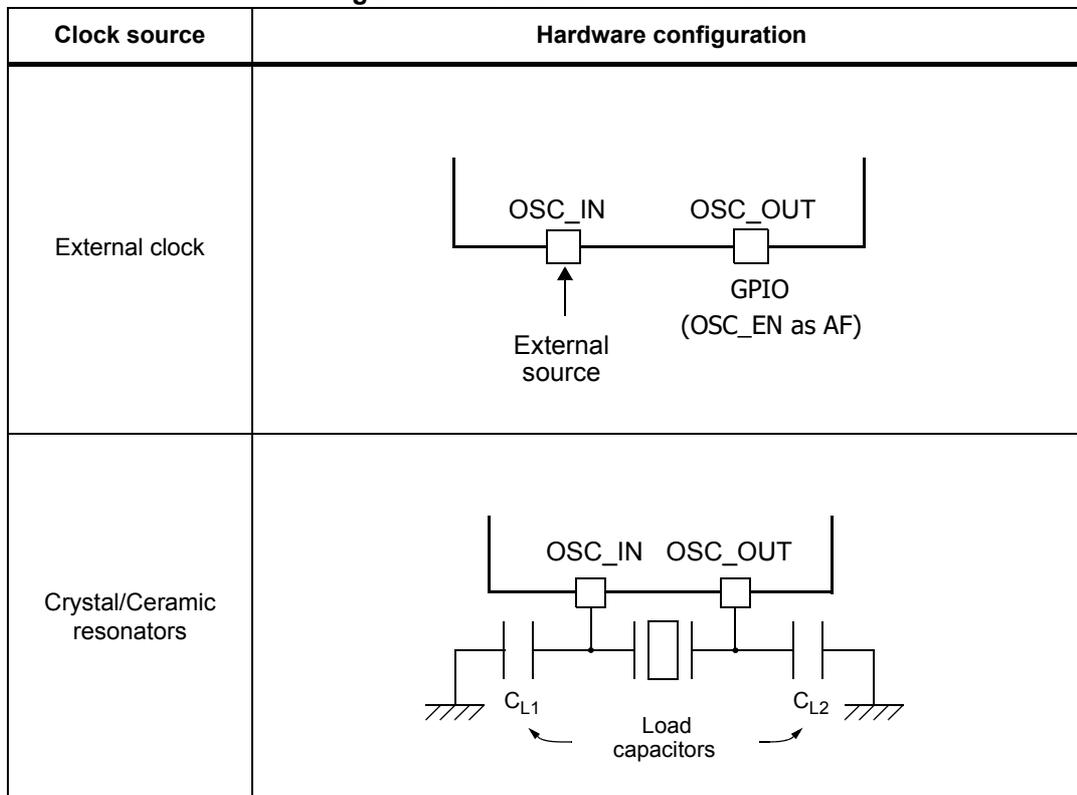

Figure 10. HSE/ LSE clock sources

External crystal/ceramic resonator (HSE crystal)

The 4 to 48 MHz external oscillator has the advantage of producing a very accurate rate on the main clock.

The associated hardware configuration is shown in Figure 10 . Refer to the electrical characteristics section of the datasheet for more details.

The HSERDY flag in the RCC clock control register (RCC_CR) indicates if the HSE oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt enable register (RCC_CIER) .

The HSE Crystal can be switched on and off using the HSEON bit in the RCC clock control register (RCC_CR) .

External source (HSE bypass)

In this mode, an external clock source must be provided. It can have a frequency of up to 48 MHz. This mode is selected by setting the HSEBYP and HSEON bits in the RCC clock control register (RCC_CR) . The external clock signal (square, sinus or triangle - refer to the datasheet ) must drive the OSC_IN pin, on devices where OSC_IN and OSC_OUT pins are available (see Figure 10 ). The OSC_OUT pin can be used as a GPIO.

The OSC_OUT pin can be used as a GPIO or it can be configured as OSC_EN alternate function, to provide an enable signal to external clock synthesizer. The OSC_EN output is high when the external HSE clock is required and low when the external HSE clock can be switched off. It allows stopping the external clock source when the device enters low power modes.

Note: For details on pin availability, refer to the pinout section in the corresponding device datasheet.

To minimize the consumption, it is recommended to use the square signal.

6.2.2 HSI48 clock

The HSI48 clock signal is generated from an internal 48 MHz RC oscillator.

The HSI48 RC oscillator has the advantage of providing a clock source at low cost (no external components). It also has a faster startup time than the HSE crystal oscillator. However, even after calibration, it is less accurate than an oscillator using a frequency reference such as quartz crystal or ceramic resonator.

The HSISYS clock derived from HSI48 can be selected as system clock after wake-up from Stop mode. Refer to Section 6.3: Low-power modes . It can also be used as a backup clock source (auxiliary clock) if the HSE crystal oscillator fails. Refer to Section 6.2.7: Clock security system (CSS) .

Calibration

RC oscillator frequencies can vary from one chip to another due to manufacturing process variations. To compensate for this variation, each device is factory calibrated to 1 % accuracy at T _A =25°C.

After reset, the factory calibration value is loaded in the HSICAL[7:0] bits in the RCC internal clock source calibration register (RCC_ICSCR) .

Voltage or temperature variations in the application may affect the HSI48 frequency of the RC oscillator. It can be trimmed using the HSITRIM[6:0] bits in the RCC internal clock source calibration register (RCC_ICSCR) .

For more details on how to measure the HSI48 frequency variation, refer to Section 6.2.14: Internal/external clock measurement with TIM14/TIM16/TIM17 .

The HSIRDY flag in the RCC clock control register (RCC_CR) indicates if the HSI48 RC is stable or not. At startup, the HSI48 RC output clock is not released until this bit is set by hardware.

The HSI48 RC can be switched on and off using the HSION bit in the RCC clock control register (RCC_CR) .

The HSI48 signal can also be used as a backup source (auxiliary clock) if the HSE crystal oscillator fails. Refer to Section 6.2.7: Clock security system (CSS) on page 127 .

6.2.3 HSIUSB48 clock

Available on the STM32C071xx devices only, the HSIUSB48 clock signal is generated from an internal 48 MHz RC oscillator. It can be used as clock source for the USB peripheral or system clock.

The HSIUSB48 clock is of high-precision thanks to the clock recovery system (CRS). The CRS uses the USB SOF signal, the LSE clock or an external signal as timing reference, to precisely adjust the HSIUSB48 RC oscillator frequency.

The HSIUSB48 RC oscillator is disabled as soon as the system enters Stop or Standby mode.

When the CRS is not used, the HSIUSB48 RC oscillator runs on its free-run frequency that is subject to manufacturing process variations. The devices are factory-calibrated for about 3 % accuracy at \( T_A = 25^\circ\text{C} \) .

Refer to the CRS section for more details on how to configure and use it.

The HSIUSB48RDY flag in the RCC_CR register indicates if HSIUSB48 is stable or not. At startup, the HSIUSB48 clock is not released until the hardware sets this flag.

The HSIUSB48 RC oscillator is enabled/disabled through the HSIUSB48ON bit of the RCC_CR register. It is automatically enabled (by hardware setting the HSIUSB48ON bit) when selected as clock source for the USB peripheral, as long as the USB peripheral is enabled.

Furthermore, it is possible to output the HSIUSB48 clock through the MCO and MCO2 outputs and use it as a clock source for other application components.

6.2.4 LSE clock

The LSE crystal is a 32.768 kHz crystal or ceramic resonator. It has the advantage of providing a low-power but highly accurate clock source to the real-time clock peripheral (RTC) for clock/calendar or other timing functions.

The LSE crystal is switched on and off using the LSEON bit of RCC control/status register 1 (RCC_CSR1) . The crystal oscillator driving strength can be changed at runtime using the LSEDRV bit of the RCC control/status register 1 (RCC_CSR1) to obtain the best compromise between robustness and short start-up time on one side and low-power-consumption on the other side. The LSE drive can be decreased to the lower drive capability (LSEDRV cleared) when the LSE is ON. However, once LSEDRV is selected, the drive capability can not be increased if LSEON is set.

The LSERDY flag in the RCC control/status register 1 (RCC_CSR1) indicates whether the LSE crystal is stable or not. At startup, the LSE crystal output clock signal is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock recovery RC register (RCC_CRRRCR) .

External source (LSE bypass)

In this mode, an external clock source must be provided. It can have a frequency of up to 1 MHz. This mode is selected by setting the LSEBYP and LSEON bits in the RCC AHB peripheral clock enable in Sleep/Stop mode register (RCC_AHBSMENR) . The external clock signal (square, sinus or triangle - refer to the datasheet) has to drive the OSCX_IN pin while the OSCX_OUT pin can be used as GPIO. See Figure 10 .

6.2.5 LSI clock

The LSI RC acts as a low-power clock source that can be kept running in Stop and Standby mode for the independent watchdog (IWDG) and RTC. The clock frequency is 32 kHz. For more details, refer to the electrical characteristics section of the datasheets.

The LSI RC can be switched on and off using the LSION bit in the RCC control/status register 2 (RCC_CSR2) .

The LSIRDY flag in the RCC control/status register 2 (RCC_CSR2) indicates if the LSI oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock recovery RC register (RCC_CRRCR) .

6.2.6 System clock (SYSCLK) selection

One of the following clocks can be selected as system clock (SYSCLK):

• • LSI
• • LSE
• • HSISYS
• • HSE
• • HSIUSB48

The system clock maximum frequency is 48 MHz. Upon system reset, the HSISYS clock derived from HSI48 oscillator is selected as system clock. When a clock source is used as a system clock, it is not possible to stop it.

A switch from one clock source to another occurs only if the target clock source is ready (clock stable after startup delay). If a clock source which is not yet ready is selected, the switch occurs when the clock source becomes ready. Status bits in the RCC clock control register (RCC_CR) indicate which clock(s) is (are) ready and the RCC clock configuration register (RCC_CFGR) indicates which clock is currently used as a system clock.

6.2.7 Clock security system (CSS)

Clock security system can be activated by software. In this case, the clock detector is enabled after the HSE oscillator startup delay, and disabled when this oscillator is stopped.

If a failure is detected on the HSE clock:

• • the HSE oscillator is automatically disabled
• • a clock failure event is sent to the break input of TIM1, TIM15, TIM16, and TIM17 timers
• • CSSI (clock security system interrupt) is generated

The CSSI is linked to the Cortex ^® -M0+ NMI (non-maskable interrupt) exception vector. It makes the software aware of a HSE clock failure to allow it to perform rescue operations.

Note: If the CSS is enabled and the HSE clock fails, the CSSI occurs and an NMI is automatically generated. The NMI is executed infinitely unless the CSS interrupt pending bit is cleared. It is therefore necessary that the NMI ISR clears the CSSI by setting the CSSC bit in the RCC clock interrupt clear register (RCC_CICR).

If HSE is selected directly or indirectly as system clock, and a failure of HSE clock is detected, the system clock switches automatically to HSISYS and the HSE oscillator is disabled.

6.2.8 Clock security system for LSE clock (LSECSS)

A clock security system on LSE can be activated by setting the LSECSSON bit in RCC control/status register 1 (RCC_CSR1) . This bit can be cleared only by a hardware reset or

RTC software reset, or after LSE clock failure detection. LSECSSON must be written after LSE and LSI are enabled (LSEON and LSION enabled) and ready (LSERDY and LSIRDY flags set by hardware), and after selecting the RTC clock by RTCSEL.

The LSECSS works in all modes except Standby and Shutdown. It keeps working also under system reset (excluding power-on reset). If a failure is detected on the LSE oscillator, the LSE clock is no longer supplied to the RTC but its registers are not impacted.

Note: If the LSECSS is enabled and the LSE clock fails, the LSECSSI occurs and an NMI is automatically generated. The NMI is executed infinitely unless the LSECSS interrupt pending bit is cleared. It is therefore necessary that the NMI ISR clears the LSECSSI by setting the LSECSSC bit in the RCC clock interrupt clear register (RCC_CICR) .

If LSE is used as system clock, and a failure of LSE clock is detected, the system clock switches automatically to LSI. In low-power modes, an LSE clock failure generates a wake-up. The interrupt flag must then be cleared within the RCC registers.

The software must then disable the LSECSSON bit, stop the defective 32 kHz oscillator (by clearing LSEON), and change the RTC clock source (no clock, LSI or HSE, with RTCSEL), or take any appropriate action to secure the application.

The frequency of the LSE oscillator must exceed 30 kHz to avoid false positive detections.

6.2.9 ADC clock

The ADC clock (refer to the device datasheet for maximum frequency) is derived from the system clock SYSCLK or from the kernel clock output HSIKER (see ADCSEL[1:0] bitfield of the RCC peripherals independent clock configuration register 1 (RCC_CCIPR) ). It can be prescaled by 1, 2, 4, 6, 8, 10, 12, 16, 32, 64, 128 or 256, by configuring the PRESC[3:0] bitfield of the ADC_CCR register. It is asynchronous to the APB clock. Alternatively, the ADC clock can be derived from the APB clock of the ADC bus interface (synchronous clock), divided by a programmable factor (1, 2 or 4) set through the CKMODE[1:0] bitfield of the ADC_CFGR2 register.

6.2.10 RTC clock

The RTCCLK clock source can be either the HSE/32, LSE or LSI clock. It is selected by programming the RTCSEL[1:0] bits in the RCC control/status register 1 (RCC_CSR1) . This selection cannot be modified without resetting the RTC domain. The system must always be configured so as to get a PCLK frequency greater than or equal to the RTCCLK frequency for a proper operation of the RTC.

RTC does not operate if the V _DD supply is powered off or if the internal voltage regulator is powered off (removing power from the V _CORE domain).

When the RTC clock is LSE or LSI, the RTC remains clocked and functional under system reset.

6.2.11 Timer clock

The timer clock TIMPCLK is derived from PCLK (used for APB) as follows:

1. 1. If the APB prescaler is set to 1, TIMPCLK frequency is equal to PCLK frequency.
2. 2. Otherwise, the TIMPCLK frequency is set to twice the PCLK frequency.

6.2.12 Watchdog clock

If the Independent watchdog (IWDG) is started by either hardware option or software access, the LSI oscillator is forced ON and cannot be disabled. After the LSI oscillator temporization, the clock is provided to the IWDG.

6.2.13 Clock-out capability

MCO and MCO2

The MCO and MCO2 pins output, independently of each other, the clock selected from:

• • LSI
• • LSE
• • SYSCLK
• • HSI48
• • HSE
• • HSIUSB48

The multiplexers for MCO and MCO2, respectively, are controlled by the MCOSEL[3:0] and MCO2SEL[3:0] bitfields of the RCC clock configuration register (RCC_CFGR) . Their outputs are further divided by a factor set through the MCOPRE[3:0] and MCO2PRE[3:0] bitfields of the RCC clock configuration register (RCC_CFGR) .

LSCO

The LSCO pin allows outputting on of low-speed clocks:

• • LSI
• • LSE

The selection is controlled by the LSCOSEL bit and enabled with the LSCOEN bit of the RCC control/status register 1 (RCC_CSR1) . The configuration registers of the corresponding GPIO port must be programmed in alternate function mode.

This function remains available in Stop mode.

6.2.14 Internal/external clock measurement with TIM14/TIM16/TIM17

It is possible to indirectly measure the frequency of all on-board clock sources with the TIM14, TIM16 and TIM17 channel 1 input capture, as represented in Figure 11 , Figure 12 and Figure 13 .

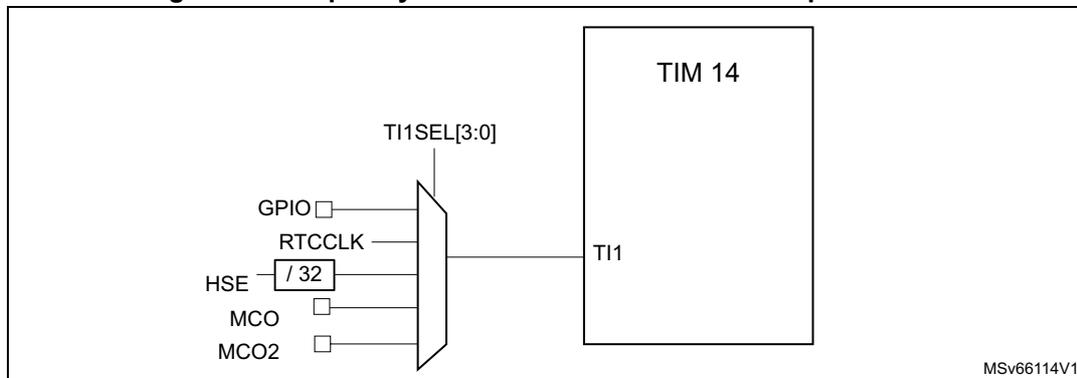

TIM14

By setting the TI1SEL[3:0] field of the TIM14_TISEL register, the clock selected for the input capture channel1 of TIM14 can be one of:

• • GPIO (refer to the alternate function mapping in the device datasheets)
• • RTC clock (RTCCLK)
• • HSE clock divided by 32
• • MCO (MCU clock output)
• • MCO2 (MCU clock output)

MCO and MCO2 are controlled by the MCOSEL[3:0] and MCO2SEL[3:0] bitfields, respectively, of the clock configuration register (RCC_CFGR). All clock sources can be selected for the MCO and MCO2 pins.

Figure 11. Frequency measurement with TIM14 in capture mode

TIM16

By setting the TI1SEL[3:0] field of the TIM16_TISEL register, the clock selected for the input capture channel1 of TIM16 can be one of:

• • GPIO (refer to the alternate function mapping in the device datasheets).
• • LSI clock
• • LSE clock
• • MCO2

MCO2 is controlled by the MCO2SEL[3:0] bitfield of the clock configuration register (RCC_CFGR). All clock sources can be selected for the MCO2 pin.

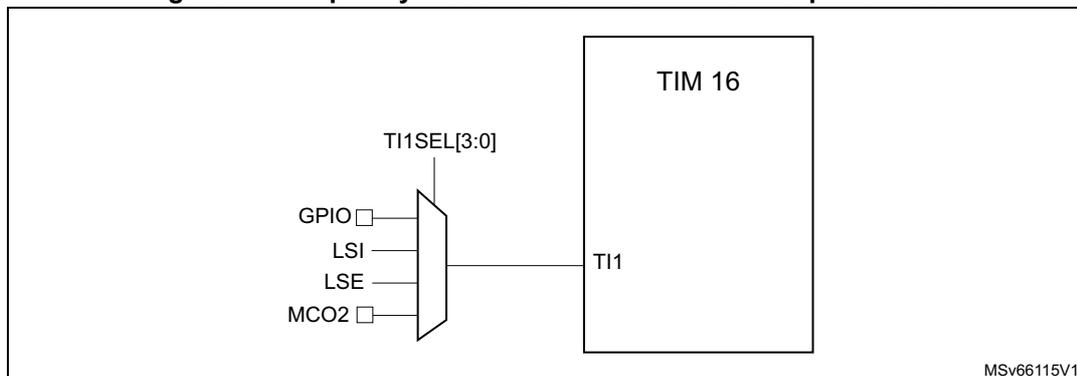

Figure 12. Frequency measurement with TIM16 in capture mode

TIM17

By setting the TI1SEL[3:0] field of the TIM17_TISEL register, the clock selected for the input capture channel1 of TIM17 can be one of:

• • GPIO Refer to the alternate function mapping in the device datasheets.
• • HSIUSB48 / 256 (only available on STM32C071xx device)
• • HSE clock divided by 32
• • MCO (MCU clock output)
• • MCO2 (MCU clock output)

MCO and MCO2 are controlled by the MCOSEL[3:0] and MCO2SEL[3:0] bitfields, respectively, of the clock configuration register (RCC_CFGR). All clock sources can be selected for the MCO and MCO2 pins.

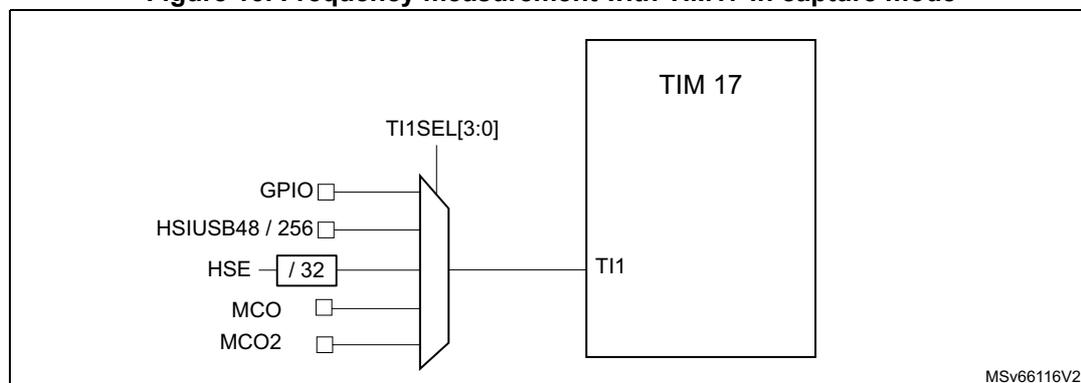

Figure 13. Frequency measurement with TIM17 in capture mode

Calibration of the HSI48 oscillator

For TIM14, TIM16, and TIM17, the primary purpose of connecting the LSE to the channel 1 input capture is to precisely measure HSISYS (derived from HSI48) selected as system clock. Counting HSISYS clock pulses between consecutive edges of the LSE clock (the time reference) allows measuring the HSISYS (and HSI48) clock period. Such measurement can determine the HSI48 oscillator frequency with nearly the same accuracy as the accuracy of the 32.768 kHz quartz crystal used with the LSE oscillator (typically a few tens of ppm). The HSI48 oscillator can then be trimmed to compensate for deviations from target frequency, due to manufacturing, process, temperature and/or voltage variation.

The HSI48 oscillator has dedicated user-accessible calibration bits for this purpose.

The basic concept consists in providing a relative measurement (for example, the HSISYS/LSE ratio): the measurement accuracy is therefore closely related to the ratio between the two clock sources. Increasing the ratio allows improving the measurement accuracy.

Generated by the HSE oscillator, the HSE clock (divided by 32) used as time reference is the second best method for reaching a good HSI48 frequency measurement accuracy. It is recommended in absence of the LSE clock.

In order to further improve the precision of the HSI48 oscillator calibration, it is advised to employ one or a combination of the following measures to increase the frequency measurement accuracy:

• • set the HSISYS divider to 1 for HSISYS frequency to be equal to HSI48 frequency
• • average the results of multiple consecutive measurements
• • use the input capture prescaler of the timer (one capture every up to eight periods)

Measurement of the LSI oscillator frequency

The measurement of the LSI oscillator frequency uses the same principle as that for calibrating the HSI48 oscillator. TIM16 channel1 input capture must be used for LSI clock, and HSE selected as system clock source. The number of HSE clock pulses between consecutive edges of the LSI signal, counted by TIM16, is then representative of the LSI clock period.

6.2.15 Peripheral clock enable registers

The clock to each peripheral can individually be enabled by the corresponding enable bit of the RCC_AHBENR register or one of the RCC_APBENRx registers. The clocks to I/O ports can individually be enabled through the RCC_IOPENR register.

When the clock to a peripheral or I/O port is not active, the read and write accesses to its registers are not effective.

Caution: The enable bits have a synchronization mechanism to create a glitch-free clock for the the corresponding peripheral or I/O port. After an enable bit is set, there is a 2-clock-cycle delay before the clock becomes active, which the software must take into account.

6.3 Low-power modes

• • AHB and APB peripheral clocks, including DMA clock, can be disabled by software.
• • Sleep mode stops the CPU clock. The memory interface clocks (flash memory and SRAM interfaces) can be stopped by software during sleep mode. The AHB to APB bridge clocks are disabled by hardware during Sleep mode when all the clocks of the peripherals connected to them are disabled.
• • Stop mode stops all the clocks in the \( V_{CORE} \) domain and disable the HSI48, HSIUSB48, and HSE oscillators.

The USART1 and I2C1 peripherals can enable the HSI48 oscillator even when the MCU is in Stop mode (if HSI48 is selected as clock source for one of those peripherals).

The USART1 peripheral can also operate with the clock from the LSE oscillator when the system is in Stop mode, if LSE is selected as clock source for that peripheral and the LSE oscillator is enabled (LSEON set). In that case, the LSE oscillator remains active when the device enters Stop mode (these peripherals do not have the capability to turn on the LSE oscillator).

• • Standby and Shutdown modes stop all clocks in the \( V_{CORE} \) domain and disable the HSI48, HSIUSB48, and HSE oscillators.

The CPU deepsleep mode can be overridden for debugging, by setting the DBG_STOP or DBG_STANDBY bits in the DBGMCU_CR register.

When leaving the Stop mode, HSISYS becomes automatically the system clock.

When leaving the Standby and Shutdown modes, HSISYS (with frequency equal to HSI48/4) becomes automatically the system clock. At wake-up from Standby and Shutdown mode, the user trim is lost.

If a flash memory programming operation is ongoing, Stop, Standby, and Shutdown entry is delayed until the flash memory interface access is finished. If an access to the APB domain is ongoing, the Stop, Standby, and Shutdown entry is delayed until the APB access is finished.

6.4 RCC registers

Unless otherwise specified, the RCC registers support word, half-word, and byte access, without any wait state.

6.4.1 RCC clock control register (RCC_CR)

Address offset: 0x00

Power-on reset value: 0x0000 1540

Other types of reset: same as power-on reset, except the HSEBYP bit that keeps its previous value.

This register only supports word and half-word access.

Bits 31:24 Reserved, must be kept at reset value.

Bit 23 HSIUSB48RDY : HSIUSB48 clock ready flag

Set by hardware when the HSIUSB48 oscillator is enabled through HSIUSB48ON and ready to use (stable).

0: Not ready

1: Ready

Note: Only applicable to STM32C071xx, reserved on the other products.

Bit 22 HSIUSB48ON : HSIUSB48 clock enable

Set and cleared by software and hardware, with hardware taking priority. Kept low by hardware as long as the device is in a low-power mode. Kept high by hardware as long as the system is clocked from HSIUSB48.

0: Disable

1: Enable

Note: Only applicable to STM32C071xx, reserved on the other products.

Bits 21:20 Reserved, must be kept at reset value.

Bit 19 CSSON : Clock security system enable

Set by software to enable the clock security system. When the bit is set, the clock detector is enabled by hardware when the HSE oscillator is ready, and disabled by hardware if a HSE clock failure is detected. The bit is cleared by hardware upon reset.

0: Disable

1: Enable

Bit 18 HSEBYP : HSE crystal oscillator bypass

Set and cleared by software.

When the bit is set, the internal HSE oscillator is bypassed for use of an external clock. The external clock must then be enabled with the HSEON bit set. Write access to the bit is only effective when the HSE oscillator is disabled.

0: No bypass

1: Bypass

Bit 17 HSERDY : HSE clock ready flag

Set by hardware to indicate that the HSE oscillator is stable and ready for use.

0: Not ready

1: Ready

Note: Upon clearing HSEON, HSERDY goes low after six HSE clock cycles.

Bit 16 HSEON : HSE clock enable

Set and cleared by software.

Cleared by hardware to stop the HSE oscillator when entering Stop, or Standby, or Shutdown mode. This bit cannot be cleared if the HSE oscillator is used directly or indirectly as the system clock.

0: Disable

1: Enable

Bits 15:14 Reserved, must be kept at reset value.

Bits 13:11 HSIDIV[2:0] : HSI48 clock division factor

This bitfield controlled by software sets the division factor of the HSI48 clock divider to produce HSISYS clock:

000: 1

001: 2

010: 4 (reset value)

011: 8

100: 16

101: 32

110: 64

111: 128

Bit 10 HSIRDY : HSI48 clock ready flag

Set by hardware when the HSI48 oscillator is enabled through HSION and ready to use (stable).

0: Not ready

1: Ready

Note: Upon clearing HSION, HSIRDY goes low after six HSI48 clock cycles.

Bit 9 HSIKERON : HSI48 always-enable for peripheral kernels.

Set and cleared by software.

Setting the bit activates the HSI48 oscillator in Run and Stop modes, regardless of the HSION bit state. The HSI48 clock can only feed USART1, USART2, and I2C1 peripherals configured with HSI48 as kernel clock.

0: HSI48 oscillator enable depends on the HSION bit

1: HSI48 oscillator is active in Run and Stop modes

Note: Keeping the HSI48 active in Stop mode allows speeding up the serial interface communication as the HSI48 clock is ready immediately upon exiting Stop mode.

Bit 8 HSION : HSI48 clock enable

Set and cleared by software and hardware, with hardware taking priority.

Kept low by hardware as long as the device is in a low-power mode.

Kept high by hardware as long as the system is clocked with a clock derived from HSI48.

This includes the exit from low-power modes and the system clock fall-back to HSI48 upon failing HSE oscillator clock selected as system clock source.

0: Disable

1: Enable

Bits 7:5 HSIKERDIV[2:0] : HSI48 kernel clock division factor

This bitfield controlled by software sets the division factor of the kernel clock divider to produce HSIKER clock:

000: 1

001: 2

010: 3 (reset value)

011: 4

100: 5

101: 6

110: 7

111: 8

Bits 4:2 SYSDIV[2:0] : Clock division factor for system clock

Set and cleared by software. SYSCLK is result of the division by:

000: 1 (no division, reset value)

001: 2

010: 3

011: 4

100: 5

101: 6

110: 7

111: 8

Note: This bitfield is only available on STM32C051xx, STM32C071xx, and STM32C091xx/92xx.

Bits 1:0 Reserved, must be kept at reset value.

6.4.2 RCC internal clock source calibration register (RCC_ICSCR)

Address offset: 0x04

Reset value: 0x0000 40XX

The X nibbles of the reset can vary from part to part as they depend on the part calibration in the factory.

Bits 31:15 Reserved, must be kept at reset value.

Bits 14:8 HSITRIM[6:0] : HSI48 clock trimming

The value of this bitfield contributes to the HSICAL[7:0] bitfield value.

It allows HSI48 clock frequency user trimming.

The HSI48 frequency accuracy as stated in the device datasheet applies when this bitfield is left at its reset value.

Bits 7:0 HSICAL[7:0] : HSI48 clock calibration

This bitfield directly acts on the HSI48 clock frequency. Its value is a sum of an internal factory-programmed number and the value of the HSITRIM[6:0] bitfield. In the factory, the internal number is set to calibrate the HSI48 clock frequency to 48 MHz (with HSITRIM[6:0] left at its reset value). Refer to the device datasheet for HSI48 calibration accuracy and for the frequency trimming granularity.

Note: The trimming effect presents discontinuities at HSICAL[7:0] multiples of 64.

6.4.3 RCC clock configuration register (RCC_CFGR)

One or two wait states are inserted when accessing this register upon a clock source switch, and between zero and 15 wait states upon updating APB or AHB prescaler values.

Address offset: 0x08

Reset value: 0x0000 0000

This bitfield is controlled by software. It sets the division factor of the clock sent to the MCO output as follows:

0000: 1

0001: 2

0010: 4

...

0111: 128

1000: 256

1001: 512

1010: 1024

Other: Reserved

It is highly recommended to set this field before the MCO output is enabled.

Note: Values above 0111 are only significant for STM32C051xx, STM32C071xx, and STM32C091xx/92xx. On STM32C011xx and STM32C031xx devices, MCOPRE[3] is reserved.

This bitfield is controlled by software. It sets the clock selector for MCO output as follows:

0000: no clock

0001: SYSCLK

0010: Reserved

0011: HSI48

0100: HSE

0101: Reserved

0110: LSI

0111: LSE

1000: HSIUSB48

Other: reserved, must not be used

Note: This clock output may have some truncated cycles at startup or during MCO clock source switching. On STM32C011xx, STM32C031xx, STM32C051xx, and STM32C091xx/92xx, MCOSSEL[3] is reserved.

This bitfield is controlled by software. It sets the division factor of the clock sent to the MCO2 output as follows:

0000: 1

0001: 2

0010: 4

...

0111: 128

1000: 256

1001: 512

1010: 1024

Other: Reserved

It is highly recommended to set this field before the MCO2 output is enabled.

Note: Values above 0111 are only significant for STM32C051xx, STM32C071xx, and STM32C091xx/92xx. On STM32C011xx and STM32C031xx devices, MCO2PRE[3] is reserved.

Bits 19:16 MCO2SEL[3:0] : Microcontroller clock output 2 clock selector

This bitfield is controlled by software. It sets the clock selector for MCO2 output as follows:

0000: no clock

0001: SYSCLK

0010: Reserved

0011: HSI48

0100: HSE

0101: Reserved

0110: LSI

0111: LSE

1000: HSIUSB48

Other: reserved, must not be used

Note: This clock output may have some truncated cycles at startup or during MCO2 clock source switching. On STM32C011xx, STM32C031xx, STM32C051xx, and STM32C091xx/92xx, MCO2SEL[3] is reserved.

Bit 15 Reserved, must be kept at reset value.

Bits 14:12 PPRE[2:0] : APB prescaler

This bitfield is controlled by software. To produce PCLK clock, it sets the division factor of HCLK clock as follows:

0xx: 1

100: 2

101: 4

110: 8

111: 16

Bits 11:8 HPRE[3:0] : AHB prescaler

This bitfield is controlled by software. To produce HCLK clock, it sets the division factor of SYSCLK clock as follows:

0xxx: 1

1000: 2

1001: 4

1010: 8

1011: 16

1100: 64

1101: 128

1110: 256

1111: 512

Bits 7:6 Reserved, must be kept at reset value.

Bits 5:3 SWS[2:0] : System clock switch status

This bitfield is controlled by hardware to indicate the clock source used as system clock:

000: HSISYS

001: HSE

010: HSIUSB48 on STM32C071xx, reserved on the other products

011: LSI

100: LSE

Others: Reserved

Bits 2:0 SW[2:0] : System clock switch

This bitfield is controlled by software and hardware. The bitfield selects the clock for SYSCLK as follows:

000: HSISYS

001: HSE

010: HSIUSB48 on STM32C071xx, reserved on the other products

011: LSI

100: LSE

Others: Reserved

The setting is forced by hardware to 000 (HSISYS selected) when the MCU exits Stop, or Standby, or Shutdown mode, or when the setting is 001 (HSE selected) and HSE oscillator failure is detected.

6.4.4 RCC clock recovery RC register (RCC_CRRCR)

This register is only available on STM32C071xx. On the other devices, it is reserved.

Address offset: 0x14

Reset value: 0b0000 0000 0000 0000 0000 000X XXXX XXXX

Access: no wait state, word, half-word and byte access

Bits 31:9 Reserved, must be kept at reset value.

Bits 8:0 HSIUSB48CAL[8:0] : HSIUSB48 clock calibration

These bits are initialized at startup with the factory-programmed HSIUSB48 calibration trim value.

6.4.5 RCC clock interrupt enable register (RCC_CIER)

Address offset: 0x18

Reset value: 0x0000 0000

Bits 31:5 Reserved, must be kept at reset value.

Bit 4 HSERDYIE : HSE ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the HSE oscillator stabilization:

0: Disable

1: Enable

Bit 3 HSIRDYIE : HSI48 ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the HSI48 oscillator stabilization:

0: Disable

1: Enable

Bit 2 HSIUSB48RDYIE : HSIUSB48 ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the HSIUSB48 oscillator stabilization:

0: Disable

1: Enable

Note: Only applicable to STM32C071xx, reserved on the other products.

Bit 1 LSERDYIE : LSE ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the LSE oscillator stabilization:

0: Disable

1: Enable

Bit 0 LSIRDYIE : LSI ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the LSI oscillator stabilization:

0: Disable

1: Enable

6.4.6 RCC clock interrupt flag register (RCC_CIFR)

Address offset: 0x1C

Reset value: 0x0000 0000

Bits 31:10 Reserved, must be kept at reset value.

Bit 9 LSECSSF: LSE clock security system interrupt flag

This flag indicates a pending interrupt upon LSE clock failure.

Set by hardware when a failure is detected in the LSE oscillator.

Cleared by software by setting the LSECSSC bit.

0: Interrupt not pending

1: Interrupt pending

Bit 8 CSSF: HSE clock security system interrupt flag

This flag indicates a pending interrupt upon HSE clock failure.

Set by hardware when a failure is detected in the HSE oscillator.

Cleared by software setting the CSSC bit.

0: Interrupt not pending

1: Interrupt pending

Bits 7:5 Reserved, must be kept at reset value.

Bit 4 HSERDYF: HSE ready interrupt flag

This flag indicates a pending interrupt upon HSE clock getting ready.

Set by hardware when the HSE clock becomes stable and HSERDYIE is set.

Cleared by software setting the HSERDYC bit.

0: Interrupt not pending

1: Interrupt pending

Bit 3 HSIRDYF: HSI48 ready interrupt flag

This flag indicates a pending interrupt upon HSI48 clock getting ready.

Set by hardware when the HSI48 clock becomes stable and HSIRDYIE is set in response to setting the HSION (refer to RCC clock control register (RCC_CR) ). When HSION is not set but the HSI48 oscillator is enabled by the peripheral through a clock request, this bit is not set and no interrupt is generated.

Cleared by software setting the HSIRDYC bit.

0: Interrupt not pending

1: Interrupt pending

Bit 2 HSIUSB48RDYF : HSIUSB48 ready interrupt flag

Set by hardware when the HSIUSB48 clock becomes stable and HSIUSB48RDYIE is set as a response to setting HSIUSB48ON (refer to RCC clock control register (RCC_CR) ).

When HSIUSB48ON is not set but the HSIUSB48 oscillator is enabled by the peripheral through a clock request, this bit is not set and no interrupt is generated.

Cleared by software setting the HSIUSB48RDYC bit.

0: Interrupt not pending

1: Interrupt pending

Note: Only applicable to STM32C071xx, reserved on the other products.

Bit 1 LSERDYF : LSE ready interrupt flag

This flag indicates a pending interrupt upon LSE clock getting ready.

Set by hardware when the LSE clock becomes stable and LSERDYIE is set.

Cleared by software setting the LSERDYC bit.

0: Interrupt not pending

1: Interrupt pending

Bit 0 LSIRDYF : LSI ready interrupt flag

This flag indicates a pending interrupt upon LSI clock getting ready.

Set by hardware when the LSI clock becomes stable and LSIRDYIE is set.

Cleared by software setting the LSIRDYC bit.

0: Interrupt not pending

1: Interrupt pending

6.4.7 RCC clock interrupt clear register (RCC_CICR)

Address offset: 0x20

Reset value: 0x0000 0000

Bits 31:10 Reserved, must be kept at reset value.

Bit 9 LSECSSC : LSE Clock security system interrupt clear

This bit is set by software to clear the LSECSSF flag.

0: No effect

1: Clear LSECSSF flag

Bit 8 CSSC : Clock security system interrupt clear

This bit is set by software to clear the HSECSSF flag.

0: No effect

1: Clear CSSF flag

Bits 7:5 Reserved, must be kept at reset value.

Bit 4 HSERDYC : HSE ready interrupt clear

This bit is set by software to clear the HSERDYF flag.

0: No effect

1: Clear HSERDYF flag

Bit 3 HSIRDYC : HSI48 ready interrupt clear

This bit is set software to clear the HSIRDYF flag.

0: No effect

1: Clear HSIRDYF flag

Bit 2 HSIUSB48RDYC : HSIUSB48 ready interrupt clear

This bit is set software to clear the HSIUSB48RDYF flag.

0: No effect

1: Clear HSIUSB48RDYF flag

Note: Only applicable to STM32C071xx, reserved on the other products.

Bit 1 LSERDYC : LSE ready interrupt clear

This bit is set by software to clear the LSERDYF flag.

0: No effect

1: Clear LSERDYF flag

Bit 0 LSIRDYC : LSI ready interrupt clear

This bit is set by software to clear the LSIRDYF flag.

0: No effect

1: Clear LSIRDYF flag

6.4.8 RCC I/O port reset register (RCC_IOPRSTR)

Address offset: 0x24

Reset value: 0x0000 0000

Bits 31:6 Reserved, must be kept at reset value.

Bit 5 GPIOFRST : I/O port F reset

This bit is set and cleared by software.

0: no effect

1: Reset I/O port F

Bit 4 Reserved, must be kept at reset value.

Bit 3 GPIOFRST : I/O port D reset

This bit is set and cleared by software.

0: no effect

1: Reset I/O port D

Bit 2 GPIOCRST : I/O port C reset

This bit is set and cleared by software.

0: no effect

1: Reset I/O port C

Bit 1 GPIOBRST : I/O port B reset

This bit is set and cleared by software.

0: no effect

1: Reset I/O port B

Bit 0 GPIOARST : I/O port A reset

This bit is set and cleared by software.

0: no effect

1: Reset I/O port A

6.4.9 RCC AHB peripheral reset register (RCC_AHBRSTR)

Address offset: 0x28

Reset value: 0x0000 0000

Bits 31:13 Reserved, must be kept at reset value.

Bit 12 CRCRST : CRC reset

Set and cleared by software.

0: No effect

1: Reset CRC

Bits 11:9 Reserved, must be kept at reset value.

Bit 8 FLASHRST : Flash memory interface reset

Set and cleared by software.

0: No effect

1: Reset flash memory interface

This bit can only be set when the flash memory is in power down mode.

Bits 7:1 Reserved, must be kept at reset value.

Bit 0 DMA1RST : DMA1 and DMAMUX reset

Set and cleared by software.

0: No effect

1: Reset DMA1 and DMAMUX

6.4.10 RCC APB peripheral reset register 1 (RCC_APBSTR1)

Address offset: 0x2C

Reset value: 0x0000 0000

Bits 31:29 Reserved, must be kept at reset value.

Bit 28 PWRRST : Power interface reset

Set and cleared by software.

0: No effect

1: Reset PWR

Bit 27 DBGIRST : Debug support reset

Set and cleared by software.

0: No effect

1: Reset DBG

Bits 26:23 Reserved, must be kept at reset value.

Bit 22 I2C2RST : I2C2 reset

Set and cleared by software.

0: No effect

1: Reset I2C2

Note: Only applicable to STM32C051xx, STM32C071xx, and STM32C091xx/92xx, reserved on the other products.

Bit 21 I2C1RST : I2C1 reset

Set and cleared by software.

0: No effect

1: Reset I2C1

Bit 20 Reserved, must be kept at reset value.

Bit 19 USART4RST : USART4 reset

Set and cleared by software.

0: No effect

1: Reset USART4

Note: Only applicable to STM32C091xx/92xx, reserved on the other products.

Bit 18 USART3RST : USART3 reset

Set and cleared by software.

0: No effect

1: Reset USART3

Note: Only applicable to STM32C091xx/92xx, reserved on the other products.

Bit 17 USART2RST : USART2 reset

Set and cleared by software.

0: No effect

1: Reset USART2

Bit 16 CRSRST : CRS reset

Set and cleared by software.

0: No effect

1: Reset CRS

Note: Only applicable to STM32C071xx, reserved on the other products.

Bit 15 Reserved, must be kept at reset value.

Bit 14 SPI2RST : SPI2 reset

Set and cleared by software.

0: No effect

1: Reset SPI2

Note: Only applicable to STM32C051xx, STM32C071xx, and STM32C091xx/92xx, reserved on the other products.

Bit 13 USBRST : USB reset

Set and cleared by software.

0: No effect

1: Reset USB

Note: Only applicable to STM32C071xx, reserved on the other products.

Bit 12 FDCAN1RST : FDCAN1 reset

Set and cleared by software.

0: No effect

1: Reset FDCAN1

Note: Only applicable to STM32C092xx, reserved on the other products.

Bits 11:2 Reserved, must be kept at reset value.

Bit 1 TIM3RST : TIM3 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM3

Bit 0 TIM2RST : TIM2 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM2

Note: Only applicable to STM32C051xx, STM32C071xx, and STM32C091xx/92xx, reserved on the other products.

6.4.11 RCC APB peripheral reset register 2 (RCC_APBRSTR2)

Address offset: 0x30

Reset value: 0x0000 0000

Bits 31:21 Reserved, must be kept at reset value.

Bit 20 ADCRST : ADC reset

Set and cleared by software.

0: No effect

1: Reset ADC

Bit 19 Reserved, must be kept at reset value.

Bit 18 TIM17RST : TIM16 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM17 timer

Bit 17 TIM16RST : TIM16 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM16 timer

Bit 16 TIM15RST : TIM15 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM15 timer

Note: Only applicable to STM32C092xx, reserved on the other products.

Bit 15 TIM14RST : TIM14 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM14 timer

Bit 14 USART1RST : USART1 reset

Set and cleared by software.

0: No effect

1: Reset USART1

Bit 13 Reserved, must be kept at reset value.

Bit 12 SPI1RST : SPI1 reset

Set and cleared by software.

0: No effect

1: Reset SPI1

Bit 11 TIM1RST : TIM1 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM1 timer

Bits 10:1 Reserved, must be kept at reset value.

Bit 0 SYSCFGRST : SYSCFG reset

Set and cleared by software.

0: No effect

1: Reset SYSCFG

6.4.12 RCC I/O port clock enable register (RCC_IOPENR)

Address offset: 0x34

Reset value: 0x0000 0000

Bits 31:6 Reserved, must be kept at reset value.

• Bit 5 GPIOFEN : I/O port F clock enable
  This bit is set and cleared by software.
  0: Disable
  1: Enable
• Bit 4 Reserved, must be kept at reset value.
• Bit 3 GPIODEN : I/O port D clock enable
  This bit is set and cleared by software.
  0: Disable
  1: Enable
• Bit 2 GPIOCEN : I/O port C clock enable
  This bit is set and cleared by software.
  0: Disable
  1: Enable
• Bit 1 GPIOBEN : I/O port B clock enable
  This bit is set and cleared by software.
  0: Disable
  1: Enable
• Bit 0 GPIOAEN : I/O port A clock enable
  This bit is set and cleared by software.
  0: Disable
  1: Enable

6.4.13 RCC AHB peripheral clock enable register (RCC_AHBENR)

Address offset: 0x38

Reset value: 0x0000 0100

This register individually enables clocks to AHB peripherals. In Sleep and Stop modes, a clock enabled through this register is only supplied to the peripheral if the corresponding bit of the RCC_AHBSMENR register is also set.

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 CRCEN : CRC clock enable

Set and cleared by software.
0: Disable
1: Enable

Bits 11:9 Reserved, must be kept at reset value.

Bit 8 FLASHEN : Flash memory interface clock enable

Set and cleared by software.
0: Disable
1: Enable
This bit can only be cleared when the flash memory is in power down mode.

Bits 7:1 Reserved, must be kept at reset value.

Bit 0 DMA1EN : DMA1 and DMAMUX clock enable

Set and cleared by software.
0: Disable
1: Enable
DMAMUX is enabled as long as at least one DMA peripheral is enabled.

6.4.14 RCC APB peripheral clock enable register 1 (RCC_APBENR1)

Address offset: 0x3C
Reset value: 0x0000 0000

This register individually enables clocks to APB peripherals. In Sleep and Stop modes, a clock enabled through this register is only supplied to the peripheral if the corresponding bit of the RCC_APBSMENR1 register is also set.

Bits 31:29 Reserved, must be kept at reset value.

Bit 28 PWREN : Power interface clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 27 DBGEN : Debug support clock enable

Set and cleared by software.

0: Disable

1: Enable

Bits 26:23 Reserved, must be kept at reset value.

Bit 22 I2C2EN : I2C2 clock enable

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C051xx, STM32C071xx, and STM32C091xx/92xx, reserved on the other products.

Bit 21 I2C1EN : I2C1 clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 20 Reserved, must be kept at reset value.

Bit 19 USART4EN : USART4 clock enable

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C091xx/92xx, reserved on the other products.

Bit 18 USART3EN : USART3 clock enable

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C091xx/92xx, reserved on the other products.

Bit 17 USART2EN : USART2 clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 16 CRSEN : CRS clock enable

Set and cleared by software.

0: Disable

1: Enable

Only applicable to STM32C071xx, reserved on the other products.

Bit 15 Reserved, must be kept at reset value.

Bit 14 SPI2EN : SPI2 clock enable

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C051xx, STM32C071xx, and STM32C091xx/92xx, reserved on the other products.

Bit 13 USBEN : USB clock enable

Set and cleared by software.

0: Disable

1: Enable

Only applicable to STM32C071xx, reserved on the other products.

Bit 12 FDCAN1EN : FDCAN1 clock enable

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C092xx, reserved on the other products.

Bit 11 WWDGEN : WWDG clock enable

Set by software to enable the window watchdog clock. Cleared by hardware system reset

0: Disable

1: Enable

This bit can also be set by hardware if the WWDG_SW option bit is 0.

Bit 10 RTCPBEN : RTC APB clock enable

Set and cleared by software.

0: Disable

1: Enable

Bits 9:2 Reserved, must be kept at reset value.

Bit 1 TIM3EN : TIM3 timer clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 0 TIM2EN : TIM2 timer clock enable

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C051xx, STM32C071xx, and STM32C091xx/92xx, reserved on the other products.

6.4.15 RCC APB peripheral clock enable register 2(RCC_APBENR2)

Address offset: 0x40

Reset value: 0x0000 0000

This register individually enables clocks to APB peripherals. In Sleep and Stop modes, a clock enabled through this register is only supplied to the peripheral if the corresponding bit of the RCC_APBSMENR2 register is also set.

Bits 31:21 Reserved, must be kept at reset value.

Bit 20 ADCEN : ADC clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 19 Reserved, must be kept at reset value.

Bit 18 TIM17EN : TIM16 timer clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 17 TIM16EN : TIM16 timer clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 16 TIM15EN : TIM15 timer clock enable

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C091xx/92xx, reserved on the other products.

Bit 15 TIM14EN : TIM14 timer clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 14 USART1EN : USART1 clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 13 Reserved, must be kept at reset value.

Bit 12 SPI1EN : SPI1 clock enable

Set and cleared by software.

0: Disable

1: Enable

Bit 11 TIM1EN : TIM1 timer clock enable

Set and cleared by software.
0: Disable
1: Enable

Bits 10:1 Reserved, must be kept at reset value.

Bit 0 SYSCFGEN : SYSCFG clock enable

Set and cleared by software.
0: Disable
1: Enable

6.4.16 RCC I/O port in Sleep mode clock enable register (RCC_IOPSMENR)

Address offset: 0x44

Reset value: 0x0000 002F

Bits 31:6 Reserved, must be kept at reset value.

Bit 5 GPIOFSMEN : I/O port F clock enable during Sleep mode

Set and cleared by software.
0: Disable
1: Enable

Bit 4 Reserved, must be kept at reset value.

Bit 3 GPIODSMEN : I/O port D clock enable during Sleep mode

Set and cleared by software.
0: Disable
1: Enable

Bit 2 GPIOCSMEN : I/O port C clock enable during Sleep mode

Set and cleared by software.
0: Disable
1: Enable

Bit 1 GPIOBSMEN : I/O port B clock enable during Sleep mode

Set and cleared by software.
0: Disable
1: Enable

Bit 0 GPIOASMEN : I/O port A clock enable during Sleep mode

Set and cleared by software.
0: Disable
1: Enable

6.4.17 RCC AHB peripheral clock enable in Sleep/Stop mode register (RCC_AHBSMENR)

Address offset: 0x48

Reset value: 0x0000 1301

This register can individually program which AHB peripheral clocks are disabled (bit cleared) upon the device entering Sleep or Stop mode. When a bit of this register is set (enable), the corresponding peripheral clock is supplied in Sleep or Stop mode according to the setting of the RCC_AHBENR register.

Bits 31:13 Reserved, must be kept at reset value.

Bit 12 CRCSMEN : CRC clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bits 11:10 Reserved, must be kept at reset value.

Bit 9 SRAMSMEN : SRAM clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bit 8 FLASHSMEN : Flash memory interface clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

This bit can be activated only when the flash memory is in power down mode.

Bits 7:1 Reserved, must be kept at reset value.

Bit 0 DMA1SMEN : DMA1 and DMAMUX clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Clock to DMAMUX during Sleep mode is enabled as long as the clock in Sleep mode is enabled to at least one DMA peripheral.

6.4.18 RCC APB peripheral clock enable in Sleep/Stop mode register 1 (RCC_APBSMENR1)

Address offset: 0x4C

Reset value: 0x186F 7C03

This register can individually program which APB peripheral clocks are disabled (bit cleared) upon the device entering Sleep or Stop mode. When a bit of this register is set (enable), the corresponding peripheral clock is supplied in Sleep or Stop mode according to the setting of the RCC_APBENR1 register.

Bits 31:29 Reserved, must be kept at reset value.

Bit 28 PWRSMEN : Power interface clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bit 27 DBGSMEN : Debug support clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bits 26:23 Reserved, must be kept at reset value.

Bit 22 I2C2SMEN : I2C2 clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C051xx, STM32C071xx, and STM32C091xx/92xx, reserved on the other products.

Bit 21 I2C1SMEN : I2C1 clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Bit 20 Reserved, must be kept at reset value.

Bit 19 USART4SMEN : USART4 clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C091xx/92xx, reserved on the other products.

Bit 18 USART3SMEN : USART3 clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C091xx/92xx, reserved on the other products.

Bit 17 USART2SMEN : USART2 clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Bit 16 CRSSMEN : CRS clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C051xx, STM32C071xx, and STM32C091xx/92xx, reserved on the other products.

Bit 15 Reserved, must be kept at reset value.

Bit 14 SPI2SMEN : SPI2 clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C071xx, reserved on the other products.

Bit 13 USBSMEN : USB clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C071xx, reserved on the other products.

Bit 12 FDCAN1SMEN : FDCAN1 clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C092xx, reserved on the other products.

Bit 11 WWDGSMEN : WWDG clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Bit 10 RTCAPBSMEN : RTC APB clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bits 9:2 Reserved, must be kept at reset value.

Bit 1 TIM3SMEN : TIM3 timer clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bit 0 TIM2SMEN : TIM2 timer clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C051xx, STM32C071xx, and STM32C091xx/92xx, reserved on the other products.

6.4.19 RCC APB peripheral clock enable in Sleep/Stop mode register 2 (RCC_APBSMENR2)

Address offset: 0x50

Reset value: 0x0017 D801

This register can individually program which APB peripheral clocks are disabled (bit cleared) upon the device entering Sleep or Stop mode. When a bit of this register is set (enable), the corresponding peripheral clock is supplied in Sleep or Stop mode according to the setting of the RCC_APBENR2 register.

Bits 31:21 Reserved, must be kept at reset value.

Bit 20 ADC SMEN : ADC clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bit 19 Reserved, must be kept at reset value.

Bit 18 TIM17 SMEN : TIM16 timer clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bit 17 TIM16 SMEN : TIM16 timer clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bit 16 TIM15 SMEN : TIM15 timer clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Note: Only applicable to STM32C091xx/92xx, reserved on the other products.

Bit 15 TIM14 SMEN : TIM14 timer clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bit 14 USART1 SMEN : USART1 clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

Bit 13 Reserved, must be kept at reset value.

Bit 12 SPI1SMEN : SPI1 clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bit 11 TIM1SMEN : TIM1 timer clock enable during Sleep mode

Set and cleared by software.

0: Disable

1: Enable

Bits 10:1 Reserved, must be kept at reset value.

Bit 0 SYSCFGSMEN : SYSCFG clock enable during Sleep and Stop modes

Set and cleared by software.

0: Disable

1: Enable

6.4.20 RCC peripherals independent clock configuration register 1 (RCC_CCIPR)

Address offset: 0x54

Reset value: 0x0000 0000

Bits 31:30 ADCSEL[1:0] : ADCs clock source selection

This bitfield is controlled by software to select the asynchronous clock source for ADC:

00: System clock

01: Reserved

10: HSIKER

11: Reserved

Bits 29:16 Reserved, must be kept at reset value.

Bits 15:14 I2S1SEL[1:0] : I2S1 clock source selection

This bitfield is controlled by software to select I2S1 clock source as follows:

00: SYSCLK

01: Reserved

10: HSIKER

11: I2S_CKIN

Bits 13:12 I2C1SEL[1:0] : I2C1 clock source selection

This bitfield is controlled by software to select I2C1 clock source as follows:

00: PCLK
01: SYSCLK
10: HSIKER
11: Reserved

Bits 11:10 Reserved, must be kept at reset value.

Bits 9:8 FDCAN1SEL[1:0] : FDCAN1 clock source selection

This bitfield is controlled by software to select FDCAN1 clock source as follows:

00: PCLK
01: HSIKER
10: HSE
11: Reserved

Note: Only applicable to STM32C092xx, reserved on the other products.

Bits 7:2 Reserved, must be kept at reset value.

Bits 1:0 USART1SEL[1:0] : USART1 clock source selection

This bitfield is controlled by software to select USART1 clock source as follows:

00: PCLK
01: SYSCLK
10: HSIKER
11: LSE

6.4.21 RCC peripherals independent clock configuration register 2 (RCC_CCIPR2)

This register is only available on STM32C071xx. On the other devices, it is reserved.

Address offset: 0x58

Reset value: 0x0000 0000

Bits 31:13 Reserved, must be kept at reset value.

Bit 12 USBSEL : USB clock source selection

Set and cleared by software.

0: HSIUSB48
1: HSE

Bits 11:0 Reserved, must be kept at reset value.

6.4.22 RCC control/status register 1 (RCC_CSR1)

Up to three wait states are inserted in case of successive accesses to this register.

The register bits are only reset upon RTC domain reset (see Section 6.1.3: RTC domain reset ), except the LSCOSEL, LSCOEN, and RTCRST bits that are only reset upon RTC domain power-on reset. Any internal or external reset has no effect on these bits.

Address offset: 0x5C

Reset value: 0x0000 0000

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 LSCOSEL : Low-speed clock output selection

Set and cleared by software to select the low-speed output clock:

0: LSI

1: LSE

Bit 24 LSCOEN : Low-speed clock output (LSCO) enable

Set and cleared by software.

0: Disable

1: Enable

Bits 23:17 Reserved, must be kept at reset value.

Bit 16 RTCRST : RTC domain software reset

Set and cleared by software to reset the RTC domain:

0: No effect

1: Reset

Bit 15 RTCCEN : RTC clock enable

Set and cleared by software. The bit enables clock to RTC.

0: Disable

1: Enable

Bits 14:10 Reserved, must be kept at reset value.

Bits 9:8 RTCSEL[1:0] : RTC clock source selection

Set by software to select the clock source for the RTC as follows:

00: No clock

01: LSE

10: LSI

11: HSE divided by 32

Once the RTC clock source is selected, it cannot be changed anymore unless the RTC domain is reset, or unless a failure is detected on LSE (LSECSSD is set). The RTCRST bit can be used to reset this bitfield to 00.

Bit 7 Reserved, must be kept at reset value.

Set by hardware to indicate when a failure is detected by the clock security system on the external 32 kHz oscillator (LSE):

0: No failure detected

1: Failure detected

Set by software to enable the clock security system on LSE (32 kHz) oscillator as follows:

0: Disable

1: Enable

LSECSSON must be enabled after the LSE oscillator is enabled (LSEON bit enabled) and ready (LSERDY flag set by hardware), and after the RTCSEL bit is selected.

Once enabled, this bit cannot be disabled, except after a LSE failure detection (LSECSSD =1). In that case the software must disable the LSECSSON bit.

Set by software to select the LSE oscillator drive capability as follows:

0: medium-high driving capability

1: high driving capability

Applicable when the LSE oscillator is in Xtal mode, as opposed to bypass mode.

Set and cleared by software to bypass the LSE oscillator (in debug mode).

0: Not bypassed

1: Bypassed

This bit can be written only when the external 32 kHz oscillator is disabled (LSEON=0 and LSERDY=0).

Set and cleared by hardware to indicate when the external 32 kHz oscillator is ready (stable):

0: Not ready

1: Ready

After the LSEON bit is cleared, LSERDY goes low after 6 external low-speed oscillator clock cycles.

Set and cleared by software to enable LSE oscillator:

0: Disable

1: Enable

6.4.23 RCC control/status register 2 (RCC_CSR2)

Up to three wait states are inserted in case of successive accesses to this register. The register is reset upon system reset, except for reset flags that are only reset upon power reset.

Address offset: 0x60

Reset value: 0xXX00 0000

Bit 31 LPWRRSTF : Low-power reset flag

Set by hardware when a reset occurs due to illegal Stop, or Standby, or Shutdown mode entry.

Cleared by setting the RMVF bit.

0: No illegal mode reset occurred

1: Illegal mode reset occurred

This operates only if nRST_STOP, or nRST_STDBY or nRST_SHDW option bits are cleared.

Bit 30 WWDGRSTF : Window watchdog reset flag

Set by hardware when a window watchdog reset occurs.

Cleared by setting the RMVF bit.

0: No window watchdog reset occurred

1: Window watchdog reset occurred

Bit 29 IWDGRSTF : Independent window watchdog reset flag

Set by hardware when an independent watchdog reset domain occurs.

Cleared by setting the RMVF bit.

0: No independent watchdog reset occurred

1: Independent watchdog reset occurred

Bit 28 SFTRSTF : Software reset flag

Set by hardware when a software reset occurs.

Cleared by setting the RMVF bit.

0: No software reset occurred

1: Software reset occurred

Bit 27 PWRRSTF : BOR or POR/PDR flag

Set by hardware when a BOR or POR/PDR occurs.

Cleared by setting the RMVF bit.

0: No BOR or POR occurred

1: BOR or POR occurred

Bit 26 PINRSTF : Pin or other system reset flag

Set by hardware when a system reset from PF2-NRST pin or from any other source occurs.

Cleared by setting the RMVF bit.

0: No system reset occurred

1: System reset occurred

Bit 25 OBLRSTF : Option byte loader reset flag

Set by hardware when a reset from the Option byte loading occurs.

Cleared by setting the RMVF bit.

0: No reset from Option byte loading occurred

1: Reset from Option byte loading occurred

Bit 24 Reserved, must be kept at reset value.

Bit 23 RMVF : Remove reset flags

Set by software to clear the reset flags.

0: No effect

1: Clear reset flags

Bits 22:2 Reserved, must be kept at reset value.

Bit 1 LSIRDY : LSI oscillator ready

Set and cleared by hardware to indicate when the LSI oscillator is ready (stable):

0: Not ready

1: Ready

After the LSION bit is cleared, LSIRDY goes low after 3 LSI oscillator clock cycles. This bit can be set even if LSION = 0 if the LSI is requested by the Clock Security System on LSE, by the Independent Watchdog or by the RTC.

Bit 0 LSION : LSI oscillator enable

Set and cleared by software to enable/disable the LSI oscillator:

0: Disable

1: Enable

6.4.24 RCC register map

The following table gives the RCC register map and the reset values.

Table 31. RCC register map and reset values

Table 31. RCC register map and reset values (continued)

Table 31. RCC register map and reset values (continued)
