27. Operational amplifier (OPAMP)

27.1 OPAMP introduction

STM32U3 series devices embed two operational amplifiers with two inputs and one output each. The three I/Os can be connected to the external pins, this enables any type of external interconnections. The operational amplifier can be configured internally as a follower or as an amplifier with a noninverting gain ranging from 2 to 16.

The positive input can be connected to the internal DAC.

The output can be connected to the internal ADC.

27.2 OPAMP main features

• • Rail-to-rail input voltage range
• • Low input bias current
• • Low input offset voltage
• • Low-power mode
• • High-speed mode to achieve a better slew rate
• • Fast wake-up time
• • Gain bandwidth of 1.6 MHz

27.3 OPAMP functional description

The OPAMP has several modes.

Each OPAMP can be individually enabled, when disabled the output is high-impedance.

When enabled, it can be in calibration mode, all input and output of the OPAMP are then disconnected, or in functional mode.

There are three functional modes: the low-power mode, the high-speed mode, and the normal mode. In functional mode the inputs and output of the OPAMP are connected as described in the Section 27.3.3 .

27.3.1 OPAMP reset and clocks

The operational amplifier clock is necessary for accessing the registers. When the application does not need read or write access to those registers, the clock can be switched off using the peripheral clock enable register (see OPAMPEN bit in RCC_APB1ENR1, and OPAMPSLPEN bit in RCC_APB1SLPENR1).

The OPAEN bit in OPAMPx_CSR enables and disables the OPAMP operation. The OPAMP registers configurations can be changed when the OPAEN bit is set in OPAMPx_CSR. However, it can create spurious effects (noise, glitch, overshoot, or saturation). If the configuration is changed, the application firmware must take care of these spurious effects (such as ignore the ADC result on the OPAMP output).

When the OPAMP output is no more needed, the OPAMP can be disabled to save power. All the configurations previously set (including the calibration) are maintained while the OPAMP is disabled.

27.3.2 Initial configuration

The OPAMP default configuration is a functional mode where the three IOs are connected to external pins. In the default mode, the OPAMP uses the factory trimming values (see “electrical characteristics” section of the datasheet for factory trimming conditions. Usually the temperature is 30 °C and the voltage is 3 V). The trimming values can be adjusted (see Section 27.3.5 ). The default configuration uses the normal mode that provides the standard performance. The OPALPM bit in OPAMPx_CSR can be set in order to switch the OPAMP to low-power mode and reduced performance. Normal, low-power, and high-speed modes characteristics are defined in the “electrical characteristics” section of the datasheet. Before utilization, the OPA_RANGE bit in OPAMP1_CSR must be set to 1.

As soon as the OPAEN bit in OPAMPx_CSR is set, the OPAMP is functional. The two input pins and the output pin are connected as defined in Section 27.3.3 and the default connection settings can be changed.

Note: The inputs and output pins must be configured in analog mode (default state) in the corresponding GPIOx_MODER register.

27.3.3 Signal routing

The routing for the OPAMP pins is determined by the OPAMPx_CSR register.

The connections of the operational amplifiers (OPAMP1 and OPAMP2) are described in the table below.

Table 246. Operational amplifier possible connections

1. The dedicated pin is only available on the BGA132 package. This configuration provides the lowest input bias current (refer to the datasheet for more information).

27.3.4 OPAMP modes

The OPAMP inputs and outputs are all accessible on terminals. The amplifiers can be used in the following configuration environments:

• • Standalone mode (external gain setting mode)
• • Follower configuration mode
• • PGA modes

The amplifier output pin is directly connected to the output pad to minimize the output impedance. It cannot be used as a general purpose I/O, even if the amplifier is configured as a PGA and only connected to the ADC channel.

The impedance of the signal must be maintained below a level that avoids the input leakage to create significant artifacts (due to a resistive drop in the source). Refer to the “electrical characteristics” section in the datasheet for further details.

Standalone mode (external gain setting mode)

The procedure to use the OPAMP in standalone mode is detailed below:

1. 1. Keep default value of OPAMPx_CSR and the default state of GPIOx_MODER.
2. 2. As soon as OPAEN is set in OPAMPx_CSR, the two input pins and the output pin are connected to the operational amplifier.

This default configuration uses the factory trimming values and operates in normal mode (standard performance). The OPAMP behavior can be changed with the following bits in OPAMPx_CSR:

• • If OPALPM is set to 1, the OPAMP switches in low-power mode in order to save power.
• • If OPAHSM is set to 1, the OPAMP switches in high-speed mode in order to have a high slew rate.
• • If USERTRIM is set to 1, the input offset values can be trimmed.

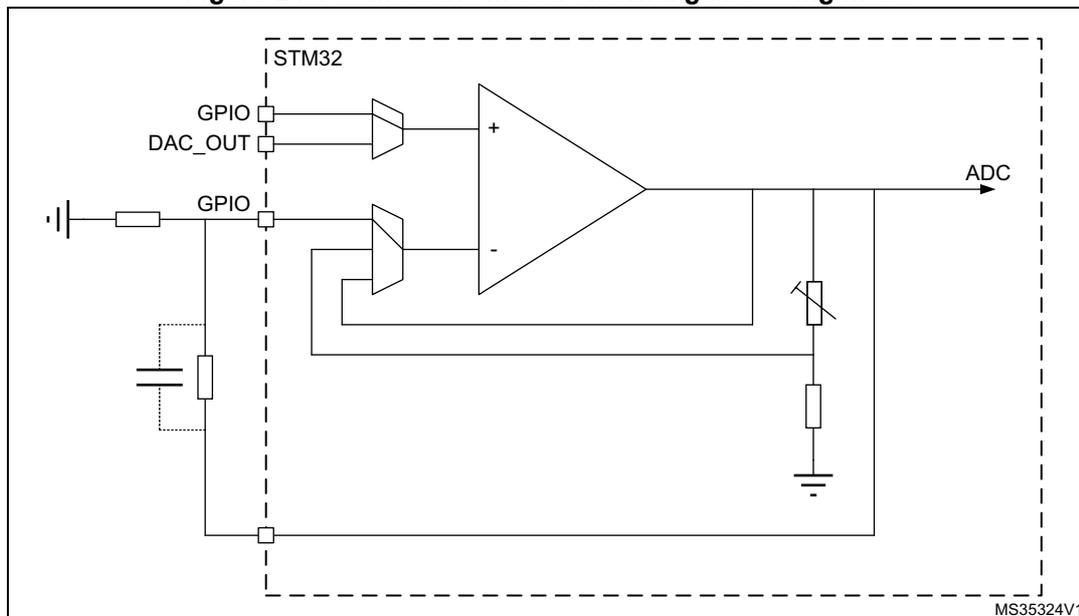

Figure 249. Standalone mode: external gain setting mode

Follower configuration mode

The procedure to use the OPAMP in follower mode is detailed below (all bits in OPAMPx_CSR):

1. 1. Set OPAMODE[1:0] = 11 (internal follower).
2. 2. Clear VP_SEL to 0 (GPIO connected to OPAMPx_VINP, named VINP in this document).
3. 3. As soon as OPAEN is set to 1, the signal on the VINP pin is copied to the OPAMP_VOUT pin.

Note: The pin corresponding to OPAMP_VINM is free for another usage.

The signal on the OPAMP output is also seen as an ADC input. As a consequence, the OPAMP configured in follower mode can be used to perform impedance adaptation on input signals before feeding them to the ADC input, assuming that the input signal frequency is compatible with the operational amplifier gain bandwidth specification.

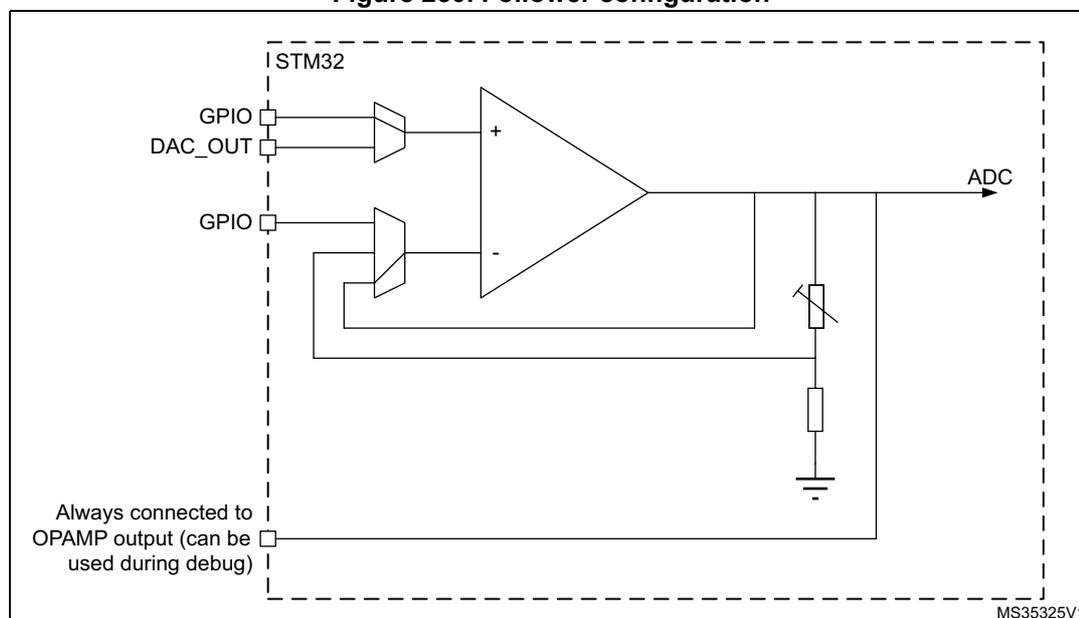

Figure 250. Follower configuration

Programmable gain amplifier mode

The procedure to use the OPAMP to amplify the amplitude of an input signal is detailed below (all bits in OPAMPx_CSR):

1. 1. Set OPAMODE[1:0] to 10 (internal PGA enabled).
2. 2. Set PGA_GAIN[1:0] to the selected PGA gain (2, 4, 8 or 16) in OPAMPx_CSR.
3. 3. Set VM_SEL[1:0] to 1x in OPAMPx_CSR (inverting input not externally connected).
4. 4. Clear VP_SEL to 0 in OPAMPx_CSR (GPIO connected to VINP).
5. 5. As soon as OPAEN is set in OPAMPx_CSR, the signal on the OPAMP_VINP pin is amplified by the selected gain, and visible on the OPAMP_VOUT pin.

Note: To avoid saturation, the input voltage must stay below \( V_{DDA} \) divided by the selected gain.

Programmable gain amplifier mode with external filtering

The procedure to use the OPAMP to amplify the amplitude of an input signal, with an external set, is detailed below (all bits in OPAMPx_CSR):

1. 1. Configure OPAMODE[1:0] to 10 (internal PGA enabled).
2. 2. Set PGA_GAIN[1:0] to the selected PGA gain (2, 4, 8 or 16).
3. 3. Clear VM_SEL[1:0] to 00 or 01(GPIO connected to VINM).
4. 4. Clear VP_SEL to 0 (GPIO connected to VINP).

Any external connection on VINP can be used in parallel with the internal PGA. For example, a capacitor can be connected between VOUT and VINM for filtering purpose (see datasheet for the value of resistors used in the PGA resistor network).

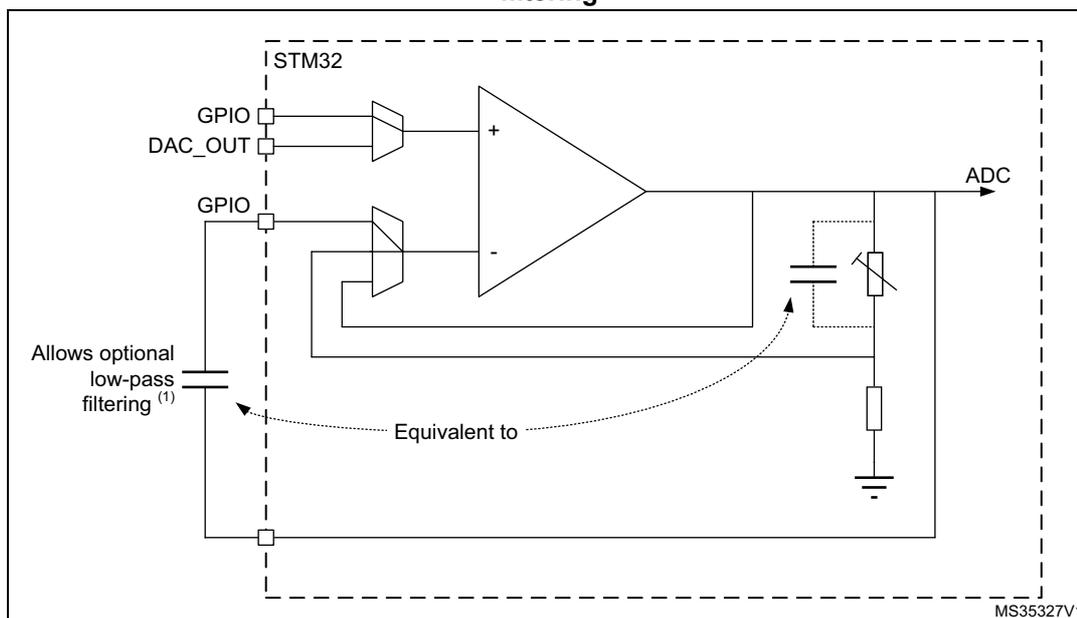

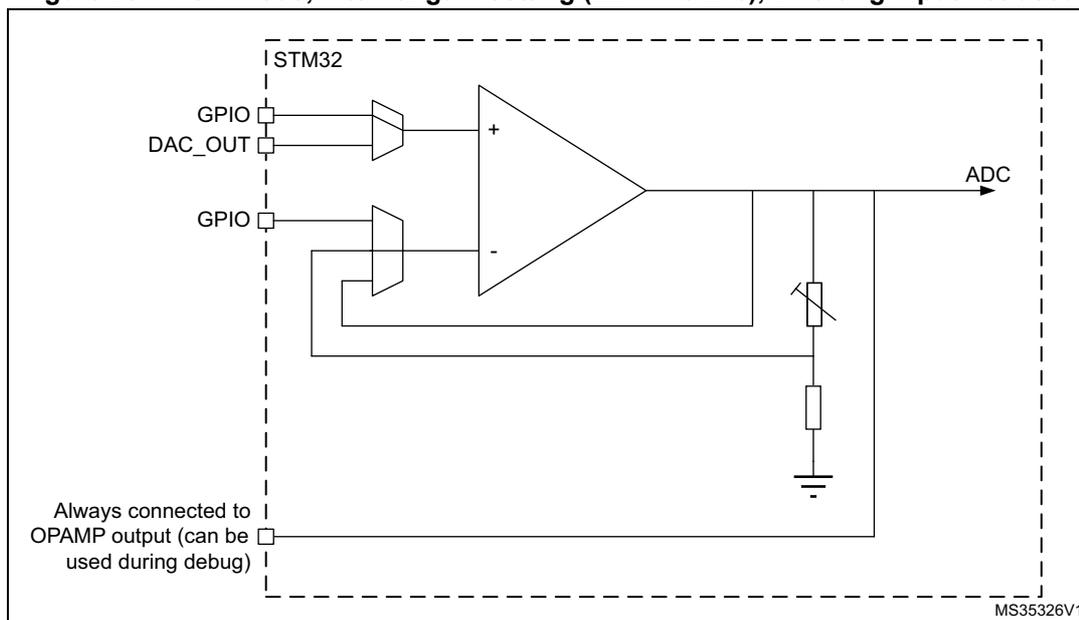

Figure 252. PGA mode, internal gain setting (x2/x4/x8/x16), inverting input used for filtering

1. The gain depends on the cut-off frequency.

27.3.5 Calibration

At startup, the trimming values are initialized with the preset 'factory' trimming value.

Each OPAMP offset can be trimmed by the user. Specific registers allow different trimming values for normal and low-power modes.

The calibration purpose is to cancel as much as possible the OPAMP inputs offset voltage. The calibration circuitry allows the inputs offset voltage to be reduced to less than \( \pm 1.5 \) mV within stable voltage and temperature conditions.

For each OPAMP and each mode, two trimming values can be trimmed: one for N differential pair and one for P differential pair.

The registers used to trim the offsets for each operational amplifiers are:

• • OPAMPx_OTR for normal mode
• • OPAMPx_LPOTR for low-power mode

Each register is composed of five bits for P differential pair trimming, and five bits for N differential pair trimming. These are the 'user' values.

The user is able to switch from 'factory' values to 'user' trimmed values, with the USERTRIM bit in OPAMPx_CSR. This bit is reset at startup and the 'factory' value is applied by default to the OPAMP trimming registers.

The trimming values can be changed in calibration or in functional mode.

The offset trimming registers are typically configured after the initialization of the calibration operation (CALON set to 1 in OPAMPx_CSR). When CALON = 1, the OPAMP inputs are disconnected from the functional environment.

Setting CALSEL to 1 in OPAMPx_CSR initializes the offset calibration for the P differential pair (low-voltage reference used).

Clearing CALSEL to 0 initializes the offset calibration for the N differential pair (high voltage reference used).

When CALON = 1, the CALOUT bit in OPAMPx_CSR reflects the influence of the trimming value selected by CALSEL and OPALPM. When the value of CALOUT switches between two consecutive trimming values, this means that those two values are the best trimming values. The CALOUT flag needs up to 1 ms after the trimming value is changed to become steady (see \( t_{OFFTRIM} \) max delay specification in the “electrical characteristics” section of the datasheet).

Note: The closer the trimming value is to the optimum trimming value, the longer it takes to stabilize (with a maximum stabilization time remaining below 1 ms in any case).

When the calibration operation is done, OPAHSM must be cleared to 0 in OPAMPx_CSR.

Table 247. Operating modes and calibration

Calibration procedure

Here are the steps to perform a full calibration of either one of the operational amplifiers:

1. 1. Set OPAEN to 1 in OPAMPx_CSR to enable the OPAMP and set OPA_RANGE = 1 in OPAMP1_CSR.
2. 2. Clear OPAHSM to 0 in OPAMPx_CSR.
3. 3. Set CALON and USERTRIM to 1 in OPAMPx_CSR.
4. 4. Choose a calibration mode (refer to Table 247 ). Steps 4 to 5 must be repeated four times. For the first iteration, select normal mode, offset cal high (N differential pair), with OPALPM = 0 and CALSEL = 0 in OPAMPx_CSR.
5. 5. Increment TRIMOFFSETN[4:0] in OPAMPx_OTR starting from 0, until CALOUT changes to 1 in OPAMPx_CSR.

Between the write to OPAMP_OTR and the read of the CALOUT value, make sure to wait for the \( t_{OFFTRIM} \) max delay specified in the “electrical characteristics” section of the datasheet, to get the correct CALOUT value.

The commutation means that the offset is correctly compensated and that the corresponding trim code must be saved in OPAMP_OTR.

1. 6. Repeat steps 4 to 5 for:
   • – Normal mode and offset cal low
   • – Low-power mode and offset cal high
   • – Low-power mode and offset cal low
   If a mode is not used, the corresponding calibration can be skipped.

All OPAMPs can be calibrated at the same time.

Note: During the whole calibration phase:

• • The external connection of the OPAMP output must not pull up or down currents higher than 500 µA.
• • OPAMODE[1:0] must be set up to 00 or 01 (PGA disable) or 11 (internal follower).

27.4 OPAMP low-power modes

Table 248. Effect of low-power modes on the OPAMP

27.5 OPAMP registers

27.5.1 OPAMP1 control/status register (OPAMP1_CSR)

Address offset: 0x00

Reset value: 0x0000 0000

Bit 31 OPA_RANGE : OPAMP range setting

This bit must be set before enabling the OPAMP. This bit affects all OPAMP instances.

0: Reserved

1: OPAMP range set

Bit 30 OPAHSM : OPAMP high-speed mode

This bit is effective for both normal and low-power modes.

0: Normal mode (standard slew rate)

1: Increased consumption to improve the slew rate

Bits 29:16 Reserved, must be kept at reset value.

Bit 15 CALOUT : OPAMP calibration output

During the calibration mode, the offset is trimmed when this signal toggles.

Bit 14 USERTRIM : Selection of factory or user offset trimmed values

This bit is active for normal and low-power modes.

0: Factory trim code used

1: User trim code used

Bit 13 CALSEL : Calibration selection

0: NMOS calibration (200 mV applied on OPAMP inputs)

1: PMOS calibration ( \( V_{DDA} - 200 \) mV applied on OPAMP inputs)

Bit 12 CALON : Calibration mode enable

0: Normal mode

1: Calibration mode (all switches opened by hardware)

Bit 11 Reserved, must be kept at reset value.

Bit 10 VP_SEL : Noninverted input selection

0: GPIO connected to VINP

1: DAC connected to VINP

Bit 9 VM_SEL : Inverting input selection

This bit is used only when OPAMODE[1:0] = 00, 01, or 10.

0: GPIO connected to VINM (valid also in PGA mode for filtering)

1: Inverting input not externally connected

Bits 8:6 Reserved, must be kept at reset value.

Bits 5:4 PGA_GAIN[1:0] : OPAMP programmable amplifier gain value

00: Internal PGA gain 2

01: Internal PGA gain 4

10: Internal PGA gain 8

11: Internal PGA gain 16

Bits 3:2 OPAMODE[1:0] : OPAMP PGA mode

00-01: Internal PGA disabled

10: Internal PGA enabled, gain programmed in PGA_GAIN

11: Internal follower

Bit 1 OPALPM : OPAMP low-power mode

The OPAMP must be disabled to change this configuration.

0: Normal mode

1: Low-power mode

Bit 0 OPAEN : OPAMP enable

0: OPAMP disabled

1: OPAMP enabled

27.5.2 OPAMP1 offset trimming register in normal mode (OPAMP1_OTR)

Address offset: 0x04

Reset value: 0x0000 XXXX

XXXX are factory trimmed values.

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:8 TRIMOFFSETP[4:0] : Trim for PMOS differential pairs

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 TRIMOFFSETN[4:0] : Trim for NMOS differential pairs

27.5.3 OPAMP1 offset trimming register in low-power mode (OPAMP1_LPOTR)

Address offset: 0x08

Reset value: 0x0000 XXXX

XXXX are factory trimmed values.

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:8 TRIMLPOFFSETP[4:0] : Low-power mode trim for PMOS differential pairs

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 TRIMLPOFFSETN[4:0] : Low-power mode trim for NMOS differential pairs

27.5.4 OPAMP2 control/status register (OPAMP2_CRS)

Address offset: 0x10

Reset value: 0x0000 0000

Bit 31 Reserved, must be kept at reset value.

Bit 30 OPAHSM : OPAMP high-speed mode

This bit is effective for both normal and high-speed modes.

0: Normal mode (standard slew rate)

1: Increased consumption to improve the slew rate

Bits 29:16 Reserved, must be kept at reset value.

Bit 15 CALOUT : OPAMP calibration output

During calibration mode, the offset is trimmed when this signal toggles.

Bit 14 USERTRIM : Selection of factory or user offset trimmed values

This bit is active for normal and low-power modes.

0: Factory trim code used

1: User trim code used

Bit 13 CALSEL : Calibration selection

0: NMOS calibration (200 mV applied on OPAMP inputs)

1: PMOS calibration ( \( V_{DDA} - 200 \) mV applied on OPAMP inputs)

Bit 12 CALON : Calibration mode enable

0: Normal mode

1: Calibration mode (all switches opened by hardware)

Bit 11 Reserved, must be kept at reset value.

Bit 10 VP_SEL : Noninverted input selection

0: GPIO connected to VINP

1: DAC connected to VINP

Bit 9 VM_SEL : Inverting input selection

This bit is used only when OPAMODE[1:0] = 00, 01, or 10.

0: GPIO connected to VINM (valid also in PGA mode for filtering)

1: Inverting input not externally connected

Bits 8:6 Reserved, must be kept at reset value.

Bits 5:4 PGA_GAIN[1:0] : OPAMP programmable amplifier gain value

00: Internal PGA gain 2

01: Internal PGA gain 4

10: Internal PGA gain 8

11: Internal PGA gain 16

Bits 3:2 OPAMODE[1:0] : OPAMP PGA mode

00-01: internal PGA disabled

10: Internal PGA enabled, gain programmed in PGA_GAIN

11: Internal follower

Bit 1 OPALPM : OPAMP low-power mode

The OPAMP must be disabled to change this configuration.

0: Normal mode

1: Low-power mode

Bit 0 OPAEN : OPAMP enable

0: OPAMP disabled

1: OPAMP enabled

27.5.5 OPAMP2 offset trimming register in normal mode (OPAMP2_OTR)

Address offset: 0x14

Reset value: 0x0000 XXXX

XXXX are factory trimmed values.

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:8 TRIMOFFSETP[4:0] : Trim for PMOS differential pairs

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 TRIMOFFSETN[4:0] : Trim for NMOS differential pairs

27.5.6 OPAMP2 offset trimming register in low-power mode (OPAMP2_LPOTR)

Address offset: 0x18

Reset value: 0x0000 XXXX

XXXX are factory trimmed values.

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:8 TRIMLPOFFSETP[4:0] : Low-power mode trim for PMOS differential pairs

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 TRIMLPOFFSETN[4:0] : Low-power mode trim for NMOS differential pairs

27.5.7 OPAMP register map

Table 249. OPAMP register map and reset values

Refer to Section 2.3 for the register boundary addresses.
