30. Secure digital input/output MultiMediaCard interface (SDMMC)

30.1 SDMMC main features

The SD/SDIO, embedded MultiMediaCard (e•MMC) host interface (SDMMC) provides an interface between the AHB bus and SD memory cards, SDIO cards and e•MMC devices.

The MultiMediaCard system specifications are available through the MultiMediaCard Association website at www.jedec.org , published by the MMCA technical committee.

SD memory card and SD I/O card system specifications are available through the SD card Association website at www.sdcard.org .

The SDMMC features include the following:

• Compliance with Embedded MultiMediaCard System Specification Version 5.1 .
  Card support for three different databus modes: 1-bit (default), 4-bit and 8-bit.
  (HS200 SDMMC_CK speed limited to maximum allowed I/O speed)(HS400 is not supported).
• Full compatibility with previous versions of MultiMediaCards (backward compatibility).
• Full compliance with SD memory card specifications version 6.0 .
  (SDR104 SDMMC_CK speed limited to maximum allowed I/O speed, SPI mode and UHS-II mode not supported).
• Full compliance with SDIO card specification version 4.0 .
  Card support for two different databus modes: 1-bit (default) and 4-bit.
  (SDR104 SDMMC_CK speed limited to maximum allowed I/O speed, SPI mode and UHS-II mode not supported).
• Data transfer up to 208 Mbyte/s for the 8-bit mode.
  (depending maximum allowed I/O speed).
• Data and command output enable signals to control external bidirectional drivers.
• IDMA linked list support

The MultiMediaCard/SD bus connects cards to the host.

The current version of the SDMMC supports only one SD/SDIO/e•MMC card at any one time and a stack of e•MMC.

30.2 SDMMC implementation

Table 206. SDMMC features

1. X = supported.

30.3 SDMMC bus topology

Communication over the bus is based on command/response and data transfers.

The basic transaction on the SD/SDIO/e•MMC bus is the command/response transaction. These types of bus transaction transfer their information directly within the command or response structure. In addition, some operations have a data token.

Data transfers are done in the following ways:

• • Block mode: data block(s) with block size \( 2^N \) bytes with N in the range 0-14
• • SDIO multibyte mode: single data block with block size range 1-512 bytes
• • e•MMC Stream mode: continuous data stream

Data transfers to/from e•MMC cards are done in data blocks or streams.

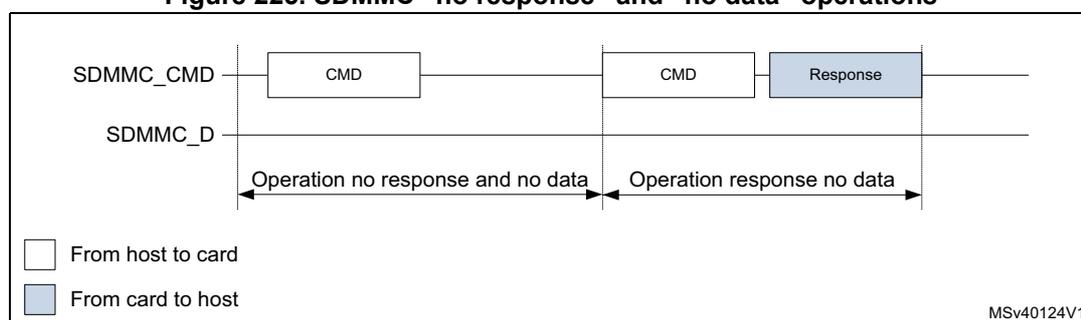

Figure 225. SDMMC “no response” and “no data” operations

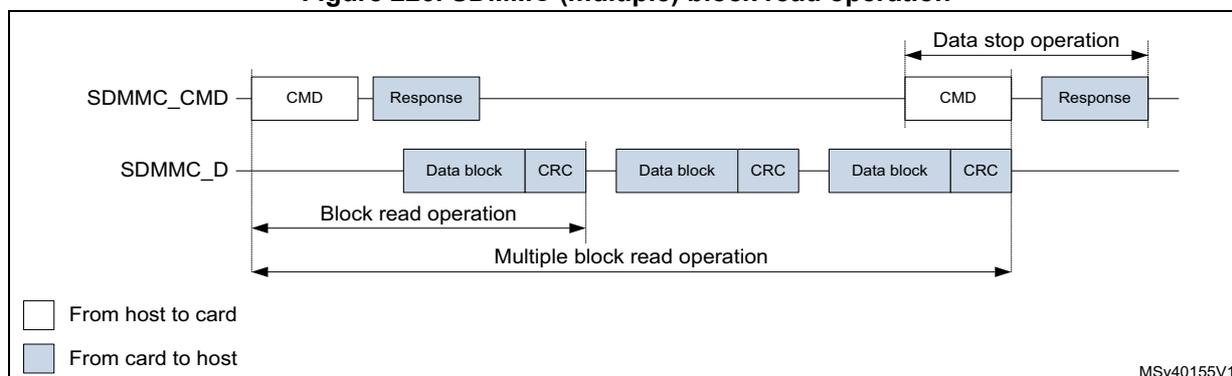

Figure 226. SDMMC (multiple) block read operation

Note: The Stop Transmission command is not required at the end of a e•MMC multiple block read with predefined block count.

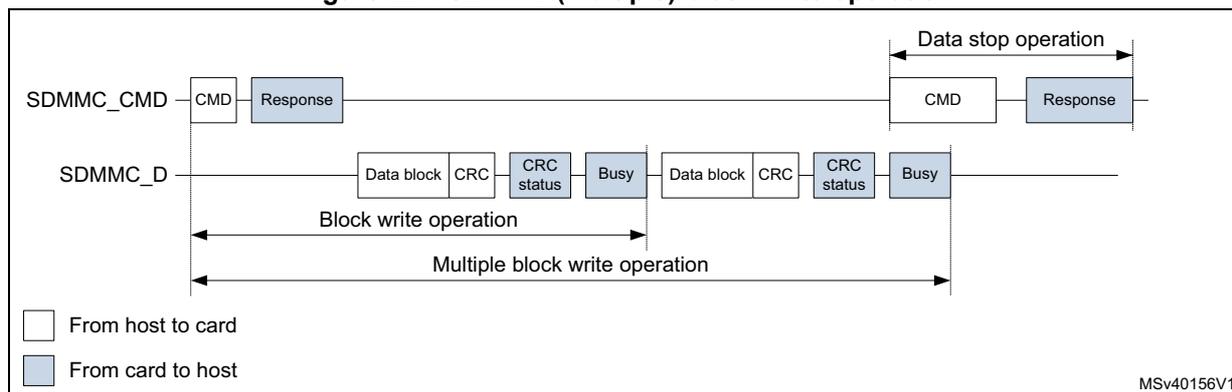

Figure 227. SDMMC (multiple) block write operation

Note: The Stop Transmission command is not required at the end of an e•MMC multiple block write with predefined block count.

The SDMMC does not send any data as long as the Busy signal is asserted (SDMMC_D0 pulled low).

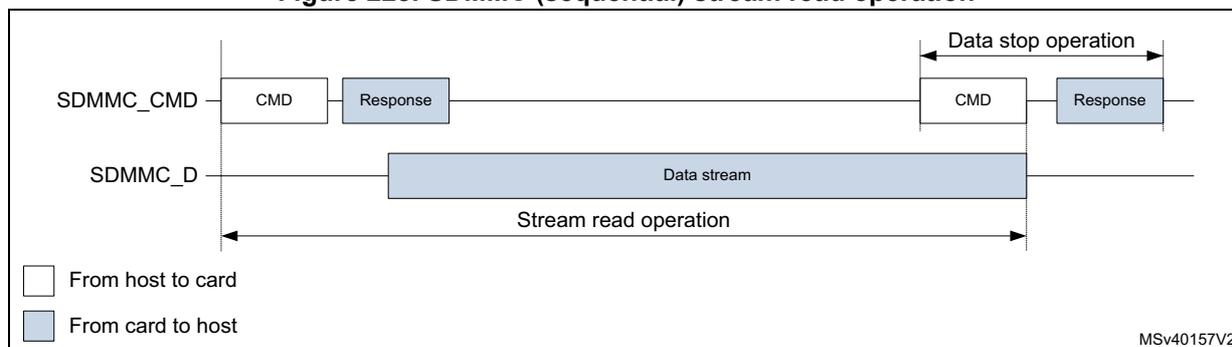

Figure 228. SDMMC (sequential) stream read operation

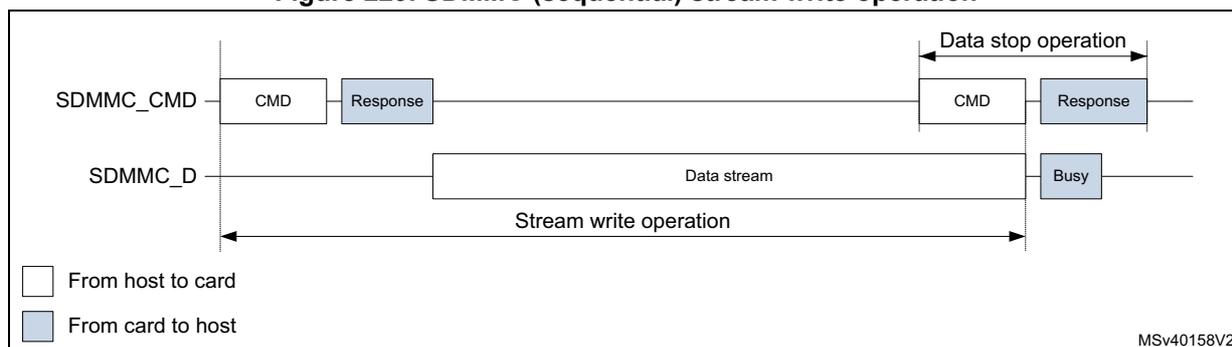

Figure 229. SDMMC (sequential) stream write operation

Stream data transfer operates only in a 1-bit wide bit bus configuration on SDMMC_D0 in single data rate modes (DS, HS, and SDR).

30.4 SDMMC operation modes

Table 207. SDMMC operation modes SD and SDIO

1. 1. SDR single data rate signaling.
2. 2. DDR double data rate signaling (data is sampled on both SDMMC_CK clock edges).
3. 3. SDIO bus speed with 4-bit bus width.
4. 4. Maximum frequency depending on maximum allowed I/O speed.

SDR104 mode requires variable delay support using sampling point tuning. The use of variable delay is optional for SDR50 mode.

Table 208. SDMMC operation modes e•MMC

1. 1. SDR single data rate signaling.
2. 2. DDR double data rate signaling. (data is sampled on both SDMMC_CK clock edges).
3. 3. e•MMC bus speed with 8-bit bus width.
4. 4. Maximum frequency depending on maximum allowed I/O speed.
5. 5. Supported signal voltage level depends on I/O port characteristics, refer to device datasheet.

HS200 mode requires variable delay support using sampling point tuning.

30.5 SDMMC functional description

The SDMMC consists of four parts:

• • The AHB slave interface accesses the SDMMC adapter registers, and generates interrupt signals and IDMA control signals.
• • The SDMMC adapter block provides all functions specific to the e•MMC/SD/SD I/O card such as the clock generation unit, command and data transfer.
• • The internal DMA (IDMA) block with its AHB master interface.
• • A delay block (DLYB) taking care of the receive data sample clock alignment. The delay block is NOT part of the SDMMC. A delay block is mandatory when supporting SDR104 or HS200.

30.5.1 SDMMC block diagram

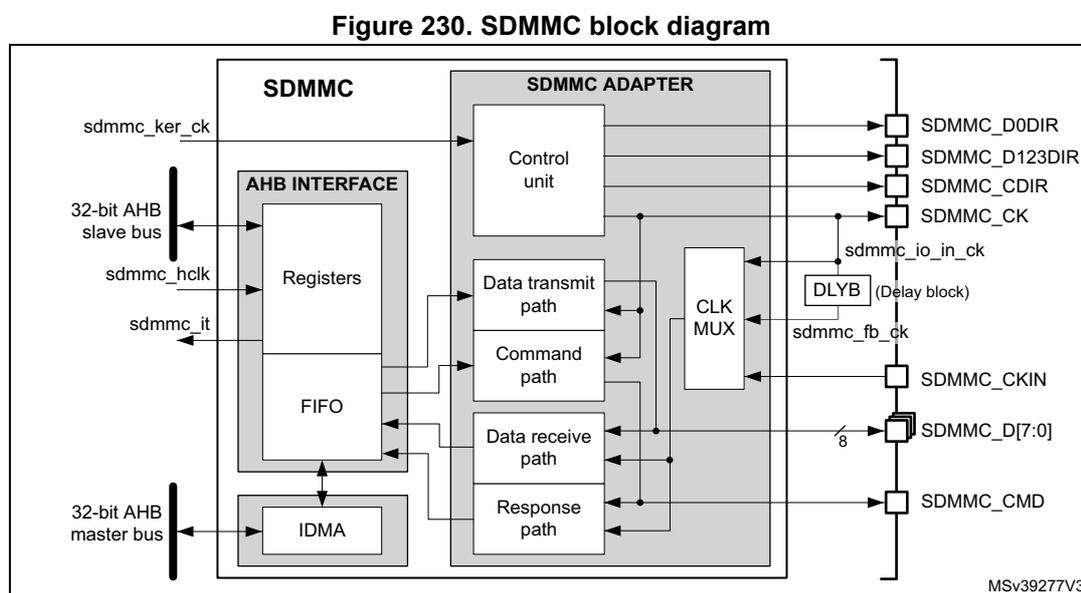

Figure 230 shows the SDMMC block diagram.

30.5.2 SDMMC pins and internal signals

Table 209 lists the SDMMC internal input/output signals, Table 210 the SDMMC pins (alternate functions).

Table 209. SDMMC internal input/output signals

Table 209. SDMMC internal input/output signals (continued)

Table 210. SDMMC pins

30.5.3 General description

The SDMMC_D[7:0] lines have different operating modes:

• • By default, SDMMC_D0 line is used for data transfer. After initialization, the host can change the databus width.
• • For an e•MMC, 1-bit (SDMMC_D0), 4-bit (SDMMC_D[3:0]) or 8-bit (SDMMC_D[7:0]) data bus widths can be used.
• • For an SD or an SDIO card, 1-bit (SDMMC_D0) or 4-bit (SDMMC_D[3:0]) can be used. All data lines operate in push-pull mode.

To allow the connection of an external driver (a voltage switch transceiver), the direction of data flow on the data lines is indicated with I/O direction signals. The SDMMC_D0DIR signal indicates the I/O direction for the SDMMC_D0 data line, the SDMMC_D123DIR for the SDMMC_D[3:1] data lines.

SDMMC_CMD only operates in push-pull mode:

To allow the connection of an external driver (a voltage switch transceiver), the direction of data flow on the SDMMC_CMD line is indicated with the I/O direction signal SDMMC_CDIR .

SDMMC_CK clock to the card originates from sdmmc_ker_ck :

• • When the sdmmc_ker_ck clock has 50 % duty cycle, it can be used even in bypass mode ( CLKDIV = 0).
• • When the sdmmc_ker_ck duty cycle is not 50 %, the CLKDIV must be used to divide it by 2 or more ( CLKDIV > 0).
• • The phase relation between the SDMMC_CMD / SDMMC_D[7:0] outputs and the SDMMC_CK can be selected through the NEGEDGE bit. The phase relation depends on the CLKDIV , NEGEDGE , and DDR settings. See Figure 231 .

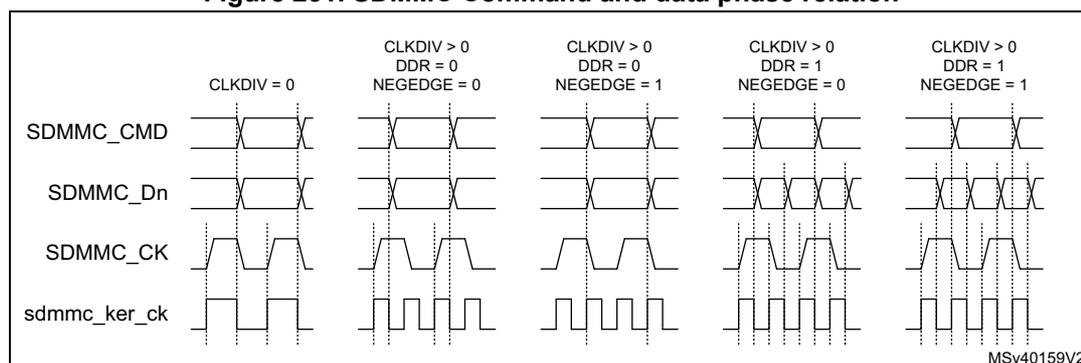

Figure 231. SDMMC Command and data phase relation

Table 211. SDMMC Command and data phase selection

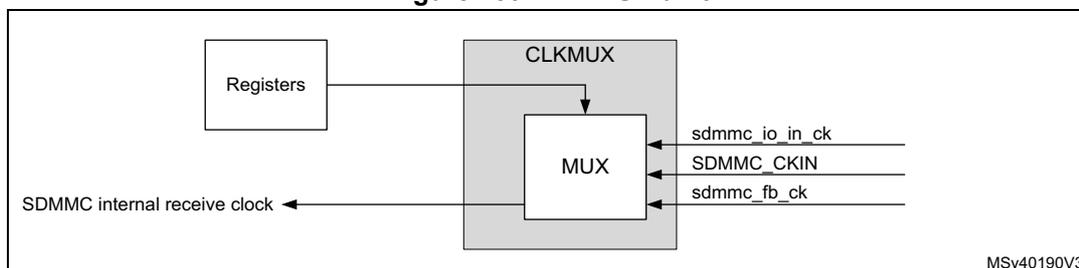

By default, the sdmmc_io_in_ck feedback clock input is selected for sampling incoming data in the SDMMC receive path. It is derived from the SDMMC_CK pin.

For tuning the phase of the sampling clock to accommodate the receive data timing, the DLYB delay block available on the device can be connected between sdmmc_io_in_ck signal ( DLYB input dlyb_in_ck ) and sdmmc_fb_ck clock input of SDMMC ( DLYB output dlyb_out_ck ). Selecting the sdmmc_fb_ck clock input in the receive path then enables using the phase-tuned sampling clock for the incoming data. This is required for SDMMC to support the SDR104 and HS200 operating mode and optional for SDR50 and DDR50 modes.

When using an external driver (a voltage switch transceiver), the SDMMC_CKIN feedback clock input can be selected to sample the receive data.

For an SD/SDIO/e•MMC card, the clock frequency can vary between 0 and 208 MHz (limited by maximum I/O speed).

Depending on the selected bus mode (SDR or DDR), one bit or two bits are transferred on SDMMC_D[7:0] lines with each clock cycle. The SDMMC_CMD line transfers only one bit per clock cycle.

30.5.4 SDMMC adapter

The SDMMC adapter (see Figure 230: SDMMC block diagram ) is a multimedia/secure digital memory card bus master that provides an interface to a MultiMediaCard stack or to a secure digital memory card. It consists of the following subunits:

• • Control unit
• • Data transmit path
• • Command path
• • Data receive path
• • Response path
• • Receive data path clock multiplexer
• • Delay block (DLYB), external to the SDMMC
• • Adapter register block
• • Data FIFO
• • Internal DMA (IDMA)

Note: The adapter registers and FIFO use the AHB clock domain (sdmmc_hclk). The control unit, command path and data transmit path use the SDMMC adapter clock domain (sdmmc_ker_ck). The response path and data receive path use the SDMMC adapter feedback clock domain from the sdmmc_io_in_ck, or SDMMC_CKIN, or from the sdmmc_fb_ck generated by DLYB.

The DLYB delay block on the device can be used in conjunction with the SDMMC adapter, to tune the phase of the sampling clock for incoming data in SDMMC receive mode. It is required for the SDMMC to support the SDR104 and HS200 operating mode and optional for SDR50 and DDR50 modes.

Adapter register block

The adapter register block contains all system control registers, the SDMMC command and response registers and the data FIFO.

This block also generates the signals from the corresponding bit location in the SDMMC Clear register that clear the static flags in the SDMMC adapter.

Control unit

The control unit illustrated in Figure 232 , contains the power management functions, the SDMMC_CK clock management with divider, and the I/O direction management.

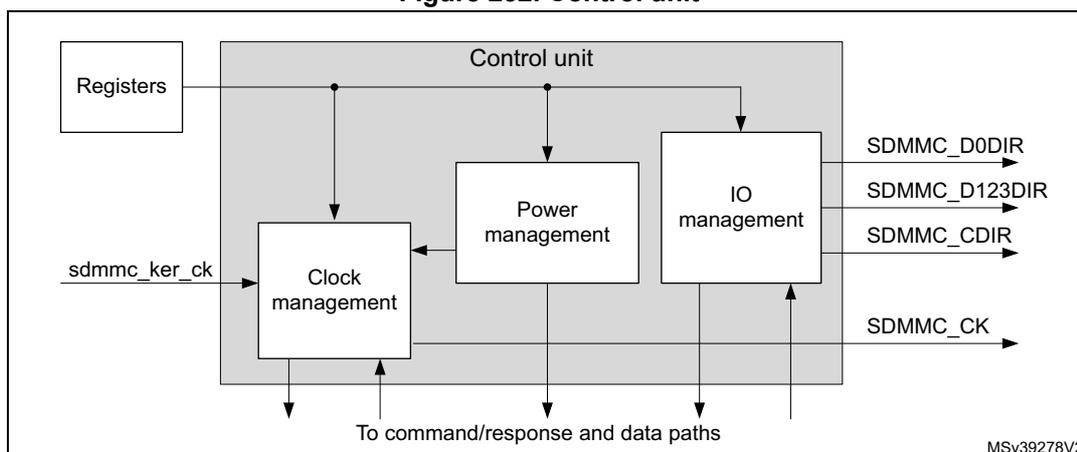

Figure 232. Control unit

The power management subunit disables the card bus output signals during the power-off and power-up phases.

There are three power phases:

• • power-off
• • power-up
• • power-on

The clock management subunit uses the sdmmc_ker_ck to generate the SDMMC_CK and provides the division control. It also takes care of stopping the SDMMC_CK for flow control, for example.

The clock outputs are inactive:

• • after reset
• • during the power-off or power-up phases
• • if the power saving mode (register bit PWRSV ) is enabled and the card bus is in the Idle state for eight clock periods. The clock is stopped eight cycles after both the command/response CPSM and data path DPSM subunits have entered the Idle phase. The clock is restarted when the command/response CPSM or data path DPSM is activated (enabled).

The I/O management subunit takes care of the SDMMC_Dn and SDMMC_CMD I/O direction signals, which controls the external voltage transceiver.

Command/response path

The command/response path subunit transfers commands and responses on the SDMMC_CMD line. The command path is clocked on the SDMMC_CK and sends commands to the card. The response path is clocked on the sdmmc_rx_ck and receives responses from the card.

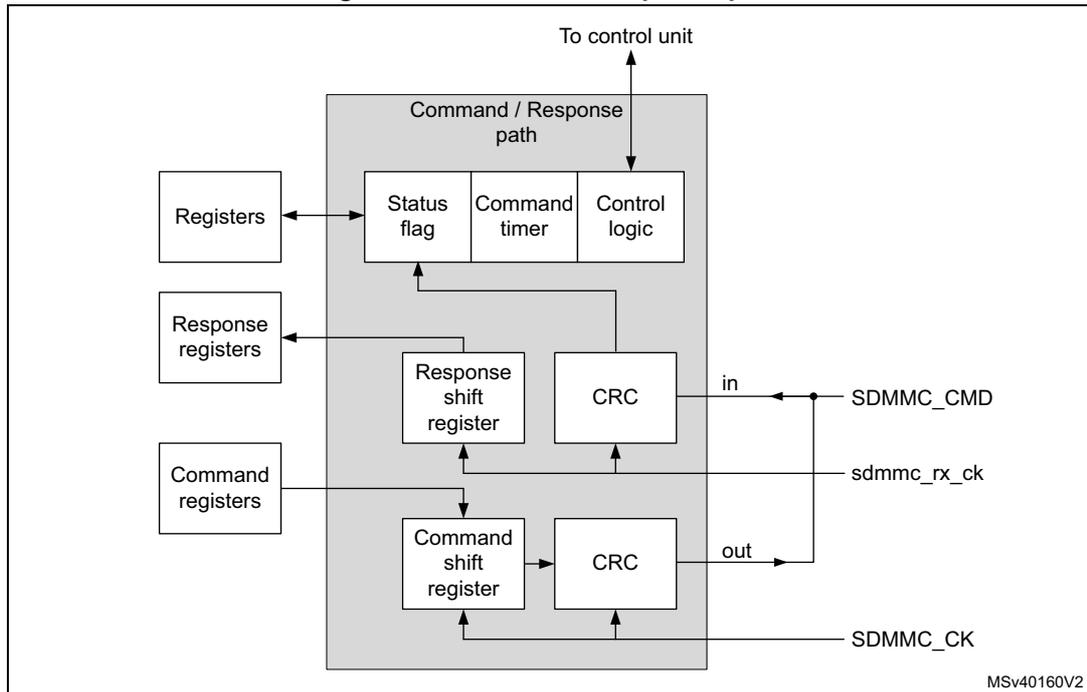

Figure 233. Command/response path

Command/response path state machine (CPSM):

• • When the command register is written to and the enable bit is set, command transfer starts. When the command has been sent the CRC is appended and the command path state machine (CPSM) sets the status flags and:
  • – if a response is not required enters the Idle state.
  • – If a response is required, it waits for the response.
• • When the response is received,
  • – for a response with CRC, the received CRC code and the internally generated code are compared, and the appropriate status flag is set according the result.
  • – for a response without CRC, no CRC is checked, and the appropriate status flag is not set.

When ever the CPSM is active (not in the Idle state), the CPSMACT bit is set.

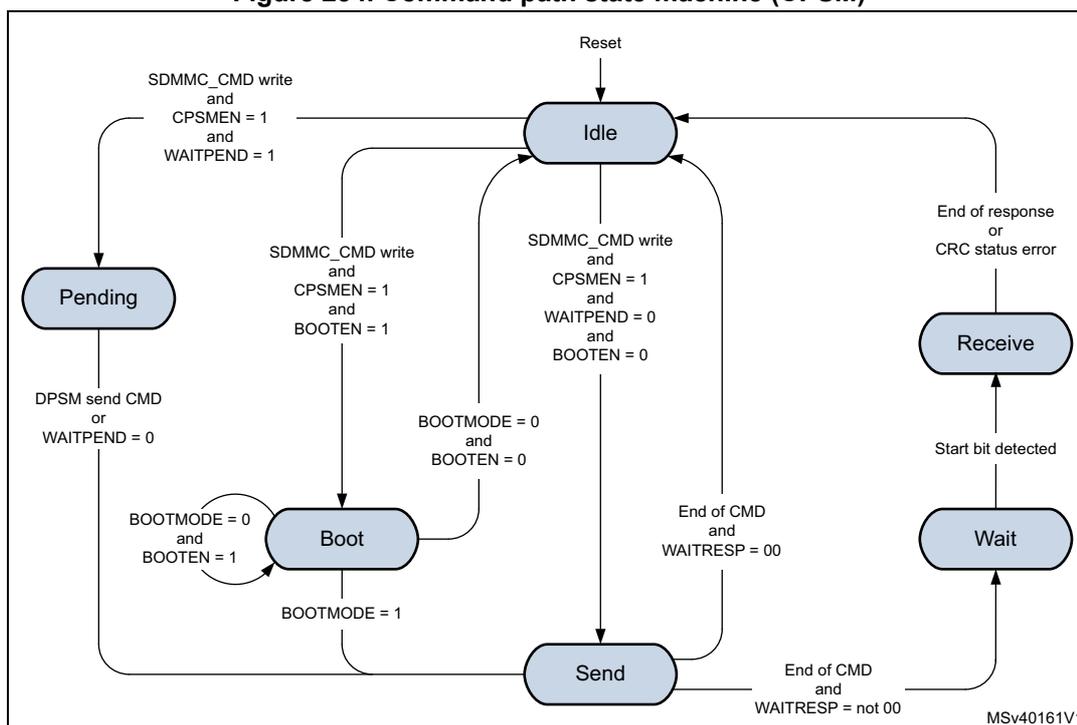

Figure 234. Command path state machine (CPSM)

stateDiagram-v2
    [*] --> Idle
    Idle --> Pending: SDMMC_CMD write and CPSMEN = 1 and WAITPEND = 1
    Idle --> Boot: SDMMC_CMD write and CPSMEN = 1 and BOOTEN = 1
    Idle --> Send: SDMMC_CMD write and CPSMEN = 1 and WAITPEND = 0 and BOOTEN = 0
    Pending --> Idle: DPSM send CMD or WAITPEND = 0
    Pending --> Boot: BOOTMODE = 0 and BOOTEN = 1
    Boot --> Idle: BOOTMODE = 0 and BOOTEN = 0
    Boot --> Send: BOOTMODE = 1
    Send --> Idle: End of CMD and WAITRESP = 00
    Send --> Wait: End of CMD and WAITRESP = not 00
    Wait --> Receive: Start bit detected
    Receive --> Idle: End of response or CRC status error


• • Idle: The command path is inactive. When the command control register is written and the enable bit (CPSMEN) is set, the CPSM activates the SDMMC_CK clock (when stopped due to power save PWRSV bit) and moves
  • – to the Send state when WAITPEND = 0 and BOOTEN = 0.
  • – to the Pending state when WAITPEND = 1.
  • – to the Boot state when BOOTEN = 1.
• • Send: The command is sent and the CRC is appended.
  • – When CMDTRANS bit is set or when BOOTEN bit is set and BOOTMODE is alternative boot, and the DTDIR = receive, the CPSM DataEnable signal is issued to the DPSM at the end of the command.
  • – When the CMDTRANS bit is set and the CMDSUSPEND bit is 0 the interrupt period is terminated at the end of the command.
  • – When CMDSTOP bit is set the CPSM Abort signal is issued to the DPSM at the end of the command.
  • – If no response is expected (WAITRESP = 00) the CPSM moves to the Idle state and the CMDSENT flag is set. When BOOTMODE = 1 and BOOTEN = 0 the CMDSENT flag is delayed 56 cycles after the command end bit, otherwise the

1. CMDSENT flag is generated immediately after the command end bit.
   The RESPCMDR and RESPxR registers are not modified.
2. • – If a command response is expected (WAITRESP = not 00) the CPSM moves to the Wait state and start the response timeout.
   • • Wait: The command path waits for a response.
     • – When WAITINT bit is 0 the command timer starts running and the CPSM waits for a start bit.
       • a) If a start bit is detected before the timeout the CPSM moves to the Receive state.
       • b) If the timeout is reached before the CPSM detect a response start bit, the timeout flag (CTIMEOUT) is set and the CPSM moves to the Idle state.
         The RESPCMDR and RESPxR registers are not modified.
     • – When WAITINT bit is 1, the timer is disabled and the CPSM waits for an interrupt request (response start bit) from one of the cards.
       • a) When a start bit is detected the CPSM moves to the Receive state.
       • b) When writing WAITINT to 0 (interrupt mode abort), the host sends a response by its self and on detecting the start bit the CPSM move to the Receive state.
   • • Receive: The command response is received. Depending the response mode bits WAITRESP in the command control register, the response can be either short or long, with CRC or without CRC. The received CRC code when present is verified against the internally generated CRC code.
     • – When the CMDSUSPEND bit is set and the SDIO Response bit BS = 0 (response bit [39]), the interrupt period is started after the response.
       When the CMDSUSPEND bit is cleared, or the CMDSUSPEND bit is 1 and the SDIO Response bit BS = 1 (response bit [39]), there is no interrupt period started.
     • – When the CMDTRANS bit is set and the CMDSUSPEND bit is set and the SDIO Response bit DF= 1 (response bit [32]) the interrupt period is terminated after the response.
     • – When the CRC status passes or no CRC is present the CMDREND flag is set, the CPSM moves to the Idle state.
       The RESPCMDR and RESPxR registers are updated with received response.
       • - When BOOTMODE = 1 and BOOTEN = 0 the CMDREND flag is delayed 56 cycles after the response end bit, otherwise the CMDREND flag is generated immediately after the response end bit.
       • - When CMDTRANS bit is set and the DTDIR = transmit, the CPSM DataEnable signal is issued to the DPSM at the end of the command response.
     • – When the CRC status fails the CCRCFAIL flag is set and the CPSM moves to the Idle state.
       The RESPCMDR and RESPxR registers are updated with received response.
   • • Pending: According the pending WAITPEND bit in the command register, the CPSM enters the pending state.
     • – When DATALENGTH \( \leq \) 5 bytes the CPSM moves to the Sent state and generates the DataEnable signal to start the data transfer aligned with the CMD12 Stop Transmission command.
     • – When DATALENGTH \( > \) 5 bytes, the CPSM DataEnable signal is issued to the DPSM to start the data transfer. The CPSM waits for a send CMD signal from the

DPSM before moving to the Send state. This enables, for example, the CMD12 Stop Transmission command to be sent aligned with the data.

• – When writing WAITPEND to 0, the CPSM moves to the Send state.
• • Boot: If the BOOTEN bit is set in the command register, the CPSM enters the Boot state, and when:
  • – BOOTMODE = 0 the SDMMC_CMD line is driven low and when CMDTRANS bit is set and the DTDIR = receive, the CPSM DataEnable signal is issued to the DPSM. This enables normal boot operation. This state is left at the end of the boot procedure by clearing the register bit BOOTEN, which cause the SDMMC_CMD line to be driven high and the CPSM Abort signal is issued to the DPSM, before moving to the Idle state. The CMDSENT flag is generated 56 cycles after SDMMC_CMD line is high.
  • – BOOTMODE = 1, move to the Send state. This enables sending of the CMD0 (boot). Clearing BOOTEN has no effect.

Note: The CPSM remains in the Idle state for at least eight SDMMC_CK periods to meet the \( N_{CC} \) and \( N_{RC} \) timing constraints. \( N_{CC} \) is the minimum delay between two host commands, and \( N_{RC} \) is the minimum delay between the host command and the card response.

The response timeout has a fixed value of 64 SDMMC_CK clock periods.

A command is a token that starts an operation. Commands are sent from the host to either a single card (addressed command) or all connected cards (broadcast command are available for e•MMC V3.31 or previous). Commands are transferred serially on the SDMMC_CMD line. All commands have a fixed length of 48 bits. The general format for a command token for SD-Memory cards, SDIO cards, and e•MMC cards is shown in Table 212 .

The command token data is taken from two registers, one containing a 32-bit argument and the other containing the 6-bit command index (six bits sent to a card).

Table 212. Command token format

Next to the command data there are command type (WAITRESP) bits controlling the command path state machine (CPSM). These bits also determine whether the command requires a response, and whether the response is short (48 bit) or long (136 bits) long, and if a CRC is present or not.

A response is a token that is sent from an addressed card or synchronously from all connected cards to the host as an answer to a previous received command. All responses are sent via the command line SDMMC_CMD. The response transmission always starts with the left bit of the bit string corresponding to the response code word. The code length depends on the response type. Response tokens R1, R2, R3, R4, R5, and R6 have various

coding schemes, depending on their content. The general formats for the response tokens for SD-Memory cards, SDIO cards, and e•MMC cards are shown in Table 213 , Table 214 and Table 215 .

A response always starts with a start bit (always 0), followed by the bit indicating the direction of transmission (card = 0). A value denoted by x in the tables below indicates a variable entry. Most responses, except some, are protected by a CRC. Every command code word is terminated by the end bit (always 1).

The response token data is stored in five registers, four containing the 32-bits card status, OCR register, argument or 127-bits CID or CSD register including internal CRC, and one register containing the 6-bits command index.

Table 213. Short response with CRC token format

Table 214. Short response without CRC token format

Table 215. Long response with CRC token format

The command/response path operates in a half-duplex mode, so that either commands can be sent or responses can be received. If the CPSM is not in the Send state, the

SDMMC_CMD output is in the Hi-Z state. Data sent on SDMMC_CMD are synchronous with the SDMMC_CK according the NEGEDGE register bit see Figure 231 .

The command and short response with CRC, the CRC generator calculates the CRC checksum for all 40 bits before the CRC code. This includes the start bit, transmission bit, command index, and command argument (or card status).

For the long response the CRC checksum is calculated only over the 120 bits of R2 CID or CSD. Note that the start bit, transmission bit and the six reserved bits are not used in the CRC calculation.

The CRC checksum is a 7-bit value:

Where \( n = 39 \) or \( 119 \) .

The CPSM can send a number of specific commands to handle various operating modes when CPSMEN is set, see Table 216 .

Table 216. Specific Commands overview

The command/response path implements the status flags and associated clear bits shown in Table 217 :

Table 217. Command path status flags

The command path error handling is shown in Table 218 :

Table 218. Command path error handling

1. When CMDTRANS is set, also a stop_transmission command must be sent to move the DPSM to Idle.

Data path

The data path subunit transfers data on the SDMMC_D[7:0] lines to and from cards. The data transmit path is clocked on the SDMMC_CK and sends data to the card. The data receive path is clocked on the sdmmc_rx_ck and receives data from the card. Figure 235 shows the data path block diagram.

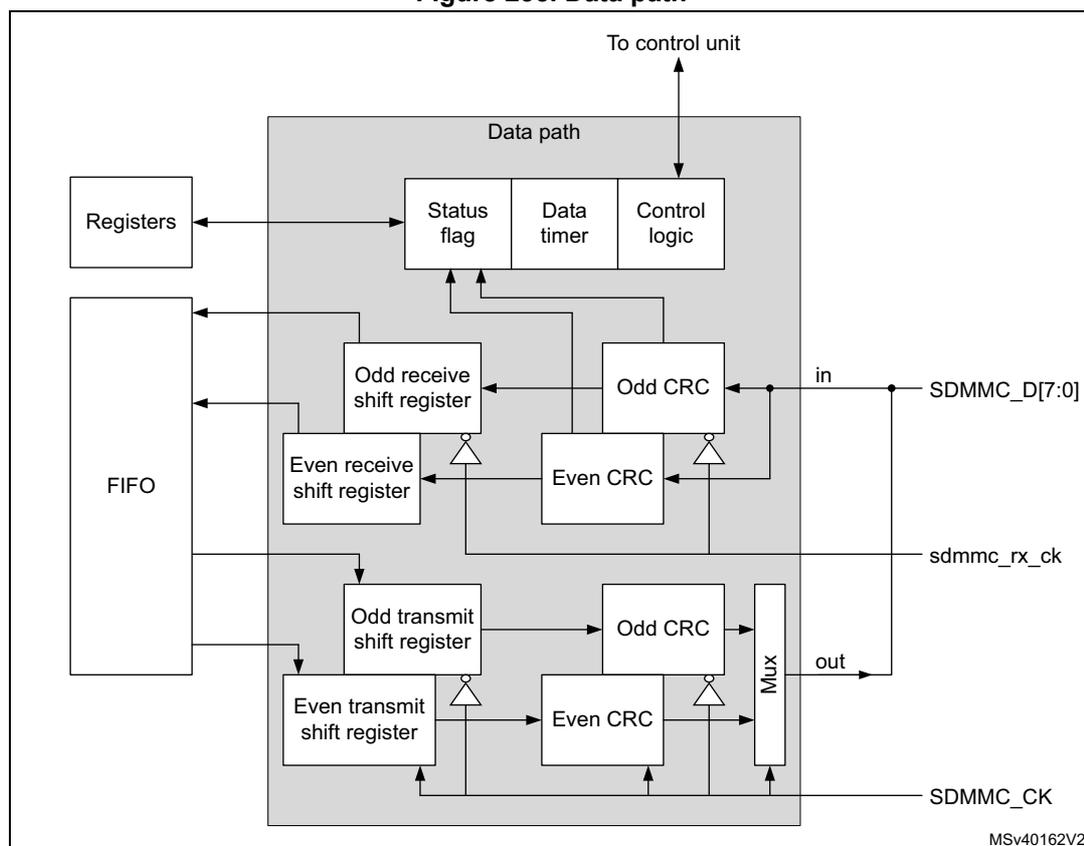

Figure 235. Data path

The card data bus width can be programmed in the clock control register bits WIDBUS. The supported data bus width modes are:

• • If the wide bus mode is not enabled, only one bit is transferred over SDMMC_D0.
• • If the 4-bit wide bus mode is enabled, data is transferred at four bits over SDMMC_D[3:0].
• • If the 8-bit wide bus mode is enabled, data is transferred at eight bits over SDMMC_D[7:0].

Next to the data bus width the data sampling mode can be programmed in the clock control register bit DDR. The supported data sampling modes are:

• • Single data rate signaling (SDR), data is clocked on the rising edge of the clock.
• • Double data rate signaling (DDR), data is clocked on the both edges of the clock. DDR mode is only supported in wide bus mode (4-bit wide and 8-bit wide).

Note: The data sampling mode only applies to the SDMMC_D[7:0] lines. (not applicable to the SDMMC_CMD line.)

In DDR mode, data is sampled on both edges of the SDMMC_CK according the following rules, see also Figure 236 and Figure 237 :

• • On the rising edge of the clock odd bytes are sampled.
• • On the falling edge of the clock even bytes are sampled.
• • Data payload size is always a multiple of 2 bytes.
• • Two CRC16 are computed per data line
  • – Odd bits CRC16 clocked on the falling edge of the clock.
  • – Even bits CRC16 clocked on the rising edge of the clock.
• • Start, end bits and idle conditions are full cycle.
• • CRC status / boot acknowledgment and busy signaling are full cycle and are only sampled on the rising edge of the clock.

In DDR mode, the SDMMC_CK clock division must be \( \geq 2 \) .

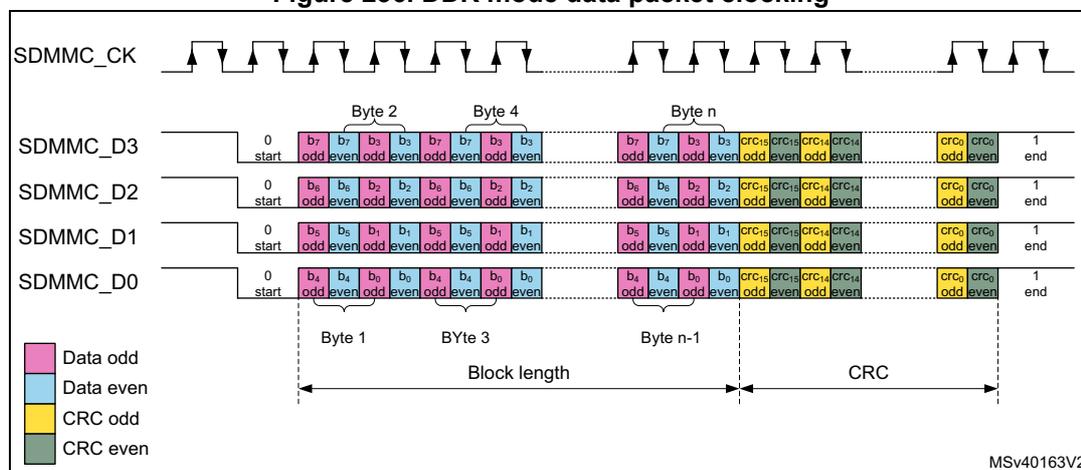

Figure 236. DDR mode data packet clocking

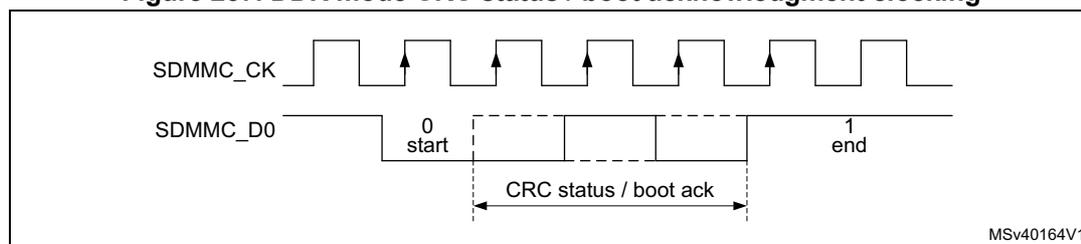

Figure 237. DDR mode CRC status / boot acknowledgment clocking

Data path state machine (DPSM)

Depending on the transfer direction (send or receive), the data path state machine (DPSM) moves to the Wait_S or Wait_R state when it is enabled:

• • Send: the DPSM moves to the Wait_S state. If there is data in the transmit FIFO, the DPSM moves to the Send state, and the data path subunit starts sending data to a card.
• • Receive: the DPSM moves to the Wait_R state and waits for a start bit. When it receives a start bit, the DPSM moves to the Receive state, and the data path subunit starts receiving data from a card.

For boot operation with acknowledgment the DPSM moves to the Wait_Ack state and waits for the boot acknowledgment before moving to the Wait_R state.

The DPSM operates at SDMMC_CK. The DPSM has the following states, as shown in Figure 238. When ever the DPSM is active (not in the Idle state), the DPSMACT bit is set.

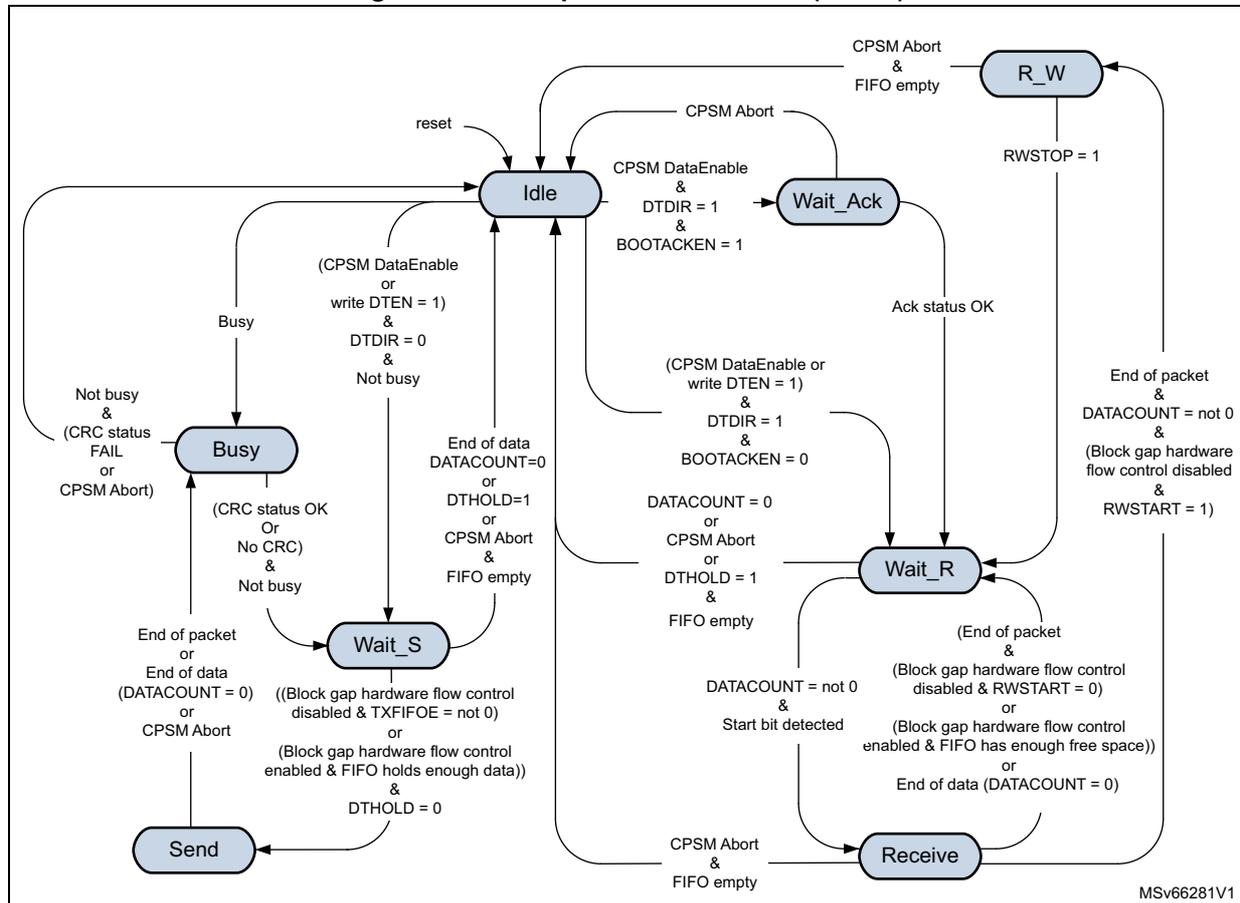

Figure 238. Data path state machine (DPSM)

stateDiagram-v2
    [*] --> Idle
    Idle --> Busy: Busy
    Idle --> Wait_S: (CPSM DataEnable or write DTEN = 1) & DTDIR = 0 & Not busy
    Idle --> Wait_Ack: CPSM DataEnable & DTDIR = 1 & BOOTACKEN = 1
    Idle --> Wait_R: (CPSM DataEnable or write DTEN = 1) & DTDIR = 1 & BOOTACKEN = 0
    Idle --> R_W: CPSM Abort & FIFO empty
    Busy --> Idle: Not busy & (CRC status FAIL or CPSM Abort)
    Busy --> Wait_S: (CRC status OK Or No CRC) & Not busy
    Wait_S --> Idle: End of data DATACOUNT=0 or DTHOLD=1 or CPSM Abort & FIFO empty
    Wait_S --> Send: ((Block gap hardware flow control disabled & TXFIFOE = not 0) or (Block gap hardware flow control enabled & FIFO holds enough data)) & DTHOLD = 0
    Send --> Idle: End of packet or End of data (DATACOUNT = 0) or CPSM Abort
    Wait_Ack --> Idle: CPSM Abort
    Wait_Ack --> Wait_R: Ack status OK
    Wait_R --> Idle: DATACOUNT = 0 or CPSM Abort or DTHOLD = 1 & FIFO empty
    Wait_R --> R_W: End of packet & DATACOUNT = not 0 & (Block gap hardware flow control disabled & RWSTART = 1)
    Wait_R --> Receive: DATACOUNT = not 0 & Start bit detected
    Receive --> Idle: CPSM Abort & FIFO empty
    Receive --> R_W: RWSTOP = 1
    R_W --> Idle: CPSM Abort & FIFO empty


• • Idle state: the data path is inactive, and the SDMMC_D[7:0] outputs are according the PWRCTRL setting. The DPSM is activated either by sending a command with CMDTRANS bit set or by setting the DTEN bit, or by detecting Busy on SDMMC_D0 (that is, after a command with R1b response).

When not busy, the DPSM activates the SDMMC_CK clock (when stopped due to power save PWRSV bit), loads the data counter with a new (DATALENGTH) value and:

• – When the data direction bit (DTDIR) indicates send, moves to the Wait_S.
• – When the data direction bit (DTDIR) indicates receive, moves to the
  • - Wait_R when BOOTACKEN register bit is clear.
  • - Wait_Ack when BOOTACKEN register bit is set and start the acknowledgment timeout.

When busy the DPSM keeps the SDMMC_CK clock active and move to the Busy state.

Note: DTEN must not be used to start data transfer with SD, SDIO and e•MMC cards.

• • Wait_Ack state: the data path waits for the boot acknowledgment token.
  • – The DPSM moves to the Wait_R state if it receives an error free acknowledgment before a timeout.
  • – When a pattern different from the acknowledgment is received an acknowledgment status error is generated, and the ack fail status flag (ACKFAIL) is set. The DPSM stays in Wait_Ack.
  • – If it reaches a timeout (ACKTIME) before it detects a start bit, it sets the timeout status flag (ACKTIMEOUT). The DPSM stays in Wait_Ack.
  • – When the CPSM Abort signal is set it moves to the Idle state and sets the DABORT flag.
• • Wait_R state: the data path, if the data counter is not zero and data is not hold, waits for a start bit on SDMMC_D[n:0]. If the data counter is zero or data is hold, wait for the FIFO to be empty.
  • – In block mode, if a start bit is received before a timeout the DPSM moves to the Receive state and loads the data block counter with DBLOCKSIZE.
  • – In SDIO multibyte mode, if a start bit is received before a timeout the DPSM moves to the Receive state and loads the data block counter with DATALENGTH.
  • – In stream mode, if a start bit is received before a timeout the DPSM moves to the Receive state and loads the data counter with DATALENGTH.
  • – if the data counter (DATACOUNT) equals zero (end of data) the DPSM moves to the Idle state when the receive FIFO is empty and the DATAEND flag is set.
  • – If it reaches a timeout (DATATIME) before it detects a start bit, it sets the timeout status flag (DTIMEOUT) and the DPSM stays in the Wait_R state.
  • – If the CPSM Abort signal is set:
    If DATACOUNT > 0, the DPSM moves to the Idle state when the FIFO is empty and when IDMAEN = 0 reset with FIFOIRST, and sets the DABORT flag.
    If DATACOUNT is zero normal operation is continued, there is no DABORT flag since the transfer has completed normally.
  • – if the DTHOLD bit is set:
    • - When DATACOUNT > 0, the DPSM moves to the Idle state when the receive FIFO is empty and when IDMAEN = 0 reset with FIFOIRST, and issues the DHOLD flag. When holding the timeout is disabled. When an CPSM Abort signal is received during holding, the transfer is aborted.
    • - When DATACOUNT = 0, the transfer is completed normally and there is no DHOLD flag.
  • – When DPSM has been started with DTEN, after an error (DTIMEOUT) the DPSM moves to the Idle state when the FIFO is empty and when IDMAEN = 0 reset with FIFOIRST.

• • R_W state: the data path Read Wait the bus.
  • – The DPSM moves to the Wait_R state when the Read Wait stop bit (RWSTOP) is set, and start the receive timeout.
  • – If the CPSM Abort signal is set, wait for the FIFO to be empty and when IDMAEN = 0 reset with FIFOIRST, then moves to the Idle state and sets the DABORT flag.
• • Receive state: the data path receives serial data from a card. Pack the data in bytes and written it to the data FIFO. Depending on the transfer mode selected in the data control register (DTMODE), the data transfer mode can be either block or stream:
  • – In block mode, when the data block size (DBLOCKSIZE) number of data bytes are received, the DPSM waits until it receives the CRC code.
  • – In SDIO multibyte mode, when the data block size (DATALENGTH) number of data bytes are received, the DPSM waits until it receives the CRC code.
  • a) If the received CRC code matches the internally generated CRC code, the DPSM moves to the
    • - R_W state when RWSTART = 1 and DATACOUNT > zero, the DBCKEND flag is set.
    • - Wait_R state otherwise, either immediately when block gap hardware flow control is disabled, or after enough free area is available in the FIFO when block gap hardware flow control is enabled.
  • b) If the received CRC code fails the internally generated CRC code any further data reception is prevented.
    • - When not all data has been received (DATACOUNT > 0), the CRC fail status flag (DCRCFAIL) is set and the DPSM stays in the Receive state.
    • - When all data has been received (DATACOUNT = 0), wait for the FIFO to be empty after which the CRC fail status flag (DCRCFAIL) is set and the DPSM moves to the Idle state.
  • – In stream mode, the DPSM receives data while the data counter DATACOUNT > 0. When the counter is zero, the remaining data in the shift register is written to the data FIFO, and the DPSM moves to the Wait_R state.
  • – When a FIFO overrun error occurs, the DPSM sets the FIFO overrun error flag (RXOVERR) and any further data reception is prevented. The DPSM stays in the Receive state.
  • – When an CPSM Abort signal is received:
    • - If the CPSM Abort signal is received before the 2 last bits of the data with DATACOUNT = 0, the transfer is aborted. The remaining data in the shift register is written to the data FIFO, wait for the FIFO to be empty and when IDMAEN = 0 reset with FIFOIRST, then the DPSM moves to the Idle state and the DABORT flag is set.
    • - If the CPSM Abort signal is received during or after the 2 last bits of the transfer with DATACOUNT = 0, the transfer is completed normally. The DPSM stays in the Receive state no DABORT flag is generated.
  • – When DPSM has been started with DTEN, after an error (DCRCFAIL when DATACOUNT > 0, or RXOVERR) the DPSM moves to the Idle state when the FIFO is empty and when IDMAEN = 0 reset with FIFOIRST.
• • Wait_S state: the data path waits for data to be available from the FIFO.
  • – If the data counter DATACOUNT > 0,
    • - When block gap hardware flow control is disabled, waits until the data FIFO empty flag (TXFIFOE) is de-asserted and DTHOLD is not set, and moves to the

Send state.

• - When block gap hardware flow control is enabled, waits until the data FIFO hold enough data and DTHOLD is not set, and moves to the Send state.
• – If the data counter (DATACOUNT) = 0 the DPSM moves to the Idle state.
  • - When DTHOLD is disabled, the DATAEND flag is set.
  • - When DTHOLD is enabled, the DHOLD flag is set.
• – When DTHOLD is set and the DATACOUNT > 0
  • - When IDMA is enabled, the DBCKEND flag is set and subsequently the FIFO is flushed, furthermore the DPSM moves to the Idle state and the DHOLD flag is set.
  • - When IDMA is disabled the DBCKEND flag is set. Wait for the FIFO to be reset by software with FIFORST, then DPSM moves to the Idle state and issues the DHOLD flag.
• – When DTHOLD is set and DATACOUNT = 0 the transfer is completed normally.
• – When receiving the CPSM Abort signal
  • - If the CPSM Abort signal is received before the 2 last bits of the data with DATACOUNT = 0, the transfer is aborted, wait for the FIFO to be empty and when IDMAEN = 0 reset with FIFORST, then the DPSM moves to the Idle state and sets the DABORT flag.
  • - If the CPSM Abort signal is received during or after the 2 last bits of the transfer with DATACOUNT = 0, normal operation is continued, there is no DABORT flag since the transfer has completed normally.

Note: The DPSM remains in the Wait_S state for at least two clock periods to meet the \( N_{WR} \) timing requirements, where \( N_{WR} \) is the number of clock cycles between the reception of the card response and the start of the data transfer from the host.

• • Send state: the DPSM starts sending data to a card. Depending on the transfer mode bit in the data control register, the data transfer mode can be either block, SDIO multibyte or stream:
  • – In block mode, when the data block size (DBLOCKSIZE) number of data bytes are sent, the DPSM sends an internally generated CRC code and end bit, and moves to the Busy state and start the transmit timeout.
  • – In SDIO multibyte mode, when the data block size (DATALENGTH) number of data bytes are sent, the DPSM sends an internally generated CRC code and end bit, and moves to the Busy state and start the transmit timeout.
  • – In stream mode, the DPSM sends data to a card while the data counter DATACOUNT > 0. When the data counter reaches zero moves to the Busy state and start the transmit timeout.
    Before sending the last stream byte according to DATACOUNT, the DPSM issues a trigger on the send CMD signal. This signal is used by the CPSM to sent any pending command (CMD12 Stop Transmission command).
  • – If a FIFO underrun error occurs, the DPSM sets the FIFO underrun error flag (TXUNDERR). The DPSM stays in the Send state.
  • – When receiving the CPSM Abort signal
    • - If the CPSM Abort signal is received before the 2 last bits of the transfer with DATACOUNT = 0, the transfer is aborted. The DPSM sends a last data bit followed by an end bit. The FIFO is disabled/flushed, and the DPSM moves to the Busy state to wait for not busy before setting the DABORT flag.
    • - If the CPSM Abort signal is received during or after the 2 last bits of the transfer

with DATACOUNT = 0, the transfer is completed normally, there is no DABORT flag.

• • Busy state: the DPSM waits for the CRC status token when expected, and wait for a not busy signal:
  • – If a CRC status token is expected and indicate “non-erroneous transmission” or when there is no CRC expected:
    • - it moves to the Wait_S state when SDMMC_D0 is not low (the card is not busy).
    • - When the card is busy SDMMC_D0 is low it remains in the Busy state.
  • – If a CRC status token is expected and indicates “erroneous transmission”.
    • - When not all data has been send (DATACOUNT > 0). The DPSM waits for not busy after which the CRC fail status flag (DCRCFAIL) is set. The FIFO is disabled/flushed and the DPSM stays in the Busy state.
    • - When all data has been send (DATACOUNT = 0). The DPSM waits for not busy after which the CRC fail status flag (DCRCFAIL) is set and the DPSM moves to the Idle state.
  • – If a CRC status (Ncrc) timeout occurs while the DPSM is in the Busy state, it sets the data timeout flag (DTIMEOUT) and stays in the Busy state.
  • – If a busy timeout occurs while the DPSM is in the Busy state, it sets the data timeout flag (DTIMEOUT) and stays in the Busy state.
  • – When receiving the CPSM Abort signal in the Busy state:
    • - If the CPSM Abort signal is received before the 2 last bits of the CRC response with DATACOUNT > 0, the data transfer is aborted. The DPSM waits for not busy and the FIFO to be disabled/flushed before moving to the Idle state and the DABORT flag is set.
    • - If the CPSM Abort signal is received during or after the 2 last bits of the CRC response when DATACOUNT = 0 or when no CRC is expected and DATACOUNT = 0 and there has been no DTIMEOUT error, the DPSM stays in the Busy state no DABORT flag is generated, since the transfer may completed normally.
    • - If the CPSM Abort signal is received when a DTIMEOUT error has occurred the DPSM waits for not busy and the FIFO to be disabled/flushed before moving to the Idle state and the DABORT flag is set.
  • – When entering the Busy state due to an abort in the Send state, the DPSM waits for not busy before moving to the Idle state and the DABORT flag is set.
  • – When DPSM has been started with DTEN, after an error (DCRCFAIL when DATACOUNT > 0, or DTIMEOUT) the DPSM moves to the Idle state when the FIFO is reset.
  • – When the DPSM has been started due to Busy on SDMMC_D0, waits for not busy after which the Busy end status flag (BUSYD0END) is set and the DPSM moves to the Idle state.

The data timer (DATATIME) is enabled when the DPSM is in the Wait_R or Busy state 2 cycles after the data block end bit, or data read command end bit, or R1b response, and generates the data timeout error (DTIMEOUT):

• • When transmitting data, the timeout occurs
  • – when a CRC status is expected and no start bit is received within 8 SDMMC_CK cycles, the DTIMEOUT flag is set.
  • – when the Busy state takes longer than the programmed timeout period., the DTIMEOUT flag is set.
• • When receiving data, the timeout occurs
  • – when there is still data to be received DATACOUNT > 0 and no start bit is received before the programmed timeout period, the DTIMEOUT flag is set.
• • After a R1b response, the timeout occurs
  • – when the Busy state takes longer than the programmed timeout period., the DTIMEOUT flag is set.

When DATATIME = 0:

• • In receive the start bit must be present 2 cycles after the data block end bit or data read command end bit.
• • In transmit busy is timed out 2 cycles after the CRC token end bit or stream data end bit.
• • After a R1b response busy is timed out 2 cycles after the response end bit.

Data can be transferred from the card to the host (transmit, send) or vice versa (receive). Data are transferred via the SDMMC_Dn data lines, they are stored in a FIFO.

Table 219. Data token format

1. 1. The total amount of data to transfer is given by DATALENGTH. Where for Block data the amount of data in each block is given by DBLOCKSIZE.

The data token format is selected with register bits DTMODE according.

The data path implements the status flags and associated clear bits shown in Table 220 :

Table 220. Data path status flags and clear bits

Table 220. Data path status flags and clear bits (continued)

The data path error handling is shown in Table 221 :

Table 221. Data path error handling

Data FIFO

The data FIFO (first-in-first-out) subunit contains the transmit and receive data buffer. A single FIFO is used for either transmit or receive as selected by the DTDIR bit. The FIFO contain a 32-bit wide, 256-word deep data buffer and control logic. Because the data FIFO operates in the AHB clock domain (sdmmc_hclk), all signals from the subunits in the SDMMC clock domain (SDMMC_CK/sdmmc_rx_ck) are resynchronized.

The FIFO can be in one of the following states:

• • The transmit FIFO refers to the transmit logic and data buffer when sending data out to the card. (DTDIR = 0)
• • The receive FIFO refers to the receive logic and data buffer when receiving data in from the card. (DTDIR = 1)

The end of a correctly completed SDMMC data transfer from the FIFO is indicated by the DATAEND flags driven by the data path subunit. Any incorrect (aborted) SDMMC data transfer from the FIFO is indicated by one of the error flags (DCRCFAIL, DTIMEOUT, DABORT) driven by the data path subunit, or one of the FIFO error flags (TXUNDERR, RXOVER) driven by the FIFO control.

The data FIFO can be accessed in the following ways, see Table 222 .

Table 222. Data FIFO access

Transmit FIFO:

Data can be written to the transmit FIFO when the DPSM has been activated (DPSMACT = 1).

When IDMAEN = 1 the FIFO is fully handled by the IDMA.

When IDMAEN = 0 the FIFO is controlled by firmware via the AHB slave interface. The transmit FIFO is accessible via sequential addresses. The transmit FIFO contains a data output register that holds the data word pointed to by the read pointer. When the data path subunit has loaded its shift register, it increments the read pointer and drives new data out. The transmit FIFO is handled in the following way:

1. 1. Write the data length into DATALENGTH and the block length in DBLOCKSIZE.
   • – For block data transfer (DTMODE = 0), DATALENGTH must be an integer multiple of DBLOCKSIZE.
2. 2. Enable hardware flow control HWFC_EN.
   If bus speed SDR50, SDR104, HS200 or DDR50 is used FIFO threshold can be used to provide flow control at the receive block gap.
3. 3. Set the SDMMC in transmit mode (DTDIR = 0).
   • – Configures the FIFO in transmit mode.
4. 4. Enable the data transfer
   • – either by sending a command from the CPSM with the CMDTRANS bit set
   • – or by setting DTEN bit
5. 5. When (DPSMACT = 1) write data to the FIFO.
   • – When BUSSPEED = 0: The DPSM stays in the Wait_S state until FIFO is full (TXFIFOF = 1), or the number indicated by DATALENGTH.
     • - The SDMMC keeps sending data as long as FIFO is not empty, hardware flow control during data transfer is used to prevent FIFO underrun.
   • – When BUSSPEED = 1 and the FIFO threshold is zero: The DPSM reads the transmit data from the FIFO.

1. • - The SDMMC keeps transmitting data as long as FIFO is not empty, hardware flow control during the data transfer is used to prevent FIFO underrun.
   • - When BUSSPEED = 1 and the FIFO threshold is not zero: The DPSM reads the transmit data from the FIFO.
     • - The SDMMC only starts sending a new block when there is enough data in the FIFO according the threshold. Block gap hardware flow control is used to prevent FIFO underrun.
2. 1. 6. Write data to the FIFO.
      • - When the FIFO is handled by software, wait until the FIFO is half empty (TXFIFOHE flag), write data to the FIFO until FIFO is full (TXFIFOF = 1), or last data has been written.
      • - When the FIFO is handled by the IDMA, the IDMA transfers the FIFO data.
   2. 7. When last data has been written wait for end of data (DATAEND flag)
      • - SDMMC has completely sent all data and the DPSM is disabled (DPSMACT = 0).

In case of a data transfer error or transfer hold when IDMAEN = 0, firmware must stop writing to the FIFO and flush and reset the FIFO with the FIFOIRST register bit.

The transmit FIFO status flags are listed in Table 223 .

Table 223. Transmit FIFO status flags

Receive FIFO:

Data can be read from the receive FIFO when the DPSM is activated (DPSMACT = 1).

When IDMAEN = 1 the FIFO is fully handled by the IDMA.

When IDMAEN = 0 the FIFO is controlled by firmware via the AHB slave interface. When the data path subunit receives a word of data, it drives the data on the write databus. The write pointer is incremented after the write operation completes. On the read side, the contents of the FIFO word pointed to by the current value of the read pointer is driven onto the read databus. The receive FIFO is accessible via sequential addresses.

The receive FIFO is handled in the following way:

1. 1. Write the data length into DATALENGTH and the block length in DBLOCKSIZE.
   • – For block data transfer (DTMODE = 0), DATALENGTH must be an integer multiple of DBLOCKSIZE.
2. 2. Enable hardware flow control HWFC_EN.
   • – If bus speed SDR50, SDR104, HS200 or DDR50 is used FIFO threshold can be used to provide flow control at the receive block gap.
3. 3. Set the SDMMC in receive mode (DTDIR = 1).
   • – Configures the FIFO in receive mode.
4. 4. Enable the DPSM transfer
   • – either by sending a command from the CPSM with the CMDTRANS bit set
   • – or by setting DTEN bit.
5. 5. When (DPSMACT = 1) the FIFO is ready to receive data.
   • – When BUSSPEED = 0: The DPSM writes the received data to the FIFO.
     • - The SDMMC keeps receiving data as long as FIFO is not full, hardware flow control during the data transfer is used to prevent FIFO overrun.
   • – When BUSSPEED = 1 and the FIFO threshold is zero: The DPSM writes the received data to the FIFO.
     • - The SDMMC keeps receiving data as long as FIFO is not full, hardware flow control during the data transfer is used to prevent FIFO overrun.
   • – When BUSSPEED = 1 and the FIFO threshold is not zero: The DPSM writes the received data to the FIFO.
     • - The SDMMC only starts receiving a new block when there is enough free space in the FIFO according the threshold. Block gap hardware flow control is used to prevent FIFO overrun.
6. 6. Read data from the FIFO.
   • – When the FIFO is handled by software, wait until the FIFO is half full (RXFIFOHF flag), read data from the FIFO until FIFO is empty (RXFIFOE = 1).
     • - When last data has been received, read data from the FIFO until FIFO is empty (DATAEND = 1).
   • – When the FIFO is handled by the IDMA, the IDMA transfers the FIFO data.
7. 7. SDMMC has completely received all data and the DPSM is disabled (DPSMACT = 0).

In case of a data transfer hold when IDMAEN = 0, the firmware must read the remaining data until the FIFO is empty and reset the FIFO with the FIFORST register bit. This causes the DPSM to go to the Idle state (DPSMACT = 0).

In case of a data transfer error when IDMAEN = 0, the firmware must stop reading the FIFO and flush and reset the FIFO with the FIFORST register bit. This causes the DPSM to go to the Idle state (DPSMACT = 0).

The receive FIFO status flags are listed in Table 224 .

Table 224. Receive FIFO status flags

CLKMUX unit

The CLKMUX selects the source for clock sdmmc_rx_ck to be used with the received data and command response. The receive data clock source can be selected by the clock control register bit SELCLKRX , between:

• • sdmmc_io_in_ck bus master main feedback clock.
• • SDMMC_CKIN external bus feedback clock.
• • sdmmc_fb_ck bus tuned feedback clock.

The sdmmc_io_in_ck is selected when there is no external driver, with DS and HS.

The SDMMC_CKIN is selected when there is an external driver with SDR12, SDR25, SDR50 and DDR50.

The sdmmc_fb_ck clock input must be selected when the DLYB block on the device is used with SDR104, HS200 and optionally with SDR50 and DDR50 modes.

Figure 239. CLKMUX unit

The sdmmc_rx_ck source must be changed when the CPSM and DPSM are in the Idle state.

30.5.5 SDMMC AHB slave interface

The AHB slave interface generates the interrupt requests, and accesses the SDMMC adapter registers and the data FIFO. It consists of a data path, register decoder, and interrupt logic.

SDMMC FIFO

The FIFO access is restricted to word access only:

• • In transmit FIFO mode
  • – Data are written to the FIFO in words (32-bits) until all data according DATALNGTH has been transferred. When the DATALNGTH is not an integer

multiple of 4, the last remaining data (1, 2 or 3 bytes) are written with a word transfer.

• • In receive FIFO mode
  • – Data are read from the FIFO in words (32-bits) until all data according DATALNGTH has been transfered. When the DATALNGTH is not an integer multiple of 4, the last remaining data (1, 2 or 3 bytes) are read with a word transfer padded with 0 value bytes.

When accessing the FIFO with half word or byte accesses an AHB bus fault is generated.

SDMMC interrupts

The interrupt logic generates an interrupt request signal that is asserted when at least one of the unmasked status flags is active. A mask register is provided to allow selection of the conditions that generate an interrupt. A status flag generates the interrupt request if a corresponding mask flag is set. Some status flags require an implicit clear in the clear register.

30.5.6 SDMMC AHB master interface

The AHB master interface is used to transfer the data between a memory and the FIFO using the SDMMC IDMA.

SDMMC IDMA

Direct memory access (DMA) is used to provide high-speed transfer between the SDMMC FIFO and the memory. The AHB master optimizes the bandwidth of the system bus. The SDMMC internal DMA (IDMA) provides one channel to be used either for transmit or receive.

The IDMA is enabled by the IDMAEN bit and supports burst transfers of 16 beats.

• • In transmit burst transfer mode:
  • – Data are fetched in burst from memory whenever the FIFO is empty for the number of burst transfers, until all data according DATALNGTH has been transfered. When the DATALNGTH is not an integer multiple of the burst size the remaining, smaller then burst size data is transfered using single transfer mode. When the DATALNGTH is not an integer multiple of 4, the last remaining data (1, 2 or 3 bytes) are fetched with a word transfer.
• • In receive burst transfer mode:
  • – Data are stored in burst in to memory whenever the FIFO contains the number of burst transfers, until all data according DATALNGTH has been transfered. When the DATALNGTH is not an integer multiple of the burst transfer the remaining, smaller then burst size data, is transfered using single transfer mode. When the DATALNGTH is not an integer multiple of 4, the last remaining data (1, 2 or 3 bytes) are stored with halfword and or byte transfers.

In addition the IDMA provides the following channel configurations selected by bit IDMABMODE:

• • single buffered channel
• • linked list channel

Single buffered channel

In single buffer configuration the data at the memory side is accessed in a linear matter starting from the base address IDMABASE. When the IDMA has finished transferring all data the and the DPSM has completed the transfer the DATAEND flag is set.

Linked list channel

In linked list configuration, IDMAMODE = 1, the data at the memory side is subsequently accessed from linked buffers, located at base address IDMABASE. The size of the memory buffers is defined by IDMABSIZE. The buffer size must be an integer multiple of the burst size. The bit ULA is used to indicate if a new linked list buffer configuration has to be loaded from the linked list table. A new linked list configuration is loaded when the ULA bit for the current linked list item is set.

The first linked list item configuration is programmed by firmware directly in the SDMMC registers.

When the IDMA has finished transferring all the data of one linked list buffer, according IDMABSIZE, and when the linked list item ULA bit is set, the IDMA loads the new linked list item from the linked list table, and continues transferring data from the next linked list buffer. When the IDMA has finished transferring all data, according IDMABSIZE and ULA, and the DPSM has completed the transfer, according DATALENGHT, the DATAEND flag is set.

In the following cases, the linked list provides more buffer space than the data to transfer which means the current linked list buffer data has not completely be transfered:

• • the ULA bit is set, and all SDMMC data according DATALENGTH has been transfered (DATAEND flag)
• • a transfer error (DCRCFAIL when DATACOUNT > 0, RXOVERR, TXUNDERR) occurs
• • a transfer is hold (DTHOLD)

In all above cases, the IDMA linked list is stopped and the FIFO is flushed/reset. Before starting or restarting a new SDMMC transfer, the software must initialize a new linked list with correct IDMABASE and IDMABSIZE.

When a IDMA transfer error occurs (see Section : IDMA transfer error management ) or when the linked list does not provide sufficient buffer space:

• • the linked list ends with ULA = 0 and all last linked list buffer data has been transfered, and not all SDMMC data according DATALENGTH has been transfered. The SDMMC transfer is stopped and an IDMA transfer error is generated (see Section : IDMA transfer error management ).

For a given linked list item, the base address is given by the linked list base IDMABA register value plus the linked list offset IDMALA register value.

The content of each linked list item can be specified by the ULS bit, which makes possible to optionally load the IDMABSIZE, resulting in a 3-word linked list structure. When the IDMABSIZE is not to be loaded (fixed size buffers) a compacted reduced 2-word linked list structure can be used containing only the IDMABASER and the IDMALAR values.

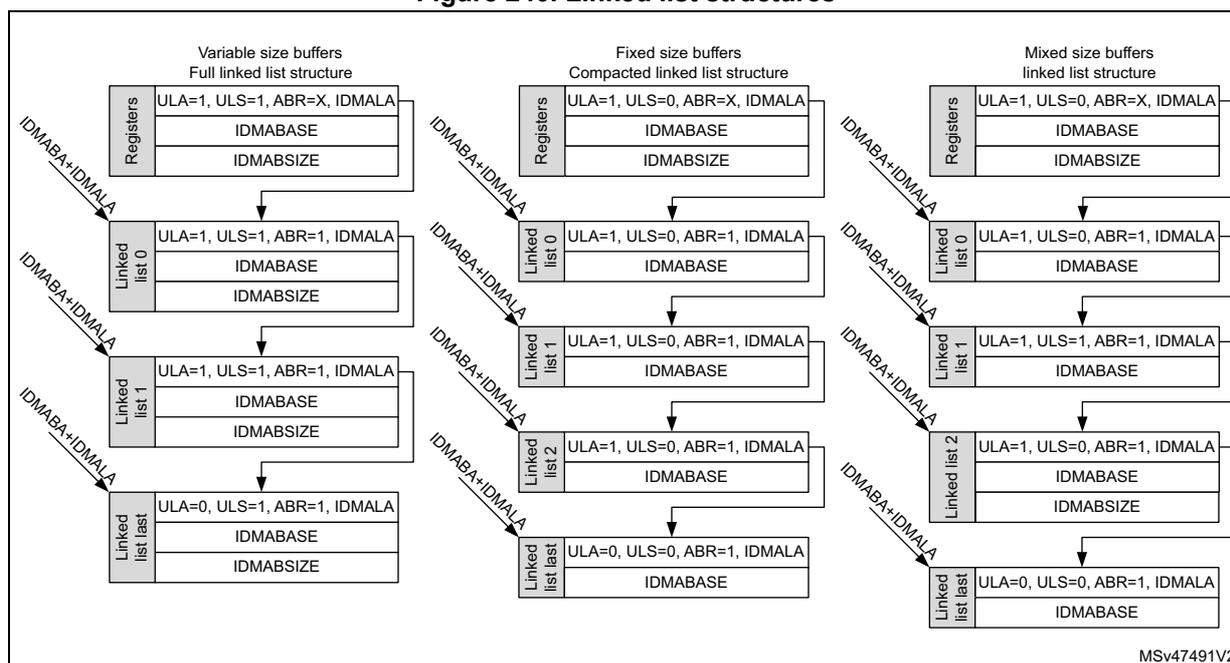

Figure 240. Linked list structures

MSV47491V2

There is no restriction on mixing both linked list item structures in a single list, this enables the IDMABSIZE to be updated only when needed.

Whenever a linked list buffer has been transferred and the current buffer ULA = 1, an end-of-linked-list-buffer-transfer-complete interrupt (IDMABTC) may be generated (if interrupt is enabled).

Linked list acknowledgment

In the case where software dynamically updates the linked list, during the SDMMC transfer, the availability of a new linked list buffer can be acknowledged by the acknowledge buffer ready (ABR) bit.

When ABR acknowledges that the new linked list buffer is ready, the IDMA continues transferring data from the new linked list buffer.

When ABR indicates that the new linked list buffer is not ready, an IDMA transfer error is generated (see Section : IDMA transfer error management ). Depending when the IDMA transfer error occurs, it normally causes the generation of an TXUNDERR or RXOVERR error. When a linked list buffer is not acknowledged in time the SDMMC transfer is stopped.

The ABR information is “don’t care” when starting the linked list from software programmed register information. The first linked list buffer must be ready to be used before starting the SDMMC transfer.

IDMA transfer error management

An IDMA transfer error can occur:

• • When reading or writing a reserved address space (for data or linked list information).
• • When there is no more linked list buffer space to store received SDMMC data.
• • When all linked list buffer data has been transferred and still more SDMMC data needs to be sent.
• • When the availability of a linked list buffer is not acknowledged.

On an IDMA transfer error subsequent IDMA transfers are disabled and an IDMATE flag is set and hardware flow control is disabled. Depending when the IDMA transfer error occurs, it normally causes the generation of a TXUNDERR or RXOVERR error.

The behavior of the IDMATE flag depend on when the IDMA transfer error occurs during the SDMMC transfer:

• • An IDMA transfer error is detected before any SDMMC transfer error (TXUNDERR, RXOVERR, DCRCFAIL, or DTIMEOUT):
  • – The IDMATE flag is set at the same time as the SDMMC transfer error flag.
  • – The TXUNDERR, RXOVERR, DCRCFAIL, or DTIMEOUT interrupt is generated.
• • An IDMA transfer error is detected during a STOP_TRANSMISSION command:
  • – The IDMATE flag is set at the same time as the DABORT flag.
  • – The DABORT interrupt is generated.
• • An IDMA transfer error is detected at the end of the SDMMC transfer (DHOLD, or DATAEND).
  • – The IDMATE flag is set at the end of the SDMMC transfer.
  • – A SDMMC transfer end interrupt is generated and a DHOLD or DATAEND flag is set.

The IDMATE is generated on an other SDMMC transfer interrupt (TXUNDERR, RXOVERR, DCRCFAIL, DTIMEOUT, DABORT, DHOLD, or DATAEND).

30.5.7 AHB and SDMMC_CK clock relation

The AHB must at least have between 1.72x and 3x more bandwidth than the SDMMC bus bandwidth i.e. for SDR50 4-bit mode (50 Mbyte/s) the minimum sdmmc_hclk frequency is 21.43 MHz (85.72 Mbyte/s).

Table 225. AHB and SDMMC_CK clock frequency relation

Table 225. AHB and SDMMC_CK clock frequency relation (continued)

Warning: When minimum HCLK frequency is not respected, overrun or underrun errors may occur even when hardware flow control is enabled.

30.6 Card functional description

30.6.1 SD I/O mode

The following features are SDMMC specific operations:

• • SDIO interrupts
• • SDIO suspend/resume operation (write and read suspend)
• • SDIO Read Wait operation by stopping the clock
• • SDIO Read Wait operation by SDMMC_D2 signaling

Table 226. SDIO special operation control

SD I/O interrupts

To allow the SD I/O card to interrupt the host, an interrupt function is available on pin 8 (shared with SDMMC_D1 in 4-bit mode) on the SD interface. The use of the interrupt is optional for each card or function within a card. The SD I/O interrupt is level-sensitive, which means that the interrupt line must be held active (low) until it is either recognized and acted upon by the host or deasserted due to the end of the interrupt period. After the host has serviced the interrupt, the interrupt status bit is cleared via an I/O write to the appropriate bit in the SD I/O card internal registers. The interrupt output of all SD I/O cards is active low and the application must provide external pull-up resistors on all data lines (SDMMC_D[3:0]).

In SD 1-bit mode pin 8 is dedicated to the interrupt function (IRQ), and there are no timing constraints on interrupts.

In SD 4-bit mode the host samples the level of pin 8 (SDMMC_D1/IRQ) into the interrupt detector only during the interrupt period. At all other times, the host interrupt ignores this value. The interrupt period begins when interrupts are enabled at the card and SDIOEN bit is set see register settings in Table 226 .

In 4-bit mode the card can generate a synchronous or asynchronous interrupt as indicated by the card CCCR register SAI and EAI bits.

• • Synchronous interrupt, require the SDMMC_CK to be active.
• • Asynchronous interrupt, can be generated when the SDMMC_CK is stopped, 4 cycles after the start of the card interrupt period following the last data block.

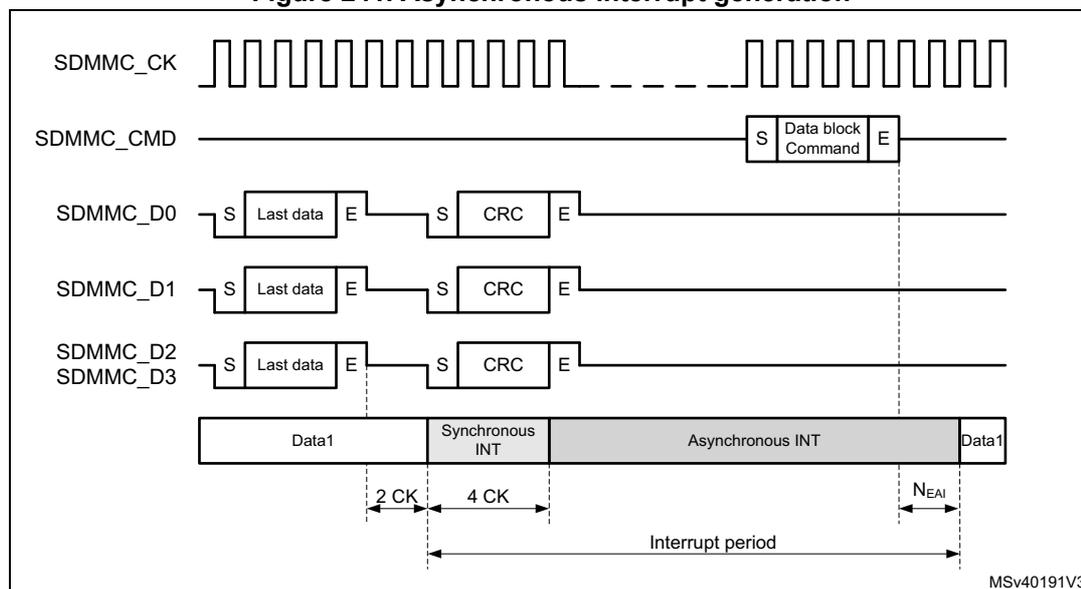

Figure 241. Asynchronous interrupt generation

The timing of the interrupt period is depending on the bus speed mode.

In DS, HS, SDR12, and SDR25 mode, selected by register bit BUSSPEED, the interrupt period is synchronous to the SD clock.

• • The interrupt period ends at the next clock from the end bit of a command that transfers data block(s) (Command sent with the CMDTRANS bit is set), or when the DTEN bit is set.
• • The interrupt period resumes 2 SDMMC_CK after the completion of the data block.
• • At the data block gap the interrupt period is limited to 2 SDMMC_CK cycles.

Note: DTEN must not be used to start data transfer with SD and e•MMC cards.

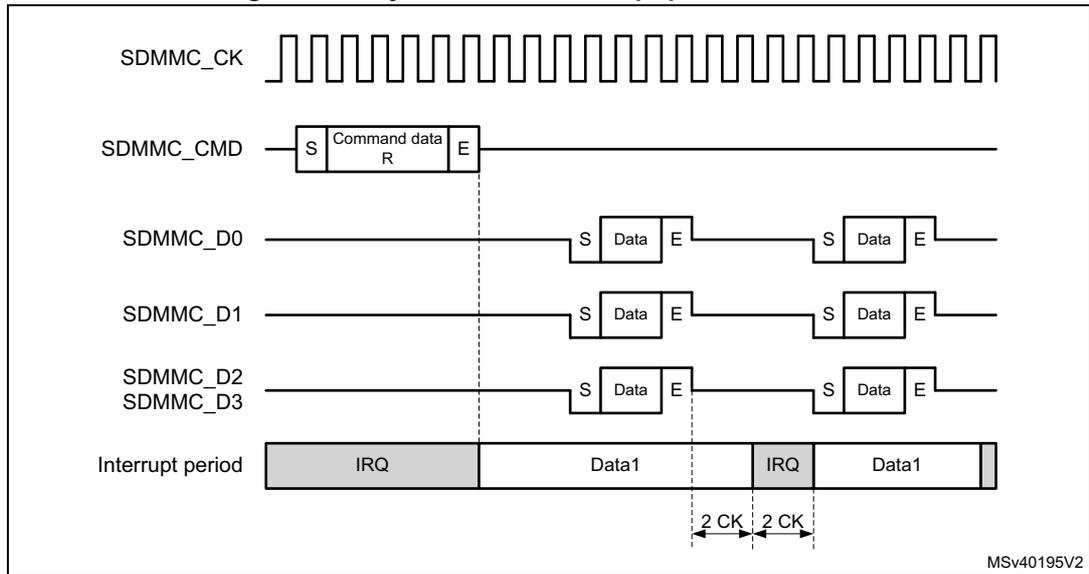

Figure 242. Synchronous interrupt period data read

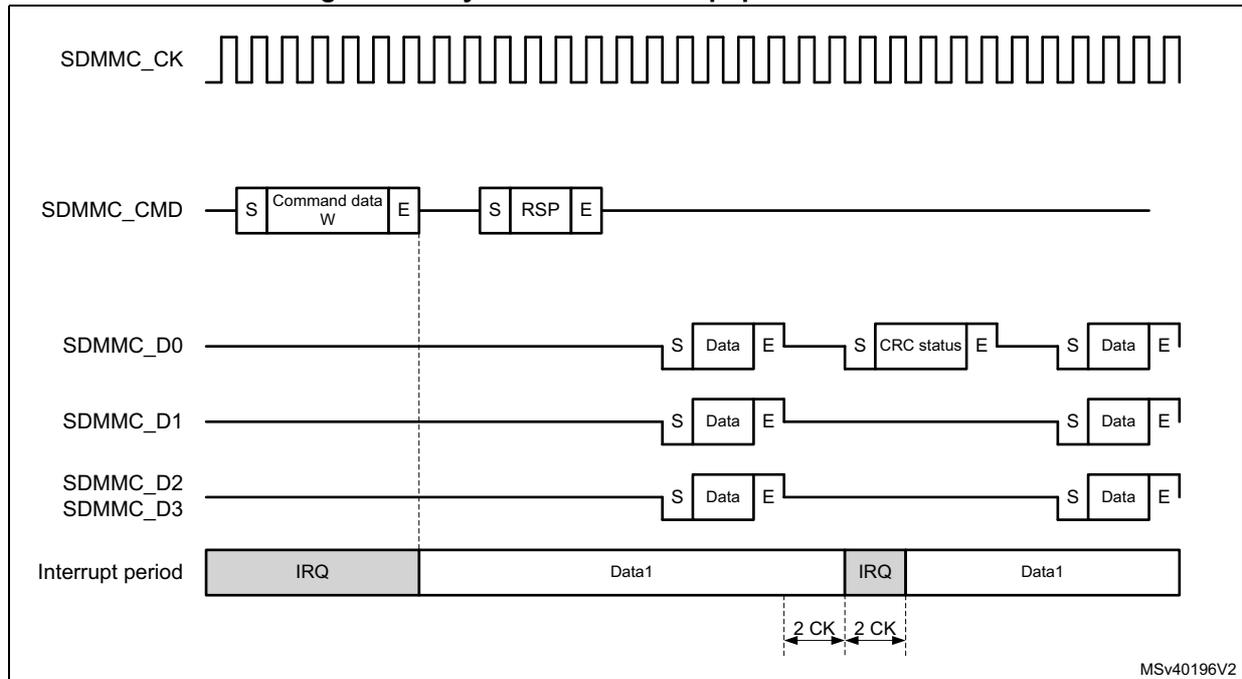

Figure 243. Synchronous interrupt period data write

In SDR50, SDR104, and DDR50, selected by register bit BUSSPEED, due to propagation delay from the card to host, the interrupt period is asynchronous.

• • The card interrupt period ends after 0 to 2 SDMMC_CK cycles after the end bit of a command that transfers data block(s) (Command sent with the CMDTRANS bit is set), or when the DTEN bit is set. At the host the interrupt period ends after the end bit of a

command that transfers data block(s). A card interrupt issued in the 1 to 2 cycles after the command end bit are not detected by the host during this interrupt period.

• • The card interrupt period resumes 2 to 4 SDMMC_CK after the completion of the last data block. The host resumes the interrupt period always 2 cycles after the last data block.
• • There is NO interrupt period at the data block gap.

Note: DTEN must not be used to start data transfer with SD and e•MMC cards.

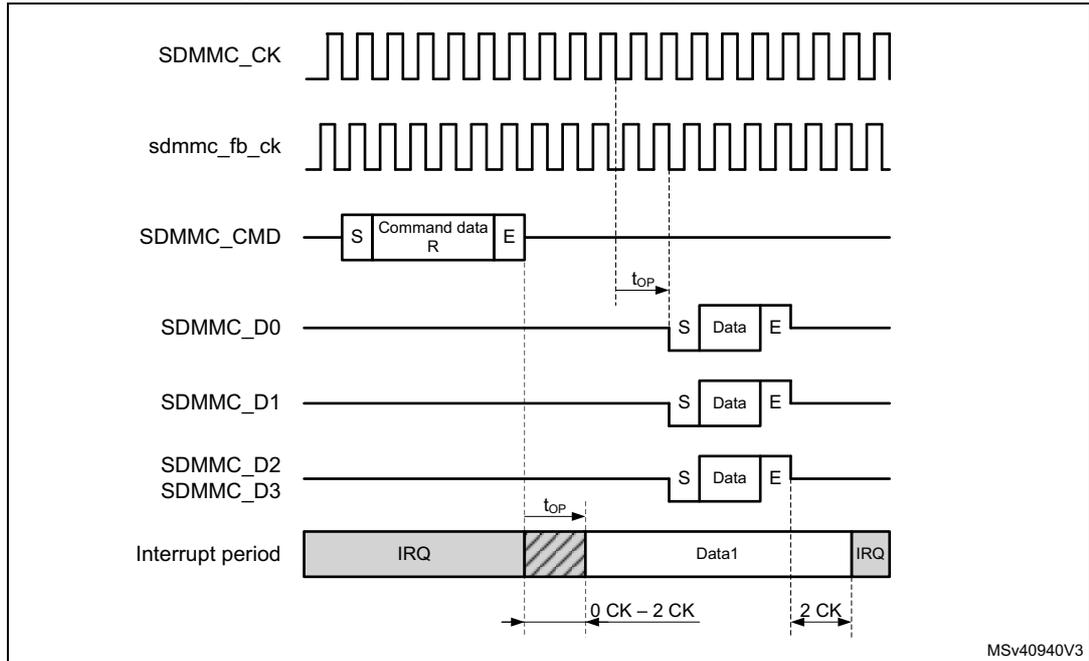

Figure 244. Asynchronous interrupt period data read

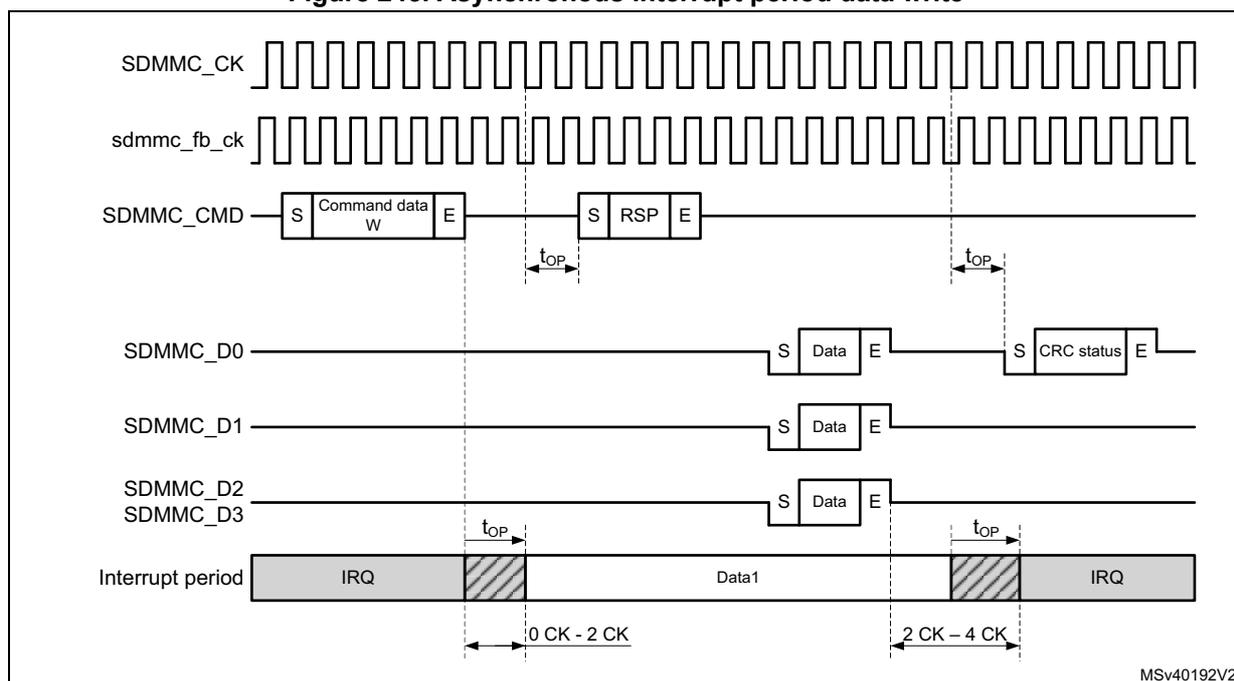

Figure 245. Asynchronous interrupt period data write

When transferring Open-ended multiple block data and using DTMODE “block data transfer ending with STOP_TRANSMISSION command”, the SDMMC masks the interrupt period after the last data block until the end of the CMD12 STOP_TRANSMISSION command.

The interrupt period is applicable for both memory and I/O operations.

In 4-bit mode interrupts can be differentiated from other signaling according Table 227 .

Table 227. 4-bit mode Start, interrupt, and CRC-status Signaling detection

SD I/O suspend and resume

This function is NOT supported in SDIO version 4.00 or later.

Within a multifunction SD I/O or a card with both I/O and memory functions, there are multiple devices (I/O and memory) that share access to the e•MMC/SD bus. To share access to the host among multiple devices, SD I/O and combo cards optionally implement the concept of suspend/resume. When a card supports suspend/resume, the host can temporarily halt (suspend) a data transfer operation to one function or memory to free the bus for a higher-priority transfer to a different function or memory. After this higher-priority transfer is complete, the original transfer is restarted (resume) where it left off.

To perform the suspend/resume operation on the bus, the host performs the following steps:

1. 1. Determines the function currently using the SDMMC_D[3:0] line(s).
2. 2. Requests the lower-priority or slower transaction to suspend.
3. 3. Waits for the transaction suspension to complete.
4. 4. Begins the higher-priority transaction.
5. 5. Waits for the completion of the higher priority transaction.
6. 6. Restores the suspended transaction.

The card receiving a suspend command responds with its current bus status. Only when the bus has been suspended by the card the bus status indicates suspension completed.

There are different suspend cases conditions:

• • Suspend request accepted prior to the start of data transfer.
• • Suspend request not accepted, (due to data being transfered at the same time), the host keeps checking the request until it is accepted (data transfer has suspended).
• • Suspend request during write busy.
• • Suspend request with write multiple.
• • Suspend request during Read Wait.

For the host to know if the bus has been released it must check the status of the suspend request, suspension completed.

When the bus status of the suspend request response indicates suspension completed, the card has released the bus. At this time the state of the suspended operation must be saved where after an other operation can start.

The suspend command must be sent with the CMDSUSPEND bit set. This makes possible to start the interrupt period after the suspend command response when the bus is suspended (response bit BS = 0).

The hardware does not save the number of remaining data to be transfered when resuming the suspended operation. It is up to firmware to determine the data that has been transferred and resume with the correct remaining number of data bytes.

While receiving data from the card, the SDMMC can suspend the read operation after the read data block end (DPSM in Wait_R). After receiving the suspend acknowledgment response from the card the following steps must be taken by firmware:

1. 1. The normal receive process must be stopped by setting DTHOLD bit.
   1. a) The remaining number of data bytes in the FIFO must be read until the receive FIFO is empty (RXFIFOE flag is set), and when IDMAEN = 0 the FIFO must be reset with FIFORST.
2. 2. The confirmation that all data has been read from the FIFO, and that the suspend is completed is indicated by the DHOLD flag.
   1. a) The remaining number of data bytes (multiple of data blocks) still to be read when resuming the operation must be determined from the remaining number of bytes indicated by the DATACOUNT.

Note: When a DTIMEOUT flag occurs during the suspend procedure, this must be ignored.

To resume receiving data from the card, the following steps must be taken by firmware:

1. 1. The remaining number of data bytes (multiple of data blocks) must be programmed in DATALENGTH.
2. 2. The DPSM must be configured to receive data in the DTDIR bit.
3. 3. The resume command must be sent from the CPSM, with the CMDTRANS bit set and the CMDSUSPEND bit set, which ends the interrupt period when data transfer is resumed (response bit DF = 1) and enabled the DPSM, after which the card resumes sending data.

While sending data to the card, the SDMMC can suspend the write operation after the write data block CRC status end (DPSM in Busy). Before sending the suspend command to the card the following steps must be taken by firmware:

1. 1. Enable DHOLD flag (and DBCKEND flag when IDMAEN = 0)
2. 2. The DPSM must be prevented from start sending a new data block by setting DTHOLD.
3. 3. When IDMAEN = 0: When receiving the DBCKEND flag the data transfer is stopped. Firmware can stop filling the FIFO, after which the FIFO must be reset with FIFOIRST. Any bytes still in the FIFO need to be rewritten when resuming the operation.
4. 4. When receiving the DHOLD flag the data transfer is stopped. The remaining number of data bytes still to be written when resuming must be determined from the remaining number of bytes indicated by the DATACOUNT.
5. 5. To suspend the card the suspend command must be sent by the CPSM with the CMDSUSPEND bit set. This makes possible to start the interrupt period after the suspend command response when the bus is suspended (response bit BS = 0).

To resume sending data to the card, the following steps must be taken by firmware:

1. 1. The remaining number of data bytes must be programmed in DATALENGTH.
2. 2. The DPSM must be configured for transmission with DTDIR set and enabled by having the CPSM send the resume command with the CMDTRANS bit set and the CMDSUSPEND bit set. This ends the interrupt period and start the data transfer. The DPSM either goes to the Wait_S state when SDMMC_D0 does not signal busy, or goes to the Busy state when busy is signaled.
3. 3. When IDMAEN = 1: The IDMA needs to be reprogrammed for the remaining bytes to be transferred.
4. 4. When IDMAEN = 0: Firmware must start filling the FIFO with the remaining data.

SD I/O Read Wait

There are two methods to pause the data transfer during the block gap:

1. 1. Stopping the SDMMC_CK.
2. 2. Using Read Wait signaling on SDMMC_D2.

The SDMMC can perform a Read Wait with register settings according Table 226 .

Read Wait is not available when block gap hardware flow control is enabled. (see Section 30.7.2: Block gap hardware flow control )

Depending the SDMMC operation mode (DS, HS, SDR12, SDR25) or (SDR50, SDR104, DDR) each method has a different characteristic.

The timing for pause read operation by stopping the SDMMC_CK for DS, HS, SDR12, and SDR25, the SDMMC_CK may be stopped 2 SDMMC_CK cycles after the end bit. When ready the host resumes by restarting clock (see Figure 246 ).

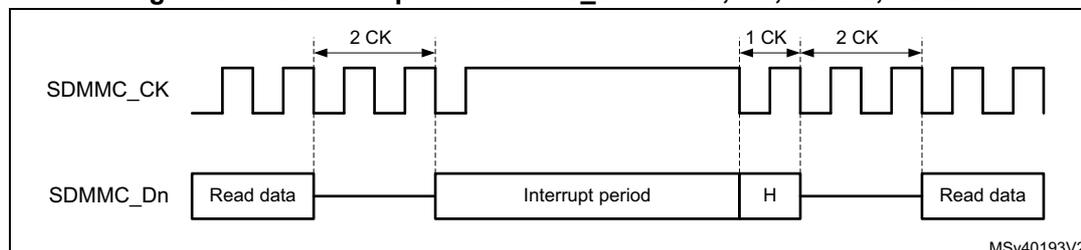

Figure 246. Clock stop with SDMMC_CK for DS, HS, SDR12, SDR25

The timing for pause read operation by stopping the SDMMC_CK for SDR50, SDR104, and DDR50, the SDMMC_CK may be stopped minimum 2 SDMMC_CK cycles and maximum 5 SDMMC_CK cycles, after the end bit. When ready the host resumes by restarting clock, see Figure 247 . (In DDR50 mode the SDMMC_CK must only be stopped after the falling edge, when the clock line is low.)

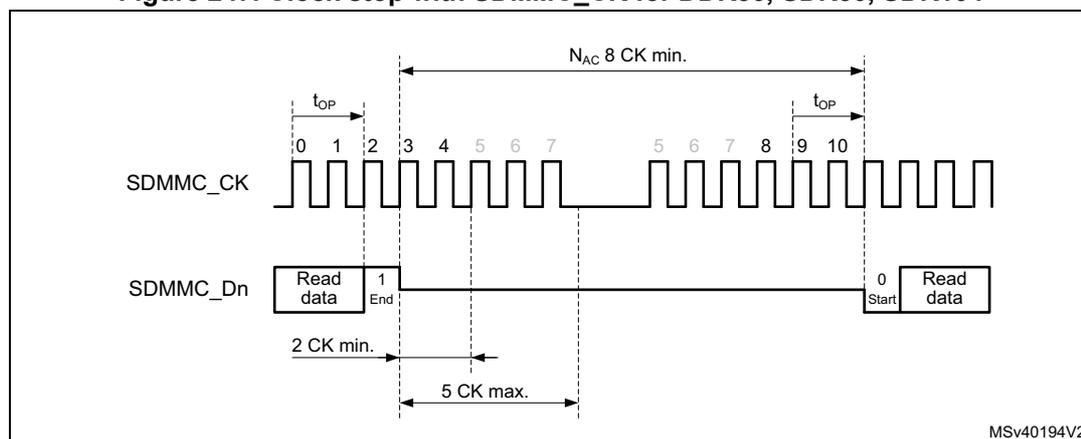

Figure 247. Clock stop with SDMMC_CK for DDR50, SDR50, SDR104

In Read Wait SDMMC_CK clock stopping, when RWSTART is set, the DSPM stops the clock after the end bit of the current received data block CRC. The clock start again after writing 1 to the RWSTOP bit, where after the DPSM waits for a start bit from the card.

As SDMMC_CK is stopped, no command can be issued to the card. During a Read Wait interval, the SDMMC can still detect SDIO interrupts on SDMMC_D1.

The optional Read Wait signaling on SDMMC_D2 (RW) operation is defined only for the SD 1-bit and 4-bit modes. The Read Wait operation enables the host to signal a card that is reading multiple registers (IO_RW_EXTENDED, CMD53) to temporarily stall the data transfer while allowing the host to send commands to any function within the SD I/O device. To determine when a card supports the Read Wait protocol, the host must test capability bits in the internal card registers.

The timing for Read Wait with a SDMMC_CK less than 50MHz (DS, HS, SDR12, SDR25) is based on the interrupt period generated by the card on SDMMC_D1. The host by asserting SDMMC_D2 low during the interrupt period requests the card to enter Read Wait. To exit Read Wait the host must raise SDMMC_D2 high during one SDMMC_CK cycles before making it Hi-Z, see Figure 248 .

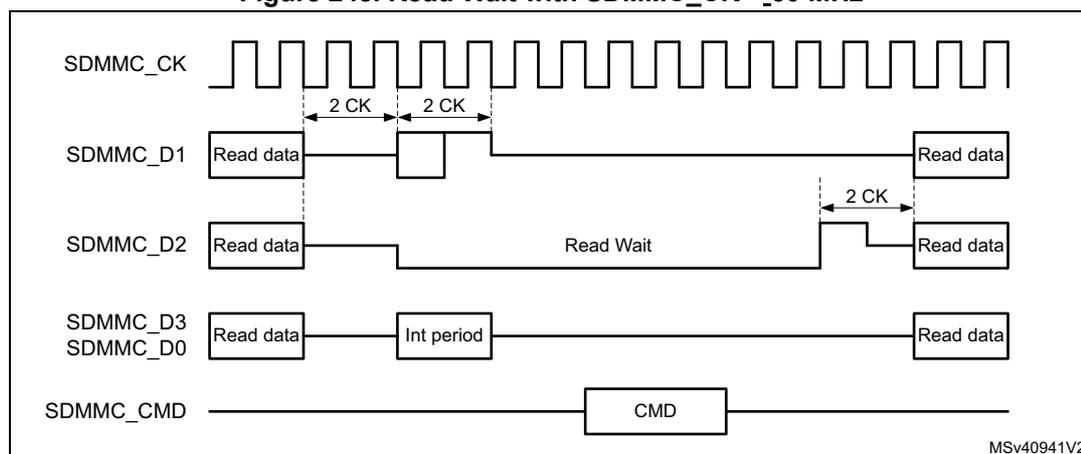

Figure 248. Read Wait with SDMMC_CK < 50 MHz

For SDR50, SDR104 with a SDMMC_CK more than 50MHz, and DDR50, the card treats the Read Wait request on SDMMC_D2 as an asynchronous event. The host by asserting SDMMC_D2 low after minimum 2 SDMMC_CK cycles and maximum 5 SDMMC_CK cycles, request the card to enter Read Wait. To exit Read Wait the host must raise SDMMC_D2 high during one SDMMC_CK cycles before making it Hi-Z. The host must raise SDMMC_D2 on the SDMMC_CK clock (see Figure 249).

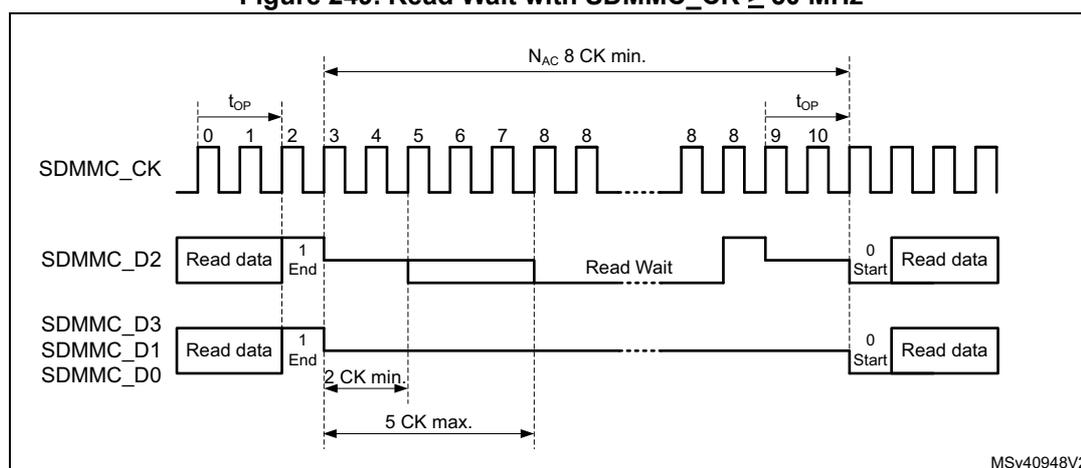

Figure 249. Read Wait with SDMMC_CK ≥ 50 MHz

In Read Wait SDMMC_D2 signaling, when RWSTART is set, the DPSM drives SDMMC_D2 after the end bit of the current received data block CRC. The Read Wait signaling on SDMMC_D2 is removed when writing 1 to the RWSTOP bit. The DPSM remains in R_W state for two more SDMMC_CK clock cycles to drive SDMMC_D2 to 1 for one clock cycle (in accordance with SDIO specification), where after the DPSM waits for a start bit from the card.

During the Read Wait signaling on SDMMC_D2 commands can be issued to the card. During the Read Wait interval, the SDMMC can detect SDIO interrupts on SDMMC_D1.

30.6.2 CMD12 send timing

CMD12 is used to stop/abort the data transfer, the card data transmission is terminated two clock cycles after the end bit of the Stop Transmission command.

Table 228. CMD12 use cases

All data write and read commands can be aborted any time by a Stop Transmission command CMD12. The following data abort procedure applies during an ongoing data transfer:

1. 1. Load CMD12 Stop Transmission command in registers and set the CMDSTOP bit.
   • – This causes the CPSM Abort signal to be generated when the command is sent to the DPSM.
2. 2. Configure the CPSM to send a command immediately (clear WAITPEND bit).
   • – The card, when sending data, stops data transfer 2 cycles after the Stop Transmission command end bit.
     The card when no data is being sent, does not start sending any new data.
   • – The host, when sending data, sends one last data bit followed by an end bit after the Stop Transmission command end bit.
     The host when not sending data, does not start sending any new data.
3. 3. When IDMAEN = 0, the FIFO need to be reset with FIFORST.
   • – When writing data to the card. On the CMDREND flag, firmware must stop writing data to the FIFO. Subsequently the FIFO must be reset with FIFORST, this flushes the FIFO.
   • – When reading data from the card. On the CMDREND flag, firmware must read the remaining data from the FIFO. Subsequently the FIFO must be reset with FIFORST.
4. 4. When IDMAEN = 1, hardware takes care of the FIFO.
   • – When writing data to the card. On the CPSM Abort signal, hardware stops the IDMA and subsequently the FIFO is flushed.
   • – When reading data from the card. On the CPSM Abort signal, hardware instructs the IDMA to transfer the remaining data from the FIFO to RAM.
5. 5. When the FIFO is empty/reset the DABORT flag is generated.

Stream operation and CMD12

To stop the stream transfer after the last byte to be transferred, the CMD12 end bit timing must be sent aligned with the data stream end of last byte. The following write stream data procedure applies:

1. 1. Initialize the stream data in the DPSM, DTMODE = MCC stream data transfer.
2. 2. Send the WRITE_DATA_STREAM command from the CPSM with CMDTRANS = 1.
3. 3. Preload CMD12 in command registers, with the CMDSTOP bit set.
4. 4. Configure the CPSM to send a command only after a wait pending (WAITPEND = 1) end of last data (according DATALNGTH).
5. 5. Enabling the CPSM to send the STOP_TRANSMISSION command, the stream data end bit and command end bit are aligned.
   • – When DATALNGTH > 5 bytes, Command CMD12 is waited in the CPSM to be aligned with the data transfer end bit.
   • – When DATALNGTH < 5 bytes, Command CMD12 is started before and the DPSM remains in the Wait_S state to align the data transfer end with the CMD12 end bit.
6. 6. The write stream data can be aborted any time by clearing the WAITPEND bit. This causes the Preloaded CMD12 to be sent immediately and stop the write data stream.

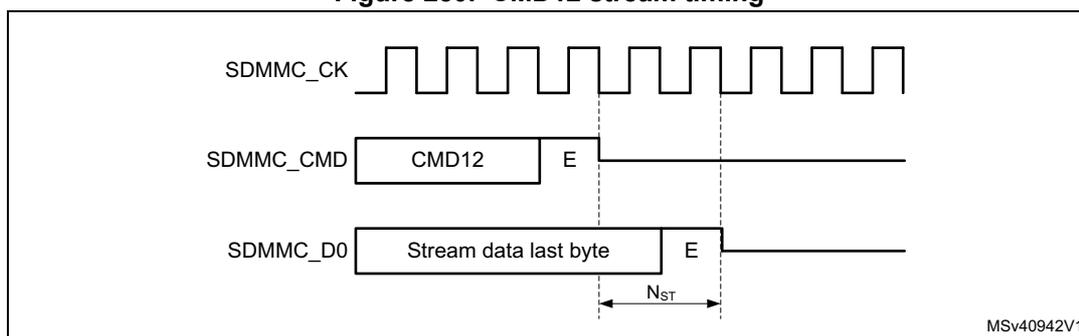

Figure 250. CMD12 stream timing

To stop the read stream transfer after the last byte, the CMD12 end bit timing must occur after the last data stream byte. The following read stream data procedure applies:

1. 1. Wait for all data to be received by the DPSM and read from the FIFO (DATAEND flag).
   • – The DPSM does not receive more data than indicated by DATALENGTH, even if the card is sending more data.
2. 2. Send CMD12 by the CPSM.
   • – CMD12 stops the card sending data.

Note: The SDMMC does not receive any more data from the card when DATACOUNT = 0, even when the card continues sending data.

Block operation and CMD12

To stop block transfer at the end of the data, the CMD12 end bit must be sent after the last block end bit.

When writing data to the card the CMD12 end bit must be sent after the write data block CRC token end bit. This requires the CMD12 sending to be tied to the data block transmission timing. To stop an Open-ended Multiple block write, the following procedure applies:

1. 1. Before starting the data transfer, set DTMODE to “block data transfer ending with STOP_TRANSMISSION command”.
2. 2. Wait for all data to be sent by the DPSM and the CRC token to be received, (DATAEND flag).
   • – The DPSM does not send more data than indicated by DATALENGTH.
3. 3. Send CMD12 by the CPSM.
   • – CMD12 sets the card to Idle mode.

When reading data from the card the CMD12 end bit must be sent earliest at the same time as the card read data block last data bit. This requires the CMD12 sending to be tied to the data block reception timing. The following stop Open-ended Multiple block read data block procedure applies:

1. 1. Before starting the data transfer, set DTMODE to “block data transfer ending with STOP_TRANSMISSION command”.
2. 2. Wait for all data to be received by the DPSM and read from the FIFO (DATAEND flag).
   • – The DPSM does not receive more data than indicated by DATALENGTH, even if the card is sending more data.
3. 3. Send CMD12 with CMDSTOP bit set by the CPSM.
   • – CMD12 stops the Card sending more data and set the card to Idle mode. Any ongoing block transfer is aborted by the Card.

Note: The SDMMC does not receive any more data from the card when DATACOUNT = 0, even when the card continues sending data.

30.6.3 Sleep (CMD5)

The e•MMC card may be switched between a Sleep state and a Standby state by CMD5. In the Sleep state the power consumption of the card is minimized and the Vcc power supply may be switched off.

The CMD5 (SLEEP) is used to initiate the state transition from Standby state to Sleep state. The card indicates Busy, pulling down SDMMC_D0, during the transition phase. The Sleep state is reached when the card stops pulling down the SDMMC_D0 line.

To set the card into Sleep state the following procedure applies:

1. 1. Enable interrupt on BUSYD0END.
2. 2. Send CMD5 (SLEEP).
3. 3. On BUSYD0END interrupt, card is in Sleep state.
4. 4. Vcc power supply can be switched off.

The CMD5 (AWAKE) is used to initiate the state transition from Sleep state to Standby state. The card indicates Busy, pulling down SDMMC_D0, during the transition phase. The Standby state is reached when the card stops pulling down the SDMMC_D0 line.

To set the card into Sleep state the following procedure applies:

1. 1. Switch on Vcc power supply and wait until minimum operating level is reached.
2. 2. Enable interrupt on BUSYD0END.
3. 3. Send CMD5 (AWAKE).
4. 4. On BUSYD0END interrupt card is in Standby state.

The Vcc power supply can be switched off only after the Sleep state has been reached. The Vcc supply must be reinstalled before CMD5 (AWAKE) is sent.

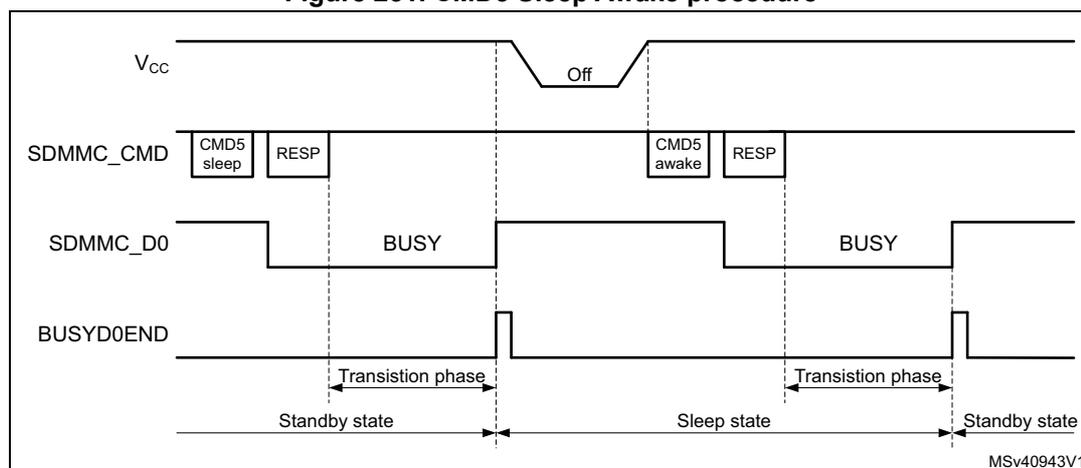

Figure 251. CMD5 Sleep Awake procedure

30.6.4 Interrupt mode (Wait-IRQ)

The host and card enter and exit interrupt mode (Wait-IRQ) simultaneously. In interrupt mode there is no data transfer. The only message allowed is an interrupt service request response from the card or the host. For the interrupt mode to work correctly the SDMMC_CK frequency must be set in accordance with the achievable SDMMC_CMD data rate in Open Drain mode, which depend on the capacitive load and pull-up resistor. The CLKDIV must be set >1, and the SETCLKRX must select either the sdmmc_io_in_ck or SDMMC_CLKin source.

The host must ensure that the card is in Standby state before issuing the CMD40 (GO_IRQ_STATE). While waiting for an interrupt response the SDMMC_CK clock signal must be kept active.

A card in interrupt mode (IRQ state):

• • is waiting for an internal card interrupt event. Once the event occurs, the card starts to send the interrupt service request response. The response is sent in open-drain mode.
• • while waiting for the internal card interrupt event, the card also monitors the SDMMC_CMD line for a start bit. Upon detection of a start bit the card aborts the interrupt mode and switch to Standby state.

The host in interrupt mode (CPSM Wait state waiting for interrupt):

• • is waiting for a card interrupt service request response (start bit).
• • while waiting for a card interrupt service request response the host may abort the interrupt mode (by clearing the WAITINT register bit), which causes the host to send a interrupt service request response R5 with RCA = 0x0000 in open-drain mode.

When sending the interrupt service request response, the sender bit-wise monitors the SDMMC_CMD bit stream. The sender whose interrupt service request response bit does not correspond to the bit on the SDMMC_CMD line stops sending. In the case of multiple senders only one successfully sends its full interrupt service request response. If the host sends simultaneously, it loses sending after the transmission bit.

To handle the interrupt mode, the following procedure applies:

1. 1. Set the SDMMC_CK frequency in accordance with the achievable SDMMC_CMD data rate in Open-drain mode, CLKDIV must be set >1, and SETCLKRX must select the sdmmc_io_in_ck.
2. 2. Load CMD40 (GO_IRQ_STATE) in the command registers.
3. 3. Enable wait for interrupt by setting WAITINT register bit.
4. 4. Configure the CPSM to send a command immediately.
   • – This causes the CMD40 to be sent and the CPSM to be halted in the Wait state, waiting for a interrupt service request response.
5. 5. To exit the wait for interrupt state (CPSM Wait state):
   • – Upon the detection of an interrupt service request response start bit the CPSM moves to the Receive state where the response is received. The complete reception of the response is indicated by the CMDREND or the command CRC error flags.
   • – To abort the interrupt mode the host clears the WAITINT register bit, which causes the host to send an interrupt service request response by itself. This moves the CPSM to the Receive state. The complete reception of the response is indicated by the CMDREND or the command CRC error flags.

Note: On a simultaneous send interrupt service request response start bit collision the host loses the bus access after the transmission bit.

30.6.5 Boot operation

In boot operation mode the host can read boot data from the card by either one of the two boot operation functions:

• • Normal boot. (keeping CMD line low)
• • Alternative boot (sending CMD0 with argument 0xFFFFFFFFA)

The boot data can be read according the following configuration options, depending on card register settings:

• • The partition from which boot data is read (EXT_CSD Byte[179])
• • The boot data size (EXT_CSD Byte[226])
• • The bus configuration during boot (EXT_CSD Byte[177])
• • Receiving boot acknowledgment from the card. (EXT_CSD Byte[179])

If boot acknowledgment is enabled the card send pattern 010 on SDMMC_D0 within 50ms after boot mode has been requested by either CMD line going low or after CMD0 with argument 0xFFFFFFFFA. A boot acknowledgment timeout (ACKTIMEOUT) and acknowledgment status (ACKFAIL) is provided.

Normal boot operation

If the SDMMC_CMD line is held low for at least 74 clock cycles after card power-up or reset, before the first command is issued, the card recognizes that boot mode is being initiated. Within 1 second after the CMD line goes low, the card starts to send the first boot code data on the SDMMC_Dn line(s). The host must keep the SDMMC_CMD line low until after all boot data has been read. The host can terminate boot mode by pulling the SDMMC_CMD line high.

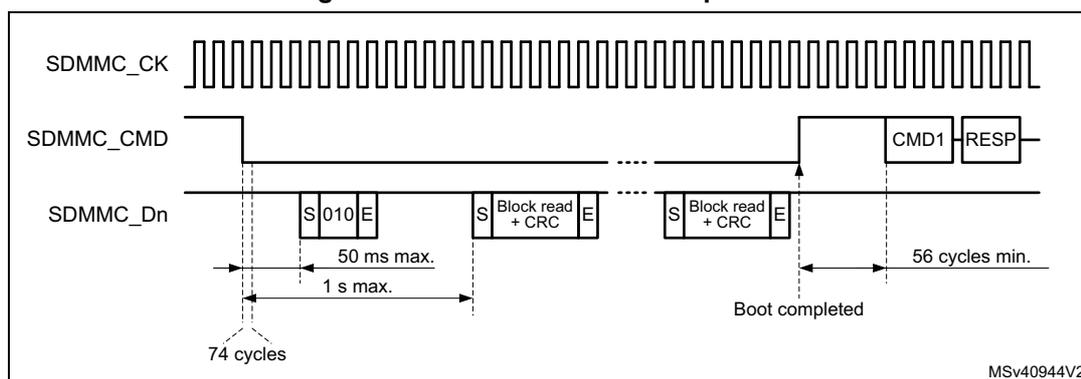

Figure 252. Normal boot mode operation

To perform the normal boot procedure the following steps needed:

1. 1. Reset the card.
2. 2. if a boot acknowledgment is requested enable the BOOTACKEN and set the ACKTIME and enable the ACKFAIL and ACKTIMEOUT interrupt.
3. 3. enable the data reception by setting the DPSM in receive mode (DTDIR) and the number of data bytes to be received in DATALNGTH.
4. 4. Enable the DTIMEOUT, DATAEND, and CMDSENT interrupts for end of boot command confirmation.
5. 5. Select the normal boot operation mode in BOOTMODE, and enable boot in BOOTEN. The boot procedure is started by enabling the CPSM with CPSMEN. This causes:
   • – the SDMMC_CMD to be driven low. (BOOTMODE = normal boot).
   • – the ACK timeout to start.
   • – DPSM to be enabled.
6. 6. The incorrect reception of the boot acknowledgment can be detected with ACKFAIL flag or ACKTIMEOUT flag when enabled.
   • – when an incorrect boot acknowledgment is received the ACKFAIL flag occurs.
   • – when the boot acknowledgment is not received in time the ACKTIMEOUT flag occurs.
7. 7. when all boot data has been received the DATAEND flag occurs.
   • – when data CRC fails the DCRCFAIL flag is also generated.
   • – when the data timeout occurs the DTIMEOUT flag is also generated.
8. 8. When last data has been received, read data from the FIFO until FIFO is empty after which end of data DATAEND flag is generated.
   • – SDMMC has completely received all data and the DPSM is disabled.
9. 9. The boot procedure is terminated by firmware clearing BOOTEN, which causes the SDMMC_CMD line to go high. The CMDSENT flag is generated 56 cycles later to indicate that a new command can be sent.
   • – If the boot procedure is aborted by firmware before all data has been received the CPSM Abort signal stops data reception and disables the DPSM which triggers an DABORT flag when enabled.
10. 10. The CMDSENT flag signals the end of the boot procedure and the card is ready to receive a new command.

Alternative boot operation

After card power-up or reset, if the host send CMD0 with the argument 0xFFFFFFFF after 74 clock cycles before CMD0 is issued, the card recognizes that boot mode is being initiated. Within 1 second after the CMD0 with argument 0xFFFFFFFF has been sent, the card starts to send the first boot code data on the SDMMC_Dn line(s). The master terminates boot operation by sending CMD0 (Reset).

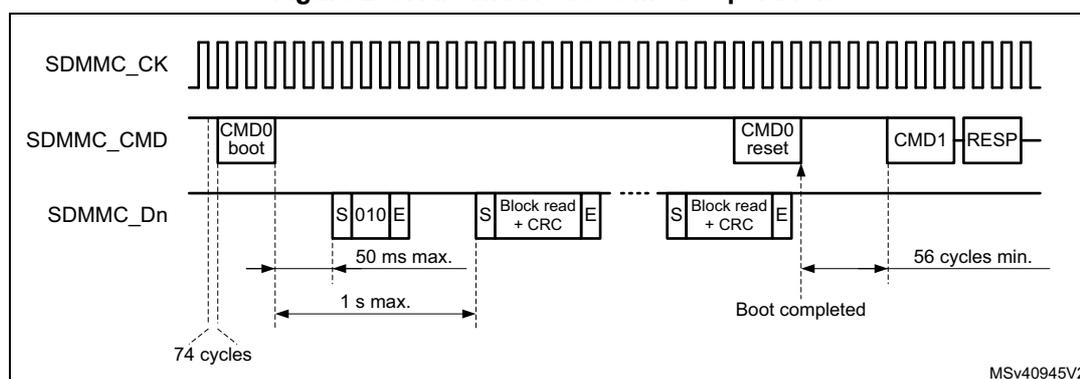

Figure 253. Alternative boot mode operation

To perform the alternative boot procedure the following steps needed:

1. 1. Move the SDMMC to power-off state, and reset the card.
2. 2. Move the SDMMC to power-on state. This guarantees the 74 SCDMMC_CK cycles to be clocked before any command.
3. 3. if a boot acknowledgment is requested enable the BOOTACKEN and set the ACKTIME and enable the ACKTIMEOUT flag.
4. 4. enable the data reception by setting the DPSM in receive mode (DTDIR) and the number of data to be received in DATALENGTH. Enable the DTIMEOUT and DATAEND flags.
5. 5. Select the alternative boot operation mode in BOOTMODE, load the CMD0 with the 0xFFFFFFFF argument in the command registers. Enable CMDSENT flag for end of boot command confirmation, and enable boot in BOOTEN. The boot procedure is started by enabling the CPSM with CPSMEN. This causes:
   • – the loaded command and argument to be sent out. (BOOTMODE = alternative boot).
   • – the ACK timeout to start.
   • – DPSM to be enabled.
6. 6. When the command has been sent the CMDSENT flag is generated, at which time the BOOTEN bit must be cleared.
7. 7. the reception of the boot acknowledgment can be detected with ACKFAIL flag when enabled.
   • – when the boot acknowledgment is not received in time the ACKTIMEOUT flag occurs.
8. 8. when all boot data has been received the DATAEND flag occurs.
   • – when data CRC fails the DCRCFAIL flag is also generated.
   • – when the data timeout occurs the DTIMEOUT flag is also generated.

1. 9. When last data has been received, read data from the FIFO until FIFO is empty after which end of data DATAEND flag is generated.
   • – SDMMC has completely received all data and the DPSM is disabled.
2. 10. The BOOTEN bit must be cleared, before terminating the boot procedure by sending CMD0 (Reset) with BOOTMODE = alternative boot. This causes the CMDSENT flag to occur 56 cycles after the Command.
   • – if the boot procedure is aborted by firmware before all data has been received the CPSM Abort signal stops the data transfer and disable the DPSM which triggers an DABORT flag when enabled.
3. 11. The CMDSENT flag signals the end of the boot procedure and the card is ready to receive a new command. When the RESET command has been sent successfully, the BOOTMODE control bit has to be cleared to terminate the boot operation.

30.6.6 Response R1b handling

When sending commands which have a R1b response the busy signaling is reflected in the BUSYD0 register bit and the release of busy with the BUSYD0END flag. The SDMMC_D0 line is sampled at the end of the R1b response and signaled in the BUSYD0 register bit. The BUSYD0 register bit is reset to not busy when the SDMMC_D0 line release busy, at the same time the BUSYD0END flag is generated.

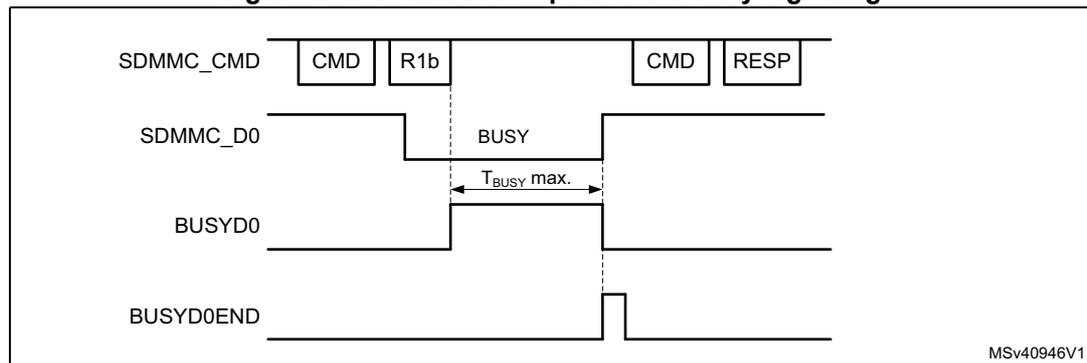

Figure 254. Command response R1b busy signaling

The expected maximum busy time must be set in the DATETIME register before sending the command. When enabled, the DTIMEOUT flag is set when after the R1b response busy stays active longer than the programmed time.

To detect the SDMMC_D0 busy signaling when sending a Command with R1b response the following procedure applies:

• • Enable CMDREND flag.
• • Send Command through CPSM.
• • On the CMDREND flag check the BUSYD0 register bit.
  • – If BUSYD0 signals not busy, signal busy release to firmware
  • – If BUSYD0 signals busy, wait for BUSYD0END flag
• • On BUSYD0END flag signal busy released to firmware.
• • On DTIMEOUT flag busy is active longer than programmed time.

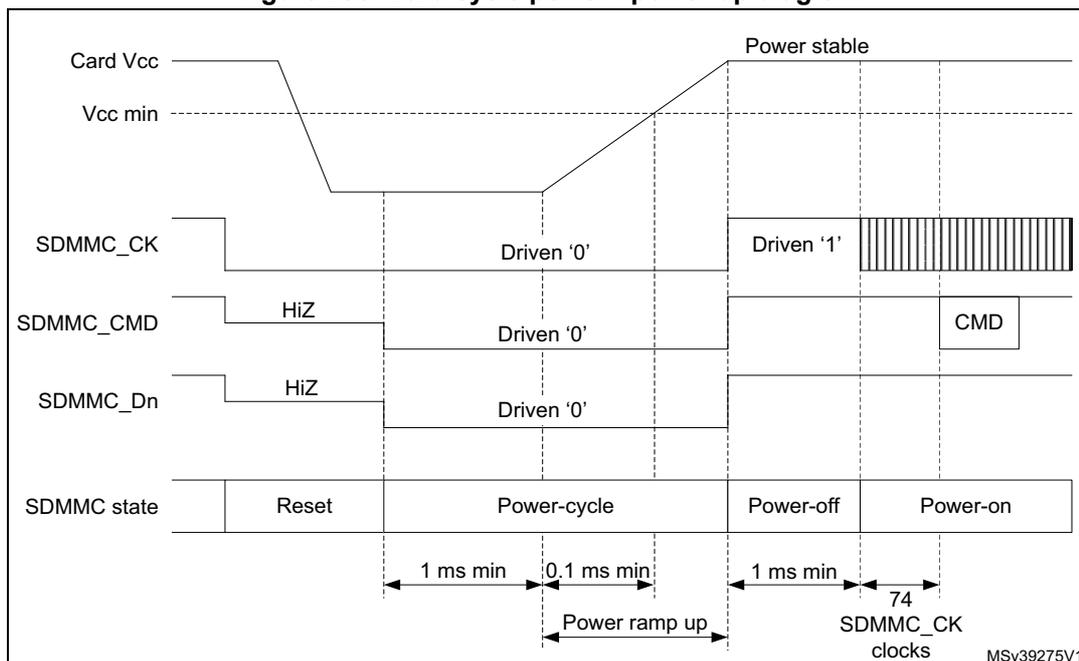

30.6.7 Reset and card cycle power

Reset

Following reset the SDMMC is in the reset state. In this state the SDMMC is disabled and no command nor data can be transferred. The SDMMC_D[7:0], and SDMMC_CMD are in HiZ and the SDMMC_CK is driven low.

Before moving to the power-on state the SDMMC must be configured.

In the power-on state the SDMMC_CK clock is running. First 74 SDMMC_CK cycles are clocked after which the SDMMC is enabled and command and data can be transferred.

The SDMMC states are controlled by Firmware with the PWRCTL register bits according Figure 255 .

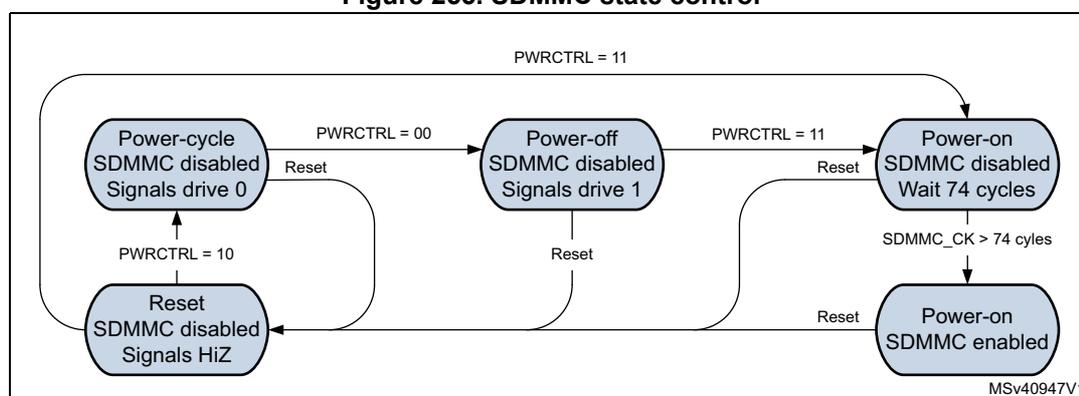

Figure 255. SDMMC state control

stateDiagram-v2
    [*] --> Power-cycle : PWRCTRL = 11
    Power-cycle --> Power-off : PWRCTRL = 00
    Power-cycle --> Power-on_Wait : PWRCTRL = 11
    Power-off --> Power-cycle : Reset
    Power-off --> Power-on_Wait : PWRCTRL = 11
    Power-on_Wait --> Power-cycle : PWRCTRL = 10
    Power-on_Wait --> Power-on_Enabled : SDMMC_CK > 74 cycles
    Power-on_Enabled --> Power-cycle : Reset
    Power-on_Enabled --> Power-off : Reset
    Power-on_Enabled --> Power-on_Wait : Reset


Card cycle power

To perform a card cycle power the following procedure applies:

1. 1. Reset the SDMMC with the RCC.SDMMCxRST register bit. This resets the SDMMC to the reset state and the CPSM and DPSM to the Idle state.
2. 2. Disable the Vcc power to the card.
3. 3. Set the SDMMC in power-cycle state. This makes that the SDMMC_D[7:0], SDMMC_CMD and SDMMC_CK are driven low, to prevent the card from being supplied through the signal lines.
4. 4. After minimum 1 ms enable the Vcc power to the card.
5. 5. After the power ramp period set the SDMMC to the power-off state for minimum 1 ms. The SDMMC_D[7:0], SDMMC_CMD and SDMMC_CK are set to drive 1.
6. 6. After the 1 ms delay set the SDMMC to power-on state in which the SDMMC_CK clock is enabled.
7. 7. After 74 SDMMC_CK cycles the first command can be sent to the card.

Figure 256. Card cycle power / power up diagram

30.7 Hardware flow control

There are two hardware flow control mechanisms:

1. 1. Hardware flow control during data transfer:
   • – Only to be used with cycle-aligned data transfers.
2. 2. Block gap hardware flow control:
   • – Only used in mode with bus speed SDR50, SDR104, HS200 and DDR50.
   • – Must be used with variable delay.

30.7.1 Hardware flow control during data transfer

The hardware flow control during data transfer functionality is used to avoid FIFO underrun (TX mode) and overrun (RX mode) errors.

The behavior is to stop SDMMC_CK during data transfer and freeze the SDMMC state machines. The data transfer is stalled when the FIFO is unable to transmit or receive data. The data transfer remains stalled until the transmit FIFO is half full or all data according DATALENGHT has been stored, or until the receive FIFO is half empty. Only state machines clocked by SDMMC_CK are frozen, the AHB interfaces are still alive. The FIFO can thus be filled or emptied even if flow control is activated.

On an IDMA linked list transfer error, the hardware flow control is disabled. As a consequence, depending on when the IDMA linked list transfer error occurs, an underrun or overrun error may also occur (see Section : IDMA transfer error management ).

To enable hardware flow control during data transfer, the HWFC_EN register bit must be set to 1. After reset hardware flow control is disabled.

Hardware flow control during data transfer must only be used when the SDMMC_Dn data is cycle-aligned with the SDMMC_CK. Whenever the sdmmc_fb_ck from the DLYB delay block is used, i.e in the case of SDR104 mode with a \( t_{OP} \) and \( D_{tOP} \) delay \( > 1 \) cycle, hardware flow control during data transfer can not be used and block gap hardware flow control must be used instead.

30.7.2 Block gap hardware flow control

The block gap hardware flow control functionality is used to avoid FIFO underrun (TX mode) and overrun (RX mode) errors in SDR50, SDR104, HS200 and DDR50 mode (BUSSPEED = 1).

When transmitting, the behavior is to delay the start of a new write block and freeze the SDMMC state machines. The start of a new write block is delayed until the FIFO holds enough data according to the threshold. Only the state machines clocked by SDMMC_CK are frozen, the AHB interfaces are still alive. The FIFO can thus be filled even if flow control is activated.

When receiving, the behavior is to stop SDMMC_CK during the read block gap and freeze the SDMMC state machines. The start of a new block transfer is stalled, due to stopped clock, until the FIFO has enough free space according to the threshold. Only the state machines clocked by SDMMC_CK are frozen, the AHB interfaces are still alive. The FIFO can thus be emptied even if flow control is activated.

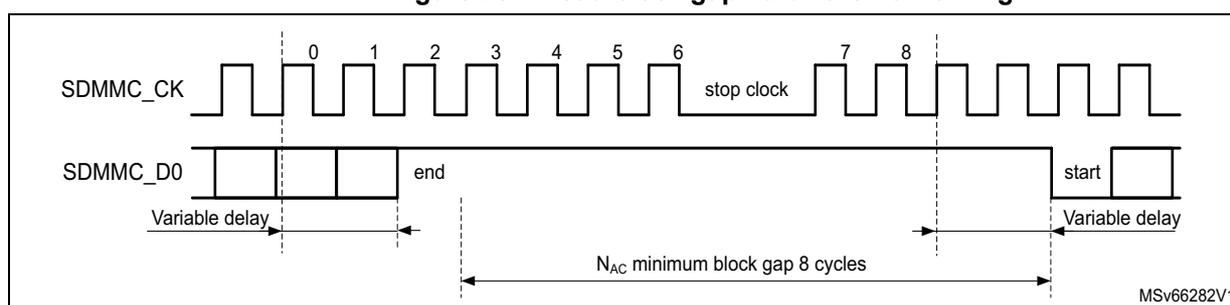

Figure 257. Read block gap hardware flow timing

Warning: When variable delay is used and block gap hardware flow control is enabled, sending commands during multiple block read may disturb the command response reception (CMD12 is not impacted by this).

Table 229. Data block gap hardware flow control behavior

On an IDMA linked list transfer error, the hardware flow control is disabled. As a consequence, depending on when the IDMA linked list transfer error occurs, an underrun or overrun error may also occur (see Section : IDMA transfer error management ).

The block gap hardware flow control is only enabled when HWFC_EN is set to 1, BUSSPEED = 1 and the THR FIFO threshold is different than 0. When BUSSPEED = 0 or FIFO threshold is set to 0, the hardware flow control is used during the data transfer. After reset, the hardware flow control is disabled.

Table 230. Hardware flow control selection

Block gap hardware flow control must be used when the SDMMC_Dn receive data are not cycle-aligned with the SDMMC_CK. This is whenever the sdmmc_fb_ck from the DLYB delay block is used, for example in the case of SDR104 receive mode with a \( t_{OP} \) and \( Dt_{OP} \) delay > 1 cycle.

30.8 Ultra-high-speed phase I (UHS-I) voltage switch

UHS-I mode (SDR12, SDR25, SDR50, SDR104, and DDR50) requires the support for 1.8 V signaling. After power up the card starts in 3.3V mode. CMD11 invokes the voltage switch

sequence to the 1.8V mode. When the voltage sequence is completed successfully the card enters UHS-I mode with default SDR12 and card input and output timings are changed.

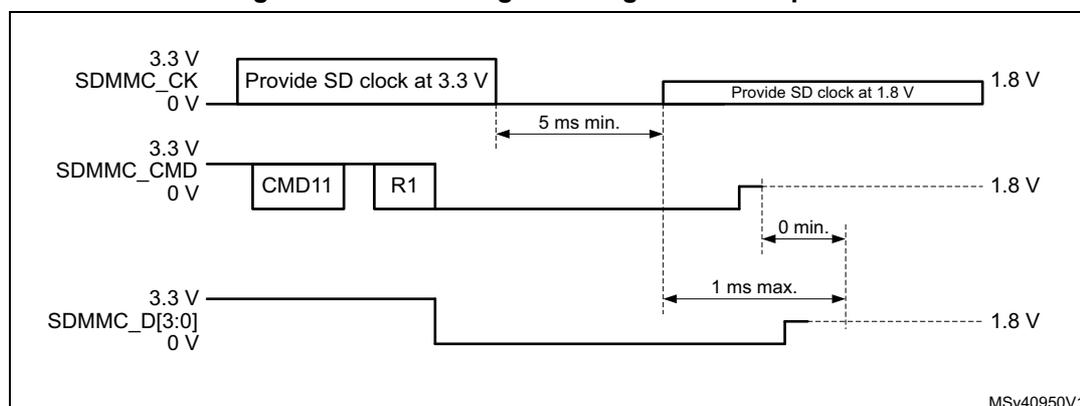

Figure 258. CMD11 signal voltage switch sequence

To perform the signal voltage switch sequence the following steps are needed:

1. 1. Before starting the Voltage Switch procedure, the SDMMC_CK frequency must be set in the range 100 kHz - 400 kHz.
2. 2. The host starts the Voltage Switch procedure by setting the VSWITCHEN bit before sending the CMD11.
3. 3. The card returns an R1 response.
   • – if the response CRC is pass, the Voltage Switch procedure continues the host does no longer drive the CMD and SDMMC_D[3:0] signals until completion of the voltage switch sequence. Some cycles after the response the SDMMC_CK is stopped and the CKSTOP flag is set.
   • – if the response CRC is fail (CCRCFAIL flag) or no response is received before the timeout (CTIMEOUT flag), the Voltage Switch procedure is stopped.
4. 4. The card drives CMD and SDMMC_D[3:0] to low at the next clock after the R1 response.
5. 5. The host, after having received the R1 response, may monitor the SDMMC_D0 line using the BUSYD0 register bit. The SDMMC_D0 line is sampled two SDMMC_CK clock cycles after the Response. The Firmware may read the BUSYD0 register bit following the CKSTOP flag.
   • – When the BUSYD0 is detected low the host firmware switches the Voltage regulator to 1.8V, after which it instructs the SDMMC to start the timing critical section of the Voltage Switch sequence by setting register bit VSWITCH. The hardware continues to stop the SDMMC_CK by holding it low for at least 5 ms.
   • – When the BUSYD0 is detected high the host aborts the Voltage Switch sequence and cycle power the card.
6. 6. The card after detecting SDMMC_CK low begins switching signaling voltage to 1.8 V.
7. 7. The host SDMMC hardware after at least 5 ms restarts the SDMMC_CK.
8. 8. The card within 1 ms from detecting SDMMC_CK transition drives CMD and DAT[3:0] high for at least 1 SDMMC_CK cycle and then stop driving CMD and DAT[3:0].
9. 9. The host SDMMC hardware, 1 ms after the SDMMC_CK has been restarted, the SDMMC_D0 is sampled into BUSYD0 and the VSWEND flag is set.

1. 10. The host, on the VSWEND flag, checks SDMMC_D0 line using the BUSYD0 register bit, to confirm completion of voltage switch sequence:
   • – When BUSYD0 is detected high, Voltage Switch has been completed successfully.
   • – When BUSYD0 is detected low, Voltage Switch has failed, the host cycles the card power.

The minimum 5 ms time to stop the SDMMC_CK is derived from the internal un-gated SDMMC_CK clock, which has a maximum frequency of 25 MHz (SD mode), as set by the clock divider CLKDIV. The >5 ms time is counted by \( 2^{12} \) cycles (10.24 ms @ 400 kHz). If a lower SDMMC_CK frequency is selected by the clock divider CLKDIV the time for the SDMMC_CK clock to be stopped is longer.

The maximum 1 ms time for the card to drive the SDMMC_Dn and SDMMC_CMD lines high is derived from the internal ungated SDMMC_CK which has a maximum frequency of 25 MHz (SD mode), as set by the clock divider CLKDIV. The SDMMC checks the lines after >1 ms time which is counted by \( 2^9 \) cycles (1.28 ms @ 25 MHz). If a lower SDMMC_CK frequency is selected by the clock divider CLKDIV the time to check the lines is longer.

The signal voltage level is supported through an external voltage translation transceiver like STMicroelectronics ST6G3244ME.

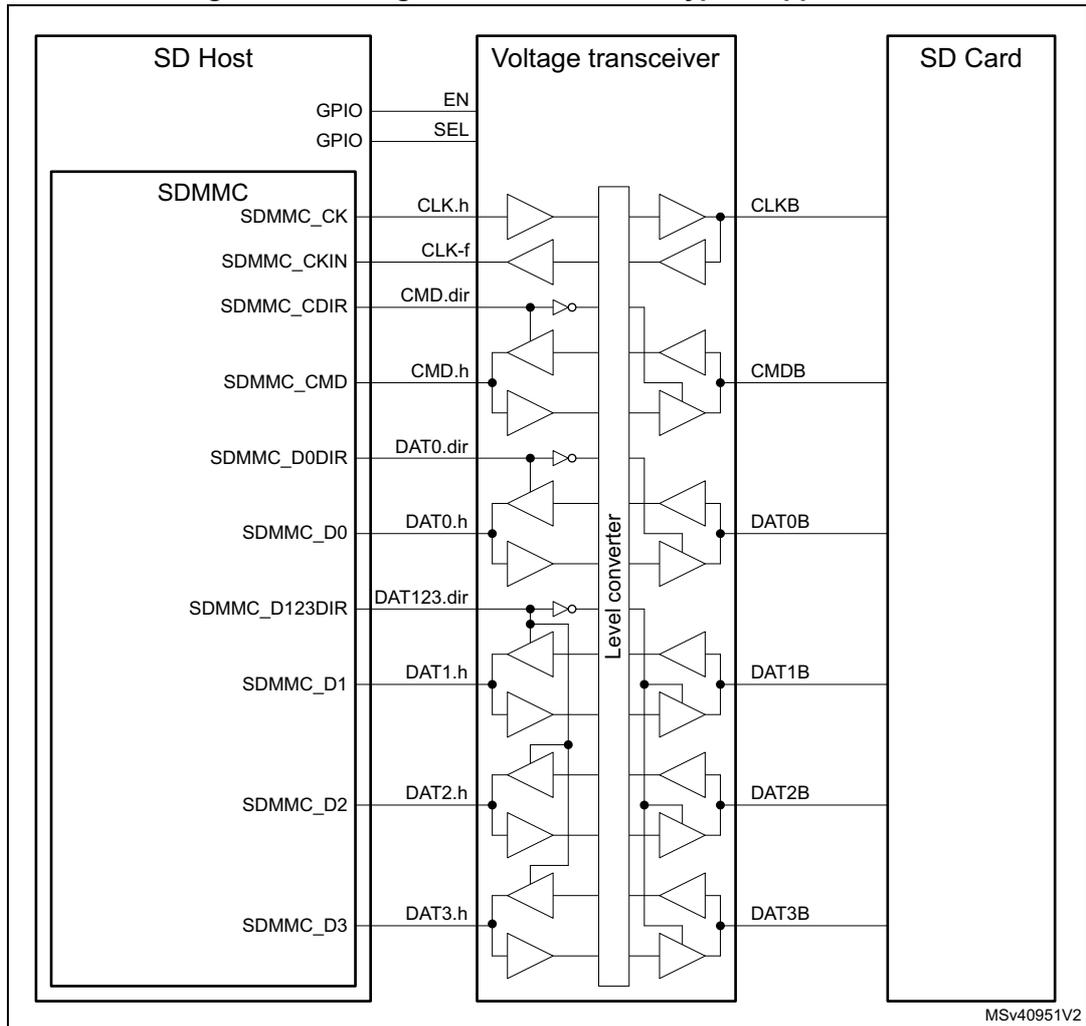

Figure 259. Voltage switch transceiver typical application

To interface with an external driver (a voltage switch transceiver), next to the standard signals the SDMMC uses the following signals:

• • SDMMC_CKIN feedback input clock
• • SDMMC_CDIR I/O direction control for the CMD signal
• • SDMMC_D0DIR I/O direction control for the SDMMC_D0 signal
• • SDMMC_D123DIR I/O direction control for the SDMMC_D1, SDMMC_D2 and SDMMC_D3 signals

The voltage transceiver signals EN and SEL are to be handled through general-purpose I/O.

The polarity of the SDMMC_CDIR, SDMMC_D0DIR and SDMMC_D123DIR signals can be selected through SDMMC_POWER.DIRPOL control bit.

30.9 SDMMC interrupts

Table 231. SDMMC interrupts

30.10 SDMMC registers

The device communicates to the system via 32-bit control registers accessible via AHB slave interface.

The peripheral registers have to be accessed by words (32-bit). Byte (8-bit) and half-word (16-bit) accesses trigger an AHB bus error.

30.10.1 SDMMC power control register (SDMMC_POWER)

Address offset: 0x000

Reset value: 0x0000 0000

Bits 31:5 Reserved, must be kept at reset value.

Bit 4 DIRPOL : Data and command direction signals polarity selection

This bit can only be written when the SDMMC is in the power-off state (PWRCTRL = 00).

0: Voltage transceiver I/Os driven as output when direction signal is low.

1: Voltage transceiver I/Os driven as output when direction signal is high.

Bit 3 VSWITCHEN : Voltage switch procedure enable

This bit can only be written by firmware when CPSM is disabled (CPSMEN = 0).

This bit is used to stop the SDMMC_CK after the voltage switch command response:

0: SDMMC_CK clock kept unchanged after successfully received command response.

1: SDMMC_CK clock stopped after successfully received command response.

Bit 2 VSWITCH : Voltage switch sequence start

This bit is used to start the timing critical section of the voltage switch sequence:

0: Voltage switch sequence not started and not active.

1: Voltage switch sequence started or active.

Bits 1:0 PWRCTRL[1:0] : SDMMC state control bits

These bits can only be written when the SDMMC is not in the power-on state (PWRCTRL ≠ 11).

These bits are used to define the functional state of the SDMMC signals:

00: After reset, Reset: the SDMMC is disabled and the clock to the Card is stopped, SDMMC_D[7:0], and SDMMC_CMD are HiZ and SDMMC_CK is driven low.

When written 00, power-off: the SDMMC is disabled and the clock to the card is stopped, SDMMC_D[7:0], SDMMC_CMD and SDMMC_CK are driven high.

01: Reserved (When written 01, PWRCTRL value does not change)

10: Power-cycle, the SDMMC is disabled and the clock to the card is stopped, SDMMC_D[7:0], SDMMC_CMD and SDMMC_CK are driven low.

11: Power-on: the card is clocked, The first 74 SDMMC_CK cycles the SDMMC is still disabled. After the 74 cycles the SDMMC is enabled and the SDMMC_D[7:0], SDMMC_CMD and SDMMC_CK are controlled according the SDMMC operation.

Any further write is ignored, PWRCTRL value keeps 11.

30.10.2 SDMMC clock control register (SDMMC_CLKCR)

Address offset: 0x004

Reset value: 0x0000 0000

This register controls the SDMMC_CK output clock, the sdmmc_rx_ck receive clock, and the bus width.

Bits 31:22 Reserved, must be kept at reset value.

Bits 21:20 SELCLKRX[1:0] : Receive clock selection

These bits can only be written when the CPSM and DPSM are not active (CPSMACT = 0 and DPSMACT = 0)

00: sdmmc_io_in_ck selected as receive clock

01: SDMMC_CKIN feedback clock selected as receive clock

10: sdmmc_fb_ck tuned feedback clock selected as receive clock

11: Reserved (select sdmmc_io_in_ck)

Bit 19 BUSSPEED : Bus speed for selection of SDMMC operating modes

This bit can only be written when the CPSM and DPSM are not active (CPSMACT = 0 and DPSMACT = 0)

0: DS, HS, SDR12, SDR25, Legacy compatible, High speed SDR, High speed DDR bus speed mode selected

1: SDR50, DDR50, SDR104, HS200 bus speed mode selected

Bit 18 DDR : Data rate signaling selection

This bit can only be written when the CPSM and DPSM are not active (CPSMACT = 0 and DPSMACT = 0)

DDR rate must only be selected with 4-bit or 8-bit wide bus mode. (WIDBUS > 00). DDR = 1 has no effect when WIDBUS = 00 (1-bit wide bus).

DDR rate must only be selected with clock division > 1 (CLKDIV > 0).

0: SDR Single data rate signaling

1: DDR double data rate signaling

Bit 17 HWFC_EN : Hardware flow control enable

This bit can only be written when the CPSM and DPSM are not active (CPSMACT = 0 and DPSMACT = 0)

0: Hardware flow control is disabled

1: Hardware flow control is enabled

When Hardware flow control is enabled, the meaning of the TXFIFOE and RXFIFOE flags change, see SDMMC status register definition in Section 30.10.11 .

Bit 16 NEGEDGE : SDMMC_CK dephasing selection bit for data and command

This bit can only be written when the CPSM and DPSM are not active (CPSMACT = 0 and DPSMACT = 0).

When clock division = 1 (CLKDIV = 0), this bit has no effect. Data and Command change on SDMMC_CK falling edge.

0: When clock division >1 (CLKDIV > 0) and DDR = 0:

• – Command and data changed on the sdmmc_ker_ck falling edge succeeding the rising edge of SDMMC_CK.
• – SDMMC_CK edge occurs on sdmmc_ker_ck rising edge.

When clock division >1 (CLKDIV > 0) and DDR = 1:

• – Command changed on the sdmmc_ker_ck falling edge succeeding the rising edge of SDMMC_CK.
• – Data changed on the sdmmc_ker_ck falling edge succeeding a SDMMC_CK edge.
• – SDMMC_CK edge occurs on sdmmc_ker_ck rising edge.

1: When clock division >1 (CLKDIV > 0) and DDR = 0:

• – Command and data changed on the same sdmmc_ker_ck rising edge generating the SDMMC_CK falling edge.

When clock division >1 (CLKDIV > 0) and DDR = 1:

• – Command changed on the same sdmmc_ker_ck rising edge generating the SDMMC_CK falling edge.
• – Data changed on the SDMMC_CK falling edge succeeding a SDMMC_CK edge.
• – SDMMC_CK edge occurs on sdmmc_ker_ck rising edge.

Bits 15:14 WIDBUS[1:0] : Wide bus mode enable bit

This bit can only be written when the CPSM and DPSM are not active (CPSMACT = 0 and DPSMACT = 0)

00: Default 1-bit wide bus mode: SDMMC_D0 used (Does not support DDR)

01: 4-bit wide bus mode: SDMMC_D[3:0] used

10: 8-bit wide bus mode: SDMMC_D[7:0] used

Bit 13 Reserved, must be kept at reset value.

Bit 12 PWRSAV : Power saving configuration bit

This bit can only be written when the CPSM and DPSM are not active (CPSMACT = 0 and DPSMACT = 0)

For power saving, the SDMMC_CK clock output can be disabled when the bus is idle by setting PWRSV:

0: SDMMC_CK clock is always enabled

1: SDMMC_CK is only enabled when the bus is active

Bits 11:10 Reserved, must be kept at reset value.

Bits 9:0 CLKDIV[9:0] : Clock divide factor

This bit can only be written when the CPSM and DPSM are not active (CPSMACT = 0 and DPSMACT = 0).

This field defines the divide factor between the input clock (sdmmc_ker_ck) and the output clock (SDMMC_CK): \( SDMMC\_CK\ frequency = sdmmc\_ker\_ck / [2 * CLKDIV] \) .

0x000: SDMMC_CK frequency = sdmmc_ker_ck / 1 (Does not support DDR)

0x001: SDMMC_CK frequency = sdmmc_ker_ck / 2

0x002: SDMMC_CK frequency = sdmmc_ker_ck / 4

0x0XX: ..

0x080: SDMMC_CK frequency = sdmmc_ker_ck / 256

0xXXX: ..

0x3FF: SDMMC_CK frequency = sdmmc_ker_ck / 2046

Note: While the SD/SDIO card or e•MMC is in identification mode, the SDMMC_CK frequency must be less than 400 kHz.

The clock frequency can be changed to the maximum card bus frequency when relative card addresses are assigned to all cards.

At least seven sdmmc_hclk clock periods are needed between two write accesses to this register. SDMMC_CK can also be stopped during the Read Wait interval for SD I/O cards: in this case the SDMMC_CLKCR register does not control SDMMC_CK.

30.10.3 SDMMC argument register (SDMMC_ARGR)

Address offset: 0x008

Reset value: 0x0000 0000

This register contains a 32-bit command argument, which is sent to a card as part of a command message.

Bits 31:0 CMDARG[31:0] : Command argument

These bits can only be written by firmware when CPSM is disabled (CPSMEN = 0).

Command argument sent to a card as part of a command message. If a command contains an argument, it must be loaded into this register before writing a command to the command register.

30.10.4 SDMMC command register (SDMMC_CMDR)

Address offset: 0x00C

Reset value: 0x0000 0000

This register contains the command index and command type bits. The command index is sent to a card as part of a command message. The command type bits control the command path state machine (CPSM).

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 CMDSUSPEND : The CPSM treats the command as a Suspend or Resume command and signals interrupt period start/end

This bit can only be written by firmware when CPSM is disabled (CPSMEN = 0).

CMDSUSPEND = 1 and CMDTRANS = 0 Suspend command, start interrupt period when response bit BS = 0.

CMDSUSPEND = 1 and CMDTRANS = 1 Resume command with data, end interrupt period when response bit DF = 1.

Bit 15 BOOTEN : Enable boot mode procedure

0: Boot mode procedure disabled

1: Boot mode procedure enabled

Bit 14 BOOTMODE : Select the boot mode procedure to be used

This bit can only be written by firmware when CPSM is disabled (CPSMEN = 0)

0: Normal boot mode procedure selected

1: Alternative boot mode procedure selected

Bit 13 DTHOLD : Hold new data block transmission and reception in the DPSM

If this bit is set, the DPSM does not move from the Wait_S state to the Send state or from the Wait_R state to the Receive state.

Bit 12 CPSMEN : Command path state machine (CPSM) enable bit

This bit is written 1 by firmware, and cleared by hardware when the CPSM enters the Idle state.

If this bit is set, the CPSM is enabled.

When DTEN = 1, no command is transferred nor boot procedure is started. CPSMEN is cleared to 0.

During Read Wait with SDMMC_CK stopped no command is sent and CPSMEN is kept 0.

Bit 11 WAITPEND : CPSM waits for end of data transfer (CmdPend internal signal) from DPSM

This bit when set, the CPSM waits for the end of data transfer trigger before it starts sending a command.

WAITPEND is only taken into account when DTMODE = e•MMC stream data transfer, WIDBUS = 1-bit wide bus mode, DPSMACT = 1 and DTDIR = from host to card.

Bit 10 WAITINT : CPSM waits for interrupt request

If this bit is set, the CPSM disables command timeout and waits for an card interrupt request (Response).

If this bit is cleared in the CPSM Wait state, it causes the abort of the interrupt mode.

Bits 9:8 WAITRESP[1:0] : Wait for response bits

This bit can only be written by firmware when CPSM is disabled (CPSMEN = 0).

They are used to configure whether the CPSM is to wait for a response, and if yes, which kind of response.

00: No response, expect CMDSENT flag

01: Short response, expect CMDREND or CCRCFAIL flag

10: Short response, expect CMDREND flag (No CRC)

11: Long response, expect CMDREND or CCRCFAIL flag

Bit 7 CMDSTOP : The CPSM treats the command as a Stop Transmission command and signals abort to the DPSM

This bit can only be written by firmware when CPSM is disabled (CPSMEN = 0).

If this bit is set, the CPSM issues the abort signal to the DPSM when the command is sent.

Bit 6 CMDTRANS : The CPSM treats the command as a data transfer command, stops the interrupt period, and signals DataEnable to the DPSM

This bit can only be written by firmware when CPSM is disabled (CPSMEN = 0).

If this bit is set, the CPSM issues an end of interrupt period and issues DataEnable signal to the DPSM when the command is sent.

Bits 5:0 CMDINDEX[5:0] : Command index

This bit can only be written by firmware when CPSM is disabled (CPSMEN = 0).

The command index is sent to the card as part of a command message.

1. Note:
2. 1. 1 At least seven sdmmc_hclk clock periods are needed between two write accesses to this register.
   2. 2 MultiMediaCard can send two kinds of response: short responses, 48 bits, or long responses, 136 bits. SD card and SD I/O card can send only short responses, the argument can vary according to the type of response: the software distinguishes the type of response according to the send command.

30.10.5 SDMMC command response register (SDMMC_RESPCMDR)

Address offset: 0x010

Reset value: 0x0000 0000

This register contains the command index field of the last command response received. If the command response transmission does not contain the command index field (long or OCR response), the RESPCMD field is unknown, although it must contain 111111b (the value of the reserved field from the response).

Bits 31:6 Reserved, must be kept at reset value.

Bits 5:0 RESPCMD[5:0] : Response command index

Read-only bitfield. Contains the command index of the last command response received.

30.10.6 SDMMC response x register (SDMMC_RESPxR)

Address offset: 0x010 + 0x004 * x, (x = 1 to 4)

Reset value: 0x0000 0000

These registers contain the status of a card, which is part of the received response.

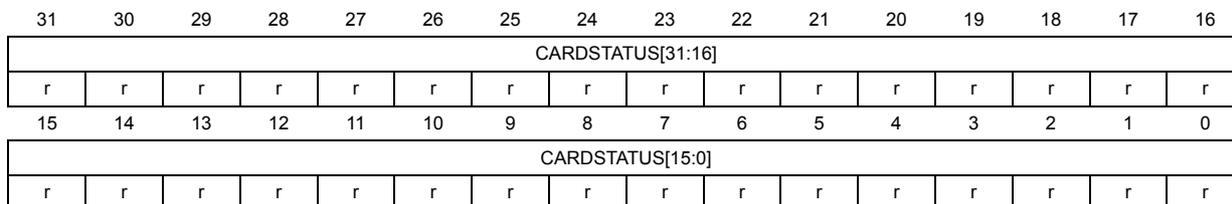

Bits 31:0 CARDSTATUS[31:0] : Card status according table below

See Table 232 .

The card status size is 32 or 128 bits, depending on the response type.

Table 232. Response type and SDMMC_RESPxR registers

1. The most significant bit of the card status is received first.

2. The SDMMC_RESP4R register LSB is always 0.

30.10.7 SDMMC data timer register (SDMMC_DTIMER)

Address offset: 0x024

Reset value: 0x0000 0000

This register contains the data timeout period, in card bus clock periods.

A counter loads the value from this register, and starts decrementing when the data path state machine (DPSM) enters the Wait_R or Busy state. If the timer reaches 0 while the DPSM is in either of these states, the timeout status flag is set.

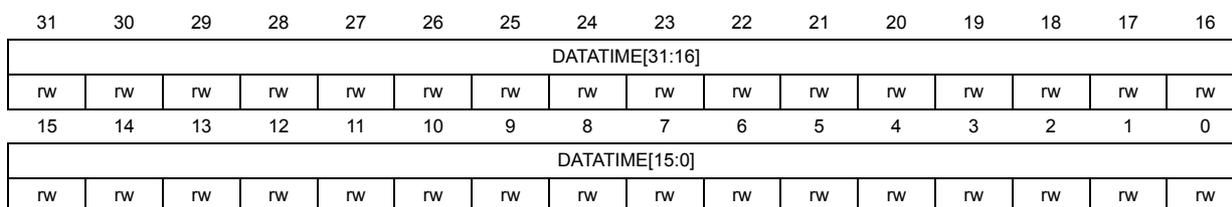

Bits 31:0 DATATIME[31:0] : Data and R1b busy timeout period

This bit can only be written when the CPSM and DPSM are not active (CPSMACT = 0 and DPSMACT = 0).

Data and R1b busy timeout period expressed in card bus clock periods.

Note: A data transfer must be written to the data timer register and the data length register before being written to the data control register.

30.10.8 SDMMC data length register (SDMMC_DLENR)

Address offset: 0x028

Reset value: 0x0000 0000

This register contains the number of data bytes to be transferred. The value is loaded into the data counter when data transfer starts.

Bits 31:25 Reserved, must be kept at reset value.

Bits 24:0 DATALENGTH[24:0] : Data length value

This register can only be written by firmware when DPSM is inactive (DPSMACT = 0).

Number of data bytes to be transferred.

When DDR = 1 DATALENGTH is truncated to a multiple of 2. (The last odd byte is not transferred)

When DATALENGTH = 0 no data are transferred, when requested by a CPSMEN and CMDTRANS = 1 also no command is transferred. DTEN and CPSMEN are cleared to 0.

Note: For a block data transfer, the value in the data length register must be a multiple of the block size (see SDMMC_DCTRL). A data transfer must be written to the data timer register and the data length register before being written to the data control register.

For an SDMMC multibyte transfer the value in the data length register must be between 1 and 512.

30.10.9 SDMMC data control register (SDMMC_DCTRL)

Address offset: 0x02C

Reset value: 0x0000 0000

This register controls the data path state machine (DPSM).

Bits 31:14 Reserved, must be kept at reset value.

Bit 13 FIFORST : FIFO reset, flushes any remaining data

This bit can only be written by firmware when IDMAEN= 0 and DPSM is active (DPSMACT = 1). This bit only takes effect when a transfer error or transfer hold occurs.

0: FIFO not affected.

1: Flush any remaining data and reset the FIFO pointers. This bit is automatically cleared to 0 by hardware when DPSM gets inactive (DPSMACT = 0).

Bit 12 BOOTACKEN : Enable the reception of the boot acknowledgment

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

0: Boot acknowledgment disabled, not expected to be received

1: Boot acknowledgment enabled, expected to be received

Bit 11 SDIOEN : SD I/O interrupt enable functions

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

If this bit is set, the DPSM enables the SD I/O card specific interrupt operation.

Bit 10 RWMOD : Read Wait mode

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

0: Read Wait control using SDMMC_D2

1: Read Wait control stopping SDMMC_CK

Bit 9 RWSTOP : Read Wait stop

This bit is written by firmware and auto cleared by hardware when the DPSM moves from the R_W state to the Wait_R or Idle state.

0: No Read Wait stop

1: Enable for Read Wait stop when DPSM is in the R_W state.

Bit 8 RWSTART : Read Wait start

If this bit is set, Read Wait operation starts.

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

Define the data block length when the block data transfer mode is selected:

0000: Block length = \( 2^0 \) = 1 byte

0001: Block length = \( 2^1 \) = 2 bytes

0010: Block length = \( 2^2 \) = 4 bytes

0011: Block length = \( 2^3 \) = 8 bytes

0100: Block length = \( 2^4 \) = 16 bytes

0101: Block length = \( 2^5 \) = 32 bytes

0110: Block length = \( 2^6 \) = 64 bytes

0111: Block length = \( 2^7 \) = 128 bytes

1000: Block length = \( 2^8 \) = 256 bytes

1001: Block length = \( 2^9 \) = 512 bytes

1010: Block length = \( 2^{10} \) = 1024 bytes

1011: Block length = \( 2^{11} \) = 2048 bytes

1100: Block length = \( 2^{12} \) = 4096 bytes

1101: Block length = \( 2^{13} \) = 8192 bytes

1110: Block length = \( 2^{14} \) = 16384 bytes

1111: Reserved

When DATALENGTH is not a multiple of DBLOCKSIZE, the transferred data is truncated at a multiple of DBLOCKSIZE. (None of the remaining data are transferred.)

When DDR = 1, DBLOCKSIZE = 0000 must not be used. (No data are transferred)

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

00: Block data transfer ending on block count.

01: SDIO multibyte data transfer.

10: e•MMC Stream data transfer. (WIDBUS must select 1-bit wide bus mode)

11: Block data transfer ending with STOP_TRANSMISSION command (not to be used with DTEN initiated data transfers).

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

0: From host to card.

1: From card to host.

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0). This bit is cleared by hardware when data transfer completes.

This bit must only be used to transfer data when no associated data transfer command is used (must not be used with SD or e•MMC cards).

0: Do not start data transfer without CPSM data transfer command.

1: Start data transfer without CPSM data transfer command.

30.10.10 SDMMC data counter register (SDMMC_DCNTR)

Address offset: 0x030

Reset value: 0x0000 0000

This register loads the value from the data length register (see SDMMC_DLENR) when the DPSM moves from the Idle state to the Wait_R or Wait_S state. As data is transferred, the counter decrements the value until it reaches 0. The DPSM then moves to the Idle state and

when there has been no error, and no transmit data transfer hold, the data status end flag (DATAEND) is set.

Bits 31:25 Reserved, must be kept at reset value.

Bits 24:0 DATACOUNT[24:0] : Data count value

When read, the number of remaining data bytes to be transferred is returned. Write has no effect.

Note: This register must be read only after the data transfer is complete, or hold. When reading after an error event the read data count value may be different from the real number of data bytes transferred.

30.10.11 SDMMC status register (SDMMC_STAR)

Address offset: 0x034

Reset value: 0x0000 0000

This register is a read-only register. It contains two types of flag:

• Static flags (bits [28, 21, 11:0]): these bits remain asserted until they are cleared by writing to the SDMMC interrupt Clear register (see SDMMC_ICR)
• Dynamic flags (bits [20:12]): these bits change state depending on the state of the underlying logic (for example, FIFO full and empty flags are asserted and deasserted as data while written to the FIFO)

Bits 31:29 Reserved, must be kept at reset value.

Bit 28 IDMABTC : IDMA buffer transfer complete

The interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 27 IDMATE : IDMA transfer error

The interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 26 CKSTOP : SDMMC_CK stopped in Voltage switch procedure

The interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 25 VSWEND : Voltage switch critical timing section completion

The interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 24 ACKTIMEOUT : Boot acknowledgment timeout

The interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 23 ACKFAIL : Boot acknowledgment received (boot acknowledgment check fail)

The interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 22 SDIOIT : SDIO interrupt received

The interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 21 BUSYD0END : end of SDMMC_D0 Busy following a CMD response detected

This indicates only end of busy following a CMD response. This bit does not signal busy due to data transfer. Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

0: card SDMMC_D0 signal does NOT signal change from busy to not busy.

1: card SDMMC_D0 signal changed from busy to NOT busy.

Bit 20 BUSYD0 : Inverted value of SDMMC_D0 line (Busy), sampled at the end of a CMD response and a second time 2 SDMMC_CK cycles after the CMD response

This bit is reset to not busy when the SDMMC_D0 line changes from busy to not busy. This bit does not signal busy due to data transfer. This is a hardware status flag only, it does not generate an interrupt.

0: card signals not busy on SDMMC_D0.

1: card signals busy on SDMMC_D0.

Bit 19 RXFIFOE : Receive FIFO empty

This is a hardware status flag only, does not generate an interrupt. This bit is cleared when one FIFO location becomes full.

Bit 18 TXFIFOE : Transmit FIFO empty

This bit is cleared when one FIFO location becomes full.

Bit 17 RXFIFOF : Receive FIFO full

This bit is cleared when one FIFO location becomes empty.

Bit 16 TXFIFOF : Transmit FIFO full

This is a hardware status flag only, does not generate an interrupt. This bit is cleared when one FIFO location becomes empty.

Bit 15 RXFIFOHF : Receive FIFO half full

There are at least half the number of words in the FIFO. This bit is cleared when the FIFO becomes half+1 empty.

Bit 14 TXFIFOHE : Transmit FIFO half empty

At least half the number of words can be written into the FIFO. This bit is cleared when the FIFO becomes half+1 full.

Bit 13 CPSMACT : Command path state machine active (not in Idle state)

This is a hardware status flag only, does not generate an interrupt.

Bit 12 DPSMACT : Data path state machine active (not in Idle state)

This is a hardware status flag only, does not generate an interrupt.

Bit 11 DABORT : Data transfer aborted by CMD12

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 10 DBCKEND : Data block sent/received

DBCKEND is set when:

- CRC check passed and DPSM moves to the R_W state

or

- IDMAEN = 0 and transmit data transfer hold and DATACOUNT >0 and DPSM moves to Wait_S.

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 9 DHOLD : Data transfer Hold

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 8 DATAEND : Data transfer ended correctly

DATAEND is set if data counter DATACOUNT is zero and no errors occur, and no transmit data transfer hold.

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 7 CMDSENT : Command sent (no response required)

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 6 CMDREND : Command response received (CRC check passed, or no CRC)

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 5 RXOVERR : Received FIFO overrun error (masked by hardware when IDMA is enabled)

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 4 TXUNDERR : Transmit FIFO underrun error (masked by hardware when IDMA is enabled)

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 3 DTIMEOUT : Data timeout

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 2 CTIMEOUT : Command response timeout

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

The Command Timeout period has a fixed value of 64 SDMMC_CK clock periods.

Bit 1 DCRCFAIL : Data block sent/received (CRC check failed)

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Bit 0 CCRCFAIL : Command response received (CRC check failed)

Interrupt flag is cleared by writing corresponding interrupt clear bit in SDMMC_ICR.

Note: FIFO interrupt flags must be masked in SDMMC_MASKR when using IDMA mode.

30.10.12 SDMMC interrupt clear register (SDMMC_ICR)

Address offset: 0x038

Reset value: 0x0000 0000

This register is a write-only register. Writing a bit with 1 clears the corresponding bit in the SDMMC_STAR status register.

Bits 31:29 Reserved, must be kept at reset value.

Bit 28 IDMABTCC : IDMA buffer transfer complete clear bit

Set by software to clear the IDMABTC flag.

0: IDMABTC not cleared

1: IDMABTC cleared

Bit 27 IDMATEC : IDMA transfer error clear bit

Set by software to clear the IDIMATE flag.

0: IDIMATE not cleared

1: IDIMATE cleared

Bit 26 CKSTOPC : CKSTOP flag clear bit

Set by software to clear the CKSTOP flag.

0: CKSTOP not cleared

1: CKSTOP cleared

Bit 25 VSWENDC : VSWEND flag clear bit

Set by software to clear the VSWEND flag.

0: VSWEND not cleared

1: VSWEND cleared

Bit 24 ACKTIMEOUTC : ACKTIMEOUT flag clear bit

Set by software to clear the ACKTIMEOUT flag.

0: ACKTIMEOUT not cleared

1: ACKTIMEOUT cleared

Bit 23 ACKFAILC : ACKFAIL flag clear bit

Set by software to clear the ACKFAIL flag.

0: ACKFAIL not cleared

1: ACKFAIL cleared

Bit 22 SDIOITC : SDIOIT flag clear bit

Set by software to clear the SDIOIT flag.

0: SDIOIT not cleared

1: SDIOIT cleared

Bit 21 BUSYD0ENDC : BUSYD0END flag clear bit
Set by software to clear the BUSYD0END flag.
0: BUSYD0END not cleared
1: BUSYD0END cleared

Bits 20:12 Reserved, must be kept at reset value.

Bit 11 DABORTC : DABORT flag clear bit
Set by software to clear the DABORT flag.
0: DABORT not cleared
1: DABORT cleared

Bit 10 DBCKENDC : DBCKEND flag clear bit
Set by software to clear the DBCKEND flag.
0: DBCKEND not cleared
1: DBCKEND cleared

Bit 9 DHOLDC : DHOLD flag clear bit
Set by software to clear the DHOLD flag.
0: DHOLD not cleared
1: DHOLD cleared

Bit 8 DATAENDC : DATAEND flag clear bit
Set by software to clear the DATAEND flag.
0: DATAEND not cleared
1: DATAEND cleared

Bit 7 CMDSENTC : CMDSENT flag clear bit
Set by software to clear the CMDSENT flag.
0: CMDSENT not cleared
1: CMDSENT cleared

Bit 6 CMDRENDC : CMDREND flag clear bit
Set by software to clear the CMDREND flag.
0: CMDREND not cleared
1: CMDREND cleared

Bit 5 RXOVERRC : RXOVERR flag clear bit
Set by software to clear the RXOVERR flag.
0: RXOVERR not cleared
1: RXOVERR cleared

Bit 4 TXUNDERRC : TXUNDERR flag clear bit
Set by software to clear TXUNDERR flag.
0: TXUNDERR not cleared
1: TXUNDERR cleared

Bit 3 DTIMEOUTC : DTIMEOUT flag clear bit
Set by software to clear the DTIMEOUT flag.
0: DTIMEOUT not cleared
1: DTIMEOUT cleared

Bit 2 CTIMEOUTC : CTIMEOUT flag clear bit

Set by software to clear the CTIMEOUT flag.

0: CTIMEOUT not cleared

1: CTIMEOUT cleared

Bit 1 DCRCFAILC : DCRCFAIL flag clear bit

Set by software to clear the DCRCFAIL flag.

0: DCRCFAIL not cleared

1: DCRCFAIL cleared

Bit 0 CCRCFAILC : CCRCFAIL flag clear bit

Set by software to clear the CCRCFAIL flag.

0: CCRCFAIL not cleared

1: CCRCFAIL cleared

30.10.13 SDMMC mask register (SDMMC_MASKR)

Address offset: 0x03C

Reset value: 0x0000 0000

This register determines which status flags generate an interrupt request by setting the corresponding bit to 1.

Bits 31:29 Reserved, must be kept at reset value.

Bit 28 IDMABTCIE : IDMA buffer transfer complete interrupt enable

Set and cleared by software to enable/disable the interrupt generated when the IDMA has transferred all data belonging to a memory buffer.

0: IDMA buffer transfer complete interrupt disabled

1: IDMA buffer transfer complete interrupt enabled

Bit 27 Reserved, must be kept at reset value.

Bit 26 CKSTOPPIE : Voltage switch clock stopped interrupt enable

Set and cleared by software to enable/disable interrupt caused by voltage switch clock stopped.

0: Voltage switch clock stopped interrupt disabled

1: Voltage switch clock stopped interrupt enabled

Bit 25 VSWENDIE : Voltage switch critical timing section completion interrupt enable

Set and cleared by software to enable/disable the interrupt generated when voltage switch critical timing section completion.

0: Voltage switch critical timing section completion interrupt disabled

1: Voltage switch critical timing section completion interrupt enabled

1. Bit 24 ACKTIMEOUTIE : Acknowledgment timeout interrupt enable
   Set and cleared by software to enable/disable interrupt caused by acknowledgment timeout.
   0: Acknowledgment timeout interrupt disabled
   1: Acknowledgment timeout interrupt enabled
2. Bit 23 ACKFAILIE : Acknowledgment fail interrupt enable
   Set and cleared by software to enable/disable interrupt caused by acknowledgment fail.
   0: Acknowledgment fail interrupt disabled
   1: Acknowledgment fail interrupt enabled
3. Bit 22 SDIOITIE : SDIO mode interrupt received interrupt enable
   Set and cleared by software to enable/disable the interrupt generated when receiving the SDIO mode interrupt.
   0: SDIO mode interrupt received interrupt disabled
   1: SDIO mode interrupt received interrupt enabled
4. Bit 21 BUSYD0ENDIE : BUSYD0END interrupt enable
   Set and cleared by software to enable/disable the interrupt generated when SDMMC_D0 signal changes from busy to NOT busy following a CMD response.
   0: BUSYD0END interrupt disabled
   1: BUSYD0END interrupt enabled
5. Bits 20:19 Reserved, must be kept at reset value.
6. Bit 18 TXFIFOEIE : Tx FIFO empty interrupt enable
   Set and cleared by software to enable/disable interrupt caused by Tx FIFO empty.
   0: Tx FIFO empty interrupt disabled
   1: Tx FIFO empty interrupt enabled
7. Bit 17 RXFIFOFIE : Rx FIFO full interrupt enable
   Set and cleared by software to enable/disable interrupt caused by Rx FIFO full.
   0: Rx FIFO full interrupt disabled
   1: Rx FIFO full interrupt enabled
8. Bit 16 Reserved, must be kept at reset value.
9. Bit 15 RXFIFOHIE : Rx FIFO half full interrupt enable
   Set and cleared by software to enable/disable interrupt caused by Rx FIFO half full.
   0: Rx FIFO half full interrupt disabled
   1: Rx FIFO half full interrupt enabled
10. Bit 14 TXFIFOHEIE : Tx FIFO half empty interrupt enable
    Set and cleared by software to enable/disable interrupt caused by Tx FIFO half empty.
    0: Tx FIFO half empty interrupt disabled
    1: Tx FIFO half empty interrupt enabled
11. Bits 13:12 Reserved, must be kept at reset value.
12. Bit 11 DABORTIE : Data transfer aborted interrupt enable
    Set and cleared by software to enable/disable interrupt caused by a data transfer being aborted.
    0: Data transfer abort interrupt disabled
    1: Data transfer abort interrupt enabled
13. Bit 10 DBCKENDIE : Data block end interrupt enable
    Set and cleared by software to enable/disable interrupt caused by data block end.
    0: Data block end interrupt disabled
    1: Data block end interrupt enabled

Bit 9 DHOLDIE : Data hold interrupt enable

Set and cleared by software to enable/disable the interrupt generated when sending new data is hold in the DPSM Wait_S state.

0: Data hold interrupt disabled

1: Data hold interrupt enabled

Bit 8 DATAENDIE : Data end interrupt enable

Set and cleared by software to enable/disable interrupt caused by data end.

0: Data end interrupt disabled

1: Data end interrupt enabled

Bit 7 CMDSENTIE : Command sent interrupt enable

Set and cleared by software to enable/disable interrupt caused by sending command.

0: Command sent interrupt disabled

1: Command sent interrupt enabled

Bit 6 CMDRENDIE : Command response received interrupt enable

Set and cleared by software to enable/disable interrupt caused by receiving command response.

0: Command response received interrupt disabled

1: command Response received interrupt enabled

Bit 5 RXOVERRIE : Rx FIFO overrun error interrupt enable

Set and cleared by software to enable/disable interrupt caused by Rx FIFO overrun error.

0: Rx FIFO overrun error interrupt disabled

1: Rx FIFO overrun error interrupt enabled

Bit 4 TXUNDERRIE : Tx FIFO underrun error interrupt enable

Set and cleared by software to enable/disable interrupt caused by Tx FIFO underrun error.

0: Tx FIFO underrun error interrupt disabled

1: Tx FIFO underrun error interrupt enabled

Bit 3 DTIMEOUTIE : Data timeout interrupt enable

Set and cleared by software to enable/disable interrupt caused by data timeout.

0: Data timeout interrupt disabled

1: Data timeout interrupt enabled

Bit 2 CTIMEOUTIE : Command timeout interrupt enable

Set and cleared by software to enable/disable interrupt caused by command timeout.

0: Command timeout interrupt disabled

1: Command timeout interrupt enabled

Bit 1 DCRCFAILIE : Data CRC fail interrupt enable

Set and cleared by software to enable/disable interrupt caused by data CRC failure.

0: Data CRC fail interrupt disabled

1: Data CRC fail interrupt enabled

Bit 0 CCRCFAILIE : Command CRC fail interrupt enable

Set and cleared by software to enable/disable interrupt caused by command CRC failure.

0: Command CRC fail interrupt disabled

1: Command CRC fail interrupt enabled

30.10.14 SDMMC acknowledgment timer register (SDMMC_ACKTIMER)

Address offset: 0x040

Reset value: 0x0000 0000

This register contains the acknowledgment timeout period, in SDMMC_CK bus clock periods.

A counter loads the value from this register, and starts decrementing when the data path state machine (DPSM) enters the Wait_Ack state. If the timer reaches 0 while the DPSM is in this state, the acknowledgment timeout status flag is set.

Bits 31:25 Reserved, must be kept at reset value.

Bits 24:0 ACKTIME[24:0] : Boot acknowledgment timeout period

This bit can only be written by firmware when CPSM is disabled (CPSMEN = 0).

Boot acknowledgment timeout period expressed in card bus clock periods.

Note: The data transfer must be written to the acknowledgment timer register before being written to the data control register.

30.10.15 SDMMC data FIFO threshold register (SDMMC_FIFOTHRR)

Address offset: 0x044

Reset value: 0x0000 0000

Bits 31:4 Reserved, must be kept at reset value.

Bits 3:0 THR[3:0] : FIFO threshold

This bit can only be written by software when DPSM is inactive (DPSMACT = 0).

Define the data FIFO threshold:

0b0000:threshold = 0 byte (no threshold)

Others: threshold = \( 2^{(N-1)} \) bytes, threshold must not be programmed bigger than the FIFO size, 256 words.

Note: When THR > DBLOCKSIZE, blocks may not be transferred.

30.10.16 SDMMC DMA control register (SDMMC_IDMACTLRLR)

Address offset: 0x050

Reset value: 0x0000 0000

The receive and transmit FIFOs can be read or written as 32-bit wide registers. The FIFOs contain 32 entries on 32 sequential addresses. This enables the CPU to use its load and store multiple operands to read from/write to the FIFO.

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 IDMABMODE : Buffer mode selection

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

0: Single buffer mode.

1: Linked list mode.

Bit 0 IDMAEN : IDMA enable

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

0: IDMA disabled

1: IDMA enabled

30.10.17 SDMMC IDMA buffer size register (SDMMC_IDMABSIZER)

Address offset: 0x054

Reset value: 0x0000 0000

This register contains the buffer size when in linked list configuration.

Bits 31:17 Reserved, must be kept at reset value.

Bits 16:6 IDMABNDT[10:0] : Number of bytes per buffer

This 11-bit value must be multiplied by 16 to get the size of the buffer in 32-bit words and by 64 to get the size of the buffer in bytes.
Example: IDMABNDT = 0x001: buffer size = 16 words = 64 bytes.
Example: IDMABNDT = 0x400: buffer size = 16384 words = 64 Kbytes.
These bits can only be written by firmware when DPSM is inactive (DPSMACT = 0).

Bits 5:0 Reserved, must be kept at reset value.

30.10.18 SDMMC IDMA buffer base address register (SDMMC_IDMABASER)

Address offset: 0x058

Reset value: 0x0000 0000

This register contains the memory buffer base address in single buffer configuration and linked list configuration.

Bits 31:0 IDMABASE[31:0] : Buffer memory base address bits [31:2], must be word aligned (bit [1:0] are always 0 and read only)

This register can be written by firmware when DPSM is inactive (DPSMACT = 0), and can dynamically be written by firmware when DPSM active (DPSMACT = 1).

30.10.19 SDMMC IDMA linked list address register (SDMMC_IDMALAR)

Address offset: 0x064

Reset value: 0x0000 0000

Bit 31 ULA : Update SDMMC_IDMALAR from linked list when in linked list mode (SDMMC_IDMACTLRLR.IDMABMODE select linked list mode)

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

0: SDMMC_IDMALAR is not to be updated, last linked list item.

1: SDMMC_IDMALAR is to be updated from linked list table.

Bit 30 ULS : Update SDMMC_IDMABSIZE from the next linked list when in linked list mode (SDMMC_IDMACTLRLR.IDMABMODE select linked list mode and ULA = 1)

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

0: SDMMC_IDMABSIZER is not to be updated from next linked list table.

1: SDMMC_IDMABSIZER is to be updated from next linked list table.

Bit 29 ABR : Acknowledge linked list buffer ready

This bit can only be written by firmware when DPSM is inactive (DPSMACT = 0).

This bit is not taken into account when starting the first linked list buffer from the software programmed register information. ABR is only taken into account on subsequent loaded linked list items.

0: Loaded linked list buffer is not ready (this causes a linked list IDMA transfer error to be generated).

1: Loaded linked list buffer ready acknowledge. Linked list buffer data are transferred by IDMA.

Bits 28:16 Reserved, must be kept at reset value.

Bits 15:2 IDMALA[13:0] : Word aligned linked list item address offset

Linked list item offset pointer to the base of the next linked list item structure.

Linked list item base address is IDMABA + IDMALA.

These bits can only be written by firmware when DPSM is inactive (DPSMACT = 0).

Bits 1:0 Reserved, must be kept at reset value.

30.10.20 SDMMC IDMA linked list memory base register (SDMMC_IDMABAR)

Address offset: 0x068

Reset value: 0x0000 0000

Bits 31:2 IDMABA[29:0] : Word aligned Linked list memory base address

Linked list memory base pointer.

These bits can only be written by firmware when DPSM is inactive (DPSMACT = 0).

Bits 1:0 Reserved, must be kept at reset value.

30.10.21 SDMMC data FIFO registers x (SDMMC_FIFORx)

Address offset: 0x080 + 0x004 * x, (x = 0 to 15)

Reset value: 0x0000 0000

The receive and transmit FIFOs can be only read or written as word (32-bit) wide registers. The FIFOs contain 16 entries on sequential addresses. This enables the CPU to use its load and store multiple operands to read from/write to the FIFO. The FIFO register interface takes care of correct data alignment inside the FIFO, the FIFO register address used by the CPU does matter.

When accessing SDMMC_FIFOR with half word or byte access an AHB bus fault is generated.

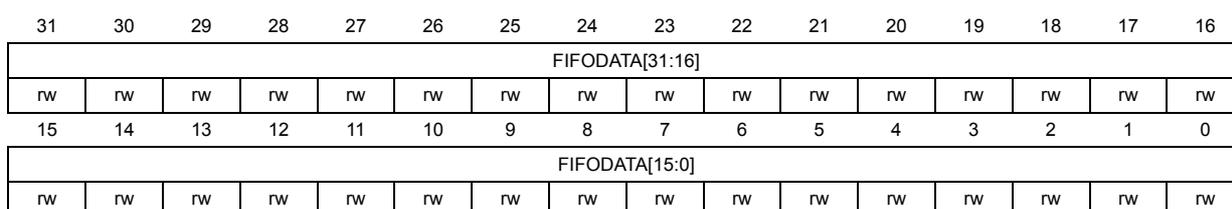

Bits 31:0 FIFODATA[31:0] : Receive and transmit FIFO data

This register can only be read or written by firmware when the DPSM is active (DPSMACT = 1).

The FIFO data occupies 16 entries of 32-bit words.

30.10.22 SDMMC register map

Table 233. SDMMC register map

Table 233. SDMMC register map (continued)

Refer to Section 2.3: Memory organization for the register boundary addresses.
