46. Real-time clock (RTC)

46.1 RTC introduction

The RTC provides an automatic wake-up to manage all low-power modes.

The real-time clock (RTC) is an independent BCD timer/counter. The RTC provides a time-of-day clock/calendar with programmable alarm interrupts.

As long as the supply voltage remains in the operating range, the RTC never stops, regardless of the device status (Run mode, low-power mode or under reset).

The RTC is functional in \( V_{BAT} \) mode.

46.2 RTC main features

The RTC supports the following features (see Figure 624: RTC block diagram ):

• • Calendar with subseconds, seconds, minutes, hours (12 or 24 format), week day, date, month, year, in BCD (binary-coded decimal) format.
• • Binary mode with 32-bit free-running counter.
• • Automatic correction for 28, 29 (leap year), 30, and 31 days of the month.
• • Two programmable alarms.
• • On-the-fly correction from 1 to 32767 RTC clock pulses. This can be used to synchronize it with a master clock.
• • Reference clock detection: a more precise second source clock (50 or 60 Hz) can be used to enhance the calendar precision.
• • Digital calibration circuit with 0.95 ppm resolution, to compensate for quartz crystal inaccuracy.
• • Timestamp feature which can be used to save the calendar content. This function can be triggered by an event on the timestamp pin, or by a tamper event, or by a switch to \( V_{BAT} \) mode.
• • 17-bit auto-reload wake-up timer (WUT) for periodic events with programmable resolution and period.
• • TrustZone support:
  • – RTC fully securable
  • – Alarm A, alarm B, wake-up Timer and timestamp individual secure or nonsecure configuration
• • Alarm A, alarm B, wake-up Timer and timestamp individual privilege protection

The RTC is supplied through a switch that takes power either from the \( V_{DD} \) supply when present or from the \( V_{BAT} \) pin.

The RTC is functional in \( V_{BAT} \) mode and in all low-power modes when it is clocked by the LSE.

All RTC events (Alarm, wake-up Timer, Timestamp) can generate an interrupt and wake-up the device from the low-power modes.

46.3 RTC functional description

46.3.1 RTC block diagram

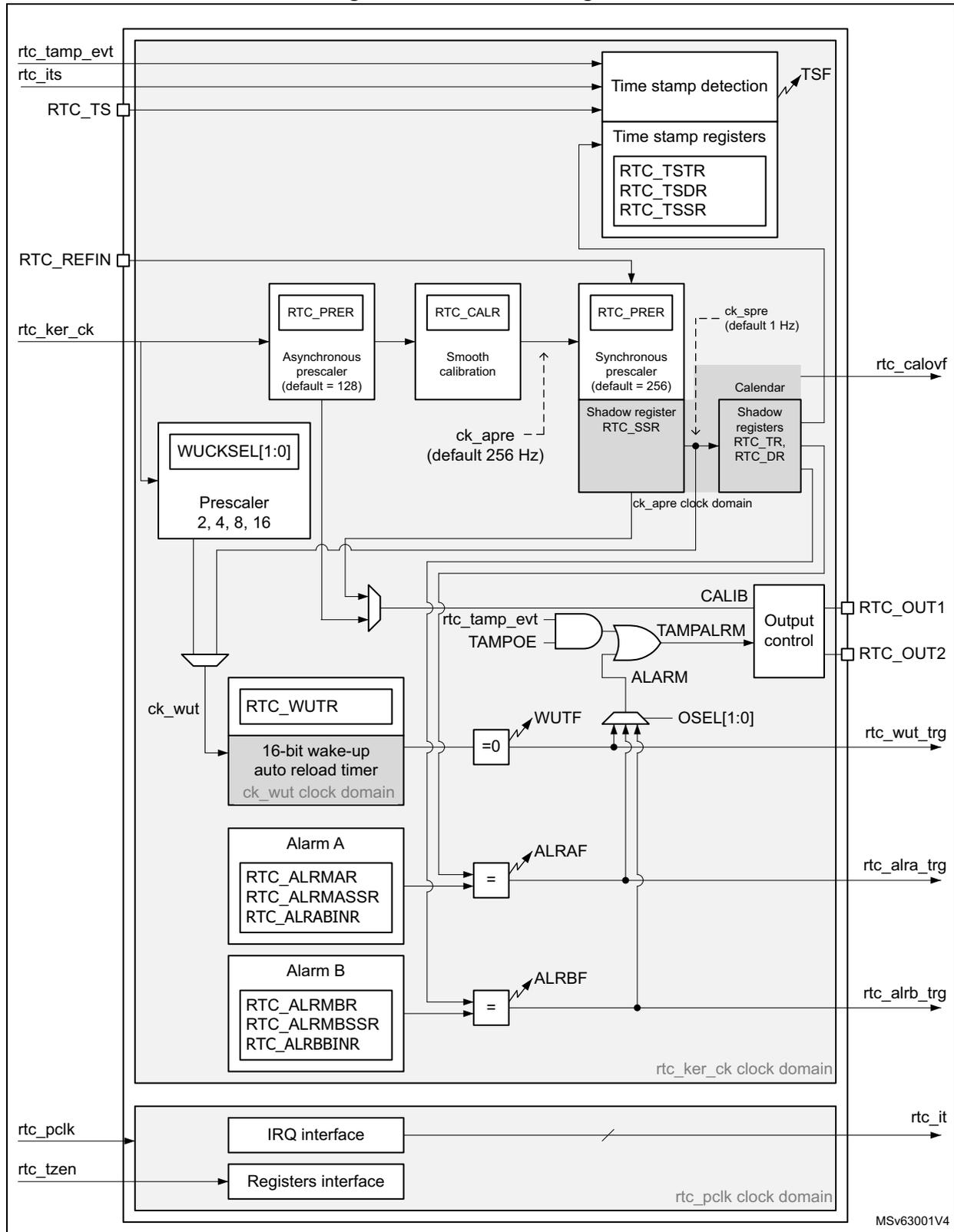

Figure 624. RTC block diagram

MSv63001V4

46.3.2 RTC pins and internal signals

Table 494. RTC input/output pins

RTC_OUT1 and RTC_OUT2 which select one of the following two outputs:

• • CALIB: 512 Hz or 1 Hz clock output (with an LSE frequency of 32.768 kHz). This output is enabled by setting the COE bit in the RTC_CR register.
• • TAMPALRM: This output is the OR between rtc_tamp_evt and ALARM signals.

ALARM is enabled by configuring the OSEL[1:0] bits in the RTC_CR register which select the alarm A, alarm B or wake-up outputs. rtc_tamp_evt is enabled by setting the TAMPOE bit in the RTC_CR register which selects the tamper event outputs.

Table 495. RTC internal input/output signals

The RTC kernel clock is usually the LSE at 32.768 kHz although it is possible to select other clock sources in the RCC (refer to RCC for more details). Some functions are not available in some low-power modes or V _BAT when the selected clock is not LSE. Refer to Section 46.4: RTC low-power modes for more details.

The TZEN option bit is used to activate TrustZone in the device.

TZEN = 1: TrustZone activated.

TZEN = 0: TrustZone disabled.

When TrustZone is disabled, the APB access to the RTC registers are nonsecure.

The triggers outputs can be used as triggers for other peripherals.

46.3.3 GPIOs controlled by the RTC and TAMP

The GPIOs included in the Battery Backup Domain (V _BAT ) are directly controlled by the peripherals providing functions on these I/Os, whatever the GPIO configuration.

RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2 and TAMP_OUT3 are mapped on the same pin (PC13). The RTC and TAMP functions mapped on PC13 are available in all low-power modes and in V _BAT mode.

The output mechanism follows the priority order shown in Table 497 .

Table 497. RTC pin PC13 configuration ⁽¹⁾ (continued)

1. OD: open drain; PP: push-pull.

2. In this configuration the GPIO must be configured in input.

RTC_OUT2, TAMP_IN2 and TAMP_OUT3 are mapped on the same pin (PI8). PI8 configuration is controlled by the RTC, whatever the PI8 GPIO configuration. The RTC or TAMP functions mapped on PI8 are available in all low-power modes and in VBAT mode.

The output mechanism follows the priority order shown in Table 498 .

Table 498. PI8 configuration

1. 1. RTC_OUT2 is mapped on PI8 when OUT2_RMP = 0.

In addition, it is possible to output RTC_OUT2 on PB2 or PI8 pin thanks to OUT2EN and OUT2_RMP bits. The different functions are mapped on RTC_OUT1 or on RTC_OUT2 depending on OSEL, COE and OUT2EN configuration, as shown in table Table 499 .

Table 499. RTC_OUT mapping

1. 1. RTC_OUT2 is mapped on PI8 when OUT2_RMP = 0, and on PB2 when OUT2_RMP = 1.

46.3.4 RTC secure protection modes

By default after a backup domain power-on reset, all RTC registers can be read or written in both secure and nonsecure modes, except for the RTC secure configuration register (RTC_SECCFGR) which can be written in secure mode only. The RTC protection configuration is not affected by a system reset.

When the SEC bit is set in the RTC_SECCFGR register:

• • Writing the RTC registers is possible only in secure mode.
• • Reading RTC_SECCFGR, RTC_PRIVCFGR, RTC_MISR, RTC_TR, RTC_DR, RTC_SSR, RTC_PRER and RTC_CALR is always possible in secure and nonsecure modes. All the other RTC registers can be read only in secure mode.

When the SEC bit is cleared, it is still possible to protect some of the registers by setting dedicated INITSEC, CALSEC, TSSEC, WUTSEC, ALRASEC or ALRBSEC control bits. If all

these bits are also clear, all the RTC registers can be read and written in secure and nonsecure mode.

• • When INITSEC is set:
  • – RTC_TR, RTC_DR, RTC_PRER registers, plus INIT, BIN and BCDU in RTC_ICSR, FMT control bits in RTC_CR and INITPRIV in the RTC_PRIVCFGR can be written only in secure mode.
  • – These registers and control bits can be read in secure and nonsecure mode.
• • When CALSEC is set:
  • – RTC_SHIFTR and RTC_CALR registers, plus ADD1H, SUB1H and REFCKON control bits in the RTC_CR and CALPRIV in the RTC_PRIVCFGR can be written only in secure mode.
  • – These registers and control bits can be read in secure and nonsecure mode.
• • When ALRASEC is set:
  • – RTC_ALRMAR, RTC_ALRMASSR and RTC_ALRBINR registers, plus ALRAE, ALRAFCLR, ALRAIE and SSRUIE in the RTC_CR, CALRAF and CSSRUF in the RTC_SCR, ALRAF and SSRUF in RTC_SR, and ALRAMF and SSRUMF in RTC_SMISR can be read and written only in secure mode.
  • – ALRAPRIV in the RTC_PRIVCFGR can be written only in secure mode
• • When ALRBSEC is set:
  • – RTC_ALRMBR, RTC_ALRMBSSR and RTC_ALRBBINR registers, plus ALRBE, ALRBFCLR, ALRBIE in the RTC_CR, CALRBF in the RTC_SCR, ALRBF in RTC_SR, and ALRBMF in RTC_SMISR can be read and written only in secure mode.
  • – ALRBPRIIV in the RTC_PRIVCFGR can be written only in secure mode.
• • When WUTSEC is set:
  • – RTC_WUTR register, plus WUTE, WUTIE and WUCKSEL control bits in the RTC_CR, CWUTF in the RTC_SCR, WUTF in RTC_SR, and WUTMF in RTC_SMISR can be read and written only in secure mode.
  • – WUTPRIV in the RTC_PRIVCFGR can be written only in secure mode
• • When TSSEC is set:
  • – RTC_TSTR, RTC_TSDR and RTC_TSSSR registers, plus TAMPTS, ITSE, TSE, TSIE, TSEDGE control bits in the RTC_CR, CITSF, CTSOVF and CTSF bits in the RTC_SCR, TSF, TSOVF and ITSF in RTC_SR, and TSMF, TSOVMF and ITSMF in RTC_SMISR can be read and written only in secure mode.
  • – TSPRIV in the RTC_PRIVCFGR can be written only in secure mode

A nonsecure access to a secure-protected register is denied:

• • There is no bus error generated.
• • In case the register has a global protection: a notification is generated through a flag/interrupt in the TZIC (TrustZone illegal access controller). In case only a few bits of the register are protected (for registers with mixed features such as RTC_CR...), no notification is generated.
• • When write protected, the bits are not written.
• • When read protected they are read as 0.

As soon as at least one function is configured to be secured, the RTC reset and clock control is also secured in the RCC.

46.3.5 RTC privilege protection modes

By default after a backup domain power-on reset, all RTC registers can be read or written in both privileged and non-privileged modes, except for the RTC privilege mode control register (RTC_PRIVCFGR) which can be written in privilege mode only. The RTC protection configuration is not affected by a system reset.

When the PRIV bit is set in the RTC_PRIVCFGR register:

• • Writing the RTC registers is possible only in privileged mode.
• • Reading the RTC_SECCFGR, RTC_PRIVCFGR, RTC_TR, RTC_DR, RTC_SSR, RTC_PRER and RTC_CALR is always possible in privilege and non-privilege modes. All the other RTC registers can be read only in privilege mode.

When the PRIV bit is cleared, it is still possible to protect some of the registers by setting dedicated INITPRIV, CALPRIV, TSPRIV, WUTPRIV, ALRAPRV or ALRBPRIV control bits. If all these bits are also cleared, all the RTC registers can be read or written in privilege and non-privilege modes.

• • When INITPRIV is set:
  • – RTC_TR, RTC_DR, RTC_PRER registers, plus INIT, BIN and BCDU in RTC_ICSR and FMT control bits in RTC_CR, plus INITSEC in the RTC_SECCFGR can be written only in privilege mode.
  • – These registers and control bits can be read in privilege and non-privilege mode.
• • When CALPRIV is set:
  • – RTC_SHIFTR and RTC_CALR registers, plus ADD1H, SUB1H and REFCKON control bits in the RTC_CR, plus CALDSEC in the RTC_SECCFGR can be written only in privilege mode.
  • – These registers and control bits can be read in privilege and non-privilege mode.
• • When ALRAPRV is set:
  • – RTC_ALRMAR, RTC_ALRMASSR and RTC_ALRABINR registers, plus ALRAE, ALRAFCLR, ALRAIE and SSRUIE in the RTC_CR, and CALRAF and CSSRUF in the RTC_SCR, ALRAF and SSRUF in RTC_SR, and ALRAMF and SSRUMF in RTC_MISR and RTC_SMISR can be read and written only in privilege mode.
  • – ALRASEC in the RTC_SECCFGR can be written only in privilege mode.
• • When ALRBPRIV is set:
  • – RTC_ALRMBR, RTC_ALRMBSSR and RTC_ALRBBINR registers, plus ALRBE, ALRBFCLE, ALRBIE in the RTC_CR, and CALRBF in the RTC_SCR, ALRBF in RTC_SR, and ALRBMF in RTC_MISR and RTC_SMISR can be read and written only in privilege mode.
  • – ALRBSEC in the RTC_SECCFGR can be written only in privilege mode.
• • When WUTPRIV is set:
  • – RTC_WUTR register, plus WUTE, WUTIE and WUCKSEL control bits in the RTC_CR, and CWUTF in the RTC_SCR, WUTF in RTC_SR, and WUTMF in RTC_MISR and RTC_SMISR can be read and written only in privilege mode.
  • – WUTSEC in the RTC_SECCFGR can be written only in privilege mode.
• • When TSPRIV is set:
  • – RTC_TSTR, RTC_TSDR and RTC_TSSSR registers, plus TAMPTS, ITSE, TSE, TSIE, TSEDGE control bits in the RTC_CR, CITSF, CTSOVF and CTSF bits in the

RTC_SCR, TSF, TSOVF and ITSF in RTC_SR, and TSMF, TSOVMF and ITSMF in RTC_MISR and RTC_SMISR can be read and written only in privilege mode.

• – TSSEC in the RTC_SECCFGR can be written only in privilege mode.

A non-privileged access to a privileged-protected register is denied:

• • There is no bus error generated.
• • When write protected, the bits are not written.
• • When read protected they are read as 0.

46.3.6 Clock and prescalers

The RTC clocks must respect this ratio: \( \text{frequency(PCLK)} \geq 2 \times \text{frequency(RTCCLK)} \) .

For more information on the RTC clock (RTCCLK) source configuration, refer to “Reset and clock control (RCC)”.

BCD mode (BIN=00)

A programmable prescaler stage generates a 1 Hz clock which is used to update the calendar. To minimize power consumption, the prescaler is split into 2 programmable prescalers (see Figure 624: RTC block diagram ):

• • A 7-bit asynchronous prescaler configured through the PREDIV_A bits of the RTC_PRER register.
• • A 15-bit synchronous prescaler configured through the PREDIV_S bits of the RTC_PRER register.

Note: When both prescalers are used, it is recommended to configure the asynchronous prescaler to a high value to minimize consumption.

The asynchronous prescaler division factor is set to 128, and the synchronous division factor to 256, to obtain an internal clock frequency of 1 Hz (ck_spre) with an LSE frequency of 32.768 kHz.

The minimum division factor is 1 and the maximum division factor is \( 2^{22} \) .

This corresponds to a maximum input frequency of around 4 MHz.

\( f_{\text{ck\_apre}} \) is given by the following formula:

The ck_apre clock is used to clock the binary RTC_SSR subsecond downcounter. When it reaches 0, RTC_SSR is reloaded with the content of PREDIV_S.

\( f_{\text{ck\_spre}} \) is given by the following formula:

The ck_spre clock can be used either to update the calendar or as timebase for the 16-bit wake-up auto-reload timer. To obtain short timeout periods, the 16-bit wake-up auto-reload timer can also run with the RTCCLK divided by the programmable 4-bit asynchronous prescaler (see Section 46.3.10: Periodic auto-wake-up for details).

Binary mode (BIN=01)

The SSR binary down-counter is extended to 32-bit length and is free running. The time and date calendar BCD registers are not functional.

This down-counter is clocked by ck_apre: the output of the 7-bit asynchronous prescaler configured through the PREDIV_A bits of the RTC_PRER register.

PREDIV_S value is don't care.

Mixed mode (BIN=10 or 11)

The SSR binary down-counter is extended to 32-bit length and is free running. The time and date calendar BCD registers are also available.

This down-counter is clocked by ck_apre: the output of the 7-bit asynchronous prescaler configured through the PREDIV_A bits of the RTC_PRER register. The bits BCDU[2:0] are used to define when the calendar is incremented by 1 second, using the SSR least significant bits.

46.3.7 Real-time clock and calendar

The RTC calendar time and date registers are accessed through shadow registers which are synchronized with PCLK (APB clock). They can also be accessed directly in order to avoid waiting for the synchronization duration.

• • RTC_SSR for the subseconds
• • RTC_TR for the time
• • RTC_DR for the date

Every RTCCLK periods, the current calendar value is copied into the shadow registers, and the RSF bit of RTC_ICSR register is set (see Section 46.6.12: RTC shift control register (RTC_SHIFTR) ). The copy is not performed in Stop and Standby mode. When exiting these modes, the shadow registers are updated after up to 4 RTCCLK periods.

When the application reads the calendar registers, it accesses the content of the shadow registers. It is possible to make a direct access to the calendar registers by setting the BYPSHAD control bit in the RTC_CR register. By default, this bit is cleared, and the user accesses the shadow registers.

When reading the RTC_SSR, RTC_TR or RTC_DR registers in BYPSHAD = 0 mode, the frequency of the APB clock ( \( f_{APB} \) ) must be at least 7 times the frequency of the RTC clock ( \( f_{RTCCLK} \) ).

The shadow registers are reset by system reset.

46.3.8 Calendar ultra-low power mode

It is possible to reduce drastically the RTC power consumption by setting the LPCAL bit in the RTC_CALR register. In this configuration, the whole RTC is clocked by ck_apre only instead of both RTCCLK and ck_apre. Consequently, some flags delays are longer, and the calibration window is longer (refer to Section : RTC ultra-low-power mode ).

The LPCAL bit is ignored (assumed to be 0) when asynchronous prescaler division factor (PREDIV_A+1) is not a power of 2.

Switching from LPCAL=0 to LPCAL=1 or from LPCAL=1 to LPCAL=0 is not immediate and requires a few ck_apre periods to complete.

46.3.9 Programmable alarms

The RTC unit provides programmable alarm: alarm A and alarm B. The description below is given for alarm A, but can be translated in the same way for alarm B.

The programmable alarm function is enabled through the ALRAE bit in the RTC_CR register.

The ALRAF is set to 1 if the calendar subseconds, seconds, minutes, hours, date or day match the values programmed in the alarm registers RTC_ALRMASSR and RTC_ALRMAR. Each calendar field can be independently selected through the MSKx bits of the RTC_ALRMAR register, and through the MASKSSx bits of the RTC_ALRMASSR register.

When the binary mode is used, the subsecond field can be programmed in the alarm binary register RTC_ALRABINR.

The alarm interrupt is enabled through the ALRAIE bit in the RTC_CR register.

In case the Alarm is used to generate a trigger event for another peripheral, the ALRAF can be automatically cleared by hardware by configuring the ALRAFCLR bit at 1 in the RTC_CR register. In this configuration there is no need for software intervention if the only purpose is clearing the ALRAF flag.

Caution: If the seconds field is selected (MSK1 bit reset in RTC_ALRMAR), the synchronous prescaler division factor set in the RTC_PRER register must be at least 3 to ensure correct behavior.

Alarm A and alarm B (if enabled by bits OSEL[1:0] in RTC_CR register) can be routed to the TAMPALRM output. TAMPALRM output polarity can be configured through bit POL the RTC_CR register.

46.3.10 Periodic auto-wake-up

The periodic wake-up flag is generated by a 16-bit programmable auto-reload down-counter. The wake-up timer range can be extended to 17 bits.

The wake-up function is enabled through the WUTE bit in the RTC_CR register.

The wake-up timer clock input ck_wut can be:

• • RTC clock (RTCCLK) divided by 2, 4, 8, or 16.

When RTCCLK is LSE (32.768 kHz), this permits the wake-up interrupt period to be configured from 122 µs to 32 s, with a resolution down to 61 µs.

• • ck_spre (usually 1 Hz internal clock) in BCD mode, or the clock used to update the calendar as defined by BCDU in binary or mixed (BCD-binary) modes.

When ck_spre frequency is 1 Hz, a wake-up time from 1 s to around 36 hours can be achieved with one-second resolution. This large programmable time range is divided in 2 parts:

• – from 1 s to 18 hours when WUCKSEL [2:1] = 10
• – and from around 18 h to 36 h when WUCKSEL[2:1] = 11. In this last case \( 2^{16} \) is added to the 16-bit counter current value. When the initialization sequence is complete (see Programming the wake-up timer on page 1980 ), the timer starts counting down. When the wake-up function is enabled, the down-counting remains active in low-power modes. In addition, when it reaches 0, the WUTF flag is set in the RTC_SR register, and the wake-up counter is automatically reloaded with its reload value (RTC_WUTR register value).

Depending on WUTOCLR in the RTC_WUTR register, the WUTF flag must either be cleared by software (WUTOCLR = 0x0000), or the WUTF is automatically cleared by hardware when the auto-reload down counter reaches WUTOCLR value (0x0000 < WUTOCLR < WUT).

The wake-up flag is output on an internal signal rtc_wut that can be used by other peripherals (refer to Section 46.3.1: RTC block diagram ).

When the periodic wake-up interrupt is enabled by setting the WUTIE bit in the RTC_CR register, it can exit the device from low-power modes.

The periodic wake-up flag can be routed to the TAMPALRM output provided it has been enabled through bits OSEL[1:0] of RTC_CR register. TAMPALRM output polarity can be configured through the POL bit in the RTC_CR register.

System reset, as well as low-power modes (Sleep, Stop, and Standby) have no influence on the wake-up timer.

46.3.11 RTC initialization and configuration

RTC Binary, BCD or Mixed mode

By default the RTC is in BCD mode (BIN = 00 in the RTC_ICSR register): the RTC_SSR register contains the subsecond field SS[15:0], clocked by ck_apre, allowing to generate a 1 Hz clock to update the calendar registers in BCD format (RTC_TR and RTC_DR).

When the RTC is configured in binary mode (BIN = 01 in the RTC_ICSR register): the RTC_SSR register contains the binary counter SS[31:0], clocked by ck_apre. The calendar registers in BCD format (RTC_TR and RTC_DR) are not used.

When the RTC is configured in mixed mode (BIN = 10 or 11 in the RTC_ICSR register): the RTC_SSR register contains the binary counter SS[31:0], clocked by ck_apre. The calendar is updated (1 second increment) each time the SSR[BCDU+7:0] reaches 0.

RTC register write protection

After system reset, the RTC registers are protected against parasitic write access by the DBP bit in the power control peripheral (refer to the PWR power control section). DBP bit must be set in order to enable RTC registers write access.

After Backup domain reset, some of the RTC registers are write-protected: RTC_TR, RTC_DR, RTC_PRER, RTC_CALR, RTC_SHIFT, the bits INIT, BIN and BCDU in RTC_ICSR and the bits FMT, SUB1H, ADD1H, REFCKON in RTC_CR.

The following steps are required to unlock the write protection on the protected RTC registers.

1. 1. Write 0xCA into the RTC_WPR register.
2. 2. Write 0x53 into the RTC_WPR register.

Writing a wrong key reactivates the write protection.

The protection mechanism is not affected by system reset.

The registers protected by INITPRIV are write-protected by the INIT KEY.

The registers protected by CALPRIV are write-protected by the CAL KEY.

In case PRIV or INITPRIV is set in the RTC_PRIVCFGR, and/or SEC or INITSEC is set in the RTC_SECCFGR: the INIT KEY is unlocked and locked only if the write accesses into

the RTC_WPR register are done in the privilege and security mode defined by PRIV, INITPRIV, SEC, INITSEC configuration.

In case PRIV or CALPRIV is set in the RTC_PRIVCFGR, and/or SEC or CALSEC is set in the RTC_SECCFGR: the CAL KEY is unlocked and locked only if the write accesses into the RTC_WPR register are done in the privilege and security mode defined by PRIV, CALPRIV, SEC, CALSEC configuration.

Calendar initialization and configuration

To program the initial time and date calendar values, including the time format and the prescaler configuration, the following sequence is required:

1. 1. Set INIT bit to 1 in the RTC_ICSR register to enter initialization mode. In this mode, the calendar counter is stopped and its value can be updated.
2. 2. Poll INITF bit of in the RTC_ICSR register. The initialization phase mode is entered when INITF is set to 1.
   • – If LPCAL=0: INITF is set around 2 RTCCLK cycles after INIT bit is set.
   • – If LPCAL=1: INITF is set up to 2 ck_apre cycle after INIT bit is set.
3. 3. To generate a 1 Hz clock for the calendar counter, program both the prescaler factors in RTC_PRER register, plus BIN and BCDU in the RTC_ICSR register.
4. 4. Load the initial time and date values in the shadow registers (RTC_TR and RTC_DR), and configure the time format (12 or 24 hours) through the FMT bit in the RTC_CR register.
5. 5. Exit the initialization mode by clearing the INIT bit. The actual calendar counter value is then automatically loaded.
   • – If LPCAL=0: the counting restarts after 4 RTCCLK clock cycles.
   • – If LPCAL=1: the counting restarts after up to 2 RTCCLK + 1 ck_apre.

When the initialization sequence is complete, the calendar starts counting. The RTC_SSR content is initialized with:

• • PREDIV_S in BCD mode (BIN=00)
• • 0xFFFF FFFF in binary or mixed (BCD-binary) modes (BIN=01, 10 or 11).

In BCD mode, RTC_SSR contains the value of the synchronous prescaler counter. This enables one to calculate the exact time being maintained by the RTC down to a resolution of \( 1 / (PREDIV\_S + 1) \) seconds. As a consequence, the resolution can be improved by increasing the synchronous prescaler value (PREDIV_S[14:0]). The maximum resolution allowed (30.52 ?s with a 32768 Hz clock) is obtained with PREDIV_S set to 0x7FFF.

However, increasing PREDIV_S means that PREDIV_A must be decreased in order to maintain the synchronous prescaler output at 1 Hz. In this way, the frequency of the asynchronous prescaler output increases, which may increase the RTC dynamic consumption. The RTC dynamic consumption is optimized for PREDIV_A+1 being a power of 2.

Note: After a system reset, the application can read the INITS flag in the RTC_ICSR register to check if the calendar has been initialized or not. If this flag equals 0, the calendar has not been initialized since the year field is set at its Backup domain reset default value (0x00).

Note: To read the calendar after initialization, the software must first check that the RSF flag is set in the RTC_ICSR register.

Daylight saving time

The daylight saving time management is performed through bits SUB1H, ADD1H, and BKP of the RTC_CR register.

Using SUB1H or ADD1H, the software can subtract or add one hour to the calendar in one single operation without going through the initialization procedure.

In addition, the software can use the BKP bit to memorize this operation.

Programming the alarm

A similar procedure must be followed to program or update the programmable alarms. The procedure below is given for alarm A but can be translated in the same way for alarm B.

1. 1. Clear ALRAE in RTC_CR to disable alarm A.
2. 2. Program the alarm A registers (RTC_ALRMASSR/RTC_ALRMAR or RTC_ALRABINR).
3. 3. Set ALRAE in the RTC_CR register to enable alarm A again.

Note: Each change of the RTC_CR register is taken into account after around 2 RTCCLK clock cycles due to clock synchronization.

Programming the wake-up timer

The following sequence is required to configure or change the wake-up timer auto-reload value (WUT[15:0] in RTC_WUTR):

1. 1. Clear WUTE in RTC_CR to disable the wake-up timer.
2. 2. Poll WUTWF until it is set in RTC_ICSR to make sure the access to wake-up auto-reload counter and to WUCKSEL[2:0] bits is allowed. This step must be skipped in calendar initialization mode.
   • – If WUCKSEL[2] = 0: WUTWF is set around 1 ck_wut + 1 RTCCLK cycles after WUTE bit is cleared.
   • – If WUCKSEL[2] = 1: WUTWF is set up to 1 ck_apre + 1 RTCCLK cycles after WUTE bit is cleared.
3. 3. Program the wake-up auto-reload value WUT[15:0], WUTOCLR[15:0] and the wake-up clock selection (WUCKSEL[2:0] bits in RTC_CR). Set WUTE in RTC_CR to enable the timer again. The wake-up timer restarts down-counting.
   • – If WUCKSEL[2] = 0: WUTWF is cleared around 1 ck_wut + 1 RTCCLK cycles after WUTE bit is set.
   • – If WUCKSEL[2] = 1: WUTWF is cleared up to 1 ck_apre + 1 RTCCLK cycles after WUTE bit is set.

46.3.12 Reading the calendar

When BYPSHAD control bit is cleared in the RTC_CR register

To read the RTC calendar registers (RTC_SSR, RTC_TR and RTC_DR) properly, the APB clock frequency ( \( f_{PCLK} \) ) must be equal to or greater than seven times the RTC clock frequency ( \( f_{RTCCLK} \) ). This ensures a secure behavior of the synchronization mechanism.

If the APB clock frequency is less than seven times the RTC clock frequency, the software must read the calendar time and date registers twice. If the second read of the RTC_TR gives the same result as the first read, this ensures that the data is correct. Otherwise a third

read access must be done. In any case the APB clock frequency must never be lower than the RTC clock frequency.

The RSF bit is set in RTC_ICSR register each time the calendar registers are copied into the RTC_SSR, RTC_TR and RTC_DR shadow registers. The copy is performed every RTCCLK cycle. To ensure consistency between the 3 values, reading either RTC_SSR or RTC_TR locks the values in the higher-order calendar shadow registers until RTC_DR is read. In case the software makes read accesses to the calendar in a time interval smaller than 1 RTCCLK periods: RSF must be cleared by software after the first calendar read, and then the software must wait until RSF is set before reading again the RTC_SSR, RTC_TR and RTC_DR registers.

After waking up from low-power mode (Stop or Standby), RSF must be cleared by software. The software must then wait until it is set again before reading the RTC_SSR, RTC_TR and RTC_DR registers.

The RSF bit must be cleared after wake-up and not before entering low-power mode.

After a system reset, the software must wait until RSF is set before reading the RTC_SSR, RTC_TR and RTC_DR registers. Indeed, a system reset resets the shadow registers to their default values.

After an initialization (refer to Calendar initialization and configuration on page 1979 ): the software must wait until RSF is set before reading the RTC_SSR, RTC_TR and RTC_DR registers.

After synchronization (refer to Section 46.3.14: RTC synchronization ): the software must wait until RSF is set before reading the RTC_SSR, RTC_TR and RTC_DR registers.

When the BYPSHAD control bit is set in the RTC_CR register (bypass shadow registers)

Reading the calendar registers gives the values from the calendar counters directly, thus eliminating the need to wait for the RSF bit to be set. This is especially useful after exiting from low-power modes (Stop or Standby), since the shadow registers are not updated during these modes.

When the BYPSHAD bit is set to 1, the results of the different registers might not be coherent with each other if an RTCCLK edge occurs between two read accesses to the registers. Additionally, the value of one of the registers may be incorrect if an RTCCLK edge occurs during the read operation. The software must read all the registers twice, and then compare the results to confirm that the data is coherent and correct. Alternatively, the software can just compare the two results of the least-significant calendar register.

Note: While BYPSHAD = 1, instructions which read the calendar registers require one extra APB cycle to complete.

46.3.13 Resetting the RTC

The calendar shadow registers (RTC_SSR, RTC_TR and RTC_DR) and some bits of the RTC status register (RTC_ICSR) are reset to their default values by all available system reset sources.

On the contrary, the following registers are reset to their default values by a Backup domain reset and are not affected by a system reset: the RTC current calendar registers, the RTC control register (RTC_CR), the prescaler register (RTC_PRER), the RTC calibration register (RTC_CALR), the RTC shift register (RTC_SHIFTR), the RTC timestamp registers

(RTC_TSSSR, RTC_TSTR and RTC_TSDR), the wake-up timer register (RTC_WUTR), the alarm A and alarm B registers (RTC_ALRMASSR/RTC_ALRMAR/RTC_ALRABINR and RTC_ALRMBSSR/RTC_ALRMBR/RTC_ALRBBINR).

In addition, when clocked by LSE, the RTC keeps on running under system reset if the reset source is different from the Backup domain reset one (refer to RCC for details about RTC clock sources not affected by system reset). When a Backup domain reset occurs, the RTC is stopped and all the RTC registers are set to their reset values.

46.3.14 RTC synchronization

The RTC can be synchronized to a remote clock with a high degree of precision. After reading the subsecond field (RTC_SSR or RTC_TSSSR), a calculation can be made of the precise offset between the times being maintained by the remote clock and the RTC. The RTC can then be adjusted to eliminate this offset by “shifting” its clock by a fraction of a second using RTC_SHIFTR.

The RTC can be finely adjusted using the RTC shift control register (RTC_SHIFTR). Writing to RTC_SHIFTR can shift (either delay or advance) the clock with a resolution of 1 ck_apre period.

The shift operation consists in adding the SUBFS[14:0] value to the synchronous prescaler counter SS[15:0]: this delays the clock.

If at the same time the ADD1S bit is set in BCD or mixed mode, this results in adding one second and at the same time subtracting a fraction of second, so this advances the clock. ADD1S has no effect in binary mode.

As soon as a shift operation is initiated by a write to the RTC_SHIFTR register, the SHPF flag is set by hardware to indicate that a shift operation is pending. This bit is cleared by hardware as soon as the shift operation has completed.

Caution: In mixed mode (BIN=10 or 11), the SUBFS[14:BCDU+8] must be written with 0.

Caution: Before initiating a shift operation in BCD mode, the user must check that SS[15] = 0 in order to ensure that no overflow occurs. In mixed mode, the user must check that the bit SS[BCDU+8] = 0.

Caution: This synchronization feature is not compatible with the reference clock detection feature: firmware must not write to RTC_SHIFTR when REFCKON = 1.

46.3.15 RTC reference clock detection

This feature is available only in BCD mode (BIN=00).

The update of the RTC calendar can be synchronized to a reference clock, RTC_REFIN, which is usually the mains frequency (50 or 60 Hz). The precision of the RTC_REFIN reference clock should be higher than the 32.768 kHz LSE clock. When the RTC_REFIN detection is enabled (REFCKON bit of RTC_CR set to 1), the calendar is still clocked by the LSE, and RTC_REFIN is used to compensate for the imprecision of the calendar update frequency (1 Hz).

Each 1 Hz clock edge is compared to the nearest RTC_REFIN clock edge (if one is found within a given time window). In most cases, the two clock edges are properly aligned. When the 1 Hz clock becomes misaligned due to the imprecision of the LSE clock, the RTC shifts the 1 Hz clock a bit so that future 1 Hz clock edges are aligned. Thanks to this mechanism, the calendar becomes as precise as the reference clock.

The RTC detects if the reference clock source is present by using the 256 Hz clock (ck_apre) generated from the 32.768 kHz quartz. The detection is performed during a time window around each of the calendar updates (every 1 s). The window equals 7 ck_apre periods when detecting the first reference clock edge. A smaller window of 3 ck_apre periods is used for subsequent calendar updates.

Each time the reference clock is detected in the window, the asynchronous prescaler which outputs the ck_spre clock is forced to reload. This has no effect when the reference clock and the 1 Hz clock are aligned because the prescaler is being reloaded at the same moment. When the clocks are not aligned, the reload shifts future 1 Hz clock edges a little for them to be aligned with the reference clock.

If the reference clock halts (no reference clock edge occurred during the 3 ck_apre window), the calendar is updated continuously based solely on the LSE clock. The RTC then waits for the reference clock using a large 7 ck_apre period detection window centered on the ck_spre edge.

When the RTC_REFIN detection is enabled, PREDIV_A and PREDIV_S must be set to their default values:

• • PREDIV_A = 0x007F
• • PREDIV_S = 0x00FF

Note: RTC_REFIN clock detection is not available in Standby mode.

46.3.16 RTC smooth digital calibration

The RTC frequency can be digitally calibrated with a resolution of about 0.954 ppm with a range from -487.1 ppm to +488.5 ppm. The correction of the frequency is performed using series of small adjustments (adding and/or subtracting individual ck_cal pulses).

If LPCAL=0: ck_cal = RTCCLK

If LPCAL=1: ck_cal = ck_apre

These adjustments are fairly well distributed so that the RTC is well calibrated even when observed over short durations of time.

RTC ultra-low-power mode

The RTC consumption can be reduced by setting the LPCAL bit in the RTC calibration register (RTC_CALR). In this case, the calibration mechanism is applied on ck_apre instead of RTCCLK. The resulting accuracy is the same, but the calibration is performed during a calibration cycle of about \( 2^{20} \times \text{PREDIV\_A} \times \text{RTCCLK} \) pulses instead of \( 2^{20} \) RTCCLK pulses when LPCAL=0.

Smooth calibration mechanism

The smooth calibration register (RTC_CALR) specifies the number of ck_cal clock cycles to be masked during the calibration cycle:

• • Setting the bit CALM[0] to 1 causes exactly one pulse to be masked during the calibration cycle.
• • Setting CALM[1] to 1 causes two additional cycles to be masked
• • Setting CALM[2] to 1 causes four additional cycles to be masked
• • and so on up to CALM[8] set to 1 which causes 256 clocks to be masked.

Note: CALM[8:0] (RTC_CALR) specifies the number of ck_cal pulses to be masked during the calibration cycle. Setting the bit CALM[0] to 1 causes exactly one pulse to be masked during the calibration cycle at the moment when cal_cnt[19:0] is 0x80000; CALM[1] = 1 causes two other cycles to be masked (when cal_cnt is 0x40000 and 0xC0000); CALM[2] = 1 causes four other cycles to be masked (cal_cnt = 0x20000/0x60000/0xA0000/ 0xE0000); and so on up to CALM[8] = 1 which causes 256 clocks to be masked (cal_cnt = 0xXX800).

While CALM permits the RTC frequency to be reduced by up to 487.1 ppm with fine resolution, the bit CALP can be used to increase the frequency by 488.5 ppm. Setting CALP to 1 effectively inserts an extra ck_cal pulse every \( 2^{11} \) ck_cal cycles, which means that 512 clocks are added during every calibration cycle.

Using CALM together with CALP, an offset ranging from -511 to +512 ck_cal cycles can be added during the calibration cycle, which translates to a calibration range of -487.1 ppm to +488.5 ppm with a resolution of about 0.954 ppm.

The formula to calculate the effective calibrated frequency (F _CAL ) given the input frequency (F _RTCCLK ) is as follows:

Caution: PREDIV_A must be greater or equal to 3.

Calibration when PREDIV_A < 3

The CALP bit can not be set to 1 when the asynchronous prescaler value (PREDIV_A bits in RTC_PRER register) is less than 3. If CALP was already set to 1 and PREDIV_A bits are set to a value less than 3, CALP is ignored and the calibration operates as if CALP was equal to 0.

It is however possible to perform a calibration with PREDIV_A less than 3 in BCD mode, the synchronous prescaler value (PREDIV_S) should be reduced so that each second is accelerated by 8 ck_cal clock cycles, which is equivalent to adding 256 clock cycles every calibration cycle. As a result, between 255 and 256 clock pulses (corresponding to a calibration range from 243.3 to 244.1 ppm) can effectively be added during each calibration cycle using only the CALM bits.

With a nominal RTCCLK frequency of 32768 Hz, when PREDIV_A equals 1 (division factor of 2), PREDIV_S should be set to 16379 rather than 16383 (4 less). The only other interesting case is when PREDIV_A equals 0, PREDIV_S should be set to 32759 rather than 32767 (8 less).

If PREDIV_S is reduced in this way, the formula given the effective frequency of the calibrated input clock is as follows:

In this case, CALM[7:0] equals 0x100 (the midpoint of the CALM range) is the correct setting if RTCCLK is exactly 32768.00 Hz.

Verifying the RTC calibration

It is recommended to verify the RTC calibration with LPCAL = 0, in order to have a 32-second calibration cycle.

RTC precision is ensured by measuring the precise frequency of RTCCLK and calculating the correct CALM value and CALP values. An optional 1 Hz output is provided to allow applications to measure and verify the RTC precision.

Measuring the precise frequency of the RTC over a limited interval can result in a measurement error of up to 2 RTCCLK clock cycles over the measurement period, depending on how the digital calibration cycle is aligned with the measurement period.

However, this measurement error can be eliminated if the measurement period is the same length as the calibration cycle period. In this case, the only error observed is the error due to the resolution of the digital calibration.

• • By default, the calibration cycle period is 32 seconds.

Using this mode and measuring the accuracy of the 1 Hz output over exactly 32 seconds guarantees that the measure is within 0.477 ppm (0.5 RTCCLK cycles over 32 seconds, due to the limitation of the calibration resolution).

• • CALW16 bit of the RTC_CALR register can be set to 1 to force a 16- second calibration cycle period.

In this case, the RTC precision can be measured during 16 seconds with a maximum error of 0.954 ppm (0.5 RTCCLK cycles over 16 seconds). However, since the calibration resolution is reduced, the long term RTC precision is also reduced to 0.954 ppm: CALM[0] bit is stuck at 0 when CALW16 is set to 1.

• • CALW8 bit of the RTC_CALR register can be set to 1 to force a 8-second calibration cycle period.

In this case, the RTC precision can be measured during 8 seconds with a maximum error of 1.907 ppm (0.5 RTCCLK cycles over 8 s). The long term RTC precision is also reduced to 1.907 ppm: CALM[1:0] bits are stuck at 00 when CALW8 is set to 1.

Re-calibration on-the-fly

The calibration register (RTC_CALR) can be updated on-the-fly while RTC_ICSR/INITF = 0, by using the follow process:

1. 1. Poll the RTC_ICSR/RECALPF (re-calibration pending flag).
2. 2. If it is set to 0, write a new value to RTC_CALR, if necessary. RECALPF is then automatically set to 1
3. 3. Within three ck_apre cycles after the write operation to RTC_CALR, the new calibration settings take effect.

46.3.17 Timestamp function

Timestamp is enabled by setting the TSE or ITSE bits of RTC_CR register to 1.

When TSE is set:

The calendar is saved in the timestamp registers (RTC_TSSSR, RTC_TSTR, RTC_TSDR) when a timestamp event is detected on the RTC_TS pin.

When TAMPTS is set:

The calendar is saved in the timestamp registers (RTC_TSSSR, RTC_TSTR, RTC_TSDR) when an internal or external tamper event is detected. Refer to RTC control register (RTC_CR) and refer to Section : Timestamp on tamper event .

When ITSE is set:

The calendar is saved in the timestamp registers (RTC_TSSSR, RTC_TSTR, RTC_TSDR) when an internal timestamp event is detected. The internal timestamp event is generated by the switch to the V _BAT supply.

When a timestamp event occurs, due to internal or external event, the timestamp flag bit (TSF) in RTC_SR register is set. In case the event is internal, the ITSF flag is also set in RTC_SR register.

By setting the TSIE bit in the RTC_CR register, an interrupt is generated when a timestamp event occurs.

If a new timestamp event is detected while the timestamp flag (TSF) is already set, the timestamp overflow flag (TSOVF) flag is set and the timestamp registers ( RTC_TSTR and RTC_TSDR ) maintain the results of the previous event.

Note: TSF is set up to 2 ck_apre cycles after the timestamp event from RTC_TS pin or from rtc_its internal signal occurs, due to synchronization process. TSF is set up to 3 ck_apre cycles after tamper flags.

TSOVF is set up to only 1 ck_apre cycle after the event occurs. This means that if two timestamp events are close together, TSOVF can be seen as '1' while TSF is still '0'. As a consequence, it is recommended to poll TSOVF only after TSF has been set.

Caution: If a timestamp event occurs immediately after the TSF bit is supposed to be cleared, then both TSF and TSOVF bits are set. To avoid masking a timestamp event occurring at the same moment, the application must not write 0 into TSF bit unless it has already read it to 1.

46.3.18 Calibration clock output

When the COE bit is set to 1 in the RTC_CR register, a reference clock is provided on the CALIB device output.

If the COSEL bit in the RTC_CR register is reset and PREDIV_A = 0x7F, the CALIB frequency is \( f_{RTCCLK}/64 \) . This corresponds to a calibration output at 512 Hz for an RTCCLK frequency at 32.768 kHz. The CALIB duty cycle is irregular: there is a light jitter on falling edges. It is therefore recommended to use rising edges.

When COSEL is set and “PREDIV_S+1” is a non-zero multiple of 256 (i.e.: PREDIV_S[7:0] = 0xFF), the CALIB frequency is \( f_{RTCCLK}/(256 * (PREDIV\_A+1)) \) . This corresponds to a calibration output at 1 Hz for prescaler default values (PREDIV_A = 0x7F, PREDIV_S = 0xFF), with an RTCCLK frequency at 32.768 kHz.

Note: When COSEL is cleared, the CALIB output is the output of the 6 ^th stage of the asynchronous prescaler. If LPCAL is changed from 0 to 1, the output can be irregular (glitch...) during the LPCAL switch. If LPCAL = 1 this output is always available. If LPCAL = 0, no output is present if PREDIV_A is < 0x20.

When COSEL is set, the CALIB output is the output of the 8 ^th stage of the synchronous prescaler.

46.3.19 Tamper and alarm output

The OSEL[1:0] control bits in the RTC_CR register are used to activate the alarm output TAMPALRM, and to select the function which is output. These functions reflect the contents of the corresponding flags in the RTC_SR register.

When the TAMPOE control bit is set in the RTC_CR , all external and internal tamper flags are ORed and routed to the TAMPALRM output. If OSEL = 00 the TAMPALRM output reflects only the tamper flags. If OSEL = 01, the signal on TAMPALRM provides both tamper flags and alarm A, B, or wake-up flag.

The polarity of the TAMPALRM output is determined by the POL control bit in RTC_CR so that the opposite of the selected flags bit is output when POL is set to 1.

TAMPALRM output

The TAMPALRM pin can be configured in output open drain or output push-pull using the control bit TAMPALRM_TYPE in the RTC_CR register. It is possible to apply the internal pull-up in output mode thanks to TAMPALRM_PU in the RTC_CR.

Note: Once the TAMPALRM output is enabled, it has priority over CALIB on RTC_OUT1.

46.4 RTC low-power modes

Table 500. Effect of low-power modes on RTC

The table below summarizes the RTC pins and functions capability in all modes.

Table 501. RTC pins functionality over modes

46.5 RTC interrupts

The interrupt channel is set in the masked interrupt status register or in the secure masked interrupt status register depending on its security mode configuration. The nonsecure interrupt output or the secure interrupt output is also activated.

Table 502. Nonsecure interrupt requests

1. 1. The event flags are in the RTC_SR register.
2. 2. The interrupt masked flags (resulting from event flags AND enable control bits) are in the RTC_MISR register.
3. 3. When the RTC is clocked by an oscillator functional in the low-power mode.

Table 503. Secure interrupt requests

1. 1. The event flags are in the RTC_SR register.
2. 2. The interrupt masked flags (resulting from event flags AND enable control bits) are in the RTC_SMISR register.
3. 3. When the RTC is clocked by an oscillator functional in the low-power mode.

46.6 RTC registers

Refer to Section 1.2 of the reference manual for a list of abbreviations used in register descriptions.

The peripheral registers can be accessed by words (32-bit).

46.6.1 RTC time register (RTC_TR)

The RTC_TR is the calendar time shadow register. This register must be written in initialization mode only. Refer to Calendar initialization and configuration on page 1979 and Reading the calendar on page 1980 .

This register is write protected. The write access procedure is described in RTC register write protection on page 1978 .

This register can be write-protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be write-protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x00

Backup domain reset value: 0x0000 0000

System reset value: 0x0000 0000 (when BYPSHAD = 0, not affected when BYPSHAD = 1)

Bits 31:23 Reserved, must be kept at reset value.

Bit 22 PM : AM/PM notation

0: AM or 24-hour format

1: PM

Bits 21:20 HT[1:0] : Hour tens in BCD format

Bits 19:16 HU[3:0] : Hour units in BCD format

Bit 15 Reserved, must be kept at reset value.

Bits 14:12 MNT[2:0] : Minute tens in BCD format

Bits 11:8 MNU[3:0] : Minute units in BCD format

Bit 7 Reserved, must be kept at reset value.

Bits 6:4 ST[2:0] : Second tens in BCD format

Bits 3:0 SU[3:0] : Second units in BCD format

46.6.2 RTC date register (RTC_DR)

The RTC_DR is the calendar date shadow register. This register must be written in initialization mode only. Refer to Calendar initialization and configuration on page 1979 and Reading the calendar on page 1980 .

This register is write protected. The write access procedure is described in RTC register write protection on page 1978 .

This register can be write-protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be write-protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x04

Backup domain reset value: 0x0000 2101

System reset value: 0x0000 2101 (when BYPSHAD = 0, not affected when BYPSHAD = 1)

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:20 YT[3:0] : Year tens in BCD format

Bits 19:16 YU[3:0] : Year units in BCD format

Bits 15:13 WDU[2:0] : Week day units

000: forbidden

001: Monday

...

111: Sunday

Bit 12 MT : Month tens in BCD format

Bits 11:8 MU[3:0] : Month units in BCD format

Bits 7:6 Reserved, must be kept at reset value.

Bits 5:4 DT[1:0] : Date tens in BCD format

Bits 3:0 DU[3:0] : Date units in BCD format

Note: The calendar is frozen when reaching the maximum value, and can't roll over.

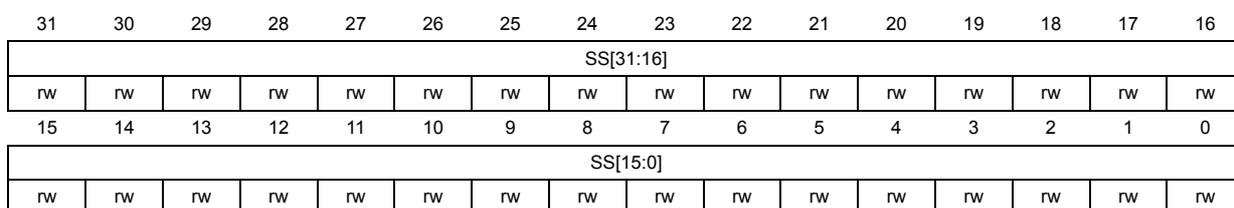

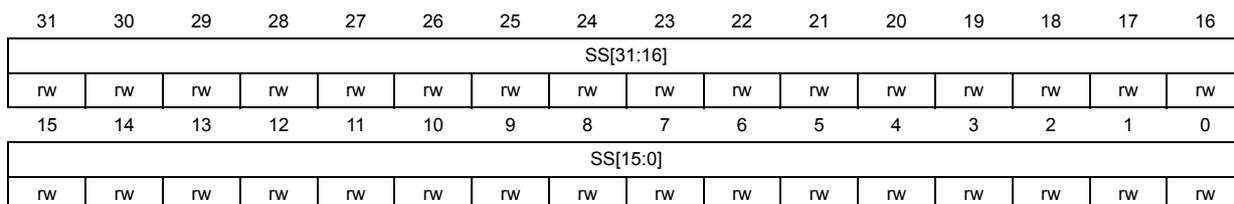

46.6.3 RTC subsecond register (RTC_SSR)

Address offset: 0x08

Backup domain reset value: 0x0000 0000

System reset value: 0x0000 0000 (when BYPSHAD = 0, not affected when BYPSHAD = 1)

Bits 31:0 SS[31:0] : Synchronous binary counter

SS[31:16] : Synchronous binary counter MSB values

When Binary or Mixed mode is selected (BIN = 01 or 10 or 11):

SS[31:16] are the 16 MSB of the SS[31:0] free-running down-counter.

When BCD mode is selected (BIN=00):

SS[31:16] are forced by hardware to 0x0000.

SS[15:0] : Subsecond value/synchronous binary counter LSB values

When Binary mode is selected (BIN = 01 or 10 or 11):

SS[15:0] are the 16 LSB of the SS[31:0] free-running down-counter.

When BCD mode is selected (BIN=00):

SS[15:0] is the value in the synchronous prescaler counter. The fraction of a second is given by the formula below:

SS can be larger than PREDIV_S only after a shift operation. In that case, the correct time/date is one second less than as indicated by RTC_TR/RTC_DR.

46.6.4 RTC initialization control and status register (RTC_ICSR)

This register is write protected. The write access procedure is described in RTC register write protection on page 1978 .

This register can be globally protected, or each bit of this register can be individually protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be globally protected, or each bit of this register can be individually protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x0C

Backup domain reset value: 0x0000 0007

System reset: not affected except INIT, INITF, and RSF bits which are cleared to 0

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 RECALPF : Recalibration pending Flag

The RECALPF status flag is automatically set to 1 when software writes to the RTC_CALR register, indicating that the RTC_CALR register is blocked. When the new calibration settings are taken into account, this bit returns to 0. Refer to Re-calibration on-the-fly .

Bits 15:13 Reserved, must be kept at reset value.

Bits 12:10 BCDU[2:0] : BCD update (BIN = 10 or 11)

In mixed mode when both BCD calendar and binary extended counter are used (BIN = 10 or 11), the calendar second is incremented using the SSR Least Significant Bits.

0x0: 1s calendar increment is generated each time SS[7:0] = 0

0x1: 1s calendar increment is generated each time SS[8:0] = 0

0x2: 1s calendar increment is generated each time SS[9:0] = 0

0x3: 1s calendar increment is generated each time SS[10:0] = 0

0x4: 1s calendar increment is generated each time SS[11:0] = 0

0x5: 1s calendar increment is generated each time SS[12:0] = 0

0x6: 1s calendar increment is generated each time SS[13:0] = 0

0x7: 1s calendar increment is generated each time SS[14:0] = 0

Bits 9:8 BIN[1:0] : Binary mode

00: Free running BCD calendar mode (Binary mode disabled).

01: Free running Binary mode (BCD mode disabled)

10: Free running BCD calendar and Binary modes

11: Free running BCD calendar and Binary modes

0: Free running mode

1: Initialization mode used to program time and date register (RTC_TR and RTC_DR), and prescaler register (RTC_PRER), plus BIN and BCDU fields. Counters are stopped and start counting from the new value when INIT is reset.

When this bit is set to 1, the RTC is in initialization state, and the time, date and prescaler registers can be updated.

0: Calendar registers update is not allowed

1: Calendar registers update is allowed

This bit is set by hardware each time the calendar registers are copied into the shadow registers (RTC_SSR, RTC_TR and RTC_DR). This bit is cleared by hardware in initialization mode, while a shift operation is pending (SHPF = 1), or when in bypass shadow register mode (BYPSHAD = 1). This bit can also be cleared by software.

It is cleared either by software or by hardware in initialization mode.

0: Calendar shadow registers not yet synchronized

1: Calendar shadow registers synchronized

This bit is set by hardware when the calendar year field is different from 0 (Backup domain reset state).

0: Calendar has not been initialized

1: Calendar has been initialized

This flag is set by hardware as soon as a shift operation is initiated by a write to the RTC_SHIFT register. It is cleared by hardware when the corresponding shift operation has been executed. Writing to the SHPF bit has no effect.

0: No shift operation is pending

1: A shift operation is pending

This bit is set by hardware when WUT value can be changed, after the WUTE bit has been set to 0 in RTC_CR.

It is cleared by hardware in initialization mode.

0: Wake-up timer configuration update not allowed except in initialization mode

1: Wake-up timer configuration update allowed

Bits 1:0 Reserved, must be kept at reset value.

46.6.5 RTC prescaler register (RTC_PRER)

This register must be written in initialization mode only. The initialization must be performed in two separate write accesses. Refer to Calendar initialization and configuration on page 1979 .

This register is write protected. The write access procedure is described in RTC register write protection on page 1978 .

This register can be write-protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be write-protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x10

Backup domain reset value: 0x007F 00FF

System reset: not affected

Bits 31:23 Reserved, must be kept at reset value.

Bits 22:16 PREDIV_A[6:0] : Asynchronous prescaler factor

This is the asynchronous division factor:

\( \text{ck\_apre frequency} = \text{RTCCLK frequency} / (\text{PREDIV\_A} + 1) \)

Bit 15 Reserved, must be kept at reset value.

Bits 14:0 PREDIV_S[14:0] : Synchronous prescaler factor

This is the synchronous division factor:

\( \text{ck\_spre frequency} = \text{ck\_apre frequency} / (\text{PREDIV\_S} + 1) \)

46.6.6 RTC wake-up timer register (RTC_WUTR)

This register can be written only when WUTWF is set to 1 in RTC_ICSR.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x14

Backup domain reset value: 0x0000 FFFF

System reset: not affected

Bits 31:16 WUTOCLR[15:0] : Wake-up auto-reload output clear value

When WUTOCLR[15:0] is different from 0x0000, WUTF is set by hardware when the auto-reload down-counter reaches 0 and is cleared by hardware when the auto-reload downcounter reaches WUTOCLR[15:0].

When WUTOCLR[15:0] = 0x0000, WUTF is set by hardware when the WUT down-counter reaches 0 and is cleared by software.

Bits 15:0 WUT[15:0] : Wake-up auto-reload value bits

When the wake-up timer is enabled (WUTE set to 1), the WUTF flag is set every (WUT[15:0] + 1) ck_wut cycles. The ck_wut period is selected through WUCKSEL[2:0] bits of the RTC_CR register.

When WUCKSEL[2] = 1, the wake-up timer becomes 17-bits and WUCKSEL[1] effectively becomes WUT[16] the most-significant bit to be reloaded into the timer.

The first assertion of WUTF occurs between WUT and (WUT + 2) ck_wut cycles after WUTE is set. Setting WUT[15:0] to 0x0000 with WUCKSEL[2:0] = 011 (RTCCLK/2) is forbidden.

46.6.7 RTC control register (RTC_CR)

This register is write protected. The write access procedure is described in RTC register write protection on page 1978 .

This register can be globally protected, or each bit of this register can be individually protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be globally protected, or each bit of this register can be individually protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x18

Backup domain reset value: 0x0000 0000

System reset: not affected

Bit 31 OUT2EN : RTC_OUT2 output enable

With this bit set, the RTC outputs can be remapped on RTC_OUT2 as follows:

OUT2EN = 0 : RTC output 2 disable

If OSEL ≠ 00 or TAMPOE = 1: TAMPALRM is output on RTC_OUT1

If OSEL = 00 and TAMPOE = 0 and COE = 1: CALIB is output on RTC_OUT1

OUT2EN = 1 : RTC output 2 enable

If (OSEL ≠ 00 or TAMPOE = 1) and COE = 0: TAMPALRM is output on RTC_OUT2

If OSEL = 00 and TAMPOE = 0 and COE = 1: CALIB is output on RTC_OUT2

If (OSEL ≠ 00 or TAMPOE = 1) and COE = 1: CALIB is output on RTC_OUT2 and TAMPALRM is output on RTC_OUT1.

Bit 30 TAMPALRM_TYPE : TAMPALRM output type

0: TAMPALRM is push-pull output

1: TAMPALRM is open-drain output

Bit 29 TAMPALRM_PU : TAMPALRM pull-up enable

0: No pull-up is applied on TAMPALRM output

1: A pull-up is applied on TAMPALRM output

Bit 28 ALRBFCLR : Alarm B flag automatic clear

0: Alarm B event generates a trigger event and ALRBF must be cleared by software to allow next alarm event.

1: Alarm B event generates a trigger event. ALRBF is automatically cleared by hardware after 1 ck_apre cycle.

Bit 27 ALRAFCLR : Alarm A flag automatic clear

0: Alarm A event generates a trigger event and ALRAF must be cleared by software to allow next alarm event.

1: Alarm A event generates a trigger event. ALRAF is automatically cleared by hardware after 1 ck_apre cycle.

Bit 26 TAMPOE : Tamper detection output enable on TAMPALRM

0: The tamper flag is not routed on TAMPALRM

1: The tamper flag is routed on TAMPALRM, combined with the signal provided by OSEL and with the polarity provided by POL.

Bit 25 TAMPTS : Activate timestamp on tamper detection event

0: Tamper detection event does not cause a RTC timestamp to be saved

1: Save RTC timestamp on tamper detection event

TAMPTS is valid even if TSE = 0 in the RTC_CR register. Timestamp flag is set up to 3 ck_apre cycles after the tamper flags.

Note: TAMPTS must be cleared before entering RTC initialization mode.

Bit 24 ITSE : timestamp on internal event enable

0: internal event timestamp disabled

1: internal event timestamp enabled

Bit 23 COE : Calibration output enable

This bit enables the CALIB output

0: Calibration output disabled

1: Calibration output enabled

Bits 22:21 OSEL[1:0] : Output selection

These bits are used to select the flag to be routed to TAMPALRM output.

00: Output disabled

01: Alarm A output enabled

10: Alarm B output enabled

11: Wake-up output enabled

Bit 20 POL : Output polarity

This bit is used to configure the polarity of TAMPALRM output.

0: The pin is high when ALRAF/ALRBF/WUTF is asserted (depending on OSEL[1:0]), or when a TAMPxF/ITAMPxF is asserted (if TAMPOE = 1).

1: The pin is low when ALRAF/ALRBF/WUTF is asserted (depending on OSEL[1:0]), or when a TAMPxF/ITAMPxF is asserted (if TAMPOE = 1).

Bit 19 COSEL : Calibration output selection

When COE = 1, this bit selects which signal is output on CALIB.

0: Calibration output is 512 Hz

1: Calibration output is 1 Hz

These frequencies are valid for RTCCLK at 32.768 kHz and prescalers at their default values (PREDIV_A = 127 and PREDIV_S = 255). Refer to Section 46.3.18: Calibration clock output .

Bit 18 BKP : Backup

This bit can be written by the user to memorize whether the daylight saving time change has been performed or not.

Bit 17 SUB1H : Subtract 1 hour (winter time change)

When this bit is set outside initialization mode, 1 hour is subtracted to the calendar time if the current hour is not 0. This bit is always read as 0.

Setting this bit has no effect when current hour is 0.

0: No effect

1: Subtracts 1 hour to the current time. This can be used for winter time change.

Bit 16 ADD1H : Add 1 hour (summer time change)

When this bit is set outside initialization mode, 1 hour is added to the calendar time. This bit is always read as 0.

0: No effect

1: Adds 1 hour to the current time. This can be used for summer time change

Bit 15 TSIE : Timestamp interrupt enable

0: Timestamp interrupt disable

1: Timestamp interrupt enable

Bit 14 WUTIE : Wake-up timer interrupt enable

0: Wake-up timer interrupt disabled

1: Wake-up timer interrupt enabled

Bit 13 ALRBIE : Alarm B interrupt enable

0: Alarm B interrupt disable

1: Alarm B interrupt enable

Bit 12 ALRAIE : Alarm A interrupt enable

0: Alarm A interrupt disabled

1: Alarm A interrupt enabled

Bit 11 TSE : timestamp enable

0: timestamp disable

1: timestamp enable

Bit 10 WUTE : Wake-up timer enable

0: Wake-up timer disabled

1: Wake-up timer enabled

Note: When the wake-up timer is disabled, wait for WUTWF = 1 before enabling it again.

Bit 9 ALRBE : Alarm B enable

0: Alarm B disabled

1: Alarm B enabled

Bit 8 ALRAE : Alarm A enable

0: Alarm A disabled

1: Alarm A enabled

Bit 7 SSRUOE : SSR underflow interrupt enable

0: SSR underflow interrupt disabled

1: SSR underflow interrupt enabled

Bit 6 FMT : Hour format

0: 24 hour/day format

1: AM/PM hour format

Bit 5 BYPSHAD : Bypass the shadow registers

0: Calendar values (when reading from RTC_SSR, RTC_TR, and RTC_DR) are taken from the shadow registers, which are updated once every two RTCCLK cycles.

1: Calendar values (when reading from RTC_SSR, RTC_TR, and RTC_DR) are taken directly from the calendar counters.

Note: If the frequency of the APB clock is less than seven times the frequency of RTCCLK, BYPSHAD must be set to 1.

Bit 4 REFCKON : RTC_REFIN reference clock detection enable (50 or 60 Hz)

0: RTC_REFIN detection disabled

1: RTC_REFIN detection enabled

Note: BIN must be 0x00 and PREDIV_S must be 0x00FF.

Bit 3 TSEDGE : Timestamp event active edge

0: RTC_TS input rising edge generates a timestamp event

1: RTC_TS input falling edge generates a timestamp event

TSE must be reset when TSEDGE is changed to avoid unwanted TSF setting.

Bits 2:0 WUCKSEL[2:0] : ck_wut wake-up clock selection

000: RTC/16 clock is selected

001: RTC/8 clock is selected

010: RTC/4 clock is selected

011: RTC/2 clock is selected

10x: ck_spre (usually 1 Hz) clock is selected in BCD mode. In binary or mixed mode, this is the clock selected by BCDU.

11x: ck_spre (usually 1 Hz) clock is selected in BCD mode. In binary or mixed mode, this is the clock selected by BCDU. Furthermore, \( 2^{16} \) is added to the WUT counter value.

Note: Bits 6 and 4 of this register can be written in initialization mode only (RTC_ICSR/INITF = 1). WUT = wake-up unit counter value. WUT = (0x0000 to 0xFFFF) + 0x10000 added when WUCKSEL[2:1 = 11].

Bits 2 to 0 of this register can be written only when RTC_CR WUTE bit = 0 and RTC_ICSR WUTWF bit = 1.

It is recommended not to change the hour during the calendar hour increment as it may mask the incrementation of the calendar hour.

ADD1H and SUB1H changes are effective in the next second.

46.6.8 RTC privilege mode control register (RTC_PRIVCFGR)

This register can be written only when the APB access is privileged. This register can be write-protected, or each bit of this register can be individually write-protected against nonsecure access depending on the RTC_SECCFGR configuration (refer to Section 46.3.5: RTC privilege protection modes ).

Address offset: 0x1C

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:16 Reserved, must be kept at reset value.

Bit 15 PRIV : RTC privilege protection

0: All RTC registers can be written when the APB access is privileged or non-privileged, except the registers protected by other privilege protection bits.

1: All RTC registers can be written only when the APB access is privileged.

Bit 14 INITPRIV : Initialization privilege protection

0: RTC Initialization mode, calendar and prescalers registers can be written when the APB access is privileged or non-privileged.

1: RTC Initialization mode, calendar and prescalers registers can be written only when the APB access is privileged.

Bit 13 CALPRIV : Shift register, Delight saving, calibration and reference clock privilege protection

0: Shift register, Delight saving, calibration and reference clock can be written when the APB access is privileged or non-privileged.

1: Shift register, Delight saving, calibration and reference clock can be written only when the APB access is privileged.

Bits 12:4 Reserved, must be kept at reset value.

Bit 3 TSPRIV : Timestamp privilege protection

0: RTC Timestamp configuration and interrupt clear can be written when the APB access is privileged or non-privileged.

1: RTC Timestamp configuration and interrupt clear can be written only when the APB access is privileged.

Bit 2 WUTPRIV : Wake-up timer privilege protection

0: RTC wake-up timer configuration and interrupt clear can be written when the APB access is privileged or non-privileged.

1: RTC wake-up timer configuration and interrupt clear can be written only when the APB access is privileged.

Bit 1 ALRBPRIV : Alarm B privilege protection

0: RTC Alarm B configuration and interrupt clear can be written when the APB access is privileged or non-privileged.

1: RTC Alarm B configuration and interrupt clear can be written only when the APB access is privileged.

Bit 0 ALRAPRIV : Alarm A and SSR underflow privilege protection

0: RTC Alarm A and SSR underflow configuration and interrupt clear can be written when the APB access is privileged or non-privileged.

1: RTC Alarm A and SSR underflow configuration and interrupt clear can be written only when the APB access is privileged.

Note: Refer to Section 46.3.5: RTC privilege protection modes for details on the read protection.

46.6.9 RTC secure configuration register (RTC_SECCFGR)

This register can be written only when the APB access is secure.

This register can be globally write-protected, or each bit of this register can be individually write-protected against non-privileged access depending on the RTC_PRIVCFGR configuration (refer to Section 46.3.5: RTC privilege protection modes ).

Address offset: 0x20

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:16 Reserved, must be kept at reset value.

Bit 15 SEC : RTC global protection

0: All RTC registers can be written when the APB access is secure or nonsecure, except the registers protected by other secure protection bits.

1: All RTC registers can be written only when the APB access is secure.

Bit 14 INITSEC : Initialization protection

0: RTC Initialization mode, calendar and prescalers registers can be written when the APB access is secure or nonsecure.

1: RTC Initialization mode, calendar and prescalers registers can be written only when the APB access is secure.

Bit 13 CALSEC : Shift register, daylight saving, calibration and reference clock protection

0: Shift register, daylight saving, calibration and reference clock can be written when the APB access is secure or nonsecure.

1: Shift register, daylight saving, calibration and reference clock can be written only when the APB access is secure.

Bits 12:4 Reserved, must be kept at reset value.

Bit 3 TSSEC : Timestamp protection

0: RTC timestamp configuration and interrupt clear can be written when the APB access is secure or nonsecure.

1: RTC timestamp configuration and interrupt clear can be written only when the APB access is secure.

Bit 2 WUTSEC : Wake-up timer protection

0: RTC wake-up timer configuration and interrupt clear can be written when the APB access is secure or nonsecure.

1: RTC wake-up timer configuration and interrupt clear can be written only when the APB access is secure.

Bit 1 ALRBSEC : Alarm B protection

0: RTC alarm B configuration and interrupt clear can be written when the APB access is secure or nonsecure.

1: RTC alarm B configuration and interrupt clear can be written only when the APB access is secure.

Bit 0 ALRASEC : Alarm A and SSR underflow protection

0: RTC alarm A and SSR underflow configuration and interrupt clear can be written when the APB access is secure or nonsecure.

1: RTC alarm A and SSR underflow configuration and interrupt clear can be written only when the APB access is secure.

Note: Refer to Section 46.3.4: RTC secure protection modes for details on the read protection.

46.6.10 RTC write protection register (RTC_WPR)

Address offset: 0x24

Reset value: 0x0000 0000

Bits 31:8 Reserved, must be kept at reset value.

Bits 7:0 KEY[7:0] : Write protection key

This byte is written by software.

Reading this byte always returns 0x00.

Refer to RTC register write protection for a description of how to unlock RTC register write protection.

46.6.11 RTC calibration register (RTC_CALR)

This register is write protected. The write access procedure is described in RTC register write protection on page 1978 .

This register can be write-protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be write-protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x28

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:16 Reserved , must be kept at reset value.

Bit 15 CALP : Increase frequency of RTC by 488.5 ppm

0: No RTCCLK pulses are added.

1: One RTCCLK pulse is effectively inserted every \( 2^{11} \) pulses (frequency increased by 488.5 ppm).

This feature is intended to be used in conjunction with CALM, which lowers the frequency of the calendar with a fine resolution. If the input frequency is 32768 Hz, the number of RTCCLK pulses added during a 32-second window is calculated as follows:
\( (512 \times CALP) - CALM \) .

Refer to Section 46.3.16: RTC smooth digital calibration .

Bit 14 CALW8 : Use an 8-second calibration cycle period

When CALW8 is set to 1, the 8-second calibration cycle period is selected.

Note: CALM[1:0] are stuck at 00 when CALW8 = 1. Refer to Section 46.3.16: RTC smooth digital calibration .

Bit 13 CALW16 : Use a 16-second calibration cycle period

When CALW16 is set to 1, the 16-second calibration cycle period is selected. This bit must not be set to 1 if CALW8 = 1.

Note: CALM[0] is stuck at 0 when CALW16 = 1. Refer to Section 46.3.16: RTC smooth digital calibration .

Bit 12 LPCAL : RTC low-power mode

0: Calibration window is \( 2^{20} \) RTCCLK, which is a high-consumption mode. This mode must be set only when less than 32s calibration window is required.
1: Calibration window is \( 2^{20} \) ck_apre, which is the required configuration for ultra-low consumption mode.

Bits 11:9 Reserved, must be kept at reset value.

Bits 8:0 CALM[8:0] : Calibration minus

The frequency of the calendar is reduced by masking CALM out of \( 2^{20} \) RTCCLK pulses (32 seconds if the input frequency is 32768 Hz). This decreases the frequency of the calendar with a resolution of 0.9537 ppm.

To increase the frequency of the calendar, this feature should be used in conjunction with CALP. See Section 46.3.16: RTC smooth digital calibration on page 1983 .

46.6.12 RTC shift control register (RTC_SHIFTR)

This register is write protected. The write access procedure is described in RTC register write protection on page 1978 .

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x2C

Backup domain reset value: 0x0000 0000

System reset: not affected

Bit 31 ADD1S : Add one second

0: No effect

1: Add one second to the clock/calendar

This bit is write only and is always read as zero. Writing to this bit has no effect when a shift operation is pending (when SHPF = 1, in RTC_ICSR).

This function is intended to be used with SUBFS (see description below) in order to effectively add a fraction of a second to the clock in an atomic operation.

Bits 30:15 Reserved, must be kept at reset value.

Bits 14:0 SUBFS[14:0] : Subtract a fraction of a second

These bits are write only and is always read as zero. Writing to this bit has no effect when a shift operation is pending (when SHPF = 1, in RTC_ICSR).

The value which is written to SUBFS is added to the synchronous prescaler counter. Since this counter counts down, this operation effectively subtracts from (delays) the clock by:

\( \text{Delay (seconds)} = \text{SUBFS} / (\text{PREDIV\_S} + 1) \)

A fraction of a second can effectively be added to the clock (advancing the clock) when the ADD1S function is used in conjunction with SUBFS, effectively advancing the clock by:

\( \text{Advance (seconds)} = (1 - (\text{SUBFS} / (\text{PREDIV\_S} + 1))) \) .

In mixed BCD-binary mode (BIN=10 or 11), the SUBFS[14:BCDU+8] must be written with 0.

Note: Writing to SUBFS causes RSF to be cleared. Software can then wait until RSF = 1 to be sure that the shadow registers have been updated with the shifted time.

46.6.13 RTC timestamp time register (RTC_TSTR)

The content of this register is valid only when TSF is set to 1 in RTC_SR. It is cleared when TSF bit is reset.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x30

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:23 Reserved, must be kept at reset value.

Bit 22 PM : AM/PM notation

0: AM or 24-hour format

1: PM

Bits 21:20 HT[1:0] : Hour tens in BCD format.

Bits 19:16 HU[3:0] : Hour units in BCD format.

• Bit 15 Reserved, must be kept at reset value.
• Bits 14:12 MNT[2:0] : Minute tens in BCD format.
• Bits 11:8 MNU[3:0] : Minute units in BCD format.
• Bit 7 Reserved, must be kept at reset value.
• Bits 6:4 ST[2:0] : Second tens in BCD format.
• Bits 3:0 SU[3:0] : Second units in BCD format.

46.6.14 RTC timestamp date register (RTC_TSDR)

The content of this register is valid only when TSF is set to 1 in RTC_SR. It is cleared when TSF bit is reset.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x34

Backup domain reset value: 0x0000 0000

System reset: not affected

• Bits 31:16 Reserved, must be kept at reset value.
• Bits 15:13 WDU[2:0] : Week day units
  • Bit 12 MT : Month tens in BCD format
• Bits 11:8 MU[3:0] : Month units in BCD format
• Bits 7:6 Reserved, must be kept at reset value.
• Bits 5:4 DT[1:0] : Date tens in BCD format
• Bits 3:0 DU[3:0] : Date units in BCD format

46.6.15 RTC timestamp subsecond register (RTC_TSSSR)

The content of this register is valid only when TSF is set to 1 in RTC_SR. It is cleared when the TSF bit is reset.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x38

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:0 SS[31:0] : Subsecond value/synchronous binary counter values

SS[31:0] is the value of the synchronous prescaler counter when the timestamp event occurred.

46.6.16 RTC alarm A register (RTC_ALRMAR)

This register can be written only when ALRAE is reset in RTC_CR register, or in initialization mode.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x40

Backup domain reset value: 0x0000 0000

System reset: not affected

Bit 31 MSK4 : Alarm A date mask

0: Alarm A set if the date/day match

1: Date/day don't care in alarm A comparison

Bit 30 WDSEL : Week day selection

0: DU[3:0] represents the date units

1: DU[3:0] represents the week day. DT[1:0] is don't care.

Bits 29:28 DT[1:0] : Date tens in BCD format

Bits 27:24 DU[3:0] : Date units or day in BCD format

Bit 23 MSK3 : Alarm A hours mask

0: Alarm A set if the hours match

1: Hours don't care in alarm A comparison

Bit 22 PM : AM/PM notation

0: AM or 24-hour format

1: PM

Bits 21:20 HT[1:0] : Hour tens in BCD format

Bits 19:16 HU[3:0] : Hour units in BCD format

Bit 15 MSK2 : Alarm A minutes mask

0: Alarm A set if the minutes match

1: Minutes don't care in alarm A comparison

Bits 14:12 MNT[2:0] : Minute tens in BCD format

Bits 11:8 MNU[3:0] : Minute units in BCD format

Bit 7 MSK1 : Alarm A seconds mask

0: Alarm A set if the seconds match

1: Seconds don't care in alarm A comparison

Bits 6:4 ST[2:0] : Second tens in BCD format.

Bits 3:0 SU[3:0] : Second units in BCD format.

46.6.17 RTC alarm A subsecond register (RTC_ALRMASSR)

This register can be written only when ALRAE is reset in RTC_CR register, or in initialization mode.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x44

Backup domain reset value: 0x0000 0000

System reset: not affected

Bit 31 SSCLR : Clear synchronous counter on alarm (Binary mode only)

0: The synchronous binary counter (SS[31:0] in RTC_SSR) is free-running.

1: The synchronous binary counter (SS[31:0] in RTC_SSR) is running from 0xFFFF FFFF to RTC_ALRABINR.SS[31:0] value and is automatically reloaded with 0xFFFF FFFF one ck_apre cycle after reaching RTC_ALRABINR.SS[31:0].

Note: SSCLR must be kept to 0 when BCD or mixed mode is used (BIN = 00, 10 or 11).

Bit 30 Reserved, must be kept at reset value.

Bits 29:24 MASKSS[5:0] : Mask the most-significant bits starting at this bit

0: No comparison on subseconds for Alarm A. The alarm is set when the seconds unit is incremented (assuming that the rest of the fields match).

1: SS[31:1] are don't care in Alarm A comparison. Only SS[0] is compared.

2: SS[31:2] are don't care in Alarm A comparison. Only SS[1:0] are compared.

...

31: SS[31] is don't care in Alarm A comparison. Only SS[30:0] are compared.

From 32 to 63: All 32 SS bits are compared and must match to activate alarm.

Note: In BCD mode (BIN=00) the overflow bits of the synchronous counter (bits 31:15) are never compared. These bits can be different from 0 only after a shift operation.

Bits 23:15 Reserved, must be kept at reset value.

Bits 14:0 SS[14:0] : Subseconds value

This value is compared with the contents of the synchronous prescaler counter to determine if alarm A is to be activated. Only bits 0 up to MASKSS-1 are compared.

This field is the mirror of SS[14:0] in the RTC_ALRABINR, and so can also be read or written through RTC_ALRABINR.

Note: SS[3:0] must be 0000 when SSCLR is set with ATCKSEL[3] = 1 in TAMP_ATCR1.

46.6.18 RTC alarm B register (RTC_ALRMBR)

This register can be written only when ALRBE is reset in RTC_CR register, or in initialization mode.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x48

Backup domain reset value: 0x0000 0000

System reset: not affected

Bit 31 MSK4 : Alarm B date mask

0: Alarm B set if the date and day match

1: Date and day don't care in alarm B comparison

Bit 30 WDSEL : Week day selection

0: DU[3:0] represents the date units

1: DU[3:0] represents the week day. DT[1:0] is don't care.

Bits 29:28 DT[1:0] : Date tens in BCD format

Bits 27:24 DU[3:0] : Date units or day in BCD format

Bit 23 MSK3 : Alarm B hours mask

0: Alarm B set if the hours match

1: Hours don't care in alarm B comparison

Bit 22 PM : AM/PM notation

0: AM or 24-hour format

1: PM

Bits 21:20 HT[1:0] : Hour tens in BCD format

Bits 19:16 HU[3:0] : Hour units in BCD format

Bit 15 MSK2 : Alarm B minutes mask

0: Alarm B set if the minutes match

1: Minutes don't care in alarm B comparison

Bits 14:12 MNT[2:0] : Minute tens in BCD format

Bits 11:8 MNU[3:0] : Minute units in BCD format

Bit 7 MSK1 : Alarm B seconds mask

0: Alarm B set if the seconds match

1: Seconds don't care in alarm B comparison

Bits 6:4 ST[2:0] : Second tens in BCD format

Bits 3:0 SU[3:0] : Second units in BCD format

46.6.19 RTC alarm B subsecond register (RTC_ALRMBSSR)

This register can be written only when ALRBE is reset in RTC_CR register, or in initialization mode.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x4C

Backup domain reset value: 0x0000 0000

System reset: not affected

Bit 31 SSCLR : Clear synchronous counter on alarm (Binary mode only)

0: The synchronous binary counter (SS[31:0] in RTC_SSR) is free-running.

1: The synchronous binary counter (SS[31:0] in RTC_SSR) is running from 0xFFFF FFFF to RTC_ALRBBINR.SS[31:0] value and is automatically reloaded with 0xFFFF FFFF one ck_apre cycle after reaching RTC_ALRBBINR.SS[31:0].

Note: SSCLR must be kept to 0 when BCD or mixed mode is used (BIN = 00, 10 or 11).

Bit 30 Reserved, must be kept at reset value.

Bits 29:24 MASKSS[5:0] : Mask the most-significant bits starting at this bit

0: No comparison on subseconds for Alarm B. The alarm is set when the seconds unit is incremented (assuming that the rest of the fields match).

1: SS[31:1] are don't care in Alarm B comparison. Only SS[0] is compared.

2: SS[31:2] are don't care in Alarm B comparison. Only SS[1:0] are compared.

...

31: SS[31] is don't care in Alarm B comparison. Only SS[30:0] are compared.

From 32 to 63: All 32 SS bits are compared and must match to activate alarm.

Note: In BCD mode (BIN=00) The overflow bits of the synchronous counter (bits 15) is never compared. This bit can be different from 0 only after a shift operation.

Bits 23:15 Reserved, must be kept at reset value.

Bits 14:0 SS[14:0] : Subseconds value

This value is compared with the contents of the synchronous prescaler counter to determine if alarm B is to be activated. Only bits 0 up to MASKSS-1 are compared.

This field is the mirror of SS[14:0] in the RTC_ALRBBINR, and so can also be read or written through RTC_ALRBBINR.

Note: SS[3:0] must be 0000 when SSCLR is set with ATCKSEL[3] = 1 in TAMP_ATCR1.

46.6.20 RTC status register (RTC_SR)

This register can be globally protected, or each bit of this register can be individually protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be globally protected, or each bit of this register can be individually protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x50

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:7 Reserved, must be kept at reset value.

Bit 6 SSRUF : SSR underflow flag

This flag is set by hardware when the SSR is reloaded with 0xFFFF FFFF after reaching 0. SSRUF is not set when SSCLR = 1.

Note: SSRUF is not an error event as SSR counter is a free-running down-counter with automatic reload.

Bit 5 ITSF : Internal timestamp flag

This flag is set by hardware when a timestamp on the internal event occurs.

Bit 4 TSOVF : Timestamp overflow flag

This flag is set by hardware when a timestamp event occurs while TSF is already set.

It is recommended to check and then clear TSOVF only after clearing the TSF bit. Otherwise, an overflow might not be noticed if a timestamp event occurs immediately before the TSF bit is cleared.

Bit 3 TSF : Timestamp flag

This flag is set by hardware when a timestamp event occurs.

If ITSF flag is set, TSF must be cleared together with ITSF.

Note: TSF is not set if TAMPTS = 1 and the tamper flag is read during the 3 ck_apre cycles following tamper event. Refer to Timestamp on tamper event for more details.

Bit 2 WUTF : Wake-up timer flag

This flag is set by hardware when the wake-up auto-reload counter reaches 0.

If WUTOCLR[15:0] is different from 0x0000, WUTF is cleared by hardware when the wake-up auto-reload counter reaches WUTOCLR value.

If WUTOCLR[15:0] is 0x0000, WUTF must be cleared by software.

This flag must be cleared by software at least 1.5 RTCCLK periods before WUTF is set to 1 again.

Bit 1 ALRBF : Alarm B flag

This flag is set by hardware when the time/date registers (RTC_TR and RTC_DR) match the alarm B register (RTC_ALRMBR).

Bit 0 ALRAF : Alarm A flag

This flag is set by hardware when the time/date registers (RTC_TR and RTC_DR) match the alarm A register (RTC_ALRMAR).

Note: The bits of this register are cleared few APB clock cycles after setting their corresponding clear bit in the RTC_SCR register. After clearing the flag, read it until it is read at 0 before leaving the interrupt routine.

46.6.21 RTC nonsecure masked interrupt status register (RTC_MISR)

This register can be globally protected, or each bit of this register can be individually protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x54

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:7 Reserved, must be kept at reset value.

Bit 6 SSRUMF : SSR underflow nonsecure masked flag

This flag is set by hardware when the SSR underflow nonsecure interrupt occurs.

Bit 5 ITSMF : Internal timestamp nonsecure masked flag

This flag is set by hardware when a timestamp on the internal event occurs and timestamp nonsecure interrupt is raised.

Bit 4 TSOVMF : Timestamp overflow nonsecure masked flag

This flag is set by hardware when a timestamp interrupt occurs while TSMF is already set. It is recommended to check and then clear TSOVF only after clearing the TSF bit. Otherwise, an overflow might not be noticed if a timestamp event occurs immediately before the TSF bit is cleared.

Bit 3 TSMF : Timestamp nonsecure masked flag

This flag is set by hardware when a timestamp nonsecure interrupt occurs. If ITSF flag is set, TSF must be cleared together with ITSF.

Bit 2 WUTMF : Wake-up timer nonsecure masked flag

This flag is set by hardware when the wake-up timer nonsecure interrupt occurs. This flag must be cleared by software at least 1.5 RTCCLK periods before WUTF is set to 1 again.

Bit 1 ALRBMF : Alarm B nonsecure masked flag

This flag is set by hardware when the alarm B nonsecure interrupt occurs.

Bit 0 ALRAMF : Alarm A masked flag

This flag is set by hardware when the alarm A nonsecure interrupt occurs.

Note: The bits of this register are cleared few APB clock cycles after setting their corresponding clear bit in the RTC_SCR register. After clearing the flag, read it until it is read at 0 before leaving the interrupt routine.

46.6.22 RTC secure masked interrupt status register (RTC_SMISR)

This register can be globally protected, or each bit of this register can be individually protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be globally protected, or each bit of this register can be individually protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x58

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:7 Reserved, must be kept at reset value.

Bit 6 SSRUMF : SSR underflow secure masked flag

This flag is set by hardware when the SSR underflow secure interrupt occurs.

Bit 5 ITSMF : Internal timestamp interrupt secure masked flag

This flag is set by hardware when a timestamp on the internal event occurs and timestamp secure interrupt is raised.

Bit 4 TSOVF : Timestamp overflow interrupt secure masked flag

This flag is set by hardware when a timestamp secure interrupt occurs while TSMF is already set.

It is recommended to check and then clear TSOVF only after clearing the TSF bit. Otherwise, an overflow might not be noticed if a timestamp event occurs immediately before the TSF bit is cleared.

Bit 3 TSMF : Timestamp interrupt secure masked flag

This flag is set by hardware when a timestamp secure interrupt occurs.

If ITSF flag is set, TSF must be cleared together with ITSF.

Bit 2 WUTMF : Wake-up timer interrupt secure masked flag

This flag is set by hardware when the wake-up timer secure interrupt occurs.

This flag must be cleared by software at least 1.5 RTCCLK periods before WUTF is set to 1 again.

Bit 1 ALRBMF : Alarm B interrupt secure masked flag

This flag is set by hardware when the alarm B secure interrupt occurs.

Bit 0 ALRAMF : Alarm A interrupt secure masked flag

This flag is set by hardware when the alarm A secure interrupt occurs.

Note: The bits of this register are cleared few APB clock cycles after setting their corresponding clear bit in the RTC_SCR register. After clearing the flag, read it until it is read at 0 before leaving the interrupt routine.

46.6.23 RTC status clear register (RTC_SCR)

This register can be globally protected, or each bit of this register can be individually protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be globally protected, or each bit of this register can be individually protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x5C

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:7 Reserved, must be kept at reset value.

Bit 6 CSSRUF : Clear SSR underflow flag

Writing '1' in this bit clears the SSRUF in the RTC_SR register.

Bit 5 CITSF : Clear internal timestamp flag

Writing 1 in this bit clears the ITSF bit in the RTC_SR register.

Bit 4 CTSOVF : Clear timestamp overflow flag

Writing 1 in this bit clears the TSOVF bit in the RTC_SR register.

It is recommended to check and then clear TSOVF only after clearing the TSF bit. Otherwise, an overflow might not be noticed if a timestamp event occurs immediately before the TSF bit is cleared.

Bit 3 CTSF : Clear timestamp flag

Writing 1 in this bit clears the TSF bit in the RTC_SR register.

If ITSF flag is set, TSF must be cleared together with ITSF by setting CRSF and CITSF.

Bit 2 CWUTF : Clear wake-up timer flag

Writing 1 in this bit clears the WUTF bit in the RTC_SR register.

Bit 1 CALRBF : Clear alarm B flag

Writing 1 in this bit clears the ALRBF bit in the RTC_SR register.

Bit 0 CALRAF : Clear alarm A flag

Writing 1 in this bit clears the ALRAF bit in the RTC_SR register.

46.6.24 RTC option register (RTC_OR)

Address offset: 0x60

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:1 Reserved, must be kept at reset value.

Bit 0 OUT2_RMP : RTC_OUT2 mapping

0: RTC_OUT2 is mapped on PI8

1: RTC_OUT2 is mapped on PB2

46.6.25 RTC alarm A binary mode register (RTC_ALRABINR)

This register can be written only when ALRAE is reset in RTC_CR register, or in initialization mode.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x70

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:0 SS[31:0] : Synchronous counter alarm value in Binary mode

This value is compared with the contents of the synchronous counter to determine if Alarm A is to be activated. Only bits 0 up to MASKSS-1 are compared.

SS[14:0] is the mirror of SS[14:0] in the RTC_ALRMASSRR, and so can also be read or written through RTC_ALRMASSR.

Note: SS[3:0] must be 0000 when SSCLR is set with ATCKSEL[3] = 1 in TAMP_ATCR1.

46.6.26 RTC alarm B binary mode register (RTC_ALRBBINR)

This register can be written only when ALRBE is reset in RTC_CR register, or in initialization mode.

This register can be protected against nonsecure access. Refer to Section 46.3.4: RTC secure protection modes .

This register can be protected against non-privileged access. Refer to Section 46.3.5: RTC privilege protection modes .

Address offset: 0x74

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:0 SS[31:0] : Synchronous counter alarm value in Binary mode

This value is compared with the contents of the synchronous counter to determine if Alarm Bis to be activated. Only bits 0 up to MASKSS-1 are compared.

SS[14:0] is the mirror of SS[14:0] in the RTC_ALRMBSSRR, and so can also be read or written through RTC_ALRMBSSR.

Note: SS[3:0] must be 0000 when SSCLR is set with ATCKSEL[3] = 1 in TAMP_ATCR1.

46.6.27 RTC register map

Table 504. RTC register map and reset values

Table 504. RTC register map and reset values (continued)

Refer to Section 2.3: Memory organization for the register boundary addresses.
