40. Basic timers (TIM6/TIM7)

40.1 TIM6/TIM7 introduction

The basic timers TIM6/TIM7 consist in a 16-bit autoreload counter driven by a programmable prescaler.

They can be used as generic timers for time-base generation.

The basic timer can also be used for triggering the digital-to-analog converter. This is done with the trigger output of the timer.

The timers are completely independent, and do not share any resources.

40.2 TIM6/TIM7 main features

Basic timer (TIM6/TIM7) features include:

• 16-bit autoreload upcounter.
• 16-bit programmable prescaler used to divide (also “on the fly”) the counter clock frequency by any factor between 1 and 65535.
• Synchronization circuit to trigger the DAC.
• Interrupt/DMA generation on the update event: counter overflow.

40.3 TIM6/TIM7 functional description

40.3.1 TIM6/TIM7 block diagram

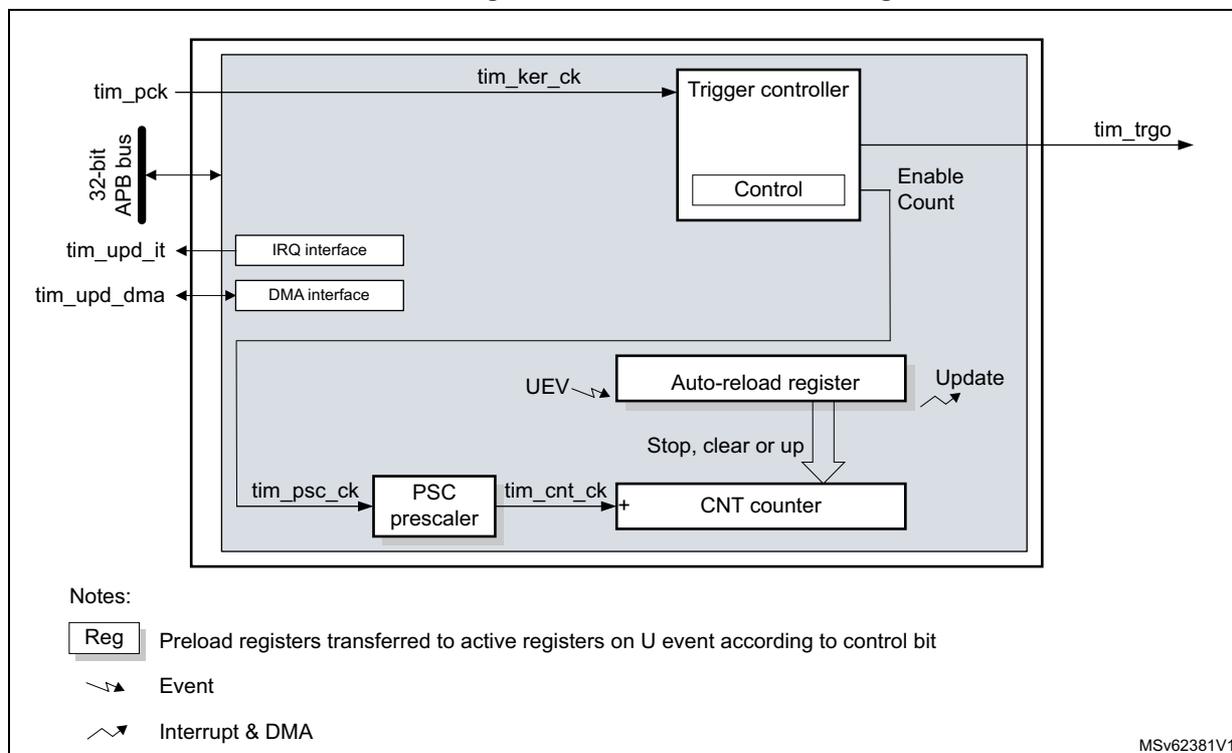

Figure 515. Basic timer block diagram

Notes:
Reg Preload registers transferred to active registers on U event according to control bit
Event
Interrupt & DMA

MSV62381V1

Figure 515. Basic timer block diagram. The diagram shows the internal architecture of a basic timer. On the left, external signals are shown: tim_pck (32-bit APB bus), tim_upd_it (IRQ interface), and tim_upd_dma (DMA interface). The internal components include a Trigger controller (with a Control block), an Auto-reload register, a PSC prescaler, and a CNT counter. The Trigger controller receives tim_pck and tim_ker_ck and outputs tim_trgo. The Auto-reload register receives UEV and Update signals and outputs Stop, clear or up to the CNT counter. The PSC prescaler receives tim_psc_ck and outputs tim_cnt_ck to the CNT counter. The CNT counter also receives Enable Count from the Trigger controller. Notes indicate: Reg (Preload registers transferred to active registers on U event according to control bit), Event (zigzag arrow), and Interrupt & DMA (wavy arrow). MSV62381V1 is noted in the bottom right.

40.3.2 TIM6/TIM7 internal signals

The table in this section summarizes the TIM inputs and outputs.

Table 432. TIM internal input/output signals

Internal signal name	Signal type	Description
tim_pclk	Input	Timer APB clock
tim_ker_ck	Input	Timer kernel clock. This clock must be synchronous with tim_pclk (derived from the same source). The clock ratio tim_ker_ck/tim_pclk must be an integer: 1, 2, 3, ..., 16 (maximum value)
tim_trgo	Output	Internal trigger output. This trigger can trigger other on-chip peripherals (DAC).
tim_upd_it	Output	Timer update event interrupt
tim_upd_dma	Output	Timer update dma request

40.3.3 TIM6/TIM7 clocks

The timer bus interface is clocked by the tim_pclk APB clock.

The counter clock tim_ker_ck is connected to the tim_pclk input.

The CEN (in the TIMx_CR1 register) and UG bits (in the TIMx_EGR register) are actual control bits and can be changed only by software (except for UG that remains cleared automatically). As soon as the CEN bit is written to 1, the prescaler is clocked by the internal clock tim_ker_ck.

Figure 516 shows the behavior of the control circuit and the upcounter in normal mode, without prescaler.

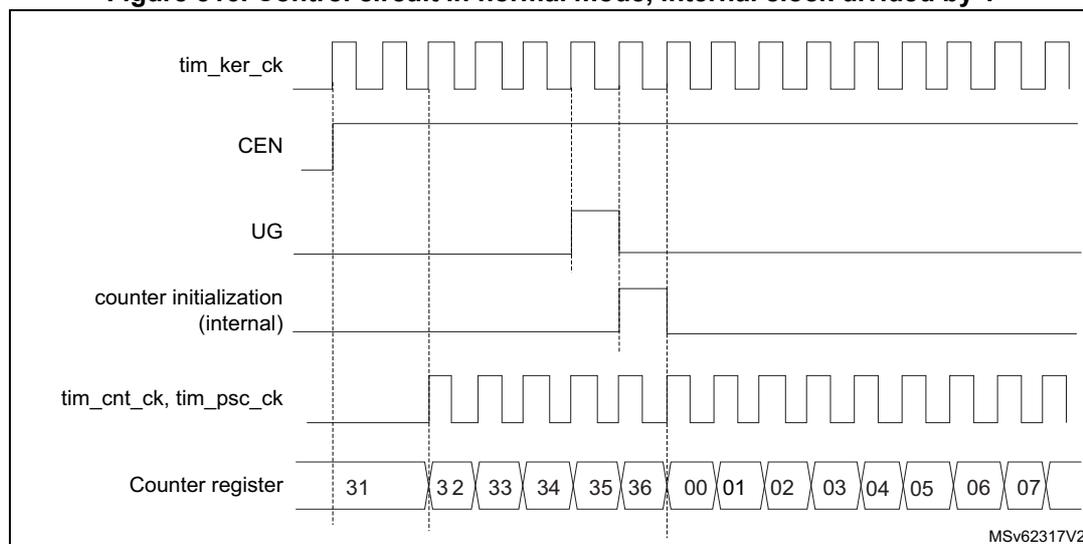

Figure 516. Control circuit in normal mode, internal clock divided by 1

Timing diagram showing the control circuit and upcounter behavior. The diagram includes five signal lines: tim_ker_ck (internal clock), CEN (counter enable), UG (update generation), counter initialization (internal), and tim_cnt_ck, tim_psc_ck (counter/prescaler clock). The Counter register shows values 31, 32, 33, 34, 35, 36, 00, 01, 02, 03, 04, 05, 06, 07. The diagram illustrates that the counter starts at 31, increments to 36, and then overflows to 00 when CEN is high and UG is asserted. The counter initialization signal is shown as a pulse that occurs after the UG pulse. The counter clock is shown as a square wave that is active when CEN is high.

The timing diagram illustrates the behavior of the control circuit and the upcounter in normal mode. The signals shown are:

tim_ker_ck : Internal clock signal, shown as a square wave.
CEN : Counter Enable bit. It is initially low, then goes high, and then low again.
UG : Update Generation bit. It is initially low, then goes high when CEN is high, and then low again.
counter initialization (internal) : A signal that goes high when UG is high and then low again.
tim_cnt_ck, tim_psc_ck : Counter and Prescaler clock signals. They are shown as square waves that are active when CEN is high.
Counter register : Shows the count values: 31, 32, 33, 34, 35, 36, 00, 01, 02, 03, 04, 05, 06, 07. The counter increments from 31 to 36, then overflows to 00 when CEN is high and UG is asserted. The counter then continues to increment from 00 to 07.

MSV62317V2

Timing diagram showing the control circuit and upcounter behavior. The diagram includes five signal lines: tim_ker_ck (internal clock), CEN (counter enable), UG (update generation), counter initialization (internal), and tim_cnt_ck, tim_psc_ck (counter/prescaler clock). The Counter register shows values 31, 32, 33, 34, 35, 36, 00, 01, 02, 03, 04, 05, 06, 07. The diagram illustrates that the counter starts at 31, increments to 36, and then overflows to 00 when CEN is high and UG is asserted. The counter initialization signal is shown as a pulse that occurs after the UG pulse. The counter clock is shown as a square wave that is active when CEN is high.

40.3.4 Time-base unit

The main block of the programmable timer is a 16-bit upcounter with its related autoreload register. The counter clock can be divided by a prescaler.

The counter, the autoreload register and the prescaler register can be written or read by software. This is true even when the counter is running.

The time-base unit includes:

• Counter register (TIMx_CNT)
• Prescaler register (TIMx_PSC)
• Auto-Reload register (TIMx_ARR).

The autoreload register is preloaded. The preload register is accessed each time an attempt is made to write or read the autoreload register. The contents of the preload register are transferred into the shadow register permanently or at each update event UEV, depending on the autoreload preload enable bit (ARPE) in the TIMx_CR1 register. The update event is sent when the counter reaches the overflow value and if the UDIS bit equals 0 in the TIMx_CR1 register. It can also be generated by software. The generation of the update event is described in detail for each configuration.

The counter is clocked by the prescaler output tim_cnt_ck, which is enabled only when the counter enable bit (CEN) in the TIMx_CR1register is set.

Note that the actual counter enable signal tim_cnt_enis set one clock cycle after CEN bit set.

Prescaler description

The prescaler can divide the counter clock frequency by any factor between 1 and 65536. It is based on a 16-bit counter controlled through a 16-bit register (in the TIMx_PSCregister). It can be changed on the fly as the TIMx_PSCcontrol register is buffered. The new prescaler ratio is taken into account at the next update event.

Figure 517 and Figure 518 give some examples of the counter behavior when the prescaler ratio is changed on the fly.

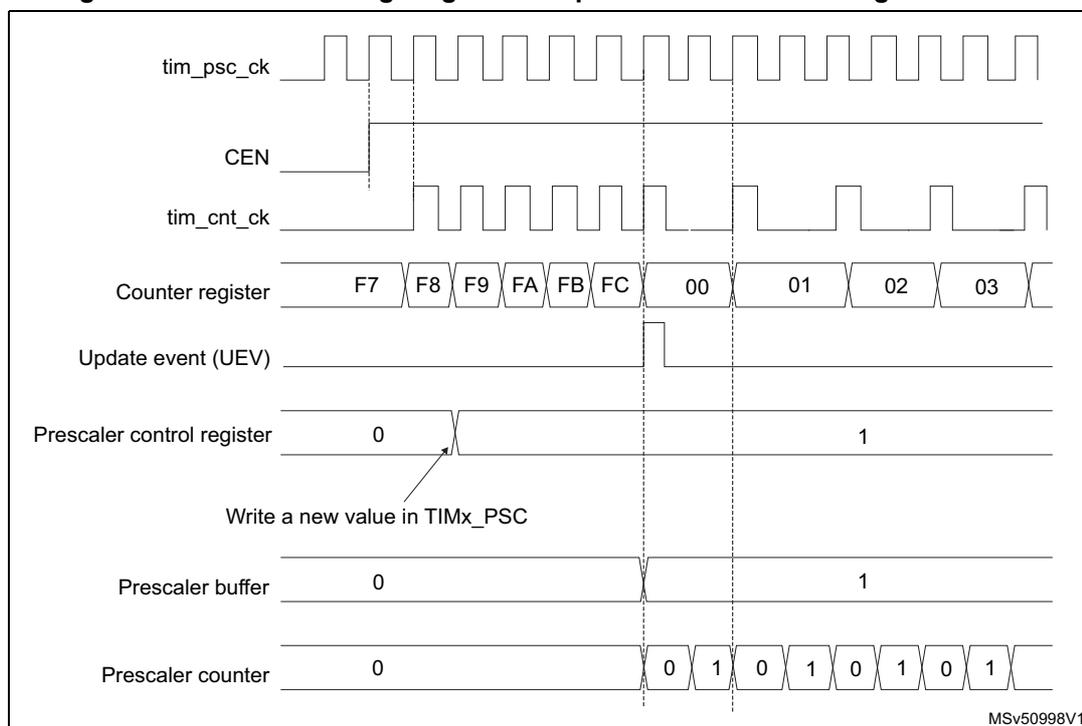

Figure 517. Counter timing diagram with prescaler division change from 1 to 2

Timing diagram showing the effect of changing the prescaler division from 1 to 2 on a counter.

The timing diagram illustrates the relationship between several signals over time:

tim_psc_ck : A high-frequency periodic clock signal.
CEN : Counter Enable bit. It is initially low and goes high at the first rising edge of tim_psc_ck.
tim_cnt_ck : The clock signal for the counter. It is initially a divided version of tim_psc_ck(division by 1). After the update event, its frequency halves (division by 2).
Counter register : Shows the counter values. It increments from F7to FC(hexadecimal). Upon reaching FC, an Update Event (UEV) occurs, and the counter resets to 00. It then continues to increment: 00, 01, 02, 03.
Update event (UEV) : A pulse that occurs when the counter register overflows from FCto 00.
Prescaler control register : Initially set to 0. At the UEV, a new value of 1is written to it. An arrow labeled "Write a new value in TIMx_PSC" points to this transition.
Prescaler buffer : A buffered version of the control register. It initially holds 0and updates to 1at the next rising edge of tim_psc_ckfollowing the UEV.
Prescaler counter : A 16-bit counter that divides the tim_psc_ckfrequency. It counts from 0to 1(binary) when the division factor is 1(control register 0). When the division factor changes to 2(control register 1), it counts from 0to 1to 0to 1to 0to 1to 0to 1.

The diagram shows that the prescaler division change from 1 to 2 takes effect at the next update event after the new value is written to the control register and latched into the buffer.

MSV50998V1

Timing diagram showing the effect of changing the prescaler division from 1 to 2 on a counter.

Figure 518. Counter timing diagram with prescaler division change from 1 to 4

The timing diagram illustrates the operation of a basic timer (TIM6/TIM7) with a prescaler division change. The signals shown are:

tim_psc_ck : Prescaler clock signal, a periodic square wave.
CEN : Counter Enable signal, active high. It is initially low and goes high at the start of the diagram.
tim_cnt_ck : Counter clock signal, derived from tim_psc_ck. It is initially high-frequency and becomes low-frequency after the prescaler division change.
Counter register : Shows the counter values. It counts from F7 to FC, then overflows to 00, and continues counting (01). The values F7, F8, F9, FA, FB, FC are shown as individual steps, while 00 and 01 are shown as ranges.
Update event (UEV) : Generated when the counter overflows from FC to 00.
Prescaler control register : Initially set to 0. A write to a new value (3) is performed. The change takes effect at the next update event.
Prescaler buffer : Updated with the new value (3) at the update event.
Prescaler counter : Counts from 0 to 3 (0, 1, 2, 3) and then overflows to 0. This sequence repeats twice, corresponding to the two update events shown.

MSv50999V1

Figure 518. Counter timing diagram with prescaler division change from 1 to 4. The diagram shows the relationship between tim_psc_ck, CEN, tim_cnt_ck, Counter register, Update event (UEV), Prescaler control register, Prescaler buffer, and Prescaler counter over time. The counter counts from F7 to FC, then overflows to 00. The prescaler control register is changed from 0 to 3. The prescaler buffer is updated from 0 to 3. The prescaler counter counts from 0 to 3, then overflows to 0. The update event (UEV) is generated when the counter overflows. The counter register values are F7, F8, F9, FA, FB, FC, 00, 01. The prescaler control register values are 0, 3. The prescaler buffer values are 0, 3. The prescaler counter values are 0, 0, 1, 2, 3, 0, 1, 2, 3.

40.3.5 Counting mode

The counter counts from 0 to the autoreload value (contents of the TIMx_ARR register), then restarts from 0 and generates a counter overflow event.

An update event can be generated at each counter overflow or by setting the UG bit in the TIMx_EGR register (by software or by using the slave mode controller).

The UEV event can be disabled by software by setting the UDIS bit in the TIMx_CR1 register. This avoids updating the shadow registers while writing new values into the preload registers. In this way, no update event occurs until the UDIS bit has been written to 0, however, the counter and the prescaler counter both restart from 0 (but the prescale rate does not change). In addition, if the URS (update request selection) bit in the TIMx_CR1 register is set, setting the UG bit generates an update event UEV, but the UIF flag is not set (so no interrupt or DMA request is sent).

When an update event occurs, all the registers are updated and the update flag (UIF bit in the TIMx_SR register) is set (depending on the URS bit):

• The buffer of the prescaler is reloaded with the preload value (contents of the TIMx_PSC register).
• The autoreload shadow register is updated with the preload value (TIMx_ARR).

The following figures show some examples of the counter behavior for different clock frequencies when TIMx_ARR = 0x36.

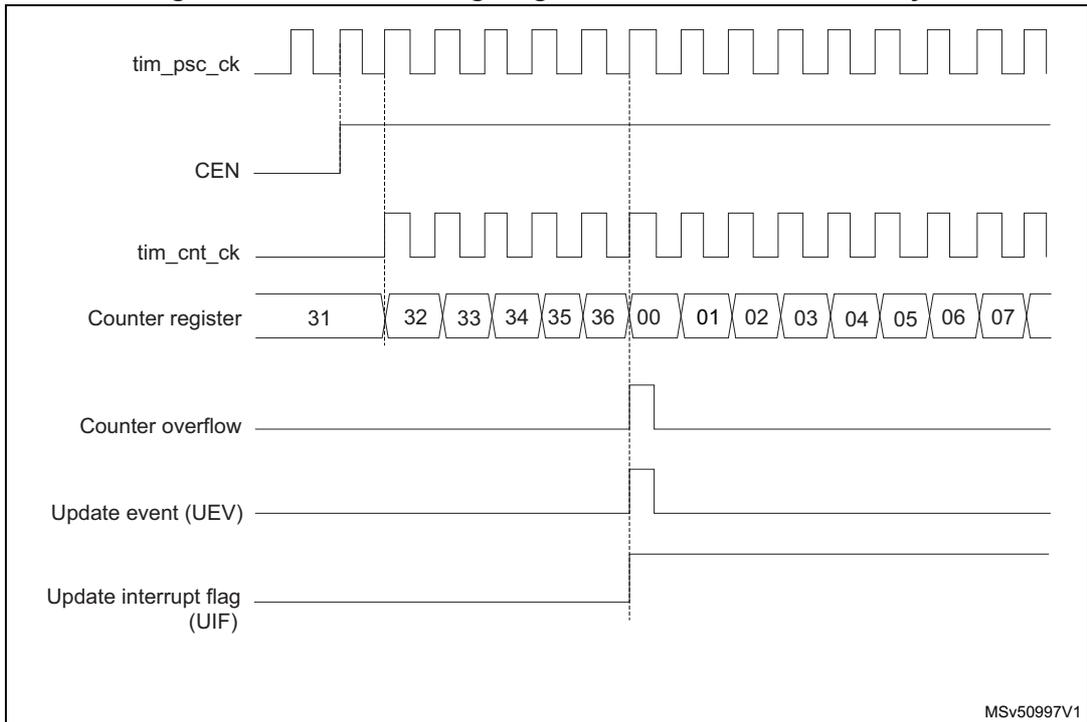

Figure 519. Counter timing diagram, internal clock divided by 1

Timing diagram for internal clock divided by 1. It shows the relationship between tim_psc_ck, CEN, tim_cnt_ck, Counter register values (31 to 07), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

This timing diagram illustrates the operation of a basic timer with the internal clock divided by 1. The top signal, tim_psc_ck , is a periodic square wave. The CEN (Counter Enable) signal is shown as a horizontal line that goes high at the second rising edge of tim_psc_ck . The tim_cnt_ck signal is a square wave that toggles on every rising edge of tim_psc_ck after CEN is high. The Counter register values are shown in a sequence: 31, 32, 33, 34, 35, 36, 00, 01, 02, 03, 04, 05, 06, 07. The counter increments by 1 at each rising edge of tim_cnt_ck . When the counter reaches 36, the Counter overflow signal pulses high for one tim_psc_ck period. Simultaneously, the Update event (UEV) and the Update interrupt flag (UIF) also pulse high. The counter then resets to 00 and continues incrementing.

MSv50997V1

Timing diagram for internal clock divided by 1. It shows the relationship between tim_psc_ck, CEN, tim_cnt_ck, Counter register values (31 to 07), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

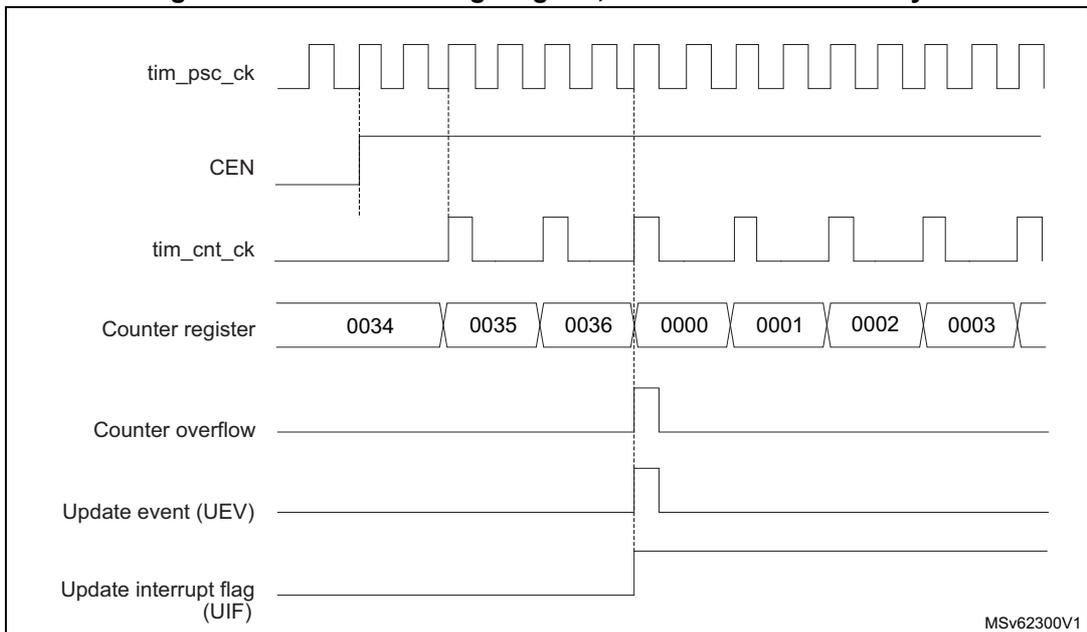

Figure 520. Counter timing diagram, internal clock divided by 2

Timing diagram for internal clock divided by 2. It shows the relationship between tim_psc_ck, CEN, tim_cnt_ck, Counter register values (0034 to 0003), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

This timing diagram illustrates the operation of a basic timer with the internal clock divided by 2. The tim_psc_ck signal is the same as in Figure 519. The CEN signal goes high at the same point. The tim_cnt_ck signal is a square wave that toggles on every second rising edge of tim_psc_ck (specifically, the 2nd, 4th, 6th, etc.). The Counter register values are shown as 0034, 0035, 0036, 0000, 0001, 0002, 0003. The counter increments by 1 at every second rising edge of tim_psc_ck (i.e., at each rising edge of tim_cnt_ck ). When the counter reaches 0036, the Counter overflow , Update event (UEV) , and Update interrupt flag (UIF) signals all pulse high for one tim_psc_ck period. The counter then resets to 0000.

MSv62300V1

Timing diagram for internal clock divided by 2. It shows the relationship between tim_psc_ck, CEN, tim_cnt_ck, Counter register values (0034 to 0003), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

Figure 521. Counter timing diagram, internal clock divided by 4

This timing diagram illustrates the operation of a counter when the internal clock is divided by 4. The top signal, tim_psc_ck , is a periodic square wave. The CEN (Counter Enable) signal is shown as a high-level pulse. The tim_cnt_ck signal is a square wave with a frequency one-fourth that of tim_psc_ck . The Counter register displays values 0035, 0036, 0000, and 0001. The Counter overflow signal is a short pulse when the counter reaches 0000. The Update event (UEV) and Update interrupt flag (UIF) are also shown as pulses coinciding with the overflow event. The diagram is labeled MSv62301V1.

Timing diagram for internal clock divided by 4. It shows the relationship between tim_psc_ck, CEN, tim_cnt_ck, Counter register values (0035, 0036, 0000, 0001), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

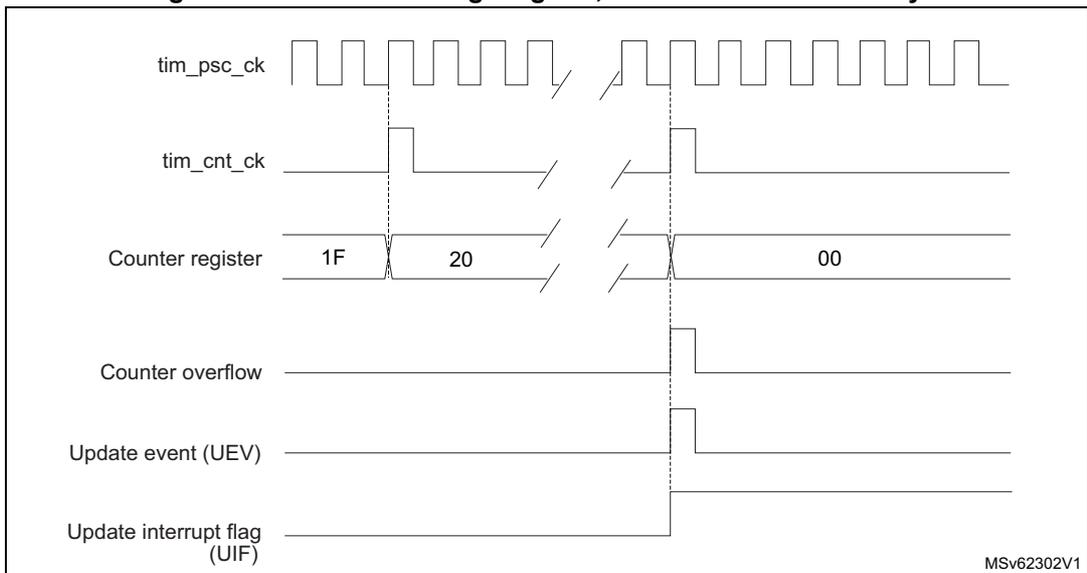

Figure 522. Counter timing diagram, internal clock divided by N

This timing diagram illustrates the operation of a counter when the internal clock is divided by an arbitrary factor N. The tim_psc_ck signal is a periodic square wave. The tim_cnt_ck signal is a square wave with a frequency one-Nth that of tim_psc_ck . The Counter register displays values 1F, 20, and 00. The Counter overflow signal is a short pulse when the counter reaches 00. The Update event (UEV) and Update interrupt flag (UIF) are also shown as pulses coinciding with the overflow event. The diagram is labeled MSv62302V1.

Timing diagram for internal clock divided by N. It shows the relationship between tim_psc_ck, tim_cnt_ck, Counter register values (1F, 20, 00), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

Figure 523. Counter timing diagram, update event when ARPE = 0 (TIMx_ARR not preloaded)

Timing diagram for a basic timer (TIM6/TIM7) showing the relationship between tim_psc_ck, CEN, tim_cnt_ck, Counter register, Counter overflow, Update event (UEV), Update interrupt flag (UIF), and Auto-reload preload register. The diagram illustrates the counter sequence from 31 to 07, the overflow at 36, and the update event triggered by the overflow. The Auto-reload preload register is shown changing from FF to 36.

The timing diagram illustrates the operation of a basic timer (TIM6/TIM7) when ARPE = 0 and the TIMx_ARR register is not preloaded. The signals shown are:

tim_psc_ck : Prescaler clock signal, shown as a square wave.
CEN : Counter Enable signal, shown as a high-level signal.
tim_cnt_ck : Counter clock signal, shown as a square wave derived from tim_psc_ck.
Counter register : Shows the counter value sequence: 31, 32, 33, 34, 35, 36, 00, 01, 02, 03, 04, 05, 06, 07.
Counter overflow : A pulse generated when the counter reaches 36.
Update event (UEV) : A pulse generated when the counter overflows.
Update interrupt flag (UIF) : A pulse generated when the counter overflows.
Auto-reload preload register : Shows the register value changing from FF to 36. An arrow points to the transition with the text "Write a new value in TIMx_ARR".

MSV62303V1

Timing diagram for a basic timer (TIM6/TIM7) showing the relationship between tim_psc_ck, CEN, tim_cnt_ck, Counter register, Counter overflow, Update event (UEV), Update interrupt flag (UIF), and Auto-reload preload register. The diagram illustrates the counter sequence from 31 to 07, the overflow at 36, and the update event triggered by the overflow. The Auto-reload preload register is shown changing from FF to 36.

Figure 524. Counter timing diagram, update event when ARPE = 1 (TIMx_ARR preloaded)

Timing diagram for a basic timer (TIM6/TIM7) showing the relationship between the prescaler clock (tim_psc_ck), counter enable (CEN), counter clock (tim_cnt_ck), counter register values, counter overflow, update event (UEV), update interrupt flag (UIF), auto-reload preload register, and auto-reload shadow register. The diagram illustrates the update event occurring when the counter reaches the auto-reload value (F5) and the ARPE bit is set.

The timing diagram shows the following signals and registers over time:

tim_psc_ck : Prescaler clock signal, a periodic square wave.
CEN : Counter Enable signal, which goes high to enable counting.
tim_cnt_ck : Counter clock signal, derived from the prescaler clock when CEN is high.
Counter register : Shows the counter values: F0, F1, F2, F3, F4, F5, 00, 01, 02, 03, 04, 05, 06, 07. The counter increments from F0 to F5, then overflows to 00.
Counter overflow : A pulse generated when the counter reaches the auto-reload value (F5) and overflows to 00.
Update event (UEV) : A pulse generated when the counter reaches the auto-reload value (F5) and overflows to 00.
Update interrupt flag (UIF) : A flag that is set when an update event occurs.
Auto-reload preload register : Contains the value F5. An arrow indicates a new value (36) being written to this register.
Auto-reload shadow register : Contains the value F5. An arrow indicates the new value (36) being loaded into this register from the preload register.
Write a new value in TIMx_ARR : An annotation indicating the action of writing the new value (36) to the preload register.

MSV62304V1

Timing diagram for a basic timer (TIM6/TIM7) showing the relationship between the prescaler clock (tim_psc_ck), counter enable (CEN), counter clock (tim_cnt_ck), counter register values, counter overflow, update event (UEV), update interrupt flag (UIF), auto-reload preload register, and auto-reload shadow register. The diagram illustrates the update event occurring when the counter reaches the auto-reload value (F5) and the ARPE bit is set.

Dithering mode

The time base effective resolution can be increased by enabling the dithering mode, using the DITHEN bit in the TIMx_CR1 register. This affects the way the TIMx_ARR is behaving, and is useful for adjusting the average counter period when the timer is used as a trigger (typically for a DAC).

The operating principle is to have the actual ARR value slightly changed (adding or not one timer clock period) over 16 consecutive counting periods, with predefined patterns. This allows a 16-fold resolution increase, considering the average counting period.

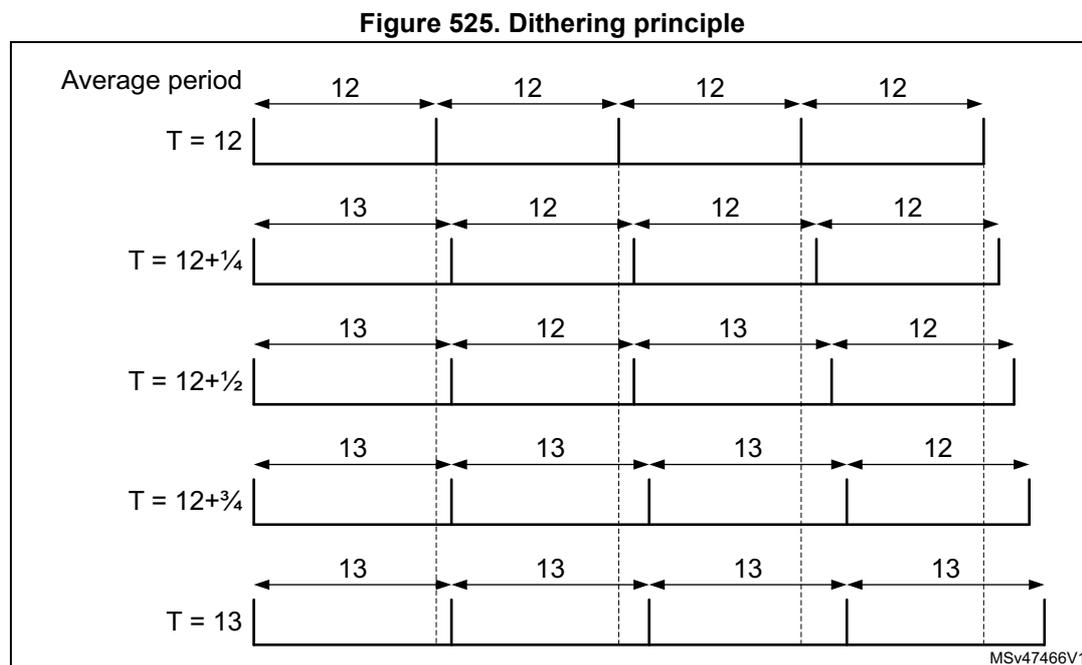

Figure 525 presents the dithering principle applied to four consecutive counting periods.

Figure 525. Dithering principle

Timing diagram showing the dithering principle for four consecutive counting periods. The diagram illustrates five rows of timing: 1. Average period: four consecutive 12-unit periods. 2. T = 12: four consecutive 12-unit periods. 3. T = 12+1/4: one 13-unit period followed by three 12-unit periods. 4. T = 12+1/2: two 13-unit periods followed by two 12-unit periods. 5. T = 12+3/4: three 13-unit periods followed by one 12-unit period. 6. T = 13: four consecutive 13-unit periods. Vertical dashed lines indicate the boundaries of the 16 sub-periods used for averaging.

When the dithering mode is enabled, the register coding is changed as follows (see Figure 526 for example):

• The four LSBs are coding for the enhanced resolution part (fractional part).
• The MSBs are left-shifted to the bits 19:4 and are coding for the base value.

Note: The following sequence must be followed when resetting the DITHEN bit:
1. CEN and ARPE bits must be reset
2. The DITHEN bit must be reset
3. The CEN bit can be set (eventually with ARPE = 1).

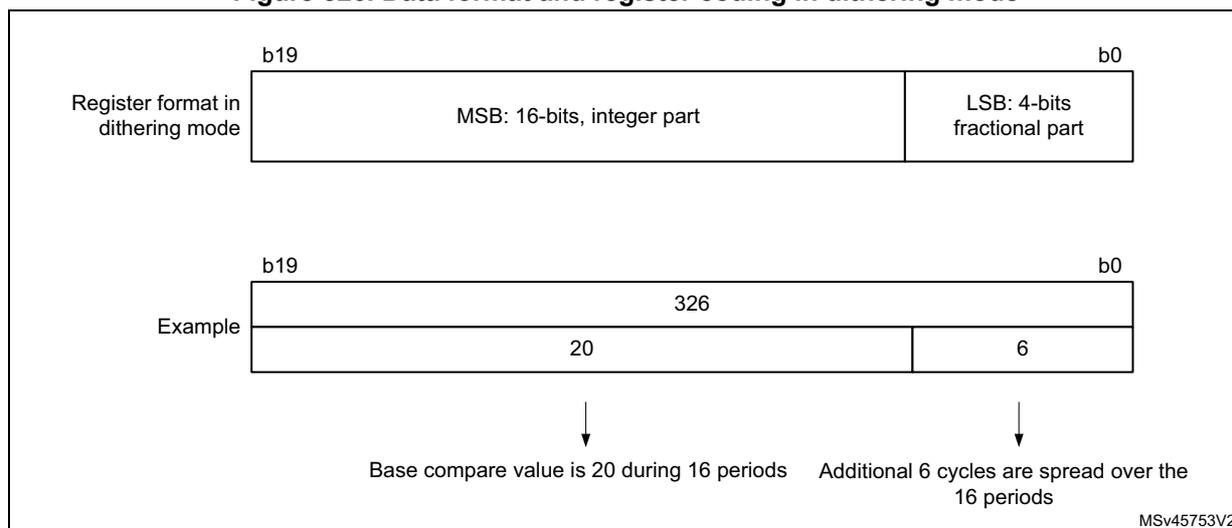

Figure 526. Data format and register coding in dithering mode

$Diagram showing the data format and register coding in dithering mode. It consists of two parts: 1. Register format in dithering mode: A 20-bit register split into a 16-bit MSB (integer part, bits 19:4) and a 4-bit LSB (fractional part, bits 3:0). 2. Example: A 20-bit value of 326 is shown, which is split into a base compare value of 20 (in the MSB) and an additional 6 cycles spread over 16 periods (in the LSB). Arrows point from these values to their respective parts in the register format.$

Diagram showing the data format and register coding in dithering mode. It consists of two parts: 1. Register format in dithering mode: A 20-bit register split into a 16-bit MSB (integer part, bits 19:4) and a 4-bit LSB (fractional part, bits 3:0). 2. Example: A 20-bit value of 326 is shown, which is split into a base compare value of 20 (in the MSB) and an additional 6 cycles spread over 16 periods (in the LSB). Arrows point from these values to their respective parts in the register format.

The minimum frequency is given by the following formula:

\text{Resolution} = \frac{F_{\text{Tim}}}{F_{\text{pwm}}} \Rightarrow F_{\text{pwmMin}} = \frac{F_{\text{Tim}}}{\text{Max}_{\text{Resolution}}}

\text{Dithering mode disabled: } F_{\text{pwmMin}} = \frac{F_{\text{Tim}}}{65536}

\text{Dithering mode enabled: } F_{\text{pwmMin}} = \frac{F_{\text{Tim}}}{65535 + \frac{15}{16}}

Note: The maximum $\text{TIMx\_ARR}$ value is limited to $0\text{xFFFE}$ in dithering mode (corresponds to 65534 for the integer part and 15 for the dithered part).

As shown on Figure 527 , the dithering mode is used to increase the PWM resolution whatever the PWM frequency.

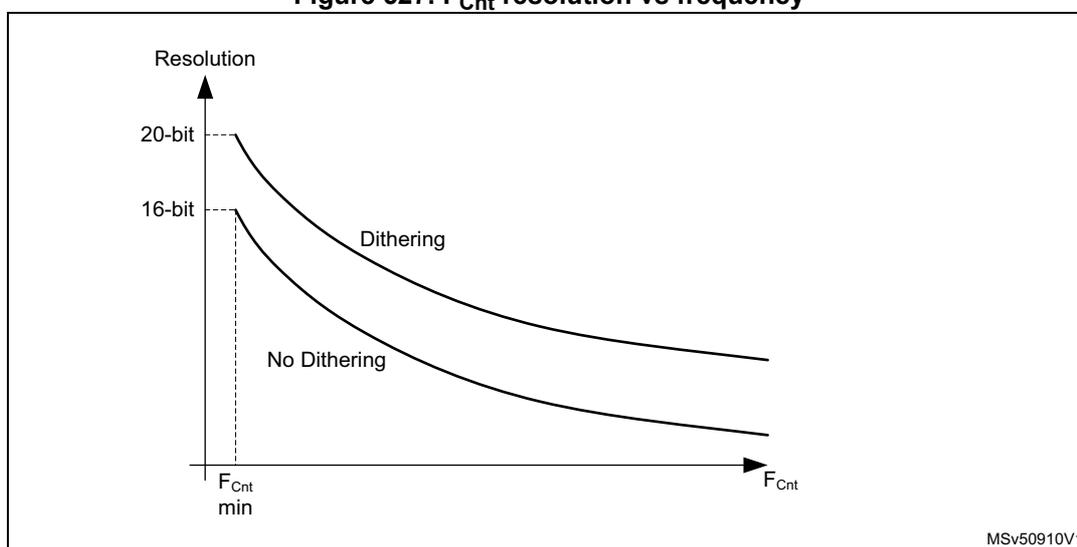

Figure 527. $F_{\text{Cnt}}$ resolution vs frequency

Figure 527: A graph showing Resolution vs F_Cnt. The y-axis is labeled 'Resolution' and has markers for '20-bit' and '16-bit'. The x-axis is labeled 'F_Cnt' and has a marker for 'F_Cnt min'. Two curves are shown: 'Dithering' and 'No Dithering'. The 'Dithering' curve starts at 20-bit resolution and decreases as frequency increases. The 'No Dithering' curve starts at 16-bit resolution and decreases as frequency increases. The 'Dithering' curve is always above the 'No Dithering' curve, indicating higher resolution.

The period changes are spread over 16 consecutive periods, as described in Figure 528 .

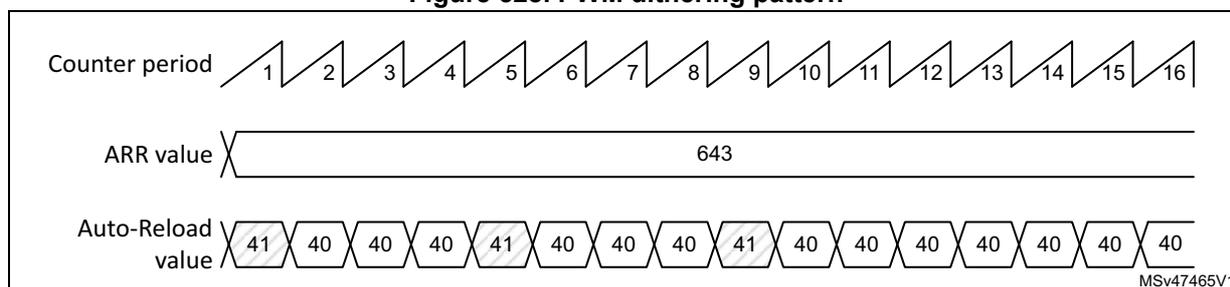

Figure 528. PWM dithering pattern

Figure 528: A diagram showing the PWM dithering pattern over 16 consecutive periods. The top row shows 'Counter period' with values 1 through 16. The middle row shows 'ARR value' as a constant 643. The bottom row shows 'Auto-Reload value' with a sequence of 41, 40, 40, 40, 41, 40, 40, 40, 41, 40, 40, 40, 40, 40, 40, 40. The values 41 are at periods 1, 5, 9, and 13, while the values 40 are at the other periods.

The autoreload and compare values increments are spread following the specific patterns described in Table 433 . The dithering sequence is done to have increments distributed as evenly as possible and minimize the overall ripple.

Table 433. TIMx_ARR register change dithering pattern

-	PWM period
-	LSB value	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
0000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0001	+1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0010	+1	-	-	-	-	-	-	-	+1	-	-	-	-	-	-	-	-
0011	+1	-	-	-	+1	-	-	-	+1	-	-	-	-	-	-	-	-
0100	+1	-	-	-	+1	-	-	-	+1	-	-	-	+1	-	-	-	-
0101	+1	-	+1	-	+1	-	-	-	+1	-	-	-	+1	-	-	-	-
0110	+1	-	+1	-	+1	-	-	-	+1	-	+1	-	+1	-	-	-	-
0111	+1	-	+1	-	+1	-	+1	-	+1	-	+1	-	+1	-	-	-	-
1000	+1	-	+1	-	+1	-	+1	-	+1	-	+1	-	+1	-	+1	-	-
1001	+1	+1	+1	-	+1	-	+1	-	+1	-	+1	-	+1	-	+1	-	-
1010	+1	+1	+1	-	+1	-	+1	-	+1	+1	+1	-	+1	-	+1	-	-
1011	+1	+1	+1	-	+1	+1	+1	-	+1	+1	+1	-	+1	-	+1	-	-
1100	+1	+1	+1	-	+1	+1	+1	-	+1	+1	+1	-	+1	+1	+1	-	-
1101	+1	+1	+1	+1	+1	+1	+1	-	+1	+1	+1	-	+1	+1	+1	-	-
1110	+1	+1	+1	+1	+1	+1	+1	-	+1	+1	+1	+1	+1	+1	+1	+1	-
1111	+1	+1	+1	+1	+1	+1	+1	+1	+1	+1	+1	+1	+1	+1	+1	+1	-

40.3.6 UIF bit remapping

The IUFREMAP bit in the TIMx_CR1 register forces a continuous copy of the update interrupt flag UIF into the timer counter register's bit 31 (TIMxCNT[31]). This is used to atomically read both the counter value and a potential roll-over condition signaled by the UIFCPY flag. In particular cases, it can ease the calculations by avoiding race conditions caused for instance by a processing shared between a background task (counter reading) and an interrupt (update interrupt).

There is no latency between the assertions of the UIF and UIFCPY flags.

40.3.7 ADC triggers

The timer can generate an ADC triggering event with various internal signals, such as reset, enable or compare events.

Note: The clock of the slave peripherals (such as timer, ADC) receiving the tim_trgo signal must be enabled prior to receiving events from the master timer, and the clock frequency (prescaler) must not be changed on-the-fly while triggers are received from the master timer.

40.3.8 TIM6/TIM7 DMA requests

The TIM6/TIM7 can generate a single DMA request, as shown in Table 434 .

Table 434. DMA request

DMA acronym	DMA request	Enable control bit
tim_upd_dma	Update	UDE

40.3.9 Debug mode

When the microcontroller enters debug mode (Cortex-M33 core halted), the TIMx counter can either continue to work normally or be stopped.

The behavior in debug mode can be programmed with a dedicated configuration bit per timer in the Debug support (DBG) module.

For more details, refer to section Debug support (DBG).

40.3.10 TIM6/TIM7 low-power modes

Table 435. Effect of low-power modes on TIM6/TIM7

Mode	Description
Sleep	No effect, peripheral is active. The interrupts can cause the device to exit from Sleep mode.
Stop	The timer operation is stopped and the register content is kept. No interrupt can be generated.
Standby	The timer is powered-down and must be reinitialized after exiting the Standby mode.

40.3.11 TIM6/TIM7 interrupts

The TIM6/TIM7 can generate a single interrupt, as shown in Table 436 .

Table 436. Interrupt request

Interrupt acronym	Interrupt event	Event flag	Enable control bit	Interrupt clear method	Exit from Sleep mode	Exit from Stop and Standby mode
TIM6 TIM7	Update	UIF	UIE	write 0 in UIF	Yes	No

40.4 TIM6/TIM7 registers

Refer to Section 1.2 for a list of abbreviations used in register descriptions.

The peripheral registers can be accessed by half-words (16-bit) or words (32-bit).

40.4.1 TIMx control register 1 (TIMx_CR1)(x = 6 to 7)

Address offset: 0x00

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	DITH EN	UIFRE MAP	Res.	Res.	Res.	ARPE	Res.	Res.	Res.	OPM	URS	UDIS	CEN
			rw	rw				rw				rw	rw	rw	rw

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 DITHEN : Dithering enable

0: Dithering disabled

1: Dithering enabled

Note: The DITHEN bit can only be modified when CEN bit is reset.

Bit 11 UIFREMAP : UIF status bit remapping

0: No remapping. UIF status bit is not copied to TIMx_CNT register bit 31.

1: Remapping enabled. UIF status bit is copied to TIMx_CNT register bit 31.

Bits 10:8 Reserved, must be kept at reset value.

Bit 7 ARPE : Auto-reload preload enable

0: TIMx_ARR register is not buffered.

1: TIMx_ARR register is buffered.

Bits 6:4 Reserved, must be kept at reset value.

Bit 3 OPM : One-pulse mode

0: Counter is not stopped at update event

1: Counter stops counting at the next update event (clearing the CEN bit).

Bit 2 URS: Update request source

This bit is set and cleared by software to select the UEV event sources.

0: Any of the following events generates an update interrupt or DMA request if enabled.

These events can be:

- Counter overflow/underflow
- Setting the UG bit
- Update generation through the slave mode controller

1: Only counter overflow/underflow generates an update interrupt or DMA request if enabled.

Bit 1 UDIS: Update disable

This bit is set and cleared by software to enable/disable UEV event generation.

0: UEV enabled. The Update (UEV) event is generated by one of the following events:

- Counter overflow/underflow
- Setting the UG bit
- Update generation through the slave mode controller

Buffered registers are then loaded with their preload values.

1: UEV disabled. The Update event is not generated, shadow registers keep their value (ARR, PSC). However the counter and the prescaler are reinitialized if the UG bit is set or if a hardware reset is received from the slave mode controller.

Bit 0 CEN: Counter enable

0: Counter disabled

1: Counter enabled

CEN is cleared automatically in one-pulse mode, when an update event occurs.

40.4.2 TIMx control register 2 (TIMx_CR2)(x = 6 to 7)

Address offset: 0x04

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	MMS[2:0]			Res.	Res.	Res.	Res.
									rw	rw	rw

Bits 15:7 Reserved, must be kept at reset value.

Bits 6:4 MMS[2:0] : Master mode selection

These bits are used to select the information to be sent in master mode to slave timers for synchronization (TRGO). The combination is as follows:

000: Reset - the UG bit from the TIMx_EGR register is used as a trigger output (tim_trgo).

001: Enable - the Counter enable signal, tim_cnt_en, is used as a trigger output (tim_trgo). It is useful to start several timers at the same time or to control a window in which a slave timer is enabled. The Counter Enable signal is generated when the CEN control bit is written.

010: Update - The update event is selected as a trigger output (tim_trgo). For instance a master timer can then be used as a prescaler for a slave timer.

Note: The clock of the slave timer or the peripheral receiving the tim_trgo must be enabled prior to receive events from the master timer, and must not be changed on-the-fly while triggers are received from the master timer.

Bits 3:0 Reserved, must be kept at reset value.

40.4.3 TIMx DMA/Interrupt enable register (TIMx_DIER)(x = 6 to 7)

Address offset: 0x0C

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	UDE	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UIE
							rw								rw

Bits 15:9 Reserved, must be kept at reset value.

Bit 8 UDE : Update DMA request enable

0: Update DMA request disabled.

1: Update DMA request enabled.

Bits 7:1 Reserved, must be kept at reset value.

Bit 0 UIE : Update interrupt enable

0: Update interrupt disabled.

1: Update interrupt enabled.

40.4.4 TIMx status register (TIMx_SR)(x = 6 to 7)

Address offset: 0x10

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UIF
															rc_w0

Bits 15:1 Reserved, must be kept at reset value.

Bit 0 UIF : Update interrupt flag

This bit is set by hardware on an update event. It is cleared by software.
0: No update occurred.
1: Update interrupt pending. This bit is set by hardware when the registers are updated:
–On counter overflow if UDIS = 0 in the TIMx_CR1 register.
–When CNT is reinitialized by software using the UG bit in the TIMx_EGR register, if URS = 0 and UDIS = 0 in the TIMx_CR1 register.

40.4.5 TIMx event generation register (TIMx_EGR)(x = 6 to 7)

Address offset: 0x14

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UG
															w

Bits 15:1 Reserved, must be kept at reset value.

Bit 0 UG : Update generation

This bit can be set by software, it is automatically cleared by hardware.
0: No action.
1: Re-initializes the timer counter and generates an update of the registers. Note that the prescaler counter is cleared too (but the prescaler ratio is not affected).

40.4.6 TIMx counter (TIMx_CNT)(x = 6 to 7)

Address offset: 0x24

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
UIF CPY	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
r
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
CNT[15:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bit 31 UIFCPY : UIF copy

This bit is a read-only copy of the UIF bit of the TIMx_ISR register. If the UIFREMAP bit in TIMx_CR1 is reset, bit 31 is reserved and read as 0.

Bits 30:16 Reserved, must be kept at reset value.

Bits 15:0 CNT[15:0] : Counter value

Non-dithering mode (DITHEN = 0)

The register holds the counter value.

Dithering mode (DITHEN = 1)

The register only holds the non-dithered part in CNT[15:0]. The fractional part is not available.

40.4.7 TIMx prescaler (TIMx_PSC)(x = 6 to 7)

Address offset: 0x28

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
PSC[15:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 15:0 PSC[15:0] : Prescaler value

The counter clock frequency $f_{tim\_cnt\_ck}$ is equal to $f_{tim\_psc\_ck} / (PSC[15:0] + 1)$ .

PSC contains the value to be loaded into the active prescaler register at each update event (including when the counter is cleared through UG bit of TIMx_EGR register).

40.4.8 TIMx autoreload register (TIMx_ARR)(x = 6 to 7)

Address offset: 0x2C

Reset value: 0x0000 FFFF

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	ARR[19:16]
												rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ARR[15:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:20 Reserved, must be kept at reset value.

Bits 19:0 ARR[19:0] : Auto-reload value

ARR is the value to be loaded into the actual auto-reload register.

Refer to Section 40.3.4: Time-base unit for more details about ARR update and behavior.

The counter is blocked while the auto-reload value is null.

Non-dithering mode (DITHEN = 0)

The register holds the auto-reload value in ARR[15:0]. The ARR[19:16] bits are reserved.

Dithering mode (DITHEN = 1)

The register holds the integer part in ARR[19:4]. The ARR[3:0] bitfield contains the dithered part.

40.4.9 TIMx register map

TIMx registers are mapped as 16-bit addressable registers as described in the table below:

Table 437. TIMx register map and reset values

Offset	Register name	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
0x00	TIMx_CR1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	DITHEN	UIFREMA	Res.	Res.	Res.	ARPE	Res.	Res.	Res.	Res.	OPM	URS	UDIS	CEN
0x00	Reset value																				0	0				0				0	0	0	0
0x04	TIMx_CR2	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	MMS [2:0]		Res.	Res.	Res.	Res.	Res.
0x04	Reset value																										0	0	0
0x08	Reserved
0x0C	TIMx_DIER	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UDE	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UIE
0x0C	Reset value																								0								0
0x10	TIMx_SR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UIF
0x10	Reset value																																0
0x14	TIMx_EGR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UG
0x14	Reset value																																0
0x18-0x20	Reserved
0x24	TIMx_CNT	UIFCPY or Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	CNT[15:0]
0x24	Reset value	0																0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x28	TIMx_PSC	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	PSC[15:0]
0x28	Reset value																	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x2C	TIMx_ARR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	ARR[19:0]
0x2C	Reset value

Refer to Section 2.3: Memory organization for the register boundary addresses.
