35. Hash processor (HASH)

35.1 HASH introduction

The hash processor is a fully compliant implementation of the secure hash algorithm (SHA-1, SHA-2 family) and the HMAC (keyed-hash message authentication code) algorithm. HMAC is suitable for applications requiring message authentication.

The hash processor computes FIPS (Federal Information Processing Standards) approved digests of length of 160, 224, 256 bits, for messages of any length less than \( 2^{64} \) bits (for SHA-1, SHA-224 and SHA-256) or less than \( 2^{128} \) bits (for SHA-384, SHA-512).

35.2 HASH main features

• • Suitable for data authentication applications, compliant with:
  • – Federal Information Processing Standards Publication FIPS PUB 180-4, Secure Hash Standard (SHA-1 and SHA-2 family)
  • – Federal Information Processing Standards Publication FIPS PUB 186-4, Digital Signature Standard (DSS)
  • – Internet Engineering Task Force (IETF) Request For Comments RFC 2104, HMAC: Keyed-Hashing for Message Authentication and Federal Information Processing Standards Publication FIPS PUB 198-1, The Keyed-Hash Message Authentication Code (HMAC)
• • Fast computation of SHA-1, SHA2-224, SHA2-256, SHA2-384, and SHA2-512
  • – 82 (respectively 66) clock cycles for processing one 512-bit block of data using SHA-1 (respectively SHA-256) algorithm
  • – 98 clock cycles for processing one 1024-bit block of data using either SHA2-384 or SHA2-512 algorithm
  • – Support for SHA-2 truncated outputs (SHA2-512/224, SHA2-512/256)
• • Support for HMAC mode with all supported algorithm
• • Corresponding 32-bit words of the digest from consecutive message blocks are added to each other to form the digest of the whole message
  • – Automatic 32-bit words swapping to comply with the internal little-endian representation of the input bit-string
  • – Supported word swapping format: bits, bytes, half-words, and 32-bit words
• • Single 32-bit, write-only, input register associated to an internal input FIFO, corresponding to a 64-byte block size (16 x 32 bits)
• • Automatic padding to complete the input bit string to fit digest minimum block size
• • AHB slave peripheral, accessible by 32-bit words only (else an AHB error is generated)
• • 8 × 32-bit words (H0 to H15) for output message digest
• • Automatic data flow control supporting direct memory access (DMA) using one channel.
• • Support for both single and fixed DMA burst transfers of four words.
• • Interruptible message digest computation, on a per-block basis
  • – Reloadable digest registers
  • – Hashing computation suspend/resume mechanism, including DMA

35.3 HASH implementation

The devices have a single instance of HASH peripheral.

35.4 HASH functional description

35.4.1 HASH block diagram

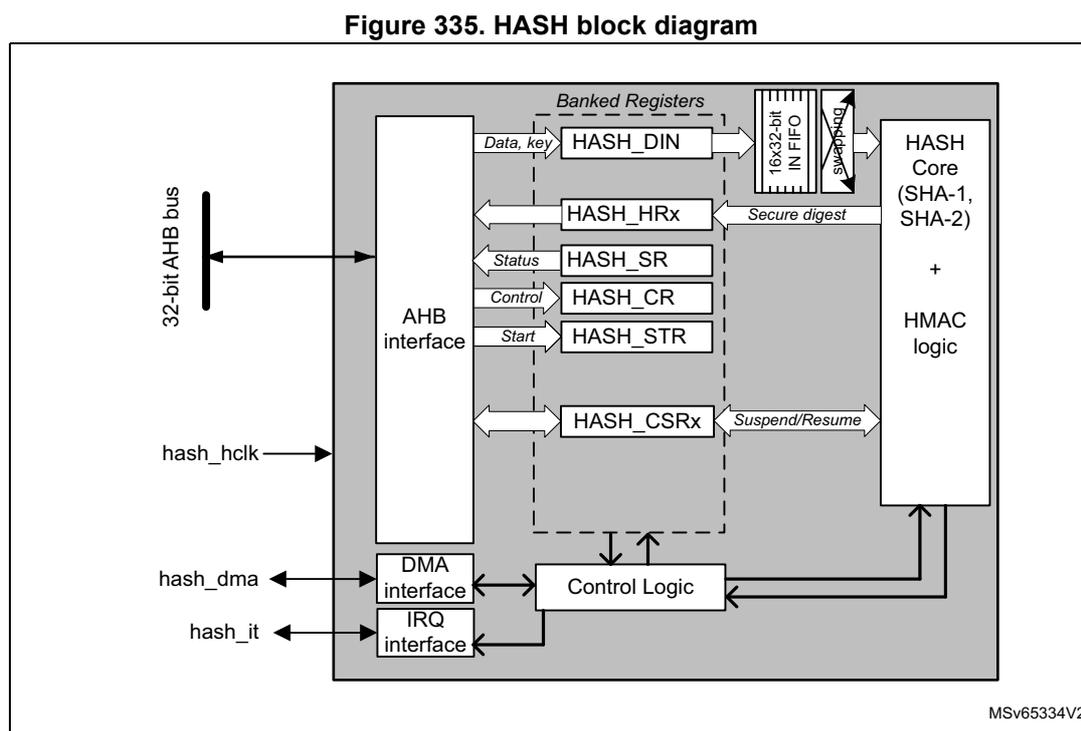

Figure 335 shows the block diagram of the hash processor.

35.4.2 HASH internal signals

Table 344 describes a list of useful to know internal signals available at HASH level, not at product level (on pads).

Table 344. HASH internal input/output signals

35.4.3 About secure hash algorithms

The hash processor is a fully compliant implementation of the secure hash algorithm defined by FIPS PUB 180-4 standard.

With each algorithm, the HASH computes a condensed representation of a message or data file. More specifically, when a message is presented on the input, the HASH processing core produces a fixed-length output string called a message digest (see Table 345 ).

Table 345. Information on supported hash algorithms

1. Block size = (NBWE-1) * 4 bytes. NBWE[4:0] bitfield can be read from the HASH_SR register after ALGO and INIT bits are written in the HASH_CR register.

2. Digest size is 224 bits for SHA2-512/224 and 256 bits for SHA2-512/256 (truncated modes).

The message digest can then be processed with a digital signature algorithm in order to generate or verify the signature for the message.

Signing the message digest rather than the message often improves the efficiency of the process since the message digest is usually much smaller in size than the message. The verifier of a digital signature has to use the same hash algorithm as the one used by the creator of the digital signature.

The SHA-2 functions supported by the hash processor are qualified as “secure” by NIST because it is computationally infeasible to find a message that corresponds to a given message digest, or to find two different messages that produce the same message digest (SHA-1 does not qualify as secure since February 2017).

35.4.4 Message data feeding

The message (or data file) to be processed by the HASH must be considered as a bit string. Per FIPS PUB 180-4 standard this message bit string grows from left to right, with hexadecimal words expressed in “big-endian” convention, so that within each word, the most significant bit is stored in the left-most bit position. For example message string “abc” with a bit string representation of “01100001 01100010 01100011” is represented by a 32-bit word 0x00636261 , and 8-bit words 0x61626300 .

Data are entered into the HASH one 32-bit word at a time, by writing them into the HASH_DIN register. The current contents of the HASH_DIN register are transferred to the 16 words input FIFO each time the register is written with new data. Hence, HASH_DIN and the FIFO form a seventeen 32-bit words length FIFO (named the IN buffer).

In accordance to the kind of data to be processed (for example byte swapping when data are ASCII text stream) there must be a bit, byte, half-word, or no swapping operation to be performed on data from the input FIFO before entering the little-endian hash processing core. Figure 336 shows how the hash processing core 32-bit data block M0...31 is

constructed from one 32-bit words popped into input FIFO by the driver, according to the DATATYPE bitfield in the HASH control register (HASH_CR)

HASH_DIN data endianness when bit swapping is disabled (DATATYPE = 00) can be described as following: the least significant bit of the message has to be at MSB position in the first word entered into the hash processor, the 32nd bit of the bit string has to be at MSB position in the second word entered into the hash processor and so on.

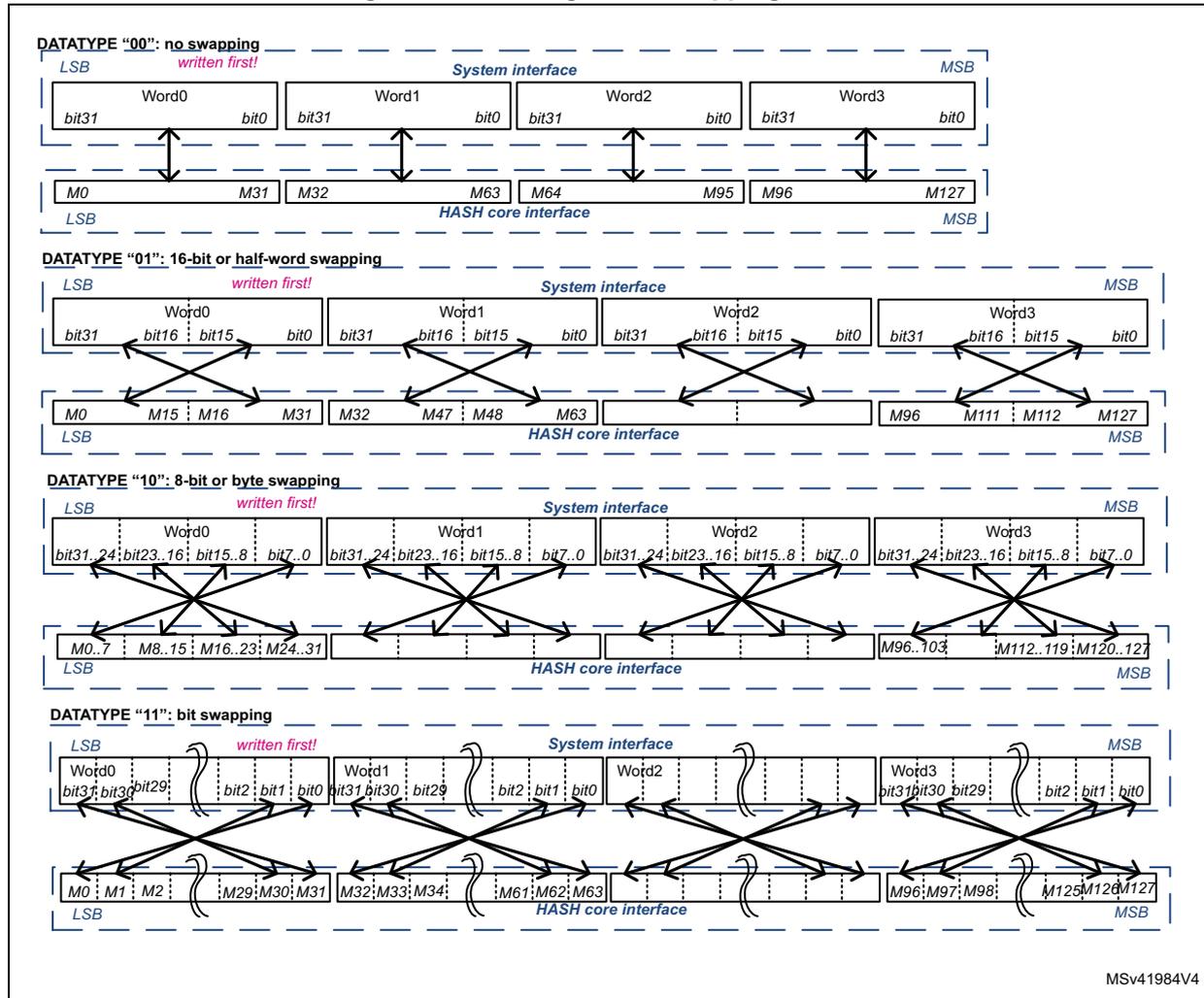

Figure 336. Message data swapping feature

35.4.5 Message digest computing

The hash processor sequentially processes several blocks when computing the message digest. Block sizes can be found in Table 345: Information on supported hash algorithms .

Each time the DMA or the CPU writes a block to the hash processor, the HASH automatically starts computing the message digest. This operation is known as partial digest computation.

As described in Section 35.4.4: Message data feeding , the message to be processed is entered into the HASH 32-bit word at a time, writing to the HASH_DIN register to fill the

input FIFO. In order to perform the hash computation on this data the application must follow below sequence.

1. 1. Initialize the hash processor using the HASH_CR register:
   • – Write to the HASH_CR register to select the right algorithm using the ALGO bitfield, and set the INIT bit (other bits are kept at zero). Then read the NBWE bitfield from the HASH_SR register to deduce the algorithm block size, which equals \( (\text{NBWE}-1) * 4 \) . This step is not required if the block size is already known (see Table 345 for details).
   • – Select the right algorithm using the ALGO[3:0] field. If needed, program the correct swapping operation on the message input words using the DATATYPE[1:0] bitfield.
   • – When HMAC mode is required, set the MODE bit as well as the LKEY bit if the HMAC key size is greater than the known block size of the algorithm (otherwise keep LKEY cleared). Refer to Section 35.4.7: HMAC operation for details.
   • – Update NBLW[4:0] in the HASH_STR register to define the number of valid bits in the last word of the message if it is different from 32 bits. NBLW information is used to correctly perform the automatic message padding before the final message digest computation.
2. 2. Complete the initialization by setting the INIT bit in HASH_CR register. Also set the DMAE bit if data are transferred via DMA.

Caution: When programming step 2, it is important that the correct configuration values (ALGO, DATATYPE, HMAC mode, key length, NBLW) are set up before or at the same time.

1. 3. Start filling data by writing to the HASH_DIN register, unless data are automatically transferred via DMA. Note that the processing of a block can start only once the last value of the block has entered the input FIFO. The way the partial or final digest computation is managed depends on the way data are fed into the processor:
   • – Data are filled by software:
     Partial digest computations are triggered each time the application writes the first word of the next block, the block size being defined by NBWE bits in HASH_SR. Once the processor is ready again (DINIS = 1 in HASH_SR), the software can write new data to HASH_DIN. This mechanism avoids the introduction of wait states by the HASH.
     The final digest computation is triggered when the last block is entered and the software sets the DCAL bit. If the message length is not an exact multiple of the block size, the NBLW field in HASH_STR register must be written prior to writing DCAL bit (see Section 35.4.6 for details).
   • – Data are filled as a single DMA transfer (MDMAT = 0):
     Partial digest computations are triggered automatically each time the FIFO is full. The final digest computation is triggered automatically when the last block has been transferred to the HASH_DIN register by DMA (DCAL bit is set by hardware). If the message length is not an exact multiple of the block size, the NBLW field in HASH_STR register must be written prior to enabling the DMA (see Section 35.4.6 for details).
   • – Data are filled using multiple DMA transfers (MDMAT = 1):
     Partial digest computations are triggered as for single DMA transfers (refer to the above description). However, the final digest computation is not triggered automatically when the last block has been transferred by DMA to the HASH_DIN register (DCAL bit is not set by hardware). It enables the hash processor to

receive a new DMA transfer as part of this digest computation. To launch the final digest computation, the software must clear MDMAT bit before the last DMA transfer in order to trigger the final digest computation as it is done for single DMA transfers.

1. Once the digest calculation is completed (DCIS = 1), the resulting digest can be read from the output registers, as described in Table 346 . When set, the DMAEN bit is automatically cleared by hardware.

Table 346. Hash processor outputs

1. Digest size is 224 bits for SHA2-512/224 and 256 bits for SHA2-512/256 (truncated modes)

For more information about HMAC detailed instructions, refer to Section 35.4.7: HMAC operation .

35.4.6 Message padding

Overview

When computing a condensed representation of a message, the process of feeding data into the hash processor (with automatic partial digest computation every block size transfer) loops until the last bits of the original message are written to the HASH_DIN register.

As the length (number of bits) of a message can be any integer value, the last word written to the hash processor may have a valid number of bits between 1 and 32. This number of valid bits in the last word, NBLW, has to be written to the HASH_STR register, so that message padding is correctly performed before the final message digest computation.

Padding processing

Detailed hashing sequences with padding are described in Section 35.4.5: Message digest computing . As mentioned in these sequences, the padding is done automatically using the information provided in NBLW[4:0].

Hashing example

Below is an example of SHA-1 digest computation with HASH. Message processing and padding are defined in Federal Information Processing Standards PUB 180-4.

Let us assume that the original message is the ASCII binary-coded form of “abc”, of length L = 24 ('U' means don't care):

byte 0      byte 1      byte 2      byte 3
01100001 01100010 01100011 UUUUUUUU
<-- 1st word written to HASH_DIN -->

NBLW has to be loaded with the value 24: a “1” is appended at bit location 24 in the bit string (starting counting from left to right in the above bit string), which corresponds to bit 31 in the HASH_DIN register (little-endian convention):

01100001 01100010 01100011 1UUUUUUU

Since L = 24, the number of bits in the above bit string is 25, and 423 “0” bits are automatically appended, making now 448 bits.

This gives in hexadecimal (byte words in big-endian format):

61626380 00000000 00000000 00000000
00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000
00000000 00000000

The message length value, L, in two-word format (that is 00000000 00000018) is appended. Hence, the final padded message in hexadecimal (byte words in big-endian format):

61626380 00000000 00000000 00000000
00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000018

If the hash processor is programmed to swap byte within HASH_DIN input register (DATATYPE = 10 in HASH_CR), the above message has to be entered using following sequence:

1. 1. 0xUU636261 is written to the HASH_DIN register (where ‘U’ means don’t care)
2. 2. 0x18 is written to the HASH_STR register (the number of valid bits in the last word written to the HASH_DIN register is 24, as the original message length is 24 bits)
3. 3. 0x100 is written to the HASH_STR register to run the final digest computation.
4. 4. The hash computing is complete with the message digest available in the HASH_HRx registers (x = 0 to 4) for the SHA-1 algorithm. For this FIPS example, the expected value is as follows:

HASH_HR0 = 0xA9993E36
HASH_HR1 = 0x4706816A
HASH_HR2 = 0xBA3E2571
HASH_HR3 = 0x7850C26C
HASH_HR4 = 0x9CD0D89D

35.4.7 HMAC operation

Overview

As specified by Internet Engineering Task Force RFC2104 and NIST FIPS PUB 198-1, the HMAC algorithm is used for message authentication by irreversibly binding the message being processed to a key chosen by the user. The algorithm consists of two nested hash operations:

Where:

• • opad = [0x5C] _n (outer pad) and ipad = [0x36] _n (inner pad)
• • [X] _n represents a repetition of X n times, where n equal to the byte size of the underlying hash function data block ( n = 64 when block size is 512 bits).
• • pad is a sequence of zeroes needed to extend the key to the length n defined above. If the key length is greater than n , the application must first hash the key using Hash() function and then use the resultant byte string as the actual key to HMAC.
• • | represents the concatenation operator.

Note: HMAC mode of the hash processor can be used with all supported algorithms.

HMAC processing

Four different steps are required to compute the HMAC:

1. 1. The software sets the INIT bit, with the MODE bit set and the ALGO bits selecting the desired algorithm. The LKEY bit must also be set if the key being used is longer than the block size. In this case, as required by HMAC specifications, the hash processor uses the hash of the key instead of the real key.
2. 2. The software provides the key to be used for the inner hash function, using the same mechanism as the message string loading that is by writing the key data into HASH_DIN register and then completing the transfer by setting DCAL bit and the correct NBLW to HASH_STR register.
3. 3. Once the processor is ready again (DINIS = 1 in HASH_SR), the software can write the message string to HASH_DIN. When the last word of the last block is entered and the software sets DCAL bit in HASH_STR register, the NBLW bitfield must be programmed at the same time to a value different from zero if the message length is not an exact multiple of the block size. Note that the DMA can also be used to feed the message string, as described in Section 35.4.5: Message digest computing .
4. 4. Once the processor is ready again (DINIS = 1 in HASH_SR), the software provides the key to be used for the outer hash function, writing the key data into HASH_DIN register, and then completing the transfer by setting DCAL bit and programming the correct NBLW to HASH_STR register. The HMAC result can be found in the valid output registers (HASH_HRx) as soon as DCIS bit is set.

Note: The computation latency of the HMAC primitive depends on the lengths of the keys and message, as described in Section 35.4.11: HASH processing time .

Endianness management details can be found in Section 35.4.4: Message data feeding .

HMAC example

Below is an example of HMAC SHA-1 algorithm (ALGO = 00 and MODE = 1 in HASH_CR) as specified by NIST. SHA-1 block size is 64 bytes.

Let us assume that the original message is the ASCII binary-coded form of “ Sample message for keylen = blocklen ”, of length L = 34 bytes. If the HASH is programmed in no swapping mode (DATATYPE = 00 in HASH_CR), the following data must be loaded sequentially into HASH_DIN register:

1. 1. Inner hash key input (length = 64, that is, no padding), specified by NIST. As key length = 64, LKEY bit is cleared in HASH_CR register

   00010203 04050607 08090A0B 0C0D0E0F 10111213 14151617
   18191A1B 1C1D1E1F 20212223 24252627 28292A2B 2C2D2E2F
   30313233 34353637 38393A3B 3C3D3E3F

2. 2. Message input (length = 34, that is, padding required). HASH_STR must be set to 0x20 to start message padding and inner hash computation (see ‘U’ as don’t care)

   53616D70 6C65206D 65737361 67652066 6F72206B 65796C65
   6E3D626C 6F636B6C 656EUUUU

3. 3. Outer hash key input (length = 64, that is, no padding). A key identical to the inner hash key is entered here.
4. 4. Final outer hash computing is then performed by the HASH. The HMAC-SHA1 digest result is available in the HASH_HRx registers, as shown below:

   HASH_HR0 = 0x5FD596EE
   HASH_HR1 = 0x78D5553C
   HASH_HR2 = 0x8FF4E72D
   HASH_HR3 = 0x266DFD19
   HASH_HR4 = 0x2366DA29

35.4.8 HASH suspend/resume operations

Overview

It is possible to interrupt a hash/HMAC operation to perform another processing with a higher priority. The interrupted process completes later when the higher-priority task has been processed, as shown in Figure 337 .

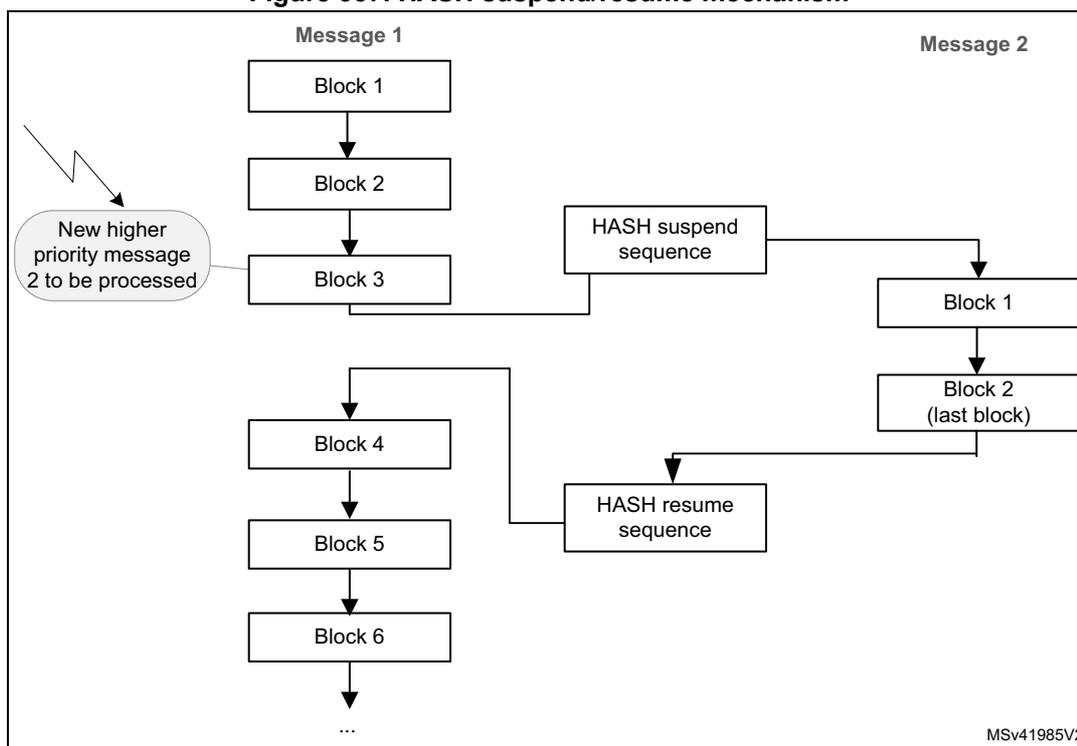

Figure 337. HASH suspend/resume mechanism

To do so, the context of the interrupted task must be saved from the HASH registers to memory, and then be restored from memory to the HASH registers.

The procedures where the data flow is controlled by software or by DMA are described hereafter.

Data loaded by software

When the DMA is not used to load the message into the hash processor, the context can be saved only when no block processing is ongoing.

To suspend the processing of a message , proceed as follows after writing the number of words defined in NBWE:

1. 1. In Polling mode, wait for BUSY = 0 then poll if the DINIS status bit is set.
   In Interrupt mode, implement the next step in DINIS interrupt handler (recommended).
2. 2. Store the contents of the following registers into memory:
   • – HASH_IMR
   • – HASH_STR
   • – HASH_CR
   • – HASH_CSR0 to HASH_CSR37, when SHA-1 or SHA2-256 is selected, plus HASH_CSR38 to HASH_CSR53 if an HMAC operation was ongoing
   • – HASH_CSR0 to HASH_CSR90, when SHA2-384 or SHA2-512 (truncated or not) is selected, plus HASH_CSR91 to HASH_CSR102 if an HMAC operation was ongoing

To resume the processing of a message , proceed as follows:

1. 1. Write the following registers with the values saved in memory: HASH_IMR, HASH_STR, HASH_CR.
2. 2. Initialize the hash processor by setting the INIT bit in the HASH_CR register
3. 3. Write the HASH_CSRx registers with the values saved in memory.
4. 4. Restart the processing from the point where it has been interrupted.

Data loaded by DMA

When the DMA is used to load the message into the hash processor, it is recommended to suspend and then restore a secure digest computing as described below.

In this sequence the DMA channel allocated to the hash peripheral remains allocated to the processing of message 1 (see Figure 337 ).

To suspend the processing of a message using DMA , proceed as follows:

1. 1. Clear the DMAE bit to disable the DMA interface. The hash peripheral automatically fetches enough data via the DMA to complete the current burst transfer.
2. 2. Wait until the last DMA transfer is complete (DMAS = 0 in HASH_SR).
3. 3. Disable the DMA channel.
4. 4. In Polling or Interrupt mode (recommended), wait until the hash processor is ready (no block is being processed), that is wait for DINIS = 1 in HASH_SR. If DCIS is also set in HASH_SR, the hash result is available and the context swapping is useless. Else go to step 5.
5. 5. Save HASH_IMR, HASH_STR and HASH_CR registers. Also save a number of HASH_CSRx registers depending on the SHA algorithm that is used:
   • – When SHA-1 or SHA2-256 is selected, save HASH_CSR0 to HASH_CSR37, plus HASH_CSR38 to HASH_CSR53 if an HMAC operation was ongoing.
   • – When SHA2-384 or SHA2-512 is selected, save HASH_CSR0 to HASH_CSR90, plus HASH_CSR91 to HASH_CSR102 if an HMAC operation was ongoing.

To resume the processing of a message using DMA , proceed as follows:

1. 1. Reconfigure the DMA controller so that it proceeds with the transfer of the message up to the end if it is not interrupted again.
2. 2. Program the values saved in memory to HASH_IMR, HASH_STR and HASH_CR registers.
3. 3. Initialize the hash processor by setting the INIT bit in the HASH_CR register.
4. 4. Program the values saved in memory to the HASH_CSRx registers.
5. 5. Restart the processing from the point where it was interrupted by setting the DMAE bit.

35.4.9 HASH DMA interface

The HASH supports both single and fixed DMA burst transfers of four words.

The hash processor provides an interface to connect to the DMA controller. This DMA can be used to write data to the HASH by setting the DMAE bit in the HASH_CR register. When this bit is set, the HASH initiates a DMA request each time a block has to be written to the HASH_DIN register.

Once four 32-bit words have been received, the HASH automatically triggers a new request to the DMA. For more information, refer to Section 35.4.5: Message digest computing .

Before starting the DMA transfer, the software must program the number of valid bits in the last word that is copied into HASH_DIN register. This is done by writing in HASH_STR register the following value:

NBLW = Len(Message) % 32 where “ x%32 ” gives the remainder of x divided by 32.

The DMAS bit of the HASH_SR register provides information on the DMA interface activity. This bit is set with DMAE and cleared when DMAE is cleared and no DMA transfer is ongoing.

Note: No interrupt is associated to DMAS bit.

When MDMAT is set, the size of the transfer must be a multiple of four words.

35.4.10 HASH error management

No error flags are generated by the hash processor.

35.4.11 HASH processing time

Table 347 summarizes the time required to process an intermediate block for each mode of operation.

Table 347. Processing time (in clock cycle)

1. Add the time required to load the block into the processor.

2. SHA2-512 includes SHA2-512/224 and SHA2-512/256 modes.

The time required to process the last block of a message (or of a key in HMAC) can be longer. This time depends on the length of the last block and the size of the key (in HMAC mode).

Compared to the processing of an intermediate block, it can be increased by the factor below:

• • 1 to 2.5 for a hash message
• • ~2.5 for an HMAC input-key
• • 1 to 2.5 for an HMAC message
• • ~2.5 for an HMAC output key in case of a short key
• • 3.5 to 5 for an HMAC output key in case of a long key

35.5 HASH interrupts

Two individual maskable interrupt sources are generated by the hash processor to signal the following events:

• • Digest calculation completion (DCIS)
• • Data input buffer ready (DINIS)

Both interrupt sources are connected to the same global interrupt request signal (hash_it), which is in turn connected to the device interrupt controller. Each interrupt source can individually be enabled or disabled by changing the mask bits in the HASH_IMR register. Setting the appropriate mask bit enables the interrupt.

The status of each maskable interrupt source can be read from the HASH_SR register. Table 348 gives a summary of the available features.

Table 348. HASH interrupt requests

35.6 HASH registers

The hash core is associated with several control and status registers and several message digest registers. All these registers are accessible through 32-bit word accesses only, else an AHB error is generated.

35.6.1 HASH control register (HASH_CR)

Address offset: 0x000

Reset value: 0x0000 0000

Bits 31:21 Reserved, must be kept at reset value.

Bits 20:17 ALGO[3:0] : Algorithm selection

These bits select the hash algorithm. This selection is only taken into account when the INIT bit is set. Changing this bitfield during a computation has no effect

When the ALGO bitfield is updated and INIT bit is set, NBWE in HASH_SR is automatically updated to 0x11.

0000: SHA-1

0001: reserved

0010: SHA2-224

0011: SHA2-256

1100: SHA2-384

1101: SHA2-512/224

1110: SHA2-512/256

1111: SHA2-512

Bit 16 LKEY : Long key selection

The application must set this bit if the HMAC key is greater than the block size corresponding to the hash algorithm (see Table 345: Information on supported hash algorithms for details). For example the block size is 64 bytes for SHA2-256.

This selection is only taken into account when the INIT and MODE bits are set (HMAC mode selected). Changing this bit during a computation has no effect.

0: HMAC key is shorter or equal to the block size (short key). The actual key value written in HASH_DIN is used during the HMAC computation.

1: HMAC key is longer than the block size (long key). The hash of the key is used instead of the real key during the HMAC computation.

Bit 15 Reserved, must be kept at reset value.

Bit 14 Reserved, must be kept at reset value.

Bit 13 MDMAT : Multiple DMA transfers

This bit is set when hashing large files when multiple DMA transfers are needed.

0: DCAL is automatically set at the end of a DMA transfer.

1: DCAL is not automatically set at the end of a DMA transfer.

Bit 12 DINNE : DIN not empty

Refer to DINNE bit of HASH_SR for a description of DINNE bit.

This bit is read-only.

Bits 11:8 NBW[3:0] : Number of words already pushed

Refer to NBWP[3:0] bitfield of HASH_SR for a description of NBW[3:0] bitfield.

This bit is read-only.

Bit 7 Reserved, must be kept at reset value.

Bit 6 MODE : Mode selection

This bit selects the normal or the keyed HMAC mode for the selected algorithm. This selection is only taken into account when the INIT bit is set. Changing this bit during a computation has no effect.

0: Hash mode selected

1: HMAC mode selected. LKEY bit must be set if the key being used is longer than the algorithm block size.

This bitfield defines the format of the data entered into the HASH_DIN register:

00: 32-bit data. The data written into HASH_DIN are directly used by the HASH processing, without reordering.

01: 16-bit data or half-word. The data written into HASH_DIN are considered as two half-words, and are swapped before being used by the HASH processing.

10: 8-bit data or bytes. The data written into HASH_DIN are considered as four bytes, and are swapped before being used by the HASH processing.

11: bit data or bit string. The data written into HASH_DIN are considered as 32 bits (1st bit of the string at position 0), and are swapped before being used by the HASH processing (1st bit of the string at position 31).

Setting this bit enables DMA transfers. After this bit is set, it is cleared by hardware while the last data of the message is written into the hash processor.

Clearing this bit while a DMA transfer is ongoing does not abort the current transfer. Instead, the DMA interface of the HASH remains internally enabled until the transfer is complete or INIT is set.

Setting INIT bit does not clear DMAE bit.

0: DMA transfers disabled

1: DMA transfers enabled. A DMA request is sent as soon as the hash core is ready to receive data.

Setting this bit resets the hash processor core, so that the HASH is ready to compute the message digest of a new message.

Clearing this bit has no effect. Reading this bit always returns 0.

Bits 1:0 Reserved, must be kept at reset value.

35.6.2 HASH data input register (HASH_DIN)

Address offset: 0x004

Reset value: 0x0000 0000

HASH_DIN is the data input register. It is 32-bit wide. This register is used to enter the message by blocks defined by the hash algorithm (see Table 345: Information on supported hash algorithms for details). For example the block size is 64 bytes for SHA2-256.

When the HASH_DIN register is programmed, the value presented on the AHB bus is 'pushed' into the hash core and the register takes the new value presented on the AHB bus. To get a correct message format, the DATATYPE bits must have been previously configured in the HASH_CR register.

When a complete block has been written to the HASH_DIN register, an intermediate digest calculation is launched:

• • by writing first data of the next block into the HASH_DIN register, if the DMA is not used
• • automatically, if the DMA is used

When the last block has been written to the HASH_DIN register, the final digest calculation (including padding) is launched by setting the DCAL bit in the HASH_STR register (final digest calculation). This operation is automatic if the DMA is used and MDMAI bit is cleared.

Reading the HASH_DIN register returns zeros.

Note: When the HASH is busy, a write access to the HASH_DIN register might stall the AHB bus if the digest calculation (intermediate or final) is not complete.

Bits 31:0 DATAIN[31:0] : Data input

• Writing this register pushes the current register content into the FIFO, and the register takes the new value presented on the AHB bus.
• Do not write to this register when BUSY is set.
• Reading this register returns zeros.

35.6.3 HASH start register (HASH_STR)

Address offset: 0x008

Reset value: 0x0000 0000

The HASH_STR register has two functions:

• It is used to define the number of valid bits in the last word of the message entered in the hash processor (that is the number of valid least significant bits in the last data written to the HASH_DIN register)
• It is used to start the processing of the last block in the message by setting the DCAL bit.

Bits 31:9 Reserved, must be kept at reset value.

Bit 8 DCAL : Digest calculation

Setting this bit starts the message padding using the previously written value of NBLW, and starts the calculation of the final message digest with all the data words written to the input FIFO since the INIT bit was last set.

Do not set DCAL when BUSY is set.

Reading this bit returns zero.

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 NBLW[4:0] : Number of valid bits in the last word

When the last word of the message bit string is written to HASH_DIN register, the hash processor takes only the valid bits, specified as below, after internal data swapping.

The above mechanism is valid only if DCAL = 0. If NBLW bits are written while DCAL is set, the NBLW bitfield remains unchanged. In other words it is not possible to configure NBLW and set DCAL at the same time.

Reading NBLW bits returns the last value written to NBLW.

0x00: All the 32 bits of the last data written are valid message bits, that is M[31:0]

0x01: Only one bit of the last data written (after swapping) is valid, that is M[0]

0x02: Only two bits of the last data written (after swapping) are valid, that is M[1:0]

0x03: Only three bits of the last data written (after swapping) are valid that is M[2:0]

...

0x1F: Only 31 bits of the last data written (after swapping) are valid that is M[30:0]

35.6.4 HASH digest registers

These registers contain the message digest result defined as follows:

• • HASH_HR0, HASH_HR1, HASH_HR2, HASH_HR3 and HASH_HR4 registers return the SHA-1 digest result.
• • HASH_HR0 to HASH_HR6 registers return the SHA2-224, SHA2-512/224 digest result.
• • HASH_HR0 to HASH_HR7 registers return the SHA2-256, SHA2-512/256 digest result.
• • HASH_HR0 to HASH_HR11 registers return the SHA2-384 digest result.
• • HASH_HR0 to HASH_HR15 registers return the SHA2-512 digest result

In all cases, the digest most significant bit is stored in HASH_HR0[31], and unused HASH_HRx registers reads as zero.

If a read access to one of these registers is performed while the hash core is calculating an intermediate digest or a final message digest (DCIS bit equals 0), then the read operation returns zeros.

Note: When starting a digest computation for a new message (by setting the INIT bit), HASH_HRx registers are forced to their reset values.

HASH_HR0 to HASH_HR4 registers can be accessed through two different addresses (register aliasing).

Reset value: 0x0000 0000

The content of the HASH_HRAx registers is identical to the one of the HASH_HRx registers located at address offset 0x310.

Reset value: 0x0000 0000

Reset value: 0x0000 0000

35.6.5 HASH interrupt enable register (HASH_IMR)

Address offset: 0x020

Reset value: 0x0000 0000

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 DCIE : Digest calculation completion interrupt enable

0: Digest calculation completion interrupt disabled

1: Digest calculation completion interrupt enabled.

Bit 0 DINIE : Data input interrupt enable

0: Data input interrupt disabled

1: Data input interrupt enabled

35.6.6 HASH status register (HASH_SR)

Address offset: 0x024

Reset value: 0x0011 0001

Bits 31:21 Reserved, must be kept at reset value.

Bits 20:16 NBWE[4:0] : Number of words expected

This bitfield reflects the number of words in the message that must be pushed into the FIFO to trigger a partial computation. NBWE is decremented by 1 when a write access is performed to the HASH_DIN register.

NBWE is set to the expected block size +1 in words (0x11) when INIT bit is set in HASH_CR. It is set to the expected block size (0x10) when the partial digest calculation ends.

Bit 15 DINNE : DIN not empty

This bit is set when the HASH_DIN register holds valid data (that is after being written at least once). It is cleared when either the INIT bit (initialization) or the DCAL bit (completion of the previous message processing) is set.

0: No data are present in the data input buffer

1: The input buffer contains at least one word of data

Bit 14 Reserved, must be kept at reset value.

Bits 13:9 NBWP[4:0] : Number of words already pushed

This bitfield is the exact number of words in the message that have already been pushed into the FIFO. NBWP is incremented by 1 when a write access is performed to the HASH_DIN register.

When a digest calculation starts, NBWP is updated to NBWP- block size (in words), and NBWP goes to zero when the INIT bit is set.

Bits 8:4 Reserved, must be kept at reset value.

Bit 3 BUSY : Busy bit

0: No block is currently being processed

1: The hash core is processing a block of data

Bit 2 DMAS : DMA Status

This bit provides information on the DMA interface activity. It is set with DMAE and cleared when DMAE = 0 and no DMA transfer is ongoing. No interrupt is associated with this bit.

0: DMA interface is disabled (DMAE = 0) and no transfer is ongoing

1: DMA interface is enabled (DMAE = 1) or a transfer is ongoing

Bit 1 DCIS : Digest calculation completion interrupt status

This bit is set by hardware when a digest becomes ready (the whole message has been processed). It is cleared by writing it to 0 or by setting the INIT bit in the HASH_CR register.

0: No digest available in the HASH_HRx registers (zeros are returned)

1: Digest calculation complete, a digest is available in the HASH_HRx registers. An interrupt is generated if the DCIE bit is set in the HASH_IMR register.

Bit 0 DINIS : Data input interrupt status

This bit is set by hardware when the FIFO is ready to get a new block (16 locations are free). It is cleared by writing it to 0 or by writing the HASH_DIN register.

When DINIS = 0, HASH_CSRx registers reads as zero.

0: Less than 16 locations are free in the input buffer

1: A new block can be entered into the input buffer. An interrupt is generated if the DINIE bit is set in the HASH_IMR register.

35.6.7 HASH context swap registers

These registers contain the complete internal register states of the hash processor. They are useful when a suspend/resume operation has to be performed because a high-priority task needs to use the hash processor while it is already used by another task.

When such an event occurs, the HASH_CSRx registers have to be read and the read values have to be saved in the system memory space. Then the hash processor can be used by the preemptive task. When the hash computation is complete, the saved context can be read from memory and written back into the HASH_CSRx registers.

HASH_CSRx registers can be read only when DINIS equals to 1, otherwise zeros are returned.

HASH context swap register x (HASH_CSRx)

Address offset: \( 0x0F8 + 0x4 * x \) , ( \( x = 0 \) to \( 102 \) )

Reset value: \( 0x0022\ 0002 \) (HASH_CSR0)

Reset value: \( 0x0020\ 0000 \) (HASH_CSR2)

Reset value: \( 0x0000\ 0000 \) (others)

Bits 31:0 CSx[31:0] : Context swap x

Refer to Section 35.6.7: HASH context swap registers introduction.

35.6.8 HASH register map

Table 349. HASH1 register map and reset values

Table 349. HASH1 register map and reset values (continued)

Refer to Section 2.3: Memory organization for the register boundary addresses.
