28. Digital-to-analog converter (DAC)

28.1 DAC introduction

The DAC module is a 12-bit, voltage output digital-to-analog converter. The DAC can be configured in 8- or 12-bit mode and may be used in conjunction with the DMA controller. In 12-bit mode, the data can be left- or right-aligned. The DAC features two output channels, each with its own converter. In dual DAC channel mode, conversions can be done independently or simultaneously when both channels are grouped together for synchronous update operations. An input reference pin, VREF+ (shared with others analog peripherals) is available for better resolution. An internal reference can also be set on the same input. Refer to voltage reference buffer (VREFBUF) section.

The DAC output buffer can be optionally enabled to obtain a high drive output current. An individual calibration can be applied on each DAC output channel. The DAC output channels support a low power mode, the sample and hold mode.

28.2 DAC main features

The DAC main features are the following (see Figure 269: Dual-channel DAC block diagram )

• One DAC interface, maximum two output channels
• Left or right data alignment in 12-bit mode
• Synchronized update capability
• Noise-wave and Triangular-wave generation
• Dual DAC channel for independent or simultaneous conversions
• DMA capability for each channel including DMA underrun error detection
• Double data DMA capability to reduce the bus activity
• External triggers for conversion
• DAC output channel buffered/unbuffered modes
• Buffer offset calibration
• Sample and hold mode for low power operation in Stop mode
• Input voltage reference from VREF+ pin or internal VREFBUF reference

Figure 269 shows the block diagram of a DAC channel and Table 279 gives the pin description.

28.3 DAC implementation

Table 278. DAC features

DAC features	DAC1
Dual channel	X
Output buffer	X
I/O connection	DAC1_OUT1 on PA4, DAC1_OUT2 on PA5
Maximum sampling time	1 Msps
Autonomous mode	-
VREF+ pin	X

28.4 DAC functional description

28.4.1 DAC block diagram

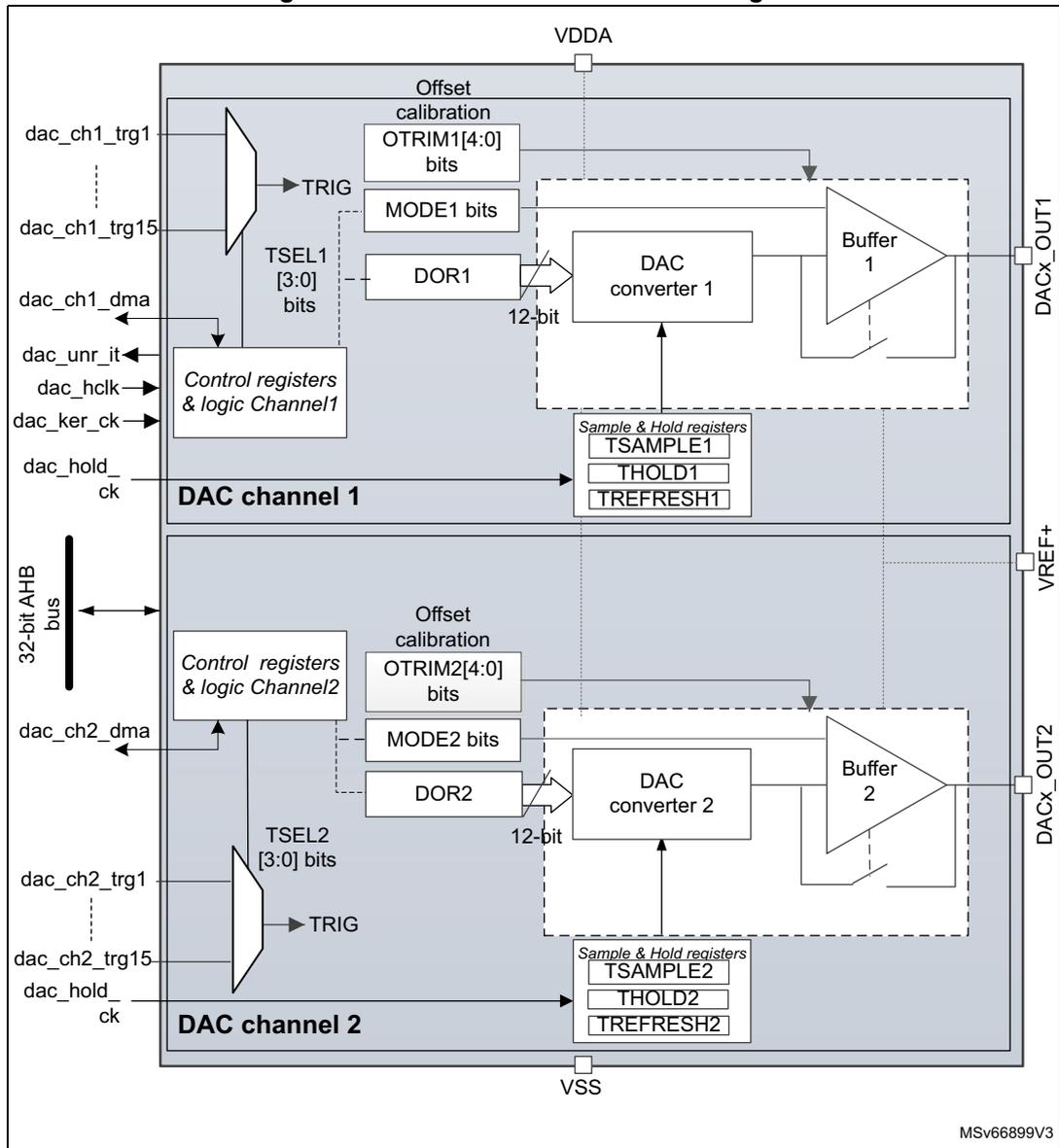

Figure 269. Dual-channel DAC block diagram

The block diagram illustrates the internal architecture of a dual-channel DAC. At the top, VDDA is connected to the internal circuitry. At the bottom, VSS is connected. On the right, VREF+ is connected to both DAC channel 1 and DAC channel 2. The 32-bit AHB bus is on the left, connected to the control registers and logic for both channels. DAC channel 1 (top) includes a 'Control registers & logic Channel1' block, 'Offset calibration' (OTRIM1[4:0] bits), 'MODE1 bits', 'DOR1', a '12-bit DAC converter 1', 'Sample & Hold registers' (TSAMPLE1, THOLD1, TREFRESH1), and 'Buffer 1'. It has an output DACx_OUT1. DAC channel 2 (bottom) includes a 'Control registers & logic Channel2' block, 'Offset calibration' (OTRIM2[4:0] bits), 'MODE2 bits', 'DOR2', a '12-bit DAC converter 2', 'Sample & Hold registers' (TSAMPLE2, THOLD2, TREFRESH2), and 'Buffer 2'. It has an output DACx_OUT2. Both channels have trigger inputs (dac_ch1_trg1 to dac_ch1_trg15 for channel 1, and dac_ch2_trg1 to dac_ch2_trg15 for channel 2) connected to a multiplexer and then to a TRIG input. Both channels have DMA inputs (dac_ch1_dma and dac_ch2_dma) connected to the control registers. Both channels have hold clock inputs (dac_hold_ck) connected to the sample & hold registers. The diagram is labeled MSV66899V3 at the bottom right.

Figure 269. Dual-channel DAC block diagram. The diagram shows two DAC channels, DAC channel 1 and DAC channel 2, connected to a 32-bit AHB bus. Each channel contains a DAC converter, a buffer, and sample & hold registers. Channel 1 is connected to DACx_OUT1 and Channel 2 to DACx_OUT2. The diagram also shows various control registers, offset calibration, and power connections (VDDA, VREF+, VSS).

1. MODEx bits in the DAC_MCR control the output mode and allow switching between the normal mode in buffer/unbuffered configuration and the sample and hold mode.
2. Refer to Section 28.3: DAC implementation for channel2 availability.

28.4.2 DAC pins and internal signals

The DAC includes:

• Up to two output channels
• DAC output channel buffered or non buffered
• Sample and hold block and registers operational in Stop mode, using the LSI/LSE clock source (dac_hold_ck) for static conversion.

The DAC includes up to two separate output channels. Each output channel can be connected to on-chip peripherals such as comparator, operational amplifier and ADC (if available). In this case, the DAC output channel can be disconnected from the DACx_OUTy output pin and the corresponding GPIO can be used for another purpose.

The DAC output can be buffered or not. The sample and hold block and its associated registers can run in Stop mode using the LSI/LSE clock source (dac_hold_ck).

Table 279. DAC input/output pins

Pin name	Signal type	Remarks
VREF+	Input, analog positive reference	The higher/positive reference voltage for the DAC, $V_{REF+} \leq V_{DDAmax}$ (refer to datasheet)
VDDA	Input, analog supply	Analog power supply
VSSA	Input, analog supply ground	Ground for analog power supply
DACx_OUTy	Analog output signal	DACx channely analog output

Table 280. DAC internal input/output signals

Internal signal name	Signal type	Description
dac_ch1_dma	Bidirectional	DAC channel1 DMA request/acknowledge
dac_ch2_dma	Bidirectional	DAC channel2 DMA request/acknowledge
dac_ch1_trgx (x = 1 to 15)	Inputs	DAC channel1 trigger inputs
dac_ch2_trgx (x = 1 to 15)	Inputs	DAC channel2 trigger inputs
dac_unr_it	Output	DAC underrun interrupt
dac_hclk	Input	DAC peripheral clock
dac_ker_ck	Input	DAC kernel clock
dac_hold_ck	Input	DAC low-power clock used in sample and hold mode

Table 281. DAC interconnection

Signal name	Source	Source type
dac_hold_ck	ck_lsi or ck_lse	LSI or LSE clock selected in the RCC
dac_chx_trg1 (x = 1, 2)	tim1_trgo	Internal signal from on-chip timers
dac_chx_trg2 (x = 1, 2)	tim2_trgo	Internal signal from on-chip timers
dac_chx_trg3 (x = 1, 2)	tim4_trgo	Internal signal from on-chip timers
dac_chx_trg4 (x = 1, 2)	tim5_trgo	Internal signal from on-chip timers
dac_chx_trg5 (x = 1, 2)	tim6_trgo	Internal signal from on-chip timers

Table 281. DAC interconnection (continued)

Signal name	Source	Source type
dac_chx_trg6 (x = 1, 2)	tim7_trgo	Internal signal from on-chip timers
dac_chx_trg7 (x = 1, 2)	tim8_trgo	Internal signal from on-chip timers
dac_chx_trg8 (x = 1, 2)	tim15_trgo	Internal signal from on-chip timers
dac_chx_trg11 (x = 1, 2)	lptim1_ch1	Internal signal from on-chip timers
dac_chx_trg12 (x = 1, 2)	lptim2_ch1	Internal signal from on-chip timers
dac_chx_trg13 (x = 1, 2)	exti9	External pin

28.4.3 DAC clocks

Two clock sources can be used to update the DAC:

• dac_hclk: DAC peripheral clock (AHB clock)
• dac_ker_ck: DAC kernel clock: this clock can be used to synchronize DAC and ADC.
• dac_hold_ck: low-power clock used in sample and hold mode

The DAC clock is selected in the RCC.

28.4.4 DAC channel enable

Each DAC channel can be powered on by setting its corresponding ENx bit in the DAC_CR register. The DAC channel is then enabled after a $t_{\text{WAKEUP}}$ startup time.

DACxRDY bit is set in the DAC_SR register when the DAC interface is ready to accept data. Writing new data or asserting the trigger is not allowed when ENx bit is set while DACxRDY signal is reset.

Note: The ENx bit enables the analog DAC channelx only. The DAC channelx digital interface is enabled even if the ENx bit is reset.

28.4.5 DAC data format

Depending on the selected configuration mode, the data have to be written into the specified register as described below:

• Single DAC channel
There are three possibilities:
- – 8-bit right alignment: the software has to load data into the DAC_DHR8Rx[7:0] bits (stored into the DHRx[11:4] bits)
- – 12-bit left alignment: the software has to load data into the DAC_DHR12Lx [15:4] bits (stored into the DHRx[11:0] bits)
- – 12-bit right alignment: the software has to load data into the DAC_DHR12Rx [11:0] bits (stored into the DHRx[11:0] bits)

Depending on the loaded DAC_DHRyyxx register, the data written by the user is shifted and stored into the corresponding DAC_DHRx (data holding registerx, which are internal non-memory-mapped registers). The DAC_DHRx register is then loaded into the DAC_DORx register either automatically, by software trigger or by an external event trigger.

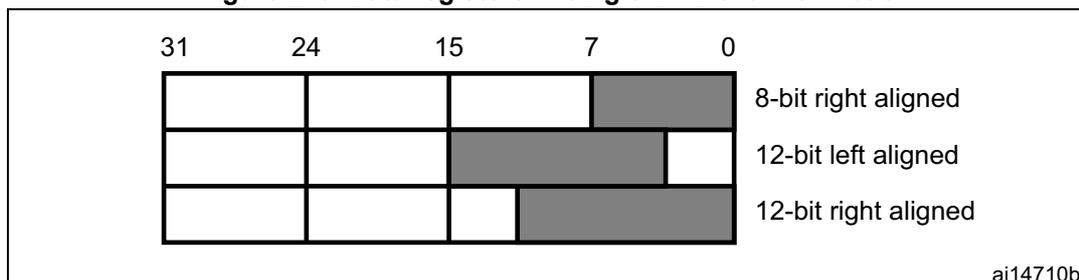

Figure 270. Data registers in single DAC channel mode

Figure 270. Data registers in single DAC channel mode. A diagram showing three rows of a 32-bit register with bit positions 31, 24, 15, 7, and 0 marked. The first row, labeled '8-bit right aligned', has bits 7-0 shaded. The second row, labeled '12-bit left aligned', has bits 31-20 shaded. The third row, labeled '12-bit right aligned', has bits 11-0 shaded.

• Dual DAC channels (when available)

There are three possibilities:

– 8-bit right alignment: data for DAC channel1 to be loaded into the DAC_DHR8RD [7:0] bits (stored into the DHR1[11:4] bits) and data for DAC channel2 to be loaded into the DAC_DHR8RD [15:8] bits (stored into the DHR2[11:4] bits)
– 12-bit left alignment: data for DAC channel1 to be loaded into the DAC_DHR12LD [15:4] bits (stored into the DHR1[11:0] bits) and data for DAC channel2 to be loaded into the DAC_DHR12LD [31:20] bits (stored into the DHR2[11:0] bits)
– 12-bit right alignment: data for DAC channel1 to be loaded into the DAC_DHR12RD [11:0] bits (stored into the DHR1[11:0] bits) and data for DAC channel2 to be loaded into the DAC_DHR12RD [27:16] bits (stored into the DHR2[11:0] bits)

Depending on the loaded DAC_DHRyyyD register, the data written by the user is shifted and stored into DHR1 and DHR2 (data holding registers, which are internal non-memory-mapped registers). The DHR1 and DHR2 registers are then loaded into the DAC_DOR1 and DOR2 registers, respectively, either automatically, by software trigger or by an external event trigger.

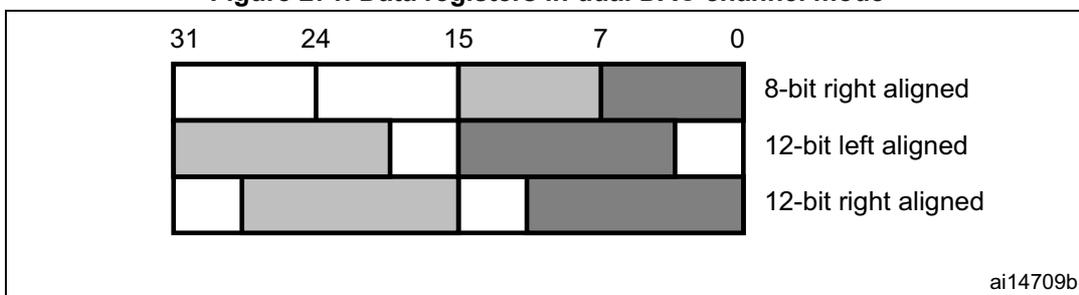

Figure 271. Data registers in dual DAC channel mode

Figure 271. Data registers in dual DAC channel mode. A diagram showing three rows of a 32-bit register with bit positions 31, 24, 15, 7, and 0 marked. The first row, labeled '8-bit right aligned', has bits 7-0 and 15-8 shaded. The second row, labeled '12-bit left aligned', has bits 31-20 and 15-4 shaded. The third row, labeled '12-bit right aligned', has bits 11-0 and 27-16 shaded.

Signed/unsigned data

DAC input data are unsigned: 0x000 corresponds to the minimum value and 0xFFF to the maximum value for 12-bit mode.

The DAC can also handle signed input data in 2's complement format. This is done by setting SINFORMATx bit in the DAC_MCR register.

When SINFORMATx bit is set, the MSB of the data written to DAC_DHRx registers is inverted when it is copied to the DAC_DORx register, and the DAC interface can accept signed data (Q1.15, Q1.11 or Q1.7 format). DAC_DHR12Lx register can be used to store 16-bit signed data in the data holding registers. The 12 MSBs of 16-bit data are used for the DAC output data and the MSB is inverted. The four LSBs are simply ignored.

Table 282. Data format (case of 12-bit data)

SINFORMATx bit	DATA written to DAC_DHRx register	DATA transfered to DAC_DORx register
0	0x000	0x000
0	0xFFF	0xFFF
1	0x7FF	0xFFF
1	0x000	0x800
1	0xFFF	0x7FF
1	0x800	0x000

28.4.6 DAC conversion

The DAC_DORx cannot be written directly and any data transfer to the DAC channelx must be performed by loading the DAC_DHRx register (write operation to DAC_DHR8Rx, DAC_DHR12Lx, DAC_DHR12Rx, DAC_DHR8RD, DAC_DHR12RD or DAC_DHR12LD).

Data stored in the DAC_DHRx register are automatically transferred to the DAC_DORx register after one dac_hclk clock cycle, if no hardware trigger is selected (TENx bit in DAC_CR register is reset). However, when a hardware trigger is selected (TENx bit in DAC_CR register is set) and a trigger occurs, the transfer is performed three dac_hclk clock cycles after the trigger signal.

When DAC_DORx is loaded with the DAC_DHRx contents, the analog output voltage becomes available after a time $t_{\text{SETTLING}}$ that depends on the power supply voltage and the analog output load.

To synchronize DAC and ADC, the same clock source can be used for both peripherals. This is done by selecting the dac_ker_ck clock instead of the dac_hclk clock (AHB clock) in the RCC.

HFSEL bits of DAC_MCR must be set when dac_ker_ck clock speed is faster than 80 MHz.

Refer to Table HFSEL description below for the limitation of the DAC_DORx update rate depending on HFSEL bits and dac_hclk or dac_ker_ck clock frequency.

If the data is updated or a software/hardware trigger event occurs during the non-allowed period, the peripheral behavior is unpredictable.

The above timing is only related to the limitation of the DAC interface. Refer also to the $t_{\text{SETTLING}}$ parameter value in the product datasheet.

Table 283. HFSEL description

HFSEL [1:0]	Clock frequency	Latency using AHB clock (dac_hclk)	Latency using dac_ker_ck clock	Function
00	< 80 MHz	3	4	DAC_DOR update rate up to 3 AHB clock cycles or 4 dac_ker_ck cycles.
01	≥ 80 MHz ⁽¹⁾	5	5	DAC_DOR update rate up to 5 AHB clock or dac_ker_ck cycles.

Table 283. HFSEL description (continued)

HFSEL [1:0]	Clock frequency	Latency using AHB clock (dac_hclk)	Latency using dac_ker_ck clock	Function
10	≥ 160 MHz	7	6	DAC_DOR update rate up to 7 AHB clock cycles or 6 dac_ker_ck cycles.
11	Reserved	-	-	-

1. Refer to the device datasheet for the value of the maximum dac_hclk or dac_ker_ck frequency.

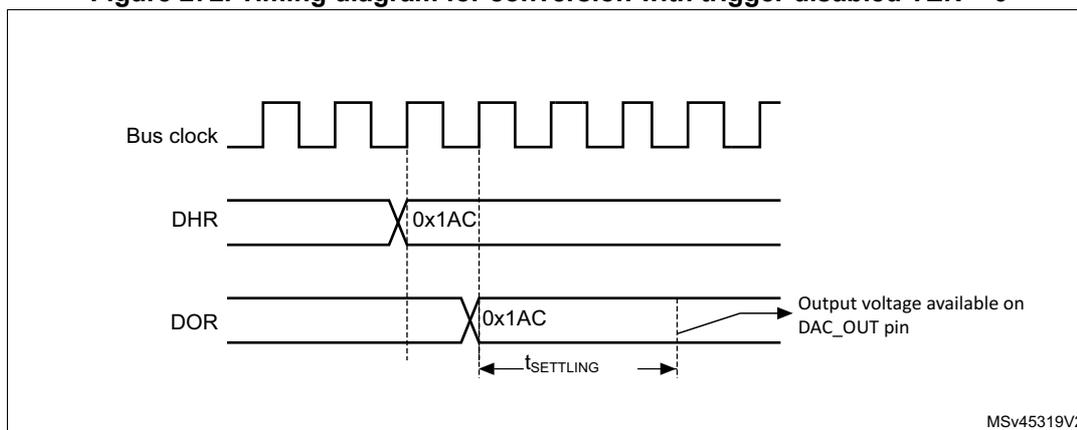

Figure 272. Timing diagram for conversion with trigger disabled TEN = 0

Timing diagram for conversion with trigger disabled TEN = 0. The diagram shows three waveforms: Bus clock (a square wave), DHR (Digital-to-Analog Register), and DOR (Data Output Register). The DHR register is updated with the value 0x1AC. The DOR register is updated with the value 0x1AC. The output voltage available on the DAC_OUT pin is shown as a step function. The settling time (t Settling) is indicated between the DOR update and the output voltage stabilizing. The diagram is labeled MSV45319V2.

28.4.7 DAC output voltage

Digital inputs are converted to output voltages on a linear conversion between 0 and $V_{REF+}$ . The analog output voltages on each DAC channel pin are determined by the following equation:

\text{DAC output} = V_{REF} \times \frac{\text{DOR}}{4096}

where all voltages are expressed in Volt.

28.4.8 DAC trigger selection

If the TENx control bit is set, the conversion can then be triggered by an external event (timer counter, external interrupt line). The TSELx[3:0] control bits determine which out of 16 possible events triggers the conversion as shown in TSELx[3:0] bits of the DAC_CR register. These events can be either the software trigger or hardware triggers. Refer to the interconnection table in Section 28.4.2 .

Each time a DAC interface detects a rising edge on the selected trigger source (refer to the table below), the last data stored into the DAC_DHRx register are transferred into the DAC_DORx register. The DAC_DORx register is updated three dac_hclk cycles after the trigger occurs.

If the software trigger is selected, the conversion starts once the SWTRIG bit is set. SWTRIG is reset by hardware once the DAC_DORx register has been loaded with the DAC_DHRx register contents.

Note: TSELx[3:0] bit cannot be changed when the ENx bit is set.

When software trigger is selected, the transfer from the DAC_DHRx register to the DAC_DORx register takes only one dac_hclk clock cycle.

28.4.9 DMA requests

Each DAC channel has a DMA capability. Two DMA channels are used to service DAC channel DMA requests.

When an external trigger (but not a software trigger) occurs while the DMAENx bit is set, the value of the DAC_DHRx register is transferred into the DAC_DORx register when the transfer is complete, and a DMA request is generated.

In dual mode, if both DMAENx bits are set, two DMA requests are generated. If only one DMA request is needed, only the corresponding DMAENx bit must be set. In this way, the application can manage both DAC channels in dual mode by using one DMA request and a unique DMA channel.

As DAC_DHRx to DAC_DORx data transfer occurred before the DMA request, the very first data has to be written to the DAC_DHRx before the first trigger event occurs.

DMA underrun

The DAC DMA request is not queued so that if a second external trigger arrives before the acknowledgment for the first external trigger is received (first request), then no new request is issued and the DMA channelx underrun flag DMAUDRx in the DAC_SR register is set, reporting the error condition. The DAC channelx continues to convert old data.

The software must clear the DMAUDRx flag by writing 1, clear the DMAEN bit of the used DMA stream and re-initialize both DMA and DAC channelx to restart the transfer correctly. The software must modify the DAC trigger conversion frequency or lighten the DMA workload to avoid a new DMA underrun. Finally, the DAC conversion can be resumed by enabling both DMA data transfer and conversion trigger.

For each DAC channelx, an interrupt is also generated if its corresponding DMAUDRIEx bit in the DAC_CR register is enabled.

DMA double data mode

When the DMA controller is used in normal mode, only 12-bit (or 8-bit) data are transferred by a DMA request. As the AHB width is 32 bits, two 12-bit data may be transferred simultaneously. To use this mode, set the DMADOUbLE bit of DAC_MCR register.

A DAC DMA request is generated every two external triggers (except for software triggers) when the DMAENx bit is set:

1. When the first trigger is detected, the value of the DAC_DHRx and DAC_DHRBx registers are transferred into the DAC_DORx and DAC_DORBx registers. The actual DAC data is loaded into the DAC_DORx register. A DMA request is then generated. The DMA writes the new data to the DAC_DHRx and DAC_DHRBx data registers.
2. When the next trigger is detected, the actual DAC data is loaded into the DAC_DHRBx register. This second trigger does not generate any DMA request. The DORSTATx bit indicates which DOR data is actually loaded into the analog DAC input.

DMA underrun function is also supported in DMA double data mode.

The following conditions must be met to change from double data to single data mode or vice versa:

• The DAC must be disabled.
• DMAEN bit must be cleared (ENx = 0 and DMAEN = 0).

28.4.10 Noise generation

In order to generate a variable-amplitude pseudonoise, an LFSR (linear feedback shift register) is available. DAC noise generation is selected by setting WAVEx[1:0] to 01. The preloaded value in LFSR is 0xAA. This register is updated three dac_hclk clock cycles after each trigger event, following a specific calculation algorithm.

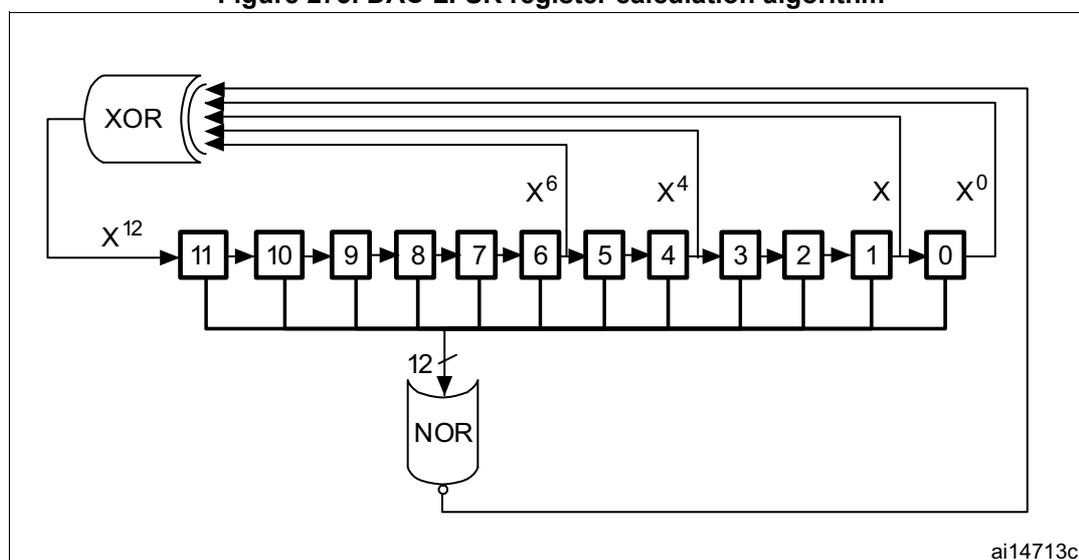

Figure 273. DAC LFSR register calculation algorithm

Diagram of the DAC LFSR register calculation algorithm. It shows a 12-bit shift register with cells numbered 11 down to 0. The output of cell 0 is fed back through an XOR gate and also through a NOR gate. The XOR gate has four inputs: the output of cell 0, and three taps from cells 6, 4, and 1, labeled X^6, X^4, and X^0 respectively. The output of the XOR gate is fed back into cell 11, labeled X^12. The output of cell 0 is also connected to a 12-bit wide NOR gate. The output of this NOR gate is fed back into cell 0. The diagram is labeled ai14713c in the bottom right corner.

The LFSR value, that may be masked partially or totally by means of the MAMPx[3:0] bits in the DAC_CR register, is added up to the DAC_DHRx contents without overflow and this value is then transferred into the DAC_DORx register.

If LFSR is 0x0000, a 1 is injected into it (antilock-up mechanism).

It is possible to reset LFSR wave generation by resetting the WAVEx[1:0] bits.

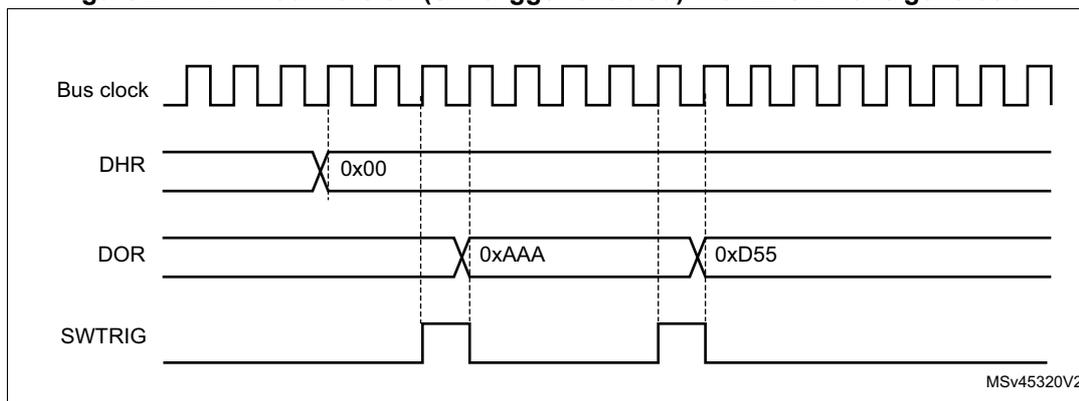

Figure 274. DAC conversion (SW trigger enabled) with LFSR wave generation

Timing diagram for DAC conversion with LFSR wave generation. The diagram shows four signals over time: Bus clock (a periodic square wave), DHR (Digital Hold Register) which is set to 0x00, DOR (Digital Output Register) which changes from 0xAAA to 0xD55, and SWTRIG (Software Trigger) which is a pulse. Vertical dashed lines indicate the relationship between the SWTRIG pulse and the DOR value change. The DOR value 0xAAA is shown at the rising edge of the SWTRIG pulse, and 0xD55 is shown at the falling edge. The MSV45320V2 identifier is in the bottom right corner.

Note: The DAC trigger must be enabled for noise generation by setting the TENx bit in the DAC_CR register.

28.4.11 Triangle-wave generation

It is possible to add a small-amplitude triangular waveform on a DC or slowly varying signal. DAC triangle-wave generation is selected by setting WAVEx[1:0] to 10. The amplitude is configured through the MAMPx[3:0] bits in the DAC_CR register. An internal triangle counter is incremented three dac_hclk clock cycles after each trigger event. The value of this counter is then added to the DAC_DHRx register without overflow and the sum is transferred into the DAC_DORx register. The triangle counter is incremented as long as it is less than the maximum amplitude defined by the MAMPx[3:0] bits. Once the configured amplitude is reached, the counter is decremented down to 0, then incremented again and so on.

It is possible to reset triangle wave generation by resetting the WAVEx[1:0] bits.

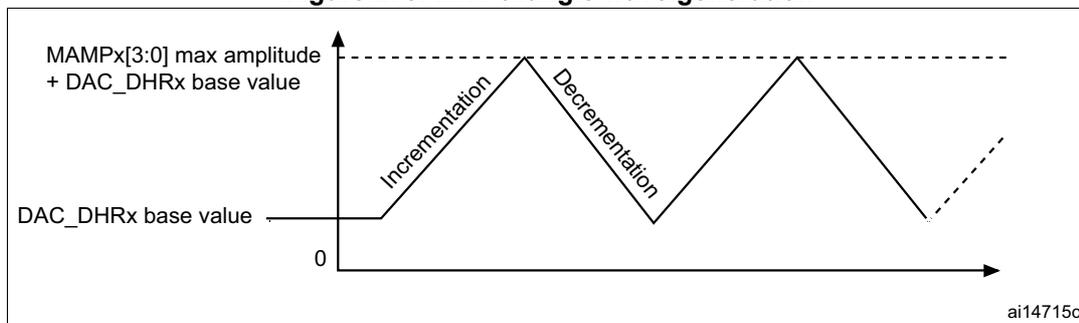

Figure 275. DAC triangle wave generation

Graph of a triangle wave. The vertical axis represents the DAC output value, with labels for '0', 'DAC_DHRx base value', and 'MAMPx[3:0] max amplitude + DAC_DHRx base value'. The horizontal axis represents time. The waveform is a triangle wave oscillating between the base value and the maximum amplitude. The rising slope is labeled 'Incrementation' and the falling slope is labeled 'Decrementation'. The ai14715c identifier is in the bottom right corner.

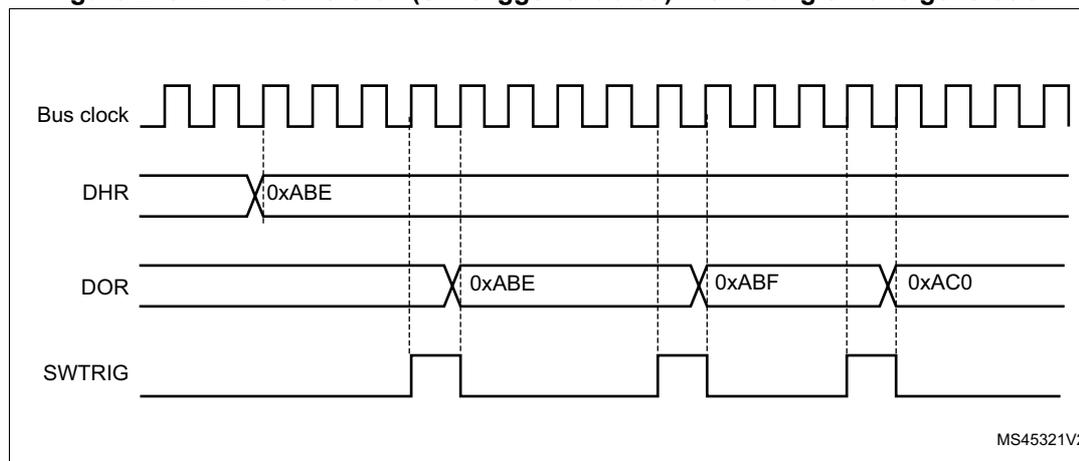

Figure 276. DAC conversion (SW trigger enabled) with triangle wave generation

Timing diagram showing Bus clock, DHR, DOR, and SWTRIG signals. The diagram illustrates the sequence of operations for a DAC conversion triggered by software (SWTRIG) to generate a triangle wave. The DHR register is loaded with 0xABE, and the DOR register is updated with 0xABE, 0xABF, and 0xAC0. The Bus clock is a periodic square wave. The SWTRIG signal is a pulse that triggers the conversion. The DOR register shows the output values 0xABE, 0xABF, and 0xAC0, which correspond to the rising edge of the triangle wave. The DHR register shows the value 0xABE, which corresponds to the falling edge of the triangle wave. The diagram is labeled MS45321V2.

Note: The DAC trigger must be enabled for triangle wave generation by setting the TENx bit in the DAC_CR register.

The MAMPx[3:0] bits must be configured before enabling the DAC, otherwise they cannot be changed.

28.4.12 DAC channel modes

Each DAC channel can be configured in normal mode or sample and hold mode. The output buffer can be enabled to obtain a high drive capability. Before enabling output buffer, the voltage offset needs to be calibrated. This calibration is performed at the factory (loaded after reset) and can be adjusted by software during application operation.

Normal mode

In normal mode, there are four combinations, by changing the buffer state and by changing the DACx_OUTy pin interconnections.

To enable the output buffer, the MODEx[2:0] bits in DAC_MCR register must be:

• 000: DAC is connected to the external pin

To disable the output buffer, the MODEx[2:0] bits in DAC_MCR register must be:

• 010: DAC is connected to the external pin

Sample and hold mode

In sample and hold mode, the DAC core converts data on a triggered conversion, and then holds the converted voltage on a capacitor. When not converting, the DAC cores and buffer are completely turned off between samples and the DAC output is tri-stated, therefore reducing the overall power consumption. A stabilization period, which value depends on the buffer state, is required before each new conversion.

In this mode, the DAC core and all corresponding logic and registers are driven by the LSI/LSE low-speed clock (dac_hold_ck) in addition to the dac_hclk clock, allowing using the DAC channels in deep low power modes such as Stop mode.

The LSI/LSE low-speed clock (dac_hold_ck) must not be stopped when the sample and hold mode is enabled.

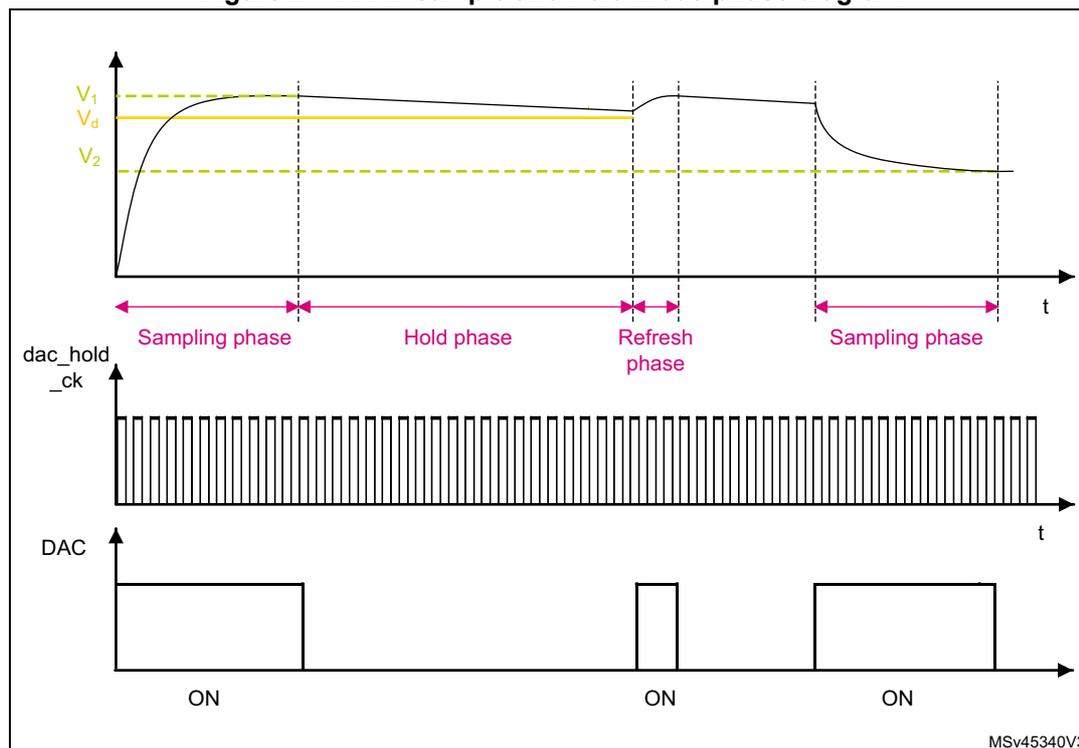

The sample/hold mode operations can be divided into three phases:

1. Sample phase: the sample/hold element is charged to the desired voltage. The charging time depends on capacitor value (internal or external, selected by the user). The sampling time is configured with the TSAMPLEx[9:0] bits in DAC_SHSRx register. During the write of the TSAMPLEx[9:0] bits, the BWSTx bit in DAC_SR register is set to 1 to synchronize between both clocks domains (AHB and low speed clock) and allowing the software to change the value of sample phase during the DAC channel operation
2. Hold phase: the DAC output channel is tri-stated, the DAC core and the buffer are turned off, to reduce the current consumption. The hold time is configured with the THOLDx[9:0] bits in DAC_SHHR register
3. Refresh phase: the refresh time is configured with the TREFRESHx[7:0] bits in DAC_SHRR register

The timings for the three phases above are in units of LSI/LSE clock periods. As an example, to configure a sample time of 350 $\mu\text{s}$ , a hold time of 2 ms and a refresh time of 100 $\mu\text{s}$ assuming LSI/LSE $\sim 32\text{ KHz}$ is selected:

• 12 cycles are required for sample phase: TSAMPLEx[9:0] = 11.
• 62 cycles are required for hold phase: THOLDx[9:0] = 62.
• and 4 cycles are required for refresh period: TREFRESHx[7:0] = 4.

In this example, the power consumption is reduced by almost a factor of 15 versus normal modes.

The formulas to compute the right sample and refresh timings are described in the table below, the Hold time depends on the leakage current.

Table 284. Sample and refresh timings

Buffer State	$t_{\text{SAMP}}^{(1)(2)}$	$t_{\text{REFRESH}}^{(2)(3)}$
Enable	$7\ \mu\text{s} + (10 \cdot R_{\text{BON}} \cdot C_{\text{SH}})$	$7\ \mu\text{s} + (R_{\text{BON}} \cdot C_{\text{SH}}) \cdot \ln(2 \cdot N_{\text{LSB}})$
Disable	$3\ \mu\text{s} + (10 \cdot R_{\text{BOFF}} \cdot C_{\text{SH}})$	$3\ \mu\text{s} + (R_{\text{BOFF}} \cdot C_{\text{SH}}) \cdot \ln(2 \cdot N_{\text{LSB}})$

1. In the above formula, the settling to the desired code value with $\frac{1}{2}\text{ LSB}$ or accuracy requires 10 constant time for 12 bits resolution. For 8-bit resolution, the settling time is 7 constant time.
2. $C_{\text{SH}}$ is the capacitor in sample and hold mode.
3. The tolerated voltage drop during the hold phase “Vd” is represented by the number of LSBs after the capacitor discharging with the output leakage current. The settling back to the desired value with $\frac{1}{2}\text{ LSB}$ error accuracy requires $\ln(2 \cdot N_{\text{lsb}})$ constant time of the DAC.

Example of the sample and refresh time calculation with output buffer on

The values used in the example below are provided as indication only. Refer to the product datasheet for product data.

C_{\text{SH}} = 100\ \text{nF}

V_{\text{REF+}} = 3.0\ \text{V}

Sampling phase:

t_{\text{SAMP}} = 7\ \mu\text{s} + (10 \cdot 2000 \cdot 100 \cdot 10^{-9}) = 2.007\ \text{ms}

(where $R_{\text{BON}} = 2\ \text{k}\Omega$ )

Refresh phase:

t_{\text{REFRESH}} = 7 \mu\text{s} + (2000 * 100 * 10^{-9}) * \ln(2^{10}) = 606.1 \mu\text{s}

(where $N_{\text{LSB}} = 10$ (10 LSB drop during the hold phase))

Hold phase:

D_V = i_{\text{leak}} * t_{\text{hold}} / C_{\text{SH}} = 0.0073 \text{ V} \text{ (10 LSB of 12bit at 3 V)}

i_{\text{leak}} = 150 \text{ nA} \text{ (worst case on the IO leakage on all the temperature range)}

t_{\text{hold}} = 0.0073 * 100 * 10^{-9} / (150 * 10^{-9}) = 4.867 \text{ ms}

Figure 277. DAC sample and hold mode phase diagram

Figure 277. DAC sample and hold mode phase diagram. The diagram shows three waveforms over time (t). The top waveform is the DAC output voltage, which starts at V2, rises to Vd during the Sampling phase, and then drops back towards V2 during the Refresh phase. The middle waveform is the dac_hold_ck signal, a high-frequency clock. The bottom waveform is the DAC control signal, which is high (ON) during the Sampling and Refresh phases and low (OFF) during the Hold phase. The phases are labeled: Sampling phase, Hold phase, Refresh phase, and Sampling phase.

Like in normal mode, the sample and hold mode has different configurations.

To enable the output buffer, MODEx[2:0] bits in DAC_MCR register must be set to:

• 100: DAC is connected to the external pin

To disable the output buffer, MODEx[2:0] bits in DAC_MCR register must be set to:

• 110: DAC is connected to external pin

When MODEx[2:0] bits are equal to 111, an internal capacitor, $C_{\text{Lint}}$ , holds the voltage output of the DAC core and then drive it to on-chip peripherals.

All sample and hold phases are interruptible, and any change in DAC_DHRx immediately triggers a new sample phase.

Table 285. Channel output modes summary

MODEx[2:0]		Mode	Buffer	Output connections
0	0	Normal mode	Enabled	Connected to external pin
0	1	Normal mode	Disabled	Connected to external pin
1	0	Sample and hold mode	Enabled	Connected to external pin
1	1	Sample and hold mode	Disabled	Connected to external pin and to on chip peripherals (such as comparators)

28.4.13 DAC channel buffer calibration

The transfer function for an N-bit digital-to-analog converter (DAC) is:

V_{out} = \left( (D / 2^N) \times G \times V_{REF} \right) + V_{OS}

Where $V_{OUT}$ is the analog output, $$ D $$ is the digital input, $$ G $$ is the gain, $V_{REF}$ is the nominal full-scale voltage, and $V_{OS}$ is the offset voltage. For an ideal DAC channel, $$ G = 1 $$ and $V_{OS} = 0$ .

Due to output buffer characteristics, the voltage offset may differ from part-to-part and introduce an absolute offset error on the analog output. To compensate the $V_{OS}$ , a calibration is required by a trimming technique.

The calibration is only valid when the DAC channelx is operating with buffer enabled (MODEx[2:0] = 0b000 or 0b001 or 0b100 or 0b101). if applied in other modes when the buffer is off, it has no effect. During the calibration:

• The buffer output is disconnected from the pin internal/external connections and put in tristate mode (HiZ).
• The buffer acts as a comparator to sense the middle-code value 0x800 and compare it to $V_{REF+}/2$ signal through an internal bridge, then toggle its output signal to 0 or 1 depending on the comparison result (CAL_FLAGx bit).

Two calibration techniques are provided:

• Factory trimming (default setting)

The DAC buffer offset is factory trimmed. The default value of OTRIMx[4:0] bits in DAC_CCR register is the factory trimming value and it is loaded once DAC digital interface is reset.

• User trimming

The user trimming can be done when the operating conditions differs from nominal factory trimming conditions and in particular when $V_{DDA}$ voltage, temperature, $V_{REF+}$ values change and can be done at any point during application by software.

Note: Refer to the datasheet for more details of the nominal factory trimming conditions.

In addition, when $V_{DD}$ is removed (example the device enters in Standby or VBAT modes) the calibration is required.

The steps to perform a user trimming calibration are as below:

1. If the DAC channel is active, write 0 to ENx bit in DAC_CR to disable the channel.
2. Select a mode where the buffer is enabled, by writing to DAC_MCR register, MODEx[2:0] = 0b000 or 0b001 or 0b100 or 0b101.
3. Start the DAC channelx calibration, by setting the CENx bit in DAC_CR register to 1.
4. Apply a trimming algorithm:
1. a) Write a code into OTRIMx[4:0] bits, starting by 0b00000.
2. b) Wait for $t_{TRIM}$ delay.
3. c) Check if CAL_FLAGx bit in DAC_SR is set to 1.
4. d) Until the CAL_FLAGx is read as 1 or the maximum trimming code is reached, increment OTRIMx[4:0] and repeat substeps from (b) to (d).

The software algorithm may use either a successive approximation or dichotomy techniques to compute and set the content of OTRIMx[4:0] bits in a faster way.

Note: A $t_{TRIM}$ delay must be respected between the write to the OTRIMx[4:0] bits and the read of the CAL_FLAGx bit in DAC_SR register in order to get a correct value. This parameter is specified into datasheet electrical characteristics section.

If $V_{DDA}$ , $V_{REF+}$ and temperature conditions do not change during device operation while it enters more often in Standby and VBAT modes, the software may store the OTRIMx[4:0] bits found in the first user calibration in the flash or in back-up registers. then to load/write them directly when the device power is back again thus avoiding to wait for a new calibration time.

When CENx bit is set, it is not allowed to set ENx bit.

28.4.14 DAC channel conversion modes

Four conversion modes are possible.

Independent trigger without wave generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the DAC channel trigger enable bit, TENx.
2. Configure the trigger sources by setting different values in the TSELx[3:0] bits.
3. Load the DAC channel data into the desired DHR registers (DAC_DHR12R1, DAC_DHR12L1 or DAC_DHR8R1).

When a DAC channel trigger arrives, the DHRx register is transferred into DAC_DORx (three $dac\_hclk$ clock cycles later).

Independent trigger with single LFSR generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the DAC channel trigger enable bit, TENx.
2. Configure the trigger sources by setting different values in the TSELx[3:0] bits.
3. Configure the DAC channel WAVEx[1:0] bits as 01 and the same LFSR mask value in the MAMPx[3:0] bits.
4. Load the DAC channel data into the desired DHR register (DAC_DHR12R1, DAC_DHR12L1 or DAC_DHR8R1).

When a DAC channel trigger arrives, the LFSR1 counter, with the same mask, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclkclock cycles later). Then the LFSR1 counter is updated.

Independent trigger with single triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the DAC channel trigger enable bits, TENx.
2. Configure the trigger sources by setting different values in the TSELx[3:0]bits.
3. Configure the DAC channel WAVEx[1:0]bits as 1x and the same maximum amplitude value in the MAMPx[3:0]bits.
4. Load the DAC channel data into the desired DHR register ( DAC_DHR12R1, DAC_DHR12L1or DAC_DHR8R1).

When a DAC channel trigger arrives, the DAC channel triangle counter, with the same triangle amplitude, is added to the DHRxregister and the sum is transferred into DAC_DOR1(three dac_hclkclock cycles later). The DAC channel triangle counter is then updated.

Independent trigger with single sawtooth generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Configure the trigger sources by setting different values in STRSTTRIGSELx[3:0]and STINCTRIGSELx[3:0]bits.
2. Configure the DAC channel WAVEx[1:0]bits to 11 and set the same STRSTDATAx[11:0], STINCDATAx[15:0]and STDIRxvalues for each register.

When a DAC channel trigger arrives, the DAC channel sawtooth counter updates the DHRxregister and transfers it into DAC_DOR1(three AHB clock cycles later).

28.4.15 Dual DAC channel conversion modes (if dual channels are available)

To efficiently use the bus bandwidth in applications that require the two DAC channels at the same time, three dual registers are implemented: DHR8RD, DHR12RDand DHR12LD. A unique register access is then required to drive both DAC channels at the same time. For the wave generation, no accesses to DHRxxxDregisters are required. As a result, two output channels can be used either independently or simultaneously.

15 conversion modes are possible using the two DAC channels and these dual registers. All the conversion modes can nevertheless be obtained using separate DAC_DHRxregisters if needed.

All modes are described in the paragraphs below.

Independent trigger without wave generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the two DAC channel trigger enable bits TEN1and TEN2.
2. Configure different trigger sources by setting different values in the TSEL1and TSEL2bitfields.
3. Load the dual DAC channel data into the desired DHR register ( DAC_DHR12RD, DAC_DHR12LDor DAC_DHR8RD).

When a DAC channel1 trigger arrives, the DHR1 register is transferred into DAC_DOR1 (three dac_hclk clock cycles later).

When a DAC channel2 trigger arrives, the DHR2 register is transferred into DAC_DOR2 (three dac_hclk clock cycles later).

Independent trigger with single LFSR generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. Configure different trigger sources by setting different values in the TSEL1 and TSEL2 bitfields.
3. Configure the two DAC channel WAVEx[1:0] bits as 01 and the same LFSR mask value in the MAMPx[3:0] bits.
4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a DAC channel1 trigger arrives, the LFSR1 counter, with the same mask, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). Then the LFSR1 counter is updated.

When a DAC channel2 trigger arrives, the LFSR2 counter, with the same mask, is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). Then the LFSR2 counter is updated.

Independent trigger with different LFSR generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. Configure different trigger sources by setting different values in the TSEL1 and TSEL2 bitfields.
3. Configure the two DAC channel WAVEx[1:0] bits as 01 and set different LFSR masks values in the MAMP1[3:0] and MAMP2[3:0] bits.
4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a DAC channel1 trigger arrives, the LFSR1 counter, with the mask configured by MAMP1[3:0], is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). Then the LFSR1 counter is updated.

When a DAC channel2 trigger arrives, the LFSR2 counter, with the mask configured by MAMP2[3:0], is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). Then the LFSR2 counter is updated.

Independent trigger with single triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. Configure different trigger sources by setting different values in the TSEL1 and TSEL2 bitfields.
3. Configure the two DAC channel WAVEx[1:0] bits as 1x and the same maximum amplitude value in the MAMPx[3:0] bits.
4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a DAC channel1 trigger arrives, the DAC channel1 triangle counter, with the same triangle amplitude, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). The DAC channel1 triangle counter is then updated.

When a DAC channel2 trigger arrives, the DAC channel2 triangle counter, with the same triangle amplitude, is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). The DAC channel2 triangle counter is then updated.

Independent trigger with different triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. Configure different trigger sources by setting different values in the TSEL1 and TSEL2 bits.
3. Configure the two DAC channel WAVEx[1:0] bits as 1x and set different maximum amplitude values in the MAMP1[3:0] and MAMP2[3:0] bits.
4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a DAC channel1 trigger arrives, the DAC channel1 triangle counter, with a triangle amplitude configured by MAMP1[3:0], is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). The DAC channel1 triangle counter is then updated.

When a DAC channel2 trigger arrives, the DAC channel2 triangle counter, with a triangle amplitude configured by MAMP2[3:0], is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). The DAC channel2 triangle counter is then updated.

Simultaneous software start

To configure the DAC in this conversion mode, the following sequence is required:

• Load the dual DAC channel data to the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

In this configuration, one dac_hclk clock cycle later, the DHR1 and DHR2 registers are transferred into DAC_DOR1 and DAC_DOR2, respectively.

Simultaneous trigger without wave generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
3. Load the dual DAC channel data to the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a trigger arrives, the DHR1 and DHR2 registers are transferred into DAC_DOR1 and DAC_DOR2, respectively (after three dac_hclk clock cycles).

Simultaneous trigger with single LFSR generation

1. To configure the DAC in this conversion mode, the following sequence is required:
2. Set the two DAC channel trigger enable bits TEN1 and TEN2.
3. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
4. Configure the two DAC channel WAVEx[1:0] bits as 01 and the same LFSR mask value in the MAMPx[3:0] bits.
5. Load the dual DAC channel data to the desired DHR register (DHR12RD, DHR12LD or DHR8RD).

When a trigger arrives, the LFSR1 counter, with the same mask, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). The LFSR1 counter is then updated. At the same time, the LFSR2 counter, with the same mask, is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). The LFSR2 counter is then updated.

Simultaneous trigger with different LFSR generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the two DAC channel trigger enable bits TEN1 and TEN2
2. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
3. Configure the two DAC channel WAVEx[1:0] bits as 01 and set different LFSR mask values using the MAMP1[3:0] and MAMP2[3:0] bits.
4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a trigger arrives, the LFSR1 counter, with the mask configured by MAMP1[3:0], is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). The LFSR1 counter is then updated.

At the same time, the LFSR2 counter, with the mask configured by MAMP2[3:0], is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). The LFSR2 counter is then updated.

Simultaneous trigger with single triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the two DAC channel trigger enable bits TEN1 and TEN2
2. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
3. Configure the two DAC channel WAVEx[1:0] bits as 1x and the same maximum amplitude value using the MAMPx[3:0] bits.
4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a trigger arrives, the DAC channel1 triangle counter, with the same triangle amplitude, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclkclock cycles later). The DAC channel1 triangle counter is then updated.

At the same time, the DAC channel2 triangle counter, with the same triangle amplitude, is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclkclock cycles later). The DAC channel2 triangle counter is then updated.

Simultaneous trigger with different triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. Set the two DAC channel trigger enable bits TEN1 and TEN2
2. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
3. Configure the two DAC channel WAVEx[1:0] bits as 1x and set different maximum amplitude values in the MAMP1[3:0] and MAMP2[3:0] bits.
4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a trigger arrives, the DAC channel1 triangle counter, with a triangle amplitude configured by MAMP1[3:0], is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three AHB clock cycles later). Then the DAC channel1 triangle counter is updated.

At the same time, the DAC channel2 triangle counter, with a triangle amplitude configured by MAMP2[3:0], is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclkclock cycles later). Then the DAC channel2 triangle counter is updated.

28.5 DAC in low-power modes

Table 286. Effect of low-power modes on DAC

Mode	Description
Sleep	No effect, DAC used with DMA.
Stop ⁽¹⁾	The DAC remains active with a static value. The sample and hold mode can be selected using LSE/LSI clock.
Standby	The DAC peripheral is powered down and must be reinitialized after exiting Standby mode.

1. Refer to Section 28.3: DAC implementation for information on the Stop modes supported by the DAC peripheral.

28.6 DAC interrupts

Table 287. DAC interrupts

Interrupt acronym	Interrupt event	Event flag	Enable control bit	Interrupt clear method	Exit Sleep mode	Exit Stop mode	Exit Standby mode
DAC	DMA underrun	DMAUDRx	DMAUDRI Ex	Write DMAUDRx = 1	Yes	No	No

28.7 DAC registers

Refer to Section 1 on page 104 for a list of abbreviations used in register descriptions.

The peripheral registers have to be accessed by words (32-bit).

28.7.1 DAC control register (DAC_CR)

Address offset: 0x00

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	CEN2	DMAU DRIE2	DMAE N2	MAMP2[3:0]				WAVE2[1:0]		TSEL2[3]	TSEL2[2]	TSEL2[1]	TSEL2[0]	TEN2	EN2
	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	CEN1	DMAU DRIE1	DMAE N1	MAMP1[3:0]				WAVE1[1:0]		TSEL1[3]	TSEL1[2]	TSEL1[1]	TSEL1[0]	TEN1	EN1
	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bit 31 Reserved, must be kept at reset value.

Bit 30 CEN2 : DAC channel2 calibration enable

This bit is set and cleared by software to enable/disable DAC channel2 calibration, it can be written only if EN2 bit is set to 0 into DAC_CR (the calibration mode can be entered/exit only when the DAC channel is disabled) Otherwise, the write operation is ignored.

0: DAC channel2 in normal operating mode

1: DAC channel2 in calibration mode

Note: This bit is available only on dual-channel DACs. Refer to Section 28.3: DAC implementation .

Bit 29 DMAUDRIE2 : DAC channel2 DMA underrun interrupt enable

This bit is set and cleared by software.

0: DAC channel2 DMA underrun interrupt disabled

1: DAC channel2 DMA underrun interrupt enabled

Note: This bit is available only on dual-channel DACs. Refer to Section 28.3: DAC implementation .

Bit 28 DMAEN2 : DAC channel2 DMA enable

This bit is set and cleared by software.

0: DAC channel2 DMA mode disabled

1: DAC channel2 DMA mode enabled

Note: This bit is available only on dual-channel DACs. Refer to Section 28.3: DAC implementation .

Bits 27:24 MAMP2[3:0] : DAC channel2 mask/amplitude selector

These bits are written by software to select mask in wave generation mode or amplitude in triangle generation mode.

0000: Unmask bit0 of LFSR/ triangle amplitude equal to 1

0001: Unmask bits[1:0] of LFSR/ triangle amplitude equal to 3

0010: Unmask bits[2:0] of LFSR/ triangle amplitude equal to 7

0011: Unmask bits[3:0] of LFSR/ triangle amplitude equal to 15

0100: Unmask bits[4:0] of LFSR/ triangle amplitude equal to 31

0101: Unmask bits[5:0] of LFSR/ triangle amplitude equal to 63

0110: Unmask bits[6:0] of LFSR/ triangle amplitude equal to 127

0111: Unmask bits[7:0] of LFSR/ triangle amplitude equal to 255

1000: Unmask bits[8:0] of LFSR/ triangle amplitude equal to 511

1001: Unmask bits[9:0] of LFSR/ triangle amplitude equal to 1023

1010: Unmask bits[10:0] of LFSR/ triangle amplitude equal to 2047

≥ 1011: Unmask bits[11:0] of LFSR/ triangle amplitude equal to 4095

Note: These bits are available only on dual-channel DACs. Refer to Section 28.3: DAC implementation .

Bits 23:22 WAVE2[1:0] : DAC channel2 noise/triangle wave generation enable

These bits are set/reset by software.

00: wave generation disabled

01: Noise wave generation enabled

10: Triangle wave generation enabled

11: Reserved

Note: Only used if bit TEN2 = 1 (DAC channel2 trigger enabled)

These bits are available only on dual-channel DACs. Refer to Section 28.3: DAC implementation .

Bits 21:18 TSEL2[3:0] : DAC channel2 trigger selection

These bits select the external event used to trigger DAC channel2

0000: SWTRIG2

0001: dac_ch2_trg1

0010: dac_ch2_trg2

...

1111: dac_ch2_trg15

Refer to the trigger selection tables in Section 28.4.2: DAC pins and internal signals for details on trigger configuration and mapping.

Note: Only used if bit TEN2 = 1 (DAC channel2 trigger enabled).

These bits are available only on dual-channel DACs. Refer to Section 28.3: DAC implementation .

Bit 17 TEN2 : DAC channel2 trigger enable

This bit is set and cleared by software to enable/disable DAC channel2 trigger

0: DAC channel2 trigger disabled and data written into the DAC_DHR2 register are transferred one dac_hclk clock cycle later to the DAC_DOR2 register

1: DAC channel2 trigger enabled and data from the DAC_DHR2 register are transferred three dac_hclk clock cycles later to the DAC_DOR2 register

Note: When software trigger is selected, the transfer from the DAC_DHR2 register to the DAC_DOR2 register takes only one dac_hclk clock cycle.

These bits are available only on dual-channel DACs. Refer to Section 28.3: DAC implementation .

Bit 16 EN2 : DAC channel2 enable

This bit is set and cleared by software to enable/disable DAC channel2.

0: DAC channel2 disabled

1: DAC channel2 enabled

Note: These bits are available only on dual-channel DACs. Refer to Section 28.3: DAC implementation .

Bit 15 Reserved, must be kept at reset value.

Bit 14 CEN1 : DAC channel1 calibration enable

This bit is set and cleared by software to enable/disable DAC channel1 calibration, it can be written only if bit EN1 = 0 into DAC_CR (the calibration mode can be entered/exit only when the DAC channel is disabled) Otherwise, the write operation is ignored.

0: DAC channel1 in normal operating mode

1: DAC channel1 in calibration mode

Bit 13 DMAUDRIE1 : DAC channel1 DMA Underrun Interrupt enable

This bit is set and cleared by software.

0: DAC channel1 DMA Underrun Interrupt disabled

1: DAC channel1 DMA Underrun Interrupt enabled

Bit 12 DMAEN1 : DAC channel1 DMA enable

This bit is set and cleared by software.

0: DAC channel1 DMA mode disabled

1: DAC channel1 DMA mode enabled

Bits 11:8 MAMP1[3:0] : DAC channel1 mask/amplitude selector
