14. Extended interrupts and event controller (EXTI)

The extended interrupts and event controller (EXTI) manages the individual CPU and system wake-up through configurable and direct event inputs. It provides wake-up requests to the power control and generates an interrupt request to the CPU NVIC and events to the CPU event input.

For the CPU, an additional event Generation block (EVG) is needed to generate the CPU event signal.

The EXTI wake-up requests allow the system to be woken up from Stop modes and the CPU to be woken up from the CStop and CStandby modes.

The interrupt request and event request generation can also be used in Run modes.

14.1 EXTI main features

The EXTI main features are the following:

• • 47 input events are supported.
• • All event inputs allow the system to be waked up.
• • Events which do not have an associated wake-up flag in the peripheral, have a flag in the EXTI and generate an interrupt to the CPU from the EXTI.

The asynchronous event inputs are classified in the following two groups:

• • Configurable events (signals from I/Os or peripherals able to generate a pulse), with features listed below:
  • – Selectable active trigger edge
  • – Interrupt pending status register bit
  • – Individual interrupt and event generation mask, used for conditioning the CPU wake-up, interrupt and event generation
  • – SW trigger possibility
• • Direct events (interrupt and wake-up sources from peripherals, having an associated flag to be cleared in the peripheral), with features listed below:
  • – Fixed rising edge active trigger
  • – No interrupt pending status register bit in the EXTI (The interrupt pending status flag is provided by the peripheral generating the event.)
  • – Individual interrupt and event generation mask, used for conditioning the CPU wake-up and event generation
  • – No software trigger possibility

14.2 EXTI block diagram

The EXTI consists of a register block accessed via an AHB interface, the event input trigger block and the masking block as shown in Figure 40 .

The register block contains all the EXTI registers.

The event input trigger block provides event input edge trigger logic.

The masking block provides the event input distribution to the different wake-up, interrupt and event outputs, and the masking of these.

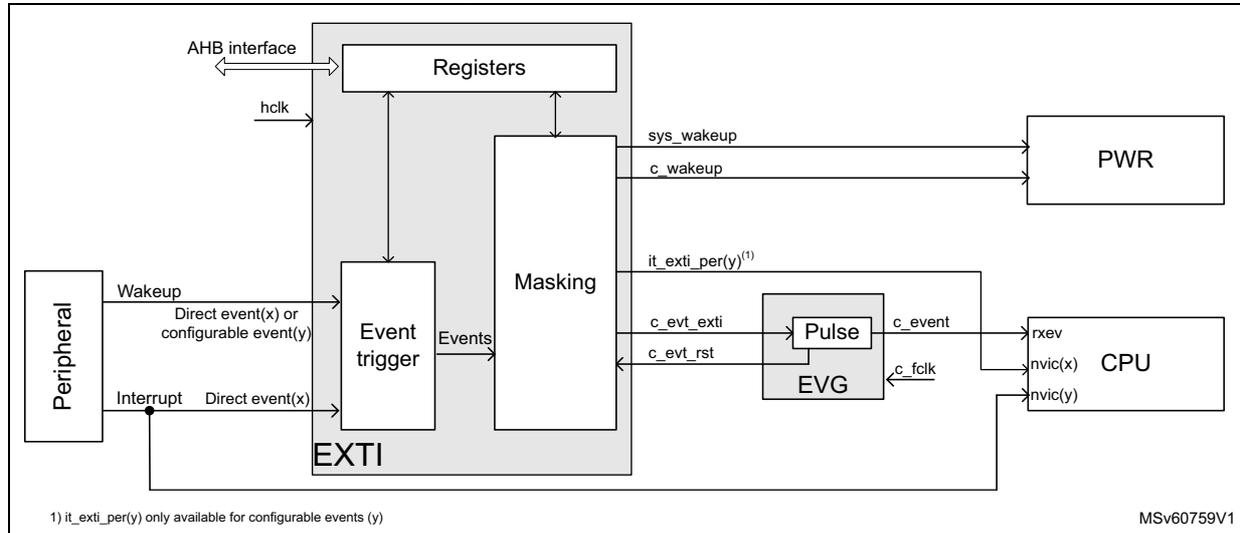

Figure 40. EXTI block diagram

Table 79. EXTI pin overview

Table 80. EVG pin overview

14.3 EXTI connections between peripherals and CPU

The peripherals able to generate wake-up or interrupt events when the system is in Stop mode, are connected to the EXTI.

Peripheral wake-up signals that generate a pulse or that do not have an interrupt status bits in the peripheral, are connected to an EXTI configurable event input. For these events, the EXTI provides a status pending bit which requires to be cleared. It is the EXTI interrupt associated with the status bit that interrupts the CPU.

Peripheral interrupt and wake-up signals that have a status bit in the peripheral which requires to be cleared in the peripheral, are connected to an EXTI direct event input. There is no status pending bit within the EXTI. The interrupt or wake-up is cleared by the CPU in the peripheral. It is the peripheral interrupt that interrupts the CPU directly.

The EXTI configurable event interrupts are connected to the NVIC of the CPU.

The dedicated EXTI/EVG CPU event is connected to the CPU rxev input.

The EXTI CPU wake-up signals are connected to the PWR block and are used to wake up the system and CPU sub-system bus clocks.

14.3.1 EXTI wake-up interrupt list

The wake-up sources are listed in Table 81: Wake-up interrupts .

Some wake-up sources are able to generate an event to the CPU (see 'Event' column).

For CPU interrupt handling, see Section 13: Nested vectored interrupt controller (NVIC) .

Table 81. Wake-up interrupts

Table 81. Wake-up interrupts (continued)

14.4 EXTI functional description

Depending on the EXTI event input type and wake-up targets, different logic implementations are used. The applicable features are controlled from register bits as detailed below:

• • Active trigger edge enable
  • – by rising edge selection
    EXTI rising trigger selection register (EXTI_RTSR1)
    EXTI rising trigger selection register (EXTI_RTSR2)
  • – by falling edge selection
    EXTI falling trigger selection register (EXTI_FTSR1)
    EXTI falling trigger selection register (EXTI_FTSR2)
• • Software trigger
  EXTI software interrupt event register (EXTI_SWIER1)
  EXTI software interrupt event register (EXTI_SWIER2)
• • Interrupt pending flag
  EXTI pending register (EXTI_PR1)
  EXTI pending register (EXTI_PR2)
• • CPU wake-up and interrupt enable
  EXTI interrupt mask register (EXTI_IMR1)
  EXTI interrupt mask register (EXTI_IMR2)
• • CPU wake-up and event enable
  EXTI event mask register (EXTI_EMR1)

Table 82. EXTI event input configurations and register control

1. Only for input events with configuration “rxev generation” enabled.

14.4.1 EXTI configurable event input wake-up

The extended interrupt/event block diagram for configurable events is shown in Figure 41 . The configurable events allow the system and CPU wake-up from Sleep and Stop modes, and provide a pending flag in the EXTI.

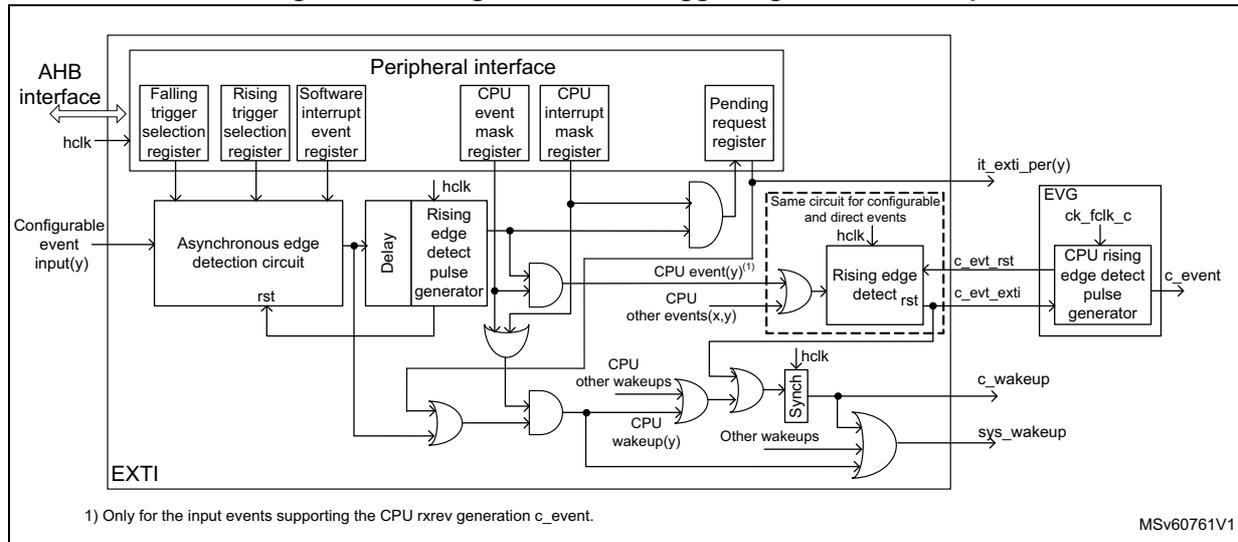

Figure 41. Configurable event trigger logic CPU wake-up

The software interrupt event register allows configurable events to be triggered by software, writing the corresponding register bit, irrespective of the edge selection setting.

The rising and falling edges selection registers allow the configurable event active trigger edge (or both edges) to be enabled.

The CPU has its dedicated interrupt mask and event mask registers. The enabled event allows the generation of an event on the CPU. All events for a CPU are ORed together into a single CPU event signal. The event pending register (EXTI_PR) is not set for an unmasked CPU event.

The configurable events have unique interrupt pending request registers, shared by the CPU. The pending register is only set for an unmasked interrupt. Each configurable event provides a common interrupt to the CPU. The configurable event interrupts need to be acknowledged by software in the EXTI_PR register.

When a CPU interrupt or CPU event is enabled, the asynchronous edge detection circuit is reset by the clocked delay and rising edge detect pulse generator. This guarantees that the EXTI hclk clock is woken up before the asynchronous edge detection circuit is reset.

Note: A detected configurable event interrupt pending request may be cleared by the CPU. The system is not able to enter into low-power modes as long as an interrupt pending request is active.

14.4.2 EXTI direct event input wake-up

The extended interrupt/event block diagram for direct events is shown in Figure 42 . The direct events allow the wake-up of the system and of the CPU from Sleep and Stop modes.

The direct events do not have an associated EXTI interrupt. The EXTI only wakes up the system and CPU sub-system clocks and may generate a CPU wake-up event. The peripheral synchronous interrupt associated with the direct wake-up event, wake up the CPU. The EXTI direct event is able to generate a CPU event. This CPU event wakes up the CPU.

The CPU event may occur before the associated peripheral interrupt flag is set.

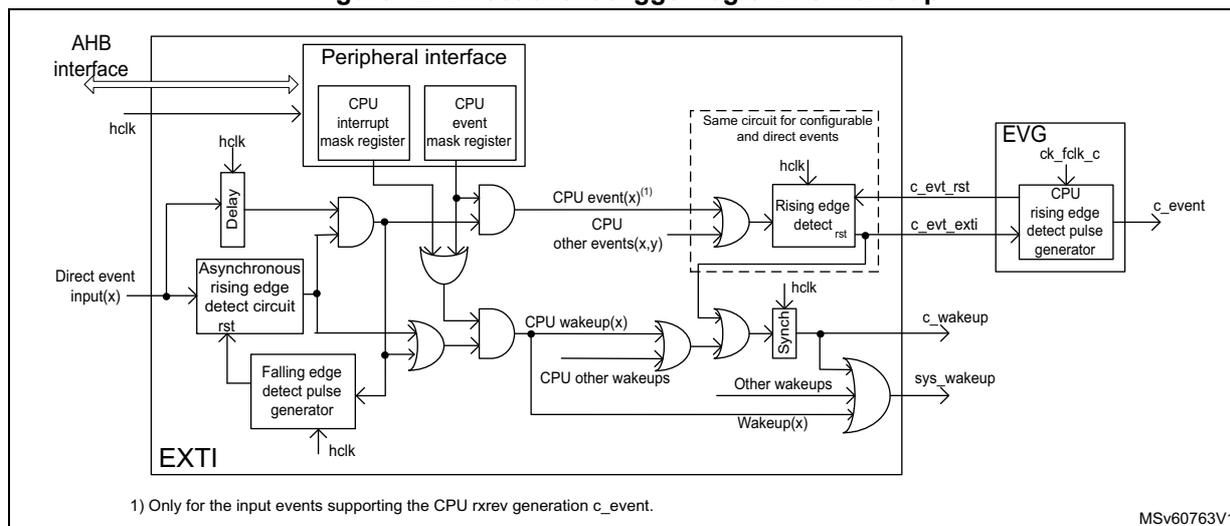

Figure 42. Direct event trigger logic CPU wake-up

14.5 EXTI functional behavior

The direct event inputs are enabled in the respective peripheral generating the wake-up event. The configurable events are enabled by enabling at least one of the trigger edges.

Once an event input is enabled, the generation of a CPU wake-up is conditioned by the CPU interrupt mask and the CPU event mask.

Table 83. Masking functionality

1. Only if the CPU interrupt is enabled in EXTI_IMRm.IMb.

For configurable event inputs, when the enabled edges occur on the event input, an event request is generated. When the associated it_exti_per(y) interrupt is unmasked, the corresponding pending bit in EXTI_PR is set, the CPU sub-system wakes up and the CPU interrupt signal is activated. The EXTI_PR pending bit must be set to 1 by software. This clears the it_exti_per(y) interrupt.

For direct event inputs, when enabled in the associated peripheral, an event request is generated on the rising edge only. There is no corresponding CPU pending bit in the EXTI. When the associated direct event is unmasked in EXTI_IM, the CPU sub-system wakes up. The CPU is woken up (interrupted) by the peripheral synchronous interrupt.

The CPU event must be unmasked in EXTI_EMR to generate an event. When the enabled edges occur on the event input, a CPU event pulse is generated. There is no event pending bit.

For the configurable event inputs, an event request can be generated by software, setting to 1 the corresponding bit in the interrupt/event register EXTI_SWIER. This allows the generation of a rising edge on the event. The edge event pending bit must be set in EXTI_PR, irrespective of the setting in EXTI_RTSR.

14.6 EXTI registers

The EXTI register map is divided in sections listed in the table below.

Table 84. EXTI register map sections

All these registers can be accessed with word (32-bit), half-word (16-bit) and byte (8-bit) access.

14.6.1 EXTI rising trigger selection register (EXTI_RTSR1)

Address offset: 0x000

Reset value: 0x0000 0000

Contains only register bits for configurable events.

Bits 31:23 Reserved, must be kept at reset value.

Bit 22 RT22 : rising trigger event configuration bit of configurable event input 22

0: Rising trigger disabled (for event and interrupt) for input line

1: Rising trigger enabled (for event and interrupt) for input line

Note: The configurable event inputs are edge triggered. No glitch must be generated on these inputs. If a rising edge on the configurable event input occurs while writing to the register, the associated pending bit is not set.

Rising and falling edge triggers can be set for the same configurable event input. In this case, both edges generate a trigger.

Bit 21 RT21 : rising trigger event configuration bit of configurable event input 21

Bits 20:17 Reserved, must be kept at reset value.

1. Bit 16 RT16 : rising trigger event configuration bit of configurable event input 16
   Bit 15 RT15 : rising trigger event configuration bit of configurable event input 15
   Bit 14 RT14 : rising trigger event configuration bit of configurable event input 14
   Bit 13 RT13 : rising trigger event configuration bit of configurable event input 13
   Bit 12 RT12 : rising trigger event configuration bit of configurable event input 12
   Bit 11 RT11 : rising trigger event configuration bit of configurable event input 11
   Bit 10 RT10 : rising trigger event configuration bit of configurable event input 10
   Bit 9 RT9 : rising trigger event configuration bit of configurable event input 9
   Bit 8 RT8 : rising trigger event configuration bit of configurable event input 8
   Bit 7 RT7 : rising trigger event configuration bit of configurable event input 7
   Bit 6 RT6 : rising trigger event configuration bit of configurable event input 6
   Bit 5 RT5 : rising trigger event configuration bit of configurable event input 5
   Bit 4 RT4 : rising trigger event configuration bit of configurable event input 4
   Bit 3 RT3 : rising trigger event configuration bit of configurable event input 3
   Bit 2 RT2 : rising trigger event configuration bit of configurable event input 2
   Bit 1 RT1 : rising trigger event configuration bit of configurable event input 1
   Bit 0 RT0 : rising trigger event configuration bit of configurable event input 0

14.6.2 EXTI falling trigger selection register (EXTI_FTSR1)

Address offset: 0x004

Reset value: 0x0000 0000

Contains only register bits for configurable events.

Bits 31:23 Reserved, must be kept at reset value.

Bit 22 FT22 : falling trigger event configuration bit of configurable event input 22

0: falling trigger disabled (for event and interrupt) for input line

1: falling trigger enabled (for event and interrupt) for input line

Note: The configurable event inputs are edge triggered. No glitch must be generated on these inputs. If a falling edge on the configurable event input occurs while writing to the register, the associated pending bit is not set.

Rising and falling edge triggers can be set for the same configurable event input. In this case, both edges generate a trigger.

Bit 21 FT21 : falling trigger event configuration bit of configurable event input 21

Bits 20:17 Reserved, must be kept at reset value.

1. Bit 16 FT16 : falling trigger event configuration bit of configurable event input 16
2. Bit 15 FT15 : falling trigger event configuration bit of configurable event input 15
3. Bit 14 FT14 : falling trigger event configuration bit of configurable event input 14
4. Bit 13 FT13 : falling trigger event configuration bit of configurable event input 13
5. Bit 12 FT12 : falling trigger event configuration bit of configurable event input 12
6. Bit 11 FT11 : falling trigger event configuration bit of configurable event input 11
7. Bit 10 FT10 : falling trigger event configuration bit of configurable event input 10
8. Bit 9 FT9 : falling trigger event configuration bit of configurable event input 9
9. Bit 8 FT8 : falling trigger event configuration bit of configurable event input 8
10. Bit 7 FT7 : falling trigger event configuration bit of configurable event input 7
11. Bit 6 FT6 : falling trigger event configuration bit of configurable event input 6
12. Bit 5 FT5 : falling trigger event configuration bit of configurable event input 5
13. Bit 4 FT4 : falling trigger event configuration bit of configurable event input 4
14. Bit 3 FT3 : falling trigger event configuration bit of configurable event input 3
15. Bit 2 FT2 : falling trigger event configuration bit of configurable event input 2
16. Bit 1 FT1 : falling trigger event configuration bit of configurable event input 1
17. Bit 0 FT0 : falling trigger event configuration bit of configurable event input 0

14.6.3 EXTI software interrupt event register (EXTI_SWIER1)

Address offset: 0x008

Reset value: 0x0000 0000

Contains only register bits for configurable events.

Bits 31:23 Reserved, must be kept at reset value.

Bit 22 SWI22 : Software interrupt on line 22

A software interrupt is generated independently from the setting in EXTI_RTSR and EXTI_FTSR. This bit always returns 0 when read.

0: Writing 0 has no effect.

1: Writing 1 to this bit triggers an event on line 22.

This bit is automatically cleared by hardware.

Bit 21 SWI21 : Software interrupt on line 21

Bits 20:17 Reserved, must be kept at reset value.

Bit 16 SWI16 : Software interrupt on line 16

• Bit 15 SWI15 : Software interrupt on line 15
• Bit 14 SWI14 : Software interrupt on line 14
• Bit 13 SWI13 : Software interrupt on line 13
• Bit 12 SWI12 : Software interrupt on line 12
• Bit 11 SWI11 : Software interrupt on line 11
• Bit 10 SWI10 : Software interrupt on line 10
• Bit 9 SWI9 : Software interrupt on line 9
• Bit 8 SWI8 : Software interrupt on line 8
• Bit 7 SWI7 : Software interrupt on line 7
• Bit 6 SWI6 : Software interrupt on line 6
• Bit 5 SWI5 : Software interrupt on line 5
• Bit 4 SWI4 : Software interrupt on line 4
• Bit 3 SWI3 : Software interrupt on line 3
• Bit 2 SWI2 : Software interrupt on line 2
• Bit 1 SWI1 : Software interrupt on line 1
• Bit 0 SWI0 : Software interrupt on line 0

14.6.4 EXTI pending register (EXTI_PR1)

Address offset: 0x00C

Reset value: 0x0000 0000

Contains only register bits for configurable events.

Bits 31:23 Reserved, must be kept at reset value.

Bit 22 PIF22 : pending bit on event input 22

These bits are set when the selected edge event or an EXTI_SWIER software trigger arrives on the configurable event line. This bit is cleared by writing 1 to it.
0: No trigger request occurred.
1: Trigger request occurred.

Bit 21 PIF21 : pending bit on event input 21

Bits 20:17 Reserved, must be kept at reset value.

Bit 16 PIF16 : pending bit on event input 16

Bit 15 PIF15 : pending bit on event input 15

Bit 14 PIF14 : pending bit on event input 14

1. Bit 13 PIF13 : pending bit on event input 13
   Bit 12 PIF12 : pending bit on event input 12
   Bit 11 PIF11 : pending bit on event input 11
   Bit 10 PIF10 : pending bit on event input 10
   Bit 9 PIF9 : pending bit on event input 9
   Bit 8 PIF8 : pending bit on event input 8
   Bit 7 PIF7 : pending bit on event input 7
   Bit 6 PIF6 : pending bit on event input 6
   Bit 5 PIF5 : pending bit on event input 5
   Bit 4 PIF4 : pending bit on event input 4
   Bit 3 PIF3 : pending bit on event input 3
   Bit 2 PIF2 : pending bit on event input 2
   Bit 1 PIF1 : pending bit on event input 1
   Bit 0 PIF0 : pending bit on event input 0

14.6.5 EXTI rising trigger selection register (EXTI_RTSR2)

Address offset: 0x020

Reset value: 0x0000 0000

Contains only register bits for configurable events.

Bits 31:14 Reserved, must be kept at reset value.

Bit 13 RT45 : rising trigger event configuration bit of configurable event input 45

0: Rising trigger disabled (for event and interrupt) for input line

1: Rising trigger enabled (for event and interrupt) for input line

Note: The configurable event inputs are edge triggered. No glitch must be generated on these inputs. If a rising edge on the configurable event input occurs while writing to the register, the associated pending bit is not set.

Rising and falling edge triggers can be set for the same configurable event input. In this case, both edges generate a trigger.

Bits 12:3 Reserved, must be kept at reset value.

Bit 2 RT34 : rising trigger event configuration bit of configurable event input 34

Bits 1:0 Reserved, must be kept at reset value.

14.6.6 EXTI falling trigger selection register (EXTI_FTSR2)

Address offset: 0x024

Reset value: 0x0000 0000

Contains only register bits for configurable events.

Bits 31:14 Reserved, must be kept at reset value.

Bit 13 FT45 : falling trigger event configuration bit of configurable event input 45

0: Falling trigger disabled (for event and interrupt) for input line

1: Falling trigger enabled (for event and interrupt) for input line

Note: The configurable event inputs are edge triggered. No glitch must be generated on these inputs. If a falling edge on the configurable event input occurs while writing to the register, the associated pending bit is not set.

Rising and falling edge triggers can be set for the same configurable event input. In this case, both edges generate a trigger.

Bits 12:3 Reserved, must be kept at reset value.

Bit 2 FT34 : falling trigger event configuration bit of configurable event input 34

Bits 1:0 Reserved, must be kept at reset value.

14.6.7 EXTI software interrupt event register (EXTI_SWIER2)

Address offset: 0x028

Reset value: 0x0000 0000

Contains only register bits for configurable events.

Bits 31:14 Reserved, must be kept at reset value.

Bit 13 SWI45 : software interrupt on event 45

A software interrupt is generated independently from the setting in EXTI_RTSR and EXTI_FTSR. This bit always returns 0 when read.

0: Writing 0 has no effect.

1: Writing 1 to this bit triggers an event on line 45.

This bit is automatically cleared by hardware.

Bits 12:3 Reserved, must be kept at reset value.

Bit 2 SWI34 : software interrupt on event 34

Bits 1:0 Reserved, must be kept at reset value.

14.6.8 EXTI pending register (EXTI_PR2)

Address offset: 0x02C

Reset value: 0x0000 0000

Contains only register bits for configurable events.

Bits 31:14 Reserved, must be kept at reset value.

Bit 13 PIF45 : pending bit on event input 45

These bits are set when the selected edge event or an EXTI_SWIER software trigger arrives on the configurable event line. This bit is cleared by writing 1 to it.

0: No trigger request occurred.

1: Trigger request occurred.

Bits 12:3 Reserved, must be kept at reset value.

Bit 2 PIF34 : pending bit on event input 34

Bits 1:0 Reserved, must be kept at reset value.

14.6.9 EXTI interrupt mask register (EXTI_IMR1)

Address offset: 0x080

Reset value: 0x0000 0000

Bits 31:0 IM[31:0] : Wake-up with interrupt mask on event input x (x= 31 to 0)

For each bit of this field:

0: Wake-up with interrupt request from line x is masked.

1: Wake-up with Interrupt request from line x is unmasked.

14.6.10 EXTI event mask register (EXTI_EMR1)

Address offset: 0x084

Reset value: 0x0000 0000

Bits 31:23 Reserved, must be kept at reset value.

Bit 22 EM22 : Wake-up with event generation mask on event input 22

0: Event request from line 22 is masked.

1: Event request from line 22 is unmasked.

Bit 21 EM21 : Wake-up with event generation mask on event input 21

Bit 20 EM20 : Wake-up with event generation mask on event input 20

Bit 19 EM19 : Wake-up with event generation mask on event input 19

Bit 18 EM18 : Wake-up with event generation mask on event input 18

Bit 17 EM17 : Wake-up with event generation mask on event input 17

Bit 16 Reserved, must be kept at reset value.

Bit 15 EM15 : Wake-up with event generation mask on event input 15

Bit 14 EM14 : Wake-up with event generation mask on event input 14

Bit 13 EM13 : Wake-up with event generation mask on event input 13

Bit 12 EM12 : Wake-up with event generation mask on event input 12

Bit 11 EM11 : Wake-up with event generation mask on event input 11

Bit 10 EM10 : Wake-up with event generation mask on event input 10

Bit 9 EM9 : Wake-up with event generation mask on event input 9

Bit 8 EM8 : Wake-up with event generation mask on event input 8

Bit 7 EM7 : Wake-up with event generation mask on event input 7

Bit 6 EM6 : Wake-up with event generation mask on event input 6

Bit 5 EM5 : Wake-up with event generation mask on event input 5

Bit 4 EM4 : Wake-up with event generation mask on event input 4

Bit 3 EM3 : Wake-up with event generation mask on event input 3

Bit 2 EM2 : Wake-up with event generation mask on event input 2

Bit 1 EM1 : Wake-up with event generation mask on event input 1

Bit 0 EM0 : Wake-up with event generation mask on event input 0

14.6.11 EXTI interrupt mask register (EXTI_IMR2)

Address offset: 0x090

Reset value: 0x0000 0000

Bits 31:15 Reserved, must be kept at reset value.

Bit 14 IM46 : Wake-up with interrupt mask on event input 46
0: Wake-up with interrupt request from line 46 is masked.
1: Wake-up with interrupt request from line 46 is unmasked.

Bit 13 IM45 : Wake-up with interrupt mask on event input 45

Bit 12 IM44 : Wake-up with interrupt mask on event input 44

Bit 11 IM43 : Wake-up with interrupt mask on event input 43

Bit 10 IM42 : Wake-up with interrupt mask on event input 42

Bits 9:7 Reserved, must be kept at reset value.

Bit 6 IM38 : Wake-up with interrupt mask on event input 38

Bits 5:3 Reserved, must be kept at reset value.

Bit 2 IM34 : Wake-up with interrupt mask on event input 34

Bits 1:0 Reserved, must be kept at reset value.

14.6.12 EXTI register map

Table 85. EXTI register map and reset values

Table 85. EXTI register map and reset values (continued)
