52. On-the-fly decryption engine (OTFDEC)

This section only applies to STM32U545/585/5Ax/5Gx devices.

52.1 OTFDEC introduction

OTFDEC allows on-the-fly decryption of the AHB traffic based on the read request address information. Four independent and non-overlapping encrypted regions can be defined in OTFDEC.

OTFDEC uses AES-128 in counter mode to achieve the lowest possible latency. As a consequence, each time the content of one encrypted region is changed, the entire region must be re-encrypted with a different cryptographic context (key or initialization vector). This constraint makes OTFDEC suitable to decrypt read-only data or code, stored in external NOR flash.

Note: When OTFDEC is used in conjunction with OCTOSPI, it is mandatory to access the flash memory using the memory-mapped mode of the flash memory controller.

When security is enabled in the product, OTFDEC can be programmed only by a secure host.

52.2 OTFDEC main features

52.3 OTFDEC functional description

52.3.1 OTFDEC block diagram

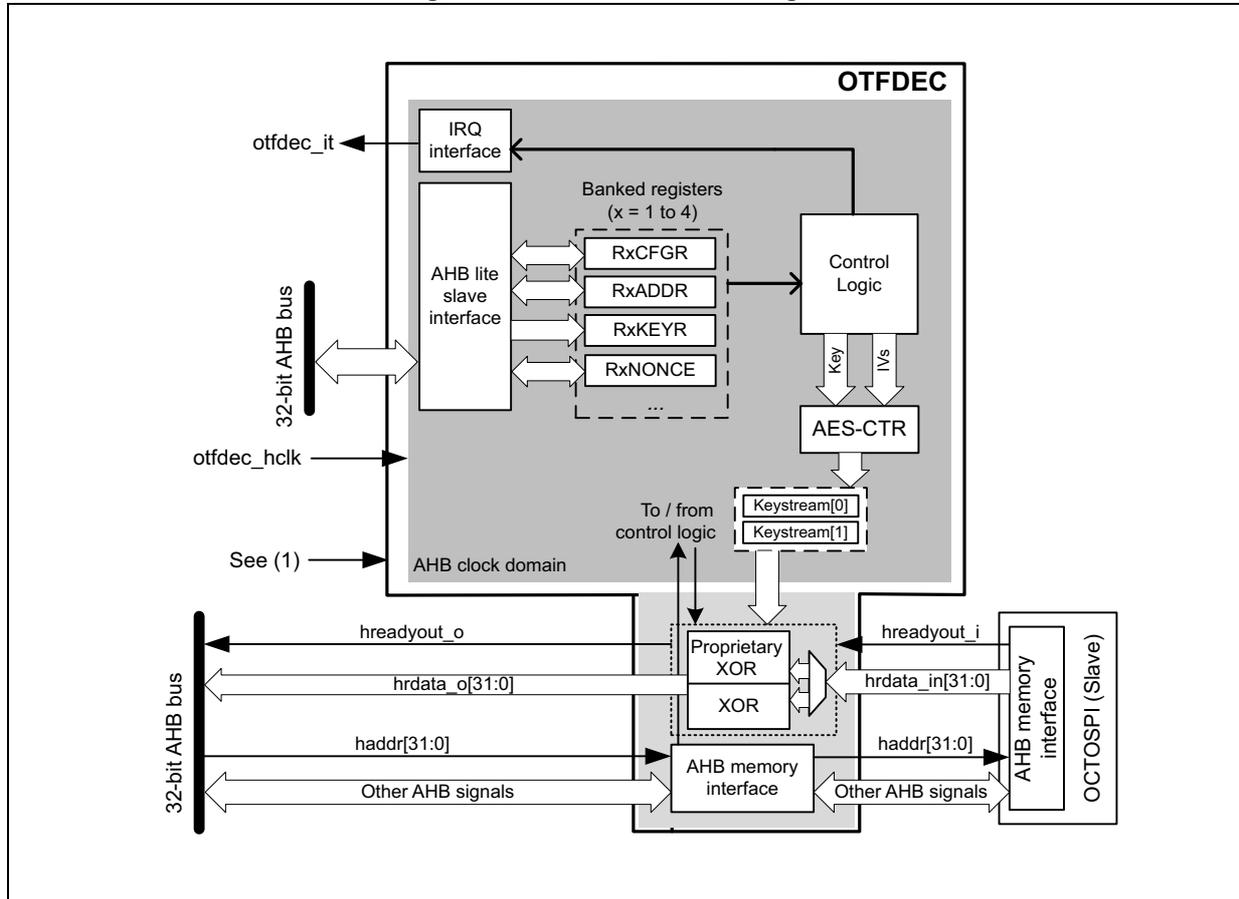

Figure 504. OTFDEC block diagram

OTFDEC block diagram showing internal components like AHB slave interface, Banked registers (RxCFGFR, RxADDR, RxKEYR, RxNONCE), Control Logic, AES-CTR, and XOR blocks connected to an AHB bus and memory interface.

The diagram illustrates the internal architecture of the OTFDEC block. On the left, a 32-bit AHB bus is connected to an 'AHB lite slave interface' and an 'AHB memory interface'. The slave interface connects to a set of 'Banked registers (x = 1 to 4)' which include 'RxCFGFR', 'RxADDR', 'RxKEYR', and 'RxNONCE'. These registers are connected to 'Control Logic'. The 'Control Logic' is also connected to an 'AES-CTR' block and an 'IRQ interface'. The 'IRQ interface' outputs the 'otfdec_it' signal. The 'AES-CTR' block outputs 'Keystream[0]' and 'Keystream[1]' to 'Proprietary XOR' and 'XOR' blocks. These XOR blocks receive data from the 'AHB memory interface' and output 'hreadyout_o' and 'hdata_o[31:0]' to the AHB bus. The 'AHB memory interface' is connected to an 'AHB memory interface OCTOSPI (Slave)' which outputs 'hreadyout_i', 'hdata_in[31:0]', and 'haddr[31:0]' to the AHB bus. The 'otfdec_hclk' signal is input to the 'AHB clock domain'. A note 'See (1)' points to the 'otfdec_tzen' signal input.

OTFDEC block diagram showing internal components like AHB slave interface, Banked registers (RxCFGFR, RxADDR, RxKEYR, RxNONCE), Control Logic, AES-CTR, and XOR blocks connected to an AHB bus and memory interface.

1. otfdec_tzen

52.3.2 OTFDEC internal signals

Table 489 describes a list of useful to know internal signals available at OTFDEC level, not at the product level (on pads).

Table 489. OTFDEC internal input/output signals

Signal nameSignal typeDescription
otfdec_hclkDigital inputAHB bus clock
otfdec_itDigital outputOTFDEC global interrupt request
otfdec_tzenDigital inputOTFDEC TrustZone enable, controlling TrustZone features of the peripheral (TZEN)

The TZEN option bit in FLASH is used to activate TrustZone in the device.

52.3.3 OTFDEC on-the-fly decryption

Introduction

Typical usage for OTFDEC is shown on Figure 505 .

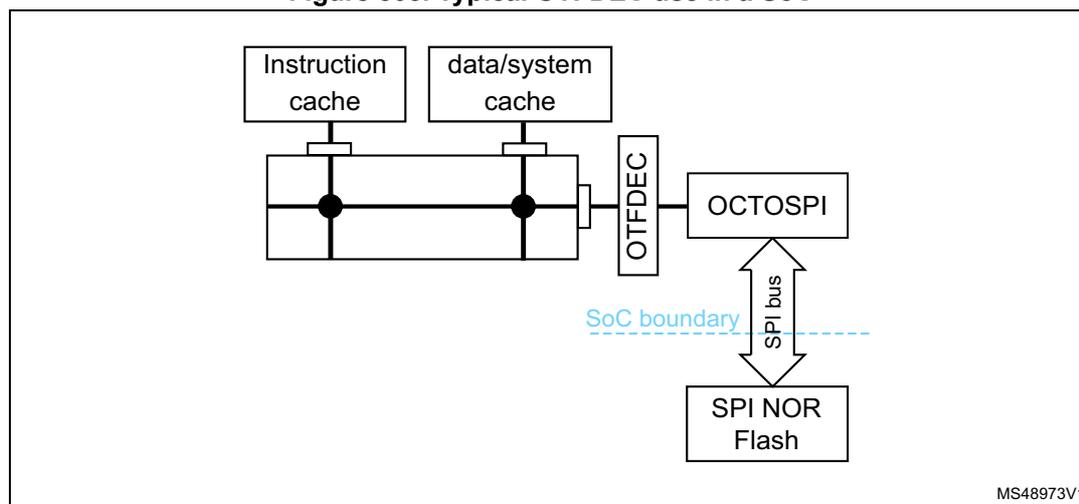

Figure 505. Typical OTFDEC use in a SoC

Figure 505: Typical OTFDEC use in a SoC. The diagram shows a System-on-Chip (SoC) architecture. Inside the SoC boundary (indicated by a dashed blue line), there is an AHB bus connecting an 'Instruction cache', a 'data/system cache', and an 'OTFDEC' block. The OTFDEC block is connected to an 'OCTOSPI' block. The OCTOSPI block is connected to an external 'SPI NOR Flash' via an 'SPI bus'. The OTFDEC block is positioned between the AHB bus and the OCTOSPI block, indicating it intercepts read transfers. The diagram is labeled MS48973V1.
Figure 505: Typical OTFDEC use in a SoC. The diagram shows a System-on-Chip (SoC) architecture. Inside the SoC boundary (indicated by a dashed blue line), there is an AHB bus connecting an 'Instruction cache', a 'data/system cache', and an 'OTFDEC' block. The OTFDEC block is connected to an 'OCTOSPI' block. The OCTOSPI block is connected to an external 'SPI NOR Flash' via an 'SPI bus'. The OTFDEC block is positioned between the AHB bus and the OCTOSPI block, indicating it intercepts read transfers. The diagram is labeled MS48973V1.

Original purpose of OTFDEC is to protect the confidentiality of read-only firmware libraries stored in external SPI NOR flash devices.

A special locking scheme is available in OTFDEC in order to protect the integrity of the decryption keys and also to protect the other configurations against software denial of services attacks. OTFDEC access to most registers can be made privileged-only by setting PRIV bit in OTFDEC_PRIVCFG register. OTFDEC is only writeable by TrustZone CPU, when TrustZone security is activated.

When OTFDEC is used in conjunction with OCTOSPI, it is mandatory to read the flash memory using the Memory-mapped mode of the flash controller.

On top of decrypting on-the-fly, OTFDEC can also encrypt 32-bit word at a time (see Section 52.5.3: Encrypting for OTFDEC for more details).

OTFDEC architecture

OTFDEC analyzes all AHB read transfers on the associated AHB bus. If the read request is within one of the four regions programmed in OTFDEC, the control logic triggers a keystream computation based on AES algorithm in counter mode. This keystream is then used to decrypt on-the-fly the data present in the read transfer from the OCTOSPI AHB master, tying low the HREADYOUT signal of this master while the keystream information is being computed (this takes up to 11 cycles). Any accesses outside the enabled OTFDEC regions belong to a non-encrypted region.

Each OTFDEC region is programmed through OTFDEC_RxCFG, OTFDEC_RxSTARTADDR, OTFDEC_RxENDADDR, OTFDEC_RxNONCER and

OTFDEC_RxKEYR registers, where x = 1 to 4. In OTFDEC_RxCFGR, the MODE bits define the OTFDEC operating mode (standard or enhanced encryption).

Granularity for the region determination is 4096 bytes.

Note: Although OTFDEC does not prevent region overlapping, it is not a valid programming and it must be avoided by application software.

OTFDEC can decrypt incremental or wrap bursts only if they do not cross the 4096-byte aligned address boundaries.

52.3.4 OTFDEC usage of AES in counter mode decryption

Figure 506 shows how OTFDEC uses industry standard Advanced Encryption Standard (AES) algorithm in counter chaining mode. This mode is specified by NIST in Special Publication 800-38A, Recommendation for Block Cipher Modes of Operation .

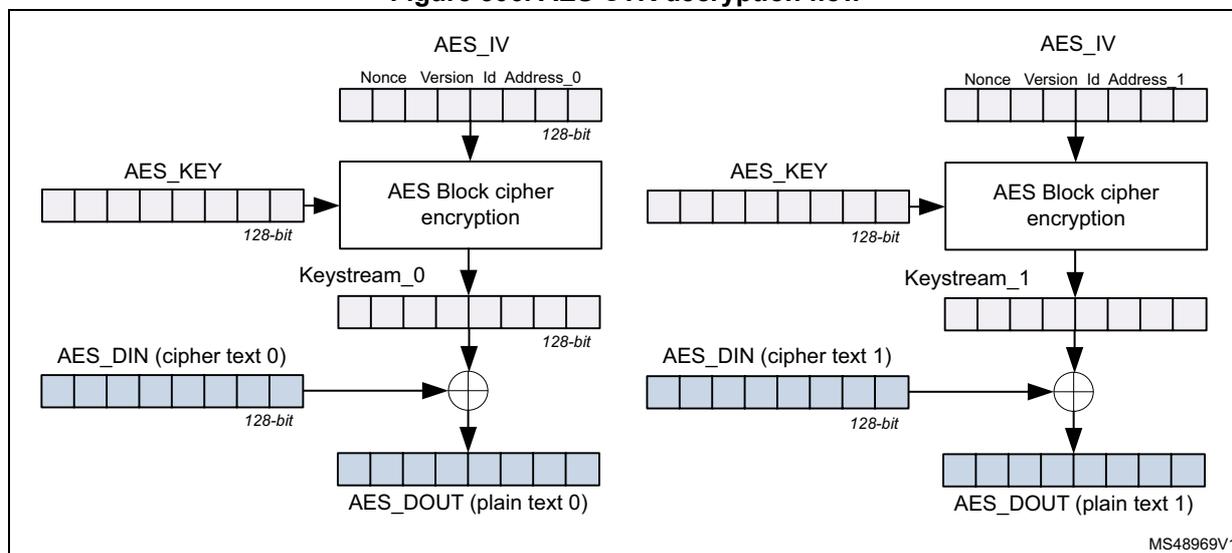

Figure 506. AES CTR decryption flow

Figure 506. AES CTR decryption flow diagram

The diagram illustrates two parallel AES CTR decryption processes. Each process starts with an AES_IV (128-bit) composed of Nonce, Version, Id, and Address (Address_0 for the first, Address_1 for the second). This IV and an AES_KEY (128-bit) are inputs to an AES Block cipher encryption block. The output is a 128-bit Keystream (Keystream_0 and Keystream_1 respectively). This keystream is then XORed with 128-bit AES_DIN (cipher text) to produce the 128-bit AES_DOUT (plain text) .

Figure 506. AES CTR decryption flow diagram

Every 128-bit data block, a special keystream information is computed using AES block cipher, as defined below:

Note: Above x is the RegionID of the selected encrypted region ( x =1 to 4). ReadAddress is the AHB address of the encrypted data block, modulo 128-bit.

Resulting 128-bit keystream is XORed with 128-bit cipher text data to produce the 128-bit clear text data.

When the read request is not within an encrypted region, or the decryption is not enabled in this region, the AHB data is not changed.

Note: When the application sets the MODE bitfield to 11 in OTFDEC_RxCFGR, an additional layer of protection is added on top of the AES stream cipher. This enhanced encryption mode can only be used with instructions (execute-only region).

52.3.5 Flow control management

Figure 507 shows how OTFDEC manages one INCR4 AHB burst that corresponds to one 128-bit AES data block.

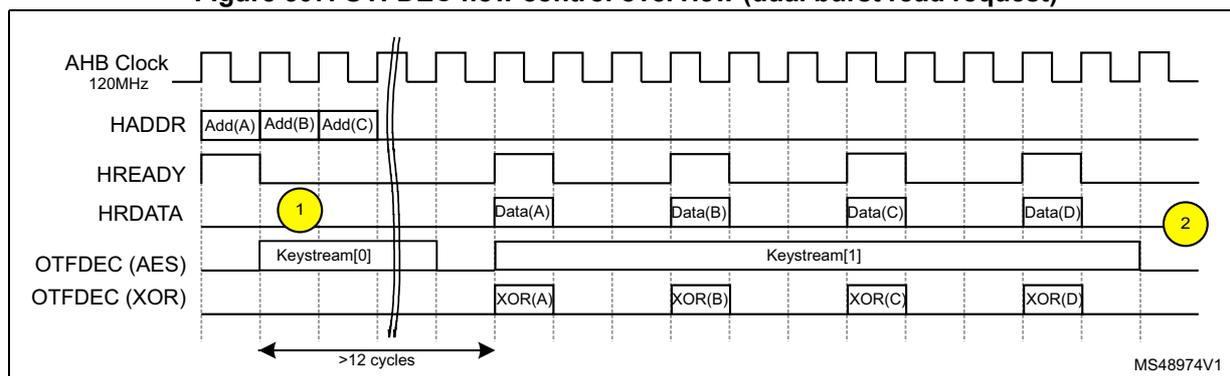

Figure 507. OTFDEC flow control overview (dual burst read request)

Timing diagram showing the flow control management of an INCR4 AHB burst. The diagram includes signals for AHB Clock (120MHz), HADDR (Add(A), Add(B), Add(C)), HREADY, HRDATA (Data(A), Data(B), Data(C), Data(D)), OTFDEC (AES) (Keystream[0], Keystream[1]), and OTFDEC (XOR) (XOR(A), XOR(B), XOR(C), XOR(D)). The diagram shows that the OTFDEC (XOR) output is delayed by 12 cycles relative to the HRDATA input. Two yellow circles with numbers 1 and 2 indicate key points in the sequence: 1 is at the start of the first data burst, and 2 is at the end of the fourth data burst. A double slash on the HADDR signal indicates a jump in time.
Timing diagram showing the flow control management of an INCR4 AHB burst. The diagram includes signals for AHB Clock (120MHz), HADDR (Add(A), Add(B), Add(C)), HREADY, HRDATA (Data(A), Data(B), Data(C), Data(D)), OTFDEC (AES) (Keystream[0], Keystream[1]), and OTFDEC (XOR) (XOR(A), XOR(B), XOR(C), XOR(D)). The diagram shows that the OTFDEC (XOR) output is delayed by 12 cycles relative to the HRDATA input. Two yellow circles with numbers 1 and 2 indicate key points in the sequence: 1 is at the start of the first data burst, and 2 is at the end of the fourth data burst. A double slash on the HADDR signal indicates a jump in time.

with the following notes:

  1. 1. OTFDEC enforces HREADY signal from the AHB master low as it is not ready to decrypt data (keystream computation).
  2. 2. Thanks to the keystream buffer, OTFDEC can be ready to process a new batch of data within 12 cycles in this configuration (120 MHz AHB clock, 104 MHz SPI bus delivering 2 bytes per SPI clock).

52.3.6 OTFDEC error management

OTFDEC automatically manages errors defined as below:

(tamper detection, unauthorized debug connection, untrusted boot, RDP level regression). Such read request returns 0x0, without bus error.

This last error is managed and cleared through TrustZone interrupt controller, as described in the GTZC section of the product reference manual.

For these errors (except the last one), an interrupt can be generated if the SEIE, XONEIE or KEIE bit is set in OTFDEC_IER register (see Section 52.4 ).

Note: After a key error, OTFDEC keys must be properly initialized again, and a reset of OTFDEC may be needed if registers are locked.

52.4 OTFDEC interrupts

There are three independent maskable interrupt sources generated by the OTFDEC, signaling following security events:

Interrupt sources are connected to the same global interrupt request signal.

OTFDEC interrupt sources can be enabled/disabled by setting the corresponding SEIE, XONEIE or KEIE bit in OTFDEC_IER, as described in Table 490 . Status of the interrupt event is found in OTFDEC_ISR, and this event can be cleared using OTFDEC_ICR.

Table 490. OTFDEC interrupt requests

Interrupt acronymInterrupt eventEvent flag (1)Enable control bitInterrupt clear method
OTFDECSecurity errorSEIFSEIESet SEIF in OTFDEC_ICR
Execute-only
Execute while encryption
XONEIFXONEIESet XONEIF in OTFDEC_ICR
Key errorKEIFKEIESet KEIF in OTFDEC_ICR

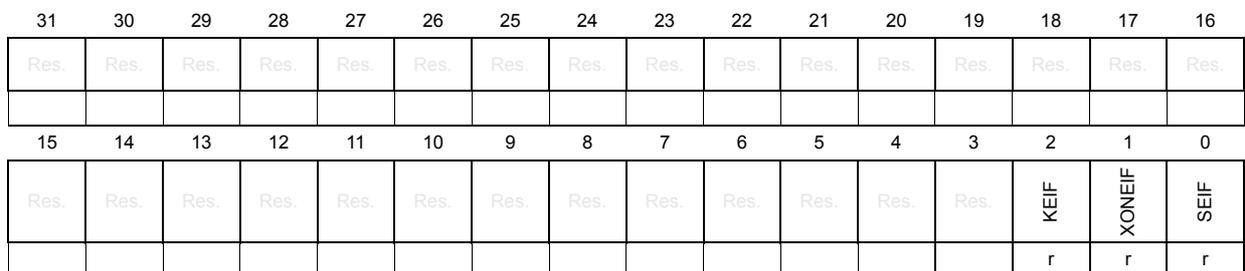

  1. 1. The event flags are found in the OTFDEC_ISR register.

52.5 OTFDEC application information

52.5.1 OTFDEC initialization process

Introduction

One key aspect of OTFDEC is the trusted initialization of its registers, as it involves secret keys. Two trusted initialization schemes are recommended here below.

Note: Those sequences are for production code, as during firmware development, it is not always recommended to lock the key or the region configuration.

Writes to configuration registers are effective when the configuration locks allow it, even if the region is enabled.

Initialization scheme 1: one key for all regions

In this scheme, one entity owns the secret key used to decrypt the four protected regions. The recommended OTFDEC configuration sequence is described below:

  1. 1. For \( x = 1 \) to 4, write the correct MODE[1:0] value in OTFDEC_RxCFGR.
  2. 2. For \( x = 1 \) to 4, program OTFDEC_RxKEYR registers using the sequence described in KEYCRC (to have a valid CRC). Warning as key registers are write only.
  3. 3. For \( x = 1 \) to 4, check the key CRC. If OK, set KEYLOCK bit in OTFDEC_RxCFGR. This bit cannot be cleared (key registers in this region \( x \) are no more writable).
  4. 4. To do to decrypt a region \( x \) (task that does not necessarily have to be performed by the entity that owns the decryption keys):
    1. a) Verify if the key CRC corresponds to the encrypted binary stored in the region.
    2. b) Fill the detailed information corresponding to this binary (nonce, start address, end address, version number).
    3. c) Enable decryption of this region using REG_EN.
    4. d) Set CONFIGLOCK bit in OTFDEC_RxCFGR. This bit cannot be cleared (the region configuration is no more writable).

Caution: For a given region, when MODE bits are changed, the key registers and associated CRC are cleared by hardware. As a consequence, step 1 above must be done before step 2, and MODE bits must not be modified after step 2.

Initialization scheme 2: one key per region

In this scheme, one entity can own the secret used to decrypt one (or more) protected region. The recommended OTFDEC configuration sequence is described below:

  1. 1. To do to decrypt a region \( x \) (this task must be performed by the entity that owns the corresponding key):
    1. a) Write the correct MODE[1:0] value in OTFDEC_RxCFGR.
    2. b) Program OTFDEC_RxKEYR registers using the sequence described in KEYCRC (to have a valid CRC). Warning as key registers are write only.
    3. c) Check the key CRC. If OK, set KEYLOCK bit in OTFDEC_RxCFGR. This bit cannot be cleared (key registers are no more writable).
    4. d) Fill the detailed information corresponding to the protected firmware (nonce, start address, end address, version number).
    5. e) Enable decryption of this region using REG_EN.
    6. f) Set CONFIGLOCK bit in OTFDEC_RxCFGR. This bit cannot be cleared (the region configuration is no more writable).

Caution: For a given region, when MODE bits are changed, the key registers and associated CRC are cleared by hardware. As a consequence step a) above must be done before step b), and MODE bits must not be modified after step b).

52.5.2 OTFDEC and power management

Each time OTFDEC is reset, the correct key loading sequence described in Section 52.5.1 must be performed (in this case KEYCRC = 0 in OTFDEC_RxCFGGR).

It is recommended for application software to verify this point each time OTFDEC is reset by hardware.

52.5.3 Encrypting for OTFDEC

Code and data standard encryption

OTFDEC uses standard AES in counter mode when processing a binary stored in a protected region with MODE[1:0] = 10. When this mode is selected, any AES compatible hardware accelerator or library can be used to encrypt those protected libraries. OTFDEC can be used as well, as described in enhanced encryption section below (with MODE[1:0] = 10).

Definition and endianness of the AES inputs and outputs are defined in Section 52.3.4: OTFDEC usage of AES in counter mode decryption .

Enhanced encryption with OTFDEC

OTFDEC uses a proprietary layer of protection on top of the standard AES in counter mode when processing a code stored in a protected region with MODE[1:0] = 11.

Enhanced encryption mode can be used to increase the robustness against tampering.

Recommended sequence to encrypt using OTFDEC is described below:

  1. 1. The application in charge of the encryption sets the ENC bit in OTFDEC_CR. This application must run in TrustZone secure mode when TrustZone security is enabled in the product. If PRIV bit is set in OTFDEC_PRIVCFGGR, this application must be privileged.
  2. 2. Encryption application initializes OTFDEC as described in Section 52.5.1: OTFDEC initialization process . OCTOSPI must also be properly clocked, so that OTFDEC is fully functional in encryption mode. This step can also be done before step 1.
  3. 3. Encryption application writes 32-bit of clear-text data at the expected protected address, then reads it back encrypted at the same address to store it in RAM. Note that this data stays inside the device, as it is intercepted by OTFDEC in encryption mode.
  4. 4. Encryption application goes back to previous step (changing the address) until the whole binary is processed.
  5. 5. Encryption application clears the ENC bit in OTFDEC_CR. Another application can then take the encrypted binary and flash it to the correct address in external flash.

There are few important notes about this procedure:

52.5.4 OTFDEC key CRC source code

Below is the CRC source code that can be used to compare with the result of the computation provided by OTFDEC in KEYCRC bitfield after loading the keys in OTFDEC_RxKEYR registers.

uint8_t getCRC(uint32_t * keyin)
{
    const uint8_t CRC7_POLY = 0x7;
    const uint32_t key_strobe[4] = {0xAA55AA55, 0x3, 0x18, 0xC0};
    uint8_t i, j, k, crc = 0x0;
    uint32_t keyval;

    for (j = 0; j < 4; j++)
    {
        keyval = *(keyin+j);
        if (j == 0)
        {
            keyval ^= key_strobe[0];
        }
        else
        {
            keyval ^= (key_strobe[j] << 24) | (crc << 16) | (key_strobe[j] << 8)
            | crc;
        }

        for (i = 0, crc = 0; i < 32; i++)
        {
            k = (((crc >> 7) ^ (keyval >> (31-i))&0xF)) & 1;
            crc <<= 1;
            if (k)
            {
                crc ^= CRC7_POLY;
            }
        }
        crc^=0x55;
    }
    return crc;
}

52.6 OTFDEC registers

52.6.1 OTFDEC control register (OTFDEC_CR)

Address offset: 0x0

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged reads return zero and unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
1514131211109876543210
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.ENC
nw

Bits 31:1 Reserved, must be kept at reset value.

Bit 0 ENC : Encryption mode bit

When this bit is set, OTFDEC is used in encryption mode, during which application can write clear text data then read back encrypted data. When this bit is cleared (default), OTFDEC is used in decryption mode, during which application only read back decrypted data. For both modes, cryptographic context (keys, nonces, firmware versions) must be properly initialized. When this bit is set, only data accesses are allowed (zeros are returned otherwise, and XONEIF is set). When MODE = 11, enhanced encryption mode is automatically selected.

0: OTFDEC working in decryption mode
1: OTFDEC working in encryption mode

Note: When ENC bit is set, no access to OCTOSPI must be done (registers and Memory-mapped region).

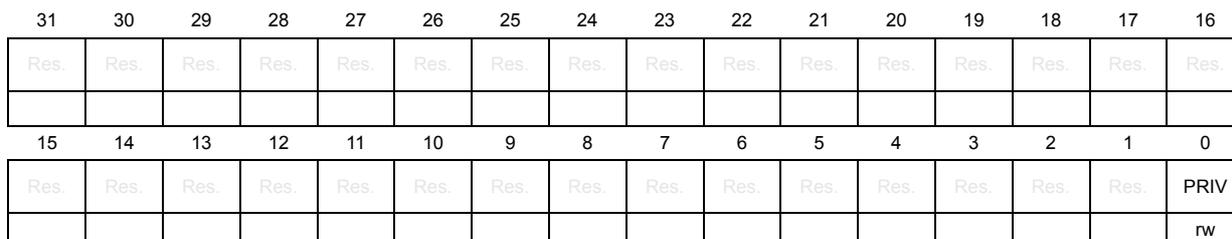

52.6.2 OTFDEC privileged access control configuration register (OTFDEC_PRIVCFGR)

Address offset: 0x10

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
1514131211109876543210
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.PRIV
rw

Bits 31:1 Reserved, must be kept at reset value.

Bit 0 PRIV : Privileged access protection.

0: No additional protection is added on OTFDEC register accesses.

1: An additional protection is added when accessing all registers except OTFDEC_PRIVCFGR:

Note: This bit can only be written in privileged mode. There is no limitations on reads.

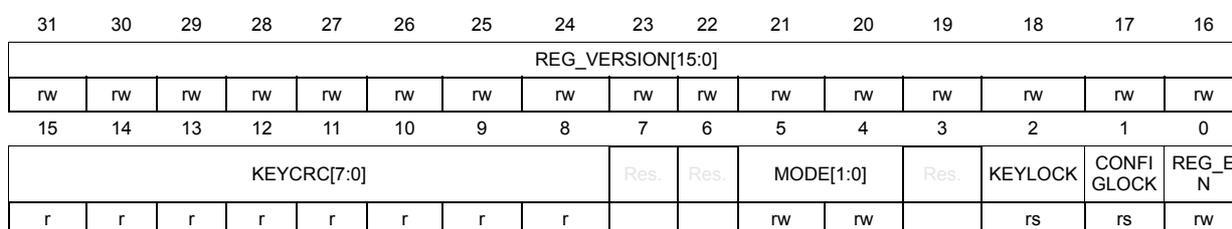

52.6.3 OTFDEC region x configuration register (OTFDEC_RxCFGR)

Address offset: \( 0x20 + 0x30 * (x - 1) \) , (x = 1 to 4)

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged reads return zero and unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

Writes are ignored if CONFIGLOCK bit is set to 1.

31302928272625242322212019181716
REG_VERSION[15:0]
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw
1514131211109876543210
KEYCRC[7:0]Res.Res.MODE[1:0]Res.KEYLOCKCONFIGLOCKREG_EN
rrrrrrrrrwrwrsrsrw

Bits 31:16 REG_VERSION[15:0] : region firmware version

This 16-bit bitfield must be correctly initialized before the region corresponding REG_EN bit is set in OTFDEC_RxCFGGR.

Bits 15:8 KEYCRC[7:0] : region key 8-bit CRC

When KEYLOCK = 0, KEYCRC bitfield is automatically computed by hardware while loading the key of this region in this exact sequence: KEYR0 then KEYR1 then KEYR2 then finally KEYR3 (all written once). A new computation starts as soon as a new valid sequence is initiated, and KEYCRC is read as zero until a valid sequence is completed.

When KEYLOCK = 1, KEYCRC remains unchanged until the next reset.

CRC computation is an 8-bit checksum using the standard CRC-8-CCITT algorithm \( X^8 + X^2 + X + 1 \) (according to the convention). Source code is available in Section 52.5.4 .

This field is read only.

Note: CRC information is updated only after the last bit of the key has been written.

Bits 7:6 Reserved, must be kept at reset value.

Bits 5:4 MODE[1:0] : operating mode

This bitfield selects the OTFDEC operating mode for this region:

10: All read accesses are decrypted (instruction or data).

11: Enhanced encryption mode is activated, and only instruction accesses are decrypted

Others: Reserved

When MODE ≠ 11, the standard AES encryption mode is activated.

When either of the MODE bits are changed, the region key and associated CRC are zeroed.

Bit 3 Reserved, must be kept at reset value.

Bit 2 KEYLOCK : region key lock

0: Writes to this region KEYRx registers are allowed.

1: Writes to this region KEYRx registers are ignored until next OTFDEC reset. KEYCRC bitfield is locked.

Note: This bit is set once: if this bit is set, it can only be reset to 0 if the OTFDEC is reset.

Bit 1 CONFIGLOCK : region config lock

0: Writes to this region OTFDEC_RxCFGGR, OTFDEC_RxSTARTADDR, OTFDEC_RxENDADDR and OTFDEC_RxNONCERY registers are allowed.

1: Writes to this region OTFDEC_RxCFGGR, OTFDEC_RxSTARTADDR, OTFDEC_RxENDADDR and OTFDEC_RxNONCERY registers are ignored until next OTFDEC reset.

Note: This bit is set once. If this bit is set, it can only be reset to 0 if OTFDEC is reset. Setting this bit forces KEYLOCK bit to 1.

Bit 0 REG_EN : region on-the-fly decryption enable

0: On-the-fly decryption is disabled for this region.

1: On-the-fly decryption is enabled for this region. Data are XORed with the corresponding keystream.

Note: Garbage is decrypted if region context (version, key, nonce) is not valid when this bit is set.

52.6.4 OTFDEC region x start address register (OTFDEC_RxSTARTADDR)

Address offset: \( 0x24 + 0x30 * (x - 1) \) , ( \( x = 1 \) to \( 4 \) )

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged reads return zero and unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
REG_START_ADDR[31:16]
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw
1514131211109876543210
REG_START_ADDR[15:0]
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

Bits 31:0 REG_START_ADDR[31:0] : Region AHB start address

This register must be written before the region corresponding REG_EN bit in the OTFDEC_RxCFGGR register is set.

Writing to this register is discarded if performed while the region CONFIGLOCK bit in the OTFDEC_RxCFGGR register is set.

Note: When determining the region the first 12 bits (LSB) and the last 4 bits (MSB) are ignored.

When this register is accessed in read the 4 MSB bits and the 12 LSB bits return zeros .

52.6.5 OTFDEC region x end address register (OTFDEC_RxENDADDR)

Address offset: \( 0x28 + 0x30 * (x - 1) \) , ( \( x = 1 \) to \( 4 \) )

Reset value: 0x0000 0FFF

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged reads return zero and unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
REG_END_ADDR[31:16]
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw
1514131211109876543210
REG_END_ADDR[15:0]
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

Bits 31:0 REG_END_ADDR[31:0] : Region AHB end address

This register must be written before the region corresponding REG_EN bit in the OTFDEC_RxCFGGR register is set, and OTFDEC_RxENDADDR must be strictly greater than OTFDEC_RxSTARTADDR to be valid.

Writing to this register is discarded if performed while the region CONFIGLOCK bit in OTFDEC_RxCFGGR is set.

Note: When determining the region the first 12 bits (LSB) and the last 4 bits (MSB) are ignored.

When this register is accessed in read the 4 MSB bits return zeros and the 12 LSB bits return ones.

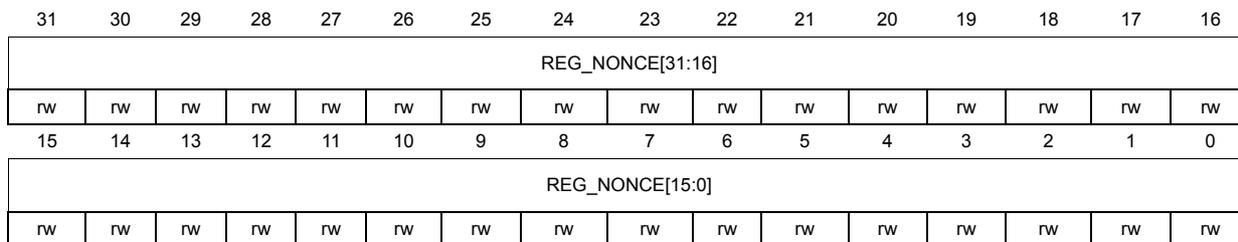

52.6.6 OTFDEC region x nonce register 0 (OTFDEC_RxNONCER0)

Address offset: \( 0x2C + 0x30 \cdot (x - 1) \) , ( \( x = 1 \) to 4)

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged reads return zero and unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGGR.

31302928272625242322212019181716
REG_NONCE[31:16]
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw
1514131211109876543210
REG_NONCE[15:0]
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

Bits 31:0 REG_NONCE[31:0] : Region nonce, bits [31:0]

This register must be written before the region corresponding REG_EN bit in OTFDEC_RxCFGGR is set.

Writing is discarded in this register if performed while the region CONFIGLOCK bit in the OTFDEC_RxCFGGR is set.

52.6.7 OTFDEC region x nonce register 1 (OTFDEC_RxNONCER1)

Address offset: \( 0x30 + 0x30 * (x - 1) \) , ( \( x = 1 \) to \( 4 \) )

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged reads return zero and unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
REG_NONCE[63:48]
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw
1514131211109876543210
REG_NONCE[47:32]
rwrwrwrwrwrwrwrwrwrwrwrwrwrwrwrw

Bits 31:0 REG_NONCE[63:32] : Region nonce, bits [63:32]

Refer to the OTFDEC_RxNONCER0 register for description of the NONCE[63:0] bitfield.

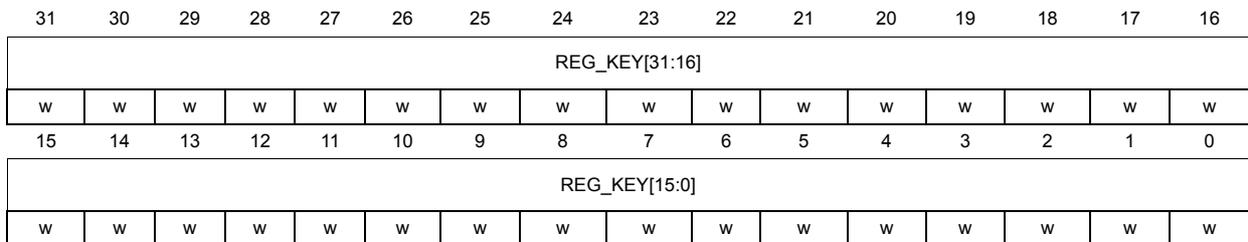

52.6.8 OTFDEC region x key register 0 (OTFDEC_RxKEYR0)

Address offset: \( 0x34 + 0x30 * (x - 1) \) , ( \( x = 1 \) to \( 4 \) )

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
REG_KEY[31:16]
wwwwwwwwwwwwwwww
1514131211109876543210
REG_KEY[15:0]
wwwwwwwwwwwwwwww

Bits 31:0 REG_KEY[31:0] : Region key, bits [31:0]

This register must be written before the region corresponding REG_EN bit in OTFDEC_RxCFGR is set.

Reading this register returns a zero value. Writing to this register is discarded if performed while the region CONFIGLOCK or KEYLOCK bit is set in the OTFDEC_RxCFGR.

Note: When application successfully changes MODE bits in OTFDEC_RxCFGR and OTFDEC_RxKEYR, and associated KEYCRC are erased.

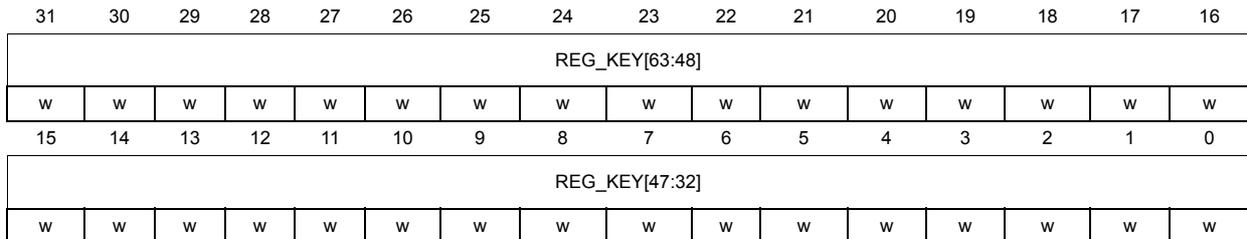

52.6.9 OTFDEC region x key register 1 (OTFDEC_RxKEYR1)

Address offset: \( 0x38 + 0x30 * (x - 1) \) , ( \( x = 1 \) to \( 4 \) )

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
REG_KEY[63:48]
wwwwwwwwwwwwwwww
1514131211109876543210
REG_KEY[47:32]
wwwwwwwwwwwwwwww

Bits 31:0 REG_KEY[63:32] : Region key, bits [63:32]

Refer to the OTFDEC_RxKEYR0 register for description of the KEY[127:0] bitfield.

52.6.10 OTFDEC region x key register 2 (OTFDEC_RxKEYR2)

Address offset: \( 0x3C + 0x30 * (x - 1) \) , ( \( x = 1 \) to \( 4 \) )

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
REG_KEY[95:80]
wwwwwwwwwwwwwwww
1514131211109876543210
REG_KEY[79:64]
wwwwwwwwwwwwwwww

Bits 31:0 REG_KEY[95:64] : Region key, bits [95:64]

Refer to the OTFDEC_RxKEYR0 register for description of the KEY[127:0] bitfield.

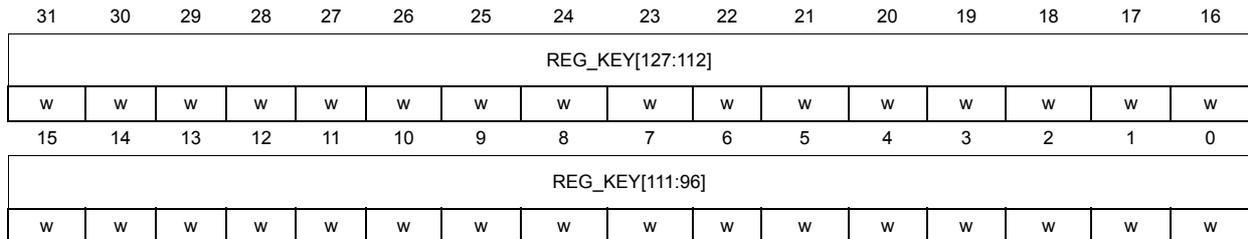

52.6.11 OTFDEC region x key register 3 (OTFDEC_RxKEYR3)

Address offset: \( 0x40 + 0x30 * (x - 1) \) , ( \( x = 1 \) to 4)

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
REG_KEY[127:112]
wwwwwwwwwwwwwwww
1514131211109876543210
REG_KEY[111:96]
wwwwwwwwwwwwwwww

Bits 31:0 REG_KEY[127:96] : Region key, bits [127:96]

Refer to the OTFDEC_RxKEYR0 register for description of the KEY[127:0] bitfield.

52.6.12 OTFDEC interrupt status register (OTFDEC_ISR)

Address offset: 0x300

Reset value: 0x0000 0000

Unprivileged reads return zero if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
1514131211109876543210
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.KEIFXONEIFSEIF
rrr

Bits 31:3 Reserved, must be kept at reset value.

Bit 2 KEIF : Key error interrupt flag status

This bit is set by hardware and read only by application. The bit is set when a read access occurs on an encrypted region, while its key registers is null or not properly initialized (KEYCRC = 0x0).

This bit is cleared when the application sets in OTFDEC_ICR the corresponding bit to 1.

0: OTFDEC operates properly.

1: Read access detected on an enabled encrypted region with its key registers null or not properly initialized (KEYCRC = 0x0). OTFDEC returns a zeroed value for the read, and an optional interrupt is generated if bit KEIE is set to 1 in OTFDEC_IER.

After KEIF is set any subsequent read to the region with bad key registers returns a zeroed value. This state remains until those key registers are properly initialized (KEYCRC not zero).

Bit 1 XONEIF : Execute-only execute-never error interrupt flag status

This bit is set by hardware and read only by application. This bit is set when a read access and not an instruction fetch is detected on any encrypted region with MODE bits set to 11. Lastly, XONEIF is also set when an execute access is detected while encryption mode is enabled.

This bit is cleared when application sets in OTFDEC_ICR the corresponding bit to 1.

0: No execute-only error status. No interrupt pending.

1: Read access detected on one region with MODE bits set to 11 or execute access detected while ENC = 1. OTFDEC returns a zeroed value for the illegal access, and an optional interrupt is generated if bit XONEIE is set to 1 in OTFDEC_IER.

Bit 0 SEIF : Security error interrupt flag status

This bit is set by hardware and read only by application. This bit is set when at least one security error has been detected.

This bit is cleared when application sets in OTFDEC_ICR the corresponding bit to 1.

0: No security error status. No interrupt pending.

1: Security error flag status, with interrupt pending. Actual interrupt generation is dependent on OTFDEC_IER corresponding bit SEIE.

52.6.13 OTFDEC interrupt clear register (OTFDEC_ICR)

Address offset: 0x304

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGGR.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
1514131211109876543210
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.KEIF
w
XONEIF
w
SEIF
w

Bits 31:3 Reserved, must be kept at reset value.

Bit 2 KEIF : Key error interrupt flag clear

This bit is written by application, and always read as 0.

0: KEIF flag status is not affected.

1: KEIF flag status is cleared in OTFDEC_ISR.

Note: Clearing KEIF does not solve the source of the problem (bad key registers). To be able to access again any encrypted region, OTFDEC key registers must be properly initialized again.

Bit 1 XONEIF : Execute-only execute-never error interrupt flag clear

This bit is written by application, and always read as 0.

0: XONEIF flag status is not affected.

1: XONEIF flag status is cleared in OTFDEC_ISR.

Bit 0 SEIF : Security error interrupt flag clear

This bit is written by application, and always read as 0.

0: SEIF flag status is not affected.

1: SEIF flag status is cleared in OTFDEC_ISR.

52.6.14 OTFDEC interrupt enable register (OTFDEC_IER)

Address offset: 0x308

Reset value: 0x0000 0000

Nonsecure AHB write access (HNONSEC = 1) is discarded if the TrustZone security is enabled in the product.

Unprivileged reads return zero and unprivileged writes are ignored if PRIV bit is set in OTFDEC_PRIVCFGR.

31302928272625242322212019181716
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.
1514131211109876543210
Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.KEIF
rw
XONEIF
rw
SEIF
rw

Bits 31:3 Reserved, must be kept at reset value.

Bit 2 KEIE : Key error interrupt enable

This bit is read and written by application. It controls the OTFDEC interrupt generation when KEIF flag status is set.

0: Interrupt generation on key error flag KEIF is disabled (masked).
1: Interrupt generation on key error flag KEIF is enabled (not masked).

Bit 1 XONEIE : Execute-only execute-never error interrupt enable

This bit is read and written by application. It controls the OTFDEC interrupt generation when XONEIF flag status is set.

0: Interrupt generation on execute-only error XONEIF is disabled (masked).
1: Interrupt generation on execute-only error XONEIF is enabled (not masked).

Bit 0 SEIE : Security error interrupt enable

This bit is read and written by application. It controls the OTFDEC interrupt generation when SEIF flag status is set.

0: Interrupt generation on security error SEIF is disabled (masked).
1: Interrupt generation on security error SEIF is enabled (not masked).

52.6.15 OTFDEC register map

Table 491. OTFDEC register map and reset values

OffsetRegister name313029282726252423222120191817161514131211109876543210
0x00OTFDEC_CRResResResResResResResResResResResResResResResResResResResResResResResResResResResResResResResENC
Reset value0
0x04-0x0CReservedReserved
0x10OTFDEC_PRIVCFGRResResResResResResResResResResResResResResResResResResResResResResResResResResResResResResResPRIV
Reset value0
0x14-0x1CReservedReserved
0x20OTFDEC_R1CFGR1REG1_VERSION[15:0]KEYCRC[7:0]ResResMODE[1:0]KEYLOCKCONFIGLOCKREG_EN
Reset value00000000000000000000000000000000
0x24OTFDEC_R1STARTADDRREG1_START_ADDR[31:0]
Reset value00000000000000000000000000000000
0x28OTFDEC_R1ENDADDRREG1_END_ADDR[31:0]
Reset value00000000000000000000000000000000
0x2COTFDEC_R1NONCE0REG1_NONCE[31:0]
Reset value00000000000000000000000000000000
0x30OTFDEC_R1NONCE1REG1_NONCE[63:32]
Reset value00000000000000000000000000000000
0x34OTFDEC_R1KEYR0REG1_KEY[31:0]
Reset value00000000000000000000000000000000

Table 491. OTFDEC register map and reset values (continued)

OffsetRegister name313029282726252423222120191817161514131211109876543210
0x38OTFDEC_R1KEYR1REG1_KEY[63:32]
Reset value00000000000000000000000000000000
0x3COTFDEC_R1KEYR2REG1_KEY[95:64]
Reset value00000000000000000000000000000000
0x40OTFDEC_R1KEYR3REG1_KEY[127:96]
Reset value00000000000000000000000000000000
0x44 - 0x4CReservedReserved
0x50OTFDEC_R2CFGRREG2_VERSION[15:0]KEYCRC[7:0]Res.Res.MODE[1:0]KEYLOCKCONFIGLOCKRes.REG_EN
Reset value000000000000000000000000000000
0x54OTFDEC_R2STARTADDRREG2_START_ADDR[31:0]
Reset value00000000000000000000000000000000
0x58OTFDEC_R2ENDADDRREG2_END_ADDR[31:0]
Reset value00000000000000000000000000000000
0x5COTFDEC_R2NONCER0REG2_NONCE[31:0]
Reset value00000000000000000000000000000000
0x60OTFDEC_R2NONCER1REG2_NONCE[63:32]
Reset value00000000000000000000000000000000
0x64OTFDEC_R2KEYR0REG2_KEY[31:0]
Reset value00000000000000000000000000000000
0x68OTFDEC_R2KEYR1REG2_KEY[63:32]
Reset value00000000000000000000000000000000
0x6COTFDEC_R2KEYR2REG2_KEY[95:64]
Reset value00000000000000000000000000000000
0x70OTFDEC_R2KEYR3REG2_KEY[127:96]
Reset value00000000000000000000000000000000
0x74 - 0x7CReservedReserved
0x80OTFDEC_R3CFGRREG3_VERSION[15:0]KEYCRC[7:0]Res.Res.MODE[1:0]KEYLOCKCONFIGLOCKRes.REG_EN
Reset value000000000000000000000000000000
0x84OTFDEC_R3STARTADDRREG3_START_ADDR[31:0]
Reset value00000000000000000000000000000000
0x88OTFDEC_R3ENDADDRREG3_END_ADDR[31:0]
Reset value00000000000000000000000000000000

Table 491. OTFDEC register map and reset values (continued)

OffsetRegister name313029282726252423222120191817161514131211109876543210
0x8COTFDEC_R3NONCER0REG3_NONCE[31:0]
Reset value00000000000000000000000000000000
0x90OTFDEC_R3NONCER1REG3_NONCE[63:32]
Reset value00000000000000000000000000000000
0x94OTFDEC_R3KEYR0REG3_KEY[31:0]
Reset value00000000000000000000000000000000
0x98OTFDEC_R3KEYR1REG3_KEY[63:32]
Reset value00000000000000000000000000000000
0x9COTFDEC_R3KEYR2REG3_KEY[95:64]
Reset value00000000000000000000000000000000
0xA0OTFDEC_R3KEYR3REG3_KEY[127:96]
Reset value00000000000000000000000000000000
0xA4 - 0xACReservedReserved
0xB0OTFDEC_R4CFGGRREG4_VERSION[15:0]KEYCRC[7:0]ResResMODE[1:0]KEYLOCKCONFIGLOCKREG_EN
Reset value0000000000000000000000000000000
0xB4OTFDEC_R4STARTADDRREG4_START_ADDR[31:0]
Reset value00000000000000000000000000000000
0xB8OTFDEC_R4ENDADDRREG4_END_ADDR[31:0]
Reset value00000000000000000000000000000000
0xBCOTFDEC_R4NONCER0REG4_NONCE[31:0]
Reset value00000000000000000000000000000000
0xC0OTFDEC_R4NONCER1REG4_NONCE[63:32]
Reset value00000000000000000000000000000000
0xC4OTFDEC_R4KEYR0REG4_KEY[31:0]
Reset value00000000000000000000000000000000
0xC8OTFDEC_R4KEYR1REG4_KEY[63:32]
Reset value00000000000000000000000000000000
0xCCOTFDEC_R4KEYR2REG4_KEY[95:64]
Reset value00000000000000000000000000000000
0xD0OTFDEC_R4KEYR3REG4_KEY[127:96]
Reset value00000000000000000000000000000000
0xD4 - 0x2FCReservedReserved

Table 491. OTFDEC register map and reset values (continued)

OffsetRegister name313029282726252423222120191817161514131211109876543210
0x300OTFDEC_ISRRes.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.KEIFXONEIFSEIF
Reset value000
0x304OTFDEC_ICRRes.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.KEIFXONEIFSEIF
Reset value000
0x308OTFDEC_IERRes.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.Res.KEIEXONEIESEIE
Reset value000

Refer to Section 2.3: Memory organization for the register boundary addresses.
