9. System configuration controller (SYSCFG)

9.1 Introduction

The devices feature a set of configuration registers. The main purposes of the system configuration controller are the following:

• • Remapping memories
• • Remapping some trigger sources to timer input capture channels
• • Managing external interrupts line multiplexing to the internal edge detector
• • Enabling dedicated functions such as input capture multiplexing or oscillator pin remapping
• • Firewall management
• • Internal voltage reference management for ADC

The Cortex ^® -M0+ can wake up from WFE (Wait For Event) when a transition occurs on the eventin input signal. To support semaphore management in multiprocessor environment, the core can also output events on the signal output EVENTOUT, during SEV instruction execution.

In STM32L010xx devices, an event input can be generated by an external interrupt line or by an RTC alarm interrupt. It is also possible to select which output pin is connected to the EVENTOUT signal of the Cortex ^® -M0+. The EVENTOUT multiplexing is managed by the GPIO alternate function capability (see Section 8.4.9: GPIO alternate function low register (GPIOx_AFR_L) ( x = A to E and H ) and Section 8.4.10: GPIO alternate function high register (GPIOx_AFR_H) ( x = A to E and H )).

Note: EVENTOUT is not mapped on all GPIOs (for example PC13, PC14, PC15).

9.2 SYSCFG registers

The peripheral registers have to be accessed by words (32-bit).

9.2.1 SYSCFG memory remap register (SYSCFG_CFGR1)

This register is used for specific configurations related to memory remap.

It is not reset through the SYSCFGRST bit in the RCC_APB2RSTR register.

Address offset: 0x00

Reset value: 0x000x 000x (X is the memory mode selected by the boot configuration).

Bits 31:10 Reserved, must be kept at reset value

Bits 9:8 BOOT_MODE : Boot mode selected by the boot pins status bits

These bits are read-only. They indicate the boot mode selected by the boot configuration (see Section 2.4: Boot configuration ).

00: Main Flash memory boot mode

01: System Flash memory boot mode

10: Reserved

11: Embedded SRAM boot mode

Bits 7:3 Reserved, must be kept at reset value

Bit 2 Reserved, must be kept at reset value

Bits 1:0 MEM_MODE : Memory mapping selection bits

These bits are set and cleared by software. This bit controls the memory's internal mapping at address 0x0000 0000. After reset these bits take on the memory mapping selected by the boot configuration (see Section 2.4: Boot configuration ).

00: Main Flash memory mapped at 0x0000 0000

01: System Flash memory mapped at 0x0000 0000

10: reserved

11: SRAM mapped at 0x0000 0000.

9.2.2 SYSCFG peripheral mode configuration register (SYSCFG_CFGR2)

Address offset: 0x04

Reset value: 0x0000 0001

Bits 31:1 Reserved, must be kept at reset value

Bit 0 FWDIS : Firewall disable bit

This bit is set by default (after reset). It is cleared by software to protect the access to the memory segments according to the Firewall configuration. Once cleared it cannot be set by software. Only a system reset set the bit.

0: Firewall access enabled

1: Firewall access disabled

Note: This bit cannot be set by an APB reset. A system reset is required to set it.

9.2.3 Reference control and status register (SYSCFG_CFGR3)

The SYSCFG_CFGR3 register is the reference control/status register. It contains all the bits/flags related to VREFINT.

Address offset: 0x20

System reset value: 0x0000 0000

Bit 31 REF_LOCK : SYSCFG_CFGR3 lock bit

This bit is set by software and cleared by a hardware system reset. It locks the whole content of the reference control/Status register, SYSCFG_CFGR3[31:0].

0: SYSCFG_CFGR3[31:0] bits are read/write

1: SYSCFG_CFGR3[31:0] bits are read-only

Bit 30 VREFINT_RDYF : VREFINT ready flag

This bit is read-only. It shows the state of the internal voltage reference, VREFINT. When set, it indicates that VREFINT is available for BOR.

0: VREFINT OFF

1: VREFINT ready

Bits 29:9 Reserved, must be kept at reset value

Bit 8 ENBUF_VREFINT_ADC : VREFINT reference for ADC enable bit

This bit is set and cleared by software (only if REF_LOCK not set).

0: Disables the buffer used to generate VREFINT reference for the ADC.

1: Enables the buffer used to generate VREFINT reference for the ADC.

Bits 7:6 Reserved, must be kept at reset value

Bits 5:4 SEL_VREF_OUT : VREFINT_ADC connection bit

These bits are set and cleared by software (only if REF_LOCK not set). These bits select which pad is connected to VREFINT_ADC when ENBUF_VREFINT_ADC is set.

00: no pad connected

01: PB0 connected

10: PB1 connected

11: PB0 and PB1 connected

Bits 3:1 Reserved, must be kept at reset value

Bit 0 EN_VREFINT : VREFINT enable

This bit is set and cleared by software (only if REF_LOCK not set). It switches on VREFINT internal reference voltage.

0: VREFINT voltage disabled in low-power mode (if ULP=1)

1: VREFINT voltage enabled in low-power mode

Note: It is forbidden to configure both EN_VREFINT=1 and ULP=1 if the device is in Stop mode or in Sleep/Low-power sleep mode (refer to Section 6.4.1: PWR power control register (PWR_CR) for a description of the ULP bit). If the device is not in low-power mode, VREFINT is always enabled whatever the state of EN_VREFINT and ULP. The scaler must be enabled to provide \( V_{REFINT} \) voltage (the scaler performs \( V_{REFINT} \) buffering and scaling).

9.2.4 SYSCFG external interrupt configuration register 1 (SYSCFG_EXTICR1)

Address offset: 0x08

Reset value: 0x0000

Bits 31:16 Reserved

Bits 15:0 EXTIx[3:0] : EXTI x configuration (x = 0 to 3)

These bits are written by software to select the source input for the EXTIx external interrupt.

0000: PA[x] pin

0001: PB[x] pin

0010: PC[x] pin

0011: PD[x] pin

0100: PE[x] pin

0101: PH[x] (only PH[1:0] and PH[10:9])

Other configurations are reserved

9.2.5 SYSCFG external interrupt configuration register 2 (SYSCFG_EXTICR2)

Address offset: 0x0C

Reset value: 0x0000

Bits 31:16 Reserved

Bits 15:0 EXTIx[3:0] : EXTI x configuration (x = 4 to 7)

These bits are written by software to select the source input for the EXTIx external interrupt.

0000: PA[x] pin

0001: PB[x] pin

0010: PC[x] pin

0011: PD[x] pin

0100: PE[x] pin

Other configurations are reserved

9.2.6 SYSCFG external interrupt configuration register 3 (SYSCFG_EXTICR3)

Address offset: 0x10

Reset value: 0x0000

Bits 31:16 Reserved

Bits 15:0 EXTIx[3:0] : EXTI x configuration (x = 8 to 11)

These bits are written by software to select the source input for the EXTIx external interrupt.

0000: PA[x] pin

0001: PB[x] pin

0010: PC[x] pin

0011: PD[x] pin

0100: PE[x] pin

0101: PH[x] (only PH[1:0] and PH[10:9])

Other configurations are reserved.

9.2.7 SYSCFG external interrupt configuration register 4 (SYSCFG_EXTICR4)

Address offset: 0x14

Reset value: 0x0000

Bits 31:16 Reserved

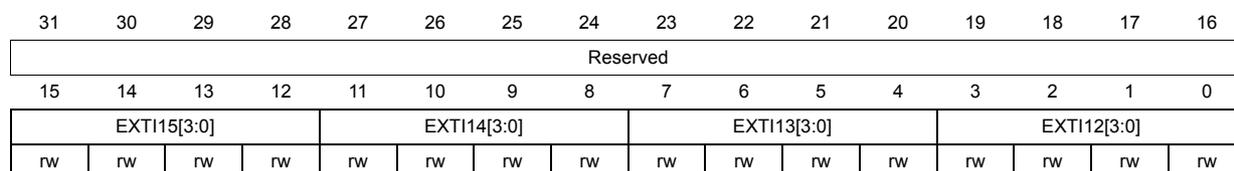

Bits 15:0 EXTIx[3:0] : EXTI x configuration (x = 12 to 15)

These bits are written by software to select the source input for the EXTIx external interrupt.

0000: PA[x] pin

0001: PB[x] pin

0010: PC[x] pin

0011: PD[x] pin

0100: PE[x] pin

Other configurations are reserved.

9.2.8 SYSCFG register map

The following table gives the SYSCFG register map and the reset values.

Table 43. SYSCFG register map and reset values

Refer to Section 2.2 on page 39 for the register boundary addresses.
