38. Tamper and backup registers (TAMP)

38.1 Introduction

32 (category 3 and category 4 devices) or 16 (category 2 devices) 32-bit backup registers are retained in all low-power modes and also in \( V_{BAT} \) mode. They can be used to store sensitive data as their content is protected by an tamper detection circuit. 3 tamper pins and 4 internal tampers are available for anti-tamper detection. The external tamper pins can be configured for edge detection, or level detection with or without filtering.

38.2 TAMP main features

• • 32 (category 3 and category 4 devices) or 16 (category 2 devices) backup registers:
  • – the backup registers (TAMP_BKPxR) are implemented in the RTC domain that remains powered-on by \( V_{BAT} \) when the \( V_{DD} \) power is switched off.
• • 3 external tamper detection events.
  • – External passive tampers with configurable filter and internal pull-up.
• • 4 internal tamper events.
• • Any tamper detection can generate a RTC timestamp event.
• • Any tamper detection can erase the backup registers.

38.3 TAMP functional description

38.3.1 TAMP block diagram

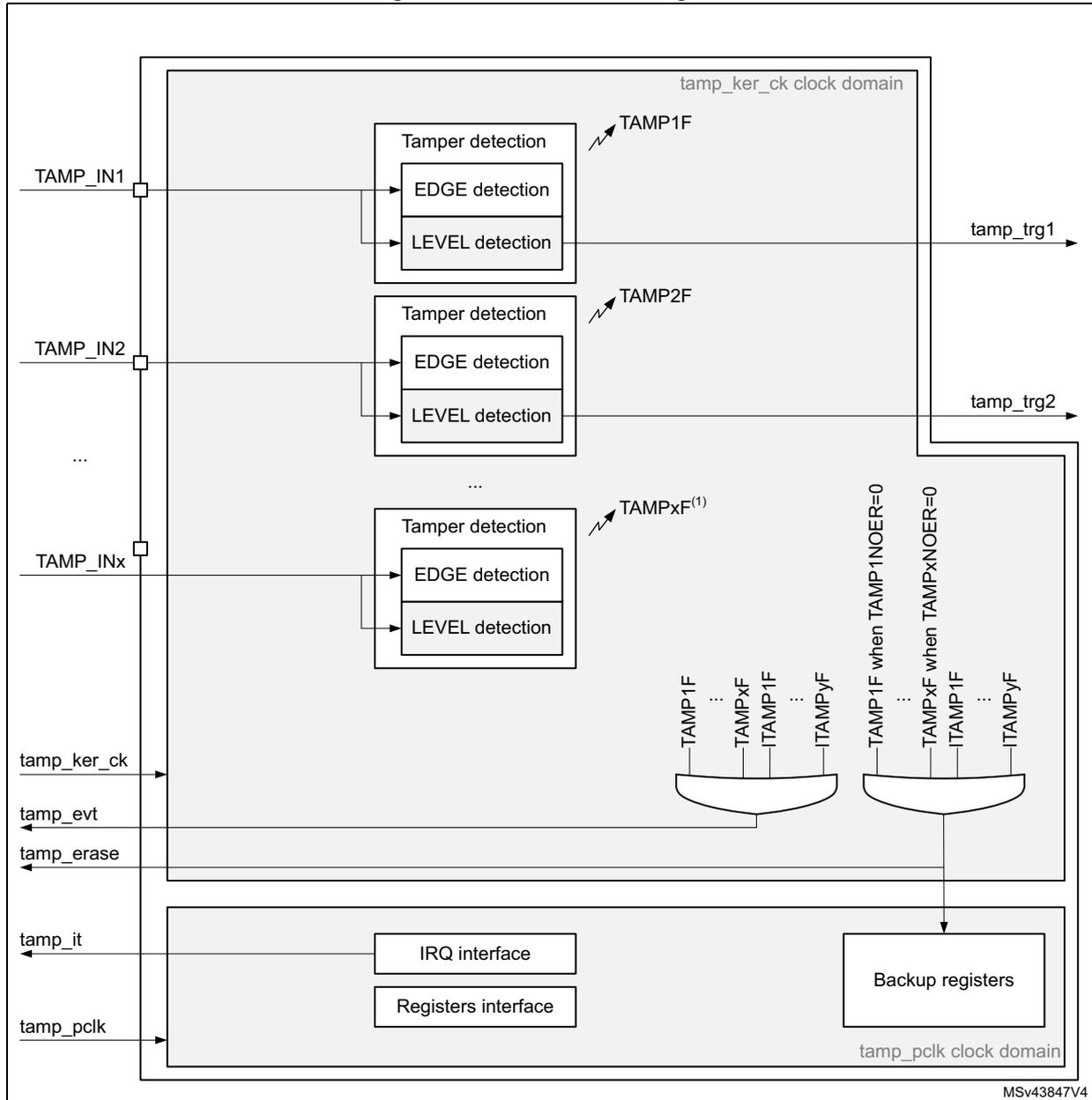

Figure 533. TAMP block diagram

1. The number of external and internal tampers depends on products.

38.3.2 TAMP pins and internal signals

Table 346. TAMP input/output pins

Table 347. TAMP internal input/output signals

The TAMP kernel clock is usually the LSE at 32.768 kHz although it is possible to select other clock sources in the RCC (refer to RCC for more details). Some detections modes are not available in some low-power modes or V _BAT when the selected clock is not LSE (refer to Section 38.4: TAMP low-power modes for more details).

Table 348. TAMP interconnection

38.3.3 TAMP register write protection

After system reset, the TAMP registers (including backup registers) are protected against parasitic write access by the DBP bit in the power control peripheral (refer to the PWR power control section). DBP bit must be set in order to enable TAMP registers write access.

38.3.4 Tamper detection

The tamper detection can be configured for the following purposes:

• • erase the backup registers (default configuration)
• • generate an interrupt, capable to wakeup from Stop and Standby mode
• • generate a hardware trigger for the low-power timers

TAMP backup registers

The backup registers (TAMP_BKPxR) are not reset by system reset or when the device wakes up from Standby mode.

The backup registers are reset when a tamper detection event occurs except if the TAMPxNOER bit is set, or if the TAMPxMSK is set in the TAMP_CR2 register.

Note: The backup registers are also erased when the readout protection of the flash is changed from level 1 to level 0.

Tamper detection initialization

Each input can be enabled by setting the corresponding TAMPxE bits to 1 in the TAMP_CR register.

Each TAMP_INx tamper detection input is associated with a flag TAMPxF in the TAMP_SR register.

When TAMPxMSK is cleared:

The TAMPxF flag is asserted after the tamper event on the pin, with the latency provided below:

• • 3 ck_apre cycles when TAMPFLT differs from 0x0 (level detection with filtering)
• • 3 ck_apre cycles when TAMPTS = 1 (timestamp on tamper event)
• • No latency when TAMPFLT = 0x0 (edge detection) and TAMPTS = 0

A new tamper occurring on the same pin during this period and as long as TAMPxF is set cannot be detected.

When TAMPxMSK is set:

A new tamper occurring on the same pin cannot be detected during the latency described above and 2.5 ck_rtc additional cycles.

By setting the TAMPxIE bit in the TAMP_IER register, an interrupt is generated when a tamper detection event occurs (when TAMPxF is set). Setting TAMPxIE is not allowed when the corresponding TAMPxMSK is set.

Trigger output generation on tamper event

The tamper event detection can be used as trigger input by the low-power timers.

When TAMPxMSK bit is cleared in TAMP_CR register, the TAMPxF flag must be cleared by software in order to allow a new tamper detection on the same pin.

When TAMPxMSK bit is set, the TAMPxF flag is masked, and kept cleared in TAMP_SR register. This configuration allows to trig automatically the low-power timers in Stop mode, without requiring the system wakeup to perform the TAMPxF clearing. In this case, the backup registers are not cleared.

This feature is available only when the tamper is configured in the Level detection with filtering on tamper inputs (passive mode) mode (TAMPFLT \( \neq \) 00 and active mode is not selected).

Timestamp on tamper event

With TAMPTS set to 1 in the RTC_CR, any tamper event causes a timestamp to occur. In this case, either the TSF bit or the TSOVF bit is set in RTC_SR, in the same manner as if a normal timestamp event occurs. The affected tamper flag register TAMPxF is set in the TAMP_SR at the same time that TSF or TSOVF is set in the RTC_SR.

Edge detection on tamper inputs (passive mode)

If the TAMPFLT bits are 00, the TAMP_INx pins generate tamper detection events when either a rising edge/high level or a falling edge/low level is observed depending on the corresponding TAMPxTRG bit. The internal pull-up resistors on the TAMP_INx inputs are deactivated when edge detection is selected.

Caution: When using the edge detection, it is recommended to check by software the tamper pin level just after enabling the tamper detection (by reading the GPIO registers), and before writing sensitive values in the backup registers, to ensure that an active edge did not occur before enabling the tamper event detection. When TAMPFLT = 00 and TAMPxTRG = 0 (rising edge detection), a tamper event may be detected by hardware if the tamper input is already at high level before enabling the tamper detection.

After a tamper event has been detected and cleared, the TAMP_INx should be disabled and then re-enabled (TAMPxE set to 1) before re-programming the backup registers (TAMP_BKPxR). This prevents the application from writing to the backup registers while the TAMP_INx input value still indicates a tamper detection. This is equivalent to a level detection on the TAMP_INx input.

Note: Tamper detection is still active when \( V_{DD} \) power is switched off. To avoid unwanted resetting of the backup registers, the pin to which the TAMPx is mapped should be externally tied to the correct level.

Level detection with filtering on tamper inputs (passive mode)

Level detection with filtering is performed by setting TAMPFLT to a non-zero value. A tamper detection event is generated when either 2, 4, or 8 (depending on TAMPFLT) consecutive samples are observed at the level designated by the TAMPxTRG bits.

The TAMP_INx inputs are precharged through the I/O internal pull-up resistance before its state is sampled, unless disabled by setting TAMPPUDIS to 1. The duration of the precharge is determined by the TAMPPRCH bits, allowing for larger capacitances on the TAMP_INx inputs.

The trade-off between tamper detection latency and power consumption through the pull-up can be optimized by using TAMPFREQ to determine the frequency of the sampling for level detection.

Note: Refer to the datasheet for the electrical characteristics of the pull-up resistors.

38.4 TAMP low-power modes

Table 349. Effect of low-power modes on TAMP

38.5 TAMP interrupts

The interrupt channel is set in the interrupt status register. The interrupt output is also activated.

Table 350. Interrupt requests

1. 1. The event flags are in the TAMP_SR register.
2. 2. The interrupt masked flags (resulting from event flags AND enable control bits) are in the TAMP_MISR register.
3. 3. The number of tampers and internal tampers events depend on products.
4. 4. In case of level detection with filtering passive tamper mode, wakeup from Stop and Standby modes is possible only when the TAMP clock source is LSE or LSI.
5. 5. In case of level detection with filtering passive tamper mode, wakeup from Shutdown modes is possible only when the TAMP clock source is LSE.

38.6 TAMP registers

Refer to Section 1.2 on page 74 of the reference manual for a list of abbreviations used in register descriptions. The peripheral registers can be accessed by words (32-bit).

38.6.1 TAMP control register 1 (TAMP_CR1)

Address offset: 0x00

Backup domain reset value: 0xFFFF 0000

System reset: not affected

Bits 31:24 Reserved, must be kept at reset value.

Bit 23 Reserved, must be kept at reset value.

Bit 22 Reserved, must be kept at reset value.

Bit 21 ITAMP6E : Internal tamper 6 enable: ST manufacturer readout

0: Internal tamper 6 disabled.

1: Internal tamper 6 enabled: a tamper is generated in case of ST manufacturer readout.

Bit 20 ITAMP5E : Internal tamper 5 enable: RTC calendar overflow

0: Internal tamper 5 disabled.

1: Internal tamper 5 enabled: a tamper is generated when the RTC calendar reaches its maximum value, on the 31 ^st of December 99, at 23:59:59. The calendar is then frozen and cannot overflow.

Bit 19 ITAMP4E : Internal tamper 4 enable: HSE monitoring

0: Internal tamper 4 disabled.

1: Internal tamper 4 enabled: a tamper is generated when the HSE frequency is below or above thresholds.

Bit 18 ITAMP3E : Internal tamper 3 enable: LSE monitoring

0: Internal tamper 3 disabled.

1: Internal tamper 3 enabled: a tamper is generated when the LSE frequency is below or above thresholds.

Bit 17 Reserved, must be kept at reset value.

Bit 16 Reserved, must be kept at reset value.

Bits 15:3 Reserved, must be kept at reset value.

Bit 2 TAMP3E : Tamper detection on TAMP_IN3 enable ⁽¹⁾

0: Tamper detection on TAMP_IN3 is disabled.

1: Tamper detection on TAMP_IN3 is enabled.

Bit 1 TAMP2E : Tamper detection on TAMP_IN2 enable ⁽¹⁾

0: Tamper detection on TAMP_IN2 is disabled.

1: Tamper detection on TAMP_IN2 is enabled.

Bit 0 TAMP1E : Tamper detection on TAMP_IN1 enable ⁽¹⁾

0: Tamper detection on TAMP_IN1 is disabled.

1: Tamper detection on TAMP_IN1 is enabled.

1. 1. Tamper detection mode (selected with TAMP_FLTCR register and TAMPxTRG bits in TAMP_CR2), must be configured before enabling the tamper detection.

38.6.2 TAMP control register 2 (TAMP_CR2)

Address offset: 0x04

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:27 Reserved, must be kept at reset value.

Bit 26 TAMP3TRG : Active level for tamper 3 input (active mode disabled)

0: If TAMPFLT ≠ 00 Tamper 3 input staying low triggers a tamper detection event.

If TAMPFLT = 00 Tamper 3 input rising edge and high level triggers a tamper detection event.

1: If TAMPFLT ≠ 00 Tamper 3 input staying high triggers a tamper detection event.

If TAMPFLT = 00 Tamper 3 input falling edge and low level triggers a tamper detection event.

Bit 25 TAMP2TRG : Active level for tamper 2 input (active mode disabled)

0: If TAMPFLT ≠ 00 Tamper 2 input staying low triggers a tamper detection event.

If TAMPFLT = 00 Tamper 2 input rising edge and high level triggers a tamper detection event.

1: If TAMPFLT ≠ 00 Tamper 2 input staying high triggers a tamper detection event.

If TAMPFLT = 00 Tamper 2 input falling edge and low level triggers a tamper detection event.

Bit 24 TAMP1TRG : Active level for tamper 1 input (active mode disabled)

0: If TAMPFLT ≠ 00 Tamper 1 input staying low triggers a tamper detection event.

If TAMPFLT = 00 Tamper 1 input rising edge and high level triggers a tamper detection event.

1: If TAMPFLT ≠ 00 Tamper 1 input staying high triggers a tamper detection event.

If TAMPFLT = 00 Tamper 1 input falling edge and low level triggers a tamper detection event.

Bit 23 Reserved, must be kept at reset value.

Bits 22:19 Reserved, must be kept at reset value.

Bit 18 TAMP3MSK : Tamper 3 mask

0: Tamper 3 event generates a trigger event and TAMP3F must be cleared by software to allow next tamper event detection.
1: Tamper 3 event generates a trigger event. TAMP3F is masked and internally cleared by hardware. The backup registers are not erased.
The tamper 3 interrupt must not be enabled when TAMP3MSK is set.

Bit 17 TAMP2MSK : Tamper 2 mask

0: Tamper 2 event generates a trigger event and TAMP2F must be cleared by software to allow next tamper event detection.
1: Tamper 2 event generates a trigger event. TAMP2F is masked and internally cleared by hardware. The backup registers are not erased.
The tamper 2 interrupt must not be enabled when TAMP2MSK is set.

Bit 16 TAMP1MSK : Tamper 1 mask

0: Tamper 1 event generates a trigger event and TAMP1F must be cleared by software to allow next tamper event detection.
1: Tamper 1 event generates a trigger event. TAMP1F is masked and internally cleared by hardware. The backup registers are not erased.
The tamper 1 interrupt must not be enabled when TAMP1MSK is set.

Bits 15:3 Reserved, must be kept at reset value.

Bit 2 TAMP3NOER : Tamper 3 no erase

0: Tamper 3 event erases the backup registers.
1: Tamper 3 event does not erase the backup registers.

Bit 1 TAMP2NOER : Tamper 2 no erase

0: Tamper 2 event erases the backup registers.
1: Tamper 2 event does not erase the backup registers.

Bit 0 TAMP1NOER : Tamper 1 no erase

0: Tamper 1 event erases the backup registers.
1: Tamper 1 event does not erase the backup registers.

38.6.3 TAMP filter control register (TAMP_FLTCR)

Address offset: 0x0C

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:8 Reserved, must be kept at reset value.

Bit 7 TAMPPUDIS : TAMP_INx pull-up disable

This bit determines if each of the TAMPx pins are precharged before each sample.

0: Precharge TAMP_INx pins before sampling (enable internal pull-up)

1: Disable precharge of TAMP_INx pins.

Bits 6:5 TAMPPRCH[1:0] : TAMP_INx precharge duration

These bits determine the duration of time during which the pull-up is activated before each sample. TAMPPRCH is valid for each of the TAMP_INx inputs.

0x0: 1 RTCCLK cycle

0x1: 2 RTCCLK cycles

0x2: 4 RTCCLK cycles

0x3: 8 RTCCLK cycles

Bits 4:3 TAMPFLT[1:0] : TAMP_INx filter count

These bits determine the number of consecutive samples at the specified level (TAMP*TRG) needed to activate a tamper event. TAMPFLT is valid for each of the TAMP_INx inputs.

0x0: Tamper event is activated on edge of TAMP_INx input transitions to the active level (no internal pull-up on TAMP_INx input).

0x1: Tamper event is activated after 2 consecutive samples at the active level.

0x2: Tamper event is activated after 4 consecutive samples at the active level.

0x3: Tamper event is activated after 8 consecutive samples at the active level.

Bits 2:0 TAMPFREQ[2:0] : Tamper sampling frequency

Determines the frequency at which each of the TAMP_INx inputs are sampled.

0x0: RTCCLK / 32768 (1 Hz when RTCCLK = 32768 Hz)

0x1: RTCCLK / 16384 (2 Hz when RTCCLK = 32768 Hz)

0x2: RTCCLK / 8192 (4 Hz when RTCCLK = 32768 Hz)

0x3: RTCCLK / 4096 (8 Hz when RTCCLK = 32768 Hz)

0x4: RTCCLK / 2048 (16 Hz when RTCCLK = 32768 Hz)

0x5: RTCCLK / 1024 (32 Hz when RTCCLK = 32768 Hz)

0x6: RTCCLK / 512 (64 Hz when RTCCLK = 32768 Hz)

0x7: RTCCLK / 256 (128 Hz when RTCCLK = 32768 Hz)

Note: This register concerns only the tamper inputs in passive mode.

38.6.4 TAMP interrupt enable register (TAMP_IER)

Address offset: 0x2C

Backup domain reset value: 0x0000 0000

System reset: not affected

• Bits 31:24 Reserved, must be kept at reset value.
• Bit 23 Reserved, must be kept at reset value.
• Bit 22 Reserved, must be kept at reset value.
• Bit 21 ITAMP6IE : Internal tamper 6 interrupt enable: ST manufacturer readout
  • 0: Internal tamper 6 interrupt disabled.
  • 1: Internal tamper 6 interrupt enabled.
• Bit 20 ITAMP5IE : Internal tamper 5 interrupt enable: RTC calendar overflow
  • 0: Internal tamper 5 interrupt disabled.
  • 1: Internal tamper 5 interrupt enabled.
• Bit 19 ITAMP4IE : Internal tamper 4 interrupt enable: HSE monitoring
  • 0: Internal tamper 4 interrupt disabled.
  • 1: Internal tamper 4 interrupt enabled.
• Bit 18 ITAMP3IE : Internal tamper 3 interrupt enable: LSE monitoring
  • 0: Internal tamper 3 interrupt disabled.
  • 1: Internal tamper 3 interrupt enabled.
• Bit 17 Reserved, must be kept at reset value.
• Bit 16 Reserved, must be kept at reset value.
• Bits 15:3 Reserved, must be kept at reset value.
• Bit 2 TAMP3IE : Tamper 3 interrupt enable
  • 0: Tamper 3 interrupt disabled.
  • 1: Tamper 3 interrupt enabled..
• Bit 1 TAMP2IE : Tamper 2 interrupt enable
  • 0: Tamper 2 interrupt disabled.
  • 1: Tamper 2 interrupt enabled.
• Bit 0 TAMP1IE : Tamper 1 interrupt enable
  • 0: Tamper 1 interrupt disabled.
  • 1: Tamper 1 interrupt enabled.

38.6.5 TAMP status register (TAMP_SR)

Address offset: 0x30

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:24 Reserved, must be kept at reset value.

Bit 23 Reserved, must be kept at reset value.

Bit 22 Reserved, must be kept at reset value.

Bit 21 ITAMP6F : ST manufacturer readout tamper detection flag

This flag is set by hardware when a tamper detection event is detected on the internal tamper 6.

Bit 20 ITAMP5F : RTC calendar overflow tamper detection flag

This flag is set by hardware when a tamper detection event is detected on the internal tamper 5.

Bit 19 ITAMP4F : HSE monitoring tamper detection flag

This flag is set by hardware when a tamper detection event is detected on the internal tamper 4.

Bit 18 ITAMP3F : LSE monitoring tamper detection flag

This flag is set by hardware when a tamper detection event is detected on the internal tamper 3.

Bit 17 Reserved, must be kept at reset value.

Bit 16 Reserved, must be kept at reset value.

Bits 15:3 Reserved, must be kept at reset value.

Bit 2 TAMP3F : TAMP3 detection flag

This flag is set by hardware when a tamper detection event is detected on the TAMP3 input.

Bit 1 TAMP2F : TAMP2 detection flag

This flag is set by hardware when a tamper detection event is detected on the TAMP2 input.

Bit 0 TAMP1F : TAMP1 detection flag

This flag is set by hardware when a tamper detection event is detected on the TAMP1 input.

38.6.6 TAMP masked interrupt status register (TAMP_MISR)

Address offset: 0x34

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:24 Reserved, must be kept at reset value.

Bit 23 Reserved, must be kept at reset value.

Bit 22 Reserved, must be kept at reset value.

• Bit 21 ITAMP6MF : ST manufacturer readout tamper interrupt masked flag
  This flag is set by hardware when the internal tamper 6 interrupt is raised.
• Bit 20 ITAMP5MF : RTC calendar overflow tamper interrupt masked flag
  This flag is set by hardware when the internal tamper 5 interrupt is raised.
• Bit 19 ITAMP4MF : HSE monitoring tamper interrupt masked flag
  This flag is set by hardware when the internal tamper 4 interrupt is raised.
• Bit 18 ITAMP3MF : LSE monitoring tamper interrupt masked flag
  This flag is set by hardware when the internal tamper 3 interrupt is raised.
• Bit 17 Reserved, must be kept at reset value.
• Bit 16 Reserved, must be kept at reset value.
• Bits 15:3 Reserved, must be kept at reset value.
• Bit 2 TAMP3MF : TAMP3 interrupt masked flag
  This flag is set by hardware when the tamper 3 interrupt is raised.
• Bit 1 TAMP2MF : TAMP2 interrupt masked flag
  This flag is set by hardware when the tamper 2 interrupt is raised.
• Bit 0 TAMP1MF : TAMP1 interrupt masked flag
  This flag is set by hardware when the tamper 1 interrupt is raised.

38.6.7 TAMP status clear register (TAMP_SCR)

Address offset: 0x3C

System reset value: 0x0000 0000

• Bits 31:24 Reserved, must be kept at reset value.
• Bit 23 Reserved, must be kept at reset value.
• Bit 22 Reserved, must be kept at reset value.
• Bit 21 CITAMP6F : Clear ITAMP6 detection flag
  Writing 1 in this bit clears the ITAMP6F bit in the TAMP_SR register.
• Bit 20 CITAMP5F : Clear ITAMP5 detection flag
  Writing 1 in this bit clears the ITAMP5F bit in the TAMP_SR register.
• Bit 19 CITAMP4F : Clear ITAMP4 detection flag
  Writing 1 in this bit clears the ITAMP4F bit in the TAMP_SR register.
• Bit 18 CITAMP3F : Clear ITAMP3 detection flag
  Writing 1 in this bit clears the ITAMP3F bit in the TAMP_SR register.

Bit 17 Reserved, must be kept at reset value.

Bit 16 Reserved, must be kept at reset value.

Bits 15:3 Reserved, must be kept at reset value.

Bit 2 CTAMP3F : Clear TAMP3 detection flag

Writing 1 in this bit clears the TAMP3F bit in the TAMP_SR register.

Bit 1 CTAMP2F : Clear TAMP2 detection flag

Writing 1 in this bit clears the TAMP2F bit in the TAMP_SR register.

Bit 0 CTAMP1F : Clear TAMP1 detection flag

Writing 1 in this bit clears the TAMP1F bit in the TAMP_SR register.

38.6.8 TAMP backup x register (TAMP_BKPxR)

Address offset: \( 0x100 + 0x04 * x \) , ( \( x = 0 \) to 31)

Backup domain reset value: 0x0000 0000

System reset: not affected

Bits 31:0 BKP[31:0]

The application can write or read data to and from these registers.

They are powered-on by \( V_{BAT} \) when \( V_{DD} \) is switched off, so that they are not reset by System reset, and their contents remain valid when the device operates in low-power mode.

In the default configuration this register is reset on a tamper detection event. It is forced to reset value as long as there is at least one internal or external tamper flag being set. This register is also reset when the readout protection (RDP) is disabled.

38.6.9 TAMP register map

Table 351. TAMP register map and reset values

Refer to Section 2.2 on page 82 for the register boundary addresses.
