22. Digital-to-analog converter (DAC)

22.1 Introduction

The DAC module is a 12-bit, voltage output digital-to-analog converter. The DAC can be configured in 8- or 12-bit mode and may be used in conjunction with the DMA controller. In 12-bit mode, the data can be left- or right-aligned. The DAC features up to two output channels, each with its own converter. In dual DAC channel mode, conversions can be done independently or simultaneously when both channels are grouped together for synchronous update operations. An input reference pin, VREF+ (shared with other analog peripherals) is available for better resolution. An internal reference can also be set on the same input. Refer to voltage reference buffer (VREFBUF) section.

The DACx_OUTy pin can be used as general purpose input/output (GPIO) when the DAC output is disconnected from output pad and connected to on chip peripheral. The DAC output buffer can be optionally enabled to obtain a high drive output current. An individual calibration can be applied on each DAC output channel. The DAC output channels support a low power mode, the sample and hold mode.

22.2 DAC main features

The DAC main features are the following (see Figure 156: Dual-channel DAC block diagram )

• • Up to four DAC interfaces, maximum two output channels each
• • Left or right data alignment in 12-bit mode
• • Synchronized update capability
• • Noise-wave and Triangular-wave generation
• • Sawtooth wave generation
• • Dual DAC channel for independent or simultaneous conversions
• • DMA capability for each channel including DMA underrun error detection
• • Double data DMA capability to reduce the bus activity
• • External triggers for conversion
• • DAC output channel buffered/unbuffered modes
• • Buffer offset calibration
• • Each DAC output can be disconnected from the DACx_OUTy output pin
• • DAC output connection to on-chip peripherals
• • Sample and hold mode for low power operation in Stop mode
• • Input voltage reference from VREF+ pin or internal VREFBUF reference

Figure 156 shows the block diagram of a DAC channel and Table 184 gives the pin description.

22.3 DAC implementation

22.4 DAC functional description

22.4.1 DAC block diagram

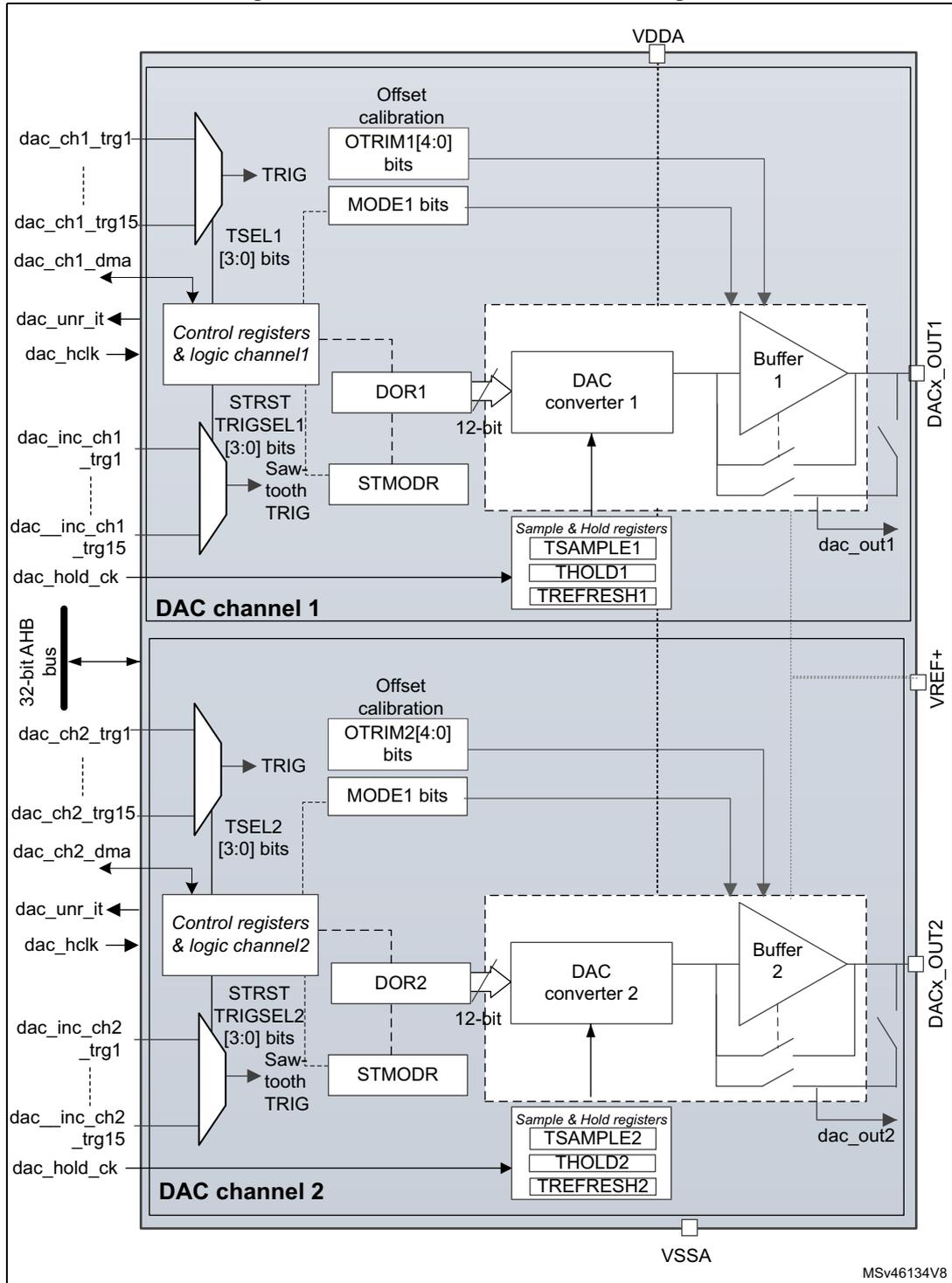

Figure 156. Dual-channel DAC block diagram

1. 1. MODEx bits in the DAC_MCR control the output mode and allow switching between the normal mode in buffer/unbuffered configuration and the sample and hold mode.
2. 2. Refer to Section 22.3: DAC implementation for channel2 availability.
3. 3. DAC channel2 is available only on DAC1, DAC3 and DAC4.

22.4.2 DAC pins and internal signals

The DAC includes:

• • Up to two output channels
• • The DACx_OUTy can be disconnected from the output pin and used as an ordinary GPIO
• • The dac_outx can use an internal pin connection to on-chip peripherals such as comparator, operational amplifier and ADC (if available).
• • DAC output channel buffered or non buffered
• • Sample and hold block and registers operational in Stop mode, using the LSI/LSE clock source (dac_hold_ck) for static conversion.

The DAC includes up to two separate output channels. Each output channel can be connected to on-chip peripherals such as comparator, operational amplifier and ADC (if available). In this case, the DAC output channel can be disconnected from the DACx_OUTy output pin and the corresponding GPIO can be used for another purpose.

The DAC output can be buffered or not. The sample and hold block and its associated registers can run in Stop mode using the LSI/LSE clock source (dac_hold_ck).

Table 184. DAC input/output pins

Table 185. DAC input/output signals

Table 185. DAC input/output signals (continued)

Table 186. DAC1 interconnection

Table 186. DAC1 interconnection (continued)

Table 187. DAC2 interconnection

Table 188. DAC3 interconnection (continued)

Table 189. DAC4 interconnection

Table 189. DAC4 interconnection (continued)

Table 189. DAC4 interconnection (continued)

22.4.3 DAC channel enable

Each DAC channel can be powered on by setting its corresponding ENx bit in the DAC_CR register. The DAC channel is then enabled after a \( t_{\text{WAKEUP}} \) startup time.

DACxRDY bit is set in the DAC_SR register when the DAC interface is ready to accept data. Writing new data or asserting the trigger is not allowed when ENx bit is set while DACxRDY signal is reset.

Note: The ENx bit enables the analog DAC channelx only. The DAC channelx digital interface is enabled even if the ENx bit is reset.

22.4.4 DAC data format

Depending on the selected configuration mode, the data have to be written into the specified register as described below:

• • Single DAC channel
  There are three possibilities:
  • – 8-bit right alignment: the software has to load data into the DAC_DHR8Rx[7:0] bits (stored into the DHRx[11:4] bits)
  • – 12-bit left alignment: the software has to load data into the DAC_DHR12Lx [15:4] bits (stored into the DHRx[11:0] bits)
  • – 12-bit right alignment: the software has to load data into the DAC_DHR12Rx [11:0] bits (stored into the DHRx[11:0] bits)

Depending on the loaded DAC_DHRyyxx register, the data written by the user is shifted and stored into the corresponding DAC_DHRx (data holding registerx, which are internal non-memory-mapped registers). The DAC_DHRx register is then loaded into the DAC_DORx register either automatically, by software trigger or by an external event trigger.

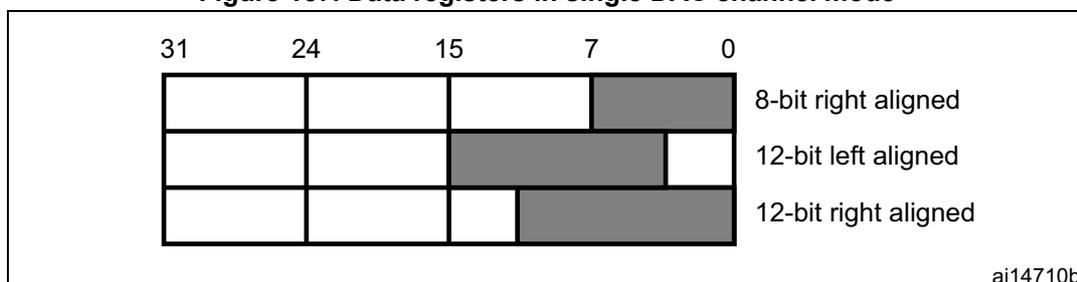

Figure 157. Data registers in single DAC channel mode

• • Dual DAC channels (when available)

There are three possibilities:

• – 8-bit right alignment: data for DAC channel1 to be loaded into the DAC_DHR8RD [7:0] bits (stored into the DHR1[11:4] bits) and data for DAC channel2 to be loaded into the DAC_DHR8RD [15:8] bits (stored into the DHR2[11:4] bits)
• – 12-bit left alignment: data for DAC channel1 to be loaded into the DAC_DHR12LD [15:4] bits (stored into the DHR1[11:0] bits) and data for DAC channel2 to be loaded into the DAC_DHR12LD [31:20] bits (stored into the DHR2[11:0] bits)
• – 12-bit right alignment: data for DAC channel1 to be loaded into the DAC_DHR12RD [11:0] bits (stored into the DHR1[11:0] bits) and data for DAC channel2 to be loaded into the DAC_DHR12RD [27:16] bits (stored into the DHR2[11:0] bits)

Depending on the loaded DAC_DHRyyD register, the data written by the user is shifted and stored into DHR1 and DHR2 (data holding registers, which are internal non-memory-mapped registers). The DHR1 and DHR2 registers are then loaded into the DAC_DOR1 and DOR2 registers, respectively, either automatically, by software trigger or by an external event trigger.

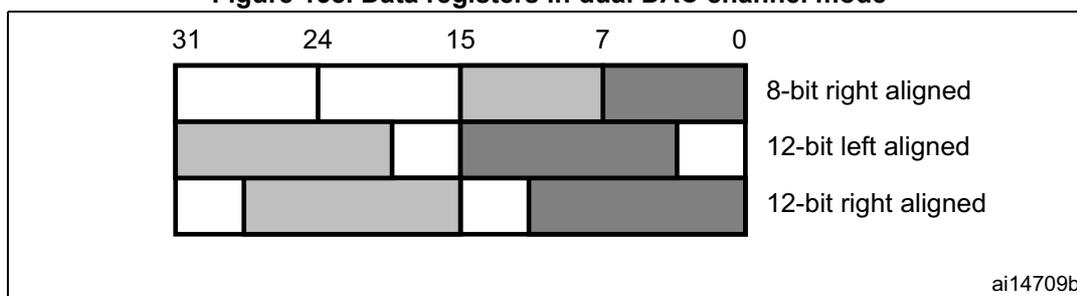

Figure 158. Data registers in dual DAC channel mode

Signed/unsigned data

DAC input data are unsigned: 0x000 corresponds to the minimum value and 0xFFF to the maximum value for 12-bit mode.

The DAC can also handle signed input data in 2's complement format. This is done by setting SINFORMATx bit in the DAC_MCR register.

When SINFORMATx bit is set, the MSB of the data written to DAC_DHRx registers is inverted when it is copied to the DAC_DORx register, and the DAC interface can accept signed data (Q1.15, Q1.11 or Q1.7 format). DAC_DHR12Lx register can be used to store 16-bit signed data in the data holding registers. The 12 MSBs of 16-bit data are used for the DAC output data and the MSB is inverted. The four LSBs are simply ignored.

Table 190. Data format (case of 12-bit data)

Table 190. Data format (case of 12-bit data) (continued)

22.4.5 DAC conversion

The DAC_DORx cannot be written directly and any data transfer to the DAC channelx must be performed by loading the DAC_DHRx register (write operation to DAC_DHR8Rx, DAC_DHR12Lx, DAC_DHR12Rx, DAC_DHR8RD, DAC_DHR12RD or DAC_DHR12LD).

Data stored in the DAC_DHRx register are automatically transferred to the DAC_DORx register after one dac_hclk clock cycle, if no hardware trigger is selected (TENx bit in DAC_CR register is reset). However, when a hardware trigger is selected (TENx bit in DAC_CR register is set) and a trigger occurs, the transfer is performed three dac_hclk clock cycles after the trigger signal.

When DAC_DORx is loaded with the DAC_DHRx contents, the analog output voltage becomes available after a time \( t_{\text{SETTLING}} \) that depends on the power supply voltage and the analog output load.

HFSEL bits of DAC_MCR must be set when dac_ker_ck clock speed is faster than 80 MHz.

Refer to Table HFSEL description below for the limitation of the DAC_DORx update rate depending on HFSEL bits and NA clock frequency.

If the data is updated or a software/hardware trigger event occurs during the non-allowed period, the peripheral behavior is unpredictable.

The above timing is only related to the limitation of the DAC interface. Refer also to the \( t_{\text{SETTLING}} \) parameter value in the product datasheet.

Table 191. HFSEL description

1. 1. Refer to the device datasheet for the value of the maximum AHB frequency.

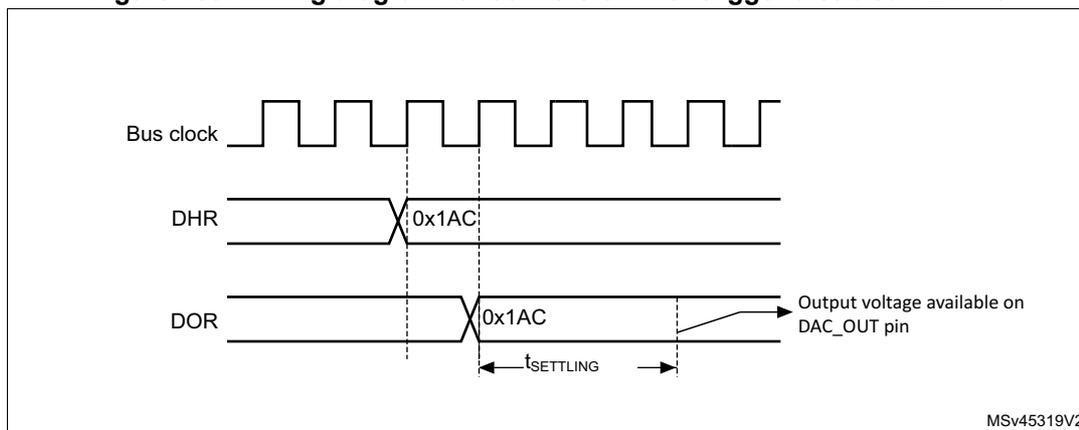

Figure 159. Timing diagram for conversion with trigger disabled TEN = 0

22.4.6 DAC output voltage

Digital inputs are converted to output voltages on a linear conversion between 0 and \( V_{REF+} \) . The analog output voltages on each DAC channel pin are determined by the following equation:

where all voltages are expressed in Volt.

22.4.7 DAC trigger selection

If the \( TENx \) control bit is set, the conversion can then be triggered by an external event (timer counter, external interrupt line). The \( TSELx[3:0] \) control bits determine which out of 16 possible events triggers the conversion as shown in \( TSELx[3:0] \) bits of the \( DAC\_CR \) register. These events can be either the software trigger or hardware triggers. Refer to the interconnection table in Section 22.4.2 .

Each time a DAC interface detects a rising edge on the selected trigger source (refer to the table below), the last data stored into the \( DAC\_DHRx \) register are transferred into the \( DAC\_DORx \) register. The \( DAC\_DORx \) register is updated three \( dac\_hclk \) cycles after the trigger occurs.

If the software trigger is selected, the conversion starts once the \( SWTRIG \) bit is set. \( SWTRIG \) is reset by hardware once the \( DAC\_DORx \) register has been loaded with the \( DAC\_DHRx \) register contents.

The reset trigger selection and the increment trigger selection of the sawtooth generation are performed through \( STRSTTRIGSELx \) and \( STINCTRIGSELx \) control bits, respectively. \( STRSTTRIGSELx \) mapping is similar to \( TSELx \) . Refer to the Section 22.4.2: DAC pins and internal signals for \( TSELx \) , \( STRSTTRIGSELx \) , and \( STINCTRIGSELx \) mappings.

Note: \( TSELx[3:0] \) bit cannot be changed when the \( ENx \) bit is set.
When software trigger is selected, the transfer from the \( DAC\_DHRx \) register to the \( DAC\_DORx \) register takes only one \( dac\_hclk \) clock cycle.

22.4.8 DMA requests

Each DAC channel has a DMA capability. Two DMA channels are used to service DAC channel DMA requests.

When an external trigger (but not a software trigger) occurs while the DMAENx bit is set, the value of the DAC_DHRx register is transferred into the DAC_DORx register when the transfer is complete, and a DMA request is generated.

In dual mode, if both DMAENx bits are set, two DMA requests are generated. If only one DMA request is needed, only the corresponding DMAENx bit must be set. In this way, the application can manage both DAC channels in dual mode by using one DMA request and a unique DMA channel.

As DAC_DHRx to DAC_DORx data transfer occurred before the DMA request, the very first data has to be written to the DAC_DHRx before the first trigger event occurs.

DMA underrun

The DAC DMA request is not queued so that if a second external trigger arrives before the acknowledgment for the first external trigger is received (first request), then no new request is issued and the DMA channelx underrun flag DMAUDRx in the DAC_SR register is set, reporting the error condition. The DAC channelx continues to convert old data.

The software must clear the DMAUDRx flag by writing 1, clear the DMAEN bit of the used DMA stream and re-initialize both DMA and DAC channelx to restart the transfer correctly. The software must modify the DAC trigger conversion frequency or lighten the DMA workload to avoid a new DMA underrun. Finally, the DAC conversion can be resumed by enabling both DMA data transfer and conversion trigger.

For each DAC channelx, an interrupt is also generated if its corresponding DMAUDRIEx bit in the DAC_CR register is enabled.

DMA double data mode

When the DMA controller is used in normal mode, only 12-bit (or 8-bit) data are transferred by a DMA request. As the AHB width is 32 bits, two 12-bit data may be transferred simultaneously. To use this mode, set the DMADOUBLEEx bit of DAC_MCR register.

A DAC DMA request is generated every two external triggers (except for software triggers) when the DMAENx bit is set:

1. 1. When the first trigger is detected, the value of the DAC_DHRx and DAC_DHRBx registers are transferred into the DAC_DORx and DAC_DORBx registers. The actual DAC data is loaded into the DAC_DORx register. A DMA request is then generated. The DMA writes the new data to the DAC_DHRx and DAC_DHRBx data registers.
2. 2. When the next trigger is detected, the actual DAC data is loaded into the DAC_DHRBx register. This second trigger does not generate any DMA request. The DORSTATx bit indicates which DOR data is actually loaded into the analog DAC input.

DMA underrun function is also supported in DMA double data mode.

The following conditions must be met to change from double data to single data mode or vice versa:

• • The DAC must be disabled.
• • DMAEN bit must be cleared (ENx = 0 and DMAEN = 0).

22.4.9 Noise generation

In order to generate a variable-amplitude pseudonoise, an LFSR (linear feedback shift register) is available. DAC noise generation is selected by setting WAVEx[1:0] to 01. The preloaded value in LFSR is 0xAA. This register is updated three dac_hclk clock cycles after each trigger event, following a specific calculation algorithm.

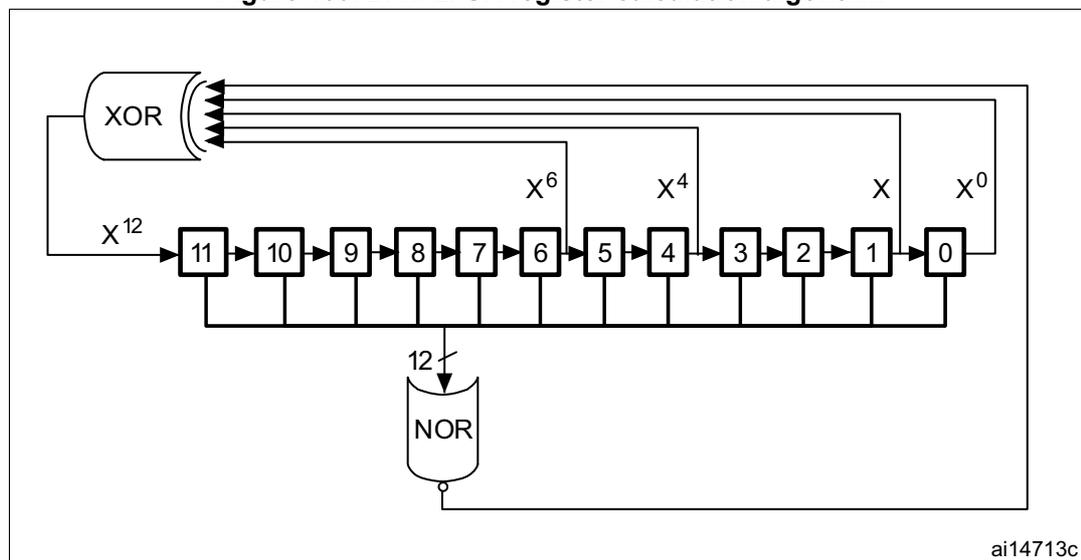

Figure 160. DAC LFSR register calculation algorithm

The LFSR value, that may be masked partially or totally by means of the MAMPx[3:0] bits in the DAC_CR register, is added up to the DAC_DHRx contents without overflow and this value is then transferred into the DAC_DORx register.

If LFSR is 0x0000, a 1 is injected into it (antilock-up mechanism).

It is possible to reset LFSR wave generation by resetting the WAVEx[1:0] bits.

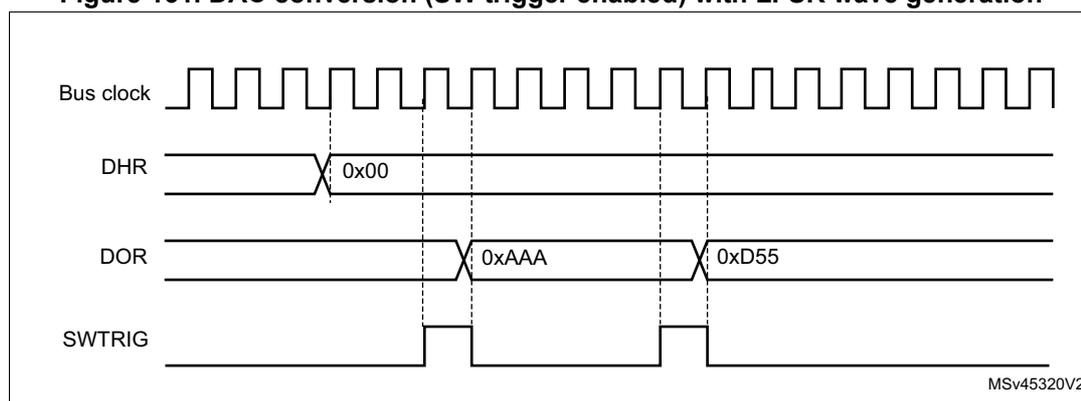

Figure 161. DAC conversion (SW trigger enabled) with LFSR wave generation

Note: The DAC trigger must be enabled for noise generation by setting the TENx bit in the DAC_CR register.

22.4.10 Triangle-wave generation

It is possible to add a small-amplitude triangular waveform on a DC or slowly varying signal. DAC triangle-wave generation is selected by setting WAVEx[1:0] to 10. The amplitude is configured through the MAMPx[3:0] bits in the DAC_CR register. An internal triangle counter is incremented three dac_hclk clock cycles after each trigger event. The value of this counter is then added to the DAC_DHRx register without overflow and the sum is transferred into the DAC_DORx register. The triangle counter is incremented as long as it is less than the maximum amplitude defined by the MAMPx[3:0] bits. Once the configured amplitude is reached, the counter is decremented down to 0, then incremented again and so on.

It is possible to reset triangle wave generation by resetting the WAVEx[1:0] bits.

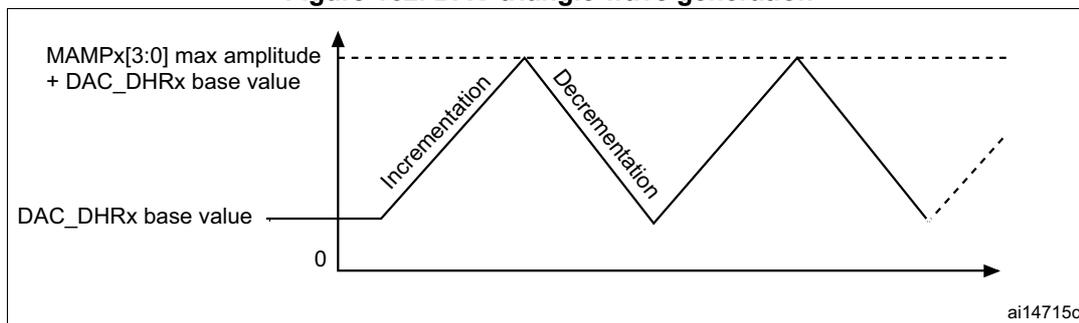

Figure 162. DAC triangle wave generation

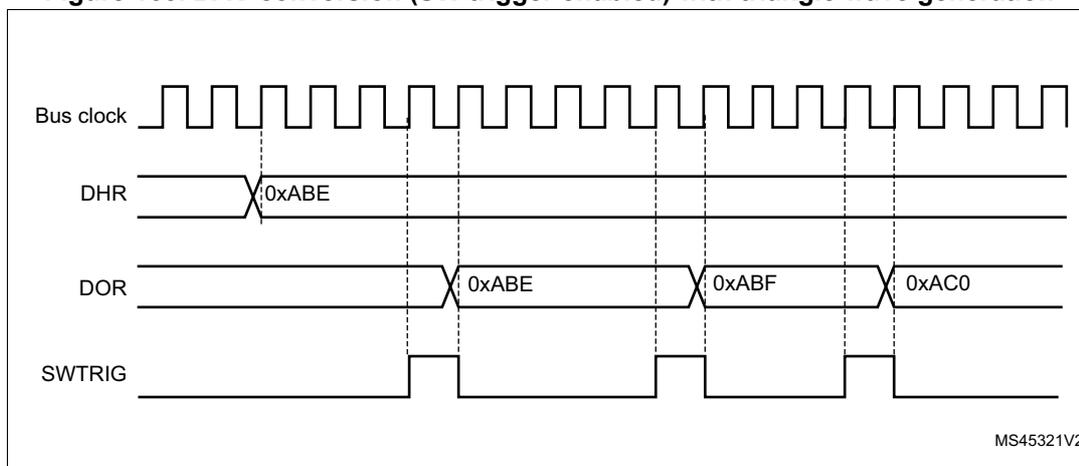

Figure 163. DAC conversion (SW trigger enabled) with triangle wave generation

Note: The DAC trigger must be enabled for triangle wave generation by setting the TENx bit in the DAC_CR register.

The MAMPx[3:0] bits must be configured before enabling the DAC, otherwise they cannot be changed.

22.4.11 DAC sawtooth wave generation

The DAC can generate a sawtooth waveform. Specific register settings for the initial value, increment value and direction control are required:

• • DAC sawtooth wave generation is selected by setting WAVEx[1:0] to 11 in the DAC_CR register.
• • The sawtooth counter initial value (reset value) is configured through STRSTDATAx[11:0] bits in the DAC_STRx register.
• • The increment value is defined by the STINCDATAx[15:0] bits in the DAC_STRx register.
• • The sawtooth direction is defined by STDIRx bit in the DAC_STRx register.

The sawtooth counter starts from STRSTDATAx[11:0] (bits 12 to 15 are set to 0b0000), each increment trigger then increments (or decrements) STINCDATAx[15:0] value.

The DAC output is used from 12 MSBs of those counter value. When the counter reaches 0x0000 or 0xFFFF, the value is saturated. The sawtooth reset trigger signal initializes the counter value to the STRSTDATAx[11:0] (bits 12 to 15 are set to 0b0000) value.

The increment trigger (STINCTRIG) and reset trigger (STRSTTRIG) must be selected through the STINCTRIGSELx[3:0] and the STRSTTRIGSELx[3:0] bits.

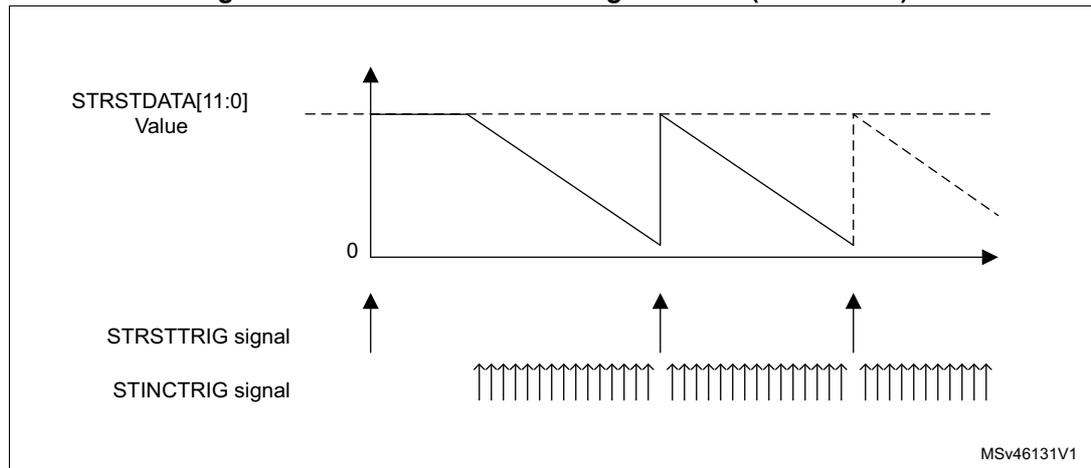

Figure 164. DAC sawtooth wave generation (STDIRx = 0)

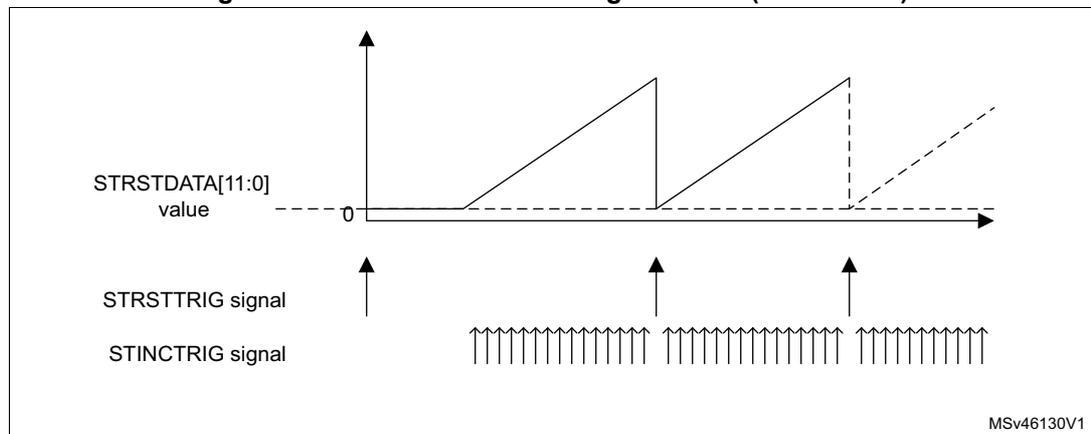

Figure 165. DAC sawtooth wave generation (STDIRx = 1)

The STRSTTRIG signal has higher priority than STINCTRIG. The trigger signal cannot be faster than the DAC_DORx update rate defined in Table HFSEL description . If STINCTRIG is asserted faster than the allowed data update rate, the STINCTRIG trigger is ignored. If the STRSTTRIG signal is applied after the STINCTRIG and before DAC_DORx update rate constraints, STRSTTRIG is put on hold. Then, immediately after the data increment, the reset trigger is applied.

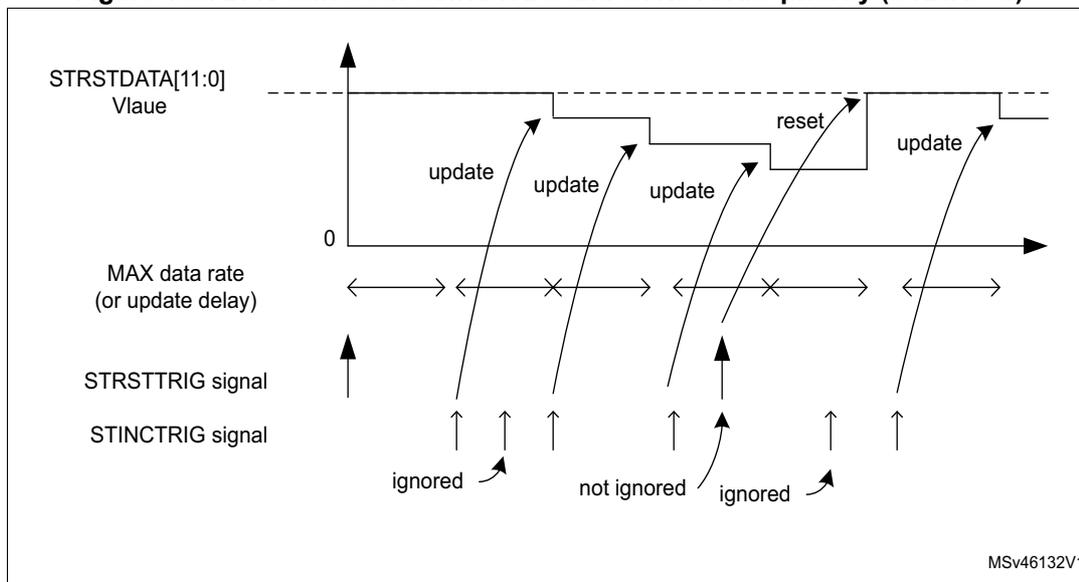

Figure 166. DAC sawtooth STINCTRIG and STRSTTRIG priority (STDIR = 0)

22.4.12 DAC channel modes

Each DAC channel can be configured in normal mode or sample and hold mode. The output buffer can be enabled to obtain a high drive capability. Before enabling output buffer, the voltage offset needs to be calibrated. This calibration is performed at the factory (loaded after reset) and can be adjusted by software during application operation.

Normal mode

In normal mode, there are four combinations, by changing the buffer state and by changing the DACx_OUTy pin interconnections.

To enable the output buffer, the MODEx[2:0] bits in DAC_MCR register must be:

• • 000: DAC is connected to the external pin
• • 001: DAC is connected to external pin and to on-chip peripherals

To disable the output buffer, the MODEx[2:0] bits in DAC_MCR register must be:

• • 010: DAC is connected to the external pin
• • 011: DAC is connected to on-chip peripherals

Sample and hold mode

In sample and hold mode, the DAC core converts data on a triggered conversion, and then holds the converted voltage on a capacitor. When not converting, the DAC cores and buffer are completely turned off between samples and the DAC output is tri-stated, therefore reducing the overall power consumption. A stabilization period, which value depends on the buffer state, is required before each new conversion.

In this mode, the DAC core and all corresponding logic and registers are driven by the LSI/LSE low-speed clock (dac_hold_ck) in addition to the dac_hclk clock, allowing using the DAC channels in deep low power modes such as Stop mode.

The LSI/LSE low-speed clock (dac_hold_ck) must not be stopped when the sample and hold mode is enabled.

The sample/hold mode operations can be divided into three phases:

1. 1. Sample phase: the sample/hold element is charged to the desired voltage. The charging time depends on capacitor value (internal or external, selected by the user). The sampling time is configured with the TSAMPLEx[9:0] bits in DAC_SHSRx register. During the write of the TSAMPLEx[9:0] bits, the BWSTx bit in DAC_SR register is set to 1 to synchronize between both clocks domains (AHB and low speed clock) and allowing the software to change the value of sample phase during the DAC channel operation
2. 2. Hold phase: the DAC output channel is tri-stated, the DAC core and the buffer are turned off, to reduce the current consumption. The hold time is configured with the THOLDx[9:0] bits in DAC_SHHR register
3. 3. Refresh phase: the refresh time is configured with the TREFRESHx[7:0] bits in DAC_SHRR register

The timings for the three phases above are in units of LSI/LSE clock periods. As an example, to configure a sample time of 350 \( \mu\text{s} \) , a hold time of 2 ms and a refresh time of 100 \( \mu\text{s} \) assuming LSI/LSE \( \sim 32 \) KHz is selected:

• • 12 cycles are required for sample phase: TSAMPLEx[9:0] = 11.
• • 62 cycles are required for hold phase: THOLDx[9:0] = 62.
• • and 4 cycles are required for refresh period: TREFRESHx[7:0] = 4.

In this example, the power consumption is reduced by almost a factor of 15 versus normal modes.

The formulas to compute the right sample and refresh timings are described in the table below, the Hold time depends on the leakage current.

Table 192. Sample and refresh timings

1. 1. In the above formula, the settling to the desired code value with \( \frac{1}{2} \) LSB or accuracy requires 10 constant time for 12 bits resolution. For 8-bit resolution, the settling time is 7 constant time.
2. 2. \( C_{\text{SH}} \) is the capacitor in sample and hold mode.
3. 3. The tolerated voltage drop during the hold phase “Vd” is represented by the number of LSBs after the capacitor discharging with the output leakage current. The settling back to the desired value with \( \frac{1}{2} \) LSB error accuracy requires \( \ln(2 \cdot N_{\text{lsb}}) \) constant time of the DAC.

Example of the sample and refresh time calculation with output buffer on

The values used in the example below are provided as indication only. Refer to the product datasheet for product data.

Sampling phase:

(where \( R_{BON} = 2 \text{ k}\Omega \) )

Refresh phase:

(where \( N_{LSB} = 10 \) (10 LSB drop during the hold phase))

Hold phase:

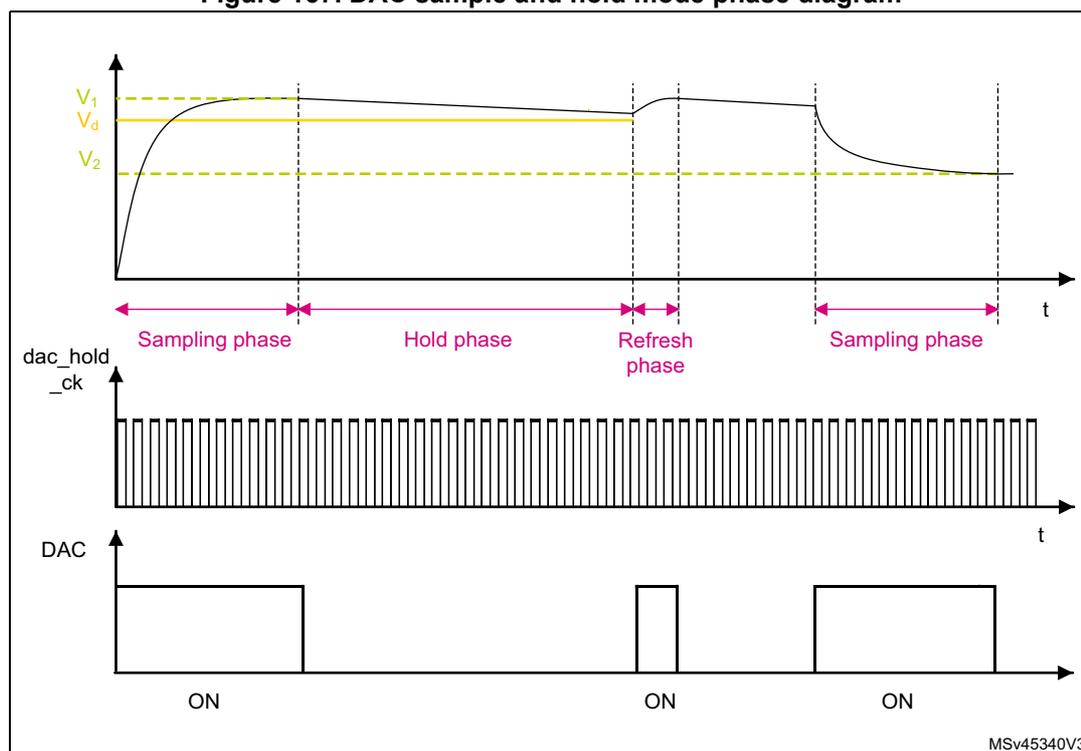

Figure 167. DAC sample and hold mode phase diagram

Like in normal mode, the sample and hold mode has different configurations.

To enable the output buffer, MODEx[2:0] bits in DAC_MCR register must be set to:

• • 100: DAC is connected to the external pin
• • 101: DAC is connected to external pin and to on chip peripherals

To disable the output buffer, MODEx[2:0] bits in DAC_MCR register must be set to:

• • 110: DAC is connected to external pin and to on chip peripherals
• • 111: DAC is connected to on chip peripherals

When MODEx[2:0] bits are equal to 111, an internal capacitor, \( C_{\text{Lint}} \) , holds the voltage output of the DAC core and then drive it to on-chip peripherals.

All sample and hold phases are interruptible, and any change in DAC_DHRx immediately triggers a new sample phase.

Note: The sawtooth wave generation is not supported in sample and hold mode operation.

Table 193. Channel output modes summary

22.4.13 DAC channel buffer calibration

The transfer function for an N-bit digital-to-analog converter (DAC) is:

Where \( V_{\text{OUT}} \) is the analog output, D is the digital input, G is the gain, \( V_{\text{REF}} \) is the nominal full-scale voltage, and \( V_{\text{OS}} \) is the offset voltage. For an ideal DAC channel, \( G = 1 \) and \( V_{\text{OS}} = 0 \) .

Due to output buffer characteristics, the voltage offset may differ from part-to-part and introduce an absolute offset error on the analog output. To compensate the \( V_{\text{OS}} \) , a calibration is required by a trimming technique.

The calibration is only valid when the DAC channelx is operating with buffer enabled (MODEx[2:0] = 0b000 or 0b001 or 0b100 or 0b101). if applied in other modes when the buffer is off, it has no effect. During the calibration:

• • The buffer output is disconnected from the pin internal/external connections and put in tristate mode (HiZ).
• • The buffer acts as a comparator to sense the middle-code value 0x800 and compare it to \( V_{\text{REF}}/2 \) signal through an internal bridge, then toggle its output signal to 0 or 1 depending on the comparison result (CAL_FLAGx bit).

Two calibration techniques are provided:

• • Factory trimming (default setting)

The DAC buffer offset is factory trimmed. The default value of OTRIMx[4:0] bits in DAC_CCR register is the factory trimming value and it is loaded once DAC digital interface is reset.

• • User trimming

The user trimming can be done when the operating conditions differs from nominal factory trimming conditions and in particular when \( V_{DDA} \) voltage, temperature, \( V_{REF+} \) values change and can be done at any point during application by software.

Note: Refer to the datasheet for more details of the nominal factory trimming conditions.

In addition, when \( V_{DD} \) is removed (example the device enters in Standby or VBAT modes) the calibration is required.

The steps to perform a user trimming calibration are as below:

1. 1. If the DAC channel is active, write 0 to ENx bit in DAC_CR to disable the channel.
2. 2. Select a mode where the buffer is enabled, by writing to DAC_MCR register, MODEx[2:0] = 0b000 or 0b001 or 0b100 or 0b101.
3. 3. Start the DAC channelx calibration, by setting the CENx bit in DAC_CR register to 1.
4. 4. Apply a trimming algorithm:
   1. a) Write a code into OTRIMx[4:0] bits, starting by 0b00000.
   2. b) Wait for \( t_{TRIM} \) delay.
   3. c) Check if CAL_FLAGx bit in DAC_SR is set to 1.
   4. d) Until the CAL_FLAGx is read as 1 or the maximum trimming code is reached, increment OTRIMx[4:0] and repeat substeps from (b) to (d).

The software algorithm may use either a successive approximation or dichotomy techniques to compute and set the content of OTRIMx[4:0] bits in a faster way.

Note: A \( t_{TRIM} \) delay must be respected between the write to the OTRIMx[4:0] bits and the read of the CAL_FLAGx bit in DAC_SR register in order to get a correct value. This parameter is specified into datasheet electrical characteristics section.

If \( V_{DDA} \) , \( V_{REF+} \) and temperature conditions do not change during device operation while it enters more often in Standby and VBAT modes, the software may store the OTRIMx[4:0] bits found in the first user calibration in the flash or in back-up registers. then to load/write them directly when the device power is back again thus avoiding to wait for a new calibration time.

When CENx bit is set, it is not allowed to set ENx bit.

22.4.14 DAC channel conversion modes

Four conversion modes are possible.

Independent trigger without wave generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the DAC channel trigger enable bit, TENx.
2. 2. Configure the trigger sources by setting different values in the TSELx[3:0] bits.
3. 3. Load the DAC channel data into the desired DHR registers (DAC_DHR12R1, DAC_DHR12L1 or DAC_DHR8R1).

When a DAC channel trigger arrives, the DHRx register is transferred into DAC_DORx (three dac_hclk clock cycles later).

Independent trigger with single LFSR generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the DAC channel trigger enable bit, TENx .
2. 2. Configure the trigger sources by setting different values in the TSELx[3:0] bits.
3. 3. Configure the DAC channel WAVEx[1:0] bits as 01 and the same LFSR mask value in the MAMPx[3:0] bits.
4. 4. Load the DAC channel data into the desired DHR register ( DAC_DHR12R1 , DAC_DHR12L1 or DAC_DHR8R1 ).

When a DAC channel trigger arrives, the LFSR1 counter, with the same mask, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). Then the LFSR1 counter is updated.

Independent trigger with single triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the DAC channel trigger enable bits, TENx .
2. 2. Configure the trigger sources by setting different values in the TSELx[3:0] bits.
3. 3. Configure the DAC channel WAVEx[1:0] bits as 1x and the same maximum amplitude value in the MAMPx[3:0] bits.
4. 4. Load the DAC channel data into the desired DHR register ( DAC_DHR12R1 , DAC_DHR12L1 or DAC_DHR8R1 ).

When a DAC channel trigger arrives, the DAC channel triangle counter, with the same triangle amplitude, is added to the DHRx register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). The DAC channel triangle counter is then updated.

Independent trigger with single sawtooth generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Configure the trigger sources by setting different values in STRSTTRIGSELx[3:0] and STINCTRIGSELx[3:0] bits.
2. 2. Configure the DAC channel WAVEx[1:0] bits to 11 and set the same STRSTDATAx[11:0] , STINCDATAx[15:0] and STDIRx values for each register.

When a DAC channel trigger arrives, the DAC channel sawtooth counter updates the DHRx register and transfers it into DAC_DOR1 (three AHB clock cycles later).

22.4.15 Dual DAC channel conversion modes (if dual channels are available)

To efficiently use the bus bandwidth in applications that require the two DAC channels at the same time, three dual registers are implemented: DHR8RD, DHR12RD and DHR12LD. A unique register access is then required to drive both DAC channels at the same time. For the wave generation, no accesses to DHRxxxD registers are required. As a result, two output channels can be used either independently or simultaneously.

15 conversion modes are possible using the two DAC channels and these dual registers. All the conversion modes can nevertheless be obtained using separate DAC_DHRx registers if needed.

All modes are described in the paragraphs below.

Independent trigger without wave generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. 2. Configure different trigger sources by setting different values in the TSEL1 and TSEL2 bitfields.
3. 3. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a DAC channel1 trigger arrives, the DHR1 register is transferred into DAC_DOR1 (three dac_hclk clock cycles later).

When a DAC channel2 trigger arrives, the DHR2 register is transferred into DAC_DOR2 (three dac_hclk clock cycles later).

Independent trigger with single LFSR generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. 2. Configure different trigger sources by setting different values in the TSEL1 and TSEL2 bitfields.
3. 3. Configure the two DAC channel WAVEx[1:0] bits as 01 and the same LFSR mask value in the MAMPx[3:0] bits.
4. 4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a DAC channel1 trigger arrives, the LFSR1 counter, with the same mask, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). Then the LFSR1 counter is updated.

When a DAC channel2 trigger arrives, the LFSR2 counter, with the same mask, is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). Then the LFSR2 counter is updated.

Independent trigger with different LFSR generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. 2. Configure different trigger sources by setting different values in the TSEL1 and TSEL2 bitfields.
3. 3. Configure the two DAC channel WAVEx[1:0] bits as 01 and set different LFSR masks values in the MAMP1[3:0] and MAMP2[3:0] bits.
4. 4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a DAC channel1 trigger arrives, the LFSR1 counter, with the mask configured by MAMP1[3:0], is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). Then the LFSR1 counter is updated.

When a DAC channel2 trigger arrives, the LFSR2 counter, with the mask configured by MAMP2[3:0], is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). Then the LFSR2 counter is updated.

Independent trigger with single triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. 2. Configure different trigger sources by setting different values in the TSEL1 and TSEL2 bitfields.
3. 3. Configure the two DAC channel WAVEx[1:0] bits as 1x and the same maximum amplitude value in the MAMPx[3:0] bits.
4. 4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a DAC channel1 trigger arrives, the DAC channel1 triangle counter, with the same triangle amplitude, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). The DAC channel1 triangle counter is then updated.

When a DAC channel2 trigger arrives, the DAC channel2 triangle counter, with the same triangle amplitude, is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). The DAC channel2 triangle counter is then updated.

Independent trigger with different triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. 2. Configure different trigger sources by setting different values in the TSEL1 and TSEL2 bits.
3. 3. Configure the two DAC channel WAVEx[1:0] bits as 1x and set different maximum amplitude values in the MAMP1[3:0] and MAMP2[3:0] bits.
4. 4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a DAC channel1 trigger arrives, the DAC channel1 triangle counter, with a triangle amplitude configured by MAMP1[3:0], is added to the DHR1 register and the sum is

transferred into DAC_DOR1 (three dac_hclk clock cycles later). The DAC channel1 triangle counter is then updated.

When a DAC channel2 trigger arrives, the DAC channel2 triangle counter, with a triangle amplitude configured by MAMP2[3:0], is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). The DAC channel2 triangle counter is then updated.

Independent trigger with single sawtooth generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Configure different trigger sources by setting different values in STRSTTRIGSEL1[3:0], STRSTTRIGSEL2[3:0], STINCTRIGSEL2[3:0] and STINCTRIGSEL1[3:0] bits.
2. 2. Configure the two DAC channel WAVEx[1:0] bits to 11 and set the same STRSTDATAx[11:0], STINC DATAx[15:0] and STDIRx values for each register.

When a DAC channel1 trigger arrives, the DAC channel1 sawtooth counter updates the DHR1 register and transfers it into DAC_DOR1 (three AHB clock cycles later).

When a DAC channel2 trigger arrives, the DAC channel2 sawtooth counter updates the DHR1 register and transfers it into DAC_DOR1 (three AHB clock cycles later).

Independent trigger with different sawtooth wave generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Configure different trigger sources by setting different values in the STRSTTRIGSEL1[23:0], STRSTTRIGSEL2[23:0], STINCTRIGSEL2[3:0] and STINCTRIGSEL1[3:0] bits.
2. 2. Configure the two DAC channel WAVEx[1:0] bits as 11 and set different STRSTDATAx[11:0], STINC DATAx[15:0] and STDIRx value for each register.

When a DAC channel1 trigger arrives, the DAC channel1 sawtooth counter updates the DHR1 register and loads it into DAC_DOR1 (three AHB clock cycles later).

When a DAC channel2 trigger arrives, the DAC channel2 sawtooth counter updates the DHR2 register and loads it into DAC_DOR1 (three AHB clock cycles later).

Simultaneous software start

To configure the DAC in this conversion mode, the following sequence is required:

• • Load the dual DAC channel data to the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

In this configuration, one dac_hclk clock cycle later, the DHR1 and DHR2 registers are transferred into DAC_DOR1 and DAC_DOR2, respectively.

Simultaneous trigger without wave generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the two DAC channel trigger enable bits TEN1 and TEN2.
2. 2. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
3. 3. Load the dual DAC channel data to the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a trigger arrives, the DHR1 and DHR2 registers are transferred into DAC_DOR1 and DAC_DOR2, respectively (after three dac_hclk clock cycles).

Simultaneous trigger with single LFSR generation

1. 1. To configure the DAC in this conversion mode, the following sequence is required:
2. 2. Set the two DAC channel trigger enable bits TEN1 and TEN2.
3. 3. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
4. 4. Configure the two DAC channel WAVEx[1:0] bits as 01 and the same LFSR mask value in the MAMPx[3:0] bits.
5. 5. Load the dual DAC channel data to the desired DHR register (DHR12RD, DHR12LD or DHR8RD).

When a trigger arrives, the LFSR1 counter, with the same mask, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). The LFSR1 counter is then updated. At the same time, the LFSR2 counter, with the same mask, is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). The LFSR2 counter is then updated.

Simultaneous trigger with different LFSR generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the two DAC channel trigger enable bits TEN1 and TEN2
2. 2. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
3. 3. Configure the two DAC channel WAVEx[1:0] bits as 01 and set different LFSR mask values using the MAMP1[3:0] and MAMP2[3:0] bits.
4. 4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a trigger arrives, the LFSR1 counter, with the mask configured by MAMP1[3:0], is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). The LFSR1 counter is then updated.

At the same time, the LFSR2 counter, with the mask configured by MAMP2[3:0], is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). The LFSR2 counter is then updated.

Simultaneous trigger with single triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the two DAC channel trigger enable bits TEN1 and TEN2
2. 2. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
3. 3. Configure the two DAC channel WAVEx[1:0] bits as 1x and the same maximum amplitude value using the MAMPx[3:0] bits.
4. 4. Load the dual DAC channel data into the desired DHR register (DAC_DHR12RD, DAC_DHR12LD or DAC_DHR8RD).

When a trigger arrives, the DAC channel1 triangle counter, with the same triangle amplitude, is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three dac_hclk clock cycles later). The DAC channel1 triangle counter is then updated.

At the same time, the DAC channel2 triangle counter, with the same triangle amplitude, is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). The DAC channel2 triangle counter is then updated.

Simultaneous trigger with different triangle generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Set the two DAC channel trigger enable bits TEN1 and TEN2
2. 2. Configure the same trigger source for both DAC channels by setting the same value in the TSEL1 and TSEL2 bitfields.
3. 3. Configure the two DAC channel WAVEx[1:0] bits as 1x and set different maximum amplitude values in the MAMP1[3:0] and MAMP2[3:0] bits.
4. 4. Load the dual DAC channel data into the desired DHR register ( DAC_DHR12RD , DAC_DHR12LD or DAC_DHR8RD ).

When a trigger arrives, the DAC channel1 triangle counter, with a triangle amplitude configured by MAMP1[3:0] , is added to the DHR1 register and the sum is transferred into DAC_DOR1 (three AHB clock cycles later). Then the DAC channel1 triangle counter is updated.

At the same time, the DAC channel2 triangle counter, with a triangle amplitude configured by MAMP2[3:0] , is added to the DHR2 register and the sum is transferred into DAC_DOR2 (three dac_hclk clock cycles later). Then the DAC channel2 triangle counter is updated.

Simultaneous trigger with single sawtooth wave generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Configure the same trigger source for both DAC channels by setting the same value in STRSTTRIGSEL1[3:0] , STRSTTRIGSEL2[3:0] , STINCTRIGSEL2[3:0] and STINCTRIGSEL1[3:0] bits.
2. 2. Configure the two DAC channel WAVEx[1:0] bits to 11 and set the same STRSTDATAx[11:0] , STINCDATAx[15:0] and STDIRx value for each register.

When a trigger arrives, the DAC channel1/2 sawtooth counter updates DHR1 and DHR2 registers and loads them into DAC_DOR1/2 (three AHB clock cycles later).

Simultaneous trigger with different sawtooth wave generation

To configure the DAC in this conversion mode, the following sequence is required:

1. 1. Configure the same trigger source for both DAC channels by setting the same value in STRSTTRIGSEL1[3:0] , STRSTTRIGSEL2[3:0] , STINCTRIGSEL2[3:0] bits and STINCTRIGSEL1[3:0] bits.
2. 2. Configure the two DAC channel WAVEx[1:0] bits to 11 and set different STRSTDATAx[11:0] , STINCDATAx[15:0] , STDIRx values for each register.

When a trigger arrives, DAC channel1/2 sawtooth counter updates the DHR1 and DHR2 registers and loads them independently into DAC_DOR1/2 (three AHB clock cycles later).

22.5 DAC in low-power modes

Table 194. Effect of low-power modes on DAC

22.6 DAC interrupts

Table 195. DAC interrupts

22.7 DAC registers

Refer to Section 1 on page 74 for a list of abbreviations used in register descriptions.

The peripheral registers have to be accessed by words (32-bit).

22.7.1 DAC control register (DAC_CR)

Address offset: 0x00

Reset value: 0x0000 0000

Bit 31 Reserved, must be kept at reset value.

This bit is set and cleared by software to enable/disable DAC channel2 calibration, it can be written only if EN2 bit is set to 0 into DAC_CR (the calibration mode can be entered/exit only when the DAC channel is disabled) Otherwise, the write operation is ignored.

0: DAC channel2 in normal operating mode

1: DAC channel2 in calibration mode

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

This bit is set and cleared by software.

0: DAC channel2 DMA underrun interrupt disabled

1: DAC channel2 DMA underrun interrupt enabled

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

This bit is set and cleared by software.

0: DAC channel2 DMA mode disabled

1: DAC channel2 DMA mode enabled

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

These bits are written by software to select mask in wave generation mode or amplitude in triangle generation mode.

0000: Unmask bit0 of LFSR/ triangle amplitude equal to 1

0001: Unmask bits[1:0] of LFSR/ triangle amplitude equal to 3

0010: Unmask bits[2:0] of LFSR/ triangle amplitude equal to 7

0011: Unmask bits[3:0] of LFSR/ triangle amplitude equal to 15

0100: Unmask bits[4:0] of LFSR/ triangle amplitude equal to 31

0101: Unmask bits[5:0] of LFSR/ triangle amplitude equal to 63

0110: Unmask bits[6:0] of LFSR/ triangle amplitude equal to 127

0111: Unmask bits[7:0] of LFSR/ triangle amplitude equal to 255

1000: Unmask bits[8:0] of LFSR/ triangle amplitude equal to 511

1001: Unmask bits[9:0] of LFSR/ triangle amplitude equal to 1023

1010: Unmask bits[10:0] of LFSR/ triangle amplitude equal to 2047

≥ 1011: Unmask bits[11:0] of LFSR/ triangle amplitude equal to 4095

Note: These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

These bits are set/reset by software.

00: wave generation disabled

01: Noise wave generation enabled

10: Triangle wave generation enabled

11: Sawtooth wave generation enabled

Note: Only used if bit TEN2 = 1 (DAC channel2 trigger enabled)

These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bits 21:18 TSEL2[3:0] : DAC channel2 trigger selection

These bits select the external event used to trigger DAC channel2

0000: SWTRIG2

0001: dac_ch2_trg1

0010: dac_ch2_trg2

...

1111: dac_ch2_trg15

Refer to the trigger selection tables in Section 22.4.2: DAC pins and internal signals for details on trigger configuration and mapping.

Note: Only used if bit TEN2 = 1 (DAC channel2 trigger enabled).

These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bit 17 TEN2 : DAC channel2 trigger enable

This bit is set and cleared by software to enable/disable DAC channel2 trigger

0: DAC channel2 trigger disabled and data written into the DAC_DHR2 register are transferred one dac_hclk clock cycle later to the DAC_DOR2 register

1: DAC channel2 trigger enabled and data from the DAC_DHR2 register are transferred three dac_hclk clock cycles later to the DAC_DOR2 register

Note: When software trigger is selected, the transfer from the DAC_DHR2 register to the DAC_DOR2 register takes only one dac_hclk clock cycle.

These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bit 16 EN2 : DAC channel2 enable

This bit is set and cleared by software to enable/disable DAC channel2.

0: DAC channel2 disabled

1: DAC channel2 enabled

Note: These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bit 15 Reserved, must be kept at reset value.

Bit 14 CEN1 : DAC channel1 calibration enable

This bit is set and cleared by software to enable/disable DAC channel1 calibration, it can be written only if bit EN1 = 0 into DAC_CR (the calibration mode can be entered/exit only when the DAC channel is disabled) Otherwise, the write operation is ignored.

0: DAC channel1 in normal operating mode

1: DAC channel1 in calibration mode

Bit 13 DMAUDRIE1 : DAC channel1 DMA Underrun Interrupt enable

This bit is set and cleared by software.

0: DAC channel1 DMA Underrun Interrupt disabled

1: DAC channel1 DMA Underrun Interrupt enabled

Bit 12 DMAEN1 : DAC channel1 DMA enable

This bit is set and cleared by software.

0: DAC channel1 DMA mode disabled

1: DAC channel1 DMA mode enabled

These bits are written by software to select mask in wave generation mode or amplitude in triangle generation mode.

0000: Unmask bit0 of LFSR/ triangle amplitude equal to 1

0001: Unmask bits[1:0] of LFSR/ triangle amplitude equal to 3

0010: Unmask bits[2:0] of LFSR/ triangle amplitude equal to 7

0011: Unmask bits[3:0] of LFSR/ triangle amplitude equal to 15

0100: Unmask bits[4:0] of LFSR/ triangle amplitude equal to 31

0101: Unmask bits[5:0] of LFSR/ triangle amplitude equal to 63

0110: Unmask bits[6:0] of LFSR/ triangle amplitude equal to 127

0111: Unmask bits[7:0] of LFSR/ triangle amplitude equal to 255

1000: Unmask bits[8:0] of LFSR/ triangle amplitude equal to 511

1001: Unmask bits[9:0] of LFSR/ triangle amplitude equal to 1023

1010: Unmask bits[10:0] of LFSR/ triangle amplitude equal to 2047

≥ 1011: Unmask bits[11:0] of LFSR/ triangle amplitude equal to 4095

These bits are set and cleared by software.

00: wave generation disabled

01: Noise wave generation enabled

10: Triangle wave generation enabled

11: Sawtooth wave generation enabled

Only used if bit TEN1 = 1 (DAC channel1 trigger enabled).

These bits select the external event used to trigger DAC channel1

0000: SWTRIG1

0001: dac_ch1_trg1

0010: dac_ch1_trg2

...

1111: dac_ch1_trg15

Refer to the trigger selection tables in Section 22.4.2: DAC pins and internal signals for details on trigger configuration and mapping.

Note: Only used if bit TEN1 = 1 (DAC channel1 trigger enabled).

This bit is set and cleared by software to enable/disable DAC channel1 trigger.

0: DAC channel1 trigger disabled and data written into the DAC_DHR1 register are transferred one dac_hclk clock cycle later to the DAC_DOR1 register

1: DAC channel1 trigger enabled and data from the DAC_DHR1 register are transferred three dac_hclk clock cycles later to the DAC_DOR1 register

Note: When software trigger is selected, the transfer from the DAC_DHR1 register to the DAC_DOR1 register takes only one dac_hclk clock cycle.

This bit is set and cleared by software to enable/disable DAC channel1.

0: DAC channel1 disabled

1: DAC channel1 enabled

22.7.2 DAC software trigger register (DAC_SWTRGR)

Address offset: 0x04

Reset value: 0x0000 0000

Bits 31:18 Reserved, must be kept at reset value.

Bit 17 SWTRIGB2 : DAC channel2 software trigger B

This bit is set by software to trigger the DAC in software trigger mode (sawtooth generation). It is cleared by hardware.

0: No trigger

1: Trigger for sawtooth increment

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bit 16 SWTRIGB1 : DAC channel1 software trigger B

This bit is set by software to trigger the DAC in software trigger mode (sawtooth generation). It is cleared by hardware.

0: No trigger

1: Trigger for sawtooth increment

Bits 15:2 Reserved, must be kept at reset value.

Bit 1 SWTRIG2 : DAC channel2 software trigger

This bit is set by software to trigger the DAC in software trigger mode, or software reset trigger mode for the sawtooth wave generation.

0: No trigger

1: Trigger

Note: This bit is cleared by hardware (one dac_hclk clock cycle later) once the DAC_DHR2 register value has been loaded into the DAC_DOR2 register.

This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bit 0 SWTRIG1 : DAC channel1 software trigger

This bit is set by software to trigger the DAC in software trigger mode, or software reset trigger mode for the sawtooth wave generation.

0: No trigger

1: Trigger

Note: This bit is cleared by hardware (one dac_hclk clock cycle later) once the DAC_DHR1 register value has been loaded into the DAC_DOR1 register.

22.7.3 DAC channel1 12-bit right-aligned data holding register (DAC_DHR12R1)

Address offset: 0x08

Reset value: 0x0000 0000

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:16 DACC1DHRB[11:0] : DAC channel1 12-bit right-aligned data B

These bits are written by software. They specify 12-bit data for DAC channel1 when the DAC operates in double data mode.

Bits 15:12 Reserved, must be kept at reset value.

Bits 11:0 DACC1DHR[11:0] : DAC channel1 12-bit right-aligned data

These bits are written by software. They specify 12-bit data for DAC channel1.

22.7.4 DAC channel1 12-bit left aligned data holding register (DAC_DHR12L1)

Address offset: 0x0C

Reset value: 0x0000 0000

Bits 31:20 DACC1DHRB[11:0] : DAC channel1 12-bit left-aligned data B

These bits are written by software. They specify 12-bit data for DAC channel1 when the DAC operates in double data mode.

Bits 19:16 Reserved, must be kept at reset value.

Bits 15:4 DACC1DHR[11:0] : DAC channel1 12-bit left-aligned data

These bits are written by software.

They specify 12-bit data for DAC channel1.

Bits 3:0 Reserved, must be kept at reset value.

22.7.5 DAC channel1 8-bit right aligned data holding register (DAC_DHR8R1)

Address offset: 0x10

Reset value: 0x0000 0000

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:8 DACC1DHRB[7:0] : DAC channel1 8-bit right-aligned data

These bits are written by software. They specify 8-bit data for DAC channel1 when the DAC operates in double data mode.

Bits 7:0 DACC1DHR[7:0] : DAC channel1 8-bit right-aligned data

These bits are written by software. They specify 8-bit data for DAC channel1.

22.7.6 DAC channel2 12-bit right aligned data holding register (DAC_DHR12R2)

This register is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Address offset: 0x14

Reset value: 0x0000 0000

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:16 DACC2DHRB[11:0] : DAC channel2 12-bit right-aligned data

These bits are written by software. They specify 12-bit data for DAC channel2 when the DAC operates in DMA double data mode.

Bits 15:12 Reserved, must be kept at reset value.

Bits 11:0 DACC2DHR[11:0] : DAC channel2 12-bit right-aligned data

These bits are written by software. They specify 12-bit data for DAC channel2.

22.7.7 DAC channel2 12-bit left aligned data holding register (DAC_DHR12L2)

This register is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Address offset: 0x18

Reset value: 0x0000 0000

Bits 31:20 DACC2DHRB[11:0] : DAC channel2 12-bit left-aligned data B

These bits are written by software. They specify 12-bit data for DAC channel2 when the DAC operates in double data mode.

Bits 19:16 Reserved, must be kept at reset value.

Bits 15:4 DACC2DHR[11:0] : DAC channel2 12-bit left-aligned data

These bits are written by software which specify 12-bit data for DAC channel2.

Bits 3:0 Reserved, must be kept at reset value.

22.7.8 DAC channel2 8-bit right-aligned data holding register (DAC_DHR8R2)

This register is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Address offset: 0x1C

Reset value: 0x0000 0000

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:8 DACC2DHRB[7:0] : DAC channel2 8-bit right-aligned data

These bits are written by software. They specify 8-bit data for DAC channel2 when the DAC operates in double data mode.

Bits 7:0 DACC2DHR[7:0] : DAC channel2 8-bit right-aligned data

These bits are written by software which specifies 8-bit data for DAC channel2.

22.7.9 Dual DAC 12-bit right-aligned data holding register (DAC_DHR12RD)

Address offset: 0x20

Reset value: 0x0000 0000

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:16 DACC2DHR[11:0] : DAC channel2 12-bit right-aligned data

These bits are written by software which specifies 12-bit data for DAC channel2.

Bits 15:12 Reserved, must be kept at reset value.

Bits 11:0 DACC1DHR[11:0] : DAC channel1 12-bit right-aligned data

These bits are written by software which specifies 12-bit data for DAC channel1.

22.7.10 Dual DAC 12-bit left aligned data holding register (DAC_DHR12LD)

Address offset: 0x24

Reset value: 0x0000 0000

Bits 31:20 DACC2DHR[11:0] : DAC channel2 12-bit left-aligned data

These bits are written by software which specifies 12-bit data for DAC channel2.

Bits 19:16 Reserved, must be kept at reset value.

Bits 15:4 DACC1DHR[11:0] : DAC channel1 12-bit left-aligned data

These bits are written by software which specifies 12-bit data for DAC channel1.

Bits 3:0 Reserved, must be kept at reset value.

22.7.11 Dual DAC 8-bit right aligned data holding register (DAC_DHR8RD)

Address offset: 0x28

Reset value: 0x0000 0000

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:8 DACC2DHR[7:0] : DAC channel2 8-bit right-aligned data

These bits are written by software which specifies 8-bit data for DAC channel2.

Bits 7:0 DACC1DHR[7:0] : DAC channel1 8-bit right-aligned data

These bits are written by software which specifies 8-bit data for DAC channel1.

22.7.12 DAC channel1 data output register (DAC_DOR1)

Address offset: 0x2C

Reset value: 0x0000 0000

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:16 DACC1DORB[11:0] : DAC channel1 data output

These bits are read-only. They contain data output for DAC channel1 B.

Bits 15:12 Reserved, must be kept at reset value.

Bits 11:0 DACC1DOR[11:0] : DAC channel1 data output

These bits are read-only, they contain data output for DAC channel1.

22.7.13 DAC channel2 data output register (DAC_DOR2)

This register is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Address offset: 0x30

Reset value: 0x0000 0000

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:16 DACC2DORB[11:0] : DAC channel2 data output
These bits are read-only. They contain data output for DAC channel2 B.

Bits 15:12 Reserved, must be kept at reset value.

Bits 11:0 DACC2DOR[11:0] : DAC channel2 data output
These bits are read-only, they contain data output for DAC channel2.

22.7.14 DAC status register (DAC_SR)

Address offset: 0x34

Reset value: 0x0000 0000

This bit is systematically set just after sample and hold mode enable. It is set each time the software writes the register DAC_SHSR2, It is cleared by hardware when the write operation of DAC_SHSR2 is complete. (It takes about 3 LSI/LSE periods of synchronization).

0:There is no write operation of DAC_SHSR2 ongoing: DAC_SHSR2 can be written

1:There is a write operation of DAC_SHSR2 ongoing: DAC_SHSR2 cannot be written

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

This bit is set and cleared by hardware

0: calibration trimming value is lower than the offset correction value

1: calibration trimming value is equal or greater than the offset correction value

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

This bit is set by hardware and cleared by software (by writing it to 1).

0: No DMA underrun error condition occurred for DAC channel2

1: DMA underrun error condition occurred for DAC channel2 (the currently selected trigger is driving DAC channel2 conversion at a frequency higher than the DMA service capability rate).

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

This bit is set and cleared by hardware. It is applicable only when the DAC operates in double data mode.

0: DOR[11:0] is used actual DAC output

1: DORB[11:0] is used actual DAC output

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

This bit is set and cleared by hardware.

0: DAC channel2 is not yet ready to accept the trigger nor output data

1: DAC channel2 is ready to accept the trigger or output data

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bits 26:16 Reserved, must be kept at reset value.

This bit is systematically set just after sample and hold mode enable and is set each time the software writes the register DAC_SHSR1, It is cleared by hardware when the write operation of DAC_SHSR1 is complete. (It takes about 3 LSI/LSE periods of synchronization).

0:There is no write operation of DAC_SHSR1 ongoing: DAC_SHSR1 can be written

1:There is a write operation of DAC_SHSR1 ongoing: DAC_SHSR1 cannot be written

This bit is set and cleared by hardware

0: calibration trimming value is lower than the offset correction value

1: calibration trimming value is equal or greater than the offset correction value

Bit 13 DMAUDR1 : DAC channel1 DMA underrun flag

This bit is set by hardware and cleared by software (by writing it to 1).

0: No DMA underrun error condition occurred for DAC channel1

1: DMA underrun error condition occurred for DAC channel1 (the currently selected trigger is driving DAC channel1 conversion at a frequency higher than the DMA service capability rate)

Bit 12 DORSTAT1 : DAC channel1 output register status bit

This bit is set and cleared by hardware. It is applicable only when the DAC operates in double data mode.

0: DOR[11:0] is used actual DAC output

1: DORB[11:0] is used actual DAC output

Bit 11 DAC1RDY : DAC channel1 ready status bit

This bit is set and cleared by hardware.

0: DAC channel1 is not yet ready to accept the trigger nor output data

1: DAC channel1 is ready to accept the trigger or output data

Bits 10:0 Reserved, must be kept at reset value.

22.7.15 DAC calibration control register (DAC_CCR)

Address offset: 0x38

Reset value: 0x00XX 00XX

Bits 31:21 Reserved, must be kept at reset value.

Bits 20:16 OTRIM2[4:0] : DAC channel2 offset trimming value

These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bits 15:5 Reserved, must be kept at reset value.

Bits 4:0 OTRIM1[4:0] : DAC channel1 offset trimming value

22.7.16 DAC mode control register (DAC_MCR)

Address offset: 0x3C

Reset value: 0x0000 0000

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 SINFORMAT2 : Enable signed format for DAC channel2

This bit is set and cleared by software.

0: Input data is in unsigned format

1: Input data is in signed format (2's complement). The MSB bit represents the sign.

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bit 24 DMADOUBLE2 : DAC channel2 DMA double data mode

This bit is set and cleared by software.

0: DMA normal mode selected

1: DMA double data mode selected

Note: This bit is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bits 23:19 Reserved, must be kept at reset value.

Bits 18:16 MODE2[2:0] : DAC channel2 mode

These bits can be written only when the DAC is disabled and not in the calibration mode (when bit EN2 = 0 and bit CEN2 = 0 in the DAC_CR register). If EN2 = 1 or CEN2 = 1 the write operation is ignored.

They can be set and cleared by software to select the DAC channel2 mode:

– DAC channel2 in normal mode

000: DAC channel2 is connected to external pin with Buffer enabled

001: DAC channel2 is connected to external pin and to on chip peripherals with buffer enabled

010: DAC channel2 is connected to external pin with buffer disabled

011: DAC channel2 is connected to on chip peripherals with Buffer disabled

– DAC channel2 in sample and hold mode

100: DAC channel2 is connected to external pin with Buffer enabled

101: DAC channel2 is connected to external pin and to on chip peripherals with Buffer enabled

110: DAC channel2 is connected to external pin and to on chip peripherals with Buffer disabled

111: DAC channel2 is connected to on chip peripherals with Buffer disabled

Note: This register can be modified only when EN2 = 0.

Refer to Section 22.3: DAC implementation for the availability of DAC channel2.

• Bits 15:14 HFSEL[1:0] : High frequency interface mode selection
  • 00: High frequency interface mode disabled
  • 01: High frequency interface mode enabled for AHB clock frequency > 80 MHz
  • 10: High frequency interface mode enabled for AHB clock frequency >160 MHz
  • 11: Reserved
• Bits 13:10 Reserved, must be kept at reset value.
• Bit 9 SINFORMAT1 : Enable signed format for DAC channel1

  This bit is set and cleared by software.

  • 0: Input data is in unsigned format
  • 1: Input data is in signed format (2's complement). The MSB bit represents the sign.
• Bit 8 DMADDOUBLE1 : DAC channel1 DMA double data mode

  This bit is set and cleared by software.

  • 0: DMA normal mode selected
  • 1: DMA double data mode selected
• Bits 7:3 Reserved, must be kept at reset value.
• Bits 2:0 MODE1[2:0] : DAC channel1 mode

  These bits can be written only when the DAC is disabled and not in the calibration mode (when bit EN1 = 0 and bit CEN1 = 0 in the DAC_CR register). If EN1 = 1 or CEN1 = 1 the write operation is ignored.

  They can be set and cleared by software to select the DAC channel1 mode:

  • – DAC channel1 in normal mode
    • 000: DAC channel1 is connected to external pin with Buffer enabled
    • 001: DAC channel1 is connected to external pin and to on chip peripherals with Buffer enabled
    • 010: DAC channel1 is connected to external pin with Buffer disabled
    • 011: DAC channel1 is connected to on chip peripherals with Buffer disabled
  • – DAC channel1 in sample & hold mode
    • 100: DAC channel1 is connected to external pin with Buffer enabled
    • 101: DAC channel1 is connected to external pin and to on chip peripherals with Buffer enabled
    • 110: DAC channel1 is connected to external pin and to on chip peripherals with Buffer disabled
    • 111: DAC channel1 is connected to on chip peripherals with Buffer disabled

Note: This register can be modified only when EN1 = 0.

22.7.17 DAC channel1 sample and hold sample time register (DAC_SHSR1)

Address offset: 0x40
Reset value: 0x0000 0000

Bits 31:10 Reserved, must be kept at reset value.

Bits 9:0 TSAMPLE1[9:0] : DAC channel1 sample time (only valid in sample and hold mode)

These bits can be written when the DAC channel1 is disabled or also during normal operation. In the latter case, the write can be done only when BWST1 of DAC_SR register is low. If BWST1 = 1, the write operation is ignored.

Note: It represents the number of LSI/LSE clocks to perform a sample phase. Sampling time = \( (TSAMPLE1[9:0] + 1) \times LSI/LSE\ clock\ period \) .

22.7.18 DAC channel2 sample and hold sample time register (DAC_SHSR2)

This register is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Address offset: 0x44

Reset value: 0x0000 0000

Bits 31:10 Reserved, must be kept at reset value.

Bits 9:0 TSAMPLE2[9:0] : DAC channel2 sample time (only valid in sample and hold mode)

These bits can be written when the DAC channel2 is disabled or also during normal operation. In the latter case, the write can be done only when BWST2 of DAC_SR register is low. If BWST2 = 1, the write operation is ignored.

Note: It represents the number of LSI/LSE clocks to perform a sample phase. Sampling time = \( (TSAMPLE1[9:0] + 1) \times LSI/LSE\ clock\ period \) .

22.7.19 DAC sample and hold time register (DAC_SHHR)

Address offset: 0x48

Reset value: 0x0001 0001

Bits 31:26 Reserved, must be kept at reset value.

Bits 25:16 THOLD2[9:0] : DAC channel2 hold time (only valid in sample and hold mode).

Hold time = (THOLD[9:0]) x LSI/LSE clock period

These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Note: This register can be modified only when EN2 = 0.

Bits 15:10 Reserved, must be kept at reset value.

Bits 9:0 THOLD1[9:0] : DAC channel1 hold time (only valid in sample and hold mode)

Hold time = (THOLD[9:0]) x LSI/LSE clock period

Note: This register can be modified only when EN1 = 0.

Note: These bits can be written only when the DAC channel is disabled and in normal operating mode (when bit ENx = 0 and bit CENx = 0 in the DAC_CR register). If ENx = 1 or CENx = 1 the write operation is ignored.

22.7.20 DAC sample and hold refresh time register (DAC_SHRR)

Address offset: 0x4C

Reset value: 0x0001 0001

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:16 TREFRESH2[7:0] : DAC channel2 refresh time (only valid in sample and hold mode)

Refresh time = (TREFRESH[7:0]) x LSI/LSE clock period

These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Note: This register can be modified only when EN2 = 0.

Bits 15:8 Reserved, must be kept at reset value.

Bits 7:0 TREFRESH1[7:0] : DAC channel1 refresh time (only valid in sample and hold mode)

Refresh time = (TREFRESH[7:0]) x LSI/LSE clock period

Note: This register can be modified only when EN1 = 0.

Note: These bits can be written only when the DAC channel is disabled and in normal operating mode (when bit ENx = 0 and bit CENx = 0 in the DAC_CR register). If ENx = 1 or CENx = 1 the write operation is ignored.

22.7.21 DAC channel1 sawtooth register (DAC_STR1)

Address offset: 0x58

Reset value: 0x0000 0000

Bits 31:16 STINCDATA1[15:0] : DAC channel1 sawtooth increment value (12.4 bit format)

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 STDIR1 : DAC channel1 sawtooth direction setting

This bit is written by software to select the direction of sawtooth step direction:

0: Decrement

1: Increment

Bits 11:0 STRSTDATA1[11:0] : DAC channel1 sawtooth reset value

22.7.22 DAC channel2 sawtooth register (DAC_STR2)

This register is available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Address offset: 0x5C

Reset value: 0x0000 0000

Bits 31:16 STINCDATA2[15:0] : DAC channel2 Sawtooth increment value (12.4 bit format)

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 STEXT2 : DAC channel2 sawtooth extended setting

0: Sawtooth reset value defined by STRSTDATA[11:0]

1: Sawtooth reset value defined by STEXTRSTDATA[15:0]

Bit 12 STDIR2 : DAC channel2 sawtooth direction setting

This bit is written by software to select the direction of sawtooth step direction

0: Decrement

1: Increment

Bits 11:0 STRSTDATA2[11:0] : DAC channel2 sawtooth reset value

22.7.23 DAC sawtooth mode register (DAC_STMODR)

Address offset: 0x60

Reset value: 0x0000 0000

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:24 STINCTRIGSEL2[3:0] : DAC channel2 sawtooth increment trigger (STINCTRIG) selection

Refer to the trigger selection tables in Section 22.4.2: DAC pins and internal signals for details on trigger configuration and mapping.

0000: SWTRIGB2

0001: dac_inc_ch2_trg1

....

1111: dac_inc_ch2_trg15

Note: These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bits 23:20 Reserved, must be kept at reset value.

Bits 19:16 STRSTTRIGSEL2[3:0] : DAC channel2 sawtooth reset trigger (STRSTTRIG) selection

Refer to the trigger selection tables in Section 22.4.2: DAC pins and internal signals for details on trigger configuration and mapping.

0000: SWTRIG2

0001: dac_ch2_trg1

....

1111: dac_ch2_trg15

The mapping is the same as for TSEL2[3:0].

Note: These bits are available only on dual-channel DACs. Refer to Section 22.3: DAC implementation .

Bits 15:12 Reserved, must be kept at reset value.

Bits 11:8 STINCTRIGSEL1[3:0] : DAC channel1 sawtooth increment trigger (STINCTRIG) selection

Refer to the trigger selection tables in Section 22.4.2: DAC pins and internal signals for details on trigger configuration and mapping.

0000: SWTRIGB1

0001: dac_inc_ch1_trg1

....

1111: dac_inc_ch1_trg15

Bits 7:4 Reserved, must be kept at reset value.

Bits 3:0 STRSTRIGSEL1[3:0] : DAC channel1 sawtooth reset trigger (STRSTRIG) selection

Refer to the trigger selection tables in Section 22.4.2: DAC pins and internal signals for details on trigger configuration and mapping.

0000: SWTRIG1

0001: dac_ch1_trg1

....

1111: dac_ch1_trg15

The mapping is the same as for TSEL1[3:0].

22.7.24 DAC register map

Table 196 summarizes the DAC registers.

Table 196. DAC register map and reset values

Table 196. DAC register map and reset values (continued)

Table 196. DAC register map and reset values (continued)
