2. System and memory overview

2.1 System architecture

The main system consists of 32-bit multilayer AHB bus matrix that interconnects:

• • Up to five masters:
  • – Cortex ^® -M4 with FPU core I-bus
  • – Cortex ^® -M4 with FPU core D-bus
  • – Cortex ^® -M4 with FPU core S-bus
  • – DMA1
  • – DMA2
• • Up to nine slaves:
  • – Internal flash memory on ICode bus
  • – Internal flash memory on DCode bus
  • – Internal SRAM1
  • – Internal SRAM2
  • – Internal CCM SRAM
  • – AHB1 peripherals including AHB to APB bridges and APB peripherals (connected to APB1 and APB2)
  • – AHB2 peripherals
  • – Flexible static memory controller (FSMC)
  • – QUAD SPI memory interface (QUADSPI)

The bus matrix provides access from a master to a slave, enabling concurrent access and efficient operation even when several high-speed peripherals work simultaneously. This architecture is shown in Figure 1 :

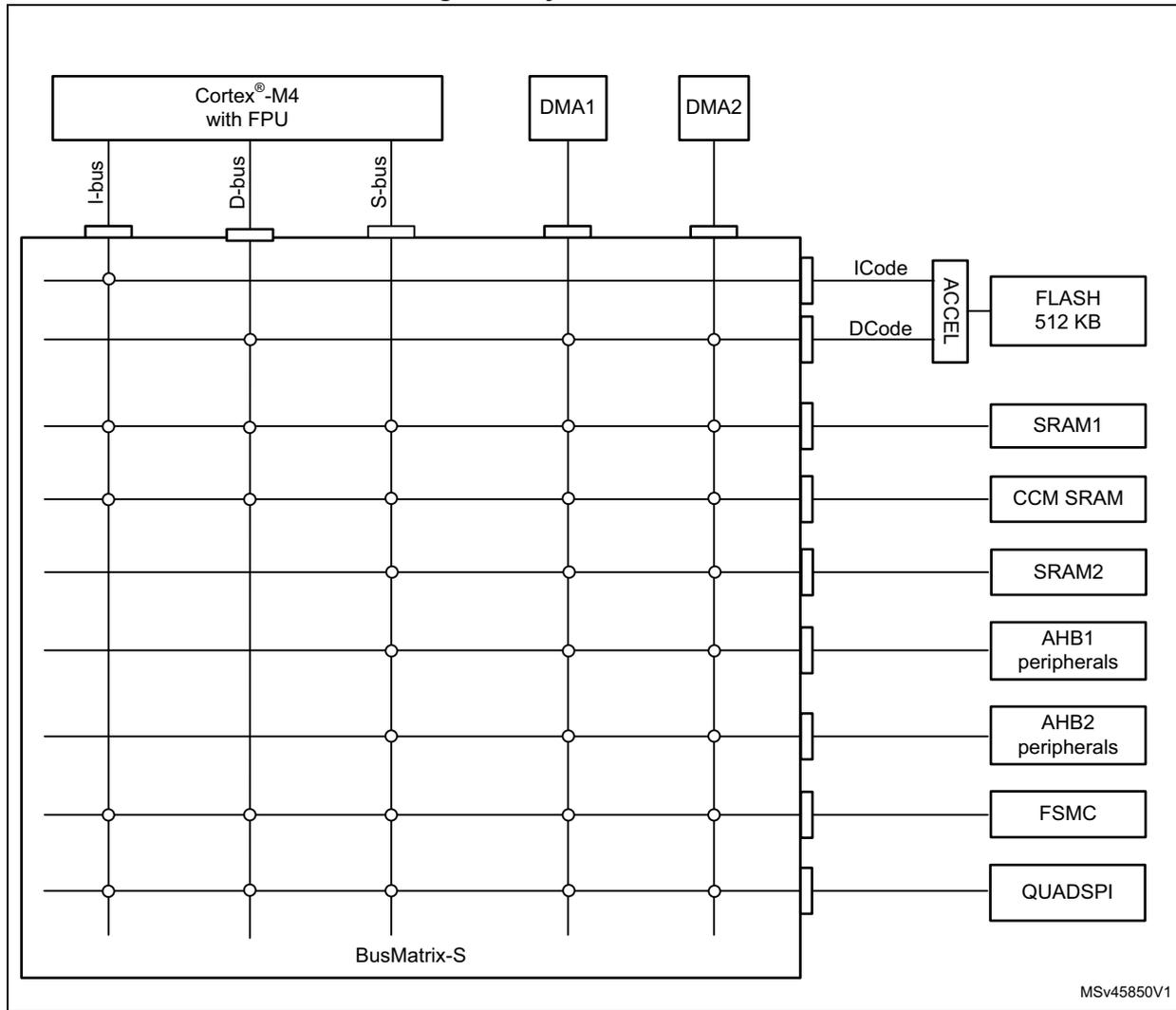

Figure 1. System architecture

2.1.1 I-bus

This bus connects the instruction bus of the Cortex ^® -M4 with FPU core to the BusMatrix. This bus is used by the core to fetch instructions. The target of this bus is a memory containing code (either internal Flash memory, internal SRAMs or external memories through the FSMC or QUADSPI).

2.1.2 D-bus

This bus connects the data bus of the Cortex ^® -M4 with FPU core to the BusMatrix. This bus is used by the core for literal load and debug access. The target of this bus is a memory containing code (either internal Flash memory, internal SRAMs or external memories through the FSMC or QUADSPI).

2.1.3 S-bus

This bus connects the system bus of the Cortex ^® -M4 with FPU core to the BusMatrix. This bus is used by the core to access data located in a peripheral or SRAM area. The targets of this bus are the internal SRAM, the AHB1 peripherals including the APB1 and APB2 peripherals, the AHB2 peripherals and the external memories through the QUADSPI or the FSMC.

The CCM SRAM is also accessible on this bus to allow continuous mapping with SRAM1 and SRAM2.

2.1.4 DMA-bus

This bus connects the AHB master interface of the DMA to the BusMatrix. The targets of this bus are the SRAM1, SRAM2 and CCM SRAM, the AHB1 peripherals including the APB1 and APB2 peripherals, the AHB2 peripherals and the external memories through the QUADSPI or the FSMC.

2.1.5 BusMatrix

The BusMatrix manages the access arbitration between masters. The arbitration uses a Round Robin algorithm. The BusMatrix is composed of up to five masters (CPU AHB, system bus, DCode bus, ICode bus, DMA1, DMA2, ) and up to nine slaves (FLASH, SRAM1, SRAM2, CCM SRAM, AHB1 (including APB1 and APB2), AHB2, QUADSPI, and FSMC).

AHB/APB bridges

The two AHB/APB bridges provide full synchronous connections between the AHB and the two APB buses, allowing flexible selection of the peripheral frequency.

Refer to Section 2.2.2: Memory map and register boundary addresses on page 83 for the address mapping of the peripherals connected to this bridge.

After each device reset, all peripheral clocks are disabled (except for the SRAM1/2 and Flash memory interface). Before using a peripheral you have to enable its clock in the RCC_AHBxENR and the RCC_APBxENR registers.

Note: When a 16- or 8-bit access is performed on an APB register, the access is transformed into a 32-bit access: the bridge duplicates the 16- or 8-bit data to feed the 32-bit vector.

2.2 Memory organization

2.2.1 Introduction

Program memory, data memory, registers and I/O ports are organized within the same linear 4-Gbyte address space.

The bytes are coded in memory in Little Endian format. The lowest numbered byte in a word is considered the word's least significant byte and the highest numbered byte the most significant.

The addressable memory space is divided into eight main blocks, of 512 Mbytes each.

2.2.2 Memory map and register boundary addresses

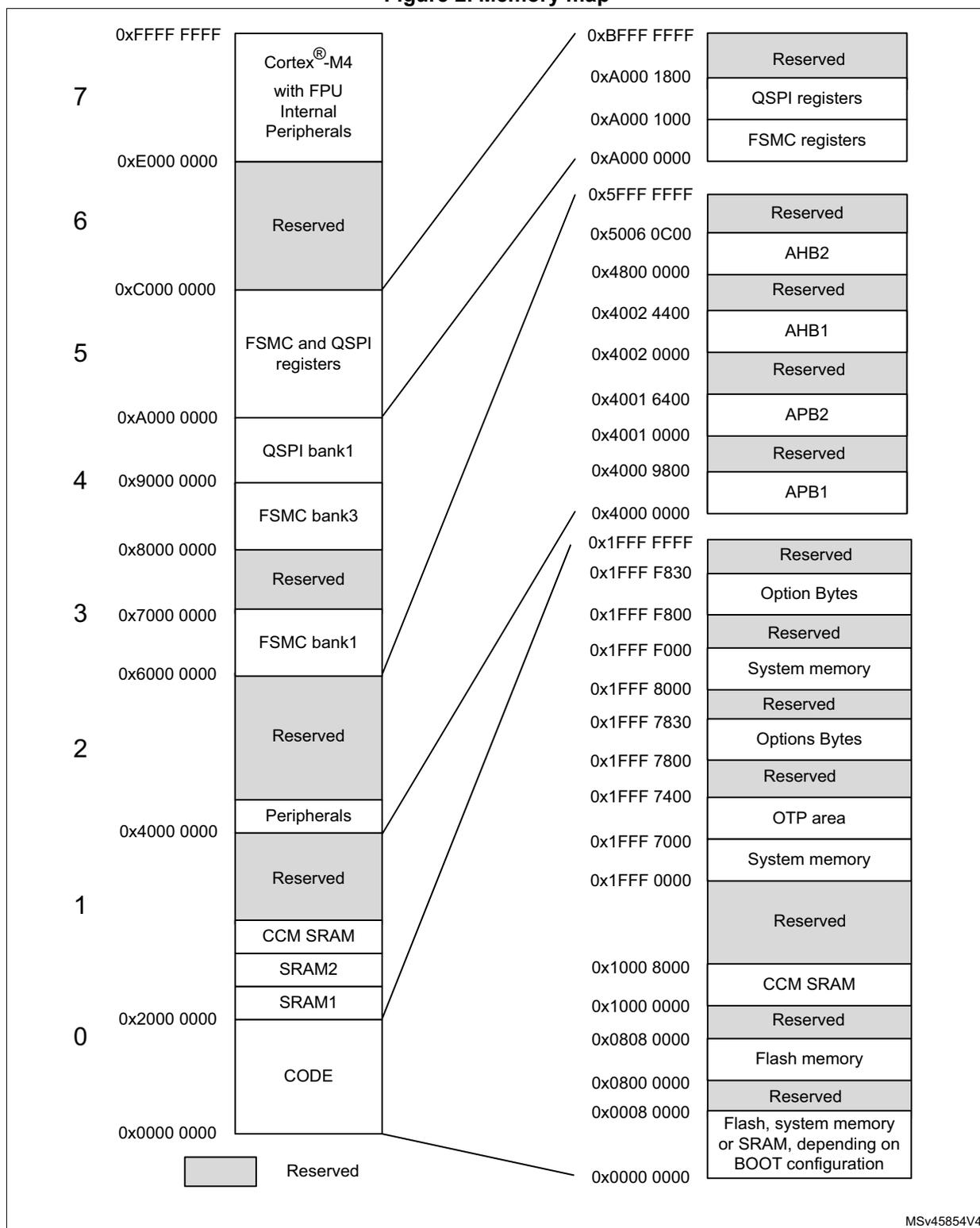

Figure 2. Memory map

MSV45854V4

All areas not allocated to on-chip memories and peripherals are considered “Reserved”. For the detailed mapping of available memory and register areas, refer to the following table.

Table 3 gives the boundary addresses of the peripherals available in the devices.

Table 3. Memory map and peripheral register boundary addresses ⁽¹⁾

1. 1. Refer to Table 1 , Table 2 , and to the device datasheets for the GPIO ports and peripherals available on your device. the memory area corresponding to unavailable GPIO ports or peripherals are reserved (highlighted in gray).

2.3 Bit banding

The Cortex ^® -M4 with FPU memory map includes two bit-band regions. These regions map each word in an alias region of memory to a bit in a bit-band region of memory. Writing to a word in the alias region has the same effect as a read-modify-write operation on the targeted bit in the bit-band region.

In the STM32G4 series devices both the peripheral registers and the SRAM are mapped to a bit-band region, so that single bit-band write and read operations are allowed. The operations are available only for Cortex ^® -M4 with FPU accesses, and not from other bus masters (such as DMA).

A mapping formula shows how to reference each word in the alias region to a corresponding bit in the bit-band region. The mapping formula is:

where:

• – bit_word_addr is the address of the word in the alias memory region that maps to the targeted bit
• – bit_band_base is the starting address of the alias region
• – byte_offset is the number of the byte in the bit-band region that contains the targeted bit
• – bit_number is the bit position (0-7) of the targeted bit

Example

The following example shows how to map bit 2 of the byte located at SRAM1 address 0x20000300 to the alias region:

Writing to address 0x22006008 has the same effect as a read-modify-write operation on bit 2 of the byte at SRAM1 address 0x20000300.

Reading address 0x22006008 returns the value (0x01 or 0x00) of bit 2 of the byte at SRAM1 address 0x20000300 (0x01: bit set; 0x00: bit reset).

2.4 Embedded SRAM

Category 3 devices feature up to 128 Kbytes SRAM:

• • 80 Kbytes SRAM1 (mapped at address 0x2000 0000)
• • 16 Kbytes SRAM2 (mapped at address 0x2001 4000)
• • 32 Kbytes CCM SRAM (mapped at address 0x1000 0000 and end of SRAM2)

Category 4 devices feature up to 112 Kbytes SRAM:

• • 80 Kbytes SRAM1 (mapped at address 0x2000 0000)
• • 16 Kbytes SRAM2 (mapped at address 0x2001 4000)
• • 16 Kbytes CCM SRAM (mapped at address 0x1000 0000 and end of SRAM2)

Category 2 devices feature up to 32 Kbytes SRAM:

• • 16 Kbytes SRAM1 (mapped at address 0x2000 0000)
• • 6 Kbytes SRAM2 (mapped at address 0x2000 4000)
• • 10 Kbytes CCM SRAM (mapped at address 0x1000 0000 and end of SRAM2)

These SRAM can be accessed as bytes, half-words (16 bits) or full words (32 bits). These memories can be addressed at maximum system clock frequency without wait state and thus by both CPU and DMA.

The CPU can access the SRAM1 through the system bus or through the ICode/DCode buses when boot from SRAM1 is selected or when physical remap is selected ( Section 10.2.1: SYSCFG memory remap register (SYSCFG_MEMRMP) in the SYSCFG controller). To get the maximum performance on SRAM1 execution, physical remap should be selected (boot or software selection).

CCM SRAM is mapped at address 0x1000 0000.

Execution can be performed from CCM SRAM with maximum performance without any remap thanks to access through ICode bus.

The CCM SRAM is aliased at address following the end of SRAM2 (0x2000 5800 for category 2 devices, 0x2001 8000 for category 3 devices, 0x2001 8000 for category 4 devices), offering a continuous address space with the SRAM1 and SRAM2. CCM can be accessed by DMA only by this aliased address.

2.4.1 Parity check

On category 3 and category 4 devices, a parity check is implemented on the first 32 Kbytes of SRAM1 and on the whole CCM SRAM.

On the category 2 devices, a parity check is implemented on the whole SRAM1 and CCM SRAM.

The user can enable the parity check using the option bit SRAM_PE in the user option byte (refer to Section 3.4.1: Option bytes description ).

The data bus width is 36 bits because 4 bits are available for parity check (1 bit per byte) in order to increase memory robustness, as required for instance by Class B or SIL norms.

The parity bits are computed and stored when writing into the SRAM. Then, they are automatically checked when reading. If one bit fails, an NMI is generated. The same error can also be linked to the BRK_IN Break input of TIM1/TIM8/TIM15/TIM16/TIM17/TIM20, and to hrtim_sys_flt with the SPL control bit in the Section 10.2.8: SYSCFG configuration register 2 (SYSCFG_CFGR2) . The SRAM parity error flag (SPF) is available in the Section 10.2.8: SYSCFG configuration register 2 (SYSCFG_CFGR2) .

Note: When enabling the SRAM parity check, it is advised to initialize by software the whole SRAM memory at the beginning of the code, to avoid getting parity errors when reading non-initialized locations.

2.4.2 CCM SRAM write protection

The CCM SRAM can be write protected with a page granularity of 1 Kbyte.

Table 4. CCM SRAM organization

1. Available only on category 3 and category 4 devices.

2. Available only on category 3 devices.

The write protection can be enabled in Section 10.2.9: SYSCFG CCM SRAM write protection register (SYSCFG_SWPR) in the SYSCFG block. This is a register with write '1' once mechanism, which means by writing '1' on a bit it sets up the write protection for that page of SRAM and it can be removed/cleared by a system reset only.

2.4.3 CCM SRAM read protection

The CCMSRAM is protected with the Read protection (RDP). Refer to Section 3.5.1: Read protection (RDP) for more details.

2.4.4 CCM SRAM erase

The CCMSRAM can be erased with a system reset using the option bit CCMSRAM_RST in the user option byte (refer to Section 3.4.1: Option bytes description ).

The CCM SRAM erase can also be requested by software by setting the bit CCMSR in the Section 10.2.7: SYSCFG CCM SRAM control and status register (SYSCFG_SCSR) .

2.5 Flash memory overview

The flash memory is composed of two distinct physical areas:

• • The main flash memory block contains the application program and user data if necessary.
• • The information block is composed of three parts:
  • – Option bytes for hardware and memory protection user configuration.
  • – System memory that contains the ST proprietary code.
  • – OTP (one-time programmable) area

The flash memory interface implements instruction access and data access based on the AHB protocol. It also implements the logic necessary to carry out the flash memory operations (program/erase) controlled through the flash memory registers. Refer to Section 3: Embedded flash memory (FLASH) for category 3 devices , Section 4: Embedded flash memory (FLASH) for category 4 devices , and Section 5: Embedded flash memory (FLASH) for category 2 devices for more details.

2.6 Boot configuration

2.6.1 Boot configuration

Three different boot modes can be selected through the BOOT0 pin or the nBOOT0 bit into the FLASH_OPTR register (if the nSWBOOT0 bit is cleared into the FLASH_OPTR register), and nBOOT1 bit in FLASH_OPTR register, as shown in Table 5 .

Table 5. Boot modes

1. When the BFB2 bit is set (for dual bank devices), the system memory remains aliased at 0x0000 0000. Aliasing system memory to 0x0000 0000 must be considered in user application - VTOR address must be remapped from default 0x0000 0000 address into real user application to properly address vector table. For further details, refer to AN2606.

The values on both BOOT0 pin (coming from the pin or the option bit) and nBOOT1 bit are latched on the 4th edge of the internal startup clock source after reset release. It is up to the user to set nBOOT1 and BOOT0 to select the required boot mode.

The BOOT0 pin or user option bit (depending on the nSWBOOT0 bit value in the FLASH_OPTR register), and nBOOT1 bit are also re-sampled when exiting from Standby mode. Consequently, they must be kept in the required Boot mode configuration in Standby mode. After this startup delay has elapsed, the CPU fetches the top-of-stack value from address 0x0000 0000, then starts code execution from the boot memory at 0x0000 0004.

Depending on the selected boot mode, main flash memory, system memory or SRAM1 is accessible as follows:

• • Boot from main flash memory: the main flash memory is aliased in the boot memory space (0x0000 0000), but still accessible from its original memory space (0x0800 0000). In other words, the flash memory contents can be accessed starting from address 0x0000 0000 or 0x0800 0000.
• • Boot from system memory: the system memory is aliased in the boot memory space (0x0000 0000), but still accessible from its original memory space (0x1FFF 0000).
• • Boot from the embedded SRAM1: the SRAM1 is aliased in the boot memory space (0x0000 0000), but it is still accessible from its original memory space (0x2000 0000).

PB8/BOOT0 GPIO is configured in:

• • Input mode during the complete reset phase if the option bit nSWBOOT0 is set into the FLASH_OPTR register and then switches automatically in analog mode after reset is released (BOOT0 pin).
• • Input mode from the reset phase to the completion of the option byte loading if the bit nSWBOOT0 is cleared into the FLASH_OPTR register (BOOT0 value coming from the option bit). It switches then automatically to the analog mode even if the reset phase is not complete.

Note: When the device boots from SRAM, in the application initialization code, you have to relocate the vector table in SRAM using the NVIC exception table and the offset register. When booting from the main flash memory, the application software can either boot from bank 1 or from bank 2 (only for category 3 devices). By default, boot from bank 1 is selected. To select boot from flash memory bank 2, set the BFB2 bit in the user option bytes. When this bit is set and the boot pins are in the boot from main flash memory configuration, the device boots from system memory, and the boot loader jumps to execute the user application programmed in flash memory bank 2. For further details, refer to AN2606. See Table 13: Access status versus protection level and execution modes for bootloader function for different RDP levels.

Forcing boot from user flash memory

Regardless the boot configuration, it is possible to force booting from a unique entry point in main flash memory.

Physical remap

Once the boot pins mode is selected, the application software can modify the memory accessible in the code area (in this way the code can be executed through the ICode bus in place of the System bus). This modification is performed by programming the SYSCFG memory remap register (SYSCFG_MEMRMP) in the SYSCFG controller.

The following memories can be remapped:

• • Main flash memory
• • System memory
• • Embedded SRAM1
• • FSMC bank 1 (NOR/PSRAM 1 and 2)
• • QUADSPI memory

Table 6. Memory mapping versus boot mode/physical remap ⁽¹⁾

1. Reserved memory area highlighted in gray.

2. When the FSMC is remapped at address 0x0000 0000, only the first two regions of bank 1 memory controller (bank 1 NOR/PSRAM 1 and NOR/PSRAM 2) can be remapped. When the FSMC is remapped at address 0x0000 0000, only 128 MB are remapped. In remap mode, the CPU can access the external memory via ICode bus instead of system bus, which boosts up the performance.

3. Even when aliased in the boot memory space, the related memory is still accessible at its original memory space.

Embedded boot loader

The embedded boot loader is located in the system memory, programmed by ST during production. Refer to AN2606 STM32 microcontroller system memory boot mode.
