11. General-purpose I/Os (GPIO)

11.1 Introduction

Each general-purpose I/O port has four 32-bit configuration registers (GPIOx_MODER, GPIOx_OTYPER, GPIOx_OSPEEDR and GPIOx_PUPDR), two 32-bit data registers (GPIOx_IDR and GPIOx_ODR) and a 32-bit set/reset register (GPIOx_BSRR). In addition all GPIOs have a 32-bit locking register (GPIOx_LCKR) and two 32-bit alternate function selection registers (GPIOx_AFRH and GPIOx_AFRL) and a secure configuration register (GPIOx_SECCFGR).

11.2 GPIO main features

• • Output states: push-pull or open drain + pull-up/down
• • Output data from output data register (GPIOx_ODR) or peripheral (alternate function output)
• • Speed selection for each I/O
• • Input states: floating, pull-up/down, analog
• • Input data to input data register (GPIOx_IDR) or peripheral (alternate function input)
• • Bit set and reset register (GPIOx_BSRR) for bitwise write access to GPIOx_ODR
• • Locking mechanism (GPIOx_LCKR) provided to freeze the I/O port configurations
• • Analog function
• • Alternate function selection registers
• • Fast toggle capable of changing every two clock cycles
• • Highly flexible pin multiplexing allows the use of I/O pins as GPIOs or as one of several peripheral functions
• • TrustZone security support

11.3 GPIO functional description

Subject to the specific hardware characteristics of each I/O port listed in the datasheet, each port bit of the general-purpose I/O (GPIO) ports can be individually configured by software in several modes:

• • Input floating
• • Input pull-up
• • Input pull-down
• • Analog
• • Output open-drain with pull-up or pull-down capability
• • Output push-pull with pull-up or pull-down capability
• • Alternate function push-pull with pull-up or pull-down capability
• • Alternate function open-drain with pull-up or pull-down capability

Each I/O port bit is freely programmable, however the I/O port registers have to be accessed as 32-bit words, half-words or bytes. The purpose of the GPIOx_BSRR register is

to allow atomic read/modify accesses to any of the GPIOx_ODR registers. In this way, there is no risk of an IRQ occurring between the read and the modify access.

Figure 37 and Figure 38 show the basic structures of a standard and a 5-Volt tolerant I/O port bit, respectively. Table 89 gives the possible port bit configurations.

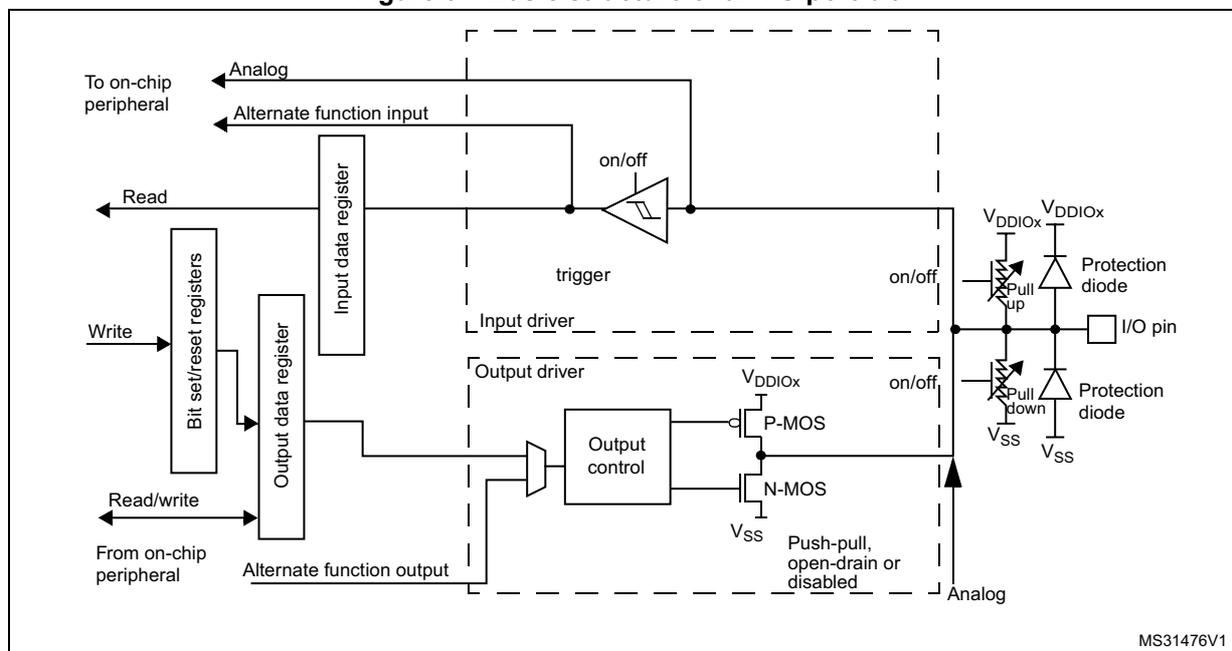

Figure 37. Basic structure of an I/O port bit

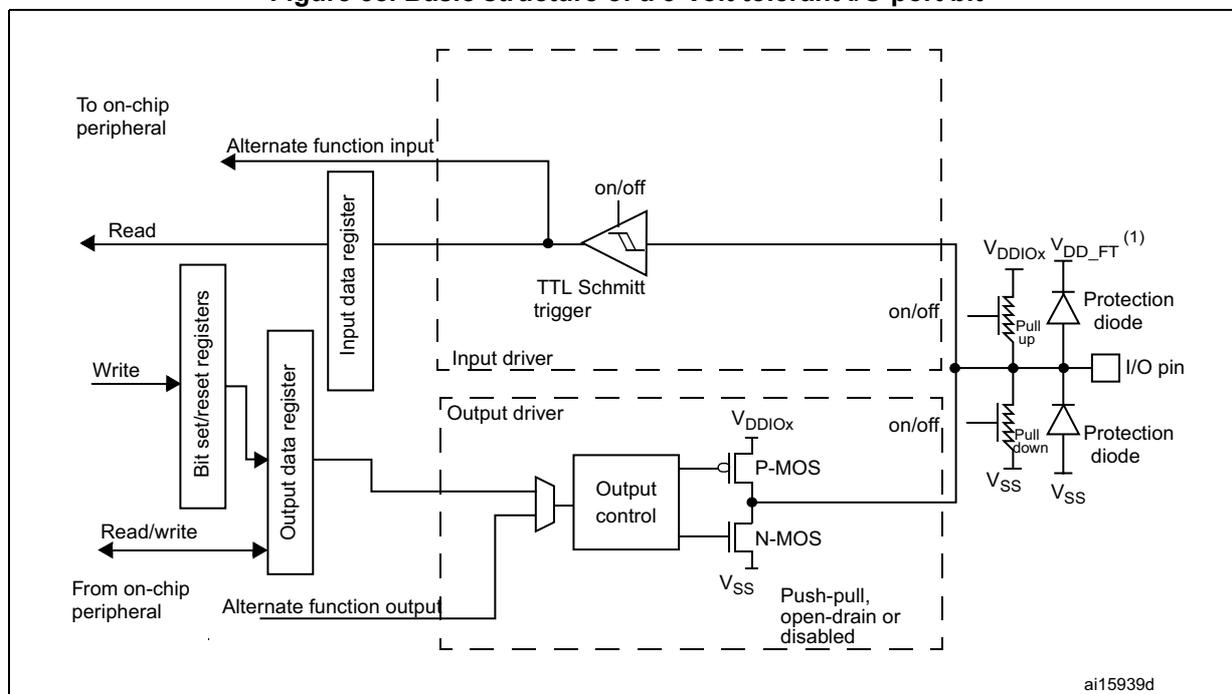

Figure 38. Basic structure of a 5-Volt tolerant I/O port bit

1. \( V_{DD\_FT} \) is a potential specific to five-volt tolerant I/Os and different from \( V_{DD} \) .

1. 1. GP = general-purpose, PP = push-pull, PU = pull-up, PD = pull-down, OD = open-drain, AF = alternate function.

11.3.1 General-purpose I/O (GPIO)

During and just after reset, the alternate functions are not active and most of the I/O ports are configured in analog mode.

The debug pins are in AF pull-up/pull-down after reset:

• • PA15: JTDI in pull-up
• • PA14: JTCK/SWCLK in pull-down
• • PA13: JTMS/SWDAT in pull-up
• • PB4: NJTRST in pull-up
• • PB3: JTDO in floating state no pull-up/pull-down

PH3/BOOT0 is in input mode during the reset until at least the end of the option byte loading phase. See Section 11.3.15: Using PH3 as GPIO .

When the pin is configured as output, the value written to the output data register (GPIOx_ODR) is output on the I/O pin. It is possible to use the output driver in push-pull mode or open-drain mode (only the low level is driven, high level is HI-Z).

The input data register (GPIOx_IDR) captures the data present on the I/O pin at every AHB clock cycle.

All GPIO pins have weak internal pull-up and pull-down resistors, which can be activated or not depending on the value in the GPIOx_PUPDR register.

11.3.2 I/O pin alternate function multiplexer and mapping

The device I/O pins are connected to on-board peripherals/modules through a multiplexer that allows only one peripheral alternate function (AF) connected to an I/O pin at a time. In this way, there can be no conflict between peripherals available on the same I/O pin.

Each I/O pin has a multiplexer with up to sixteen alternate function inputs (AF0 to AF15) that can be configured through the GPIOx_AFRL (for pin 0 to 7) and GPIOx_AFRH (for pin 8 to 15) registers:

• • After reset the multiplexer selection is alternate function 0 (AF0). The I/Os are configured in alternate function mode through GPIOx_MODER register.
• • The specific alternate function assignments for each pin are detailed in the device datasheet.

In addition to this flexible I/O multiplexing architecture, each peripheral has alternate functions mapped onto different I/O pins to optimize the number of peripherals available in smaller packages.

To use an I/O in a given configuration, the user has to proceed as follows:

• • Debug function: after each device reset these pins are assigned as alternate function pins immediately usable by the debugger host
• • GPIO: configure the desired I/O as output, input or analog in the GPIOx_MODER register.
• • Alternate function:
  • – Connect the I/O to the desired AFx in one of the GPIOx_AFRL or GPIOx_AFRH register.
  • – Select the type, pull-up/pull-down and output speed via the GPIOx_OTYPER, GPIOx_PUPDR and GPIOx_OSPEEDER registers, respectively.

• – Configure the desired I/O as an alternate function in the GPIOx_MODER register.
• – The Cortex®-M33 output EVENTOUT signal can be output as alternate function on several I/Os. An event can be signaled through the configured pin after executing SEV instruction.
• • Additional functions:
  • – For the ADC, DAC and COMP, configure the desired I/O in analog mode in the GPIOx_MODER register and configure the required function in the ADC, DAC, OPAMP and COMP registers.
    As indicated above, for the additional functions (such as DAC or OPAMP), the output is controlled by the corresponding peripheral. Care must be taken to select the I/O port analog function before enabling the additional function output in the peripheral control register.
  • – For the additional functions like RTC, WKUPx and oscillators, configure the required function in the related RTC, PWR and RCC registers. These functions have priority over the configuration in the standard GPIO registers.

Refer to the “Alternate function mapping” table in the device datasheet for the detailed mapping of the alternate function I/O pins.

11.3.3 I/O port control registers

Each of the GPIO ports has four 32-bit memory-mapped control registers (GPIOx_MODER, GPIOx_OTYPER, GPIOx_OSPEEDR, GPIOx_PUPDR) to configure up to 16 I/Os. The GPIOx_MODER register is used to select the I/O mode (input, output, AF, analog). The GPIOx_OTYPER and GPIOx_OSPEEDR registers are used to select the output type (push-pull or open-drain) and speed. The GPIOx_PUPDR register is used to select the pull-up/pull-down whatever the I/O direction.

11.3.4 I/O port data registers

Each GPIO has two 16-bit memory-mapped data registers: input and output data registers (GPIOx_IDR and GPIOx_ODR). GPIOx_ODR stores the data to be output, it is read/write accessible. The data input through the I/O are stored into the input data register (GPIOx_IDR), a read-only register.

See Section 11.6.5: GPIO port input data register (GPIOx_IDR) (x = A to H) and Section 11.6.6: GPIO port output data register (GPIOx_ODR) (x = A to H) for the register descriptions.

11.3.5 I/O data bitwise handling

The bit set reset register (GPIOx_BSRR) is a 32-bit register which allows the application to set and reset each individual bit in the output data register (GPIOx_ODR). The bit set reset register has twice the size of GPIOx_ODR.

To each bit in GPIOx_ODR, correspond two control bits in GPIOx_BSRR: BS(i) and BR(i). When written to 1, bit BS(i) sets the corresponding ODR(i) bit. When written to 1, bit BR(i) resets the ODR(i) corresponding bit.

Writing any bit to 0 in GPIOx_BSRR does not have any effect on the corresponding bit in GPIOx_ODR. If there is an attempt to both set and reset a bit in GPIOx_BSRR, the set action takes priority.

Using the GPIOx_BSRR register to change the values of individual bits in GPIOx_ODR is a “one-shot” effect that does not lock the GPIOx_ODR bits. The GPIOx_ODR bits can always be accessed directly. The GPIOx_BSRR register provides a way of performing atomic bitwise handling.

There is no need for the software to disable interrupts when programming the GPIOx_ODR at bit level: it is possible to modify one or more bits in a single atomic AHB write access.

11.3.6 GPIO locking mechanism

It is possible to freeze the GPIO control registers by applying a specific write sequence to the GPIOx_LCKR register. The frozen registers are GPIOx_MODER, GPIOx_OTYPER, GPIOx_OSPEEDR, GPIOx_PUPDR, GPIOx_AFRL and GPIOx_AFRH.

To write the GPIOx_LCKR register, a specific write / read sequence has to be applied. When the right LOCK sequence is applied to bit 16 in this register, the value of LCKR[15:0] is used to lock the configuration of the I/Os (during the write sequence the LCKR[15:0] value must be the same). When the LOCK sequence has been applied to a port bit, the value of the port bit can no longer be modified until the next MCU reset or peripheral reset. Each GPIOx_LCKR bit freezes the corresponding bit in the control registers (GPIOx_MODER, GPIOx_OTYPER, GPIOx_OSPEEDR, GPIOx_PUPDR, GPIOx_AFRL and GPIOx_AFRH).

The LOCK sequence (refer to Section 11.6.8: GPIO port configuration lock register (GPIOx_LCKR) (x = A to H) ) can only be performed using a word (32-bit long) access to the GPIOx_LCKR register due to the fact that GPIOx_LCKR bit 16 has to be set at the same time as the [15:0] bits.

For more details refer to LCKR register description in Section 11.6.8: GPIO port configuration lock register (GPIOx_LCKR) (x = A to H) .

11.3.7 I/O alternate function input/output

Two registers are provided to select one of the alternate function inputs/outputs available for each I/O. With these registers, the user can connect an alternate function to some other pin as required by the application.

This means that a number of possible peripheral functions are multiplexed on each GPIO using the GPIOx_AFRL and GPIOx_AFRH alternate function registers. The application can thus select any one of the possible functions for each I/O. The AF selection signal being common to the alternate function input and alternate function output, a single channel is selected for the alternate function input/output of a given I/O.

To know which functions are multiplexed on each GPIO pin, refer to the device datasheet.

11.3.8 External interrupt/wakeup lines

All ports have external interrupt capability. To use external interrupt lines, the port can be configured in input, output or alternate function mode (the port must not be configured in analog mode).

Refer to Section 17: Extended interrupts and event controller (EXTI) .

11.3.9 Input configuration

When the I/O port is programmed as input:

• • The output buffer is disabled
• • The Schmitt trigger input is activated
• • The pull-up and pull-down resistors are activated depending on the value in the GPIOx_PUPDR register
• • The data present on the I/O pin are sampled into the input data register every AHB clock cycle
• • A read access to the input data register provides the I/O state

Figure 39 shows the input configuration of the I/O port bit.

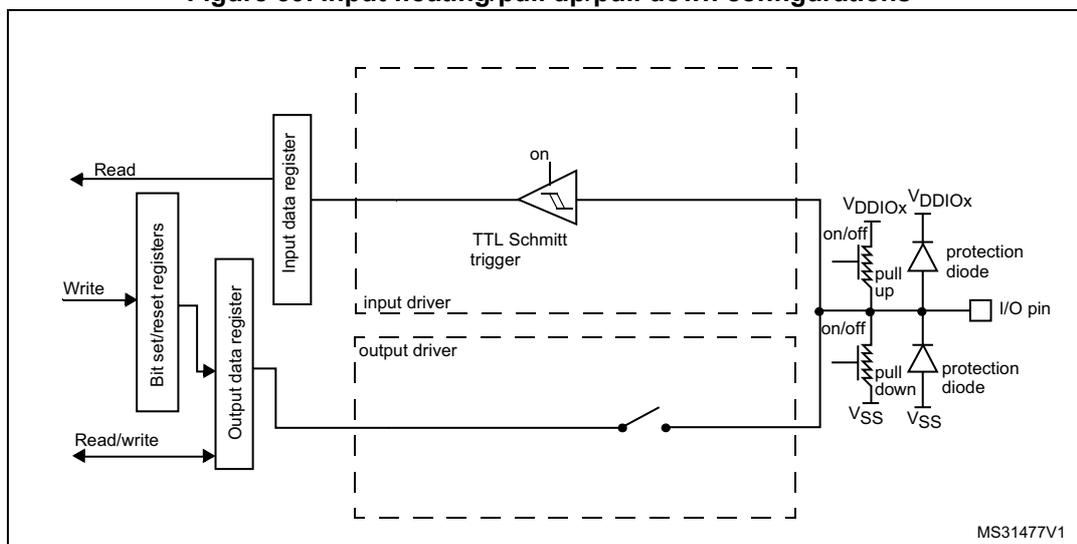

Figure 39. Input floating/pull up/pull down configurations

11.3.10 Output configuration

When the I/O port is programmed as output:

• • The output buffer is enabled:
  • – Open drain mode: A “0” in the Output register activates the N-MOS whereas a “1” in the Output register leaves the port in Hi-Z (the P-MOS is never activated)
  • – Push-pull mode: A “0” in the Output register activates the N-MOS whereas a “1” in the Output register activates the P-MOS
• • The Schmitt trigger input is activated
• • The pull-up and pull-down resistors are activated depending on the value in the GPIOx_PUPDR register
• • The data present on the I/O pin are sampled into the input data register every AHB clock cycle
• • A read access to the input data register gets the I/O state
• • A read access to the output data register gets the last written value

Figure 40 shows the output configuration of the I/O port bit.

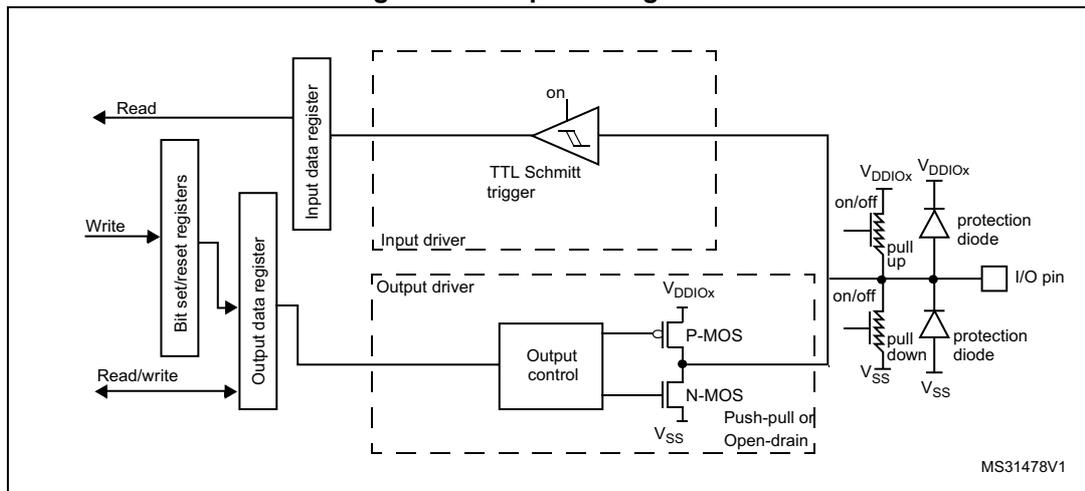

Figure 40. Output configuration

11.3.11 Alternate function configuration

When the I/O port is programmed as alternate function:

• • The output buffer can be configured in open-drain or push-pull mode
• • The output buffer is driven by the signals coming from the peripheral (transmitter enable and data)
• • The Schmitt trigger input is activated
• • The weak pull-up and pull-down resistors are activated or not depending on the value in the GPIOx_PUPDR register
• • The data present on the I/O pin are sampled into the input data register every AHB clock cycle
• • A read access to the input data register gets the I/O state

Figure 41 shows the Alternate function configuration of the I/O port bit.

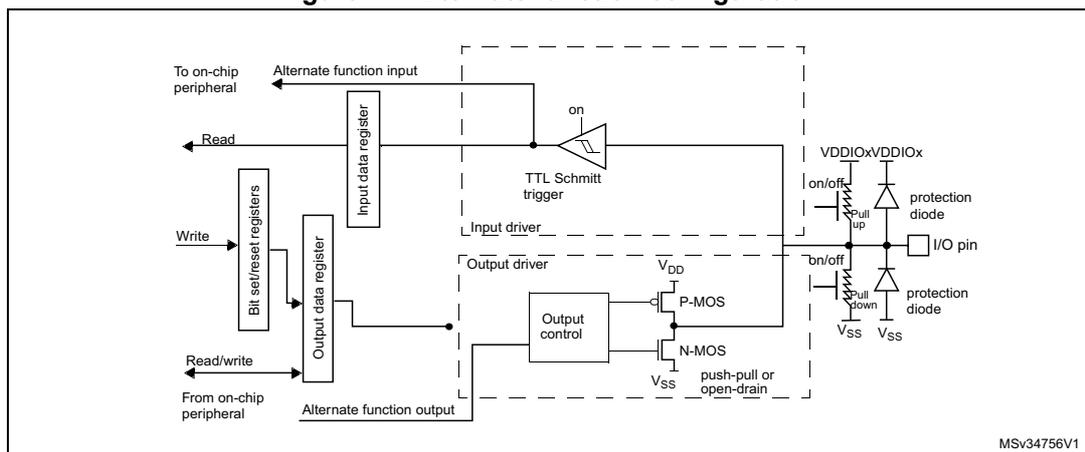

Figure 41. Alternate function configuration

11.3.12 Analog configuration

When the I/O port is programmed as analog configuration:

• • The output buffer is disabled
• • The Schmitt trigger input is deactivated, providing zero consumption for every analog value of the I/O pin. The output of the Schmitt trigger is forced to a constant value (0).
• • The weak pull-up and pull-down resistors are disabled by hardware
• • Read access to the input data register gets the value “0”

Figure 42 shows the high-impedance, analog-input configuration of the I/O port bits.

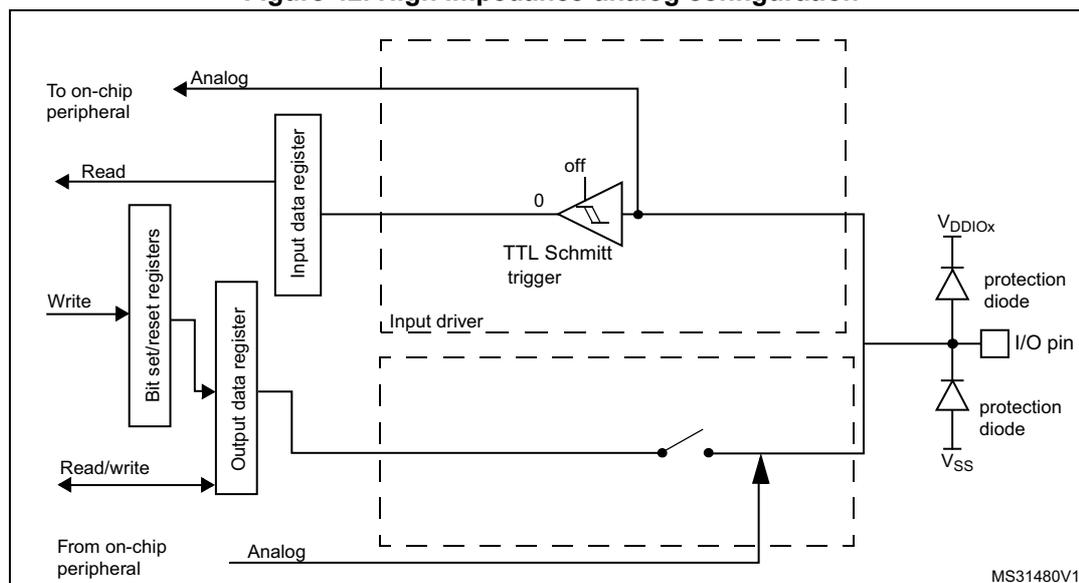

Figure 42. High impedance-analog configuration

11.3.13 Using the HSE or LSE oscillator pins as GPIOs

When the HSE or LSE oscillator is switched OFF (default state after reset), the related oscillator pins can be used as normal GPIOs.

When the HSE or LSE oscillator is switched ON (by setting the HSEON or LSEON bit in the RCC_CSR register) the oscillator takes control of its associated pins and the GPIO configuration of these pins has no effect.

When the oscillator is configured in a user external clock mode, only the pin is reserved for clock input and the OSC_OUT or OSC32_OUT pin can still be used as normal GPIO.

11.3.14 Using the GPIO pins in the RTC supply domain

The PC13/PC14/PC15 GPIO functionality is lost when the core supply domain is powered off (when the device enters Standby mode). In this case, if their GPIO configuration is not bypassed by the RTC configuration, these pins are set in an analog input mode.

For details about I/O control by the RTC, refer to Section 41.3: RTC functional description .

11.3.15 Using PH3 as GPIO

PH3 may be used as boot pin (BOOT0) or as a GPIO. Depending on the nSWBOOT0 bit in the user option byte, it switches from the input mode to the analog input mode:

• • After the option byte loading phase if nSWBOOT0 = 1.
• • After reset if nSWBOOT0 = 0.

11.4 TrustZone security

The TrustZone security is activated by the TZEN option bit in the FLASH_OPTR. When the TrustZone is active (TZEN=1), each I/O pin of GPIO port can be individually configured as secure through the GPIOx_SECCFGR register.

When the selected I/O pin is configured as secure, its corresponding configuration bits for alternate function, mode selection, I/O data are secure against a non-secure access. In case of non-secure access, these bits are RAZ/WI.

The I/Os with peripherals functions are also conditioned by the peripheral security configuration:

• • For peripherals for which the I/O pin selection is done through alternate functions registers: if the peripheral is configured as secure, it cannot be connected to a non-secure I/O pin. If this is not respected, the input data to the secure peripheral is forced to '0' (I/O input pin value is ignored) and the output pin value is forced to '0', thus avoiding any secure information leak through non-secure I/Os.
• • For I/Os with analog switches, directly controlled by peripherals (such as ADC for instance): If the I/O is secure, the I/O analog switch cannot be controlled by a non-secure peripheral. If this is not respected, the switch would remain open. This prevent the redirection of secure data to a non-secure peripheral or I/O through analog path.
• • Some of the paths between I/Os additional functions mainly and peripherals are not blocked if the I/O is secure and the peripheral is non-secure. Therefore it is recommended to configure those peripherals as secure even when not used by the application. When the path has a security control, it follows the same rule as I/O selection through alternate functions.
• • Refer to the device pins definition table in datasheet for more information about peripherals alternate functions and additional functions mapping.

After reset, all GPIO ports are secure.

Table 90 gives a summary of the I/O port secured bits following the security configuration bit in the GPIO_SECCFGR register. When the I/O bit port is configured as secure:

• • Secured bits: read and write operations are only allowed by a secure access. Non-secure read or write accesses on secured bits are RAZ/WI. There is no illegal access event generated.
• • Non-secure bits: no restriction. Read and write operations are allowed by both secure and non-secure accesses.

When the TrustZone security is disabled (TZEN = 0 in FLASH_OPTR register), all registers bits are non-secure. The GPIOx_SECCFGR register is RAZ/WI.

Table 90. GPIO secured bits

Note: GPIOx, x= A..H , and y=0..15

11.5 Privileged and Unprivileged modes

All GPIO registers can be read and written by privileged and unprivileged accesses, whatever the security state (secure or non-secure).

11.6 GPIO registers

This section gives a detailed description of the GPIO registers.

For a summary of register bits, register address offsets and reset values, refer to Table 91 .

The peripheral registers can be written in word, half word or byte mode.

11.6.1 GPIO port mode register (GPIOx_MODER)
(x = A to H)

Address offset: 0x00

Reset value: 0xABFF FFFF (for port A)

Reset value: 0xFFFF FEBF (for port B)

Reset value: 0xFFFF FFFF (for ports C..G)

Reset value: 0x0000 000F (for port H)

Bits 31:0 MODE[15:0][1:0] : Port x configuration I/O pin y (y = 15 to 0)

These bits are written by software to configure the I/O mode.

00: Input mode

01: General purpose output mode

10: Alternate function mode

11: Analog mode (reset state)

11.6.2 GPIO port output type register (GPIOx_OTYPER)
(x = A to H)

Address offset: 0x04

Reset value: 0x0000 0000

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 OT[15:0] : Port x configuration I/O pin y (y = 15 to 0)

These bits are written by software to configure the I/O output type.

0: Output push-pull (reset state)
1: Output open-drain

11.6.3 GPIO port output speed register (GPIOx_OSPEEDR)
(x = A to H)

Address offset: 0x08

Reset value: 0x0C00 0000 (for port A)

Reset value: 0x0000 0000 (for the other ports)

Bits 31:0 OSPEED[15:0][1:0] : Port x configuration I/O pin y (y = 15 to 0)

These bits are written by software to configure the I/O output speed.

• 00: Low speed
• 01: Medium speed
• 10: High speed ⁽¹⁾
• 11: Very high speed ⁽¹⁾

Note: Refer to the device datasheet for the frequency specifications and the power supply and load conditions for each speed..

1. Not available for FT_c IOs.

11.6.4 GPIO port pull-up/pull-down register (GPIOx_PUPDR)
(x = A to H)

Address offset: 0x0C

Reset value: 0x6400 0000 (for port A)

Reset value: 0x0000 0100 (for port B)

Reset value: 0x0000 0000 (for other ports)

Bits 31:0 PUPD[15:0][1:0] : Port x configuration I/O pin y (y = 15 to 0)

These bits are written by software to configure the I/O pull-up or pull-down

00: No pull-up, pull-down

01: Pull-up

10: Pull-down

11: Reserved

11.6.5 GPIO port input data register (GPIOx_IDR)
(x = A to H)

Address offset: 0x10

Reset value: 0x0000 XXXX

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 ID[15:0] : Port x input data I/O pin y (y = 15 to 0)

These bits are read-only. They contain the input value of the corresponding I/O port.

11.6.6 GPIO port output data register (GPIOx_ODR)
(x = A to H)

Address offset: 0x14

Reset value: 0x0000 0000

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 OD[15:0] : Port output data I/O pin y (y = 15 to 0)

These bits can be read and written by software.

Note: For atomic bit set/reset, the OD bits can be individually set and/or reset by writing to the GPIOx_BSRR register (x = A to H).

11.6.7 GPIO port bit set/reset register (GPIOx_BSRR)
(x = A to H)

Address offset: 0x18

Reset value: 0x0000 0000

Bits 31:16 BR[15:0] : Port x reset I/O pin y (y = 15 to 0)

These bits are write-only. A read to these bits returns the value 0x0000.

0: No action on the corresponding ODx bit

1: Resets the corresponding ODx bit

Note: If both BSx and BRx are set, BSx has priority.

Bits 15:0 BS[15:0] : Port x set I/O pin y (y = 15 to 0)

These bits are write-only. A read to these bits returns the value 0x0000.

0: No action on the corresponding ODx bit

1: Sets the corresponding ODx bit

11.6.8 GPIO port configuration lock register (GPIOx_LCKR)
(x = A to H)

This register is used to lock the configuration of the port bits when a correct write sequence is applied to bit 16 (LCKK). The value of bits [15:0] is used to lock the configuration of the GPIO. During the write sequence, the value of LCKR[15:0] must not change. When the LOCK sequence has been applied on a port bit, the value of this port bit can no longer be modified until the next MCU reset or peripheral reset.

Note: A specific write sequence is used to write to the GPIOx_LCKR register. Only word access (32-bit long) is allowed during this locking sequence.

Each lock bit freezes a specific configuration register (control and alternate function registers).

Address offset: 0x1C

Reset value: 0x0000 0000

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 LCKK : Lock key

This bit can be read any time. It can only be modified using the lock key write sequence.

0: Port configuration lock key not active

1: Port configuration lock key active. The GPIOx_LCKR register is locked until the next MCU reset or peripheral reset.

LOCK key write sequence:

WR LCKR[16] = '1' + LCKR[15:0]
WR LCKR[16] = '0' + LCKR[15:0]
WR LCKR[16] = '1' + LCKR[15:0]
RD LCKR
RD LCKR[16] = '1' (this read operation is optional but it confirms that the lock is active)

Note: During the LOCK key write sequence, the value of LCK[15:0] must not change.

Any error in the lock sequence aborts the lock.

After the first lock sequence on any bit of the port, any read access on the LCKK bit returns '1' until the next MCU reset or peripheral reset.

Bits 15:0 LCK[15:0] : Port x lock I/O pin y (y = 15 to 0)

These bits are read/write but can only be written when the LCKK bit is '0'.

0: Port configuration not locked

1: Port configuration locked

11.6.9 GPIO alternate function low register (GPIOx_AFRL)
(x = A to H)

Address offset: 0x20

Reset value: 0x0000 0000

Bits 31:0 AFSEL[7:0][3:0] : Alternate function selection for port x I/O pin y (y = 7 to 0)

These bits are written by software to configure alternate function I/Os.

0000: AF0
0001: AF1
0010: AF2
0011: AF3
0100: AF4
0101: AF5
0110: AF6
0111: AF7
1000: AF8
1001: AF9
1010: AF10
1011: AF11
1100: AF12
1101: AF13
1110: AF14
1111: AF15

11.6.10 GPIO alternate function high register (GPIOx_AFRH)
(x = A to H)

Address offset: 0x24

Reset value: 0x0000 0000

Bits 31:0 AFSEL[15:8][3:0] : Alternate function selection for port x I/O pin y (y = 15 to 8)

These bits are written by software to configure alternate function I/Os.

0000: AF0
0001: AF1
0010: AF2
0011: AF3
0100: AF4
0101: AF5
0110: AF6
0111: AF7
1000: AF8
1001: AF9
1010: AF10
1011: AF11
1100: AF12
1101: AF13
1110: AF14
1111: AF15

11.6.11 GPIO port bit reset register (GPIOx_BRR) (x = A to H)

Address offset: 0x28

Reset value: 0x0000 0000

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 BR[15:0] : Port x reset IO pin y (y = 15 to 0)

These bits are write-only. A read to these bits returns the value 0x0000.

0: No action on the corresponding ODx bit

1: Reset the corresponding ODx bit

11.6.12 GPIO secure configuration register (GPIOx_SECCFGR) (x = A to H)

When the system is secure (TZEN = 1), this register provides write access security and can be written only by a secure access. It is used to configure a selected I/O as secure. A non-secure write access to this register is discarded. A non-secure read is possible, and thus provides visibility on secured I/O pins on the GPIO port.

When the system is not secure (TZEN = 0), this register is WI and its content has no effect.

Address offset: 0x30

Reset value: 0x0000 FFFF (A to G) and 0x0000 000B (H)

Note: Bits are “rw” when TZEN = 1.

Bits 31:16 Reserved

Bits 15:0 SEC[15:0] : I/O pin of Port x secure bit enable y (y= 0..15)

These bits are written by software to enable the security I/O port pin.

0: The I/O pin is non-secure

1: The I/O pin is secure. Refer to Table 90 for all corresponding secured bits.

11.6.13 GPIO register map

The following table gives the GPIO register map and reset values.

Table 91. GPIO register map and reset values

Table 91. GPIO register map and reset values (continued)

Refer to Section 2.3 on page 86 for the register boundary addresses.
