6. Reset and clock control (RCC)

6.1 Reset

There are three types of reset, namely:

1. 1. a system reset
2. 2. a power reset
3. 3. a backup domain reset

6.1.1 Power reset

A power reset is generated when one of the following events occurs:

1. 1. a brown-out reset (BOR)
2. 2. when exiting from Standby mode
3. 3. when exiting from Shutdown mode

A brown-out reset, including power-on or power-down reset (POR/PDR), sets all registers to their reset values except the Backup domain.

When exiting Standby mode, all registers in the \( V_{CORE} \) domain are set to their reset value. Registers outside the \( V_{CORE} \) domain (RTC, WKUP, IWDG, and Standby/Shutdown modes control) are not impacted.

When exiting Shutdown mode, a Brown-out reset is generated, resetting all registers except those in the Backup domain.

6.1.2 System reset

A system reset sets all registers to their reset values, unless specified otherwise in the register description.

A system reset is generated when one of the following events occurs:

1. 1. A low level on the NRST pin (external reset)
2. 2. Window watchdog event (WWDG reset)
3. 3. Independent watchdog event (IWDG reset)
4. 4. A software (SW) reset (see Software reset )
5. 5. Low-power mode security reset (see Low-power mode security reset )
6. 6. Option byte loader reset (see Option byte loader reset )
7. 7. A brown-out reset

The reset source can be identified by checking the reset flags in the RCC control/status register (RCC_CSR) .

These sources act on the NRST pin, always kept low during the delay phase. The CPU1 RESET service routine vector is selected via the BOOT0 and BOOT1.

The system reset signal provided to the device is output on the NRST pin. The pulse generator guarantees a minimum reset pulse duration of 20 µs for each internal reset source. In case of an external reset, the reset pulse is generated while the NRST pin is asserted low.

In case of an internal reset, the internal pull-up \( R_{PU} \) is deactivated to reduce power consumption through the pull-up resistor.

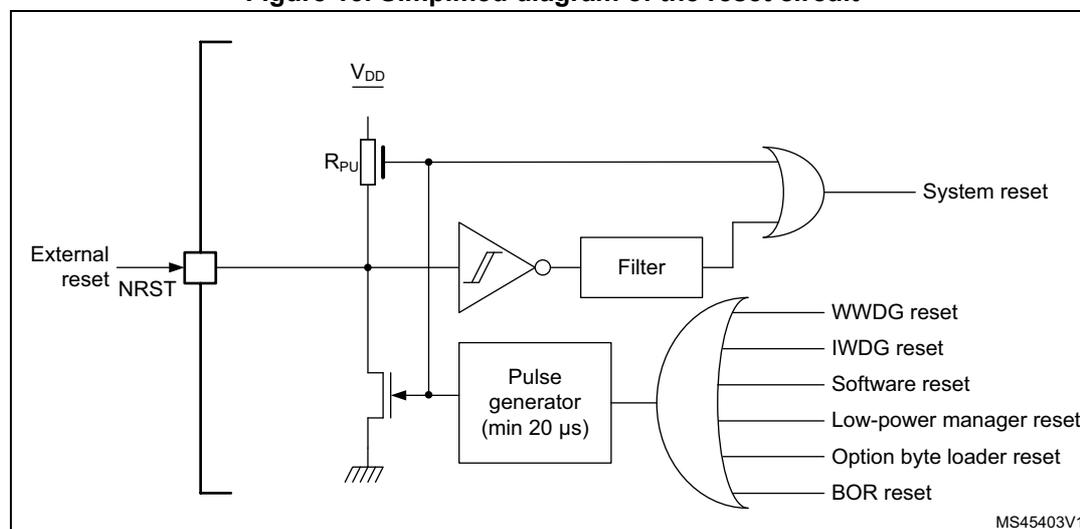

Figure 13. Simplified diagram of the reset circuit

Software reset

The SYSRESETREQ bit in CPU1 application interrupt and reset control register may be set to force a software reset on the device (refer to PM0214 “ STM32 Cortex®-M4 MCUs and MPUs programming manual ”, available on www.st.com ).

The SYSRESETREQ bit in CPU2 application interrupt and reset control register may be set to force a software reset on the device.

Low-power mode security reset

To prevent that critical applications enter a low-power mode by mistake, two low-power mode security resets are available. If enabled in option bytes, the resets are generated in the following conditions:

1. 1. When entering Standby mode: reset is enabled by resetting nRST_STDBY bit in User option Bytes. In this case, whenever a Standby mode entry sequence is successfully executed, the device is reset instead of entering Standby mode.
2. 2. When entering Stop mode: reset is enabled by resetting nRST_STOP bit in User option bytes. In this case, whenever a Stop mode entry sequence is successfully executed, the device is reset instead of entering Stop mode.
3. 3. When entering Shutdown mode: reset is enabled by resetting nRST_SHDW bit in User option bytes. In this case, whenever a Shutdown mode entry sequence is successfully executed, the device is reset instead of entering Shutdown mode.

For further information on the User option bytes refer to Section 3.4.1: Option bytes description .

Option byte loader reset

The option byte loader reset is generated when the OBL_LAUNCH bit is set in the FLASH_CR register. This bit is used to launch the option byte loading by software.

6.1.3 Backup domain reset

The backup domain has two specific resets.

A backup domain reset is generated when one of the following events occurs:

1. 1. Software reset, triggered by setting the BDRST bit in the RCC backup domain control register (RCC_BDCR) .
2. 2. \( V_{DD} \) or \( V_{BAT} \) power on, if both supplies have previously been powered off.

A backup domain reset only affects the LSE oscillator, the RTC, the Backup registers and the RCC Backup domain control register.

6.2 Clocks

Four different clock sources can be used to drive the system clock (SYSCLK):

• • HSI16 (high speed internal) 16 MHz RC oscillator clock
• • MSI (multispeed internal) RC oscillator clock from 100 kHz to 48 MHz.
• • HSE 32 MHz oscillator clock
• • PLL clock

The MSI is used as system clock source after startup from Reset, configured at 4 MHz.

The devices have the following additional clock sources:

• • LSI1: 32 kHz low speed internal RC, which may drive the independent watchdog and optionally the RTC used for Auto-wake-up from Stop and Standby modes (do not use for RF system Auto-wake-up).
• • LSI2: 32 kHz low speed low drift internal RC, which may drive the independent watchdog and optionally the RTC used for Auto-wake-up from Stop and Standby modes.
• • LSE: 32.768 kHz low speed external crystal, which optionally drives the RTC used for Auto-wake-up or the RF system Auto-wake-up from Stop and Standby modes, or the real-time clock (RTCCLK).
• • HSI48: RC 48 MHz internal clock sources to potentially drive the USB Full Speed and the true RNG.

Each clock source can be switched on or off independently when it is not used, to optimize power consumption.

Several prescalers can be used to configure the AHB frequencies (HCLK1, HCLK2 and HCLK4) the high speed APB (PCLK2) and the low speed APB (PCLK1) domains. The maximum frequency of the AHB (HCLK1 and HCLK4), and of the PCLK1 and PCLK2 domains is 64 MHz. The maximum frequency of the AHB (HCLK2) domain is 32 MHz.

Most peripheral clocks are derived from their bus clock (HCLK, PCLK) except:

• • The 48 MHz clock, used for USB FS and true RNG. This clock is derived (selected by software) from one of the following sources:
  • – PLL VCO (PLLQCLK only available in Run mode)
  • – PLLSAI1 VCO (PLLSAI1QCLK only available in Run mode)
  • – MSI clock (only available in Run mode)
  • – HSI48 internal oscillator (only available in Run mode)

When the MSI clock is auto-trimmed with the LSE, it can be used by the USB FS device.

The HSI48 clock can be coupled to the clock recovery system allowing adequate clock connection for the USB FS (crystal less solution).

• • The ADCs clock, which is derived (selected by software) from one of the three following sources:
  • – system clock (SYSCLK only available in Run mode)
  • – PLL VCO (PLLAPCLK only available in Run mode)
  • – PLLSAI1 VCO (PLLSAI1RCLK only available in Run mode)
• • The U(S)ARTs clocks, which are derived (selected by software) from one of the four following sources:
  • – system clock (SYSCLK only available in Run mode)
  • – HSI16 clock (only available in Run and Stop modes)
  • – LSE clock ( only available in Run and Stop modes)
  • – APB clock (PCLK depending on which APB is mapped the U(S)ART only available in CRun when enabled in U(S)ARTxEN and CSleep when also enabled in U(S)ARTxSMEN)

The wake-up from Stop mode is supported only when the clock is HSI16 or LSE.

• • The I ² Cs clocks, derived (selected by software) from one of the three following sources:
  • – system clock (SYSCLK only available in Run mode)
  • – HSI16 clock (only available in Run and Stop modes)
  • – APB clock (PCLK depending on which APB is mapped the I ² C only available in CRun when enabled in I2CxEN and CSleep when also enabled in I2CxSMEN)

The wake-up from Stop mode is supported only when the clock is HSI.

• • The SAI1 clock, which is derived (selected by software) from one of the following sources:
  • – an external clock mapped on SAI1_EXTCLK for SAI1.
  • – PLL VCO (PLLPCLK only available in Run mode)
  • – PLLSAI1 VCO (PLLSAI1PCLK only available in Run mode)
  • – HSI16 clock (only available in Run mode)

The SAI1 can use the HSI16 clock when it is master just to detect an audio activity on the data line, in reception mode. Potentially, it allows to reduce power consumption without having to switch ON the PLL when there is no audio data flow in reception.

• • The low-power timer (LPTIMx) clocks, which are derived (selected by software) from one of the five following sources:
  • – LSI clock (LSI1 or LSI2 only available in Run and Stop modes)

• – LSE clock (only available in Run and Stop modes)
• – HSI16 clock (only available in Run mode)
• – APB clock (PCLK depending on which APB is mapped the LPTIMx only available in CRun when enabled in LPTIMxEN and CSleep when also enabled in LPTIMxSMEN)
• – External clock mapped on LPTIMx_IN1 (only available in Run and Stop modes)
  The functionality in Stop mode (including wake-up) is supported only when the clock is LSI or LSE, or in external clock mode.
• • The RTC and LCD clock, which is derived (selected by software) from one of the three following sources:
  • – LSE clock
  • – LSI clock (LSI1 or LSI2)
  • – HSE clock divided by 32

  The functionality in Stop mode (including wake-up) is supported only when the clock is LSI or LSE.
• • The IWDG clock, which is always the LSI clock (LSI1 or LSI2).
• • The RF system wake-up clock, which is derived (selected by software) from one of the two following sources:
  • – LSE clock
  • – HSE clock divided by 1024

  The functionality in Stop mode (including wake-up) is supported only when the clock is LSE. When HSE/1024 is selected as RF system wake-up source HSEON bit must be set by the application.
• • The RF system clock is derived (selected by hardware) from one of the two following sources:
  • – HSI16 clock
  • – HSE clock

  The functionality in Stop mode is supported only when the clock is HSI16 is selected as wake-up clock by STOPWUCK.

The RCC feeds the CPU1 system timer (SysTick) external clock with the AHB clock (HCLK1) divided by 8. The SysTick can work either with this clock or directly with the CPU1 clock (HCLK1), configurable in the SysTick Control and status register.

FCLK1 acts as CPU1 free-running clock. For more details refer to PM0214.

The RCC feeds the CPU2 system timer (SysTick) external clock with the AHB clock (HCLK2) divided by 8. The SysTick can work either with this clock or directly with the CPU2 clock (HCLK2), configurable in the SysTick Control and status Register.

FCLK2 acts as CPU2 free-running clock.

The clock tree is detailed in Figure 14 , where blue is used for system clock, synchronous clock for CPUs and shared buses, and red is used for asynchronous Radio peripheral bus clock.

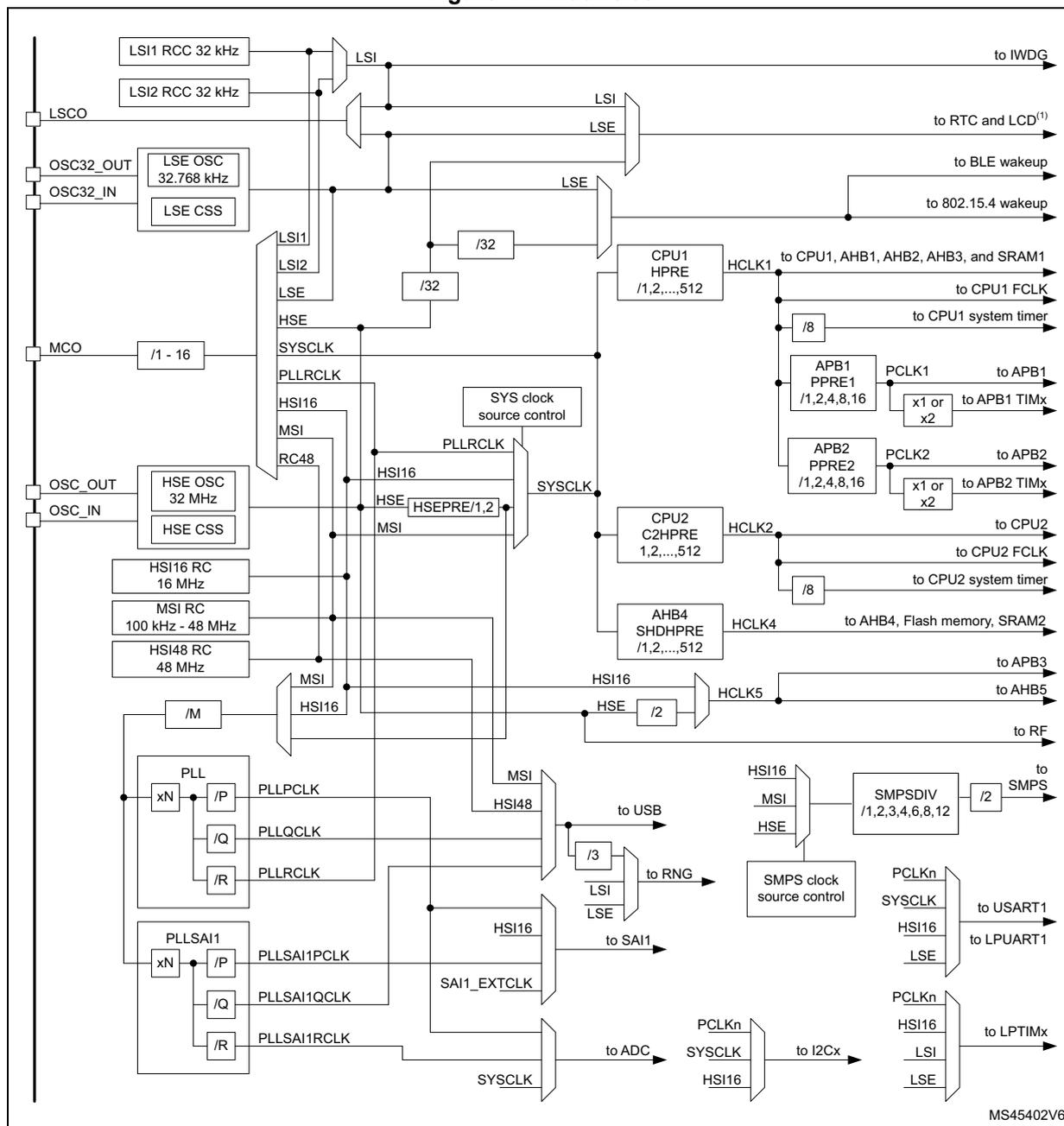

Figure 14. Clock tree

1. 1. LCD is available only on STM32WB55xx devices.
2. 2. For full details about the internal and external clock source characteristics refer to the “Electrical characteristics” section in the device datasheet.
3. 3. The ADC clock can be derived from the AHB clock of the ADC bus interface, divided by a programmable factor (1, 2 or 4). When the programmable factor is 1, the AHB prescaler must be equal to 1.

6.2.1 HSE clock

The high speed external clock signal (HSE) can be generated from two possible clock sources (see Figure 15 ):

• • HSE external crystal
• • HSE user external clock

The crystal has to be placed as close as possible to the oscillator pins to minimize output distortion and startup stabilization time. The loading capacitance are integrated and can be adjusted according to Frequency tuning .

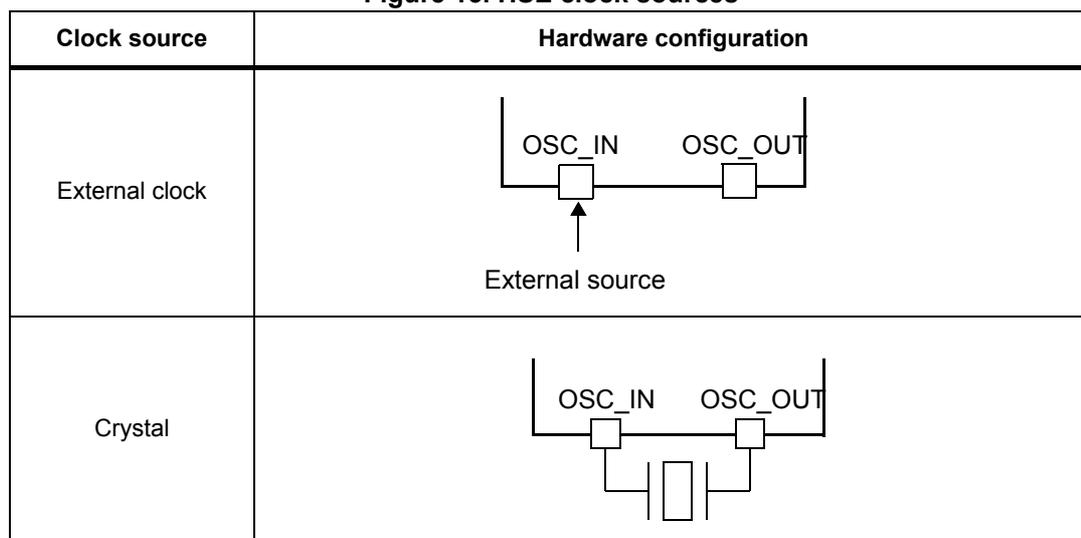

Figure 15. HSE clock sources

External crystal (HSE crystal)

The 32 MHz external oscillator has the advantage of producing a very accurate rate on the main clock, and is mandatory for any Radio operation.

The associated hardware configuration is shown in Figure 15 . Refer to the electrical characteristics section of the datasheet for more details.

The HSERDY flag in the RCC clock control register (RCC_CR) indicates if the HSE oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt enable register (RCC_CIER) .

The HSE Crystal can be switched on and off using the HSEON bit in the RCC clock control register (RCC_CR) .

External source

In this mode, selectable by setting the HSEON bit in the RCC clock control register (RCC_CR) , an external clock source must be provided, with a frequency of 32 MHz. The external clock signal (sinus) with ~45 to 55 % duty cycle (refer to the datasheet ) has to drive the OSC_IN pin, while the OSC_OUT pin must be left not connected (see Figure 15 ).

Note: For details on pin availability, refer to the pinout section in the corresponding device datasheet .

Frequency tuning

The HSE oscillator frequency can vary from one chip to another due to manufacturing process variations and used crystal. User can tune the HSE frequency in the application by writing the HSETUNE bits in RCC clock HSE register (RCC_HSECR) . The HSE frequency can be measured by outputting the HSE clock on the MCO.

HSE oscillator gain and sense can be controlled by HSEGM and HSES bits in RCC clock HSE register (RCC_HSECR) . Refer to AN5042 for the HSE trimming procedure.

6.2.2 HSI16 clock

The HSI16 clock signal is generated from an internal 16 MHz oscillator.

The HSI16 oscillator has the advantage of providing a clock source at low cost. It also has a faster startup time than the HSE crystal oscillator however, even with calibration the frequency is less accurate than an external crystal oscillator or ceramic resonator.

The HSI16 clock can be selected as system clock after wake-up from Stop modes (Stop0, Stop1 or Stop2), see Section 6.3: Low-power modes . It can also be used as a backup clock source (auxiliary clock) if the HSE crystal oscillator fails, see Section 6.2.11 .

When the RF system is enabled the HSI16 must be selected as system clock after wake-up from Stop modes.

The HSI16 clock is used as system clock after restart wake-up from Standby.

Calibration

RC oscillator frequencies can vary from one chip to another because of manufacturing process variations, this is why each device is factory calibrated by ST for 1 % accuracy at \( T_A = 25\text{ }^\circ\text{C} \) .

After reset, the factory calibration value is loaded in the HSICAL[7:0] bits in the RCC internal clock sources calibration register (RCC_ICSCR) .

The RC oscillator speed can be affected by voltage or temperature variations, the user can trim the HSI16 frequency in the application using the HSITRIM bits in the RCC internal clock sources calibration register (RCC_ICSCR) .

For more details on how to measure the HSI16 frequency variation, refer to Section 6.2.21 .

The HSIRDY flag in the RCC clock control register (RCC_CR) indicates if the HSI16 RC is stable or not. At startup, the HSI16 RC output clock is not released until this bit is set by hardware.

The HSI16 RC can be switched on and off using the HSION bit in the RCC clock control register (RCC_CR) .

The HSI16 signal can also be used as a backup source (auxiliary clock) if the HSE crystal oscillator fails. Refer to Section 6.2.11 .

6.2.3 MSI clock

The MSI clock signal is generated from an internal RC oscillator. Its frequency range can be adjusted by software by using the MSIRANGE[3:0] bits in the RCC clock control register (RCC_CR) . Twelve frequency ranges are available: 100 kHz, 200 kHz, 400 kHz, 800 kHz, 1 MHz, 2 MHz, 4 MHz (default value), 8 MHz, 16 MHz, 24 MHz, 32 MHz and 48 MHz.

The MSI clock is used as system clock after restart from Reset, wake-up from Shutdown low-power modes. After restart from Reset, the MSI frequency is set to its default value 4 MHz. Refer to Section 6.3: Low-power modes .

The MSI clock can be selected as system clock after a wake-up from Stop modes (Stop 0, Stop 1, Stop 2). Refer to Section 6.3: Low-power modes . It can also be used as a backup clock source (auxiliary clock) if the HSE crystal oscillator fails. Refer to Section 6.2.11 .

In addition, when used in PLL-mode with the LSE, it provides a very accurate clock source which can be used by the USB FS device, and feed the PLL to run the system at the maximum speed 64 MHz.

The MSIRDY flag in the RCC clock control register (RCC_CR) indicates if the MSI RC is stable or not. At startup, the MSI RC output clock is not released until this bit is set by hardware. The MSI RC can be switched on and off by using the MSION bit in the RCC clock control register (RCC_CR) .

Hardware auto calibration with LSE (PLL-mode)

When a 32.768 kHz external oscillator is present in the application, it is possible to configure the MSI in a PLL-mode by setting the MSIPLLEN bit in the RCC clock control register (RCC_CR) . When configured in PLL-mode, the MSI automatically calibrates itself thanks to the LSE. This mode is available for all MSI frequency ranges. At 48 MHz, the MSI in PLL-mode can be used for the USB FS device.

Software calibration

The MSI RC oscillator frequency can vary from one chip to another due to manufacturing process variations, this is why each device is factory calibrated by ST for 1 % accuracy at 25 °C ambient temperature ( \( T_A \) ). After reset, the factory calibration value is loaded in the MSICAL[7:0] bits in the RCC internal clock sources calibration register (RCC_ICSCR) . If the application is subject to voltage or temperature variations, this may affect the RC oscillator speed. The MSI frequency in the application can be trimmed by using the MSITRIM[7:0] bits in the RCC_ICSCR register. For more details on how to measure the MSI frequency variation refer to Section 6.2.21 .

6.2.4 HSI48 clock

The HSI48 clock signal is generated from an internal 48 MHz RC oscillator and can be used directly for the USB and for the random number generator (true RNG).

The internal 48 MHz RC oscillator is mainly dedicated to provide a high precision clock to the USB peripheral by means of a special clock recovery system (CRS) circuitry. The CRS can use the USB SOF signal, the LSE or an external signal to automatically and quickly adjust the oscillator frequency on-fly. It is disabled as soon as the system enters Stop or Standby mode. When the CRS is not used, the HSI48 RC oscillator runs on its default frequency which is subject to manufacturing process variations.

For more details on how to configure and use the CRS peripheral refer to Section 7: Clock recovery system (CRS) .

The HSI48RDY flag in the Clock recovery register (RCC_CRRCR) indicates whether the HSI48 RC oscillator is stable or not. At startup, the HSI48 RC oscillator output clock is not released until this bit is set by hardware.

The HSI48 can be switched on and off using the HSI48ON bit in the Clock recovery register (RCC_CRRCR).

6.2.5 PLLs

The device embeds the following PLLs: PLL, PLLSAI1. Each PLL provides up to three independent outputs. The internal PLLs can be used to multiply the HSI, HSE or MSI output clock frequency. The PLLs input frequency must be between 2.66 and 16 MHz. The selected clock source is divided by a programmable factor PLLM from 1 to 8 to provide a clock frequency in the requested input range. Refer to Figure 14: Clock tree and RCC PLL configuration register (RCC_PLLCFGR) .

The PLLs configuration (selection of the input clock and multiplication factor) must be done before enabling the PLL. Once the PLL is enabled, these parameters cannot be changed.

To modify the PLL configuration, proceed as follows:

1. 1. Disable the PLL by setting PLLxxxON to 0 in RCC clock control register (RCC_CR) .
2. 2. Wait until PLLxxxRDY is cleared. The PLL is now fully stopped.
3. 3. Change the desired parameter.
4. 4. Enable the PLL again by setting PLLxxxON to 1.
5. 5. Enable the desired PLL outputs by configuring PLLPEN, PLLQEN, PLLREN in RCC PLL configuration register (RCC_PLLCFGR) , or RCC PLLSAI1 configuration register (RCC_PLLSA1CFGR) .

An interrupt can be generated when the PLL is ready, if enabled in the RCC clock interrupt enable register (RCC_CIER) .

The PLL output frequency must not exceed 64 MHz.

The enable bit of each PLL output clock (PLLPEN, PLLQEN, PLLREN) can be modified at any time without stopping the corresponding PLL. PLLREN cannot be cleared if PLLRCLK is used as system clock.

In Range 2 the PLL M divider input clock shall not exceed 16 MHz. HSEPRE bit in RCC clock control register (RCC_CR) shall select HSE divided by 2.

6.2.6 LSE clock

The LSE crystal is a 32.768 kHz low-speed external crystal or ceramic resonator. It has the advantage of providing a low-power but highly accurate clock source to the real-time clock peripheral (RTC) for clock/calendar or other timing functions.

The resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and startup stabilization time. The loading capacitance values must be adjusted according to the selected oscillator.

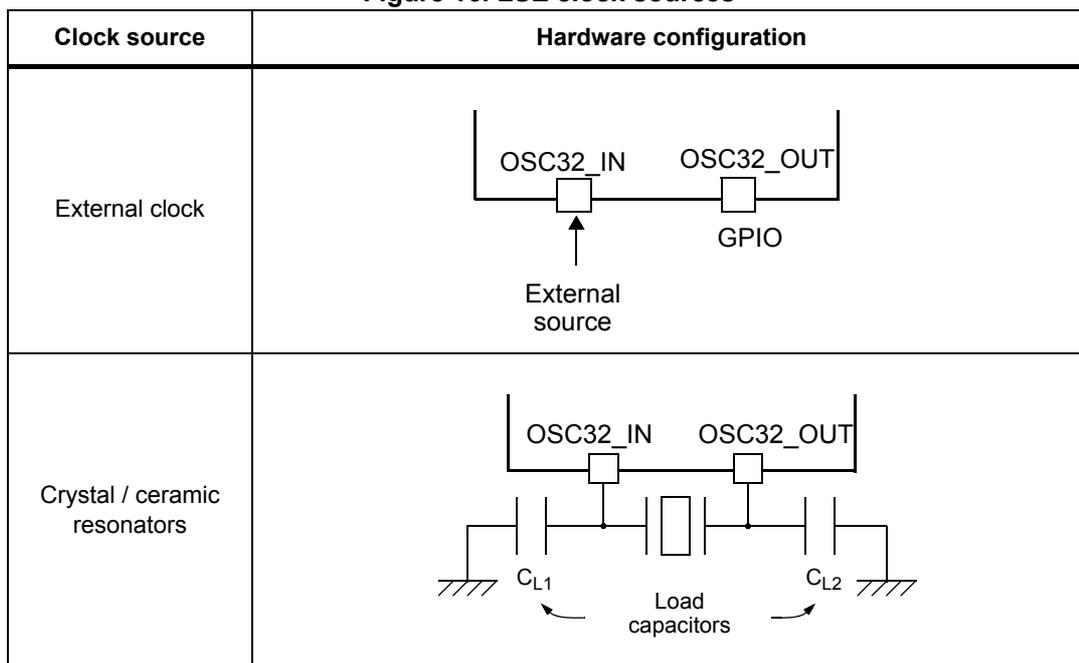

Figure 16. LSE clock sources

The LSE crystal is switched on and off using the LSEON bit in RCC backup domain control register (RCC_BDCR) . The crystal oscillator driving strength can be changed at runtime using the LSEDRV[1:0] bits in the RCC backup domain control register (RCC_BDCR) to obtain the best compromise between robustness and short start-up time on one side and low-power-consumption on the other side. The LSE drive can be decreased to the lower drive capability (LSEDRV = 00) when the LSE is ON. However, once LSEDRV is selected, the drive capability cannot be increased if LSEON = 1.

The LSERDY flag in the RCC backup domain control register (RCC_BDCR) indicates whether the LSE crystal is stable or not. At startup, the LSE crystal output clock signal is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt enable register (RCC_CIER) .

External source (LSE bypass)

In this mode, selectable by setting the LSEBYP and LSEON bits in the RCC AHB1 peripheral clocks enable in Sleep modes register (RCC_AHB1SMENR) an external clock source must be provided, with a frequency of up to 1 MHz. The external clock signal (square, sinus or triangle) with ~50 % duty cycle has to drive the OSC32_IN pin while the OSC32_OUT pin can be used as GPIO, see Figure 16 .

6.2.7 LSI1 clock

The LSI1 RC acts as a low-power clock source that can be kept running in Stop and Standby mode for the independent watchdog (IWDG), RTC, LCD and RF wake-up. The clock frequency is 32 kHz. For more details refer to the electrical characteristics section of the datasheet.

The LSI1 RC can be switched on and off using the LSI1ON bit in the RCC control/status register (RCC_CSR) .

The LSI1RDY flag in the RCC control/status register (RCC_CSR) indicates if the LSI1 oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt enable register (RCC_CIER) .

6.2.8 LSI2 clock

The LSI2 RC acts as a low drift low-power clock source that can be kept running in Stop and Standby mode for the independent watchdog (IWDG), RTC and LCD wake-up. The clock frequency is ~ 32 kHz. For more details refer to the electrical characteristics section of the datasheets.

The LSI2 RC can be switched on and off using the LSI2ON bit in the RCC control/status register (RCC_CSR) .

The LSI2RDY flag in the RCC control/status register (RCC_CSR) indicates if the LSI2 oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt enable register (RCC_CIER) .

After any system reset NRST and before using the LSI2, its oscillator must get the trimming information (LSI2TRIM field in register RCC_SCR).

6.2.9 System clock (SYSCLK) selection

Four different clock sources can be used to drive the system clock (SYSCLK):

• • MSI oscillator
• • HSI16 oscillator
• • HSE oscillator
• • PLLRCLK

The system clock maximum frequency in Range 1 is 64 MHz. After a system reset, the MSI oscillator, at 4 MHz, is selected as system clock. When a clock source is used directly or through the PLL as a system clock, it is not possible to stop it.

A switch from one clock source to another occurs only if the target clock source is ready (clock stable after startup delay or PLL locked). If a clock source which is not yet ready is selected, the switch will occur when the clock source becomes ready. Status bits in the RCC internal clock sources calibration register (RCC_ICSCR) indicate which clock(s) is (are) ready and which clock is currently used as a system clock.

When waking up from Standby mode the HSI16 is selected as system clock.

In Range 2 the system clock must not exceed 16 MHz. HSEPRE bit in RCC clock control register (RCC_CR) shall select HSE divided by 2.

6.2.10 Clock source frequency versus voltage scaling

Table 34 gives the different clock source frequencies depending on the product voltage range.

1. HSEPRE shall select divide by 2.

6.2.11 Clock security system (CSS) on HSE

The clock security system can be activated by software. In this case, the clock detector is enabled after the HSE oscillator startup delay, and disabled when this oscillator is stopped.

If a failure is detected on the HSE clock, the HSE oscillator is automatically disabled, a clock failure event is sent to the break input of the advanced-control timers (TIM1 and TIM16/17) and an interrupt is generated to inform the software about the failure (clock security system interrupt CSSI), allowing the MCU to perform rescue operations. The CSSI is linked to the CPU1 and CPU2 NMI (non-maskable interrupt) exception vector.

Note: Once the HSE CSS is enabled and if the HSE clock fails, the CSS interrupt occurs and a NMI is automatically generated. The NMI is executed indefinitely unless the CSS interrupt pending bit is cleared. As a consequence, in the NMI ISR user must clear the CSS interrupt by setting the CSSC bit in the RCC clock interrupt clear register (RCC_CICR) .

If the HSE oscillator is used directly or indirectly as the system clock (indirectly means: it is used as PLL input clock, and the PLL clock is used as system clock), a detected failure causes a switch of the system clock to the MSI or the HSI16 oscillator depending on the STOPWUCK configuration in the RCC clock configuration register (RCC_CFGR) , and the disabling of the HSE oscillator. If the HSE clock (divided or not) is the clock entry of the PLL used as system clock when the failure occurs, the PLL is disabled too.

6.2.12 Clock security system on LSE (LSECSS)

The clock security system on LSE can be activated by software writing the LSECSSON bit in the RCC control/status register (RCC_CSR) . This bit can be disabled only by a hardware reset or RTC software reset, or after a failure detection on LSE. LSECSSON must be written after LSE and LSI are enabled (LSEON and LSION enabled) and ready (LSERDY and LSIRDY set by hardware), and after the RTC clock has been selected by RTCSEL.

The CSS on LSE is working in all modes except VBAT. It is working also under system reset (excluding power on reset). If a failure is detected on the external 32 kHz oscillator, the LSE clock is no longer supplied to the RTC but no hardware action is made to the registers. If the MSI was in PLL-mode, this mode is disabled.

In Standby mode a wake-up is generated. In other modes an interrupt can be sent to wake up the software (see RCC clock interrupt enable register (RCC_CIER) , RCC clock interrupt flag register (RCC_CIFR) , RCC clock interrupt clear register (RCC_CICR) ).

The software MUST then disable the LSECSSON bit, stop the defective 32 kHz oscillator (disabling LSEON), and change the RTC clock source (no clock or LSI or HSE, with RTCSEL), or take any required action to secure the application.

6.2.13 LSI source selection

The LSI used in the system can be selected to come either from LSI1 or LSI2. Whenever LSI2 is turned on by LSI2ON register bit, the LSI2 (when ready) is selected as LSI source.

To switch from LSI2 to LSI1 without interrupting the LSI clock, the LSI1 must first be switched on by LSI1ON register bit. The FW must verify that the LSI1 is ready by LSI1RDY register bit before disabling LSI2 in LSI2ON register bit.

6.2.14 SMPS step-down converter clock

The SMPS step-down converter clock source can be either the MSI, HSI16 or HSE clock. It is selected by programming the SMPSSSEL in the RCC SMPS step-down converter control register (RCC_SMPSSCR) . The system must always be configured so as to get a SMPS step-down converter clock frequency between 4 and 8 MHz. The appropriate division factor shall be set in SMPSDIV. There is a further fixed division by 2 before driving the clock to the SMPS step-down converter.

After a system reset, the HSI16 is selected as SMPS step-down converter clock.

When entering low power modes Stop1, Stop2, Standby, or Shutdown the SMPS step-down converter clock source selected in SMPSSSEL in the RCC SMPS step-down converter control register (RCC_SMPSSCR) must be set to select the same source as the system clock in SW in the RCC clock configuration register (RCC_CFGR) . In Stop mode the clock source selected in SMPSSSEL in RCC SMPS step-down converter control register (RCC_SMPSSCR) must be set to select the same source as the system clock in STOPWUCK in RCC clock configuration register (RCC_CFGR) .

When waking up from Standby mode and powering on the V _CORE supply, the HSI16 is selected as SMPS step-down converter clock, independent from the selection in SMPSSSEL.

When the Radio system is active the HSE is selected as SMPS step-down converter clock, independent from the selection in SMPSSSEL.

The SMPS step-down converter clock source used is indicated by the SMPSSWS in RCC SMPS step-down converter control register (RCC_SMPSSCR) .

A switch from one clock source to another occurs only if the target clock source is ready (clock stable after startup delay). If a not yet ready clock source is selected, the switch occurs only when the clock source becomes ready. Status bits in the RCC internal clock sources calibration register (RCC_ICSCR) indicate which clock(s) is (are) ready, and the SMPSSWS bit indicates the clock currently used as a SMPS step-down converter clock.

The division factor in SMPSDIV depends upon the selected SMPS step-down converter clock source in SMPSSSEL. When MSI is selected in SMPSSSEL, The MSIRANGE is also taken into account to determine the selected MSI frequency. This allows to switch from one clock source to another, by keeping the same SMPS step-down converter clock frequency. The MSI can be selected as SMPS step-down converter clock source only when a supported SMPS step-down converter clock MSIRANGE is set.

When the RF system is active, the HW selects automatically the HSE source with the current SMPSDIV division ratio.

Table 35. SMPS step-down converter clock source selection and division

6.2.15 ADC clock

The ADC clock is derived from the system clock, or from the PLL or PLLSAI1 output. It can reach 64 MHz and can be divided by the prescaler values 1, 2, 4, 6, 8, 10, 12, 16, 32, 64, 128 or 256 by configuring the ADC1_CCR register. It is asynchronous to the AHB clock. Alternatively, the ADC clock can be derived from the AHB clock of the ADC bus interface, divided by a programmable factor (1, 2 or 4). This programmable factor is configured using the CKMODE bit fields in the ADC1_CCR.

If the programmed factor is '1', the AHB prescaler must be set to '1'.

6.2.16 RTC clock

The RTCCLK clock source can be either the HSE/32, LSE or LSI clock. It is selected by programming the RTCSEL[1:0] bits in the RCC backup domain control register (RCC_BDCR) . This selection cannot be modified without resetting the Backup domain. The system must always be configured so as to get a PCLK frequency greater then or equal to the RTCCLK frequency for a proper operation of the RTC.

The LSE clock is in the Backup domain, whereas the HSE and LSI clocks are not. Consequently:

• • If LSE is selected as RTC clock the RTC continues to work even if the \( V_{DD} \) supply is switched off, provided the \( V_{BAT} \) supply is maintained.
• • If LSI is selected as the RTC clock the RTC state is not guaranteed if the \( V_{DD} \) supply is powered off.
• • If the HSE clock divided by a prescaler is used as the RTC clock the RTC state is not guaranteed if the \( V_{DD} \) supply is powered off or if the internal voltage regulator is powered off (removing power from the \( V_{CORE} \) domain).

When the RTC clock is LSE or LSI, the RTC remains clocked and functional under system reset.

6.2.17 Timer clock

The timer clock frequencies are automatically defined by hardware. There are two cases:

1. 1. If the APB prescaler equals 1, the timer clock frequencies are set to the same frequency as that of the APB domain.
2. 2. Otherwise, they are set to twice ( \( \times 2 \) ) the frequency of the APB domain.

6.2.18 Watchdog clock

If the Independent watchdog (IWDG) is started by either hardware option or software access, the LSI clock is forced on.

When neither the LSI1 oscillator nor the LSI2 oscillator is enabled when starting the IWDG, the LSI1 oscillator is forced on. After the LSI1 oscillator temporization, the clock is provided to the IWDG.

When LSI2 is switched on with the LSI2ON bit, the LSI clock is switched from LSI1 to LSI2.

When LSI2 is disabled by LSI2ON (when the IWDG is running), the LSI1 oscillator is forced on. The LSI clock is switched to LSI1 when ready, and only then LSI2 is stopped.

6.2.19 True RNG clock

The true random number generator (RNG) seed clock is derived from the same clock selected for the USB, LSI or LSE clock.

6.2.20 Clock-out capability

• • MCO

The microcontroller clock output (MCO) capability enables the clock to be output on the external MCO pin. One of the following clock signals can be selected as MCO clock:

• – LSI1 (available in Run and Stop modes)
• – LSI2 (available in Run and Stop modes)
• – LSE (available in Run and Stop modes)
• – MSI (available in Run mode)
• – HSI (available in Run mode, when enabled by HSION)
• – HSI48 (available in Run mode)
• – HSE (available in Run mode)
• – PLLRCLK (available in Run mode)
• – SYSCLK (available in Run mode)

The selection is controlled by the MCOSEL[3:0] bits of the RCC clock configuration register (RCC_CFGR) . The selected clock can be divided with the MCOPRE[2:0] field of the RCC clock configuration register (RCC_CFGR) .

The clock on MCO is available only in Run down to Stop1 mode. Low frequency clocks (LSIx, LSE) are available down to Stop1 mode. The clock MCO is not available in Stop2, Standby, and Shutdown modes.

• • LSCO

The LSCO output enables a low speed clock to be output on the external LSCO pin:

• – LSI (LSI1 or LSI2)
• – LSE

The selection is controlled by the LSCOSEL, and enabled with the LSCOEN in the RCC backup domain control register (RCC_BDCR) .

The clock on LSCO is available in Run, Stop, and on one GPIO in Standby and Shutdown modes.

The configuration registers of the corresponding GPIO port must be programmed in alternate function mode.

6.2.21 Internal/external clock measurement with TIM16/TIM17

It is possible to indirectly measure the frequency of all on-board clock sources by mean of the TIM16 or TIM17 channel 1 input capture, as shown on Figure 17 and Figure 18 .

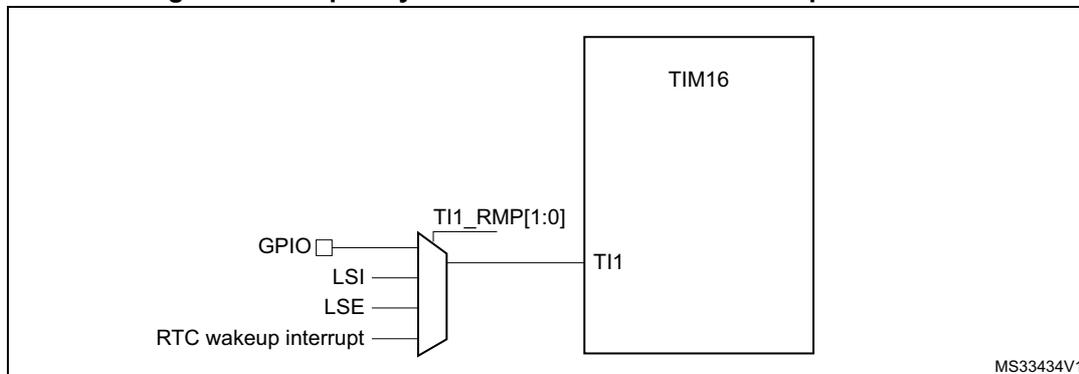

Figure 17. Frequency measurement with TIM16 in capture mode

The input capture channel of TIM16 can be a GPIO line or an internal clock of the MCU. This selection is performed through the TI1_RMP[1:0] bits in the TIM16_OR register. The possibilities are the following ones:

• • TIM16 Channel1 is connected to the GPIO. Refer to the alternate function mapping in the device datasheets.
• • TIM16 Channel1 is connected to the LSI clock.
• • TIM16 Channel1 is connected to the LSE clock.
• • TIM16 Channel1 is connected to the RTC wake-up interrupt signal. In this case the RTC interrupt should be enabled.

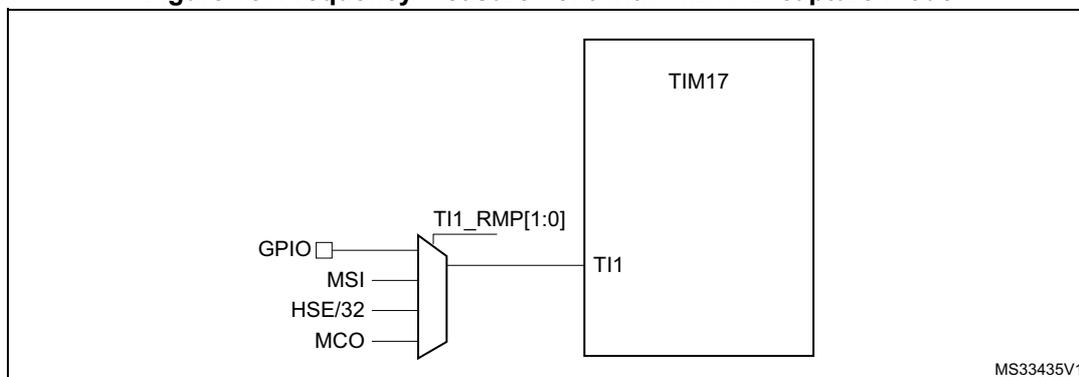

Figure 18. Frequency measurement with TIM17 in capture mode

The input capture channel of the Timer 17 can be a GPIO line or an internal clock of the MCU. This selection is performed through the TI1_RMP[1:0] bits in the TIM17_OR register. The possibilities are the following ones:

• • TIM17 Channel1 is connected to the GPIO. Refer to the alternate function mapping in the device datasheet.
• • TIM17 Channel1 is connected to the MSI clock.
• • TIM17 Channel1 is connected to the HSE/32 clock.
• • TIM17 Channel1 is connected to the microcontroller clock output (MCO), this selection is controlled by the MCOSEL[3:0] bits of the Clock configuration register (RCC_CFGR).

Calibration of the HSI16 and the MSI

For TIM16, the primary purpose of connecting the LSE to the channel 1 input capture is to be able to precisely measure the HSI16 and MSI system clocks (for this, either the HSI16 or MSI should be used as the system clock source). The number of HSI16 (MSI, respectively) clock counts between consecutive edges of the LSE signal provides a measure of the internal clock period. Taking advantage of the high precision of LSE crystals (typically a few ppm tens), it is possible to determine the internal clock frequency with the same resolution, and trim the source to compensate for manufacturing-process- and/or temperature- and voltage-related frequency deviations.

Both the MSI and HSI16 oscillators have dedicated user-accessible calibration bits for this purpose.

The basic concept consists in providing a relative measurement (e.g. the HSI/LSE ratio): the precision is therefore closely related to the ratio between the two clock sources (the higher the ratio, the better the measurement).

If LSE is not available, HSE32 is the better option to reach the most precise possible calibration.

It is however impossible to have a good enough resolution when the MSI clock is low (typically below 1 MHz). In this case, it is advised to:

• • accumulate the results of several captures in a row
• • use the timer input capture prescaler (up to one capture every eight periods)
• • use the RTC wake-up interrupt signal (when the RTC is clocked by the LSE) as the input for the channel1 input capture. This improves the measurement precision. For this purpose the RTC wake-up interrupt must be enable.

Calibration of the LSI

The calibration of the LSI will follow the same pattern that for the HSI, but changing the reference clock. It is necessary to connect LSI clock to the channel 1 input capture of the TIM16. Then define the HSE as system clock source, the number of his clock counts between consecutive edges of the LSI signal provides a measure of the internal low speed clock period.

The basic concept consists in providing a relative measurement (e.g. the HSE/LSI ratio). The precision is therefore closely related to the ratio between the two clock sources, higher ratios result in more accurate measurements.

6.2.22 Peripheral clocks enable

Most peripheral bus and kernel clocks can individually be enabled per CPU. The RCC_AHBxENR, and RCC_APBxENRy enable peripheral clocks for CPU1 and RCC_C2_AHBxENR, and RCC_C2_APBxENR for CPU2. The peripheral clocks will follow the CPU(s) state for which they are enabled, see Table 36 .

Peripheral bus clock activity during the CPU Sleep mode is controlled by the peripheral clock CPU sleep mode enable bit of the RCC_AHBxSMENR, and RCC_APBxSMENRy for CPU1 and RCC_C2_AHBxSMENR, and RCC_C2_APBxSMENRy for CPU2 registers. The peripheral bus clock during Sleep mode will follow the CPU(s) state for which is it enabled, see Table 36 .

Table 36. Peripheral clock enable

1. Only the peripherals SAI, I2C, LPTIM, USART, LPUART, USB FS, true RNG and ADC have a kernel clock.

When the peripheral bus clock is not active, the peripheral registers read or write accesses are not supported.

When the peripheral bus clock is active the peripheral can be accessed by both CPUs regardless of which CPU has enabled the peripheral bus clock in its CPU xxxEN bit. However, when the peripheral bus clock is enabled by only one CPU, and this CPU enters low power mode, the peripheral bus clock is stopped (also depending on this CPUs xxxSMEN setting) and peripheral access for the other CPU is no longer supported. It is therefore good practice to enable the peripheral bus clock with the CPU dedicated clock enable.

When the peripheral kernel clock is not active, the peripheral functionality is stopped.

The enable bit has a synchronization mechanism to create a glitch free clock for the peripheral. After the enable bit is set, there is a two clock cycles delay before the clock becomes active.

Caution: Just after enabling the clock for a peripheral, software must wait for a delay before accessing the peripheral registers.

Note: The BLE-IP when active, will activate the BLE bus and SRAM2 bus interface clocks.

6.3 Low-power modes

• • AHB and APB peripheral clocks, including DMA clock, can be disabled by software.
• • Sleep and Low-power sleep modes stop the CPU clock. The memory interface clocks (Flash and SRAM1 and SRAM2 interfaces) can be stopped by software during Sleep mode. The AHB to APB bridge clocks are disabled by hardware during Sleep mode when all the clocks of the peripherals connected to them are disabled.
• • Stop modes (Stop 0, Stop 1 and Stop 2) stops most clocks in the \( V_{CORE} \) domain and disables the PLLs, the MSI and the HSE oscillators. The HSI16 may be kept running when requested by the IPs (USART1, LPUART1, I2C1, I2C3) that make it possible to wake up from Stop modes.

All U(S)ARTs, LPUARTs and I ² Cs have the capability to enable the HSI16 oscillator even when the MCU is in Stop mode (if HSI16 is selected as the clock source for that peripheral).

All U(S)ARTs, LPUARTs and LPTIMs can also be driven by the LSE oscillator when the system is in Stop mode (if LSE is selected as clock source for that peripheral) and the LSE oscillator is enabled (LSEON). In that case the LSE remains always ON in Stop mode (they do not have the capability to turn on the LSE oscillator).

The LPTIMs can also be driven by the LSI oscillator when the system is in Stop mode (if LSI is selected as clock source for that peripheral) and the LSI oscillator is enabled (LSI1ON or LSI2ON).

• • Standby and Shutdown modes stops all the clocks in the \( V_{CORE} \) domain and disables the PLL, the HSI, the MSI and the HSE oscillators.

The low power modes mode can be overridden for debugging by setting the DBG_SLEEP, DBG_STOP or DBG_STANDBY bits in the DBGMCU_CR register. In addition the EXTI CDBGPWURUPREQ events can be used to allow debugging in Stop modes (see Table 37 ).

Table 37. Single core Low power debug configurations ⁽¹⁾

1. X = Do not use.

When leaving the Stop modes (Stop0, Stop1 or Stop2), the system clock is either MSI or HSI, depending on the software configuration of the STOPWUCK bit in the RCC_CFGR register. When the RF system is enabled the HSI16 shall be selected as in STOPWUCK. When STOPWUCK select the HSI16 clock when leaving Stop mode, the C2HPRE is reset to select divide by 1. The frequency (range and user trim) of the MSI oscillator is the one configured before entering Stop mode. The user trim of HSI16 is kept. If the MSI was in PLL-mode before entering Stop mode, the PLL-mode stabilization time must be waited for after

wake-up even if the LSE was kept ON during the Stop mode. Before entering Stop 0 mode with SMPS step-down converter enabled the HSI16 must be kept on by setting the HSIKERON register bit.

When leaving the Standby mode, the system clock is HSI.

When leaving the Shutdown modes, the system clock is MSI. The MSI frequency at wake-up from Shutdown mode is 4 MHz. The user trim is lost.

If a Flash memory programming operation is on going, Stop, Standby and Shutdown modes entry is delayed until the Flash memory interface access is finished. If an access to the APB domain is ongoing, Stop, Standby and Shutdown modes entry is delayed until the APB access is finished.

6.4 RCC registers

6.4.1 RCC clock control register (RCC_CR)

Address offset: 0x000

Reset value: 0x0000 0061 (after POR reset), 0x0000 0160 (after wake-up from Standby reset)

Access: No wait state, word, half-word and byte access

Bits 31:28 Reserved, must be kept at reset value.

Bit 27 PLL SAI1RDY : SAI PLL clock ready flag

Set by hardware to indicate that the PLL SAI1 is locked.

0: PLL SAI1 unlocked

1: PLL SAI1 locked

Bit 26 PLL SAI1ON : SAI PLL enable

Set and cleared by software to enable PLL SAI1.

Cleared by hardware when entering Stop, Standby or Shutdown mode.

0: PLL SAI1 OFF

1: PLL SAI1 ON

Bit 25 PLL RDY : System PLL clock ready flag

Set by hardware to indicate that the system PLL is locked.

0: PLL unlocked

1: PLL locked

Bit 24 PLL ON : System PLL enable

Set and cleared by software to enable the PLL.

Cleared by hardware when entering Stop, Standby or Shutdown mode. This bit cannot be reset if the PLL clock is used as the system clock.

0: PLL OFF

1: PLL ON

Bits 23:21 Reserved, must be kept at reset value.

Bit 20 HSEPRE : HSE system clock and PLL M divider prescaler

Set and cleared by software to control the division factor of the system clock and PLL M divider input when selecting HSE clock.

0: SYSCLK and PLL M divider input clocks are not divided (HSE)

1: SYSCLK and PLL M divider input clocks are divided by 2 (HSE/2)

Bit 19 CSSON : HSE clock security system enable

Set by software to enable the clock security system. When CSSON is set, the HSE lock detector is enabled by hardware when the HSE oscillator is ready, and disabled by hardware if a HSE clock failure is detected. This bit is set only and is cleared by reset.

0: HSE clock security system OFF (clock detector OFF)

1: HSE clock security system ON (clock detector ON if the HSE oscillator is stable, OFF if not).

Bit 18 Reserved, must be kept at reset value.

Bit 17 HSERDY : HSE clock ready flag

Set by hardware to indicate that the HSE oscillator is stable.

0: HSE oscillator not ready

1: HSE oscillator ready

Note: Once the HSEON bit is cleared, HSERDY goes low after six HSE clock cycles.

Regardless of the value of the HSEON bit, the HSE oscillator starts on RF demand when needed. It is possible to have HSEON = 0 and HSERDY = 1.

Bit 16 HSEON : HSE clock enable

Set and cleared by software.

Cleared by hardware to stop the HSE oscillator when entering Stop, Standby or Shutdown mode. This bit cannot be reset if the HSE oscillator is used directly or indirectly as the system clock.

0: HSE oscillator OFF

1: HSE oscillator ON

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 HSIKERDY : HSI16 kernel clock ready flag for peripherals requests.

Set by hardware to indicate that HSI16 oscillator is stable when enabled by HSIKERON or a peripheral kernel clock request. Not set when HSI16 is enabled by software by setting HSION, or by wake-up from Standby.

0: HSI16 oscillator not ready

1: HSI16 oscillator ready

Bit 11 HSIASFS : HSI16 automatic start from Stop

Set and cleared by software. When the system wake-up clock is MSI, this bit is used to wake up the HSI16 in parallel of the system wake-up.

0: HSI16 oscillator is not enabled by hardware when exiting Stop mode with MSI as wake-up clock.

1: HSI16 oscillator is enabled by hardware when exiting Stop mode with MSI as wake-up clock.

Bit 10 HSIRDY : HSI16 clock ready flag. (After wake-up from Standby this bit is read 'b1 once the HSI16 is ready)

Set by hardware to indicate that HSI16 oscillator is stable. This bit is set only when HSI16 is enabled by software by setting HSION, or by wake-up from Standby. Not set when HSI16 is enabled by HSIKERON or by IP request.

0: HSI16 oscillator not ready

1: HSI16 oscillator ready

Note: Once the HSION bit is cleared, HSIRDY goes low after 6 HSI16 clock cycles.

Bit 9 HSIKERON : HSI16 always enable for peripheral kernel clocks.

Set and cleared by software to force HSI16 ON even in Stop modes. The HSI16 enabled by HSIKERON can only feed USARTs, LPUARTs and I ² Cs peripherals configured with HSI16 as kernel clock. Keeping the HSI16 ON in Stop mode avoids slowing down the communication speed because of the HSI16 startup time. This bit has no effect on HSION value.

0: No effect on HSI16 oscillator.

1: HSI16 oscillator is forced ON even in Stop mode.

Bit 8 HSION : HSI16 clock enable

Set and cleared by software.

Cleared by hardware to stop the HSI16 oscillator when entering Stop, Standby or Shutdown mode.

Set by hardware to force the HSI16 oscillator ON when STOPWUCK = 1 or HSIASFS = 1 when leaving Stop modes, or in case of failure of the HSE crystal oscillator.

This bit is set by hardware if the HSI16 is used directly or indirectly as system clock.

0: HSI16 oscillator OFF

1: HSI16 oscillator ON

Bits 7:4 MSIRANGE[3:0] : MSI clock ranges

These bits are configured by software to choose the frequency range of MSI when MSIRANGE is set. Twelve frequency ranges are available:

0000: range 0, ~100 kHz

0001: range 1, ~200 kHz

0010: range 2, ~400 kHz

0011: range 3, ~800 kHz

0100: range 4, ~1M Hz

0101: range 5, ~2 MHz

0110: range 6, ~4 MHz (reset value)

0111: range 7, ~8 MHz

1000: range 8, ~16 MHz

1001: range 9, ~24 MHz

1010: range 10, ~32 MHz

1011: range 11, ~48 MHz

others: not allowed (hardware write protection)

Note: MSIRANGE can be modified when MSI is OFF (MSION = 0) or when MSI is ready (MSIRDY = 1). MSIRANGE must NOT be modified when MSI is ON and NOT ready (MSION = 1 and MSIRDY = 0).

Bit 3 Reserved, must be kept at reset value.

Bit 2 MSIPLLEN : MSI clock PLL enable

Set and cleared by software to enable/ disable the PLL part of the MSI clock source.

MSIPLLEN must be enabled after LSE is enabled (LSEON enabled) and ready (LSERDY set by hardware). There is a hardware protection to avoid enabling MSIPLLEN if LSE is not ready.

This bit is cleared by hardware when LSE is disabled (LSEON = 0) or when the clock security system on LSE detects a LSE failure (refer to RCC_CSR register).

0: MSI PLL OFF

1: MSI PLL ON

Bit 1 MSIRDY : MSI clock ready flag (After reset this bit is read 'b1 once the MSI is ready)

This bit is set by hardware to indicate that the MSI oscillator is stable.

0: MSI oscillator not ready

1: MSI oscillator ready

Note: Once the MSION bit is cleared, MSIRDY goes low after 6 MSI clock cycles.

Bit 0 MSION : MSI clock enable

This bit is set and cleared by software.

Cleared by hardware to stop the MSI oscillator when entering Stop, Standby or Shutdown mode.

Set by hardware to force the MSI oscillator ON when exiting Standby or Shutdown mode.

Set by hardware to force the MSI oscillator ON when STOPWUCK = 0 when exiting from Stop modes, or in case of a failure of the HSE oscillator

Set by hardware when used directly or indirectly as system clock.

0: MSI oscillator OFF

1: MSI oscillator ON

6.4.2 RCC internal clock sources calibration register (RCC_ICSCR)

Address offset: 0x004

Reset value: 0x40XX 00XX (X is factory-programmed)

Access: No wait state, word, half-word and byte access

Bit 31 Reserved, must be kept at reset value.

Bits 30:24 HSITRIM[6:0] : HSI16 clock trimming

These bits provide an additional user-programmable trimming value that is added to the HSICAL[7:0] bits. It can be programmed to adjust to variations in voltage and temperature that influence the frequency of the HSI16.

The default value is 64, which, when added to the HSICAL value, should trim the HSI16 to 16 MHz \( \pm \) 1 %.

Bits 23:16 HSICAL[7:0] : HSI16 clock calibration

These bits are initialized at startup with the factory-programmed HSI16 calibration trim value. When HSITRIM is written, HSICAL is updated with the sum of HSITRIM and the factory trim value.

Bits 15:8 MSITRIM[7:0] : MSI clock trimming

These bits provide an additional user-programmable trimming value that is added to the MSICAL[7:0] bits. It can be programmed to adjust to variations in voltage and temperature that influence the frequency of the MSI.

The default value is 0, which, when added to the MSICAL value, should trim the MSI to its mid frequency.

Bits 7:0 MSICAL[7:0] : MSI clock calibration

These bits are initialized at startup with the factory-programmed MSI calibration trim value. When MSITRIM is written, MSICAL is updated with the sum of MSITRIM and the factory trim value.

6.4.3 RCC clock configuration register (RCC_CFGR)

Address offset: 0x008

Reset value: 0x0007 0000 (after POR reset), 0x0007 0001 (after wake-up from Standby)

Access: \( 0 \leq \text{wait state} \leq 2 \) , word, half-word and byte access

One or two wait states inserted only if the access occurs during clock source switch.

From 0 to 15 wait states inserted if the access occurs when the APB or AHB prescalers values update is on going.

Bit 31 Reserved, must be kept at reset value.

Bits 30:28 MCOPRE[2:0] : Microcontroller clock output prescaler

These bits are set and cleared by software.
It is highly recommended to change this prescaler before MCO output is enabled.
000: MCO is divided by 1
001: MCO is divided by 2
010: MCO is divided by 4
011: MCO is divided by 8
100: MCO is divided by 16
Others: not allowed

Bits 27:24 MCOSEL[3:0] : Microcontroller clock output

Set and cleared by software.
0000: MCO output disabled, no clock on MCO
0001: SYSCLK system clock selected
0010: MSI clock selected.
0011: HSI16 clock selected.
0100: HSE clock selected (after stabilization, after HSERDY = 1)
0101: Main PLLRCLK clock selected
0110: LSI1 clock selected
0111: LSI2 clock selected
1000: LSE clock selected
1001: Internal HSI48 clock selected
1100: HSE clock selected (before stabilization, after HSEON = 1)
Others: Reserved

Note: This clock output may have some truncated cycles at startup or during MCO clock source switching.

Bits 23:19 Reserved, must be kept at reset value.

Bit 18 PPRE2F : PCLK2 prescaler flag (APB2)

Set and reset by hardware to acknowledge PCLK2 prescaler programming

Reset when a new prescaler value is programmed in PPRE2. set when the programmed value is actually applied.

0: PCLK2 prescaler value not yet applied

1: PCLK2 prescaler value applied

Bit 17 PPRE1F : PCLK1 prescaler flag (APB1)

Set and reset by hardware to acknowledge PCLK1 prescaler programming

Reset when a new prescaler value is programmed in PPRE1. set when the programmed value is actually applied.

0: PCLK1 prescaler value not yet applied

1: PCLK1 prescaler value applied

Bit 16 HPREF : HCLK1 prescaler flag (CPU1, AHB1, AHB2, AHB3 and SRAM1)

Set and reset by hardware to acknowledge HCLK1 prescaler programming

Reset when a new prescaler value is programmed in HPRE. set when the programmed value is actually applied.

0: HCLK1 prescaler value not yet applied

1: HCLK1 prescaler value applied

Bit 15 STOPWUCK : Wakeup from Stop and CSS backup clock selection

Set and cleared by software to select the system clock used when exiting Stop mode.

The selected clock is also used as emergency clock for the clock security system on HSE.

Warning: STOPWUCK must not be modified when the HSE clock security system is enabled by CSSON in RCC clock control register (RCC_CR) register and the system clock is HSE (SWS = 10) or a switch on HSE is requested (SW= 10).

0: MSI oscillator selected as wake-up from stop clock and CSS backup clock.

1: HS16 oscillator selected as wake-up from stop clock and CSS backup clock

Bit 14 Reserved, must be kept at reset value.

Bits 13:11 PPRE2[2:0] : PCLK2 high-speed prescaler (APB2)

Set and cleared by software to control the division factor of the PCLK2 clock (APB2).

The PPRE2F flag can be checked to know if the programmed PPRE2 prescaler value is applied.

0xx: HCLK1 not divided

100: HCLK1 divided by 2

101: HCLK1 divided by 4

110: HCLK1 divided by 8

111: HCLK1 divided by 16

Bits 10:8 PPRE1[2:0] : PCLK1 low-speed prescaler (APB1)

Set and cleared by software to control the division factor of the PCLK1 clock (APB1).

The PPRE1F flag can be checked to know if the programmed PPRE1 prescaler value is applied.

0xx: HCLK1 not divided

100: HCLK1 divided by 2

101: HCLK1 divided by 4

110: HCLK1 divided by 8

111: HCLK1 divided by 16

Bits 7:4 HPRE[3:0] : HCLK1 prescaler (CPU1, AHB1, AHB2, AHB3 and SRAM1.)

Set and cleared by software to control the division factor of the HCLK1 clock (CPU1, AHB1, AHB2, AHB3 and SRAM1).

The HPREF flag can be checked to know if the programmed HPRE prescaler value is applied.

Caution: Depending on the device voltage range, the software must set correctly these bits to ensure that the system frequency does not exceed the maximum allowed frequency (for more details refer to Section 5.1.6: Dynamic voltage scaling management ). After a write operation to these bits and before decreasing the voltage range the register bit HPREF must be read to be sure that the new value has been taken into account.

0001: SYSCLK divided by 3

0010: SYSCLK divided by 5

0101: SYSCLK divided by 6

0110: SYSCLK divided by 10

0111: SYSCLK divided by 32

1000: SYSCLK divided by 2

1001: SYSCLK divided by 4

1010: SYSCLK divided by 8

1011: SYSCLK divided by 16

1100: SYSCLK divided by 64

1101: SYSCLK divided by 128

1110: SYSCLK divided by 256

1111: SYSCLK divided by 512

Others: SYSCLK not divided

Bits 3:2 SWS[1:0] : System clock switch status

Set and cleared by hardware to indicate which clock source is used as system clock.

00: MSI oscillator used as system clock

01: HSI16 oscillator used as system clock

10: HSE used as system clock

11: PLL used as system clock

Bits 1:0 SW[1:0] : System clock switch

Set and cleared by software to select system clock source (SYSCLK).

Configured by HW to force MSI oscillator selection when exiting Shutdown mode.

Configured by HW to force HSI16 oscillator selection when exiting Standby mode.

Configured by HW to force MSI or HSI16 oscillator selection when exiting Stop mode or in case of failure of the HSE oscillator, depending on STOPWUCK value.

00: MSI selected as system clock

01: HSI16 selected as system clock

10: HSE selected as system clock

11: PLL selected as system clock

Note: The latency when changing SW and SWS bits is set according to the new configuration when switching the SYSCLK clock source, in a maximum of three cycles of the previous clock.

6.4.4 RCC PLL configuration register (RCC_PLLCFGR)

Address offset: 0x00C

Reset value: 0x2204 0100

Access: No wait state, word, half-word and byte access

This register is used to configure the PLL clock outputs according to the following formulas:

• • \( f(\text{VCO clock}) = f(\text{PLL clock input}) \times (\text{PLLN} / \text{PLLM}) \)
• • \( f(\text{PLL\_P}) = f(\text{VCO clock}) / \text{PLLP} \)
• • \( f(\text{PLL\_Q}) = f(\text{VCO clock}) / \text{PLLQ} \)
• • \( f(\text{PLL\_R}) = f(\text{VCO clock}) / \text{PLLR} \)

Bits 31:29 PLLR[2:0] : Main PLL division factor for PLLRCLK

Set and cleared by software to control the frequency of the main PLL output clock PLLRCLK. This output can be selected as system clock. These bits can be written only if the PLL is disabled.

PLLRCLK output clock frequency = VCO frequency / PLLR with PLLR = 2, 3, 4, ... or 8
\( [\text{VCO frequency} / (N + 1)] \)

000: reserved

001: PLLR = 2

010: PLLR = 3

011: PLLR = 4

100: PLLR = 5

101: PLLR = 6

110: PLLR = 7

111: PLLR = 8

The software must set these bits so that 64 MHz is not exceeded on this domain.

Bit 28 PLLREN : Main PLL PLLRCLK output enable

Set and reset by software to enable the PLLRCLK output of the main PLL (used as system clock).

This bit cannot be written when PLLRCLK output of the PLL is used as System clock.

To save power, when the PLLRCLK output of the PLL is not used, the value of PLLREN should be 0.

0: PLLRCLK output disabled

1: PLLRCLK output enabled

Set and cleared by software to control the frequency of the main PLL output clock PLLQCLK. This output can be selected for USB and true RNG clock. These bits can be written only if PLL is disabled.

PLLQCLK output clock frequency = VCO frequency / PLLQ with PLLQ = 2, 3, 4, ... or 8 [VCO frequency / (N + 1)]

000: reserved

001: PLLQ = 2

010: PLLQ = 3

011: PLLQ = 4

100: PLLQ = 5

101: PLLQ = 6

110: PLLQ = 7

111: PLLQ = 8

The software must set these bits so that 64 MHz is not exceeded on this domain.

Set and reset by software to enable the PLLQCLK output of the main PLL (used as system clock).

In order to save power, when the PLLQCLK output of the PLL is not used, the value of PLLQEN should be 0.

0: PLLQCLK output disable

1: PLLQCLK output enable

Bits 23:22 Reserved, must be kept at reset value.

Set and cleared by software to control the frequency of the main PLL output clock PLLPCLK. This output can be selected for SAI1 and ADC. These bits can be written only if PLL is disabled.

PLLPCLK output clock frequency = VCO frequency / PLLP with PLLP = 2, 3, 4, ... or 32 [VCO frequency / (N + 1)]

0000: reserved

00001: PLLP = 2

00010: PLLP = 3

00011: PLLP = 4

00100: PLLP = 5

...

11111: PLLP = 32

The software must set these bits so that 64 MHz is not exceeded on this domain.

Set and reset by software to enable the PLLPCLK output of the main PLL.

In order to save power, when the PLLPCLK output of the PLL is not used, the value of PLLPEN should be 0.

0: PLLPCLK output disable

1: PLLPCLK output enable

Bit 15 Reserved, must be kept at reset value.

Bits 14:8 PLLN[6:0] : Main PLL multiplication factor for VCO

Set and cleared by software to control the multiplication factor of the VCO. These bits can be written only when the PLL is disabled.
VCO output frequency = VCO input frequency × PLLN with \( 6 \leq \text{PLLN} \leq 127 \)
0000000: PLLN = 0 reserved (must not be used)
0000001: PLLN = 1 reserved (must not be used)
...
0000101: PLLN = 5 reserved (must not be used)
0000110: PLLN = 6
1111111: PLLN = 127

The software must set these bits to ensure that the VCO output frequency is between 96 and 344 MHz.

Bit 7 Reserved, must be kept at reset value.

Bits 6:4 PLLM[2:0] : Division factor for the main PLL and audio PLLSAI1 input clock

Set and cleared by software to divide the PLL and PLLSAI1 input clock before the VCO. These bits can be written only when all PLLs are disabled.

VCO input frequency = PLL input clock frequency / PLLM with \( 1 \leq \text{PLLM} \leq 8 \)

000: PLLM = 1
001: PLLM = 2
010: PLLM = 3
011: PLLM = 4
100: PLLM = 5
101: PLLM = 6
110: PLLM = 7
111: PLLM = 8

The software must set these bits to ensure that the VCO input frequency ranges from 2.66 to 16 MHz.

Bits 3:2 Reserved, must be kept at reset value.

Bits 1:0 PLLSRC[1:0] : Main PLL and audio PLLSAI1 entry clock source

Set and cleared by software to select PLL and PLLSAI1 clock source. These bits can be written only when PLL and PLLSAI1 are disabled.

In order to save power, when no PLL is used, the value of PLLSRC should be 00.

00: No clock sent to PLL and PLLSAI1
01: MSI clock selected as PLL and PLLSAI1 clock entry
10: HSI16 clock selected as PLL and PLLSAI1 clock entry
11: HSE clock selected as PLL and PLLSAI1 clock entry

6.4.5 RCC PLLSAI1 configuration register (RCC_PLLSAI1CFGR)

Address offset: 0x010

Reset value: 0x2204 0100

Access: No wait state, word, half-word and byte access

This register is used to configure the PLLSAI1 clock outputs according to the formulas:

• • \( f(\text{VCOSAI clock}) = f(\text{PLLSAI1 clock input}) \times (\text{PLLN} / \text{PLLM}) \)
• • \( f(\text{PLLSAI1\_P}) = f(\text{VCOSAI clock}) / \text{PLLP} \)
• • \( f(\text{PLLSAI1\_Q}) = f(\text{VCOSAI clock}) / \text{PLLQ} \)
• • \( f(\text{PLLSAI1\_R}) = f(\text{VCOSAI clock}) / \text{PLLR} \)

Bits 31:29 PLLR[2:0] : Audio PLLSAI1 division factor for PLLSAI1RCLK

Set and cleared by software to control the frequency of the audio PLLSAI1 output clock PLLSAI1RCLK. This output can be selected as system clock. These bits can be written only if PLLSAI1 is disabled.

PLLSAI1RCLK output clock frequency = VCO frequency / PLLR with PLLR = 2, 3, 4,... or 8
\( [\text{VCO frequency} / (N + 1)] \)

000: reserved

001: PLLR = 2

010: PLLR = 3

011: PLLR = 4

100: PLLR = 5

101: PLLR = 6

110: PLLR = 7

111: PLLR = 8

The software has to set these bits correctly not to exceed 64 MHz on this domain.

Bit 28 PLLREN : Audio PLLSAI1 PLLSAI1RCLK output enable

Set and reset by software to enable the PLLSAI1RCLK output of the audio PLLSAI1 (used as system clock).

In order to save power, when the PLLSAI1RCLK output of the PLLSAI1 is not used, the value of PLLREN should be 0.

0: PLLSAI1RCLK output disable

1: PLLSAI1RCLK output enable

Bits 27:25 PLLQ[2:0] : Audio PLLSA1 division factor for PLLSA1QCLK

Set and cleared by software to control the frequency of the audio PLLSA1 output clock PLLSA1QCLK. This output can be selected for USB and True RNG clock. These bits can be written only if PLLSA1 is disabled.

PLLSA1QCLK output clock frequency = VCO frequency / PLLQ with PLLQ = 2, 3, 4,... or 8
[VCO frequency / (N + 1)]

000: reserved

001: PLLQ = 2

010: PLLQ = 3

011: PLLQ = 4

100: PLLQ = 5

101: PLLQ = 6

110: PLLQ = 7

111: PLLQ = 8

The software has to set these bits correctly not to exceed 64 MHz on this domain.

Bit 24 PLLQEN : Audio PLLSA1 PLLSA1QCLK output enable

Set and reset by software to enable the PLLSA1QCLK output of the audio PLLSA1 (used as system clock).

In order to save power, when the PLLSA1QCLK output of the PLLSA1 is not used, the value of PLLQEN should be 0.

0: PLLSA1QCLK output disable

1: PLLSA1QCLK output enable

Bits 23:22 Reserved, must be kept at reset value.

Bits 21:17 PLLP[4:0] : Audio PLLSA1 division factor for PLLSA1PCLK.

Set and cleared by software to control the frequency of the audio PLLSA1 output clock PLLSA1PCLK. This output can be selected for SAI1 and ADC. These bits can be written only if PLLSA1 is disabled.

PLLSA1PCLK output clock frequency = VCO frequency / PLLP with PLLP = 2, 3, 4, ...or 32
[VCO frequency / (N + 1)]

00000: reserved

00001: PLLP = 2

00010: PLLP = 3

00011: PLLP = 4

00100: PLLP = 5

...

11111: PLLP = 32

Caution: The software has to set these bits correctly not to exceed 64 MHz on this domain.

Bit 16 PLLPEN : Audio PLLSA1 PLLSA1PCLK output enable

Set and reset by software to enable the PLLSA1PCLK output of the audio PLLSA1.

In order to save power, when the PLLSA1PCLK output of the PLL is not used, the value of PLLPEN should be 0.

0: PLLSA1PCLK output disable

1: PLLSA1PCLK output enable

Bit 15 Reserved, must be kept at reset value.

Bits 14:8 PLLN[6:0] : Audio PLLSA1 multiplication factor for VCO

Set and cleared by software to control the multiplication factor of the VCO. These bits can be written only when the PLLSA1 is disabled.

VCO output frequency = VCO input frequency x PLLN with \( 4 \leq PLLN \leq 86 \)

0000000: PLLN = 0 wrong configuration

0000001: PLLN = 1 wrong configuration

...

0000011: PLLN = 3 wrong configuration

0000100: PLLN = 4

0000101: PLLN = 5

...

1010101: PLLN = 85

1010110: PLLN = 86

1010111: PLLN = 87 wrong configuration

...

1111111: PLLN = 127 wrong configuration

Caution: The software has to set correctly these bits to ensure that the VCO output frequency is between 64 and 344 MHz.

Bits 7:0 Reserved, must be kept at reset value.

6.4.6 RCC clock interrupt enable register (RCC_CIER)

Address offset: 0x018

Reset value: 0x0000 0000

Access: No wait state, word, half-word and byte access

Bits 31:12 Reserved, must be kept at reset value.

Bit 11 LSI2RDYIE : LSI2 ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the LSI2 oscillator stabilization.

0: LSI2 ready interrupt disabled
1: LSI2 ready interrupt enabled

Bit 10 HSI48RDYIE : HSI48 ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the internal HSI48 oscillator.

0: HSI48 ready interrupt disabled
1: HSI48 ready interrupt enabled

Bit 9 LSECSSIE : LSE clock security system interrupt enable

Set and cleared by software to enable/disable interrupt caused by the clock security system on LSE.

0: Clock security interrupt caused by LSE clock failure disabled

1: Clock security interrupt caused by LSE clock failure enabled

Bits 8:7 Reserved, must be kept at reset value.

Bit 6 PLLSAI1RDYIE : PLLSAI1 ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by PLLSAI1 lock.

0: PLLSAI1 lock interrupt disabled

1: PLLSAI1 lock interrupt enabled

Bit 5 PLLRDYIE : PLL ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by PLL lock.

0: PLL lock interrupt disabled

1: PLL lock interrupt enabled

Bit 4 HSERDYIE : HSE ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the HSE oscillator stabilization.

0: HSE ready interrupt disabled

1: HSE ready interrupt enabled

Bit 3 HSIRDYIE : HSI16 ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the HSI16 oscillator stabilization.

0: HSI16 ready interrupt disabled

1: HSI16 ready interrupt enabled

Bit 2 MSIRDYIE : MSI ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the MSI oscillator stabilization.

0: MSI ready interrupt disabled

1: MSI ready interrupt enabled

Bit 1 LSERDYIE : LSE ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the LSE oscillator stabilization.

0: LSE ready interrupt disabled

1: LSE ready interrupt enabled

Bit 0 LSI1RDYIE : LSI1 ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the LSI1 oscillator stabilization.

0: LSI1 ready interrupt disabled

1: LSI1 ready interrupt enabled

6.4.7 RCC clock interrupt flag register (RCC_CIFR)

Address offset: 0x01C

Reset value: 0x0000 0000

Access: No wait state, word, half-word and byte access

Bits 31:12 Reserved, must be kept at reset value.

Bit 11 LSI2RDYF : LSI2 ready interrupt flag

Set by hardware when the LSI2 clock becomes stable and LSI2RDYDIE is set.

Cleared by software setting the LSI2RDYC bit.

0: No clock ready interrupt caused by the LSI2 oscillator

1: Clock ready interrupt caused by the LSI2 oscillator

Bit 10 HSI48RDYF : HSI48 ready interrupt flag

Set by hardware when the HSI48 clock becomes stable and HSI48RDYIE is set in a response to setting the HSI48ON (refer to RCC clock recovery RC register (RCC_CRRCR) ).

Cleared by software setting the HSI48RDYC bit.

0: No clock ready interrupt caused by the HSI48 oscillator

1: Clock ready interrupt caused by the HSI48 oscillator

Bit 9 LSECSSF : LSE clock security system interrupt flag

Set by hardware when a failure is detected in the LSE oscillator.

Cleared by software setting the LSECSSC bit.

0: No clock security interrupt caused by LSE clock failure

1: Clock security interrupt caused by LSE clock failure

Bit 8 CSSF : HSE clock security system interrupt flag

Set by hardware when a failure is detected in the HSE oscillator.

Cleared by software setting the CSSC bit.

0: No clock security interrupt caused by HSE clock failure

1: Clock security interrupt caused by HSE clock failure

Bit 7 Reserved, must be kept at reset value.

Bit 6 PLL1SA1RDYF : PLL1SA1 ready interrupt flag

Set by hardware when the PLL1SA1 locks and PLL1SA1RDYDIE is set.

Cleared by software setting the PLL1SA1RDYC bit.

0: No clock ready interrupt caused by PLL1SA1 lock

1: Clock ready interrupt caused by PLL1SA1 lock

Bit 5 PLLRDYF : PLL ready interrupt flag

Set by hardware when the PLL locks and PLLRDYDIE is set.

Cleared by software setting the PLLRDYC bit.

0: No clock ready interrupt caused by PLL lock

1: Clock ready interrupt caused by PLL lock

Bit 4 HSERDYF : HSE ready interrupt flag

Set by hardware when the HSE clock becomes stable and HSERDYDIE is set.

Cleared by software setting the HSERDYC bit.

0: No clock ready interrupt caused by the HSE oscillator

1: Clock ready interrupt caused by the HSE oscillator

Bit 3 HSIRDYF : HSI16 ready interrupt flag

Set by hardware when the HSI16 clock becomes stable and HSIRDYDIE is set in a response to setting the HSION (refer to RCC clock control register (RCC_CR) ). When HSION is not set but the HSI16 oscillator is enabled by the peripheral through a clock request, this bit is not set and no interrupt is generated.

Cleared by software setting the HSIRDYC bit.

0: No clock ready interrupt caused by the HSI16 oscillator

1: Clock ready interrupt caused by the HSI16 oscillator

Bit 2 MSIRDYF : MSI ready interrupt flag

Set by hardware when the MSI clock becomes stable and MSIRDYDIE is set.

Cleared by software setting the MSIRDYC bit.

0: No clock ready interrupt caused by the MSI oscillator

1: Clock ready interrupt caused by the MSI oscillator

Bit 1 LSERDYF : LSE ready interrupt flag

Set by hardware when the LSE clock becomes stable and LSERDYDIE is set.

Cleared by software setting the LSERDYC bit.

0: No clock ready interrupt caused by the LSE oscillator

1: Clock ready interrupt caused by the LSE oscillator

Bit 0 LSI1RDYF : LSI1 ready interrupt flag

Set by hardware when the LSI1 clock becomes stable and LSI1RDYDIE is set.

Cleared by software setting the LSI1RDYC bit.

0: No clock ready interrupt caused by the LSI1 oscillator

1: Clock ready interrupt caused by the LSI1 oscillator

6.4.8 RCC clock interrupt clear register (RCC_CICR)

Address offset: 0x020

Reset value: 0x0000 0000

Access: No wait state, word, half-word and byte access

Bits 31:12 Reserved, must be kept at reset value.

Bit 11 LSI2RDYC : LSI2 ready interrupt clear

This bit is set by software to clear the LSI2RDYF flag.

0: No effect

1: LSI2RDYF cleared

Bit 10 HSI48RDYC : HSI48 oscillator ready interrupt clear

This bit is set by software to clear the HSI48RDYF flag.

0: No effect

1: Clear the HSI48RDYC flag

1. Bit 9 LSECSSC : LSE clock security system interrupt clear
   This bit is set by software to clear the LSECSSF flag.
   0: No effect
   1: Clear LSECSSF flag
2. Bit 8 CSSC : HSE clock security system interrupt clear
   This bit is set by software to clear the HSE CSSF flag.
   0: No effect
   1: Clear HSE CSSF flag
3. Bit 7 Reserved, must be kept at reset value.
4. Bit 6 PLLSAI1RDYC : PLLSAI1 ready interrupt clear
   This bit is set by software to clear the PLLSAI1RDYF flag.
   0: No effect
   1: Clear PLLSAI1RDYF flag
5. Bit 5 PLLRDYC : PLL ready interrupt clear
   This bit is set by software to clear the PLLRDYF flag.
   0: No effect
   1: Clear PLLRDYF flag
6. Bit 4 HSERDYC : HSE ready interrupt clear
   This bit is set by software to clear the HSERDYF flag.
   0: No effect
   1: Clear HSERDYF flag
7. Bit 3 HSIRDYC : HSI16 ready interrupt clear
   This bit is set software to clear the HSIRDYF flag.
   0: No effect
   1: Clear HSIRDYF flag
8. Bit 2 MSIRDYC : MSI ready interrupt clear
   This bit is set by software to clear the MSIRDYF flag.
   0: No effect
   1: MSIRDYF cleared
9. Bit 1 LSERDYC : LSE ready interrupt clear
   This bit is set by software to clear the LSERDYF flag.
   0: No effect
   1: LSERDYF cleared
10. Bit 0 LSI1RDYC : LSI1 ready interrupt clear
    This bit is set by software to clear the LSI1RDYF flag.
    0: No effect
    1: LSI1RDYF cleared

6.4.9 RCC SMPS step-down converter control register (RCC_SMPSCR)

Address offset: 0x024

Reset value: 0x0000 0301 (after POR reset), 0x0000 0300 (after wake-up from Standby)

Access: No wait state, word, half-word and byte access

Bits 31:10 Reserved, must be kept at reset value.

Bits 9:8 SMPSSWS[1:0] : SMPS step-down converter clock switch status

Set and cleared by hardware to indicate which clock source is used as SMPS step-down converter clock when the SMPS is enabled. Whenever the HSE is active the HSE is used regardless of the settings in SMPSSEL. Whenever the SMPS step-down converter is disabled in PWR_CR5.SMPSEN, no clock is used.

00: HSI16 oscillator used as SMPS step-down converter clock

01: MSI oscillator used as SMPS step-down converter clock

10: HSE used as SMPS step-down converter clock

11: no clock is used

Bits 7:6 Reserved, must be kept at reset value.

Bits 5:4 SMPSDIV[1:0] : SMPS step-down converter clock prescaler

Set and cleared by software to control the division factor of the SMPS step-down converter clock. The SMPS step-down converter clock prescaler factor depend on both the SMPSDIV[1:0] and SMPSSEL[1:0] setting. See Table 35 .

Bits 3:2 Reserved, must be kept at reset value.

Bits 1:0 SMPSSEL[1:0] : SMPS step-down converter clock selection.

Set and cleared by software to select SMPS step-down converter clock source (SMPSELCLK).

00: HSI16 selected as SMPS step-down converter clock

01: MSI selected as SMPS step-down converter clock (the MSITRANGE shall be set to a supported value, see Table 35 ).

10: HSE selected as SMPS step-down converter clock

11: Reserved

Note: On a POR reset or NRST pin reset or when waking up from Shutdown the SMPSSEL is forced by hardware to select MSI (value b01). When waking up from Standby the SMPSSEL is forced by hardware to select HSI (value b00). When waking up from Stop modes the SMPSSEL is forced by hardware to select the MSI or HSI clock as defined in RCC_CFGR.STOPWUCK.

6.4.10 RCC AHB1 peripheral reset register (RCC_AHB1RSTR)

Address offset: 0x028

Reset value: 0x00000 0000

Access: No wait state, word, half-word and byte access

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 TSCRST : Touch sensing controller reset (STM32WB55xx only)

Set and cleared by software.

0: No effect

1: Reset TSC

Note that this bit is reserved on STM32WB35xx.

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 CRCRST : CRC reset

Set and cleared by software.

0: No effect

1: Reset CRC

Bits 11:3 Reserved, must be kept at reset value.

Bit 2 DMAMUX1RST : DMAMUX reset

Set and cleared by software.

0: No effect

1: Reset DMAMUX1

Bit 1 DMA2RST : DMA2 reset

Set and cleared by software.

0: No effect

1: Reset DMA2

Bit 0 DMA1RST : DMA1 reset

Set and cleared by software.

0: No effect

1: Reset DMA1

6.4.11 RCC AHB2 peripheral reset register (RCC_AHB2RSTR)

Address offset: 0x02C

Reset value: 0x00000 0000

Access: No wait state, word, half-word and byte access

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 AES1RST : AES1 hardware accelerator reset

Set and cleared by software.

0: No effect

1: Reset AES1

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 ADCRST : ADC reset

Set and cleared by software.

0: No effect

1: Reset ADC interface

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 GPIOHRST : IO port H reset

Set and cleared by software.

0: No effect

1: Reset IO port H

Bits 6:5 Reserved, must be kept at reset value.

Bit 4 GPIOERST : IO port E reset

Set and cleared by software.

0: No effect

1: Reset IO port E

Bit 3 GPIODRST : IO port D reset (STM32WB55xx only)

Set and cleared by software.

0: No effect

1: Reset IO port D

Note that this bit is reserved on STM32WB35xx.

Bit 2 GPIOCRST : IO port C reset

Set and cleared by software.

0: No effect

1: Reset IO port C

Bit 1 GPIOBRST : IO port B reset

Set and cleared by software.

0: No effect

1: Reset IO port B

Bit 0 GPIOARST : IO port A reset

Set and cleared by software.

0: No effect

1: Reset IO port A

6.4.12 RCC AHB3 and AHB4 peripheral reset register (RCC_AHB3RSTR)

Address offset: 0x030

Reset value: 0x00000 0000

Access: No wait state, word, half-word and byte access

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 FLASHRST : Flash interface reset

This bit can only be set when the Flash memory is in power-down. Set and cleared by software.

0: No effect

1: Reset Flash interface.

Bits 24:21 Reserved, must be kept at reset value.

Bit 20 IPCCRST : IPCC interface reset

Set and cleared by software.

0: No effect

1: Reset IPCC

Bit 19 HSEMRST : HSEM reset

Set and cleared by software.

0: No effect

1: Reset HSEM

Bit 18 RNGRST : True RNG reset

Set and cleared by software.

0: No effect

1: Reset true RNG

Bit 17 AES2RST : AES2 hardware accelerator reset

Set and cleared by software.

0: No effect

1: Reset AES2

Bit 16 PKARST : PKA hardware accelerator reset

Set and cleared by software.

0: No effect

1: Reset PKA

Bits 15:9 Reserved, must be kept at reset value.

Bit 8 QUADSPIRST : Quad SPI memory interface reset

Set and cleared by software.

0: No effect

1: Reset QUADSPI

Bits 7:0 Reserved, must be kept at reset value.

6.4.13 RCC APB1 peripheral reset register 1 (RCC_APB1RSTR1)

Address offset: 0x038

Reset value: 0x0000 0000

Access: No wait state, word, half-word and byte access

Bit 31 LPTIM1RST : Low power timer 1 reset

Set and cleared by software.

0: No effect

1: Reset LPTIM1

Bits 30:27 Reserved, must be kept at reset value.

Bit 26 USBRST : USB FS reset

Set and cleared by software.

0: No effect

1: Reset the USB FS

Bit 25 Reserved, must be kept at reset value

Bit 24 CRSRST : CRS reset

Set and cleared by software.

0: No effect

1: Reset the CRS

Bit 23 I2C3RST : I2C3 reset

Set and reset by software.

0: No effect

1: Resets I2C3

Bit 22 Reserved, must be kept at reset value

Bit 21 I2C1RST : I2C1 reset

Set and cleared by software.

0: No effect

1: Reset I2C1

Bits 20:15 Reserved, must be kept at reset value.

Bit 14 SPI2RST : SPI2 reset (STM32WB55xx only)

Set and cleared by software.

0: No effect

1: Reset SPI2

Note that this bit is reserved on STM32WB35xx.

Bits 13:10 Reserved, must be kept at reset value.

Bit 9 LCDRST : LCD interface reset (STM32WB55xx only)

Set and cleared by software.

0: No effect

1: Reset LCD

Note that this bit is reserved on STM32WB35xx.

Bits 8:1 Reserved, must be kept at reset value.

Bit 0 TIM2RST : TIM2 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM2

6.4.14 RCC APB1 peripheral reset register 2 (RCC_APB1RSTR2)

Address offset: 0x03C

Reset value: 0x00000 0000

Access: No wait state, word, half-word and byte access

Bits 31:6 Reserved, must be kept at reset value.

Bit 5 LPTIM2RST : Low-power timer 2 reset

Set and cleared by software.

0: No effect

1: Reset LPTIM2

Bits 4:1 Reserved, must be kept at reset value.

Bit 0 LPUART1RST : Low-power UART 1 reset

Set and cleared by software.

0: No effect

1: Reset LPUART1

6.4.15 RCC APB2 peripheral reset register (RCC_APB2RSTR)

Address offset: 0x040

Reset value: 0x00000 0000

Access: No wait state, word, half-word and byte access

Bits 31:22 Reserved, must be kept at reset value.

Bit 21 SAI1RST : Serial audio interface 1 (SAI1) reset

Set and cleared by software.

0: No effect

1: Reset SAI1

Bits 20:19 Reserved, must be kept at reset value.

Bit 18 TIM17RST : TIM17 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM17 timer

Bit 17 TIM16RST : TIM16 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM16 timer

Bits 16:15 Reserved, must be kept at reset value.

Bit 14 USART1RST : USART1 reset

Set and cleared by software.

0: No effect

1: Reset USART1

Bit 13 Reserved, must be kept at reset value.

Bit 12 SPI1RST : SPI1 reset

Set and cleared by software.

0: No effect

1: Reset SPI1

Bit 11 TIM1RST : TIM1 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM1 timer

Bits 10:0 Reserved, must be kept at reset value.

6.4.16 RCC APB3 peripheral reset register (RCC_APB3RSTR)

Address offset: 0x044

Reset value: 0x00000 0000

Access: No wait state, word, half-word and byte access

Bits 31:1 Reserved, must be kept at reset value.

Bit 0 RFRST : Radio system BLE and 802.15.4 reset.

Set and cleared by software.

0: No effect

1: Reset radio system BLE and 802.15.4. The reset status of the radio system can be obtained from RFRSTS in RCC control/status register (RCC_CSR) .

6.4.17 RCC AHB1 peripheral clock enable register (RCC_AHB1ENR)

Address offset: 0x048

Reset value: 0x0000 0000

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU1 is not supported.

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 TSCEN : CPU1 Touch sensing controller clock enable (STM32WB55xx only)

Set and cleared by software.

0: TSC clock disable for CPU1

1: TSC clock enable for CPU1

Note that this bit is reserved on STM32WB35xx.

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 CRCEN : CPU1 CRC clock enable

Set and cleared by software.

0: CRC clock disable for CPU1

1: CRC clock enable for CPU1

Bits 11:3 Reserved, must be kept at reset value.

Bit 2 DMAMUX1 : CPU1 DMAMUX1 clock enable

Set and cleared by software.

0: DMAMUX1 clock disable for CPU1

1: DMAMUX1 clock enable for CPU1

Bit 1 DMA2EN : CPU1 DMA2 clock enable

Set and cleared by software.

0: DMA2 clock disable or CPU1

1: DMA2 clock enable for CPU1

Bit 0 DMA1EN : CPU1 DMA1 clock enable

Set and cleared by software.

0: DMA1 clock disable for CPU1

1: DMA1 clock enable for CPU1

6.4.18 RCC AHB2 peripheral clock enable register (RCC_AHB2ENR)

Address offset: 0x04C

Reset value: 0x0000 0000

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU1 is not supported.

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 AES1EN : CPU1 AES1 accelerator clock enable

Set and cleared by software.

0: AES clock disabled for CPU1

1: AES clock enabled for CPU1

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 ADCEN : CPU1 ADC clocks enable

Set and cleared by software.

0: ADC bus and kernel clocks disabled for CPU1

1: ADC bus and kernel clocks enabled for CPU1

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 GPIOHEN : CPU1 IO port H clock enable

Set and cleared by software.

0: IO port H clock disabled for CPU1

1: IO port H clock enabled for CPU1

Bits 6:5 Reserved, must be kept at reset value.

Bit 4 GPIOEEN : CPU1 IO port E clock enable

Set and cleared by software.

0: IO port E clock disabled for CPU1

1: IO port E clock enabled for CPU1

Bit 3 GPIODEN : CPU1 IO port D clock enable (STM32WB55xx only)

Set and cleared by software.

0: IO port D clock disabled for CPU1

1: IO port D clock enabled for CPU1

Note that this bit is reserved on STM32WB35xx.

Bit 2 GPIOCEN : CPU1 IO port C clock enable

Set and cleared by software.

0: IO port C clock disabled for CPU1

1: IO port C clock enabled for CPU1

Bit 1 GPIOBEN : CPU1 IO port B clock enable

Set and cleared by software.

0: IO port B clock disabled for CPU1

1: IO port B clock enabled for CPU1

Bit 0 GPIOAEN : CPU1 IO port A clock enable

Set and cleared by software.

0: IO port A clock disabled for CPU1

1: IO port A clock enabled for CPU1

6.4.19 RCC AHB3 and AHB4 peripheral clock enable register (RCC_AHB3ENR)

Address offset: 0x050

Reset value: 0x0208 0000

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU1 is not supported.

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 FLASHEN CPU1 Flash memory interface clock enable

This bit can only be cleared when the Flash memory is in Power down. Set and cleared by software.

0: Flash interface clock disable for CPU1

1: Flash interface clock enable for CPU1

Bits 24:21 Reserved, must be kept at reset value.

Bit 20 IPCCEN CPU1 IPCC interface clock enable

Set and cleared by software.

0: IPCC clock disable for CPU1

1: IPCC clock enable for CPU1

Bit 19 HSEMEN CPU1 HSEM clock enable

Set and cleared by software.

0: HSEM clock disable for CPU1

1: HSEM clock enable for CPU1

Bit 18 RNGEN CPU1 true RNG clocks enable

Set and cleared by software.

0: True RNG bus and kernel clocks disable for CPU1

1: True RNG bus and kernel clocks enable for CPU1

Bit 17 AES2EN CPU1 AES2 accelerator clock enable

Set and cleared by software.

0: AES2 clock disable for CPU1

1: AES2 clock enable for CPU1

Bit 16 PKAEN CPU1 PKA accelerator clock enable

Set and cleared by software.

0: PKA clock disable for CPU1

1: PKA clock enable for CPU1

Bits 15:9 Reserved, must be kept at reset value.

Bit 8 QUADSPIEN : CPU1 Quad SPI memory interface clock enable

Set and cleared by software.

0: QUADSPI clock disable for CPU1

1: QUADSPI clock enable for CPU1

Bits 7:0 Reserved, must be kept at reset value.

6.4.20 RCC APB1 peripheral clock enable register 1 (RCC_APB1ENR1)

Address: 0x058

Reset value: 0x0000 0400

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU1 is not supported.

Bit 31 LPTIM1EN : CPU1 Low power timer 1 clocks enable

Set and cleared by software.

0: LPTIM1 bus and kernel clocks disabled for CPU1

1: LPTIM1 bus and kernel clocks enabled for CPU1

Bits 30:27 Reserved, must be kept at reset value.

Bit 26 USBEN : CPU1 USB FS clocks enable

Set and cleared by software

0: USB FS bus and kernel clocks disabled for CPU1

1: USB FS bus and kernel clocks enabled for CPU1

Bits 25 Reserved, must be kept at reset value.

Bit 24 CRSEN : CPU1 CRS clock enable

Set and cleared by software.

0: CRS clock disabled for CPU1

1: CRS clock enabled for CPU1

Bit 23 I2C3EN : CPU1 I2C3 clocks enable

Set and cleared by software.

0: I2C3 bus and kernel clocks disabled for CPU1

1: I2C3 bus and kernel clocks enabled for CPU1

Bits 22 Reserved, must be kept at reset value.

Bit 21 I2C1EN : CPU1 I2C1 clocks enable

Set and cleared by software.

0: I2C1 bus and kernel clocks disabled for CPU1

1: I2C1 bus and kernel clocks enabled for CPU1

Bits 20:15 Reserved, must be kept at reset value.

Bit 14 SPI2EN : CPU1 SPI2 clock enable (STM32WB55xx only)

Set and cleared by software.

0: SPI2 clock disabled for CPU1

1: SPI2 clock enabled for CPU1

Note that this bit is reserved on STM32WB35xx.

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDGEN : CPU1 Window watchdog clock enable

Set by software to enable the window watchdog clock. Reset by hardware system reset.

This bit can also be set by hardware if the WWDG_SW option bit is reset.

0: Window watchdog clock disabled for CPU1

1: Window watchdog clock enabled for CPU1

Bit 10 RTCAPBEN : CPU1 RTC APB clock enable

Set and cleared by software

0: RTC APB clock disabled for CPU1

1: RTC APB clock enabled for CPU1

Bit 9 LCDEN : CPU1 LCD clock enable (STM32WB55xx only)

Set and cleared by software.

0: LCD clock disabled for CPU1

1: LCD clock enabled for CPU1

Note that this bit is reserved on STM32WB35xx.

Bits 8:1 Reserved, must be kept at reset value.

Bit 0 TIM2EN : CPU1 TIM2 timer clock enable

Set and cleared by software.

0: TIM2 clock disabled for CPU1

1: TIM2 clock enabled for CPU1

6.4.21 RCC APB1 peripheral clock enable register 2 (RCC_APB1ENR2)

Address offset: 0x05C

Reset value: 0x00000 0000

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU1 is not supported.

Bits 31:6 Reserved, must be kept at reset value.

Bit 5 LPTIM2EN CPU1 Low power timer 2 clocks enable

Set and cleared by software.

0: LPTIM2 bus and kernel clocks disabled for CPU1

1: LPTIM2 bus and kernel clocks enabled for CPU1

Bits 4:1 Reserved, must be kept at reset value.

Bit 0 LPUART1EN : CPU1 Low power UART 1 clocks enable

Set and cleared by software.

0: LPUART1 bus and kernel clocks disabled for CPU1

1: LPUART1 bus and kernel clocks enabled for CPU1

6.4.22 RCC APB2 peripheral clock enable register (RCC_APB2ENR)

Address: 0x060

Reset value: 0x0000 0000

Access: word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU1 is not supported.

Bits 31:22 Reserved, must be kept at reset value.

Bit 21 SAI1EN : CPU1 SAI1 clocks enable
Set and cleared by software.
0: SAI1 bus and kernel clocks disabled for CPU1
1: SAI1 bus and kernel clocks enabled for CPU1

Bits 20:19 Reserved, must be kept at reset value.

Bit 18 TIM17EN : CPU1 TIM17 timer clock enable
Set and cleared by software.
0: TIM17 timer clock disabled for CPU1
1: TIM17 timer clock enabled for CPU1

Bit 17 TIM16EN : CPU1 TIM16 timer clock enable
Set and cleared by software.
0: TIM16 timer clock disabled for CPU1
1: TIM16 timer clock enabled for CPU1

Bits 16:15 Reserved, must be kept at reset value.

Bit 14 USART1EN : CPU1 USART1 clocks enable
Set and cleared by software.
0: USART1 bus and kernel clocks disabled for CPU1
1: USART1 bus and kernel clocks enabled for CPU1

Bit 13 Reserved, must be kept at reset value.

Bit 12 SPI1EN : CPU1 SPI1 clock enable
Set and cleared by software.
0: SPI1 clock disabled for CPU1
1: SPI1 clock enabled for CPU1

Bit 11 TIM1EN : CPU1 TIM1 timer clock enable
Set and cleared by software.
0: TIM1 timer clock disabled for CPU1
1: TIM1P timer clock enabled for CPU1

Bits 10:0 Reserved, must be kept at reset value.

6.4.23 RCC AHB1 peripheral clocks enable in Sleep modes register (RCC_AHB1SMENR)

Address offset: 0x068

Reset value: 0x0001 1207

Access: No wait state, word, half-word and byte access

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 TSCSMEN : Touch sensing controller clock enable during CPU1 CSleep mode
(STM32WB55xx only)

Set and cleared by software.

0: TSC clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: TSC clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode

Note that this bit is reserved on STM32WB35xx.

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 CRCSMEN : CRC clock enable during CPU1 CSleep mode

Set and cleared by software.

0: CRC clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: CRC clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode

Bits 11:10 Reserved, must be kept at reset value.

Bit 9 SRAM1SMEN : SRAM1 interface clock enable during CPU1 CSleep mode

Set and cleared by software.

0: SRAM1 interface clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: SRAM1 interface clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode

Bits 8:3 Reserved, must be kept at reset value.

Bit 2 DMAMUX1SMEN : DMAMUX1 clock enable during CPU1 CSleep mode

Set and cleared by software during Sleep mode.

0: DMAMUX1 clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: DMAMUX1 clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode

Bit 1 DMA2SMEN : DMA2 clock enable during CPU1 CSleep mode

Set and cleared by software during Sleep mode.

0: DMA2 clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: DMA2 clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode

Bit 0 DMA1SMEN : DMA1 clock enable during CPU1 CSleep mode

Set and cleared by software.

0: DMA1 clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: DMA1 clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

6.4.24 RCC AHB2 peripheral clocks enable in Sleep modes register (RCC_AHB2SMENR)

Address offset: 0x06C

Reset value: 0x0001 209F

Access: No wait state, word, half-word and byte access

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 AES1SMEN : AES1 accelerator clock enable during CPU1 CSleep mode

Set and cleared by software.

0: AES1 clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: AES1 clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 ADC SMEN : ADC clock enable during CPU1 Csleep and CStop modes

Set and cleared by software.

0: ADC bus clock disabled by the clock gating during CPU1 Csleep and CStop modes.

1: ADC bus clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 GPIOH SMEN : IO port H clock enable during CPU1 CSleep mode

Set and cleared by software.

0: IO port H clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: IO port H clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 6:5 Reserved, must be kept at reset value.

Bit 4 GPIOE SMEN : IO port E clock enable during CPU1 CSleep mode

Set and cleared by software.

0: IO port E clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: IO port E clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode

Bit 3 GPIO D SMEN : IO port D clock enable during CPU1 CSleep mode (STM32WB55xx only)

Set and cleared by software.

0: IO port D clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: IO port D clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Note that this bit is reserved on STM32WB35xx.

Bit 2 GPIO C SMEN : IO port C clock enable during CPU1 CSleep mode

Set and cleared by software.

0: IO port C clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: IO port C clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode

Bit 1 GPIOBSMEN : IO port B clock enable during CPU1 CSleep mode

Set and cleared by software.

0: IO port B clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: IO port B clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode

Bit 0 GPIOSMEN : IO port A clock enable during CPU1 CSleep mode

Set and cleared by software.

0: IO port A clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: IO port A clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

6.4.25 RCC AHB3 and AHB4 peripheral clocks enable in Sleep and Stop modes register (RCC_AHB3SMENR)

Address offset: 0x070

Reset value: 0x0307 0100

Access: No wait state, word, half-word and byte access

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 FLASHSMEN : Flash memory interface clock enable during CPU1 CSleep mode

Set and cleared by software.

0: Flash interface clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: Flash interface clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bit 24 SRAM2SMEN : SRAM2a and SRAM2b memory interface clock enable during CPU1 CSleep mode

Set and cleared by software.

0: SRAM2 clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: SRAM2 clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 23:19 Reserved, must be kept at reset value.

Bit 18 RNGSMEN : True RNG clock enable during CPU1 Csleep and CStop modes

Set and cleared by software.

0: True RNG bus clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: True RNG bus clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bit 17 AES2MEN : AES2 accelerator clock enable during CPU1 CSleep mode

Set and cleared by software.

0: AES2 clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: AES2 clock enabled by the clock gating during CPU1 CSleep mode, .disabled during CPU1 CStop mode

Bit 16 PKASMEN : PKA accelerator clock enable during CPU1 CSleep mode

Set and cleared by software.

0: PKA clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: PKA clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 15:9 Reserved, must be kept at reset value.

Bit 8 QUADSPISMEN Quad SPI memory interface clock enable during CPU1 CSleep mode

Set and cleared by software.

0: QUADSPI clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: QUADSPI clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 7:0 Reserved, must be kept at reset value.

6.4.26 RCC APB1 peripheral clocks enable in Sleep mode register 1 (RCC_APB1SMENR1)

Address: 0x078

Reset value: 0x85A0 4E01

Access: No wait state, word, half-word and byte access

Bit 31 LPTIM1SMEN : Low power timer 1 clock enable during CPU1 Csleep and CStop mode

Set and cleared by software.

0: LPTIM1 bus clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: LPTIM1 bus clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 30:27 Reserved, must be kept at reset value.

Bit 26 USB3SMEN : USB FS clock enable during CPU1 Csleep and CStop modes

Set and cleared by software.

0: USB FS bus clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: USB FS bus clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 25 Reserved, must be kept at reset value.

Bit 24 CRSSMEN : CRS clock enable during CPU1 CSleep mode

Set and cleared by software.

0: CRS clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: CRS clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bit 23 I2C3SMEN : I2C3 clock enable during CPU1 Csleep and CStop modes

Set and cleared by software.

0: I2C3 bus clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: I2C3 bus clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 22 Reserved, must be kept at reset value.

Bit 21 I2C1SMEN : I2C1 clock enable during CPU1 Csleep and CStop modes

Set and cleared by software.

0: I2C1 bus clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: I2C1 bus clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 20:15 Reserved, must be kept at reset value.

Bit 14 SPI2SMEN : SPI2 clock enable during CPU1 CSleep mode (STM32WB55xx only)

Set and cleared by software.

0: SPI2 clock disabled by the clock gating during CPU1 Csleep and CStop mode

1: SPI2 clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Note that this bit is reserved on STM32WB35xx.

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDGSMEN : Window watchdog clocks enable during CPU1 CSleep mode

Set and cleared by software. This bit is forced to '1' by hardware when the hardware WWDG_SW option is reset.

0: Window watchdog clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: Window watchdog clocks enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bit 10 RTCAPBSMEN : RTC bus clock enable during CPU1 CSleep mode

Set and cleared by software

0: RTC bus clock disabled during by the clock gating during CPU1 Csleep and CStop modes.

1: RTC bus clock enabled during by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bit 9 LCDSMEN : LCD clock enable during CPU1 CSleep mode (STM32WB55xx only)

Set and cleared by software.

0: LCD clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: LCD clocks enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Note that this bit is reserved on STM32WB35xx.

Bits 8:1 Reserved, must be kept at reset value.

Bit 0 TIM2SMEN : TIM2 timer clock enable during CPU1 CSleep mode

Set and cleared by software.

0: TIM2 clock disabled by the clock gating during CPU1 Csleep and CStop modes

1: TIM2 clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

6.4.27 RCC APB1 peripheral clocks enable in Sleep mode register 2 (RCC_APB1SMENR2)

Address offset: 0x07C

Reset value: 0x0000 0021

Access: No wait state, word, half-word and byte access

Bits 31:6 Reserved, must be kept at reset value.

Bit 5 LPTIM2SMEN Low power timer 2 clock enable during CPU1 Csleep and CStop modes

Set and cleared by software.

0: LPTIM2 bus clock disabled by the clock gating during CPU1 Csleep and CStop modes.

1: LPTIM2 bus clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

Bits 4:1 Reserved, must be kept at reset value.

Bit 0 LPUART1SMEN : Low power UART 1 clock enable during CPU1 Csleep and CStop modes.

Set and cleared by software.

0: LPUART1 bus clock disabled by the clock gating during CPU1 CSleep and CStop modes

1: LPUART1 bus clock enabled by the clock gating during CPU1 CSleep mode, disabled during CPU1 CStop mode.

6.4.28 RCC APB2 peripheral clocks enable in Sleep mode register (RCC_APB2SMENR)

Address: 0x080

Reset value: 0x0026 5800

Access: word, half-word and byte access

Bits 31:22 Reserved, must be kept at reset value.

Bit 21 SAI1SMEN : SAI1 clock enable during CPU1 Csleep and CStop modes

Set and cleared by software.

0: SAI1 bus clock disabled by the clock gating during CPU1 Csleep and CStop mode

1: SAI1 bus clock enabled by the clock gating during CPU1 Csleep mode, disabled during CPU1 CStop mode.

Bits 20:19 Reserved, must be kept at reset value.

Bit 18 TIM17SMEN : TIM17 timer clock enable during CPU1 Csleep mode

Set and cleared by software.

0: TIM17 timer clock disabled by the clock gating during CPU1 Csleep and CStop mode

1: TIM17 timer clocks enabled by the clock gating during CPU1 Csleep mode, disabled during CPU1 CStop mode.

Bit 17 TIM16SMEN : TIM16 timer clock enable during CPU1 Csleep mode

Set and cleared by software.

0: TIM16 timer clock disabled by the clock gating during CPU1 Csleep and CStop mode

1: TIM16 timer clock enabled by the clock gating during CPU1 Csleep mode, disabled during CPU1 CStop mode

Bits 16:15 Reserved, must be kept at reset value.

Bit 14 USART1SMEN : USART1 clock enable during CPU1 Csleep and CStop modes.

Set and cleared by software.

0: USART1 bus clock disabled by the clock gating during CPU1 Csleep and CStop mode

1: USART1 bus clock enabled by the clock gating during CPU1 Csleep mode, disabled during CPU1 CStop mode.

Bit 13 Reserved, must be kept at reset value.

Bit 12 SPI1SMEN : SPI1 clock enable during CPU1 Csleep mode

Set and cleared by software.

0: SPI1 clock disabled by the clock gating during CPU1 Csleep and CStop mode

1: SPI1 clock enabled by the clock gating during CPU1 Csleep mode, disabled during CPU1 CStop mode.

Bit 11 TIM1SMEN : TIM1 timer clock enable during CPU1 Csleep mode

Set and cleared by software.

0: TIM1 timer clock disabled by the clock gating during CPU1 Csleep and CStop mode

1: TIM1 timer clock enabled by the clock gating during CPU1 Csleep mode, disabled during CPU1 CStop mode.

Bits 10:0 Reserved, must be kept at reset value.

6.4.29 RCC peripherals independent clock configuration register (RCC_CCIPR)

Address: 0x088

Reset value: 0x0000 0000

Access: no wait states, word, half-word and byte access

Bits 31:30 RNGSEL[1:0] : RNG clock source selection

These bits are set and cleared by software to select the clock source used by the true RNG.

00: Use clock as selected by CLK48SEL

01: Select LSI clock

10: Select LSE clock

11: Reserved

Bits 29:28 ADCSEL[1:0] : ADC clock source selection

These bits are set and cleared by software to select the clock source used by the ADC interface.

00: No clock selected

01: PLLSAI1 “R” clock (PLLSAI1RCLK) selected as ADC clock

10: PLL “P” clock (PLLCLK) selected as ADC clock

11: System clock (SYSCLK) selected as ADC clock

Bits 27:26 CLK48SEL[1:0] : 48 MHz clock source selection

These bits are set and cleared by software to select the 48 MHz clock source used by USB and true RNG. The true RNG clock source selection is furthermore selected by RNGSEL.

00: HSI48 clock selected as 48 MHz clock

01: PLLSAI1 “Q” clock (PLLSAI1QCLK) selected as 48 MHz clock

10: PLL “Q” clock (PLLQCLK) selected as 48 MHz clock

11: MSI clock selected as 48 MHz clock

Bits 25:24 Reserved, must be kept at reset value.

Bits 23:22 SAI1SEL[1:0] : SAI1 clock source selection

These bits are set and cleared by software to select the SAI1 clock source.

00: PLLSAI1 “P” clock (PLLSAI1PCLK) selected as SAI1 clock

01: PLL “P” clock (PLLCLK) selected as SAI1 clock

10: HSI16 clock selected as SAI1 clock

11: External input SAI1_EXTCLK selected as SAI1 clock

Caution: Switching SAI1 clock source from an external clock to another clock is only possible if the external clock is present, as the clock switch mechanism depends on the external clock signal. If the external clock is absent but selected, the SAI1SEL register may reflect a different clock source, but the switch is not effective. In this case, a system reset (NRST) is not enough to restore clock functionality; only a power-on reset can asynchronously force the effective clock switch. When the external clock is present, the clock switch completes normally without requiring a power-on reset.

Bits 21:20 LPTIM2SEL[1:0] : Low power timer 2 clock source selection

These bits are set and cleared by software to select the LPTIM2 clock source.

00: PCLK selected as LPTIM2 clock

01: LSI clock selected as LPTIM2 clock

10: HSI16 clock selected as LPTIM2 clock

11: LSE clock selected as LPTIM2 clock

Bits 19:18 LPTIM1SEL[1:0] : Low power timer 1 clock source selection

These bits are set and cleared by software to select the LPTIM1 clock source.

00: PCLK selected as LPTIM1 clock

01: LSI clock selected as LPTIM1 clock

10: HSI16 clock selected as LPTIM1 clock

11: LSE clock selected as LPTIM1 clock

Bits 17:16 I2C3SEL[1:0] : I2C3 clock source selection

These bits are set and cleared by software to select the I2C3 clock source.

00: PCLK selected as I2C3 clock

01: System clock (SYSCLK) selected as I2C3 clock

10: HSI16 clock selected as I2C3 clock

11: Reserved

Bits 15:14 Reserved, must be kept at reset value.

Bits 13:12 I2C1SEL[1:0] : I2C1 clock source selection

These bits are set and cleared by software to select the I2C1 clock source.

00: PCLK selected as I2C1 clock

01: System clock (SYSCLK) selected as I2C1 clock

10: HSI16 clock selected as I2C1 clock

11: reserved

Bits 11:10 LPUART1SEL[1:0] : LPUART1 clock source selection

These bits are set and cleared by software to select the LPUART1 clock source.

00: PCLK selected as LPUART1 clock

01: System clock (SYSCLK) selected as LPUART1 clock

10: HSI16 clock selected as LPUART1 clock

11: LSE clock selected as LPUART1 clock

Bits 9:2 Reserved, must be kept at reset value.

Bits 1:0 USART1SEL[1:0] : USART1 clock source selection

This bit is set and cleared by software to select the USART1 clock source.

00: PCLK selected as USART1 clock

01: System clock (SYSCLK) selected as USART1 clock

10: HSI16 clock selected as USART1 clock

11: LSE clock selected as USART1 clock

6.4.30 RCC backup domain control register (RCC_BDCR)

Address offset: 0x090

Reset value: 0x0000 0000, (reset by Backup domain reset, except LSCOSEL, LSCOEN and BDRST, which are reset only by Backup domain power-on reset, not reset by wake-up from Standby and System reset)

Access: 0 ≤ wait state ≤ 3, word, half-word and byte access.

Wait states are inserted in case of successive accesses to this register.

Note: The bits of the RCC backup domain control register (RCC_BDCR) are outside of the V _CORE domain. As a result, after Reset, these bits are write-protected and the DBP bit in the PWR control register 1 (PWR_CR1) has to be set before these can be modified. Refer to Section 5.1.4: Battery backup domain for further information. These bits (except LSCOSEL, LSCOEN and BDRST) are only reset after a Backup domain reset . Any internal or external Reset will not have any effect on these bits.

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 LSCOSEL : Low speed clock output selection

Set and cleared by software.

0: LSI clock selected

1: LSE clock selected

Bit 24 LSCOEN : Low speed clock output enable

Set and cleared by software.

0: Low speed clock output (LSCO) disable

1: Low speed clock output (LSCO) enable

Bits 23:17 Reserved, must be kept at reset value.

Bit 16 BDRST : Backup domain software reset

Set and cleared by software.

0: Reset not activated

1: Resets the entire Backup domain

Bit 15 RTCEN : RTC clock enable

Set and cleared by software.

0: RTC clock disabled

1: RTC clock enabled

Bits 14:10 Reserved, must be kept at reset value.

Bits 9:8 RTCSEL[1:0] : RTC clock source selection

Set by software to select the clock source for the RTC. Once the RTC clock source has been selected, it cannot be changed anymore unless the Backup domain is reset, or unless a failure is detected on LSE (LSECSSD is set). The BDRST bit can be used to reset them.

00: No clock

01: LSE oscillator clock used as RTC clock

10: LSI oscillator clock used as RTC clock

11: HSE oscillator clock divided by 32 used as RTC clock

Bit 7 Reserved, must be kept at reset value.

Set by hardware to indicate when a failure has been detected by the clock security system on the external 32 kHz oscillator (LSE).

0: No failure detected on LSE (32 kHz oscillator)

1: Failure detected on LSE (32 kHz oscillator)

Set by software to enable the clock security system on LSE (32 kHz oscillator).

LSECSSON must be enabled after the LSE oscillator is enabled (LSEON bit enabled) and ready (LSERDY flag set by hardware), and after the RTCSEL bit is selected.

Once enabled this bit cannot be disabled, except after a LSE failure detection (LSECSSD = 1). In that case the software MUST disable the LSECSSON bit.

0: CSS on LSE (32 kHz external oscillator) OFF

1: CSS on LSE (32 kHz external oscillator) ON

Set by software to modulate the LSE oscillator drive capability.

00: 'Xtal mode' lower driving capability

01: 'Xtal mode' medium low driving capability

10: 'Xtal mode' medium high driving capability

11: 'Xtal mode' higher driving capability

The oscillator is in Xtal mode when it is not in bypass mode.

Set and cleared by software to bypass oscillator. This bit can be written only when the external 32 kHz oscillator is disabled (LSEON = 0 and LSERDY = 0).

0: LSE oscillator not bypassed

1: LSE oscillator bypassed

Set and cleared by hardware to indicate when the external 32 kHz oscillator is stable. After the LSEON bit is cleared, LSERDY goes low after six external low-speed oscillator clock cycles.

0: LSE oscillator not ready

1: LSE oscillator ready

Set and cleared by software.

0: LSE oscillator OFF

1: LSE oscillator ON

6.4.31 RCC control/status register (RCC_CSR)

Address: 0x094

Reset value: 0x0C00 0000 (reset by System reset, except reset flags by POR only, not reset by wake-up from Standby)

Access: 0 ≤ wait state ≤ 3, word, half-word and byte access

Wait states are inserted in case of successive accesses to this register.

Bit 31 LPWRRSTF : Low-power reset flag

Set by hardware when a reset occurs due to illegal Stop, Standby or Shutdown mode entry.

Cleared by writing to the RMVF bit.

0: No illegal mode reset occurred

1: Illegal mode reset occurred

Bit 30 WWDGRSTF : Window watchdog reset flag

Set by hardware when a window watchdog reset occurs.

Cleared by writing to the RMVF bit.

0: No window watchdog reset occurred

1: Window watchdog reset occurred

Bit 29 IWDGRSTF : Independent window watchdog reset flag

Set by hardware when an independent watchdog reset domain occurs.

Cleared by writing to the RMVF bit.

0: No independent watchdog reset occurred

1: Independent watchdog reset occurred

Bit 28 SFTRSTF : Software reset flag

Set by hardware when a software reset occurs.

Cleared by writing to the RMVF bit.

0: No software reset occurred

1: Software reset occurred

Bit 27 BORRSTF : BOR flag

Set by hardware when a BOR occurs.

Cleared by writing to the RMVF bit.

0: No BOR occurred

1: BOR occurred

Bit 26 PINRSTF : Pin reset flag

Set by hardware when a reset from the NRST pin occurs.

Cleared by writing to the RMVF bit.

0: No reset from NRST pin occurred

1: Reset from NRST pin occurred

Bit 25 OBLRSTF : Option byte loader reset flag

Set by hardware when a reset from the Option Byte loading occurs.

Cleared by writing to the RMVF bit.

0: No reset from Option Byte loading occurred

1: Reset from Option Byte loading occurred

Bit 24 Reserved, must be kept at reset value.

Bit 23 RMVF : Remove reset flag

Set by software to clear the reset flags.

0: No effect

1: Clear the reset flags

Bits 22:17 Reserved, must be kept at reset value.

Bit 16 RFRSTS : Radio system BLE and 802.15.4 reset status

Set and cleared by hardware

0: Radio system BLE and 802.15.4 not in reset, radio system can be accessed

1: Radio system BLE and 802.15.4 under reset, radio system cannot be accessed

Bits 15:14 RFWKPSEL[1:0] : RF system wake-up clock source selection

Set by software to select the clock source for RF system wake-up logic.

00: No clock

01: LSE oscillator clock used as RF system wake-up clock

10: Reserved

11: HSE oscillator clock divided by 1024 used as RF system wake-up clock

Bits 13:12 Reserved, must be kept at reset value.

Bits 11:8 LSI2TRIM[3:0] : LSI2 oscillator trim.

Note: LSI2TRIM must be changed only when LSI2 is disabled (LSI2ON = 0).

Bits 7:4 Reserved, must be kept at reset value.

Bit 3 LSI2RDY : LSI2 oscillator ready

Set and cleared by hardware to indicate when the LSI2 oscillator is stable. After the LSI2ON bit is cleared, LSI2RDY goes low after three LSI2 oscillator clock cycles.

0: LSI2 oscillator not ready

1: LSI2 oscillator ready

Bit 2 LSI2ON : LSI2 oscillator enable and selection

Set and cleared by software.

0: LSI2 oscillator OFF (LSI1 selected on LSI)

1: LSI2 oscillator ON(LSI2 when ready selected on LSI)

Bit 1 LSI1RDY : LSI1 oscillator ready

Set and cleared by hardware to indicate when the LSI1 oscillator is stable. After the LSI1ON bit is cleared, LSI1RDY goes low after three LSI1 oscillator clock cycles. This bit can be set even if LSI1ON = 0 if the LSI1 is requested by the clock security system on LSE, by the Independent watchdog or by the RTC.

0: LSI1 oscillator not ready

1: LSI1 oscillator ready

Bit 0 LSI1ON : LSI1 oscillator enable

Set and cleared by software.

0: LSI1 oscillator OFF

1: LSI1 oscillator ON

6.4.32 RCC clock recovery RC register (RCC_CRRRCR)

Address: 0x098

Reset value: 0x0000 XXX0 where X is factory-programmed.

Access: No wait state, word, half-word and byte access

Bits 31:16 Reserved, must be kept at reset value

Bits 15:7 HSI48CAL[8:0] : HSI48 clock calibration

These bits are initialized at startup with the factory-programmed HSI48 calibration trim value. They are ready only.

Bits 6:2 Reserved, must be kept at reset value

Bit 1 HSI48RDY : HSI48 clock ready flag

Set by hardware to indicate that HSI48 oscillator is stable. This bit is set only when HSI48 is enabled by software by setting HSI48ON.

0: HSI48 oscillator not ready

1: HSI48 oscillator ready

Bit 0 HSI48ON : HSI48 clock enable

Set and cleared by software.

Cleared by hardware to stop the HSI48 when entering in Stop, Standby or Shutdown modes.

0: HSI48 oscillator OFF

1: HSI48 oscillator ON

6.4.33 RCC clock HSE register (RCC_HSECR)

Address: 0x09C

Reset value: 0x0000 0030 (reset by System reset, not reset by wake-up from Standby)

Access: Write access is protected and software must write a KEY (0xCAFE CAFE) as a word access in this register to unlock the register. Once unlocked a single write access (word, half-word or byte) can be performed to the register. It is then locked again. No wait states.

Bits 31:14 Reserved, must be kept at reset value

Bits 13:8 HSETUNE[5:0] : HSE capacitor tuning

Can be changed by software. Do not change when HSE is on.

0x00: minimum load capacitance

0x3F maximum load capacitance

Bits 7 Reserved, must be kept at reset value

Can be changed by software. Do not change when HSE is on.

000: current max limit 0.18 mA/V

001: current max limit 0.57 mA/V

010: current max limit 0.78 mA/V

011: current max limit 1.13 mA/V

100: current max limit 0.61 mA/V

101: current max limit 1.65 mA/V

110: current max limit 2.12 mA/V

111: current max limit 2.84 mA/V

Note: The HSEGM value must be greater than \( g_{crit} \) whose value must be calculated according to AN2867 “Oscillator design guide for STM8S, STM8A and STM32 microcontrollers”, available on www.st.com .

Can be changed by software. Do not change when HSE is on.

0: HSE bias current factor 1/2

1: HSE bias current factor 3/4

Bits 2:1 Reserved, must be kept at reset value

Set and cleared by hardware.

0: register locked, the key has not been programmed, or a write access has been performed to the register

1: Register unlocked. Key 0xCAFE CAFE has been written to unlock this register, enabling a single data write

6.4.34 RCC extended clock recovery register (RCC_EXTCFGR)

Address: 0x108

Reset value: 0x0003 0000.

Access: No wait state, word, half-word and byte access

Bits 31:21 Reserved, must be kept at reset value

Set and reset by hardware to indicate which clock source is selected for the Radio system HCLK5 and APB3 clock.

0: HSI16 used for Radio system HCLK5 and APB3 clock

1: HSE divided by 2 used for Radio system HCLK5 and APB3 clock

Bits 19:18 Reserved, must be kept at reset value

Bit 17 C2HPREF : HCLK2 prescaler flag (CPU2)

Set and reset by hardware to acknowledge HCLK2 prescaler programming

Reset when a new prescaler value is programmed in C2HPRE. set when the programmed value is actually applied.

0: HCLK2 prescaler value not yet applied

1: HCLK2 prescaler value applied

Bit 16 SHDHPREF : HCLK4 shared prescaler flag (AHB4, Flash memory and SRAM2)

Set and reset by hardware to acknowledge Shared HCLK4 prescaler programming

Reset when a new prescaler value is programmed in SHDHPRE. set when the programmed value is actually applied.

0: HCLK4 prescaler value not yet applied

1: HCLK4 prescaler value applied

Bits 15:8 Reserved, must be kept at reset value

Bits 7:4 C2HPRE[3:0] : HCLK2 prescaler (CPU2)

Set and cleared by software to control the division factor of the HCLK2 clock (CPU2).

The C2HPREF flag can be checked to know if the programmed C2HPRE prescaler value is applied.

Caution: Depending on the device voltage range, the software must set correctly these bits to ensure that the system frequency does not exceed the maximum allowed frequency (for more details refer to Section 5.1.6: Dynamic voltage scaling management ). After a write operation to these bits and before decreasing the voltage range the register bit C2HPREF must be read to be sure that the new value has been taken into account.

0001: SYSCLK divided by 3

0010: SYSCLK divided by 5

0101: SYSCLK divided by 6

0110: SYSCLK divided by 10

0111: SYSCLK divided by 32

1000: SYSCLK divided by 2

1001: SYSCLK divided by 4

1010: SYSCLK divided by 8

1011: SYSCLK divided by 16

1100: SYSCLK divided by 64

1101: SYSCLK divided by 128

1110: SYSCLK divided by 256

1111: SYSCLK divided by 512

Others: SYSCLK not divided

Bit 3:0 SHDHPRE[3:0] : HCLK4 shared prescaler (AHB4, Flash memory and SRAM2)

Set and cleared by software to control the division factor of the Shared HCLK4 clock (AHB4, Flash memory and SRAM2).

The SHDHPREF flag can be checked to know if the programmed SHDHPRE prescaler value is applied.

Caution: Depending on the device voltage range, the software must set correctly these bits to ensure that the system frequency does not exceed the maximum allowed frequency (for more details refer to Section 5.1.6: Dynamic voltage scaling management ). After a write operation to these bits and before decreasing the voltage range the register bit SHDHPRE must be read to be sure that the new value has been taken into account.

0001: SYSCLK divided by 3

0010: SYSCLK divided by 5

0101: SYSCLK divided by 6

0110: SYSCLK divided by 10

0111: SYSCLK divided by 32

1000: SYSCLK divided by 2

1001: SYSCLK divided by 4

1010: SYSCLK divided by 8

1011: SYSCLK divided by 16

1100: SYSCLK divided by 64

1101: SYSCLK divided by 128

1110: SYSCLK divided by 256

1111: SYSCLK divided by 512

Others: SYSCLK not divided

6.4.35 RCC CPU2 AHB1 peripheral clock enable register (RCC_C2AHB1ENR)

Address offset: 0x148

Reset value: 0x0000 0000

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU2 is not supported.

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 TSCEN : CPU2 Touch sensing controller clock enable (STM32WB55xx only)

Set and cleared by software.

0: TSC clock disable for CPU2

1: TSC clock enable for CPU2

Note that this bit is reserved on STM32WB35xx.

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 CRCEN : CPU2 CRC clock enable

Set and cleared by software.

0: CRC clock disable for CPU2

1: CRC clock enable for CPU2

Bits 11:10 Reserved, must be kept at reset value.

Bit 9 SRAM1EN : CPU2 SRAM1 clock enable

Set and cleared by software.

0: SRAM1 clock disabled for CPU2

1: SRAM1 clock enabled for CPU2

Bits 8:3 Reserved, must be kept at reset value.

Bit 2 DMAMUX1 : CPU2 DMAMUX1 clock enable

Set and cleared by software.

0: DMAMUX1 clock disable for CPU2

1: DMAMUX1 clock enable for CPU2

Bit 1 DMA2EN : CPU2 DMA2 clock enable

Set and cleared by software.

0: DMA2 clock disable for CPU2

1: DMA2 clock enable for CPU2

Bit 0 DMA1EN : CPU2 DMA1 clock enable

Set and cleared by software.

0: DMA1 clock disable for CPU2

1: DMA1 clock enable for CPU2

6.4.36 RCC CPU2 AHB2 peripheral clock enable register (RCC_C2AHB2ENR)

Address offset: 0x14C

Reset value: 0x0000 0000

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU2 is not supported.

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 AES1EN : CPU2 AES1 accelerator clock enable

Set and cleared by software.

0: AES clock disabled for CPU2

1: AES clock enabled for CPU2

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 ADCEN : ADC clocks enable

Set and cleared by software.

0: ADC bus and kernel clocks disabled for CPU2

1: ADC bus and kernel clocks enabled for CPU2

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 GPIOHEN : CPU2 IO port H clock enable

Set and cleared by software.

0: IO port H clock disabled for CPU2

1: IO port H clock enabled for CPU2

Bits 6:5 Reserved, must be kept at reset value.

Bit 4 GPIOEEN : CPU2 IO port E clock enable

Set and cleared by software.

0: IO port E clock disabled for CPU2

1: IO port E clock enabled for CPU2

Bit 3 GIODEN : CPU2 IO port D clock enable (STM32WB55xx only)

Set and cleared by software.

0: IO port D clock disabled for CPU2

1: IO port D clock enabled for CPU2

Note that this bit is reserved on STM32WB35xx.

Bit 2 GPIOCEN : CPU2 IO port C clock enable

Set and cleared by software.

0: IO port C clock disabled for CPU2

1: IO port C clock enabled for CPU2

Bit 1 GPIOBEN : CPU2 IO port B clock enable

Set and cleared by software.

0: IO port B clock disabled for CPU2

1: IO port B clock enabled for CPU2

Bit 0 GPIOAEN : CPU2 IO port A clock enable

Set and cleared by software.

0: IO port A clock disabled for CPU2

1: IO port A clock enabled for CPU2

6.4.37 RCC CPU2 AHB3 and AHB4 peripheral clock enable register (RCC_C2AHB3ENR)

Address offset: 0x150

Reset value: 0x0208 0000

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU2 is not supported.

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 FLASHEN CPU2 Flash interface clock enable

This bit can only be cleared when the Flash is in Power down. Set and cleared by software.

0: Flash interface clock disable for CPU2

1: Flash interface clock enable for CPU2

Bits 24:21 Reserved, must be kept at reset value.

Bit 20 IPCCEN CPU2 IPCC interface clock enable

Set and cleared by software.

0: IPCC clock disable for CPU2

1: IPCC clock enable for CPU2

Bit 19 HSEMEN CPU2 HSEM clock enable

Set and cleared by software.

0: HSEM clock disable for CPU2

1: HSEM clock enable for CPU2

Bit 18 RNGEN CPU2 true RNG clocks enable

Set and cleared by software.

0: True RNG bus and kernel clocks disable for CPU2

1: True RNG bus and kernel clocks enable for CPU2

Bit 17 AES2EN CPU2 AES2 accelerator clock enable

Set and cleared by software.

0: AES2 clock disable for CPU2

1: AES2 clock enable for CPU2

Bit 16 PKAEN CPU2 PKA accelerator clock enable

Set and cleared by software.

0: PKA clock disable for CPU2

1: PKA clock enable for CPU2

Bits 15:0 Reserved, must be kept at reset value.

6.4.38 RCC CPU2 APB1 peripheral clock enable register 1 (RCC_C2APB1ENR1)

Address: 0x158

Reset value: 0x0000 0400

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU2 is not supported.

Bit 31 LPTIM1EN : CPU2 Low power timer 1 clocks enable

Set and cleared by software.

0: LPTIM1 bus and kernel clocks disabled for CPU2

1: LPTIM1 bus and kernel clocks enabled for CPU2

Bits 30:27 Reserved, must be kept at reset value.

Bit 26 USBEN : CPU2 USB FS clocks enable

Set and cleared by software

0: USB FS bus and kernel clocks disabled for CPU2

1: USB FS bus and kernel clocks enabled for CPU2

Bits 25 Reserved, must be kept at reset value.

Bit 24 CRSEN : CPU2 CRS clock enable

Set and cleared by software.

0: CRS clock disabled for CPU2

1: CRS clock enabled for CPU2

Bit 23 I2C3EN : CPU2 I2C3 clocks enable

Set and cleared by software.

0: I2C3 bus and kernel clocks disabled for CPU2

1: I2C3 bus and kernel clocks enabled for CPU2

Bits 22 Reserved, must be kept at reset value.

Bit 21 I2C1EN : CPU2 I2C1 clocks enable

Set and cleared by software.

0: I2C1 bus and kernel clocks disabled for CPU2

1: I2C1 bus and kernel clocks enabled for CPU2

Bits 20:15 Reserved, must be kept at reset value.

Bit 14 SPI2EN : CPU2 SPI2 clock enable (STM32WB55xx only)

Set and cleared by software.

0: SPI2 clock disabled for CPU2

1: SPI2 clock enabled for CPU2

Note that this bit is reserved on STM32WB35xx.

Bits 13:11 Reserved, must be kept at reset value.

Bit 10 RTCAPBEN : CPU2 RTC APB clock enable

Set and cleared by software

0: RTC APB clock disabled for CPU2

1: RTC APB clock enabled for CPU2

Bit 9 LCDEN : CPU2 LCD clock enable (STM32WB55xx only)

Set and cleared by software.

0: LCD clock disabled for CPU2

1: LCD clock enabled for CPU2

Note that this bit is reserved on STM32WB35xx.

Bits 8:1 Reserved, must be kept at reset value.

Bit 0 TIM2EN : CPU2 TIM2 timer clock enable

Set and cleared by software.

0: TIM2 clock disabled for CPU2

1: TIM2 clock enabled for CPU2

6.4.39 RCC CPU2 APB1 peripheral clock enable register 2 (RCC_C2APB1ENR2)

Address offset: 0x15C

Reset value: 0x00000 0000

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU2 is not supported.

Bits 31:6 Reserved, must be kept at reset value.

Bit 5 LPTIM2EN CPU2 Low power timer 2 clocks enable

Set and cleared by software.

0: LPTIM2 bus and kernel clocks disable for CPU2

1: LPTIM2 bus and kernel clocks enable for CPU2

Bits 4:1 Reserved, must be kept at reset value.

Bit 0 LPUART1EN : CPU2 Low power UART 1 clocks enable

Set and cleared by software.

0: LPUART1 bus and kernel clocks disable for CPU2

1: LPUART1 bus and kernel clocks enable for CPU2

6.4.40 RCC CPU2 APB2 peripheral clock enable register (RCC_C2APB2ENR)

Address: 0x160

Reset value: 0x0000 0000

Access: word, half-word and byte access

Note: When the peripheral clock is not active the peripheral registers read or write access from CPU2 is not supported.

Bits 31:22 Reserved, must be kept at reset value.

Bit 21 SAI1EN : CPU2 SAI1 clocks enable

Set and cleared by software.

0: SAI1 bus and kernel clocks disabled for CPU2

1: SAI1 bus and kernel clocks enabled for CPU2.

Bits 20:19 Reserved, must be kept at reset value.

Bit 18 TIM17EN : CPU2 TIM17 timer clock enable

Set and cleared by software.

0: TIM17 timer clock disabled for CPU2

1: TIM17 timer clock enabled for CPU2

Bit 17 TIM16EN : CPU2 TIM16 timer clock enable

Set and cleared by software.

0: TIM16 timer clock disabled for CPU2

1: TIM16 timer clock enabled for CPU2

Bits 16:15 Reserved, must be kept at reset value.

Bit 14 USART1EN : CPU2 USART1 clock enable

Set and cleared by software.

0: USART1 bus and kernel clocks disabled for CPU2

1: USART1 bus and kernel clocks enabled for CPU2

Bit 13 Reserved, must be kept at reset value.

Bit 12 SPI1EN : CPU2 SPI1 clock enable

Set and cleared by software.

0: SPI1 clock disabled for CPU2

1: SPI1 clock enabled for CPU2

Bit 11 TIM1EN : CPU2 TIM1 timer clock enable

Set and cleared by software.

0: TIM1 timer clock disabled for CPU2

1: TIM1P timer clock enabled for CPU2

Bits 10:0 Reserved, must be kept at reset value.

6.4.41 RCC CPU2 APB3 peripheral clock enable register (RCC_C2APB3ENR)

Address offset: 0x164

Reset value: 0x00000 0000

Access: No wait state, word, half-word and byte access

Note: When the peripheral clock is not active, the peripheral registers read or write access from CPU2 is not supported.

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 802EN : CPU2 802.15.4 interface clock enable

Set and cleared by software.

0: 802.15.4 clock disable for CPU2

1: 802.15.4 clock enable for CPU2

Bit 0 BLEEN : CPU2 BLE interface clock enable

Set and cleared by software.

0: BLE clock disable for CPU2

1: BLE clock enable for CPU2

6.4.42 RCC CPU2 AHB1 peripheral clocks enable in Sleep modes register (RCC_C2AHB1SMENR)

Address offset: 0x168

Reset value: 0x0001 1007

Access: No wait state, word, half-word and byte access

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 TSCSMEN : Touch sensing controller clock enable during CPU2 CSleep mode (STM32WB55xx only)

Set and cleared by software.

0: TSC clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: TSC clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Note that this bit is reserved on STM32WB35xx.

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 CRCSMEN : CRC clock enable during CPU2 CSleep mode

Set and cleared by software.

0: CRC clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: CRC clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bits 11:10 Reserved, must be kept at reset value.

Bit 9 SRAM1SMEN : SRAM1 interface clock enabled during CPU2 CSleep mode

Set and cleared by software

0: SRAM1 interface clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: SRAM1 interface clock enabled by the clock gating during CPU2 CSleep mode, disabled during CStop mode

Bits 8:3 Reserved, must be kept at reset value.

Bit 2 DMAMUX1SMEN : DMAMUX1 clock enable during CPU2 CSleep mode

Set and cleared by software during Sleep mode.

0: DMAMUX1 clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: DMAMUX1 clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 1 DMA2SMEN : DMA2 clock enable during CPU2 CSleep mode

Set and cleared by software during Sleep mode.

0: DMA2 clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: DMA2 clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Bit 0 DMA1SMEN : DMA1 clock enable during CPU2 CSleep mode

Set and cleared by software.

0: DMA1 clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: DMA1 clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

6.4.43 RCC CPU2 AHB2 peripheral clocks enable in Sleep modes register (RCC_C2AHB2SMENR)

Address offset: 0x16C

Reset value: 0x0001 209F

Access: No wait state, word, half-word and byte access

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 AES1SMEN : AES1 accelerator clock enable during CPU2 CSleep mode

Set and cleared by software.

0: AES1 clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: AES1 clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Bits 15:14 Reserved, must be kept at reset value.

Bit 13 ADCSMEN : ADC clock enable during CPU2 CSleep and CStop modes

Set and cleared by software.

0: ADC bus clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: ADC bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bits 12:8 Reserved, must be kept at reset value.

Bit 7 GPIOHSMEN : IO port H clock enable during CPU2 CSleep mode

Set and cleared by software.

0: IO port H clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: IO port H clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bits 6:5 Reserved, must be kept at reset value.

Bit 4 GPIOESMEN : IO port E clock enable during CPU2 CSleep mode

Set and cleared by software.

0: IO port E clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: IO port E clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 3 GPIODSMEN : IO port D clock enable during CPU2 CSleep mode (STM32WB55xx only)

Set and cleared by software.

0: IO port D clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: IO port D clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Note that this bit is reserved on STM32WB35xx.

Bit 2 GPIOCSMEN : IO port C clock enable during CPU2 CSleep mode

Set and cleared by software.

0: IO port C clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: IO port C clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 1 GPIOBSMEN : IO port B clock enable during CPU2 CSleep mode

Set and cleared by software.

0: IO port B clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: IO port B clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 0 GPIOASMEN : IO port A clock enable during CPU2 CSleep mode

Set and cleared by software.

0: IO port A clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: IO port A clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

6.4.44 RCC CPU2 AHB3 and AHB4 peripheral clocks enable in Sleep mode register (RCC_C2AHB3SMENR)

Address offset: 0x170

Reset value: 0x0307 0000

Access: No wait state, word, half-word and byte access

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 FLASHSMEN Flash memory interface clock enable during CPU2 CSleep mode

Set and cleared by software.

0: Flash memory interface clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: Flash memory interface clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Bit 24 SRAM2SMEN : SRAM2a and SRAM2b interface clock enable during CPU2 CSleep mode

Set and cleared by software.

0: SRAM2 clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: SRAM2 clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bits 23:19 Reserved, must be kept at reset value.

Bit 18 RNGSMEN True RNG clock enable during CPU2 CSleep and CStop mode

Set and cleared by software.

0: True RNG bus clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: True RNG bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 17 AES2SMEN AES2 accelerator clock enable during CPU2 CSleep mode

Set and cleared by software.

0: AES2 clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: AES2 clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 16 PKASMEN : PKA accelerator clock enable during CPU2 CSleep mode

Set and cleared by software.

0: PKA clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: PKA clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bits 15:0 Reserved, must be kept at reset value.

6.4.45 RCC CPU2 APB1 peripheral clocks enable in Sleep mode register 1 (RCC_C2APB1SMENR1)

Address: 0x178

Reset value: 0x85A0 4601

Access: No wait state, word, half-word and byte access

Bit 31 LPTIM1SMEN : Low power timer 1 clock enable during CPU2 CSleep and CStop mode

Set and cleared by software.

0: LPTIM1 bus clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: LPTIM1 bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bits 30:27 Reserved, must be kept at reset value.

Bit 26 USB SMEN : USB FS clock enable during CPU2 CSleep and CStop modes

Set and cleared by software.

0: USB FS bus clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: USB FS bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Bits 25 Reserved, must be kept at reset value.

Bit 24 CRS SMEN : CRS clock enable during CPU2 CSleep mode

Set and cleared by software.

0: CRS clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: CRS clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Bit 23 I2C3 SMEN : I2C3 clock enable during CPU2 CSleep and CStop modes

Set and cleared by software.

0: I2C3 bus clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: I2C3 bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Bits 22 Reserved, must be kept at reset value.

Bit 21 I2C1 SMEN : I2C1 clock enable during CPU2 CSleep and CStop modes

Set and cleared by software.

0: I2C1 bus clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: I2C1 bus clock enabled by the clock gating during CPU2 CSleep modes disabled during CPU2 CStop mode

Bits 20:15 Reserved, must be kept at reset value.

Bit 14 SPI2SMEN : SPI2 clock enable during CPU2 CSleep mode (STM32WB55xx only)

Set and cleared by software.

0: SPI2 clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: SPI2 clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Note that this bit is reserved on STM32WB35xx.

Bits 13:11 Reserved, must be kept at reset value.

Bit 10 RTCAPBSMEN : RTC bus clock enable during CPU2 CSleep mode

Set and cleared by software

0: RTC bus clock disabled during by the clock gating during CPU2 CSleep and CStop modes

1: RTC bus clock enabled during by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 9 LCDSMEN : LCD clock enable during CPU2 CSleep mode (STM32WB55xx only)

Set and cleared by software.

0: LCD clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: LCD clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Note that this bit is reserved on STM32WB35xx.

Bits 8:1 Reserved, must be kept at reset value.

Bit 0 TIM2SMEN : TIM2 timer clock enable during CPU2 CSleep mode

Set and cleared by software.

0: TIM2 clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: TIM2 clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

6.4.46 RCC CPU2 APB1 peripheral clocks enable in Sleep mode register 2 (RCC_C2APB1SMENR2)

Address offset: 0x17C

Reset value: 0x0000 0021

Access: No wait state, word, half-word and byte access

Bits 31:6 Reserved, must be kept at reset value.

Bit 5 LPTIM2SMEN Low power timer 2 clock enable during CPU2 CSleep and CStop modes.

Set and cleared by software.

0: LPTIM2 bus clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: LPTIM2 bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Bits 4:1 Reserved, must be kept at reset value.

Bit 0 LPUART1SMEN : Low power UART 1 clock enable during CPU2 CSleep and CStop mode

Set and cleared by software.

0: LPUART1 bus clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: LPUART1 bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

6.4.47 RCC CPU2 APB2 peripheral clocks enable in Sleep mode register (RCC_C2APB2SMENR)

Address: 0x180

Reset value: 0x0026 5800

Access: word, half-word and byte access

Bits 31:22 Reserved, must be kept at reset value.

Bit 21 SAI1SMEN : SAI1 clock enable during CPU2 CSleep and CStop mode

Set and cleared by software.

0: SAI1 bus clock disabled by the clock gating during CPU2 CSleep and CStop modes.

1: SAI1 bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode.

Bits 20:19 Reserved, must be kept at reset value.

Bit 18 TIM17SMEN : TIM17 timer clock enable during CPU2 CSleep mode

Set and cleared by software.

0: TIM17 timer clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: TIM17 timer clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 17 TIM16SMEN : TIM16 timer clock enable during CPU2 CSleep mode

Set and cleared by software.

0: TIM16 timer clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: TIM16 timer clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bits 16:15 Reserved, must be kept at reset value.

Bit 14 USART1SMEN : USART1 clock enable during CPU2 CSleep and CStop mode

Set and cleared by software.

0: USART1 bus clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: USART1 bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 13 Reserved, must be kept at reset value.

Bit 12 SPI1SMEN : SPI1 clock enable during CPU2 CSleep mode

Set and cleared by software.

0: SPI1 clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: SPI1 clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 11 TIM1SMEN : TIM1 timer clock enable during CPU2 CSleep mode

Set and cleared by software.

0: TIM1 timer clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: TIM1 timer clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bits 10:0 Reserved, must be kept at reset value.

6.4.48 RCC CPU2 APB3 peripheral clock enable in Sleep mode register (RCC_C2APB3SMENR)

Address offset: 0x184

Reset value: 0x00000 0003

Access: word, half-word and byte access

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 802SMEN : 802.15.4 interface bus clock enable during CPU2 CSleep mode

Set and cleared by software.

0: 802.15.4 bus clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: 802.15.4 bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Bit 0 BLESMEN : BLE interface bus clock enable during CPU2 CSleep mode

Set and cleared by software.

0: BLE bus clock disabled by the clock gating during CPU2 CSleep and CStop modes

1: BLE bus clock enabled by the clock gating during CPU2 CSleep mode, disabled during CPU2 CStop mode

Note: The BLE interface bus clock is also enabled by the BLE IP itself.

6.4.49 RCC register map

The following table gives the RCC register map and the reset values.

Table 38. RCC register map and reset values
