42. Basic timers (TIM6/TIM7)

42.1 TIM6/TIM7 introduction

The basic timers TIM6 and TIM7 consist of a 16-bit auto-reload counter driven by a programmable prescaler.

They may be used as generic timers for time base generation but they are also specifically used to drive the digital-to-analog converter (DAC). In fact, the timers are internally connected to the DAC and are able to drive it through their trigger outputs.

The timers are completely independent, and do not share any resources.

42.2 TIM6/TIM7 main features

Basic timer (TIM6/TIM7) features include:

• 16-bit auto-reload upcounter
• 16-bit programmable prescaler used to divide (also “on the fly”) the counter clock frequency by any factor between 1 and 65535
• Synchronization circuit to trigger the DAC
• Interrupt/DMA generation on the update event: counter overflow

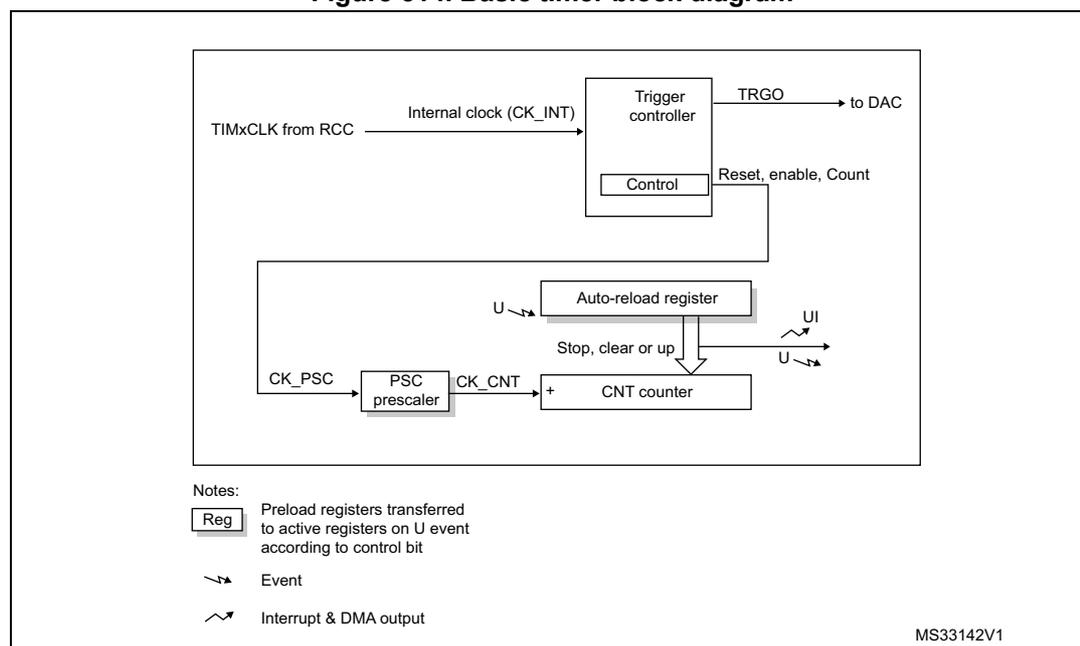

Figure 514. Basic timer block diagram

The block diagram illustrates the internal architecture of the TIM6/TIM7 basic timer. At the top, a 'Trigger controller' block receives an 'Internal clock (CK_INT)' from the 'TIMxCLK from RCC' input. It has a 'Control' sub-block and outputs a 'TRGO' signal 'to DAC'. Below the trigger controller, a 'CNT counter' (labeled with a '+') receives a clock signal 'CK_CNT' from a 'PSC prescaler' block. The 'PSC prescaler' is driven by 'CK_PSC'. The 'CNT counter' is connected to an 'Auto-reload register' (labeled 'U'). The 'Auto-reload register' provides 'Stop, clear or up' signals to the counter and has 'UI' (Update Interrupt) and 'U' (Event) outputs. The 'Trigger controller' also provides 'Reset, enable, Count' signals to the 'Auto-reload register' and 'CNT counter'. A legend at the bottom left defines the symbols: 'Reg' for preload registers, a single-headed arrow for 'Event', and a double-headed arrow for 'Interrupt & DMA output'. The diagram is labeled 'MS33142V1' in the bottom right corner.

Figure 514. Basic timer block diagram

42.3 TIM6/TIM7 functional description

42.3.1 Time-base unit

The main block of the programmable timer is a 16-bit upcounter with its related auto-reload register. The counter clock can be divided by a prescaler.

The counter, the auto-reload register and the prescaler register can be written or read by software. This is true even when the counter is running.

The time-base unit includes:

• Counter Register (TIMx_CNT)
• Prescaler Register (TIMx_PSC)
• Auto-Reload Register (TIMx_ARR)

The auto-reload register is preloaded. The preload register is accessed each time an attempt is made to write or read the auto-reload register. The contents of the preload register are transferred into the shadow register permanently or at each update event UEV, depending on the auto-reload preload enable bit (ARPE) in the TIMx_CR1 register. The update event is sent when the counter reaches the overflow value and if the UDIS bit equals 0 in the TIMx_CR1 register. It can also be generated by software. The generation of the update event is described in detail for each configuration.

The counter is clocked by the prescaler output CK_CNT, which is enabled only when the counter enable bit (CEN) in the TIMx_CR1 register is set.

Note that the actual counter enable signal CNT_EN is set 1 clock cycle after CEN.

Prescaler description

The prescaler can divide the counter clock frequency by any factor between 1 and 65536. It is based on a 16-bit counter controlled through a 16-bit register (in the TIMx_PSC register). It can be changed on the fly as the TIMx_PSC control register is buffered. The new prescaler ratio is taken into account at the next update event.

Figure 515 and Figure 516 give some examples of the counter behavior when the prescaler ratio is changed on the fly.

Figure 515. Counter timing diagram with prescaler division change from 1 to 2

Figure 515 is a timing diagram illustrating the counter behavior when the prescaler division changes from 1 to 2. The diagram shows the following signals and registers over time:

CK_PSC : Prescaler clock signal, a periodic square wave.
CEN : Counter enable signal, active high.
Timerclock = CK_CNT : Counter clock signal, derived from CK_PSC. Its frequency changes when the prescaler division changes.
Counter register : Shows the counter value. It counts from F7 to FC, then rolls over to 00. After the prescaler division change, it counts 00, 01, 02, 03.
Update event (UEV) : Generated when the counter rolls over (from FC to 00). This event triggers the update of the prescaler buffer.
Prescaler control register : Shows the prescaler division setting. It is initially 0 (division 1). A write to a new value (1, which corresponds to division 2) is performed. The effective division changes after the UEV.
Write a new value in TIMx_PSC : Indicates the time when the new prescaler value is written.
Prescaler buffer : Latches the new prescaler value (1) at the UEV.
Prescaler counter : Shows the prescaler counter value. It counts from 0 to 1 (division 1) and then from 0 to 1 (division 2) after the update.

MS31076V2

Figure 515: Counter timing diagram with prescaler division change from 1 to 2. The diagram shows the relationship between CK_PSC, CEN, Timerclock (CK_CNT), Counter register, Update event (UEV), Prescaler control register, Prescaler buffer, and Prescaler counter over time. The prescaler division changes from 1 to 2 after an update event.

Figure 516. Counter timing diagram with prescaler division change from 1 to 4

Figure 516 is a timing diagram illustrating the counter behavior when the prescaler division changes from 1 to 4. The diagram shows the following signals and registers over time:

CK_PSC : Prescaler clock signal, a periodic square wave.
CEN : Counter enable signal, active high.
Timerclock = CK_CNT : Counter clock signal, derived from CK_PSC. Its frequency changes when the prescaler division changes.
Counter register : Shows the counter value. It counts from F7 to FC, then rolls over to 00. After the prescaler division change, it counts 00, 01.
Update event (UEV) : Generated when the counter rolls over (from FC to 00). This event triggers the update of the prescaler buffer.
Prescaler control register : Shows the prescaler division setting. It is initially 0 (division 1). A write to a new value (3, which corresponds to division 4) is performed. The effective division changes after the UEV.
Write a new value in TIMx_PSC : Indicates the time when the new prescaler value is written.
Prescaler buffer : Latches the new prescaler value (3) at the UEV.
Prescaler counter : Shows the prescaler counter value. It counts from 0 to 1 (division 1) and then from 0 to 3 (division 4) after the update.

MS31077V2

Figure 516: Counter timing diagram with prescaler division change from 1 to 4. The diagram shows the relationship between CK_PSC, CEN, Timerclock (CK_CNT), Counter register, Update event (UEV), Prescaler control register, Prescaler buffer, and Prescaler counter over time. The prescaler division changes from 1 to 4 after an update event.

42.3.2 Counting mode

The counter counts from 0 to the auto-reload value (contents of the TIMx_ARR register), then restarts from 0 and generates a counter overflow event.

An update event can be generated at each counter overflow or by setting the UG bit in the TIMx_EGR register (by software or by using the slave mode controller).

The UEV event can be disabled by software by setting the UDIS bit in the TIMx_CR1 register. This avoids updating the shadow registers while writing new values into the preload registers. In this way, no update event occurs until the UDIS bit has been cleared, however, the counter and the prescaler counter both restart from 0 (but the prescale rate does not change). In addition, if the URS (update request selection) bit in the TIMx_CR1 register is set, setting the UG bit generates an update event UEV, but the UIF flag is not set (so no interrupt or DMA request is sent).

When an update event occurs, all the registers are updated and the update flag (UIF bit in the TIMx_SR register) is set (depending on the URS bit):

• The buffer of the prescaler is reloaded with the preload value (contents of the TIMx_PSC register)
• The auto-reload shadow register is updated with the preload value (TIMx_ARR)

The following figures show some examples of the counter behavior for different clock frequencies when TIMx_ARR = 0x36.

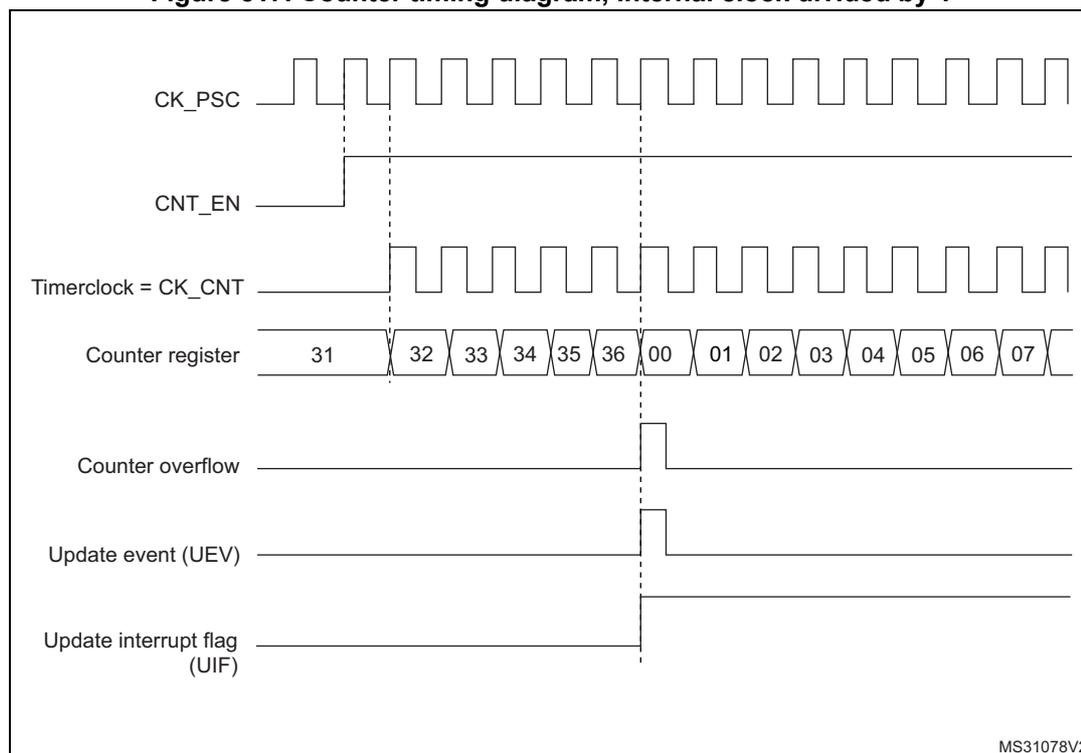

Figure 517. Counter timing diagram, internal clock divided by 1

The timing diagram illustrates the operation of a basic timer. The top signal, CK_PSC, is a periodic square wave representing the prescaler clock. Below it, CNT_EN is a signal that goes high to enable the counter. When CNT_EN is high, the Timerclock = CK_CNT signal is a square wave with a frequency that is a division of CK_PSC. The Counter register is shown as a sequence of values: 31, 32, 33, 34, 35, 36, 00, 01, 02, 03, 04, 05, 06, 07. The counter increments from 00 to 36, then overflows back to 00. The Counter overflow signal is a pulse that goes high when the counter reaches 36 and overflows. The Update event (UEV) signal is a pulse that goes high when the counter overflows. The Update interrupt flag (UIF) signal is a pulse that goes high when the counter overflows and remains high until it is cleared. The diagram is labeled MS31078V2 in the bottom right corner.

Timing diagram for a basic timer in counting mode. The diagram shows the relationship between the prescaler clock (CK_PSC), counter enable (CNT_EN), timer clock (CK_CNT), counter register values, counter overflow, update event (UEV), and update interrupt flag (UIF).

Figure 518. Counter timing diagram, internal clock divided by 2

Timing diagram for internal clock divided by 2. It shows the relationship between CK_PSC, CNT_EN, Timerclock (CK_CNT), Counter register values (0034 to 0003), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

This timing diagram illustrates the operation of a basic timer with the internal clock divided by 2. The signals shown are:

CK_PSC : Prescaler clock signal, shown as a high-frequency square wave.
CNT_EN : Counter enable signal, which goes high to start counting.
Timerclock = CK_CNT : The clock signal for the counter, which is the CK_PSC signal divided by 2.
Counter register : Shows the sequence of values: 0034, 0035, 0036, 0000, 0001, 0002, 0003. The transition from 0036 to 0000 represents an overflow.
Counter overflow : A pulse generated when the counter rolls over from 0036 to 0000.
Update event (UEV) : A pulse generated at the same time as the overflow.
Update interrupt flag (UIF) : A flag that is set when an update event occurs.

Vertical dashed lines indicate the timing relationships between the clock edges and the counter value changes. The diagram is labeled MS31079V2 in the bottom right corner.

Timing diagram for internal clock divided by 2. It shows the relationship between CK_PSC, CNT_EN, Timerclock (CK_CNT), Counter register values (0034 to 0003), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

Figure 519. Counter timing diagram, internal clock divided by 4

Timing diagram for internal clock divided by 4. It shows the relationship between CK_PSC, CNT_EN, Timerclock (CK_CNT), Counter register values (0035 to 0001), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

This timing diagram illustrates the operation of a basic timer with the internal clock divided by 4. The signals shown are:

CK_PSC : Prescaler clock signal, shown as a high-frequency square wave.
CNT_EN : Counter enable signal, which goes high to start counting.
Timerclock = CK_CNT : The clock signal for the counter, which is the CK_PSC signal divided by 4.
Counter register : Shows the sequence of values: 0035, 0036, 0000, 0001. The transition from 0036 to 0000 represents an overflow.
Counter overflow : A pulse generated when the counter rolls over from 0036 to 0000.
Update event (UEV) : A pulse generated at the same time as the overflow.
Update interrupt flag (UIF) : A flag that is set when an update event occurs.

Vertical dashed lines indicate the timing relationships between the clock edges and the counter value changes. The diagram is labeled MS31080V2 in the bottom right corner.

Timing diagram for internal clock divided by 4. It shows the relationship between CK_PSC, CNT_EN, Timerclock (CK_CNT), Counter register values (0035 to 0001), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

Figure 520. Counter timing diagram, internal clock divided by N

This timing diagram illustrates the operation of a basic timer with an internal clock divided by N. The top signal, CK_PSC, is a periodic square wave. Below it, the Timerclock = CK_CNT signal is a square wave with a frequency that is N times lower than CK_PSC. The Counter register is shown with values 1F, 20, and 00. The counter increments from 1F to 20, and upon reaching the maximum value, it overflows to 00. The Counter overflow signal is a pulse that goes high when the counter reaches its maximum value. The Update event (UEV) and Update interrupt flag (UIF) are also shown as pulses that go high when the counter overflows. The diagram is labeled MS31081V2 in the bottom right corner.

Timing diagram for Figure 520 showing CK_PSC, Timerclock = CK_CNT, Counter register (values 1F, 20, 00), Counter overflow, Update event (UEV), and Update interrupt flag (UIF).

Figure 521. Counter timing diagram, update event when ARPE = 0 (TIMx_ARR not preloaded)

This timing diagram shows the counter's behavior when the ARPE bit is 0 and the TIMx_ARR register is not preloaded. The signals shown are CK_PSC, CEN (Counter Enable), Timerclock = CK_CNT, Counter register, Counter overflow, Update event (UEV), Update interrupt flag (UIF), and the Auto-reload preload register. The counter starts at 31, increments through 32, 33, 34, 35, 36, overflows to 00, and continues through 01, 02, 03, 04, 05, 06, 07. The Counter overflow signal is high when the counter is at 36. The Update event (UEV) and Update interrupt flag (UIF) are high when the counter overflows from 36 to 00. The Auto-reload preload register is shown with values FF and 36. An arrow points to the register with the text 'Write a new value in TIMx_ARR'. The diagram is labeled MS31082V2 in the bottom right corner.

Timing diagram for Figure 521 showing CK_PSC, CEN, Timerclock = CK_CNT, Counter register (values 31 to 07), Counter overflow, Update event (UEV), Update interrupt flag (UIF), and Auto-reload preload register (values FF, 36).

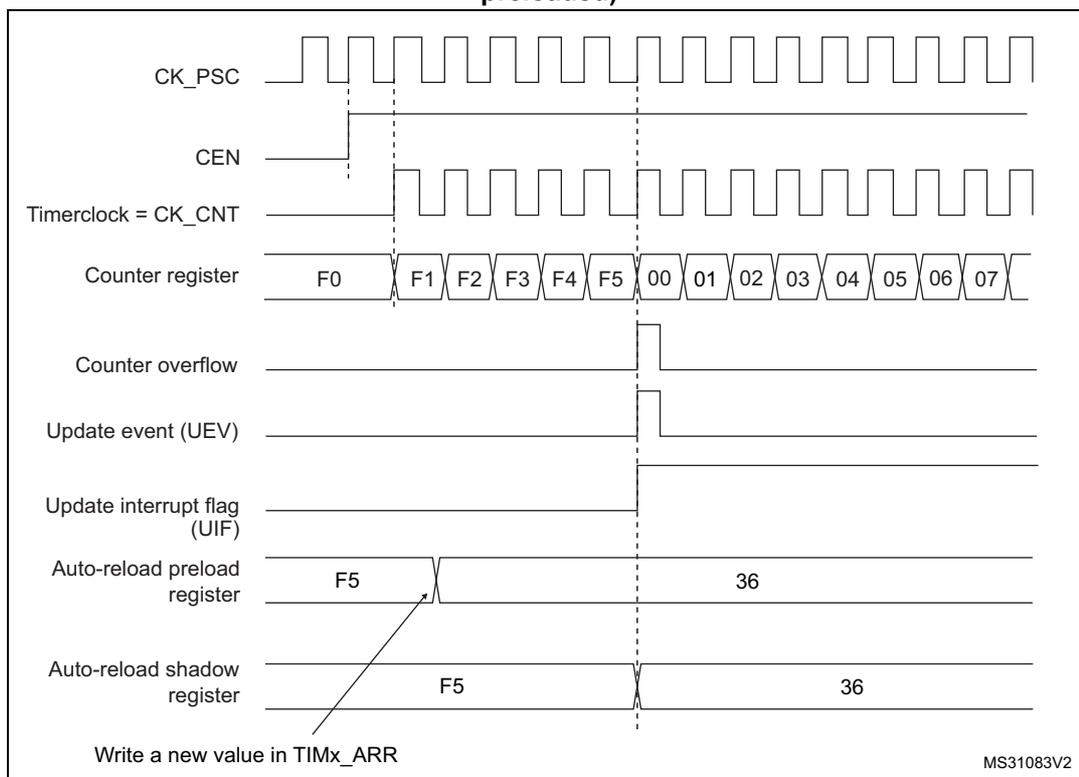

Figure 522. Counter timing diagram, update event when ARPE=1 (TIMx_ARR preloaded)

Figure 522: Counter timing diagram showing the relationship between CK_PSC, CEN, Timerclock (CK_CNT), Counter register, Counter overflow, Update event (UEV), Update interrupt flag (UIF), Auto-reload preload register, and Auto-reload shadow register. The diagram illustrates the timing of an update event when ARPE=1 and the auto-reload register is preloaded.

The timing diagram shows the following signals and their states over time:

CK_PSC : A periodic square wave representing the prescaler clock.
CEN : Counter Enable signal, which is initially low and then goes high to enable the counter.
Timerclock = CK_CNT : The clock signal for the counter, which is derived from CK_PSC.
Counter register : Shows the counter values incrementing from F0 to F7. When the counter reaches F5, it overflows to 00.
Counter overflow : A signal that pulses high when the counter reaches its maximum value (F5) and rolls over to 00.
Update event (UEV) : A signal that pulses high when the counter overflows.
Update interrupt flag (UIF) : A signal that is set high when an update event occurs.
Auto-reload preload register : Shows the value F5 being written to the register. When the counter overflows, the value 36 is loaded into the register.
Auto-reload shadow register : Shows the value F5 being loaded into the shadow register when the counter overflows. The value 36 is then loaded into the shadow register.

An annotation indicates that a new value can be written to the TIMx_ARR register when the counter is at F5.

MS31083V2

Figure 522: Counter timing diagram showing the relationship between CK_PSC, CEN, Timerclock (CK_CNT), Counter register, Counter overflow, Update event (UEV), Update interrupt flag (UIF), Auto-reload preload register, and Auto-reload shadow register. The diagram illustrates the timing of an update event when ARPE=1 and the auto-reload register is preloaded.

42.3.3 UIF bit remapping

The IUFREMAP bit in the TIMx_CR1 register forces a continuous copy of the Update Interrupt Flag UIF into the timer counter register's bit 31 (TIMxCNT[31]). This allows to atomically read both the counter value and a potential roll-over condition signaled by the UIFCPY flag. In particular cases, it can ease the calculations by avoiding race conditions caused for instance by a processing shared between a background task (counter reading) and an interrupt (Update Interrupt).

There is no latency between the assertions of the UIF and UIFCPY flags.

42.3.4 Clock source

The counter clock is provided by the Internal clock (CK_INT) source.

The CEN (in the TIMx_CR1 register) and UG bits (in the TIMx_EGR register) are actual control bits and can be changed only by software (except for UG that remains cleared automatically). As soon as the CEN bit is written to 1, the prescaler is clocked by the internal clock CK_INT.

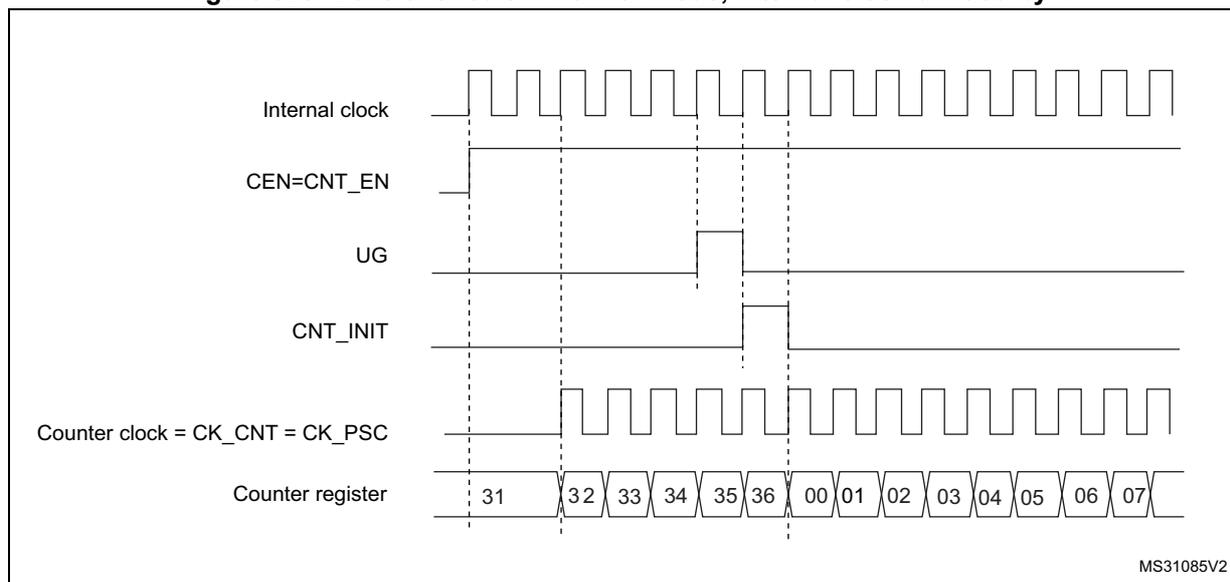

Figure 523 shows the behavior of the control circuit and the upcounter in normal mode, without prescaler.

Figure 523. Control circuit in normal mode, internal clock divided by 1

Timing diagram showing the control circuit in normal mode. It displays five signals over time: Internal clock (a high-frequency square wave), CEN=CNT_EN (a signal that goes high to enable counting), UG (a pulse that triggers an update), CNT_INIT (a pulse that initializes the counter), and Counter register (a 32-bit register showing values from 31 down to 00, then 01 up to 07). Vertical dashed lines indicate key timing points: the first shows the counter starting at 31; the second shows CEN going high; the third shows UG going high; the fourth shows CNT_INIT going high; the fifth shows the counter reaching 00 and then 01.

MS31085V2

42.3.5 Debug mode

When the microcontroller enters the debug mode (Cortex®-M7 with FPU core - halted), the TIMx counter either continues to work normally or stops, depending on the DBG_TIMx_STOP configuration bit in the DBGMCU module. For more details, refer to Section 60.5.8: Microcontroller debug unit (DBGMCU) .

42.4 TIM6/TIM7 registers

Refer to Section 1.2 on page 101 for a list of abbreviations used in register descriptions.

The peripheral registers can be accessed by half-words (16-bit) or words (32-bit).

42.4.1 TIMx control register 1 (TIMx_CR1)(x = 6 to 7)

Address offset: 0x00

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	UIFREMAP	Res.	Res.	Res.	ARPE	Res.	Res.	Res.	OPM	URS	UDIS	CEN
				rw				rw				rw	rw	rw	rw

Bits 15:12 Reserved, must be kept at reset value.

Bit 11 UIFREMAP : UIF status bit remapping

0: No remapping. UIF status bit is not copied to TIMx_CNT register bit 31.

1: Remapping enabled. UIF status bit is copied to TIMx_CNT register bit 31.

Bits 10:8 Reserved, must be kept at reset value.

Bit 7 ARPE : Auto-reload preload enable

0: TIMx_ARR register is not buffered.

1: TIMx_ARR register is buffered.

Bits 6:4 Reserved, must be kept at reset value.

Bit 3 OPM : One-pulse mode

0: Counter is not stopped at update event

1: Counter stops counting at the next update event (clearing the CEN bit).

Bit 2 URS : Update request source

This bit is set and cleared by software to select the UEV event sources.

0: Any of the following events generates an update interrupt or DMA request if enabled.

These events can be:

– Counter overflow/underflow
– Setting the UG bit
– Update generation through the slave mode controller

1: Only counter overflow/underflow generates an update interrupt or DMA request if enabled.

Bit 1 UDIS : Update disable

This bit is set and cleared by software to enable/disable UEV event generation.

0: UEV enabled. The Update (UEV) event is generated by one of the following events:

– Counter overflow/underflow
– Setting the UG bit
– Update generation through the slave mode controller

Buffered registers are then loaded with their preload values.

1: UEV disabled. The Update event is not generated, shadow registers keep their value (ARR, PSC). However the counter and the prescaler are reinitialized if the UG bit is set or if a hardware reset is received from the slave mode controller.

Bit 0 CEN : Counter enable

0: Counter disabled

1: Counter enabled

Note: Gated mode can work only if the CEN bit has been previously set by software.

However trigger mode can set the CEN bit automatically by hardware.

CEN is cleared automatically in one-pulse mode, when an update event occurs.

42.4.2 TIMx control register 2 (TIMx_CR2)(x = 6 to 7)

Address offset: 0x04

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	MMS[2:0]				Res.	Res.	Res.
									rw	rw	rw

Bits 15:7 Reserved, must be kept at reset value.

Bits 6:4 MMS[2:0] : Master mode selection

These bits are used to select the information to be sent in master mode to slave timers for synchronization (TRGO). The combination is as follows:

000: Reset - the UG bit from the TIMx_EGR register is used as a trigger output (TRGO). If reset is generated by the trigger input (slave mode controller configured in reset mode) then the signal on TRGO is delayed compared to the actual reset.

001: Enable - the Counter enable signal, CNT_EN, is used as a trigger output (TRGO). It is useful to start several timers at the same time or to control a window in which a slave timer is enabled. The Counter Enable signal is generated by a logic OR between CEN control bit and the trigger input when configured in gated mode.

When the Counter Enable signal is controlled by the trigger input, there is a delay on TRGO, except if the master/slave mode is selected (see the MSM bit description in the TIMx_SMCR register).

010: Update - The update event is selected as a trigger output (TRGO). For instance a master timer can then be used as a prescaler for a slave timer.

Note: The clock of the slave timer or ADC must be enabled prior to receive events from the master timer, and must not be changed on-the-fly while triggers are received from the master timer.

Bits 3:0 Reserved, must be kept at reset value.

42.4.3 TIMx DMA/Interrupt enable register (TIMx_DIER)(x = 6 to 7)

Address offset: 0x0C

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	UDE	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UIE
							rw								rw

Bits 15:9 Reserved, must be kept at reset value.

Bit 8 UDE : Update DMA request enable

0: Update DMA request disabled.

1: Update DMA request enabled.

Bits 7:1 Reserved, must be kept at reset value.

Bit 0 UIE : Update interrupt enable

0: Update interrupt disabled.

1: Update interrupt enabled.

42.4.4 TIMx status register (TIMx_SR)(x = 6 to 7)

Address offset: 0x10

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UIF
															rc_w0

Bits 15:1 Reserved, must be kept at reset value.

Bit 0 UIF : Update interrupt flag

This bit is set by hardware on an update event. It is cleared by software.

0: No update occurred.

1: Update interrupt pending. This bit is set by hardware when the registers are updated:

– At overflow or underflow regarding the repetition counter value and if UDIS = 0 in the TIMx_CR1 register.
– When CNT is reinitialized by software using the UG bit in the TIMx_EGR register, if URS = 0 and UDIS = 0 in the TIMx_CR1 register.

42.4.5 TIMx event generation register (TIMx_EGR)(x = 6 to 7)

Address offset: 0x14

Reset value: 0x0000

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UG
															w

Bits 15:1 Reserved, must be kept at reset value.

Bit 0 UG : Update generation

This bit can be set by software, it is automatically cleared by hardware.

0: No action.

1: Re-initializes the timer counter and generates an update of the registers. Note that the prescaler counter is cleared too (but the prescaler ratio is not affected).

42.4.6 TIMx counter (TIMx_CNT)(x = 6 to 7)

Address offset: 0x24

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
UIF CPY	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
r

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
CNT[15:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bit 31 UIFCPY : UIF Copy

This bit is a read-only copy of the UIF bit of the TIMx_ISR register. If the UIFREMAP bit in TIMx_CR1 is reset, bit 31 is reserved and read as 0.

Bits 30:16 Reserved, must be kept at reset value.

Bits 15:0 CNT[15:0] : Counter value

42.4.7 TIMx prescaler (TIMx_PSC)(x = 6 to 7)

Address offset: 0x28

Reset value: 0x0000

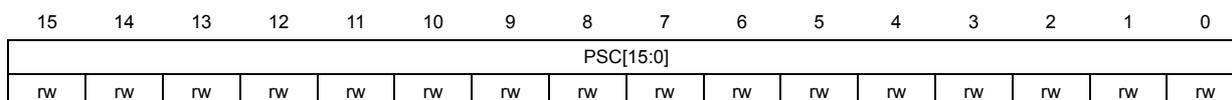

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
PSC[15:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 15:0 PSC[15:0] : Prescaler value

The counter clock frequency $CK\_CNT$ is equal to $f_{CK\_PSC} / (PSC[15:0] + 1)$ .

PSC contains the value to be loaded into the active prescaler register at each update event. (including when the counter is cleared through UG bit of TIMx_EGR register or through trigger controller when configured in “reset mode”).

42.4.8 TIMx auto-reload register (TIMx_ARR)(x = 6 to 7)

Address offset: 0x2C

Reset value: 0xFFFF

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
ARR[15:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 15:0 ARR[15:0] : Prescaler value

ARR is the value to be loaded into the actual auto-reload register.

Refer to Section 42.3.1: Time-base unit on page 1848 for more details about ARR update and behavior.

The counter is blocked while the auto-reload value is null.

42.4.9 TIMx register map

TIMx registers are mapped as 16-bit addressable registers as described in the table below:

Table 351. TIMx register map and reset values

Offset	Register name	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
0x00	TIMx_CR1	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UIFREMA	Res.	Res.	Res.	ARPE	Res.	Res.	Res.	OPM	URS	UDIS	CEN
0x00	Reset value																					0				0				0	0	0	0
0x04	TIMx_CR2	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	MMS [2:0]			Res.	Res.	Res.	Res.
0x04	Reset value																										0	0	0
0x08	Reserved
0x0C	TIMx_DIER	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UDE	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UIE
0x0C	Reset value																								0								0
0x10	TIMx_SR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UIF
0x10	Reset value																																0
0x14	TIMx_EGR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	UG
0x14	Reset value																																0
0x18-0x20	Reserved
0x24	TIMx_CNT	UIFCOPY or Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	CNT[15:0]
0x24	Reset value	0																															0 0 0 0 0 0 0 0 0 0 0 0 0 0
0x28	TIMx_PSC	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	PSC[15:0]
0x28	Reset value																																0 0 0 0 0 0 0 0 0 0 0 0 0 0
0x2C	TIMx_ARR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	ARR[15:0]
0x2C	Reset value																																1 1 1 1 1 1 1 1 1 1 1 1 1 1

Refer to Section 2.3 on page 129 for the register boundary addresses.
