5. Secure memory management (SMM)

5.1 Introduction

STM32H750xB and STM32H753xl microcontrollers offer a first set of protection mechanisms, which are similar to other STM32 Series:

• • Global readout device protection (RDP)
• • Write protection (WRP)
• • Proprietary code readout protection (PCROP)

A detailed description of these protection mechanisms is given in Section 4: Embedded flash memory (FLASH) .

STM32H750xB and STM32H753xl also offer an additional enhanced protection mode, the Secure access mode, that makes possible the development of user-defined secure services (e.g. secure firmware update or secure boot) and guarantees of a safe execution and protection of both code and data. This mechanism is described in details in Section 5.3: Secure access mode , Section 5.4: Root secure services (RSS) and Section 5.5: Secure user software .

The secure memory management unit is contained inside the D1 domain.

5.2 Glossary

The following terms will be used in herein:

Table 29. List of preferred terms

Table 29. List of preferred terms (continued)

1. 1. Secure user memory/areas are also named secure-hide protected (HDP) memory/areas.

5.3 Secure access mode

Some sensitive functions require safe execution from potential malicious software attacks. Secure firmware update (SFU) software is a good example of code that requires a high level of protection since it handles secret data (such as cryptographic keys) that shall not be retrieved by other processes.

STM32H750xB and STM32H753xl microcontrollers feature secure memory areas with restricted access. They allow building secure services that will be executed prior to any user application. These secure areas, together with the software they contain, are only accessible when configuring the device in Secure access mode.

Figure 15 gives an overview of flash memory areas and services in Standard and Secure access modes.

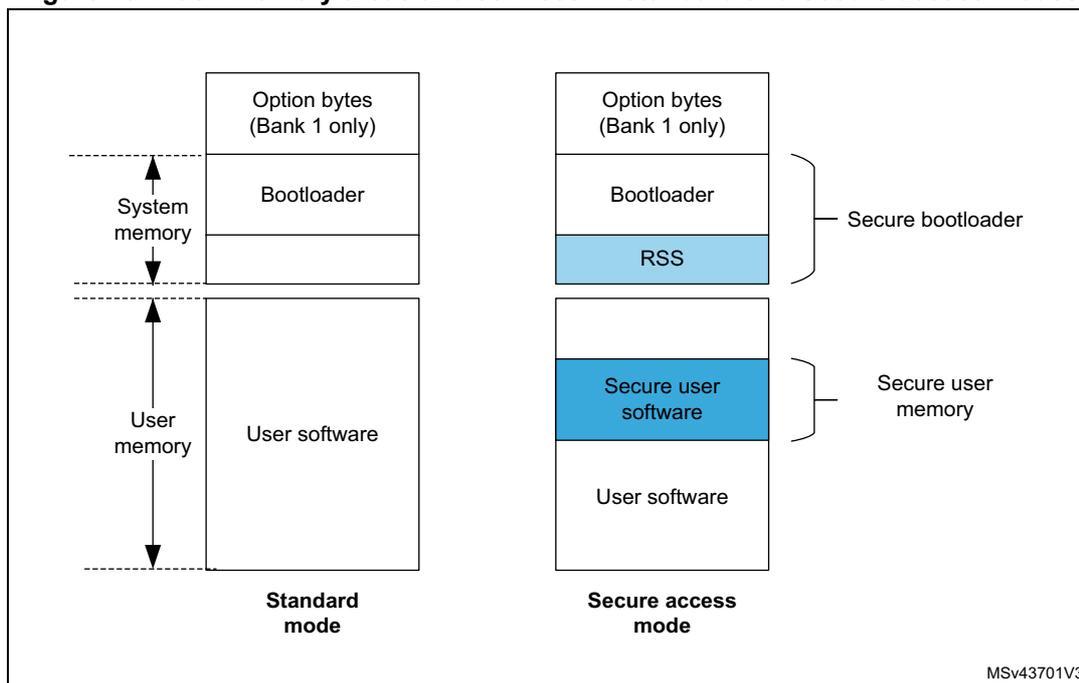

Figure 15. Flash memory areas and services in Standard and Secure access modes

1. 1. The protected areas that can only be accessed in Secure access mode are shown in blue.
2. 2. A single secure user area can be defined for each bank.

5.3.1 Associated features

The Secure access mode can be configured through option bytes. When it is set, it enables access to:

• • STMicroelectronics root secure services to set secure user areas (see Section 5.4: Root secure services (RSS) )
• • Secure user memory which embeds secure user code and data.

For a summary of access rights for each core, refer to Section 5.6: Summary of flash protection mechanisms .

5.3.2 Boot state machine

In Secure access mode, booting is forced in the RSS whatever the boot configuration (boot pins and boot addresses). The RSS can either set a secure user memory area if one has been requested (see Section 5.5.2: Setting secure user memory areas ) or jump directly to the existing secure user memory. The code located in secure user memory is executed before the main user application and the bootloader. If no service is required and no secure area is defined, the RSS jumps to the boot address selected by BOOT0 pin value.

Figure 16 shows the boot state machine.

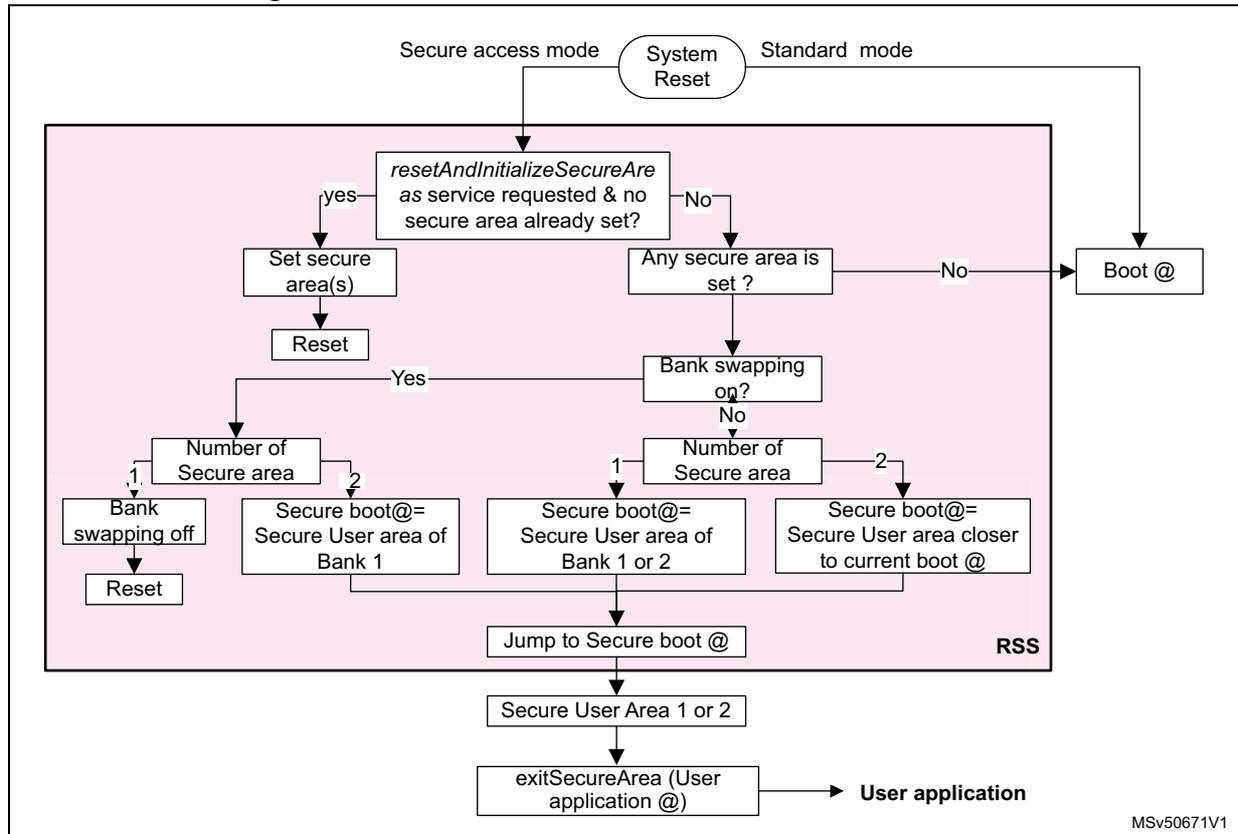

Figure 16. Bootloader state machine in Secure access mode

graph TD
    SR[System Reset] -- Secure access mode --> RSS[ ]
    SR -- Standard mode --> Boot[Boot @]
    subgraph RSS [RSS]
        RSS --> Q1{resetAndInitializeSecureArea
as service requested & no
secure area already set?}
        Q1 -- yes --> Set[Set secure area(s)]
        Set --> Reset[Reset]
        Q1 -- No --> Q2{Any secure area is
set?}
        Q2 -- No --> Boot
        Q2 -- Yes --> Q3{Bank swapping
on?}
        Q3 -- Yes --> Q4{Number of
Secure area}
        Q3 -- No --> Q5{Number of
Secure area}
        Q4 -- 1 --> Swap[Bank
swapping off]
        Swap --> Reset
        Q4 -- 2 --> BootAddr1[Secure boot@=
Secure User area of
Bank 1]
        Q5 -- 1 --> BootAddr2[Secure boot@=
Secure User area of
Bank 1 or 2]
        Q5 -- 2 --> BootAddr3[Secure boot@=
Secure User area closer
to current boot @]
        BootAddr1 --> Jump[Jump to Secure boot @]
        BootAddr2 --> Jump
        BootAddr3 --> Jump
    end
    Jump --> UserArea[Secure User Area 1 or 2]
    UserArea --> Exit[exitSecureArea (User
application @)]
    Exit --> App[User application]
    style RSS fill:#f9f,stroke:#333,stroke-width:1px
    style SR fill:#fff,stroke:#333,stroke-width:1px
    style Boot fill:#fff,stroke:#333,stroke-width:1px
    style App fill:#fff,stroke:#333,stroke-width:1px
    style Exit fill:#fff,stroke:#333,stroke-width:1px
    style UserArea fill:#fff,stroke:#333,stroke-width:1px
    style Jump fill:#fff,stroke:#333,stroke-width:1px
    style BootAddr1 fill:#fff,stroke:#333,stroke-width:1px
    style BootAddr2 fill:#fff,stroke:#333,stroke-width:1px
    style BootAddr3 fill:#fff,stroke:#333,stroke-width:1px
    style Q4 fill:#fff,stroke:#333,stroke-width:1px
    style Q5 fill:#fff,stroke:#333,stroke-width:1px
    style Q3 fill:#fff,stroke:#333,stroke-width:1px
    style Q2 fill:#fff,stroke:#333,stroke-width:1px
    style Q1 fill:#fff,stroke:#333,stroke-width:1px
    style Set fill:#fff,stroke:#333,stroke-width:1px
    style Reset fill:#fff,stroke:#333,stroke-width:1px
    style Swap fill:#fff,stroke:#333,stroke-width:1px


1. On STM32H750xB devices, only Bank 1 secure user area is applicable and bank swapping is not available.

1.

5.3.3 Secure access mode configuration

Enabling Secure access mode

There is no restriction on how to activate Secure access mode on the device. It is configured through the SECURITY option bit in FLASH_OPTSR_CUR register (see Section 4.9.8: FLASH option status register (FLASH_OPTSR_CUR) ).

The Secure access mode becomes active after a system reset.

Disabling Secure access mode

Disabling Secure access mode is a more sensitive task as it can only be done if no more protected code exists on the device. As a result, to come back to Standard mode, secure user memories and PCROP/execute-only areas shall be removed before clearing the SECURITY option bit in the FLASH_OPTSR_CUR register.

Protected areas can be removed by performing a flash mass erase (refer to Section 4.3.10: FLASH erase operations for more details on mass erase sequence).

5.4 Root secure services (RSS)

The root secure services (RSS) are STMicroelectronics ROM code stored on the device. They are part of the security features. These firmware services are available in Secure access mode (see Section 4.5.5: Secure access mode ).

Table 30 gives the addresses of the application programming interface (API) described in the following sections.

Table 30. RSS API addresses

5.4.1 Secure area setting service

STMicroelectronics provides a service to perform the initialization of secure areas. This service can be called only once. It is executed after a system reset in Secure access mode prior to any other software stored in the device.

Caution: RSS software cannot be accessed (read, write, execute and debug) when the STM32H750xB and STM32H753xl operate in Standard mode. The service can be automatically accessed with ST programming tool, STM32CubeProgrammer, or called through a direct call to the resetAndInitializeSecureAreas function defined below.

resetAndInitializeSecureAreas

5.4.2 Secure area exiting service

The RSS also provides the exitSecureArea service. This service must be called to jump to user application. It allows closing safely the secure user area to guarantee that its content can no more be accessed.

Contrary to the resetAndInitializeSecureAreas service, it does not trigger any system reset. exitSecureArea function is defined below:

5.5 Secure user software

A secure user software is a trusted piece of code that is executed after device power-on or after a system reset. It allows building secure applications such as:

• • code signature or integrity checking (user secure boot).
• • software license checking
• • secure firmware update
• • secure initialization

5.5.1 Access rules

Only accessible in Secure access mode, the secure user software is stored in the secure memory areas.

Only one user secure area can be configured per bank. If two secure areas are defined, the secure software that is executed is the one closer to current boot address.

After secure user software execution, the code shall jump to the main user application and prevent access to the secure user area. This is done by calling exitSecureAreas secure service with the application code address given as parameter.

Once in the application code, any access to the secure user area triggers a flash error.

5.5.2 Setting secure user memory areas

One secure area of configurable size can be set in each bank. The size of each area can be set from 512 bytes to full bank with a granularity of 256 bytes:

• • Secure area in bank 1
  Boundaries are configured through SEC_AREA_START1 and SEC_AREA_END1 option bits in FLASH_SCAR_CUR1 (see Section 4.9.13: FLASH secure address for bank 1 (FLASH_SCAR_CUR1) ).
• • Secure area in bank 2
  Boundaries are configured through SEC_AREA_START2 and SEC_AREA_END2 option bits in FLASH_SCAR_CUR2 (see Section 4.9.30: FLASH secure address for bank 2 (FLASH_SCAR_CUR2) ).

Note: If the secure area start address is equal to the secure area end address, the whole bank is considered as secure protected.

The above option bits can only be initialized through exitAndInitializeSecureAreas service.

If a secure area already exists, the secure user area code can update its own secure user area size or create a new one in the other bank.

5.6 Summary of flash protection mechanisms

Figure 17 and Table 31 summarize the access rights of the different flash memory areas, both in Secure access and Standard modes.

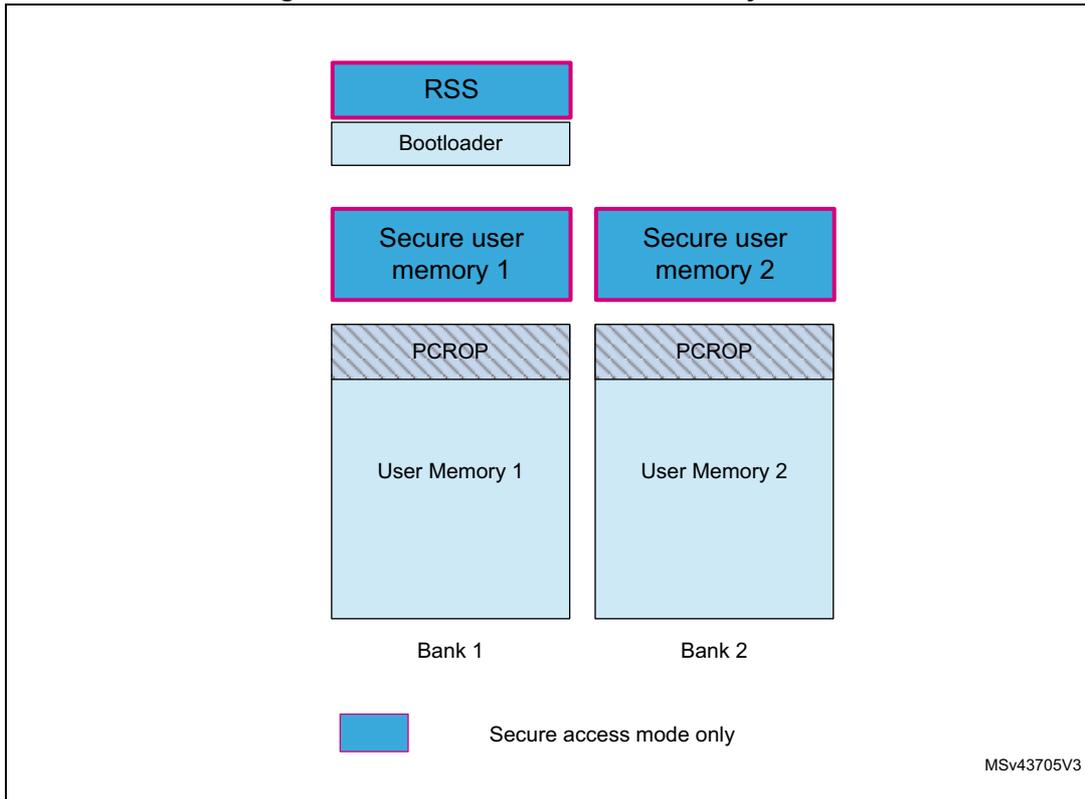

Figure 17. Core access to flash memory areas

Table 31. Summary of flash protected areas access rights

1. 1. Access rights granted after reset until code completion only.
