27. Operational amplifiers (OPAMP)

27.1 Introduction

The device embeds two operational amplifiers with two inputs and one output each. The three I/Os can be connected to the external pins, this enables any type of external interconnections. The operational amplifier can be configured internally as a follower or as an amplifier with a non-inverting gain ranging from 2 to 16.

The positive input can be connected to the internal DAC.

The output can be connected to the internal ADC.

27.2 OPAMP main features

• • Rail-to-rail input and output voltage range
• • Low input bias current (down to 1 nA)
• • Low input offset voltage (1.5 mV after calibration, 3 mV with factory calibration)
• • Low-power mode (current consumption reduced to 30 µA instead of 100 µA)
• • Fast wakeup time (10 µs in normal mode, 30 µs in low-power mode)
• • Gain bandwidth of 1.6 MHz

27.3 OPAMP functional description

The OPAMP has several modes.

Each OPAMP can be individually enabled, when disabled the output is high-impedance.

When enabled, it can be in calibration mode, all input and output of the OPAMP are then disconnected, or in functional mode.

There are two functional modes, the low-power mode or the normal mode. In functional mode the inputs and output of the OPAMP are connected as described in the Section 27.3.3: Signal routing .

27.3.1 OPAMP reset and clocks

The operational amplifier clock is necessary for accessing the registers. When the application does not need to have read or write access to those registers, the clock can be switched off using the peripheral clock enable register (see OPAMPEN bit in Section 6.2.18: Peripheral clock enable register (RCC_AHBxENR, RCC_APBxENRy) ).

The bit OPAEN enables and disables the OPAMP operation. The OPAMP registers configurations should be changed before enabling the OPAEN bit in order to avoid spurious effects on the output.

When the output of the operational amplifier is no more needed the operational amplifier can be disabled to save power. All the configurations previously set (including the calibration) are maintained while OPAMP is disabled.

27.3.2 Initial configuration

The default configuration of the operational amplifier is a functional mode where the three IOs are connected to external pins. In the default mode the operational amplifier uses the factory trimming values. See electrical characteristics section of the datasheet for factory trimming conditions, usually the temperature is 30 °C and the voltage is 3 V. The trimming values can be adjusted, see Section 27.3.5: Calibration for changing the trimming values. The default configuration uses the normal mode, which provides the highest performance. Bit OPALPM can be set in order to switch the operational amplifier to low-power mode and reduced performance. Both normal and low-power mode characteristics are defined in the section “electrical characteristics” of the datasheet. Before utilization, the bit OPA_RANGE of OPAMP_CSR must be set to 1 if \( V_{DDA} \) is above 2.4V, or kept at 0 otherwise.

As soon as the OPAEN bit in OPAMP_CSR register is set, the operational amplifier is functional. The two input pins and the output pin are connected as defined in Section 27.3.3: Signal routing and the default connection settings can be changed.

Note: The inputs and output pins must be configured in analog mode (default state) in the corresponding GPIOx_MODER register.

27.3.3 Signal routing

The routing for the operational amplifier pins is determined by OPAMP_CSR register.

The connections of the two operational amplifiers (OPAMP1 and OPAMP2) are described in the table below

Table 179. Operational amplifier possible connections

1. 1. The dedicated pin is only available on BGA132 and BGA169 package. This configuration provides the lowest input bias current (see datasheet).

27.3.4 OPAMP modes

The operational amplifier inputs and outputs are all accessible on terminals. The amplifiers can be used in multiple configuration environments:

• • Standalone mode (external gain setting mode)
• • Follower configuration mode
• • PGA modes

Note: The amplifier output pin is directly connected to the output pad to minimize the output impedance. It cannot be used as a general purpose I/O, even if the amplifier is configured as a PGA and only connected to the ADC channel.

Note: The impedance of the signal must be maintained below a level which avoids the input leakage to create significant artifacts (due to a resistive drop in the source). Please refer to the electrical characteristics section in the datasheet for further details.

Standalone mode (external gain setting mode)

The procedure to use the OPAMP in standalone mode is presented hereafter.

Starting from the default value of OPAMP_CSR, and the default state of GPIOx_MODER, configure bit OPA_RANGE according the \( V_{DDA} \) voltage. As soon as the OPAEN bit is set, the two input pins and the output pin are connected to the operational amplifier.

This default configuration uses the factory trimming values and operates in normal mode (highest performance). The behavior of the OPAMP can be changed as follows:

• • OPALPM can be set to “operational amplifier low-power” mode in order to save power.
• • USERTRIM can be set to modify the trimming values for the input offset.

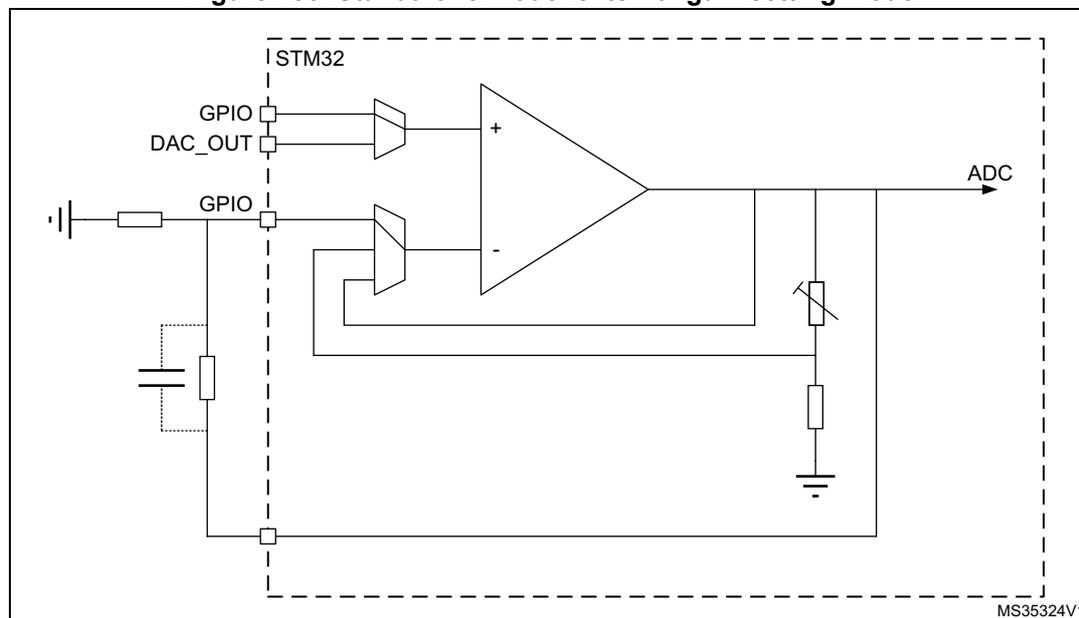

Figure 186. Standalone mode: external gain setting mode

Follower configuration mode

The procedure to use the OPAMP in follower mode is presented hereafter.

• • configure OPAMODE bits as “internal follower”
• • configure VP_SEL bits as “GPIO connected to VINP”.
• • As soon as the OPAEN bit is set, the signal on pin OPAMP_VINP is copied to pin OPAMP_VOUT.

Note: The pin corresponding to OPAMP_VINM is free for another usage.

Note: The signal on the operational amplifier output is also seen as an ADC input. As a consequence, the OPAMP configured in follower mode can be used to perform impedance adaptation on input signals before feeding them to the ADC input, assuming the input signal frequency is compatible with the operational amplifier gain bandwidth specification.

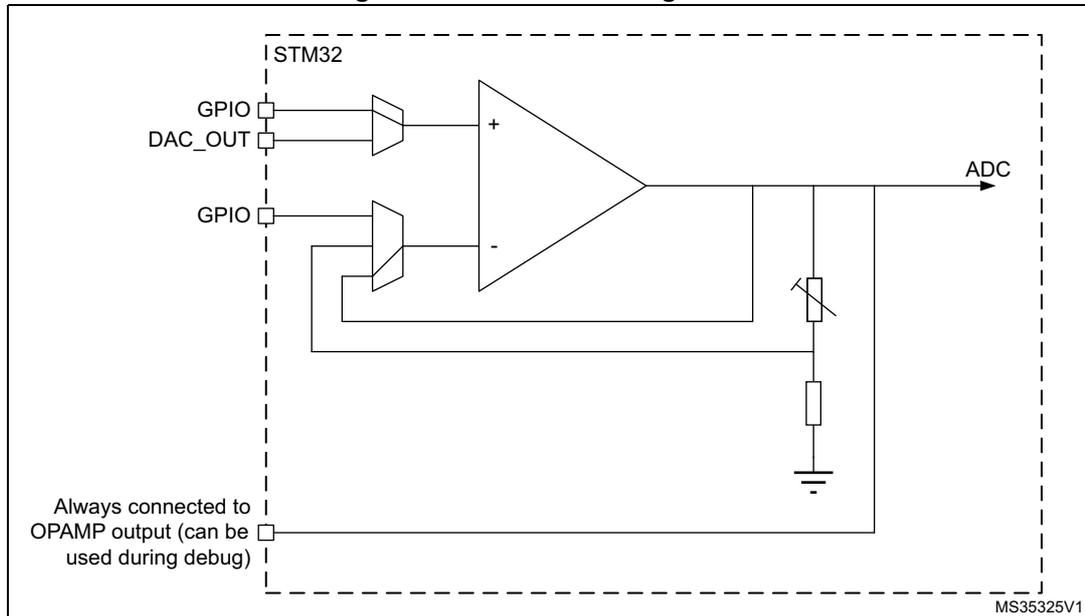

Figure 187. Follower configuration

Programmable Gain Amplifier mode

The procedure to use the OPAMP to amplify the amplitude of an input signal is presented hereafter.

• • configure OPAMODE bits as “internal PGA enabled”,
• • configure PGA_GAIN bits as “internal PGA Gain 2, 4, 8 or 16”,
• • configure VM_SEL bits as “inverting not externally connected”,
• • configure VP_SEL bits as “GPIO connected to VINP”.

As soon as the OPAEN bit is set, the signal on pin OPAMP_VINP is amplified by the selected gain and visible on pin OPAMP_VOUT.

Note: To avoid saturation, the input voltage should stay below \( V_{DDA} \) divided by the selected gain.

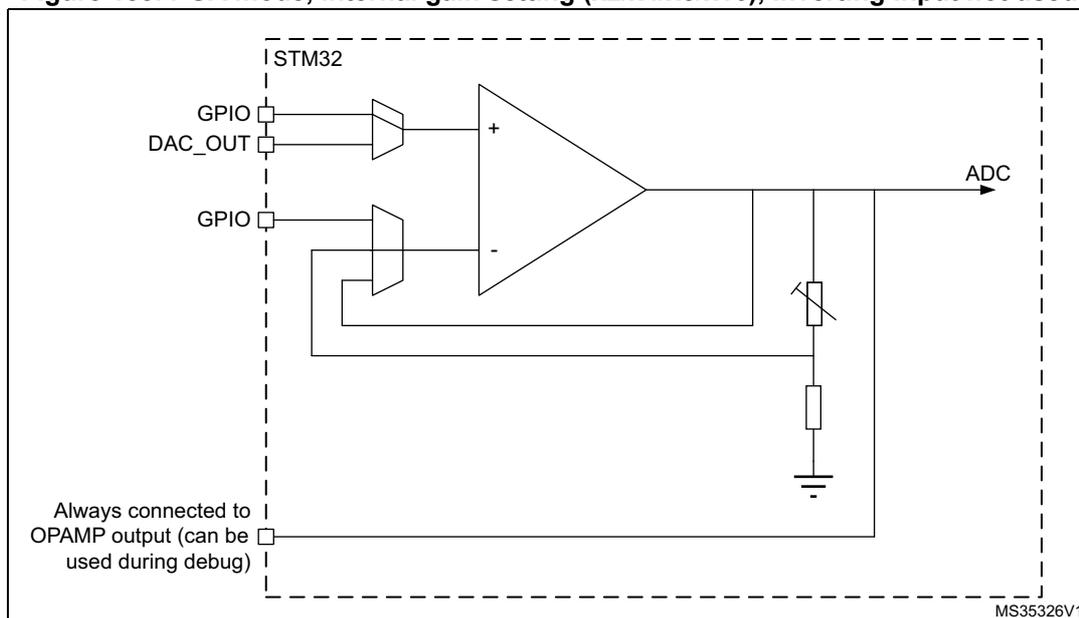

Figure 188. PGA mode, internal gain setting (x2/x4/x8/x16), inverting input not used

Programmable Gain Amplifier mode with external filtering

The procedure to use the OPAMP to amplify the amplitude of an input signal, with an external filtering, is presented hereafter.

• • configure OPAMODE bits as “internal PGA enabled”,
• • configure PGA_GAIN bits as “internal PGA Gain 2, 4, 8 or 16”,
• • configure VM_SEL bits as “GPIO connected to VINM”,
• • configure VP_SEL bits as “GPIO connected to VINP”.

Any external connection on VINP can be used in parallel with the internal PGA, for example a capacitor can be connected between VOUT and VINM for filtering purpose (see datasheet for the value of resistors used in the PGA resistor network).

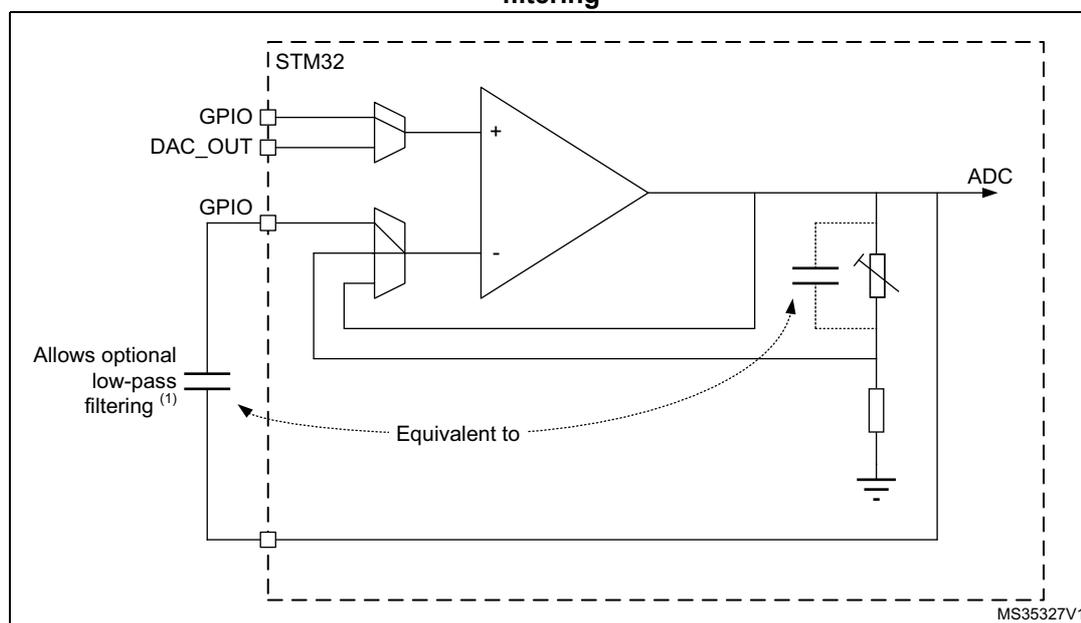

Figure 189. PGA mode, internal gain setting (x2/x4/x8/x16), inverting input used for filtering

1. The gain depends on the cut-off frequency.

27.3.5 Calibration

At startup, the trimming values are initialized with the preset ‘factory’ trimming value.

Each operational amplifier offset can be trimmed by the user. Specific registers allow to have different trimming values for normal mode and for low-power mode.

The aim of the calibration is to cancel as much as possible the OPAMP inputs offset voltage. The calibration circuitry allows to reduce the inputs offset voltage to less than \( \pm 1.5 \) mV within stable voltage and temperature conditions.

For each operational amplifier and each mode two trimming values need to be trimmed, one for N differential pair and one for P differential pair.

There are two registers for trimming the offsets for each operational amplifiers, one for normal mode (OPAMP_OTR) and one low-power mode (OPAMP_LPOTR). Each register is composed of five bits for P differential pair trimming and five bits for N differential pair trimming. These are the ‘user’ values.

The user is able to switch from 'factory' values to 'user' trimmed values using the USERTRIM bit in the OPAMP_CSR register. This bit is reset at startup and so the 'factory' value are applied by default to the OPAMP trimming registers.

User is liable to change the trimming values in calibration or in functional mode.

The offset trimming registers are typically configured after the calibration operation is initialized by setting bit CALON to 1. When CALON = 1 the inputs of the operational amplifier are disconnected from the functional environment.

• • Setting CALSEL to 1 initializes the offset calibration for the P differential pair (low voltage reference used).
• • Resetting CALSEL to 0 initializes the offset calibration for the N differential pair (high voltage reference used).

When CALON = 1, the bit CALOUT will reflect the influence of the trimming value selected by CALSEL and OPALPM. When the value of CALOUT switches between two consecutive trimming values, this means that those two values are the best trimming values. The CALOUT flag needs up to 1 ms after the trimming value is changed to become steady (see \( t_{OFFTRIMmax} \) delay specification in the electrical characteristics section of the datasheet).

Note: The closer the trimming value is to the optimum trimming value, the longer it takes to stabilize (with a maximum stabilization time remaining below 1 ms in any case).

Table 180. Operating modes and calibration

Calibration procedure

Here are the steps to perform a full calibration of either one of the operational amplifiers:

1. 1. Select correct OPA_RANGE in OPAMP_CSR, then set the OPAEN bit in OPAMP_CSR to 1 to enable the operational amplifier.
2. 2. Set the USERTRIM bit in the OPAMP_CSR register to 1.
3. 3. Choose a calibration mode (refer to Table 180: Operating modes and calibration ). The steps 3 to 4 will have to be repeated 4 times. For the first iteration select
   • – Normal mode, offset cal high (N differential pair)

   The above calibration mode correspond to OPALPM=0 and CALSEL=0 in the OPAMP_CSR register.

4. 4. Increment TRIMOFFSETN[4:0] in OPAMP_OTR starting from 00000b until CALOUT changes to 1 in OPAMP_CSR.

Note: CALOUT will switch from 0 to 1 for offset cal high and from 1 to 0 for offset cal low.

Note: Between the write to the OPAMP_OTR register and the read of the CALOUT value, make sure to wait for the \( t_{OFFTRIM}^{max} \) delay specified in the electrical characteristics section of the datasheet, to get the correct CALOUT value.

The commutation means that the offset is correctly compensated and that the corresponding trim code must be saved in the OPAMP_OTR register.

Repeat steps 3 to 4 for:

• – Normal_mode and offset cal low
• – Low power mode and offset cal high
• – Low power mode and offset cal low

If a mode is not used it is not necessary to perform the corresponding calibration.

All operational amplifier can be calibrated at the same time.

Note: During the whole calibration phase the external connection of the operational amplifier output must not pull up or down currents higher than 500 \( \mu\text{A} \) .

During the calibration procedure, it is necessary to set up OPAMODE bits as 00 or 01 (PGA disable) or 11 (internal follower).

27.4 OPAMP low-power modes

Table 181. Effect of low-power modes on the OPAMP

27.5 OPAMP registers

27.5.1 OPAMP1 control/status register (OPAMP1_CSR)

Address offset: 0x00

Reset value: 0x0000 0000

Bit 31 OPA_RANGE : Operational amplifier power supply range for stability

All AOP must be in power down to allow AOP-RANGE bit write. It applies to all AOP embedded in the product.

0: Low range ( \( V_{DDA} < 2.4V \) )

1: High range ( \( V_{DDA} > 2.4V \) )

Bits 30:16 Reserved, must be kept at reset value.

Bit 15 CALOUT : Operational amplifier calibration output

During calibration mode offset is trimmed when this signal toggle.

Bit 14 USERTRIM : allows to switch from 'factory' AOP offset trimmed values to AOP offset 'user' trimmed values

This bit is active for both mode normal and low-power.

0: 'factory' trim code used

1: 'user' trim code used

Bit 13 CALSEL : Calibration selection

0: NMOS calibration (200mV applied on OPAMP inputs)

1: PMOS calibration ( \( V_{DDA} - 200mV \) applied on OPAMP inputs)

Bit 12 CALON : Calibration mode enabled

0: Normal mode

1: Calibration mode (all switches opened by HW)

Bit 11 Reserved, must be kept at reset value.

Bit 10 VP_SEL : Non inverted input selection

0: GPIO connected to VINP

1: DAC connected to VINP

Bits 9:8 VM_SEL : Inverting input selection

These bits are used only when OPAMODE = 00, 01 or 10.

00: GPIO connected to VINM (valid also in PGA mode for filtering)

01: Dedicated low leakage input, connected to VINM (valid also in PGA mode for filtering)

1x: Inverting input not externally connected. These configurations are valid only when OPAMODE = 10 (PGA mode)

Bits 7:6 Reserved, must be kept at reset value.

Bits 5:4 PGA_GAIN : Operational amplifier Programmable amplifier gain value

00: internal PGA Gain 2

01: internal PGA Gain 4

10: internal PGA Gain 8

11: internal PGA Gain 16

Bits 3:2 OPAMODE : Operational amplifier PGA mode

00: internal PGA disable

01: internal PGA disable

10: internal PGA enable, gain programmed in PGA_GAIN

11: internal follower

Bit 1 OPALPM : Operational amplifier Low Power Mode

The operational amplifier must be disable to change this configuration.

0: operational amplifier in normal mode

1: operational amplifier in low-power mode

Bit 0 OPAEN : Operational amplifier Enable

0: operational amplifier disabled

1: operational amplifier enabled

27.5.2 OPAMP1 offset trimming register in normal mode (OPAMP1_OTR)

Address offset: 0x04

Reset value: 0x0000 XXXX (factory trimmed values)

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:8 TRIMOFFSETP[4:0] : Trim for PMOS differential pairs

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 TRIMOFFSETN[4:0] : Trim for NMOS differential pairs

27.5.3 OPAMP1 offset trimming register in low-power mode (OPAMP1_LPOTR)

Address offset: 0x08

Reset value: 0x0000 XXXX (factory trimmed values)

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:8 TRIMLPOFFSETP[4:0] : Low-power mode trim for PMOS differential pairs

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 TRIMLPOFFSETN[4:0] : Low-power mode trim for NMOS differential pairs

27.5.4 OPAMP2 control/status register (OPAMP2_CRS)

Address offset: 0x10

Reset value: 0x0000 0000

Bits 31:16 Reserved, must be kept at reset value.

Bit 15 CALOUT : Operational amplifier calibration output

During calibration mode offset is trimmed when this signal toggle.

Bit 14 USERTRIM : allows to switch from 'factory' AOP offset trimmed values to AOP offset 'user' trimmed values

This bit is active for both mode normal and low-power.

0: 'factory' trim code used

1: 'user' trim code used

Bit 13 CALSEL : Calibration selection

0: NMOS calibration (200mV applied on OPAMP inputs)

1: PMOS calibration (VDDA-200mV applied on OPAMP inputs)

Bit 12 CALON : Calibration mode enabled

0: Normal mode

1: Calibration mode (all switches opened by HW)

Bit 11 Reserved, must be kept at reset value.

Bit 10 VP_SEL : Non inverted input selection

0: GPIO connected to VINP

1: DAC connected to VINP

Bits 9:8 VM_SEL : Inverting input selection
These bits are used only when OPAMODE = 00, 01 or 10.
00: GPIO connected to VINM (valid also in PGA mode for filtering)
01: Dedicated low leakage input, (available only on BGA132) connected to VINM (valid also in PGA mode for filtering)
1x: Inverting input not externally connected. These configurations are valid only when OPAMODE = 10 (PGA mode)

Bits 7:6 Reserved, must be kept at reset value.

Bits 5:4 PGA_GAIN : Operational amplifier Programmable amplifier gain value
00: internal PGA Gain 2
01: internal PGA Gain 4
10: internal PGA Gain 8
11: internal PGA Gain 16

Bits 3:2 OPAMODE : Operational amplifier PGA mode
00: internal PGA disable
01: internal PGA disable
10: internal PGA enable, gain programmed in PGA_GAIN
11: internal follower

Bit 1 OPALPM : Operational amplifier Low Power Mode
The operational amplifier must be disable to change this configuration.
0: operational amplifier in normal mode
1: operational amplifier in low-power mode

Bit 0 OPAEN : Operational amplifier Enable
0: operational amplifier disabled
1: operational amplifier enabled

27.5.5 OPAMP2 offset trimming register in normal mode (OPAMP2_OTR)

Address offset: 0x14

Reset value: 0x0000 XXXX (factory trimmed values)

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:8 TRIMOFFSETP[4:0] : Trim for PMOS differential pairs

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 TRIMOFFSETN[4:0] : Trim for NMOS differential pairs

27.5.6 OPAMP2 offset trimming register in low-power mode (OPAMP2_LPOTR)

Address offset: 0x18

Reset value: 0x0000 XXXX (factory trimmed values)

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:8 TRIMLPOFFSETP[4:0] : Low-power mode trim for PMOS differential pairs

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 TRIMLPOFFSETN[4:0] : Low-power mode trim for NMOS differential pairs

27.5.7 OPAMP register map

Table 182. OPAMP register map and reset values

1. Factory trimmed values.

Refer to Section 2.2 on page 93 for the register boundary addresses.
