12. DMA request multiplexer (DMAMUX)

12.1 Introduction

A peripheral indicates a request for DMA transfer by setting its DMA request signal. The DMA request is pending until it is served by the DMA controller that generates a DMA acknowledge signal, and the corresponding DMA request signal is deasserted.

In this document, the set of control signals required for the DMA request/acknowledge protocol is not explicitly shown or described, and it is referred to as DMA request line.

The DMAMUX request multiplexer enables routing a DMA request line between the peripherals and the DMA controllers of the product. The routing function is ensured by a programmable multi-channel DMA request line multiplexer. Each channel selects a unique DMA request line, unconditionally or synchronously with events from its DMAMUX synchronization inputs. The DMAMUX may also be used as a DMA request generator from programmable events on its input trigger signals.

The number of DMAMUX instances and their main characteristics are specified in Section 12.3.1 .

The assignment of DMAMUX request multiplexer inputs to the DMA request lines from peripherals and to the DMAMUX request generator outputs, the assignment of DMAMUX request multiplexer outputs to DMA controller channels, and the assignment of DMAMUX synchronizations and trigger inputs to internal and external signals depend on the product implementation, and are detailed in Section 12.3.2 .

12.2 DMAMUX main features

• • 14-channel programmable DMA request line multiplexer output
• • 4-channel DMA request generator
• • 26 trigger inputs to DMA request generator
• • 26 synchronization inputs
• • Per DMA request generator channel:
  • – DMA request trigger input selector
  • – DMA request counter
  • – Event overrun flag for selected DMA request trigger input
• • Per DMA request line multiplexer channel output:
  • – 89 (STM32L4Rxxx and STM32L4Sxxx devices) or 90 (STM32L4P5xx and STM32L4Q5xx devices) input DMA request lines from peripherals
  • – One DMA request line output
  • – Synchronization input selector
  • – DMA request counter
  • – Event overrun flag for selected synchronization input
  • – One event output, for DMA request chaining

12.3 DMAMUX implementation

12.3.1 DMAMUX instantiation

DMAMUX is instantiated with the hardware configuration parameters listed in the following table.

Table 53. DMAMUX instantiation

12.3.2 DMAMUX mapping

The mapping of resources to DMAMUX is hardwired.

DMAMUX is used with DMA1 and DMA2:

• • DMAMUX channels 0 to 6 are connected to DMA1 channels 1 to 7
• • DMAMUX channels 7 to 13 are connected to DMA2 channels 1 to 7

Table 54. DMAMUX: assignment of multiplexer inputs to resources
(STM32L4Rxxx and STM32L4Sxxx devices)

Table 54. DMAMUX: assignment of multiplexer inputs to resources (STM32L4Rxxx and STM32L4Sxxx devices) (continued)

1. 1. DAC channel 1.
2. 2. DAC channel 2.

Table 55. DMAMUX: assignment of multiplexer inputs to resources (STM32L4P5xx and STM32L4Q5xx devices)

Table 55. DMAMUX: assignment of multiplexer inputs to resources (STM32L4P5xx and STM32L4Q5xx devices) (continued)

1. 1. DAC channel 1.
2. 2. DAC channel 2.

Table 56. DMAMUX: assignment of trigger inputs to resources (STM32L4Rxxx and STM32L4Sxxx devices)

Table 56. DMAMUX: assignment of trigger inputs to resources
(STM32L4Rxxx and STM32L4Sxxx devices) (continued)

Table 57. DMAMUX: assignment of trigger inputs to resources
(STM32L4P5xx and STM32L4Q5xx devices)

Table 58. DMAMUX: assignment of synchronization inputs to resources
(STM32L4Rxxx and STM32L4Sxxx devices)

Table 58. DMAMUX: assignment of synchronization inputs to resources (STM32L4Rxxx and STM32L4Sxxx devices) (continued)

Table 59. DMAMUX: assignment of synchronization inputs to resources (STM32L4P5xx and STM32L4Q5xx devices)

12.4 DMAMUX functional description

12.4.1 DMAMUX block diagram

Figure 32 shows the DMAMUX block diagram.

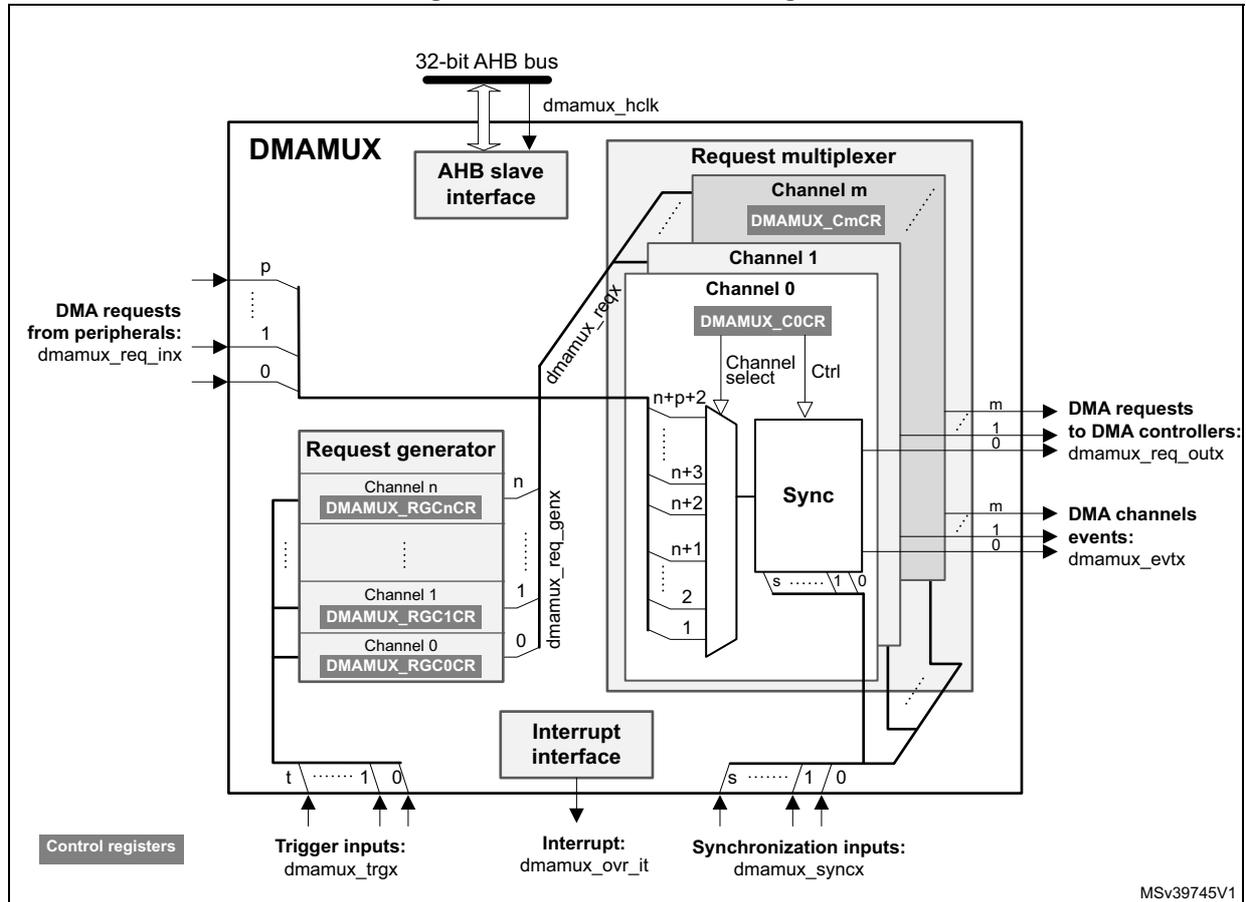

Figure 32. DMAMUX block diagram

DMAMUX features two main sub-blocks: the request line multiplexer and the request line generator.

The implementation assigns:

• • DMAMUX request multiplexer sub-block inputs (dmamux_reqx) from peripherals (dmamux_req_inx) and from channels of the DMAMUX request generator sub-block (dmamux_req_genx)
• • DMAMUX request outputs to channels of DMA controllers (dmamux_req_outx)
• • Internal or external signals to DMA request trigger inputs (dmamux_trgx)
• • Internal or external signals to synchronization inputs (dmamux_syncx)

12.4.2 DMAMUX signals

Table 60 lists the DMAMUX signals.

Table 60. DMAMUX signals

12.4.3 DMAMUX channels

A DMAMUX channel is a DMAMUX request multiplexer channel that may include, depending on the selected input of the request multiplexer, an additional DMAMUX request generator channel.

A DMAMUX request multiplexer channel is connected and dedicated to one single channel of DMA controller(s).

Channel configuration procedure

Follow the sequence below to configure both a DMAMUX x channel and the related DMA channel y:

1. 1. Set and configure completely the DMA channel y, except enabling the channel y.
2. 2. Set and configure completely the related DMAMUX y channel.
3. 3. Last, activate the DMA channel y by setting the EN bit in the DMA y channel register.

12.4.4 DMAMUX request line multiplexer

The DMAMUX request multiplexer with its multiple channels ensures the actual routing of DMA request/acknowledge control signals, named DMA request lines.

Each DMA request line is connected in parallel to all the channels of the DMAMUX request line multiplexer.

A DMA request is sourced either from the peripherals or from the DMAMUX request generator.

The DMAMUX request line multiplexer channel x selects the DMA request line number as configured by the DMAREQ_ID field in the DMAMUX_CxCR register.

Note: The null value in the field DMAREQ_ID corresponds to no DMA request line selected.

Caution: A same non-null DMAREQ_ID must not be programmed to different x and y DMAMUX request multiplexer channels (via DMAMUX_CxCR and DMAMUX_CyCR), except if application guarantees that the two connected DMA channels are not simultaneously active.

On top of the DMA request selection, the synchronization mode and/or the event generation may be configured and enabled, if required.

Synchronization mode and channel event generation

Each DMAMUX request line multiplexer channel x can be individually synchronized by setting the synchronization enable (SE) bit in the DMAMUX_CxCR register.

DMAMUX has multiple synchronization inputs. The synchronization inputs are connected in parallel to all the channels of the request multiplexer.

The synchronization input is selected via the SYNC_ID field in the DMAMUX_CxCR register of a given channel x.

When a channel is in this synchronization mode, the selected input DMA request line is propagated to the multiplexer channel output, once is detected a programmable rising/falling edge on the selected input synchronization signal, via the SPOL[1:0] field of the DMAMUX_CxCR register.

Additionally, there is a programmable DMA request counter, internally to the DMAMUX request multiplexer, which may be used for the channel request output generation and also possibly for an event generation. An event generation on the channel x output is enabled through the EGE bit (event generation enable) of the DMAMUX_CxCR register.

As shown in Figure 34 , upon the detected edge of the synchronization input, the pending selected input DMA request line is connected to the DMAMUX multiplexer channel x output.

Note: If a synchronization event occurs while there is no pending selected input DMA request line, it is discarded. The following asserted input request lines is not connected to the DMAMUX multiplexer channel output until a synchronization event occurs again.

From this point on, each time the connected DMAMUX request is served by the DMA controller (a served request is deasserted), the DMAMUX request counter is decremented. At its underrun, the DMA request counter is automatically loaded with the value in NBREQ field of the DMAMUX_CxCR register and the input DMA request line is disconnected from the multiplexer channel x output.

Thus, the number of DMA requests transferred to the multiplexer channel x output following a detected synchronization event, is equal to the value in NBREQ field, plus one.

Note: The NBREQ field value shall only be written by software when both synchronization enable bit SE and event generation enable EGE bit of the corresponding multiplexer channel x are disabled.

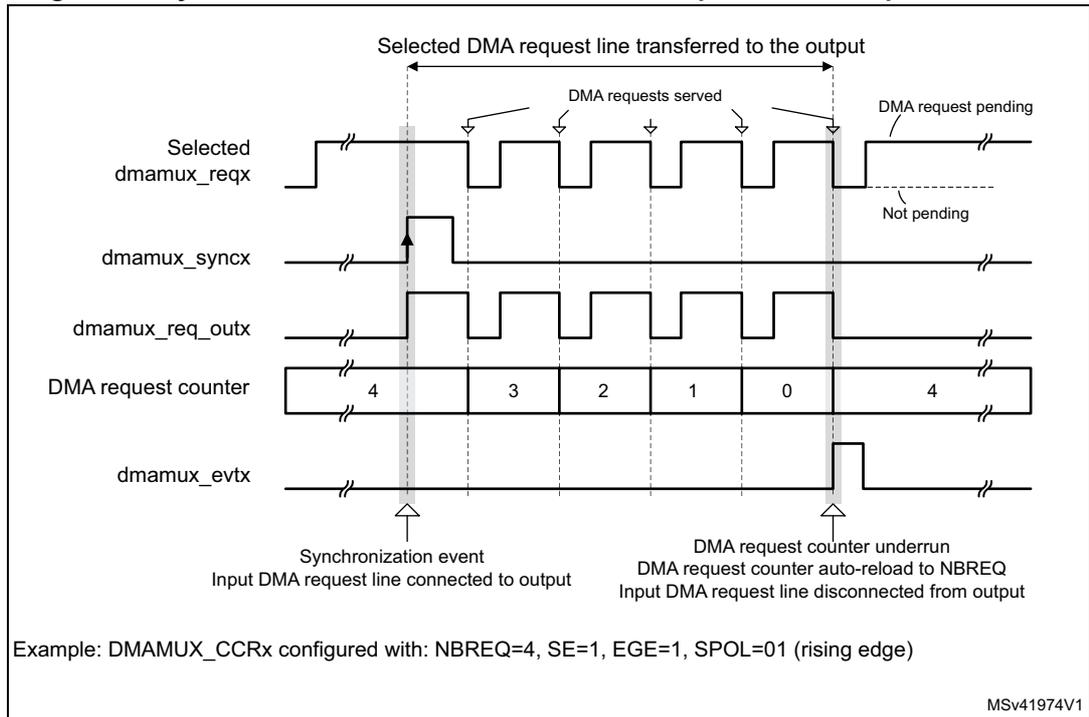

Figure 33. Synchronization mode of the DMAMUX request line multiplexer channel

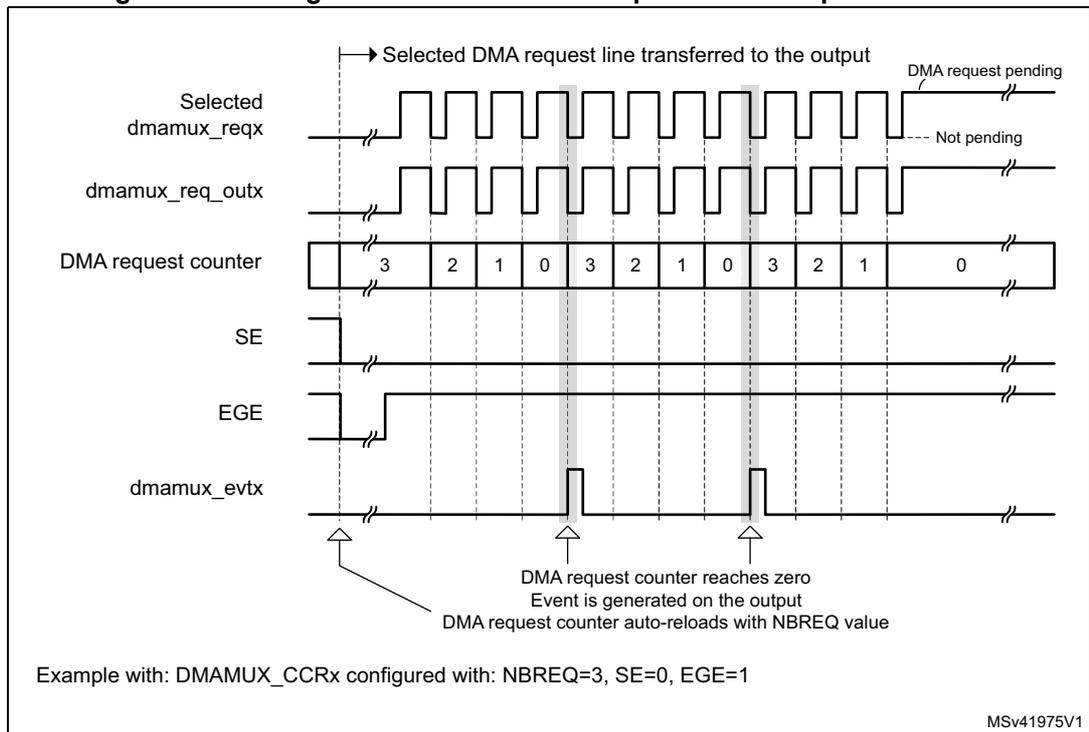

Figure 34. Event generation of the DMA request line multiplexer channel

If EGE is enabled, the multiplexer channel generates a channel event, as a pulse of one AHB clock cycle, when its DMA request counter is automatically reloaded with the value of the programmed NBREQ field, as shown in Figure 33 and Figure 34 .

Note: If EGE is enabled and NBREQ = 0, an event is generated after each served DMA request.

Note: A synchronization event (edge) is detected if the state following the edge remains stable for more than two AHB clock cycles.

Upon writing into DMAMUX_CxCR register, the synchronization events are masked during three AHB clock cycles.

Synchronization overrun and interrupt

If a new synchronization event occurs before the request counter underrun (the internal request counter programmed via the NBREQ field of the DMAMUX_CxCR register), the synchronization overrun flag bit SOFx is set in the DMAMUX_CSR status register.

Note: The request multiplexer channel x synchronization must be disabled (DMAMUX_CxCR.SE = 0) at the completion of the use of the related channel of the DMA controller. Else, upon a new detected synchronization event, there is a synchronization overrun due to the absence of a DMA acknowledge (that is, no served request) received from the DMA controller.

The overrun flag SOFx is reset by setting the associated clear synchronization overrun flag bit CSOFx in the DMAMUX_CFR register.

Setting the synchronization overrun flag generates an interrupt if the synchronization overrun interrupt enable bit SOIE is set in the DMAMUX_CxCR register.

12.4.5 DMAMUX request generator

The DMAMUX request generator produces DMA requests following trigger events on its DMA request trigger inputs.

The DMAMUX request generator has multiple channels. DMA request trigger inputs are connected in parallel to all channels.

The outputs of DMAMUX request generator channels are inputs to the DMAMUX request line multiplexer.

Each DMAMUX request generator channel x has an enable bit GE (generator enable) in the corresponding DMAMUX_RGxCR register.

The DMA request trigger input for the DMAMUX request generator channel x is selected through the SIG_ID (trigger signal ID) field in the corresponding DMAMUX_RGxCR register.

Trigger events on a DMA request trigger input can be rising edge, falling edge or either edge. The active edge is selected through the GPOL (generator polarity) field in the corresponding DMAMUX_RGxCR register.

Upon the trigger event, the corresponding generator channel starts generating DMA requests on its output. Each time the DMAMUX generated request is served by the connected DMA controller (a served request is deasserted), a built-in (inside the DMAMUX request generator) DMA request counter is decremented. At its underrun, the request generator channel stops generating DMA requests and the DMA request counter is automatically reloaded to its programmed value upon the next trigger event.

Thus, the number of DMA requests generated after the trigger event is GNBREQ + 1.

Note: The GNBREQ field value must be written by software only when the enable GE bit of the corresponding generator channel x is disabled.

There is no hardware write protection.

A trigger event (edge) is detected if the state following the edge remains stable for more than two AHB clock cycles.

Upon writing into DMAMUX_RGxCR register, the trigger events are masked during three AHB clock cycles.

Trigger overrun and interrupt

If a new DMA request trigger event occurs before the DMAMUX request generator counter underrun (the internal counter programmed via the GNBREQ field of the DMAMUX_RGxCR register), and if the request generator channel x was enabled via GE, then the request trigger event overrun flag bit OFx is asserted by the hardware in the status DMAMUX_RGSR register.

Note: The request generator channel x must be disabled (DMAMUX_RGxCR.GE = 0) at the completion of the usage of the related channel of the DMA controller. Else, upon a new detected trigger event, there is a trigger overrun due to the absence of an acknowledge (that is, no served request) received from the DMA.

The overrun flag OFx is reset by setting the associated clear overrun flag bit COFx in the DMAMUX_RGCFR register.

Setting the DMAMUX request trigger overrun flag generates an interrupt if the DMA request trigger event overrun interrupt enable bit OIE is set in the DMAMUX_RGxCR register.

12.5 DMAMUX interrupts

An interrupt can be generated upon:

• • a synchronization event overrun in each DMA request line multiplexer channel
• • a trigger event overrun in each DMA request generator channel

For each case, per-channel individual interrupt enable, status and clear flag register bits are available.

Table 61. DMAMUX interrupts

12.6 DMAMUX registers

Refer to the table containing register boundary addresses for the DMAMUX base address.

DMAMUX registers may be accessed per (8-bit) byte, (16-bit) half-word, or (32-bit) word. The address must be aligned with the data size.

12.6.1 DMAMUX request line multiplexer channel x configuration register (DMAMUX_CxCR)

Address offset: 0x000 + 0x04 * x (x = 0 to 13)

Reset value: 0x0000 0000

Bits 31:29 Reserved, must be kept at reset value.

Bits 28:24 SYNC_ID[4:0] : Synchronization identification

Selects the synchronization input (see Table 58: DMAMUX: assignment of synchronization inputs to resources (STM32L4Rxxx and STM32L4Sxxx devices) and Table 59: DMAMUX: assignment of synchronization inputs to resources (STM32L4P5xx and STM32L4Q5xx devices) ).

Bits 23:19 NBREQ[4:0] : Number of DMA requests minus 1 to forward

Defines the number of DMA requests to forward to the DMA controller after a synchronization event, and/or the number of DMA requests before an output event is generated.

This field shall only be written when both SE and EGE bits are low.

Bits 18:17 SPOL[1:0] : Synchronization polarity

Defines the edge polarity of the selected synchronization input:

00: No event, i.e. no synchronization nor detection.

01: Rising edge

10: Falling edge

11: Rising and falling edges

Bit 16 SE : Synchronization enable

0: Synchronization disabled

1: Synchronization enabled

Bits 15:10 Reserved, must be kept at reset value.

Bit 9 EGE : Event generation enable

0: Event generation disabled

1: Event generation enabled

Bit 8 SOIE : Synchronization overrun interrupt enable

0: Interrupt disabled

1: Interrupt enabled

Bit 7 Reserved, must be kept at reset value.

Bits 6:0 DMAREQ_ID[6:0] : DMA request identification

Selects the input DMA request. See the DMAMUX table about assignments of multiplexer inputs to resources.

12.6.2 DMAMUX request line multiplexer interrupt channel status register (DMAMUX_CSR)

Address offset: 0x080

Reset value: 0x0000 0000

Bits 31:14 Reserved, must be kept at reset value.

Bits 13:0 SOF[13:0] : Synchronization overrun event flag

The flag is set when a synchronization event occurs on a DMA request line multiplexer channel x, while the DMA request counter value is lower than NBREQ.

The flag is cleared by writing 1 to the corresponding CSOFx bit in DMAMUX_CFR register.

12.6.3 DMAMUX request line multiplexer interrupt clear flag register (DMAMUX_CFR)

Address offset: 0x084

Reset value: 0x0000 0000

Bits 31:14 Reserved, must be kept at reset value.

Bits 13:0 CSOF[13:0] : Clear synchronization overrun event flag

Writing 1 in each bit clears the corresponding overrun flag SOFx in the DMAMUX_CSR register.

12.6.4 DMAMUX request generator channel x configuration register (DMAMUX_RGxCR)

Address offset: 0x100 + 0x04 * x (x = 0 to 3)

Reset value: 0x0000 0000

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:19 GNBREQ[4:0] : Number of DMA requests to be generated (minus 1)

Defines the number of DMA requests to be generated after a trigger event. The actual number of generated DMA requests is GNBREQ +1.

Note: This field must be written only when GE bit is disabled.

Bits 18:17 GPOL[1:0] : DMA request generator trigger polarity

Defines the edge polarity of the selected trigger input

00: No event, i.e. no trigger detection nor generation.

01: Rising edge

10: Falling edge

11: Rising and falling edges

Bit 16 GE : DMA request generator channel x enable

0: DMA request generator channel x disabled

1: DMA request generator channel x enabled

Bits 15:9 Reserved, must be kept at reset value.

Bit 8 OIE : Trigger overrun interrupt enable

0: Interrupt on a trigger overrun event occurrence is disabled

1: Interrupt on a trigger overrun event occurrence is enabled

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 SIG_ID[4:0] : Signal identification

Selects the DMA request trigger input used for the channel x of the DMA request generator

12.6.5 DMAMUX request generator interrupt status register (DMAMUX_RGSR)

Address offset: 0x140

Reset value: 0x0000 0000

Bits 31:4 Reserved, must be kept at reset value.

Bits 3:0 OF[3:0] : Trigger overrun event flag

The flag is set when a new trigger event occurs on DMA request generator channel x, before the request counter underrun (the internal request counter programmed via the GNBREQ field of the DMAMUX_RGxCR register).

The flag is cleared by writing 1 to the corresponding COFx bit in the DMAMUX_RGCFR register.

12.6.6 DMAMUX request generator interrupt clear flag register (DMAMUX_RGCFR)

Address offset: 0x144

Reset value: 0x0000 0000

Bits 31:4 Reserved, must be kept at reset value.

Bits 3:0 COF[3:0] : Clear trigger overrun event flag

Writing 1 in each bit clears the corresponding overrun flag OFx in the DMAMUX_RGSR register.

12.6.7 DMAMUX register map

The following table summarizes the DMAMUX registers and reset values. Refer to the register boundary address table for the DMAMUX register base address.

Table 62. DMAMUX register map and reset values

Table 62. DMAMUX register map and reset values (continued)

Refer to Section 2.2 on page 93 for the register boundary addresses.
