3. Embedded Flash memory (FLASH)

3.1 Introduction

The Flash memory interface manages CPU AHB ICode and DCode accesses to the Flash memory. It implements the erase and program Flash memory operations and the read and write protection mechanisms.

The Flash memory interface accelerates code execution with a system of instruction prefetch and cache lines.

3.2 FLASH main features

• • Up to 2 Mbytes of Flash memory with dual-bank architecture supporting read-while-write capability (RWW).
• • Flash memory read operations with two data width modes supported:
  • – Single-bank mode: read access of 128 bits
  • – Dual-bank mode : read access of 64 bits
• • Page erase, bank erase and mass erase (both banks)

Flash memory interface features:

• • Flash memory read operations
• • Flash memory program/erase operations
• • Read protection activated by option (RDP)
• • 4 Write protection areas (2 per bank when in dual-bank and 4 for full memory when in single-bank)
• • 2 proprietary code read protection areas (1 per bank when dual-bank, 2 for all memory when single-bank)
• • Flash empty check
• • Prefetch on ICODE
• • Instruction Cache: 32 cache lines of 4 x 64 or 2 x 128 bits on ICode (1 Kbyte RAM)
• • Data Cache: 8 cache lines of 4 x 64 bits or 2 x 128 on DCode (256 bytes RAM)
• • Error Code Correction ECC: 8 bits per 64-bit double-word
  • – In dual-bank: 8 + 64 = 72 bits, 2 bits detection, 1 bit correction
  • – In single-bank: (8+64) + (8+64) = 144 bits, 2 bits detection, 1 bit correction
• • Option byte loader
• • Low-power mode

3.3 FLASH functional description

3.3.1 Flash memory organization

The Flash memory has the following main features:

• • Capacity up to 2 Mbytes, in Single-bank mode (read width of 128 bits) or in Dual-bank mode (read width of 64-bits)
• • Supports dual boot mode thanks to the BFB2 option bit (only in Dual-bank mode)
• • Dual-bank mode when DBANK (or DB1M) is set:
  • – 2 Mbytes organized in 2 banks for main memory
  • – Page size of 4 Kbytes
  • – 72 bits wide data read (64 bits plus 8 ECC bits)
  • – Bank and Mass erase
• • Single-bank mode when DBANK (or DB1M) is reset:
  • – 2 Mbytes organized in one single-bank for main memory
  • – Page size of 8 Kbytes
  • – 144 bits wide data read (128 bits plus 2x8 ECC bits)
  • – Mass erase

The Flash memory is organized as follows:

For STM32L4Rxxx and STM32L4Sxxx devices:

• • A main memory block organized depending on the dual-bank configuration bit:
  • – When dual-bank is enabled , the Flash is divided in 2 banks of 1 Mbyte, and each bank is organized as follows:
    The main memory block containing 256 pages of 4 Kbytes
    Each page is composed of 8 rows of 512 bytes
  • – When dual-bank is disabled, the main memory block is organized as one single-bank of 2 Mbytes as follows:
    The main memory block containing 256 pages of 8 Kbytes
    Each page is composed of 8 rows of 1024 bytes
• • Dual-bank organization on 1 Mbyte devices
  The dual-bank feature on 1 Mbyte devices is enabled by setting the DB1M option bit. The dual-bank memory organization is different from the single-bank: the single-bank memory contains 128 pages of 8 Kbytes whereas the dual-bank memory each bank contains 128 pages of 4 Kbytes.
  For erase operation, the right page numbering and address must be considered according to the DB1M option bit.
  • – When the DB1M bit is reset, the erase operation must be performed on the Bank 1.
  • – When the DB1M bit is set, to perform an erase operation on Bank 2, the page number must be programmed (page number from 0 to 127) on Bank 2.

For STM32L4P5xx and STM32L4Q5xx devices

• • A main memory block organized depending on the dual-bank configuration bit:
  • – When dual-bank is enabled, the Flash is divided in 2 banks of 512 Kbytes, and each bank is organized as follows:

• • The main memory block containing 128 pages of 4 Kbytes
  • Each page is composed of 8 rows of 512 bytes
  • – When dual-bank is disabled, the main memory block is organized as one single-bank of 1 Mbyte as follows:
    • The main memory block containing 128 pages of 8 Kbytes
    • Each page is composed of 8 rows of 1024 bytes
• • Dual-bank organization on 512 Kbytes devices
  • The dual-bank feature on 512 Kbytes devices is enabled by setting the DB1M option bit. The dual-bank memory organization is different from the single-bank: the single-bank memory contains 128 pages of 8 Kbytes whereas the dual-bank memory each bank contains 64 pages of 4 Kbytes.

Refer to Table 8: Flash module - 1 Mbyte dual-bank organization, DB1M = 1 (64 bits read width) and Table 9: Flash module - 1 Mbyte single-bank organization, DB1M = 0 (128 bits read width) for details on 1 Mbyte single-bank and 1 Mbyte dual-bank organizations.

Refer to Table 10: Flash module - 512 Kbytes dual-bank organization, DB1M = 1 (64 bits read width) and Table 11: Flash module - 512 Kbytes single-bank organization DB1M = 0 (128 bits read width) for details on 512 Kbytes single-bank and 512 Kbytes dual-bank organizations.

For all STM32L4+ Series:

• • An Information block containing:
  • – System memory from which the device boots in System memory boot mode. The area is reserved for use by STMicroelectronics and contains the bootloader that is used to reprogram the Flash memory through one of the following interfaces: USART1, USART2, USART3, USB (DFU), I2C1, I2C2, I2C3, SPI1, SPI2, SPI3. It is programmed by STMicroelectronics when the device is manufactured, and protected against spurious write/erase operations. For further details, please refer to the AN2606 available from www.st.com .
  • – 1 Kbyte (128 double word) OTP (one-time programmable) bytes for user data. The OTP area is available in Bank 1 only. The OTP data cannot be erased and can be written only once. If only one bit is at 0, the entire double word cannot be written anymore, even with the value 0x0000 0000 0000 0000.
  • – Option bytes for user configuration.

The memory organization is based on a main area and an information block as shown in the tables below.

Table 6. Flash module - 2 Mbytes dual-bank organization, DBANK = 1
(64 bits read width)

Table 7. Flash module - 2 Mbytes single-bank organization, DBANK = 0
(128 bits read width)

Table 7. Flash module - 2 Mbytes single-bank organization, DBANK = 0
(128 bits read width) (continued)

Table 8. Flash module - 1 Mbyte dual-bank organization, DB1M = 1
(64 bits read width)

Table 9. Flash module - 1 Mbyte single-bank organization, DB1M = 0
(128 bits read width)

Table 10. Flash module - 512 Kbytes dual-bank organization, DB1M = 1
(64 bits read width)

Table 10. Flash module - 512 Kbytes dual-bank organization, DB1M = 1
(64 bits read width) (continued)

Table 11. Flash module - 512 Kbytes single-bank organization DB1M = 0
(128 bits read width)

3.3.2 Error code correction (ECC)

Dual-bank mode (64-bits data width)

Data in Flash memory are 72-bits words: 8 bits are added per double word (64 bits). The ECC mechanism supports:

• • One error detection and correction
• • Two errors detection

When one error is detected and corrected, the flag ECCC (ECC correction) is set in Flash ECC register (FLASH_ECCR) . If ECCCIE is set, an interrupt is generated.

When two errors are detected, a flag ECCD (ECC detection) is set in FLASH_ECCR register. In this case, a NMI is generated.

When an ECC error is detected, the address of the failing double word and its associated bank are saved in ADDR_ECC[20:0] and BK_ECC in the FLASH_ECCR register. ADDR_ECC[2:0] are always cleared.

When ECCC or ECCD is set, ADDR_ECC and BK_ECC are not updated if a new ECC error occurs. FLASH_ECCR is updated only when ECC flags are cleared.

Caution: When ECCC flag is set, a further two errors detection is not able to generate the NMI. It is therefore recommended to clear ECCC flag as soon as a correction is operated, to preserve ECC single and double error detection capability.
Refer to STM32L4 and STM32L4+ Series safety manual for the full description of the implications on safety standards compliance.

Note: For a virgin data: 0xFF FFFF FFFF FFFF FFFF, one error is detected and corrected but two errors detection is not supported.

Note: When a double ECC error is reported, the ECCD flag is set and NMI is triggered, in that case the I-cache (if enabled) may have a line with double ECC error. It is therefore recommended to flush the cache (set ICRST bit) in the NMI handler.

Note: When an ECC error is reported, a new read at the failing address may not generate an ECC error if the data is still present in the current buffer, even if ECCC and ECCD are cleared.

Single-bank mode (128-bits data width)

Data in Flash memory are 144-bits words: 8 bits are added per each double word. The ECC mechanism supports:

• • One error detection and correction
• • Two errors detection per 64 double words

The user must first check the SYSF_ECC bit, and if it is set, the user must refer to the DBANK=1 (or DB1M) programming model (because system Flash is always on 2 banks). If the bit is not set, the user must refer to the following programming model:

Each double word (bits 63:0 and bits 127:64) has ECC.

When one error is detected in 64 LSB bits (bits 63:0) and corrected, a flag ECCC (ECC correction) is set in the FLASH_ECCR register.

When one error is detected in 64 MSB bits (bits 127:64) and corrected, a flag ECCC2 (ECC2 correction) is set in the FLASH_ECCR register.

If the ECCCIE is set, an interrupt is generated. The user has to read ECCC and ECCC2 to see which part of the 128-bits data has been corrected (either 63:0, 127:64 or both).

When two errors are detected in 64 LSB bits, a flag ECCD (ECC detection) is set in the FLASH_ECCR register.

When two errors are detected in 64 MSB bits (bits 127:64), a flag ECCD2 (ECC2 detection) is set in the FLASH_ECCR register.

In this case, a NMI is generated. The user has to read ECCD and ECCD2 to see which part of the 128-bits data has error detection (either 63:0, 127:64 or both).

When an ECC error is detected, the address of the failing the 2 times double word is saved into ADDR_ECC[20:0] in FLASH_ECCR. ADDR_ECC[20:0] contains an address of a 2 times double word.

The ADDR_ECC[3:0] are always cleared. BK_ECC is not used in this mode.

When ECCC/ECCC2 or ECCD/ECCD2 is/are set, if a new ECC error occurs, the ADDR_ECC is not updated. The FLASH_ECCR is updated only if the ECC flags (ECCC/ECCC2/ECCD/ECCD2) are cleared.

Caution: When ECCC (or ECCC2) flag is set, a further two errors detection is not able to generate the NMI. It is therefore recommended to clear ECCC (or ECCC2) flag as soon as a correction is operated, to preserve ECC single and double error detection capability. Refer to STM32L4 and STM32L4+ Series safety manual for the full description of the implications on safety standards compliance.

Note: For a virgin data: 0xFF FFFF FFFF FFFF FFFF, one error is detected and corrected but two errors detection is not supported.

Note: When an ECC error is reported, a new read at the failing address may not generate an ECC error if the data is still present in the current buffer, even if ECCC/ECCC2 and ECCD/ECCD2 are cleared.

Note: When a double ECC error is reported, the ECCD (or ECCD2) flag is set and NMI is triggered, in that case the I-cache (if enabled) may have a line with double ECC error. It is therefore recommended to flush the cache (set ICRST bit) in the NMI handler.

3.3.3 Read access latency

To correctly read data from Flash memory, the number of wait states (LATENCY) must be correctly programmed in the Flash access control register (FLASH_ACR) according to the frequency of the CPU clock (HCLK) and the internal voltage range of the device \( V_{CORE} \) . Refer to Section 5.1.8: Dynamic voltage scaling management . Table 12 shows the correspondence between wait states and CPU clock frequency.

Table 12. Number of wait states according to CPU clock (HCLK) frequency

After reset, the CPU clock frequency is 4 MHz and 0 wait state (WS) is configured in the FLASH_ACR register.

When changing the CPU frequency, the following software sequences must be applied in order to tune the number of wait states needed to access the Flash memory:

Increasing the CPU frequency:

1. 1. Program the new number of wait states to the LATENCY bits in the Flash access control register (FLASH_ACR) .
2. 2. Check that the new number of wait states is taken into account to access the Flash memory by reading the FLASH_ACR register.
3. 3. Modify the CPU clock source by writing the SW bits in the RCC_CFGR register.
4. 4. If needed, modify the CPU clock prescaler by writing the HPRE bits in RCC_CFGR.
5. 5. Check that the new CPU clock source or/and the new CPU clock prescaler value is/are taken into account by reading the clock source status (SWS bits) or/and the AHB prescaler value (HPRE bits), respectively, in the RCC_CFGR register.

Decreasing the CPU frequency:

1. 1. Modify the CPU clock source by writing the SW bits in the RCC_CFGR register.
2. 2. If needed, modify the CPU clock prescaler by writing the HPRE bits in RCC_CFGR.
3. 3. Check that the new CPU clock source or/and the new CPU clock prescaler value is/are taken into account by reading the clock source status (SWS bits) or/and the AHB prescaler value (HPRE bits), respectively, in the RCC_CFGR register.
4. 4. Program the new number of wait states to the LATENCY bits in Flash access control register (FLASH_ACR) .
5. 5. Check that the new number of wait states is used to access the Flash memory by reading the FLASH_ACR register.

3.3.4 Adaptive real-time memory accelerator (ART Accelerator)

The proprietary Adaptive real-time (ART) memory accelerator is optimized for STM32 industry-standard Arm® Cortex®-M4 with FPU processors. It balances the inherent performance advantage of the Arm® Cortex®-M4 with FPU over Flash memory technologies, which normally requires the processor to wait for the Flash memory at higher operating frequencies.

To release the processor full performance, the accelerator implements an instruction prefetch queue and branch cache which increases program execution speed from the 64-bit Flash memory. Based on CoreMark benchmark, the performance achieved thanks to the ART accelerator is equivalent to 0 wait state program execution from Flash memory at a CPU frequency up to 120 MHz.

Instruction prefetch

The Cortex®-M4 fetches the instruction over the ICode bus and the literal pool (constant/data) over the DCode bus. The prefetch block aims at increasing the efficiency of ICode bus accesses.

In case of Single-bank mode, each Flash memory read operation provides 128 bits from either four instructions of 32 bits or eight instructions of 16 bits depending on the launched program. This 128-bits current instruction line is saved in a current buffer, and in case of sequential code, at least four CPU cycles are needed to execute the previous read instruction line.

When in Dual-bank mode, each Flash memory read operation provides 64 bits from either two instructions of 32 bits or four instructions of 16 bits depending on the launched program.

This 64-bits current instruction line is saved in a current buffer, and in case of sequential code, at least two CPU cycles are needed to execute the previous read instruction line.

Prefetch on the ICode bus can be used to read the next sequential instruction line from the Flash memory while the current instruction line is being requested by the CPU.

Prefetch is enabled by setting the PRFTEN bit in the Flash access control register (FLASH_ACR) . This feature is useful if at least one wait state is needed to access the Flash memory.

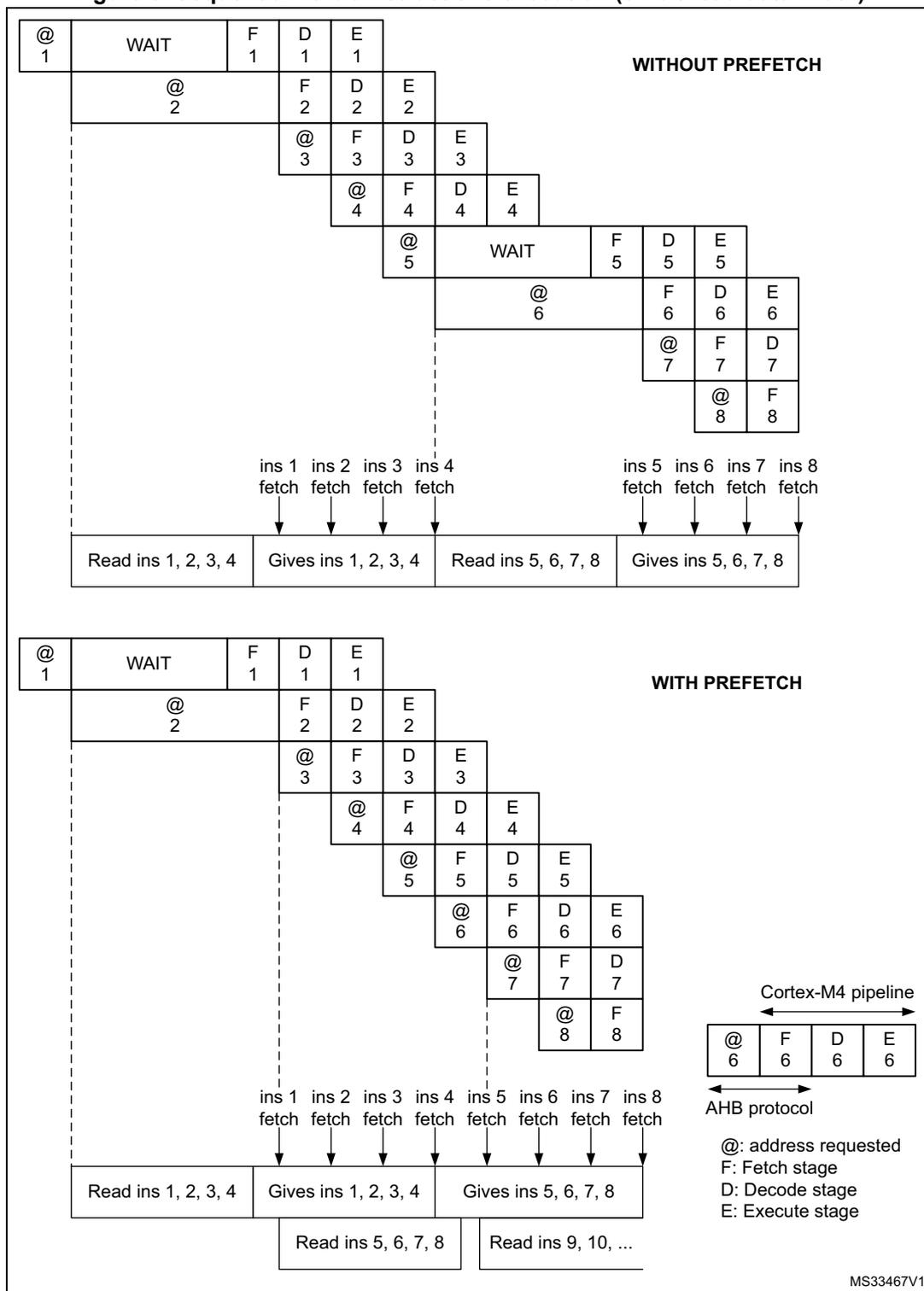

Figure 5 shows the execution of sequential 16-bit instructions with and without prefetch when 3 WS are needed to access the Flash memory.

Figure 5. Sequential 16-bit instructions execution (64-bit read data width)

When the code is not sequential (branch), the instruction may not be present in the currently used instruction line or in the prefetched instruction line. In this case (miss), the penalty in terms of number of cycles is at least equal to the number of wait states.

If a loop is present in the current buffer, no new Flash access is performed.

Instruction cache memory (I-Cache)

To limit the time lost due to jumps, it is possible to retain 32 lines of 4 x 64 bits in Dual-bank mode or 32 lines of 2 x 128 bits in Single-bank mode in an instruction cache memory. This feature can be enabled by setting the instruction cache enable (ICEN) bit in the Flash access control register (FLASH_ACR) . Each time a miss occurs (requested data not present in the currently used instruction line, in the prefetched instruction line or in the instruction cache memory), the line read is copied into the instruction cache memory. If some data contained in the instruction cache memory are requested by the CPU, they are provided without inserting any delay. Once all the instruction cache memory lines have been filled, the LRU (least recently used) policy is used to determine the line to replace in the instruction memory cache. This feature is particularly useful in case of code containing loops.

The Instruction cache memory is enable after system reset.

Data cache memory (D-Cache)

Literal pools are fetched from Flash memory through the DCode bus during the execution stage of the CPU pipeline. Each DCode bus read access fetches 64 or 128 bits which are saved in a current buffer. The CPU pipeline is consequently stalled until the requested literal pool is provided. To limit the time lost due to literal pools, accesses through the AHB databus DCode have priority over accesses through the AHB instruction bus ICode.

If some literal pools are frequently used, the data cache memory can be enabled by setting the data cache enable (DCEN) bit in the Flash access control register (FLASH_ACR) . This feature works like the instruction cache memory, but the retained data size is limited to 8 rows of 4x64 bits in Dual-bank mode and to 8 rows of 2x128 bits in Single-bank mode.

The Data cache memory is enable after system reset.

Note: The D-Cache is active only when data is requested by the CPU (not by DMA1 and DMA2). Data in option bytes block are not cacheable.

3.3.5 Flash program and erase operations

The STM32L4+ Series embedded Flash memory can be programmed using in-circuit programming or in-application programming.

The in-circuit programming (ICP) method is used to update the entire contents of the Flash memory, using the JTAG, SWD protocol or the bootloader to load the user application into the microcontroller. ICP offers quick and efficient design iterations and eliminates unnecessary package handling or socketing of devices.

In contrast to the ICP method, in-application programming (IAP) can use any communication interface supported by the microcontroller (I/Os, USB, CAN, UART, I ² C, SPI, etc.) to download programming data into memory. IAP allows the user to re-program the Flash memory while the application is running. Nevertheless, part of the application has to have been previously programmed in the Flash memory using ICP.

Note: The contents of the Flash memory are not guaranteed if a device reset occurs during a Flash memory operation.

An on-going Flash memory operation will not block the CPU as long as the CPU does not access the same Flash memory bank. Code or data fetches are possible on one bank while

a write/erase operation is performed to the other bank (refer to Section 3.3.8: Read-while-write (RWW) available only in Dual-bank mode ). The Flash erase and programming is only possible in the voltage scaling range 1. The VOS[1:0] bits in the PWR_CR1 must be programmed to 01b.

On the contrary, during a program/erase operation to the Flash memory, any attempt to read the same Flash memory bank will stall the bus. The read operation will proceed correctly once the program/erase operation has completed.

Unlocking the Flash memory

After reset, write is not allowed in the Flash control register (FLASH_CR) to protect the Flash memory against possible unwanted operations due, for example, to electric disturbances. The following sequence is used to unlock this register:

1. 1. Write KEY1 = 0x45670123 in the Flash key register (FLASH_KEYR)
2. 2. Write KEY2 = 0xCDEF89AB in the FLASH_KEYR register.

Any wrong sequence will lock up the FLASH_CR register until the next system reset. In the case of a wrong key sequence, a bus error is detected and a Hard Fault interrupt is generated.

The FLASH_CR register can be locked again by software by setting the LOCK bit in the FLASH_CR register.

Note: The FLASH_CR register cannot be written when the BSY bit in the Flash status register (FLASH_SR) is set. Any attempt to write to it with the BSY bit set will cause the AHB bus to stall until the BSY bit is cleared.

3.3.6 Flash main memory erase sequences

The Flash memory erase operation can be performed at page level, bank level or on the whole Flash memory (Mass Erase). Mass Erase does not affect the Information block (system Flash, OTP and option bytes).

Page erase

To erase a page, follow the procedure below:

1. 1. Check that no Flash memory operation is ongoing by checking the BSY bit in the Flash status register (FLASH_SR) .
2. 2. Check and clear all error programming flags due to a previous programming. If not, PGSERR is set.
3. 3. In Dual-bank mode (DBANK or DB1M option bit is set), set the PER bit and select the page to erase (PNB) with the associated bank (BKER) in the Flash control register (FLASH_CR). In Single-bank mode (DBANK or DB1M option bit is reset), set the PER bit and select the page to erase (PNB). The BKER bit in the Flash control register (FLASH_CR) must be kept cleared.
4. 4. Set the STRT bit in the FLASH_CR register.
5. 5. Wait for the BSY bit to be cleared in the FLASH_SR register.

Note: The internal oscillator HSI16 (16 MHz) is enabled automatically when STRT bit is set, and disabled automatically when STRT bit is cleared, except if the HSI16 is previously enabled with HSION in RCC_CR register.

If the page erase is part of write-protected area (by WRP or PCROP), WRPERR is set and the page erase request is aborted.

Bank 1, Bank 2 Mass erase (available only in Dual-bank mode)

To perform a bank Mass Erase, follow the procedure below:

1. 1. Check that no Flash memory operation is ongoing by checking the BSY bit in the FLASH_SR register.
2. 2. Check and clear all error programming flags due to a previous programming. If not, PGSERR is set.
3. 3. Set the MER1 bit or MER2 (depending on the bank) in the Flash control register (FLASH_CR) . Both banks can be selected in the same operation, in that case it corresponds to a mass erase.
4. 4. Set the STRT bit in the FLASH_CR register.
5. 5. Wait for the BSY bit to be cleared in the Flash status register (FLASH_SR) .

Mass erase

To perform a Mass erase, follow the procedure below:

1. 1. Check that no Flash memory operation is ongoing by checking the BSY bit in the FLASH_SR register.
2. 2. Check and clear all error programming flags due to a previous programming. If not, PGSERR is set.
3. 3. Set the MER1 bit and MER2 in the Flash control register (FLASH_CR).
4. 4. Set the STRT bit in the FLASH_CR register.
5. 5. Wait for the BSY bit to be cleared in the Flash status register (FLASH_SR).

Note: The internal oscillator HSI16 (16 MHz) is enabled automatically when STRT bit is set, and disabled automatically when STRT bit is cleared, except if the HSI16 is previously enabled with HSION in RCC_CR register.

When DBANK=0 (or DB1M = 0), if only the MERA or the MERB bit is set, PGSERR is set and no erase operation is performed.

If the bank to erase or if one of the banks to erase contains a write-protected area (by WRP or PCROP), WRPERR is set and the mass erase request is aborted (for both banks if both are selected).

3.3.7 Flash main memory programming sequences

The Flash memory is programmed 72 bits at a time (64 bits + 8 bits ECC).

Programming in a previously programmed address is not allowed except if the data to write is full zero, and any attempt will set PROGERR flag in the Flash status register (FLASH_SR) .

It is only possible to program double word (2 x 32-bit data).

• • Any attempt to write byte or half-word will set SIZERR flag in the FLASH_SR register.
• • Any attempt to write a double word which is not aligned with a double word address will set PGAERR flag in the FLASH_SR register.

Standard programming

The Flash memory programming sequence in standard mode is as follows:

1. 1. Check that no Flash main memory operation is ongoing by checking the BSY bit in the Flash status register (FLASH_SR) .
2. 2. Check and clear all error programming flags due to a previous programming. If not, PGSERR is set.
3. 3. Set the PG bit in the Flash control register (FLASH_CR) .
4. 4. Perform the data write operation at the desired memory address, inside main memory block or OTP area. Only double word can be programmed.
   • – Write a first word in an address aligned with double word
   • – Write the second word
5. 5. Wait until the BSY bit is cleared in the FLASH_SR register.
6. 6. Check that EOP flag is set in the FLASH_SR register (meaning that the programming operation has succeeded), and clear it by software.
7. 7. Clear the PG bit in the FLASH_SR register if there no more programming request anymore.

Note: When the Flash interface has received a good sequence (a double word), programming is automatically launched and BSY bit is set. The internal oscillator HSI16 (16 MHz) is enabled automatically when PG bit is set, and disabled automatically when PG bit is cleared, except if the HSI16 is previously enabled with HSION in RCC_CR register.

If the user needs to program only one word, double word must be completed with the erase value 0xFFFF FFFF to launch automatically the programming.

ECC is calculated from the double word to program.

Fast programming for a row (64 double words for dual-bank) or for half row (64 double words for single-bank)

This mode allows to program a row (64 double words if DBANK=1 or DB1M = 1) or half row (64 double words if DBANK=0 or DB1M = 0), and to reduce the page programming time by eliminating the need for verifying the Flash locations before they are programmed and to avoid rising and falling time of high voltage for each double word. During fast programming, the CPU clock frequency (HCLK) must be at least 8 MHz.

Only the main memory can be programmed in fast programming mode.

The Flash main memory programming sequence in standard mode is as follows:

1. 1. In Single-bank mode, perform a mass erase. If not, PGSERR is set. The Fast programming can be performed only if the code is executed from RAM or from

bootloader. In Dual-bank mode, perform a mass erase of the bank to program. If not, PGSERR is set.

1. 2. Check that no Flash main memory operation is ongoing by checking the BSY bit in the Flash status register (FLASH_SR) .
2. 3. Check and clear all error programming flag due to a previous programming.
3. 4. Set the FSTPG bit in Flash control register (FLASH_CR) .
4. 5. Write the 64 double words to program a row or half row. Only double words can be programmed:
   • – Write a first word in an address aligned with double word
   • – Write the second word.
5. 6. Wait until the BSY bit is cleared in the FLASH_SR register.
6. 7. Check that EOP flag is set in the FLASH_SR register (meaning that the programming operation has succeed), and clear it by software.
7. 8. Clear the FSTPG bit in the FLASH_SR register if there no more programming request anymore.

Note: If the Flash is attempted to be written in fast programming mode while a read operation is ongoing in the same bank, the programming is aborted without any system notification (no error flag is set).

When the Flash interface has received the first double word, programming is automatically launched. The BSY bit is set when the high voltage is applied for the first double word, and it is cleared when the last double word has been programmed or in case of error. The internal oscillator HSI16 (16 MHz) is enabled automatically when FSTPG bit is set, and disabled automatically when FSTPG bit is cleared, except if the HSI16 is previously enabled with HSION in RCC_CR register.

The 64 double word must be written successively. The high voltage is kept on the Flash for all the programming (around 2 x 25 us). Maximum time between two double words write requests is the time programming. If a second double word arrives after this time programming, fast programming is interrupted and MISSERR is set.

High voltage mustn't exceed 8 ms for a full row between 2 erases. This is guaranteed by the sequence of 64 double words successively written with a clock system greater or equal to 8MHz. An internal time-out counter counts 7ms when fast programming is set and stops the programming when time-out is over. In this case the FASTERR bit is set.

If an error occurs, high voltage is stopped and next double word to programmed is not programmed. Anyway, all previous double words have been properly programmed.

Programming errors

Several kind of errors can be detected. In case of error, the Flash operation (programming or erasing) is aborted.

• • PROGERR: Programming error

In standard programming: PROGERR is set if the word to write is not previously erased (except if the value to program is full zero).

• • SIZERR: Size programming error

In standard programming or in fast programming: only double word can be programmed and only 32-bit data can be written. SIZERR is set if a byte or an half-word is written.

• • PGAERR: Alignment programming error

PGAERR is set if one of the following conditions occurs:

• – In standard programming: the first word to be programmed is not aligned with a double word address, or the second word doesn't belong to the same double word address.
• – In fast programming: the data to program does not belong to the same row than the previous programmed double words, or the address to program is not greater than the previous one.

• • PGSERR: Programming sequence error

PGSERR is set if one of the following conditions occurs:

• – In the standard programming sequence or the fast programming sequence: a data is written when PG and FSTPG are cleared.
• – In the standard programming sequence or the fast programming sequence: MER1, MER2, and PER are not cleared when PG or FSTPG is set.
• – In the fast programming sequence: the Mass erase is not performed before setting FSTPG bit.
• – In the mass erase sequence: PG, FSTPG, and PER are not cleared when MER1 or MER2 is set.
• – In the page erase sequence: PG, FSTPG, MER1 and MER2 are not cleared when PER is set.
• – PGSERR is set also if PROGERR, SIZERR, PGAERR, WRPERR, MISSERR, FASTERR or PGSERR is set due to a previous programming error.
• – When DBANK=0 (or DB1M = 0), in the case that only either MER1 or MER2 is set, PGSERR is set (bank mass erase is not allowed).

• • WRPERR: Write protection error

WRPERR is set if one of the following conditions occurs:

• – Attempt to program or erase in a write protected area (WRP) or in a PCROP area.
• – Attempt to perform a bank erase when one page or more is protected by WRP or PCROP.
• – The debug features are connected or the boot is executed from SRAM or from System Flash when the read protection (RDP) is set to Level 1.
• – Attempt to modify the option bytes when the read protection (RDP) is set to Level 2.

• • MISSERR: Fast programming data miss error

In fast programming: all the data must be written successively. MISSERR is set if the

previous data programming is finished and the next data to program is not written yet.

• • FASTERR : Fast programming error

In fast programming: FASTERR is set if one of the following conditions occurs:

• – When FSTPG bit is set for more than 7ms which generates a time-out detection.
• – When the fast programming has been interrupted by a MISSERR, PGAERR, WRPERR or SIZERR.

If an error occurs during a program or erase operation, one of the following error flags is set in the FLASH_SR register:

PROGERR, SIZERR, PGAERR, PGSERR, MISSERR (Program error flags),
WRPERR (Protection error flag)

In this case, if the error interrupt enable bit ERRIE is set in the Flash status register (FLASH_SR) , an interrupt is generated and the operation error flag OPERR is set in the FLASH_SR register.

Note: If several successive errors are detected (for example, in case of DMA transfer to the Flash memory), the error flags cannot be cleared until the end of the successive write requests.

Programming and caches

If a Flash memory write access concerns some data in the data cache, the Flash write access modifies the data in the Flash memory and the data in the cache.

If an erase operation in Flash memory also concerns data in the data or instruction cache, you have to make sure that these data are rewritten before they are accessed during code execution. If this cannot be done safely, it is recommended to flush the caches by setting the DCRST and ICRST bits in the Flash access control register (FLASH_ACR) .

Note: The I/D cache should be flushed only when it is disabled (I/DCEN = 0).

3.3.8 Read-while-write (RWW) available only in Dual-bank mode

The Dual-bank mode is available only when the DBANK (or DB1M) option bit is reset, allowing read-while-write operations. This feature allows to perform a read operation from one bank while erase or program operation is performed to the other bank.

Note: Write-while-write operations are not allowed. As an example, It is not possible to perform an erase operation on one bank while programming the other one.

Read from bank 1 while page erasing in bank 2 (or vice versa)

While executing a program code from bank 1, it is possible to perform a page erase operation on bank 2 (and vice versa). Follow the procedure below:

1. 1. Check that no Flash memory operation is ongoing by checking the BSY bit in the Flash status register (FLASH_SR) (BSY is active when erase/program operation is on going in bank 1 or bank 2).
2. 2. Set PER bit, PSB to select the page and BKER to select the bank in the Flash control register (FLASH_CR) .
3. 3. Set the STRT bit in the FLASH_CR register.
4. 4. Wait for the BSY bit to be cleared (or use the EOP interrupt).

While executing a program code from bank 1, it is possible to perform a mass erase operation on bank 2 (and vice versa). Follow the procedure below:

1. 1. Check that no Flash memory operation is ongoing by checking the BSY bit in the Flash status register (FLASH_SR) (BSY is active when erase/program operation is on going in bank 1 or bank 2).
2. 2. Set MER1 or MER2 to 1 in the Flash control register (FLASH_CR) .
3. 3. Set the STRT bit in the FLASH_CR register.
4. 4. Wait for the BSY bit to be cleared (or use the EOP interrupt).

While executing a program code from bank 1, it is possible to perform a program operation on the bank 2. (and vice versa). Follow the procedure below:

1. 1. Check that no Flash memory operation is ongoing by checking the BSY bit in the Flash status register (FLASH_SR) (BSY is active when erase/program operation is on going on bank 1 or bank 2).
2. 2. Set the PG bit in the Flash control register (FLASH_CR) .
3. 3. Perform the data write operations at the desired address memory inside the main memory block or OTP area.
4. 4. Wait for the BSY bit to be cleared (or use the EOP interrupt).

3.4 FLASH option bytes

3.4.1 Option bytes description

The option bytes are configured by the end user depending on the application requirements. As a configuration example, the watchdog may be selected in hardware or software mode (refer to Section 3.4.2: Option bytes programming ).

A double word is split up as follows in the option bytes:

Table 13. Option byte format

The organization of these bytes inside the information block is as shown in Table 14 .

The option bytes can be read from the memory locations listed in Table 14 or from the Option byte registers:

• • Flash option register (FLASH_OPTR)
• • Flash PCROP1 Start address register (FLASH_PCROP1SR)
• • Flash PCROP1 End address register (FLASH_PCROP1ER)
• • Flash WRP1 area A address register (FLASH_WRP1AR)
• • Flash WRP1 area B address register (FLASH_WRP1BR)
• • Flash PCROP2 Start address register (FLASH_PCROP2SR)
• • Flash PCROP2 End address register (FLASH_PCROP2ER)
• • Flash WRP2 area A address register (FLASH_WRP2AR)
• • Flash WRP2 area B address register (FLASH_WRP2BR) .

Table 14. Option byte organization

Table 14. Option byte organization (continued)

User and read protection option bytes

Flash memory address: 0x1FF0 0000

ST production value: 0xFFEF F8AA

Bits 31:28 Reserved, must be kept at reset value.

Bit 27 nBOOT0 : nBOOT0 option bit

0: nBOOT0 = 0

1: nBOOT0 = 1

Bit 26 nSWBOOT0 : Software BOOT0

0: BOOT0 taken from the option bit nBOOT0

1: BOOT0 taken from PH3/BOOT0 pin

Bit 25 SRAM2_RST : SRAM2 Erase when system reset

0: SRAM2 erased when a system reset occurs

1: SRAM2 is not erased when a system reset occurs

Bit 24 SRAM2_PE : SRAM2 parity check enable

0: SRAM2 parity check enable

1: SRAM2 parity check disable

Bit 23 nBOOT1 : Boot configuration

Together with the BOOT0 pin, this bit selects boot mode from the Flash main memory, SRAM1 or the System memory. Refer to Section 2.6: Boot configuration .

0: Single-bank mode with 128 bits data read width

1: Dual-bank mode with 64 bits data

This bit can be written only when PCROP1/2 is disabled.

Note: For 1-Mbyte and 512-Kbyte Flash memory devices, do not care about DBANK.

For STM32L4Rxxx and STM32L4Sxxx devices:

Dual-bank on 1-Mbyte Flash memory devices

0: 1 Mbyte single Flash contiguous address in Bank1

1: 1 Mbyte dual-bank Flash with contiguous addresses

For STM32L4P5xx and STM32L4Q5xx devices:

Dual-bank on 512 Kbytes Flash memory devices

0: 512 Kbytes single Flash contiguous address in Bank1

1: 512 Kbytes Dual-bank Flash with contiguous addresses

Note: For 2-Mbytes Flash memory devices, do not care about DB1M.

0: Dual-bank boot disable

1: Dual-bank boot enable

0: Hardware window watchdog

1: Software window watchdog

0: Independent watchdog counter is frozen in Standby mode

1: Independent watchdog counter is running in Standby mode

0: Independent watchdog counter is frozen in Stop mode

1: Independent watchdog counter is running in Stop mode

0: Hardware independent watchdog

1: Software independent watchdog

Bit 15 Reserved, must be kept at reset value.

0: Reset generated when entering the Shutdown mode

1: No reset generated when entering the Shutdown mode

0: Reset generated when entering the Standby mode

1: No reset generate when entering the Standby mode

0: Reset generated when entering the Stop mode

1: No reset generated when entering the Stop mode

Bit 11 Reserved, must be kept at reset value.

Bits 10:8 BOR_LEV : BOR reset Level

These bits contain the VDD supply level threshold that activates/releases the reset.

000: BOR Level 0. Reset level threshold is around 1.7 V
001: BOR Level 1. Reset level threshold is around 2.0 V
010: BOR Level 2. Reset level threshold is around 2.2 V
011: BOR Level 3. Reset level threshold is around 2.5 V
100: BOR Level 4. Reset level threshold is around 2.8 V

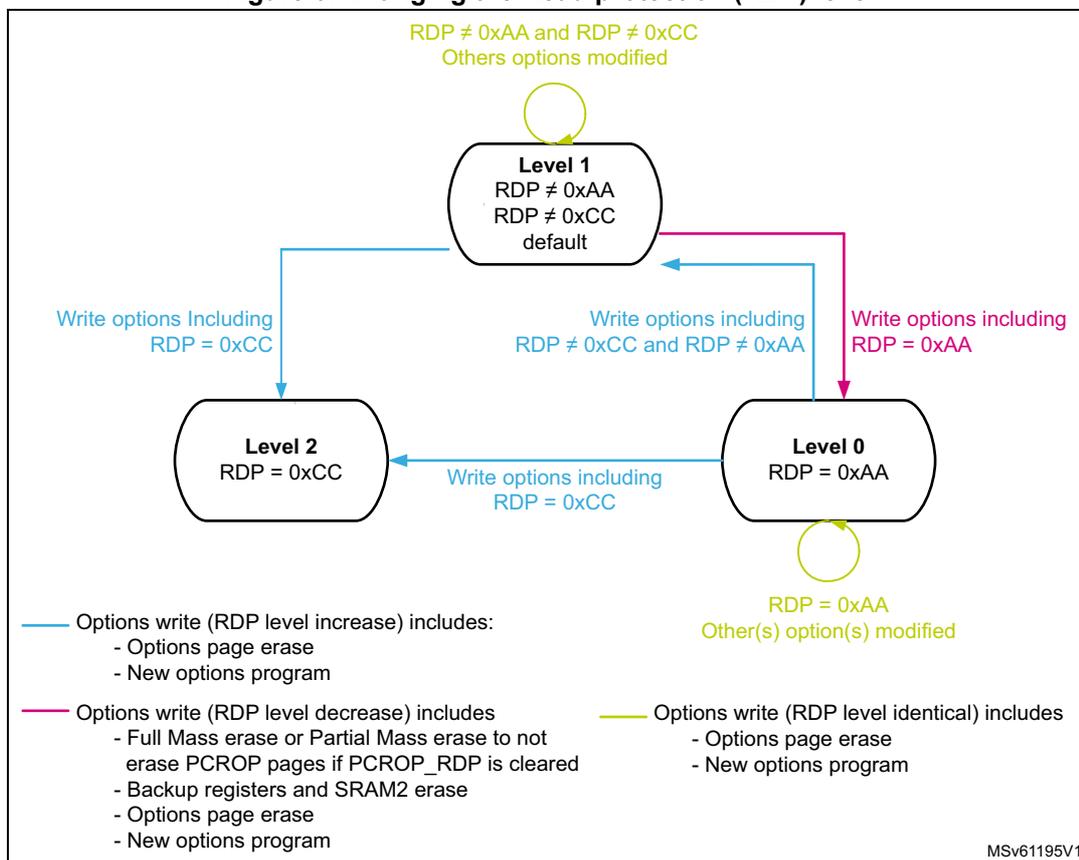

Bits 7:0 RDP : Read protection level

0xAA: Level 0, read protection not active
0xCC: Level 2, chip read protection active
Others: Level 1, memories read protection active

PCROP1 Start address option bytes

Flash memory address: 0x1FF0 0008

ST production value: 0xFFFF FFFF

Bits 31:17 Reserved, must be kept at reset value.

Bits 16:0 PCROP1_STRT[16:0] : PCROP area start offset

DBANK=1 (or DB1M = 1)
PCROP1_STRT contains the first double-word of the PCROP area for bank1.
DBANK=0 (or DB1M= 0)
PCROP1_STRT contains the first 2xdouble-word of the PCROP area for all memory.

PCROP1 End address option bytes

Flash memory address: 0x1FF0 0010

ST production value:

• – 0xFFFF 0000 for STM32L4Rxxx and STM32L4Sxxx devices
• – 0x00FF 0000 for STM32L4P5xx and STM32L4Q5xx devices

Bit 31 PCROP_RDP : PCROP area preserved when RDP level decreased

This bit is set only. It is reset after a full mass erase due to a change of RDP from Level 1 to Level 0.

0: PCROP area is not erased when the RDP level is decreased from Level 1 to Level 0.

1: PCROP area is erased when the RDP level is decreased from Level 1 to Level 0 (full mass erase).

Bits 30:17 Reserved, must be kept at reset value.

Bits 16:0 PCROP1_END : Bank 1 PCROP area end offset

DBANK=1 (or DB1M = 1)

PCROP1_END contains the last double-word of the bank 1 PCROP area.

DBANK=0 (or DB1M = 0)

PCROP1_END contains the last 2x double-word PCROP area for all memory.

WRP Area A address option bytes

Flash memory address: 0x1FF0 0018

ST production value: 0xFF00 FFFF

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:16 WRP1A_END[7:0] : WRP first area “A” end offset

DBANK=1 (or DB1M = 1)

WRP1A_END contains the last page of WRP first area in bank1.

DBANK=0 (or DB1M = 0)

WRP1A_END contains the last page of WRP first area for all memory.

Note: For 1-Mbyte Flash memory devices the bit 23 is reserved so its value is “don’t care”.

Note: For 512-Kbyte Flash memory devices the bit 23 is reserved so its value is “don’t care”.

Bits 15:8 Reserved, must be kept at reset value.

Bits 7:0 WRP1A_STRT[7:0] : WRP first area “A” start offset

DBANK=1 (or DB1M = 1)

WRP1A_STRT contains the first page of WRP first area for bank1.

DBANK=0 (or DB1M = 0)

WRP1A_STRT contains the first page of WRP first area for all memory.

WRP1 Area B address option bytes

Flash memory address: 0x1FF0 0020

ST production value: 0xFF00 FFFF

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:16 WRP1B_END[7:0] : WRP second area “B” end offset

DBANK=1 (or DB1M = 1)

WRP1B_END contains the last page of the WRP second area for bank1.

DBANK=0 (or DB1M = 0)

WRP1B_END contains the last page of the WPR second area for all memory.

Bits 15:8 Reserved, must be kept at reset value.

Bits 7:0 WRP1B_STRT[7:0] : WRP second area “B” start offset

DBANK=1 (or DB1M = 1)

WRP1B_STRT contains the last page of the WRP second area for bank1.

DBANK=0 (or DB1M = 0)

WRP1B_STRT contains the last page of the WPR second area for all memory.

PCROP2 Start address option bytes

Flash memory address: 0x1FF0 1008

ST production value: 0xFFFF FFFF

Bits 31:17 Reserved, must be kept at reset value.

Bits 16:0 PCROP2_STRT[16:0] : PCROP area start offset

DBANK=1 (or DB1M = 1)

PCROP2_STRT contains the first double-word of the PCROP area for bank 2.

DBANK=0 (or DB1M = 0)

PCROP2_STRT contains the first double-word PCROP area for all memory.

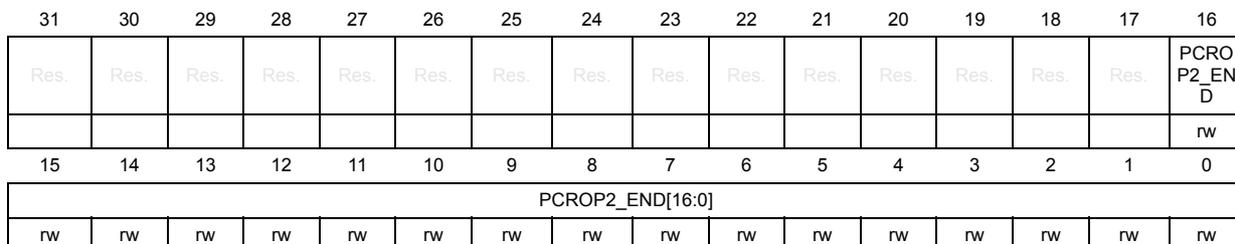

PCROP2 End address option bytes

Flash memory address: 0x1FF0 1010

ST production value: 0xFFFF 0000

Bits 31:17 Reserved, must be kept at reset value.

Bits 16:0 PCROP2_END[16:0] : PCROP area end offset

DBANK=1 (or DB1M = 1)

PCROP2_END contains the last double-word of the PCROP area for bank2.

DBANK=0 (or DB1M = 0)

PCROP2_END contains the last 2xdouble-word of the PCROP area for all the memory.

WRP2 Area A address option bytes

Flash memory address: 0x1FF0 1018

ST production value: 0xFF00 FFFF

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:16 WRP2A_END : WRP first area “A” end offset

DBANK=1 (or DB1M = 1)

WRP2A_END contains the last page of the WRP first area for bank2.

DBANK=0 (or DB1M = 0)

WRP2A_END contains the last page of the WRP third area for all memory.

Bits 15:8 Reserved, must be kept at reset value.

Bits 7:0 WRP2A_STR : WRP first area “A” start offset

DBANK=1 (or DB1M = 1)

WRP2A_STR contains the first page of the WRP first area for bank2.

DBANK=0 (or DB1M = 0)

WRP2A_STR contains the first page of the WRP third area for all memory.

WRP Area B address option bytes

Flash memory address: 0x1FF0 1020

ST production value: 0xFF00 FFFF

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:16 WRP2B_END : WRP second area “B” end offset

DBANK=1 (or DB1M = 1)

WRP2B_END contains the last page of the WRP second area for bank2.

DBANK=0 (or DB1M = 0)

WRP2B_END contains the last page of the WRP fourth area for all memory.

Bits 15:8 Reserved, must be kept at reset value.

Bits 7:0 WRP2B_STRT : WRP second area “B” start offset

DBANK=1 (or DB1M = 1)

WRP2B_STRT contains the first page of the WRP second area for bank2.

DBANK=0 (or DB1M = 0)

WRP2B_STRT contains the first page of the WRP second area for all memory.

3.4.2 Option bytes programming

After reset, the options related bits in the Flash control register (FLASH_CR) are write-protected. To run any operation on the option bytes page, the option lock bit OPTLOCK in the Flash control register (FLASH_CR) must be cleared. The following sequence is used to unlock this register:

1. 1. Unlock the FLASH_CR with the LOCK clearing sequence (refer to Unlocking the Flash memory ).

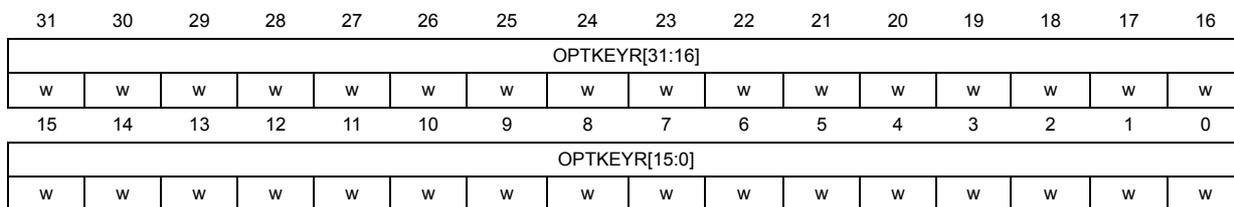

2. 2. Write OPTKEY1 = 0x08192A3B in the Flash option key register (FLASH_OPTKEYR) .
3. 3. Write OPTKEY2 = 0x4C5D6E7F in the FLASH_OPTKEYR register.

The user options can be protected against unwanted erase/program operations by setting the OPTLOCK bit by software.

Note: If LOCK is set by software, OPTLOCK is automatically set too.

Modifying user options

The option bytes are programmed differently from a main memory user address. It is not possible to modify independently user options of bank 1 or bank 2. The users Options of the bank 1 are modified first.

To modify the user options value, follow the procedure below:

1. 1. Check that no Flash memory operation is on going by checking the BSY bit in the Flash status register (FLASH_SR) .
2. 2. Clear OPTLOCK option lock bit with the clearing sequence described above.
3. 3. Write the desired options value in the options registers: Flash option register (FLASH_OPTR) , Flash PCROP1 Start address register (FLASH_PCROP1SR) , Flash PCROP1 End address register (FLASH_PCROP1ER) , Flash WRP1 area A address register (FLASH_WRP1AR) , Flash WRP1 area B address register (FLASH_WRP1BR) ,

Flash PCROP2 Start address register (FLASH_PCROP2SR), Flash PCROP2 End address register (FLASH_PCROP2ER), Flash WRP2 area A address register (FLASH_WRP2AR), Flash WRP2 area B address register (FLASH_WRP2BR).

1. 4. Set the Options Start bit OPTSTRT in the Flash control register (FLASH_CR) .
2. 5. Wait for the BSY bit to be cleared.

Note: Any modification of the value of one option is automatically performed by erasing both user option bytes pages first (bank 1 and bank 2) and then programming all the option bytes with the values contained in the Flash option registers.

Option byte loading

After the BSY bit is cleared, all new options are updated into the Flash but they are not applied to the system. They will have effect on the system when they are loaded. Option bytes loading (OBL) is performed in two cases:

• – when OBL_LAUNCH bit is set in the Flash control register (FLASH_CR) .
• – after a power reset (BOR reset or exit from Standby/Shutdown modes).

Option byte loader performs a read of the options block and stores the data into internal option registers. These internal registers configure the system and cannot be read with by software. Setting OBL_LAUNCH generates a reset so the option byte loading is performed under system reset.

Each option bit has also its complement in the same double word. During option loading, a verification of the option bit and its complement allows to check the loading has correctly taken place.

During option byte loading, the options are read by double word with ECC. If the word and its complement are matching, the option word/byte is copied into the option register.

If the comparison between the word and its complement fails, a status bit OPTVERR is set. Mismatch values are forced into the option registers:

• – For USR OPT option, the value of mismatch is all options at ‘1’, except for BOR_LEV which is “000” (lowest threshold)
• – For WRP option, the value of mismatch is the default value “No protection”
• – For RDP option, the value of mismatch is the default value “Level 1”
• – For PCROP, the value of mismatch is “all memory protected”

On system reset rising, internal option registers are copied into option registers which can be read and written by software (FLASH_OPTR, FLASH_PCROP1/2SR, FLASH_PCROP1/2ER, FLASH_WRP1/2AR, FLASH_WRP1/2BR). These registers are also used to modify options. If these registers are not modified by user, they reflects the options states of the system. See Section : Modifying user options for more details.

Activating Dual-bank mode

When switching from one Flash mode to another (for example from single to dual-bank) it is recommended to execute the code from the SRAM or use the bootloader. To avoid reading

corrupted data from the Flash when the memory organization is changed, any access (either CPU or DMAs) to Flash memory should be avoided before reprogramming.

• • Disable Instruction/data caches and/or prefetch if they are enabled (reset PRFTEN and ICEN/DCEN bits in the FLASH_ACR register).
• • Flush instruction and data cache by setting the DCRST/ICRST bits in the FLASH_ACR register.
• • Set the DBANK (or DB1M) option bit and clear all the WRP write protection (follow user option modification and option bytes loader procedure).
  • – Once OBL is done with DBANK=1 (DB1M = 1), perform a mass erase.
  • – Start a new programming of code in 64 bits mode with DBANK=1 (or DB1M = 1) memory mapping.
  • – Set the new WRP/PCROP with DBANK=1 (or DB1M = 1) scheme if needed.
  • – Set PRFTEN and ICEN/DCEN if needed.

The new software is ready to be run using the bank configuration.

De-activating Dual-bank mode

When switching from one Flash mode to another (for example from single to dual-bank) it is recommended to execute the code from the SRAM or use the bootloader. To avoid reading corrupted data from the Flash when the memory organization is changed, any access (either CPU or DMAs) to Flash memory should be avoided before reprogramming.

• • Disable Instruction/data caches and/or prefetch if they are enabled (reset PRFTEN and ICEN/DCEN bits in the FLASH_ACR register).
• • Flush instruction and data cache by setting the DCRST/ICRST bits in the FLASH_ACR register.
• • Clear the DBANK (or DB1M) option bit and all WRP write protection (follow user option modification and option bytes loader procedure).
  • – Once OBL is done with DBANK=0 (or DB1M = 0), perform a mass erase.
  • – Start a new programming of code in 128 bits mode with DBANK=0 (or DB1M = 0) memory mapping
  • – Set the new WRP/PCROP with DBANK=0 (DB1M = 0) scheme if needed. Set PRFTEN and ICEN/DCEN if needed.

The new software is ready to be run using the bank configuration.

3.5 FLASH memory protection

The Flash main memory can be protected against external accesses with the Read protection (RDP). The pages of the Flash memory can also be protected against unwanted write due to loss of program counter contexts. The write-protection (WRP) granularity is one page (2 KByte). Apart of the Flash memory can also be protected against read and write from third parties (PCROP). The PCROP granularity is double word (64-bit).

3.5.1 Read protection (RDP)

The read protection is activated by setting the RDP option byte and then, by applying a system reset to reload the new RDP option byte. The read protection protects to the Flash main memory, the option bytes, the backup registers (RTC_BKPxR in the RTC) and the SRAM2.

Note: If the read protection is set while the debugger is still connected through JTAG/SWD, apply a POR (power-on reset) instead of a system reset.

There are three levels of read protection from no protection (level 0) to maximum protection or no debug (level 2).

The Flash memory is protected when the RDP option byte and its complement contain the pair of values shown in Table 15 .

Table 15. Flash memory read protection status

The System memory area is read accessible whatever the protection level. It is never accessible for program/erase operation.

Level 0: no protection

Read, program and erase operations into the Flash main memory area are possible. The option bytes, the SRAM2 and the backup registers are also accessible by all operations.

Level 1: Read protection

This is the default protection level when RDP option byte is erased. It is defined as well when RDP value is at any value different from 0xAA and 0xCC, or even if the complement is not correct.

• • User mode: Code executing in user mode ( Boot Flash ) can access Flash main memory, option bytes, SRAM2 and backup registers with all operations.
• • Debug, boot RAM and bootloader modes: In debug mode or when code is running from boot RAM or bootloader, the Flash main memory, the backup registers (RTC_BKPxR in the RTC) and the SRAM2 are totally inaccessible. In these modes, a read or write access to the Flash generates a bus error and a Hard Fault interrupt.

Caution: In case the Level 1 is configured and no PCROP area is defined, it is mandatory to set PCROP_RDP bit to 1 (full mass erase when the RDP level is decreased from Level 1 to Level 0). In case the Level 1 is configured and a PCROP area is defined, if user code needs to be protected by RDP but not by PCROP, it must not be placed in a page containing a PCROP area.

Level 2: No debug

In this level, the protection level 1 is guaranteed. In addition, the Cortex®-M4 debug port, the boot from RAM (boot RAM mode) and the boot from System memory (bootloader mode) are no more available. In user execution mode (boot FLASH mode), all operations are allowed on the Flash Main memory. On the contrary, only read operations can be performed on the option bytes.

Option bytes cannot be programmed nor erased. Thus, the level 2 cannot be removed at all: it is an irreversible operation. When attempting to modify the options bytes, the protection error flag WRPERR is set in the Flash_SR register and an interrupt can be generated.

Note: The debug feature is also disabled under reset.

STMicroelectronics is not able to perform analysis on defective parts on which the level 2 protection has been set.

Changing the Read protection level

It is easy to move from level 0 to level 1 by changing the value of the RDP byte to any value (except 0xCC). By programming the 0xCC value in the RDP byte, it is possible to go to level 2 either directly from level 0 or from level 1. Once in level 2, it is no more possible to modify the Read protection level.

When the RDP is reprogrammed to the value 0xAA to move from Level 1 to Level 0, a mass erase of the Flash main memory is performed if PCROP_RDP is set in the Flash PCROP1 End address register (FLASH_PCROP1ER) . The backup registers (RTC_BKPxR in the RTC) and the SRAM2 are also erased. The user options except PCROP protection are set to their previous values copied from FLASH_OPTR, FLASH_WRPxyR (x=1, 2 and y =A or B). PCROP is disable. The OTP area is not affected by mass erase and remains unchanged.

If the bit PCROP_RDP is cleared in the FLASH_PCROP1ER, the full mass erase is replaced by a partial mass erase that is successive page erases in the bank where PCROP is active, except for the pages protected by PCROP. This is done in order to keep the PCROP code. If PCROP is active for both banks, both banks are erased by page erases. Only when both banks are erased, options are re-programmed with their previous values. This is also true for FLASH_PCROPxSR and FLASH_PCROPxER registers (x=1,2).

Note: Full Mass Erase or Partial Mass Erase is performed only when Level 1 is active and Level 0 requested. When the protection level is increased (0->1, 1->2, 0->2) there is no mass erase. To validate the protection level change, the option bytes must be reloaded through the OBL_LAUNCH bit in Flash control register.

Figure 6. Changing the Read protection (RDP) level

Table 16. Access status versus protection level and execution modes

Table 16. Access status versus protection level and execution modes (continued)

1. 1. When the protection level 2 is active, the Debug port, the boot from RAM and the boot from system memory are disabled.
2. 2. The system memory is only read-accessible, whatever the protection level (0, 1 or 2) and execution mode.
3. 3. The Flash main memory is erased when the RDP option byte is programmed with all level protections disabled (0xAA).
4. 4. OTP can only be written once.
5. 5. The backup registers are erased when RDP changes from level 1 to level 0.
6. 6. The SRAM2 is erased when RDP changes from level 1 to level 0.

3.5.2 Proprietary code readout protection (PCROP)

Apart of the Flash memory can be protected against read and write from third parties. The protected area is execute-only: it can only be reached by the STM32 CPU, as an instruction code, while all other accesses (DMA, debug and CPU data read, write and erase) are strictly prohibited. Depending of the DBANK (or DB1M) option bit state, it allows either to specify one PCROP zone per bank in Dual-bank mode or to specify two PCROP zones for all memory. An additional option bit (PCROP_RDP) allows to select if the PCROP area is erased or not when the RDP protection is changed from Level 1 to Level 0 (refer to Changing the Read protection level ).

Each PCROP area is defined by a start page offset and an end page offset related to the physical Flash bank base address. These offsets are defined in the PCROP address registers Flash PCROP1 Start address register (FLASH_PCROP1SR) , Flash PCROP1 End address register (FLASH_PCROP1ER) , Flash PCROP2 Start address register (FLASH_PCROP2SR) , Flash PCROP2 End address register (FLASH_PCROP2ER) .

In Single-bank mode:

• • The PCROP _x (x = 1,2) area is defined from the address: base address + [PCROP _x _STRT x 16] (included) to the address: base address + [(PCROP _x _END+1) x 16] (excluded). The minimum PCROP area size is two 2 x double-words (256 bits).

In Dual-bank mode

• • The PCROP _x (x = 1,2) area is defined from the address: bank “x” base address + [PCROP _x _STRT x 0x8] (included) to the address: bank “x” base address + [(PCROP _x _END+1) x 0x8] (excluded). The minimum PCROP area size is two double-words (128 bits).

For example, to protect by PCROP from the address 0x0806 2F80 (included) to the address 0x0807 0004 (included):

• • if boot in Flash is done in Bank 1, FLASH_PCROP1SR and FLASH_PCROP1ER registers must be programmed with:
  • – PCROP1_STRT = 0xC5F0.
  • – PCROP1_END = 0xE000.
• • If the two banks are swapped, the protection must apply to bank 2, and FLASH_PCROP2SR and FLASH_PCROP2ER register must be programmed with:
  • – PCROP2_STRT = 0xC5F0.
  • – PCROP2_END = 0xE000.

Any read access performed through the D-bus to a PCROP protected area will trigger RDERR flag error.

Any PCROP protected address is also write protected and any write access to one of these addresses will trigger WRPERR.

Any PCROP area is also erase protected. Consequently, any erase to a page in this zone is impossible (including the page containing the start address and the end address of this zone). Moreover, a software mass erase cannot be performed if one zone is PCROP protected.

For previous example, due to erase by page, all pages from page 0x62 to 0x70 are protected in case of page erase. (All addresses from 0x0806 2000 to 0x0807 0FFF cannot be erased).

Deactivation of PCROP can only occur when the RDP is changing from level 1 to level 0. If the user options modification tries to clear PCROP or to decrease the PCROP area, the options programming is launched but PCROP area stays unchanged. On the contrary, it is possible to increase the PCROP area.

When option bit PCROP_RDP is cleared, when the RDP is changing from level 1 to level 0, Full Mass Erase is replaced by Partial Mass Erase in order to keep the PCROP area (refer to Changing the Read protection level ). In this case, PCROP1/2_STRT and PCROP1/2_END are also not erased.

Note: It is recommended to align PCROP area with page granularity when using PCROP_RDP, or to leave free the rest of the page where PCROP zone starts or ends.

Table 17. PCROP protection ⁽¹⁾

1. 1. When DBANK=1 (or DB1M = 1), the minimum PCROP area size is 2xdouble words: PCROPx_offset_strt and PCROPx_offset_end.
   When DBANK=0 (or DB1M = 0), the minimum PCROP area size is 2x(2xdouble words): PCROPx_offset_strt and PCROPx_offset_end.
   When DBANK=T (or DB1M = 1), it is the user's responsibility to make sure no overlapping occurs on the PCROP zones.

3.5.3 Write protection (WRP)

The user area in Flash memory can be protected against unwanted write operations.

Depending on the DBANK (or DB1M) option bit configuration, it allows either to specify:

• • In Single-bank mode: four write-protected (WRP) areas can be defined in each bank, with page size (8 KByte) granularity.
• • In Dual-bank mode: two write-protected (WRP) areas can be defined in each bank, with page (4 KByte) granularity.

Each area is defined by a start page offset and an end page offset related to the physical Flash bank base address. These offsets are defined in the WRP address registers: Flash WRP1 area A address register (FLASH_WRP1AR) , Flash WRP1 area B address register (FLASH_WRP1BR) , Flash WRP2 area A address register (FLASH_WRP2AR) , Flash WRP2 area B address register (FLASH_WRP2BR) .

Dual-bank mode

The bank “x” WRP “y” area (x=1,2 and y=A,B) is defined from the address: Bank “x” Base address + [WRPxy_STRT x 0x1000] (included) to the address: Bank “x” Base address + [(WRPxy_END+1) x 0x1000] (excluded).

Single-bank mode

The WRPx “y” area (x=1,2 and y=A,B) is defined from the address: Base address + [WRPy_STRT x 0x2000] (included) to the address: Base address + [(WRPy_END+1) x 0x2000] (excluded).

Example: to protect the memory region from the address 0x0806 2000 (included) to the address 0x0806 FFFF (included) on a 2-Mbytes Flash memory device with DBANK=1:

• • If boot in Flash is done in Bank 1, FLASH_WRP1AR register must be programmed with:
  • – WRP1A_STRT = 0x62.
  • – WRP1A_END = 0x6F.
  WRP1B_STRT and WRP1B_END in FLASH_WRP1BR can be used instead (area “B” in Bank 1).
• • If the two banks are swapped, the protection must apply to bank 2, and FLASH_WRP2AR register must be programmed with:
  • – WRP2A_STRT = 0x62.
  • – WRP2A_END = 0x6F.
  WRP2B_STRT and WRP2B_END in FLASH_WRP2BR can be used instead (area “B” in Bank 2).

When WRP is active, it cannot be erased or programmed. Consequently, a software mass erase cannot be performed if one area is write-protected.

If an erase/program operation to a write-protected part of the Flash memory is attempted, the write protection error flag (WRPERR) is set in the FLASH_SR register. This flag is also set for any write access to:

• – OTP area part of the Flash memory that can never be written like the ICP
• – PCROP area.

Note: When the memory read protection level is selected (RDP level = 1), it is not possible to program or erase Flash memory if the CPU debug features are connected (JTAG or single wire) or boot code is being executed from RAM or System Flash, even if WRP is not activated.

Note: To validate the WRP options, the option bytes must be reloaded through the OBL_LAUNCH bit in Flash control register.

Note: When DBANK=0 (or DB1M = 0), it is the user's responsibility to make sure that no overlapping occurs on the WRP zone.

Table 18. WRP protection

3.6 FLASH interrupts

Table 19. Flash interrupt request

1. 1. EOP is set only if EOPIE is set.
2. 2. OPERR is set only if ERRIE is set.

3.7 FLASH registers

3.7.1 Flash access control register (FLASH_ACR)

Address offset: 0x00

Reset value: 0x0000 0600

Access: no wait state, word, half-word and byte access

Bits 31:15 Reserved, must be kept at reset value.

Bit 14 SLEEP_PD : Flash Power-down mode during Sleep or Low-power sleep mode

This bit determines whether the Flash memory is in Power-down mode or idle mode when the device is in Sleep or Low-power sleep mode.

0: Flash in idle mode during Sleep and Low-power sleep modes

1: Flash in Power-down mode during Sleep and Low-power sleep modes

Caution: The Flash must not be put in power-down while a program or an erase operation is on-going.

Bit 13 RUN_PD : Flash Power-down mode during Run or Low-power run mode

This bit is write-protected with FLASH_PDKEYR.

This bit determines whether the Flash memory is in Power-down mode or idle mode when the device is in Run or Low-power run mode. The Flash memory can be put in Power-down mode only when the code is executed from RAM. The Flash must not be accessed when RUN_PD is set.

0: Flash in idle mode

1: Flash in Power-down mode

Caution: The Flash must not be put in power-down while a program or an erase operation is on-going.

Bit 12 DCRST : Data cache reset

0: Data cache is not reset

1: Data cache is reset

This bit can be written only when the data cache is disabled.

Bit 11 ICRST : Instruction cache reset

0: Instruction cache is not reset

1: Instruction cache is reset

This bit can be written only when the instruction cache is disabled.

Bit 10 DCEN : Data cache enable

0: Data cache is disabled

1: Data cache is enabled

Bit 9 ICEN : Instruction cache enable

0: Instruction cache is disabled

1: Instruction cache is enabled

Bit 8 PRFTEN : Prefetch enable

0: Prefetch disabled

1: Prefetch enabled

Bits 7:4 Reserved, must be kept at reset value.

Bits 3:0 LATENCY[:0] : Latency

These bits represent the ratio of the SYSCLK (system clock) period to the Flash access time.

0000: Zero wait state

0001: One wait state

0010: Two wait states

0011: Three wait states

0100: Four wait states

...1111: Fifteen wait states

3.7.2 Flash Power-down key register (FLASH_PDKEYR)

Address offset: 0x04

Reset value: 0x0000 0000

Access: no wait state, word access

Bits 31:0 PDKEYR : Power-down in Run mode Flash key

The following values must be written consecutively to unlock the RUN_PD bit in FLASH_ACR:

PDKEY1: 0x0415 2637

PDKEY2: 0xFAFB FCFD

3.7.3 Flash key register (FLASH_KEYR)

Address offset: 0x08

Reset value: 0x0000 0000

Access: no wait state, word access

Bits 31:0 KEYR : Flash key

The following values must be written consecutively to unlock the FLASH_CR register allowing Flash programming/erasing operations:

KEY1: 0x4567 0123

KEY2: 0xCDEF 89AB

3.7.4 Flash option key register (FLASH_OPTKEYR)

Address offset: 0x0C

Reset value: 0x0000 0000

Access: no wait state, word access

Bits 31:0 OPTKEYR : Option byte key

The following values must be written consecutively to unlock the FLASH_OPTR register allowing option byte programming/erasing operations:

KEY1: 0x0819 2A3B

KEY2: 0x4C5D 6E7F

3.7.5 Flash status register (FLASH_SR)

Address offset: 0x10

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access

Bits 31:18 Reserved, must be kept at reset value.

Bit 17 PEMPTY: Program EMPTY

Set by hardware on power-on reset or after OBL_LAUNCH command execution if the Flash is not programmed and the user intends to boot from the main Flash. Cleared by hardware on power-on reset or after OBL_LAUNCH command execution if the Flash is programmed and the user intends to boot from main Flash. This bit can also be set and cleared by software.

1: The bit value is toggling

0: No effect

This bit can be set to clear the Program Empty bit if an OBL_LAUNCH is done by software after Flash programming (boot in main Flash selected). It finally forces the boot in the main Flash, without losing the debugger connection.

Bit 16 BSY: Busy

This indicates that a Flash operation is in progress. This is set on the beginning of a Flash operation and reset when the operation finishes or when an error occurs.

Bit 15 OPTVERR: Option validity error

Set by hardware when the options read may not be the one configured by the user. If option haven't been properly loaded, OPTVERR is set again after each system reset.

Cleared by writing 1.

Bit 14 RDERR: PCROP read error

Set by hardware when an address to be read through the D-bus belongs to a read protected area of the Flash (PCROP protection). An interrupt is generated if RDERRIE is set in FLASH_CR.

Cleared by writing 1.

Bits 13:10 Reserved, must be kept at reset value.

Bit 9 FASTERR: Fast programming error

Set by hardware when a fast programming sequence (activated by FSTPG) is interrupted due to an error (alignment, size, write protection or data miss). The corresponding status bit (PGAERR, SIZERR, WRPERR or MISSERR) is set at the same time.

Cleared by writing 1.

In fast programming mode, 32 double words must be sent to Flash successively, and the new data must be sent to the Flash logic control before the current data is fully programmed. MISSERR is set by hardware when the new data is not present in time.

Cleared by writing 1.

Set by hardware when a write access to the Flash memory is performed by the code while PG or FSTPG have not been set previously. Set also by hardware when PROGERR, SIZERR, PGAERR, WRPERR, MISSERR or FASTERR is set due to a previous programming error.

Set also when trying to perform bank erase when DBANK=0 (or DB1M = 0).

Cleared by writing 1.

Set by hardware when the size of the access is a byte or half-word during a program or a fast program sequence. Only double word programming is allowed (consequently: word access).

Cleared by writing 1.

Set by hardware when the data to program cannot be contained in the same 64-bit Flash memory row in case of standard programming, or if there is a change of page during fast programming.

Cleared by writing 1.

Set by hardware when an address to be erased/programmed belongs to a write-protected part (by WRP, PCROP or RDP level 1) of the Flash memory.

Cleared by writing 1.

Set by hardware when a double-word address to be programmed contains a value different from '0xFFFF FFFF' before programming, except if the data to write is '0x0000 0000'.

Cleared by writing 1.

Set by hardware when a Flash memory operation (program / erase) completes unsuccessfully.

This bit is set only if error interrupts are enabled (ERRIE = 1).

Cleared by writing '1'.

Set by hardware when one or more Flash memory operation (programming / erase) has been completed successfully.

This bit is set only if the end of operation interrupts are enabled (EOPIE = 1).

Cleared by writing 1.

3.7.6 Flash control register (FLASH_CR)

Address offset: 0x14

Reset value: 0xC000 0000

Access: no wait state when no Flash memory operation is on going, word, half-word and byte access

Bit 31 LOCK: FLASH_CR Lock

This bit is set only. When set, the FLASH_CR register is locked. It is cleared by hardware after detecting the unlock sequence.

In case of an unsuccessful unlock operation, this bit remains set until the next system reset.

Bit 30 OPTLOCK: Options Lock

This bit is set only. When set, all bits concerning user option in FLASH_CR register and so option page are locked. This bit is cleared by hardware after detecting the unlock sequence. The LOCK bit must be cleared before doing the unlock sequence for OPTLOCK bit.

In case of an unsuccessful unlock operation, this bit remains set until the next reset.

Bits 29:28 Reserved, must be kept at reset value.

Bit 27 OBL_LAUNCH: Force the option byte loading

When set to 1, this bit forces the option byte reloading. This bit is cleared only when the option byte loading is complete. It cannot be written if OPTLOCK is set.

0: Option byte loading complete

1: Option byte loading requested

Bit 26 RDERRIE: PCROP read error interrupt enable

This bit enables the interrupt generation when the RDERR bit in the FLASH_SR is set to 1.

0: PCROP read error interrupt disabled

1: PCROP read error interrupt enabled

Bit 25 ERRIE: Error interrupt enable

This bit enables the interrupt generation when the OPERR bit in the FLASH_SR is set to 1.

0: OPERR error interrupt disabled

1: OPERR error interrupt enabled

Bit 24 EOPIE: End of operation interrupt enable

This bit enables the interrupt generation when the EOP bit in the FLASH_SR is set to 1.

0: EOP Interrupt disabled

1: EOP Interrupt enabled

Bits 23:19 Reserved, must be kept at reset value

Bit 18 FSTPG : Fast programming

0: Fast programming disabled

1: Fast programming enabled

Bit 17 OPTSTRT : Options modification start

This bit triggers an options operation when set.

This bit is set only by software, and is cleared when the BSY bit is cleared in FLASH_SR.

Bit 16 START : Start

This bit triggers an erase operation when set. If MER1, MER2 and PER bits are reset and the STRT bit is set, an unpredictable behavior may occur without generating any error flag. This condition should be forbidden.

This bit is set only by software, and is cleared when the BSY bit is cleared in FLASH_SR.

Bit 15 MER2 : Bank 2 Mass erase

This bit triggers the bank 2 mass erase (all bank 2 user pages) when set.

Bits 14:12 Reserved, must be kept at reset value.

Bit 11 BKER : Bank erase

Dual-bank enabled

0: Bank 1 is selected for page erase

1: Bank 2 is selected for page erase

Dual-bank disabled

Reserved, must be kept cleared

Bits 10:3 PNB[7:0] : Page number selection

These bits select the page to erase:

00000000:page 0

00000001:page 1

...

11111111:page 255

Bit 2 MER1 : Bank 1 Mass erase

This bit triggers the bank 1 mass erase (all bank 1 user pages) when set.

Bit 1 PER : Page erase

0: page erase disabled

1: page erase enabled

Bit 0 PG : Programming

0: Flash programming disabled

1: Flash programming enabled

3.7.7 Flash ECC register (FLASH_ECCR)

Address offset: 0x18

Reset value: 0x0000 0000

Access: no wait state when no Flash memory operation is on going, word, half-word and byte access

Bit 31 ECCD: ECC detection

Dual-bank disabled

Set by hardware when two ECC errors have been detected on 64-bits LSB (bits 63:0). This bit is set only if ECCC/ECCC2/ECCD/ECCD2 are previously cleared. When this bit is set, an NMI is generated.

Cleared by writing 1.

Dual-bank enabled

Set by hardware when two ECC errors have been detected (only if ECCC/ECCD are previously cleared). When this bit is set, an NMI is generated.

Cleared by writing 1.

Bit 30 ECCC: ECC correction

Dual-bank disabled:

Set by hardware when one ECC error has been detected and corrected on 64-bits LSB (bits 63:0). This bit is set only if ECCC/ECCC2/ECCD/ECCD2 are previously cleared. An interrupt is generated if ECCIE is set.

Cleared by writing 1.

Dual-bank enabled:

Set by hardware when one ECC error has been detected and corrected (only if ECCC/ECCD are previously cleared). An interrupt is generated if ECCIE is set.

Cleared by writing 1.

Bit 29 ECCD2: ECC2 detection

Dual-bank disabled:

Set by hardware when two ECC errors have been detected on 64-bits MSB (bits 127:64). This bit is set only if ECCC/ECCC2/ECCD/ECCD2 are previously cleared. When this bit is set, a NMI is generated.

Cleared by writing 1.

dual-bank enabled:

Reserved, must be kept at reset value.

Dual-bank disabled:

Set by hardware when one ECC error has been detected and corrected on 64-bits MSB (bits127:64). This bit is set only if ECCC/ECCC2/ECCD/ECCD2 are previously cleared. An interrupt is generated if ECCIE is set.

Cleared by writing 1.

Dual-bank enabled:

Reserved, must be kept at reset value.

Bits 27:25 Reserved, must be kept at reset value.

0: ECCC interrupt disabled

1: ECCC interrupt enabled.

Dual-bank disabled:

This bit enables the interrupt generation when the ECCC or ECCC2 bits in the FLASH_ECCR register are set.

Dual-bank enabled:

This bit enables the interrupt generation when the ECCC bit in the FLASH_ECCR register is set.

Bit 23 Reserved, must be kept at reset value.

This bit indicates that the ECC error correction or double ECC error detection is located in the System Flash.

Dual-bank enabled:

This bit indicates which bank is concerned by the ECC error correction or by the double ECC error detection.

0: bank 1

1: bank 2

Note: whatever the bank swap enabled (FB_MODE=1) or disabled (FB_Mode=0), BK_ECC indicates always the index of physical bank concerned by ECC error, for example, when BK_ECC = 0, it is always physical Bank 1, when BK_ECC = 1 it is always physical Bank 2.

Dual-bank disabled:

If SYSF_ECC is 1, it indicates which bank is concerned by the ECC error

If SYSF_ECC is 0, reserved, must be kept cleared.

Dual-bank disabled:

This field indicates which address in the Flash memory is concerned by the ECC error correction or by the double ECC error detection.

Dual-bank enabled:

This field indicates which address in the bank is concerned by the ECC error correction or by the double ECC error detection.

3.7.8 Flash option register (FLASH_OPTR)

Address offset: 0x20

Reset value: 0xFFEF F8AA. Register bits are loaded with values from Flash memory at OBL.

Access: no wait state when no Flash memory operation is on going; word, half-word and byte access

Bits 31:28 Reserved, must be kept at reset value.

Bit 27 nBOOT0 : nBOOT0 option bit

0: nBOOT0 = 0

1: nBOOT0 = 1

Bit 26 nSWBOOT0 : Software BOOT0

0: BOOT0 taken from the option bit nBOOT0

1: BOOT0 taken from PH3/BOOT0 pin

Bit 25 SRAM2_RST : SRAM2 Erase when system reset

0: SRAM2 erased when a system reset occurs

1: SRAM2 is not erased when a system reset occurs

Bit 24 SRAM2_PE : SRAM2 parity check enable

0: SRAM2 parity check enable

1: SRAM2 parity check disable

Bit 23 nBOOT1 : Boot configuration

Together with the BOOT0 pin, this bit selects boot mode from the Flash main memory, SRAM1 or the System memory. Refer to Section 2.6: Boot configuration .

Bit 22 DBANK :

0: Single-bank mode with 128 bits data read width

1: Dual-bank mode with 64 bits data

This bit can only be written when PCROPA/B is disabled.

Note: For 1-Mbyte and 512-Kbyte Flash memory devices, do not care about DBANK.

For STM32L4Rxxx and STM32L4Sxxx devices:

Dual-bank on 1 Mbyte Flash memory devices

0: 1 Mbyte single Flash contiguous address in Bank 1

1: 1 Mbyte dual-bank Flash with contiguous addresses

When DB1M is set, a hard fault is generated when the requested address goes over 1 Mbyte.

For STM32L4P5xx and STM32L4Q5xx devices:

Dual-bank on 512 Kbytes Flash memory devices

0: 512 Kbytes single Flash contiguous address in bank1

1: 512 Kbytes dual-bank Flash with contiguous addresses

When DB1M is set, a hard fault is generated when the requested address goes over 512 Kbytes.

Note: For 2-Mbytes Flash memory devices, do not care about DB1M.

0: Dual-bank boot disable

1: Dual-bank boot enable

0: Hardware window watchdog

1: Software window watchdog

0: Independent watchdog counter is frozen in Standby mode

1: Independent watchdog counter is running in Standby mode

0: Independent watchdog counter is frozen in Stop mode

1: Independent watchdog counter is running in Stop mode

0: Hardware independent watchdog

1: Software independent watchdog

Bit 15 Reserved, must be kept cleared

0: Reset generated when entering the Shutdown mode

1: No reset generated when entering the Shutdown mode

0: Reset generated when entering the Standby mode

1: No reset generate when entering the Standby mode

0: Reset generated when entering the Stop mode

1: No reset generated when entering the Stop mode

Bit 11 Reserved, must be kept cleared

Bits 10:8 BOR_LEV : BOR reset Level

These bits contain the VDD supply level threshold that activates/releases the reset.

000: BOR Level 0. Reset level threshold is around 1.7 V

001: BOR Level 1. Reset level threshold is around 2.0 V

010: BOR Level 2. Reset level threshold is around 2.2 V

011: BOR Level 3. Reset level threshold is around 2.5 V

100: BOR Level 4. Reset level threshold is around 2.8 V

Bits 7:0 RDP : Read protection level

0xAA: Level 0, read protection not active

0xCC: Level 2, chip read protection active

Others: Level 1, memories read protection active

Note: Take care about PCROP_RDP configuration in Level 1. Refer to Section : Level 1: Read protection for more details.

3.7.9 Flash PCROP1 Start address register (FLASH_PCROP1SR)

Address offset: 0x24

Reset value: 0xFFFFX XXXX. Register bits are loaded with values from Flash memory at OBL.

Access: no wait state when no Flash memory operation is on going; word access.

Bits 31:17 Reserved, must be kept

Bits 16:0 PCROP1_STRT : PCROP area start offset

DBANK=1 (or DB1M = 1)

PCROP1_STRT contains the first double-word of the PCROP area for bank1.

DBANK=0 (or DB1M = 0)

PCROP1_STRT contains the first 2xdouble-word of the PCROP area for all memory.

3.7.10 Flash PCROP1 End address register (FLASH_PCROP1ER)

Address offset: 0x28

Reset value: 0xFFFF XXXX. Register bits are loaded with values from Flash memory at OBL.

Access: no wait state when no Flash memory operation is ongoing; word, half-word access. PCROP_RDP bit can be accessed with byte access.

Bit 31 PCROP_RDP : PCROP area preserved when RDP level decreased

This bit is set only. It is reset after a full mass erase due to a change of RDP from Level 1 to Level 0.
0: PCROP area is not erased when the RDP level is decreased from Level 1 to Level 0.
1: PCROP area is erased when the RDP level is decreased from Level 1 to Level 0 (full mass erase).

Bits 30:17 Reserved, must be kept cleared

Bits 16:0 PCROP1_END : Bank 1 PCROP area end offset

DBANK=1 (or DB1M = 1)

PCROP1_END contains the last double-word of the bank 1 PCROP area.

DBANK=0 (or DB1M = 0)

PCROP1_END contains the last 2x double-word PCROP area for all memory.

3.7.11 Flash WRP1 area A address register (FLASH_WRP1AR)

Address offset: 0x2C

Reset value: 0xFFXX FFXX. Register bits are loaded with values from Flash memory at OBL.

Access: no wait state when no Flash memory operation is ongoing; word, half-word and byte access

Bits 31:24 Reserved, must be kept cleared

Bits 23:16 WRP1A_END : WRP first area “A” end offset

DBANK=1 (or DB1M = 1)

WRP1A_END contains the last page of WRP first area in bank1.

DBANK=0 (or DB1M = 0)

WRP1A_END contains the last page of WRP first area for all memory.

Note: For 1-Mbyte Flash memory devices the bit 23 is reserved so its value is “don’t care”.

Note: For 512-Kbyte Flash memory devices the bit 23 is reserved so its value is “don’t care”.

Bits 15:8 Reserved, must be kept cleared

Bits 7:0 WRP1A_STRT : WRP first area “A” start offset

DBANK=1 (or DB1M = 1)

WRP1A_STRT contains the first page of WRP first area for bank1.

DBANK=0 (or DB1M = 0)

WRP1A_STRT contains the first page of WRP first area for all memory.

3.7.12 Flash WRP2 area A address register (FLASH_WRP2AR)

Address offset: 0x30

Reset value: 0xFFXX FFXX

Access: no wait state when no Flash memory operation is on going; word, half-word and byte access

Bits 31:24 Reserved, must be kept cleared

Bits 23:16 WRP2A_END : WRP first area “A” end offset

DBANK=1 (or DB1M = 1)

WRP2A_END contains the last page of the WRP first area for bank2.

DBANK=0 (or DB1M = 0)

WRP2A_END contains the last page of the WRP third area for all memory.

Bits 15:8 Reserved, must be kept cleared

Bits 7:0 WRP2A_STRT : WRP first area “A” start offset

DBANK=1 (or DB1M = 1)

WRP2A_STRT contains the first page of the WRP first area for bank2.

DBANK=0 (or DB1M = 0)

WRP2A_STRT contains the first page of the WRP third area for all memory.

3.7.13 Flash PCROP2 Start address register (FLASH_PCCROP2SR)

Address offset: 0x44

Reset value: 0xFFFF XXXX

Access: no wait state when no Flash memory operation is on going; word access.

Bits 31:17 Reserved, must be kept cleared

Bits 16:0 PCROP2_START : PCROP area start offset

DBANK=1 (or DB1M = 1)

PCROP2_START contains the first double-word of the PCROP area for bank 2.

DBANK=0 (or DB1M = 0)

PCROP2_START contains the first double-word PCROP area for all memory.

3.7.14 Flash PCROP2 End address register (FLASH_PCCROP2ER)

Address offset: 0x48

Reset value: 0xFFFF XXXX

Access: no wait state when no Flash memory operation is on going; word access

Bits 31:17 Reserved, must be kept cleared

Bits 23:16 PCROP2_END : PCROP area end offset

DBANK=1 (or DB1M = 1)

PCROP2_END contains the last double-word of the PCROP area for bank2.

DBANK=0 (or DB1M = 0)

PCROP2_END contains the last 2xdouble-word of the PCROP area for all the memory.

3.7.15 Flash WRP1 area B address register (FLASH_WRP1BR)

Address offset: 0x4C

Reset value: 0xFFXX FFXX. Register bits are loaded with values from Flash memory at OBL.

Access: no wait state when no Flash memory operation is on going; word, half-word and byte access

Bits 31:24 Reserved, must be kept cleared

Bits 23:16 WRP1B_END : WRP second area ‘‘B’’ end offset

• DBANK=1 (or DB1M = 1)
  WRP1B_END contains the last page of the WRP second area for bank1.
• DBANK=0 (or DB1M = 0)
  WRP1B_END contains the last page of the WPR second area for all memory.

Bits 15:8 Reserved, must be kept cleared

Bits 7:0 WRP1B_STRT : WRP second area ‘‘B’’ start offset

• DBANK=1 (or DB1M = 1)
  WRP1B_STRT contains the last page of the WRP second area for bank1.
• DBANK=0 (or DB1M = 0)
  WRP1B_STRT contains the last page of the WPR second area for all memory.

3.7.16 Flash WRP2 area B address register (FLASH_WRP2BR)

Address offset: 0x50

Reset value: 0xFFXX FFXX

Access: no wait state when no Flash memory operation is on going; word, half-word and byte access

Bits 31:24 Reserved, must be kept cleared

Bits 23:16 WRP2B_END : WRP second area “B” end offset

DBANK=1 (or DB1M = 1)

WRP2B_END contains the last page of the WRP second area for bank2.

DBANK=0 (or DB1M = 0)

WRP2B_END contains the last page of the WRP fourth area for all memory.

Bits 15:8 Reserved, must be kept cleared

Bits 23:16 WRP2B_STRT : WRP second area “B” start offset

DBANK=1 (or DB1M = 1)

WRP2B_STRT contains the first page of the WRP second area for bank2.

DBANK=0 (or DB1M = 0)

WRP2B_STRT contains the first page of the WRP second area for all memory.

3.7.17 Flash configuration register (FLASH_CFGR)

Address offset: 0x130

Reset value: 0x0000 0000

Bits 31:1 Reserved, must be kept cleared

Bit 0 LVEN : Low voltage enable

This bit is set and cleared by software. This bit must be used only in case of external SMPS.

0: Flash low voltage disable

1: Flash low voltage enabled. Before setting this bit, it is recommended to:

• - Switch the voltage scaling to range 2
• - Ensure that the minimum VDD12 is 1.08 V
• - When the external SMPS is ON, the LVEN bit can be set.

3.7.18 FLASH register map

Table 20. Flash interface - register map and reset values

Table 20. Flash interface - register map and reset values (continued)
