5. Reset and clock control (RCC)

5.1 Reset

There are three types of reset, defined as system Reset, power Reset and backup domain Reset.

5.1.1 System reset

A system reset sets all registers to their reset values unless specified otherwise in the register description (see Figure 13 ).

A system reset is generated when one of the following events occurs:

1. 1. A low level on the NRST pin (external reset)
2. 2. Window watchdog end of count condition (WWDG reset)
3. 3. Independent watchdog end of count condition (IWDG reset)
4. 4. A software reset (SW reset) (see Software reset )
5. 5. Low-power management reset (see Low-power management reset )

Software reset

The reset source can be identified by checking the reset flags in the RCC clock control & status register (RCC_CSR) .

The SYSRESETREQ bit in Cortex ^® -M7 Application Interrupt and Reset Control Register must be set to force a software reset on the device. Refer to the Cortex ^® -M7 technical reference manual for more details.

Low-power management reset

There are two ways of generating a low-power management reset:

1. 1. Reset generated when entering the Standby mode:

This type of reset is enabled by resetting the nRST_STDBY bit in the user option bytes. In this case, whenever a Standby mode entry sequence is successfully executed, the device is reset instead of entering the Standby mode.

1. 2. Reset when entering the Stop mode:

This type of reset is enabled by resetting the nRST_STOP bit in the user option bytes. In this case, whenever a Stop mode entry sequence is successfully executed, the device is reset instead of entering the Stop mode.

5.1.2 Power reset

A power reset is generated when one of the following events occurs:

1. 1. Power-on/power-down reset (POR/PDR reset) or brownout (BOR) reset
2. 2. When exiting the Standby mode

A power reset sets all registers to their reset values except the Backup domain (see Figure 13 )

These sources act on the NRST pin and it is always kept low during the delay phase. The RESET service routine vector is fixed at address 0x0000_0004 in the memory map.

The system reset signal provided to the device is output on the NRST pin. The pulse generator guarantees a minimum reset pulse duration of 20 \( \mu\text{s} \) for each internal reset source. In case of an external reset, the reset pulse is generated while the NRST pin is asserted low.

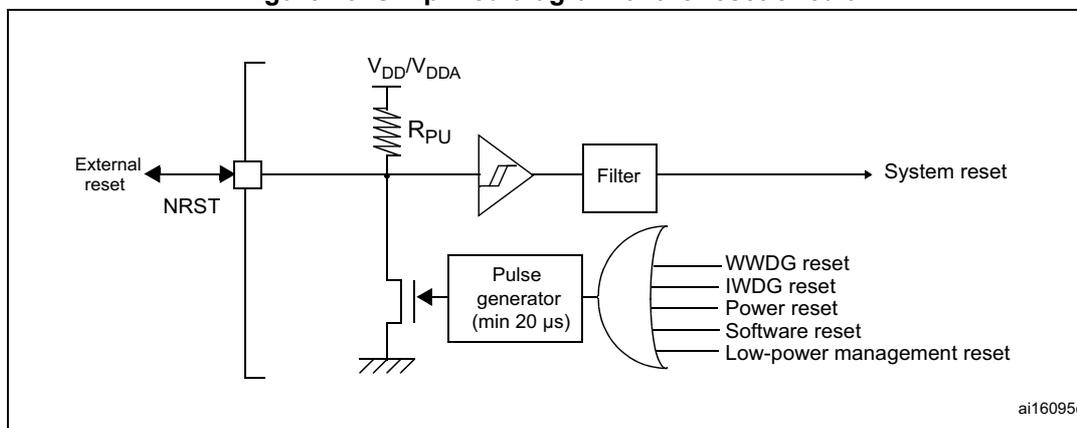

Figure 13. Simplified diagram of the reset circuit

The Backup domain has two specific resets that affect only the Backup domain (see Figure 13).

5.1.3 Backup domain reset

The backup domain reset sets all RTC registers, the RCC_BDCR register and the bit BRE of PWR_CSR register to their reset values. The BKPSRAM is not affected by this reset. The only way of resetting the BKPSRAM is through the Flash interface by requesting a protection level change from 1 to 0.

A backup domain reset is generated when one of the following events occurs:

1. 1. Software reset, triggered by setting the BDRST bit in the RCC backup domain control register (RCC_BDCR) .
2. 2. \( V_{DD} \) or \( V_{BAT} \) power on, if both supplies have previously been powered off.

Note: The bit DBP of the register PWR_CR must be set to 1 in order to generate the backup domain reset.

5.2 Clocks

Three different clock sources can be used to drive the system clock (SYSCLK):

• • HSI oscillator clock
• • HSE oscillator clock
• • Main PLL (PLL) clock

The devices have the two following secondary clock sources:

• • 32 kHz low-speed internal RC (LSI RC) which drives the independent watchdog and, optionally, the RTC used for Auto-wakeup from the Stop/Standby mode.
• • 32.768 kHz low-speed external crystal (LSE crystal) which optionally drives the RTC clock (RTCCLK)

Each clock source can be switched on or off independently when it is not used, to optimize power consumption.

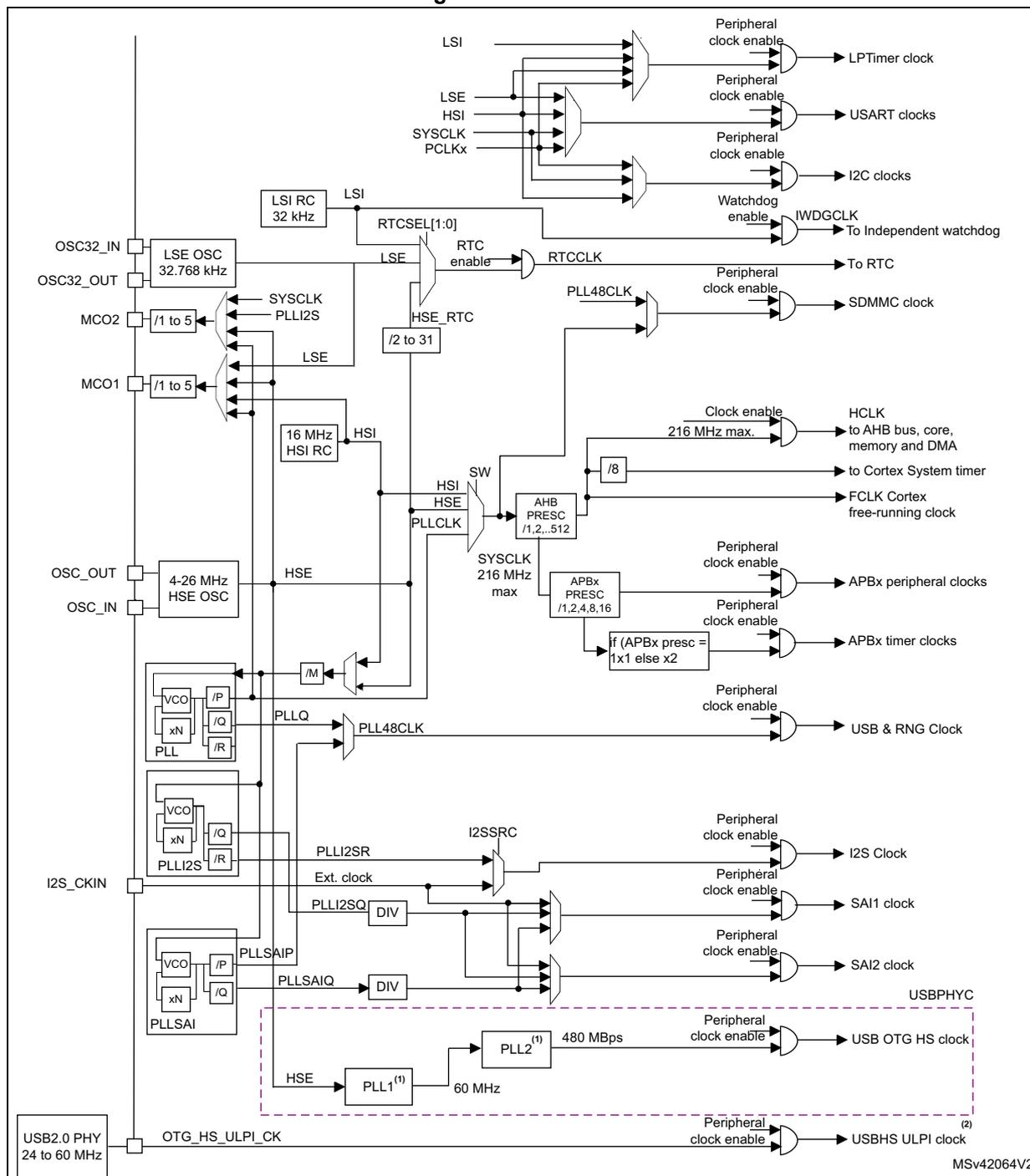

Figure 14. Clock tree

1. PLL1 and PLL2 are embedded in the USB OTG PHY HS and configured in the USB OTG PHY HS controller (USBPHYC). Available only on the STM32F7x3xx devices. On STM32F730xx devices, available only on LQFP144 and UFBGA176 packages.

2. Available only on the STM32F7x2xx devices. On STM32F730xx devices, available only on LQFP64 and LQFP100

packages.

1. 3. For full details about the internal and external clock source characteristics, refer to the Electrical characteristics section in the device datasheet.

1. 4. When TIMPRE bit of the RCC_DCKCFGR1 register is reset, if APBx prescaler is 1, then TIMxCLK = PCLKx, otherwise TIMxCLK = 2x PCLKx.
2. 5. When TIMPRE bit in the RCC_DCKCFGR1 register is set, if APBx prescaler is 1, 2 or 4, then TIMxCLK = HCLK, otherwise TIMxCLK = 4x PCLKx.

The clock controller provides a high degree of flexibility to the application in the choice of the external crystal or the oscillator to run the core and peripherals at the highest frequency

All peripheral clocks are derived from their bus clock (HCLK, PCLK1, PCLK2) except for:

• • The 48MHz clock, used for USB OTG FS, SDMMC and RNG. This clock is derived from one of the following sources:
  • – main PLL VCO (PLLQ Clock)
  • – PLLSAI VCO (PLLSAI clock)
• • The U(S)ARTs clocks which are derived from one of the following sources:
  • – System clock (SYSCLK)
  • – HSI clock
  • – LSE clock
  • – APB1 or APB2 clock (PCLK1 or PCLK2 depending on which APB is mapped the U(S)ART)
• • The I2Cs clocks which are derived from one of the following sources:
  • – System clock (SYSCLK)
  • – HSI clock
  • – APB1 clock (PCLK1)
• • I2S clock

To achieve high-quality audio performance, the I2S clock can be derived either from a specific PLL (PLL I2S) or from an external clock mapped on the I2S_CKIN pin. For more information about I2S clock frequency and precision, refer to Section 28.7.5: Clock generator .

• • The SAI1 and SAI2 clocks which are derived from one of the following sources:
  • – PLLSAI VCO (PLLSAIQ)
  • – PLL I2S VCO ( PLL I2SQ)
  • – External clock mapped on the I2S_CKIN pin.
• • The low-power timer (LPTIM1) clock which is derived from one of the following sources:
  • – LSI clock
  • – LSE clock
  • – HSI clock
  • – APB1 clock (PCLK1)
  • – External clock mapped on LPTIM1_IN1
• • The USB OTG HS (60 MHz) clock which is provided from the external PHY

• • The RTC clock which is derived from one of the following sources:
  • – LSE clock
  • – LSI clock
  • – HSE clock divided by 32
• • The IWDG clock which is always the LSI clock.
• • The timer clock frequencies are automatically set by hardware. There are two cases depending on the value of TIMPRE bit in RCC_CFGR register:
  • – If TIMPRE bit in RCC_DCKCFGR1 register is reset:
    If the APB prescaler is configured to a division factor of 1, the timer clock frequencies (TIMxCLK) are set to PCLKx. Otherwise, the timer clock frequencies are twice the frequency of the APB domain to which the timers are connected:
    \( TIMxCLK = 2 \times PCLKx \) .
  • – If TIMPRE bit in RCC_DCKCFGR1 register is set:
    If the APB prescaler is configured to a division factor of 1, 2 or 4, the timer clock frequencies (TIMxCLK) are set to HCLK. Otherwise, the timer clock frequencies is four times the frequency of the APB domain to which the timers are connected:
    \( TIMxCLK = 4 \times PCLKx \) .

The RCC feeds the external clock of the Cortex System Timer (SysTick) with the AHB clock (HCLK) divided by 8. The SysTick can work either with this clock or with the Cortex clock (HCLK), configurable in the SysTick control and status register.

FCLK acts as Cortex®-M7 free-running clock. For more details, refer to the Cortex®-M7 technical reference manual.

5.2.1 HSE clock

The high speed external clock signal (HSE) can be generated from two possible clock sources:

• • HSE external crystal/ceramic resonator
• • HSE external user clock

The resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and startup stabilization time. The loading capacitance values must be adjusted according to the selected oscillator.

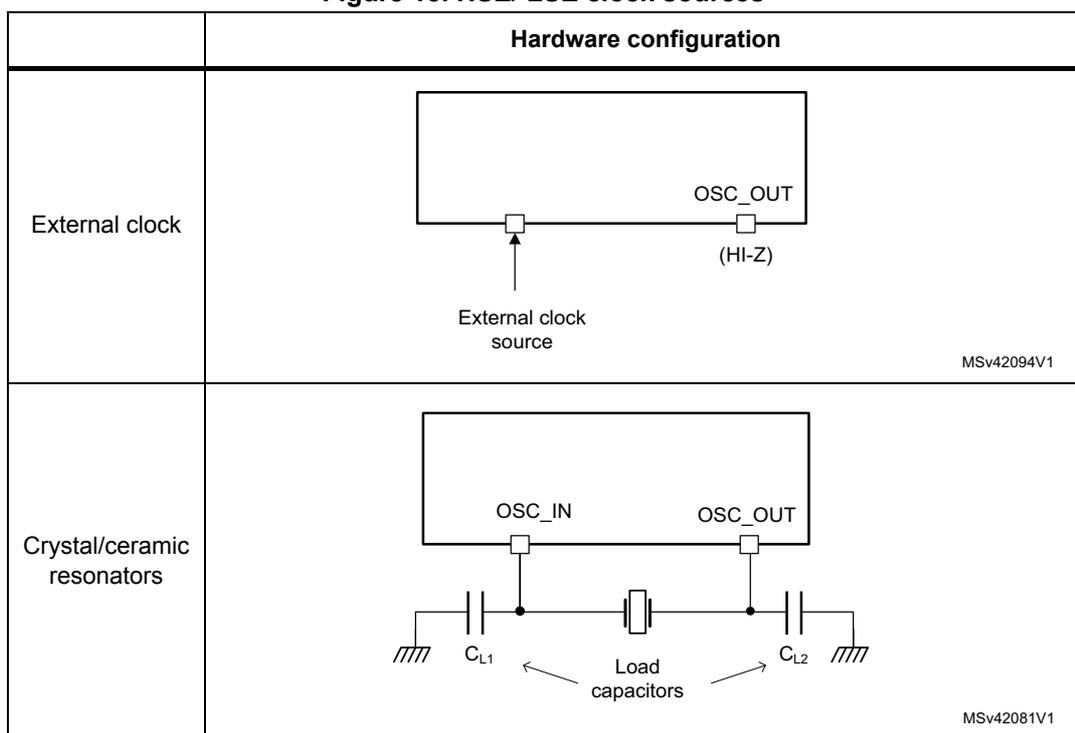

Figure 15. HSE/ LSE clock sources

External source (HSE bypass)

In this mode, an external clock source must be provided. You select this mode by setting the HSEBYP and HSEON bits in the RCC clock control register (RCC_CR) . The external clock signal (square, sinus or triangle) with ~50% duty cycle has to drive the OSC_IN pin while the OSC_OUT pin can be used as GPIO. See Figure 15 .

External crystal/ceramic resonator (HSE crystal)

The HSE has the advantage of producing a very accurate rate on the main clock.

The associated hardware configuration is shown in Figure 15 . Refer to the electrical characteristics section of the datasheet for more details.

The HSERDY flag in the RCC clock control register (RCC_CR) indicates if the high-speed external oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt register (RCC_CIR) .

The HSE Crystal can be switched on and off using the HSEON bit in the RCC clock control register (RCC_CR) .

5.2.2 HSI clock

The HSI clock signal is generated from an internal 16 MHz RC oscillator and can be used directly as a system clock, or used as PLL input.

The HSI RC oscillator has the advantage of providing a clock source at low cost (no external components). It also has a faster startup time than the HSE crystal oscillator however, even

with calibration the frequency is less accurate than an external crystal oscillator or ceramic resonator.

Calibration

RC oscillator frequencies can vary from one chip to another due to manufacturing process variations, this is why each device is factory calibrated by ST for 1% accuracy at \( T_A = 25\text{ }^\circ\text{C} \) .

After reset, the factory calibration value is loaded in the HSICAL[7:0] bits in the RCC clock control register (RCC_CR) .

If the application is subject to voltage or temperature variations this may affect the RC oscillator speed. You can trim the HSI frequency in the application using the HSITRIM[4:0] bits in the RCC clock control register (RCC_CR) .

The HSIRDY flag in the RCC clock control register (RCC_CR) indicates if the HSI RC is stable or not. At startup, the HSI RC output clock is not released until this bit is set by hardware.

The HSI RC can be switched on and off using the HSION bit in the RCC clock control register (RCC_CR) .

The HSI signal can also be used as a backup source (Auxiliary clock) if the HSE crystal oscillator fails. Refer to Section 5.2.7: Clock security system (CSS) on page 137 .

5.2.3 PLL

The devices feature three PLLs:

• • A main PLL (PLL) clocked by the HSE or HSI oscillator and featuring two different output clocks:
  • – The first output is used to generate the high speed system clock (up to 216 MHz)
  • – The second output is used to generate 48MHz clock for the USB OTG FS, SDMMCs and RNG.
• • PLLI2S is used to generate an accurate clock to achieve high-quality audio performance on the I2S and SAIs interfaces.
• • PLLSAI is used to generate clock for SAIs interfaces and the 48MHz (PLLSAI48CLK) that can be selected for the USB OTG FS, SDMMCs and RNG.

Since the main-PLL configuration parameters cannot be changed once PLL is enabled, it is recommended to configure PLL before enabling it (selection of the HSI or HSE oscillator as PLL clock source, and configuration of division factors M, N, P, and Q).

The PLLI2S and PLLSAI use the same input clock as PLL (PLLM[5:0] and PLLSRC bits are common to both PLLs). However, the PLLI2S and PLLSAI have dedicated enable/disable and division factors (N and R) configuration bits. Once the PLLI2S and PLLSAI are enabled, the configuration parameters cannot be changed.

The three PLLs are disabled by hardware when entering Stop and Standby modes, or when an HSE failure occurs when HSE or PLL (clocked by HSE) are used as system clock. RCC PLL configuration register (RCC_PLLCFGR) , RCC clock configuration register (RCC_CFGR) , and RCC dedicated clocks configuration register (RCC_DCKCFGR1) can be used to configure PLL, PLLI2S, and PLLSAI.

5.2.4 LSE clock

The LSE clock is generated from a 32.768 kHz low-speed external crystal or ceramic resonator. It has the advantage providing a low-power but highly accurate clock source to the real-time clock peripheral (RTC) for clock/calendar or other timing functions.

The LSE oscillator is switched on and off using the LSEON bit in RCC backup domain control register (RCC_BDCR) .

The LSERDY flag in the RCC backup domain control register (RCC_BDCR) indicates if the LSE crystal is stable or not. At startup, the LSE crystal output clock signal is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt register (RCC_CIR) .

External source (LSE bypass)

In this mode, an external clock source must be provided. It must have a frequency up to 1 MHz. You select this mode by setting the LSEBYP and LSEON bits in the RCC backup domain control register (RCC_BDCR) . The external clock signal (square, sinus or triangle) with ~50% duty cycle has to drive the OSC32_IN pin while the OSC_OUT pin can be used as GPIO. See Figure 15 .

5.2.5 LSI clock

The LSI RC acts as an low-power clock source that can be kept running in Stop and Standby mode for the independent watchdog (IWDG) and Auto-wakeup unit (AWU). The clock frequency is around 32 kHz. For more details, refer to the electrical characteristics section of the datasheets.

The LSI RC can be switched on and off using the LSION bit in the RCC clock control & status register (RCC_CSR) .

The LSIRDY flag in the RCC clock control & status register (RCC_CSR) indicates if the low-speed internal oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt register (RCC_CIR) .

5.2.6 System clock (SYSCLK) selection

After a system reset, the HSI oscillator is selected as the system clock. When a clock source is used directly or through PLL as the system clock, it is not possible to stop it.

A switch from one clock source to another occurs only if the target clock source is ready (clock stable after startup delay or PLL locked). If a clock source that is not yet ready is selected, the switch occurs when the clock source is ready. Status bits in the RCC clock control register (RCC_CR) indicate which clock(s) is (are) ready and which clock is currently used as the system clock.

5.2.7 Clock security system (CSS)

The clock security system can be activated by software. In this case, the clock detector is enabled after the HSE oscillator startup delay, and disabled when this oscillator is stopped.

If a failure is detected on the HSE clock, this oscillator is automatically disabled, a clock failure event is sent to the break inputs of advanced-control timers TIM1 and TIM8, and an interrupt is generated to inform the software about the failure (clock security system).

interrupt CSSI), allowing the MCU to perform rescue operations. The CSSI is linked to the Cortex ^® -M7 NMI (non-maskable interrupt) exception vector.

Note: When the CSS is enabled, if the HSE clock happens to fail, the CSS generates an interrupt, which causes the automatic generation of an NMI. The NMI is executed indefinitely unless the CSS interrupt pending bit is cleared. As a consequence, the application has to clear the CSS interrupt in the NMI ISR by setting the CSSC bit in the Clock interrupt register (RCC_CIR).

If the HSE oscillator is used directly or indirectly as the system clock (indirectly meaning that it is directly used as PLL input clock, and that PLL clock is the system clock) and a failure is detected, then the system clock switches to the HSI oscillator and the HSE oscillator is disabled.

If the HSE oscillator clock was the clock source of PLL used as the system clock when the failure occurred, PLL is also disabled. In this case, if the PLLI2S or PLLSAI was enabled, it is also disabled when the HSE fails.

5.2.8 RTC/AWU clock

Once the RTCCLK clock source has been selected, the only possible way of modifying the selection is to reset the power domain.

The RTCCLK clock source can be either the HSE 1 MHz (HSE divided by a programmable prescaler), the LSE or the LSI clock. This is selected by programming the RTCSEL[1:0] bits in the RCC backup domain control register (RCC_BDCR) and the RTCPRE[4:0] bits in RCC clock configuration register (RCC_CFGR) . This selection cannot be modified without resetting the Backup domain.

If the LSE is selected as the RTC clock, the RTC will work normally if the backup or the system supply disappears. If the LSI is selected as the AWU clock, the AWU state is not guaranteed if the system supply disappears. If the HSE oscillator divided by a value between 2 and 31 is used as the RTC clock, the RTC state is not guaranteed if the backup or the system supply disappears.

The LSE clock is in the Backup domain, whereas the HSE and LSI clocks are not. As a consequence:

• • If LSE is selected as the RTC clock:
  • – The RTC continues to work even if the \( V_{DD} \) supply is switched off, provided the \( V_{BAT} \) supply is maintained.
  • – The RTC remains clocked and functional under system reset.
• • If LSI is selected as the Auto-wakeup unit (AWU) clock:
  • – The AWU state is not guaranteed if the \( V_{DD} \) supply is powered off. Refer to Section 5.2.5: LSI clock on page 137 for more details on LSI calibration.
• • If the HSE clock is used as the RTC clock:
  • – The RTC state is not guaranteed if the \( V_{DD} \) supply is powered off or if the internal voltage regulator is powered off (removing power from the 1.2 V domain) and also when entering in Stop mode

Note: To read the RTC calendar register when the APB1 clock frequency is less than seven times the RTC clock frequency ( \( f_{APB1} < 7 \times f_{RTCCLK} \) ), the software must read the calendar time and date registers twice. The data are correct if the second read access to RTC_TR gives the same result than the first one. Otherwise a third read access must be performed.

5.2.9 Watchdog clock

If the independent watchdog (IWDG) is started by either hardware option or software access, the LSI oscillator is forced ON and cannot be disabled. After the LSI oscillator temporization, the clock is provided to the IWDG.

5.2.10 Clock-out capability

Two microcontroller clock output (MCO) pins are available:

• • MCO1

You can output four different clock sources onto the MCO1 pin (PA8) using the configurable prescaler (from 1 to 5):

• – HSI clock
• – LSE clock
• – HSE clock
• – PLL clock

The desired clock source is selected using the MCO1PRE[2:0] and MCO1[1:0] bits in the RCC clock configuration register (RCC_CFGR) .

• • MCO2

You can output four different clock sources onto the MCO2 pin (PC9) using the configurable prescaler (from 1 to 5):

• – HSE clock
• – PLL clock
• – System clock (SYSCLK)
• – PLLI2S clock

The desired clock source is selected using the MCO2PRE[2:0] and MCO2 bits in the RCC clock configuration register (RCC_CFGR) .

For the different MCO pins, the corresponding GPIO port has to be programmed in alternate function mode.

5.2.11 Internal/external clock measurement using TIM5/TIM11

It is possible to indirectly measure the frequencies of all on-board clock source generators by means of the input capture of TIM5 channel4 and TIM11 channel1 as shown in Figure 16 and Figure 17 .

Internal/external clock measurement using TIM5 channel4

TIM5 has an input multiplexer which allows choosing whether the input capture is triggered by the I/O or by an internal clock. This selection is performed through the TI4_RMP [1:0] bits in the TIM5_OR register.

The primary purpose of having the LSE connected to the channel4 input capture is to be able to precisely measure the HSI (this requires to have the HSI used as the system clock source). The number of HSI clock counts between consecutive edges of the LSE signal provides a measurement of the internal clock period. Taking advantage of the high precision of LSE crystals (typically a few tens of ppm) we can determine the internal clock frequency with the same resolution, and trim the source to compensate for manufacturing-process and/or temperature- and voltage-related frequency deviations.

The HSI oscillator has dedicated, user-accessible calibration bits for this purpose.

The basic concept consists in providing a relative measurement (e.g. HSI/LSE ratio): the precision is therefore tightly linked to the ratio between the two clock sources. The greater the ratio, the better the measurement.

It is also possible to measure the LSI frequency: this is useful for applications that do not have a crystal. The ultra-low-power LSI oscillator has a large manufacturing process deviation: by measuring it versus the HSI clock source, it is possible to determine its frequency with the precision of the HSI. The measured value can be used to have more accurate RTC time base timeouts (when LSI is used as the RTC clock source) and/or an IWDG timeout with an acceptable accuracy.

Use the following procedure to measure the LSI frequency:

1. 1. Enable the TIM5 timer and configure channel4 in Input capture mode.
2. 2. This bit is set the TI4_RMP bits in the TIM5_OR register to 0x01 to connect the LSI clock internally to TIM5 channel4 input capture for calibration purposes.
3. 3. Measure the LSI clock frequency using the TIM5 capture/compare 4 event or interrupt.
4. 4. Use the measured LSI frequency to update the prescaler of the RTC depending on the desired time base and/or to compute the IWDG timeout.

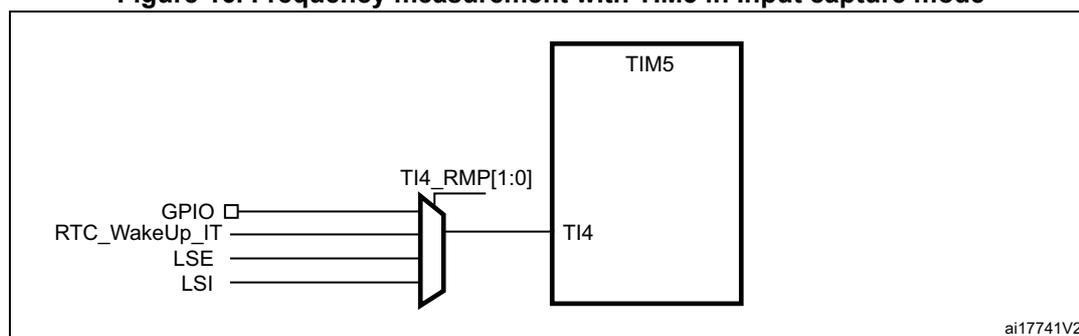

Figure 16. Frequency measurement with TIM5 in Input capture mode

ai17741V2

Internal/external clock measurement using TIM11 channel1

TIM11 has an input multiplexer which allows choosing whether the input capture is triggered by the I/O or by an internal clock. This selection is performed through TI1_RMP [1:0] bits in the TIM11_OR register. The HSE_RTC clock (HSE divided by a programmable prescaler) is connected to channel 1 input capture to have a rough indication of the external crystal frequency. This requires that the HSI is the system clock source. This can be useful for instance to ensure compliance with the IEC 60730/IEC 61335 standards which require to be able to determine harmonic or subharmonic frequencies (-50/+100% deviations).

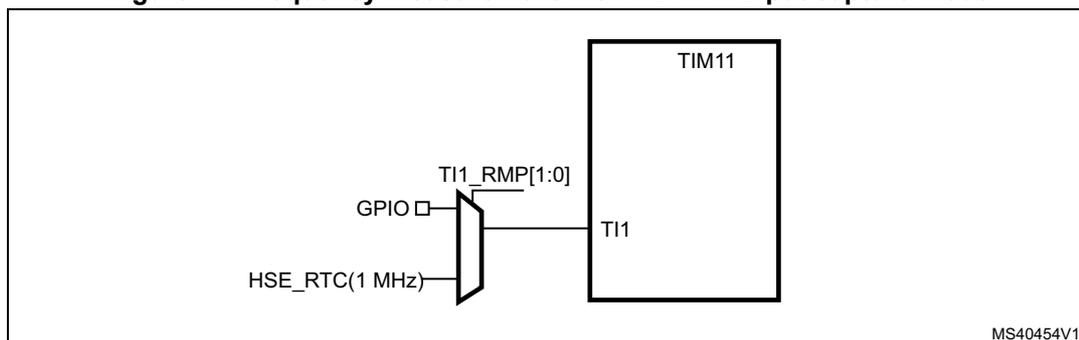

Figure 17. Frequency measurement with TIM11 in Input capture mode

5.2.12 Peripheral clock enable register (RCC_AHBxENR, RCC_APBxENRy)

Each peripheral clock can be enabled by the xxxxEN bit of the RCC_AHBxENR or RCC_APBxENRy registers.

When the peripheral clock is not active, the peripheral registers read or write accesses are not supported. The peripheral enable bit has a synchronization mechanism to create a glitch free clock for the peripheral.

After the enable bit is set, there is a 2 peripheral clock cycles delay before the clock being active.

Caution: Just after enabling the clock for a peripheral, software must wait for a 2 peripheral clock cycles delay before accessing the peripheral registers.

5.3 RCC registers

Refer to Section 1.2: List of abbreviations for registers for a list of abbreviations used in register descriptions.

5.3.1 RCC clock control register (RCC_CR)

Address offset: 0x00

Reset value: 0x0000 XX83 where X is undefined.

Access: no wait state, word, half-word and byte access

Bits 31:30 Reserved, must be kept at reset value.

Bit 29 PLLISAIRDY : PLLSAI clock ready flag

Set by hardware to indicate that the PLLSAI is locked.

0: PLLSAI unlocked

1: PLLSAI locked

Bit 28 PLLISAION : PLLSAI enable

Set and cleared by software to enable PLLSAI.

Cleared by hardware when entering Stop or Standby mode.

0: PLLSAI OFF

1: PLLSAI ON

Bit 27 PLLII2SRDY : PLLI2S clock ready flag

Set by hardware to indicate that the PLLI2S is locked.

0: PLLI2S unlocked

1: PLLI2S locked

Bit 26 PLLII2SON : PLLI2S enable

Set and cleared by software to enable PLLI2S.

Cleared by hardware when entering Stop or Standby mode.

0: PLLI2S OFF

1: PLLI2S ON

Bit 25 PLLRDY : Main PLL (PLL) clock ready flag

Set by hardware to indicate that PLL is locked.

0: PLL unlocked

1: PLL locked

Bit 24 PLLON : Main PLL (PLL) enable

Set and cleared by software to enable PLL.

Cleared by hardware when entering Stop or Standby mode. This bit cannot be reset if PLL clock is used as the system clock.

0: PLL OFF

1: PLL ON

Bits 23:20 Reserved, must be kept at reset value.

Bit 19 CSSON : Clock security system enable

Set and cleared by software to enable the clock security system. When CSSON is set, the clock detector is enabled by hardware when the HSE oscillator is ready, and disabled by hardware if an oscillator failure is detected.

0: Clock security system OFF (Clock detector OFF)

1: Clock security system ON (Clock detector ON if HSE oscillator is stable, OFF if not)

Bit 18 HSEBYP : HSE clock bypass

Set and cleared by software to bypass the oscillator with an external clock. The external clock must be enabled with the HSEON bit, to be used by the device.

The HSEBYP bit can be written only if the HSE oscillator is disabled.

0: HSE oscillator not bypassed

1: HSE oscillator bypassed with an external clock

Bit 17 HSERDY : HSE clock ready flag

Set by hardware to indicate that the HSE oscillator is stable. After the HSEON bit is cleared, HSERDY goes low after 6 HSE oscillator clock cycles.

0: HSE oscillator not ready

1: HSE oscillator ready

Bit 16 HSEON : HSE clock enable

Set and cleared by software.

Cleared by hardware to stop the HSE oscillator when entering Stop or Standby mode. This bit cannot be reset if the HSE oscillator is used directly or indirectly as the system clock.

0: HSE oscillator OFF

1: HSE oscillator ON

Bits 15:8 HSICAL[7:0] : Internal high-speed clock calibration

These bits are initialized automatically at startup.

Bits 7:3 HSITRIM[4:0] : Internal high-speed clock trimming

These bits provide an additional user-programmable trimming value that is added to the HSICAL[7:0] bits. It can be programmed to adjust to variations in voltage and temperature that influence the frequency of the internal HSI RC.

Bit 2 Reserved, must be kept at reset value.

Bit 1 HSIRDY : Internal high-speed clock ready flag

Set by hardware to indicate that the HSI oscillator is stable. After the HSION bit is cleared, HSIRDY goes low after 6 HSI clock cycles.

0: HSI oscillator not ready

1: HSI oscillator ready

Bit 0 HSION : Internal high-speed clock enable

Set and cleared by software.

Set by hardware to force the HSI oscillator ON when leaving the Stop or Standby mode or in case of a failure of the HSE oscillator used directly or indirectly as the system clock. This bit cannot be cleared if the HSI is used directly or indirectly as the system clock.

0: HSI oscillator OFF

1: HSI oscillator ON

5.3.2 RCC PLL configuration register (RCC_PLLCFGR)

Address offset: 0x04

Reset value: 0x2400 3010

Access: no wait state, word, half-word and byte access.

This register is used to configure the PLL clock outputs according to the formulas:

• • \( f_{(VCO\ clock)} = f_{(PLL\ clock\ input)} \times (PLL N / PLL M) \)
• • \( f_{(PLL\ general\ clock\ output)} = f_{(VCO\ clock)} / PLL P \)
• • \( f_{(USB\ OTG\ FS,\ SDMMC1/2,\ RNG\ clock\ output)} = f_{(VCO\ clock)} / PLL Q \)

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:24 PLLQ[3:0] : Main PLL (PLL) division factor for USB OTG FS, SDMMC1/2 and random number generator clocks

Set and cleared by software to control the frequency of USB OTG FS clock, the random number generator clock and the SDMMC1/2 clock. These bits should be written only if PLL is disabled.

Caution: The USB OTG FS requires a 48 MHz clock to work correctly. The SDMMC1/2 and the random number generator need a frequency lower than or equal to 48 MHz to work correctly.

USB OTG FS clock frequency = VCO frequency / PLLQ with \( 2 \leq PLLQ \leq 15 \)

0000: PLLQ = 0, wrong configuration

0001: PLLQ = 1, wrong configuration

0010: PLLQ = 2

0011: PLLQ = 3

0100: PLLQ = 4

...

1111: PLLQ = 15

Bit 23 Reserved, must be kept at reset value.

Bit 22 PLL SRC : Main PLL(PLL) and audio PLL (PLL I2S) entry clock source

Set and cleared by software to select PLL and PLL I2S clock source. This bit can be written only when PLL and PLL I2S are disabled.

0: HSI clock selected as PLL and PLL I2S clock entry

1: HSE oscillator clock selected as PLL and PLL I2S clock entry

Bits 21:18 Reserved, must be kept at reset value.

Bits 17:16 PLLP[1:0] : Main PLL (PLL) division factor for main system clock

Set and cleared by software to control the frequency of the general PLL output clock. These bits can be written only if PLL is disabled.

Caution: The software has to set these bits correctly not to exceed 216 MHz on this domain.

PLL output clock frequency = VCO frequency / PLLP with PLLP = 2, 4, 6, or 8

00: PLLP = 2

01: PLLP = 4

10: PLLP = 6

11: PLLP = 8

Bits 14:6 PLLN[8:0] : Main PLL (PLL) multiplication factor for VCO

Set and cleared by software to control the multiplication factor of the VCO. These bits can be written only when PLL is disabled. Only half-word and word accesses are allowed to write these bits.

Caution: The software has to set these bits correctly to ensure that the VCO output frequency is between 100 and 432 MHz.

VCO output frequency = VCO input frequency \( \times \) PLLN with \( 50 \leq \text{PLLN} \leq 432 \)

000000000: PLLN = 0, wrong configuration

000000001: PLLN = 1, wrong configuration

...

000110010: PLLN = 50

...

001100011: PLLN = 99

001100100: PLLN = 100

...

110110000: PLLN = 432

110110001: PLLN = 433, wrong configuration

...

111111111: PLLN = 511, wrong configuration

Note: Between 50 and 99, multiplication factors are possible for VCO input frequency higher than 1 MHz. However care must be taken to fulfill the minimum VCO output frequency as specified above.

Bits 5:0 PLLM[5:0] : Division factor for the main PLLs (PLL, PLLI2S and PLLSAI) input clock

Set and cleared by software to divide the PLL and PLLI2S input clock before the VCO. These bits can be written only when the PLL and PLLI2S are disabled.

Caution: The software has to set these bits correctly to ensure that the VCO input frequency ranges from 1 to 2 MHz. It is recommended to select a frequency of 2 MHz to limit PLL jitter.

VCO input frequency = PLL input clock frequency / PLLM with \( 2 \leq \text{PLLM} \leq 63 \)

000000: PLLM = 0, wrong configuration

000001: PLLM = 1, wrong configuration

000010: PLLM = 2

000011: PLLM = 3

000100: PLLM = 4

...

111110: PLLM = 62

111111: PLLM = 63

5.3.3 RCC clock configuration register (RCC_CFGR)

Address offset: 0x08

Reset value: 0x0000 0000

Access: 0 ≤ wait state ≤ 2, word, half-word and byte access

1 or 2 wait states inserted only if the access occurs during a clock source switch.

Bits 31:30 MCO2[1:0] : Microcontroller clock output 2

Set and cleared by software. Clock source selection may generate glitches on MCO2. It is highly recommended to configure these bits only after reset before enabling the external oscillators and the PLLs.

00: System clock (SYSCLK) selected

01: PLLI2S clock selected

10: HSE oscillator clock selected

11: PLL clock selected

Bits 27:29 MCO2PRE : MCO2 prescaler

Set and cleared by software to configure the prescaler of the MCO2. Modification of this prescaler may generate glitches on MCO2. It is highly recommended to change this prescaler only after reset before enabling the external oscillators and the PLLs.

0xx: no division

100: division by 2

101: division by 3

110: division by 4

111: division by 5

Bits 24:26 MCO1PRE : MCO1 prescaler

Set and cleared by software to configure the prescaler of the MCO1. Modification of this prescaler may generate glitches on MCO1. It is highly recommended to change this prescaler only after reset before enabling the external oscillators and the PLL.

0xx: no division

100: division by 2

101: division by 3

110: division by 4

111: division by 5

Bit 23 I2SSRC : I2S clock selection

Set and cleared by software. This bit allows to select the I2S clock source between the PLLI2S clock and the external clock. It is highly recommended to change this bit only after reset and before enabling the I2S module.

0: PLLI2S clock used as I2S clock source

1: External clock mapped on the I2S_CKIN pin used as I2S clock source

Bits 22:21 MCO1 : Microcontroller clock output 1

Set and cleared by software. Clock source selection may generate glitches on MCO1. It is highly recommended to configure these bits only after reset before enabling the external oscillators and PLL.

00: HSI clock selected

01: LSE oscillator selected

10: HSE oscillator clock selected

11: PLL clock selected

Bits 20:16 RTCPRE : HSE division factor for RTC clock

Set and cleared by software to divide the HSE clock input clock to generate a 1 MHz clock for RTC.

Caution: The software has to set these bits correctly to ensure that the clock supplied to the RTC is 1 MHz. These bits must be configured if needed before selecting the RTC clock source.

00000: no clock

00001: no clock

00010: HSE/2

00011: HSE/3

00100: HSE/4

...

11110: HSE/30

11111: HSE/31

Bits 15:13 PPRE2 : APB high-speed prescaler (APB2)

Set and cleared by software to control APB high-speed clock division factor.

Caution: The software has to set these bits correctly not to exceed 108 MHz on this domain. The clocks are divided with the new prescaler factor from 1 to 16 AHB cycles after PPRE2 write.

0xx: AHB clock not divided

100: AHB clock divided by 2

101: AHB clock divided by 4

110: AHB clock divided by 8

111: AHB clock divided by 16

Bits 12:10 PPRE1 : APB Low-speed prescaler (APB1)

Set and cleared by software to control APB low-speed clock division factor.

Caution: The software has to set these bits correctly not to exceed 54 MHz on this domain. The clocks are divided with the new prescaler factor from 1 to 16 AHB cycles after PPRE1 write.

0xx: AHB clock not divided

100: AHB clock divided by 2

101: AHB clock divided by 4

110: AHB clock divided by 8

111: AHB clock divided by 16

Bits 9:8 Reserved, must be kept at reset value.

Bits 7:4 HPRE : AHB prescaler

Set and cleared by software to control AHB clock division factor.

Caution: The clocks are divided with the new prescaler factor from 1 to 16 AHB cycles after HPRE write.

• 0xxx: system clock not divided
• 1000: system clock divided by 2
• 1001: system clock divided by 4
• 1010: system clock divided by 8
• 1011: system clock divided by 16
• 1100: system clock divided by 64
• 1101: system clock divided by 128
• 1110: system clock divided by 256
• 1111: system clock divided by 512

Bits 3:2 SWS : System clock switch status

Set and cleared by hardware to indicate which clock source is used as the system clock.

• 00: HSI oscillator used as the system clock
• 01: HSE oscillator used as the system clock
• 10: PLL used as the system clock
• 11: not applicable

Bits 1:0 SW : System clock switch

Set and cleared by software to select the system clock source.

Set by hardware to force the HSI selection when leaving the Stop or Standby mode or in case of failure of the HSE oscillator used directly or indirectly as the system clock.

• 00: HSI oscillator selected as system clock
• 01: HSE oscillator selected as system clock
• 10: PLL selected as system clock
• 11: not allowed

5.3.4 RCC clock interrupt register (RCC_CIR)

Address offset: 0x0C

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access

Bits 31:24 Reserved, must be kept at reset value.

Bit 23 CSSC : Clock security system interrupt clear

This bit is set by software to clear the CSSF flag.

0: No effect

1: Clear CSSF flag

Bit 22 PLLSAIRDYC : PLLSAI Ready Interrupt Clear

This bit is set by software to clear PLLSAIRDYF flag. It is reset by hardware when the PLLSAIRDYF is cleared.

0: PLLSAIRDYF not cleared

1: PLLSAIRDYF cleared

Bit 21 PLLI2SRDYC : PLLI2S ready interrupt clear

This bit is set by software to clear the PLLI2SRDYF flag.

0: No effect

1: PLLI2SRDYF cleared

Bit 20 PLLRDYC : Main PLL(PLL) ready interrupt clear

This bit is set by software to clear the PLLRDYF flag.

0: No effect

1: PLLRDYF cleared

Bit 19 HSERDYC : HSE ready interrupt clear

This bit is set by software to clear the HSERDYF flag.

0: No effect

1: HSERDYF cleared

Bit 18 HSIRDYC : HSI ready interrupt clear

This bit is set software to clear the HSIRDYF flag.

0: No effect

1: HSIRDYF cleared

Bit 17 LSERDYC : LSE ready interrupt clear

This bit is set by software to clear the LSERDYF flag.

0: No effect

1: LSERDYF cleared

Bit 16 LSIRDYC : LSI ready interrupt clear

This bit is set by software to clear the LSIRDYF flag.

0: No effect

1: LSIRDYF cleared

Bit 15 Reserved, must be kept at reset value.

Bit 14 PLLSAIRDYIE : PLLSAI Ready Interrupt Enable

This bit is set and reset by software to enable/disable interrupt caused by PLLSAI lock.

0: PLLSAI lock interrupt disabled

1: PLLSAI lock interrupt enabled

Bit 13 PLLI2SRDYIE : PLLI2S ready interrupt enable

This bit is set and cleared by software to enable/disable interrupt caused by PLLI2S lock.

0: PLLI2S lock interrupt disabled

1: PLLI2S lock interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by PLL lock.

0: PLL lock interrupt disabled

1: PLL lock interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by the HSE oscillator stabilization.

0: HSE ready interrupt disabled

1: HSE ready interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by the HSI oscillator stabilization.

0: HSI ready interrupt disabled

1: HSI ready interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by the LSE oscillator stabilization.

0: LSE ready interrupt disabled

1: LSE ready interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by LSI oscillator stabilization.

0: LSI ready interrupt disabled

1: LSI ready interrupt enabled

This bit is set by hardware when a failure is detected in the HSE oscillator.

It is cleared by software by setting the CSSC bit.

0: No clock security interrupt caused by HSE clock failure

1: Clock security interrupt caused by HSE clock failure

This bit is set by hardware when the PLLSAI is locked and PLLSAIRDYIE is set.

It is cleared by software by setting the PLLSAIRDYC bit.

0: No clock ready interrupt caused by PLLSAI lock

1: Clock ready interrupt caused by PLLSAI lock

This bit is set by hardware when the PLLI2S is locked and PLLI2SRDYIE is set.

It is cleared by software by setting the PLLRI2SDYC bit.

0: No clock ready interrupt caused by PLLI2S lock

1: Clock ready interrupt caused by PLLI2S lock

This bit is set by hardware when PLL is locked and PLLRDYIE is set.

It is cleared by software setting the PLLRDYC bit.

0: No clock ready interrupt caused by PLL lock

1: Clock ready interrupt caused by PLL lock

Bit 3 HSERDYF : HSE ready interrupt flag

This bit is set by hardware when External High Speed clock becomes stable and HSERDYIE is set.

It is cleared by software by setting the HSERDYC bit.

0: No clock ready interrupt caused by the HSE oscillator

1: Clock ready interrupt caused by the HSE oscillator

Bit 2 HSIRDYF : HSI ready interrupt flag

This bit is set by hardware when the Internal High Speed clock becomes stable and HSIRDYIE is set.

It is cleared by software by setting the HSIRDYC bit.

0: No clock ready interrupt caused by the HSI oscillator

1: Clock ready interrupt caused by the HSI oscillator

Bit 1 LSERDYF : LSE ready interrupt flag

This bit is set by hardware when the External low-speed clock becomes stable and LSERDYIE is set.

It is cleared by software by setting the LSERDYC bit.

0: No clock ready interrupt caused by the LSE oscillator

1: Clock ready interrupt caused by the LSE oscillator

Bit 0 LSIRDYF : LSI ready interrupt flag

This bit is set by hardware when the internal low-speed clock becomes stable and LSIRDYIE is set.

It is cleared by software by setting the LSIRDYC bit.

0: No clock ready interrupt caused by the LSI oscillator

1: Clock ready interrupt caused by the LSI oscillator

5.3.5 RCC AHB1 peripheral reset register (RCC_AHB1RSTR)

Address offset: 0x10

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:30 Reserved, must be kept at reset value.

Bit 29 OTGHSRST : USB OTG HS module reset

This bit is set and cleared by software.

0: does not reset the USB OTG HS module

1: resets the USB OTG HS module

Bits 28:26 Reserved, must be kept at reset value.

Bit 25 Reserved, must be kept at reset value.

Bit 24 Reserved, must be kept at reset value.

Bit 23 Reserved, must be kept at reset value.

Bit 22 DMA2RST : DMA2 reset

This bit is set and cleared by software.

0: does not reset DMA2

1: resets DMA2

Bit 21 DMA1RST : DMA2 reset

This bit is set and cleared by software.

0: does not reset DMA2

1: resets DMA2

Bits 20:13 Reserved, must be kept at reset value.

Bit 12 CRCCRST : CRC reset

This bit is set and cleared by software.

0: does not reset CRC

1: resets CRC

Bits 11:9 Reserved, must be kept at reset value.

Bit 8 GPIOIRST : IO port I reset

This bit is set and cleared by software.

0: does not reset IO port I

1: resets IO port I

Bit 7 GPIOHRST : IO port H reset

This bit is set and cleared by software.

0: does not reset IO port H

1: resets IO port H

Bit 6 GPIOGRST : IO port G reset

This bit is set and cleared by software.

0: does not reset IO port G

1: resets IO port G

Bit 5 GPIOFRST : IO port F reset

This bit is set and cleared by software.

0: does not reset IO port F

1: resets IO port F

Bit 4 GPIOERST : IO port E reset

This bit is set and cleared by software.

0: does not reset IO port E

1: resets IO port E

Bit 3 GPIODRST : IO port D reset

This bit is set and cleared by software.

0: does not reset IO port D

1: resets IO port D

Bit 2 GPIOCRST : IO port C reset

This bit is set and cleared by software.

0: does not reset IO port C

1: resets IO port C

Bit 1 GPIOBRST : IO port B reset

This bit is set and cleared by software.

0: does not reset IO port B

1: resets IO port B

Bit 0 GPIOARST : IO port A reset

This bit is set and cleared by software.

0: does not reset IO port A

1: resets IO port A

5.3.6 RCC AHB2 peripheral reset register (RCC_AHB2RSTR)

Address offset: 0x14

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access

Bits 31:8 Reserved, must be kept at reset value.

Bit 7 OTGFSRST : USB OTG FS module reset

Set and cleared by software.

0: does not reset the USB OTG FS module

1: resets the USB OTG FS module

Bit 6 RNGRST : Random number generator module reset

Set and cleared by software.

0: does not reset the random number generator module

1: resets the random number generator module

Bit 5 Reserved, must be kept at reset value.

Bit 4 AESRST : AES module reset

Set and cleared by software.

0: does not reset the AES module

1: resets the AES module

Bits 3:1 Reserved, must be kept at reset value.

Bit 0 Reserved, must be kept at reset value.

5.3.7 RCC AHB3 peripheral reset register (RCC_AHB3RSTR)

Address offset: 0x18

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 QSPIRST : Quad SPI memory controller reset
Set and cleared by software.
0: does not reset the QUADSPI memory controller
1: resets the QUADSPI memory controller

Bit 0 FMCRST : Flexible memory controller module reset
Set and cleared by software.
0: does not reset the FMC module
1: resets the FMC module

5.3.8 RCC APB1 peripheral reset register (RCC_APB1RSTR)

Address offset: 0x20

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

1. Bit 31 UART8RST : UART8 reset
   Set and cleared by software.
   0: does not reset UART8
   1: resets UART8
2. Bit 30 UART7RST : UART7 reset
   Set and cleared by software.
   0: does not reset UART7
   1: resets UART7
3. Bit 29 DACRST : DAC reset
   Set and cleared by software.
   0: does not reset the DAC interface
   1: resets the DAC interface
4. Bit 28 PWRRST : Power interface reset
   Set and cleared by software.
   0: does not reset the power interface
   1: resets the power interface
5. Bits 27:26 Reserved, must be kept at reset value.
6. Bit 25 CAN1RST : CAN1 reset
   Set and cleared by software.
   0: does not reset CAN1
   1: resets CAN1
7. Bit 24 Reserved, must be kept at reset value.
8. Bit 23 I2C3RST : I2C3 reset
   Set and cleared by software.
   0: does not reset I2C3
   1: resets I2C3
9. Bit 22 I2C2RST : I2C2 reset
   Set and cleared by software.
   0: does not reset I2C2
   1: resets I2C2
10. Bit 21 I2C1RST : I2C1 reset
    Set and cleared by software.
    0: does not reset I2C1
    1: resets I2C1
11. Bit 20 UART5RST : UART5 reset
    Set and cleared by software.
    0: does not reset UART5
    1: resets UART5
12. Bit 19 UART4RST : USART4 reset
    Set and cleared by software.
    0: does not reset USART4
    1: resets USART4
13. Bit 18 USART3RST : USART3 reset
    Set and cleared by software.
    0: does not reset USART3
    1: resets USART3

Bit 17 USART2RST : USART2 reset

Set and cleared by software.

0: does not reset USART2

1: resets USART2

Bit 16 Reserved, must be kept at reset value.

Bit 15 SPI3RST : SPI3 reset

Set and cleared by software.

0: does not reset SPI3

1: resets SPI3

Bit 14 SPI2RST : SPI2 reset

Set and cleared by software.

0: does not reset SPI2

1: resets SPI2

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDGRST : Window watchdog reset

Set and cleared by software.

0: does not reset the window watchdog

1: resets the window watchdog

Bit 10 Reserved, must be kept at reset value.

Bit 9 LPTIM1RST : Low-power timer 1 reset

Set and cleared by software.

0: does not reset LPTIM1

1: resets LPTIM1

Bit 8 TIM14RST : TIM14 reset

Set and cleared by software.

0: does not reset TIM14

1: resets TIM14

Bit 7 TIM13RST : TIM13 reset

Set and cleared by software.

0: does not reset TIM13

1: resets TIM13

Bit 6 TIM12RST : TIM12 reset

Set and cleared by software.

0: does not reset TIM12

1: resets TIM12

Bit 5 TIM7RST : TIM7 reset

Set and cleared by software.

0: does not reset TIM7

1: resets TIM7

Bit 4 TIM6RST : TIM6 reset

Set and cleared by software.

0: does not reset TIM6

1: resets TIM6

1. Bit 3 TIM5RST : TIM5 reset
   Set and cleared by software.
   0: does not reset TIM5
   1: resets TIM5
2. Bit 2 TIM4RST : TIM4 reset
   Set and cleared by software.
   0: does not reset TIM4
   1: resets TIM4
3. Bit 1 TIM3RST : TIM3 reset
   Set and cleared by software.
   0: does not reset TIM3
   1: resets TIM3
4. Bit 0 TIM2RST : TIM2 reset
   Set and cleared by software.
   0: does not reset TIM2
   1: resets TIM2

5.3.9 RCC APB2 peripheral reset register (RCC_APB2RSTR)

Address offset: 0x24

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

1. Available on the STM32F7x3xx and STM32F730xx devices only.

Bit 31 OTGPHYCRST : USB OTG HS PHY controller reset

This bit is set and cleared by software.

0: does not reset USBPHYC

1: resets USBPHYC

Bits 30:24 Reserved, must be kept at reset value.

Bit 23 SAI2RST : SAI2 reset

This bit is set and cleared by software.

0: does not reset SAI2

1: resets SAI2

Bit 22 SAI1RST : SAI1 reset

This bit is set and reset by software.

0: does not reset SAI1

1: resets SAI1

Bit 21 Reserved, must be kept at reset value.

Bit 20 SPI5RST : SPI5 reset

This bit is set and cleared by software.

0: does not reset SPI5

1: resets SPI5

Bit 19 Reserved, must be kept at reset value.

Bit 18 TIM11RST : TIM11 reset

This bit is set and cleared by software.

0: does not reset TIM11

1: resets TIM14

Bit 17 TIM10RST : TIM10 reset

This bit is set and cleared by software.

0: does not reset TIM10

1: resets TIM10

Bit 16 TIM9RST : TIM9 reset

This bit is set and cleared by software.

0: does not reset TIM9

1: resets TIM9

Bit 15 Reserved, must be kept at reset value.

Bit 14 SYSCFGIRST : System configuration controller reset

This bit is set and cleared by software.

0: does not reset the System configuration controller

1: resets the System configuration controller

Bit 13 SPI4RST : SPI4 reset

This bit is set and cleared by software.

0: does not reset SPI4

1: resets SPI4

Bit 12 SPI1RST : SPI1 reset

This bit is set and cleared by software.

0: does not reset SPI1

1: resets SPI1

Bit 11 SDMMC1RST : SDMMC1 reset

This bit is set and cleared by software.

0: does not reset the SDMMC1 module

1: resets the SDMMC1 module

Bits 10:9 Reserved, must be kept at reset value.

Bit 8 ADCRST : ADC interface reset (common to all ADCs)

This bit is set and cleared by software.

0: does not reset the ADC interface

1: resets the ADC interface

Bit 7 SDMMC2RST : SDMMC2 reset

This bit is set and cleared by software.

0: does not reset SDMMC2

1: resets SDMMC2

Bit 6 Reserved, must be kept at reset value.

Bit 5 USART6RST : USART6 reset

This bit is set and cleared by software.

0: does not reset USART6

1: resets USART6

Bit 4 USART1RST : USART1 reset

This bit is set and cleared by software.

0: does not reset USART1

1: resets USART1

Bits 3:2 Reserved, must be kept at reset value.

Bit 1 TIM8RST : TIM8 reset

This bit is set and cleared by software.

0: does not reset TIM8

1: resets TIM8

Bit 0 TIM1RST : TIM1 reset

This bit is set and cleared by software.

0: does not reset TIM1

1: resets TIM1

5.3.10 RCC AHB1 peripheral clock register (RCC_AHB1ENR)

Address offset: 0x30

Reset value: 0x0010 0000

Access: no wait state, word, half-word and byte access.

Bit 31 Reserved, must be kept at reset value.

Bit 30 OTGH SULPIEN : USB OTG HSULPI clock enable

This bit is set and cleared by software.

0: USB OTG HS ULPI clock disabled

1: USB OTG HS ULPI clock enabled

Bit 29 OTGHSEN : USB OTG HS clock enable

This bit is set and cleared by software.

0: USB OTG HS clock disabled

1: USB OTG HS clock enabled

Bits 28:23 Reserved, must be kept at reset value.

Bit 22 DMA2EN : DMA2 clock enable

This bit is set and cleared by software.

0: DMA2 clock disabled

1: DMA2 clock enabled

Bit 21 DMA1EN : DMA1 clock enable

This bit is set and cleared by software.

0: DMA1 clock disabled

1: DMA1 clock enabled

Bit 20 DTCMRAMEN : DTCM data RAM clock enable

This bit is set and cleared by software.

0: DTCM RAM clock disabled

1: DTCM RAM clock enabled

Bit 19 Reserved, must be kept at reset value.

Bit 18 BKPSRAMEN : Backup SRAM interface clock enable

This bit is set and cleared by software.

0: Backup SRAM interface clock disabled

1: Backup SRAM interface clock enabled

Bits 17:13 Reserved, must be kept at reset value.

Bit 12 RCRCEN : CRC clock enable

This bit is set and cleared by software.

0: CRC clock disabled

1: CRC clock enabled

Bits 11:9 Reserved, must be kept at reset value.

Bit 8 GPIOIEN : IO port I clock enable

• This bit is set and cleared by software.
• 0: IO port I clock disabled
• 1: IO port I clock enabled

Bit 7 GPIOHEN : IO port H clock enable

• This bit is set and cleared by software.
• 0: IO port H clock disabled
• 1: IO port H clock enabled

Bit 6 GPIOGEN : IO port G clock enable

• This bit is set and cleared by software.
• 0: IO port G clock disabled
• 1: IO port G clock enabled

Bit 5 GPIOFEN : IO port F clock enable

• This bit is set and cleared by software.
• 0: IO port F clock disabled
• 1: IO port F clock enabled

Bit 4 GPIOEEN : IO port E clock enable

• This bit is set and cleared by software.
• 0: IO port E clock disabled
• 1: IO port E clock enabled

Bit 3 GPIODEN : IO port D clock enable

• This bit is set and cleared by software.
• 0: IO port D clock disabled
• 1: IO port D clock enabled

Bit 2 GPIOCEN : IO port C clock enable

• This bit is set and cleared by software.
• 0: IO port C clock disabled
• 1: IO port C clock enabled

Bit 1 GPIOBEN : IO port B clock enable

• This bit is set and cleared by software.
• 0: IO port B clock disabled
• 1: IO port B clock enabled

Bit 0 GPIOAEN : IO port A clock enable

• This bit is set and cleared by software.
• 0: IO port A clock disabled
• 1: IO port A clock enabled

5.3.11 RCC AHB2 peripheral clock enable register (RCC_AHB2ENR)

Address offset: 0x34

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:8 Reserved, must be kept at reset value.

Bit 7 OTGFSEN : USB OTG FS clock enable

This bit is set and cleared by software.

0: USB OTG FS clock disabled

1: USB OTG FS clock enabled

Bit 6 RNGEN : Random number generator clock enable

This bit is set and cleared by software.

0: Random number generator clock disabled

1: Random number generator clock enabled

Bit 5 Reserved, must be kept at reset value.

Bit 4 AESEN : AES module clock enable

This bit is set and cleared by software.

0: AES module clock disabled

1: AES module clock enabled

Bits 3:0 Reserved, must be kept at reset value.

5.3.12 RCC AHB3 peripheral clock enable register (RCC_AHB3ENR)

Address offset: 0x38

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 QSPIEN : Quad SPI memory controller clock enable

This bit is set and cleared by software.

0: QUASPI controller clock disabled

1: QUASPI controller clock enabled

Bit 0 FMCPEN : Flexible memory controller clock enable

This bit is set and cleared by software.

0: FMC clock disabled

1: FMC clock enabled

5.3.13 RCC APB1 peripheral clock enable register (RCC_APB1ENR)

Address offset: 0x40

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bit 31 UART8EN : UART8 clock enable

This bit is set and cleared by software.

0: UART8 clock disabled

1: UART8 clock enabled

Bit 30 UART7EN : UART7 clock enable

This bit is set and cleared by software.

0: UART7 clock disabled

1: UART7 clock enabled

Bit 29 DACEN : DAC interface clock enable

This bit is set and cleared by software.

0: DAC interface clock disabled

1: DAC interface clock enable

Bit 28 PWREN : Power interface clock enable

This bit is set and cleared by software.

0: Power interface clock disabled

1: Power interface clock enable

Bits 27:26 Reserved, must be kept at reset value.

Bit 25 CAN1EN : CAN 1 clock enable

This bit is set and cleared by software.

0: CAN 1 clock disabled

1: CAN 1 clock enabled

Bit 24 Reserved, must be kept at reset value.

Bit 23 I2C3EN : I2C3 clock enable

This bit is set and cleared by software.

0: I2C3 clock disabled

1: I2C3 clock enabled

Bit 22 I2C2EN : I2C2 clock enable

This bit is set and cleared by software.

0: I2C2 clock disabled

1: I2C2 clock enabled

Bit 21 I2C1EN : I2C1 clock enable

This bit is set and cleared by software.

0: I2C1 clock disabled

1: I2C1 clock enabled

Bit 20 UART5EN : UART5 clock enable

This bit is set and cleared by software.

0: UART5 clock disabled

1: UART5 clock enabled

Bit 19 UART4EN : UART4 clock enable

This bit is set and cleared by software.

0: UART4 clock disabled

1: UART4 clock enabled

Bit 18 USART3EN : USART3 clock enable

This bit is set and cleared by software.

0: USART3 clock disabled

1: USART3 clock enabled

Bit 17 USART2EN : USART2 clock enable

This bit is set and cleared by software.

0: USART2 clock disabled

1: USART2 clock enabled

Bit 16 Reserved, must be kept at reset value.

Bit 15 SPI3EN : SPI3 clock enable

This bit is set and cleared by software.

0: SPI3 clock disabled

1: SPI3 clock enabled

Bit 14 SPI2EN : SPI2 clock enable

This bit is set and cleared by software.

0: SPI2 clock disabled

1: SPI2 clock enabled

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDGEN : Window watchdog clock enable

This bit is set by software to enable the window watchdog clock. It is reset by hardware system reset. This bit can also be set by hardware if the WWDG_SW option bit is reset.

0: Window watchdog clock disabled

1: Window watchdog clock enabled

Bit 10 RTCAPBEN : RTCAPB clock enable

This bit is set and cleared by software.

0: RTCAPB clock disabled

1: RTCAPB clock enabled

Bit 9 LPTIM1EN : Low-power timer 1 clock enable

This bit is set and cleared by software.

0: LPTIM1 clock disabled

1: LPTIM1 clock enabled

Bit 8 TIM14EN : TIM14 clock enable

This bit is set and cleared by software.

0: TIM14 clock disabled

1: TIM14 clock enabled

Bit 7 TIM13EN : TIM13 clock enable

This bit is set and cleared by software.

0: TIM13 clock disabled

1: TIM13 clock enabled

Bit 6 TIM12EN : TIM12 clock enable

This bit is set and cleared by software.

0: TIM12 clock disabled

1: TIM12 clock enabled

Bit 5 TIM7EN : TIM7 clock enable

This bit is set and cleared by software.

0: TIM7 clock disabled

1: TIM7 clock enabled

Bit 4 TIM6EN : TIM6 clock enable

This bit is set and cleared by software.

0: TIM6 clock disabled

1: TIM6 clock enabled

Bit 3 TIM5EN : TIM5 clock enable

This bit is set and cleared by software.

0: TIM5 clock disabled

1: TIM5 clock enabled

Bit 2 TIM4EN : TIM4 clock enable

This bit is set and cleared by software.

0: TIM4 clock disabled

1: TIM4 clock enabled

Bit 1 TIM3EN : TIM3 clock enable

This bit is set and cleared by software.

0: TIM3 clock disabled

1: TIM3 clock enabled

Bit 0 TIM2EN : TIM2 clock enable

This bit is set and cleared by software.

0: TIM2 clock disabled

1: TIM2 clock enabled

5.3.14 RCC APB2 peripheral clock enable register (RCC_APB2ENR)

Address offset: 0x44

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

1. Available on the STM32F7x3xx and STM32F730xx devices only.

Bit 31 OTGPHYCEN : USB OTG HS PHY controller clock enable

This bit is set and cleared by software.

0: USBPHYC clock disabled

1: USBPHYC clock enabled

Bits 30 24 Reserved, must be kept at reset value.

Bit 23 SAI2EN : SAI2 clock enable

This bit is set and cleared by software.

0: SAI2 clock disabled

1: SAI2 clock enabled

Bit 22 SAI1EN : SAI1 clock enable

This bit is set and cleared by software.

0: SAI1 clock disabled

1: SAI1 clock enabled

Bit 21 Reserved, must be kept at reset value.

Bit 20 SPI5EN : SPI5 clock enable

This bit is set and cleared by software.

0: SPI5 clock disabled

1: SPI5 clock enabled

Bit 18 TIM11EN : TIM11 clock enable

This bit is set and cleared by software.

0: TIM11 clock disabled

1: TIM11 clock enabled

Bit 17 TIM10EN : TIM10 clock enable

This bit is set and cleared by software.

0: TIM10 clock disabled

1: TIM10 clock enabled

Bit 16 TIM9EN : TIM9 clock enable

This bit is set and cleared by software.

0: TIM9 clock disabled

1: TIM9 clock enabled

Bit 15 Reserved, must be kept at reset value.

Bit 14 SYSCFGEN : System configuration controller clock enable

This bit is set and cleared by software.

0: System configuration controller clock disabled

1: System configuration controller clock enabled

Bit 13 SPI4EN : SPI4 clock enable

This bit is set and cleared by software.

0: SPI4 clock disabled

1: SPI4 clock enabled

Bit 12 SPI1EN : SPI1 clock enable

This bit is set and cleared by software.

0: SPI1 clock disabled

1: SPI1 clock enabled

Bit 11 SDMMC1EN : SDMMC1 clock enable

This bit is set and cleared by software.

0: SDMMC1 module clock disabled

1: SDMMC1 module clock enabled

Bit 10 ADC3EN : ADC3 clock enable

This bit is set and cleared by software.

0: ADC3 clock disabled

1: ADC3 clock enabled

Bit 9 ADC2EN : ADC2 clock enable

This bit is set and cleared by software.

0: ADC2 clock disabled

1: ADC2 clock enabled

Bit 8 ADC1EN : ADC1 clock enable

This bit is set and cleared by software.

0: ADC1 clock disabled

1: ADC1 clock enabled

Bit 7 SDMMC2EN : SDMMC2 clock enable

This bit is set and cleared by software.

0: SDMMC2 clock disabled

1: SDMMC2 clock disabled

Bit 6 Reserved, must be kept at reset value.

Bit 5 USART6EN : USART6 clock enable

This bit is set and cleared by software.

0: USART6 clock disabled

1: USART6 clock enabled

Bit 4 USART1EN : USART1 clock enable

This bit is set and cleared by software.

0: USART1 clock disabled

1: USART1 clock enabled

Bits 3:2 Reserved, must be kept at reset value.

Bit 1 TIM8EN : TIM8 clock enable

This bit is set and cleared by software.

0: TIM8 clock disabled

1: TIM8 clock enabled

Bit 0 TIM1EN : TIM1 clock enable

This bit is set and cleared by software.

0: TIM1 clock disabled

1: TIM1 clock enabled

5.3.15 RCC AHB1 peripheral clock enable in low-power mode register (RCC_AHB1LPENR)

Address offset: 0x50

Reset value: 0x7EF7 B7FFh

Access: no wait state, word, half-word and byte access.

1. Available on the STM32F7x2xx devices only.

Bit 31 Reserved, must be kept at reset value.

Bit 30 OTGHSLPILPEN : USB OTG HS ULPI clock enable during Sleep mode

This bit is set and cleared by software.

0: USB OTG HS ULPI clock disabled during Sleep mode

1: USB OTG HS ULPI clock enabled during Sleep mode

Bit 29 OTGHSLPEN : USB OTG HS clock enable during Sleep mode

This bit is set and cleared by software.

0: USB OTG HS clock disabled during Sleep mode

1: USB OTG HS clock enabled during Sleep mode

Bits 28:23 Reserved, must be kept at reset value.

Bit 22 DMA2LPEN : DMA2 clock enable during Sleep mode

This bit is set and cleared by software.

0: DMA2 clock disabled during Sleep mode

1: DMA2 clock enabled during Sleep mode

Bit 21 DMA1LPEN : DMA1 clock enable during Sleep mode

This bit is set and cleared by software.

0: DMA1 clock disabled during Sleep mode

1: DMA1 clock enabled during Sleep mode

Bit 20 DTCMLPEN : DTCM RAM interface clock enable during Sleep mode

This bit is set and cleared by software.

0: DTCM RAM interface clock disabled during Sleep mode

1: DTCM RAM interface clock enabled during Sleep mode

Bit 19 Reserved, must be kept at reset value.

Bit 18 BKPSRAMLPEN : Backup SRAM interface clock enable during Sleep mode

This bit is set and cleared by software.

0: Backup SRAM interface clock disabled during Sleep mode

1: Backup SRAM interface clock enabled during Sleep mode

Bit 17 SRAM2LPEN : SRAM2 interface clock enable during Sleep mode

This bit is set and cleared by software.

0: SRAM2 interface clock disabled during Sleep mode

1: SRAM2 interface clock enabled during Sleep mode

Bit 16 SRAM1LPEN : SRAM1 interface clock enable during Sleep mode

This bit is set and cleared by software.

0: SRAM1 interface clock disabled during Sleep mode

1: SRAM1 interface clock enabled during Sleep mode

Bit 15 FLITFLPEN : Flash interface clock enable during Sleep mode

This bit is set and cleared by software.

0: Flash interface clock disabled during Sleep mode

1: Flash interface clock enabled during Sleep mode

Bit 14 Reserved, must be kept at reset value.

Bit 13 AXILPEN : AXI to AHB bridge clock enable during Sleep mode

This bit is set and cleared by software.

0: AXI to AHB bridge clock disabled during Sleep mode

1: AXI to AHB bridge clock enabled during Sleep mode

Bit 12 CRCLPEN : CRC clock enable during Sleep mode

This bit is set and cleared by software.

0: CRC clock disabled during Sleep mode

1: CRC clock enabled during Sleep mode

Bits 11:9 Reserved, must be kept at reset value.

Bit 8 GPIOILPEN : IO port I clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port I clock disabled during Sleep mode

1: IO port I clock enabled during Sleep mode

Bit 7 GPIOHLPEN : IO port H clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port H clock disabled during Sleep mode

1: IO port H clock enabled during Sleep mode

Bits 6 GPIOGLPEN : IO port G clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port G clock disabled during Sleep mode

1: IO port G clock enabled during Sleep mode

Bit 5 GPIOFLPEN : IO port F clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port F clock disabled during Sleep mode

1: IO port F clock enabled during Sleep mode

Bit 4 GPIOELPEN : IO port E clock enable during Sleep mode

Set and cleared by software.

0: IO port E clock disabled during Sleep mode

1: IO port E clock enabled during Sleep mode

Bit 3 GIODLPEN : IO port D clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port D clock disabled during Sleep mode

1: IO port D clock enabled during Sleep mode

Bit 2 GPIOCLPEN : IO port C clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port C clock disabled during Sleep mode

1: IO port C clock enabled during Sleep mode

Bit 1 GPIOBLPEN : IO port B clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port B clock disabled during Sleep mode

1: IO port B clock enabled during Sleep mode

Bit 0 GPIOALPEN : IO port A clock enable during sleep mode

This bit is set and cleared by software.

0: IO port A clock disabled during Sleep mode

1: IO port A clock enabled during Sleep mode

5.3.16 RCC AHB2 peripheral clock enable in low-power mode register (RCC_AHB2LPENR)

Address offset: 0x54

Reset value: 0x0000 00F1

Access: no wait state, word, half-word and byte access.

Bits 31:8 Reserved, must be kept at reset value.

Bit 7 OTGFSLPEN : USB OTG FS clock enable during Sleep mode

This bit is set and cleared by software.

0: USB OTG FS clock disabled during Sleep mode

1: USB OTG FS clock enabled during Sleep mode

Bit 6 RNGLPEN : Random number generator clock enable during Sleep mode

This bit is set and cleared by software.

0: Random number generator clock disabled during Sleep mode

1: Random number generator clock enabled during Sleep mode

Bit 5 Reserved, must be kept at reset value.

Bit 4 AESLPEN : AES module clock enable during Sleep mode

This bit is set and cleared by software.

0: AES modules clock disabled during Sleep mode

1: AES modules clock enabled during Sleep mode

Bits 3:0 Reserved, must be kept at reset value.

5.3.17 RCC AHB3 peripheral clock enable in low-power mode register (RCC_AHB3LPENR)

Address offset: 0x58

Reset value: 0x0000 0003

Access: no wait state, word, half-word and byte access.

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 QSPILPEN : QUADSPI memory controller clock enable during Sleep mode
This bit is set and cleared by software.
0: QUADSPI controller clock disabled during Sleep mode
1: QUADSPI controller clock enabled during Sleep mode

Bit 0 FMCLPEN : Flexible memory controller module clock enable during Sleep mode
This bit is set and cleared by software.
0: FMC module clock disabled during Sleep mode
1: FMC module clock enabled during Sleep mode

5.3.18 RCC APB1 peripheral clock enable in low-power mode register (RCC_APB1LPENR)

Address offset: 0x60

Reset value: 0xFFFF CBFFh

Access: no wait state, word, half-word and byte access.

Bit 31 UART8LPEN : UART8 clock enable during Sleep mode

This bit is set and cleared by software.

0: UART8 clock disabled during Sleep mode

1: UART8 clock enabled during Sleep mode

Bit 30 UART7LPEN : UART7 clock enable during Sleep mode

This bit is set and cleared by software.

0: UART7 clock disabled during Sleep mode

1: UART7 clock enabled during Sleep mode

Bit 29 DACLPEN : DAC interface clock enable during Sleep mode

This bit is set and cleared by software.

0: DAC interface clock disabled during Sleep mode

1: DAC interface clock enabled during Sleep mode

Bit 28 PWRLPEN : Power interface clock enable during Sleep mode

This bit is set and cleared by software.

0: Power interface clock disabled during Sleep mode

1: Power interface clock enabled during Sleep mode

Bits 27:26 Reserved, must be kept at reset value.

Bit 25 CAN1LPEN : CAN 1 clock enable during Sleep mode

This bit is set and cleared by software.

0: CAN 1 clock disabled during Sleep mode

1: CAN 1 clock enabled during Sleep mode

Bit 24 Reserved, must be kept at reset value.

Bit 23 I2C3LPEN : I2C3 clock enable during Sleep mode

This bit is set and cleared by software.

0: I2C3 clock disabled during Sleep mode

1: I2C3 clock enabled during Sleep mode

Bit 22 I2C2LPEN : I2C2 clock enable during Sleep mode

This bit is set and cleared by software.

0: I2C2 clock disabled during Sleep mode

1: I2C2 clock enabled during Sleep mode

Bit 21 I2C1LPEN : I2C1 clock enable during Sleep mode

This bit is set and cleared by software.

0: I2C1 clock disabled during Sleep mode

1: I2C1 clock enabled during Sleep mode

Bit 20 UART5LPEN : UART5 clock enable during Sleep mode

This bit is set and cleared by software.

0: UART5 clock disabled during Sleep mode

1: UART5 clock enabled during Sleep mode

Bit 19 UART4LPEN : UART4 clock enable during Sleep mode

This bit is set and cleared by software.

0: UART4 clock disabled during Sleep mode

1: UART4 clock enabled during Sleep mode

Bit 18 USART3LPEN : USART3 clock enable during Sleep mode

This bit is set and cleared by software.

0: USART3 clock disabled during Sleep mode

1: USART3 clock enabled during Sleep mode

Bit 17 USART2LPEN : USART2 clock enable during Sleep mode

This bit is set and cleared by software.

0: USART2 clock disabled during Sleep mode

1: USART2 clock enabled during Sleep mode

Bit 16 Reserved, must be kept at reset value.

Bit 15 SPI3LPEN : SPI3 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI3 clock disabled during Sleep mode

1: SPI3 clock enabled during Sleep mode

Bit 14 SPI2LPEN : SPI2 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI2 clock disabled during Sleep mode

1: SPI2 clock enabled during Sleep mode

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDG LPEN : Window watchdog clock enable during Sleep mode

This bit is set and cleared by software.

0: Window watchdog clock disabled during Sleep mode

1: Window watchdog clock enabled during Sleep mode

Bit 10 RTCAPBLPEN : RTCAPB clock enable during Sleep mode

This bit is set and cleared by software.

0: RTCAPB clock disabled during Sleep mode

1: RTCAPB clock enabled during Sleep mode

Bit 9 LPTIM1LPEN : low-power timer 1 clock enable during Sleep mode

This bit is set and cleared by software.

0: LPTIM1 clock disabled during Sleep mode

1: LPTIM1 clock enabled during Sleep mode

Bit 8 TIM14LPEN : TIM14 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM14 clock disabled during Sleep mode

1: TIM14 clock enabled during Sleep mode

Bit 7 TIM13LPEN : TIM13 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM13 clock disabled during Sleep mode

1: TIM13 clock enabled during Sleep mode

Bit 6 TIM12LPEN : TIM12 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM12 clock disabled during Sleep mode

1: TIM12 clock enabled during Sleep mode

Bit 5 TIM7LPEN : TIM7 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM7 clock disabled during Sleep mode

1: TIM7 clock enabled during Sleep mode

Bit 4 TIM6LPEN : TIM6 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM6 clock disabled during Sleep mode

1: TIM6 clock enabled during Sleep mode

Bit 3 TIM5LPEN : TIM5 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM5 clock disabled during Sleep mode

1: TIM5 clock enabled during Sleep mode

Bit 2 TIM4LPEN : TIM4 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM4 clock disabled during Sleep mode

1: TIM4 clock enabled during Sleep mode

Bit 1 TIM3LPEN : TIM3 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM3 clock disabled during Sleep mode

1: TIM3 clock enabled during Sleep mode

Bit 0 TIM2LPEN : TIM2 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM2 clock disabled during Sleep mode

1: TIM2 clock enabled during Sleep mode

5.3.19 RCC APB2 peripheral clock enabled in low-power mode register (RCC_APB2LPENR)

Address offset: 0x64

Reset value: 0x04F7 7F33h

Access: no wait state, word, half-word and byte access.

Bits 31:24 Reserved, must be kept at reset value.

Bit 23 SAI2LPEN : SAI2 clock enable during Sleep mode

This bit is set and cleared by software.

0: SAI2 clock disabled during Sleep mode

1: SAI2 clock enabled during Sleep mode

Bit 22 SAI1LPEN : SAI1 clock enable during Sleep mode

This bit is set and cleared by software.

0: SAI1 clock disabled during Sleep mode

1: SAI1 clock enabled during Sleep mode

Bit 21 Reserved, must be kept at reset value.

Bit 20 SPI5LPEN : SPI5 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI5 clock disabled during Sleep mode

1: SPI5 clock enabled during Sleep mode

Bit 19 Reserved, must be kept at reset value.

Bit 18 TIM11LPEN : TIM11 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM11 clock disabled during Sleep mode

1: TIM11 clock enabled during Sleep mode

Bit 17 TIM10LPEN : TIM10 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM10 clock disabled during Sleep mode

1: TIM10 clock enabled during Sleep mode

Bit 16 TIM9LPEN : TIM9 clock enable during sleep mode

This bit is set and cleared by software.

0: TIM9 clock disabled during Sleep mode

1: TIM9 clock enabled during Sleep mode

Bit 15 Reserved, must be kept at reset value.

Bit 14 SYSCFGLPEN : System configuration controller clock enable during Sleep mode

This bit is set and cleared by software.

0: System configuration controller clock disabled during Sleep mode

1: System configuration controller clock enabled during Sleep mode

Bit 13 SPI4LPEN : SPI4 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI4 clock disabled during Sleep mode

1: SPI4 clock enabled during Sleep mode

Bit 12 SPI1LPEN : SPI1 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI1 clock disabled during Sleep mode

1: SPI1 clock enabled during Sleep mode

Bit 11 SDMMC1LPEN : SDMMC1 clock enable during Sleep mode

This bit is set and cleared by software.

0: SDMMC1 module clock disabled during Sleep mode

1: SDMMC1 module clock enabled during Sleep mode

Bit 10 ADC3LPEN : ADC 3 clock enable during Sleep mode

This bit is set and cleared by software.

0: ADC 3 clock disabled during Sleep mode

1: ADC 3 clock enabled during Sleep mode

Bit 9 ADC2LPEN : ADC2 clock enable during Sleep mode

This bit is set and cleared by software.

0: ADC2 clock disabled during Sleep mode

1: ADC2 clock enabled during Sleep mode

Bit 8 ADC1LPEN : ADC1 clock enable during Sleep mode

This bit is set and cleared by software.

0: ADC1 clock disabled during Sleep mode

1: ADC1 clock enabled during Sleep mode

Bit 7 SDMMC2LPEN : SDMMC2 clock enable during Sleep mode

This bit is set and cleared by software.

0: SDMMC2 module clock disabled during Sleep mode

1: SDMMC2 module clock enabled during Sleep mode

Bit 6 Reserved, must be kept at reset value.

Bit 5 USART6LPEN : USART6 clock enable during Sleep mode

This bit is set and cleared by software.

0: USART6 clock disabled during Sleep mode

1: USART6 clock enabled during Sleep mode

Bit 4 USART1LPEN : USART1 clock enable during Sleep mode

This bit is set and cleared by software.

0: USART1 clock disabled during Sleep mode

1: USART1 clock enabled during Sleep mode

Bits 3:2 Reserved, must be kept at reset value.

Bit 1 TIM8LPEN : TIM8 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM8 clock disabled during Sleep mode

1: TIM8 clock enabled during Sleep mode

Bit 0 TIM1LPEN : TIM1 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM1 clock disabled during Sleep mode

1: TIM1 clock enabled during Sleep mode

5.3.20 RCC backup domain control register (RCC_BDCR)

Address offset: 0x70

Reset value: 0x0000 0000, reset by Backup domain reset.

Access: 0 ≤ wait state ≤ 3, word, half-word and byte access

Wait states are inserted in case of successive accesses to this register.

The LSEON, LSEBYP, LSEDRV[1:0], RTCSEL and RTCEN bits in the RCC backup domain control register (RCC_BDCR) are in the Backup domain. As a result, after Reset, these bits are write-protected and the DBP bit in the PWR power control register (PWR_CR1) has to be set before these can be modified. Refer to Section 5.1.1: System reset on page 129 for further information. These bits are only reset after a Backup domain Reset (see Section 5.1.3: Backup domain reset ). Any internal or external Reset will not have any effect on these bits.

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 BDRST : Backup domain software reset

This bit is set and cleared by software.

0: Reset not activated

1: Resets the entire Backup domain

Note: The BKPSRAM is not affected by this reset, the only way of resetting the BKPSRAM is through the Flash interface when a protection level change from level 1 to level 0 is requested.

Bit 15 RTCEN : RTC clock enable

This bit is set and cleared by software.

0: RTC clock disabled

1: RTC clock enabled

Bits 14:10 Reserved, must be kept at reset value.

Bits 9:8 RTCSEL[1:0] : RTC clock source selection

These bits are set by software to select the clock source for the RTC. Once the RTC clock source has been selected, it cannot be changed anymore unless the Backup domain is reset. The BDRST bit can be used to reset them.
00: No clock
01: LSE oscillator clock used as the RTC clock
10: LSI oscillator clock used as the RTC clock
11: HSE oscillator clock divided by a programmable prescaler (selection through the RTCPRE[4:0] bits in the RCC clock configuration register (RCC_CFGR)) used as the RTC clock

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:3 LSEDRV[1:0] : LSE oscillator drive capability

Set by software to modulate the LSE oscillator's drive capability.
00: Low driving capability
01: Medium high driving capability
10: Medium low driving capability
11: High driving capability

Bit 2 LSEBYP : External low-speed oscillator bypass

This bit is set and cleared by software to bypass the oscillator. This bit can be written only when the LSE clock is disabled.
0: LSE oscillator not bypassed
1: LSE oscillator bypassed

Bit 1 LSERDY : External low-speed oscillator ready

This bit is set and cleared by hardware to indicate when the external 32 kHz oscillator is stable. After the LSEON bit is cleared, LSERDY goes low after 6 external low-speed oscillator clock cycles.
0: LSE clock not ready
1: LSE clock ready

Bit 0 LSEON : External low-speed oscillator enable

This bit is set and cleared by software.
0: LSE clock OFF
1: LSE clock ON

5.3.21 RCC clock control & status register (RCC_CSR)

Address offset: 0x74

Reset value: 0x0E00 0000, reset by system reset, except reset flags by power reset only.

Access: 0 ≤ wait state ≤ 3, word, half-word and byte access

Wait states are inserted in case of successive accesses to this register.

This bit is set by hardware when a Low-power management reset occurs.

Cleared by writing to the RMVF bit.

0: No Low-power management reset occurred

1: Low-power management reset occurred

For further information on Low-power management reset, refer to Low-power management reset .

This bit is set by hardware when a window watchdog reset occurs.

Cleared by writing to the RMVF bit.

0: No window watchdog reset occurred

1: Window watchdog reset occurred

This bit is set by hardware when an independent watchdog reset from V _DD domain occurs.

Cleared by writing to the RMVF bit.

0: No watchdog reset occurred

1: Watchdog reset occurred

This bit is set by hardware when a software reset occurs.

Cleared by writing to the RMVF bit.

0: No software reset occurred

1: Software reset occurred

This bit is set by hardware when a POR/PDR reset occurs.

Cleared by writing to the RMVF bit.

0: No POR/PDR reset occurred

1: POR/PDR reset occurred

This bit is set by hardware when a reset from the NRST pin occurs.

Cleared by writing to the RMVF bit.

0: No reset from NRST pin occurred

1: Reset from NRST pin occurred

Cleared by software by writing the RMVF bit.

This bit is set by hardware when a POR/PDR or BOR reset occurs.

0: No POR/PDR or BOR reset occurred

1: POR/PDR or BOR reset occurred

This bit is set by software to clear the reset flags.

0: No effect

1: Clear the reset flags

Bits 23:2 Reserved, must be kept at reset value.

Bit 1 LSIRDY : Internal low-speed oscillator ready

This bit is set and cleared by hardware to indicate when the internal RC 40 kHz oscillator is stable. After the LSION bit is cleared, LSIRDY goes low after 3 LSI clock cycles.

0: LSI RC oscillator not ready

1: LSI RC oscillator ready

Bit 0 LSION : Internal low-speed oscillator enable

This bit is set and cleared by software.

0: LSI RC oscillator OFF

1: LSI RC oscillator ON

5.3.22 RCC spread spectrum clock generation register (RCC_SSCGR)

Address offset: 0x80

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

The spread spectrum clock generation is available only for the main PLL.

The RCC_SSCGR register must be written either before the main PLL is enabled or after the main PLL disabled.

Note: For full details about PLL spread spectrum clock generation (SSCG) characteristics, refer to the “Electrical characteristics” section in your device datasheet.

Bit 31 SSCGEN : Spread spectrum modulation enable

This bit is set and cleared by software.

0: Spread spectrum modulation DISABLE. (To write after clearing CR[24]=PLLON bit)

1: Spread spectrum modulation ENABLE. (To write before setting CR[24]=PLLON bit)

Bit 30 SPREADSEL : Spread Select

This bit is set and cleared by software.

To write before to set CR[24]=PLLON bit.

0: Center spread

1: Down spread

Bits 29:28 Reserved, must be kept at reset value.

Bits 27:13 INCSTEP : Incrementation step

These bits are set and cleared by software. To write before setting CR[24]=PLLON bit.
Configuration input for modulation profile amplitude.

Bits 12:0 MODPER : Modulation period

These bits are set and cleared by software. To write before setting CR[24]=PLLON bit.
Configuration input for modulation profile period.

5.3.23 RCC PLLI2S configuration register (RCC_PLLI2SCFGR)

Address offset: 0x84

Reset value: 0x2400 3000

Access: no wait state, word, half-word and byte access.

This register is used to configure the PLLI2S clock outputs according to the formulas:

Bit 31 Reserved, must be kept at reset value.

Bits 30:28 PLLI2SR[2:0] : PLLI2S division factor for I2S clocks

These bits are set and cleared by software to control the I2S clock frequency. These bits should be written only if the PLLI2S is disabled. The factor must be chosen in accordance with the prescaler values inside the I2S peripherals, to reach 0.3% error when using standard crystals and 0% error with audio crystals. For more information about I2S clock frequency and precision, refer to Section 28.7.4: Start-up description in the I2S chapter.

Caution: The I2Ss requires a frequency lower than or equal to 192 MHz to work correctly.

I2S clock frequency = VCO frequency / PLLR with \( 2 \leq \text{PLLR} \leq 7 \)

000: PLLR = 0, wrong configuration

001: PLLR = 1, wrong configuration

010: PLLR = 2

...

111: PLLR = 7

Bits 27:24 PLLI2SQ[3:0] : PLLI2S division factor for SAIs clock

These bits are set and cleared by software to control the SAIs clock frequency.

They should be written when the PLLI2S is disabled.

SAI clock frequency = VCO frequency / PLLI2SQ with \( 2 \leq \text{PLLI2SQ} \leq 15 \)

0000: PLLI2SQ = 0, wrong configuration

0001: PLLI2SQ = 1, wrong configuration

0010: PLLI2SQ = 2

0011: PLLI2SQ = 3

0100: PLLI2SQ = 4

0101: PLLI2SQ = 5

...

1111: PLLI2SQ = 15

Bits 23:16 Reserved, must be kept at reset value.

Bit 15 Reserved, must be kept at reset value.

Bits 14:6 PLLI2SN[8:0] : PLLI2S multiplication factor for VCO

These bits are set and cleared by software to control the multiplication factor of the VCO. These bits can be written only when the PLLI2S is disabled. Only half-word and word accesses are allowed to write these bits.

Caution: The software has to set these bits correctly to ensure that the VCO output frequency is between 100 and 432 MHz.

VCO output frequency = VCO input frequency \( \times \) PLLI2SN with \( 50 \leq \text{PLLI2SN} \leq 432 \)

• 000000000: PLLI2SN = 0, wrong configuration
• 000000001: PLLI2SN = 1, wrong configuration
• ...
• 001100010: PLLI2SN = 50
• ...
• 001100011: PLLI2SN = 99
• 001100100: PLLI2SN = 100
• 001100101: PLLI2SN = 101
• 001100110: PLLI2SN = 102
• ...
• 110110000: PLLI2SN = 432
• 110110001: PLLI2SN = 433, wrong configuration
• ...
• 111111111: PLLI2SN = 511, wrong configuration

Note: Between 50 and 99, multiplication factors are possible for VCO input frequency higher than 1 MHz. However care must be taken to fulfill the minimum VCO output frequency as specified above.

Bits 5:0 Reserved, must be kept at reset value.

5.3.24 RCC PLLSAI configuration register (RCC_PLLSAICFGR)

Address offset: 0x88

Reset value: 0x2400 3000

Access: no wait state, word, half-word and byte access.

This register is used to configure the PLLSAI clock outputs according to the formulas:

• • \( f_{(VCO\ clock)} = f_{(PLL\ SAI\ clock\ input)} \times (PLL\ SAIN / PLLM) \)
• • \( f_{(PLL\ SAI\_P)} = f_{(VCO\ clock)} / PLL\ SAIP \)
• • \( f_{(PLL\ SAI\_Q)} = f_{(VCO\ clock)} / PLL\ SAIQ \)

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:24 PLLSAIQ[3:0] : PLLSAI division factor for SAI clock

Set and reset by software to control the frequency of SAI clock.

These bits should be written when the PLLSAI is disabled.

SAI1 clock frequency = VCO frequency / PLLSAIQ with \( 2 \leq PLL\ SAIQ \leq 15 \)

0000: PLLSAIQ = 0, wrong configuration

0001: PLLSAIQ = 1, wrong configuration

...

0010: PLLSAIQ = 2

0011: PLLSAIQ = 3

0100: PLLSAIQ = 4

0101: PLLSAIQ = 5

...

1111: PLLSAIQ = 15

Bits 23:18 Reserved, must be kept at reset value.

Bits 17:16 PLLSAIP[1:0] : PLLSAI division factor for 48MHz clock

Set and reset by software to control the frequency of the PLLSAI output clock

(PLLSAI48CLK). This output can be selected for USB, RNG, SDMMC1/2 (48 MHz clock).

These bits should be written only if the PLLSAI is disabled.

Only half-word and word accesses are allowed to write these bits.

PLLSAI48 output clock frequency = VCO frequency / PLLSAIP with PLLSAI P = 2, 4, 6, or 8

00: PLLSAIP = 2

01: PLLSAIP = 4

10: PLLSAIP = 6

11: PLLSAIP = 8

Bit 15 Reserved, must be kept at reset value.

Bits 14:6 PLLISAIN[8:0] : PLLISAI division factor for VCO

Set and reset by software to control the multiplication factor of the VCO.

These bits should be written when the PLLISAI is disabled.

Only half-word and word accesses are allowed to write these bits.

Caution: The software has to set these bits correctly to ensure that the VCO output frequency is between 100 and 432 MHz.

VCO output frequency = VCO input frequency x PLLISAIN with \( 50 \leq \text{PLLISAIN} \leq 432 \)

000000000: PLLISAIN = 0, wrong configuration

000000001: PLLISAIN = 1, wrong configuration

.....

001100010: PLLISAIN = 50

...

001100011: PLLISAIN = 99

001100100: PLLISAIN = 100

001100101: PLLISAIN = 101

001100110: PLLISAIN = 102

...

110110000: PLLISAIN = 432

110110000: PLLISAIN = 433, wrong configuration

...

111111111: PLLISAIN = 511, wrong configuration

Note: Between 50 and 99, multiplication factors are possible for VCO input frequency higher than 1 MHz. However care must be taken to fulfill the minimum VCO output frequency as specified above.

Bits 5:0 Reserved, must be kept at reset value

5.3.25 RCC dedicated clocks configuration register (RCC_DCKCFGR1)

Address offset: 0x8C

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

This register allows to configure the timer clock prescalers and the PLLISAI and PLLI2S output clock dividers for SAI peripheral according to the following formula:

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 TIMPRE : Timers clocks prescalers selection

This bit is set and reset by software to control the clock frequency of all the timers connected to APB1 and APB2 domain.

0: If the APB prescaler (PPRE1, PPRE2 in the RCC_CFGR register) is configured to a division factor of 1, TIMxCLK = PCLKx. Otherwise, the timer clock frequencies are set to twice to the frequency of the APB domain to which the timers are connected:

\( TIMxCLK = 2 \times PCLKx \) .

1: If the APB prescaler (PPRE1, PPRE2 in the RCC_CFGR register) is configured to a division factor of 1, 2 or 4, TIMxCLK = HCLK. Otherwise, the timer clock frequencies are set to four times to the frequency of the APB domain to which the timers are connected:

\( TIMxCLK = 4 \times PCLKx \) .

Bits 23:22 SAI2SEL[1:0] : SAI2 clock source selection:

These bits are set and cleared by software to control the SAI2 clock frequency.

They should be written when the PLLSAI and PLLI2S are disabled.

00: SAI2 clock frequency = \( f(PLLSAI\_Q) / PLLSAIDIVQ \)

01: SAI2 clock frequency = \( f(PLL2S\_Q) / PLL2SDIVQ \)

10: SAI2 clock frequency = Alternate function input frequency

11: wrong configuration

Bits 21:20 SAI1SEL[1:0] : SAI1 clock source selection

These bits are set and cleared by software to control the SAI1 clock frequency.

They should be written when the PLLSAI and PLLI2S are disabled.

00: SAI1 clock frequency = \( f(PLLSAI\_Q) / PLLSAIDIVQ \)

01: SAI1 clock frequency = \( f(PLL2S\_Q) / PLL2SDIVQ \)

10: SAI1 clock frequency = Alternate function input frequency

11: wrong configuration

Bits 19: 13 Reserved, must be kept at reset value.

Bits 12:8 PLLSAIDIVQ[4:0] : PLLSAI division factor for SAI1 clock

These bits are set and reset by software to control the SAI1 clock frequency.

They should be written only if PLLSAI is disabled.

SAI1 clock frequency = \( f(\text{PLLSAI\_Q}) / \text{PLLSAIDIVQ} \) with \( 1 \leq \text{PLLSAIDIVQ} \leq 31 \)

00000: PLLSAIDIVQ = /1

00001: PLLSAIDIVQ = /2

00010: PLLSAIDIVQ = /3

00011: PLLSAIDIVQ = /4

00100: PLLSAIDIVQ = /5

...

11111: PLLSAIDIVQ = /32

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 PLLI2SDIVQ[4:0] : PLLI2S division factor for SAI1 clock

These bits are set and reset by software to control the SAI1 clock frequency.

They should be written only if PLLI2S is disabled.

SAI1 clock frequency = \( f(\text{PLLI2S\_Q}) / \text{PLLI2SDIVQ} \) with \( 1 \leq \text{PLLI2SDIVQ} \leq 31 \)

00000: PLLI2SDIVQ = /1

00001: PLLI2SDIVQ = /2

00010: PLLI2SDIVQ = /3

00011: PLLI2SDIVQ = /4

00100: PLLI2SDIVQ = /5

...

11111: PLLI2SDIVQ = /32

5.3.26 RCC dedicated clocks configuration register (RCC_DCKCFGR2)

Address: 0x90h

Reset value: 0x0000 0000h

Access: no wait state, word, half-word and byte access

This register allows to select the source clock for the 48MHz, SDMMC1/2, LPTIM1, UARTs, USARTs and I2Cs clocks.

Bits 31:30 Reserved, must be kept at reset value.

Bit 29 SDMMC2SEL : SDMMC2 clock source selection

Set and reset by software.

0: 48 MHz clock is selected as SDMMC2 clock

1: System clock is selected as SDMMC2 clock

Bit 28 SDMMC1SEL : SDMMC1 clock source selection

Set and reset by software.

0: 48 MHz clock is selected as SDMMC1 clock

1: System clock is selected as SDMMC1 clock

Bit 27 CK48MSEL : 48MHz clock source selection

Set and reset by software.

0: 48MHz clock from PLL is selected

1: 48MHz clock from PLLSAI is selected.

Bit 26 Reserved, must be kept at reset value.

Bits 25:24 LPTIM1SEL : Low-power timer 1 clock source selection

Set and reset by software.

00: APB1 clock (PCLK1) selected as LPTILM1 clock

01: LSI clock is selected as LPTILM1 clock

10: HSI clock is selected as LPTILM1 clock

11: LSE clock is selected as LPTILM1 clock

Bits 23:22 Reserved, must be kept at reset value.

Bits 21:20 I2C3SEL : I2C3 clock source selection

Set and reset by software.

00: APB clock is selected as I2C3 clock

01: System clock is selected as I2C3 clock

10: HSI clock is selected as I2C3 clock

11: reserved

Bits 19:18 I2C2SEL : I2C2 clock source selection

Set and reset by software.

00: APB1 clock (PCLK1) is selected as I2C2 clock

01: System clock is selected as I2C2 clock

10: HSI clock is selected as I2C2 clock

11: reserved

Bits 17:16 I2C1SEL : I2C1 clock source selection

Set and reset by software.

00: APB clock (PCLK1) is selected as I2C1 clock

01: System clock is selected as I2C1 clock

10: HSI clock is selected as I2C1 clock

11: reserved

Bits 15:14 UART8SEL[1:0] : UART 8 clock source selection

Set and reset by software.

00: APB1 clock (PCLK1) is selected as UART 8 clock

01: System clock is selected as UART 8 clock

10: HSI clock is selected as UART 8 clock

11: LSE clock is selected as UART 8 clock

Bits 13:12 UART7SEL[1:0] : UART 7 clock source selection

Set and reset by software.

00: APB1 clock (PCLK1) is selected as UART 7 clock

01: System clock is selected as UART 7 clock

10: HSI clock is selected as UART 7 clock

11: LSE clock is selected as UART 7 clock

Bits 11:10 USART6SEL[1:0] : USART 6 clock source selection

Set and reset by software.

00: APB2 clock(PCLK2) is selected as USART 6 clock

01: System clock is selected as USART 6 clock

10: HSI clock is selected as USART 6 clock

11: LSE clock is selected as USART 6 clock

Bits 9:8 UART5SEL[1:0] : UART 5 clock source selection

Set and reset by software.

00: APB1 clock(PCLK1) is selected as UART 5 clock

01: System clock is selected as UART 5 clock

10: HSI clock is selected as UART 5 clock

11: LSE clock is selected as UART 5 clock

Bits 7:6 UART4SEL[1:0] : UART 4 clock source selection

Set and reset by software.

00: APB1 clock (PCLK1) is selected as UART 4 clock

01: System clock is selected as UART 4 clock

10: HSI clock is selected as UART 4 clock

11: LSE clock is selected as UART 4 clock

Bits 5:4 USART3SEL[1:0] : USART 3 clock source selection

Set and reset by software.

00: APB1 clock (PCLK1) is selected as USART 3 clock

01: System clock is selected as USART 3 clock

10: HSI clock is selected as USART 3 clock

11: LSE clock is selected as USART 3 clock

Bits 3:2 USART2SEL[1:0] : USART 2 clock source selection

Set and reset by software.

00: APB1 clock (PCLK1) is selected as USART 2 clock

01: System clock is selected as USART 2 clock

10: HSI clock is selected as USART 2 clock

11: LSE clock is selected as USART 2 clock

Bits 1:0 USART1SEL[1:0] : USART 1 clock source selection

Set and reset by software.

00: APB2 clock (PCLK2) is selected as USART 1 clock

01: System clock is selected as USART 1 clock

10: HSI clock is selected as USART 1 clock

11: LSE clock is selected as USART 1 clock

5.3.27 RCC register map

Table 22 gives the register map and reset values.

Table 22. RCC register map and reset values

Table 22. RCC register map and reset values (continued)

Refer to Section 1.6 on page 56 for the register boundary addresses.
