9. Interrupts and events

9.1 Nested vectored interrupt controller (NVIC)

9.1.1 NVIC features

The nested vector interrupt controller NVIC includes the following features:

• 52 maskable interrupt channels (not including the 16 interrupt lines of Cortex ^®-M4 with FPU)
• 16 programmable priority levels (4 bits of interrupt priority are used)
• low-latency exception and interrupt handling
• power management control
• implementation of system control registers

The NVIC and the processor core interface are closely coupled, which enables low latency interrupt processing and efficient processing of late arriving interrupts.

All interrupts including the core exceptions are managed by the NVIC. For more information on exceptions and NVIC programming, refer to programming manual PM0214.

9.1.2 SysTick calibration value register

The SysTick calibration value is fixed to 12500, which gives a reference time base of 1 ms with the SysTick clock set to 12.5 MHz (HCLK/8, with HCLK set to 100 MHz).

9.1.3 Interrupt and exception vectors

Refer to Table 39: Vector table .

9.2 External interrupt/event controller (EXTI)

The external interrupt/event controller consists of up to 23 edge detectors for generating event/interrupt requests. Each input line can be independently configured to select the type (interrupt or event) and the corresponding trigger event (rising or falling or both). Each line can also be masked independently. A pending register maintains the status line of the interrupt requests.

Table 39. Vector table

Position	Priority	Type of priority	Acronym	Description	Address
	-	-	-	Reserved	0x0000 0000
	-3	fixed	Reset	Reset	0x0000 0004

Table 39. Vector table (continued)

Position	Priority	Type of priority	Acronym	Description	Address
	-2	fixed	NMI	Non maskable interrupt, Clock Security System	0x0000 0008
	-1	fixed	HardFault	All class of fault	0x0000 000C
	0	settable	MemManage	Memory management	0x0000 0010
	1	settable	BusFault	Prefetch fault, memory access fault	0x0000 0014
	2	settable	UsageFault	Undefined instruction or illegal state	0x0000 0018
	-	-	-	Reserved	0x0000 001C - 0x0000 002B
	3	settable	SVCall	System Service call via SWI instruction	0x0000 002C
	4	settable	Debug Monitor	Debug Monitor	0x0000 0030
		-	-	Reserved	0x0000 0034
	5	settable	PendSV	Pendable request for system service	0x0000 0038
	6	settable	Systick	System tick timer	0x0000 003C
0	7	settable	WWDG	Window Watchdog interrupt	0x0000 0040
1	8	settable	PVD	PVD through EXTI line detection interrupt	0x0000 0044
2	9	settable	EXTI21 / TAMP_STAMP	EXTI Line 21 interrupt / Tamper and TimeStamp interrupts through the EXTI line	0x0000 0048
3	10	settable	EXTI22 / RTC_WKUP	EXTI Line 22 interrupt / RTC Wakeup interrupt through the EXTI line	0x0000 004C
4	11	settable	FLASH	Flash memory global interrupt	0x0000 0050
5	12	settable	RCC	RCC global interrupt	0x0000 0054
6	13	settable	EXTI0	EXTI Line0 interrupt	0x0000 0058
7	14	settable	EXTI1	EXTI Line1 interrupt	0x0000 005C
8	15	settable	EXTI2	EXTI Line2 interrupt	0x0000 0060
9	16	settable	EXTI3	EXTI Line3 interrupt	0x0000 0064
10	17	settable	EXTI4	EXTI Line4 interrupt	0x0000 0068
11	18	settable	DMA1_Stream0	DMA1 Stream0 global interrupt	0x0000 006C
12	19	settable	DMA1_Stream1	DMA1 Stream1 global interrupt	0x0000 0070
13	20	settable	DMA1_Stream2	DMA1 Stream2 global interrupt	0x0000 0074
14	21	settable	DMA1_Stream3	DMA1 Stream3 global interrupt	0x0000 0078

Table 39. Vector table (continued)

Position	Priority	Type of priority	Acronym	Description	Address
15	22	settable	DMA1_Stream4	DMA1 Stream4 global interrupt	0x0000 007C
16	23	settable	DMA1_Stream5	DMA1 Stream5 global interrupt	0x0000 0080
17	24	settable	DMA1_Stream6	DMA1 Stream6 global interrupt	0x0000 0084
18	25	settable	ADC	ADC1 global interrupts	0x0000 0088
19 to 22	-	-	-	Reserved	0x0000 008C to 0x0000 0098
23	30	settable	EXTI9_5	EXTI Line[9:5] interrupts	0x0000 009C
24	31	settable	TIM1_BRK_TIM9	TIM1 Break interrupt and TIM9 global interrupt	0x0000 00A0
25	32	settable	TIM1_UP	TIM1 Update interrupt	0x0000 00A4
26	33	settable	TIM1_TRG_COM_TIM11	TIM1 Trigger and Commutation interrupts and TIM11 global interrupt	0x0000 00A8
27	34	settable	TIM1_CC	TIM1 Capture Compare interrupt	0x0000 00AC
28 to 30	-	-	-	Reserved	0x0000 00B0 to 0x0000 00B8
31	38	settable	I2C1_EV	I ²C1 event interrupt	0x0000 00BC
32	39	settable	I2C1_ER	I ²C1 error interrupt	0x0000 00C0
33	40	settable	I2C2_EV	I ²C2 event interrupt	0x0000 00C4
34	41	settable	I2C2_ER	I ²C2 error interrupt	0x0000 00C8
35	42	settable	SPI1	SPI1 global interrupt	0x0000 00CC
36	43	settable	SPI2	SPI2 global interrupt	0x0000 00D0
37	44	settable	USART1	USART1 global interrupt	0x0000 00D4
38	45	settable	USART2	USART2 global interrupt	0x0000 00D8
39	-	-	-	Reserved	0x0000 00DC
40	47	settable	EXTI15_10	EXTI Line[15:10] interrupts	0x0000 00E0
41	48	settable	EXTI17 / RTC_Alarm	EXTI Line 17 interrupt / RTC Alarms (A and B) through EXTI line interrupt	0x0000 00E4
42 to 46	-	-	-	Reserved	0x0000 00E8 to 0x0000 00F8
47	54	settable	DMA1_Stream7	DMA1 Stream7 global interrupt	0x0000 00FC
48 to 49	-	-	-	Reserved	0x0000 0100 to 0x0000 0104
50	57	settable	TIM5	TIM5 global interrupt	0x0000 0108

Table 39. Vector table (continued)

Position	Priority	Type of priority	Acronym	Description	Address
51 to 53	-	-	-	Reserved	0x0000 010C to 0x0000 0114
54	61	settable	TIM6_DAC	TIM6 global interrupt, DAC1 underrun error interrupt	0x0000 0118
55	-	-	-	Reserved	0x0000 011C
56	63	settable	DMA2_Stream0	DMA2 Stream0 global interrupt	0x0000 0120
57	64	settable	DMA2_Stream1	DMA2 Stream1 global interrupt	0x0000 0124
58	65	settable	DMA2_Stream2	DMA2 Stream2 global interrupt	0x0000 0128
59	66	settable	DMA2_Stream3	DMA2 Stream3 global interrupt	0x0000 012C
60	67	settable	DMA2_Stream4	DMA2 Stream4 global interrupt	0x0000 0130
61	-	-	-	Reserved	0x0000 0134
62	69	settable	EXTI19	EXTI Line 19 interrupt	0x0000 0138
63 to 67	-	-	-	Reserved	0x0000 013C to 0x0000 014C
68	75	settable	DMA2_Stream5	DMA2 Stream5 global interrupt	0x0000 0150
69	76	settable	DMA2_Stream6	DMA2 Stream6 global interrupt	0x0000 0154
70	77	settable	DMA2_Stream7	DMA2 Stream7 global interrupt	0x0000 0158
71	78	settable	USART6	USART6 global interrupt	0x0000 015C
72 to 75	-	-	-	Reserved	0x0000 0160 to 0x0000 016C
76	83	settable	EXTI20	EXTI Line 20 interrupt	0x0000 0170
77 to 79	-	-	-	Reserved	0x0000 0174 to 0x0000 017C
80	87	settable	RNG	RNG global interrupt	0x0000 0180
81	88	Settable	FPU	FPU global interrupt	0x0000 0184
82 to 84	-	-	-	Reserved	0x0000 0188 to 0x0000 0190
85	92	settable	SPI5	SPI 5 global interrupt	0x0000 0194
86 to 94	-	-	-	Reserved	0x0000 0198 to 0x0000 01B8
95	102	settable	I2C4_EV	I2C4 event interrupt	0x0000 01C0

Table 39. Vector table (continued)

Position	Priority	Type of priority	Acronym	Description	Address
96	103	settable	I2C4_ER	I2C4 error interrupt	0x0000 01C4
97	103	settable	LPTIM1/EXTI23	LPTIM1 global interrupt or EXTI Line 23 interrupt	0x0000 01C8

9.2.1 EXTI main features

The main features of the EXTI controller are the following:

• independent trigger and mask on each interrupt/event line
• dedicated status bit for each interrupt line
• generation of up to 23 software event/interrupt requests
• detection of external signals with a pulse width lower than the APB2 clock period. Refer to the electrical characteristics section of the datasheets for details on this parameter.

9.2.2 EXTI block diagram

Figure 29 shows the block diagram.

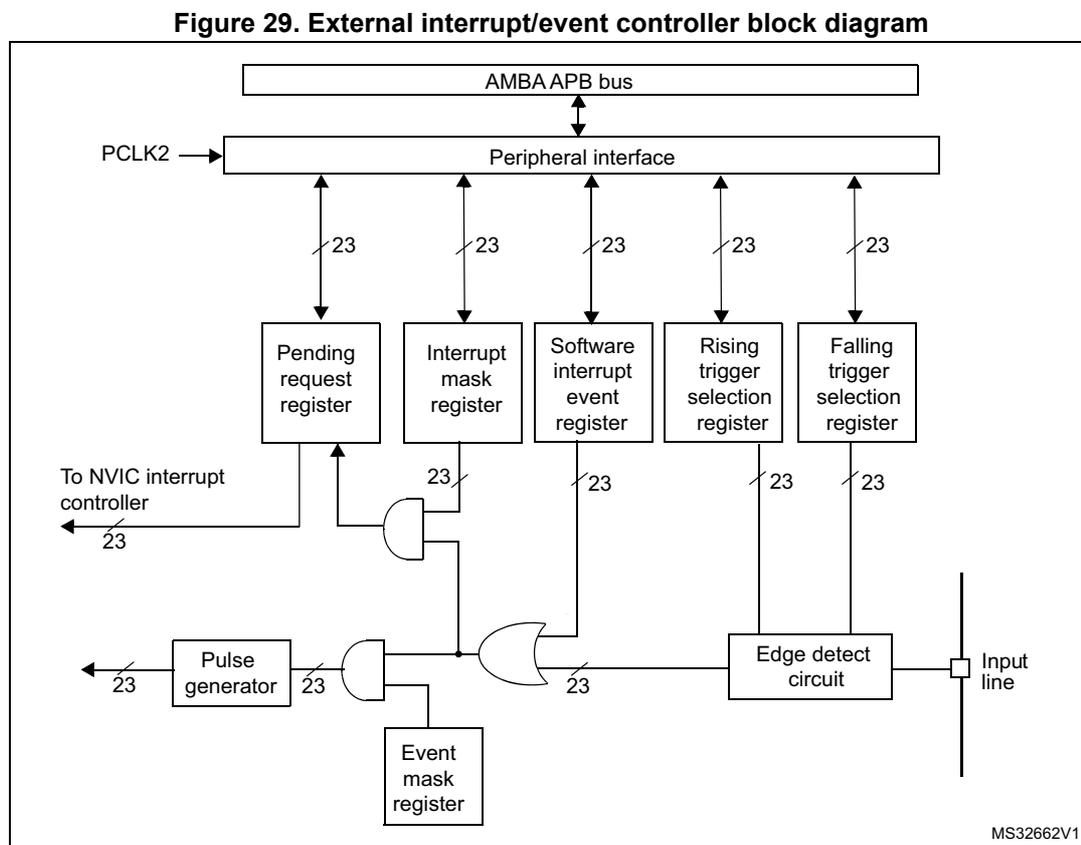

Figure 29. External interrupt/event controller block diagram

Block diagram of the External Interrupt/Event Controller (EXTI). The diagram shows the internal architecture of the EXTI. At the top, an 'AMBA APB bus' is connected to a 'Peripheral interface'. The 'Peripheral interface' is also connected to 'PCLK2'. Below the interface are five 23-bit wide registers: 'Pending request register', 'Interrupt mask register', 'Software interrupt event register', 'Rising trigger selection register', and 'Falling trigger selection register'. These registers are connected to the 'Peripheral interface'. The 'Pending request register' and 'Interrupt mask register' are connected to an AND gate. The output of this AND gate is connected to the 'To NVIC interrupt controller'. The 'Software interrupt event register' and 'Event mask register' are connected to an OR gate. The output of the OR gate is connected to the 'Pulse generator' and the 'Edge detect circuit'. The 'Pulse generator' output is connected to the 'To NVIC interrupt controller'. The 'Edge detect circuit' is connected to an 'Input line'. The 'Rising trigger selection register' and 'Falling trigger selection register' are also connected to the 'Edge detect circuit'. All signal lines are labeled with '/23' to indicate they are 23-bit wide. The diagram is labeled 'MS32662V1' in the bottom right corner.

9.2.3 Wakeup event management

The STM32F4xx are able to handle external or internal events in order to wake up the core (WFE). The wakeup event can be generated either by:

• enabling an interrupt in the peripheral control register but not in the NVIC, and enabling the SEVONPEND bit in the Cortex®-M4 with FPU System Control register. When the MCU resumes from WFE, the peripheral interrupt pending bit and the peripheral NVIC IRQ channel pending bit (in the NVIC interrupt clear pending register) have to be cleared.
• or configuring an external or internal EXTI line in event mode. When the CPU resumes from WFE, it is not necessary to clear the peripheral interrupt pending bit or the NVIC IRQ channel pending bit as the pending bit corresponding to the event line is not set.

To use an external line as a wakeup event, refer to Section 9.2.4: Functional description .

9.2.4 Functional description

To generate the interrupt, the interrupt line should be configured and enabled. This is done by programming the two trigger registers with the desired edge detection and by enabling the interrupt request by writing a '1' to the corresponding bit in the interrupt mask register. When the selected edge occurs on the external interrupt line, an interrupt request is

generated. The pending bit corresponding to the interrupt line is also set. This request is reset by writing a '1' in the pending register.

To generate the event, the event line should be configured and enabled. This is done by programming the two trigger registers with the desired edge detection and by enabling the event request by writing a '1' to the corresponding bit in the event mask register. When the selected edge occurs on the event line, an event pulse is generated. The pending bit corresponding to the event line is not set.

An interrupt/event request can also be generated by software by writing a '1' in the software interrupt/event register.

Hardware interrupt selection

To configure the 23 lines as interrupt sources, use the following procedure:

• Configure the mask bits of the 23 interrupt lines (EXTI_IMR)
• Configure the Trigger selection bits of the interrupt lines (EXTI_RTSR and EXTI_FTSR)
• Configure the enable and mask bits that control the NVIC IRQ channel mapped to the external interrupt controller (EXTI) so that an interrupt coming from one of the 23 lines can be correctly acknowledged.

Hardware event selection

To configure the 23 lines as event sources, use the following procedure:

• Configure the mask bits of the 23 event lines (EXTI_EMR)
• Configure the Trigger selection bits of the event lines (EXTI_RTSR and EXTI_FTSR)

Software interrupt/event selection

The 23 lines can be configured as software interrupt/event lines. The following is the procedure to generate a software interrupt.

• Configure the mask bits of the 23 interrupt/event lines (EXTI_IMR, EXTI_EMR)
• Set the required bit in the software interrupt register (EXTI_SWIER)

9.2.5 External interrupt/event line mapping

Up to 50 GPIOs are connected to the 16 external interrupt/event lines in the following manner:

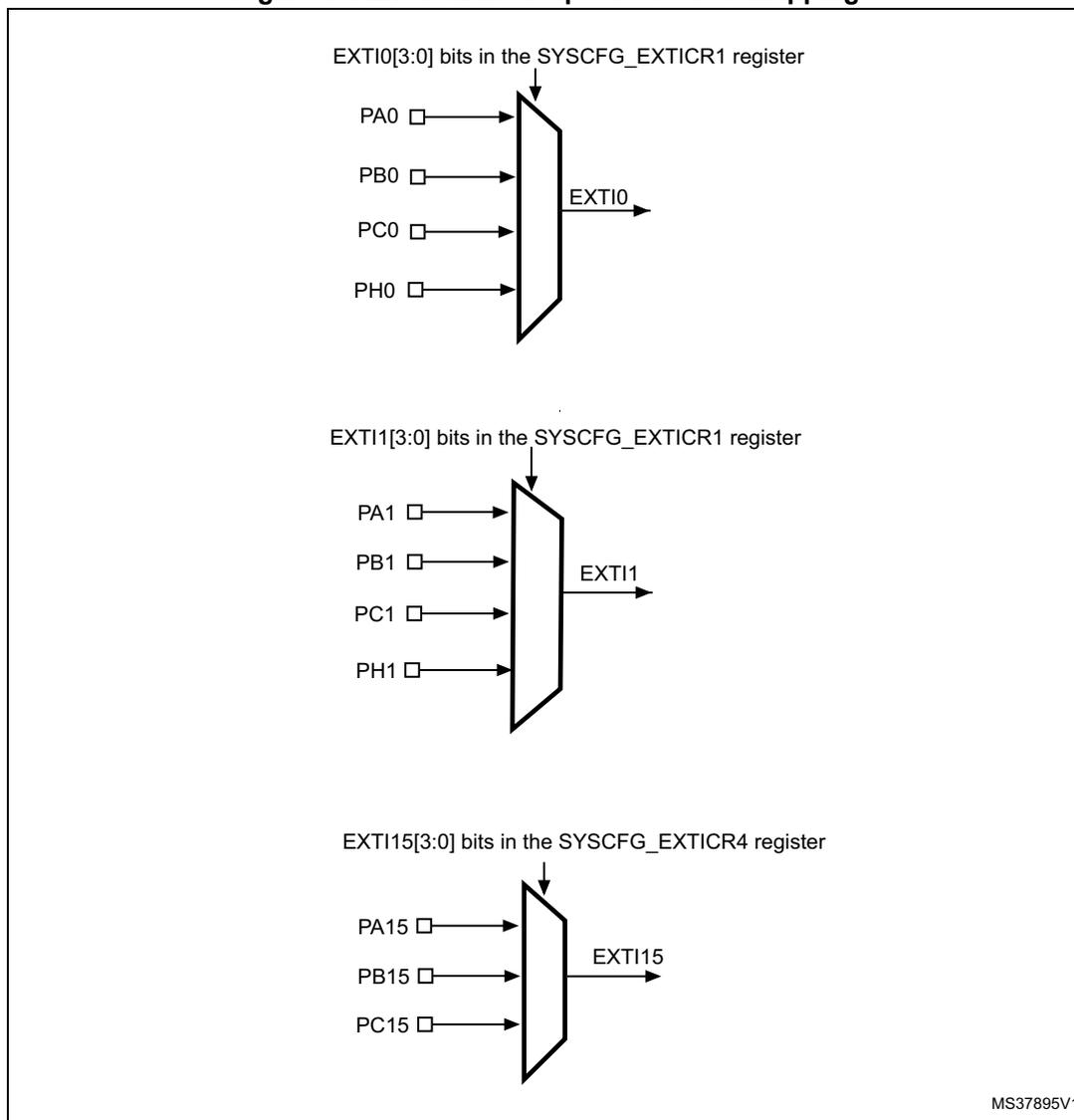

Figure 30. External interrupt/event GPIO mapping

Diagram showing the mapping of GPIOs to external interrupt lines. It consists of three multiplexer-like structures. The first structure for EXTI10 takes inputs from PA0, PB0, PC0, and PH0, controlled by EXTI0[3:0] bits in the SYSCFG_EXTICR1 register. The second structure for EXTI11 takes inputs from PA1, PB1, PC1, and PH1, controlled by EXTI1[3:0] bits in the SYSCFG_EXTICR1 register. The third structure for EXTI15 takes inputs from PA15, PB15, and PC15, controlled by EXTI15[3:0] bits in the SYSCFG_EXTICR4 register.

EXTI0[3:0] bits in the SYSCFG_EXTICR1 register

PA0 □ →
PB0 □ →
PC0 □ →
PH0 □ →

EXTI10 →

EXTI1[3:0] bits in the SYSCFG_EXTICR1 register

PA1 □ →
PB1 □ →
PC1 □ →
PH1 □ →

EXTI11 →

EXTI15[3:0] bits in the SYSCFG_EXTICR4 register

PA15 □ →
PB15 □ →
PC15 □ →

EXTI15 →

MS37895V1

Diagram showing the mapping of GPIOs to external interrupt lines. It consists of three multiplexer-like structures. The first structure for EXTI10 takes inputs from PA0, PB0, PC0, and PH0, controlled by EXTI0[3:0] bits in the SYSCFG_EXTICR1 register. The second structure for EXTI11 takes inputs from PA1, PB1, PC1, and PH1, controlled by EXTI1[3:0] bits in the SYSCFG_EXTICR1 register. The third structure for EXTI15 takes inputs from PA15, PB15, and PC15, controlled by EXTI15[3:0] bits in the SYSCFG_EXTICR4 register.

The five other EXTI lines are connected as follows:

• EXTI line 16 is connected to the PVD output
• EXTI line 17 is connected to the RTC Alarm event
• EXTI line 21 is connected to the RTC Tamper and TimeStamp events
• EXTI line 22 is connected to the RTC Wakeup event
• EXTI line 23 is connected to the LPTIM1 asynchronous interrupt

9.3 EXTI registers

Refer to Section 1.2: List of abbreviations for registers for a list of abbreviations used in register descriptions.

9.3.1 Interrupt mask register (EXTI_IMR)

Address offset: 0x00

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	MR23	MR22	MR21	Res.	Res.	MR18	MR17	MR16
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
MR15	MR14	MR13	MR12	MR11	MR10	MR9	MR8	MR7	MR6	MR5	MR4	MR3	MR2	MR1	MR0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:21 MRx : Interrupt mask on line x

0: Interrupt request from line x is masked

1: Interrupt request from line x is not masked

Bits 20:19 Reserved, must be kept at reset value.

Bits 18:0 MRx : Interrupt mask on line x

0: Interrupt request from line x is masked

1: Interrupt request from line x is not masked

9.3.2 Event mask register (EXTI_EMR)

Address offset: 0x04

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	MR23	MR22	MR21	Res.	Res.	MR18	MR17	MR16
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
MR15	MR14	MR13	MR12	MR11	MR10	MR9	MR8	MR7	MR6	MR5	MR4	MR3	MR2	MR1	MR0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:24 Reserved, must be kept at reset value.

Bits 23:21 MRx : Event mask on line x

0: Event request from line x is masked

1: Event request from line x is not masked

Bits 20:19 Reserved, must be kept at reset value.

Bits 18:0 MRx : Event mask on line x

0: Event request from line x is masked

1: Event request from line x is not masked

9.3.3 Rising trigger selection register (EXTI_RTSR)

Address offset: 0x08

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	TR23	TR22	TR21	Res.	Res.	TR18	TR17	TR16
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
TR15	TR14	TR13	TR12	TR11	TR10	TR9	TR8	TR7	TR6	TR5	TR4	TR3	TR2	TR1	TR0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:23 Reserved, must be kept at reset value.

Bits 23:21 TRx : Rising trigger event configuration bit of line x

0: Rising trigger disabled (for Event and Interrupt) for input line

1: Rising trigger enabled (for Event and Interrupt) for input line

Bits 20:19 Reserved, must be kept at reset value.

Bits 18-0 TRx : Rising trigger event configuration bit of line x

0: Rising trigger disabled (for Event and Interrupt) for input line

1: Rising trigger enabled (for Event and Interrupt) for input line

Note: The external wakeup lines are edge triggered, no glitch must be generated on these lines. If a rising edge occurs on the external interrupt line while writing to the EXTI_RTSR register, the pending bit is set.

Rising and falling edge triggers can be set for the same interrupt line. In this configuration, both generate a trigger condition.

9.3.4 Falling trigger selection register (EXTI_FTSR)

Address offset: 0x0C

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	TR23	TR22	TR21	Res.	Res.	TR18	TR17	TR16
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
TR15	TR14	TR13	TR12	TR11	TR10	TR9	TR8	TR7	TR6	TR5	TR4	TR3	TR2	TR1	TR0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:23 Reserved, must be kept at reset value.

Bits 23:21 TRx : Falling trigger event configuration bit of line x

0: Falling trigger disabled (for Event and Interrupt) for input line

1: Falling trigger enabled (for Event and Interrupt) for input line.

Bits 20:19 Reserved, must be kept at reset value.

Bits 18:0 TRx : Falling trigger event configuration bit of line x

0: Falling trigger disabled (for Event and Interrupt) for input line

1: Falling trigger enabled (for Event and Interrupt) for input line.

Note: The external wakeup lines are edge triggered, no glitch must be generated on these lines. If a falling edge occurs on the external interrupt line while writing to the EXTI_FTSR register, the pending bit is not set.

Rising and falling edge triggers can be set for the same interrupt line. In this configuration, both generate a trigger condition.

9.3.5 Software interrupt event register (EXTI_SWIER)

Address offset: 0x10

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	SWIER 23	SWIER 22	SWIER 21	Res.	Res.	SWIER 18	SWIER 17	SWIER 16
								rw	rw	rw			rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0

Bits 31:23 Reserved, must be kept at reset value.

Bits 23:21 SWIERx : Software Interrupt on line x

If interrupt are enabled on line x in the EXTI_IMR register, writing '1' to SWIERx bit when it is set at '0' sets the corresponding pending bit in the EXTI_PR register, thus resulting in an interrupt request generation.

This bit is cleared by clearing the corresponding bit in EXTI_PR (by writing a 1 to the bit).

Bits 20:19 Reserved, must be kept at reset value.

Bits 18:0 SWIERx : Software Interrupt on line x

This bit is cleared by clearing the corresponding bit in EXTI_PR (by writing a 1 to the bit).

9.3.6 Pending register (EXTI_PR)

Address offset: 0x14

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	PR23	PR22	PR21	Res.	Res.	PR18	PR17	PR16
								rc_w1	rc_w1	rc_w1			rc_w1	rc_w1	rc_w1

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
PR15	PR14	PR13	PR12	PR11	PR10	PR9	PR8	PR7	PR6	PR5	PR4	PR3	PR2	PR1	PR0
rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1	rc_w1

Bits 31:23 Reserved, must be kept at reset value.

Bits 23:21 PRx : Pending bit

0: No trigger request occurred

1: selected trigger request occurred

This bit is set when the selected edge event arrives on the external interrupt line.

This bit is cleared by programming it to '1'.

Bits 20:19 Reserved, must be kept at reset value.

Bits 18:0 PRx : Pending bit

0: No trigger request occurred

1: selected trigger request occurred

This bit is set when the selected edge event arrives on the external interrupt line.

This bit is cleared by programming it to '1'.

9.3.7 EXTI register map

Table 40 gives the EXTI register map and the reset values.

Table 40. External interrupt/event controller register map and reset values

Offset	Register	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
0x00	EXTI_IMR	Res	Res	Res	Res	Res	Res	Res	Res	MR [23:21]			Res	Res	MR[18:0]
0x00	Reset value									0	0	0			0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x04	EXTI_EMR	Res	Res	Res	Res	Res	Res	Res	Res	MR [23:21]			Res	Res	MR[18:0]
0x04	Reset value									0	0	0			0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x08	EXTI_RTSR	Res	Res	Res	Res	Res	Res	Res	Res	TR [23:21]			Res	Res	TR[18:0]
0x08	Reset value									0	0	0			0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x0C	EXTI_FTSR	Res	Res	Res	Res	Res	Res	Res	Res	TR [23:21]			Res	Res	TR[18:0]
0x0C	Reset value									0	0	0			0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x10	EXTI_SWIER	Res	Res	Res	Res	Res	Res	Res	Res	SWIER [23:21]			Res	Res	SWIER[18:0]
0x10	Reset value									0	0	0			0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x14	EXTI_PR	Res	Res	Res	Res	Res	Res	Res	Res	PR [23:21]			Res	Res	PR[18:0]
0x14	Reset value									0	0	0			0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0

Refer to Section 2.2 on page 39 for the register boundary addresses.
