2. System and memory overview

2.1 System architecture

The main system consists of 32-bit multilayer AHB bus matrix that interconnects:

• • Five masters:
  • – Cortex ^® -M4 with FPU core I-bus
  • – Cortex ^® -M4 with FPU core D-bus
  • – Cortex ^® -M4 with FPU core S-bus
  • – DMA1
  • – DMA2
• • Seven slaves:
  • – Internal Flash memory on the ICode bus
  • – Internal Flash memory on DCode bus
  • – Internal SRAM1
  • – Internal SRAM2
  • – AHB1 peripherals including AHB to APB bridges and APB peripherals (connected to APB1 and APB2)
  • – AHB2 peripherals
  • – The external memory controller (QUADSPI)

The bus matrix provides access from a master to a slave, enabling concurrent access and efficient operation even when several high-speed peripherals work simultaneously. This architecture is shown in Figure 1 :

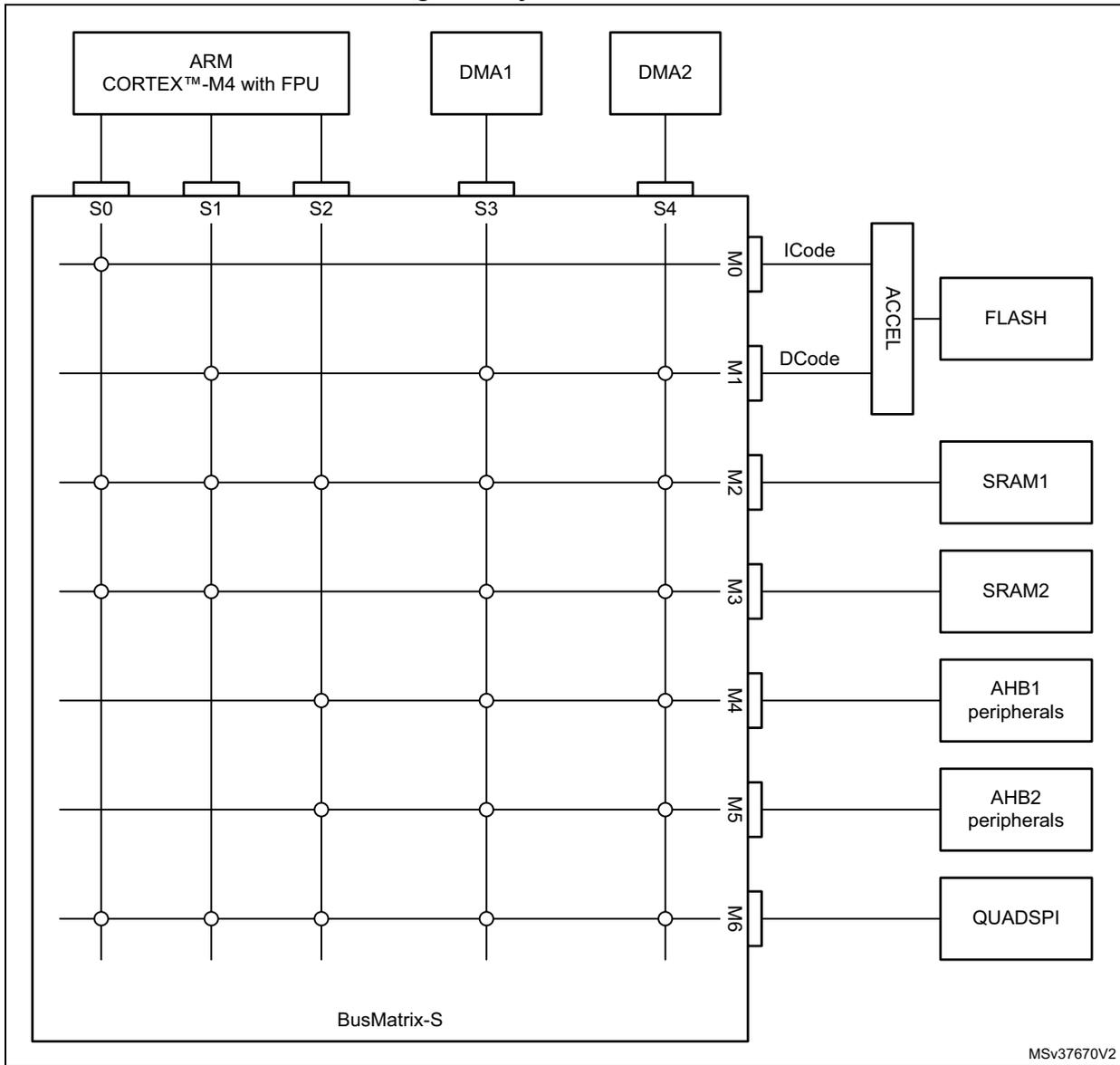

Figure 1. System architecture

2.1.1 S0: I-bus

This bus connects the instruction bus of the Cortex®-M4 core to the BusMatrix. This bus is used by the core to fetch instructions. The targets of this bus are the internal Flash memory, SRAM1, SRAM2 and external memories through QUADSPI.

2.1.2 S1: D-bus

This bus connects the data bus of the Cortex®-M4 core to the BusMatrix. This bus is used by the core for literal load and debug access. The targets of this bus are the internal Flash memory, SRAM1, SRAM2 and external memories through QUADSPI.

2.1.3 S2: S-bus

This bus connects the system bus of the Cortex ^® -M4 core to the BusMatrix. This bus is used by the core to access data located in a peripheral or SRAM area. The targets of this bus are the SRAM1, the AHB1 peripherals including the APB1 and APB2 peripherals, the AHB2 peripherals and the external memories through the QUADSPI.

2.1.4 S3, S4: DMA-bus

This bus connects the AHB master interface of the DMA to the BusMatrix. The targets of this bus are the SRAM1 and SRAM2, the AHB1 peripherals including the APB1 and APB2 peripherals, the AHB2 peripherals and the external memories through the QUADSPI.

2.1.5 BusMatrix

The BusMatrix manages the access arbitration between masters. The arbitration uses a Round Robin algorithm. The BusMatrix is composedof five masters (CPU AHB, system bus, DCode bus, ICode bus, DMA1 and DMA2 bus) and seven slaves (FLASH, SRAM1, SRAM2, AHB1 (including APB1 and APB2), AHB2 and QUADSPI).

AHB/APB bridges

The two AHB/APB bridges provide full synchronous connections between the AHB and the two APB buses, allowing flexible selection of the peripheral frequency.

Refer to Section 2.2.2: Memory map and register boundary addresses on page 71 for the address mapping of the peripherals connected to this bridge.

After each device reset, all peripheral clocks are disabled (except for the SRAM1/2 and Flash memory interface). Before using a peripheral you have to enable its clock in the RCC_AHBxENR and the RCC_APBxENR registers.

Note: When a 16- or 8-bit access is performed on an APB register, the access is transformed into a 32-bit access: the bridge duplicates the 16- or 8-bit data to feed the 32-bit vector.

2.2 Memory organization

2.2.1 Introduction

Program memory, data memory, registers and I/O ports are organized within the same linear 4-Gbyte address space.

The bytes are coded in memory in Little Endian format. The lowest numbered byte in a word is considered the word's least significant byte and the highest numbered byte the most significant.

The addressable memory space is divided into eight main blocks, of 512 Mbytes each.

2.2.2 Memory map and register boundary addresses

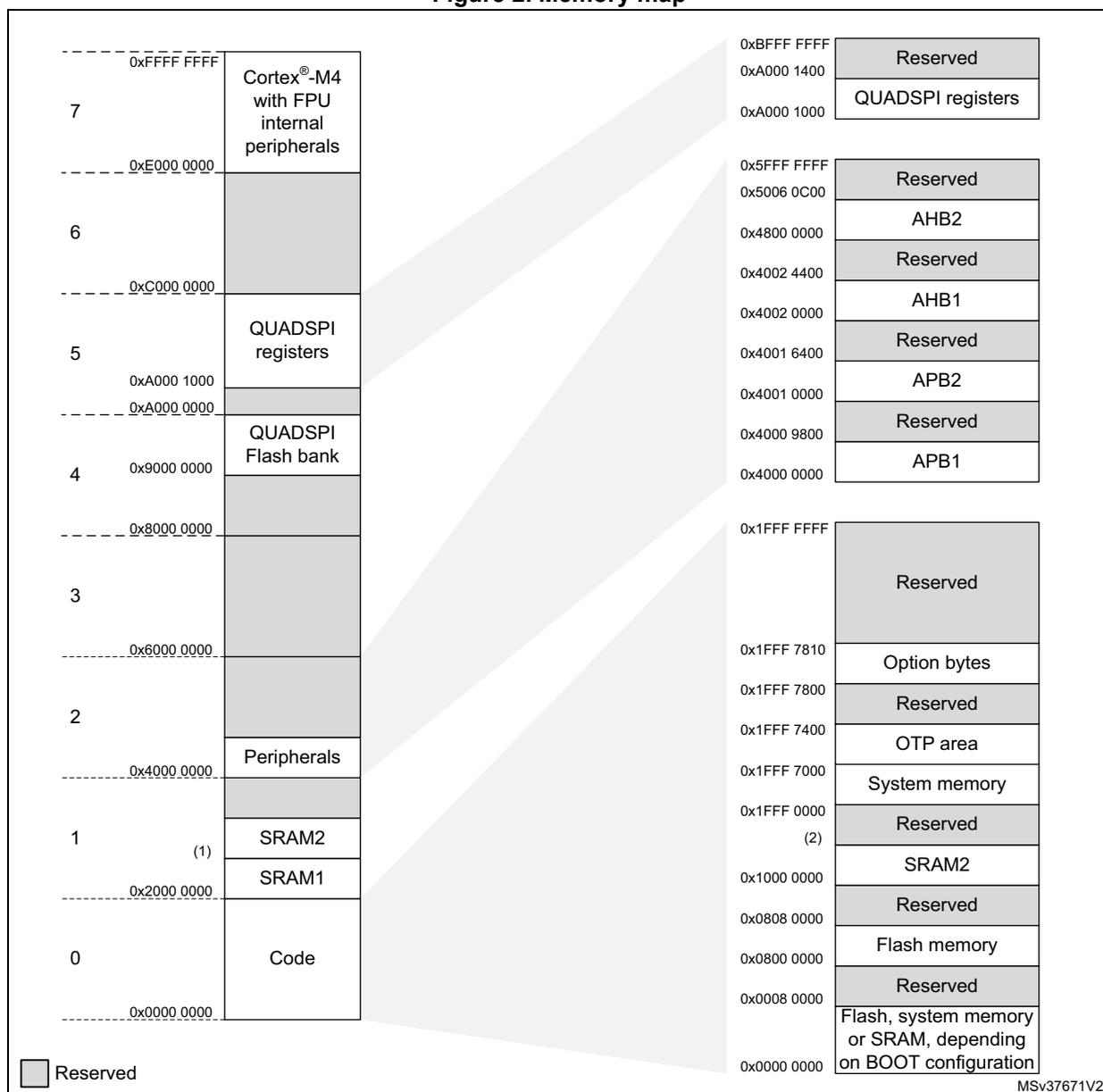

Figure 2. Memory map

1. 1. 0x2000 8000 for STM32L41xxx and STM32L42xxx devices
   0x2000 C000 for STM32L43xxx and STM32L44xxx devices
   0x2002 0000 for STM32L45xxx and STM32L46xxx devices
2. 2. 0x1000 2000 for STM32L41xxx and STM32L42xxx devices
   0x1000 4000 for STM32L43xxx and STM32L44xxx devices
   0x1000 8000 for STM32L45xxx and STM32L46xxx devices

It is forbidden to access the QUADSPI flash bank area before having properly configured and enabled the QUADSPI peripheral.

All the memory map areas that are not allocated to on-chip memories and peripherals are considered “Reserved”. For the detailed mapping of available memory and register areas, refer to the following table.

The following table gives the boundary addresses of the peripherals available in the devices.

Table 2. STM32L41xxx/42xxx/43xxx/44xxx/45xxx/46xxx memory map and peripheral register boundary addresses

Table 2. STM32L41xxx/42xxx/43xxx/44xxx/45xxx/46xxx memory map and peripheral register boundary addresses (continued)

Table 2. STM32L41xxx/42xxx/43xxx/44xxx/45xxx/46xxx memory map and peripheral register boundary addresses (continued)

1. 1. Available on STM32L44xxx and STM32L46xxx devices only.
2. 2. Not available on STM32L42xxx, STM32L432xx and STM32L442xx devices.
3. 3. Not available on STM32L41xxx and STM32L42xxx devices.
4. 4. Available on STM32L43xxx and STM32L44xxx devices only.
5. 5. Available on STM32L45xxx and STM32L46xxx devices only.
6. 6. Available on STM32L4x2xx and STM32L4x3xx devices only.
7. 7. Available on STM32L4x3xx devices only.
8. 8. Not available on STM32L45xxx and STM32L46xxx devices.

2.3 Bit banding

The Cortex ^® -M4 memory map includes two bit-band regions. These regions map each word in an alias region of memory to a bit in a bit-band region of memory. Writing to a word in the alias region has the same effect as a read-modify-write operation on the targeted bit in the bit-band region.

In the STM32L41xxx/42xxx/43xxx/44xxx/45xxx/46xxx devices both the peripheral registers and the SRAM1 are mapped to a bit-band region, so that single bit-band write and read operations are allowed. The operations are only available for Cortex ^® -M4 accesses, and not from other bus masters (for example, DMA).

A mapping formula shows how to reference each word in the alias region to a corresponding bit in the bit-band region. The mapping formula is:

where:

• – bit_word_addr is the address of the word in the alias memory region that maps to the targeted bit
• – bit_band_base is the starting address of the alias region
• – byte_offset is the number of the byte in the bit-band region that contains the targeted bit
• – bit_number is the bit position (0-7) of the targeted bit

Example

The following example shows how to map bit 2 of the byte located at SRAM1 address 0x20000300 to the alias region:

Writing to address 0x22006008 has the same effect as a read-modify-write operation on bit 2 of the byte at SRAM1 address 0x20000300.

Reading address 0x22006008 returns the value (0x01 or 0x00) of bit 2 of the byte at SRAM1 address 0x20000300 (0x01: bit set; 0x00: bit reset).

For more information on bit-banding, refer to the Cortex®-M4 programming manual (see Related documents on page 1 ).

2.4 Embedded SRAM

The STM32L41xxx/42xxx/43xxx/44xxx/45xxx/46xxx devices feature up to 196 Kbytes SRAM:

• • Up to 128 Kbytes SRAM1
• • Up to 32 Kbyte SRAM2.

These SRAM can be accessed as bytes, half-words (16 bits) or full words (32 bits). These memories can be addressed at maximum system clock frequency without wait state and thus by both CPU and DMA.

The CPU can access the SRAM1 through the system bus or through the ICode/DCode buses when boot from SRAM1 is selected or when physical remap is selected ( Section 9.2.1: SYSCFG memory remap register (SYSCFG_MEMRMP) in the SYSCFG controller). To get the maximum performance on SRAM1 execution, a physical remap must be selected (boot or software selection).

Execution can be performed from CCM SRAM with maximum performance without any remap thanks to access through the ICode bus.

2.4.1 SRAM2 parity check

The user can enable the SRAM2 parity check using the option bit SRAM2_PE in the user option byte (refer to Section 3.4.1: Option bytes description ).

The data bus width is 36 bits because 4 bits are available for parity check (1 bit per byte) to increase memory robustness, as required, for instance, by Class B or SIL norms.

The parity bits are computed and stored when writing into the SRAM2. Then, they are automatically checked when reading. If one bit fails, an NMI is generated. The same error can also be linked to the BRK_IN Break input of TIM1/TIM15/TIM16, with the SPL control bit in the SYSCFG configuration register 2 (SYSCFG_CFGR2) . The SRAM2 parity error flag (SPF) is available in the SYSCFG configuration register 2 (SYSCFG_CFGR2) .

Note: When enabling the RAM parity check, it is advised to initialize by software the whole RAM memory at the beginning of the code, to avoid getting parity errors when reading noninitialized locations.

2.4.2 SRAM2 Write protection

The SRAM2 can be write protected with a page granularity of 1 Kbyte.

Table 3. SRAM2 organization

Table 4. SRAM2 organization
(continuation for STM32L43x/44x/45x/46x devices only)

Table 5. SRAM2 organization
(continuation for STM32L45x and STM32L46x devices only)

The write protection can be enabled in SYSCFG SRAM2 write protection register (SYSCFG_SWPR) in the SYSCFG block. This is a register with write '1' once mechanism, which means by writing '1' on a bit it will set up the write protection for that page of SRAM and it can be removed/cleared by a system reset only.

2.4.3 SRAM2 Read protection

The SRAM2 is protected with the Read protection (RDP). Refer to Section 3.5.1: Read protection (RDP) for more details.

2.4.4 SRAM2 Erase

The SRAM2 can be erased with a system reset using the option bit SRAM2_RST in the user option byte (refer to Section 3.4.1: Option bytes description ).

The SRAM2 erase can also be requested by software by setting the bit SRAM2ER in the SYSCFG SRAM2 control and status register (SYSCFG_SCSR) .

2.5 Flash memory overview

The flash memory is composed of two distinct physical areas:

• • The main flash memory block. It contains the application program and user data if necessary.
• • The information block. It is composed of three parts:
  • – Option bytes for hardware and memory protection user configuration.
  • – System memory that contains the ST proprietary code.
  • – OTP (one-time programmable) area

The flash interface implements instruction access and data access based on the AHB protocol. It also implements the logic necessary to carry out the flash memory operations (program/erase) controlled through the flash registers. Refer to Section 3: Embedded Flash memory (FLASH) for more details.

2.6 Boot configuration

In the STM32L41xxx/42xxx/43xxx/44xxx/45xxx/46xxx, three different boot modes can be selected through the BOOT0 pin or the nBOOT0 bit into the FLASH_OPTR register (if the nSWBOOT0 bit is cleared into the FLASH_OPTR register), and nBOOT1 bit in the FLASH_OPTR register, as shown in the following table.

Table 6. Boot modes

1. 1. A flash empty check mechanism is implemented to force the boot from system flash if the first flash memory location is not programmed (0xFFFF FFFF) and if the boot selection was configured to boot from the main flash.

The values on both BOOT0 (coming from the pin or the option bit) and nBOOT1 bit are latched upon reset release. It is up to the user to set nBOOT1 and BOOT0 to select the required boot mode.

The BOOT0 pin or user option bit (depending on the nSWBOOT0 bit value in the FLASH_OPTR register), and nBOOT1 bit are also resampled when exiting from Standby mode. Consequently, they must be kept in the required Boot mode configuration in Standby mode. After this startup delay has elapsed, the CPU fetches the top-of-stack value from address 0x0000 0000, then starts code execution from the boot memory at 0x0000 0004.

Depending on the selected boot mode, main flash memory, system memory or SRAM1 is accessible as follows:

• • Boot from main flash memory: the main flash memory is aliased in the boot memory space (0x0000 0000), but still accessible from its original memory space (0x0800 0000). In other words, the flash memory contents can be accessed starting from address 0x0000 0000 or 0x0800 0000.
• • Boot from system memory: the system memory is aliased in the boot memory space (0x0000 0000), but still accessible from its original memory space (0x1FFF 0000).
• • Boot from the embedded SRAM1: the SRAM1 is aliased in the boot memory space (0x0000 0000), but it is still accessible from its original memory space (0x2000 0000).

PH3/BOOT0 GPIO is configured in:

• • Input mode during the complete reset phase if the option bit nSWBOOT0 is set into the FLASH_OPTR register and then switches automatically in analog mode after reset is released (BOOT0 pin).
• • Input mode from the reset phase to the completion of the option byte loading if the bit nSWBOOT0 is cleared into the FLASH_OPTR register (BOOT0 value coming from the option bit). It then switches automatically to the analog mode even if the reset phase is not complete.

Note: When the device boots from SRAM, in the application initialization code, you have to relocate the vector table in SRAM using the NVIC exception table and the offset register.

Empty check

The internal empty check flag (the EMPTY bit of the flash access control register (FLASH_ACR)) is implemented to allow easy programming of virgin devices by the bootloader. This flag is used when the BOOT0 pin is defining Main flash memory as the target bootloader) is selected instead of the Main flash as a boot area to allow user to program the flash memory. Therefore, some of the GPIOs will be reconfigured from the high-Z state. Refer to the document STM32 microcontroller system memory boot mode (AN2606) for more details concerning the bootloader and GPIO configuration in system memory boot mode. It is possible to disable this feature by configuring the option bytes to force boot from the main flash memory (nSWBOOT0 = 0, nBOOT0 = 1).

This flag is updated only during the loading of option bytes: it is set when the content of the address 0x0800 0000 is read as 0xFFFF FFFF, otherwise it is cleared. It means a power reset or setting of OBL_LAUNCH bit in the FLASH_CR register is needed to clear this flag after programming of a virgin device to execute user code after system reset. The EMPTY bit can also be directly written by software.

Physical remap

Once the boot mode is selected, the application software can modify the memory accessible in the code area (in this way the code can be executed through the ICode bus in

place of the system bus). This modification is performed by programming the SYSCFG memory remap register (SYSCFG_MEMRMP) in the SYSCFG controller.

The following memories can thus be remapped:

• • Main flash memory
• • System memory
• • Embedded SRAM1
• • QUADSPI memory

Table 7. Memory mapping vs. Boot mode/Physical remap

1. Address depends on the memory size available on a given device.

2. When the QUADSPI is remapped at address 0x0000 0000, only 128 MB are remapped. In remap mode, the CPU can access the external memory via ICode bus instead of the system bus that boosts up the performance.

3. Even when aliased in the boot memory space, the related memory is still accessible at its original memory space.

Embedded bootloader

The embedded bootloader is located in the system memory, programmed by ST during production. Refer to AN2606 STM32 microcontroller system memory boot mode.
