6. Reset and clock control (RCC)

6.1 Reset

There are three types of reset, defined as system Reset, power Reset and backup domain Reset.

6.1.1 System reset

A system reset sets all registers to their reset values except the reset flags in the clock controller CSR register and the registers in the Backup domain (see Figure 15 ).

A system reset is generated when one of the following events occurs:

1. 1. A low level on the NRST pin (external reset)
2. 2. Window watchdog end of count condition (WWDG reset)
3. 3. Independent watchdog end of count condition (IWDG reset)
4. 4. A software reset (SW reset) (see Software reset )
5. 5. Low-power management reset (see Low-power management reset )

Software reset

The reset source can be identified by checking the reset flags in the RCC clock control & status register (RCC_CSR) .

The SYSRESETREQ bit in Cortex ^® -M4 Application Interrupt and Reset Control Register must be set to force a software reset on the device. Refer to the Cortex ^® -M4 technical reference manual for more details.

Low-power management reset

There are two ways of generating a low-power management reset:

1. 1. Reset generated when entering the Standby mode:

This type of reset is enabled by resetting the nRST_STDBY bit in the user option bytes. In this case, whenever a Standby mode entry sequence is successfully executed, the device is reset instead of entering the Standby mode.

1. 2. Reset when entering the Stop mode:

This type of reset is enabled by resetting the nRST_STOP bit in the user option bytes. In this case, whenever a Stop mode entry sequence is successfully executed, the device is reset instead of entering the Stop mode.

For further information on the user option bytes, refer to Section 3: Embedded Flash memory interface .

6.1.2 Power reset

A power reset is generated when one of the following events occurs:

1. 1. Power-on/power-down reset (POR/PDR reset) or brownout (BOR) reset
2. 2. When exiting the Standby mode

A power reset sets all registers to their reset values except the Backup domain (see Figure 15 )

These sources act on the NRST pin and it is always kept low during the delay phase. The RESET service routine vector is fixed at address 0x0000_0004 in the memory map.

The system reset signal provided to the device is output on the NRST pin. The pulse generator guarantees a minimum reset pulse duration of 20 \( \mu\text{s} \) for each internal reset source. In case of an external reset, the reset pulse is generated while the NRST pin is asserted low.

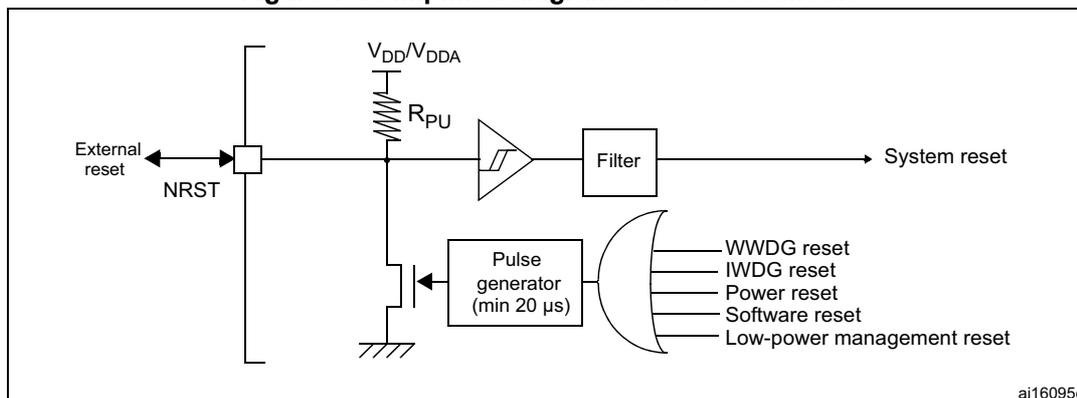

Figure 15. Simplified diagram of the reset circuit

The Backup domain has two specific resets that affect only the Backup domain (see Figure 15 ).

6.1.3 Backup domain reset

The backup domain reset sets all RTC registers and the RCC_BDCR register to their reset values. The BKPSRAM is not affected by this reset. The only way of resetting the BKPSRAM is through the Flash interface by requesting a protection level change from 1 to 0.

A backup domain reset is generated when one of the following events occurs:

1. 1. Software reset, triggered by setting the BDRST bit in the RCC Backup domain control register (RCC_BDCR) .
2. 2. \( V_{DD} \) or \( V_{BAT} \) power on, if both supplies have previously been powered off.

6.2 Clocks

Three different clock sources can be used to drive the system clock (SYSCLK):

• • HSI oscillator clock
• • HSE oscillator clock
• • Two main PLL (PLL) clocks

The devices have the two following secondary clock sources:

• • 32 kHz low-speed internal RC (LSI RC) which drives the independent watchdog and, optionally, the RTC used for Auto-wakeup from the Stop/Standby mode.
• • 32.768 kHz low-speed external crystal (LSE crystal) which optionally drives the RTC clock (RTCCLK)

Each clock source can be switched on or off independently when it is not used, to optimize power consumption.

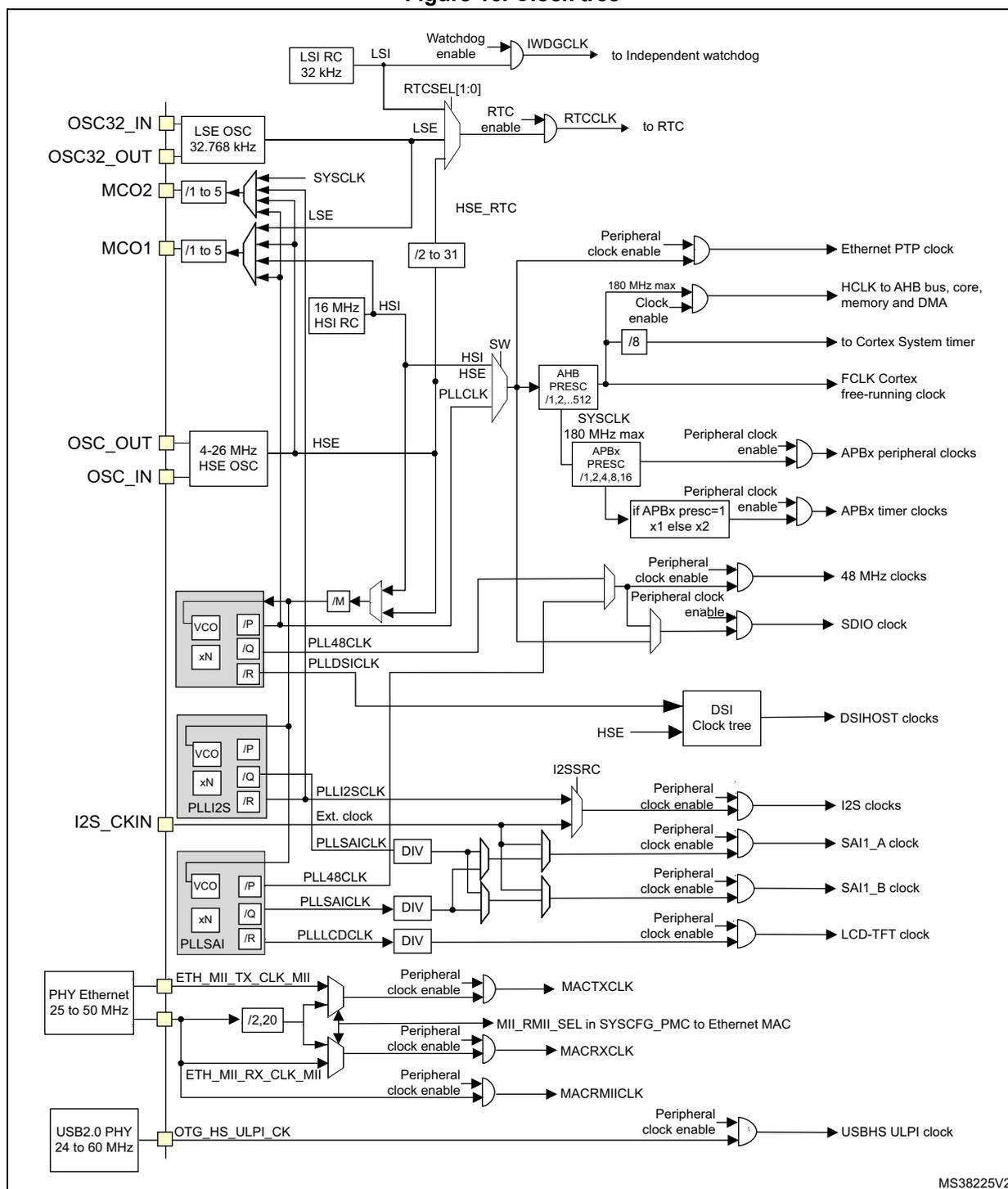

Figure 16. Clock tree

MS38225V2

1. 1. For full details about the internal and external clock source characteristics, refer to the Electrical characteristics section in the device datasheet.
2. 2. When TIMPRE bit of the RCC_DCKCFGR register is reset, if APBx prescaler is 1, then TIMxCLK = PCLKx, otherwise TIMxCLK = 2x PCLKx.
3. 3. When TIMPRE bit in the RCC_DCKCFGR register is set, if APBx prescaler is 1, 2 or 4, then TIMxCLK = HCLK, otherwise TIMxCLK = 4x PCLKx.

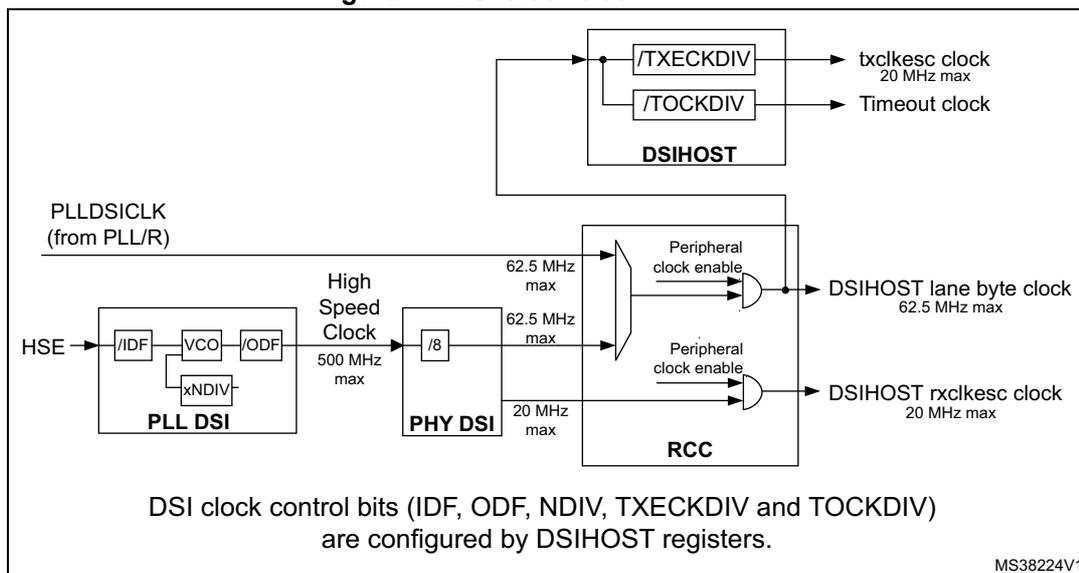

Figure 17. DSI clock tree

The clock controller provides a high degree of flexibility to the application in the choice of the external crystal or the oscillator to run the core and peripherals at the highest frequency and, guarantee the appropriate frequency for peripherals that need a specific clock like USB OTG FS and HS, I2S, SAI, and SDIO.

Several prescalers are used to configure the AHB frequency, the high-speed APB (APB2) and the low-speed APB (APB1) domains. The maximum frequency of the AHB domain is 180 MHz. The maximum allowed frequency of the high-speed APB2 domain is 90 MHz. The maximum allowed frequency of the low-speed APB1 domain is 45 MHz

All peripheral clocks are derived from the system clock (SYSCLK) except for:

• • The USB OTG FS clock (48 MHz), which is coming from a specific output of the PLL (PLLP) or PLLSAI (PLLSAIP)
• • The SDIO clock (48 MHz) which is coming from a specific output of the PLL48CLK (PLLQ, PLLSAIP), or System Clock.
• • I2S1/2 clocks

To achieve high-quality audio performance and for a better configuration flexibility, the I2S1 and I2S2 clocks (clock for I2Ss mapped on, respectively, APB1 and APB2) can be derived from four sources:

• – a specific main PLL output
• – a specific PLLI2S output
• – from an external clock mapped on the I2S_CKIN pin
• – from HSI/HSE

• • SAI clock

The SAI1 clock is generated from a specific PLL (Main PLL, PLLSAI, or PLLI2S), from an external clock mapped on the I2S_CKIN pin or from HSI/HSE clock.

The PLLSAI can be used as clock source for SAI1 peripheral in case the PLLI2S is programmed to achieve another audio sampling frequency (49.152 MHz or 11.2896 MHz), and the application requires both frequencies at the same time.

• • The USB OTG HS (60 MHz) clock, provided from the external PHY.
• • The 48MHz clock, used for USB OTG FS, SDMMC and RNG. This clock is derived from one of the following sources:
  • – main PLL VCO (PLL48CLK)
  • – PLLSAI VCO (PLLSAI48CLK clock)
• • I2S clock

To achieve high-quality audio performance, the I2S clock can be derived either from a specific PLL (PLLI2S) or from an external clock mapped on the I2S_CKIN pin. For more information about I2S clock frequency and precision, refer to Section 31.6.4: Clock generator .

• • SAI1 clock

The SAI1 clock is generated from a specific PLL (PLLSAI or PLLI2S) or from an external clock mapped on the I2S_CKIN pin.

The PLLSAI can be used as clock source for SAI1 peripheral in case the PLLI2S is programmed to achieve another audio sampling frequency (49.152 MHz or 11.2896 MHz), and the application requires both frequencies at the same time.

• • LTDC clock

The LTDC clock is generated from a specific PLL (PLLSAI).

The USB OTG HS (60 MHz) clock which is provided from the external PHY

The Ethernet MAC clocks (TX, RX and RMII) which are provided from the external PHY. For further information on the Ethernet configuration, refer to Section 36.4.4: MII/RMII selection in the Ethernet peripheral description. When the Ethernet is used, the AHB clock frequency must be at least 25 MHz.

DSI lanebyteclk clock: DSI Lane byte clock (high-speed clock divided by 8) which is output from the DSI-PHY or from a specific output of main PLL (frequency lower than 62MHz) in case DSI-PHY is off.

• • DSI host rxclkesc clock: DSI RX escape mode clock is output from DSI-PHY (generated from DP0/DN0 even if the DSI-PHY is not clocked).

The RTC clock which is derived from one of the following sources:

1. • – LSE clock
   • – LSI clock
   • – HSE clock divided by 32
2. • • The IWDG clock which is always the LSI clock.

The timer clock frequencies are automatically set by hardware. There are two cases depending on the value of TIMPRE bit in RCC_CFGR register:

• • If TIMPRE bit in RCC_DKCFGR register is reset:
  If the APB prescaler is configured to a division factor of 1, the timer clock frequencies (TIMxCLK) are set to PCLKx. Otherwise, the timer clock frequencies are twice the frequency of the APB domain to which the timers are connected: \( TIMxCLK = 2 \times PCLKx \) .
• • If TIMPRE bit in RCC_DKCFGR register is set:
  If the APB prescaler is configured to a division factor of 1, 2 or 4, the timer clock frequencies (TIMxCLK) are set to HCLK. Otherwise, the timer clock frequencies is four times the frequency of the APB domain to which the timers are connected: \( TIMxCLK = 4 \times PCLKx \) .

The RCC feeds the external clock of the Cortex System Timer (SysTick) with the AHB clock (HCLK) divided by 8. The SysTick can work either with this clock or with the Cortex clock (HCLK), configurable in the SysTick control and status register.

FCLK acts as Cortex ^® -M4 free-running clock. For more details, refer to the Cortex ^® -M4 technical reference manual.

6.2.1 HSE clock

The high speed external clock signal (HSE) can be generated from two possible clock sources:

• • HSE external crystal/ceramic resonator
• • HSE external user clock

The resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and startup stabilization time. The loading capacitance values must be adjusted according to the selected oscillator.

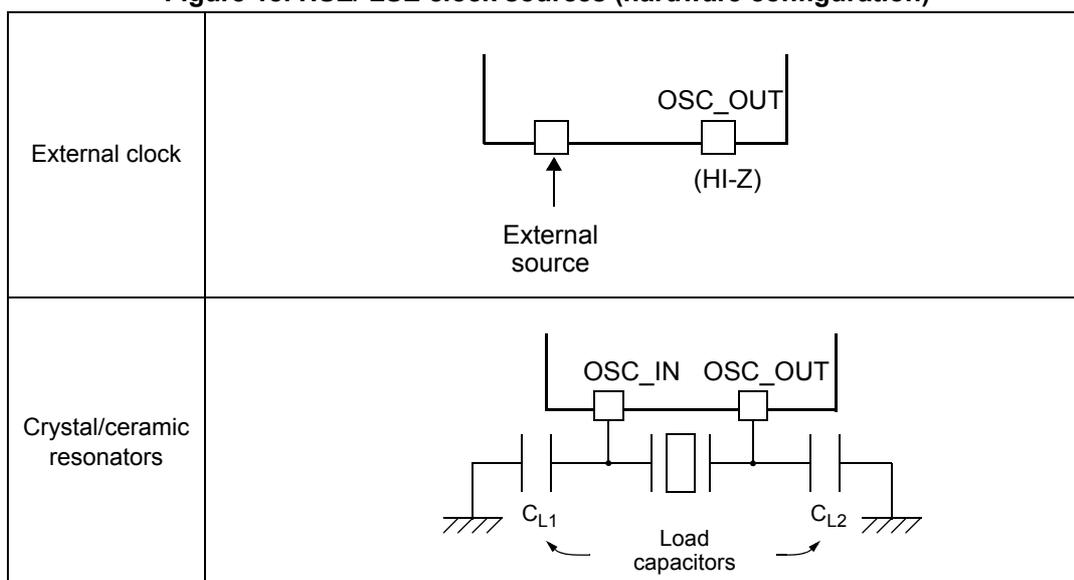

Figure 18. HSE/ LSE clock sources (hardware configuration)

External source (HSE bypass)

In this mode, an external clock source must be provided. You select this mode by setting the HSEBYP and HSEON bits in the RCC clock control register (RCC_CR) . The external clock signal (square, sinus or triangle) with ~50% duty cycle has to drive the OSC_IN pin while the OSC_OUT pin should be left HI-Z. See Figure 18 .

External crystal/ceramic resonator (HSE crystal)

The HSE has the advantage of producing a very accurate rate on the main clock.

The associated hardware configuration is shown in Figure 18 . Refer to the electrical characteristics section of the datasheet for more details.

The HSERDY flag in the RCC clock control register (RCC_CR) indicates if the high-speed external oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt register (RCC_CIR) .

The HSE Crystal can be switched on and off using the HSEON bit in the RCC clock control register (RCC_CR) .

6.2.2 HSI clock

The HSI clock signal is generated from an internal 16 MHz RC oscillator and can be used directly as a system clock, or used as PLL input.

The HSI RC oscillator has the advantage of providing a clock source at low cost (no external components). It also has a faster startup time than the HSE crystal oscillator however, even with calibration the frequency is less accurate than an external crystal oscillator or ceramic resonator.

Calibration

RC oscillator frequencies can vary from one chip to another due to manufacturing process variations, this is why each device is factory calibrated by ST for 1% accuracy at \( T_A = 25\text{ }^\circ\text{C} \) .

After reset, the factory calibration value is loaded in the HSICAL[7:0] bits in the RCC clock control register (RCC_CR) .

If the application is subject to voltage or temperature variations this may affect the RC oscillator speed. You can trim the HSI frequency in the application using the HSITRIM[4:0] bits in the RCC clock control register (RCC_CR) .

The HSIRDY flag in the RCC clock control register (RCC_CR) indicates if the HSI RC is stable or not. At startup, the HSI RC output clock is not released until this bit is set by hardware.

The HSI RC can be switched on and off using the HSION bit in the RCC clock control register (RCC_CR) .

The HSI signal can also be used as a backup source (Auxiliary clock) if the HSE crystal oscillator fails. Refer to Section 6.2.7: Clock security system (CSS) on page 144 .

6.2.3 PLL

The STM32F469xx and STM32F479xx devices feature three PLLs:

• • A main PLL (PLL) clocked by the HSE or HSI oscillator and featuring two different output clocks:
  • – The first output is used to generate the high speed system clock (up to 180 MHz)
  • – The second output is used to generate the 48 MHz clock for the USB OTG FS, SDMMC and RNG.
• • PLLI2S is used to generate an accurate clock to achieve high-quality audio performance on the I2S and SAI interfaces.
• • PLLSAI is used to generate clock for SAI interface, LCD-TFT clock and the 48 MHz (PLLSAI48CLK) that can be selected for the USB OTG FS, SDMMC and RNG.

Since the main-PLL configuration parameters cannot be changed once PLL is enabled, it is recommended to configure PLL before enabling it (selection of the HSI or HSE oscillator as PLL clock source, and configuration of division factors M, N, P and Q).

The PLLI2S and PLLSAI use the same input clock as PLL (PLL SRC bit is common to both PLLs). However, the PLLI2S and PLLSAI have dedicated enable/disable and division factors (M, N, P, R and R) configuration bits. Once the PLLI2S and PLLSAI are enabled, the configuration parameters cannot be changed.

The three PLLs are disabled by hardware when entering Stop and Standby modes, or when an HSE failure occurs when HSE or PLL (clocked by HSE) are used as system clock. RCC PLL configuration register (RCC_PLLCFGR) , RCC clock configuration register (RCC_CFGR) , and RCC dedicated clock configuration register (RCC_DCKCFGR) can be used to configure PLL, PLLI2S, and PLLSAI.

6.2.4 LSE clock

The LSE clock is generated from a 32.768 kHz low-speed external crystal or ceramic resonator. It has the advantage providing a low-power but highly accurate clock source to the real-time clock peripheral (RTC) for clock/calendar or other timing functions.

The LSE oscillator is switched on and off using the LSEON bit in RCC Backup domain control register (RCC_BDCR) .

The LSERDY flag in the RCC Backup domain control register (RCC_BDCR) indicates if the LSE crystal is stable or not. At startup, the LSE crystal output clock signal is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt register (RCC_CIR) .

External source (LSE bypass)

In this mode, an external clock source must be provided. It must have a frequency up to 1 MHz. You select this mode by setting the LSEBYP and LSEON bits in the RCC Backup domain control register (RCC_BDCR) . The external clock signal (square, sinus or triangle) with ~50% duty cycle has to drive the OSC32_IN pin while the OSC32_OUT pin should be left HI-Z. See Figure 18 .

6.2.5 LSI clock

The LSI RC acts as an low-power clock source that can be kept running in Stop and Standby mode for the independent watchdog (IWDG) and Auto-wakeup unit (AWU). The clock frequency is around 32 kHz. For more details, refer to the electrical characteristics section of the datasheets.

The LSI RC can be switched on and off using the LSION bit in the RCC clock control & status register (RCC_CSR) .

The LSIRDY flag in the RCC clock control & status register (RCC_CSR) indicates if the low-speed internal oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt register (RCC_CIR) .

6.2.6 System clock (SYSCLK) selection

After a system reset, the HSI oscillator is selected as the system clock. When a clock source is used directly or through PLL as the system clock, it is not possible to stop it.

A switch from one clock source to another occurs only if the target clock source is ready (clock stable after startup delay or PLL locked). If a clock source that is not yet ready is selected, the switch occurs when the clock source is ready. Status bits in the RCC clock control register (RCC_CR) indicate which clock(s) is (are) ready and which clock is currently used as the system clock.

6.2.7 Clock security system (CSS)

The clock security system can be activated by software. In this case, the clock detector is enabled after the HSE oscillator startup delay, and disabled when this oscillator is stopped.

If a failure is detected on the HSE clock, this oscillator is automatically disabled, a clock failure event is sent to the break inputs of advanced-control timers TIM1 and TIM8, and an interrupt is generated to inform the software about the failure (clock security system interrupt CSSI), allowing the MCU to perform rescue operations. The CSSI is linked to the Cortex®-M4 NMI (non-maskable interrupt) exception vector.

Note: When the CSS is enabled, if the HSE clock happens to fail, the CSS generates an interrupt, which causes the automatic generation of an NMI. The NMI is executed indefinitely unless the CSS interrupt pending bit is cleared. As a consequence, the application has to clear the

CSS interrupt in the NMI ISR by setting the CSSC bit in the Clock interrupt register (RCC_CIR).

If the HSE oscillator is used directly or indirectly as the system clock (indirectly meaning that it is directly used as PLL input clock, and that PLL clock is the system clock) and a failure is detected, then the system clock switches to the HSI oscillator and the HSE oscillator is disabled.

If the HSE oscillator clock was the clock source of PLL used as the system clock when the failure occurred, PLL is also disabled. In this case, if the PLLI2S was enabled, it is also disabled when the HSE fails.

6.2.8 RTC/AWU clock

Once the RTCCLK clock source has been selected, the only possible way of modifying the selection is to reset the power domain.

The RTCCLK clock source can be either the HSE 1 MHz (HSE divided by a programmable prescaler), the LSE or the LSI clock. This is selected by programming the RTCSEL[1:0] bits in the RCC Backup domain control register (RCC_BDCR) and the RTCPRE[4:0] bits in RCC clock configuration register (RCC_CFGR) . This selection cannot be modified without resetting the Backup domain.

If the LSE is selected as the RTC clock, the RTC will work normally if the backup or the system supply disappears. If the LSI is selected as the AWU clock, the AWU state is not guaranteed if the system supply disappears. If the HSE oscillator divided by a value between 2 and 31 is used as the RTC clock, the RTC state is not guaranteed if the backup or the system supply disappears.

The LSE clock is in the Backup domain, whereas the HSE and LSI clocks are not. As a consequence:

• • If LSE is selected as the RTC clock:
  • – The RTC continues to work even if the \( V_{DD} \) supply is switched off, provided the \( V_{BAT} \) supply is maintained.
• • If LSI is selected as the Auto-wakeup unit (AWU) clock:
  • – The AWU state is not guaranteed if the \( V_{DD} \) supply is powered off. Refer to Section 6.2.5: LSI clock on page 144 for more details on LSI calibration.
• • If the HSE clock is used as the RTC clock:
  • – The RTC state is not guaranteed if the \( V_{DD} \) supply is powered off or if the internal voltage regulator is powered off (removing power from the 1.2 V domain).

Note: To read the RTC calendar register when the APB1 clock frequency is less than seven times the RTC clock frequency ( \( f_{APB1} < 7 \times f_{RTCCLK} \) ), the software must read the calendar time and date registers twice. The data are correct if the second read access to RTC_TR gives the same result than the first one. Otherwise a third read access must be performed.

6.2.9 Watchdog clock

If the independent watchdog (IWDG) is started by either hardware option or software access, the LSI oscillator is forced ON and cannot be disabled. After the LSI oscillator temporization, the clock is provided to the IWDG.

6.2.10 Clock-out capability

Two microcontroller clock output (MCO) pins are available:

• • MCO1

You can output four different clock sources onto the MCO1 pin (PA8) using the configurable prescaler (from 1 to 5):

• – HSI clock
• – LSE clock
• – HSE clock
• – PLL clock

The desired clock source is selected using the MCO1PRE[2:0] and MCO1[1:0] bits in the RCC clock configuration register (RCC_CFGR) .

• • MCO2

You can output four different clock sources onto the MCO2 pin (PC9) using the configurable prescaler (from 1 to 5):

• – HSE clock
• – PLL clock
• – System clock (SYSCLK)
• – PLLI2S clock

The desired clock source is selected using the MCO2PRE[2:0] and MCO2 bits in the RCC clock configuration register (RCC_CFGR) .

For the different MCO pins, the corresponding GPIO port has to be programmed in alternate function mode.

The selected clock to output onto MCO must not exceed 100 MHz (the maximum I/O speed).

6.2.11 Internal/external clock measurement using TIM5/TIM11

It is possible to indirectly measure the frequencies of all on-board clock source generators by means of the input capture of TIM5 channel4 and TIM11 channel1 as shown in Figure 19 and Figure 20 .

Internal/external clock measurement using TIM5 channel4

TIM5 has an input multiplexer which allows choosing whether the input capture is triggered by the I/O or by an internal clock. This selection is performed through the TI4_RMP [1:0] bits in the TIM5_OR register.

The primary purpose of having the LSE connected to the channel4 input capture is to be able to precisely measure the HSI (this requires to have the HSI used as the system clock source). The number of HSI clock counts between consecutive edges of the LSE signal provides a measurement of the internal clock period. Taking advantage of the high precision of LSE crystals (typically a few tens of ppm) we can determine the internal clock frequency with the same resolution, and trim the source to compensate for manufacturing-process and/or temperature- and voltage-related frequency deviations.

The HSI oscillator has dedicated, user-accessible calibration bits for this purpose.

The basic concept consists in providing a relative measurement (e.g. HSI/LSE ratio): the precision is therefore tightly linked to the ratio between the two clock sources. The greater the ratio, the better the measurement.

It is also possible to measure the LSI frequency: this is useful for applications that do not have a crystal. The ultralow-power LSI oscillator has a large manufacturing process deviation: by measuring it versus the HSI clock source, it is possible to determine its frequency with the precision of the HSI. The measured value can be used to have more accurate RTC time base timeouts (when LSI is used as the RTC clock source) and/or an IWDG timeout with an acceptable accuracy.

Use the following procedure to measure the LSI frequency:

1. 1. Enable the TIM5 timer and configure channel4 in Input capture mode.
2. 2. This bit is set the TI4_RMP bits in the TIM5_OR register to 0x01 to connect the LSI clock internally to TIM5 channel4 input capture for calibration purposes.
3. 3. Measure the LSI clock frequency using the TIM5 capture/compare 4 event or interrupt.
4. 4. Use the measured LSI frequency to update the prescaler of the RTC depending on the desired time base and/or to compute the IWDG timeout.

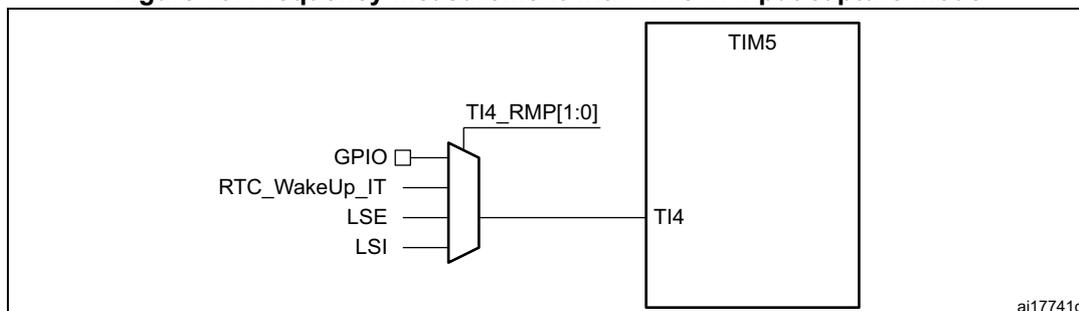

Figure 19. Frequency measurement with TIM5 in Input capture mode

Internal/external clock measurement using TIM11 channel1

TIM11 has an input multiplexer which allows choosing whether the input capture is triggered by the I/O or by an internal clock. This selection is performed through TI1_RMP [1:0] bits in the TIM11_OR register. The HSE_RTC clock (HSE divided by a programmable prescaler) is connected to channel 1 input capture to have a rough indication of the external crystal frequency. This requires that the HSI is the system clock source. This can be useful for instance to ensure compliance with the IEC 60730/IEC 61335 standards which require to be able to determine harmonic or subharmonic frequencies (-50/+100% deviations).

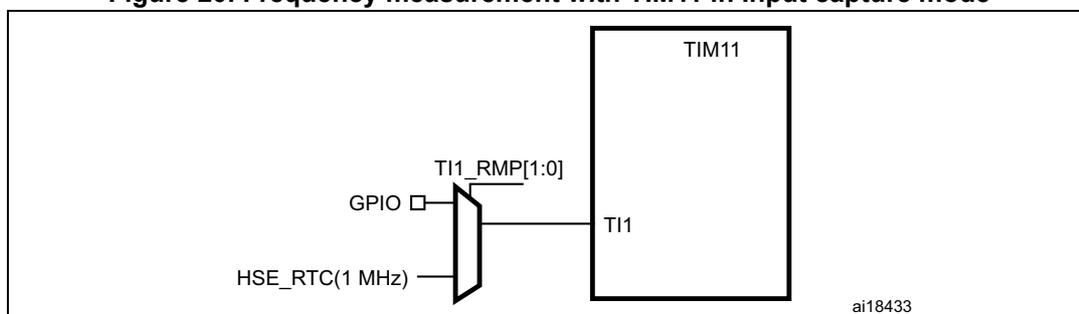

Figure 20. Frequency measurement with TIM11 in Input capture mode

6.3 RCC registers

Refer to Section 1.2: List of abbreviations for registers for a list of abbreviations used in register descriptions.

6.3.1 RCC clock control register (RCC_CR)

Address offset: 0x00

Reset value: 0x0000 XX83 where X is undefined.

Access: no wait state, word, half-word and byte access

Bits 31:28 Reserved, must be kept at reset value.

Bit 29 PLL _SAI RDY : PLL _SAI clock ready flag

Set by hardware to indicate that the PLL _SAI is locked.

0: PLL _SAI unlocked

1: PLL _SAI locked

Bit 28 PLL _SAI ON : PLL _SAI enable

Set and cleared by software to enable PLL _SAI .

Cleared by hardware when entering Stop or Standby mode.

0: PLL _SAI OFF

1: PLL _SAI ON

Bit 27 PLL _I2S RDY : PLL _I2S clock ready flag

Set by hardware to indicate that the PLL _I2S is locked.

0: PLL _I2S unlocked

1: PLL _I2S locked

Bit 26 PLL _I2S ON : PLL _I2S enable

Set and cleared by software to enable PLL _I2S .

Cleared by hardware when entering Stop or Standby mode.

0: PLL _I2S OFF

1: PLL _I2S ON

Bit 25 PLL _RDY : Main PLL (PLL) clock ready flag

Set by hardware to indicate that PLL is locked.

0: PLL unlocked

1: PLL locked

Bit 24 PLL _ON : Main PLL (PLL) enable

Set and cleared by software to enable PLL.

Cleared by hardware when entering Stop or Standby mode. This bit cannot be reset if PLL clock is used as the system clock.

0: PLL OFF

1: PLL ON

Bits 23:20 Reserved, must be kept at reset value.

Bit 19 CSSON : Clock security system enable

Set and cleared by software to enable the clock security system. When CSSON is set, the clock detector is enabled by hardware when the HSE oscillator is ready, and disabled by hardware if an oscillator failure is detected.

0: Clock security system OFF (Clock detector OFF)

1: Clock security system ON (Clock detector ON if HSE oscillator is stable, OFF if not)

Bit 18 HSEBYP : HSE clock bypass

Set and cleared by software to bypass the oscillator with an external clock. The external clock must be enabled with the HSEON bit, to be used by the device.

The HSEBYP bit can be written only if the HSE oscillator is disabled.

0: HSE oscillator not bypassed

1: HSE oscillator bypassed with an external clock

Bit 17 HSERDY : HSE clock ready flag

Set by hardware to indicate that the HSE oscillator is stable. After the HSEON bit is cleared, HSERDY goes low after 6 HSE oscillator clock cycles.

0: HSE oscillator not ready

1: HSE oscillator ready

Bit 16 HSEON : HSE clock enable

Set and cleared by software.

Cleared by hardware to stop the HSE oscillator when entering Stop or Standby mode. This bit cannot be reset if the HSE oscillator is used directly or indirectly as the system clock.

0: HSE oscillator OFF

1: HSE oscillator ON

Bits 15:8 HSICAL[7:0] : Internal high-speed clock calibration

These bits are initialized automatically at startup.

Bits 7:3 HSITRIM[4:0] : Internal high-speed clock trimming

These bits provide an additional user-programmable trimming value that is added to the HSICAL[7:0] bits. It can be programmed to adjust to variations in voltage and temperature that influence the frequency of the internal HSI RC.

Bit 2 Reserved, must be kept at reset value.

Bit 1 HSIRDY : Internal high-speed clock ready flag

Set by hardware to indicate that the HSI oscillator is stable. After the HSION bit is cleared, HSIRDY goes low after 6 HSI clock cycles.

0: HSI oscillator not ready

1: HSI oscillator ready

Bit 0 HSION : Internal high-speed clock enable

Set and cleared by software.

Set by hardware to force the HSI oscillator ON when leaving the Stop or Standby mode or in case of a failure of the HSE oscillator used directly or indirectly as the system clock. This bit cannot be cleared if the HSI is used directly or indirectly as the system clock.

0: HSI oscillator OFF

1: HSI oscillator ON

6.3.2 RCC PLL configuration register (RCC_PLLCFGR)

Address offset: 0x04

Reset value: 0x2400 3010

Access: no wait state, word, half-word and byte access.

This register is used to configure the PLL clock outputs according to the formulas:

• • \( f_{(\text{VCO clock})} = f_{(\text{PLL clock input})} \times (\text{PLLN} / \text{PLLM}) \)
• • \( f_{(\text{PLL general clock output})} = f_{(\text{VCO clock})} / \text{PLLP} \)
• • \( f_{(\text{USB OTG FS, SDMMC})} = f_{(\text{VCO clock})} / \text{PLLQ} \)
• • \( f_{(\text{PLL DSI clock output})} = f_{(\text{VCO clock})} / \text{PLLR} \)

Bit 31 Reserved, must be kept at reset value.

Bits 30:28 PLLR[2:0] : Main PLL division factor for DSI clock

Set and cleared by software to control the frequency of the DSI host clock. These bits should be written only when the DSI host is disabled.

DSI clock frequency = VCO frequency / PLLR with \( 2 \leq \text{PLLR} \leq 7 \)

000: PLLR = 0, wrong configuration

001: PLLR = 1, wrong configuration

010: PLLR = 2

011: PLLR = 3

...

111: PLLR = 7

Bits 27:24 PLLQ[3:0] : Main PLL (PLL) division factor for USB OTG FS, SDMMC and random number generator clocks

Set and cleared by software to control the frequency of USB OTG FS clock and the SDMMC and random number generator clocks. These bits should be written only if PLL is disabled.

Caution: The USB OTG FS requires a 48 MHz clock to work correctly. The SDMMC and random number generator need a frequency lower than or equal to 48 MHz to work correctly.

USB OTG FS clock frequency = VCO frequency / PLLQ with \( 2 \leq \text{PLLQ} \leq 15 \)

0000: PLLQ = 0, wrong configuration

0001: PLLQ = 1, wrong configuration

0010: PLLQ = 2

0011: PLLQ = 3

0100: PLLQ = 4

...

1111: PLLQ = 15

Bit 23 Reserved, must be kept at reset value.

Bit 22 PLLSRC : Main PLL(PLL) and audio PLL (PLL12S) entry clock source

Set and cleared by software to select PLL and PLL12S clock source. This bit can be written only when PLL and PLL12S are disabled.
0: HSI clock selected as PLL and PLL12S clock entry
1: HSE oscillator clock selected as PLL and PLL12S clock entry

Bits 21:18 Reserved, must be kept at reset value.

Bits 17:16 PLLP[1:0] : Main PLL (PLL) division factor for main system clock

Set and cleared by software to control the frequency of the general PLL output clock. These bits can be written only if PLL is disabled.

Caution: The software has to set these bits correctly not to exceed 180 MHz on this domain.

PLL output clock frequency = VCO frequency / PLLP with PLLP = 2, 4, 6, or 8

00: PLLP = 2
01: PLLP = 4
10: PLLP = 6
11: PLLP = 8

Bits 14:6 PLLN[8:0] : Main PLL (PLL) multiplication factor for VCO

Set and cleared by software to control the multiplication factor of the VCO. These bits can be written only when PLL is disabled. Only half-word and word accesses are allowed to write these bits.

Caution: The software has to set these bits correctly to ensure that the VCO output frequency is between 100 and 432 MHz.

VCO output frequency = VCO input frequency × PLLN with \( 50 \leq PLLN \leq 432 \)

000000000: PLLN = 0, wrong configuration
000000001: PLLN = 1, wrong configuration ...
000110010: PLLN = 50
...
001100011: PLLN = 99
001100100: PLLN = 100
...
110110000: PLLN = 432
110110001: PLLN = 433, wrong configuration ...
111111111: PLLN = 511, wrong configuration

Note: Between 50 and 99 multiplication factors are possible for VCO input frequency higher than 1 MHz. However care must be taken to fulfill the minimum VCO output frequency as specified above.

Bits 5:0 PLLM[5:0] : Division factor for the main PLL (PLL) input clock

Set and cleared by software to divide the PLL input clock before the VCO. These bits can be written only when the PLL is disabled.

Caution: The software has to set these bits correctly to ensure that the VCO input frequency ranges from 1 to 2 MHz. It is recommended to select a frequency of 2 MHz to limit PLL jitter.

VCO input frequency = PLL input clock frequency / PLLM with \( 2 \leq PLLM \leq 63 \)

000000: PLLM = 0, wrong configuration
000001: PLLM = 1, wrong configuration
000010: PLLM = 2
000011: PLLM = 3
000100: PLLM = 4
...
111110: PLLM = 62
111111: PLLM = 63

6.3.3 RCC clock configuration register (RCC_CFGR)

Address offset: 0x08

Reset value: 0x0000 0000

Access: 0 ≤ wait state ≤ 2, word, half-word and byte access

1 or 2 wait states inserted only if the access occurs during a clock source switch.

Bits 31:30 MCO2[1:0] : Microcontroller clock output 2

Set and cleared by software. Clock source selection may generate glitches on MCO2. It is highly recommended to configure these bits only after reset before enabling the external oscillators and the PLLs.

00: System clock (SYSCLK) selected

01: PLLI2S clock selected

10: HSE oscillator clock selected

11: PLL clock selected

Bits 27:29 MCO2PRE : MCO2 prescaler

Set and cleared by software to configure the prescaler of the MCO2. Modification of this prescaler may generate glitches on MCO2. It is highly recommended to change this prescaler only after reset before enabling the external oscillators and the PLLs.

0xx: no division

100: division by 2

101: division by 3

110: division by 4

111: division by 5

Bits 24:26 MCO1PRE : MCO1 prescaler

Set and cleared by software to configure the prescaler of the MCO1. Modification of this prescaler may generate glitches on MCO1. It is highly recommended to change this prescaler only after reset before enabling the external oscillators and the PLL.

0xx: no division

100: division by 2

101: division by 3

110: division by 4

111: division by 5

Bit 23 I2SSRC : I2S clock selection

Set and cleared by software. This bit allows to select the I2S clock source between the PLLI2S clock and the external clock. It is highly recommended to change this bit only after reset and before enabling the I2S module.

0: PLLI2S clock used as I2S clock source

1: Alternate function input used as I2S clock source

Bits 22:21 MCO1 : Microcontroller clock output 1

Set and cleared by software. Clock source selection may generate glitches on MCO1. It is highly recommended to configure these bits only after reset before enabling the external oscillators and PLL.

00: HSI clock selected

01: LSE oscillator selected

10: HSE oscillator clock selected

11: PLL clock selected

Bits 20:16 RTCPRE : HSE division factor for RTC clock

Set and cleared by software to divide the HSE clock input clock to generate a 1 MHz clock for RTC.

Caution: The software has to set these bits correctly to ensure that the clock supplied to the RTC is 1 MHz. These bits must be configured if needed before selecting the RTC clock source.

00000: no clock

00001: no clock

00010: HSE/2

00011: HSE/3

00100: HSE/4

...

11110: HSE/30

11111: HSE/31

Bits 15:13 PPRE2 : APB high-speed prescaler (APB2)

Set and cleared by software to control APB high-speed clock division factor.

Caution: The software has to set these bits correctly not to exceed 90 MHz on this domain. The clocks are divided with the new prescaler factor from 1 to 16 AHB cycles after PPRE2 write.

0xx: AHB clock not divided

100: AHB clock divided by 2

101: AHB clock divided by 4

110: AHB clock divided by 8

111: AHB clock divided by 16

Bits 12:10 PPRE1 : APB Low speed prescaler (APB1)

Set and cleared by software to control APB low-speed clock division factor.

Caution: The software has to set these bits correctly not to exceed 45 MHz on this domain. The clocks are divided with the new prescaler factor from 1 to 16 AHB cycles after PPRE1 write.

0xx: AHB clock not divided

100: AHB clock divided by 2

101: AHB clock divided by 4

110: AHB clock divided by 8

111: AHB clock divided by 16

Bits 9:8 Reserved, must be kept at reset value.

Bits 7:4 HPRE : AHB prescaler

Set and cleared by software to control AHB clock division factor.

Caution: The clocks are divided with the new prescaler factor from 1 to 16 AHB cycles after HPRE write.

Caution: The AHB clock frequency must be at least 25 MHz when the Ethernet is used.

0xxx: system clock not divided

1000: system clock divided by 2

1001: system clock divided by 4

1010: system clock divided by 8

1011: system clock divided by 16

1100: system clock divided by 64

1101: system clock divided by 128

1110: system clock divided by 256

1111: system clock divided by 512

Bits 3:2 SWS[1:0] : System clock switch status

Set and cleared by hardware to indicate which clock source is used as the system clock.

00: HSI oscillator used as the system clock

01: HSE oscillator used as the system clock

10: PLL used as the system clock

11: not applicable

Bits 1:0 SW[1:0] : System clock switch

Set and cleared by software to select the system clock source.

Set by hardware to force the HSI selection when leaving the Stop or Standby mode or in case of failure of the HSE oscillator used directly or indirectly as the system clock.

00: HSI oscillator selected as system clock

01: HSE oscillator selected as system clock

10: PLL P selected as system clock

11: PLL R selected as system clock

6.3.4 RCC clock interrupt register (RCC_CIR)

Address offset: 0x0C

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access

Bits 31:24 Reserved, must be kept at reset value.

Bit 23 CSSC : Clock security system interrupt clear

This bit is set by software to clear the CSSF flag.

0: No effect

1: Clear CSSF flag

This bit is set by software to clear PLLSAIRDYF flag. It is reset by hardware when the PLLSAIRDYF is cleared.

0: PLLSAIRDYF not cleared

1: PLLSAIRDYF cleared

This bit is set by software to clear the PLL2SRDYF flag.

0: No effect

1: PLL2SRDYF cleared

This bit is set by software to clear the PLLRDYF flag.

0: No effect

1: PLLRDYF cleared

This bit is set by software to clear the HSERDYF flag.

0: No effect

1: HSERDYF cleared

This bit is set software to clear the HSIRDYF flag.

0: No effect

1: HSIRDYF cleared

This bit is set by software to clear the LSERDYF flag.

0: No effect

1: LSERDYF cleared

This bit is set by software to clear the LSIRDYF flag.

0: No effect

1: LSIRDYF cleared

Bit 15 Reserved, must be kept at reset value.

This bit is set and reset by software to enable/disable interrupt caused by PLLSAI lock.

0: PLLSAI lock interrupt disabled

1: PLLSAI lock interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by PLL2S lock.

0: PLL2S lock interrupt disabled

1: PLL2S lock interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by PLL lock.

0: PLL lock interrupt disabled

1: PLL lock interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by the HSE oscillator stabilization.

0: HSE ready interrupt disabled

1: HSE ready interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by the HSI oscillator stabilization.

0: HSI ready interrupt disabled

1: HSI ready interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by the LSE oscillator stabilization.

0: LSE ready interrupt disabled

1: LSE ready interrupt enabled

This bit is set and cleared by software to enable/disable interrupt caused by LSI oscillator stabilization.

0: LSI ready interrupt disabled

1: LSI ready interrupt enabled

This bit is set by hardware when a failure is detected in the HSE oscillator.

It is cleared by software by setting the CSSC bit.

0: No clock security interrupt caused by HSE clock failure

1: Clock security interrupt caused by HSE clock failure

This bit is set by hardware when the PLLSAI is locked and PLLSAIRDYIE is set.

It is cleared by software by setting the PLLSAIRDYC bit.

0: No clock ready interrupt caused by PLLSAI lock

1: Clock ready interrupt caused by PLLSAI lock

This bit is set by hardware when the PLLI2S is locked and PLLI2SRDYIE is set.

It is cleared by software by setting the PLLRI2SDYC bit.

0: No clock ready interrupt caused by PLLI2S lock

1: Clock ready interrupt caused by PLLI2S lock

This bit is set by hardware when PLL is locked and PLLRDYIE is set.

It is cleared by software setting the PLLRDYC bit.

0: No clock ready interrupt caused by PLL lock

1: Clock ready interrupt caused by PLL lock

This bit is set by hardware when External High Speed clock becomes stable and HSERDYIE is set.

It is cleared by software by setting the HSERDYC bit.

0: No clock ready interrupt caused by the HSE oscillator

1: Clock ready interrupt caused by the HSE oscillator

Bit 2 HSIRDYF : HSI ready interrupt flag

This bit is set by hardware when the Internal High Speed clock becomes stable and HSIRDYDIE is set.

It is cleared by software by setting the HSIRDYC bit.

0: No clock ready interrupt caused by the HSI oscillator

1: Clock ready interrupt caused by the HSI oscillator

Bit 1 LSERDYF : LSE ready interrupt flag

This bit is set by hardware when the External Low Speed clock becomes stable and LSERDYDIE is set.

It is cleared by software by setting the LSERDYC bit.

0: No clock ready interrupt caused by the LSE oscillator

1: Clock ready interrupt caused by the LSE oscillator

Bit 0 LSIRDYF : LSI ready interrupt flag

This bit is set by hardware when the internal low speed clock becomes stable and LSIRDYDIE is set.

It is cleared by software by setting the LSIRDYC bit.

0: No clock ready interrupt caused by the LSI oscillator

1: Clock ready interrupt caused by the LSI oscillator

6.3.5 RCC AHB1 peripheral reset register (RCC_AHB1RSTR)

Address offset: 0x10

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:30 Reserved, must be kept at reset value.

Bit 29 OTGHSRST : USB OTG HS module reset

This bit is set and cleared by software.

0: does not reset the USB OTG HS module

1: resets the USB OTG HS module

Bits 28:26 Reserved, must be kept at reset value.

Bit 25 ETHMACRST : Ethernet MAC reset

This bit is set and cleared by software.

0: does not reset Ethernet MAC

1: resets Ethernet MAC

Bit 24 Reserved, must be kept at reset value.

This bit is set and cleared by software.

0: does not reset DMA2D

1: resets DMA2D

This bit is set and cleared by software.

0: does not reset DMA2

1: resets DMA2

This bit is set and cleared by software.

0: does not reset DMA2

1: resets DMA2

Bits 20:13 Reserved, must be kept at reset value.

This bit is set and cleared by software.

0: does not reset CRC

1: resets CRC

Bit 11 Reserved, must be kept at reset value.

This bit is set and cleared by software.

0: does not reset IO port K

1: resets IO port K

This bit is set and cleared by software.

0: does not reset IO port J

1: resets IO port J

This bit is set and cleared by software.

0: does not reset IO port I

1: resets IO port I

This bit is set and cleared by software.

0: does not reset IO port H

1: resets IO port H

This bit is set and cleared by software.

0: does not reset IO port G

1: resets IO port G

This bit is set and cleared by software.

0: does not reset IO port F

1: resets IO port F

This bit is set and cleared by software.

0: does not reset IO port E

1: resets IO port E

Bit 3 GPIODRST : IO port D reset

This bit is set and cleared by software.

0: does not reset IO port D

1: resets IO port D

Bit 2 GPIOCRST : IO port C reset

This bit is set and cleared by software.

0: does not reset IO port C

1: resets IO port C

Bit 1 GPIOBRST : IO port B reset

This bit is set and cleared by software.

0: does not reset IO port B

1: resets IO port B

Bit 0 GPIOARST : IO port A reset

This bit is set and cleared by software.

0: does not reset IO port A

1: resets IO port A

6.3.6 RCC AHB2 peripheral reset register (RCC_AHB2RSTR)

Address offset: 0x14

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access

Bits 31:8 Reserved, must be kept at reset value.

Bit 7 OTGFSRST : USB OTG FS module reset

Set and cleared by software.

0: does not reset the USB OTG FS module

1: resets the USB OTG FS module

Bit 6 RNGSRST : Random number generator module reset

Set and cleared by software.

0: does not reset the random number generator module

1: resets the random number generator module

Bit 5 HASHRST : HASH module reset

Set and cleared by software.

0: does not reset the HASH module

1: resets the HASH module

Bit 4 CRYPRST : Cryptographic module reset

Set and cleared by software.

0: does not reset the cryptographic module

1: resets the cryptographic module

Bits 3:1 Reserved, must be kept at reset value.

Bit 0 DCMIRST : Camera interface reset

Set and cleared by software.

0: does not reset the Camera interface

1: resets the Camera interface

6.3.7 RCC AHB3 peripheral reset register (RCC_AHB3RSTR)

Address offset: 0x18

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 QSPIRST : QUADSPI memory controller reset

Set and reset by software

0: does not reset QUADSPI memory controller

1: resets QUADSPI memory controller

Bit 0 FMCRST : Flexible memory controller module reset

Set and cleared by software.

0: does not reset the FMC module

1: resets the FMC module

6.3.8 RCC APB1 peripheral reset register (RCC_APB1RSTR)

Address offset: 0x20

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bit 31 UART8RST : UART8 reset

Set and cleared by software.

0: does not reset UART8

1: resets UART8

Bit 30 UART7RST : UART7 reset

Set and cleared by software.

0: does not reset UART7

1: resets UART7

Bit 29 DACRST : DAC reset

Set and cleared by software.

0: does not reset the DAC interface

1: resets the DAC interface

Bit 28 PWRRST : Power interface reset

Set and cleared by software.

0: does not reset the power interface

1: resets the power interface

Bit 27 Reserved, must be kept at reset value.

Bit 26 CAN2RST : CAN2 reset

Set and cleared by software.

0: does not reset CAN2

1: resets CAN2

Bit 25 CAN1RST : CAN1 reset

Set and cleared by software.

0: does not reset CAN1

1: resets CAN1

Bit 24 Reserved, must be kept at reset value.

Bit 23 I2C3RST : I2C3 reset

Set and cleared by software.

0: does not reset I2C3

1: resets I2C3

Bit 22 I2C2RST : I2C2 reset

Set and cleared by software.

0: does not reset I2C2

1: resets I2C2

Bit 21 I2C1RST : I2C1 reset
Set and cleared by software.
0: does not reset I2C1
1: resets I2C1

Bit 20 UART5RST : UART5 reset
Set and cleared by software.
0: does not reset UART5
1: resets UART5

Bit 19 UART4RST : USART4 reset
Set and cleared by software.
0: does not reset USART4
1: resets USART4

Bit 18 USART3RST : USART3 reset
Set and cleared by software.
0: does not reset USART3
1: resets USART3

Bit 17 USART2RST : USART2 reset
Set and cleared by software.
0: does not reset USART2
1: resets USART2

Bit 16 Reserved, must be kept at reset value.

Bit 15 SPI3RST : SPI3 reset
Set and cleared by software.
0: does not reset SPI3
1: resets SPI3

Bit 14 SPI2RST : SPI2 reset
Set and cleared by software.
0: does not reset SPI2
1: resets SPI2

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDGRST : Window watchdog reset
Set and cleared by software.
0: does not reset the window watchdog
1: resets the window watchdog

Bits 10:9 Reserved, must be kept at reset value.

Bit 8 TIM14RST : TIM14 reset
Set and cleared by software.
0: does not reset TIM14
1: resets TIM14

Bit 7 TIM13RST : TIM13 reset
Set and cleared by software.
0: does not reset TIM13
1: resets TIM13

1. Bit 6 TIM12RST : TIM12 reset
   Set and cleared by software.
   0: does not reset TIM12
   1: resets TIM12
2. Bit 5 TIM7RST : TIM7 reset
   Set and cleared by software.
   0: does not reset TIM7
   1: resets TIM7
3. Bit 4 TIM6RST : TIM6 reset
   Set and cleared by software.
   0: does not reset TIM6
   1: resets TIM6
4. Bit 3 TIM5RST : TIM5 reset
   Set and cleared by software.
   0: does not reset TIM5
   1: resets TIM5
5. Bit 2 TIM4RST : TIM4 reset
   Set and cleared by software.
   0: does not reset TIM4
   1: resets TIM4
6. Bit 1 TIM3RST : TIM3 reset
   Set and cleared by software.
   0: does not reset TIM3
   1: resets TIM3
7. Bit 0 TIM2RST : TIM2 reset
   Set and cleared by software.
   0: does not reset TIM2
   1: resets TIM2

6.3.9 RCC APB2 peripheral reset register (RCC_APB2RSTR)

Address offset: 0x24

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:28 Reserved, must be kept at reset value.

Bit 27 DSIRST : DSI host reset

This bit is set and reset by software.

0: does not reset DSI host

1: resets DSI host

Bit 26 LTDCRST : LTDC reset

This bit is set and reset by software.

0: does not reset LCD-TFT

1: resets LCD-TFT

Bits 25:23 Reserved, must be kept at reset value.

Bit 22 SAI1RST : SAI1 reset

This bit is set and reset by software.

0: does not reset SAI1

1: resets SAI1

Bit 21 SPI6RST : SPI6 reset

This bit is set and reset by software.

0: does not reset SPI6

1: resets SPI6

Bit 20 SPI5RST : SPI5 reset

This bit is set and reset by software.

0: does not reset SPI5

1: resets SPI6

Bit 19 Reserved, must be kept at reset value.

Bit 18 TIM11RST : TIM11 reset

This bit is set and cleared by software.

0: does not reset TIM11

1: resets TIM14

Bit 17 TIM10RST : TIM10 reset

This bit is set and cleared by software.

0: does not reset TIM10

1: resets TIM10

Bit 16 TIM9RST : TIM9 reset

This bit is set and cleared by software.

0: does not reset TIM9

1: resets TIM9

Bit 15 Reserved, must be kept at reset value.

Bit 14 SYSCFGIRST : System configuration controller reset

This bit is set and cleared by software.

0: does not reset the System configuration controller

1: resets the System configuration controller

Bit 13 SPI4RST : SPI4 reset

This bit is set and cleared by software.

0: does not reset SPI4

1: resets SPI4

This bit is set and cleared by software.
0: does not reset SPI1
1: resets SPI1

This bit is set and cleared by software.
0: does not reset the SDIO module
1: resets the SDIO module

Bits 10:9 Reserved, must be kept at reset value.

This bit is set and cleared by software.
0: does not reset the ADC interface
1: resets the ADC interface

Bits 7:6 Reserved, must be kept at reset value.

This bit is set and cleared by software.
0: does not reset USART6
1: resets USART6

This bit is set and cleared by software.
0: does not reset USART1
1: resets USART1

Bits 3:2 Reserved, must be kept at reset value.

This bit is set and cleared by software.
0: does not reset TIM8
1: resets TIM8

This bit is set and cleared by software.
0: does not reset TIM1
1: resets TIM1

6.3.10 RCC AHB1 peripheral clock enable register (RCC_AHB1ENR)

Address offset: 0x30

Reset value: 0x0010 0000

Access: no wait state, word, half-word and byte access.

1. Bit 31 Reserved, must be kept at reset value.
2. Bit 30 OTGHSULPIEN : USB OTG HSULPI clock enable
   This bit is set and cleared by software.
   0: USB OTG HS ULPI clock disabled
   1: USB OTG HS ULPI clock enabled
3. Bit 29 OTGHSEN : USB OTG HS clock enable
   This bit is set and cleared by software.
   0: USB OTG HS clock disabled
   1: USB OTG HS clock enabled
4. Bit 28 ETHMACPTPEN : Ethernet PTP clock enable
   This bit is set and cleared by software.
   0: Ethernet PTP clock disabled
   1: Ethernet PTP clock enabled
5. Bit 27 ETHMACRXEN : Ethernet Reception clock enable
   This bit is set and cleared by software.
   0: Ethernet Reception clock disabled
   1: Ethernet Reception clock enabled
6. Bit 26 ETHMACTXEN : Ethernet Transmission clock enable
   This bit is set and cleared by software.
   0: Ethernet Transmission clock disabled
   1: Ethernet Transmission clock enabled
7. Bit 25 ETHMACEN : Ethernet MAC clock enable
   This bit is set and cleared by software.
   0: Ethernet MAC clock disabled
   1: Ethernet MAC clock enabled
8. Bit 24 Reserved, must be kept at reset value.
9. Bit 23 DMA2DEN : DMAD2 clock enable
   This bit is set and cleared by software.
   0: DMA2D clock disabled
   1: DMA2D clock enabled
10. Bit 22 DMA2EN : DMA2 clock enable
    This bit is set and cleared by software.
    0: DMA2 clock disabled
    1: DMA2 clock enabled
11. Bit 21 DMA1EN : DMA1 clock enable
    This bit is set and cleared by software.
    0: DMA1 clock disabled
    1: DMA1 clock enabled
12. Bit 20 CCMDATARAMEN : CCM data RAM clock enable
    This bit is set and cleared by software.
    0: CCM data RAM clock disabled
    1: CCM data RAM clock enabled.
13. Bit 19 Reserved, must be kept at reset value.

Bit 18 BKPSRAMEN : Backup SRAM interface clock enable

This bit is set and cleared by software.

0: Backup SRAM interface clock disabled

1: Backup SRAM interface clock enabled

Bits 17:13 Reserved, must be kept at reset value.

Bit 12 CRCEN : CRC clock enable

This bit is set and cleared by software.

0: CRC clock disabled

1: CRC clock enabled

Bit 11 Reserved, must be kept at reset value.

Bit 10 GPIOKEN : IO port K clock enable

This bit is set and cleared by software.

0: IO port K clock disabled

1: IO port K clock enabled

Bit 9 GPIOJEN : IO port J clock enable

This bit is set and cleared by software.

0: IO port J clock disabled

1: IO port J clock enabled

Bit 8 GPIOIEN : IO port I clock enable

This bit is set and cleared by software.

0: IO port I clock disabled

1: IO port I clock enabled

Bit 7 GPIOHEN : IO port H clock enable

This bit is set and cleared by software.

0: IO port H clock disabled

1: IO port H clock enabled

Bit 6 GPIOGEN : IO port G clock enable

This bit is set and cleared by software.

0: IO port G clock disabled

1: IO port G clock enabled

Bit 5 GPIOFEN : IO port F clock enable

This bit is set and cleared by software.

0: IO port F clock disabled

1: IO port F clock enabled

Bit 4 GPIOEEN : IO port E clock enable

This bit is set and cleared by software.

0: IO port E clock disabled

1: IO port E clock enabled

Bit 3 GPIO DEN : IO port D clock enable

This bit is set and cleared by software.

0: IO port D clock disabled

1: IO port D clock enabled

Bit 2 GPIOCEN : IO port C clock enable

This bit is set and cleared by software.

0: IO port C clock disabled

1: IO port C clock enabled

Bit 1 GPIOBEN : IO port B clock enable

This bit is set and cleared by software.

0: IO port B clock disabled

1: IO port B clock enabled

Bit 0 GPIOAEN : IO port A clock enable

This bit is set and cleared by software.

0: IO port A clock disabled

1: IO port A clock enabled

6.3.11 RCC AHB2 peripheral clock enable register (RCC_AHB2ENR)

Address offset: 0x34

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:8 Reserved, must be kept at reset value.

Bit 7 OTGFSEN : USB OTG FS clock enable

This bit is set and cleared by software.

0: USB OTG FS clock disabled

1: USB OTG FS clock enabled

Bit 6 RNGEN : Random number generator clock enable

This bit is set and cleared by software.

0: Random number generator clock disabled

1: Random number generator clock enabled

Bit 5 HASHEN : HASH clock enable

This bit is set and cleared by software.

0: HASH clock disabled

1: HASH clock enabled

Bit 4 CRYPTEN : Cryptographic module clock enable

This bit is set and cleared by software.

0: Cryptographic module clock disabled

1: Cryptographic module clock enabled

Bits 3:1 Reserved, must be kept at reset value.

Bit 0 DCMIEN : Camera interface enable

This bit is set and cleared by software.

0: Camera interface clock disabled

1: Camera interface clock enabled

6.3.12 RCC AHB3 peripheral clock enable register (RCC_AHB3ENR)

Address offset: 0x38

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 QSPIEN : QUADSPI memory controller module clock enable

This bit is set and cleared by software.

0: QUADSPI module clock disabled

1: QUADSPI module clock enabled

Bit 0 FMCPEN : Flexible memory controller module clock enable

This bit is set and cleared by software.

0: FMC clock disabled

1: FMC clock enabled

6.3.13 RCC APB1 peripheral clock enable register (RCC_APB1ENR)

Address offset: 0x40

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bit 31 UART8EN : UART8 clock enable

This bit is set and cleared by software.

0: UART8 clock disabled

1: UART8 clock enabled

Bit 30 UART7EN : UART7 clock enable

This bit is set and cleared by software.

0: UART7 clock disabled

1: UART7 clock enabled

1. Bit 29 DACEN : DAC interface clock enable
   This bit is set and cleared by software.
   0: DAC interface clock disabled
   1: DAC interface clock enable
2. Bit 28 PWREN : Power interface clock enable
   This bit is set and cleared by software.
   0: Power interface clock disabled
   1: Power interface clock enable
3. Bit 27 Reserved, must be kept at reset value.
4. Bit 26 CAN2EN : CAN 2 clock enable
   This bit is set and cleared by software.
   0: CAN 2 clock disabled
   1: CAN 2 clock enabled
5. Bit 25 CAN1EN : CAN 1 clock enable
   This bit is set and cleared by software.
   0: CAN 1 clock disabled
   1: CAN 1 clock enabled
6. Bit 24 Reserved, must be kept at reset value.
7. Bit 23 I2C3EN : I2C3 clock enable
   This bit is set and cleared by software.
   0: I2C3 clock disabled
   1: I2C3 clock enabled
8. Bit 22 I2C2EN : I2C2 clock enable
   This bit is set and cleared by software.
   0: I2C2 clock disabled
   1: I2C2 clock enabled
9. Bit 21 I2C1EN : I2C1 clock enable
   This bit is set and cleared by software.
   0: I2C1 clock disabled
   1: I2C1 clock enabled
10. Bit 20 UART5EN : UART5 clock enable
    This bit is set and cleared by software.
    0: UART5 clock disabled
    1: UART5 clock enabled
11. Bit 19 UART4EN : UART4 clock enable
    This bit is set and cleared by software.
    0: UART4 clock disabled
    1: UART4 clock enabled
12. Bit 18 USART3EN : USART3 clock enable
    This bit is set and cleared by software.
    0: USART3 clock disabled
    1: USART3 clock enabled
13. Bit 17 USART2EN : USART2 clock enable
    This bit is set and cleared by software.
    0: USART2 clock disabled
    1: USART2 clock enabled

Bit 16 Reserved, must be kept at reset value.

Bit 15 SPI3EN : SPI3 clock enable

This bit is set and cleared by software.

0: SPI3 clock disabled

1: SPI3 clock enabled

Bit 14 SPI2EN : SPI2 clock enable

This bit is set and cleared by software.

0: SPI2 clock disabled

1: SPI2 clock enabled

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDGEN : Window watchdog clock enable

This bit is set and cleared by software.

0: Window watchdog clock disabled

1: Window watchdog clock enabled

Bits 10:9 Reserved, must be kept at reset value.

Bit 8 TIM14EN : TIM14 clock enable

This bit is set and cleared by software.

0: TIM14 clock disabled

1: TIM14 clock enabled

Bit 7 TIM13EN : TIM13 clock enable

This bit is set and cleared by software.

0: TIM13 clock disabled

1: TIM13 clock enabled

Bit 6 TIM12EN : TIM12 clock enable

This bit is set and cleared by software.

0: TIM12 clock disabled

1: TIM12 clock enabled

Bit 5 TIM7EN : TIM7 clock enable

This bit is set and cleared by software.

0: TIM7 clock disabled

1: TIM7 clock enabled

Bit 4 TIM6EN : TIM6 clock enable

This bit is set and cleared by software.

0: TIM6 clock disabled

1: TIM6 clock enabled

Bit 3 TIM5EN : TIM5 clock enable

This bit is set and cleared by software.

0: TIM5 clock disabled

1: TIM5 clock enabled

Bit 2 TIM4EN : TIM4 clock enable

This bit is set and cleared by software.

0: TIM4 clock disabled

1: TIM4 clock enabled

Bit 1 TIM3EN : TIM3 clock enable

This bit is set and cleared by software.

0: TIM3 clock disabled

1: TIM3 clock enabled

Bit 0 TIM2EN : TIM2 clock enable

This bit is set and cleared by software.

0: TIM2 clock disabled

1: TIM2 clock enabled

6.3.14 RCC APB2 peripheral clock enable register (RCC_APB2ENR)

Address offset: 0x44

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

Bits 31:28 Reserved, must be kept at reset value.

Bit 27 DSIEN : DSI clocks enable

This bit is set and cleared by software.

0: DSI clocks disabled

1: DSI clocks enabled

Bit 26 LTDCEN : LTDC clock enable

This bit is set and cleared by software.

0: LTDC clock disabled

1: LTDC clock enabled

Bits 25:23 Reserved, must be kept at reset value.

Bit 22 SAI1EN : SAI1 clock enable

This bit is set and cleared by software.

0: SAI1 clock disabled

1: SAI1 clock enabled

Bit 21 SPI6EN : SPI6 clock enable

This bit is set and cleared by software.

0: SPI6 clock disabled

1: SPI6 clock enabled

Bit 20 SPI5EN : SPI5 clock enable

This bit is set and cleared by software.

0: SPI5 clock disabled

1: SPI5 clock enabled

1. Bit 19 Reserved, must be kept at reset value.
2. Bit 18 TIM11EN : TIM11 clock enable
   This bit is set and cleared by software.
   0: TIM11 clock disabled
   1: TIM11 clock enabled
3. Bit 17 TIM10EN : TIM10 clock enable
   This bit is set and cleared by software.
   0: TIM10 clock disabled
   1: TIM10 clock enabled
4. Bit 16 TIM9EN : TIM9 clock enable
   This bit is set and cleared by software.
   0: TIM9 clock disabled
   1: TIM9 clock enabled
5. Bit 15 Reserved, must be kept at reset value.
6. Bit 14 SYSCFGEN : System configuration controller clock enable
   This bit is set and cleared by software.
   0: System configuration controller clock disabled
   1: System configuration controller clock enabled
7. Bit 13 SPI4EN : SPI4 clock enable
   This bit is set and cleared by software.
   0: SPI4 clock disabled
   1: SPI4 clock enabled
8. Bit 12 SPI1EN : SPI1 clock enable
   This bit is set and cleared by software.
   0: SPI1 clock disabled
   1: SPI1 clock enabled
9. Bit 11 SDIOEN : SDIO clock enable
   This bit is set and cleared by software.
   0: SDIO module clock disabled
   1: SDIO module clock enabled
10. Bit 10 ADC3EN : ADC3 clock enable
    This bit is set and cleared by software.
    0: ADC3 clock disabled
    1: ADC3 clock enabled
11. Bit 9 ADC2EN : ADC2 clock enable
    This bit is set and cleared by software.
    0: ADC2 clock disabled
    1: ADC2 clock enabled
12. Bit 8 ADC1EN : ADC1 clock enable
    This bit is set and cleared by software.
    0: ADC1 clock disabled
    1: ADC1 clock enabled
13. Bits 7:6 Reserved, must be kept at reset value.

• Bit 5 USART6EN : USART6 clock enable
  This bit is set and cleared by software.
  0: USART6 clock disabled
  1: USART6 clock enabled
• Bit 4 USART1EN : USART1 clock enable
  This bit is set and cleared by software.
  0: USART1 clock disabled
  1: USART1 clock enabled
• Bits 3:2 Reserved, must be kept at reset value.
• Bit 1 TIM8EN : TIM8 clock enable
  This bit is set and cleared by software.
  0: TIM8 clock disabled
  1: TIM8 clock enabled
• Bit 0 TIM1EN : TIM1 clock enable
  This bit is set and cleared by software.
  0: TIM1 clock disabled
  1: TIM1 clock enabled

6.3.15 RCC AHB1 peripheral clock enable in low power mode register (RCC_AHB1LPENR)

Address offset: 0x50

Reset value: 0x7EEF 97FF

Access: no wait state, word, half-word and byte access.

• Bit 31 Reserved, must be kept at reset value.
• Bit 30 OTGHSULPILPEN : USB OTG HS ULPI clock enable during Sleep mode
  This bit is set and cleared by software.
  0: USB OTG HS ULPI clock disabled during Sleep mode
  1: USB OTG HS ULPI clock enabled during Sleep mode
• Bit 29 OTGHSLPEN : USB OTG HS clock enable during Sleep mode
  This bit is set and cleared by software.
  0: USB OTG HS clock disabled during Sleep mode
  1: USB OTG HS clock enabled during Sleep mode
• Bit 28 ETHMACPTPLPEN : Ethernet PTP clock enable during Sleep mode
  This bit is set and cleared by software.
  0: Ethernet PTP clock disabled during Sleep mode
  1: Ethernet PTP clock enabled during Sleep mode

1. Bit 27 ETHMACRXPEN : Ethernet reception clock enable during Sleep mode
   This bit is set and cleared by software.
   0: Ethernet reception clock disabled during Sleep mode
   1: Ethernet reception clock enabled during Sleep mode
2. Bit 26 ETHMACTXLPEN : Ethernet transmission clock enable during Sleep mode
   This bit is set and cleared by software.
   0: Ethernet transmission clock disabled during Sleep mode
   1: Ethernet transmission clock enabled during Sleep mode
3. Bit 25 ETHMACLPEN : Ethernet MAC clock enable during Sleep mode
   This bit is set and cleared by software.
   0: Ethernet MAC clock disabled during Sleep mode
   1: Ethernet MAC clock enabled during Sleep mode
4. Bit 24 Reserved, must be kept at reset value.
5. Bit 23 DMA2DLPEN : DMA2D clock enable during Sleep mode
   This bit is set and cleared by software.
   0: DMA2D clock disabled during Sleep mode
   1: DMA2D clock enabled during Sleep mode
6. Bit 22 DMA2LPEN : DMA2 clock enable during Sleep mode
   This bit is set and cleared by software.
   0: DMA2 clock disabled during Sleep mode
   1: DMA2 clock enabled during Sleep mode
7. Bit 21 DMA1LPEN : DMA1 clock enable during Sleep mode
   This bit is set and cleared by software.
   0: DMA1 clock disabled during Sleep mode
   1: DMA1 clock enabled during Sleep mode
8. Bit 20 Reserved, must be kept at reset value.
9. Bit 19 SRAM3LPEN : SRAM3 interface clock enable during Sleep mode
   This bit is set and cleared by software.
   0: SRAM3 interface clock disabled during Sleep mode
   1: SRAM3 interface clock enabled during Sleep mode
10. Bit 18 BKPSRAMLPEN : Backup SRAM interface clock enable during Sleep mode
    This bit is set and cleared by software.
    0: Backup SRAM interface clock disabled during Sleep mode
    1: Backup SRAM interface clock enabled during Sleep mode
11. Bit 17 SRAM2LPEN : SRAM2 interface clock enable during Sleep mode
    This bit is set and cleared by software.
    0: SRAM2 interface clock disabled during Sleep mode
    1: SRAM2 interface clock enabled during Sleep mode
12. Bit 16 SRAM1LPEN : SRAM1 interface clock enable during Sleep mode
    This bit is set and cleared by software.
    0: SRAM1 interface clock disabled during Sleep mode
    1: SRAM1 interface clock enabled during Sleep mode
13. Bit 15 FLITFLPEN : Flash interface clock enable during Sleep mode
    This bit is set and cleared by software.
    0: Flash interface clock disabled during Sleep mode
    1: Flash interface clock enabled during Sleep mode

Bits 14:13 Reserved, must be kept at reset value.

Bit 12 CRCLPEN : CRC clock enable during Sleep mode

This bit is set and cleared by software.

0: CRC clock disabled during Sleep mode

1: CRC clock enabled during Sleep mode

Bit 11 Reserved, must be kept at reset value.

Bit 10 GPIOKLPEN : IO port K clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port K clock disabled during Sleep mode

1: IO port K clock enabled during Sleep mode

Bit 9 GPIOLPEN : IO port J clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port J clock disabled during Sleep mode

1: IO port J clock enabled during Sleep mode

Bit 8 GPIOLPEN : IO port I clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port I clock disabled during Sleep mode

1: IO port I clock enabled during Sleep mode

Bit 7 GPIOLPEN : IO port H clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port H clock disabled during Sleep mode

1: IO port H clock enabled during Sleep mode

Bit 6 GPIOLPEN : IO port G clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port G clock disabled during Sleep mode

1: IO port G clock enabled during Sleep mode

Bit 5 GPIOLPEN : IO port F clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port F clock disabled during Sleep mode

1: IO port F clock enabled during Sleep mode

Bit 4 GPIOLPEN : IO port E clock enable during Sleep mode

Set and cleared by software.

0: IO port E clock disabled during Sleep mode

1: IO port E clock enabled during Sleep mode

Bit 3 GPIOLPEN : IO port D clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port D clock disabled during Sleep mode

1: IO port D clock enabled during Sleep mode

Bit 2 GPIOLPEN : IO port C clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port C clock disabled during Sleep mode

1: IO port C clock enabled during Sleep mode

Bit 1 GPIOLPEN : IO port B clock enable during Sleep mode

This bit is set and cleared by software.

0: IO port B clock disabled during Sleep mode

1: IO port B clock enabled during Sleep mode

Bit 0 GPIOALPEN : IO port A clock enable during sleep mode

This bit is set and cleared by software.

0: IO port A clock disabled during Sleep mode

1: IO port A clock enabled during Sleep mode

6.3.16 RCC AHB2 peripheral clock enable in low power mode register (RCC_AHB2LPENR)

Address offset: 0x54

Reset value: 0x0000 00F1

Access: no wait state, word, half-word and byte access.

Bits 31:8 Reserved, must be kept at reset value.

Bit 7 OTGFSLPEN : USB OTG FS clock enable during Sleep mode

This bit is set and cleared by software.

0: USB OTG FS clock disabled during Sleep mode

1: USB OTG FS clock enabled during Sleep mode

Bit 6 RNGLPEN : Random number generator clock enable during Sleep mode

This bit is set and cleared by software.

0: Random number generator clock disabled during Sleep mode

1: Random number generator clock enabled during Sleep mode

Bit 5 HASHPEN : HASH module clock enable during Sleep mode

This bit is set and cleared by software.

0: HASH module clock disabled during Sleep mode

1: HASH module clock enabled during Sleep mode

Bit 4 CRYPEN : Cryptographic module clock enable during Sleep mode

This bit is set and cleared by software.

0: Cryptographic module clock disabled during Sleep mode

1: Cryptographic module clock enabled during Sleep mode

Bits 3:1 Reserved, must be kept at reset value.

Bit 0 DCMILPEN : Camera interface enable during Sleep mode

This bit is set and cleared by software.

0: Camera interface clock disabled during Sleep mode

1: Camera interface clock enabled during Sleep mode

6.3.17 RCC AHB3 peripheral clock enable in low power mode register (RCC_AHB3LPENR)

Address offset: 0x58

Reset value: 0x0000 0003

Access: no wait state, word, half-word and byte access.

Bits 31:2 Reserved, must be kept at reset value.

Bit 1 QSPI LPEN : QUADSPI memory controller module clock enable during Sleep mode

This bit is set and cleared by software.

0: QUADSPI module clock disabled during Sleep mode

1: QUADSPI module clock enabled during Sleep mode

Bit 0 FMC LPEN : Flexible memory controller module clock enable during Sleep mode

This bit is set and cleared by software.

0: FMC module clock disabled during Sleep mode

1: FMC module clock enabled during Sleep mode

6.3.18 RCC APB1 peripheral clock enable in low power mode register (RCC_APB1LPENR)

Address offset: 0x60

Reset value: 0xF6FE C9FF

Access: no wait state, word, half-word and byte access.

Bit 31 UART8 LPEN : UART8 clock enable during Sleep mode

This bit is set and cleared by software.

0: UART8 clock disabled during Sleep mode

1: UART8 clock enabled during Sleep mode

Bit 30 UART7 LPEN : UART7 clock enable during Sleep mode

This bit is set and cleared by software.

0: UART7 clock disabled during Sleep mode

1: UART7 clock enabled during Sleep mode

Bit 29 DACLPPEN : DAC interface clock enable during Sleep mode

This bit is set and cleared by software.

0: DAC interface clock disabled during Sleep mode

1: DAC interface clock enabled during Sleep mode

Bit 28 PWRLPPEN : Power interface clock enable during Sleep mode

This bit is set and cleared by software.

0: Power interface clock disabled during Sleep mode

1: Power interface clock enabled during Sleep mode

Bit 27 Reserved, must be kept at reset value.

Bit 26 CAN2LPPEN : CAN 2 clock enable during Sleep mode

This bit is set and cleared by software.

0: CAN 2 clock disabled during sleep mode

1: CAN 2 clock enabled during sleep mode

Bit 25 CAN1LPPEN : CAN 1 clock enable during Sleep mode

This bit is set and cleared by software.

0: CAN 1 clock disabled during Sleep mode

1: CAN 1 clock enabled during Sleep mode

Bit 24 Reserved, must be kept at reset value.

Bit 23 I2C3LPPEN : I2C3 clock enable during Sleep mode

This bit is set and cleared by software.

0: I2C3 clock disabled during Sleep mode

1: I2C3 clock enabled during Sleep mode

Bit 22 I2C2LPPEN : I2C2 clock enable during Sleep mode

This bit is set and cleared by software.

0: I2C2 clock disabled during Sleep mode

1: I2C2 clock enabled during Sleep mode

Bit 21 I2C1LPPEN : I2C1 clock enable during Sleep mode

This bit is set and cleared by software.

0: I2C1 clock disabled during Sleep mode

1: I2C1 clock enabled during Sleep mode

Bit 20 UART5LPPEN : UART5 clock enable during Sleep mode

This bit is set and cleared by software.

0: UART5 clock disabled during Sleep mode

1: UART5 clock enabled during Sleep mode

Bit 19 UART4LPPEN : UART4 clock enable during Sleep mode

This bit is set and cleared by software.

0: UART4 clock disabled during Sleep mode

1: UART4 clock enabled during Sleep mode

Bit 18 USART3LPPEN : USART3 clock enable during Sleep mode

This bit is set and cleared by software.

0: USART3 clock disabled during Sleep mode

1: USART3 clock enabled during Sleep mode

Bit 17 USART2LPPEN : USART2 clock enable during Sleep mode

This bit is set and cleared by software.

0: USART2 clock disabled during Sleep mode

1: USART2 clock enabled during Sleep mode

Bit 16 Reserved, must be kept at reset value.

Bit 15 SPI3LPEN : SPI3 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI3 clock disabled during Sleep mode

1: SPI3 clock enabled during Sleep mode

Bit 14 SPI2LPEN : SPI2 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI2 clock disabled during Sleep mode

1: SPI2 clock enabled during Sleep mode

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDGLPEN : Window watchdog clock enable during Sleep mode

This bit is set and cleared by software.

0: Window watchdog clock disabled during sleep mode

1: Window watchdog clock enabled during sleep mode

Bits 10:9 Reserved, must be kept at reset value.

Bit 8 TIM14LPEN : TIM14 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM14 clock disabled during Sleep mode

1: TIM14 clock enabled during Sleep mode

Bit 7 TIM13LPEN : TIM13 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM13 clock disabled during Sleep mode

1: TIM13 clock enabled during Sleep mode

Bit 6 TIM12LPEN : TIM12 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM12 clock disabled during Sleep mode

1: TIM12 clock enabled during Sleep mode

Bit 5 TIM7LPEN : TIM7 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM7 clock disabled during Sleep mode

1: TIM7 clock enabled during Sleep mode

Bit 4 TIM6LPEN : TIM6 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM6 clock disabled during Sleep mode

1: TIM6 clock enabled during Sleep mode

Bit 3 TIM5LPEN : TIM5 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM5 clock disabled during Sleep mode

1: TIM5 clock enabled during Sleep mode

Bit 2 TIM4LPEN : TIM4 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM4 clock disabled during Sleep mode

1: TIM4 clock enabled during Sleep mode

Bit 1 TIM3LPEN : TIM3 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM3 clock disabled during Sleep mode

1: TIM3 clock enabled during Sleep mode

Bit 0 TIM2LPEN : TIM2 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM2 clock disabled during Sleep mode

1: TIM2 clock enabled during Sleep mode

6.3.19 RCC APB2 peripheral clock enabled in low power mode register (RCC_APB2LPENR)

Address offset: 0x64

Reset value: 0x0C77 7F33

Access: no wait state, word, half-word and byte access.

Bits 31:28 Reserved, must be kept at reset value.

Bit 27 DSILPEN : DSI clocks enable during Sleep mode

This bit is set and cleared by software.

0: DSI clocks disabled during Sleep mode

1: DSI clocks enabled during Sleep mode

Bit 26 LTDCLPEN : LTDC clock enable during Sleep mode

This bit is set and cleared by software.

0: LTDC clock disabled during Sleep mode

1: LTDC clock enabled during Sleep mode

Bits 25:23 Reserved, must be kept at reset value.

Bit 22 SAI1LPEN : SAI1 clock enable during Sleep mode

This bit is set and cleared by software.

0: SAI1 clock disabled during Sleep mode

1: SAI1 clock enabled during Sleep mode

Bit 21 SPI6LPEN : SPI6 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI6 clock disabled during Sleep mode

1: SPI6 clock enabled during Sleep mode

Bit 20 SPI5LPEN : SPI5 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI5 clock disabled during Sleep mode

1: SPI5 clock enabled during Sleep mode

Bit 19 Reserved, must be kept at reset value.

Bit 18 TIM11LPEN : TIM11 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM11 clock disabled during Sleep mode

1: TIM11 clock enabled during Sleep mode

Bit 17 TIM10LPEN : TIM10 clock enable during Sleep mode

This bit is set and cleared by software.

0: TIM10 clock disabled during Sleep mode

1: TIM10 clock enabled during Sleep mode

Bit 16 TIM9LPEN : TIM9 clock enable during sleep mode

This bit is set and cleared by software.

0: TIM9 clock disabled during Sleep mode

1: TIM9 clock enabled during Sleep mode

Bit 15 Reserved, must be kept at reset value.

Bit 14 SYSCFGLPEN : System configuration controller clock enable during Sleep mode

This bit is set and cleared by software.

0: System configuration controller clock disabled during Sleep mode

1: System configuration controller clock enabled during Sleep mode

Bit 13 SPI4LPEN : SPI4 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI4 clock disabled during Sleep mode

1: SPI4 clock enabled during Sleep mode

Bit 12 SPI1LPEN : SPI1 clock enable during Sleep mode

This bit is set and cleared by software.

0: SPI1 clock disabled during Sleep mode

1: SPI1 clock enabled during Sleep mode

Bit 11 SDIOLPEN : SDIO clock enable during Sleep mode

This bit is set and cleared by software.

0: SDIO module clock disabled during Sleep mode

1: SDIO module clock enabled during Sleep mode

Bit 10 ADC3LPEN : ADC 3 clock enable during Sleep mode

This bit is set and cleared by software.

0: ADC 3 clock disabled during Sleep mode

1: ADC 3 clock disabled during Sleep mode

Bit 9 ADC2LPEN : ADC2 clock enable during Sleep mode

This bit is set and cleared by software.

0: ADC2 clock disabled during Sleep mode

1: ADC2 clock disabled during Sleep mode

Bit 8 ADC1LPEN : ADC1 clock enable during Sleep mode

This bit is set and cleared by software.

0: ADC1 clock disabled during Sleep mode

1: ADC1 clock disabled during Sleep mode

Bits 7:6 Reserved, must be kept at reset value.

Bit 5 USART6LPEN : USART6 clock enable during Sleep mode

This bit is set and cleared by software.
0: USART6 clock disabled during Sleep mode
1: USART6 clock enabled during Sleep mode

Bit 4 USART1LPEN : USART1 clock enable during Sleep mode

This bit is set and cleared by software.
0: USART1 clock disabled during Sleep mode
1: USART1 clock enabled during Sleep mode

Bits 3:2 Reserved, must be kept at reset value.

Bit 1 TIM8LPEN : TIM8 clock enable during Sleep mode

This bit is set and cleared by software.
0: TIM8 clock disabled during Sleep mode
1: TIM8 clock enabled during Sleep mode

Bit 0 TIM1LPEN : TIM1 clock enable during Sleep mode

This bit is set and cleared by software.
0: TIM1 clock disabled during Sleep mode
1: TIM1 clock enabled during Sleep mode

6.3.20 RCC Backup domain control register (RCC_BDCR)

Address offset: 0x70

Reset value: 0x0000 0000, reset by Backup domain reset.

Access: \( 0 \leq \text{wait state} \leq 3 \) , word, half-word and byte access

Wait states are inserted in case of successive accesses to this register.

The LSEON, LSEBYP, RTCSEL and RTCEN bits in the RCC Backup domain control register (RCC_BDCR) are in the Backup domain. As a result, after Reset, these bits are write-protected and the DBP bit in the PWR power control register (PWR_CR) has to be set before these can be modified. Refer to Section 6.1.1: System reset on page 136 for further information. These bits are only reset after a Backup domain Reset (see Section 6.1.3: Backup domain reset ). Any internal or external Reset will not have any effect on these bits.

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 BDRST : Backup domain software reset

This bit is set and cleared by software.
0: Reset not activated
1: Resets the entire Backup domain

Note: The BKPSRAM is not affected by this reset, the only way of resetting the BKPSRAM is through the Flash interface when a protection level change from level 1 to level 0 is requested.

Bit 15 RTCEN : RTC clock enable

This bit is set and cleared by software.

0: RTC clock disabled

1: RTC clock enabled

Bits 14:10 Reserved, must be kept at reset value.

Bits 9:8 RTCSEL[1:0] : RTC clock source selection

These bits are set by software to select the clock source for the RTC. Once the RTC clock source has been selected, it cannot be changed anymore unless the Backup domain is reset. The BDRST bit can be used to reset them.

00: No clock

01: LSE oscillator clock used as the RTC clock

10: LSI oscillator clock used as the RTC clock

11: HSE oscillator clock divided by a programmable prescaler (selection through the RTCPRE[4:0] bits in the RCC clock configuration register (RCC_CFGR)) used as the RTC clock

Bits 7:4 Reserved, must be kept at reset value.

Bit 3 LSEMOD : External low-speed oscillator mode

This bit is set and cleared by software to select the low speed oscillator crystal mode. Two power modes are available. This bit can be written only when the LSE clock is disabled.

0: LSE oscillator "low power" mode selection

1: LSE oscillator "high drive" mode selection

Bit 2 LSEBYP : External low-speed oscillator bypass

This bit is set and cleared by software to bypass the oscillator. This bit can be written only when the LSE clock is disabled.

0: LSE oscillator not bypassed

1: LSE oscillator bypassed

Bit 1 LSERDY : External low-speed oscillator ready

This bit is set and cleared by hardware to indicate when the external 32 kHz oscillator is stable. After the LSEON bit is cleared, LSERDY goes low after 6 external low-speed oscillator clock cycles.

0: LSE clock not ready

1: LSE clock ready

Bit 0 LSEON : External low-speed oscillator enable

This bit is set and cleared by software.

0: LSE clock OFF

1: LSE clock ON

6.3.21 RCC clock control & status register (RCC_CSR)

Address offset: 0x74

Reset value: 0x0E00 0000, reset by system reset, except reset flags by power reset only.

Access: 0 ≤ wait state ≤ 3, word, half-word and byte access

Wait states are inserted in case of successive accesses to this register.

This bit is set by hardware when a Low-power management reset occurs.

Cleared by writing to the RMVF bit.

0: No Low-power management reset occurred

1: Low-power management reset occurred

For further information on Low-power management reset, refer to Low-power management reset .

This bit is set by hardware when a window watchdog reset occurs.

Cleared by writing to the RMVF bit.

0: No window watchdog reset occurred

1: Window watchdog reset occurred

This bit is set by hardware when an independent watchdog reset from V _DD domain occurs.

Cleared by writing to the RMVF bit.

0: No watchdog reset occurred

1: Watchdog reset occurred

This bit is set by hardware when a software reset occurs.

Cleared by writing to the RMVF bit.

0: No software reset occurred

1: Software reset occurred

This bit is set by hardware when a POR/PDR reset occurs.

Cleared by writing to the RMVF bit.

0: No POR/PDR reset occurred

1: POR/PDR reset occurred

This bit is set by hardware when a reset from the NRST pin occurs.

Cleared by writing to the RMVF bit.

0: No reset from NRST pin occurred

1: Reset from NRST pin occurred

Cleared by software by writing the RMVF bit.

This bit is set by hardware when a POR/PDR or BOR reset occurs.

0: No POR/PDR or BOR reset occurred

1: POR/PDR or BOR reset occurred

This bit is set by software to clear the reset flags.

0: No effect

1: Clear the reset flags

Bits 23:2 Reserved, must be kept at reset value.

Bit 1 LSIRDY : Internal low-speed oscillator ready

This bit is set and cleared by hardware to indicate when the internal RC 40 kHz oscillator is stable. After the LSION bit is cleared, LSIRDY goes low after 3 LSI clock cycles.

0: LSI RC oscillator not ready

1: LSI RC oscillator ready

Bit 0 LSION : Internal low-speed oscillator enable

This bit is set and cleared by software.

0: LSI RC oscillator OFF

1: LSI RC oscillator ON

6.3.22 RCC spread spectrum clock generation register (RCC_SSCGR)

Address offset: 0x80

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

The spread spectrum clock generation is available only for the main PLL.

The RCC_SSCGR register must be written either before the main PLL is enabled or after the main PLL disabled.

Note: For full details about PLL spread spectrum clock generation (SSCG) characteristics, refer to the “Electrical characteristics” section in your device datasheet.

Bit 31 SSCGEN : Spread spectrum modulation enable

This bit is set and cleared by software.

0: Spread spectrum modulation DISABLE. (To write after clearing CR[24]=PLLON bit)

1: Spread spectrum modulation ENABLE. (To write before setting CR[24]=PLLON bit)

Bit 30 SPREADSEL : Spread Select

This bit is set and cleared by software.

To write before to set CR[24]=PLLON bit.

0: Center spread

1: Down spread

Bits 29:28 Reserved, must be kept at reset value.

Bits 27:13 INCSTEP : Incrementation step

These bits are set and cleared by software. To write before setting CR[24]=PLLON bit.

Configuration input for modulation profile amplitude.

Bits 12:0 MODPER : Modulation period

These bits are set and cleared by software. To write before setting CR[24]=PLLON bit.

Configuration input for modulation profile period.

6.3.23 RCC PLLI2S configuration register (RCC_PLLI2SCFGR)

Address offset: 0x84

Reset value: 0x2400 3000

Access: no wait state, word, half-word and byte access.

This register is used to configure the PLLI2S clock outputs according to the formulas:

Bit 31 Reserved, must be kept at reset value.

Bits 30:28 PLLI2SR[2:0] : PLLI2S division factor for I2S clocks

These bits are set and cleared by software to control the I2S clock frequency. These bits should be written only if the PLLI2S is disabled. The factor must be chosen in accordance with the prescaler values inside the I2S peripherals, to reach 0.3% error when using standard crystals and 0% error with audio crystals. For more information about I2S clock frequency and precision, refer to Section 31.6.4: Clock generator in the I2S chapter.

Caution: The I2Ss requires a frequency lower than or equal to 192 MHz to work correctly.

I2S clock frequency = VCO frequency / PLLR with \( 2 \leq \text{PLLR} \leq 7 \)

000: PLLR = 0, wrong configuration

001: PLLR = 1, wrong configuration

010: PLLR = 2

...

111: PLLR = 7

Bits 27:24 PLLI2SQ[3:0] : PLLI2S division factor for SAI1 clock

These bits are set and cleared by software to control the SAI1 clock frequency.

They should be written when the PLLI2S is disabled.

SAI1 clock frequency = VCO frequency / PLLI2SQ with \( 2 \leq \text{PLLI2SQ} \leq 15 \)

0000: PLLI2SQ = 0, wrong configuration

0001: PLLI2SQ = 1, wrong configuration

0010: PLLI2SQ = 2

0011: PLLI2SQ = 3

0100: PLLI2SQ = 4

0101: PLLI2SQ = 5

...

1111: PLLI2SQ = 15

Bits 23:15 Reserved, must be kept at reset value.

Bits 14:6 PLLI2SN[8:0] : PLLI2S multiplication factor for VCO

These bits are set and cleared by software to control the multiplication factor of the VCO. These bits can be written only when the PLLI2S is disabled. Only half-word and word accesses are allowed to write these bits.

Caution: The software has to set these bits correctly to ensure that the VCO output frequency is between 100 and 432 MHz.
VCO output frequency = VCO input frequency × PLLI2SN with \( 50 \leq \text{PLLI2SN} \leq 432 \)

000000000: PLLI2SN = 0, wrong configuration
000000001: PLLI2SN = 1, wrong configuration ...
001100010: PLLI2SN = 50
...
001100011: PLLI2SN = 99
001100100: PLLI2SN = 100
001100101: PLLI2SN = 101
001100110: PLLI2SN = 102
...
110110000: PLLI2SN = 432
110110001: PLLI2SN = 433, wrong configuration ...
111111111: PLLI2SN = 511, wrong configuration

Note: Between 50 and 99 multiplication factors are possible for VCO input frequency higher than 1 MHz. However care must be taken to fulfill the minimum VCO output frequency as specified above.

Bits 5:0 Reserved, must be kept at reset value.

6.3.24 RCC PLL configuration register (RCC_PLLSAICFGR)

Address offset: 0x88
Reset value: 0x2400 3000
Access: no wait state, word, half-word and byte access.

This register is used to configure the PLLSAI clock outputs according to the formulas:

• • \( f_{(\text{VCO clock})} = f_{(\text{PLLSAI clock input})} \times (\text{PLLSAIN} / \text{PLLM}) \)
• • \( f_{(\text{PLL SAI 48MHz clock output})} = f_{(\text{VCO clock})} / \text{PLLSAIP} \)
• • \( f_{(\text{PLL SAI1 clock output})} = f_{(\text{VCO clock})} / \text{PLLSAIQ} \)
• • \( f_{(\text{PLL LCD clock output})} = f_{(\text{VCO clock})} / \text{PLLSAIR} \)

Bit 31 Reserved, must be kept at reset value.

Bits 30:28 PLLSAIR : PLLSAI division factor for LCD clock

Set and reset by software to control the LCD clock frequency.

These bits should be written when the PLLSAI is disabled.

LCD clock frequency = VCO frequency / PLLSAIR with \( 2 \leq \text{PLLSAIR} \leq 7 \)

000: PLLSAIR = 0, wrong configuration

001: PLLSAIR = 1, wrong configuration

010: PLLSAIR = 2

...

111: PLLSAIR = 7

Bits 27:24 PLLSAIQ : PLLSAI division factor for SAI1 clock

Set and reset by software to control the frequency of SAI1 clock.

These bits should be written when the PLLSAI is disabled.

SAI1 clock frequency = VCO frequency / PLLSAIQ with \( 2 \leq \text{PLLSAIQ} \leq 15 \)

0000: PLLSAIQ = 0, wrong configuration

0001: PLLSAIQ = 1, wrong configuration

...

0010: PLLSAIQ = 2

0011: PLLSAIQ = 3

0100: PLLSAIQ = 4

0101: PLLSAIQ = 5

...

1111: PLLSAIQ = 15

Bits 23:18 Reserved, must be kept at reset value.

Bits 17:16 PLLSAIP : PLLSAI division factor for 48 MHz clock

These bits are set and cleared by software to control the output clock frequency.

They should be written when the PLLSAI is disabled.

Caution: The software has to set these bits correctly to ensure that the output frequency not exceed 120 MHz on this output

PLL output clock frequency = VCO frequency / PLLSAIP with PLLSAIP = 2, 4, 6 or 8

00: PLLSAIP = 2

01: PLLSAIP = 4

10: PLLSAIP = 6

11: PLLSAIP = 8

Bit 15 Reserved, must be kept at reset value.

Bits 14:6 PLLSAIN : PLLSAI division factor for VCO

Set and reset by software to control the multiplication factor of the VCO. These bits should be written when the PLLSAI is disabled. Only half-word and word accesses are allowed to write these bits.

Caution: The software has to set these bits correctly to ensure that the VCO output frequency is between 100 and 432 MHz.

VCO output frequency = VCO input frequency x PLLSAIN with \( 50 \leq \text{PLLSAIN} \leq 432 \)

000000000: PLLSAIN = 0, wrong configuration

000000001: PLLSAIN = 1, wrong configuration ...

001100010: PLLSAIN = 50

...

001100011: PLLSAIN = 99

001100100: PLLSAIN = 100

001100101: PLLSAIN = 101

001100110: PLLSAIN = 102

...

110110000: PLLSAIN = 432

110110000: PLLSAIN = 433, wrong configuration ...

111111111: PLLSAIN = 511, wrong configuration

Note: Between 50 and 99 multiplication factors are possible for VCO input frequency higher than 1 MHz. However care must be taken to fulfill the minimum VCO output frequency as specified above.

Bits 5:0 Reserved, must be kept at reset value.

6.3.25 RCC dedicated clock configuration register (RCC_DCKCFGR)

Address offset: 0x8C

Reset value: 0x0000 0000

Access: no wait state, word, half-word and byte access.

This register allows to configure the timer clock prescalers and the PLLSAI and PLLI2S output clock dividers for SAIs peripherals according to the following formula:

Bits 31:30 Reserved, must be kept at reset value.

Set and reset by software. This bit allows to select the DSI byte lane clock source between PLLR clock or clock coming from DSI-PHY. It is highly recommended to change this bit only after reset and before to enable the DSI module.

0: DSI-PHY used as DSI byte lane clock source (usual case)

1: PLLR used as DSI byte lane clock source, used in case DSI PLL and DSI-PHY are off (low power mode).

Set and reset by software.

0: 48 MHz clock is selected as SDIO clock

1: System clock is selected as SDIO clock

Set and reset by software.

0: 48 MHz clock from PLL is selected

1: 48 MHz clock from PLLSAI is selected

Bits 26:25 Reserved, must be kept at reset value.

This bit is set and reset by software to control the clock frequency of all the timers connected to APB1 and APB2 domain.

0: If the APB prescaler (PPRE1, PPRE2 in the RCC_CFGR register) is configured to a division factor of 1, TIMxCLK = PCLKx. Otherwise, the timer clock frequencies are set to twice to the frequency of the APB domain to which the timers are connected:

\( TIMxCLK = 2 \times PCLKx \) .

1: If the APB prescaler (PPRE1, PPRE2 in the RCC_CFGR register) is configured to a division factor of 1, 2 or 4, TIMxCLK = HCLK. Otherwise, the timer clock frequencies are set to four times to the frequency of the APB domain to which the timers are connected:

\( TIMxCLK = 4 \times PCLKx \) .

These bits are set and cleared by software to control the SAI1-B clock frequency.

They should be written when the PLLSAI and PLLI2S are disabled.

00: SAI1-B clock frequency = \( f_{(PLLSAI\_Q)} / PLLSAIDIVQ \)

01: SAI1-B clock frequency = \( f_{(PLLI2S\_Q)} / PLLI2SDIVQ \)

10: SAI1-B clock frequency = Alternate function input frequency

11: wrong configuration

These bits are set and cleared by software to control the SAI1-A clock frequency.

They should be written when the PLLSAI and PLLI2S are disabled.

00: SAI1-A clock frequency = \( f_{(PLLSAI\_Q)} / PLLSAIDIVQ \)

01: SAI1-A clock frequency = \( f_{(PLLI2S\_Q)} / PLLI2SDIVQ \)

10: SAI1-A clock frequency = Alternate function input frequency

11: wrong configuration

Bits 19:18 Reserved, must be kept at reset value.

Bits 17:16 PLLSAIDIVR[1:0] : division factor for LCD_CLK

These bits are set and cleared by software to control the frequency of LCD_CLK. They should be written only if PLLSAI is disabled.

LCD_CLK frequency = \( f(\text{PLLSAI\_R}) / \text{PLLSAIDIVR} \) with \( 2 \leq \text{PLLSAIDIVR} \leq 16 \)

00: PLLSAIDIVR = /2

01: PLLSAIDIVR = /4

10: PLLSAIDIVR = /8

11: PLLSAIDIVR = /16

Bits 15:13 Reserved, must be kept at reset value.

Bits 12:8 PLLSAIDIVQ[4:0] : PLLSAI division factor for SAIs clock

These bits are set and reset by software to control the SAIs clock frequency.

They should be written only if PLLSAI is disabled.

SAI1 clock frequency = \( f(\text{PLLSAI\_Q}) / \text{PLLSAIDIVQ} \) with \( 1 \leq \text{PLLSAIDIVQ} \leq 31 \)

00000: PLLSAIDIVQ = /1

00001: PLLSAIDIVQ = /2

00010: PLLSAIDIVQ = /3

00011: PLLSAIDIVQ = /4

00100: PLLSAIDIVQ = /5

...

11111: PLLSAIDIVQ = /32

Bits 7:5 Reserved, must be kept at reset value.

Bits 4:0 PLLII2SDIVQ[4:0] : PLLII2S division factor for SAIs clock

These bits are set and reset by software to control the SAIs clock frequency.

They should be written only if PLLII2S is disabled.

SAI1 clock frequency = \( f(\text{PLLII2S\_Q}) / \text{PLLII2SDIVQ} \) with \( 1 \leq \text{PLLII2SDIVQ} \leq 31 \)

00000: PLLII2SDIVQ = /1

00001: PLLII2SDIVQ = /2

00010: PLLII2SDIVQ = /3

00011: PLLII2SDIVQ = /4

00100: PLLII2SDIVQ = /5

...

11111: PLLII2SDIVQ = /32

6.3.26 RCC register map

Table 25 gives the register map and reset values.

Table 25. RCC register map and reset values

Table 25. RCC register map and reset values (continued)

Table 25. RCC register map and reset values (continued)

Table 25. RCC register map and reset values (continued)

Refer to Section 2.2 on page 66 for the register boundary addresses.
