10. System configuration controller (SYSCFG)

10.1 Introduction

The devices feature a set of configuration registers. The main purposes of the system configuration controller are the following:

• • Remapping memories
• • Remapping some trigger sources to timer input capture channels
• • Managing external interrupts line multiplexing to the internal edge detector
• • Enabling dedicated functions such as input capture multiplexing or oscillator pin remapping
• • I2C Fm+ mode management
• • Firewall management
• • Temperature sensor and Internal voltage reference management (including for Comparator, 48 MHz HSI and ADC purposes).

The Cortex ^® -M0+ can wake up from WFE (Wait For Event) when a transition occurs on the eventin input signal. To support semaphore management in multiprocessor environment, the core can also output events on the signal output EVENTOUT, during SEV instruction execution.

In STM32L0x2 devices, an event input can be generated by an external interrupt line or by an RTC alarm interrupt. It is also possible to select which output pin is connected to the EVENTOUT signal of the Cortex ^® -M0+. The EVENTOUT multiplexing is managed by the GPIO alternate function capability (see Section 9.4.9: GPIO alternate function low register (GPIOx_AFRL) (x = A to E and H) and Section 9.4.10: GPIO alternate function high register (GPIOx_AFRH) (x = A to E and H) ).

Note: EVENTOUT is not mapped on all GPIOs (for example PC13, PC14, PC15).

10.2 SYSCFG registers

The peripheral registers have to be accessed by words (32-bit).

10.2.1 SYSCFG memory remap register (SYSCFG_CFGR1)

This register is used for specific configurations related to memory remap:

Note: This register is not reset through the SYSCFGRST bit in the RCC_APB2RSTR register.

Address offset: 0x00

Reset value: 0x000x 000x (X is the memory mode selected by the boot configuration).

Bits 31:10 Reserved, must be kept at reset value

Bits 9:8 BOOT_MODE : Boot mode selected by the boot pins status bits

These bits are read-only. They indicate the boot mode selected by the BOOT pins. Bit 9 corresponds to the complement of nBOOT1 bit in the FLASH_OPTR register. Its value is defined in the option bytes. Bit 8 corresponds to the value sampled on BOOT0 pin (see Section 2.4: Boot configuration on page 63 ).

00: Main Flash memory boot mode

01: System Flash memory boot mode

10: Reserved

11: Embedded SRAM boot mode

Bits 7:4 Reserved, must be kept at reset value

This bit is available only on category 5 devices and reserved on other categories.

It is set and cleared by software. It controls the Bank 1/2 mapping (see Table 8: NVM organization for UFB = 0 (128 Kbyte category 5 devices) and Table 10: NVM organization for UFB = 0 (64 Kbyte category 5 devices) ).

0: Flash Program memory Bank 1 is mapped at 0x0800 0000 (and aliased at 0x0000 0000 if MEM_MODE=00) and Data EEPROM Bank 1 at 0x0808 0000 (aliased at 0x0008 0000 if MEM_MODE=00)

1: Flash Program memory Bank 2 is mapped at 0x0800 0000 (and aliased at 0x0000 0000 if MEM_MODE=00) and Data EEPROM Bank 2 at 0x0808 0000 (and aliased at 0x0008 0000 if MEM_MODE=00)

These bits are set and cleared by software. This bit controls the memory's internal mapping at address 0x0000 0000. After reset these bits take on the memory mapping selected by the BOOT pins (see Section 2.4: Boot configuration on page 63 ).

00: Main Flash memory mapped at 0x0000 0000

01: System Flash memory mapped at 0x0000 0000

10: reserved

11: SRAM mapped at 0x0000 0000.

10.2.2 SYSCFG peripheral mode configuration register (SYSCFG_CFGR2)

Address offset: 0x04

Reset value: 0x0000 0001

Bits 31:15 Reserved, must be kept at reset value

Bit 14 I2C3 FMP : I2C3 Fm+ drive capability enable bit

This bit is set and cleared by software. When it is set, Fm+ mode is enabled on I2C3 pins PC0, PC1, PA8 and PB4 selected through the IOPORT control registers AF selection bits.

Bit 13 I2C2 FMP : I2C2 Fm+ drive capability enable bit

This bit is set and cleared by software. When it is set, Fm+ mode is enabled on I2C2 pins PB13 and PB14 selected through the IOPORT control registers AF selection bits.

Bit 12 I2C1 FMP : I2C1 Fm+ drive capability enable bit

This bit is set and cleared by software. When it is set, Fm+ mode is enabled on I2C1 pins selected through the IOPORT control registers AF selection bits. This bit is OR-ed with I2C_PBx_FMP bits.

Bit 11 I2C PB9 FMP : Fm+ drive capability on PB9 enable bit

This bit is set and cleared by software. When it is set, it forces Fm+ drive capability on PB9.

Bit 10 I2C PB8 FMP : Fm+ drive capability on PB8 enable bit

This bit is set and cleared by software. When it is set, it forces Fm+ drive capability on PB8.

Bit 9 I2C PB7 FMP : Fm+ drive capability on PB7 enable bit

This bit is set and cleared by software. When it is set, it forces Fm+ drive capability on PB7.

Bit 8 I2C PB6 FMP : Fm+ drive capability on PB6 enable bit

This bit is set and cleared by software. When it is set, it forces Fm+ drive capability on PB6.

Bits 7:1 Reserved, must be kept at reset value

Bit 0 FWDIS : Firewall disable bit

This bit is set by default (after reset). It is cleared by software to protect the access to the memory segments according to the Firewall configuration. Once cleared it cannot be set by software. Only a system reset set the bit.

0: Firewall access enabled

1: Firewall access disabled

Note: This bit cannot be set by an APB reset. A system reset is required to set it.

10.2.3 Reference control and status register (SYSCFG_CFGR3)

The SYSCFG_CFGR3 register is the reference control/status register. It contains all the bits/flags related to VREFINT and temperature sensor.

Address offset: 0x20

System reset value: 0x0000 0000

Bit 31 REF_LOCK : SYSCFG_CFGR3 lock bit

This bit is set by software and cleared by a hardware system reset. It locks the whole content of the reference control/Status register, SYSCFG_CFGR3[31:0].

0: SYSCFG_CFGR3[31:0] bits are read/write

1: SYSCFG_CFGR3[31:0] bits are read-only

Bit 30 VREFINT_RDYF : VREFINT ready flag

This bit is read-only. It shows the state of the internal voltage reference, VREFINT. When set, it indicates that VREFINT is available for BOR, PVD.

0: VREFINT OFF

1: VREFINT ready

Bits 29:14 Reserved, must be kept at reset value

Bit 13 ENREF_HSI48 : VREFINT reference for HSI48 oscillator enable bit

This bit is set and cleared by software (only if REF_LOCK not set).

0: Buffer used to generate VREFINT reference for the HSI48 oscillator switched OFF.

1: Buffer used to generate VREFINT reference for the HSI48 oscillator switched ON.

Bit 12 ENBUF_VREFINT_COMP2 : VREFINT reference for COMP2 scaler enable bit

This bit is set and cleared by software (only if REF_LOCK not set).

0: Disables the buffer used to generate VREFINT references for COMP2.

1: Enables the buffer used to generate VREFINT references for COMP2.

Bits 11:10 Reserved, must be kept at reset value

Bit 9 ENBUF_SENSOR_ADC : Temperature sensor reference for ADC enable bit

This bit is set and cleared by software (only if REF_LOCK not set). When this bit is set, the VREFINT is automatically enabled.

0: Disables the buffer used to generate VREFINT reference for the temperature sensor.

1: Enables the buffer used to generate VREFINT reference for the temperature sensor.

Bit 8 ENBUF_VREFINT_ADC : VREFINT reference for ADC enable bit

This bit is set and cleared by software (only if REF_LOCK not set).

0: Disables the buffer used to generate VREFINT reference for the ADC.

1: Enables the buffer used to generate VREFINT reference for the ADC.

Bits 7:6 Reserved, must be kept at reset value

Bits 5:4 SEL_VREF_OUT : VREFINT_ADC connection bit

These bits are set and cleared by software (only if REF_LOCK not set). These bits select which pad is connected to VREFINT_ADC when ENBUF_VREFINT_ADC is set.

00: no pad connected

01: PB0 connected

10: PB1 connected

11: PB0 and PB1 connected

Bits 3:1 Reserved, must be kept at reset value

Bit 0 EN_VREFINT : VREFINT enable and scaler control for COMP2 enable bit

This bit is set and cleared by software (only if REF_LOCK not set). It switches on VREFINT internal reference voltage and enables the scaler for COMP2.

0: VREFINT voltage disabled in low-power mode (if ULP=1) and scaler for COMP2 disabled

1: VREFINT voltage enabled in low-power mode and scaler for COMP2 enabled

Note: It is forbidden to configure both EN_VREFINT = 1 and ULP = 1 if the device is in Stop mode or in Sleep/Low-power sleep mode (refer to Section 6.4.1: PWR power control register (PWR_CR) for a description of the ULP bit). If the device is not in low-power mode, VREFINT is always enabled whatever the state of EN_VREFINT and ULP. EN_VREFINT controls only COMP2 scaler. The Scaler must be enabled to provide V _REFINT voltage or its fraction to COMP2 (scaler performs V _REFINT buffering and scaling).

10.2.4 SYSCFG external interrupt configuration register 1 (SYSCFG_EXTICR1)

Address offset: 0x08

Reset value: 0x0000

Bits 31:16 Reserved

Bits 15:0 EXTIx[3:0] : EXTI x configuration (x = 0 to 3)

These bits are written by software to select the source input for the EXTIx external interrupt.

0000: PA[x] pin

0001: PB[x] pin

0010: PC[x] pin

0011: PD[x] pin

0100: PE[x] pin

0101: PH[x] (only PH[1:0] and PH[10:9])

Other configurations are reserved

10.2.5 SYSCFG external interrupt configuration register 2 (SYSCFG_EXTICR2)

Address offset: 0x0C

Reset value: 0x0000

Bits 31:16 Reserved

Bits 15:0 EXTIx[3:0] : EXTI x configuration (x = 4 to 7)

These bits are written by software to select the source input for the EXTIx external interrupt.

0000: PA[x] pin

0001: PB[x] pin

0010: PC[x] pin

0011: PD[x] pin

0100: PE[x] pin

Other configurations are reserved

10.2.6 SYSCFG external interrupt configuration register 3 (SYSCFG_EXTICR3)

Address offset: 0x10

Reset value: 0x0000

Bits 31:16 Reserved

Bits 15:0 EXTIx[3:0] : EXTI x configuration (x = 8 to 11)

These bits are written by software to select the source input for the EXTIx external interrupt.

0000: PA[x] pin

0001: PB[x] pin

0010: PC[x] pin

0011: PD[x] pin

0100: PE[x] pin

0101: PH[x] (only PH[1:0] and PH[10:9])

Other configurations are reserved.

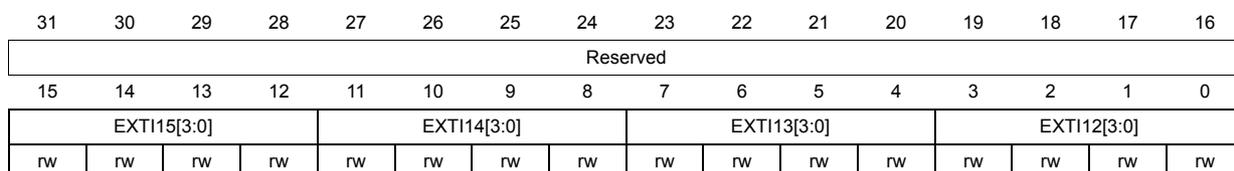

10.2.7 SYSCFG external interrupt configuration register 4 (SYSCFG_EXTICR4)

Address offset: 0x14

Reset value: 0x0000

Bits 31:16 Reserved

Bits 15:0 EXTIx[3:0] : EXTI x configuration (x = 12 to 15)

These bits are written by software to select the source input for the EXTIx external interrupt.

0000: PA[x] pin

0001: PB[x] pin

0010: PC[x] pin

0011: PD[x] pin

0100: PE[x] pin

Other configurations are reserved.

10.2.8 SYSCFG register map

The following table gives the SYSCFG register map and the reset values.

Table 49. SYSCFG register map and reset values

Table 49. SYSCFG register map and reset values (continued)

Refer to Section 2.2 on page 57 for the register boundary addresses.
