6. Power control (PWR)

6.1 Power supplies

The STM32F030/STM32F070 subfamily embeds a voltage regulator in order to supply the internal 1.8 V digital power domain.

• • The STM32F030/STM32F070 devices require a 2.4 V - 3.6 V operating supply voltage ( \( V_{DD} \) ) and a 2.4 V - 3.6 V analog supply voltage ( \( V_{DDA} \) ).

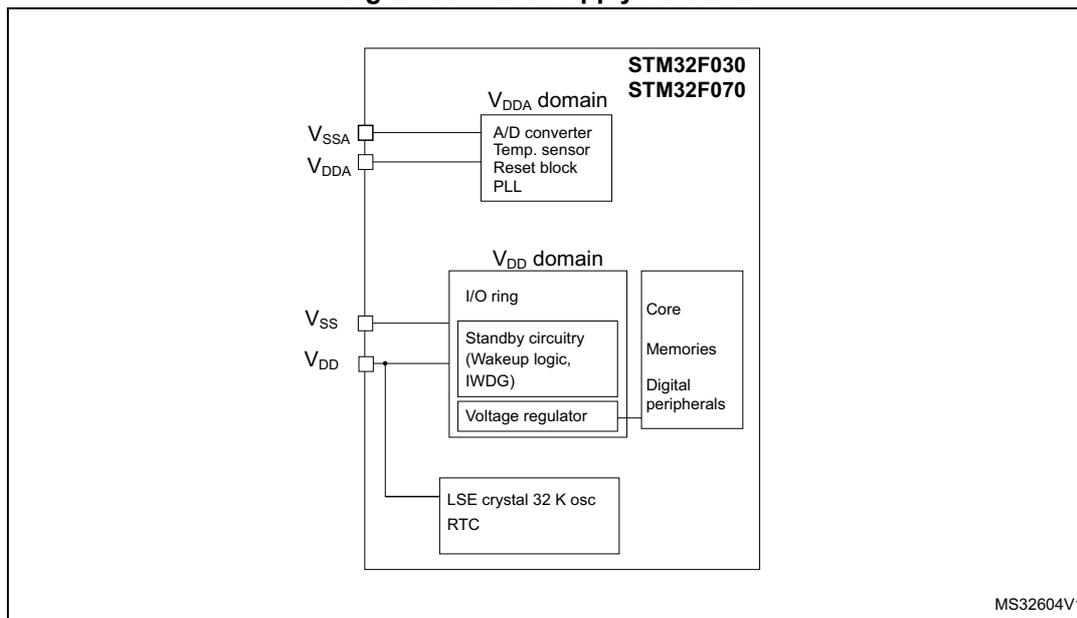

Figure 7. Power supply overview

6.1.1 Independent A/D converter supply and reference voltage

To improve conversion accuracy and to extend the supply flexibility, the ADC has an independent power supply that can be separately filtered and shielded from noise on the PCB.

• • The ADC voltage supply input is available on a separate \( V_{DDA} \) pin.
• • An isolated supply ground connection is provided on pin \( V_{SSA} \) .

The \( V_{DDA} \) supply/reference voltage must be equal or higher than \( V_{DD} \) .

When a single supply is used, \( V_{DDA} \) can be externally connected to \( V_{DD} \) , through the external filtering circuit in order to ensure a noise free \( V_{DDA} \) reference voltage.

When \( V_{DDA} \) is different from \( V_{DD} \) , \( V_{DDA} \) must always be higher or equal to \( V_{DD} \) . To keep safe potential difference in between \( V_{DDA} \) and \( V_{DD} \) during power-up/power-down, an external Schottky diode may be used between \( V_{DD} \) and \( V_{DDA} \) . Refer to the datasheet for the maximum allowed difference.

6.1.2 Voltage regulator

The voltage regulator is always enabled after Reset. It works in three different modes depending on the application modes.

• • In Run mode, the regulator supplies full power to the 1.8 V domain (core, memories and digital peripherals).
• • In Stop mode the regulator supplies low-power to the 1.8 V domain, preserving contents of registers and SRAM
• • In Standby Mode, the regulator is powered off. The contents of the registers and SRAM are lost except for the Standby circuitry.

6.2 Power supply supervisor

6.2.1 Power on reset (POR) / power down reset (PDR)

STM32F0x1xx and STM32F0x2xx devices feature integrated power-on reset (POR) and power-down reset (PDR) circuits, which are always active and ensure proper operation above a threshold of 2 V.

The device remains in Reset mode when the monitored supply voltage is below a specified threshold, \( V_{POR/PDR} \) , without the need for an external reset circuit.

• • The POR monitors only the \( V_{DD} \) supply voltage. During the startup phase \( V_{DDA} \) must arrive first and be greater than or equal to \( V_{DD} \) .
• • The PDR monitors both the \( V_{DD} \) and \( V_{DDA} \) supply voltages. However, the \( V_{DDA} \) power supply supervisor can be disabled (by programming a dedicated option bit \( V_{DDA\_MONITOR} \) ) to reduce the power consumption if the application is designed to make sure that \( V_{DDA} \) is higher than or equal to \( V_{DD} \) .

For more details on the power on / power down reset threshold, refer to the electrical characteristics section in the datasheet.

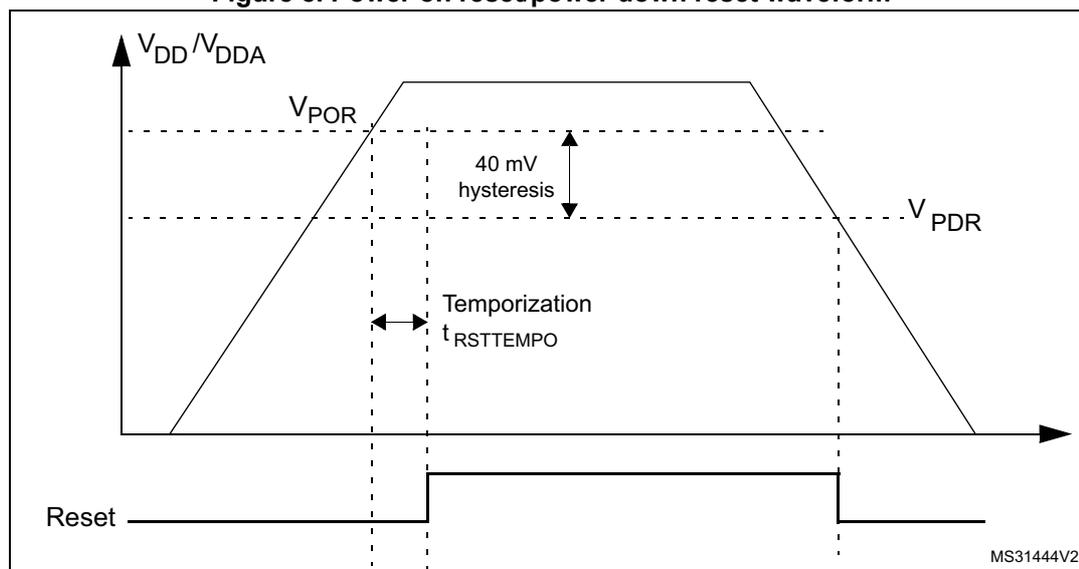

Figure 8. Power on reset/power down reset waveform

6.3 Low-power modes

By default, the microcontroller is in Run mode after a system or a power Reset. Several low-power modes are available to save power when the CPU does not need to be kept running, for example when waiting for an external event. It is up to the user to select the mode that gives the best compromise between low-power consumption, short startup time and available wake-up sources.

The device features three low-power modes:

• • Sleep mode (CPU clock off, all peripherals including Arm ^® Cortex ^® -M0 core peripherals like NVIC, SysTick, etc. are kept running)
• • Stop mode (all clocks are stopped)
• • Standby mode (1.8V domain powered-off)

In addition, the power consumption in Run mode can be reduced by one of the following means:

• • Slowing down the system clocks
• • Gating the clocks to the APB and AHB peripherals when they are unused.

Table 15. Low-power mode summary

6.3.1 Slowing down system clocks

In Run mode the speed of the system clocks (SYSCLK, HCLK, PCLK) can be reduced by programming the prescaler registers. These prescalers can also be used to slow down peripherals before entering Sleep mode.

For more details refer to Section 7.4.2: Clock configuration register (RCC_CFGR) .

6.3.2 Peripheral clock gating

In Run mode, the AHB clock (HCLK) and the APB clock (PCLK) for individual peripherals and memories can be stopped at any time to reduce power consumption.

To further reduce power consumption in Sleep mode the peripheral clocks can be disabled prior to executing the WFI or WFE instructions.

Peripheral clock gating is controlled by the AHB peripheral clock enable register (RCC_AHBENR) , the APB peripheral clock enable register 2 (RCC_APB2ENR) and the APB peripheral clock enable register 1 (RCC_APB1ENR) .

6.3.3 Sleep mode

Entering Sleep mode

The Sleep mode is entered by executing the WFI (Wait For Interrupt) or WFE (Wait for Event) instructions. Two options are available to select the Sleep mode entry mechanism, depending on the SLEEPONEXIT bit in the Arm ^® Cortex ^® -M0 System Control register:

• • Sleep-now: if the SLEEPONEXIT bit is cleared, the MCU enters Sleep mode as soon as WFI or WFE instruction is executed.
• • Sleep-on-exit: if the SLEEPONEXIT bit is set, the MCU enters Sleep mode as soon as it exits the lowest priority ISR.

In the Sleep mode, all I/O pins keep the same state as in the Run mode.

Refer to Table 16 and Table 17 for details on how to enter Sleep mode.

Exiting Sleep mode

If the WFI instruction is used to enter Sleep mode, any peripheral interrupt acknowledged by the nested vectored interrupt controller (NVIC) can wake up the device from Sleep mode.

If the WFE instruction is used to enter Sleep mode, the MCU exits Sleep mode as soon as an event occurs. The wake-up event can be generated either by:

• • enabling an interrupt in the peripheral control register but not in the NVIC, and enabling the SEVONPEND bit in the Arm ^® Cortex ^® -M0 System Control register. When the MCU resumes from WFE, the peripheral interrupt pending bit and the peripheral NVIC IRQ channel pending bit (in the NVIC interrupt clear pending register) must be cleared.
• • or configuring an external or internal EXTI line in event mode. When the CPU resumes from WFE, it is not necessary to clear the peripheral interrupt pending bit or the NVIC IRQ channel pending bit as the pending bit corresponding to the event line is not set.

This mode offers the lowest wake-up time as no time is wasted in interrupt entry/exit.

Refer to Table 16 and Table 17 for more details on how to exit Sleep mode.

Table 16. Sleep-now

Table 17. Sleep-on-exit

6.3.4 Stop mode

The Stop mode is based on the Arm ^® Cortex ^® -M0 deep sleep mode combined with peripheral clock gating. The voltage regulator can be configured either in normal or low-power mode. In Stop mode, all clocks in the 1.8 V domain are stopped, the PLL, the HSI and the HSE oscillators are disabled. SRAM and register contents are preserved.

In the Stop mode, all I/O pins keep the same state as in the Run mode.

Entering Stop mode

Refer to Table 18 for details on how to enter the Stop mode.

To further reduce power consumption in Stop mode, the internal voltage regulator can be put in low-power mode. This is configured by the LPDS bit of the Power control register (PWR_CR) .

If Flash memory programming is ongoing, the Stop mode entry is delayed until the memory access is finished.

If an access to the APB domain is ongoing, The Stop mode entry is delayed until the APB access is finished.

In Stop mode, the following features can be selected by programming individual control bits:

• • Independent watchdog (IWDG): the IWDG is started by writing to its Key register or by hardware option. Once started it cannot be stopped except by a Reset. See Section 19.3: IWDG functional description .

• • real-time clock (RTC): this is configured by the RTCEN bit in the RTC domain control register (RCC_BDCR)
• • Internal RC oscillator (LSI): this is configured by the LSION bit in the Control/status register (RCC_CSR) .
• • External 32.768 kHz oscillator (LSE): this is configured by the LSEON bit in the RTC domain control register (RCC_BDCR) .

The ADC can also consume power during Stop mode, unless it is disabled before entering this mode. Refer to ADC control register (ADC_CR) for details on how to disable it.

Exiting Stop mode

Refer to Table 18 for more details on how to exit Stop mode.

When exiting Stop mode by issuing an interrupt or a wake-up event, the HSI oscillator is selected as system clock.

When the voltage regulator operates in low-power mode, an additional startup delay is incurred when waking up from Stop mode. By keeping the internal regulator ON during Stop mode, the consumption is higher although the startup time is reduced.

Table 18. Stop mode

6.3.5 Standby mode

The Standby mode allows to achieve the lowest power consumption. It is based on the Arm® Cortex®-M0 deepsleep mode, with the voltage regulator disabled. The 1.8 V domain is consequently powered off. The PLL, the HSI oscillator and the HSE oscillator are also switched off. SRAM and register contents are lost except for registers in the Standby circuitry (see Figure 7 ).

Entering Standby mode

Refer to Table 19 for more details on how to enter Standby mode.

In Standby mode, the following features can be selected by programming individual control bits:

• • Independent watchdog (IWDG): the IWDG is started by writing to its Key register or by hardware option. Once started it cannot be stopped except by a reset. See Section 19.3: IWDG functional description .
• • Real-time clock (RTC): this is configured by the RTCEN bit in the RTC domain control register (RCC_BDCR) .
• • Internal RC oscillator (LSI): this is configured by the LSION bit in the Control/status register (RCC_CSR) .
• • External 32.768 kHz oscillator (LSE): this is configured by the LSEON bit in the RTC domain control register (RCC_BDCR) .

Exiting Standby mode

The microcontroller exits the Standby mode when an external reset (NRST pin), an IWDG reset, a rising edge on one of the enabled WKUPx pins or an RTC event occurs. All registers are reset after wake-up from Standby except for Power control/status register (PWR_CSR) .

After waking up from Standby mode, program execution restarts in the same way as after a Reset (boot pin sampling, option bytes loading, reset vector is fetched, etc.). The SBF status flag in the Power control/status register (PWR_CSR) indicates that the MCU was in Standby mode.

Refer to Table 19 for more details on how to exit Standby mode.

Table 19. Standby mode

I/O states in Standby mode

In Standby mode, all I/O pins are high impedance except:

• • Reset pad (still available)
• • PC13, PC14 and PC15 if configured by RTC or LSE
• • WKUPx pins

Debug mode

By default, the debug connection is lost if the application puts the MCU in Stop or Standby mode while the debug features are used. This is due to the fact that the Arm ^® Cortex ^® -M0 core is no longer clocked.

However, by setting some configuration bits in the DBGMCU_CR register, the software can be debugged even when using the low-power modes extensively.

6.3.6 RTC wakeup from low-power mode

The RTC can be used to wake-up the MCU from low-power mode by means of the RTC alarm. For this purpose, two of the three alternative RTC clock sources can be selected by programming the RTCSEL[1:0] bits in the RTC domain control register (RCC_BDCR) :

• • Low-power 32.768 kHz external crystal oscillator (LSE OSC)
  This clock source provides a precise time base with very low-power consumption (less than 1 µA added consumption in typical conditions)
• • Low-power internal RC oscillator (LSI)
  This clock source has the advantage of saving the cost of the 32.768 kHz crystal. This internal RC oscillator is designed to add minimum power consumption.

To wake-up from Stop mode with an RTC alarm event, it is necessary to:

• • Configure the EXTI Line 17 to be sensitive to rising edge
• • Configure the RTC to generate the RTC alarm

To wake-up from Standby mode, there is no need to configure the EXTI Line 17.

6.4 Power control registers

The peripheral registers can be accessed by half-words (16-bit) or words (32-bit).

6.4.1 Power control register (PWR_CR)

Address offset: 0x00

Reset value: 0x0000 0000 (reset by wake-up from Standby mode)

Bits 31:9 Reserved, must be kept at reset value.

Bit 8 DBP : Disable RTC domain write protection.

In reset state, the RTC registers are protected against parasitic write access. This bit must be set to enable write access to these registers.

0: Access to RTC disabled

1: Access to RTC enabled

Bits 7:4 Reserved, must be kept at reset value

Bit 3 CSBF : Clear standby flag.

This bit is always read as 0.

0: No effect

1: Clear the SBF standby flag (write).

Bit 2 CWUF : Clear wake-up flag.

This bit is always read as 0.

0: No effect

1: Clear the WUF wake-up Flag after 2 System clock cycles . (write)

Bit 1 PDDS : Power down deepsleep.

This bit is set and cleared by software. It works together with the LPDS bit.

0: Enter Stop mode when the CPU enters DeepSleep. The regulator status depends on the LPDS bit.

1: Enter Standby mode when the CPU enters DeepSleep.

Bit 0 LPDS : Low-power deepsleep.

This bit is set and cleared by software. It works together with the PDDS bit.

0: Voltage regulator on during Stop mode

1: Voltage regulator in low-power mode during Stop mode

Note: When a peripheral that can work in STOP mode requires a clock, the Power controller automatically switch the voltage regulator from Low-power mode to Normal mode and remains in this mode until the request disappears.

6.4.2 Power control/status register (PWR_CSR)

Address offset: 0x04

Reset value: 0x0000 000X (not reset by wake-up from Standby mode)

Additional APB cycles are needed to read this register versus a standard APB read.

Bits 31:15 Reserved, must be kept at reset value.

Bits 14:11 EWUPx : Enable WKUPx pin (available only on STM32F070xB and STM32F030xC devices)

These bits are set and cleared by software.

0: WKUPx pin is used for general purpose I/O. An event on the WKUPx pin does not wake-up the device from Standby mode.

1: WKUPx pin is used for wake-up from Standby mode and forced in input pull down configuration (rising edge on WKUPx pin wakes-up the system from Standby mode).

Note: These bits are reset by a system Reset.

Bit 10 Reserved, must be kept at reset value.

Bits 9:8 EWUPx : Enable WKUPx pin

These bits are set and cleared by software.

0: WKUPx pin is used for general purpose I/O. An event on the WKUPx pin does not wake-up the device from Standby mode.

1: WKUPx pin is used for wake-up from Standby mode and forced in input pull down configuration (rising edge on WKUPx pin wakes-up the system from Standby mode).

Note: These bits are reset by a system Reset.

Bits 7:2 Reserved, must be kept at reset value.

Bit 1 SBF : Standby flag

This bit is set by hardware when the device enters Standby mode and it is cleared only by a POR/PDR (power on reset/power down reset) or by setting the CSBF bit in the Power control register (PWR_CR)

0: Device has not been in Standby mode

1: Device has been in Standby mode

Bit 0 WUF : Wake-up flag

This bit is set by hardware to indicate that the device received a wake-up event. It is cleared by a system reset or by setting the CWUF bit in the Power control register (PWR_CR)

0: No wake-up event occurred

1: A wake-up event was received from one of the enabled WKUPx pins or from the RTC alarm.

Note: An additional wake-up event is detected if one WKUPx pin is enabled (by setting the EWUPx bit) when its pin level is already high.

6.4.3 PWR register map

The following table summarizes the PWR register map and reset values.

Table 20. PWR register map and reset values

1. Available on STM32F070xB and STM32F030xC devices only.

Refer to Section 2.2 on page 37 for the register boundary addresses.
