35. Infrared interface (IRTIM)
An infrared interface (IRTIM) for remote control is available on the device. It can be used with an infrared LED to perform remote control functions.
It uses internal connections with TIM16, and TIM17 as shown in Figure 385 .
To generate the infrared remote control signals, the IR interface must be enabled and TIM16 channel 1 (TIM16_OC1) and TIM17 channel 1 (TIM17_OC1) must be properly configured to generate correct waveforms.
The infrared receiver can be implemented easily through a basic input capture mode.

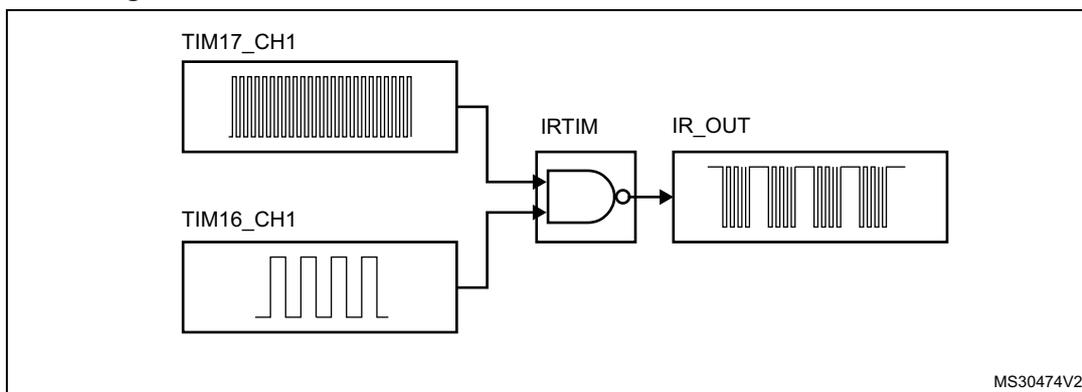

Figure 385. IRTIM internal hardware connections with TIM16 and TIM17
The diagram illustrates the internal hardware connections for the Infrared Interface (IRTIM). It features two timer channels, TIM17_CH1 and TIM16_CH1, which are connected to the inputs of an IRTIM block. TIM17_CH1 is shown with a high-frequency carrier signal waveform, while TIM16_CH1 is shown with a low-frequency modulation envelope waveform. The IRTIM block combines these signals to produce the IR_OUT signal, which is a modulated carrier signal. The diagram is labeled MS30474V2.
All standard IR pulse modulation modes can be obtained by programming the two timer output compare channels.
TIM17 is used to generate the high frequency carrier signal, while TIM16 generates the modulation envelope.
The infrared function is output on the IR_OUT pin. The activation of this function is done through the GPIOx_AFRx register by enabling the related alternate function bit.
The high sink LED driver capability (only available on the PB9 pin) can be activated through the I2C_PB9_FMP bit in the SYSCFG_CFGR1 register and used to sink the high current needed to directly control an infrared LED.
