22. Basic timers (TIM6/TIM7)
22.1 TIM6/TIM7 introduction
The basic timers TIM6 and TIM7 consist of a 16-bit auto-reload counter driven by a programmable prescaler.
They may be used as generic timers for time base generation but they are also specifically used to drive the digital-to-analog converter (DAC). In fact, the timers are internally connected to the DAC and are able to drive it through their trigger outputs.
The timers are completely independent, and do not share any resources.
22.2 TIM6/TIM7 main features
Basic timer (TIM6/TIM7) features include:
- • 16-bit auto-reload upcounter
- • 16-bit programmable prescaler used to divide (also ‘‘on the fly’’) the counter clock frequency by any factor between 1 and 65535
- • Synchronization circuit to trigger the DAC
- • Interrupt/DMA generation on the update event: counter overflow

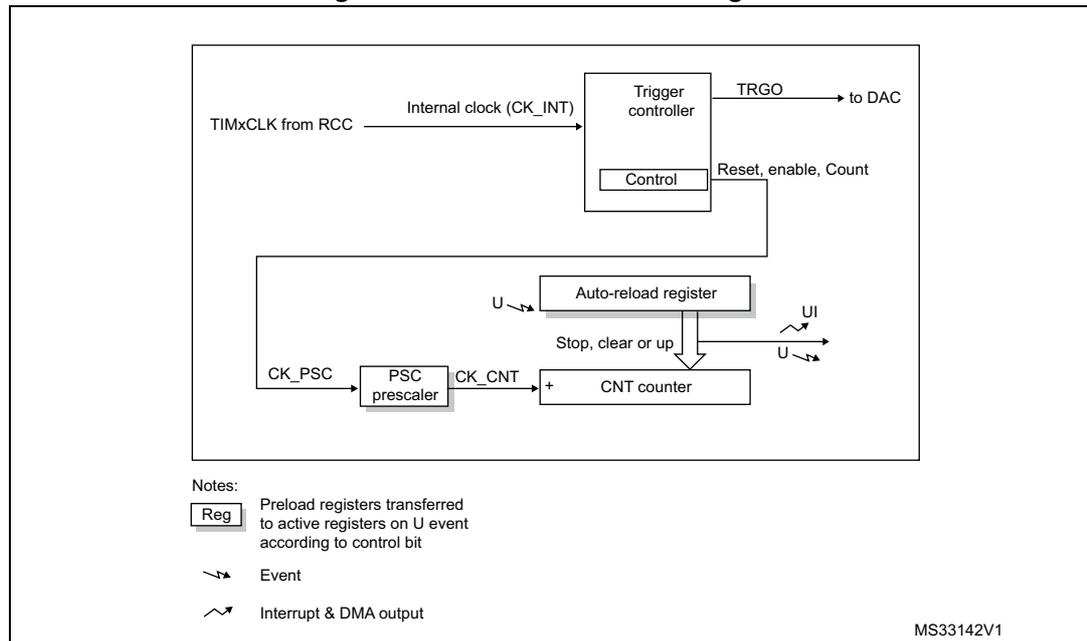

Figure 247. Basic timer block diagram
The diagram shows the internal structure of the TIM6/TIM7 timers. The clock source 'TIMxCLK from RCC' enters as 'Internal clock (CK_INT)' into a 'Trigger controller' block, which outputs 'TRGO' to the DAC. The trigger controller also contains a 'Control' block that sends 'Reset, enable, Count' signals to the 'CNT counter'. The main counting chain consists of 'CK_PSC' entering a 'PSC prescaler', which outputs 'CK_CNT' to the 'CNT counter'. An 'Auto-reload register' (shadowed) interacts with the 'CNT counter' via a 'Stop, clear or up' signal. Update events (U) are generated from the counter overflow, which trigger updates to the prescaler and auto-reload register, and generate 'UI' (Update Interrupt) and DMA outputs.
Notes:
- Reg Preload registers transferred to active registers on U event according to control bit
- ↘ Event
- ↝ Interrupt & DMA output
MS33142V1
22.3 TIM6/TIM7 functional description
22.3.1 Time-base unit
The main block of the programmable timer is a 16-bit upcounter with its related auto-reload register. The counter clock can be divided by a prescaler.
The counter, the auto-reload register and the prescaler register can be written or read by software. This is true even when the counter is running.
The time-base unit includes:
- • Counter Register (TIMx_CNT)
- • Prescaler Register (TIMx_PSC)
- • Auto-Reload Register (TIMx_ARR)
The auto-reload register is preloaded. The preload register is accessed each time an attempt is made to write or read the auto-reload register. The contents of the preload register are transferred into the shadow register permanently or at each update event UEV, depending on the auto-reload preload enable bit (ARPE) in the TIMx_CR1 register. The update event is sent when the counter reaches the overflow value and if the UDIS bit equals 0 in the TIMx_CR1 register. It can also be generated by software. The generation of the update event is described in detail for each configuration.
The counter is clocked by the prescaler output CK_CNT, which is enabled only when the counter enable bit (CEN) in the TIMx_CR1 register is set.
Note that the actual counter enable signal CNT_EN is set 1 clock cycle after CEN.
Prescaler description
The prescaler can divide the counter clock frequency by any factor between 1 and 65536. It is based on a 16-bit counter controlled through a 16-bit register (in the TIMx_PSC register). It can be changed on the fly as the TIMx_PSC control register is buffered. The new prescaler ratio is taken into account at the next update event.
Figure 248 and Figure 249 give some examples of the counter behavior when the prescaler ratio is changed on the fly.
Figure 248. Counter timing diagram with prescaler division change from 1 to 2
The diagram illustrates the timing of a timer when the prescaler division is changed from 1 to 2. The signals shown are:
- CK_PSC : Prescaler clock signal, a periodic square wave.
- CEN : Counter enable signal, which goes high to start the counter.
- Timerclock = CK_CNT : The clock signal for the counter register, derived from CK_PSC.
- Counter register : Shows the counter values: F7, F8, F9, FA, FB, FC, 00, 01, 02, 03.
- Update event (UEV) : Generated when the counter register overflows from FC to 00.
- Prescaler control register : Initially set to 0 (division 1). It is updated to 1 (division 2) via a write to TIMx_PSC before the UEV.
- Prescaler buffer : Latches the new value (1) from the control register at the UEV.
- Prescaler counter : Counts from 0 to 1 (division 2) before generating the next clock edge for the counter register. The sequence shown is 0, 0, 1, 0, 1, 0, 1, 0, 1.
MS31076V2
Figure 249. Counter timing diagram with prescaler division change from 1 to 4
The diagram illustrates the timing of a timer when the prescaler division is changed from 1 to 4. The signals shown are:
- CK_PSC : Prescaler clock signal, a periodic square wave.
- CEN : Counter enable signal, which goes high to start the counter.
- Timerclock = CK_CNT : The clock signal for the counter register, derived from CK_PSC.
- Counter register : Shows the counter values: F7, F8, F9, FA, FB, FC, 00, 01.
- Update event (UEV) : Generated when the counter register overflows from FC to 00.
- Prescaler control register : Initially set to 0 (division 1). It is updated to 3 (division 4) via a write to TIMx_PSC before the UEV.
- Prescaler buffer : Latches the new value (3) from the control register at the UEV.
- Prescaler counter : Counts from 0 to 3 (division 4) before generating the next clock edge for the counter register. The sequence shown is 0, 1, 2, 3, 0, 1, 2, 3.
MS31077V2
22.3.2 Counting mode
The counter counts from 0 to the auto-reload value (contents of the TIMx_ARR register), then restarts from 0 and generates a counter overflow event.
An update event can be generated at each counter overflow or by setting the UG bit in the TIMx_EGR register (by software or by using the slave mode controller).
The UEV event can be disabled by software by setting the UDIS bit in the TIMx_CR1 register. This avoids updating the shadow registers while writing new values into the preload registers. In this way, no update event occurs until the UDIS bit has been cleared, however, the counter and the prescaler counter both restart from 0 (but the prescale rate does not change). In addition, if the URS (update request selection) bit in the TIMx_CR1 register is set, setting the UG bit generates an update event UEV, but the UIF flag is not set (so no interrupt or DMA request is sent).
When an update event occurs, all the registers are updated and the update flag (UIF bit in the TIMx_SR register) is set (depending on the URS bit):
- • The buffer of the prescaler is reloaded with the preload value (contents of the TIMx_PSC register)
- • The auto-reload shadow register is updated with the preload value (TIMx_ARR)
The following figures show some examples of the counter behavior for different clock frequencies when TIMx_ARR = 0x36.

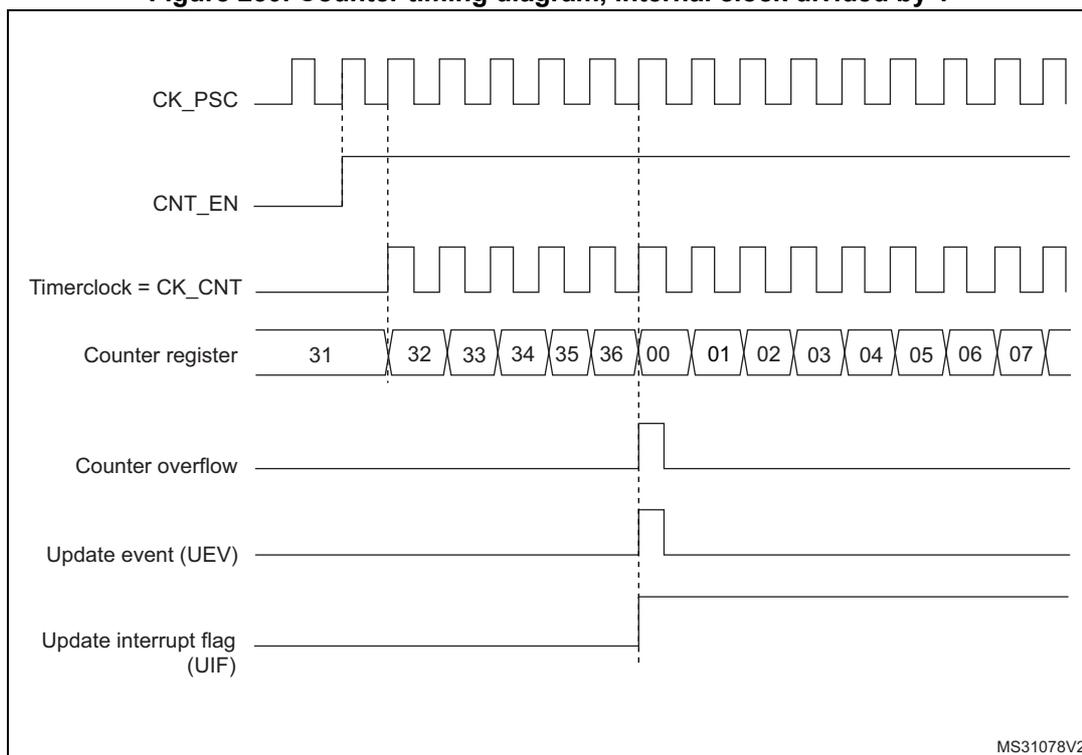

Figure 250. Counter timing diagram, internal clock divided by 1
The timing diagram illustrates the operation of a counter in counting mode. The top signal, CK_PSC, is a periodic square wave. The CNT_EN signal is a horizontal line that goes high at the first rising edge of CK_PSC. The Timerclock = CK_CNT signal is a square wave that starts at the second rising edge of CK_PSC. The Counter register shows a sequence of values: 31, 32, 33, 34, 35, 36, 00, 01, 02, 03, 04, 05, 06, 07. The Counter overflow signal is a horizontal line that goes high at the transition from 36 to 00. The Update event (UEV) signal is a horizontal line that goes high at the transition from 36 to 00. The Update interrupt flag (UIF) signal is a horizontal line that goes high at the transition from 36 to 00. The diagram is labeled MS31078V2 in the bottom right corner.
Figure 251. Counter timing diagram, internal clock divided by 2
This timing diagram illustrates the operation of a counter with an internal clock divided by 2. The top signal, CK_PSC, is a periodic square wave. Below it, CNT_EN is a high-level enable signal. The Timerclock = CK_CNT signal is a square wave with a frequency half that of CK_PSC. The Counter register shows a sequence of values: 0034, 0035, 0036, 0000, 0001, 0002, and 0003. Vertical dashed lines indicate the rising edges of the timer clock. At the third rising edge, the counter value reaches 0036 and overflows to 0000. This overflow event triggers a pulse on the Counter overflow signal, a pulse on the Update event (UEV) signal, and a pulse on the Update interrupt flag (UIF) signal. The signals return to their baseline levels after the overflow event. The diagram is labeled MS31079V2 in the bottom right corner.
Figure 252. Counter timing diagram, internal clock divided by 4
This timing diagram illustrates the operation of a counter with an internal clock divided by 4. The top signal, CK_PSC, is a periodic square wave. Below it, CNT_EN is a high-level enable signal. The Timerclock = CK_CNT signal is a square wave with a frequency one-quarter that of CK_PSC. The Counter register shows a sequence of values: 0035, 0036, 0000, and 0001. Vertical dashed lines indicate the rising edges of the timer clock. At the third rising edge, the counter value reaches 0036 and overflows to 0000. This overflow event triggers a pulse on the Counter overflow signal, a pulse on the Update event (UEV) signal, and a pulse on the Update interrupt flag (UIF) signal. The signals return to their baseline levels after the overflow event. The diagram is labeled MS31080V2 in the bottom right corner.
Figure 253. Counter timing diagram, internal clock divided by N
This timing diagram illustrates the operation of a timer counter when the internal clock is divided by N. The diagram includes the following signals and states:
- CK_PSC: Prescaler clock signal, shown as a square wave.
- Timerclock = CK_CNT: Counter clock signal, which is a divided version of CK_PSC.
- Counter register: Shows the counter value increasing from 1F to 20 (indicating an overflow from 31 to 00). A second instance shows the value 00.
- Counter overflow: A pulse generated when the counter reaches its maximum value and rolls over.
- Update event (UEV): A pulse generated when the counter overflows.
- Update interrupt flag (UIF): A flag that is set when an update event occurs.
The diagram shows that the counter register increments from 1F to 20 (which is 31 to 00 in hexadecimal). The counter overflow and update event (UEV) occur at the transition from 1F to 20. The update interrupt flag (UIF) is set at the same time. The second instance of the counter register shows the value 00.
MS31081V2
Figure 254. Counter timing diagram, update event when ARPE = 0 (TIMx_ARR not preloaded)
This timing diagram illustrates the operation of a timer counter when the update event is generated when ARPE = 0 (TIMx_ARR not preloaded). The diagram includes the following signals and states:
- CK_PSC: Prescaler clock signal, shown as a square wave.
- CEN: Counter enable signal, shown as a high-level signal.
- Timerclock = CK_CNT: Counter clock signal, which is a divided version of CK_PSC.
- Counter register: Shows the counter value increasing from 31 to 36, then rolling over to 00, and continuing to 07. The values 32, 33, 34, 35, 36, 00, 01, 02, 03, 04, 05, 06, 07 are shown in sequence.
- Counter overflow: A pulse generated when the counter reaches its maximum value and rolls over.
- Update event (UEV): A pulse generated when the counter overflows.
- Update interrupt flag (UIF): A flag that is set when an update event occurs.
- Auto-reload preload register: Shows the value FF being updated to 36. An arrow points to the transition with the text "Write a new value in TIMx_ARR".
The diagram shows that the counter register increments from 31 to 36, then rolls over to 00, and continues to 07. The counter overflow and update event (UEV) occur at the transition from 31 to 36. The update interrupt flag (UIF) is set at the same time. The auto-reload preload register is updated from FF to 36 when a new value is written in TIMx_ARR.
MS31082V2
Figure 255. Counter timing diagram, update event when ARPE=1 (TIMx_ARR preloaded)
The timing diagram shows the following signals and their relationships:
- CK_PSC : Prescaler clock signal, shown as a square wave.
- CEN : Counter Enable signal, which goes high to enable counting.
- Timerclock = CK_CNT : Counter clock signal, derived from CK_PSC.
- Counter register : Shows the counter value increasing from F0 to F7. At the overflow point (F5 to 00), the value rolls over.
- Counter overflow : A pulse generated when the counter rolls over from F5 to 00.
- Update event (UEV) : A pulse generated at the overflow point.
- Update interrupt flag (UIF) : A flag that is set by the update event.
- Auto-reload preload register : Shows the value F5 being updated to 36. An arrow indicates a write to TIMx_ARR.
- Auto-reload shadow register : Shows the value F5 being updated to 36. This register is updated from the preload register at the next update event.
MS31083V2
22.3.3 UIF bit remapping
The IUFREMAP bit in the TIMx_CR1 register forces a continuous copy of the Update Interrupt Flag UIF into the timer counter register's bit 31 (TIMxCNT[31]). This allows to atomically read both the counter value and a potential roll-over condition signaled by the UIFCPY flag. In particular cases, it can ease the calculations by avoiding race conditions caused for instance by a processing shared between a background task (counter reading) and an interrupt (Update Interrupt).
There is no latency between the assertions of the UIF and UIFCPY flags.
22.3.4 Clock source
The counter clock is provided by the Internal clock (CK_INT) source.
The CEN (in the TIMx_CR1 register) and UG bits (in the TIMx_EGR register) are actual control bits and can be changed only by software (except for UG that remains cleared automatically). As soon as the CEN bit is written to 1, the prescaler is clocked by the internal clock CK_INT.
Figure 256 shows the behavior of the control circuit and the upcounter in normal mode, without prescaler.

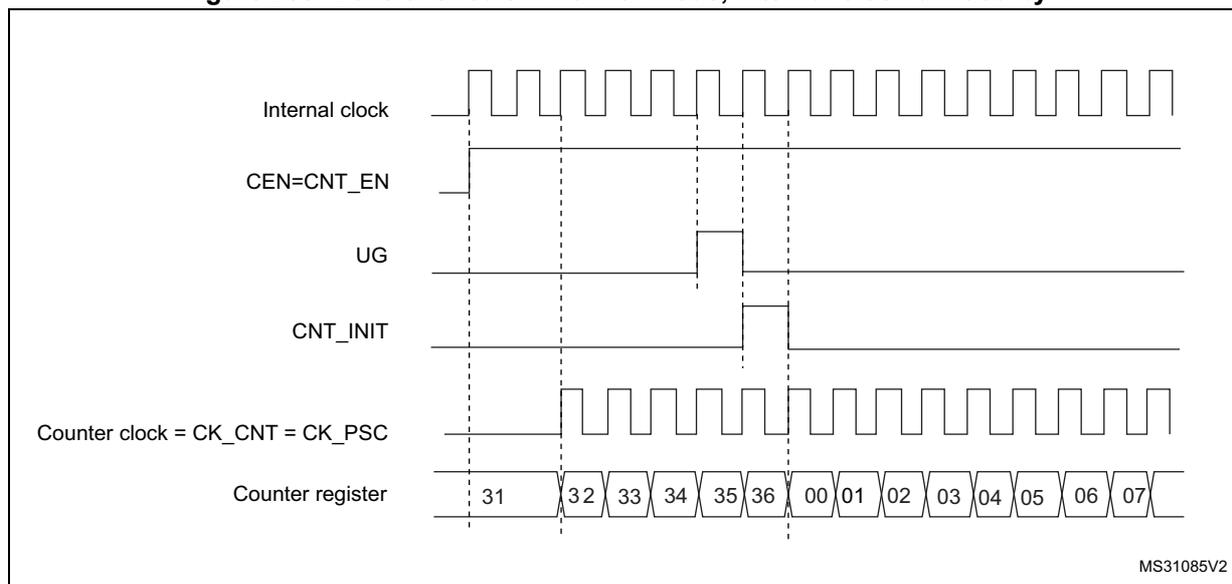

Figure 256. Control circuit in normal mode, internal clock divided by 1
The diagram illustrates the timing of the control circuit in normal mode. The 'Internal clock' is a continuous square wave. The 'CEN=CNT_EN' signal is a horizontal line that goes high at the start. The 'UG' (Update Generation) signal is a horizontal line that goes high at the 36th clock cycle. The 'CNT_INIT' signal is a horizontal line that goes high at the 36th clock cycle and then goes low at the 00th clock cycle. The 'Counter clock = CK_CNT = CK_PSC' is a square wave that starts at the 32nd clock cycle. The 'Counter register' shows a sequence of values: 31, 32, 33, 34, 35, 36, 00, 01, 02, 03, 04, 05, 06, 07. Vertical dashed lines indicate the clock edges corresponding to these values. The diagram is labeled MS31085V2.
22.3.5 Debug mode
When the microcontroller enters the debug mode (Cortex-M4 ® F core - halted), the TIMx counter either continues to work normally or stops, depending on the DBG_TIMx_STOP configuration bit in the DBG module. For more details, refer to Section 33.16.2: Debug support for timers, watchdog, bxCAN, and I 2 C .
22.4 TIM6/TIM7 registers
Refer to Section 2.2 on page 47 for a list of abbreviations used in register descriptions.
The peripheral registers can be accessed by half-words (16-bit) or words (32-bit).
22.4.1 TIMx control register 1 (TIMx_CR1)(x = 6 to 7)
Address offset: 0x00
Reset value: 0x0000
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Res. | Res. | Res. | Res. | UIFREMAP | Res. | Res. | Res. | ARPE | Res. | Res. | Res. | OPM | URS | UDIS | CEN |
| rw | rw | rw | rw | rw | rw |
Bits 15:12 Reserved, must be kept at reset value.
Bit 11 UIFREMAP : UIF status bit remapping
0: No remapping. UIF status bit is not copied to TIMx_CNT register bit 31.
1: Remapping enabled. UIF status bit is copied to TIMx_CNT register bit 31.
Bits 10:8 Reserved, must be kept at reset value.
Bit 7 ARPE : Auto-reload preload enable
0: TIMx_ARR register is not buffered.
1: TIMx_ARR register is buffered.
Bits 6:4 Reserved, must be kept at reset value.
Bit 3 OPM : One-pulse mode
0: Counter is not stopped at update event
1: Counter stops counting at the next update event (clearing the CEN bit).
Bit 2 URS : Update request source
This bit is set and cleared by software to select the UEV event sources.
0: Any of the following events generates an update interrupt or DMA request if enabled.
These events can be:
- – Counter overflow/underflow
- – Setting the UG bit
- – Update generation through the slave mode controller
1: Only counter overflow/underflow generates an update interrupt or DMA request if enabled.
Bit 1 UDIS : Update disable
This bit is set and cleared by software to enable/disable UEV event generation.
0: UEV enabled. The Update (UEV) event is generated by one of the following events:
- – Counter overflow/underflow
- – Setting the UG bit
- – Update generation through the slave mode controller
Buffered registers are then loaded with their preload values.
1: UEV disabled. The Update event is not generated, shadow registers keep their value (ARR, PSC). However the counter and the prescaler are reinitialized if the UG bit is set or if a hardware reset is received from the slave mode controller.
Bit 0 CEN : Counter enable
0: Counter disabled
1: Counter enabled
Note: Gated mode can work only if the CEN bit has been previously set by software.
However trigger mode can set the CEN bit automatically by hardware.
CEN is cleared automatically in one-pulse mode, when an update event occurs.
22.4.2 TIMx control register 2 (TIMx_CR2)(x = 6 to 7)
Address offset: 0x04
Reset value: 0x0000
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | MMS[2:0] | Res. | Res. | Res. | |||
| rw | rw | rw | |||||||||||||
Bits 15:7 Reserved, must be kept at reset value.
Bits 6:4 MMS[2:0] : Master mode selection
These bits are used to select the information to be sent in master mode to slave timers for synchronization (TRGO). The combination is as follows:
000: Reset - the UG bit from the TIMx_EGR register is used as a trigger output (TRGO). If reset is generated by the trigger input (slave mode controller configured in reset mode) then the signal on TRGO is delayed compared to the actual reset.
001: Enable - the Counter enable signal, CNT_EN, is used as a trigger output (TRGO). It is useful to start several timers at the same time or to control a window in which a slave timer is enabled. The Counter Enable signal is generated by a logic OR between CEN control bit and the trigger input when configured in gated mode.
When the Counter Enable signal is controlled by the trigger input, there is a delay on TRGO, except if the master/slave mode is selected (see the MSM bit description in the TIMx_SMCR register).
010: Update - The update event is selected as a trigger output (TRGO). For instance a master timer can then be used as a prescaler for a slave timer.
Note: The clock of the slave timer or ADC must be enabled prior to receive events from the master timer, and must not be changed on-the-fly while triggers are received from the master timer.
Bits 3:0 Reserved, must be kept at reset value.
22.4.3 TIMx DMA/Interrupt enable register (TIMx_DIER)(x = 6 to 7)
Address offset: 0x0C
Reset value: 0x0000
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Res. | Res. | Res. | Res. | Res. | Res. | Res. | UDE | Res. | Res. | Res. | Res. | Res. | Res. | Res. | UIE |
| rw | rw |
Bits 15:9 Reserved, must be kept at reset value.
Bit 8 UDE : Update DMA request enable
0: Update DMA request disabled.
1: Update DMA request enabled.
Bits 7:1 Reserved, must be kept at reset value.
Bit 0 UIE : Update interrupt enable
0: Update interrupt disabled.
1: Update interrupt enabled.
22.4.4 TIMx status register (TIMx_SR)(x = 6 to 7)
Address offset: 0x10
Reset value: 0x0000
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | UIF |
| rc_w0 |
Bits 15:1 Reserved, must be kept at reset value.
Bit 0 UIF : Update interrupt flag
This bit is set by hardware on an update event. It is cleared by software.
0: No update occurred.
1: Update interrupt pending. This bit is set by hardware when the registers are updated:
- – At overflow or underflow regarding the repetition counter value and if UDIS = 0 in the TIMx_CR1 register.
- – When CNT is reinitialized by software using the UG bit in the TIMx_EGR register, if URS = 0 and UDIS = 0 in the TIMx_CR1 register.
22.4.5 TIMx event generation register (TIMx_EGR)(x = 6 to 7)
Address offset: 0x14
Reset value: 0x0000
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | UG |
| w |
Bits 15:1 Reserved, must be kept at reset value.
Bit 0 UG : Update generation
This bit can be set by software, it is automatically cleared by hardware.
0: No action.
1: Re-initializes the timer counter and generates an update of the registers. Note that the prescaler counter is cleared too (but the prescaler ratio is not affected).
22.4.6 TIMx counter (TIMx_CNT)(x = 6 to 7)
Address offset: 0x24
Reset value: 0x0000 0000
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UIF CPY | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. |
| r |
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CNT[15:0] | |||||||||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw |
Bit 31 UIFCPY : UIF Copy
This bit is a read-only copy of the UIF bit of the TIMx_ISR register. If the UIFREMAP bit in TIMx_CR1 is reset, bit 31 is reserved and read as 0.
Bits 30:16 Reserved, must be kept at reset value.
Bits 15:0 CNT[15:0] : Counter value
22.4.7 TIMx prescaler (TIMx_PSC)(x = 6 to 7)
Address offset: 0x28
Reset value: 0x0000

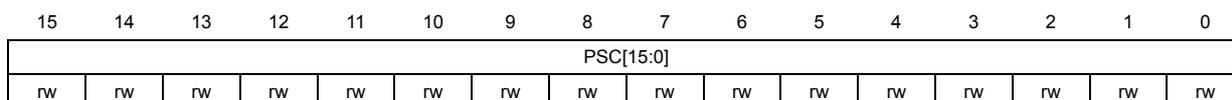

| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSC[15:0] | |||||||||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw |
Bits 15:0 PSC[15:0] : Prescaler value
The counter clock frequency \( f_{CK\_CNT} \) is equal to \( f_{CK\_PSC} / (PSC[15:0] + 1) \) .
PSC contains the value to be loaded into the active prescaler register at each update event (including when the counter is cleared through UG bit of TIMx_EGR register or through trigger controller when configured in “reset mode”).
22.4.8 TIMx auto-reload register (TIMx_ARR)(x = 6 to 7)
Address offset: 0x2C
Reset value: 0xFFFF
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ARR[15:0] | |||||||||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw |
Bits 15:0 ARR[15:0] : Prescaler value
ARR is the value to be loaded into the actual auto-reload register.
Refer to Section 22.3.1: Time-base unit on page 679 for more details about ARR update and behavior.
The counter is blocked while the auto-reload value is null.
22.4.9 TIMx register map
TIMx registers are mapped as 16-bit addressable registers as described in the table below:
Table 128. TIMx register map and reset values
| Offset | Register name | 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 | 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0x00 | TIMx_CR1 | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | UIFREMA | Res. | Res. | Res. | ARPE | Res. | Res. | Res. | OPM | URS | UDIS | CEN |
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||||||||||||||||||
| 0x04 | TIMx_CR2 | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | MMS [2:0] | Res. | Res. | Res. | Res. | ||
| Reset value | 0 | 0 | 0 | ||||||||||||||||||||||||||||||
| 0x08 | Reserved | ||||||||||||||||||||||||||||||||
| 0x0C | TIMx_DIER | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | UDE | Res. | Res. | Res. | Res. | Res. | Res. | Res. | UIE |
| Reset value | 0 | 0 | |||||||||||||||||||||||||||||||
| 0x10 | TIMx_SR | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | UIF |
| Reset value | 0 | ||||||||||||||||||||||||||||||||
| 0x14 | TIMx_EGR | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | UG |
| Reset value | 0 | ||||||||||||||||||||||||||||||||
| 0x18-0x20 | Reserved | ||||||||||||||||||||||||||||||||
| 0x24 | TIMx_CNT | UIFCOPY or Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | CNT[15:0] |
| Reset value | 0 | 0 | |||||||||||||||||||||||||||||||
| 0x28 | TIMx_PSC | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | PSC[15:0] |
| Reset value | 0 | ||||||||||||||||||||||||||||||||
| 0x2C | TIMx_ARR | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | Res. | ARR[15:0] |
| Reset value | 1 | ||||||||||||||||||||||||||||||||
Refer to Section 3.2 on page 53 for the register boundary addresses.
