7. Reset and clock control (RCC)

7.1 Reset

There are three types of reset, defined as system reset, power reset and RTC domain reset.

7.1.1 Power reset

A power reset is generated when one of the following events occurs:

1. 1. Power-on/power-down reset (POR/PDR reset)
2. 2. When exiting Standby mode

A power reset sets all registers to their reset values except the RTC domain ( Figure 7 on page 79 ).

In STM32F378xx devices, the POR/PDR reset is not functional and the Standby mode is not available. Power reset must be provided from an external NPOR pin (active low and released by the application when all supply voltages are stabilized).

7.1.2 System reset

A system reset sets all registers to their reset values unless specified otherwise in the register description.

A system reset is generated when one of the following events occurs:

1. 1. A low level on the NRST pin (external reset)
2. 2. Window watchdog event (WWDG reset)
3. 3. Independent watchdog event (IWDG reset)
4. 4. A software reset (SW reset) (see Software reset ).
5. 5. Low-power management reset (see Low-power management reset ).
6. 6. Option byte loader reset (see Option byte loader reset ).
7. 7. A power reset

The reset source can be identified by checking the reset flags in the Control/Status register, RCC_CSR (see Section 7.4.10: Control/status register (RCC_CSR) ).

These sources act on the NRST pin and it is always kept low during the delay phase. The RESET service routine vector is fixed at address 0x0000_0004 in the memory map.

The system reset signal provided to the device is output on the NRST pin. The pulse generator guarantees a minimum reset pulse duration of 20 µs for each internal reset source. In the case of an external reset, the reset pulse is generated while the NRST pin is asserted low.

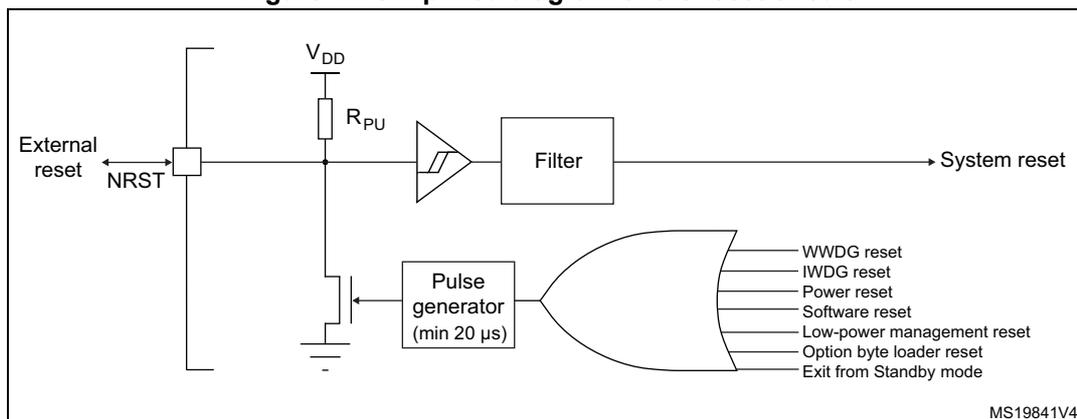

Figure 11. Simplified diagram of the reset circuit

Software reset

The SYSRESETREQ bit in Cortex ^® -M4 with FPU Application Interrupt and Reset Control Register must be set to force a software reset on the device. Refer to the Cortex ^® -M0 technical reference manual for more details.

Low-power management reset

There are two ways to generate a low-power management reset:

1. 1. Reset generated when entering Standby mode:
   This type of reset is enabled by resetting nRST_STDBY bit in User Option Bytes. In this case, whenever a Standby mode entry sequence is successfully executed, the device is reset instead of entering Standby mode.
2. 2. Reset when entering Stop mode:
   This type of reset is enabled by resetting the nRST_STOP bit in User Option Bytes. In this case, whenever a Stop mode entry sequence is successfully executed, the device is reset instead of entering Stop mode.

For further information on the User Option Bytes, refer to Section 4: Option byte description .

Option byte loader reset

The option byte loader reset is generated when the OBL_LAUNCH bit (bit 13) is set in the FLASH_CR register. This bit is used to launch the option byte loading by software.

7.1.3 RTC domain reset

The RTC domain has two specific resets that affect only the RTC domain ( Figure 7 on page 79 ).

An RTC domain reset only affects the LSE oscillator, the RTC, the Backup registers and the RCC RTC domain control register (RCC_BDCR) . It is generated when one of the following events occurs.

1. 1. Software reset, triggered by setting the BDRST bit in the RTC domain control register (RCC_BDCR) .
2. 2. \( V_{DD} \) power-up if \( V_{BAT} \) has been disconnected when it was low.

The Backup registers are also reset when one of the following events occurs:

1. 1. RTC tamper detection event.
2. 2. Change of the read out protection from level 1 to level 0.

7.2 Clocks

Three different clock sources can be used to drive the system clock (SYSCLK):

• • HSI 8 MHz RC oscillator clock
• • HSE oscillator clock
• • PLL clock

The devices have the following additional clock sources:

• • 40 kHz low speed internal RC (LSI RC) which drives the independent watchdog and optionally the RTC used for Auto-wakeup from Stop/Standby mode.
• • 32.768 kHz low speed external crystal (LSE crystal) which optionally drives the real-time clock (RTCCLK)

Each clock source can be switched on or off independently when it is not used, to optimize power consumption.

Several prescalers allow to configure the frequency of the AHB, the high speed APB (APB2) and the low speed APB (APB1) domains. The AHB and the high speed APB domains maximum frequency is 72 MHz, while the low speed APB domain maximum frequency is 36 MHz.

The Cortex® system timer is always clocked by the AHB clock divided by 8 or directly by the AHB clock (through Cortex® Systick configuration bits).

All the peripheral clocks are derived from their bus clock (HCLK or PCLK) except:

• • The flash memory programming interface clock (FLITFCLK) which is always the HSI clock.
• • The option byte loader clock, which is always the HSI clock.
• • The ADC clock is the high speed APB clock (APB2) divided by 2, 4, 6 or 8.
• • The USART1/2/3 clock which is derived (selected by software) from one of the four following sources:
  • – system clock
  • – HSI clock
  • – LSE clock
  • – APB clock (PCLK)
• • The I2C1/2 clock, which is derived (selected by software) from one of the two following sources:
  • – system clock
  • – HSI clock
• • The CEC clock, which is derived from the HSI clock divided by 244 or from the LSE clock.
• • The I2S clock, which is always the system clock.
• • The RTC clock, which is derived from the LSE, LSI or from the HSE clock divided by 32.
• • The IWDG clock, which is always the LSI clock.
• • The timer clock frequencies are twice the frequency of the APB domain to which they are connected. Nevertheless, if the APB prescaler is 1, the timer clock frequency is the same as the frequency of the APB domain to which it is connected.

The RCC feeds the Cortex ^® System Timer (SysTick) external clock with the AHB clock (HCLK) divided by 8. The SysTick can work either with this clock or directly with the Cortex ^® clock (HCLK), configurable in the SysTick Control and Status Register.

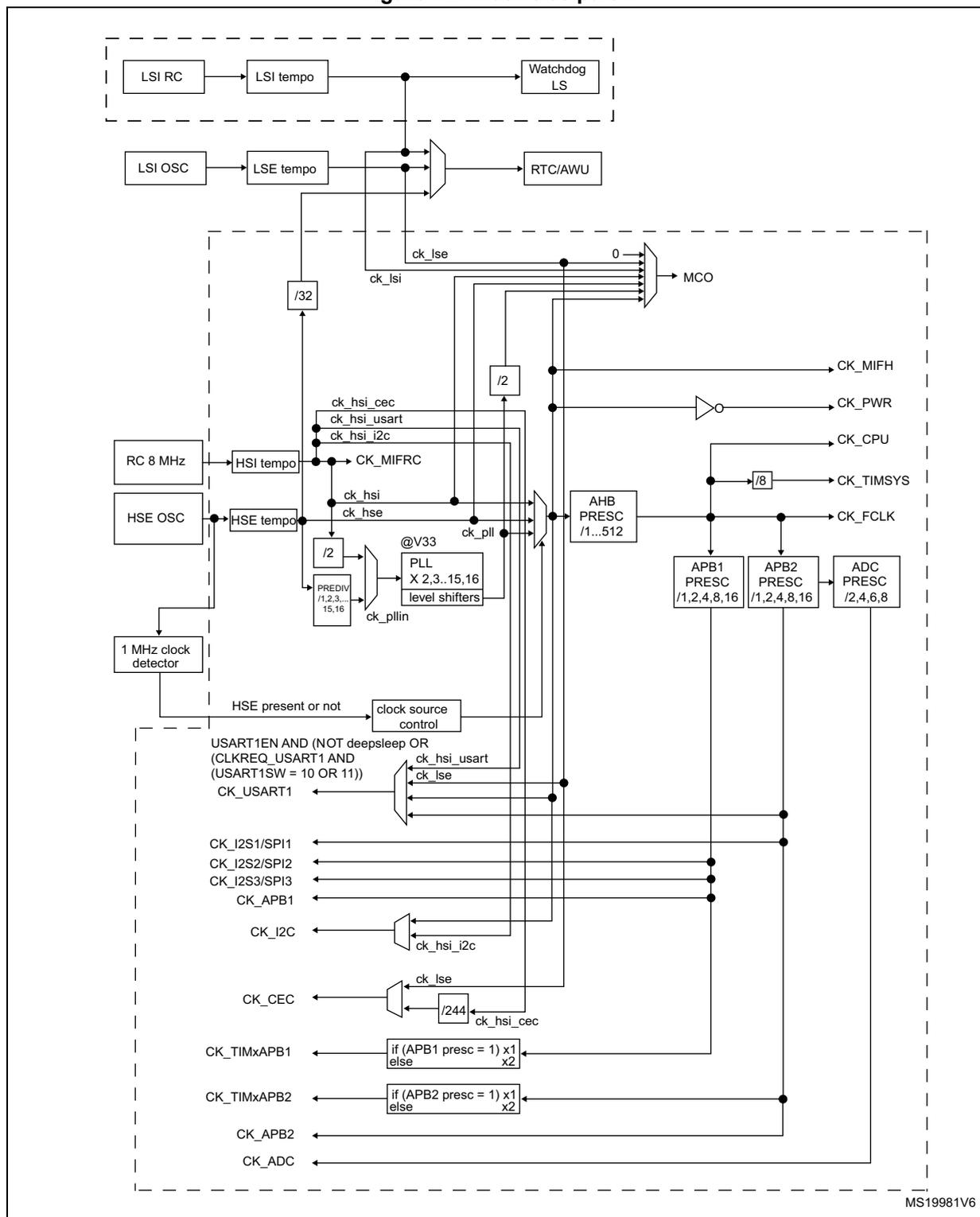

Figure 12. Clock tree part 1

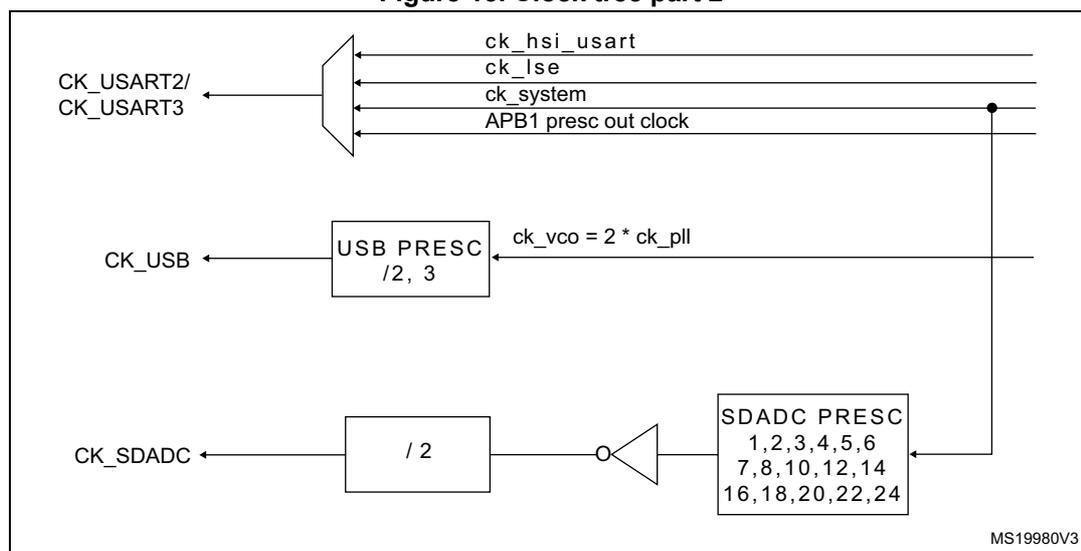

Figure 13. Clock tree part 2

1. 1. For full details about the internal and external clock source characteristics, please refer to the “Electrical characteristics” section in your device datasheet.

7.2.1 HSE clock

The high speed external clock signal (HSE) can be generated from two possible clock sources:

• • HSE external crystal/ceramic resonator
• • HSE user external clock

The resonator and the load capacitors have to be placed as close as possible to the oscillator pins to minimize output distortion and startup stabilization time. The loading capacitance values must be adjusted according to the selected oscillator.

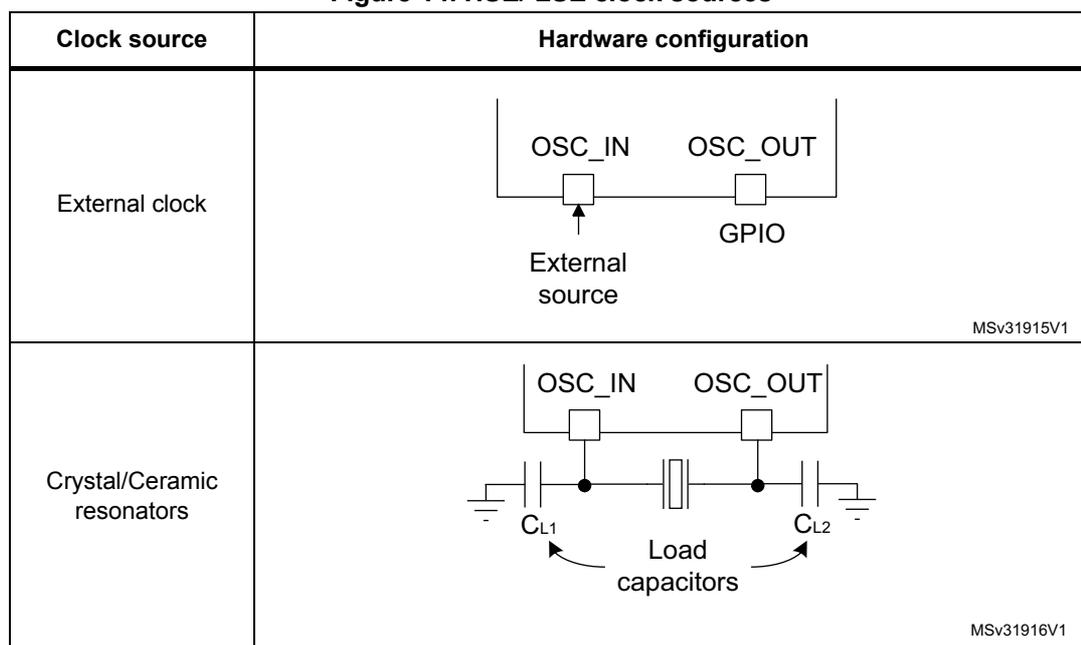

Figure 14. HSE/ LSE clock sources

External crystal/ceramic resonator (HSE crystal)

The 4 to 32 MHz external oscillator has the advantage of producing a very accurate rate on the main clock.

The associated hardware configuration is shown in Figure 14 . Refer to the electrical characteristics section of the datasheet for more details.

The HSERDY flag in the Clock control register (RCC_CR) indicates if the HSE oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the Clock interrupt register (RCC_CIR) .

The HSE crystal can be switched on and off using the HSEON bit in the Clock control register (RCC_CR) .

Caution: To switch ON the HSE oscillator, 512 HSE clock pulses need to be seen by an internal stabilization counter after the HSEON bit is set. Even in the case that no crystal or resonator is connected to the device, excessive external noise on the OSC_IN pin may still lead the oscillator to start. Once the oscillator is started, it needs another 6 HSE clock pulses to complete a switching OFF sequence. If for any reason the oscillations are no more present on the OSC_IN pin, the oscillator cannot be switched OFF, locking the OSC pins from any other use and introducing unwanted power consumption. To avoid such situation, it is strongly recommended to always enable the Clock Security System (CSS) which is able to switch OFF the oscillator even in this case.

External source (HSE bypass)

In this mode, an external clock source must be provided. It can have a frequency of up to 32 MHz. You select this mode by setting the HSEBYP and HSEON bits in the Clock control register (RCC_CR) . The external clock signal (square, sinus, or triangle) with ~40-60% duty cycle depending on the frequency (refer to the datasheet ) has to drive the OSC_IN pin while the OSC_OUT pin can be used as GPIO. See Figure 14 .

7.2.2 HSI clock

The HSI clock signal is generated from an internal 8 MHz RC Oscillator and can be used directly as a system clock or divided by 2 to be used as a PLL input.

The HSI RC oscillator has the advantage of providing a clock source at low cost (no external components). It also has a faster startup time than the HSE crystal oscillator however, even with calibration the frequency is less accurate than an external crystal oscillator or ceramic resonator.

Calibration

RC oscillator frequencies can vary from one chip to another due to manufacturing process variations, this is why each device is factory calibrated by ST for 1% accuracy at \( T_A=25^\circ\text{C} \) .

After reset, the factory calibration value is loaded in the HSICAL[7:0] bits in the Clock control register (RCC_CR) .

If the application is subject to voltage or temperature variations this may affect the RC oscillator speed. You can trim the HSI frequency in the application using the HSITRIM[4:0] bits in the Clock control register (RCC_CR) .

For more details on how to measure the HSI frequency variation please refer to Section 7.2.13: Internal/external clock measurement using TIM14 on page 111 .

The HSIRDY flag in the Clock control register (RCC_CR) indicates if the HSI RC is stable or not. At startup, the HSI RC output clock is not released until this bit is set by the hardware.

The HSI RC can be switched on and off using the HSION bit in the Clock control register (RCC_CR) .

The HSI signal can also be used as a backup source (Auxiliary clock) if the HSE crystal oscillator fails. Refer to Section 7.2.7: Clock security system (CSS) on page 109 .

7.2.3 PLL

The internal PLL can be used to multiply the HSI or HSE output clock frequency. Refer to Figure 12 and Clock control register (RCC_CR) .

The PLL configuration (selection of the input clock, and multiplication factor) must be done before enabling the PLL. Once the PLL is enabled, these parameters cannot be changed.

To modify the PLL configuration, proceed as follows:

1. 1. Disable the PLL by setting PLLON to 0.
2. 2. Wait until PLLRDY is cleared. The PLL is now fully stopped.
3. 3. Change the desired parameter.
4. 4. Enable the PLL again by setting PLLON to 1.

An interrupt can be generated when the PLL is ready, if enabled in the Clock interrupt register (RCC_CIR) .

The PLL output frequency must be set in the range 16-72 MHz.

7.2.4 LSE clock

The LSE crystal is a 32.768 kHz Low Speed External crystal or ceramic resonator. It has the advantage of providing a low-power but highly accurate clock source to the real-time clock peripheral (RTC) for clock/calendar or other timing functions.

The LSE crystal is switched on and off using the LSEON bit in RTC domain control register (RCC_BDCR) . The crystal oscillator driving strength can be changed at runtime using the LSEDRV[1:0] bits in the RTC domain control register (RCC_BDCR) to obtain the best compromise between robustness and short startup time on one side and low-power-consumption on the other.

The LSERDY flag in the RTC domain control register (RCC_BDCR) indicates whether the LSE crystal is stable or not. At startup, the LSE crystal output clock signal is not released until this bit is set by the hardware. An interrupt can be generated if enabled in the Clock interrupt register (RCC_CIR) .

Caution: To switch ON the LSE oscillator, 4096 LSE clock pulses need to be seen by an internal stabilization counter after the LSEON bit is set. Even in the case that no crystal or resonator is connected to the device, excessive external noise on the OSC32_IN pin may still lead the oscillator to start. Once the oscillator is started, it needs another 6 LSE clock pulses to complete a switching OFF sequence. If for any reason the oscillations are no more present on the OSC_IN pin, the oscillator cannot be switched OFF, locking the OSC32 pins from any other use and introducing unwanted power consumption. The only way to recover such a situation is to perform the RTC domain reset by software.

External source (LSE bypass)

In this mode, an external clock source must be provided. It can have a frequency of up to 1 MHz. You select this mode by setting the LSEBYP and LSEON bits in the RTC domain control register (RCC_BDCR) . The external clock signal (square, sinus, or triangle) with ~50% duty cycle has to drive the OSC32_IN pin while the OSC32_OUT pin can be used as GPIO. See Figure 14 .

7.2.5 LSI clock

The LSI RC acts as a low-power clock source that can be kept running in Stop and Standby mode for the independent window watchdog (IWDG) and RTC. The clock frequency is around 40 kHz (between 30 kHz and 60 kHz). For more details, refer to the electrical characteristics section of the datasheets.

The LSI RC can be switched on and off using the LSION bit in the Control/status register (RCC_CSR) .

The LSIRDY flag in the Control/status register (RCC_CSR) indicates if the LSI oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the Clock interrupt register (RCC_CIR) .

7.2.6 System clock (SYSCLK) selection

Three different clock sources can be used to drive the system clock (SYSCLK):

• • HSI oscillator
• • HSE oscillator
• • PLL

After a system reset, the HSI oscillator is selected as the system clock. When a clock source is used directly or through the PLL as a system clock, it is not possible to stop it.

A switch from one clock source to another occurs only if the target clock source is ready (clock stable after startup delay or PLL locked). If a clock source, which is not yet ready is selected, the switch will occur when the clock source becomes ready. Status bits in the

Clock control register (RCC_CR) indicate which clock(s) is (are) ready and which clock is currently used as a system clock.

7.2.7 Clock security system (CSS)

Clock Security System can be activated by software. In this case, the clock detector is enabled after the HSE oscillator startup delay, and disabled when this oscillator is stopped.

If a failure is detected on the HSE clock, the HSE oscillator is automatically disabled, a clock failure event is sent to the break input of the TIM15/TIM16/TIM17 timers and an interrupt is generated to inform the software about the failure (Clock Security System Interrupt CSSI), allowing the MCU to perform rescue operations. The CSSI is linked to the Cortex®-M4 with FPU NMI (Non-Maskable Interrupt) exception vector.

Note: Once the CSS is enabled and if the HSE clock fails, the CSS interrupt occurs and an NMI is automatically generated. The NMI will be executed indefinitely unless the CSS interrupt pending bit is cleared. As a consequence, in the NMI ISR user must clear the CSS interrupt by setting the CSSC bit in the Clock interrupt register (RCC_CIR) .

If the HSE oscillator is used directly or indirectly as the system clock (indirectly means: it is used as PLL input clock, and the PLL clock is used as system clock), a detected failure causes a switch of the system clock to the HSI oscillator and the disabling of the HSE oscillator. If the HSE clock (divided or not) is the clock entry of the PLL used as the system clock when the failure occurs, the PLL is disabled too.

7.2.8 ADC clock

The ADC clock is derived from the APB2 high speed clock divided by 2,4,6,8 (duty cycle 50%).

7.2.9 SDADC clock

The SDADC clock source is derived from the system clock divided by a selectable divider with a 50% duty cycle. Possible division factors are 2, 4, 6, 8, 10, 12, 14, 16, 20, 24, 28, 32, 36, 40, 44, and 48.

The SDADC clock is automatically stopped in deepsleep mode.

The maximum and minimum operating frequencies of the SDADC are 6 MHz and 500 kHz, respectively.

7.2.10 RTC clock

The RTCCLK clock source can be either the HSE/32, LSE or LSI clocks. This is selected by programming the RTCSEL[1:0] bits in the RTC domain control register (RCC_BDCR) . This selection cannot be modified without resetting the RTC domain. The system must be always configured in a way that the PCLK frequency is greater than or equal to the RTCCLK frequency for proper operation of the RTC.

The LSE clock is in the RTC domain, whereas the HSE and LSI clocks are not. Consequently:

• • If LSE is selected as the RTC clock:
  • – The RTC continues to work even if the \( V_{DD} \) supply is switched off, provided the \( V_{BAT} \) supply is maintained.
• • If LSI is selected as the RTC clock:
  • – The RTC state is not guaranteed if the \( V_{DD} \) supply is powered off.
• • If the HSE clock divided by 32 is used as the RTC clock:
  • – The RTC state is not guaranteed if the \( V_{DD} \) supply is powered off or if the internal voltage regulator is powered off (removing power from the 1.8 V domain).

7.2.11 Watchdog clock

If the Independent watchdog (IWDG) is started by either hardware option or software access, the LSI oscillator is forced ON and cannot be disabled. After the LSI oscillator temporization, the clock is provided to the IWDG.

7.2.12 Clock-out capability

The microcontroller clock output (MCO) capability allows the clock to be output onto the external MCO pin. The configuration registers of the corresponding GPIO port must be programmed in alternate function mode. One of 5 clock signals can be selected as the MCO clock.

• • LSI
• • LSE
• • SYSCLK
• • HSI
• • HSE
• • PLL clock divided by 2

The selection is controlled by the MCO[2:0] bits of the Clock configuration register (RCC_CFGR) .

7.2.13 Internal/external clock measurement using TIM14

It is possible to indirectly measure the frequency of all on-board clock sources by means of the TIM14 channel 1 input capture. As represented on Figure 15 .

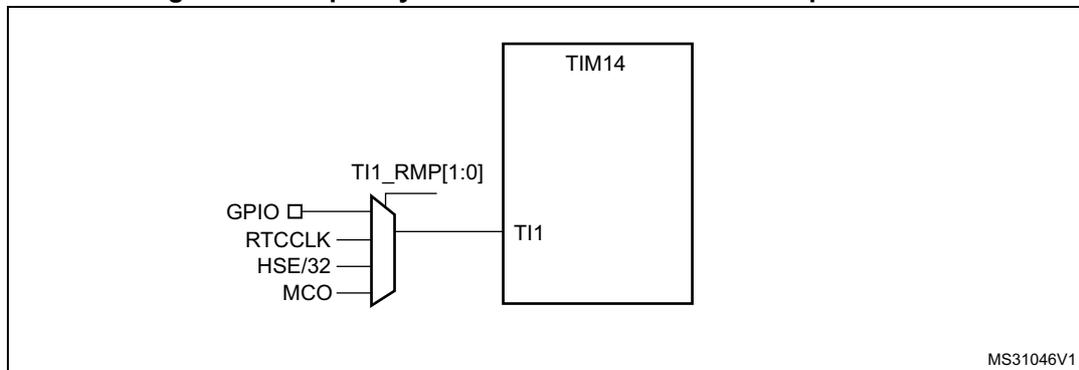

Figure 15. Frequency measurement with TIM14 in capture mode

The input capture channel of the Timer 14 can be a GPIO line or an internal clock of the MCU. This selection is performed through the TI1_RMP [1:0] bits in the TIM14_OR register. The possibilities available are the following ones.

• • TIM14 Channel1 is connected to the GPIO. Refer to the alternate function mapping in the device datasheets.
• • TIM14 Channel1 is connected to the RTCCLK.
• • TIM14 Channel1 is connected to the HSE/32 Clock.
• • TIM14 Channel1 is connected to the microcontroller clock output (MCO). Refer to section Section 7.2.12: Clock-out capability for MCO clock configuration.

Calibration of the HSI

The primary purpose of connecting the LSE, through the MCO multiplexer, to the channel 1 input capture is to be able to precisely measure the HSI system clocks (for this, the HSI should be used as the system clock source). The number of HSI clock counts between consecutive edges of the LSE signal provides a measure of the internal clock period. Taking advantage of the high precision of LSE crystals (typically a few tens of ppm's), it is possible to determine the internal clock frequency with the same resolution, and trim the source to compensate for manufacturing-process- and/or temperature- and voltage-related frequency deviations.

The HSI oscillator has dedicated user-accessible calibration bits for this purpose.

The basic concept consists in providing a relative measurement (for example, the HSI/LSE ratio): the precision is therefore closely related to the ratio between the two clock sources. The higher the ratio is, the better the measurement will be.

If LSE is not available, HSE/32 will be the better option to reach the most precise calibration possible.

Calibration of the LSI

The calibration of the LSI will follow the same pattern that for the HSI, but changing the reference clock. It will be necessary to connect the LSI clock to the channel 1 input capture of the TIM14. Then define the HSE as system clock source, the number of its clock counts

between consecutive edges of the LSI signal provides a measure of the internal low speed clock period.

The basic concept consists in providing a relative measurement (for example, the HSE/LSI ratio): the precision is therefore closely related to the ratio between the two clock sources. The higher the ratio is, the better the measurement will be.

7.3 Low-power modes

APB peripheral clocks and DMA clock can be disabled by software.

Sleep mode stops the CPU clock. The memory interface clocks (Flash and RAM interfaces) can be stopped by software during sleep mode. The AHB to APB bridge clocks are disabled by hardware during Sleep mode when all the clocks of the peripherals connected to them are disabled.

Stop mode stops all the clocks in the V18 domain and disables the PLL and the HSI, and HSE oscillators.

HDMI CEC, USART1/2/3, and I2C1/2 have the capability to enable the HSI oscillator even when the MCU is in Stop mode (if HSI is selected as the clock source for that peripheral).

HDMI CEC and USART1/2/3 can also be driven by the LSE oscillator when the system is in Stop mode (if LSE is selected as clock source for that peripheral) and the LSE oscillator is enabled (LSEON) but they do not have the capability to turn on the LSE oscillator.

Standby mode stops all the clocks in the V18 domain and disables the PLL and the HSI, and HSE oscillators.

The CPU's deepsleep mode can be overridden for debugging by setting the DBG_STOP or DBG_STANDBY bits in the DBGMCU_CR register.

When waking up from deepsleep after an interrupt (Stop mode) or reset (Standby mode), the HSI oscillator is selected as the system clock.

If a Flash programming operation is on going, deepsleep mode entry is delayed until the Flash interface access is finished. If an access to the APB domain is ongoing, deepsleep mode entry is delayed until the APB access is finished.

7.4 RCC registers

Refer to Section 1.2 on page 36 for a list of abbreviations used in register descriptions.

7.4.1 Clock control register (RCC_CR)

Address offset: 0x00

Reset value: 0x0000 XX83 where X is undefined.

Access: no wait state, word, half-word, and byte access.

Bits 31:26 Reserved, must be kept at reset value.

Bit 25 PLL RDY : PLL clock ready flag

Set by hardware to indicate that the PLL is locked.

0: PLL unlocked

1: PLL locked

Bit 24 PLLON : PLL enable

Set and cleared by software to enable PLL.

Cleared by hardware when entering Stop or Standby mode. This bit can not be reset if the PLL clock is used as system clock or is selected to become the system clock.

0: PLL OFF

1: PLL ON

Bits 23:20 Reserved, must be kept at reset value.

Bit 19 CSSON : Clock security system enable

Set and cleared by software to enable the clock security system. When CSSON is set, the clock detector is enabled by hardware when the HSE oscillator is ready, and disabled by hardware if a HSE clock failure is detected.

0: Clock detector OFF

1: Clock detector ON (Clock detector ON if the HSE oscillator is ready, OFF if not).

Bit 18 HSEBYP : HSE crystal oscillator bypass

Set and cleared by software to bypass the oscillator with an external clock. The external clock must be enabled with the HSEON bit set, to be used by the device. The HSEBYP bit can be written only if the HSE oscillator is disabled.

0: HSE crystal oscillator not bypassed

1: HSE crystal oscillator bypassed with external clock

Bit 17 HSERDY : HSE clock ready flag

Set by hardware to indicate that the HSE oscillator is stable. This bit needs 6 cycles of the HSE oscillator clock to fall down after HSEON reset.

0: HSE oscillator not ready

1: HSE oscillator ready

Bit 16 HSEON : HSE clock enable

Set and cleared by software.

Cleared by hardware to stop the HSE oscillator when entering Stop or Standby mode. This bit cannot be reset if the HSE oscillator is used directly or indirectly as the system clock.

0: HSE oscillator OFF

1: HSE oscillator ON

Bits 15:8 HSICAL[7:0] : HSI clock calibration

These bits are initialized automatically at startup.

Bits 7:3 HSITRIM[4:0] : HSI clock trimming

These bits provide an additional user-programmable trimming value that is added to the HSICAL[7:0] bits. It can be programmed to adjust to variations in voltage and temperature that influence the frequency of the HSI.

The default value is 16, which, when added to the HSICAL value, should trim the HSI to 8 MHz \( \pm \) 1%. The trimming step ( \( F_{\text{hsitrim}} \) ) is around 40 kHz between two consecutive HSICAL steps.

Bit 2 Reserved, must be kept at reset value.

Bit 1 HSIRDY : HSI clock ready flag

Set by hardware to indicate that HSI oscillator is stable. After the HSION bit is cleared, HSIRDY goes low after 6 HSI oscillator clock cycles.

0: HSI oscillator not ready

1: HSI oscillator ready

Bit 0 HSION : HSI clock enable

Set and cleared by software.

Set by hardware to force the HSI oscillator ON when leaving Stop or Standby mode or in case of failure of the HSE crystal oscillator used directly or indirectly as system clock. This bit cannot be reset if the HSI is used directly or indirectly as system clock or is selected to become the system clock.

0: HSI oscillator OFF

1: HSI oscillator ON

7.4.2 Clock configuration register (RCC_CFGR)

Address offset: 0x04

Reset value: 0x0000 0000

Access: \( 0 \leq \text{wait state} \leq 2 \) , word, half-word, and byte access.

1 or 2 wait states inserted only if the access occurs during the clock source switch.

These bits are set and reset by software to control AHB clocks division factor.

0xxxx: system clock divided by 2

10000: system clock divided by 2

10001: system clock divided by 4

10010: system clock divided by 6

10011: system clock divided by 8

10100: system clock divided by 10

10101: system clock divided by 12

10110: system clock divided by 14

10111: system clock divided by 16

11000: system clock divided by 20

11001: system clock divided by 24

11010: system clock divided by 28

11011: system clock divided by 32

11100: system clock divided by 36

11101: system clock divided by 40

11110: system clock divided by 44

11111: system clock divided by 48

Set and cleared by software.

000: MCO output disabled, no clock on MCO

001: Reserved

010: LSI clock selected

011: LSE clock selected

100: System clock (SYSCLK) selected

101: HSI clock selected

110: HSE clock selected

111: PLL clock divided by 2 selected

Note: This clock output may have some truncated cycles at startup or during MCO clock source switching.

Bit 23 Reserved, must be kept at reset value.

This bit is set and reset by software to generate the 48 MHz USB clock. They must be valid before enabling USB clocks.

0: PLL clock is divided by 1,5

1: PLL clock is not divided

These bits are written by software to define the PLL multiplication factor. These bits can be written only when PLL is disabled.

Caution: The PLL output frequency must not exceed 72 MHz.

0000: PLL input clock x 2
0001: PLL input clock x 3
0010: PLL input clock x 4
0011: PLL input clock x 5
0100: PLL input clock x 6
0101: PLL input clock x 7
0110: PLL input clock x 8
0111: PLL input clock x 9
1000: PLL input clock x 10
1001: PLL input clock x 11
1010: PLL input clock x 12
1011: PLL input clock x 13
1100: PLL input clock x 14
1101: PLL input clock x 15
1110: PLL input clock x 16
1111: PLL input clock x 16

This bit is set and cleared by software to select the HSE division factor for the PLL. It can be written only when the PLL is disabled.

0000: HSE input to PLL not divided
0001: HSE input to PLL divided by 2

Note: This bit is the same as the LSB of PREDIV in Clock configuration register 2 (RCC_CFGR2) (for compatibility with other STM32 products)

Set and cleared by software to select PLL clock source. This bit can be written only when PLL is disabled.

0: HSI/2 selected as PLL input clock
1: HSE/PREDIV selected as PLL input clock (refer to Section 7.4.12: Clock configuration register 2 (RCC_CFGR2) on page 138 )

These bits are set and cleared by software to select the frequency of the clock to the ADC.

00: PCLK divided by 2
01: PCLK divided by 4
10: PCLK divided by 6
11: PCLK divided by 8

These bits are set and reset by software to control the high speed APB clock division factor.

0xx: AHB clock not divided
100: AHB clock divided by 2
101: AHB clock divided by 4
110: AHB clock divided by 8
111: AHB clock divided by 16

These bits are set and cleared by software to control the low speed APB clock division factor.

0xx: APB1 clock not divided

100: APB1 divided by 2

101: APB1 divided by 4

110: APB1 divided by 8

111: APB1 divided by 16

Set and cleared by software to control the division factor of the AHB clock.

0xxx: SYSCLK not divided

1000: SYSCLK divided by 2

1001: SYSCLK divided by 4

1010: SYSCLK divided by 8

1011: SYSCLK divided by 16

1100: SYSCLK divided by 64

1101: SYSCLK divided by 128

1110: SYSCLK divided by 256

1111: SYSCLK divided by 512

Note: The prefetch buffer must be kept on when using a prescaler different from 1 on the AHB clock. Refer to section Read operations on page 50 for more details.

Set and cleared by hardware to indicate which clock source is used as system clock.

00: HSI oscillator used as system clock

01: HSE oscillator used as system clock

10: PLL used as system clock

11: not applicable

Set and cleared by software to select SYSCLK source.

Cleared by hardware to force HSI selection when leaving Stop and Standby mode or in case of failure of the HSE oscillator used directly or indirectly as system clock (if the Clock Security System is enabled).

00: HSI selected as system clock

01: HSE selected as system clock

10: PLL selected as system clock

11: not allowed

7.4.3 Clock interrupt register (RCC_CIR)

Address offset: 0x08

Reset value: 0x0000 0000

Access: no wait state, word, half-word, and byte access.

Bits 31:24 Reserved, must be kept at reset value.

Bit 23 CSSC : Clock security system interrupt clear

This bit is set by software to clear the CSSF flag.

0: No effect

1: Clear CSSF flag

Bit 22 Reserved, must be kept at reset value.

Bit 21 Reserved, must be kept at reset value.

Bit 20 PLL RDYC : PLL ready interrupt clear

This bit is set by software to clear the PLLRDYF flag.

0: No effect

1: Clear PLLRDYF flag

Bit 19 HSE RDYC : HSE ready interrupt clear

This bit is set by software to clear the HSERDYF flag.

0: No effect

1: Clear HSERDYF flag

Bit 18 HSI RDYC : HSI ready interrupt clear

This bit is set software to clear the HSIRDYF flag.

0: No effect

1: Clear HSIRDYF flag

Bit 17 LSE RDYC : LSE ready interrupt clear

This bit is set by software to clear the LSERDYF flag.

0: No effect

1: LSERDYF cleared

Bit 16 LSI RDYC : LSI ready interrupt clear

This bit is set by software to clear the LSIRDYF flag.

0: No effect

1: LSIRDYF cleared

Bits 15:13 Reserved, must be kept at reset value.

Bit 12 PLLRDYIE : PLL ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by PLL lock.

0: PLL lock interrupt disabled

1: PLL lock interrupt enabled

Bit 11 HSERDYIE : HSE ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the HSE oscillator stabilization.

0: HSE ready interrupt disabled

1: HSE ready interrupt enabled

Bit 10 HSIRDYIE : HSI ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the HSI oscillator stabilization.

0: HSI ready interrupt disabled

1: HSI ready interrupt enabled

Bit 9 LSERDYIE : LSE ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the LSE oscillator stabilization.

0: LSE ready interrupt disabled

1: LSE ready interrupt enabled

Bit 8 LSIRDYIE : LSI ready interrupt enable

Set and cleared by software to enable/disable interrupt caused by the LSI oscillator stabilization.

0: LSI ready interrupt disabled

1: LSI ready interrupt enabled

Bit 7 CSSF : Clock security system interrupt flag

Set by hardware when a failure is detected in the HSE oscillator.

Cleared by software setting the CSSC bit.

0: No clock security interrupt caused by HSE clock failure

1: Clock security interrupt caused by HSE clock failure

Bits 6:5 Reserved, must be kept at reset value.

Bit 4 PLLRDYF : PLL ready interrupt flag

Set by hardware when the PLL locks and PLLRDYIE is set.

Cleared by software setting the PLLRDYC bit.

0: No clock ready interrupt caused by PLL lock

1: Clock ready interrupt caused by PLL lock

Bit 3 HSERDYF : HSE ready interrupt flag

Set by hardware when the HSE clock becomes stable and HSERDYIE is set.

Cleared by software setting the HSERDYC bit.

0: No clock ready interrupt caused by the HSE oscillator

1: Clock ready interrupt caused by the HSE oscillator

Bit 2 HSIRDYF : HSI ready interrupt flag

Set by hardware when the HSI clock becomes stable and HSIRDYDIE is set in a response to setting the HSION (refer to Clock control register (RCC_CR) ).

When HSION is not set but the HSI oscillator is enabled by the peripheral through a clock request, this bit is not set and no interrupt is generated.

Cleared by software setting the HSIRDYC bit.

0: No clock ready interrupt caused by the HSI oscillator

1: Clock ready interrupt caused by the HSI oscillator

Bit 1 LSERDYF : LSE ready interrupt flag

Set by hardware when the LSE clock becomes stable and LSERDYDIE is set.

Cleared by software setting the LSERDYC bit.

0: No clock ready interrupt caused by the LSE oscillator

1: Clock ready interrupt caused by the LSE oscillator

Bit 0 LSIRDYF : LSI ready interrupt flag

Set by hardware when the LSI clock becomes stable and LSIRDYDIE is set.

Cleared by software setting the LSIRDYC bit.

0: No clock ready interrupt caused by the LSI oscillator

1: Clock ready interrupt caused by the LSI oscillator

7.4.4 APB2 peripheral reset register (RCC_APB2RSTR)

Address offset: 0x0C

Reset value: 0x00000 0000

Access: no wait state, word, half-word, and byte access.

Bits 31:27 Reserved, must be kept at reset value.

Bit 26 SDADC3RST : SDADC3 (Sigma delta ADC 3) reset

This bit is set and reset by software.

0: does not reset the SDADC3

1: resets the SDADC3

Bit 25 SDADC2RST : SDADC2 (Sigma delta ADC 2) reset

This bit is set and reset by software.

0: does not reset the SDADC2

1: resets the SDADC2

Bit 24 SDAD1RST : SDADC1 (Sigma delta ADC 1) reset

This bit is set and reset by software.

0: does not reset the SDADC1

1: resets the SDADC1

Bits 22:20 Reserved, must be kept at reset value.

Bit 19 TIM19RST : TIM19 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM19 timer

Bit 18 TIM17RST : TIM17 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM17 timer

Bit 17 TIM16RST : TIM16 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM16 timer

Bit 16 TIM15RST : TIM15 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM15 timer

Bit 15 Reserved, must be kept at reset value.

Bit 14 USART1RST : USART1 reset

Set and cleared by software.

0: No effect

1: Reset USART1

Bit 13 Reserved, must be kept at reset value.

Bit 12 SPI1RST : SPI1 reset

Set and cleared by software.

0: No effect

1: Reset SPI1

Bits 11:10 Reserved, must be kept at reset value.

Bit 9 ADCRST : ADC interface reset

Set and cleared by software.

0: No effect

1: Reset ADC interface

Bits 8:1 Reserved, must be kept at reset value.

Bit 0 SYSCFGRST : SYSCFG reset

Set and cleared by software.

0: No effect

1: Reset all SYSCFG registers except for SYSCFG_CFGR2

7.4.5 APB1 peripheral reset register (RCC_APB1RSTR)

Address offset: 0x10

Reset value: 0x0000 0000

Access: no wait state, word, half-word, and byte access.

Bit 31 Reserved, must be kept at reset value.

Bit 30 CECRST : HDMI CEC reset

Set and cleared by software.

0: No effect

1: Reset HDMI CEC

Bit 29 DAC1RST : DAC1 interface reset

Set and cleared by software.

0: No effect

1: Reset DAC1 interface

Bit 28 PWRRST : Power interface reset

Set and cleared by software.

0: No effect

1: Reset power interface

Bit 27 Reserved, must be kept at reset value.

Bit 26 DAC2RST : DAC2 interface reset

Set and cleared by software.

0: No effect

1: Reset DAC2 interface

Bit 25 CANRST : CAN interface reset

Set and cleared by software.

0: No effect

1: Reset CAN interface

Bit 24 Reserved, must be kept at reset value.

Bit 23 USBRST : USB interface reset

Set and cleared by software.

0: No effect

1: Reset USB interface

Bit 22 I2C2RST : I2C2 reset

Set and cleared by software.

0: No effect

1: Reset I2C2

Bit 21 I2C1RST : I2C1 reset

Set and cleared by software.

0: No effect

1: Reset I2C1

Bits 20:19 Reserved, must be kept at reset value.

Bit 18 USART3RST : USART3 reset

Set and cleared by software.

0: No effect

1: Reset USART3

Bit 17 USART2RST : USART2 reset

Set and cleared by software.

0: No effect

1: Reset USART2

Bit 16 Reserved, must be kept at reset value.

Bit 15 SPI3RST : SPI3 reset

Set and cleared by software.

0: No effect

1: Reset SPI3

Bit 14 SPI2RST : SPI2 reset

Set and cleared by software.

0: No effect

1: Reset SPI2

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDGRST : Window watchdog reset

Set and cleared by software.

0: No effect

1: Reset window watchdog

Bit 10 Reserved, must be kept at reset value.

Bit 9 TIM18RST : TIM18 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM18

Bit 8 TIM14RST : TIM14 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM14

Bit 7 TIM13RST : TIM13 timer reset

Set and cleared by software.

0: No effect

1: Reset TIM13

1. Bit 6 TIM12RST : TIM12 timer reset
   Set and cleared by software.
   0: No effect
   1: Reset TIM12
2. Bit 5 TIM7RST : TIM7 timer reset
   Set and cleared by software.
   0: No effect
   1: Reset TIM7
3. Bit 4 TIM6RST : TIM6 timer reset
   Set and cleared by software.
   0: No effect
   1: Reset TIM6
4. Bit 3 TIM5RST : TIM5 timer reset
   Set and cleared by software.
   0: No effect
   1: Reset TIM5
5. Bit 2 TIM4RST : TIM4 timer reset
   Set and cleared by software.
   0: No effect
   1: Reset TIM4
6. Bit 1 TIM3RST : TIM3 timer reset
   Set and cleared by software.
   0: No effect
   1: Reset TIM3
7. Bit 0 TIM2RST : TIM2 timer reset
   Set and cleared by software.
   0: No effect
   1: Reset TIM2

7.4.6 AHB peripheral clock enable register (RCC_AHBENR)

Address offset: 0x14

Reset value: 0x0000 0014

Access: no wait state, word, half-word, and byte access.

Note: When the peripheral clock is not active, the peripheral register values may not be readable by software and the returned value is always 0x0.

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 TSCEN : Touch sensing controller clock enable

Set and cleared by software.

0: TSC clock disabled

1: TSC clock enabled

Bit 23 Reserved, must be kept at reset value.

Bit 22 IOPFEN : I/O port F clock enable

Set and cleared by software.

0: I/O port F clock disabled

1: I/O port F clock enabled

Bit 21 IOPPEN : I/O port E clock enable

Set and cleared by software.

0: I/O port E clock disabled

1: I/O port E clock enabled

Bit 20 IOPDEN : I/O port D clock enable

Set and cleared by software.

0: I/O port D clock disabled

1: I/O port D clock enabled

Bit 19 IOPCEN : I/O port C clock enable

Set and cleared by software.

0: I/O port C clock disabled

1: I/O port C clock enabled

Bit 18 IOPBEN : I/O port B clock enable

Set and cleared by software.

0: I/O port B clock disabled

1: I/O port B clock enabled

Bit 17 IOPAEN : I/O port A clock enable

Set and cleared by software.

0: I/O port A clock disabled

1: I/O port A clock enabled

Bits 16:7 Reserved, must be kept at reset value.

Bit 6 CRCEN : CRC clock enable

Set and cleared by software.

0: CRC clock disabled

1: CRC clock enabled

Bit 5 Reserved, must be kept at reset value.

Bit 4 FLITFEN : FLITF clock enable

Set and cleared by software to disable/enable FLITF clock during Sleep mode.

0: FLITF clock disabled during Sleep mode

1: FLITF clock enabled during Sleep mode

Bit 3 Reserved, must be kept at reset value.

Bit 2 SRAMEN : SRAM interface clock enable

Set and cleared by software to disable/enable SRAM interface clock during Sleep mode.

0: SRAM interface clock disabled during Sleep mode.

1: SRAM interface clock enabled during Sleep mode

Bit 1 DMA2EN : DMA2 clock enable

Set and cleared by software.

0: DMA2 clock disabled

1: DMA2 clock enabled

Bit 0 DMAEN : DMA clock enable

Set and cleared by software.

0: DMA clock disabled

1: DMA clock enabled

7.4.7 APB2 peripheral clock enable register (RCC_APB2ENR)

Address: 0x18

Reset value: 0x0000 0000

Access: word, half-word, and byte access

No wait states, except if the access occurs while an access to a peripheral in the APB domain is on going. In this case, wait states are inserted until the access to the APB peripheral is finished.

Note: When the peripheral clock is not active, the peripheral register values may not be readable by software and the returned value is always 0x0.

Bits 31:27 Reserved, must be kept at reset value.

Bit 26 SDADC3 : SDADC3 (Sigma Delta ADC 3) clock enable

Set and reset by software.

0: SDADC3 clock disabled

1: SDADC3 clock enabled

Bit 25 SDADC2 : SDADC2 (Sigma Delta ADC 2) clock enable

Set and reset by software.

0: SDADC2 clock disabled

1: SDADC2 clock enabled

1. Bit 24 SDADC1 : SDADC1 (Sigma Delta ADC 1) clock enable
   Set and reset by software.
   0: SDADC1 clock disabled
   1: SDADC1 clock enabled
2. Bits 23:22 Reserved, must be kept at reset value.
3. Bits 21:20 Reserved, must be kept at reset value.
4. Bit 19 TIM19EN : TIM19 timer clock enable
   Set and cleared by software.
   0: TIM19 timer clock disabled
   1: TIM19 timer clock enabled
5. Bit 18 TIM17EN : TIM17 timer clock enable
   Set and cleared by software.
   0: TIM17 timer clock disabled
   1: TIM17 timer clock enabled
6. Bit 17 TIM16EN : TIM16 timer clock enable
   Set and cleared by software.
   0: TIM16 timer clock disabled
   1: TIM16 timer clock enabled
7. Bit 16 TIM15EN : TIM15 timer clock enable
   Set and cleared by software.
   0: TIM15 timer clock disabled
   1: TIM15 timer clock enabled
8. Bit 15 Reserved, must be kept at reset value.
9. Bit 14 USART1EN : USART1 clock enable
   Set and cleared by software.
   0: USART1 clock disabled
   1: USART1 clock enabled
10. Bit 13 Reserved, must be kept at reset value.
11. Bit 12 SPI1EN : SPI1 clock enable
    Set and cleared by software.
    0: SPI1 clock disabled
    1: SPI1 clock enabled
12. Bit 11 Reserved, must be kept at reset value.
13. Bit 10 Reserved, must be kept at reset value.
14. Bit 9 ADCEN : ADC interface clock enable
    Set and cleared by software.
    0: ADC interface disabled
    1: ADC interface clock enabled
15. Bits 8:1 Reserved, must be kept at reset value.
16. Bit 0 SYSCFGEN : COMP and SYSCFG clock enable
    Set and cleared by software.
    0: COMP/SYSCFG clock disabled
    1: COMP/SYSCFG clock enabled

7.4.8 APB1 peripheral clock enable register (RCC_APB1ENR)

Address: 0x1C

Reset value: 0x0000 0000

Access: word, half-word, and byte access

No wait state, except if the access occurs while an access to a peripheral on the APB1 domain is on going. In this case, wait states are inserted until this access to the APB1 peripheral is finished.

Note: When the peripheral clock is not active, the peripheral register values may not be readable by software and the returned value is always 0x0.

Bit 31 Reserved, must be kept at reset value.

Bit 30 CECEN : HDMI CEC interface clock enable

Set and cleared by software.

0: HDMI CEC clock disabled

1: HDMI CEC clock enabled

Bit 29 DAC1EN : DAC1 interface clock enable

Set and cleared by software.

0: DAC1 interface clock disabled

1: DAC1 interface clock enabled

Bit 28 PWREN : Power interface clock enable

Set and cleared by software.

0: Power interface clock disabled

1: Power interface clock enabled

Bit 27 Reserved, must be kept at reset value.

Bit 26 DAC2EN : DAC2 interface clock enable

Set and cleared by software.

0: DAC2 interface clock disabled

1: DAC2 interface clock enabled

Bit 25 CANEN : CAN interface clock enable

Set and cleared by software.

0: CAN interface clock disabled

1: CAN interface clock enabled

Bit 24 Reserved, must be kept at reset value.

Bit 23 USBEN : USB interface clock enable

Set and cleared by software.

0: USB interface clock disabled

1: USB interface clock enabled

Bit 22 I2C2EN : I2C2 clock enable

Set and cleared by software.

0: I2C2 clock disabled

1: I2C2 clock enabled

Bit 21 I2C1EN : I2C1 clock enable

Set and cleared by software.

0: I2C1 clock disabled

1: I2C1 clock enabled

Bits 20:18 Reserved, must be kept at reset value.

Bit 17 USART2EN : USART2 clock enable

Set and cleared by software.

0: USART2 clock disabled

1: USART2 clock enabled

Bit 16 Reserved, must be kept at reset value.

Bit 15 SPI3EN : SPI3 clock enable

Set and cleared by software.

0: SPI3 clock disabled

1: SPI3 clock enabled

Bit 14 SPI2EN : SPI2 clock enable

Set and cleared by software.

0: SPI2 clock disabled

1: SPI2 clock enabled

Bits 13:12 Reserved, must be kept at reset value.

Bit 11 WWDGEN : Window watchdog clock enable

Set and cleared by software.

0: Window watchdog clock disabled

1: Window watchdog clock enabled

Bit 10 Reserved, must be kept at reset value.

Bit 9 TIM18EN : TIM18 timer clock enable

Set and cleared by software.

0: TIM18 clock disabled

1: TIM18 clock enabled

Bit 8 TIM14EN : TIM14 timer clock enable

Set and cleared by software.

0: TIM14 clock disabled

1: TIM14 clock enabled

Bit 7 TIM13EN : TIM13 timer clock enable

Set and cleared by software.

0: TIM13 clock disabled

1: TIM13 clock enabled

Bit 6 TIM12EN : TIM12 timer clock enable

Set and cleared by software.
0: TIM12 clock disabled
1: TIM12 clock enabled

Bit 5 TIM7EN : TIM7 timer clock enable

Set and cleared by software.
0: TIM7 clock disabled
1: TIM7 clock enabled

Bit 4 TIM6EN : TIM6 timer clock enable

Set and cleared by software.
0: TIM6 clock disabled
1: TIM6 clock enabled

Bit 3 TIM5EN : TIM5 timer clock enable

Set and cleared by software.
0: TIM5 clock disabled
1: TIM5 clock enabled

Bit 2 TIM4EN : TIM4 timer clock enable

Set and cleared by software.
0: TIM4 clock disabled
1: TIM4 clock enabled

Bit 1 TIM3EN : TIM3 timer clock enable

Set and cleared by software.
0: TIM3 clock disabled
1: TIM3 clock enabled

Bit 0 TIM2EN : TIM2 timer clock enable

Set and cleared by software.
0: TIM2 clock disabled
1: TIM2 clock enabled

7.4.9 RTC domain control register (RCC_BDCR)

Address offset: 0x20

Reset value: 0x0000 0000, reset by RTC domain Reset.

Access: \( 0 \leq \text{wait state} \leq 3 \) , word, half-word, and byte access.

Wait states are inserted in case of successive accesses to this register.

Note: The LSEON, LSEBYP, RTCSEL and RTCEN bits of the RTC domain control register (RCC_BDCR) are in the RTC domain. As a result, after Reset, these bits are write-protected and the DBP bit in the Power control register (PWR_CR) has to be set before these can be modified. Refer to Section 6.1.3 on page 84 for further information. These bits are only reset after an RTC domain Reset (see Section 7.1.3: RTC domain reset ). Any internal or external Reset will not have any effect on these bits.

Bits 31:17 Reserved, must be kept at reset value.

Bit 16 BDRST : RTC domain software reset

Set and cleared by software.

0: Reset not activated

1: Resets the entire RTC domain

Bit 15 RTCEN : RTC clock enable

Set and cleared by software.

0: RTC clock disabled

1: RTC clock enabled

Bits 14:10 Reserved, must be kept at reset value.

Bits 9:8 RTCSEL[1:0] : RTC clock source selection

Set by software to select the clock source for the RTC. Once the RTC clock source has been selected, it cannot be changed anymore unless the RTC domain is reset. The BDRST bit can be used to reset them.

00: No clock

01: LSE oscillator clock used as RTC clock

10: LSI oscillator clock used as RTC clock

11: HSE oscillator clock divided by 32 used as RTC clock

Bits 7:5 Reserved, must be kept at reset value.

Set and reset by software to modulate the LSE oscillator's drive capability. A reset of the RTC domain restores the default value.

• 00: 'Xtal mode' lower driving capability
• 01: 'Xtal mode' medium high driving capability
• 10: 'Xtal mode' medium low driving capability
• 11: 'Xtal mode' higher driving capability (reset value)

Note: The oscillator is in Xtal mode when it is not in bypass mode.

Set and cleared by software to bypass oscillator in debug mode. This bit can be written only when the external 32 kHz oscillator is disabled.

• 0: LSE oscillator not bypassed
• 1: LSE oscillator bypassed

Set and cleared by hardware to indicate when the external 32 kHz oscillator is stable. After the LSEON bit is cleared, LSERDY goes low after 6 external low-speed oscillator clock cycles.

• 0: LSE oscillator not ready
• 1: LSE oscillator ready

Set and cleared by software.

• 0: LSE oscillator OFF
• 1: LSE oscillator ON

7.4.10 Control/status register (RCC_CSR)

Address: 0x24

Reset value: 0x0C00 0000, reset by system Reset, except reset flags by power Reset only.

Access: 0 ≤ wait state ≤ 3, word, half-word, and byte access.

Wait states are inserted in case of successive accesses to this register.

Bit 31 LPWRRSTF: Low-power reset flag

Set by hardware when a Low-power management reset occurs.

Cleared by writing to the RMVF bit.

0: No Low-power management reset occurred

1: Low-power management reset occurred

For further information on Low-power management reset, refer to Low-power management reset .

Bit 30 WWDGRSTF: Window watchdog reset flag

Set by hardware when a window watchdog reset occurs.

Cleared by writing to the RMVF bit.

0: No window watchdog reset occurred

1: Window watchdog reset occurred

Bit 29 IWDGRSTF: Independent window watchdog reset flag

Set by hardware when an independent watchdog reset from V _DD domain occurs.

Cleared by writing to the RMVF bit.

0: No watchdog reset occurred

1: Watchdog reset occurred

Bit 28 SFTRSTF: Software reset flag

Set by hardware when a software reset occurs.

Cleared by writing to the RMVF bit.

0: No software reset occurred

1: Software reset occurred

Bit 27 PORRSTF: POR/PDR reset flag

Set by hardware when a POR/PDR reset occurs.

Cleared by writing to the RMVF bit.

0: No POR/PDR reset occurred

1: POR/PDR reset occurred

Set by hardware when a reset from the NRST pin occurs.

Cleared by writing to the RMVF bit.

0: No reset from NRST pin occurred

1: Reset from NRST pin occurred

Set by hardware when a reset from the OBL occurs.

Cleared by writing to the RMVF bit.

0: No reset from OBL occurred

1: Reset from OBL occurred

Set by software to clear the reset flags.

0: No effect

1: Clear the reset flags

Set by hardware when a POR/PDR of the 1.8 V domain occurred. Cleared by writing to the RMVF bit.

0: No POR/PDR reset of the 1.8 V domain occurred

1: POR/PDR reset of the 1.8 V domain occurred

Bits 22:2 Reserved, must be kept at reset value.

Set and cleared by hardware to indicate when the LSI oscillator is stable. After the LSION bit is cleared, LSIRDY goes low after 3 LSI oscillator clock cycles.

0: LSI oscillator not ready

1: LSI oscillator ready

Set and cleared by software.

0: LSI oscillator OFF

1: LSI oscillator ON

7.4.11 AHB peripheral reset register (RCC_AHBRSTR)

Address: 0x28

Reset value: 0x0000 0000

Access: no wait states, word, half-word, and byte access.

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 TSC RST : Touch sensing controller reset
Set and cleared by software.
0: No effect
1: Reset TSC

Bit 23 Reserved, must be kept at reset value.

Bit 22 GPIOF RST : I/O port F reset
Set and cleared by software.
0: No effect
1: Reset I/O port F

Bit 21 GPIOE RST : I/O port E reset
Set and cleared by software.
0: No effect
1: Reset I/O port E

Bit 20 GPIO D RST : I/O port D reset
Set and cleared by software.
0: No effect
1: Reset I/O port D

Bit 19 GPIO C RST : I/O port C reset
Set and cleared by software.
0: No effect
1: Reset I/O port C

Bit 18 GPIOBRST : I/O port B reset

Set and cleared by software.

0: No effect

1: Reset I/O port B

Bit 17 GPIOARST : I/O port A reset

Set and cleared by software.

0: No effect

1: Reset I/O port A

Bits 16:0 Reserved, must be kept at reset value.

7.4.12 Clock configuration register 2 (RCC_CFGR2)

Address: 0x2C

Reset value: 0x0000 0000

Access: no wait states, word, half-word, and byte access.

Bits 31:4 Reserved, must be kept at reset value.

Bits 3:0 PREDIV[3:0] PREDIV division factor

These bits are set and cleared by software to select PREDIV1 division factor. They can be written only when the PLL is disabled.

Note: Bit 0 is the same bit as bit17 in Clock configuration register (RCC_CFGR) , so modifying bit17 Clock configuration register (RCC_CFGR) also modifies bit 0 in Clock configuration register 2 (RCC_CFGR2) (for compatibility with other STM32 products)

0000: HSE input to PLL not divided
0001: HSE input to PLL divided by 2
0010: HSE input to PLL divided by 3
0011: HSE input to PLL divided by 4
0100: HSE input to PLL divided by 5
0101: HSE input to PLL divided by 6
0110: HSE input to PLL divided by 7
0111: HSE input to PLL divided by 8
1000: HSE input to PLL divided by 9
1001: HSE input to PLL divided by 10
1010: HSE input to PLL divided by 11
1011: HSE input to PLL divided by 12
1100: HSE input to PLL divided by 13
1101: HSE input to PLL divided by 14
1110: HSE input to PLL divided by 15
1111: HSE input to PLL divided by 16

7.4.13 Clock configuration register 3 (RCC_CFGR3)

Address: 0x30

Reset value: 0x0000 0000

Access: no wait states, word, half-word, and byte access.

Bits 31:20 Reserved, must be kept at reset value.

Bits 19:18 USART3SW[1:0] : USART3 clock source selection

This bit is set and cleared by software to select the USART3 clock source.

00: PCLK selected as USART3 clock source (default)

01: System clock (SYSCLK) selected as USART3 clock

10: LSE clock selected as USART3 clock

11: HSI clock selected as USART3 clock

Bits 17:16 USART2SW[1:0] : USART2 clock source selection

This bit is set and cleared by software to select the USART2 clock source.

00: PCLK selected as USART2 clock source (default)

01: System clock (SYSCLK) selected as USART2 clock

10: LSE clock selected as USART2 clock

11: HSI clock selected as USART2 clock

Bits 15:7 Reserved, must be kept at reset value.

Bit 6 CECSW : HDMI CEC clock source selection

This bit is set and cleared by software to select the CEC clock source.

0: HSI clock, divided by 244, selected as CEC clock (default)

1: LSE clock selected as CEC clock

Bit 5 I2C2SW : I2C2 clock source selection

This bit is set and cleared by software to select the I2C2 clock source.

0: HSI clock selected as I2C2 clock source (default)

1: System clock (SYSCLK) selected as I2C2 clock

Bit 4 I2C1SW : I2C1 clock source selection

This bit is set and cleared by software to select the I2C1 clock source.

0: HSI clock selected as I2C1 clock source (default)

1: System clock (SYSCLK) selected as I2C1 clock

Bits 3:2 Reserved, must be kept at reset value.

Bits 1:0 USART1SW[1:0] : USART1 clock source selection

This bit is set and cleared by software to select the USART1 clock source.

00: PCLK selected as USART1 clock source (default)

01: System clock (SYSCLK) selected as USART1 clock

10: LSE clock selected as USART1 clock

11: HSI clock selected as USART1 clock

7.4.14 RCC register map

The following table gives the RCC register map and the reset values.

Table 18. RCC register map and reset values

Table 18. RCC register map and reset values (continued)

Refer to Section 2.2 on page 40 for the register boundary addresses.
