13. Analog-to-digital converter (ADC)

13.1 Introduction

The 12-bit ADC is a successive approximation analog-to-digital converter. It has up to 19 multiplexed channels allowing it to measure signals from 16 external and 3 internal sources. A/D conversion of the various channels can be performed in single, continuous, scan or discontinuous mode. The result of the ADC is stored in a left-aligned or right-aligned 16-bit data register.

The analog watchdog feature allows the application to detect if the input voltage goes outside the user-defined higher or lower thresholds.

An efficient low-power mode is implemented to allow very low consumption at low frequency.

13.2 ADC main features

• High performance
- – 12-bit, 10-bit, 8-bit or 6-bit configurable resolution
- – ADC conversion time: 1.0 µs for 12-bit resolution (1 MHz), 0.93 µs conversion time for 10-bit resolution, faster conversion times can be obtained by lowering resolution.
- – Self-calibration
- – Programmable sampling time
- – Data alignment with built-in data coherency
- – DMA support
• Low-power
- – The application can reduce PCLK frequency for low-power operation while still keeping optimum ADC performance. For example, 1.0 µs conversion time is kept, whatever the PCLK frequency
- – Wait mode: prevents ADC overrun in applications with low PCLK frequency
- – Auto off mode: ADC is automatically powered off except during the active conversion phase. This dramatically reduces the power consumption of the ADC.
• Analog input channels
- – 16 external analog inputs
- – 1 channel for internal temperature sensor ( $V_{\text{SENSE}}$ )
- – 1 channel for internal reference voltage ( $V_{\text{REFINT}}$ )
- – 1 channel for monitoring external $V_{\text{BAT}}$ power supply pin
• Start-of-conversion can be initiated:
- – By software
- – By hardware triggers with configurable polarity (timer events)
• Conversion modes
- – Can convert a single channel or can scan a sequence of channels.
- – Single mode converts selected inputs once per trigger
- – Continuous mode converts selected inputs continuously
- – Discontinuous mode
• Interrupt generation at the end of sampling, end of conversion, end of sequence conversion, and in case of analog watchdog or overrun events
• Analog watchdog
• ADC input range: $V_{\text{SSA}} \leq V_{\text{IN}} \leq V_{\text{DDA}}$

13.3 ADC functional description

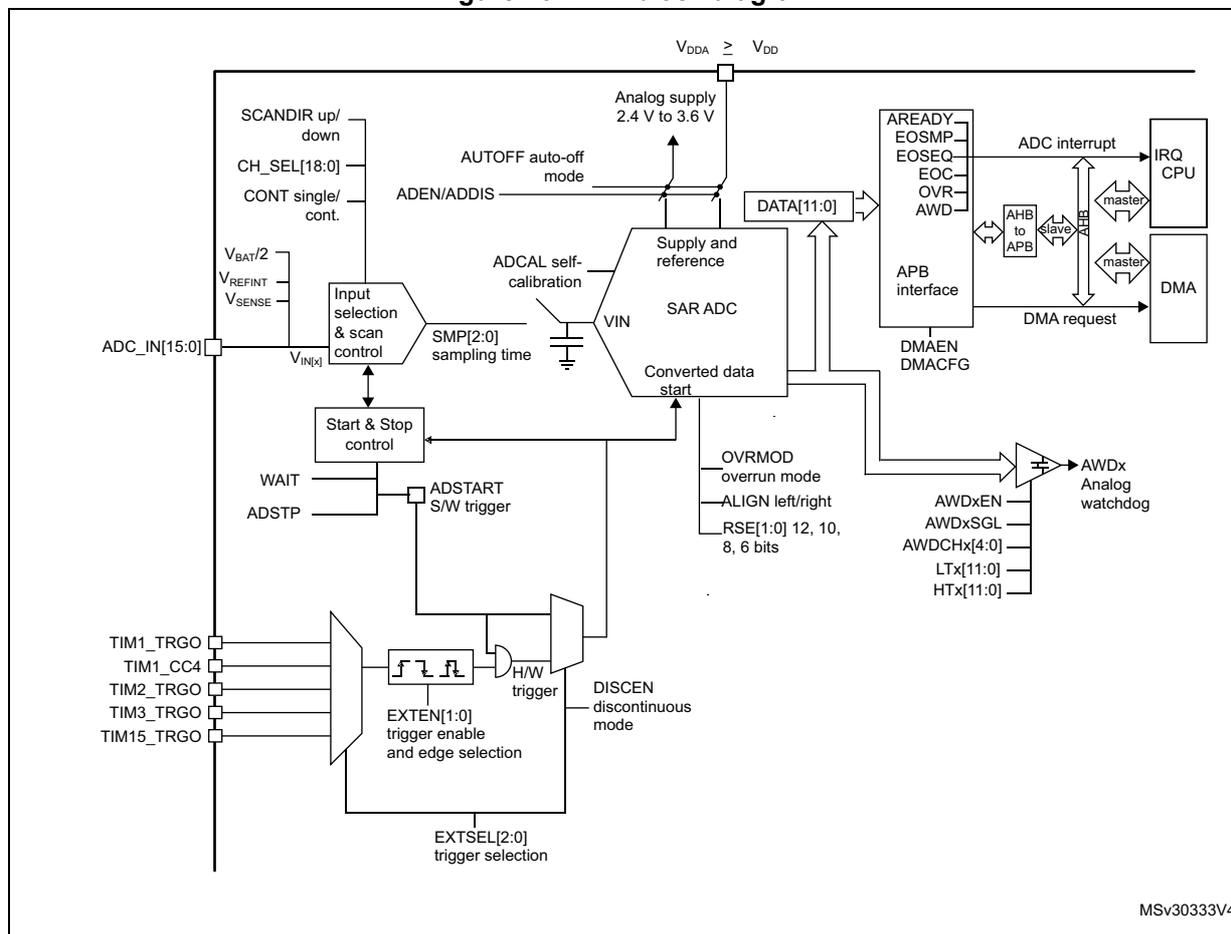

Figure 26 shows the ADC block diagram and Table 41 gives the ADC pin description.

Figure 26. ADC block diagram

Figure 26. ADC block diagram. This is a detailed functional block diagram of the ADC. On the left, there are 16 external analog input pins labeled ADC_IN[15:0]. These connect to an 'Input selection & scan control' block. Above this block are control signals: SCANDIR up/down, CH_SEL[18:0], CONT single/cont., VBAT/2, VREFINT, and VSENSE. The 'Input selection & scan control' block connects to a 'Start & Stop control' block, which in turn connects to the 'SAR ADC' block. The 'Start & Stop control' block also receives inputs from WAIT and ADSTP. Below the 'Start & Stop control' block is a trigger selection logic block. It takes inputs from TIM1_TRGO, TIM1_CC4, TIM2_TRGO, TIM3_TRGO, and TIM15_TRGO. This block includes a flip-flop and an AND gate, and is controlled by EXTEN[1:0] (trigger enable and edge selection) and EXTSEL[2:0] (trigger selection). The output of this logic block is labeled 'H/W trigger' and connects to the 'SAR ADC' block. The 'SAR ADC' block is the central component, labeled 'VIN' at its input. It receives control signals from the 'Start & Stop control' block (ADSTART S/W trigger) and from the 'Input selection & scan control' block (SMP[2:0] sampling time). The 'SAR ADC' block also receives calibration signals: ADCAL self-calibration and AUTOOFF auto-off mode. The 'SAR ADC' block outputs 'Converted data start' to a 'DATA[11:0]' register. This register is part of an 'APB interface' block. The 'APB interface' block includes signals: AREADY, EOSMP, EOSEQ, EOC, OVR, and AWD. It connects to an 'AHB to APB' bridge, which is connected to a 'master' block labeled 'IRQ CPU'. The 'APB interface' block also includes DMAEN and DMACFG signals, which connect to a 'DMA' block. The 'SAR ADC' block also outputs control signals: OVRMOD overrun mode, ALIGN left/right, and RSE[1:0] (values 12, 10, 8, 6 bits). These signals connect to an 'AWDx Analog watchdog' block. The 'AWDx Analog watchdog' block includes signals: AWDxEN, AWDxSGL, AWDCHx[4:0], LTx[11:0], and HTx[11:0]. The 'SAR ADC' block is connected to an 'Analog supply' block labeled 'VDDA ≥ VDD' and 'Analog supply 2.4 V to 3.6 V'. The diagram is labeled MSV30333V4 in the bottom right corner.

13.3.1 ADC pins and internal signals

Table 41. ADC input/output pins

Name	Signal type	Remarks
VDDA	Input, analog power supply	Analog power supply and positive reference voltage for the ADC
VSSA	Input, analog supply ground	Ground for analog power supply
ADC_INx	Analog input signals	16 external analog input channels

Table 42. ADC internal input/output signals

Internal signal name	Signal type	Description
V _IN[x]	Analog Input channels	Connected either to internal channels or to ADC_INi external channels
TRGx	Input	ADC conversion triggers
V _SENSE	Input	Internal temperature sensor output voltage
V _REFINT	Input	Internal voltage reference output voltage
V _BAT/2	Input	VBAT pin input voltage divided by 2
ADC_AWDx_OUT	Output	Internal analog watchdog output signal connected to on-chip timers (x = Analog watchdog number = 1)

Table 43. External triggers

Name	Source	EXTSEL[2:0]
TRG0	TIM1_TRGO	000
TRG1	TIM1_CC4	001
TRG2	TIM2_TRGO	010
TRG3	TIM3_TRGO	011
TRG4	TIM15_TRGO	100
TRG5	Reserved	101
TRG6	Reserved	110
TRG7	Reserved	111

13.3.2 Calibration (ADCAL)

The ADC has a calibration feature. During the calibration phase, the ADC calculates a calibration factor which is internally applied to the ADC until the next ADC power-off. The application must not use the ADC during calibration and must wait until it is complete.

Calibration should be performed before starting A/D conversion. It removes the offset error which may vary from chip to chip due to process variation.

The calibration is initiated by software by setting ADCAL bit to 1. It can only be initiated when the ADC is disabled (when ADEN = 0). ADCAL bit stays at 1 during the whole calibration sequence. It is then cleared by hardware as soon the calibration completes. After this, the calibration factor can be read from the ADC_DR register (from bits 6 to 0).

The internal analog calibration is kept if the ADC is disabled (ADEN = 0). When the ADC operating conditions change (V _DDAchanges are the main contributor to ADC offset variations and temperature change to a lesser extend), it is recommended to re-run a calibration cycle.

The calibration factor is lost each time power is removed from the ADC (for example when the product enters Standby mode).

Calibration software procedure

1. Ensure that ADEN = 0 and DMAEN = 0.
2. Set ADCAL = 1.
3. Wait until ADCAL = 0.
4. The calibration factor can be read from bits 6:0 of ADC_DR.

For code example refer to the Appendix section A.7.1: ADC calibration code example .

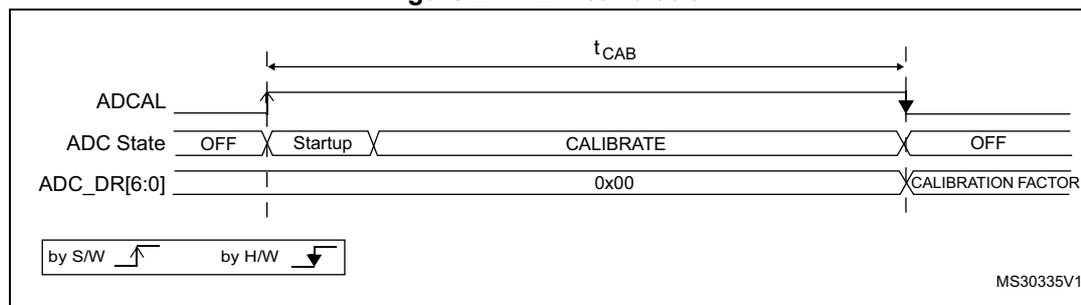

Figure 27. ADC calibration

Timing diagram for ADC calibration showing the relationship between ADCAL, ADC State, and ADC_DR[6:0] signals over time. The diagram shows three signal lines: ADCAL, ADC State, and ADC_DR[6:0]. The ADCAL signal starts high, then goes low (labeled 'by S/W' with an upward arrow), then goes high again (labeled 'by H/W' with a downward arrow), and finally goes low. The ADC State transitions from OFF to Startup, then to CALIBRATE, and back to OFF. The ADC_DR[6:0] signal is 0x00 during the CALIBRATE state and becomes CALIBRATION FACTOR after the ADCAL signal goes low. A time interval t_CAB is indicated between the start of the calibration sequence and the end of the CALIBRATE state. The diagram is labeled MS30335V1.

13.3.3 ADC on-off control (ADEN, ADDIS, ADRDY)

At power-up, the ADC is disabled and put in power-down mode (ADEN = 0).

As shown in Figure 28 , the ADC needs a stabilization time of $t_{STAB}$ before it starts converting accurately.

Two control bits are used to enable or disable the ADC:

• Set ADEN = 1 to enable the ADC. The ADRDY flag is set as soon as the ADC is ready for operation.
• Set ADDIS = 1 to disable the ADC and put the ADC in power down mode. The ADEN and ADDIS bits are then automatically cleared by hardware as soon as the ADC is fully disabled.

Conversion can then start either by setting ADSTART to 1 (refer to Section 13.4: Conversion on external trigger and trigger polarity (EXTSEL, EXTEN) on page 244 ) or when an external trigger event occurs if triggers are enabled.

Follow this procedure to enable the ADC:

1. Clear the ADRDY bit in ADC_ISR register by programming this bit to 1.
2. Set ADEN = 1 in the ADC_CR register.
3. Wait until ADRDY = 1 in the ADC_ISR register and continue to write ADEN = 1 (ADRDY is set after the ADC startup time). This can be handled by interrupt if the interrupt is enabled by setting the ADRDYIE bit in the ADC_IER register.

For code example refer to the Appendix section A.7.2: ADC enable sequence code example .

Follow this procedure to disable the ADC:

1. Check that ADSTART = 0 in the ADC_CR register to ensure that no conversion is ongoing. If required, stop any ongoing conversion by writing 1 to the ADSTP bit in the ADC_CR register and waiting until this bit is read at 0.
2. Set ADDIS = 1 in the ADC_CR register.
3. If required by the application, wait until ADEN = 0 in the ADC_CR register, indicating that the ADC is fully disabled (ADDIS is automatically reset once ADEN = 0).
4. Clear the ADRDY bit in ADC_ISR register by programming this bit to 1 (optional).

For code example refer to the Appendix section A.7.3: ADC disable sequence code example .

Caution: ADEN bit cannot be set when ADCAL = 1 and during four ADC clock cycles after the ADCAL bit is cleared by hardware (end of calibration).

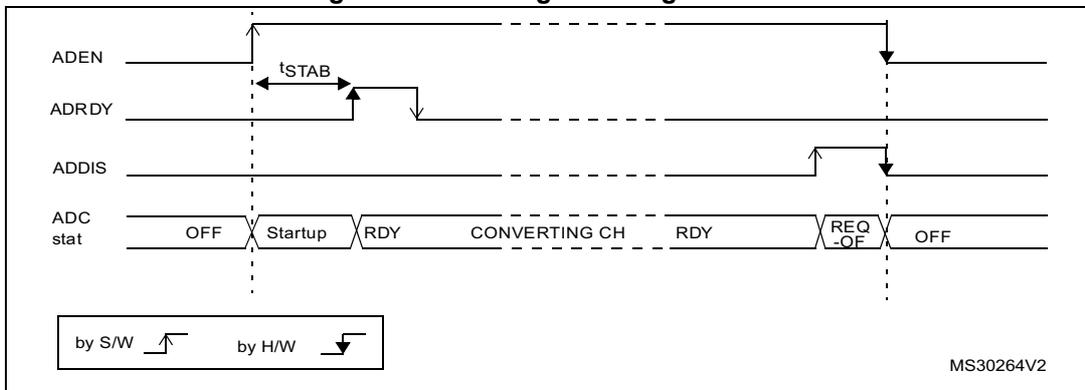

Figure 28. Enabling/disabling the ADC

The diagram illustrates the timing for enabling and disabling the ADC. It shows four signal lines over time: ADEN, ADRDY, ADDIS, and ADC stat.
- ADEN: The enable bit. It is set by software (S/W) to start the ADC and reset by hardware (H/W) to stop it.
- ADRDY: The ready flag. It is set by hardware (H/W) when the ADC is ready and reset by software (S/W). A time interval $t_{STAB}$ is shown between the rising edge of ADEN and the rising edge of ADRDY.
- ADDIS: The automatic disable bit. It is set by software (S/W) and reset by hardware (H/W) when ADEN is reset.
- ADC stat: The ADC status. It shows states: OFF, Startup, RDY, CONVERTING CH, RDY, REQ-OF, and OFF. Transitions between OFF and Startup, and between REQ-OF and OFF, are triggered by hardware (H/W) when ADEN changes state.
Legend: 'by S/W' with an upward arrow, 'by H/W' with a downward arrow.
Reference: MS30264V2.

Timing diagram showing the sequence of signals (ADEN, ADRDY, ADDIS, ADC stat) for enabling and disabling the ADC. It includes phases like OFF, Startup, RDY, CONVERTING CH, RDY, REQ-OF, and OFF. A legend indicates 'by S/W' (software) and 'by H/W' (hardware) transitions.

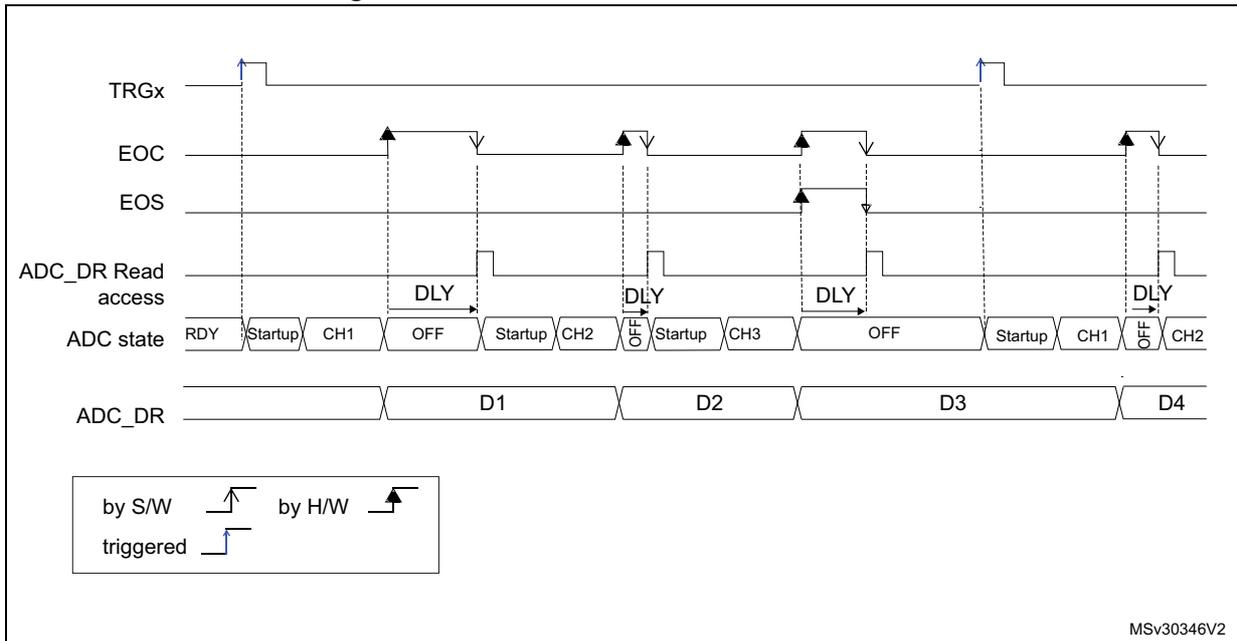

Note: In Auto-off mode (AUTOFF = 1) the power-on/off phases are performed automatically, by hardware and the ADRDY flag is not set.

13.3.4 ADC clock (CKMODE)

The ADC has a dual clock-domain architecture, so that the ADC can be fed with a clock (ADC asynchronous clock) independent from the APB clock (PCLK).

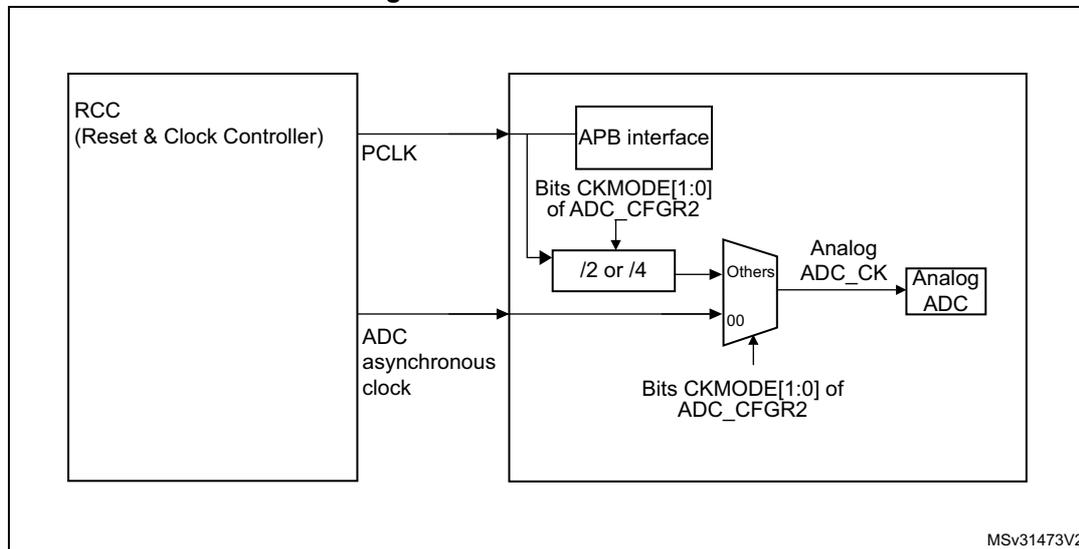

Figure 29. ADC clock scheme

Figure 29. ADC clock scheme diagram. The diagram shows the RCC (Reset & Clock Controller) providing two clock inputs to the ADC: PCLK and an ADC asynchronous clock. The PCLK is connected to the APB interface and also to a divider (/2 or /4). The ADC asynchronous clock is connected to a multiplexer (labeled '00'). The output of the divider and the 'Others' input of the multiplexer are connected to the Analog ADC. The multiplexer is controlled by Bits CKMODE[1:0] of the ADC_CFGR2 register. The divider is also controlled by Bits CKMODE[1:0] of the ADC_CFGR2 register. The diagram is labeled MSV31473V2.

1. Refer to Section Reset and clock control (RCC) for how the PCLK clock and ADC asynchronous clock are enabled.

The input clock of the analog ADC can be selected between two different clock sources (see Figure 29: ADC clock scheme to see how the PCLK clock and the ADC asynchronous clock are enabled):

a) The ADC clock can be a specific clock source, named “ADC asynchronous clock” which is independent and asynchronous with the APB clock.

Refer to RCC Section for more information on generating this clock source.

To select this scheme, bits CKMODE[1:0] of the ADC_CFGR2 register must be reset.

For code example refer to the Appendix section A.7.4: ADC clock selection code example .

b) The ADC clock can be derived from the APB clock of the ADC bus interface, divided by a programmable factor (1, 2 or 4) according to bits CKMODE[1:0].

To select this scheme, bits CKMODE[1:0] of the ADC_CFGR2 register must be different from “00”.

Option a) has the advantage of reaching the maximum ADC clock frequency whatever the APB clock scheme selected.

Option b) has the advantage of bypassing the clock domain resynchronizations. This can be useful when the ADC is triggered by a timer and if the application requires that the ADC is precisely triggered without any uncertainty (otherwise, an uncertainty of the trigger instant is added by the resynchronizations between the two clock domains).

Table 44. Latency between trigger and start of conversion ⁽¹⁾

ADC clock source	CKMODE[1:0]	Latency between the trigger event and the start of conversion
Dedicated 14MHz clock	00	Latency is not deterministic (jitter)
PCLK divided by 2	01	Latency is deterministic (no jitter) and equal to 2.75 ADC clock cycles
PCLK divided by 4	10	Latency is deterministic (no jitter) and equal to 2.625 ADC clock cycles

1. Refer to the device datasheet for the maximum ADC_CLK frequency.

13.3.5 Configuring the ADC

The software must write the ADCAL and ADEN bits in the ADC_CR register only when the ADC is disabled (ADEN cleared).

The software must only write to the ADSTART and ADDIS bits in the ADC_CR register only if the ADC is enabled and there is no pending request to disable the ADC (ADEN = 1 and ADDIS = 0).

For all the other control bits in the ADC_IER, ADC_CFGRi, ADC_SMPR, ADC_TR, ADC_CHSELR and ADC_CCR registers, refer to the description of the corresponding control bit in Section 13.11: ADC registers .

The software must only write to the ADSTP bit in the ADC_CR register if the ADC is enabled (and possibly converting) and there is no pending request to disable the ADC (ADSTART = 1 and ADDIS = 0).

Note: There is no hardware protection preventing software from making write operations forbidden by the above rules. If such a forbidden write access occurs, the ADC may enter an undefined state. To recover correct operation in this case, the ADC must be disabled (clear ADEN = 0 and all the bits in the ADC_CR register).

13.3.6 Channel selection (CHSEL, SCANDIR)

There are up to 19 multiplexed channels:

• 16 analog inputs from GPIO pins (ADC_INx)
• 3 internal analog inputs (temperature sensor, internal reference voltage, V _BATchannel)

It is possible to convert a single channel or a sequence of channels.

The sequence of the channels to be converted can be programmed in the ADC_CHSELR channel selection register: each analog input channel has a dedicated selection bit (CHSELx).

The order in which the channels is scanned can be configured by programming the bit SCANDIR bit in the ADC_CFGR1 register:

• SCANDIR = 0: forward scan Channel 0 to Channel 18
• SCANDIR = 1: backward scan Channel 18 to Channel 0

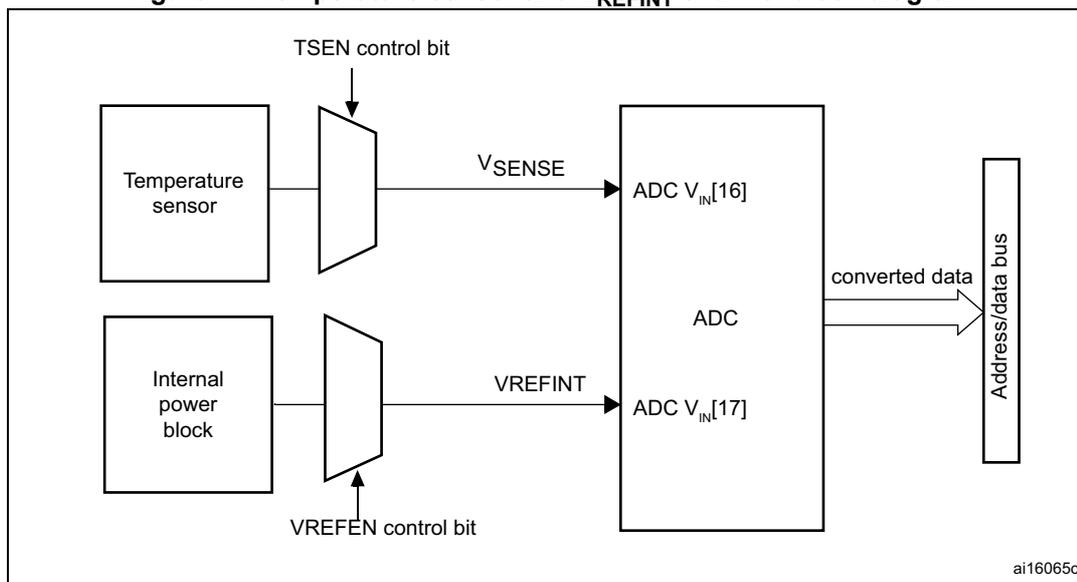

Temperature sensor, V _REFINTand V _BATinternal channels

The temperature sensor is connected to channel ADC_V _IN[16].

The internal voltage reference $V_{REFINT}$ is connected to channel ADC $V_{IN}[17]$ .

$V_{BAT}$ channel is connected to ADC $V_{IN}[18]$ channel.

13.3.7 Programmable sampling time (SMP)

Before starting a conversion, the ADC needs to establish a direct connection between the voltage source to be measured and the embedded sampling capacitor of the ADC. This sampling time must be enough for the input voltage source to charge the sample and hold capacitor to the input voltage level.

Having a programmable sampling time allows the conversion speed to be trimmed according to the input resistance of the input voltage source.

The ADC samples the input voltage for a number of ADC clock cycles that can be modified using the SMP[2:0] bits in the ADC_SMPR register.

This programmable sampling time is common to all channels. If required by the application, the software can change and adapt this sampling time between each conversions.

The total conversion time is calculated as follows:

t_{CONV} = \text{Sampling time} + 12.5 \times \text{ADC clock cycles}

Example:

With $ADC\_CLK = 14$ MHz and a sampling time of 1.5 ADC clock cycles:

t_{CONV} = 1.5 + 12.5 = 14 \text{ ADC clock cycles} = 1 \mu s

The ADC indicates the end of the sampling phase by setting the EOSMP flag.

13.3.8 Single conversion mode (CONT = 0)

In Single conversion mode, the ADC performs a single sequence of conversions, converting all the channels once. This mode is selected when $$ CONT = 0 $$ in the ADC_CFGR1 register. Conversion is started by either:

• Setting the ADSTART bit in the ADC_CR register
• Hardware trigger event

Inside the sequence, after each conversion is complete:

• The converted data are stored in the 16-bit ADC_DR register
• The EOC (end of conversion) flag is set
• An interrupt is generated if the EOCIE bit is set

After the sequence of conversions is complete:

• The EOS (end of sequence) flag is set
• An interrupt is generated if the EOSIE bit is set

Then the ADC stops until a new external trigger event occurs or the ADSTART bit is set again.

Note: To convert a single channel, program a sequence with a length of 1.

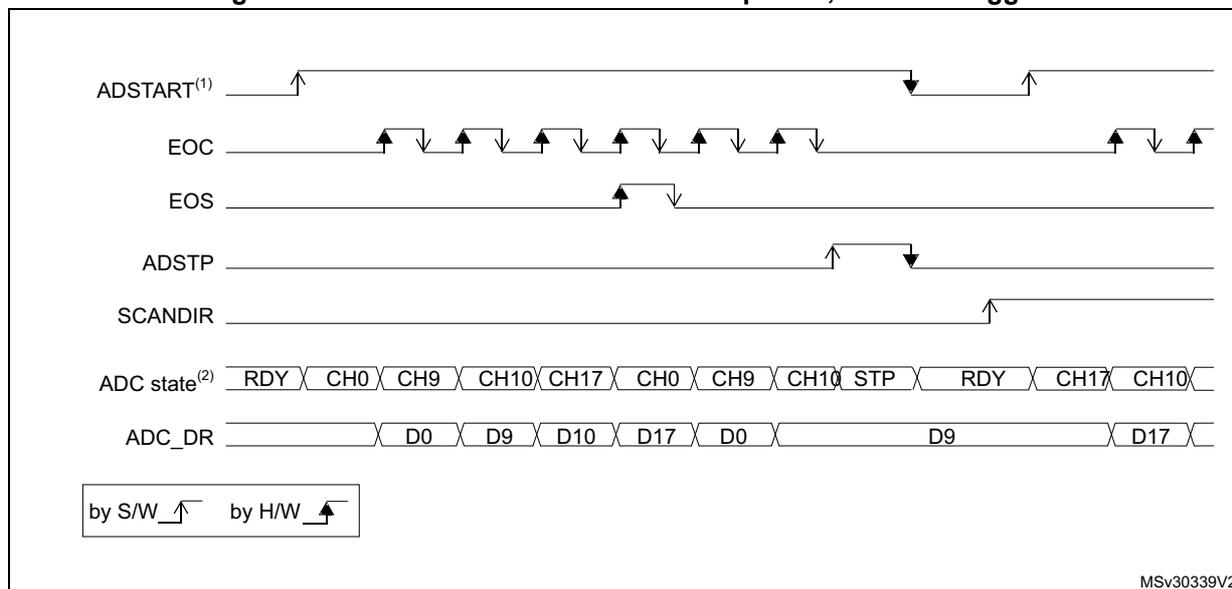

13.3.9 Continuous conversion mode (CONT = 1)

In continuous conversion mode, when a software or hardware trigger event occurs, the ADC performs a sequence of conversions, converting all the channels once and then automatically re-starts and continuously performs the same sequence of conversions. This mode is selected when CONT = 1 in the ADC_CFGR1 register. Conversion is started by either:

• Setting the ADSTART bit in the ADC_CR register
• Hardware trigger event

Inside the sequence, after each conversion is complete:

• The converted data are stored in the 16-bit ADC_DR register
• The EOC (end of conversion) flag is set
• An interrupt is generated if the EOCIE bit is set

After the sequence of conversions is complete:

• The EOS (end of sequence) flag is set
• An interrupt is generated if the EOSIE bit is set

Then, a new sequence restarts immediately and the ADC continuously repeats the conversion sequence.

Note: To convert a single channel, program a sequence with a length of 1.

It is not possible to have both discontinuous mode and continuous mode enabled: it is forbidden to set both bits DISCEN = 1 and CONT = 1.

13.3.10 Starting conversions (ADSTART)

Software starts ADC conversions by setting ADSTART = 1.

When ADSTART is set, the conversion:

• Starts immediately if EXTEN = 00 (software trigger)
• At the next active edge of the selected hardware trigger if EXTEN ≠ 00

The ADSTART bit is also used to indicate whether an ADC operation is currently ongoing. It is possible to re-configure the ADC while ADSTART = 0, indicating that the ADC is idle.

The ADSTART bit is cleared by hardware:

• In single mode with software trigger (CONT = 0, EXTEN = 00)
- – At any end of conversion sequence (EOS = 1)
• In discontinuous mode with software trigger (CONT = 0, DISCEN = 1, EXTEN = 00)
- – At end of conversion (EOC = 1)
• In all cases (CONT = x, EXTEN = XX)
- – After execution of the ADSTP procedure invoked by software (see Section 13.3.12: Stopping an ongoing conversion (ADSTP) on page 244 )

Note: In continuous mode (CONT = 1), the ADSTART bit is not cleared by hardware when the EOS flag is set because the sequence is automatically relaunched.

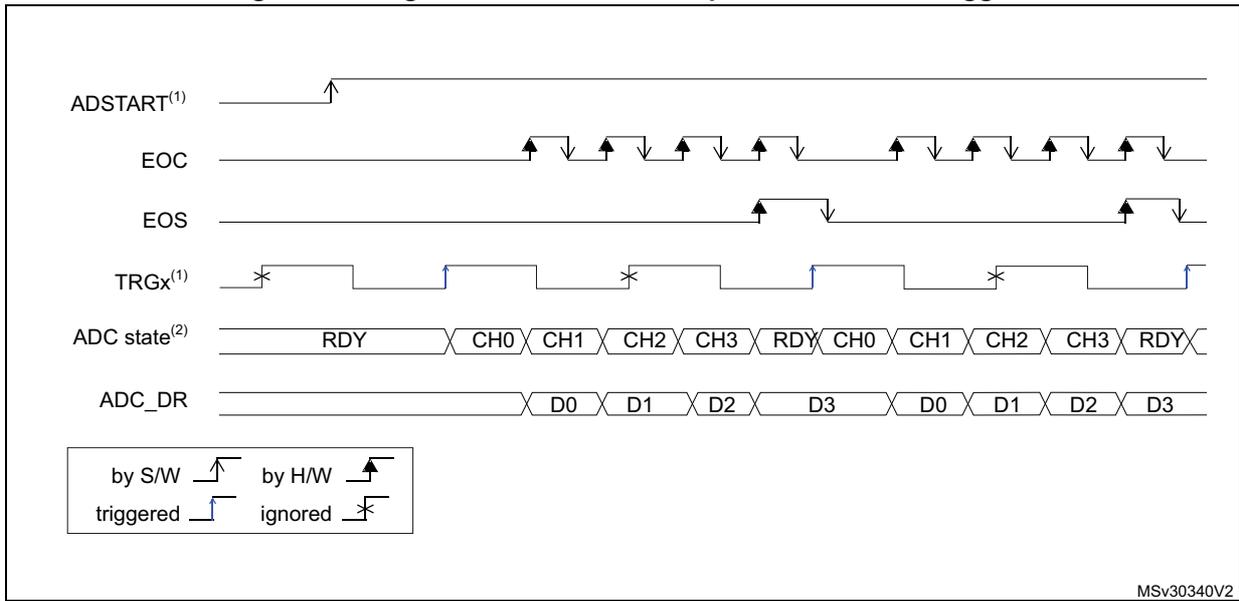

When hardware trigger is selected in single mode (CONT = 0 and EXTEN = 01), ADSTART is not cleared by hardware when the EOS flag is set (except if DMAEN = 1 and DMACFG = 0 in which case ADSTART is cleared at end of the DMA transfer). This avoids

the need for software having to set the ADSTART bit again and ensures the next trigger event is not missed.

13.3.11 Timings

The elapsed time between the start of a conversion and the end of conversion is the sum of the configured sampling time plus the successive approximation time depending on data resolution:

t_{\text{CONV}} = t_{\text{SMPL}} + t_{\text{SAR}} = [1.5 \text{ } \mu\text{s}_{\min} + 12.5 \text{ } \mu\text{s}_{\text{12bit}}] \times t_{\text{ADC\_CLK}}

t_{\text{CONV}} = t_{\text{SMPL}} + t_{\text{SAR}} = 107.1 \text{ ns}_{\min} + 892.8 \text{ ns}_{\text{12bit}} = 1 \text{ } \mu\text{s}_{\min} \text{ (for } f_{\text{ADC\_CLK}} = 14 \text{ MHz)}

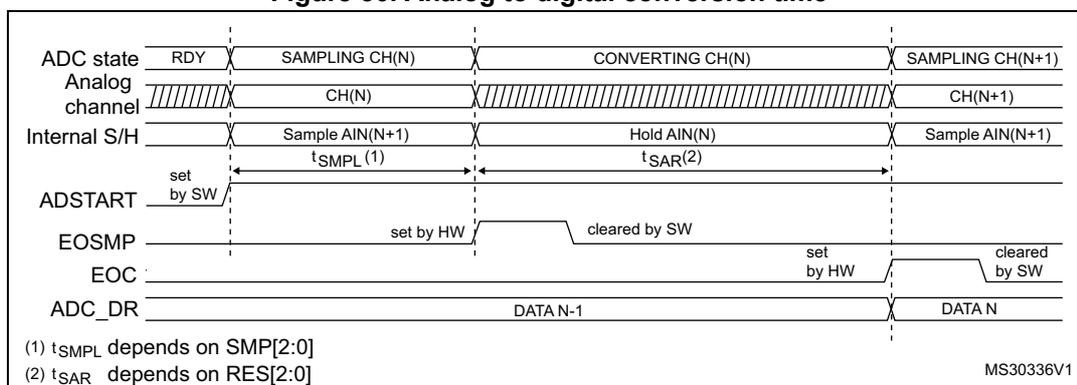

Figure 30. Analog to digital conversion time

Timing diagram for a single ADC conversion. It shows the ADC state (RDY, SAMPLING CH(N), CONVERTING CH(N), SAMPLING CH(N+1)), the analog channel (CH(N), CH(N+1)), internal S/H (Sample AIN(N+1), Hold AIN(N), Sample AIN(N+1)), ADSTART (set by SW), EOSMP (set by HW, cleared by SW), EOC (set by HW, cleared by SW), and ADC_DR (DATA N-1, DATA N). The sampling time t_SMPL(1) and conversion time t_SAR(2) are indicated.

(1) $t_{\text{SMPL}}$ depends on SMP[2:0]
(2) $t_{\text{SAR}}$ depends on RES[2:0]

MSV03336V1

Timing diagram for a single ADC conversion. It shows the ADC state (RDY, SAMPLING CH(N), CONVERTING CH(N), SAMPLING CH(N+1)), the analog channel (CH(N), CH(N+1)), internal S/H (Sample AIN(N+1), Hold AIN(N), Sample AIN(N+1)), ADSTART (set by SW), EOSMP (set by HW, cleared by SW), EOC (set by HW, cleared by SW), and ADC_DR (DATA N-1, DATA N). The sampling time t_SMPL(1) and conversion time t_SAR(2) are indicated.

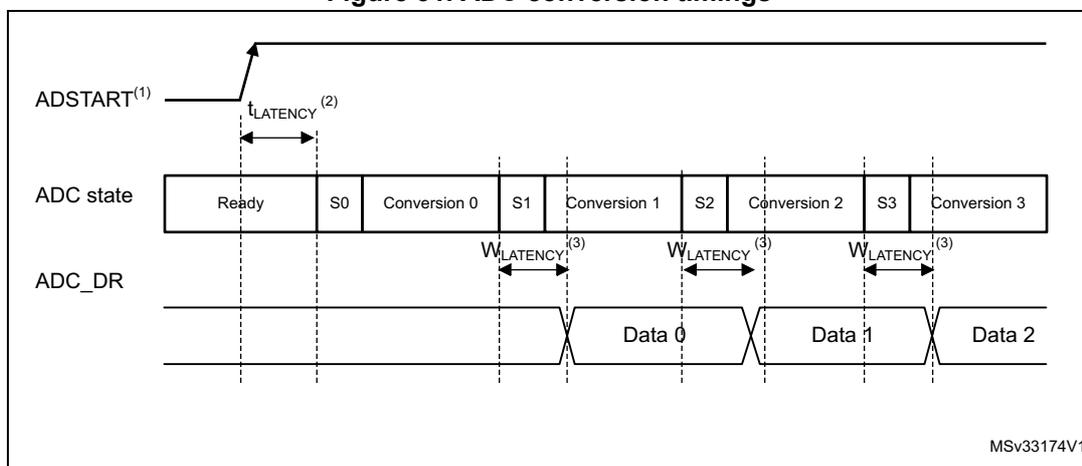

Figure 31. ADC conversion timings

MSV033174V1

Timing diagram for multiple ADC conversions. It shows the ADC state (Ready, S0, Conversion 0, S1, Conversion 1, S2, Conversion 2, S3, Conversion 3) and the ADC_DR register (Data 0, Data 1, Data 2). The trigger latency t_LATENCY(2) and the ADC_DR register write latency W_LATENCY(3) are indicated.

1. EXTEN = 00 or EXTEN ≠ 00
2. Trigger latency (refer to datasheet for more details)
3. ADC_DR register write latency (refer to datasheet for more details)

13.3.12 Stopping an ongoing conversion (ADSTP)

The software can decide to stop any ongoing conversions by setting ADSTP = 1 in the ADC_CR register.

This resets the ADC operation and the ADC is idle, ready for a new operation.

When the ADSTP bit is set by software, any ongoing conversion is aborted and the result is discarded (ADC_DR register is not updated with the current conversion).

The scan sequence is also aborted and reset (meaning that restarting the ADC would restart a new sequence).

Once this procedure is complete, the ADSTP and ADSTART bits are both cleared by hardware and the software must wait until ADSTART=0 before starting new conversions.

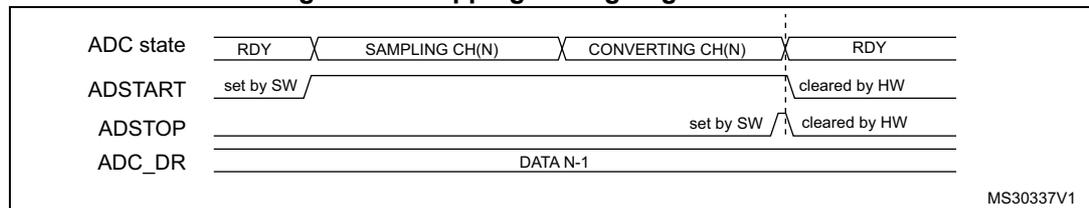

Figure 32. Stopping an ongoing conversion

The diagram illustrates the timing of ADC signals when stopping an ongoing conversion. The top row shows the ADC state transitioning from RDY to SAMPLING CH(N) to CONVERTING CH(N) and finally back to RDY. The ADSTART signal is set by software at the beginning of the SAMPLING CH(N) phase and is cleared by hardware at the end of the CONVERTING CH(N) phase. The ADSTOP signal is set by software during the CONVERTING CH(N) phase and is also cleared by hardware at the end of the phase. The ADC_DR register contains DATA N-1 during the CONVERTING CH(N) phase.

Timing diagram showing ADC state, ADSTART, ADSTOP, and ADC_DR signals over time. The diagram shows the ADC transitioning from RDY to SAMPLING CH(N) to CONVERTING CH(N) and back to RDY. ADSTART is set by software at the start and cleared by hardware at the end. ADSTOP is set by software during the CONVERTING CH(N) phase and cleared by hardware at the end. ADC_DR contains DATA N-1 during the CONVERTING CH(N) phase.

13.4 Conversion on external trigger and trigger polarity (EXTSEL, EXTEN)

A conversion or a sequence of conversion can be triggered either by software or by an external event (for example timer capture). If the EXTEN[1:0] control bits are not equal to “0b00”, then external events are able to trigger a conversion with the selected polarity. The trigger selection is effective once software has set bit ADSTART = 1.

Any hardware triggers which occur while a conversion is ongoing are ignored.

If bit ADSTART = 0, any hardware triggers which occur are ignored.

Table 45 provides the correspondence between the EXTEN[1:0] values and the trigger polarity.

Table 45. Configuring the trigger polarity

Source	EXTEN[1:0]
Trigger detection disabled	00
Detection on rising edge	01
Detection on falling edge	10
Detection on both rising and falling edges	11

Note: The polarity of the external trigger can be changed only when the ADC is not converting (ADSTART = 0).

The EXTSEL[2:0] control bits are used to select which of 8 possible events can trigger conversions.

Refer to Table 43: External triggers in Section 13.3.1: ADC pins and internal signals for the list of all the external triggers that can be used for regular conversion.

The software source trigger events can be generated by setting the ADSTART bit in the ADC_CR register.

Note: The trigger selection can be changed only when the ADC is not converting (ADSTART = 0).

13.4.1 Discontinuous mode (DISCEN)

This mode is enabled by setting the DISCEN bit in the ADC_CFGR1 register.

In this mode (DISCEN = 1), a hardware or software trigger event is required to start each conversion defined in the sequence. On the contrary, if DISCEN = 0, a single hardware or software trigger event successively starts all the conversions defined in the sequence.

Example:

• DISCEN = 1, channels to be converted = 0, 3, 7, 10
- – 1st trigger: channel 0 is converted and an EOC event is generated
- – 2nd trigger: channel 3 is converted and an EOC event is generated
- – 3rd trigger: channel 7 is converted and an EOC event is generated
- – 4th trigger: channel 10 is converted and both EOC and EOS events are generated.
- – 5th trigger: channel 0 is converted an EOC event is generated
- – 6th trigger: channel 3 is converted and an EOC event is generated
- – ...
• DISCEN = 0, channels to be converted = 0, 3, 7, 10
- – 1st trigger: the complete sequence is converted: channel 0, then 3, 7 and 10. Each conversion generates an EOC event and the last one also generates an EOS event.
- – Any subsequent trigger events restarts the complete sequence.

Note: It is not possible to have both discontinuous mode and continuous mode enabled: it is forbidden to set both bits DISCEN = 1 and CONT = 1.

13.4.2 Programmable resolution (RES) - Fast conversion mode

It is possible to obtain faster conversion times ( $t_{SAR}$ ) by reducing the ADC resolution.

The resolution can be configured to be either 12, 10, 8, or 6 bits by programming the RES[1:0] bits in the ADC_CFGR1 register. Lower resolution allows faster conversion times for applications where high data precision is not required.

Note: The RES[1:0] bit must only be changed when the ADEN bit is reset.

The result of the conversion is always 12 bits wide and any unused LSB bits are read as zeros.

Lower resolution reduces the conversion time needed for the successive approximation steps as shown in Table 46 .

Table 46.

t_{SAR}

timings depending on resolution

RES[1:0] bits	$t_{SAR}$ (ADC clock cycles)	$t_{SAR}$ (ns) at $f_{ADC} = 14$ MHz	$t_{SMPL}$ (min) (ADC clock cycles)	$t_{CONV}$ (ADC clock cycles) (with min. $t_{SMPL}$ )	$t_{CONV}$ (ns) at $f_{ADC} = 14$ MHz
12	12.5	893	1.5	14	1000
10	11.5	821	1.5	13	928
8	9.5	678	1.5	11	785
6	7.5	535	1.5	9	643

13.4.3 End of conversion, end of sampling phase (EOC, EOSMP flags)

The ADC indicates each end of conversion (EOC) event.

The ADC sets the EOC flag in the ADC_ISR register as soon as a new conversion data result is available in the ADC_DR register. An interrupt can be generated if the EOCIE bit is set in the ADC_IER register. The EOC flag is cleared by software either by writing 1 to it, or by reading the ADC_DR register.

The ADC also indicates the end of sampling phase by setting the EOSMP flag in the ADC_ISR register. The EOSMP flag is cleared by software by writing 1 to it. An interrupt can be generated if the EOSMPIE bit is set in the ADC_IER register.

The aim of this interrupt is to allow the processing to be synchronized with the conversions. Typically, an analog multiplexer can be accessed in hidden time during the conversion phase, so that the multiplexer is positioned when the next sampling starts.

Note: As there is only a very short time left between the end of the sampling and the end of the conversion, it is recommenced to use polling or a WFE instruction rather than an interrupt and a WFI instruction.

13.4.4 End of conversion sequence (EOS flag)

The ADC notifies the application of each end of sequence (EOS) event.

The ADC sets the EOS flag in the ADC_ISR register as soon as the last data result of a conversion sequence is available in the ADC_DR register. An interrupt can be generated if the EOSIE bit is set in the ADC_IER register. The EOS flag is cleared by software by writing 1 to it.

13.4.5 Example timing diagrams (single/continuous modes hardware/software triggers)

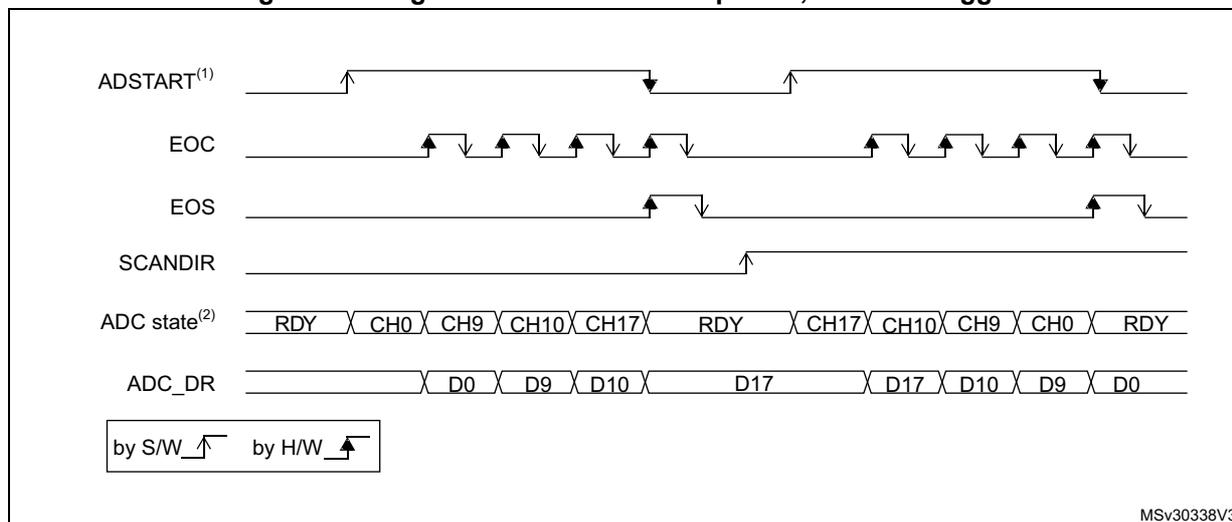

Figure 33. Single conversions of a sequence, software trigger

Timing diagram for single conversions of a sequence with software trigger. The diagram shows five signal lines over time: ADSTART(1), EOC, EOS, SCANDIR, and ADC state(2). ADSTART is a software trigger (S/W) that goes high to start a sequence and low to stop it. EOC (End of Conversion) pulses for each conversion. EOS (End of Sequence) goes high when the last conversion (CH17) is complete. SCANDIR indicates the direction of the sequence scan. ADC state shows the sequence of channels being converted: RDY, CH0, CH9, CH10, CH17, then RDY again, then CH17, CH10, CH9, CH0, then RDY. ADC_DR shows the digital data output: D0, D9, D10, D17, then D17, D10, D9, D0. A legend at the bottom left shows 'by S/W' with a rising edge symbol and 'by H/W' with a falling edge symbol.

1. EXTEN = 00, CONT = 0
2. CHSEL = 0x20601, WAIT = 0, AUTOFF = 0

For code example refer to the Appendix section A.7.5: Single conversion sequence code example - Software trigger .

Figure 34. Continuous conversion of a sequence, software trigger

Timing diagram for continuous conversion of a sequence with software trigger. The diagram shows six signal lines: ADSTART(1), EOC, EOS, ADSTP, SCANDIR, and ADC state(2). ADSTART is a software trigger. EOC pulses for each conversion. EOS goes high when the last conversion (CH17) is complete. ADSTP (ADC stop) is a hardware trigger that goes high to stop continuous mode. SCANDIR indicates the direction of the sequence scan. ADC state shows the sequence of channels: RDY, CH0, CH9, CH10, CH17, CH0, CH9, CH10, STP, then RDY, CH17, CH10. ADC_DR shows the digital data output: D0, D9, D10, D17, D0, then D9, D17. A legend at the bottom left shows 'by S/W' with a rising edge symbol and 'by H/W' with a falling edge symbol.

1. EXTEN = 00, CONT = 1,
2. CHSEL = 0x20601, WAIT = 0, AUTOFF = 0

For code example refer to the Appendix section A.7.6: Continuous conversion sequence code example - Software trigger .

Figure 35. Single conversions of a sequence, hardware trigger

Timing diagram for single conversions of a sequence with hardware trigger. It shows signals ADSTART, EOC, EOS, TRGx, ADC state, and ADC_DR over time. ADSTART is a software trigger. TRGx is a hardware trigger with over-frequency. ADC state shows a sequence of RDY, CH0, CH1, CH2, CH3 repeating. ADC_DR shows data D0, D1, D2, D3 repeating. A legend indicates: by S/W (rising edge), by H/W (rising edge), triggered (rising edge), ignored (crossed out rising edge).

Timing diagram for single conversions of a sequence, hardware trigger. The diagram shows the relationship between several signals over time:

ADSTART ⁽¹⁾: A software trigger signal that goes high to start the conversion sequence.
EOC : End of Conversion signal, which pulses high when each conversion is complete.
EOS : End of Sequence signal, which goes high after the last conversion (CH3) and low when the sequence restarts.
TRGx ⁽¹⁾: Hardware trigger signal. It is set to over-frequency mode, so it triggers a new sequence every time it goes high, even if the previous sequence is still running.
ADC state ⁽²⁾: Shows the state of the ADC, cycling through RDY (Ready), CH0, CH1, CH2, CH3 (Conversions), and back to RDY.
ADC_DR : Data Register, which contains the conversion results D0, D1, D2, D3.

Legend:

by S/W (rising edge)
by H/W (rising edge)
triggered (rising edge)
ignored (crossed out rising edge)

MSv30340V2

Timing diagram for single conversions of a sequence with hardware trigger. It shows signals ADSTART, EOC, EOS, TRGx, ADC state, and ADC_DR over time. ADSTART is a software trigger. TRGx is a hardware trigger with over-frequency. ADC state shows a sequence of RDY, CH0, CH1, CH2, CH3 repeating. ADC_DR shows data D0, D1, D2, D3 repeating. A legend indicates: by S/W (rising edge), by H/W (rising edge), triggered (rising edge), ignored (crossed out rising edge).

1. EXTSEL = TRGx (over-frequency), EXTEN = 01 (rising edge), CONT = 0
2. CHSEL = 0xF, SCANDIR = 0, WAIT = 0, AUTOFF = 0

For code example refer to the Appendix section A.7.7: Single conversion sequence code example - Hardware trigger .

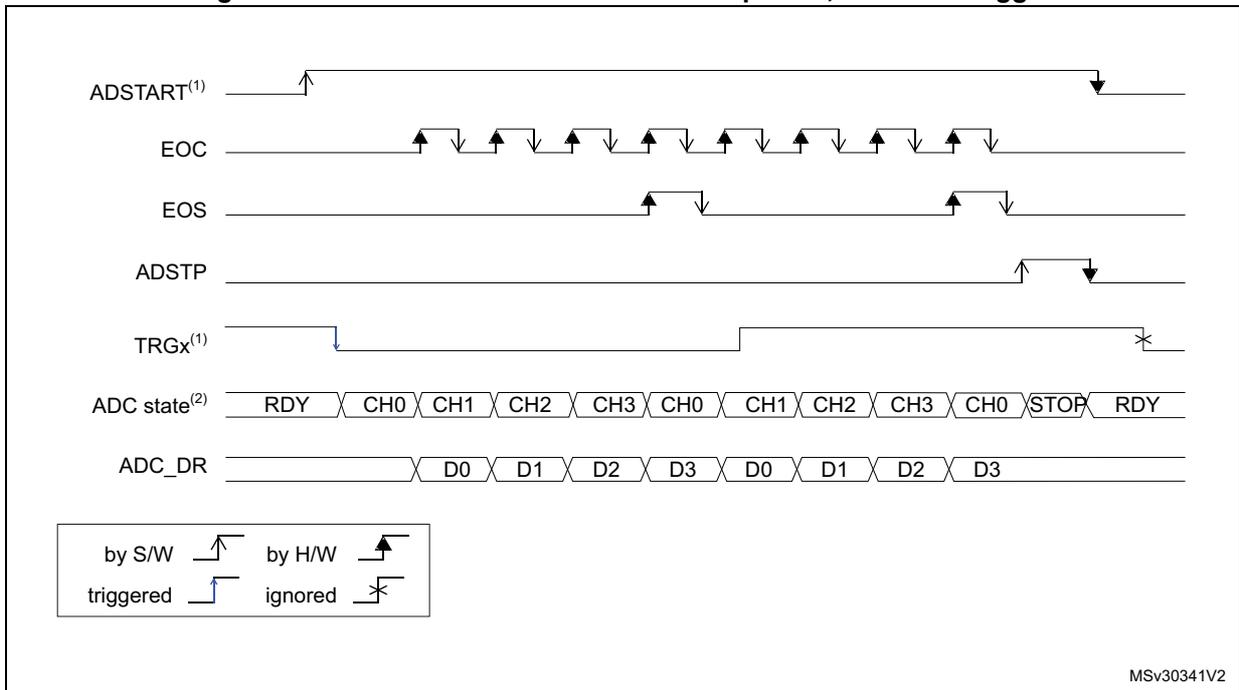

Figure 36. Continuous conversions of a sequence, hardware trigger

Timing diagram for continuous conversions of a sequence with hardware trigger. It shows signals ADSTART, EOC, EOS, ADSTP, TRGx, ADC state, and ADC_DR over time. ADSTART is a software trigger. TRGx is a hardware trigger with falling edge. ADC state shows a sequence of RDY, CH0, CH1, CH2, CH3 repeating, followed by STOP and then RDY. ADC_DR shows data D0, D1, D2, D3 repeating. A legend indicates: by S/W (rising edge), by H/W (falling edge), triggered (rising edge), ignored (crossed out rising edge).

Timing diagram for continuous conversions of a sequence, hardware trigger. The diagram shows the relationship between several signals over time:

ADSTART ⁽¹⁾: A software trigger signal that goes high to start the conversion sequence and low to stop it.
EOC : End of Conversion signal, which pulses high when each conversion is complete.
EOS : End of Sequence signal, which goes high after the last conversion (CH3) and low when the sequence restarts.
ADSTP : Stop conversion signal, which goes high to stop the continuous conversions.
TRGx ⁽¹⁾: Hardware trigger signal. It is set to falling edge mode, so it triggers a new sequence when it goes from high to low.
ADC state ⁽²⁾: Shows the state of the ADC, cycling through RDY (Ready), CH0, CH1, CH2, CH3 (Conversions), CH0, CH1, CH2, CH3, CH0, STOP, and then back to RDY.
ADC_DR : Data Register, which contains the conversion results D0, D1, D2, D3.

Legend:

by S/W (rising edge)
by H/W (falling edge)
triggered (rising edge)
ignored (crossed out rising edge)

MSv30341V2

Timing diagram for continuous conversions of a sequence with hardware trigger. It shows signals ADSTART, EOC, EOS, ADSTP, TRGx, ADC state, and ADC_DR over time. ADSTART is a software trigger. TRGx is a hardware trigger with falling edge. ADC state shows a sequence of RDY, CH0, CH1, CH2, CH3 repeating, followed by STOP and then RDY. ADC_DR shows data D0, D1, D2, D3 repeating. A legend indicates: by S/W (rising edge), by H/W (falling edge), triggered (rising edge), ignored (crossed out rising edge).

1. EXTSEL = TRGx, EXTEN = 10 (falling edge), CONT = 1
2. CHSEL = 0xF, SCANDIR = 0, WAIT = 0, AUTOFF = 0

For code example refer to the Appendix section A.7.8: Continuous conversion sequence code example - Hardware trigger .

13.5 Data management

13.5.1 Data register and data alignment (ADC_DR, ALIGN)

At the end of each conversion (when an EOC event occurs), the result of the converted data is stored in the ADC_DR data register which is 16-bit wide.

The format of the ADC_DR depends on the configured data alignment and resolution.

The ALIGN bit in the ADC_CFGR1 register selects the alignment of the data stored after conversion. Data can be right-aligned (ALIGN = 0) or left-aligned (ALIGN = 1) as shown in Figure 37.

Figure 37. Data alignment and resolution

ALIGN	RES	15	5	3	1
0	0x0	0x0	DR[11:0]
	0x1	0x00	DR[9:0]
	0x2	0x00	DR[7:0]
	0x3	0x00	DR[5:0]
1	0x0	DR[11:0]		0x0
	0x1	DR[9:0]		0x00
	0x2	DR[7:0]		0x00
	0x3	0x00	DR[5:0]		0x0

MS30342V1

13.5.2 ADC overrun (OVR, OVRMOD)

The overrun flag (OVR) indicates a data overrun event, when the converted data was not read in time by the CPU or the DMA, before the data from a new conversion is available.

The OVR flag is set in the ADC_ISR register if the EOC flag is still at '1' at the time when a new conversion completes. An interrupt can be generated if the OVRIE bit is set in the ADC_IER register.

When an overrun condition occurs, the ADC keeps operating and can continue to convert unless the software decides to stop and reset the sequence by setting the ADSTP bit in the ADC_CR register.

The OVR flag is cleared by software by writing 1 to it.

It is possible to configure if the data is preserved or overwritten when an overrun event occurs by programming the OVRMOD bit in the ADC_CFGR1 register:

• OVRMOD = 0
- – An overrun event preserves the data register from being overwritten: the old data is maintained and the new conversion is discarded. If OVR remains at 1, further conversions can be performed but the resulting data is discarded.
• OVRMOD = 1
- – The data register is overwritten with the last conversion result and the previous unread data is lost. If OVR remains at 1, further conversions can be performed and the ADC_DR register always contains the data from the latest conversion.

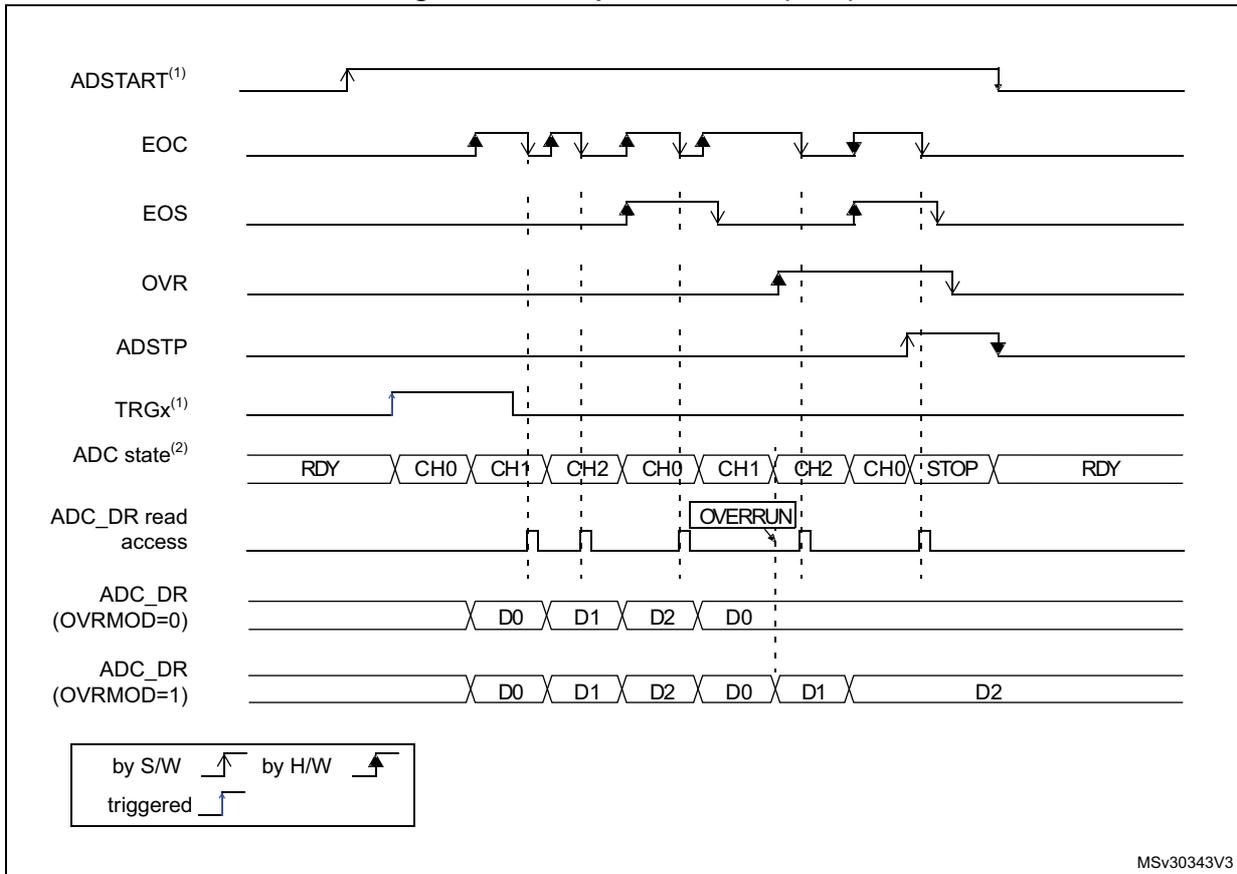

Figure 38. Example of overrun (OVR)

Timing diagram showing ADC signals: ADSTART, EOC, EOS, OVR, ADSTP, TRGx, ADC state, ADC_DR read access, and ADC_DR values for OVRMOD=0 and OVRMOD=1. It illustrates an overrun condition where a new conversion starts before the previous one is read.

The diagram shows the following signals and states over time:

ADSTART ⁽¹⁾: A software trigger (by S/W) that starts the ADC sequence.
EOC : End of Conversion flag, toggling for each channel conversion.
EOS : End of Sequence flag, toggling when the sequence of channels is complete.
OVR : Overrun flag, set when a new conversion starts before the previous one is read.
ADSTP : A hardware trigger (by H/W) that stops the ADC sequence.
TRGx ⁽¹⁾: A hardware trigger (by H/W) that starts the ADC sequence.
ADC state ⁽²⁾: Shows the sequence of states: RDY, CH0, CH1, CH2, CH0, CH1, CH2, CH0, STOP, RDY.
ADC_DR read access : Shows the software reading the data register. An 'OVERRUN' event is indicated when a read is attempted while a new conversion is still in progress.
ADC_DR (OVRMOD=0) : Data register values: D0, D1, D2, D0. The value D1 is lost due to overrun.
ADC_DR (OVRMOD=1) : Data register values: D0, D1, D2, D0, D1, D2. The register always contains the latest conversion data.

Legend:
by S/W (software trigger)
by H/W (hardware trigger)
triggered (edge trigger)

MSV30343V3

Timing diagram showing ADC signals: ADSTART, EOC, EOS, OVR, ADSTP, TRGx, ADC state, ADC_DR read access, and ADC_DR values for OVRMOD=0 and OVRMOD=1. It illustrates an overrun condition where a new conversion starts before the previous one is read.

13.5.3 Managing a sequence of data converted without using the DMA

If the conversions are slow enough, the conversion sequence can be handled by software. In this case the software must use the EOC flag and its associated interrupt to handle each data result. Each time a conversion is complete, the EOC bit is set in the ADC_ISR register and the ADC_DR register can be read. The OVRMOD bit in the ADC_CFGR1 register should be configured to 0 to manage overrun events as an error.

13.5.4 Managing converted data without using the DMA without overrun

It may be useful to let the ADC convert one or more channels without reading the data after each conversion. In this case, the OVRMOD bit must be configured at 1 and the OVR flag should be ignored by the software. When OVRMOD = 1, an overrun event does not prevent the ADC from continuing to convert and the ADC_DR register always contains the latest conversion data.

13.5.5 Managing converted data using the DMA

Since all converted channel values are stored in a single data register, it is efficient to use DMA when converting more than one channel. This avoids losing the conversion data results stored in the ADC_DR register.

When DMA mode is enabled (DMAEN bit set in the ADC_CFGR1 register), a DMA request is generated after the conversion of each channel. This allows the transfer of the converted data from the ADC_DR register to the destination location selected by the software.

Note: The DMAEN bit in the ADC_CFGR1 register must be set after the ADC calibration phase.

Despite this, if an overrun occurs (OVR = 1) because the DMA could not serve the DMA transfer request in time, the ADC stops generating DMA requests and the data corresponding to the new conversion is not transferred by the DMA. Which means that all the data transferred to the RAM can be considered as valid.

Depending on the configuration of OVRMOD bit, the data is either preserved or overwritten (refer to Section 13.5.2: ADC overrun (OVR, OVRMOD) on page 249 ).

The DMA transfer requests are blocked until the software clears the OVR bit.

Two different DMA modes are proposed depending on the application use and are configured with bit DMACFG in the ADC_CFGR1 register:

• DMA one shot mode (DMACFG = 0).
This mode should be selected when the DMA is programmed to transfer a fixed number of data words.
• DMA circular mode (DMACFG = 1)
This mode should be selected when programming the DMA in circular mode or double buffer mode.

DMA one shot mode (DMACFG = 0)

In this mode, the ADC generates a DMA transfer request each time a new conversion data word is available and stops generating DMA requests once the DMA has reached the last DMA transfer (when a transfer complete interrupt occurs, see Section 10: Direct memory access controller (DMA) on page 188 ) even if a conversion has been started again.

For code example refer to the Appendix section A.7.9: DMA one shot mode sequence code example .

When the DMA transfer is complete (all the transfers configured in the DMA controller have been done):

• The content of the ADC data register is frozen.
• Any ongoing conversion is aborted and its partial result discarded
• No new DMA request is issued to the DMA controller. This avoids generating an overrun error if there are still conversions which are started.
• The scan sequence is stopped and reset
• The DMA is stopped

DMA circular mode (DMACFG = 1)

In this mode, the ADC generates a DMA transfer request each time a new conversion data word is available in the data register, even if the DMA has reached the last DMA transfer. This allows the DMA to be configured in circular mode to handle a continuous analog input data stream.

For code example refer to the Appendix section A.7.10: DMA circular mode sequence code example .

13.6 Low-power features

13.6.1 Wait mode conversion

Wait mode conversion can be used to simplify the software as well as optimizing the performance of applications clocked at low frequency where there might be a risk of ADC overrun occurring.

When the WAIT bit is set in the ADC_CFGR1 register, a new conversion can start only if the previous data has been treated, once the ADC_DR register has been read or if the EOC bit has been cleared.

This is a way to automatically adapt the speed of the ADC to the speed of the system that reads the data.

Note: Any hardware triggers which occur while a conversion is ongoing or during the wait time preceding the read access are ignored.

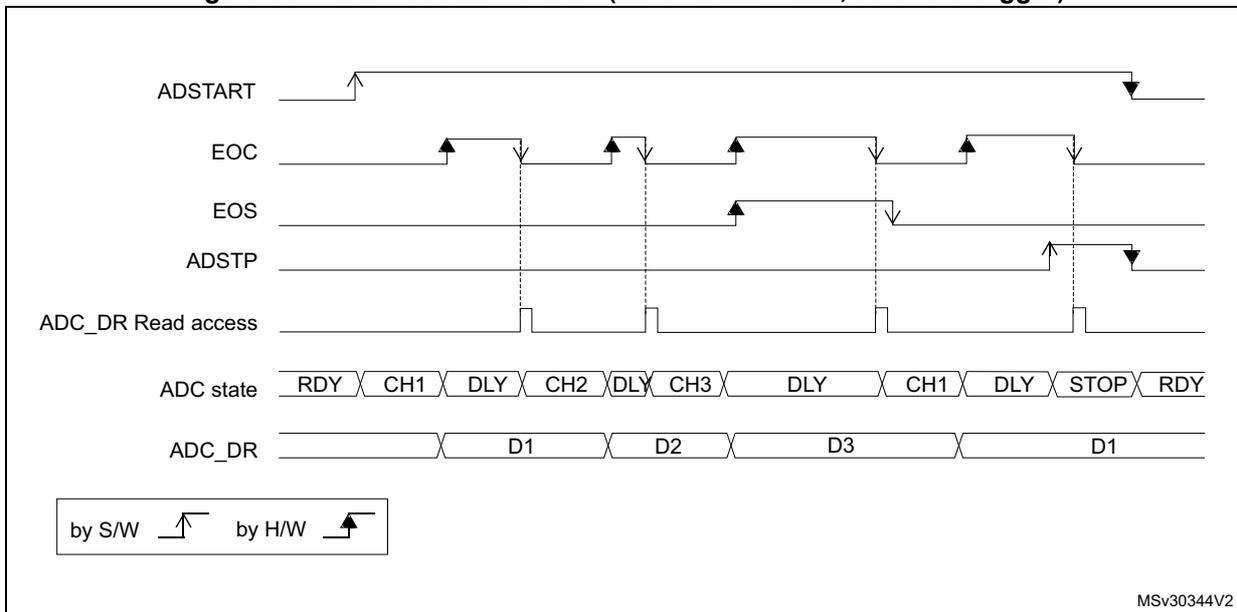

Figure 39. Wait mode conversion (continuous mode, software trigger)

Timing diagram for Figure 39 showing ADC signals: ADSTART, EOC, EOS, ADSTP, ADC_DR Read access, ADC state, and ADC_DR over time. The diagram illustrates the sequence of events in continuous mode with a software trigger, showing the flow between Ready (RDY), Channel (CH1, CH2, CH3), Delay (DLY), and Stop (STOP) states, and the corresponding data output (D1, D2, D3).

The timing diagram shows the following signals and states over time:

ADSTART: A software trigger (S/W) starts the conversion sequence. The signal goes high at the start and low at the end.
EOC (End of Conversion): Pulses high when a conversion is complete and low when it starts. It toggles between CH1, CH2, CH3, and CH1 again.
EOS (End of Sequence): Goes high after the third conversion (CH3) and low when the sequence restarts.
ADSTP (Stop): A hardware trigger (H/W) that stops the conversion sequence, returning the ADC to the Ready (RDY) state.
ADC_DR Read access: Shows pulses when the data register is read. In wait mode, conversions only resume after a read access or when EOC is cleared.
ADC state: A sequence of states: RDY → CH1 → DLY → CH2 → DLY → CH3 → DLY → CH1 → DLY → STOP → RDY.
ADC_DR: The data register output, showing values D1, D2, D3, and then returning to D1.

Legend: by S/W (software trigger, rising edge), by H/W (hardware trigger, falling edge).

MSV30344V2

Timing diagram for Figure 39 showing ADC signals: ADSTART, EOC, EOS, ADSTP, ADC_DR Read access, ADC state, and ADC_DR over time. The diagram illustrates the sequence of events in continuous mode with a software trigger, showing the flow between Ready (RDY), Channel (CH1, CH2, CH3), Delay (DLY), and Stop (STOP) states, and the corresponding data output (D1, D2, D3).

EXTEN = 00, CONT = 1
CHSEL = 0x3, SCANDIR = 0, WAIT = 1, AUTOFF = 0

For code example refer to the Appendix section A.7.11: Wait mode sequence code example .

13.6.2 Auto-off mode (AUTOFF)

The ADC has an automatic power management feature which is called auto-off mode, and is enabled by setting AUTOFF = 1 in the ADC_CFGR1 register.

When AUTOFF = 1, the ADC is always powered off when not converting and automatically wakes-up when a conversion is started (by software or hardware trigger). A startup-time is automatically inserted between the trigger event which starts the conversion and the sampling time of the ADC. The ADC is then automatically disabled once the sequence of conversions is complete.

Auto-off mode can cause a dramatic reduction in the power consumption of applications which need relatively few conversions or when conversion requests are timed far enough apart (for example with a low frequency hardware trigger) to justify the extra power and extra time used for switching the ADC on and off.

Auto-off mode can be combined with the wait mode conversion (WAIT = 1) for applications clocked at low frequency. This combination can provide significant power savings if the ADC is automatically powered-off during the wait phase and restarted as soon as the ADC_DR register is read by the application (see Figure 41: Behavior with WAIT = 1, AUTOFF = 1 ).

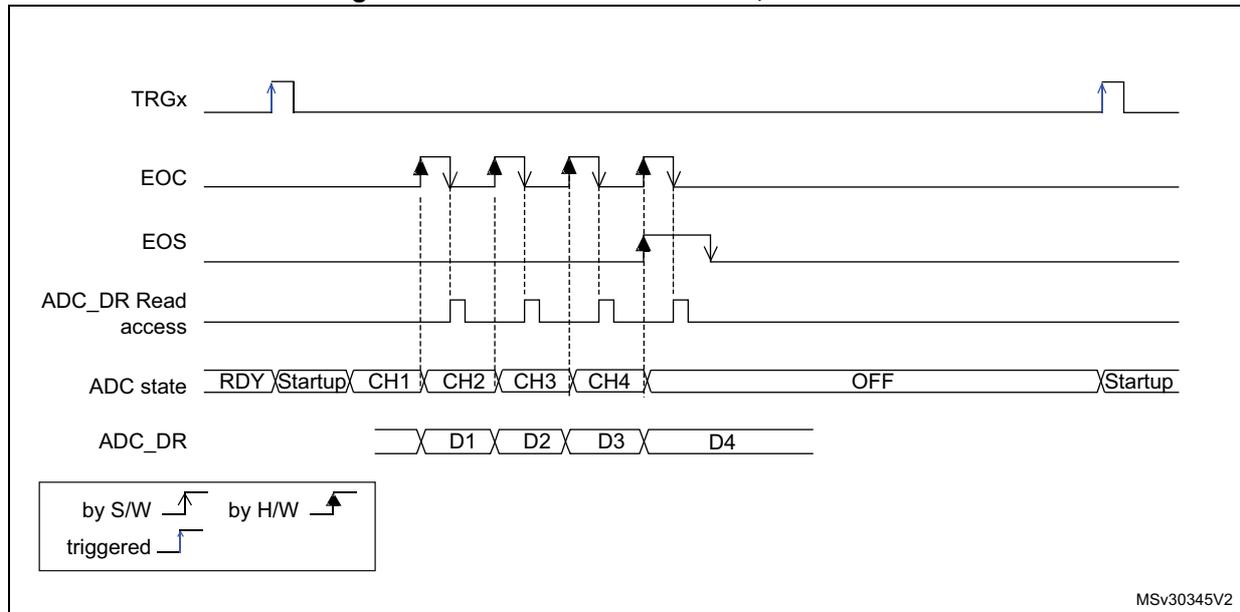

Figure 40. Behavior with WAIT = 0, AUTOFF = 1

Timing diagram for ADC Auto-off mode with WAIT=0. It shows signals TRGx, EOC, EOS, ADC_DR Read access, ADC state, and ADC_DR. A trigger on TRGx initiates a Startup phase, followed by conversions CH1, CH2, CH3, and CH4. EOC pulses after each conversion. EOS pulses after the final conversion. ADC_DR Read access occurs after each EOC. After the sequence, the ADC state transitions to OFF until the next TRGx trigger.

The diagram illustrates the following sequence:

TRGx : Trigger signal (software or hardware). A rising edge starts the process.
EOC : End of Conversion. Pulses high after each channel conversion (CH1, CH2, CH3, CH4).
EOS : End of Sequence. Pulses high after the final conversion in the sequence (CH4).
ADC_DR Read access : Indicates when the CPU reads the data register. These reads occur after each EOC pulse.
ADC state : Transitions from RDY → Startup → CH1 → CH2 → CH3 → CH4 → OFF . It stays OFF until the next trigger.
ADC_DR : Shows the data values D1 , D2 , D3 , and D4 becoming available after their respective conversions.

Legend for triggers:

by S/W: Software trigger (indicated by a specific arrow style).
by H/W: Hardware trigger (indicated by a specific arrow style).
triggered: General trigger event.

MSv30345V2

Timing diagram for ADC Auto-off mode with WAIT=0. It shows signals TRGx, EOC, EOS, ADC_DR Read access, ADC state, and ADC_DR. A trigger on TRGx initiates a Startup phase, followed by conversions CH1, CH2, CH3, and CH4. EOC pulses after each conversion. EOS pulses after the final conversion. ADC_DR Read access occurs after each EOC. After the sequence, the ADC state transitions to OFF until the next TRGx trigger.

1. EXTSEL = TRGx, EXTEN = 01 (rising edge), CONT = x, ADSTART = 1, CHSEL = 0xF, SCANDIR = 0, WAIT = 1, AUTOFF = 1

For code example refer to the Appendix section A.7.12: Auto Off and no wait mode sequence code example .

Figure 41. Behavior with WAIT = 1, AUTOFF = 1

The timing diagram illustrates the ADC's operation when WAIT=1 and AUTOFF=1. The TRGx signal is triggered by a rising edge (H/W). The EOC signal goes high when a conversion is complete and low when the next conversion starts. The EOS signal goes high when the end of the sequence is reached. The ADC_DR Read access signal is shown as a pulse. The ADC state transitions between RDY, Startup, CH1, OFF, CH2, OFF, CH3, OFF, and then repeats for CH1 and CH2. The ADC_DR register contains data D1, D2, D3, and D4. A legend indicates that rising edges are triggered by software (S/W) and hardware (H/W).

Timing diagram showing the behavior of an ADC with WAIT=1 and AUTOFF=1. The diagram includes signals for TRGx (trigger), EOC (end of conversion), EOS (end of sequence), ADC_DR Read access, ADC state, and ADC_DR (data register). The ADC state shows a sequence of RDY, Startup, CH1, OFF, Startup, CH2, OFF, Startup, CH3, OFF, Startup, CH1, OFF, Startup, CH2. Data D1, D2, D3, and D4 are shown in the ADC_DR register. A legend indicates that rising edges are triggered by software (S/W) and hardware (H/W).

1. EXTSEL = TRGx, EXTEN = 01 (rising edge), CONT = x, ADSTART = 1, CHSEL = 0xF, SCANDIR = 0, WAIT = 1, AUTOFF = 1

For code example refer to the Appendix section A.7.13: Auto Off and wait mode sequence code example .

13.7 Analog window watchdog

13.7.1 Description of the analog watchdog

The AWD analog watchdog is enabled by setting the AWDEN bit in the ADC_CFGR1 register. It is used to monitor that either one selected channel or all enabled channels (see Table 48: Analog watchdog channel selection ) remain within a configured voltage range (window) as shown in Figure 42 .

The AWD analog watchdog status bit is set if the analog voltage converted by the ADC is below a lower threshold or above a higher threshold. These thresholds are programmed in HT[11:0] and LT[11:0] bit of ADC_TR register. An interrupt can be enabled by setting the AWDIE bit in the ADC_IER register.

The AWD flag is cleared by software by programming it to it.

When converting data with a resolution of less than 12-bit (according to bits RES[1:0]), the LSB of the programmed thresholds must be kept cleared because the internal comparison is always performed on the full 12-bit raw converted data (left aligned).

For code example refer to the Appendix section A.7.14: Analog watchdog code example .

Table 47 describes how the comparison is performed for all the possible resolutions.

Table 47. Analog watchdog comparison

Resolution bits RES[1:0]	Analog Watchdog comparison between:		Comments
Resolution bits RES[1:0]	Raw converted data, left aligned ⁽¹⁾	Thresholds	Comments
00: 12-bit	DATA[11:0]	LT[11:0] and HT[11:0]	-
01: 10-bit	DATA[11:2],00	LT[11:0] and HT[11:0]	The user must configure LT1[1:0] and HT1[1:0] to “00”
10: 8-bit	DATA[11:4],0000	LT[11:0] and HT[11:0]	The user must configure LT1[3:0] and HT1[3:0] to “0000”
11: 6-bit	DATA[11:6],000000	LT[11:0] and HT[11:0]	The user must configure LT1[5:0] and HT1[5:0] to “000000”

1. The watchdog comparison is performed on the raw converted data before any alignment calculation.

Table 48 shows how to configure the AWDSGL and AWDEN bits in the ADC_CFGR1 register to enable the analog watchdog on one or more channels.

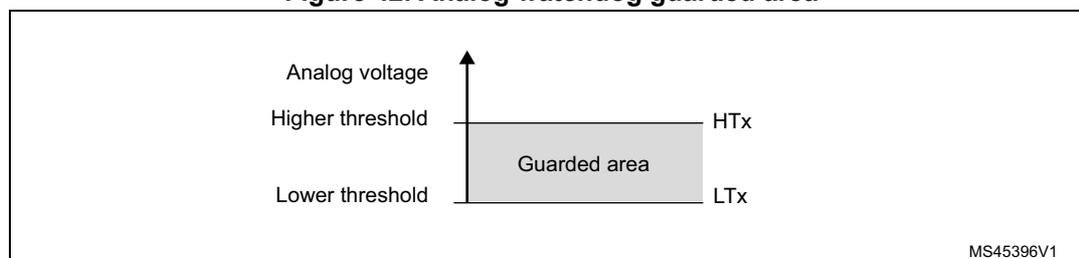

Figure 42. Analog watchdog guarded area

Figure 42: Analog watchdog guarded area diagram. A vertical axis represents 'Analog voltage'. Two horizontal lines mark the 'Higher threshold' (HTx) and 'Lower threshold' (LTx). The region between these thresholds is shaded and labeled 'Guarded area'. The diagram is labeled MS45396V1 in the bottom right corner.

Table 48. Analog watchdog channel selection

Channels guarded by the analog watchdog	AWDSGL bit	AWDEN bit
None	x	0
All channels	0	1
Single ⁽¹⁾channel	1	1

1. Selected by the AWDCH[4:0] bits

13.7.2 ADC_AWD1_OUT output signal generation

The analog watchdog is associated to an internal hardware signal, ADC_AWD1_OUT that is directly connected to the ETR input (external trigger) of some on-chip timers (refer to the timers section for details on how to select the ADC_AWD1_OUT signal as ETR).

ADC_AWD1_OUT is activated when the analog watchdog is enabled:

• ADC_AWD1_OUT is set when a guarded conversion is outside the programmed thresholds.
• ADC_AWD1_OUT is reset after the end of the next guarded conversion which is inside the programmed thresholds. It remains at 1 if the next guarded conversions are still outside the programmed thresholds.
• ADC_AWD1_OUT is also reset when disabling the ADC (when setting ADDIS to 1). Note that stopping conversions (ADSTP set), might clear the ADC_AWD1_OUT state.
• ADC_AWD1_OUT state does not change when the ADC converts the none-guarded channel (see Figure 43 )

AWD flag is set by hardware and reset by software: AWD flag has no influence on the generation of ADC_AWD1_OUT (as an example, ADC_AWD1_OUT can toggle while AWD flag remains at 1 if the software has not cleared the flag).

The ADC_AWD1_OUT signal is generated by the ADC_CLK domain. This signal can be generated even the APB clock is stopped.

The AWD comparison is performed at the end of each ADC conversion. The ADC_AWD1_OUT rising edge and falling edge occurs two ADC_CLK clock cycles after the comparison.

As ADC_AWD1_OUT is generated by the ADC_CLK domain and AWD flag is generated by the APB clock domain, the rising edges of these signals are not synchronized.

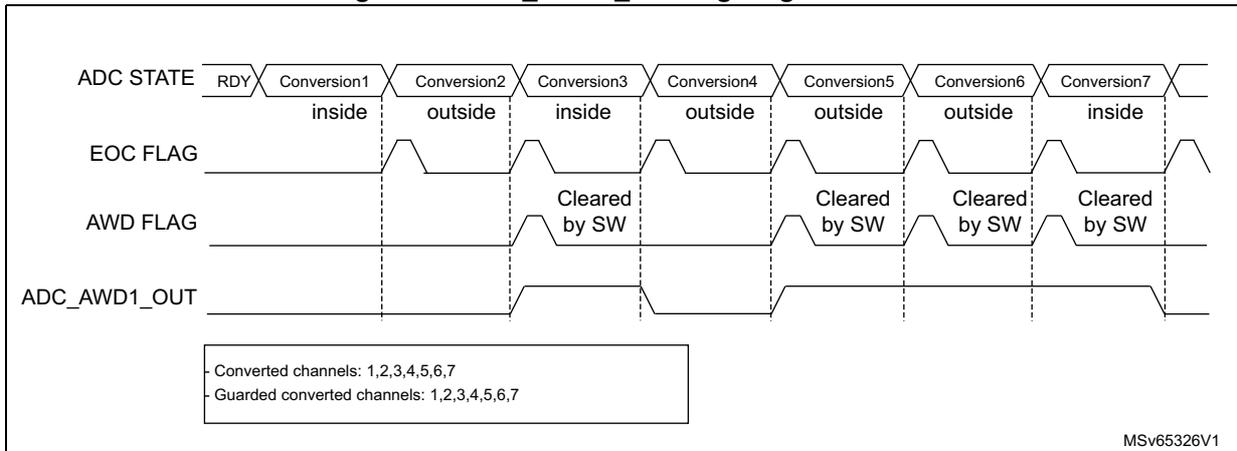

Figure 43. ADC_AWD1_OUT signal generation

Timing diagram showing ADC STATE, EOC FLAG, AWD FLAG, and ADC_AWD1_OUT signals across seven conversions. Legend: - Converted channels: 1,2,3,4,5,6,7; - Guarded converted channels: 1,2,3,4,5,6,7.

The figure is a timing diagram illustrating the relationship between ADC state, EOC flag, AWD flag, and ADC_AWD1_OUT signal across seven conversions. The legend indicates that converted channels are 1,2,3,4,5,6,7 and guarded converted channels are 1,2,3,4,5,6,7.

Signal	RDY	Conversion1	Conversion2	Conversion3	Conversion4	Conversion5	Conversion6	Conversion7
ADC STATE	RDY	inside	outside	inside	outside	outside	outside	inside
EOC FLAG	Low	High	Low	High	Low	High	Low	High
AWD FLAG	Low	Low	High	Low	High	High	High	Low
ADC_AWD1_OUT	Low	Low	High	Low	High	High	High	Low

Notes on the diagram:
- The AWD FLAG is cleared by software (SW) after Conversion3, Conversion4, Conversion5, and Conversion6.
- The ADC_AWD1_OUT signal is generated by the ADC_CLK domain and its edges occur two ADC_CLK clock cycles after the comparison.
- The AWD flag is generated by the APB clock domain.
- MSV65326V1

Timing diagram showing ADC STATE, EOC FLAG, AWD FLAG, and ADC_AWD1_OUT signals across seven conversions. Legend: - Converted channels: 1,2,3,4,5,6,7; - Guarded converted channels: 1,2,3,4,5,6,7.

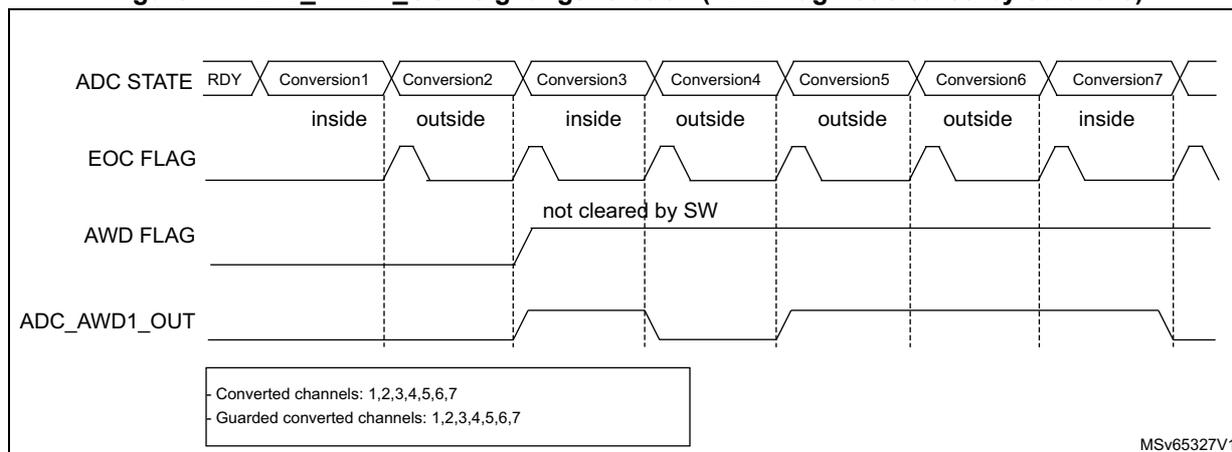

Figure 44. ADC_AWD1_OUT signal generation (AWD flag not cleared by software)

Timing diagram for Figure 44 showing ADC STATE, EOC FLAG, AWD FLAG, and ADC_AWD1_OUT signals over seven conversions. The AWD FLAG is set at the end of Conversion3 and remains high because it is not cleared by software. The ADC_AWD1_OUT signal goes high at the end of Conversion3 and stays high until the end of Conversion7.

EOC FLAG: Pulses at the end of each conversion.

AWD FLAG: Goes high at the end of Conversion3 and remains high (not cleared by SW).

ADC_AWD1_OUT: Goes high at the end of Conversion3 and stays high until the end of Conversion7.

- Converted channels: 1,2,3,4,5,6,7
- Guarded converted channels: 1,2,3,4,5,6,7

MSV65327V1

Timing diagram for Figure 44 showing ADC STATE, EOC FLAG, AWD FLAG, and ADC_AWD1_OUT signals over seven conversions. The AWD FLAG is set at the end of Conversion3 and remains high because it is not cleared by software. The ADC_AWD1_OUT signal goes high at the end of Conversion3 and stays high until the end of Conversion7.

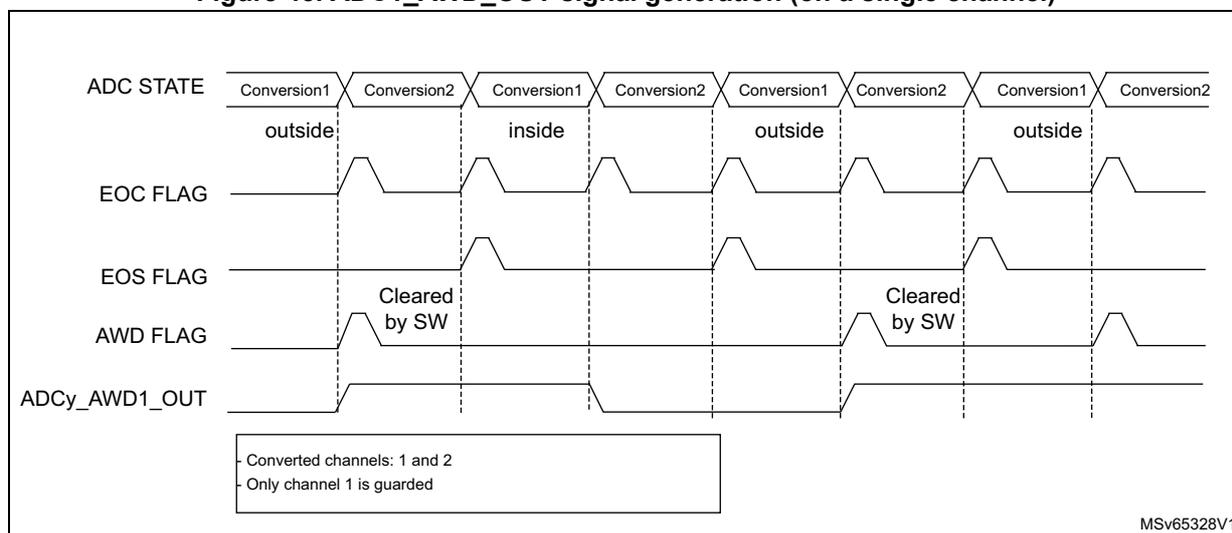

Figure 45. ADC1_AWD_OUT signal generation (on a single channel)

Timing diagram for Figure 45 showing ADC STATE, EOC FLAG, EOS FLAG, AWD FLAG, and ADCy_AWD1_OUT signals over four pairs of conversions. Only channel 1 is guarded. The AWD FLAG is cleared by software. The ADCy_AWD1_OUT signal goes high when Conversion1 is 'inside' and low when it is 'outside'.

EOC FLAG: Pulses at the end of each conversion.

EOS FLAG: Pulses at the end of each pair of conversions. It is labeled 'Cleared by SW'.

AWD FLAG: Pulses when Conversion1 is 'inside' and is cleared by software.

ADCy_AWD1_OUT: Goes high when Conversion1 is 'inside' and low when it is 'outside'.

- Converted channels: 1 and 2
- Only channel 1 is guarded

MSV65328V1

Timing diagram for Figure 45 showing ADC STATE, EOC FLAG, EOS FLAG, AWD FLAG, and ADCy_AWD1_OUT signals over four pairs of conversions. Only channel 1 is guarded. The AWD FLAG is cleared by software. The ADCy_AWD1_OUT signal goes high when Conversion1 is 'inside' and low when it is 'outside'.

13.7.3 Analog watchdog threshold control

LT[11:0] and HT[11:0] can be changed during an analog-to-digital conversion (that is between the start of the conversion and the end of conversion of the ADC internal state). If LT and HT bits are programmed during the ADC guarded channel conversion, the watchdog function is masked for this conversion. This mask is cleared when starting a new conversion, and the resulting new AWD threshold is applied starting the next ADC conversion result. AWD comparison is performed at each end of conversion. If the current ADC data are out of the new threshold interval, this does not generate any interrupt or an ADC_AWD1_OUT signal. The Interrupt and the ADC_AWD1_OUT generation only occurs at the end of the ADC conversion that started after the threshold update. If ADC_AWD1_OUT is already asserted, programming the new threshold does not deassert the ADC_AWD1_OUT signal.

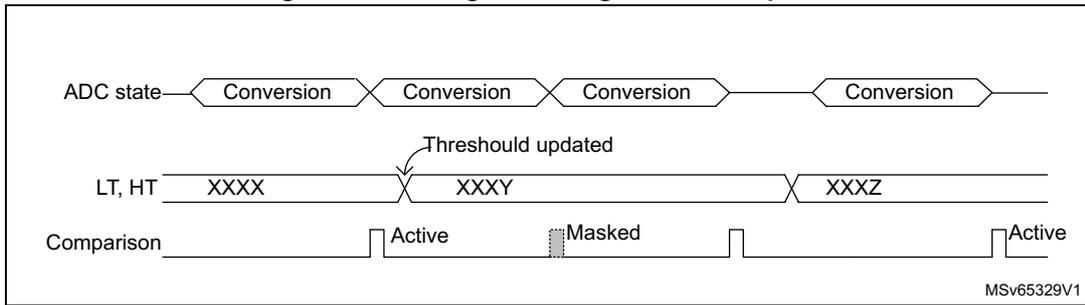

Figure 46. Analog watchdog threshold update

The diagram illustrates the relationship between ADC conversions and threshold updates. The top row shows the 'ADC state' with four 'Conversion' blocks. The middle row shows the 'LT, HT' threshold values: 'XXXX', 'XXXY', and 'XXXZ'. An arrow labeled 'Threshold updated' points to the transition between 'XXXX' and 'XXXY' which occurs during the second conversion. The bottom row shows the 'Comparison' status: it is 'Active' during the first conversion, then becomes 'Masked' for the duration of the second conversion (where the update occurred) and the third conversion, and finally returns to 'Active' for the fourth conversion. The code 'MSv65329V1' is in the bottom right corner.

Timing diagram showing ADC state, LT/HT threshold updates, and Comparison status.

13.8 Temperature sensor and internal reference voltage

The temperature sensor can be used to measure the junction temperature ( $$ T_J $$ ) of the device. The temperature sensor is internally connected to the ADC $V_{IN}[16]$ input channel which is used to convert the sensor's output voltage to a digital value. The sampling time for the temperature sensor analog pin must be greater than the minimum $T_{S\_temp}$ value specified in the datasheet. When not in use, the sensor can be put in power down mode.

The temperature sensor output voltage changes linearly with temperature, however its characteristics may vary significantly from chip to chip due to the process variations. To improve the accuracy of the temperature sensor (especially for absolute temperature measurement), calibration values are individually measured for each part by ST during production test and stored in the system memory area. Refer to the specific device datasheet for additional information.

The internal voltage reference ( $V_{REFINT}$ ) provides a stable (bandgap) voltage output for the ADC and comparators. $V_{REFINT}$ is internally connected to the ADC $V_{IN}[17]$ input channel. The precise voltage of $V_{REFINT}$ is individually measured for each part by ST during production test and stored in the system memory area.

Figure 47 shows the block diagram of connections between the temperature sensor, the internal voltage reference and the ADC.

The TSEN bit must be set to enable the conversion of ADC $V_{IN}[16]$ (temperature sensor) and the VREFEN bit must be set to enable the conversion of ADC $V_{IN}[17]$ ( $V_{REFINT}$ ).

Figure 47. Temperature sensor and V_REFINTchannel block diagram

Figure 47. Temperature sensor and VREFINT channel block diagram. The diagram shows two input sources connected to an ADC. The top source is a 'Temperature sensor' block connected to a multiplexer. The output of this multiplexer is labeled VSENSE and is connected to the ADC's V_IN[16] input. The bottom source is an 'Internal power block' block connected to another multiplexer. The output of this multiplexer is labeled VREFINT and is connected to the ADC's V_IN[17] input. The ADC block has two control inputs: 'TSEN control bit' for the top multiplexer and 'VREFEN control bit' for the bottom multiplexer. The ADC outputs 'converted data' to an 'Address/data bus'.

Reading the temperature

1. Select the ADC V _IN[16] input channel.
2. Select an appropriate sampling time specified in the device datasheet (T _{S_temp}).
3. Set the TSEN bit in the ADC_CCR register to wake up the temperature sensor from power down mode and wait for its stabilization time (t _START).
For code example refer to the Appendix section A.7.15: Temperature configuration code example .
4. Start the ADC conversion by setting the ADSTART bit in the ADC_CR register (or by external trigger).
5. Read the resulting V _SENSEdata in the ADC_DR register.
6. Calculate the temperature using the following formula

\text{Temperature (in } ^\circ\text{C)} = \frac{\text{TS\_CAL2\_TEMP} - \text{TS\_CAL1\_TEMP}}{\text{TS\_CAL2} - \text{TS\_CAL1}} \times (\text{TS\_DATA} - \text{TS\_CAL1}) + \text{TS\_CAL1\_TEMP}

Where:

- • TS_CAL2 is the temperature sensor calibration value acquired at TS_CAL2_TEMP (refer to the datasheet for TS_CAL2 value)
- • TS_CAL1 is the temperature sensor calibration value acquired at TS_CAL1_TEMP (refer to the datasheet for TS_CAL1 value)
- • TS_DATA is the actual temperature sensor output value converted by ADC
Refer to the specific device datasheet for more information about TS_CAL1 and TS_CAL2 calibration points.

For code example refer to the A.7.16: Temperature computation code example .

Note: The sensor has a startup time after waking from power down mode before it can output V _SENSEat the correct level. The ADC also has a startup time after power-on, so to minimize the delay, the ADEN and TSEN bits should be set at the same time.

Calculating the actual $V_{DDA}$ voltage using the internal reference voltage

The $V_{DDA}$ power supply voltage applied to the device may be subject to variation or not precisely known. The embedded internal voltage reference ( $V_{REFINT}$ ) and its calibration data, acquired by the ADC during the manufacturing process at $V_{DDA\_Charac}$ , can be used to evaluate the actual $V_{DDA}$ voltage level.

The following formula gives the actual $V_{DDA}$ voltage supplying the device:

V_{DDA} = V_{DDA\_Charac} \times VREFINT\_CAL / VREFINT\_DATA

Where:

• $V_{DDA\_Charac}$ is the value of $V_{DDA}$ voltage characterized at $V_{REFINT}$ during the manufacturing process. It is specified in the device datasheet.
• $VREFINT\_CAL$ is the $$ VREFINT $$ calibration value
• $VREFINT\_DATA$ is the actual $$ VREFINT $$ output value converted by ADC

Converting a supply-relative ADC measurement to an absolute voltage value

The ADC is designed to deliver a digital value corresponding to the ratio between the analog power supply and the voltage applied on the converted channel. For most application use cases, it is necessary to convert this ratio into a voltage independent of $V_{DDA}$ . For applications where $V_{DDA}$ is known and ADC converted values are right-aligned you can use the following formula to get this absolute value:

V_{CHANNELx} = \frac{V_{DDA}}{FULL\_SCALE} \times ADC\_DATA_x

For applications where $V_{DDA}$ value is not known, you must use the internal voltage reference and $V_{DDA}$ can be replaced by the expression provided in Section : Calculating the actual $V_{DDA}$ voltage using the internal reference voltage , resulting in the following formula:

V_{CHANNELx} = \frac{V_{DDA\_Charac} \times VREFINT\_CAL \times ADC\_DATA_x}{VREFINT\_DATA \times FULL\_SCALE}

Where:

• $V_{DDA\_Charac}$ is the value of $V_{DDA}$ voltage characterized at $V_{REFINT}$ during the manufacturing process. It is specified in the device datasheet.
• $VREFINT\_CAL$ is the $$ VREFINT $$ calibration value
• $ADC\_DATA_x$ is the value measured by the ADC on channelx (right-aligned)
• $VREFINT\_DATA$ is the actual $$ VREFINT $$ output value converted by the ADC
• $full\_SCALE$ is the maximum digital value of the ADC output. For example with 12-bit resolution, it is $2^{12} - 1 = 4095$ or with 8-bit resolution, $$ 2^8 - 1 = 255 $$ .

Note: If ADC measurements are done using an output format other than 12 bit right-aligned, all the parameters must first be converted to a compatible format before the calculation is done.

13.9 Battery voltage monitoring

The $V_{BATEN}$ bit in the $ADC\_CCR$ register allows the application to measure the backup battery voltage on the $V_{BAT}$ pin. As the $V_{BAT}$ voltage could be higher than $V_{DDA}$ , to ensure the correct operation of the ADC, the $V_{BAT}$ pin is internally connected to a bridge divider. This bridge is automatically enabled when $V_{BATEN}$ is set, to connect $V_{BAT}$ to the ADC $V_{IN}[18]$ input channel. As a consequence, the converted digital value is $V_{BAT}/2$ . To prevent

any unwanted consumption on the battery, it is recommended to enable the bridge divider only when needed for ADC conversion.

13.10 ADC interrupts

An interrupt can be generated by any of the following events:

• ADC power-up, when the ADC is ready (ADRDY flag)
• End of any conversion (EOC flag)
• End of a sequence of conversions (EOS flag)
• When an analog watchdog detection occurs (AWD flag)
• When the end of sampling phase occurs (EOSMP flag)
• when a data overrun occurs (OVR flag)

Separate interrupt enable bits are available for flexibility.

Table 49. ADC interrupts

Interrupt event	Event flag	Enable control bit
ADC ready	ADRDY	ADRDYIE
End of conversion	EOC	EOCIE
End of sequence of conversions	EOS	EOSIE
Analog watchdog status bit is set	AWD	AWDIE
End of sampling phase	EOSMP	EOSMPIE
Overrun	OVR	OVRIE

13.11 ADC registers

Refer to Section 1.2 for a list of abbreviations used in register descriptions.

13.11.1 ADC interrupt and status register (ADC_ISR)

Address offset: 0x00

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	AWD	Res.	Res.	OVR	EOS	EOC	EOSMP	ADRDY
								rc_w1			rc_w1	rc_w1	rc_w1	rc_w1	rc_w1

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:10 Reserved, must be kept at reset value.

Bits 9:8 Reserved, must be kept at reset value.

Bit 7 AWD : Analog watchdog flag

This bit is set by hardware when the converted voltage crosses the values programmed in ADC_TR register. It is cleared by software by programming it to 1.

0: No analog watchdog event occurred (or the flag event was already acknowledged and cleared by software)

1: Analog watchdog event occurred

Bits 6:5 Reserved, must be kept at reset value.

Bit 4 OVR : ADC overrun

This bit is set by hardware when an overrun occurs, meaning that a new conversion has complete while the EOC flag was already set. It is cleared by software writing 1 to it.

0: No overrun occurred (or the flag event was already acknowledged and cleared by software)

1: Overrun has occurred

Bit 3 EOS : End of sequence flag

This bit is set by hardware at the end of the conversion of a sequence of channels selected by the CHSEL bits. It is cleared by software writing 1 to it.

0: Conversion sequence not complete (or the flag event was already acknowledged and cleared by software)

1: Conversion sequence complete

Bit 2 EOC : End of conversion flag

This bit is set by hardware at the end of each conversion of a channel when a new data result is available in the ADC_DR register. It is cleared by software writing 1 to it or by reading the ADC_DR register.

0: Channel conversion not complete (or the flag event was already acknowledged and cleared by software)

1: Channel conversion complete

Bit 1 EOSMP : End of sampling flag

This bit is set by hardware during the conversion, at the end of the sampling phase. It is cleared by software by programming it to '1'.

0: Not at the end of the sampling phase (or the flag event was already acknowledged and cleared by software)

1: End of sampling phase reached

Bit 0 ADRDY : ADC ready

This bit is set by hardware after the ADC has been enabled (ADEN = 1) and when the ADC reaches a state where it is ready to accept conversion requests.

It is cleared by software writing 1 to it.

0: ADC not yet ready to start conversion (or the flag event was already acknowledged and cleared by software)

1: ADC is ready to start conversion

Note: In auto-off mode (AUTOFF = 1) the power-on/off phases are performed automatically, by hardware and the ADRDY flag is not set.

13.11.2 ADC interrupt enable register (ADC_IER)

Address offset: 0x04

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	AWDIE	Res.	Res.	OVRIE	EOSIE	EOCIE	EOSMP IE	ADRDY IE
								rw			rw	rw	rw	rw	rw

Bits 31:13 Reserved, must be kept at reset value.

Bits 12:10 Reserved, must be kept at reset value.

Bits 9:8 Reserved, must be kept at reset value.

Bit 7 AWDIE : Analog watchdog interrupt enable

This bit is set and cleared by software to enable/disable the analog watchdog interrupt.

0: Analog watchdog interrupt disabled

1: Analog watchdog interrupt enabled

Note: The Software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bits 6:5 Reserved, must be kept at reset value.

Bit 4 OVRIE: Overrun interrupt enable

This bit is set and cleared by software to enable/disable the overrun interrupt.

0: Overrun interrupt disabled

1: Overrun interrupt enabled. An interrupt is generated when the OVR bit is set.

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 3 EOSIE: End of conversion sequence interrupt enable

This bit is set and cleared by software to enable/disable the end of sequence of conversions interrupt.

0: EOS interrupt disabled

1: EOS interrupt enabled. An interrupt is generated when the EOS bit is set.

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 2 EOCIE: End of conversion interrupt enable

This bit is set and cleared by software to enable/disable the end of conversion interrupt.

0: EOC interrupt disabled

1: EOC interrupt enabled. An interrupt is generated when the EOC bit is set.

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 1 EOSMPIE: End of sampling flag interrupt enable

This bit is set and cleared by software to enable/disable the end of the sampling phase interrupt.

0: EOSMP interrupt disabled.

1: EOSMP interrupt enabled. An interrupt is generated when the EOSMP bit is set.

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 0 ADRDYIE: ADC ready interrupt enable

This bit is set and cleared by software to enable/disable the ADC Ready interrupt.

0: ADRDY interrupt disabled.

1: ADRDY interrupt enabled. An interrupt is generated when the ADRDY bit is set.

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

13.11.3 ADC control register (ADC_CR)

Address offset: 0x08

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
ADCAL	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
rs
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	ADSTP	Res.	ADSTART	ADDIS	ADEN
											rs		rs	rs	rs

Bit 31 ADCAL: ADC calibration

This bit is set by software to start the calibration of the ADC.

It is cleared by hardware after calibration is complete.

0: Calibration complete

1: Write 1 to calibrate the ADC. Read at 1 means that a calibration is in progress.

Note: The software is allowed to set ADCAL only when the ADC is disabled (ADCAL = 0, ADSTART = 0, ADSTP = 0, ADDIS = 0, AUTOFF = 0, and ADEN = 0).

is allowed to

Bits 30:28 Reserved, must be kept at reset value.

Bits 27:5 Reserved, must be kept at reset value.

Bit 4 ADSTP: ADC stop conversion command

This bit is set by software to stop and discard an ongoing conversion (ADSTP Command).

It is cleared by hardware when the conversion is effectively discarded and the ADC is ready to accept a new start conversion command.

0: No ADC stop conversion command ongoing

1: Write 1 to stop the ADC. Read 1 means that an ADSTP command is in progress.

Note: Setting ADSTP to '1' is only effective when ADSTART = 1 and ADDIS = 0 (ADC is enabled and may be converting and there is no pending request to disable the ADC)

Bit 3 Reserved, must be kept at reset value.

Bit 2 ADSTART: ADC start conversion command

This bit is set by software to start ADC conversion. Depending on the EXTEN [1:0] configuration bits, a conversion either starts immediately (software trigger configuration) or once a hardware trigger event occurs (hardware trigger configuration).

It is cleared by hardware:

– In single conversion mode (CONT = 0, DISCEN = 0), when software trigger is selected (EXTEN = 00): at the assertion of the end of Conversion Sequence (EOS) flag.
– In discontinuous conversion mode (CONT = 0, DISCEN = 1), when the software trigger is selected (EXTEN = 00): at the assertion of the end of Conversion (EOC) flag.
– In all other cases: after the execution of the ADSTP command, at the same time as the ADSTP bit is cleared by hardware.

0: No ADC conversion is ongoing.

1: Write 1 to start the ADC. Read 1 means that the ADC is operating and may be converting.

Note: The software is allowed to set ADSTART only when ADEN = 1 and ADDIS = 0 (ADC is enabled and there is no pending request to disable the ADC).

Bit 1 ADDIS: ADC disable command

This bit is set by software to disable the ADC (ADDIS command) and put it into power-down state (OFF state).

It is cleared by hardware once the ADC is effectively disabled (ADEN is also cleared by hardware at this time).

0: No ADDIS command ongoing

1: Write 1 to disable the ADC. Read 1 means that an ADDIS command is in progress.

Note: Setting ADDIS to '1' is only effective when ADEN = 1 and ADSTART = 0 (which ensures that no conversion is ongoing)

Bit 0 ADEN: ADC enable command

This bit is set by software to enable the ADC. The ADC is effectively ready to operate once the ADRDY flag has been set.

It is cleared by hardware when the ADC is disabled, after the execution of the ADDIS command.

0: ADC is disabled (OFF state)

1: Write 1 to enable the ADC.

Note: The software is allowed to set ADEN only when all bits of ADC_CR registers are 0 (ADCAL = 0, ADSTP = 0, ADSTART = 0, ADDIS = 0 and ADEN = 0)

13.11.4 ADC configuration register 1 (ADC_CFGR1)

Address offset: 0x0C

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	AWDCH[4:0]					Res.	Res.	AWDEN	AWDSGL	Res.	Res.	Res.	Res.	Res.	DISCEN
	rw	rw	rw	rw	rw			rw	rw						rw

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
AUTOFF	WAIT	CONT	OVRMOD	EXTEN[1:0]		Res.	EXTSEL[2:0]			ALIGN	RES[1:0]		SCANDIR	DMACFG	DMAEN
rw	rw	rw	rw	rw	rw		rw	rw	rw	rw	rw	rw	rw	rw	rw

Bit 31 Reserved, must be kept at reset value.

Bits 30:26 AWDCH[4:0] : Analog watchdog channel selection

These bits are set and cleared by software. They select the input channel to be guarded by the analog watchdog.

00000: ADC analog input Channel 0 monitored by AWD

00001: ADC analog input Channel 1 monitored by AWD

.....

10001: ADC analog input Channel 17 monitored by AWD

10010: ADC analog input Channel 18 monitored by AWD

Others: Reserved

Note: The channel selected by the AWDCH[4:0] bits must be also set into the CHSELR register.

The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bits 25:24 Reserved, must be kept at reset value.

Bit 23 AWDEN : Analog watchdog enable

This bit is set and cleared by software.

0: Analog watchdog disabled

1: Analog watchdog enabled

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 22 AWDSGL : Enable the watchdog on a single channel or on all channels

This bit is set and cleared by software to enable the analog watchdog on the channel identified by the AWDCH[4:0] bits or on all the channels

0: Analog watchdog enabled on all channels

1: Analog watchdog enabled on a single channel

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bits 21:17 Reserved, must be kept at reset value.

Bit 16 DISCEN : Discontinuous mode

This bit is set and cleared by software to enable/disable discontinuous mode.

0: Discontinuous mode disabled

1: Discontinuous mode enabled

Note: It is not possible to have both discontinuous mode and continuous mode enabled: it is forbidden to set both bits DISCEN = 1 and CONT = 1.

The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 15 AUTOFF : Auto-off mode

This bit is set and cleared by software to enable/disable auto-off mode.

0: Auto-off mode disabled

1: Auto-off mode enabled

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 14 WAIT : Wait conversion mode

This bit is set and cleared by software to enable/disable wait conversion mode.

0: Wait conversion mode off

1: Wait conversion mode on

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 13 CONT : Single / continuous conversion mode

This bit is set and cleared by software. If it is set, conversion takes place continuously until it is cleared.

0: Single conversion mode

1: Continuous conversion mode

Note: It is not possible to have both discontinuous mode and continuous mode enabled: it is forbidden to set both bits DISCEN = 1 and CONT = 1.

The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 12 OVRMOD : Overrun management mode

This bit is set and cleared by software and configure the way data overruns are managed.

0: ADC_DR register is preserved with the old data when an overrun is detected.

1: ADC_DR register is overwritten with the last conversion result when an overrun is detected.

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bits 11:10 EXTEN[1:0] : External trigger enable and polarity selection

These bits are set and cleared by software to select the external trigger polarity and enable the trigger.

00: Hardware trigger detection disabled (conversions can be started by software)

01: Hardware trigger detection on the rising edge

10: Hardware trigger detection on the falling edge

11: Hardware trigger detection on both the rising and falling edges

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 9 Reserved, must be kept at reset value.

Bits 8:6 EXTSEL[2:0] : External trigger selection

These bits select the external event used to trigger the start of conversion (refer to Table 43: External triggers for details):

000: TRG0
001: TRG1
010: TRG2
011: TRG3
100: TRG4
101: TRG5
110: TRG6
111: TRG7

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 5 ALIGN : Data alignment

This bit is set and cleared by software to select right or left alignment. Refer to Figure 37: Data alignment and resolution on page 249

0: Right alignment
1: Left alignment

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bits 4:3 RES[1:0] : Data resolution

These bits are written by software to select the resolution of the conversion.

00: 12 bits
01: 10 bits
10: 8 bits
11: 6 bits

Note: The software is allowed to write these bits only when ADEN is cleared.

Bit 2 SCANDIR: Scan sequence direction

This bit is set and cleared by software to select the direction in which the channels is scanned in the sequence.

0: Upward scan (from CHSEL0 to CHSEL18)

1: Backward scan (from CHSEL18 to CHSEL0)

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 1 DMACFG: Direct memory access configuration

This bit is set and cleared by software to select between two DMA modes of operation and is effective only when DMAEN = 1.

0: DMA one shot mode selected

1: DMA circular mode selected

For more details, refer to Section 13.5.5: Managing converted data using the DMA on page 250

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

Bit 0 DMAEN: Direct memory access enable

This bit is set and cleared by software to enable the generation of DMA requests. This allows the DMA controller to be used to manage automatically the converted data. For more details, refer to Section 13.5.5: Managing converted data using the DMA on page 250 .

0: DMA disabled

1: DMA enabled

Note: The software is allowed to write this bit only when ADSTART bit is cleared (this ensures that no conversion is ongoing).

13.11.5 ADC configuration register 2 (ADC_CFGR2)

Address offset: 0x10

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
CKMODE[1:0]	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.

Bits 31:30 CKMODE[1:0] : ADC clock mode

These bits are set and cleared by software to define how the analog ADC is clocked:

00: ADCCLK (Asynchronous clock mode), generated at product level (refer to RCC section)

01: PCLK/2 (Synchronous clock mode)

10: PCLK/4 (Synchronous clock mode)

11: Reserved

In all synchronous clock modes, there is no jitter in the delay from a timer trigger to the start of a conversion.

Note: The software is allowed to write these bits only when the ADC is disabled (ADCAL = 0, ADSTART = 0, ADSTP = 0, ADDIS = 0 and ADEN = 0).

Bits 29:10 Reserved, must be kept at reset value.

Bits 9:0 Reserved, must be kept at reset value.

13.11.6 ADC sampling time register (ADC_SMPR)

Address offset: 0x14

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.

15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	SMP[2:0]
													rw	rw	rw

Bits 31:3 Reserved, must be kept at reset value.

Bits 2:0 SMP[2:0]: Sampling time selection

These bits are written by software to select the sampling time that applies to all channels.

000: 1.5 ADC clock cycles
001: 7.5 ADC clock cycles
010: 13.5 ADC clock cycles
011: 28.5 ADC clock cycles
100: 41.5 ADC clock cycles
101: 55.5 ADC clock cycles
110: 71.5 ADC clock cycles
111: 239.5 ADC clock cycles

Note: The software is allowed to write this bit only when ADSTART = 0 (which ensures that no conversion is ongoing).

13.11.7 ADC watchdog threshold register (ADC_TR)

Address offset: 0x20

Reset value: 0x0FFF 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	HT[11:0]
				rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	LT[11:0]
				rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:28 Reserved, must be kept at reset value.

Bits 27:16 HT[11:0]: Analog watchdog higher threshold

These bits are written by software to define the higher threshold for the analog watchdog. Refer to Section 13.7: Analog window watchdog on page 254

Note: The software is allowed to write this bit only when ADSTART = 0 (which ensures that no conversion is ongoing).

Bits 15:12 Reserved, must be kept at reset value.

Bits 11:0 LT[11:0]: Analog watchdog lower threshold

These bits are written by software to define the lower threshold for the analog watchdog.

Refer to Section 13.7: Analog window watchdog on page 254 .

Note: The software is allowed to write this bit only when ADSTART = 0 (which ensures that no conversion is ongoing).

13.11.8 ADC channel selection register (ADC_CHSELR)

Address offset: 0x28

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	CHSEL 18	CHSEL 17	CHSEL 16
													rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
CHSEL 15	CHSEL 14	CHSEL 13	CHSEL 12	CHSEL 11	CHSEL 10	CHSEL 9	CHSEL 8	CHSEL 7	CHSEL 6	CHSEL 5	CHSEL 4	CHSEL 3	CHSEL 2	CHSEL 1	CHSEL 0
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:19 Reserved, must be kept at reset value.

Bits 18:0 CHSELx : Channel-x selection

These bits are written by software and define which channels are part of the sequence of channels to be converted.

0: Input Channel-x is not selected for conversion

1: Input Channel-x is selected for conversion

Note: The software is allowed to write this bit only when ADSTART = 0 (which ensures that no conversion is ongoing).

13.11.9 ADC data register (ADC_DR)

Address offset: 0x40

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
DATA[15:0]
r	r	r	r	r	r	r	r	r	r	r	r	r	r	r	r

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 DATA[15:0] : Converted data

These bits are read-only. They contain the conversion result from the last converted channel. The data are left- or right-aligned as shown in Figure 37: Data alignment and resolution on page 249 .

Just after a calibration is complete, DATA[6:0] contains the calibration factor.

13.11.10 ADC common configuration register (ADC_CCR)

Address offset: 0x308

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Res.	Res.	Res.	Res.	Res.	Res.	Res.	VBAT EN	TSEN	VREF EN	Res.				Res.	Res.
							rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.

Bits 31:25 Reserved, must be kept at reset value.

Bit 24 VBATEN : V _BATenable

This bit is set and cleared by software to enable/disable the V _BATchannel.

0: V _BATchannel disabled

1: V _BATchannel enabled

Note: The software is allowed to write this bit only when ADSTART = 0 (which ensures that no conversion is ongoing)

Bit 23 TSEN : Temperature sensor enable

This bit is set and cleared by software to enable/disable the temperature sensor.

0: Temperature sensor disabled

1: Temperature sensor enabled

Note: Software is allowed to write this bit only when ADSTART = 0 (which ensures that no conversion is ongoing).

Bit 22 VREFEN : V _REFINTenable

This bit is set and cleared by software to enable/disable the V _REFINT.

0: V _REFINTdisabled

1: V _REFINTenabled

Note: Software is allowed to write this bit only when ADSTART = 0 (which ensures that no conversion is ongoing).

Bits 21:0 Reserved, must be kept at reset value.

13.12 ADC register map

The following table summarizes the ADC registers.

Table 50. ADC register map and reset values

Offset	Register	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
0x00	ADC_ISR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	AWD	Res.	Res.	OVR	EOS	EOC	EOSMP	ADRDY
0x00	Reset value																									0			0	0	0	0	0
0x04	ADC_IER	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	AWDIE	Res.	Res.	OVRIE	EOSIE	EOCIE	EOSMPIE	ADRDYIE
0x04	Reset value																									0			0	0	0	0	0

Table 50. ADC register map and reset values (continued)

Offset	Register	31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
0x08	ADC_CR	ADCAL	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	ADSTP	Res.	ADSTART	ADDIS	ADEN
0x08	Reset value	0																												0		0	0	0
0x0C	ADC_CFGR1	Res.	AWDCH[4:0]					Res.	Res.	AWDEN	AWDSGL	Res.	Res.	Res.	Res.	Res.	DISCEN	AUTOFF	WAIT	CONT	OVRMOD	EXTEN[1:0]	Res.	Res.	EXTSEL [2:0]		ALIGN	RES [1:0]	Res.	SCANDIR	DMACFG	DMAEN
0x0C	Reset value		0	0	0	0	0			0	0						0	0	0	0	0	0	0		0	0	0	0	0	0	0	0	0
0x10	ADC_CFGR2	CKMODE[1:0]	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.		Res.		Res.		Res.		Res.
0x10	Reset value	0	0
0x14	ADC_SMPR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	SMP [2:0]
0x14	Reset value																															0	0
0x18	Reserved	Reserved
0x1C	Reserved	Reserved
0x20	ADC_TR	Res.	Res.	Res.	Res.	HT[11:0]
0x20	Reset value					1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
0x24	Reserved	Reserved
0x28	ADC_CHSELR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	CHSEL18	CHSEL17	CHSEL16	CHSEL15	CHSEL14	CHSEL13	CHSEL12	CHSEL11	CHSEL10	CHSEL9	CHSEL8	CHSEL7	CHSEL6	CHSEL5	CHSEL4	CHSEL3	CHSEL2	CHSEL1
0x28	Reset value															0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
0x2C 0x30 0x34 0x38 0x3C	Reserved	Reserved
0x40	ADC_DR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	DATA[15:0]
0x40	Reset value																	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
...	Reserved	Reserved
...	Reserved	Reserved
...	Reserved	Reserved
0x308	ADC_CCR	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	VBATEN	TSEN	VREFEN	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.	Res.
0x308	Reset value									0	0	0

Refer to Section 2.2 on page 46 for the register boundary addresses.

13. Analog-to-digital converter (ADC)

13.1 Introduction

13.2 ADC main features

13.3 ADC functional description

13.3.1 ADC pins and internal signals

13.3.2 Calibration (ADCAL)

Calibration software procedure

13.3.3 ADC on-off control (ADEN, ADDIS, ADRDY)

13.3.4 ADC clock (CKMODE)

13.3.5 Configuring the ADC

13.3.6 Channel selection (CHSEL, SCANDIR)

Temperature sensor, V REFINT and V BAT internal channels

13.3.7 Programmable sampling time (SMP)

13.3.8 Single conversion mode (CONT = 0)

13.3.9 Continuous conversion mode (CONT = 1)

13.3.10 Starting conversions (ADSTART)

13.3.11 Timings

13.3.12 Stopping an ongoing conversion (ADSTP)

13.4 Conversion on external trigger and trigger polarity (EXTSEL, EXTEN)

13.4.1 Discontinuous mode (DISCEN)

13.4.2 Programmable resolution (RES) - Fast conversion mode

13.4.3 End of conversion, end of sampling phase (EOC, EOSMP flags)

13.4.4 End of conversion sequence (EOS flag)

13.4.5 Example timing diagrams (single/continuous modes hardware/software triggers)

13.5 Data management

13.5.1 Data register and data alignment (ADC_DR, ALIGN)

13.5.2 ADC overrun (OVR, OVRMOD)

13.5.3 Managing a sequence of data converted without using the DMA

13.5.4 Managing converted data without using the DMA without overrun

13.5.5 Managing converted data using the DMA

DMA one shot mode (DMACFG = 0)

DMA circular mode (DMACFG = 1)

13.6 Low-power features

13.6.1 Wait mode conversion

13.6.2 Auto-off mode (AUTOFF)

13.7 Analog window watchdog

13.7.1 Description of the analog watchdog

13.7.2 ADC_AWD1_OUT output signal generation

13.7.3 Analog watchdog threshold control

13.8 Temperature sensor and internal reference voltage

Reading the temperature

Calculating the actual \( V_{DDA} \) voltage using the internal reference voltage

Converting a supply-relative ADC measurement to an absolute voltage value

13.9 Battery voltage monitoring

13.10 ADC interrupts

13.11 ADC registers

13.11.1 ADC interrupt and status register (ADC_ISR)

13.11.2 ADC interrupt enable register (ADC_IER)

13.11.3 ADC control register (ADC_CR)

13.11.4 ADC configuration register 1 (ADC_CFGR1)

13.11.5 ADC configuration register 2 (ADC_CFGR2)

13.11.6 ADC sampling time register (ADC_SMPR)

13.11.7 ADC watchdog threshold register (ADC_TR)

13.11.8 ADC channel selection register (ADC_CHSELR)

13.11.9 ADC data register (ADC_DR)

13.11.10 ADC common configuration register (ADC_CCR)

13.12 ADC register map

Temperature sensor, V _REFINTand V _BATinternal channels

Calculating the actual $V_{DDA}$ voltage using the internal reference voltage
