6. Reset and clock control for STM32F42xxx and STM32F43xxx (RCC)
6.1 Reset
There are three types of reset, defined as system Reset, power Reset and backup domain Reset.
6.1.1 System reset
A system reset sets all registers to their reset values unless specified otherwise in the register description (see Figure 10 ).
A system reset is generated when one of the following events occurs:
- 1. A low level on the NRST pin (external reset)
- 2. Window watchdog end of count condition (WWDG reset)
- 3. Independent watchdog end of count condition (IWDG reset)
- 4. A software reset (SW reset) (see Software reset )
- 5. Low-power management reset (see Low-power management reset )
Software reset
The reset source can be identified by checking the reset flags in the RCC clock control & status register (RCC_CSR) .
The SYSRESETREQ bit in Cortex ® -M4 with FPU Application Interrupt and Reset Control Register must be set to force a software reset on the device. Refer to the Cortex ® -M4 with FPU technical reference manual for more details.
Low-power management reset
There are two ways of generating a low-power management reset:
- 1. Reset generated when entering the Standby mode:
This type of reset is enabled by resetting the nRST_STDBY bit in the user option bytes. In this case, whenever a Standby mode entry sequence is successfully executed, the device is reset instead of entering the Standby mode. - 2. Reset when entering the Stop mode:
This type of reset is enabled by resetting the nRST_STOP bit in the user option bytes. In this case, whenever a Stop mode entry sequence is successfully executed, the device is reset instead of entering the Stop mode.
6.1.2 Power reset
A power reset is generated when one of the following events occurs:
- 1. Power-on/power-down reset (POR/PDR reset) or brownout (BOR) reset
- 2. When exiting the Standby mode
A power reset sets all registers to their reset values except the Backup domain (see Figure 10 )
These sources act on the NRST pin and it is always kept low during the delay phase. The RESET service routine vector is fixed at address 0x0000_0004 in the memory map.
The system reset signal provided to the device is output on the NRST pin. The pulse generator guarantees a minimum reset pulse duration of 20 \( \mu\text{s} \) for each internal reset source. In case of an external reset, the reset pulse is generated while the NRST pin is asserted low.

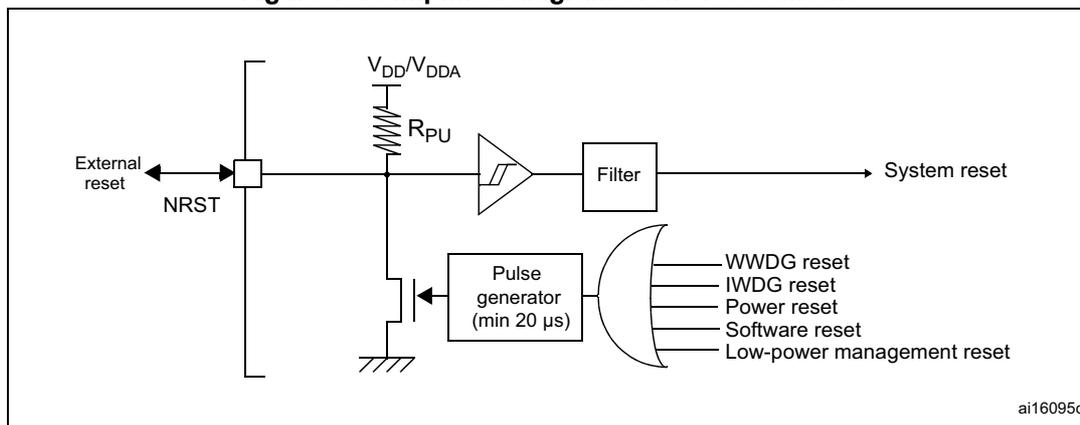

Figure 15. Simplified diagram of the reset circuit
The Backup domain has two specific resets that affect only the Backup domain (see Figure 10 ).
6.1.3 Backup domain reset
The backup domain reset sets all RTC registers, the RCC_BDCR register, and the BRE bit of the PWR_CSR register to their reset values. The BKPSRAM is not affected by this reset. The only way of resetting the BKPSRAM is through the Flash interface by requesting a protection level change from 1 to 0.
A backup domain reset is generated when one of the following events occurs:
- 1. Software reset, triggered by setting the BDRST bit in the RCC Backup domain control register (RCC_BDCR) .
- 2. \( V_{DD} \) or \( V_{BAT} \) power on, if both supplies have previously been powered off.
Note: The DBP bit of the PWR_CR register must be set to generate a backup domain reset.
6.2 Clocks
Three different clock sources can be used to drive the system clock (SYSCLK):
- • HSI oscillator clock
- • HSE oscillator clock
- • Main PLL (PLL) clock
The devices have the two following secondary clock sources:
- • 32 kHz low-speed internal RC (LSI RC) which drives the independent watchdog and, optionally, the RTC used for Auto-wakeup from the Stop/Standby mode.
- • 32.768 kHz low-speed external crystal (LSE crystal) which optionally drives the RTC clock (RTCCLK)
Each clock source can be switched on or off independently when it is not used, to optimize power consumption.

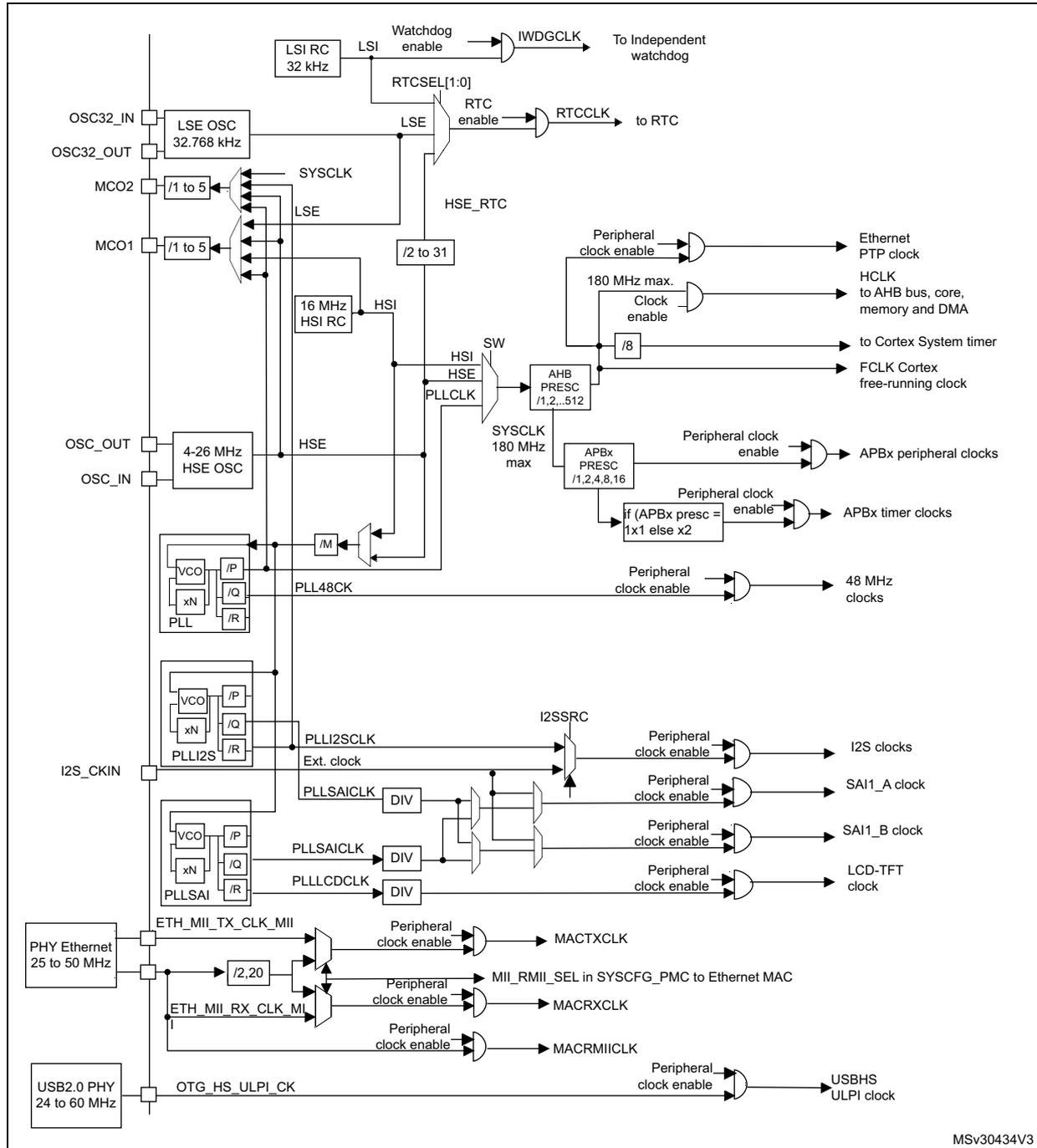

Figure 16. Clock tree
The diagram illustrates the internal clock architecture of the STM32F42xxx and STM32F43xxx microcontrollers. It shows the following components and connections:
- External Oscillators:
- HSE (High-Speed External): Connected to OSC_IN and OSC_OUT pins. Frequency range: 4-26 MHz. It can be divided by /M and fed into the PLL or used directly as SYSCLK.
- LSE (Low-Speed External): Connected to OSC32_IN and OSC32_OUT pins. Frequency: 32.768 kHz. It can be used for the RTC or divided by /1 to /5 for MCO1 or MCO2 outputs.
- Internal Oscillators:
- HSI (High-Speed Internal): 16 MHz fixed frequency. Can be used as SYSCLK or divided for PLL.
- LSI (Low-Speed Internal): 32 kHz fixed frequency. Used for the Independent Watchdog (IWDGCLK) and RTC.
- PLL (Phase-Locked Loop):
- Inputs: HSE (divided by /M) or HSI (divided by /N).
- Outputs: PLL48CK (for USB and SDIO), PLLI2SCLK (for I2S and SAI), and PLLSAICLK (for SAI and LCD-TFT).
- Clock Distribution:
- SYSCLK: The main system clock, selectable from HSE, HSI, or PLL. It is divided by /2 to /31 to produce HCLK (180 MHz max), which drives the AHB bus, core, memory, and DMA.
- PCLK1 and PCLK2: Derived from HCLK via the APB prescalers (1, 2, 4, 8, 16). These drive APB peripheral clocks and APB timer clocks.
- Other Peripherals: Ethernet PTP clock, Cortex System timer (FCLK), 48 MHz clocks, I2S clocks, SAI1_A and SAI1_B clocks, LCD-TFT clock, MACRXCLK, MACRMIICLK, and USBHS ULPI clock. Each has its own 'Peripheral clock enable' gate.
- Specialized Clocks:
- Ethernet: PHY Ethernet (25 to 50 MHz) provides ETH_MII_TX_CLK_MII and ETH_MII_RX_CLK_MII. These are divided by /2, /20 and fed into the MAC.
- USB: USB2.0 PHY (24 to 60 MHz) provides OTG_HS_ULPI_CK, which is divided by /2, /20 for the MAC.
MSV30434V3
- 1. For full details about the internal and external clock source characteristics, refer to the Electrical characteristics section in the device datasheet.
- 2. When TIMPRE bit of the RCC_DCKCFGR register is reset, if APBx prescaler is 1, then TIMxCLK = PCLKx, otherwise TIMxCLK = 2x PCLKx.
- 3. When TIMPRE bit in the RCC_DCKCFGR register is set, if APBx prescaler is 1, 2 or 4, then TIMxCLK = HCLK, otherwise TIMxCLK = 4x PCLKx.
The clock controller provides a high degree of flexibility to the application in the choice of the external crystal or the oscillator to run the core and peripherals at the highest frequency and, guarantee the appropriate frequency for peripherals that need a specific clock like Ethernet, USB OTG FS and HS, I2S, SAI, LTDC, and SDIO.
Several prescalers are used to configure the AHB frequency, the high-speed APB (APB2) and the low-speed APB (APB1) domains. The maximum frequency of the AHB domain is 180 MHz. The maximum allowed frequency of the high-speed APB2 domain is 90 MHz. The maximum allowed frequency of the low-speed APB1 domain is 45 MHz
All peripheral clocks are derived from the system clock (SYSCLK) except for:
- • The USB OTG FS clock (48 MHz), the random analog generator (RNG) clock ( \( \leq 48 \) MHz) and the SDIO clock ( \( \leq 48 \) MHz) which are coming from a specific output of PLL (PLL48CLK)
- • I2S clock
To achieve high-quality audio performance, the I2S clock can be derived either from a specific PLL (PLLI2S) or from an external clock mapped on the I2S_CKIN pin. For more information about I2S clock frequency and precision, refer to Section 28.4.4: Clock generator . - • SAI1 clock
The SAI1 clock is generated from a specific PLL (PLLSAI or PLLI2S) or from an external clock mapped on the I2S_CKIN pin.
The PLLSAI can be used as clock source for SAI1 peripheral in case the PLLI2S is programmed to achieve another audio sampling frequency (49.152 MHz or 11.2896 MHz), and the application requires both frequencies at the same time. - • LTDC clock
The LTDC clock is generated from a specific PLL (PLLSAI). - • The USB OTG HS (60 MHz) clock which is provided from the external PHY
- • The Ethernet MAC clocks (TX, RX and RMII) which are provided from the external PHY. For further information on the Ethernet configuration, please refer to Section 33.4.4: MII/RMII selection in the Ethernet peripheral description. When the Ethernet is used, the AHB clock frequency must be at least 25 MHz.
The RCC feeds the external clock of the Cortex System Timer (SysTick) with the AHB clock (HCLK) divided by 8. The SysTick can work either with this clock or with the Cortex clock (HCLK), configurable in the SysTick control and status register.
The timer clock frequencies for STM32F42xxx and STM32F43xxx are automatically set by hardware. There are two cases depending on the value of TIMPRE bit in RCC_CFGR register:
- • If TIMPRE bit in RCC_DKCFGR register is reset:
If the APB prescaler is configured to a division factor of 1, the timer clock frequencies (TIMxCLK) are set to PCLKx. Otherwise, the timer clock frequencies are twice the frequency of the APB domain to which the timers are connected: \( \text{TIMxCLK} = 2 \times \text{PCLKx} \) . - • If TIMPRE bit in RCC_DKCFGR register is set:
If the APB prescaler is configured to a division factor of 1, 2 or 4, the timer clock frequencies (TIMxCLK) are set to HCLK. Otherwise, the timer clock frequencies is four times the frequency of the APB domain to which the timers are connected: \( \text{TIMxCLK} = 4 \times \text{PCLKx} \) .
FCLK acts as Cortex®-M4 with FPU free-running clock. For more details, refer to the Cortex®-M4 with FPU technical reference manual.
6.2.1 HSE clock
The high speed external clock signal (HSE) can be generated from two possible clock sources:
- • HSE external crystal/ceramic resonator
- • HSE external user clock
The resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and startup stabilization time. The loading capacitance values must be adjusted according to the selected oscillator.

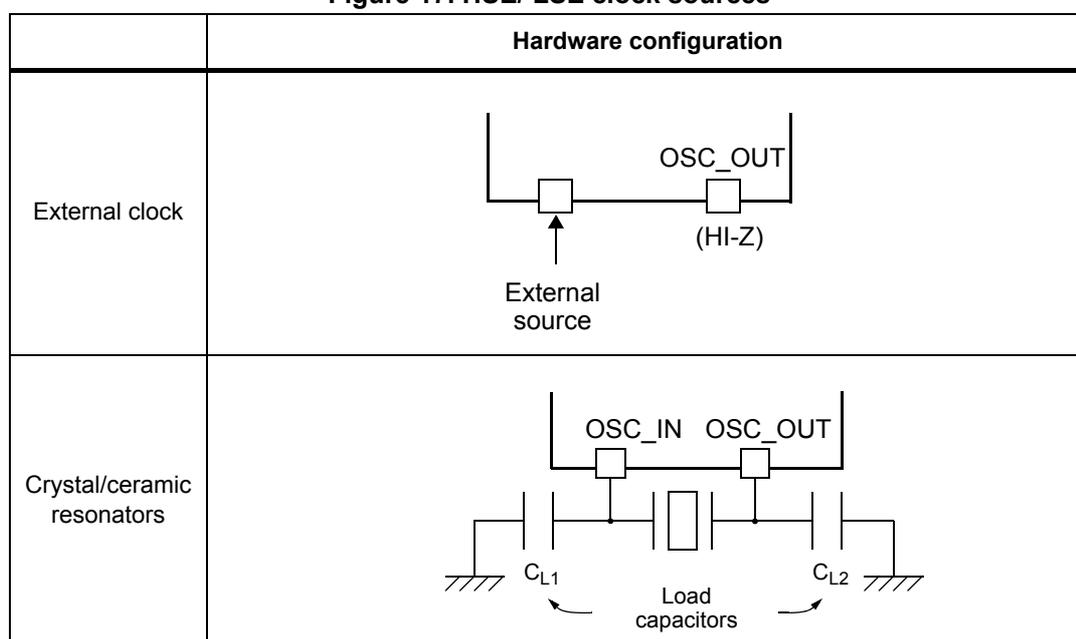

Figure 17. HSE/ LSE clock sources
| Hardware configuration | |
|---|---|
| External clock | |
| Crystal/ceramic resonators |
External source (HSE bypass)
In this mode, an external clock source must be provided. You select this mode by setting the HSEBYP and HSEON bits in the RCC clock control register (RCC_CR) . The external clock signal (square, sinus or triangle) with ~50% duty cycle has to drive the OSC_IN pin while the OSC_OUT pin should be left HI-Z. See Figure 17 .
External crystal/ceramic resonator (HSE crystal)
The HSE has the advantage of producing a very accurate rate on the main clock.
The associated hardware configuration is shown in Figure 17 . Refer to the electrical characteristics section of the datasheet for more details.
The HSERDY flag in the RCC clock control register (RCC_CR) indicates if the high-speed external oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt register (RCC_CIR) .
The HSE Crystal can be switched on and off using the HSEON bit in the RCC clock control register (RCC_CR) .
6.2.2 HSI clock
The HSI clock signal is generated from an internal 16 MHz RC oscillator and can be used directly as a system clock, or used as PLL input.
The HSI RC oscillator has the advantage of providing a clock source at low cost (no external components). It also has a faster startup time than the HSE crystal oscillator however, even with calibration the frequency is less accurate than an external crystal oscillator or ceramic resonator.
Calibration
RC oscillator frequencies can vary from one chip to another due to manufacturing process variations, this is why each device is factory calibrated by ST for 1% accuracy at \( T_A = 25\text{ }^\circ\text{C} \) .
After reset, the factory calibration value is loaded in the HSICAL[7:0] bits in the RCC clock control register (RCC_CR) .
If the application is subject to voltage or temperature variations this may affect the RC oscillator speed. You can trim the HSI frequency in the application using the HSITRIM[4:0] bits in the RCC clock control register (RCC_CR) .
The HSIRDY flag in the RCC clock control register (RCC_CR) indicates if the HSI RC is stable or not. At startup, the HSI RC output clock is not released until this bit is set by hardware.
The HSI RC can be switched on and off using the HSION bit in the RCC clock control register (RCC_CR) .
The HSI signal can also be used as a backup source (Auxiliary clock) if the HSE crystal oscillator fails. Refer to Section 6.2.7: Clock security system (CSS) on page 159 .
6.2.3 PLL configuration
The STM32F4xx devices feature three PLLs:
- • A main PLL (PLL) clocked by the HSE or HSI oscillator and featuring two different output clocks:
- – The first output is used to generate the high speed system clock (up to 180 MHz)
- – The second output is used to generate the clock for the USB OTG FS (48 MHz), the random analog generator ( \( \leq 48\text{ MHz} \) ) and the SDIO ( \( \leq 48\text{ MHz} \) ).
- • Two dedicated PLLs (PLL I2S and PLL SAI) used to generate an accurate clock to achieve high-quality audio performance on the I2S and SAI1 interfaces. PLL SAI is also used for the LCD-TFT clock.
Since the main-PLL configuration parameters cannot be changed once PLL is enabled, it is recommended to configure PLL before enabling it (selection of the HSI or HSE oscillator as PLL clock source, and configuration of division factors M, N, P, and Q).
The PLL I2S and PLL SAI use the same input clock as PLL (PLLM[5:0] and PLLSRC bits are common to both PLLs). However, the PLL I2S and PLL SAI have dedicated enable/disable and division factors (N and R) configuration bits. Once the PLL I2S and PLL SAI are enabled, the configuration parameters cannot be changed.
The three PLLs are disabled by hardware when entering Stop and Standby modes, or when an HSE failure occurs when HSE or PLL (clocked by HSE) are used as system clock. RCC PLL configuration register (RCC_PLLCFGR) , RCC clock configuration register (RCC_CFGR) , and RCC Dedicated Clock Configuration Register (RCC_DCKCFGR) can be used to configure PLL, PLLI2S, and PLLSAI.
6.2.4 LSE clock
The LSE clock is generated from a 32.768 kHz low-speed external crystal or ceramic resonator. It has the advantage providing a low-power but highly accurate clock source to the real-time clock peripheral (RTC) for clock/calendar or other timing functions.
The LSE oscillator is switched on and off using the LSEON bit in RCC Backup domain control register (RCC_BDCR) .
The LSERDY flag in the RCC Backup domain control register (RCC_BDCR) indicates if the LSE crystal is stable or not. At startup, the LSE crystal output clock signal is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt register (RCC_CIR) .
External source (LSE bypass)
In this mode, an external clock source must be provided. It must have a frequency up to 1 MHz. You select this mode by setting the LSEBYP and LSEON bits in the RCC Backup domain control register (RCC_BDCR) . The external clock signal (square, sinus or triangle) with ~50% duty cycle has to drive the OSC32_IN pin while the OSC32_OUT pin should be left HI-Z. See Figure 17 .
6.2.5 LSI clock
The LSI RC acts as an low-power clock source that can be kept running in Stop and Standby mode for the independent watchdog (IWDG) and Auto-wakeup unit (AWU). The clock frequency is around 32 kHz. For more details, refer to the electrical characteristics section of the datasheets.
The LSI RC can be switched on and off using the LSION bit in the RCC clock control & status register (RCC_CSR) .
The LSIRDY flag in the RCC clock control & status register (RCC_CSR) indicates if the low-speed internal oscillator is stable or not. At startup, the clock is not released until this bit is set by hardware. An interrupt can be generated if enabled in the RCC clock interrupt register (RCC_CIR) .
6.2.6 System clock (SYSCLK) selection
After a system reset, the HSI oscillator is selected as the system clock. When a clock source is used directly or through PLL as the system clock, it is not possible to stop it.
A switch from one clock source to another occurs only if the target clock source is ready (clock stable after startup delay or PLL locked). If a clock source that is not yet ready is selected, the switch occurs when the clock source is ready. Status bits in the RCC clock control register (RCC_CR) indicate which clock(s) is (are) ready and which clock is currently used as the system clock.
6.2.7 Clock security system (CSS)
The clock security system can be activated by software. In this case, the clock detector is enabled after the HSE oscillator startup delay, and disabled when this oscillator is stopped.
If a failure is detected on the HSE clock, this oscillator is automatically disabled, a clock failure event is sent to the break inputs of advanced-control timers TIM1 and TIM8, and an interrupt is generated to inform the software about the failure (clock security system interrupt CSSI), allowing the MCU to perform rescue operations. The CSSI is linked to the Cortex ® -M4 with FPU NMI (non-maskable interrupt) exception vector.
Note: When the CSS is enabled, if the HSE clock happens to fail, the CSS generates an interrupt, which causes the automatic generation of an NMI. The NMI is executed indefinitely unless the CSS interrupt pending bit is cleared. As a consequence, the application has to clear the CSS interrupt in the NMI ISR by setting the CSSC bit in the Clock interrupt register (RCC_CIR).
If the HSE oscillator is used directly or indirectly as the system clock (indirectly meaning that it is directly used as PLL input clock, and that PLL clock is the system clock) and a failure is detected, then the system clock switches to the HSI oscillator and the HSE oscillator is disabled.
If the HSE oscillator clock was the clock source of PLL used as the system clock when the failure occurred, PLL is also disabled. In this case, if the PLLI2S was enabled, it is also disabled when the HSE fails.
6.2.8 RTC/AWU clock
Once the RTCCLK clock source has been selected, the only possible way of modifying the selection is to reset the power domain.
The RTCCLK clock source can be either the HSE 1 MHz (HSE divided by a programmable prescaler), the LSE or the LSI clock. This is selected by programming the RTCSEL[1:0] bits in the RCC Backup domain control register (RCC_BDCR) and the RTCPRE[4:0] bits in RCC clock configuration register (RCC_CFGR) . This selection cannot be modified without resetting the Backup domain.
If the LSE is selected as the RTC clock, the RTC operates normally if the backup or the system supply disappears. If the LSI is selected as the AWU clock, the AWU state is not guaranteed if the system supply disappears. If the HSE oscillator divided by a value between 2 and 31 is used as the RTC clock, the RTC state is not guaranteed if the backup or the system supply disappears.
The LSE clock is in the Backup domain, whereas the HSE and LSI clocks are not. As a consequence:
- • If LSE is selected as the RTC clock:
- – The RTC continues to work even if the \( V_{DD} \) supply is switched off, provided the \( V_{BAT} \) supply is maintained.
- • If LSI is selected as the Auto-wakeup unit (AWU) clock:
- – The AWU state is not guaranteed if the \( V_{DD} \) supply is powered off. Refer to Section 6.2.5: LSI clock on page 158 for more details on LSI calibration.
- • If the HSE clock is used as the RTC clock:
- – The RTC state is not guaranteed if the \( V_{DD} \) supply is powered off or if the internal voltage regulator is powered off (removing power from the 1.2 V domain).
Note: To read the RTC calendar register when the APB1 clock frequency is less than seven times the RTC clock frequency ( \( f_{APB1} < 7 \times f_{RTCCLK} \) ), the software must read the calendar time and date registers twice. The data are correct if the second read access to RTC_TR gives the same result than the first one. Otherwise a third read access must be performed.
6.2.9 Watchdog clock
If the independent watchdog (IWDG) is started by either hardware option or software access, the LSI oscillator is forced ON and cannot be disabled. After the LSI oscillator temporization, the clock is provided to the IWDG.
6.2.10 Clock-out capability
Two microcontroller clock output (MCO) pins are available:
- • MCO1
You can output four different clock sources onto the MCO1 pin (PA8) using the configurable prescaler (from 1 to 5):
- – HSI clock
- – LSE clock
- – HSE clock
- – PLL clock
The desired clock source is selected using the MCO1PRE[2:0] and MCO1[1:0] bits in the RCC clock configuration register (RCC_CFGR) .
- • MCO2
You can output four different clock sources onto the MCO2 pin (PC9) using the configurable prescaler (from 1 to 5):
- – HSE clock
- – PLL clock
- – System clock (SYSCLK)
- – PLLI2S clock
The desired clock source is selected using the MCO2PRE[2:0] and MCO2 bits in the RCC clock configuration register (RCC_CFGR) .
For the different MCO pins, the corresponding GPIO port has to be programmed in alternate function mode.
The selected clock to output onto MCO must not exceed 100 MHz (the maximum I/O speed).
6.2.11 Internal/external clock measurement using TIM5/TIM11
It is possible to indirectly measure the frequencies of all on-board clock source generators by means of the input capture of TIM5 channel4 and TIM11 channel1 as shown in Figure 18 and Figure 19 .
Internal/external clock measurement using TIM5 channel4
TIM5 has an input multiplexer which allows choosing whether the input capture is triggered by the I/O or by an internal clock. This selection is performed through the TI4_RMP [1:0] bits in the TIM5_OR register.
The primary purpose of having the LSE connected to the channel4 input capture is to be able to precisely measure the HSI (this requires to have the HSI used as the system clock source). The number of HSI clock counts between consecutive edges of the LSE signal provides a measurement of the internal clock period. Taking advantage of the high precision of LSE crystals (typically a few tens of ppm) we can determine the internal clock frequency with the same resolution, and trim the source to compensate for manufacturing-process and/or temperature- and voltage-related frequency deviations.
The HSI oscillator has dedicated, user-accessible calibration bits for this purpose.
The basic concept consists in providing a relative measurement (e.g. HSI/LSE ratio): the precision is therefore tightly linked to the ratio between the two clock sources. The greater the ratio, the better the measurement.
It is also possible to measure the LSI frequency: this is useful for applications that do not have a crystal. The ultralow-power LSI oscillator has a large manufacturing process deviation: by measuring it versus the HSI clock source, it is possible to determine its frequency with the precision of the HSI. The measured value can be used to have more accurate RTC time base timeouts (when LSI is used as the RTC clock source) and/or an IWDG timeout with an acceptable accuracy.
Use the following procedure to measure the LSI frequency:
- 1. Enable the TIM5 timer and configure channel4 in Input capture mode.
- 2. This bit is set the TI4_RMP bits in the TIM5_OR register to 0x01 to connect the LSI clock internally to TIM5 channel4 input capture for calibration purposes.
- 3. Measure the LSI clock frequency using the TIM5 capture/compare 4 event or interrupt.
- 4. Use the measured LSI frequency to update the prescaler of the RTC depending on the desired time base and/or to compute the IWDG timeout.

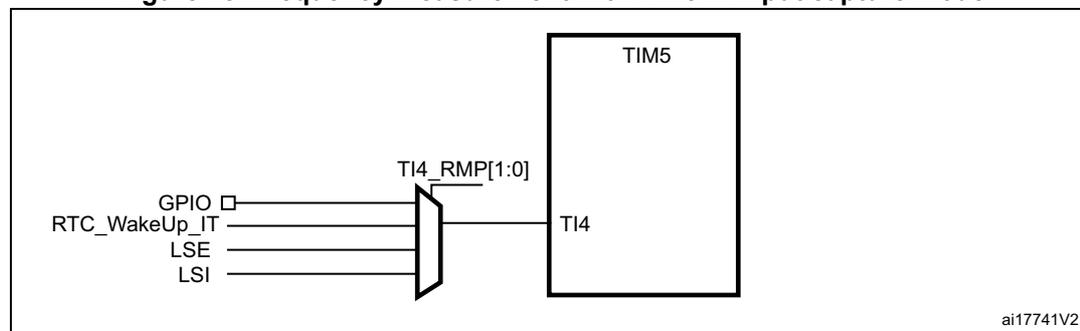

Figure 18. Frequency measurement with TIM5 in Input capture mode
![Diagram showing the internal connection of the LSI clock to the TIM5 channel 4 input capture. On the left, four clock sources are listed: GPIO (with a square symbol), RTC_WakeUp_IT, LSE, and LSI. These are connected to a multiplexer. The output of the multiplexer is labeled TI4. Above the multiplexer is the control signal TI4_RMP[1:0]. The TI4 signal is connected to a block labeled TIM5. In the bottom right corner of the diagram, the text 'ai17741V2' is present.](/RM0090-STM32F405-415-407-417-427-437-429-439/107942f4434bbcf421cb2554330f7536_img.jpg)
ai17741V2
Internal/external clock measurement using TIM11 channel1
TIM11 has an input multiplexer which allows choosing whether the input capture is triggered by the I/O or by an internal clock. This selection is performed through TI1_RMP [1:0] bits in the TIM11_OR register. The HSE_RTC clock (HSE divided by a programmable prescaler) is connected to channel 1 input capture to have a rough indication of the external crystal frequency. This requires that the HSI is the system clock source. This can be useful for instance to ensure compliance with the IEC 60730/IEC 61335 standards which require to be able to determine harmonic or subharmonic frequencies (-50/+100% deviations).

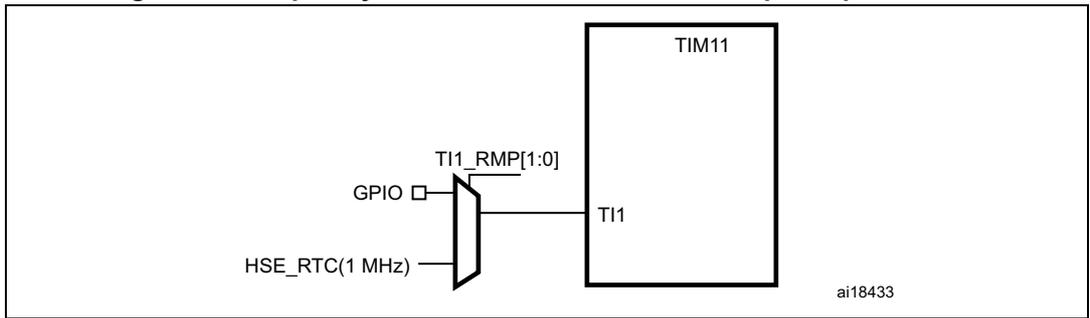

Figure 19. Frequency measurement with TIM11 in Input capture mode
![Schematic diagram showing the connection of a TIM11 timer's TI1 input to a GPIO pin via a multiplexer controlled by TI1_RMP[1:0]. The multiplexer also selects between HSE_RTC (1 MHz) and the GPIO pin.](/RM0090-STM32F405-415-407-417-427-437-429-439/9ef15a4afab1416db28b91184862a3a5_img.jpg)
The diagram illustrates the internal connection for frequency measurement. A rectangular block labeled 'TIM11' has a pin labeled 'TI1'. To the left of the TIM11 block is a multiplexer symbol. The multiplexer has two input lines: the top one is labeled 'GPIO' with a small square icon, and the bottom one is labeled 'HSE_RTC(1 MHz)'. The output of the multiplexer is connected to the 'TI1' pin of the TIM11 block. Above the multiplexer is a control signal line labeled 'TI1_RMP[1:0]'. In the bottom right corner of the diagram area, the text 'ai18433' is present.
6.3 RCC registers
Refer to Section 1.1: List of abbreviations for registers for a list of abbreviations used in register descriptions.
6.3.1 RCC clock control register (RCC_CR)
Address offset: 0x00
Reset value: 0x0000 XX83 where X is undefined.
Access: no wait state, word, half-word and byte access
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | PLLISAIRDY | PLLISAION | PLLII2SRDY | PLLII2SON | PLLRDY | PLLON | Reserved | CSSON | HSEBYP | HSERDY | HSEON | ||||
| r | rw | r | rw | r | rw | rw | rw | r | rw | ||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| HSICAL[7:0] | HSITRIM[4:0] | Res. | HSIRDY | HSION | |||||||||||
| r | r | r | r | r | r | r | r | rw | rw | rw | rw | rw | r | rw | |
Bits 31:28 Reserved, must be kept at reset value.
Bit 29 PLLISAIRDY : PLLSAI clock ready flag
Set by hardware to indicate that the PLLSAI is locked.
0: PLLSAI unlocked
1: PLLSAI locked
Bit 28 PLLISAION : PLLSAI enable
Set and cleared by software to enable PLLSAI.
Cleared by hardware when entering Stop or Standby mode.
0: PLLSAI OFF
1: PLLSAI ON
Bit 27 PLLII2SRDY : PLLI2S clock ready flag
Set by hardware to indicate that the PLLI2S is locked.
0: PLLI2S unlocked
1: PLLI2S locked
Bit 26 PLLII2SON : PLLI2S enable
Set and cleared by software to enable PLLI2S.
Cleared by hardware when entering Stop or Standby mode.
0: PLLI2S OFF
1: PLLI2S ON
Bit 25 PLLRDY : Main PLL (PLL) clock ready flag
Set by hardware to indicate that PLL is locked.
0: PLL unlocked
1: PLL locked
Bit 24 PLLON : Main PLL (PLL) enable
Set and cleared by software to enable PLL.
Cleared by hardware when entering Stop or Standby mode. This bit cannot be reset if PLL clock is used as the system clock.
0: PLL OFF
1: PLL ON
Bits 23:20 Reserved, must be kept at reset value.
Bit 19 CSSON : Clock security system enable
Set and cleared by software to enable the clock security system. When CSSON is set, the clock detector is enabled by hardware when the HSE oscillator is ready, and disabled by hardware if an oscillator failure is detected.
0: Clock security system OFF (Clock detector OFF)
1: Clock security system ON (Clock detector ON if HSE oscillator is stable, OFF if not)
Bit 18 HSEBYP : HSE clock bypass
Set and cleared by software to bypass the oscillator with an external clock. The external clock must be enabled with the HSEON bit, to be used by the device.
The HSEBYP bit can be written only if the HSE oscillator is disabled.
0: HSE oscillator not bypassed
1: HSE oscillator bypassed with an external clock
Bit 17 HSERDY : HSE clock ready flag
Set by hardware to indicate that the HSE oscillator is stable. After the HSEON bit is cleared, HSERDY goes low after 6 HSE oscillator clock cycles.
0: HSE oscillator not ready
1: HSE oscillator ready
Bit 16 HSEON : HSE clock enable
Set and cleared by software.
Cleared by hardware to stop the HSE oscillator when entering Stop or Standby mode. This bit cannot be reset if the HSE oscillator is used directly or indirectly as the system clock.
0: HSE oscillator OFF
1: HSE oscillator ON
Bits 15:8 HSICAL[7:0] : Internal high-speed clock calibration
These bits are initialized automatically at startup.
Bits 7:3 HSITRIM[4:0] : Internal high-speed clock trimming
These bits provide an additional user-programmable trimming value that is added to the HSICAL[7:0] bits. It can be programmed to adjust to variations in voltage and temperature that influence the frequency of the internal HSI RC.
Bit 2 Reserved, must be kept at reset value.
Bit 1 HSIRDY : Internal high-speed clock ready flag
Set by hardware to indicate that the HSI oscillator is stable. After the HSION bit is cleared, HSIRDY goes low after 6 HSI clock cycles.
0: HSI oscillator not ready
1: HSI oscillator ready
Bit 0 HSION : Internal high-speed clock enable
Set and cleared by software.
Set by hardware to force the HSI oscillator ON when leaving the Stop or Standby mode or in case of a failure of the HSE oscillator used directly or indirectly as the system clock. This bit cannot be cleared if the HSI is used directly or indirectly as the system clock.
0: HSI oscillator OFF
1: HSI oscillator ON
6.3.2 RCC PLL configuration register (RCC_PLLCFGR)
Address offset: 0x04
Reset value: 0x2400 3010
Access: no wait state, word, half-word and byte access.
This register is used to configure the PLL clock outputs according to the formulas:
- • \( f_{(VCO\ clock)} = f_{(PLL\ clock\ input)} \times (PLLN / PLLM) \)
- • \( f_{(PLL\ general\ clock\ output)} = f_{(VCO\ clock)} / PLLP \)
- • \( f_{(USB\ OTG\ FS,\ SDIO,\ RNG\ clock\ output)} = f_{(VCO\ clock)} / PLLQ \)
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | PLLQ3 | PLLQ2 | PLLQ1 | PLLQ0 | Reserved | PLLSRC | Reserved | PLLP1 | PLLP0 | ||||||
| rw | rw | rw | rw | rw | rw | rw | |||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | PLLN | PLLM5 | PLLM4 | PLLM3 | PLLM2 | PLLM1 | PLLM0 | ||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | |
Bits 31:28 Reserved, must be kept at reset value.
Bits 27:24 PLLQ : Main PLL (PLL) division factor for USB OTG FS, SDIO and random number generator clocks
Set and cleared by software to control the frequency of USB OTG FS clock, the random number generator clock and the SDIO clock. These bits should be written only if PLL is disabled.
Caution: The USB OTG FS requires a 48 MHz clock to work correctly. The SDIO and the random number generator need a frequency lower than or equal to 48 MHz to work correctly.
USB OTG FS clock frequency = VCO frequency / PLLQ with \( 2 \leq PLLQ \leq 15 \)
0000: PLLQ = 0, wrong configuration
0001: PLLQ = 1, wrong configuration
0010: PLLQ = 2
0011: PLLQ = 3
0100: PLLQ = 4
...
1111: PLLQ = 15
Bit 23 Reserved, must be kept at reset value.
Bit 22 PLLSRC : Main PLL(PLL) and audio PLL (PLLI2S) entry clock source
Set and cleared by software to select PLL and PLLI2S clock source. This bit can be written only when PLL and PLLI2S are disabled.
0: HSI clock selected as PLL and PLLI2S clock entry
1: HSE oscillator clock selected as PLL and PLLI2S clock entry
Bits 21:18 Reserved, must be kept at reset value.
Bits 17:16 PLLP : Main PLL (PLL) division factor for main system clock
Set and cleared by software to control the frequency of the general PLL output clock. These bits can be written only if PLL is disabled.
Caution: The software has to set these bits correctly not to exceed 180 MHz on this domain.
PLL output clock frequency = VCO frequency / PLLP with PLLP = 2, 4, 6, or 8
00: PLLP = 2
01: PLLP = 4
10: PLLP = 6
11: PLLP = 8
Bits 14:6 PLLN : Main PLL (PLL) multiplication factor for VCO
Set and cleared by software to control the multiplication factor of the VCO. These bits can be written only when PLL is disabled. Only half-word and word accesses are allowed to write these bits.
Caution: The software has to set these bits correctly to ensure that the VCO output frequency is between 100 and 432 MHz.
VCO output frequency = VCO input frequency \( \times \) PLLN with \( 50 \leq \text{PLLN} \leq 432 \)
000000000: PLLN = 0, wrong configuration
000000001: PLLN = 1, wrong configuration
...
000110010: PLLN = 50
...
001100011: PLLN = 99
001100100: PLLN = 100
...
110110000: PLLN = 432
110110001: PLLN = 433, wrong configuration
...
111111111: PLLN = 511, wrong configuration
Note: Multiplication factors ranging from 50 and 99 are possible for VCO input frequency higher than 1 MHz. However care must be taken that the minimum VCO output frequency respects the value specified above.
Bits 5:0 PLLM : Division factor for the main PLL (PLL) and audio PLL (PLL2S) input clock
Set and cleared by software to divide the PLL and PLL2S input clock before the VCO. These bits can be written only when the PLL and PLL2S are disabled.
Caution: The software has to set these bits correctly to ensure that the VCO input frequency ranges from 1 to 2 MHz. It is recommended to select a frequency of 2 MHz to limit PLL jitter.
VCO input frequency = PLL input clock frequency / PLLM with \( 2 \leq \text{PLLM} \leq 63 \)
000000: PLLM = 0, wrong configuration
000001: PLLM = 1, wrong configuration
000010: PLLM = 2
000011: PLLM = 3
000100: PLLM = 4
...
111110: PLLM = 62
111111: PLLM = 63
6.3.3 RCC clock configuration register (RCC_CFGR)
Address offset: 0x08
Reset value: 0x0000 0000
Access: 0 ≤ wait state ≤ 2, word, half-word and byte access
1 or 2 wait states inserted only if the access occurs during a clock source switch.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCO2 | MCO2 PRE[2:0] | MCO1 PRE[2:0] | I2SSRC | MCO1 | RTCPRE[4:0] | ||||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | ||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| PPRE2[2:0] | PPRE1[2:0] | Reserved | HPRE[3:0] | SWS1 | SWS0 | SW1 | SW0 | ||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | r | r | rw | rw | |||
Bits 31:30 MCO2[1:0] : Microcontroller clock output 2
Set and cleared by software. Clock source selection may generate glitches on MCO2. It is highly recommended to configure these bits only after reset before enabling the external oscillators and the PLLs.
00: System clock (SYSCLK) selected
01: PLLI2S clock selected
10: HSE oscillator clock selected
11: PLL clock selected
Bits 27:29 MCO2PRE : MCO2 prescaler
Set and cleared by software to configure the prescaler of the MCO2. Modification of this prescaler may generate glitches on MCO2. It is highly recommended to change this prescaler only after reset before enabling the external oscillators and the PLLs.
0xx: no division
100: division by 2
101: division by 3
110: division by 4
111: division by 5
Bits 24:26 MCO1PRE : MCO1 prescaler
Set and cleared by software to configure the prescaler of the MCO1. Modification of this prescaler may generate glitches on MCO1. It is highly recommended to change this prescaler only after reset before enabling the external oscillators and the PLL.
0xx: no division
100: division by 2
101: division by 3
110: division by 4
111: division by 5
Bit 23 I2SSRC : I2S clock selection
Set and cleared by software. This bit allows to select the I2S clock source between the PLLI2S clock and the external clock. It is highly recommended to change this bit only after reset and before enabling the I2S module.
0: PLLI2S clock used as I2S clock source
1: External clock mapped on the I2S_CKIN pin used as I2S clock source
Bits 22:21 MCO1 : Microcontroller clock output 1
Set and cleared by software. Clock source selection may generate glitches on MCO1. It is highly recommended to configure these bits only after reset before enabling the external oscillators and PLL.
00: HSI clock selected
01: LSE oscillator selected
10: HSE oscillator clock selected
11: PLL clock selected
Bits 20:16 RTCPRE : HSE division factor for RTC clock
Set and cleared by software to divide the HSE clock input clock to generate a 1 MHz clock for RTC.
Caution: The software has to set these bits correctly to ensure that the clock supplied to the RTC is 1 MHz. These bits must be configured if needed before selecting the RTC clock source.
00000: no clock
00001: no clock
00010: HSE/2
00011: HSE/3
00100: HSE/4
...
11110: HSE/30
11111: HSE/31
Bits 15:13 PPRE2 : APB high-speed prescaler (APB2)
Set and cleared by software to control APB high-speed clock division factor.
Caution: The software has to set these bits correctly not to exceed 90 MHz on this domain. The clocks are divided with the new prescaler factor from 1 to 16 AHB cycles after PPRE2 write.
0xx: AHB clock not divided
100: AHB clock divided by 2
101: AHB clock divided by 4
110: AHB clock divided by 8
111: AHB clock divided by 16
Bits 12:10 PPRE1 : APB Low speed prescaler (APB1)
Set and cleared by software to control APB low-speed clock division factor.
Caution: The software has to set these bits correctly not to exceed 45 MHz on this domain. The clocks are divided with the new prescaler factor from 1 to 16 AHB cycles after PPRE1 write.
0xx: AHB clock not divided
100: AHB clock divided by 2
101: AHB clock divided by 4
110: AHB clock divided by 8
111: AHB clock divided by 16
Bits 9:8 Reserved, must be kept at reset value.
Bits 7:4 HPRE : AHB prescaler
Set and cleared by software to control AHB clock division factor.
Caution: The clocks are divided with the new prescaler factor from 1 to 16 AHB cycles after HPRE write.
Caution: The AHB clock frequency must be at least 25 MHz when the Ethernet is used.
0xxx: system clock not divided
1000: system clock divided by 2
1001: system clock divided by 4
1010: system clock divided by 8
1011: system clock divided by 16
1100: system clock divided by 64
1101: system clock divided by 128
1110: system clock divided by 256
1111: system clock divided by 512
Bits 3:2 SWS : System clock switch status
Set and cleared by hardware to indicate which clock source is used as the system clock.
00: HSI oscillator used as the system clock
01: HSE oscillator used as the system clock
10: PLL used as the system clock
11: not applicable
Bits 1:0 SW : System clock switch
Set and cleared by software to select the system clock source.
Set by hardware to force the HSI selection when leaving the Stop or Standby mode or in case of failure of the HSE oscillator used directly or indirectly as the system clock.
00: HSI oscillator selected as system clock
01: HSE oscillator selected as system clock
10: PLL selected as system clock
11: not allowed
6.3.4 RCC clock interrupt register (RCC_CIR)
Address offset: 0x0C
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | CSSC | PLLSAI RDYC | PLL2S RDYC | PLL RDYC | HSE RDYC | HSI RDYC | LSE RDYC | LSI RDYC | |||||||
| w | w | w | w | w | w | w | w | ||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | PLLSAI RDYIE | PLL2S RDYIE | PLL RDYIE | HSE RDYIE | HSI RDYIE | LSE RDYIE | LSI RDYIE | CSSF | PLLSAI RDYF | PLL2S RDYF | PLL RDYF | HSE RDYF | HSI RDYF | LSE RDYF | LSI RDYF |
| rw | rw | rw | rw | rw | rw | rw | r | r | r | r | r | r | r | r | |
Bits 31:24 Reserved, must be kept at reset value.
Bit 23 CSSC : Clock security system interrupt clear
This bit is set by software to clear the CSSF flag.
0: No effect
1: Clear CSSF flag
Bit 22 PLLISAIRDYC : PLLSAI Ready Interrupt Clear
This bit is set by software to clear PLLISAIRDYF flag. It is reset by hardware when the PLLISAIRDYF is cleared.
0: PLLISAIRDYF not cleared
1: PLLISAIRDYF cleared
Bit 21 PLLII2SRDYC : PLLI2S ready interrupt clear
This bit is set by software to clear the PLLI2SRDYF flag.
0: No effect
1: PLLI2SRDYF cleared
Bit 20 PLLRDYC : Main PLL(PLL) ready interrupt clear
This bit is set by software to clear the PLLRDYF flag.
0: No effect
1: PLLRDYF cleared
Bit 19 HSERDYC : HSE ready interrupt clear
This bit is set by software to clear the HSERDYF flag.
0: No effect
1: HSERDYF cleared
Bit 18 HSIRDYC : HSI ready interrupt clear
This bit is set software to clear the HSIRDYF flag.
0: No effect
1: HSIRDYF cleared
Bit 17 LSERDYC : LSE ready interrupt clear
This bit is set by software to clear the LSERDYF flag.
0: No effect
1: LSERDYF cleared
Bit 16 LSIRDYC : LSI ready interrupt clear
This bit is set by software to clear the LSIRDYF flag.
0: No effect
1: LSIRDYF cleared
Bit 15 Reserved, must be kept at reset value.
Bit 14 PLLISAIRDYIE : PLLSAI Ready Interrupt Enable
This bit is set and reset by software to enable/disable interrupt caused by PLLSAI lock.
0: PLLSAI lock interrupt disabled
1: PLLSAI lock interrupt enabled
Bit 13 PLLII2SRDYIE : PLLI2S ready interrupt enable
This bit is set and cleared by software to enable/disable interrupt caused by PLLI2S lock.
0: PLLI2S lock interrupt disabled
1: PLLI2S lock interrupt enabled
Bit 12 PLLRDYIE: Main PLL (PLL) ready interrupt enableThis bit is set and cleared by software to enable/disable interrupt caused by PLL lock.
0: PLL lock interrupt disabled
1: PLL lock interrupt enabled
Bit 11 HSERDYIE: HSE ready interrupt enableThis bit is set and cleared by software to enable/disable interrupt caused by the HSE oscillator stabilization.
0: HSE ready interrupt disabled
1: HSE ready interrupt enabled
Bit 10 HSIRDYIE: HSI ready interrupt enableThis bit is set and cleared by software to enable/disable interrupt caused by the HSI oscillator stabilization.
0: HSI ready interrupt disabled
1: HSI ready interrupt enabled
Bit 9 LSERDYIE: LSE ready interrupt enableThis bit is set and cleared by software to enable/disable interrupt caused by the LSE oscillator stabilization.
0: LSE ready interrupt disabled
1: LSE ready interrupt enabled
Bit 8 LSIRDYIE: LSI ready interrupt enableThis bit is set and cleared by software to enable/disable interrupt caused by LSI oscillator stabilization.
0: LSI ready interrupt disabled
1: LSI ready interrupt enabled
Bit 7 CSSF: Clock security system interrupt flagThis bit is set by hardware when a failure is detected in the HSE oscillator.
It is cleared by software by setting the CSSC bit.
0: No clock security interrupt caused by HSE clock failure
1: Clock security interrupt caused by HSE clock failure
Bit 6 PLLSAIRDYF: PLLSAI Ready Interrupt flagThis bit is set by hardware when the PLLSAI is locked and PLLSAIRDYIE is set.
It is cleared by software by setting the PLLSAIRDYC bit.
0: No clock ready interrupt caused by PLLSAI lock
1: Clock ready interrupt caused by PLLSAI lock
Bit 5 PLLI2SRDYF: PLLI2S ready interrupt flagThis bit is set by hardware when the PLLI2S is locked and PLLI2SRDYIE is set.
It is cleared by software by setting the PLLRI2SDYC bit.
0: No clock ready interrupt caused by PLLI2S lock
1: Clock ready interrupt caused by PLLI2S lock
Bit 4 PLLRDYF: Main PLL (PLL) ready interrupt flagThis bit is set by hardware when PLL is locked and PLLRDYIE is set.
It is cleared by software setting the PLLRDYC bit.
0: No clock ready interrupt caused by PLL lock
1: Clock ready interrupt caused by PLL lock
Bit 3 HSERDYF : HSE ready interrupt flag
This bit is set by hardware when External High Speed clock becomes stable and HSERDYIE is set.
It is cleared by software by setting the HSERDYC bit.
0: No clock ready interrupt caused by the HSE oscillator
1: Clock ready interrupt caused by the HSE oscillator
Bit 2 HSIRDYF : HSI ready interrupt flag
This bit is set by hardware when the Internal High Speed clock becomes stable and HSIRDYIE is set.
It is cleared by software by setting the HSIRDYC bit.
0: No clock ready interrupt caused by the HSI oscillator
1: Clock ready interrupt caused by the HSI oscillator
Bit 1 LSERDYF : LSE ready interrupt flag
This bit is set by hardware when the External Low Speed clock becomes stable and LSERDYIE is set.
It is cleared by software by setting the LSERDYC bit.
0: No clock ready interrupt caused by the LSE oscillator
1: Clock ready interrupt caused by the LSE oscillator
Bit 0 LSIRDYF : LSI ready interrupt flag
This bit is set by hardware when the internal low speed clock becomes stable and LSIRDYIE is set.
It is cleared by software by setting the LSIRDYC bit.
0: No clock ready interrupt caused by the LSI oscillator
1: Clock ready interrupt caused by the LSI oscillator
6.3.5 RCC AHB1 peripheral reset register (RCC_AHB1RSTR)
Address offset: 0x10
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | OTGH S RST | Reserved | ETHMAC RST | Res. | DMA2D RST | DMA2 RST | DMA1 RST | Reserved | |||||||
| rw | rw | rw | rw | ||||||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | CRCR ST | Res. | GPIOK RST | GPIOJ RST | GPIOI RST | GPIOH RST | GPIOG RST | GPIOF RST | GPIOE RST | GPIO D RST | GPIO C RST | GPIO B RST | GPIO A RST | ||
Bits 31:30 Reserved, must be kept at reset value.
Bit 29 OTGHRSRST : USB OTG HS module reset
This bit is set and cleared by software.
0: does not reset the USB OTG HS module
1: resets the USB OTG HS module
Bits 28:26 Reserved, must be kept at reset value.
- Bit 25
ETHMACRST
: Ethernet MAC reset
This bit is set and cleared by software.
0: does not reset Ethernet MAC
1: resets Ethernet MAC - Bit 24 Reserved, must be kept at reset value.
- Bit 23
DMA2DRST
: DMA2D reset
This bit is set and reset by software.
0: does not reset DMA2D
1: resets DMA2D - Bit 22
DMA2RST
: DMA2 reset
This bit is set and cleared by software.
0: does not reset DMA2
1: resets DMA2 - Bit 21
DMA1RST
: DMA2 reset
This bit is set and cleared by software.
0: does not reset DMA2
1: resets DMA2 - Bits 20:13 Reserved, must be kept at reset value.
- Bit 12
CRCRST
: CRC reset
This bit is set and cleared by software.
0: does not reset CRC
1: resets CRC - Bit 11 Reserved, must be kept at reset value.
- Bit 10
GPIOKRST
: IO port K reset
This bit is set and cleared by software.
0: does not reset IO port K
1: resets IO port K - Bit 9
GPIOJRST
: IO port J reset
This bit is set and cleared by software.
0: does not reset IO port J
1: resets IO port J - Bit 8
GPIOIRST
: IO port I reset
This bit is set and cleared by software.
0: does not reset IO port I
1: resets IO port I - Bit 7
GPIOHRST
: IO port H reset
This bit is set and cleared by software.
0: does not reset IO port H
1: resets IO port H - Bit 6
GPIOGRST
: IO port G reset
This bit is set and cleared by software.
0: does not reset IO port G
1: resets IO port G
Bit 5 GPIOFRST : IO port F reset
This bit is set and cleared by software.
0: does not reset IO port F
1: resets IO port F
Bit 4 GPIOERST : IO port E reset
This bit is set and cleared by software.
0: does not reset IO port E
1: resets IO port E
Bit 3 GIODRST : IO port D reset
This bit is set and cleared by software.
0: does not reset IO port D
1: resets IO port D
Bit 2 GPIOCRST : IO port C reset
This bit is set and cleared by software.
0: does not reset IO port C
1: resets IO port C
Bit 1 GPIOBRST : IO port B reset
This bit is set and cleared by software.
0: does not reset IO port B
1: resets IO port B
Bit 0 GPIOARST : IO port A reset
This bit is set and cleared by software.
0: does not reset IO port A
1: resets IO port A

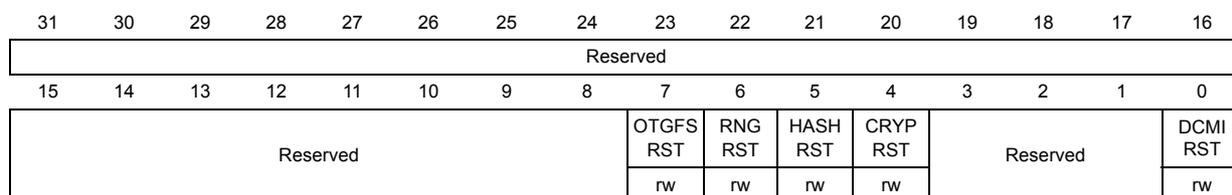

6.3.6 RCC AHB2 peripheral reset register (RCC_AHB2RSTR)
Address offset: 0x14
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
| Reserved | |||||||||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | OTGFS RST | RNG RST | HASH RST | CRYP RST | Reserved | DCMI RST | |||||||||
| rw | rw | rw | rw | rw | |||||||||||
Bits 31:8 Reserved, must be kept at reset value.
Bit 7 OTGFSRST : USB OTG FS module reset
Set and cleared by software.
0: does not reset the USB OTG FS module
1: resets the USB OTG FS module
Bit 6 RNGRST : Random number generator module reset
Set and cleared by software.
0: does not reset the random number generator module
1: resets the random number generator module
Bit 5 HASHRST : Hash module reset
Set and cleared by software.
0: does not reset the HASH module
1: resets the HASH module
Bit 4 CRYPRST : Cryptographic module reset
Set and cleared by software.
0: does not reset the cryptographic module
1: resets the cryptographic module
Bits 3:1 Reserved, must be kept at reset value.
Bit 0 DCMIRST : Camera interface reset
Set and cleared by software.
0: does not reset the Camera interface
1: resets the Camera interface
6.3.7 RCC AHB3 peripheral reset register (RCC_AHB3RSTR)
Address offset: 0x18
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | |||||||||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | FMCRST | ||||||||||||||
| rw | |||||||||||||||
Bits 31:1 Reserved, must be kept at reset value.
Bit 0
FMCRST
: Flexible memory controller module reset
Set and cleared by software.
0: does not reset the FMC module
1: resets the FMC module
6.3.8 RCC APB1 peripheral reset register (RCC_APB1RSTR)
Address offset: 0x20
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UART8 RST | UART7 RST | DACRST | PWR RST | Reser-ved | CAN2 RST | CAN1 RST | Reser-ved | I2C3 RST | I2C2 RST | I2C1 RST | UART5 RST | UART4 RST | UART3 RST | UART2 RST | Reser-ved |
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | |||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| SPI3 RST | SPI2 RST | Reserved | WWDG RST | Reserved | TIM14 RST | TIM13 RST | TIM12 RST | TIM7 RST | TIM6 RST | TIM5 RST | TIM4 RST | TIM3 RST | TIM2 RST | ||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | ||||
- Bit 31
UART8RST
: UART8 reset
Set and cleared by software.
0: does not reset UART8
1: resets UART8 - Bit 30
UART7RST
: UART7 reset
Set and cleared by software.
0: does not reset UART7
1: resets UART7 - Bit 29
DACRST
: DAC reset
Set and cleared by software.
0: does not reset the DAC interface
1: resets the DAC interface - Bit 28
PWRRST
: Power interface reset
Set and cleared by software.
0: does not reset the power interface
1: resets the power interface - Bit 27 Reserved, must be kept at reset value.
- Bit 26
CAN2RST
: CAN2 reset
Set and cleared by software.
0: does not reset CAN2
1: resets CAN2 - Bit 25
CAN1RST
: CAN1 reset
Set and cleared by software.
0: does not reset CAN1
1: resets CAN1 - Bit 24 Reserved, must be kept at reset value.
- Bit 23
I2C3RST
: I2C3 reset
Set and cleared by software.
0: does not reset I2C3
1: resets I2C3 - Bit 22
I2C2RST
: I2C2 reset
Set and cleared by software.
0: does not reset I2C2
1: resets I2C2 - Bit 21
I2C1RST
: I2C1 reset
Set and cleared by software.
0: does not reset I2C1
1: resets I2C1 - Bit 20
UART5RST
: UART5 reset
Set and cleared by software.
0: does not reset UART5
1: resets UART5 - Bit 19
UART4RST
: USART4 reset
Set and cleared by software.
0: does not reset UART4
1: resets UART4
Bit 18
USART3RST
: USART3 reset
Set and cleared by software.
0: does not reset USART3
1: resets USART3
Bit 17
USART2RST
: USART2 reset
Set and cleared by software.
0: does not reset USART2
1: resets USART2
Bit 16 Reserved, must be kept at reset value.
Bit 15
SPI3RST
: SPI3 reset
Set and cleared by software.
0: does not reset SPI3
1: resets SPI3
Bit 14
SPI2RST
: SPI2 reset
Set and cleared by software.
0: does not reset SPI2
1: resets SPI2
Bits 13:12 Reserved, must be kept at reset value.
Bit 11
WWDGRST
: Window watchdog reset
Set and cleared by software.
0: does not reset the window watchdog
1: resets the window watchdog
Bits 10:9 Reserved, must be kept at reset value.
Bit 8
TIM14RST
: TIM14 reset
Set and cleared by software.
0: does not reset TIM14
1: resets TIM14
Bit 7
TIM13RST
: TIM13 reset
Set and cleared by software.
0: does not reset TIM13
1: resets TIM13
Bit 6
TIM12RST
: TIM12 reset
Set and cleared by software.
0: does not reset TIM12
1: resets TIM12
Bit 5
TIM7RST
: TIM7 reset
Set and cleared by software.
0: does not reset TIM7
1: resets TIM7
Bit 4
TIM6RST
: TIM6 reset
Set and cleared by software.
0: does not reset TIM6
1: resets TIM6
- Bit 3
TIM5RST
: TIM5 reset
Set and cleared by software.
0: does not reset TIM5
1: resets TIM5 - Bit 2
TIM4RST
: TIM4 reset
Set and cleared by software.
0: does not reset TIM4
1: resets TIM4 - Bit 1
TIM3RST
: TIM3 reset
Set and cleared by software.
0: does not reset TIM3
1: resets TIM3 - Bit 0
TIM2RST
: TIM2 reset
Set and cleared by software.
0: does not reset TIM2
1: resets TIM2
6.3.9 RCC APB2 peripheral reset register (RCC_APB2RSTR)
Address offset: 0x24
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | LTD CRST | Reserved | SAI1 RST | SPI6 RST | SPI5 RST | Res. | TIM11 RST | TIM10 RST | TIM9 RST | ||||||
| rw | rw | rw | rw | rw | rw | rw | |||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reser- ved | SYSCF G RST | SPI4 RST | SPI1 RST | SDIO RST | Reserved | ADC RST | Reserved | USART 6 RST | USART 1 RST | Reserved | TIM8 RST | ||||
| rw | rw | rw | rw | rw | rw | rw | |||||||||
Bits 31:27 Reserved, must be kept at reset value.
Bit 26 LTDCRST : LTDC reset
This bit is set and reset by software.
0: does not reset LCD-TFT
1: resets LCD-TFT
Bits 27:23 Reserved, must be kept at reset value.
Bit 22 SAI1RST : SAI1 reset
This bit is set and reset by software.
0: does not reset SAI1
1: resets SAI1
Bit 21 SPI6RST : SPI6 reset
This bit is set and cleared by software.
0: does not reset SPI6
1: resets SPI6
Bit 20 SPI5RST : SPI5 reset
This bit is set and cleared by software.
0: does not reset SPI5
1: resets SPI5
Bit 19 Reserved, must be kept at reset value.
Bit 18 TIM11RST : TIM11 reset
This bit is set and cleared by software.
0: does not reset TIM11
1: resets TIM14
Bit 17 TIM10RST : TIM10 reset
This bit is set and cleared by software.
0: does not reset TIM10
1: resets TIM10
Bit 16 TIM9RST : TIM9 reset
This bit is set and cleared by software.
0: does not reset TIM9
1: resets TIM9
Bit 15 Reserved, must be kept at reset value.
Bit 14 SYSCFGRST : System configuration controller reset
This bit is set and cleared by software.
0: does not reset the System configuration controller
1: resets the System configuration controller
Bit 13 SPI4RST : SPI4 reset
This bit is set and cleared by software.
0: does not reset SPI4
1: resets SPI4
Bit 12 SPI1RST : SPI1 reset
This bit is set and cleared by software.
0: does not reset SPI1
1: resets SPI1
Bit 11 SDIORST : SDIO reset
This bit is set and cleared by software.
0: does not reset the SDIO module
1: resets the SDIO module
Bits 10:9 Reserved, must be kept at reset value.
Bit 8 ADCRST : ADC interface reset (common to all ADCs)
This bit is set and cleared by software.
0: does not reset the ADC interface
1: resets the ADC interface
Bits 7:6 Reserved, must be kept at reset value.
Bit 5 USART6RST : USART6 reset
This bit is set and cleared by software.
0: does not reset USART6
1: resets USART6
Bit 4 USART1RST : USART1 reset
This bit is set and cleared by software.
0: does not reset USART1
1: resets USART1
Bits 3:2 Reserved, must be kept at reset value.
Bit 1 TIM8RST : TIM8 reset
This bit is set and cleared by software.
0: does not reset TIM8
1: resets TIM8
Bit 0 TIM1RST : TIM1 reset
This bit is set and cleared by software.
0: does not reset TIM1
1: resets TIM1
6.3.10 RCC AHB1 peripheral clock register (RCC_AHB1ENR)
Address offset: 0x30
Reset value: 0x0010 0000
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reser- ved | OTGH S ULPIE N | OTGH SEN | ETHM ACPTP EN | ETHM ACRXE N | ETHM ACTXE N | ETHMA CEN | Res. | DMA2D EN | DMA2E N | DMA1E N | CCMDAT ARAMEN | Res. | BKPSR AMEN | Reserved | |
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | ||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | CRCE N | Res. | GPIOEN | GPIOJ EN | GPIOIE N | GPIOH EN | GPIOG EN | GPIOFE N | GPIOEEN | GPIO BEN | GPIO AEN | ||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | ||||||
Bit 31 Reserved, must be kept at reset value.
Bit 30 OTGHULPIEN : USB OTG HSULPI clock enable
This bit is set and cleared by software. It must be cleared when the OTG_HS is used in FS mode.
- 0: USB OTG HS ULPI clock disabled
- 1: USB OTG HS ULPI clock enabled
Bit 29 OTGHSEN : USB OTG HS clock enable
This bit is set and cleared by software.
- 0: USB OTG HS clock disabled
- 1: USB OTG HS clock enabled
Bit 28 ETHMACPTPEN : Ethernet PTP clock enable
This bit is set and cleared by software.
- 0: Ethernet PTP clock disabled
- 1: Ethernet PTP clock enabled
Bit 27 ETHMACRXEN : Ethernet Reception clock enable
This bit is set and cleared by software.
- 0: Ethernet Reception clock disabled
- 1: Ethernet Reception clock enabled
Bit 26 ETHMACTXEN : Ethernet Transmission clock enable
This bit is set and cleared by software.
- 0: Ethernet Transmission clock disabled
- 1: Ethernet Transmission clock enabled
Bit 25 ETHMACEN : Ethernet MAC clock enable
This bit is set and cleared by software.
- 0: Ethernet MAC clock disabled
- 1: Ethernet MAC clock enabled
Bit 24 Reserved, must be kept at reset value.
Bit 23 DMA2DEN : DMA2D clock enable
This bit is set and cleared by software.
- 0: DMA2D clock disabled
- 1: DMA2D clock enabled
Bit 22 DMA2EN : DMA2 clock enable
This bit is set and cleared by software.
0: DMA2 clock disabled
1: DMA2 clock enabled
Bit 21 DMA1EN : DMA1 clock enable
This bit is set and cleared by software.
0: DMA1 clock disabled
1: DMA1 clock enabled
Bit 20 CCMDATARAMEN : CCM data RAM clock enable
This bit is set and cleared by software.
0: CCM data RAM clock disabled
1: CCM data RAM clock enabled
Bit 19 Reserved, must be kept at reset value.
Bit 18 BKPSRAMEN : Backup SRAM interface clock enable
This bit is set and cleared by software.
0: Backup SRAM interface clock disabled
1: Backup SRAM interface clock enabled
Bits 17:13 Reserved, must be kept at reset value.
Bit 12 CRCEN : CRC clock enable
This bit is set and cleared by software.
0: CRC clock disabled
1: CRC clock enabled
Bit 11 Reserved, must be kept at reset value.
Bit 10 GPIOKEN : IO port K clock enable
This bit is set and cleared by software.
0: IO port K clock disabled
1: IO port K clock enabled
Bit 9 GPIOJEN : IO port J clock enable
This bit is set and cleared by software.
0: IO port J clock disabled
1: IO port J clock enabled
Bit 8 GPIOIEN : IO port I clock enable
This bit is set and cleared by software.
0: IO port I clock disabled
1: IO port I clock enabled
Bit 7 GPIOHEN : IO port H clock enable
This bit is set and cleared by software.
0: IO port H clock disabled
1: IO port H clock enabled
Bit 6 GPIOGEN : IO port G clock enable
This bit is set and cleared by software.
0: IO port G clock disabled
1: IO port G clock enabled
- Bit 5
GPIOFEN
: IO port F clock enable
This bit is set and cleared by software.
0: IO port F clock disabled
1: IO port F clock enabled - Bit 4
GPIOEEN
: IO port E clock enable
This bit is set and cleared by software.
0: IO port E clock disabled
1: IO port E clock enabled - Bit 3
GPIODEN
: IO port D clock enable
This bit is set and cleared by software.
0: IO port D clock disabled
1: IO port D clock enabled - Bit 2
GPIOCEN
: IO port C clock enable
This bit is set and cleared by software.
0: IO port C clock disabled
1: IO port C clock enabled - Bit 1
GPIOBEN
: IO port B clock enable
This bit is set and cleared by software.
0: IO port B clock disabled
1: IO port B clock enabled - Bit 0
GPIOAEN
: IO port A clock enable
This bit is set and cleared by software.
0: IO port A clock disabled
1: IO port A clock enabled

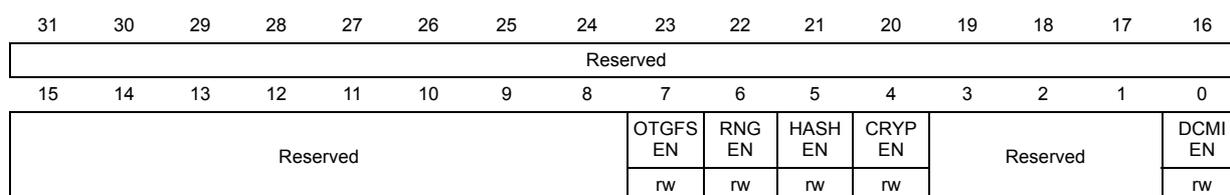

6.3.11 RCC AHB2 peripheral clock enable register (RCC_AHB2ENR)
Address offset: 0x34
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
| Reserved | |||||||||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | OTGFS EN | RNG EN | HASH EN | CRYP EN | Reserved | DCMI EN | |||||||||
| rw | rw | rw | rw | rw | |||||||||||
Bits 31:8 Reserved, must be kept at reset value.
- Bit 7
OTGFSEN
: USB OTG FS clock enable
This bit is set and cleared by software.
0: USB OTG FS clock disabled
1: USB OTG FS clock enabled - Bit 6
RNGEN
: Random number generator clock enable
This bit is set and cleared by software.
0: Random number generator clock disabled
1: Random number generator clock enabled
Bit 5 HASHEN : Hash modules clock enable
This bit is set and cleared by software.
0: Hash modules clock disabled
1: Hash modules clock enabled
Bit 4 CRYPEN : Cryptographic modules clock enable
This bit is set and cleared by software.
0: cryptographic module clock disabled
1: cryptographic module clock enabled
Bits 3:1 Reserved, must be kept at reset value.
Bit 0 DCMIEN : Camera interface enable
This bit is set and cleared by software.
0: Camera interface clock disabled
1: Camera interface clock enabled
6.3.12 RCC AHB3 peripheral clock enable register (RCC_AHB3ENR)
Address offset: 0x38
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | |||||||||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | FMCEN | ||||||||||||||
| rw | |||||||||||||||
Bits 31:1 Reserved, must be kept at reset value.
Bit 0 FMCEN : Flexible memory controller module clock enable
This bit is set and cleared by software.
0: FMC module clock disabled
1: FMC module clock enabled
6.3.13 RCC APB1 peripheral clock enable register (RCC_APB1ENR)
Address offset: 0x40
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UART8 EN | UART7 EN | DAC EN | PWR EN | Reser-ved | CAN2 EN | CAN1 EN | Reser-ved | I2C3 EN | I2C2 EN | I2C1 EN | UART5 EN | UART4 EN | USART 3 EN | USART 2 EN | Reser-ved |
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | |||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| SPI3 EN | SPI2 EN | Reserved | WWDG EN | Reserved | TIM14 EN | TIM13 EN | TIM12 EN | TIM7 EN | TIM6 EN | TIM5 EN | TIM4 EN | TIM3 EN | TIM2 EN | ||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | ||||
- Bit 31
UART8EN
: UART8 clock enable
This bit is set and cleared by software.
0: UART8 clock disabled
1: UART8 clock enabled - Bit 30
UART7EN
: UART7 clock enable
This bit is set and cleared by software.
0: UART7 clock disabled
1: UART7 clock enabled - Bit 29
DACEN
: DAC interface clock enable
This bit is set and cleared by software.
0: DAC interface clock disabled
1: DAC interface clock enable - Bit 28
PWREN
: Power interface clock enable
This bit is set and cleared by software.
0: Power interface clock disabled
1: Power interface clock enable - Bit 27 Reserved, must be kept at reset value.
- Bit 26
CAN2EN
: CAN 2 clock enable
This bit is set and cleared by software.
0: CAN 2 clock disabled
1: CAN 2 clock enabled - Bit 25
CAN1EN
: CAN 1 clock enable
This bit is set and cleared by software.
0: CAN 1 clock disabled
1: CAN 1 clock enabled - Bit 24 Reserved, must be kept at reset value.
- Bit 23
I2C3EN
: I2C3 clock enable
This bit is set and cleared by software.
0: I2C3 clock disabled
1: I2C3 clock enabled - Bit 22
I2C2EN
: I2C2 clock enable
This bit is set and cleared by software.
0: I2C2 clock disabled
1: I2C2 clock enabled - Bit 21
I2C1EN
: I2C1 clock enable
This bit is set and cleared by software.
0: I2C1 clock disabled
1: I2C1 clock enabled - Bit 20
UART5EN
: UART5 clock enable
This bit is set and cleared by software.
0: UART5 clock disabled
1: UART5 clock enabled - Bit 19
UART4EN
: UART4 clock enable
This bit is set and cleared by software.
0: UART4 clock disabled
1: UART4 clock enabled
Bit 18
USART3EN
: USART3 clock enable
This bit is set and cleared by software.
0: USART3 clock disabled
1: USART3 clock enabled
Bit 17
USART2EN
: USART2 clock enable
This bit is set and cleared by software.
0: USART2 clock disabled
1: USART2 clock enabled
Bit 16 Reserved, must be kept at reset value.
Bit 15
SPI3EN
: SPI3 clock enable
This bit is set and cleared by software.
0: SPI3 clock disabled
1: SPI3 clock enabled
Bit 14
SPI2EN
: SPI2 clock enable
This bit is set and cleared by software.
0: SPI2 clock disabled
1: SPI2 clock enabled
Bits 13:12 Reserved, must be kept at reset value.
Bit 11
WWDGEN
: Window watchdog clock enable
This bit is set and cleared by software.
0: Window watchdog clock disabled
1: Window watchdog clock enabled
Bit 10:9 Reserved, must be kept at reset value.
Bit 8
TIM14EN
: TIM14 clock enable
This bit is set and cleared by software.
0: TIM14 clock disabled
1: TIM14 clock enabled
Bit 7
TIM13EN
: TIM13 clock enable
This bit is set and cleared by software.
0: TIM13 clock disabled
1: TIM13 clock enabled
Bit 6
TIM12EN
: TIM12 clock enable
This bit is set and cleared by software.
0: TIM12 clock disabled
1: TIM12 clock enabled
Bit 5
TIM7EN
: TIM7 clock enable
This bit is set and cleared by software.
0: TIM7 clock disabled
1: TIM7 clock enabled
Bit 4
TIM6EN
: TIM6 clock enable
This bit is set and cleared by software.
0: TIM6 clock disabled
1: TIM6 clock enabled
Bit 3 TIM5EN : TIM5 clock enable
This bit is set and cleared by software.
0: TIM5 clock disabled
1: TIM5 clock enabled
Bit 2 TIM4EN : TIM4 clock enable
This bit is set and cleared by software.
0: TIM4 clock disabled
1: TIM4 clock enabled
Bit 1 TIM3EN : TIM3 clock enable
This bit is set and cleared by software.
0: TIM3 clock disabled
1: TIM3 clock enabled
Bit 0 TIM2EN : TIM2 clock enable
This bit is set and cleared by software.
0: TIM2 clock disabled
1: TIM2 clock enabled
6.3.14 RCC APB2 peripheral clock enable register (RCC_APB2ENR)
Address offset: 0x44
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | LTDC EN | Reserved | SAI1EN | SPI6EN | SPI5EN | Res. | TIM11 EN | TIM10 EN | TIM9 EN | ||||||
| rw | rw | rw | rw | rw | rw | rw | |||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reser- ved | SYSCF G EN | SPI4E N | SPI1 EN | SDIO EN | ADC3 EN | ADC2 EN | ADC1 EN | Reserved | USART 6 EN | USART 1 EN | Reserved | TIM8 EN | TIM1 EN | ||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | |||||
Bits 31:27 Reserved, must be kept at reset value.
Bit 26 LTDCEN : LTDC clock enable
This bit is set and cleared by software.
0: LTDC clock disabled
1: LTDC clock enabled
Bits 27: 23 Reserved, must be kept at reset value.
Bit 22 SAI1EN : SAI1 clock enable
This bit is set and cleared by software.
0: SAI1 clock disabled
1: SAI1 clock enabled
Bit 21 SPI6EN : SPI6 clock enable
This bit is set and cleared by software.
0: SPI6 clock disabled
1: SPI6 clock enabled
Bit 20 SPI5EN : SPI5 clock enable
This bit is set and cleared by software.
0: SPI5 clock disabled
1: SPI5 clock enabled
Bit 18 TIM11EN : TIM11 clock enable
This bit is set and cleared by software.
0: TIM11 clock disabled
1: TIM11 clock enabled
Bit 17 TIM10EN : TIM10 clock enable
This bit is set and cleared by software.
0: TIM10 clock disabled
1: TIM10 clock enabled
Bit 16 TIM9EN : TIM9 clock enable
This bit is set and cleared by software.
0: TIM9 clock disabled
1: TIM9 clock enabled
Bit 15 Reserved, must be kept at reset value.
Bit 14 SYSCFGEN : System configuration controller clock enable
This bit is set and cleared by software.
0: System configuration controller clock disabled
1: System configuration controller clock enabled
Bit 13 SPI4EN : SPI4 clock enable
This bit is set and cleared by software.
0: SPI4 clock disabled
1: SPI4 clock enabled
Bit 12 SPI1EN : SPI1 clock enable
This bit is set and cleared by software.
0: SPI1 clock disabled
1: SPI1 clock enabled
Bit 11 SDIOEN : SDIO clock enable
This bit is set and cleared by software.
0: SDIO module clock disabled
1: SDIO module clock enabled
Bit 10 ADC3EN : ADC3 clock enable
This bit is set and cleared by software.
0: ADC3 clock disabled
1: ADC3 clock enabled
Bit 9 ADC2EN : ADC2 clock enable
This bit is set and cleared by software.
0: ADC2 clock disabled
1: ADC2 clock enabled
Bit 8 ADC1EN : ADC1 clock enable
This bit is set and cleared by software.
0: ADC1 clock disabled
1: ADC1 clock enabled
Bits 7:6 Reserved, must be kept at reset value.
Bit 5 USART6EN : USART6 clock enable
This bit is set and cleared by software.
0: USART6 clock disabled
1: USART6 clock enabled
Bit 4 USART1EN : USART1 clock enable
This bit is set and cleared by software.
0: USART1 clock disabled
1: USART1 clock enabled
Bits 3:2 Reserved, must be kept at reset value.
Bit 1 TIM8EN : TIM8 clock enable
This bit is set and cleared by software.
0: TIM8 clock disabled
1: TIM8 clock enabled
Bit 0 TIM1EN : TIM1 clock enable
This bit is set and cleared by software.
0: TIM1 clock disabled
1: TIM1 clock enabled
6.3.15 RCC AHB1 peripheral clock enable in low power mode register (RCC_AHB1LPENR)
Address offset: 0x50
Reset value: 0x7EEF 97FF
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Res. | OTGHS ULPILPEN | OTGHS LPEN | ETHPTP LPEN | ETHRX LPEN | ETHTX LPEN | ETHMAC LPEN | Res. | DMA2D LPEN | DMA2 LPEN | DMA1 LPEN | Res. | SRAM3 LPEN | BKPSRAM LPEN | SRAM2 LPEN | SRAM1 LPEN |
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw |
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FLITF LPEN | Reserved | CRC LPEN | Res. | GPIOK LPEN | GPIOJ LPEN | GPIOI LPEN | GPIOH LPEN | GPIOG LPEN | GPIOF LPEN | GPIOE LPEN | GPIO D LPEN | GPIOC LPEN | GPIOB LPEN | ||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw |
Bit 31 Reserved, must be kept at reset value.
Bit 30 OTGHSULPILPEN : USB OTG HS ULPI clock enable during Sleep mode
This bit is set and cleared by software. It must be cleared when the OTG_HS is used in FS mode.
0: USB OTG HS ULPI clock disabled during Sleep mode
1: USB OTG HS ULPI clock enabled during Sleep mode
Bit 29 OTGHSLPEN : USB OTG HS clock enable during Sleep mode
This bit is set and cleared by software.
0: USB OTG HS clock disabled during Sleep mode
1: USB OTG HS clock enabled during Sleep mode
Bit 28 ETHMACPTPLPEN : Ethernet PTP clock enable during Sleep mode
This bit is set and cleared by software.
0: Ethernet PTP clock disabled during Sleep mode
1: Ethernet PTP clock enabled during Sleep mode
Bit 27 ETHMACRXPEN : Ethernet reception clock enable during Sleep mode
This bit is set and cleared by software.
0: Ethernet reception clock disabled during Sleep mode
1: Ethernet reception clock enabled during Sleep mode
Bit 26 ETHMACTXLPEN : Ethernet transmission clock enable during Sleep mode
This bit is set and cleared by software.
0: Ethernet transmission clock disabled during sleep mode
1: Ethernet transmission clock enabled during sleep mode
Bit 25 ETHMACLPEN : Ethernet MAC clock enable during Sleep mode
This bit is set and cleared by software.
0: Ethernet MAC clock disabled during Sleep mode
1: Ethernet MAC clock enabled during Sleep mode
Bit 24 Reserved, must be kept at reset value.
Bit 23 DMA2DLPEN : DMA2D clock enable during Sleep mode
This bit is set and cleared by software.
0: DMA2D clock disabled during Sleep mode
1: DMA2D clock enabled during Sleep mode
Bit 22 DMA2LPEN : DMA2 clock enable during Sleep mode
This bit is set and cleared by software.
0: DMA2 clock disabled during Sleep mode
1: DMA2 clock enabled during Sleep mode
Bit 21 DMA1LPEN : DMA1 clock enable during Sleep mode
This bit is set and cleared by software.
0: DMA1 clock disabled during Sleep mode
1: DMA1 clock enabled during Sleep mode
Bit 20 Reserved, must be kept at reset value.
Bit 19 SRAM3LPEN : SRAM3 interface clock enable during Sleep mode
This bit is set and cleared by software.
0: SRAM3 interface clock disabled during Sleep mode
1: SRAM3 interface clock enabled during Sleep mode
Bit 18 BKPSRAMLPEN : Backup SRAM interface clock enable during Sleep mode
This bit is set and cleared by software.
0: Backup SRAM interface clock disabled during Sleep mode
1: Backup SRAM interface clock enabled during Sleep mode
Bit 17 SRAM2LPEN : SRAM2 interface clock enable during Sleep mode
This bit is set and cleared by software.
0: SRAM2 interface clock disabled during Sleep mode
1: SRAM2 interface clock enabled during Sleep mode
Bit 16 SRAM1LPEN : SRAM1 interface clock enable during Sleep mode
This bit is set and cleared by software.
0: SRAM1 interface clock disabled during Sleep mode
1: SRAM1 interface clock enabled during Sleep mode
Bit 15 FLITFLPEN : Flash interface clock enable during Sleep mode
This bit is set and cleared by software.
0: Flash interface clock disabled during Sleep mode
1: Flash interface clock enabled during Sleep mode
Bits 14:13 Reserved, must be kept at reset value.
Bit 12 CRCLPEN : CRC clock enable during Sleep mode
This bit is set and cleared by software.
0: CRC clock disabled during Sleep mode
1: CRC clock enabled during Sleep mode
Bit 11 Reserved, must be kept at reset value.
Bit 10 GPIOKLPEN : IO port K clock enable during Sleep mode
This bit is set and cleared by software.
0: IO port K clock disabled during Sleep mode
1: IO port K clock enabled during Sleep mode
Bit 9 GPIOJLPEN : IO port J clock enable during Sleep mode
This bit is set and cleared by software.
0: IO port J clock disabled during Sleep mode
1: IO port J clock enabled during Sleep mode
Bit 8 GPIOILPEN : IO port I clock enable during Sleep mode
This bit is set and cleared by software.
0: IO port I clock disabled during Sleep mode
1: IO port I clock enabled during Sleep mode
Bit 7 GPIOHLPEN : IO port H clock enable during Sleep mode
This bit is set and cleared by software.
0: IO port H clock disabled during Sleep mode
1: IO port H clock enabled during Sleep mode
Bits 6 GPIOGLPEN : IO port G clock enable during Sleep mode
This bit is set and cleared by software.
0: IO port G clock disabled during Sleep mode
1: IO port G clock enabled during Sleep mode
Bit 5 GPIOFLPEN : IO port F clock enable during Sleep mode
This bit is set and cleared by software.
0: IO port F clock disabled during Sleep mode
1: IO port F clock enabled during Sleep mode
Bit 4 GPIOELPEN : IO port E clock enable during Sleep mode
Set and cleared by software.
0: IO port E clock disabled during Sleep mode
1: IO port E clock enabled during Sleep mode
Bit 3 GPIODLPEN : IO port D clock enable during Sleep mode
This bit is set and cleared by software.
0: IO port D clock disabled during Sleep mode
1: IO port D clock enabled during Sleep mode
Bit 2 GPIOCLPEN : IO port C clock enable during Sleep mode
This bit is set and cleared by software.
0: IO port C clock disabled during Sleep mode
1: IO port C clock enabled during Sleep mode
Bit 1 GPIOBLPEN : IO port B clock enable during Sleep mode
This bit is set and cleared by software.
0: IO port B clock disabled during Sleep mode
1: IO port B clock enabled during Sleep mode
Bit 0 GPIOALPEN : IO port A clock enable during sleep mode
This bit is set and cleared by software.
0: IO port A clock disabled during Sleep mode
1: IO port A clock enabled during Sleep mode
6.3.16 RCC AHB2 peripheral clock enable in low power mode register (RCC_AHB2LPENR)
Address offset: 0x54
Reset value: 0x0000 00F1
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | |||||||||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | OTGFS LPEN | RNG LPEN | HASH LPEN | CRYP LPEN | Reserved | DCMI LPEN | |||||||||
| rw | rw | rw | rw | ||||||||||||
Bits 31:8 Reserved, must be kept at reset value.
Bit 7 OTGFSLPEN : USB OTG FS clock enable during Sleep mode
This bit is set and cleared by software.
0: USB OTG FS clock disabled during Sleep mode
1: USB OTG FS clock enabled during Sleep mode
Bit 6 RNGLPEN : Random number generator clock enable during Sleep mode
This bit is set and cleared by software.
0: Random number generator clock disabled during Sleep mode
1: Random number generator clock enabled during Sleep mode
Bit 5 HASHPEN : Hash modules clock enable during Sleep mode
This bit is set and cleared by software.
0: Hash modules clock disabled during Sleep mode
1: Hash modules clock enabled during Sleep mode
Bit 4 CRYPLPEN : Cryptography modules clock enable during Sleep mode
This bit is set and cleared by software.
0: cryptography modules clock disabled during Sleep mode
1: cryptography modules clock enabled during Sleep mode
Bits 3:1 Reserved, must be kept at reset value.
Bit 0 DCMILPEN : Camera interface enable during Sleep mode
This bit is set and cleared by software.
0: Camera interface clock disabled during Sleep mode
1: Camera interface clock enabled during Sleep mode
6.3.17 RCC AHB3 peripheral clock enable in low power mode register (RCC_AHB3LPENR)
Address offset: 0x58
Reset value: 0x0000 0001
Access: no wait state, word, half-word and byte access.

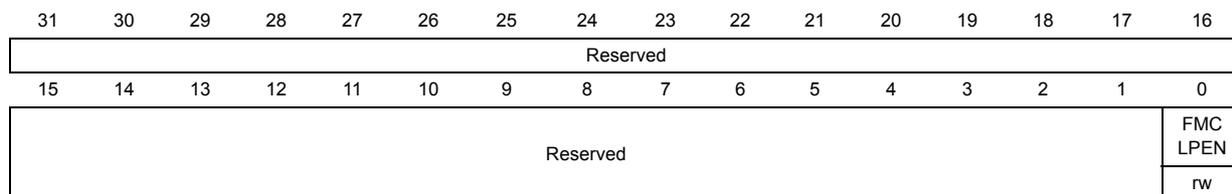

| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
| Reserved | |||||||||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | FMC LPEN | ||||||||||||||
| rw | |||||||||||||||
Bits 31:1 Reserved, must be kept at reset value.
FMCLPEN: Flexible memory controller module clock enable during Sleep mode
Bit 0 This bit is set and cleared by software.
0: FMC module clock disabled during Sleep mode
1: FMC module clock enabled during Sleep mode
6.3.18 RCC APB1 peripheral clock enable in low power mode register (RCC_APB1LPENR)
Address offset: 0x60
Reset value: 0xF6FE C9FF
Access: no wait state, word, half-word and byte access.

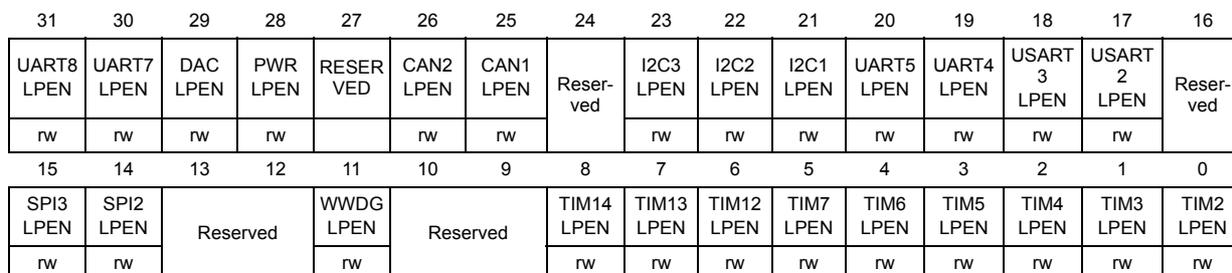

| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
| UART8 LPEN | UART7 LPEN | DAC LPEN | PWR LPEN | RESER VED | CAN2 LPEN | CAN1 LPEN | Reser- ved | I2C3 LPEN | I2C2 LPEN | I2C1 LPEN | UART5 LPEN | UART4 LPEN | USART 3 LPEN | USART 2 LPEN | Reser- ved |
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | |||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| SPI3 LPEN | SPI2 LPEN | Reserved | WWDG LPEN | Reserved | TIM14 LPEN | TIM13 LPEN | TIM12 LPEN | TIM7 LPEN | TIM6 LPEN | TIM5 LPEN | TIM4 LPEN | TIM3 LPEN | TIM2 LPEN | ||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | |||
Bit 31 UART8LPEN : UART8 clock enable during Sleep mode
This bit is set and cleared by software.
0: UART8 clock disabled during Sleep mode
1: UART8 clock enabled during Sleep mode
Bit 30 UART7LPEN : UART7 clock enable during Sleep mode
This bit is set and cleared by software.
0: UART7 clock disabled during Sleep mode
1: UART7 clock enabled during Sleep mode
Bit 29 DACLPEN : DAC interface clock enable during Sleep mode
This bit is set and cleared by software.
0: DAC interface clock disabled during Sleep mode
1: DAC interface clock enabled during Sleep mode
Bit 28 PWRLPEN : Power interface clock enable during Sleep mode
This bit is set and cleared by software.
0: Power interface clock disabled during Sleep mode
1: Power interface clock enabled during Sleep mode
Bit 27 Reserved, must be kept at reset value.
Bit 26 CAN2LPEN : CAN 2 clock enable during Sleep mode
This bit is set and cleared by software.
0: CAN 2 clock disabled during sleep mode
1: CAN 2 clock enabled during sleep mode
Bit 25 CAN1LPEN : CAN 1 clock enable during Sleep mode
This bit is set and cleared by software.
0: CAN 1 clock disabled during Sleep mode
1: CAN 1 clock enabled during Sleep mode
Bit 24 Reserved, must be kept at reset value.
Bit 23 I2C3LPEN : I2C3 clock enable during Sleep mode
This bit is set and cleared by software.
0: I2C3 clock disabled during Sleep mode
1: I2C3 clock enabled during Sleep mode
Bit 22 I2C2LPEN : I2C2 clock enable during Sleep mode
This bit is set and cleared by software.
0: I2C2 clock disabled during Sleep mode
1: I2C2 clock enabled during Sleep mode
Bit 21 I2C1LPEN : I2C1 clock enable during Sleep mode
This bit is set and cleared by software.
0: I2C1 clock disabled during Sleep mode
1: I2C1 clock enabled during Sleep mode
Bit 20 UART5LPEN : UART5 clock enable during Sleep mode
This bit is set and cleared by software.
0: UART5 clock disabled during Sleep mode
1: UART5 clock enabled during Sleep mode
Bit 19 UART4LPEN : UART4 clock enable during Sleep mode
This bit is set and cleared by software.
0: UART4 clock disabled during Sleep mode
1: UART4 clock enabled during Sleep mode
- Bit 18
USART3LPEN
: USART3 clock enable during Sleep mode
This bit is set and cleared by software.
0: USART3 clock disabled during Sleep mode
1: USART3 clock enabled during Sleep mode - Bit 17
USART2LPEN
: USART2 clock enable during Sleep mode
This bit is set and cleared by software.
0: USART2 clock disabled during Sleep mode
1: USART2 clock enabled during Sleep mode - Bit 16 Reserved, must be kept at reset value.
- Bit 15
SPI3LPEN
: SPI3 clock enable during Sleep mode
This bit is set and cleared by software.
0: SPI3 clock disabled during Sleep mode
1: SPI3 clock enabled during Sleep mode - Bit 14
SPI2LPEN
: SPI2 clock enable during Sleep mode
This bit is set and cleared by software.
0: SPI2 clock disabled during Sleep mode
1: SPI2 clock enabled during Sleep mode - Bits 13:12 Reserved, must be kept at reset value.
- Bit 11
WWDGLPEN
: Window watchdog clock enable during Sleep mode
This bit is set and cleared by software.
0: Window watchdog clock disabled during sleep mode
1: Window watchdog clock enabled during sleep mode - Bits 10:9 Reserved, must be kept at reset value.
- Bit 8
TIM14LPEN
: TIM14 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM14 clock disabled during Sleep mode
1: TIM14 clock enabled during Sleep mode - Bit 7
TIM13LPEN
: TIM13 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM13 clock disabled during Sleep mode
1: TIM13 clock enabled during Sleep mode - Bit 6
TIM12LPEN
: TIM12 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM12 clock disabled during Sleep mode
1: TIM12 clock enabled during Sleep mode - Bit 5
TIM7LPEN
: TIM7 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM7 clock disabled during Sleep mode
1: TIM7 clock enabled during Sleep mode - Bit 4
TIM6LPEN
: TIM6 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM6 clock disabled during Sleep mode
1: TIM6 clock enabled during Sleep mode
Bit 3 TIM5LPEN : TIM5 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM5 clock disabled during Sleep mode
1: TIM5 clock enabled during Sleep mode
Bit 2 TIM4LPEN : TIM4 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM4 clock disabled during Sleep mode
1: TIM4 clock enabled during Sleep mode
Bit 1 TIM3LPEN : TIM3 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM3 clock disabled during Sleep mode
1: TIM3 clock enabled during Sleep mode
Bit 0 TIM2LPEN : TIM2 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM2 clock disabled during Sleep mode
1: TIM2 clock enabled during Sleep mode
6.3.19 RCC APB2 peripheral clock enabled in low power mode register (RCC_APB2LPENR)
Address offset: 0x64
Reset value: 0x00477 7F33
Access: no wait state, word, half-word and byte access.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | LTDC LPEN | Reserved | SAI1 LPEN | SPI6 LPEN | SPI5 LPEN | Reser- ved | TIM11 LPEN | TIM10 LPEN | TIM9 LPEN | ||||||
| rw | rw | rw | rw | rw | rw | rw | |||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reser- ved | SYSC FG LPEN | SPI4 LPEN | SPI1 LPEN | SDIO LPEN | ADC3 LPEN | ADC2 LPEN | ADC1 LPEN | Reserved | USART 6 LPEN | USART 1 LPEN | Reserved | TIM8 LPEN | TIM1 LPEN | ||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | |||||
Bits 31:27 Reserved, must be kept at reset value.
Bit 26 LTDC LPEN : LTDC clock enable during Sleep mode
This bit is set and cleared by software.
0: LTDC clock disabled during Sleep mode
1: LTDC clock enabled during Sleep mode
Bits 25:23 Reserved, must be kept at reset value.
Bit 22 SAI1 LPEN : SAI1 clock enable during Sleep mode
This bit is set and cleared by software.
0: SAI1 clock disabled during Sleep mode
1: SAI1 clock enabled during Sleep mode
Bit 21 SPI6 LPEN : SPI6 clock enable during Sleep mode
This bit is set and cleared by software.
0: SPI6 clock disabled during Sleep mode
1: SPI6 clock enabled during Sleep mode
Bit 20 SPI5 LPEN : SPI5 clock enable during Sleep mode
This bit is set and cleared by software.
0: SPI5 clock disabled during Sleep mode
1: SPI5 clock enabled during Sleep mode
Bit 19 Reserved, must be kept at reset value.
Bit 18 TIM11 LPEN : TIM11 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM11 clock disabled during Sleep mode
1: TIM11 clock enabled during Sleep mode
Bit 17 TIM10 LPEN : TIM10 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM10 clock disabled during Sleep mode
1: TIM10 clock enabled during Sleep mode
Bit 16 TIM9LPEN : TIM9 clock enable during sleep mode
This bit is set and cleared by software.
0: TIM9 clock disabled during Sleep mode
1: TIM9 clock enabled during Sleep mode
Bit 15 Reserved, must be kept at reset value.
Bit 14 SYSCFGLPEN : System configuration controller clock enable during Sleep mode
This bit is set and cleared by software.
0: System configuration controller clock disabled during Sleep mode
1: System configuration controller clock enabled during Sleep mode
Bit 13 SPI4LPEN : SPI4 clock enable during Sleep mode
This bit is set and cleared by software.
0: SPI4 clock disabled during Sleep mode
1: SPI4 clock enabled during Sleep mode
Bit 12 SPI1LPEN : SPI1 clock enable during Sleep mode
This bit is set and cleared by software.
0: SPI1 clock disabled during Sleep mode
1: SPI1 clock enabled during Sleep mode
Bit 11 SDIOLPEN : SDIO clock enable during Sleep mode
This bit is set and cleared by software.
0: SDIO module clock disabled during Sleep mode
1: SDIO module clock enabled during Sleep mode
Bit 10 ADC3LPEN : ADC 3 clock enable during Sleep mode
This bit is set and cleared by software.
0: ADC 3 clock disabled during Sleep mode
1: ADC 3 clock enabled during Sleep mode
Bit 9 ADC2LPEN : ADC2 clock enable during Sleep mode
This bit is set and cleared by software.
0: ADC2 clock disabled during Sleep mode
1: ADC2 clock enabled during Sleep mode
Bit 8 ADC1LPEN : ADC1 clock enable during Sleep mode
This bit is set and cleared by software.
0: ADC1 clock disabled during Sleep mode
1: ADC1 clock enabled during Sleep mode
Bits 7:6 Reserved, must be kept at reset value.
Bit 5 USART6LPEN : USART6 clock enable during Sleep mode
This bit is set and cleared by software.
0: USART6 clock disabled during Sleep mode
1: USART6 clock enabled during Sleep mode
Bit 4 USART1LPEN : USART1 clock enable during Sleep mode
This bit is set and cleared by software.
0: USART1 clock disabled during Sleep mode
1: USART1 clock enabled during Sleep mode
Bits 3:2 Reserved, must be kept at reset value.
Bit 1 TIM8LPEN : TIM8 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM8 clock disabled during Sleep mode
1: TIM8 clock enabled during Sleep mode
Bit 0 TIM1LPEN : TIM1 clock enable during Sleep mode
This bit is set and cleared by software.
0: TIM1 clock disabled during Sleep mode
1: TIM1 clock enabled during Sleep mode
6.3.20 RCC Backup domain control register (RCC_BDCR)
Address offset: 0x70
Reset value: 0x0000 0000, reset by Backup domain reset.
Access: \( 0 \leq \text{wait state} \leq 3 \) , word, half-word and byte access
Wait states are inserted in case of successive accesses to this register.
The LSEON, LSEBYP, RTCSEL and RTCEN bits in the RCC Backup domain control register (RCC_BDCR) are in the Backup domain. As a result, after Reset, these bits are write-protected and the DBP bit in the PWR power control register (PWR_CR) for STM32F42xxx and STM32F43xxx has to be set before these can be modified. Refer to Section 6.1.1: System reset on page 152 for further information. These bits are only reset after a Backup domain Reset (see Section 6.1.3: Backup domain reset ). Any internal or external Reset has no effect on these bits.

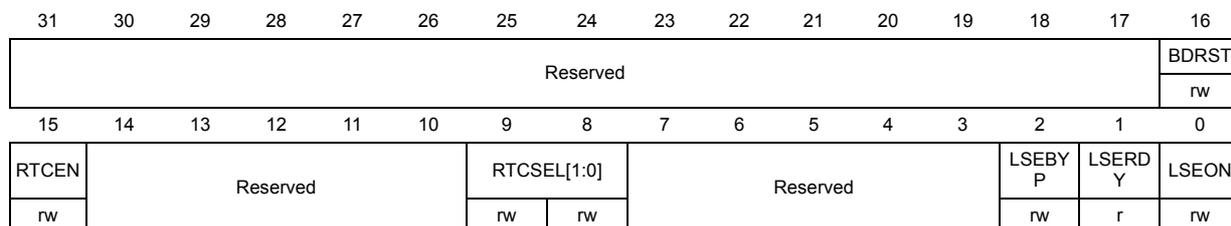

| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | BDRST | ||||||||||||||
| rw | |||||||||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| RTCEN | Reserved | RTCSEL[1:0] | Reserved | LSEBYP | LSERDY | LSEON | |||||||||
| rw | rw | rw | rw | r | rw | ||||||||||
Bits 31:17 Reserved, must be kept at reset value.
Bit 16 BDRST : Backup domain software reset
This bit is set and cleared by software.
0: Reset not activated
1: Resets the entire Backup domain
Note: The BKPSRAM is not affected by this reset, the only way of resetting the BKPSRAM is through the Flash interface when a protection level change from level 1 to level 0 is requested.
The backup domain software reset does not take effect until the DBP bit of the PWR_CR register is set.
Bit 15 RTCEN : RTC clock enable
This bit is set and cleared by software.
0: RTC clock disabled
1: RTC clock enabled
Bits 14:10 Reserved, must be kept at reset value.
Bits 9:8 RTCSEL[1:0] : RTC clock source selection
These bits are set by software to select the clock source for the RTC. Once the RTC clock source has been selected, it cannot be changed anymore unless the Backup domain is reset. The BDRST bit can be used to reset them.
00: No clock
01: LSE oscillator clock used as the RTC clock
10: LSI oscillator clock used as the RTC clock
11: HSE oscillator clock divided by a programmable prescaler (selection through the RTCPRE[4:0] bits in the RCC clock configuration register (RCC_CFGR)) used as the RTC clock
Bits 7:3 Reserved, must be kept at reset value.
Bit 2 LSEBYP : External low-speed oscillator bypass
This bit is set and cleared by software to bypass the oscillator. This bit can be written only when the LSE clock is disabled.
0: LSE oscillator not bypassed
1: LSE oscillator bypassed
Bit 1 LSERDY : External low-speed oscillator ready
This bit is set and cleared by hardware to indicate when the external 32 kHz oscillator is stable. After the LSEON bit is cleared, LSERDY goes low after 6 external low-speed oscillator clock cycles.
0: LSE clock not ready
1: LSE clock ready
Bit 0 LSEON : External low-speed oscillator enable
This bit is set and cleared by software.
0: LSE clock OFF
1: LSE clock ON
6.3.21 RCC clock control & status register (RCC_CSR)
Address offset: 0x74
Reset value: 0x0E00 0000, reset by system reset, except reset flags by power reset only.
Access: 0 ≤ wait state ≤ 3, word, half-word and byte access
Wait states are inserted in case of successive accesses to this register.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LPWR RSTF | WWDG RSTF | IWDG RSTF | SFT RSTF | POR RSTF | PIN RSTF | BORRS TF | RMVF | Reserved | |||||||
| r | r | r | r | r | r | r | rt_w | ||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | LSIRDY | LSION | |||||||||||||
| r | rw | ||||||||||||||
This bit is set by hardware when a Low-power management reset occurs.
Cleared by writing to the RMVF bit.
0: No Low-power management reset occurred
1: Low-power management reset occurred
For further information on Low-power management reset, refer to Low-power management reset .
Bit 30 WWDGRSTF: Window watchdog reset flagThis bit is set by hardware when a window watchdog reset occurs.
Cleared by writing to the RMVF bit.
0: No window watchdog reset occurred
1: Window watchdog reset occurred
Bit 29 IWDGRSTF: Independent watchdog reset flagThis bit is set by hardware when an independent watchdog reset from V DD domain occurs.
Cleared by writing to the RMVF bit.
0: No watchdog reset occurred
1: Watchdog reset occurred
Bit 28 SFTRSTF: Software reset flagThis bit is set by hardware when a software reset occurs.
Cleared by writing to the RMVF bit.
0: No software reset occurred
1: Software reset occurred
Bit 27 PORRSTF: POR/PDR reset flagThis bit is set by hardware when a POR/PDR reset occurs.
Cleared by writing to the RMVF bit.
0: No POR/PDR reset occurred
1: POR/PDR reset occurred
Bit 26 PINRSTF: PIN reset flagThis bit is set by hardware when a reset from the NRST pin occurs.
Cleared by writing to the RMVF bit.
0: No reset from NRST pin occurred
1: Reset from NRST pin occurred
Bit 25 BORRSTF: BOR reset flagCleared by software by writing the RMVF bit.
This bit is set by hardware when a POR/PDR or BOR reset occurs.
0: No POR/PDR or BOR reset occurred
1: POR/PDR or BOR reset occurred
Bit 24 RMVF: Remove reset flagThis bit is set by software to clear the reset flags.
0: No effect
1: Clear the reset flags
Bits 23:2 Reserved, must be kept at reset value.
Bit 1 LSIRDY : Internal low-speed oscillator ready
This bit is set and cleared by hardware to indicate when the internal RC 40 kHz oscillator is stable. After the LSION bit is cleared, LSIRDY goes low after 3 LSI clock cycles.
0: LSI RC oscillator not ready
1: LSI RC oscillator ready
Bit 0 LSION : Internal low-speed oscillator enable
This bit is set and cleared by software.
0: LSI RC oscillator OFF
1: LSI RC oscillator ON
6.3.22 RCC spread spectrum clock generation register (RCC_SSCGR)
Address offset: 0x80
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
The spread spectrum clock generation is available only for the main PLL.
The RCC_SSCGR register must be written either before the main PLL is enabled or after the main PLL disabled.
Note: For full details about PLL spread spectrum clock generation (SSCG) characteristics, refer to the “Electrical characteristics” section in your device datasheet.
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SSCG EN | SPREAD SEL | Reserved | INCSTEP | ||||||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | ||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| INCSTEP | MODPER | ||||||||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | rw |
Bit 31 SSCGEN : Spread spectrum modulation enable
This bit is set and cleared by software.
0: Spread spectrum modulation DISABLE. (To write after clearing CR[24]=PLLON bit)
1: Spread spectrum modulation ENABLE. (To write before setting CR[24]=PLLON bit)
Bit 30 SPREADSEL : Spread Select
This bit is set and cleared by software.
To write before to set CR[24]=PLLON bit.
0: Center spread
1: Down spread
Bits 29:28 Reserved, must be kept at reset value.
Bits 27:13 INCSTEP : Incrementation step
These bits are set and cleared by software. To write before setting CR[24]=PLLON bit.
Configuration input for modulation profile amplitude.
Bits 12:0 MODPER : Modulation period
These bits are set and cleared by software. To write before setting CR[24]=PLLON bit.
Configuration input for modulation profile period.
6.3.23 RCC PLLI2S configuration register (RCC_PLLI2SCFGR)
Address offset: 0x84
Reset value: 0x2400 3000
Access: no wait state, word, half-word and byte access.
This register is used to configure the PLLI2S clock outputs according to the formulas:
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | PLLI2S R2 | PLLI2S R1 | PLLI2S R0 | PLLI2SQ | Reserved | ||||||||||
| rw | rw | rw | rw | rw | rw | rw | |||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | PLLI2SN 8 | PLLI2SN 7 | PLLI2SN 6 | PLLI2SN 5 | PLLI2SN 4 | PLLI2SN 3 | PLLI2SN 2 | PLLI2SN 1 | PLLI2SN 0 | Reserved | |||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | |||||||
Bit 31 Reserved, must be kept at reset value.
Bits 30:28 PLLI2SR : PLLI2S division factor for I2S clocks
These bits are set and cleared by software to control the I2S clock frequency. These bits should be written only if the PLLI2S is disabled. The factor must be chosen in accordance with the prescaler values inside the I2S peripherals, to reach 0.3% error when using standard crystals and 0% error with audio crystals. For more information about I2S clock frequency and precision, refer to Section 28.4.4: Clock generator in the I2S chapter.
Caution: The I2Ss requires a frequency lower than or equal to 192 MHz to work correctly.
I2S clock frequency = VCO frequency / PLLR with \( 2 \leq \text{PLLR} \leq 7 \)
000: PLLR = 0, wrong configuration
001: PLLR = 1, wrong configuration
010: PLLR = 2
...
111: PLLR = 7
Bits 27:24 PLLI2SQ : PLLI2S division factor for SAI1 clock
These bits are set and cleared by software to control the SAI1 clock frequency.
They should be written when the PLLI2S is disabled.
SAI1 clock frequency = VCO frequency / PLLI2SQ with \( 2 \leq \text{PLLI2SQ} \leq 15 \)
0000: PLLI2SQ = 0, wrong configuration
0001: PLLI2SQ = 1, wrong configuration
0010: PLLI2SQ = 2
0011: PLLI2SQ = 3
0100: PLLI2SQ = 4
0101: PLLI2SQ = 5
...
1111: PLLI2SQ = 15
Bits 23:15 Reserved, must be kept at reset value.
Bits 14:6 PLLI2SN : PLLI2S multiplication factor for VCO
These bits are set and cleared by software to control the multiplication factor of the VCO. These bits can be written only when PLLI2S is disabled. Only half-word and word accesses are allowed to write these bits.
Caution: The software has to set these bits correctly to ensure that the VCO output frequency is between 100 and 432 MHz.
VCO output frequency = VCO input frequency \( \times \) PLLI2SN with \( 50 \leq \text{PLLI2SN} \leq 432 \)
000000000: PLLI2SN = 0, wrong configuration
000000001: PLLI2SN = 1, wrong configuration
...
000110010: PLLI2SN = 50
...
001100011: PLLI2SN = 99
001100100: PLLI2SN = 100
001100101: PLLI2SN = 101
001100110: PLLI2SN = 102
...
110110000: PLLI2SN = 432
110110001: PLLI2SN = 433, wrong configuration
...
111111111: PLLI2SN = 511, wrong configuration
Note: Multiplication factors ranging from 50 and 99 are possible for VCO input frequency higher than 1 MHz. However care must be taken that the minimum VCO output frequency respects the value specified above.
Bits 5:0 Reserved, must be kept at reset value.
6.3.24 RCC PLL configuration register (RCC_PLLSAICFGR)
Address offset: 0x88
Reset value: 0x2400 3000
Access: no wait state, word, half-word and byte access.
This register is used to configure the PLLSAI clock outputs according to the formulas:
- • \( f_{(VCO\ clock)} = f_{(PLL\ SAI\ clock\ input)} \times (PLL\ SAIN / PLLM) \)
- • \( f_{(PLL\ SAI1\ clock\ output)} = f_{(VCO\ clock)} / PLL\ SAIQ \)
- • \( f_{(PLL\ LCD\ clock\ output)} = f_{(VCO\ clock)} / PLL\ SAI\ R \)
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | PLL\ SAI\ R | PLL\ SAI\ Q | Reserved | ||||||||||||
| rw | rw | rw | rw | rw | rw | rw | |||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | PLL\ SAIN | Reserved | |||||||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | |||||||
Bit 31 Reserved, must be kept at reset value.
Bits 30:28 PLL\ SAI\ R : PLL\ SAI division factor for LCD clock
Set and reset by software to control the LCD clock frequency.
These bits should be written when the PLL\ SAI is disabled.
LCD clock frequency = VCO frequency / PLL\ SAI\ R with \( 2 \leq PLL\ SAI\ R \leq 7 \)
000: PLL\ SAI\ R = 0, wrong configuration
001: PLL\ SAI\ R = 1, wrong configuration
010: PLL\ SAI\ R = 2
...
111: PLL\ SAI\ R = 7
Bits 27:24 PLL\ SAI\ Q : PLL\ SAI division factor for SAI1 clock
Set and reset by software to control the frequency of SAI1 clock.
These bits should be written when the PLL\ SAI is disabled.
SAI1 clock frequency = VCO frequency / PLL\ SAI\ Q with \( 2 \leq PLL\ SAI\ Q \leq 15 \)
0000: PLL\ SAI\ Q = 0, wrong configuration
0001: PLL\ SAI\ Q = 1, wrong configuration
...
0010: PLL\ SAI\ Q = 2
0011: PLL\ SAI\ Q = 3
0100: PLL\ SAI\ Q = 4
0101: PLL\ SAI\ Q = 5
...
1111: PLL\ SAI\ Q = 15
Bits 23:15 Reserved, must be kept at reset value.
Bits 14:6 PLLISAIN : PLLSAI division factor for VCO
These bits are set and cleared by software to control the multiplication factor of the VCO. These bits can be written only when PLLSAI is disabled. Only half-word and word accesses are allowed to write these bits.
Caution: The software has to set these bits correctly to ensure that the VCO output frequency is between 100 and 432 MHz.
VCO output frequency = VCO input frequency × PLLISAIN with 50 ≤ PLLISAIN ≤ 432
000000000: PLLISAIN = 0, wrong configuration
000000001: PLLISAIN = 1, wrong configuration
...
000110010: PLLISAIN = 50
...
001100011: PLLISAIN = 99
001100100: PLLISAIN = 100
001100101: PLLISAIN = 101
001100110: PLLISAIN = 102
...
110110000: PLLISAIN = 432
110110001: PLLISAIN = 433, wrong configuration
...
111111111: PLLISAIN = 511, wrong configuration
Note: Multiplication factors ranging from 50 and 99 are possible for VCO input frequency higher than 1 MHz. However care must be taken that the minimum VCO output frequency respects the value specified above.
Bits 5:0 Reserved, must be kept at reset value
6.3.25 RCC Dedicated Clock Configuration Register (RCC_DCKCFGR)
Address offset: 0x8C
Reset value: 0x0000 0000
Access: no wait state, word, half-word and byte access.
The RCC_DCKCFGR register allows to configure the timer clock prescalers and the PLLSAI and PLLI2S output clock dividers for SAI1 and LTDC peripherals according to the following formula:
| 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reserved | TIMPRE | SAI1BSRC | SAI1ASRC | Reserved | PLLISAIDIVR | ||||||||||
| rw | rw | rw | rw | rw | rw | rw | |||||||||
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| Reserved | PLLISAIDIVQ | Reserved | PLLI2SDIVQ | ||||||||||||
| rw | rw | rw | rw | rw | rw | rw | rw | rw | rw | ||||||
Bits 31:25 Reserved, must be kept at reset value.
Bit 24 TIMPRE : Timers clocks prescalers selection
This bit is set and reset by software to control the clock frequency of all the timers connected to APB1 and APB2 domain.
0: If the APB prescaler (PPRE1, PPRE2 in the RCC_CFGR register) is configured to a division factor of 1, TIMxCLK = PCLKx. Otherwise, the timer clock frequencies are set to twice to the frequency of the APB domain to which the timers are connected:
TIMxCLK = 2xPCLKx.
1:If the APB prescaler (PPRE1, PPRE2 in the RCC_CFGR register) is configured to a division factor of 1, 2 or 4, TIMxCLK = HCLK. Otherwise, the timer clock frequencies are set to four times to the frequency of the APB domain to which the timers are connected:
TIMxCLK = 4xPCLKx.
Bits 23:22 SAI1BSRC : SAI1-B clock source selection
These bits are set and cleared by software to control the SAI1-B clock frequency.
They should be written when the PLLSAI and PLLI2S are disabled.
00: SAI1-B clock frequency = \( f(\text{PLLSAI\_Q}) / \text{PLLSAIDIVQ} \)
01: SAI1-B clock frequency = \( f(\text{PLLI2S\_Q}) / \text{PLLI2SDIVQ} \)
10: SAI1-B clock frequency = Alternate function input frequency
11: wrong configuration
Bits 21:20 SAI1ASRC : SAI1-A clock source selection
These bits are set and cleared by software to control the SAI1-A clock frequency.
They should be written when the PLLSAI and PLLI2S are disabled.
00: SAI1-A clock frequency = \( f(\text{PLLSAI\_Q}) / \text{PLLSAIDIVQ} \)
01: SAI1-A clock frequency = \( f(\text{PLLI2S\_Q}) / \text{PLLI2SDIVQ} \)
10: SAI1-A clock frequency = Alternate function input frequency
11: wrong configuration
Bits 19: 18 Reserved, must be kept at reset value.
Bits 17:16 PLLSAIDIVR : division factor for LCD_CLK
These bits are set and cleared by software to control the frequency of LCD_CLK.
They should be written only if PLLSAI is disabled.
LCD_CLK frequency = \( f(\text{PLLSAI\_R}) / \text{PLLSAIDIVR} \) with \( 2 \leq \text{PLLSAIDIVR} \leq 16 \)
00: PLLSAIDIVR = /2
01: PLLSAIDIVR = /4
10: PLLSAIDIVR = /8
11: PLLSAIDIVR = /16
Bits 15: 13 Reserved, must be kept at reset value.
Bits 12:8 PLLSAIDIVQ : PLLSAI division factor for SAI1 clock
These bits are set and reset by software to control the SAI1 clock frequency.
They should be written only if PLLSAI is disabled.
SAI1 clock frequency = \( f(\text{PLLSAI\_Q}) / \text{PLLSAIDIVQ} \) with \( 1 \leq \text{PLLSAIDIVQ} \leq 31 \)
00000: PLLSAIDIVQ = /1
00001: PLLSAIDIVQ = /2
00010: PLLSAIDIVQ = /3
00011: PLLSAIDIVQ = /4
00100: PLLSAIDIVQ = /5
...
11111: PLLSAIDIVQ = /32
Bits 7:5 Reserved, must be kept at reset value.
Bits 4:0 PLLII2SDIVQ : PLLI2S division factor for SAI1 clock
These bits are set and reset by software to control the SAI1 clock frequency.
They should be written only if PLLI2S is disabled.
SAI1 clock frequency = \( f(\text{PLLII2S\_Q}) / \text{PLLII2SDIVQ} \) with \( 1 \leq \text{PLLII2SDIVQ} \leq 31 \)
00000: PLLII2SDIVQ = /1
00001: PLLII2SDIVQ = /2
00010: PLLII2SDIVQ = /3
00011: PLLII2SDIVQ = /4
00100: PLLII2SDIVQ = /5
...
11111: PLLII2SDIVQ = /32
6.3.26 RCC register map
Table 34 gives the register map and reset values.
Table 34. RCC register map and reset values for STM32F42xxx and STM32F43xxx
| Addr. offset | Register name | 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 | 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0x00 | RCC_CR | Reserved | PLLI2SRDY | PLLI2SON | PLLSAIRDY | PLLSAION | PLLRDY | PLLON | Reserved | CSSON | HSEBYP | HSERDY | HSEON | HSICAL 7 | HSICAL 6 | HSICAL 5 | HSICAL 4 | HSICAL 3 | HSICAL 2 | HSICAL 1 | HSICAL 0 | HSITRIM 4 | HSITRIM 3 | HSITRIM 2 | HSITRIM 1 | HSITRIM 0 | Reserved | HSIRDY | HSION | |||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | X | X | X | X | X | X | X | X | 1 | 0 | 0 | 0 | 0 | 0 | 1 | |||||||||||
| 0x04 | RCC_PLLCFGR | Reserved | PLLQ 3 | PLLQ 2 | PLLQ 1 | PLLQ 0 | Reserved | PLLSRC | Reserved | PLLN 8 | PLLN 7 | PLLN 6 | PLLN 5 | PLLN 4 | PLLN 3 | PLLN 2 | PLLN 1 | PLLN 0 | PLLM 5 | PLLM 4 | PLLM 3 | PLLM 2 | PLLM 1 | PLLM 0 | ||||||||||||
| Reset value | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | ||||||||||||||||
| 0x08 | RCC_CFGR | MCO2 1 | MCO2 0 | MCO2PRE 2:0 | MCO1PRE 2:0 | I2SSRC | MCO1 1 | MCO1 0 | RTCPRE 4:0 | PPRE2 2 | PPRE2 1 | PPRE2 0 | PPRE1 2 | PPRE1 1 | PPRE1 0 | Reserved | SWS 1 | SWS 0 | SW 1 | SW 0 | HPRE 3:0 | |||||||||||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||
| 0x0C | RCC_CIR | Reserved | CSSC | PLLSAIRDYC | PLLI2SRDYC | PLLRDYC | HSERDYC | HSIRDYC | LSERDYC | LSIRDYC | Reserved | PLLSAIRDYIE | PLLI2SRDYIE | PLLRDYIE | HSERDYIE | HSIRDYIE | LSERDYIE | LSIRDYIE | CSSF | PLLSAIRDYF | PLLI2SRDYF | PLLRDYF | HSERDYF | HSIRDYF | LSERDYF | LSIRDYF | ||||||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||||
| 0x10 | RCC_AHB1RSTR | Reserved | OTGHS RST | Reserved | ETHMAC RST | Reserved | DMA2D RST | DMA2 RST | DMA1 RST | Reserved | CRCRST | Reserved | GPIOK RST | GPIOJ RST | GPIOI RST | GPIOH RST | GPIOG RST | GPIOF RST | GPIOE RST | GPIOD RST | GPIOC RST | GPIOB RST | GPIOA RST | |||||||||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||||||||||
| 0x14 | RCC_AHB2RSTR | Reserved | OTGFS RST | RNGRST | HSAH RST | CRYP RST | Reserved | DCMIRST | ||||||||||||||||||||||||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | |||||||||||||||||||||||||||||||
| 0x18 | RCC_AHB3RSTR | Reserved | FMCRST | |||||||||||||||||||||||||||||||||
| Reset value | 0 | |||||||||||||||||||||||||||||||||||
| 0x1C | Reserved | Reserved | ||||||||||||||||||||||||||||||||||
| 0x20 | RCC_APB1RSTR | UART8 RST | UART7 RST | DACRST | PWRRST | Reserved | CAN2 RST | CAN1 RST | Reserved | I2C3 RST | I2C2 RST | I2C1 RST | UART5 RST | UART4 RST | UART3 RST | UART2 RST | Reserved | SPI3 RST | SPI2 RST | Reserved | WWDG RST | Reserved | TIM14 RST | TIM13 RST | TIM12 RST | TIM7 RST | TIM6 RST | TIM5 RST | TIM4 RST | TIM3 RST | TIM2 RST | |||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||
| 0x24 | RCC_APB2RSTR | Reserved | LTDC RST | Reserved | SAI1 RST | SPI6 RST | SPI5 RST | Reserved | TIM11 RST | TIM10 RST | TIM9 RST | Reserved | SYSCFG RST | SPI4 RST | SPI1 RST | SDIO RST | Reserved | ADC RST | Reserved | USART6 RST | USART1 RST | TIM8 RST | TIM1 RST | |||||||||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||||||||||||||
| 0x28 | Reserved | Reserved | ||||||||||||||||||||||||||||||||||
| 0x2C | Reserved | Reserved | ||||||||||||||||||||||||||||||||||
| 0x30 | RCC_AHB1ENR | Reserved | OTGHS LPEN | OTGHS EN | ETHMAC PTPEN | ETHMAC RXEN | ETHMAC TXEN | ETHMAC EN | Reserved | DMA2D EN | DMA2 EN | DMA1 EN | CCMDATA RAMEN | Reserved | BKPSRAM EN | Reserved | CRCEN | Reserved | GPIOK EN | GPIOJ EN | GPIOI EN | GPIOH EN | GPIOG EN | GPIOF EN | GPIOE EN | GPIOD EN | GPIOC EN | GPIOB EN | GPIOA EN | |||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||||
Table 34. RCC register map and reset values for STM32F42xxx and STM32F43xxx (continued)
| Addr. offset | Register name | 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 | 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0x34 | RCC_AHB2ENR | Reserved | OTGFSSEN | RNGEN | HASHEN | CRYPEN | Reserved | DCMIEN | |||||||||||||||||||||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||||||||||||||||||||
| 0x38 | RCC_AHB3ENR | Reserved | CFMCEN | ||||||||||||||||||||||||||||||
| Reset value | 0 | 0 | |||||||||||||||||||||||||||||||
| 0x3C | Reserved | Reserved | |||||||||||||||||||||||||||||||
| 0x40 | RCC_APB1ENR | UART8EN | UART7EN | DACEN | PWREN | Reserved | CAN2EN | CAN1EN | Reserved | I2C3EN | I2C2EN | I2C1EN | UART5EN | UART4EN | USART3EN | USART2EN | Reserved | SPI3EN | SPI2EN | Reserved | WWDGEN | Reserved | TIM14EN | TIM13EN | TIM12EN | TIM7EN | TIM6EN | TIM5EN | TIM4EN | TIM3EN | TIM2EN | ||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||
| 0x44 | RCC_APB2ENR | Reserved | LTDEN | Reserved | SAI1EN | SAI2EN | SAI3EN | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | CSYSCFGEN | SPI4EN | SPI1EN | SDIOEN | ADC3EN | ADC2EN | ADC1EN | Reserved | USART6EN | USART1EN | Reserved | TIM8EN | TIM1EN | |||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
| 0x48 | Reserved | Reserved | |||||||||||||||||||||||||||||||
| 0x4C | Reserved | Reserved | |||||||||||||||||||||||||||||||
| 0x50 | RCC_AHB1LPENR | Reserved | OTGHSULPILPEN | OTGHSLPEN | ETHMACPTLPEN | ETHMACRXLPEN | ETHMACTXLPEN | ETHMACLPEN | Reserved | DMA2DLPEN | DMA2LPEN | DMA1LPEN | Reserved | SRAM3LPEN | BKPSRAMLPEN | SRAM2LPEN | SRAM1LPEN | FLITFLPEN | Reserved | CRCLPEN | Reserved | GPIOKLPEN | GPIOJLPEN | GPIOILPEN | GPIOHLPEN | GPIOGLPEN | GPIOFLPEN | GPIOELPEN | GPIODLPEN | GPIOCLPEN | GPIOBLPEN | GPIOALPEN | |
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
| 0x54 | RCC_AHB2LPENR | Reserved | OTGFSLPEN | RNGLPEN | HASHLPEN | CRYPLPEN | Reserved | DCMILPEN | |||||||||||||||||||||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||||||||||||||||||||
| 0x58 | RCC_AHB3LPENR | Reserved | CFMCLPEN | ||||||||||||||||||||||||||||||
| Reset value | 0 | 0 | |||||||||||||||||||||||||||||||
| 0x5C | Reserved | Reserved | |||||||||||||||||||||||||||||||
| 0x60 | RCC_APB1LPENR | UART8LPEN | UART7LPEN | DACLPEN | PWRLPEN | Reserved | CAN2LPEN | CAN1LPEN | Reserved | I2C3LPEN | I2C2LPEN | I2C1LPEN | UART5LPEN | UART4LPEN | USART3LPEN | USART2LPEN | Reserved | SPI3LPEN | SPI2LPEN | Reserved | WWDGLPEN | Reserved | TIM14LPEN | TIM13LPEN | TIM12LPEN | TIM7LPEN | TIM6LPEN | TIM5LPEN | TIM4LPEN | TIM3LPEN | TIM2LPEN | ||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||
| 0x64 | RCC_APB2LPENR | Reserved | LTDCLPEN | Reserved | SAI1LPEN | SAI2LPEN | SAI3LPEN | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | CSYSCFGLPEN | SPI4LPEN | SPI1LPEN | SDIOLPEN | ADC3LPEN | ADC2LPEN | ADC1LPEN | Reserved | USART6LPEN | USART1LPEN | Reserved | TIM8LPEN | TIM1LPEN | |||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
| 0x68 | Reserved | Reserved | |||||||||||||||||||||||||||||||
| 0x6C | Reserved | Reserved | |||||||||||||||||||||||||||||||
| 0x70 | RCC_BDCR | Reserved | BDRST | RTCEN | Reserved | CRTCSEL1 | CRTCSEL0 | Reserved | LSEBYP | LSEDRDY | LSEON | ||||||||||||||||||||||
| Reset value | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||||||||||||||
Table 34. RCC register map and reset values for STM32F42xxx and STM32F43xxx (continued)
| Addr. offset | Register name | 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 18 | 17 | 16 | 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0x74 | RCC_CSR | CLPWRSTF | CWWDGSTF | CWDGRSTF | SFTRSTF | PORRSTF | PADRSTF | BORRSTF | RMVF | Reserved | LSIRDY | LSION | |||||||||||||||||||||
| Reset value | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 1 | 0 | 0 | |||||||||||||||||||||||
| 0x78 | Reserved | Reserved | |||||||||||||||||||||||||||||||
| 0x7C | Reserved | Reserved | |||||||||||||||||||||||||||||||
| 0x80 | RCC_SSCGR | SSCGEN | CSSPREADSEL | Reserved | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Reset value | 0 | 0 | |||||||||||||||||||||||||||||||
| 0x84 | RCC_PLLI2SCFGR | Reserved | PLLI2SRx | PLLI2SQ | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Reset value | 0 | 1 | 0 | 0 | 1 | 0 | 0 | ||||||||||||||||||||||||||
| 0x88 | RCC_PLLSAICFGR | Reserved | PLLISAIR | PLLISAIQ | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Reset value | 0 | 1 | 0 | 0 | 1 | 0 | 0 | ||||||||||||||||||||||||||
| 0x8C | RCC_DCKCFGR | Reserved | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Reset value | |||||||||||||||||||||||||||||||||
Refer to Section 2.3: Memory map for the register boundary addresses.
