2. Memory and bus architecture

2.1 System architecture

In low- and medium-density value line devices, the main system consists of:

• • Three masters:
  • – Cortex ^® -M3 core DCode bus (D-bus) and System bus (S-bus)
  • – GP-DMA1 (general-purpose DMA)
• • Three slaves:
  • – Internal SRAM
  • – Internal flash memory
  • – AHB to APB bridges (AHB to APBx), which connect all the APB peripherals

These are interconnected using a multilayer AHB bus architecture as shown in Figure 1 .

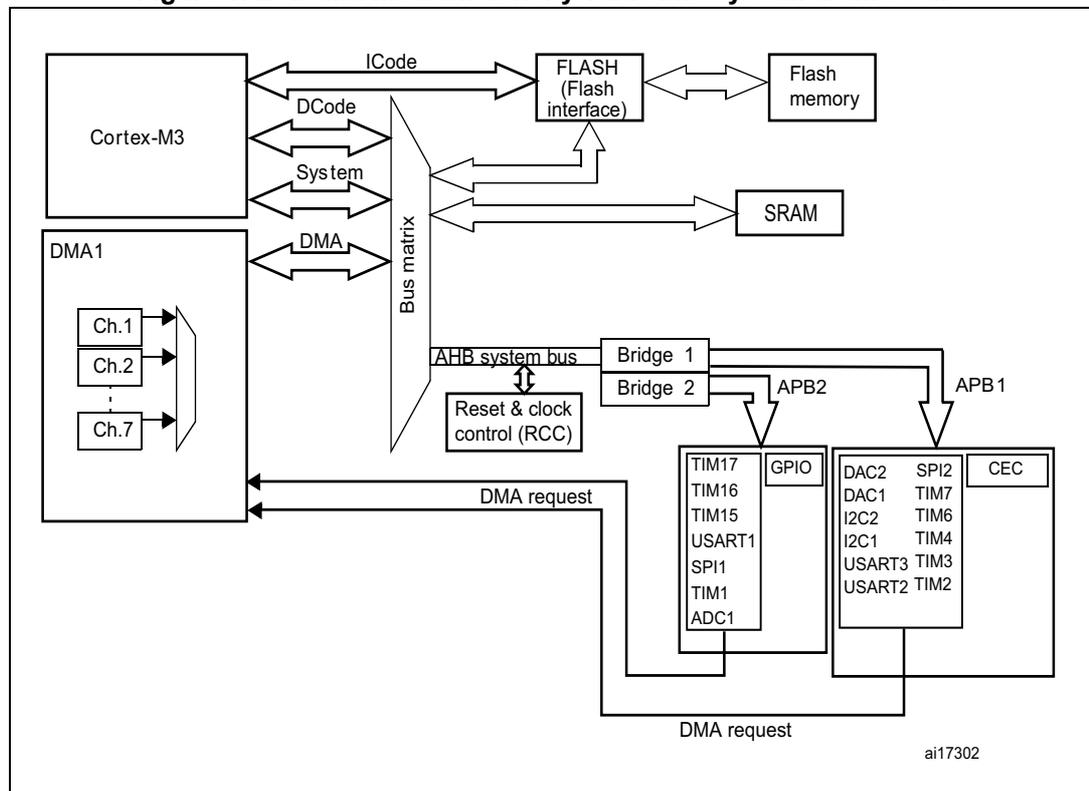

Figure 1. Low and medium density value line system architecture

In high-density value line devices, the main system consists of:

• • Four masters:
  • – Cortex ^® -M3 core DCode bus (D-bus) and System bus (S-bus)
  • – GP-DMA1 & 2 (general-purpose DMA)
• • Four slaves:
  • – Internal SRAM
  • – Internal flash memory
  • – FSMC
  • – AHB to APB bridges (AHB to APBx), which connect all the APB peripherals

These are interconnected using a multilayer AHB bus architecture as shown in Figure 2 .

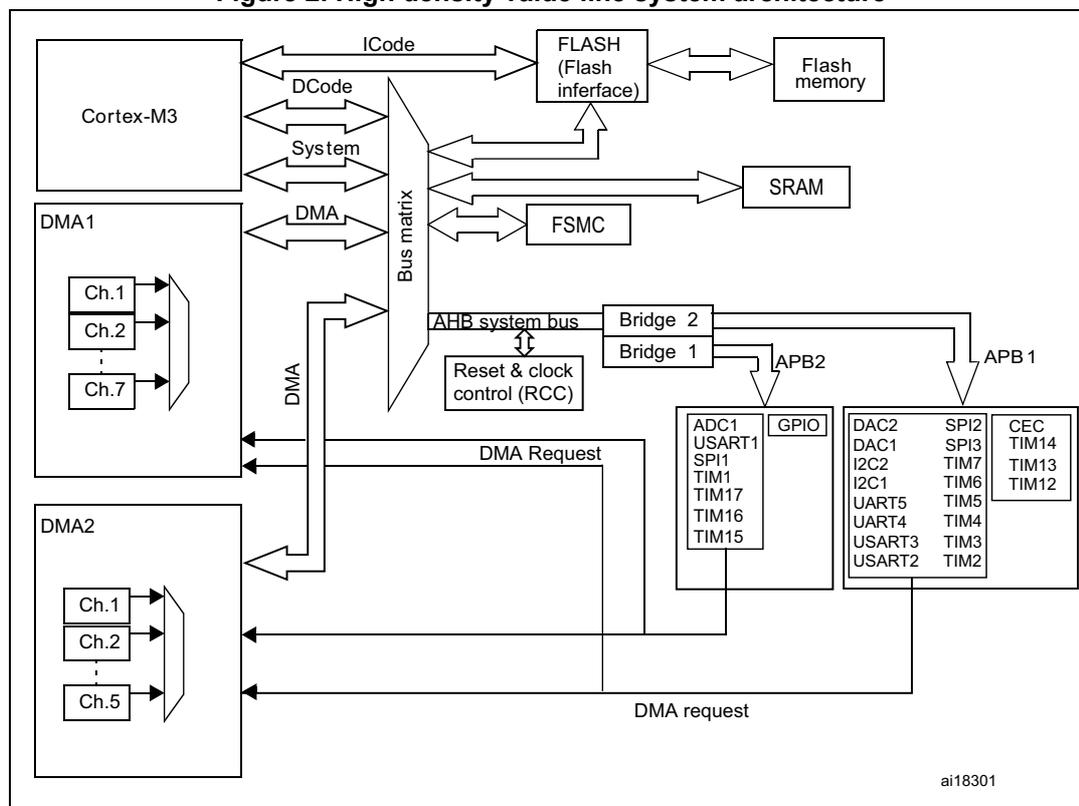

Figure 2. High density value line system architecture

ICode bus

This bus connects the instruction bus of the Cortex ^® -M3 core to the flash memory instruction interface. Instruction fetches are performed on this bus.

DCode bus

This bus connects the DCode bus (literal load and debug access) of the Cortex ^® -M3 core to the flash memory data interface.

System bus

This bus connects the system bus of the Cortex ^® -M3 core (peripherals bus) to a bus matrix which manages the arbitration between the core and the DMA.

DMA bus

This bus connects the AHB master interface of the DMA to the bus matrix which manages the access of CPU DCode and DMA to the SRAM, flash memory and peripherals.

Bus matrix

The bus matrix manages the access arbitration between the core system bus and the DMA master bus. The arbitration uses a round robin algorithm. In low and medium-density value line devices the bus matrix is composed of three masters (CPU DCode, System bus, DMA1 bus) and three slaves (FLITF, SRAM and AHB to APB bridges).

In high-density value line devices the bus matrix is composed of four masters (CPU DCode, System bus, DMA1 bus and DMA2 bus) and four slaves (FLITF, SRAM, FSMC and AHB to APB bridges).

AHB peripherals are connected to the system bus through the bus matrix to allow DMA access.

AHB/APB bridges (APB)

The two AHB/APB bridges provide full synchronous connections between the AHB and the two APB buses. APB buses operate at full speed (up to 24 MHz).

Refer to Table 2 for the address mapping of the peripherals connected to each bridge.

After each device reset, all peripheral clocks are disabled (except for the SRAM and FLITF). Before using a peripheral its clock in the RCC_AHBENR, RCC_APB2ENR or RCC_APB1ENR register must be enabled.

Note: When a 16- or 8-bit access is performed on an APB register, the access is transformed into a 32-bit access: the bridge duplicates the 16- or 8-bit data to feed the 32-bit vector.

2.2 Memory organization

Program memory, data memory, registers and I/O ports are organized within the same linear 4-Gbyte address space.

The bytes are coded in memory in little endian format. The lowest numbered byte in a word is considered the word's least significant byte and the highest numbered byte, the most significant.

For the detailed mapping of peripheral registers, refer to the related sections.

The addressable memory space is divided into 8 main blocks, each of 512 MB.

All the memory areas that are not allocated to on-chip memories and peripherals are considered "reserved"). Refer to the memory map figure in the corresponding product datasheet.

2.3 Memory map

See the datasheet corresponding to the used device for a comprehensive diagram of the memory map. Table 1 and Table 2 give the boundary addresses of the peripherals available in all STM32F100xx devices.

Table 1. Low and medium-density device register boundary addresses

Table 2. High-density device register boundary addresses (continued)

Table 2. High-density device register boundary addresses (continued)

2.3.1 Embedded SRAM

The STM32F100xx features up to 32 Kbytes of static SRAM. It can be accessed as bytes, half-words (16 bits) or full words (32 bits). The SRAM start address is 0x2000 0000.

2.3.2 Bit banding

The Cortex®-M3 memory map includes two bit-band regions. These regions map each word in an alias region of memory to a bit in a bit-band region of memory. Writing to a word in the alias region has the same effect as a read-modify-write operation on the targeted bit in the bit-band region.

In the STM32F100xx, both peripheral registers and SRAM are mapped in a bit-band region. This allows single bit-band write and read operations to be performed.

A mapping formula shows how to reference each word in the alias region to a corresponding bit in the bit-band region. The mapping formula is:

where:

bit_word_addr is the address of the word in the alias memory region that maps to the targeted bit

bit_band_base is the starting address of the alias region

byte_offset is the number of the byte in the bit-band region that contains the targeted bit

bit_number is the bit position (0-7) of the targeted bit

Example:

The following example shows how to map bit 2 of the byte located at SRAM address 0x2000 0300 in the alias region:

Writing to address 0x2200 6008 has the same effect as a read-modify-write operation on bit 2 of the byte at SRAM address 0x2000 0300.

Reading address 0x2200 6008 returns the value (0x01 or 0x00) of bit 2 of the byte at SRAM address 0x2000 0300 (0x01: bit set; 0x00: bit cleared).

For more information on bit-banding, refer to the Cortex®-M3 Technical Reference Manual .

2.3.3 Embedded flash memory

The high-performance flash memory module has the following key features:

• • Density of up to 512 Kbytes
• • Memory organization: the flash memory is organized as a main block and an information block:
  • – Main memory block of size:
    • up to 8 Kbit × 32 bits divided into 32 pages of 1 Kbyte each for low-density value line devices (see Table 3 )
    • up to 32 Kbit × 32 bits divided into 128 pages of 1 Kbyte each for medium-density value line devices (see Table 4 )
    • up to 128 Kbit × 32 bits divided into 256 pages of 2 Kbyte each for high-density value line devices (see Table 5 )
  • – Information block of size:
    • 516 × 32 bits for low, medium and high-density value line devices (see Table 3 , Table 4 and Table 5 )

The flash memory interface (FLASH) features:

• • Read interface (32-bit)
• • Option byte loader
• • Flash Program/Erase operation
• • Read/write protection

Table 3. Flash module organization (low-density value line devices)

Note: For further information on the flash memory interface registers, refer to PM0063.

Reading flash memory

Flash memory accesses are performed through the AHB bus. Accesses are either instruction fetches over the ICode bus, or data accesses (e.g. literal pool) over the D-code bus. Since these two buses have the same flash memory as target, the interface gives priority to D-code bus accesses over I-code bus, instruction fetch accesses.

Read accesses can be performed without any wait state and with the following configuration options:

• • Half cycle: for power optimization

1. Note:
2. 1. 1 Half cycle configuration is not available in combination with a prescaler on the AHB. The system clock (SYSCLK) should be equal to the HCLK clock. This feature can therefore be used only with a low-frequency clock of 8 MHz or less. It can be generated from the HSI or the HSE but not from the PLL.
   2. 2 Using DMA: DMA accesses flash memory on the DCode bus and has priority over ICode instructions. The DMA provides one free cycle after each transfer. Some instructions can be performed together with DMA transfer.

Programming and erasing flash memory

The flash memory can be programmed 16 bits (half words) at a time. For write and erase operations on the flash memory (write/erase), the internal RC oscillator (HSI) must be ON.

The flash memory erase operation can be performed at page level or on the whole area (mass erase). Mass erase does not affect the information blocks.

To ensure that there is no overprogramming, the flash programming and erase controller blocks are clocked by a fixed clock.

The end of write operation (programming or erasing) can trigger an interrupt. This interrupt can be used to exit the WFI mode, only if the FLASH clock is enabled. Otherwise, the interrupt is served only after exiting WFI.

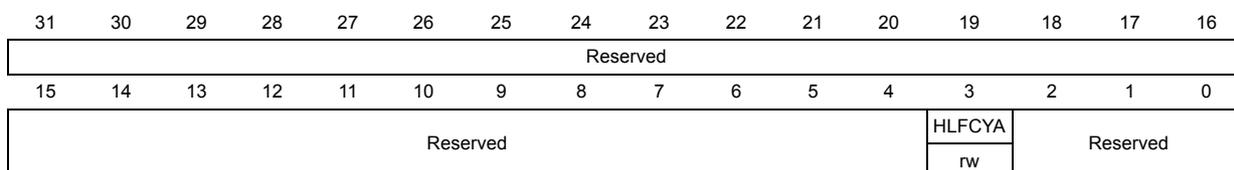

The FLASH_ACR register is used to enable/disable flash memory half-cycle access. The tables below provide the bit map and bit descriptions for this register.

For complete information on flash memory operations and register configurations, refer to PM00063).

Flash access control register (FLASH_ACR)

Address offset: 0x00
Reset value: 0x0000 0000

Bits 31:4 Reserved, must be kept cleared.

Bit 3 HLFCYA : Flash half cycle access enable
0: Half cycle is disabled
1: Half cycle is enabled

Bits 2:0 Reserved, must be kept cleared.

2.4 Boot configuration

In the STM32F100xx, three different boot modes can be selected through the BOOT[1:0] pins as shown in Table 6 .

Table 6. Boot modes

The values on the BOOT pins are latched on the 4th rising edge of SYSCLK after a reset. It is up to the application to set the BOOT1 and BOOT0 pins after reset to select the required boot mode.

The BOOT pins are also resampled when exiting the Standby mode. Consequently, they must be kept in the required boot mode configuration in the Standby mode. After this startup delay has elapsed, the CPU fetches the top-of-stack value from address 0x0000 0000, then starts code execution from the boot memory starting from 0x0000 0004.

Due to its fixed memory map, the code area starts from address 0x0000 0000 (accessed through the ICode/DCode buses) while the data area (SRAM) starts from address 0x2000 0000 (accessed through the system bus). The Cortex-M3 CPU always fetches the reset vector on the ICode bus, which implies to have the boot space available only in the code area (typically, flash memory). STM32F100xx microcontrollers implement a special mechanism to be able to boot also from SRAM and not only from main flash memory and System memory.

Depending on the boot mode selected, the main flash memory, system memory or SRAM is accessible as follows:

• • Boot from main flash memory: the main flash memory is aliased in the boot memory space (0x0000 0000), but still accessible from its original memory space (0x800 0000). In other words, the flash memory contents can be accessed starting from address 0x0000 0000 or 0x800 0000.
• • Boot from system memory: the system memory is aliased in the boot memory space (0x0000 0000), but still accessible from its original memory space (0x1FFF F000).
• • Boot from the embedded SRAM: SRAM is accessible only at address 0x2000 0000.

Note: When booting from SRAM, in the application initialization code, the vector table in SRAM must be relocated using the NVIC exception table and offset register.

Embedded boot loader

The embedded boot loader is used to reprogram the flash memory using the USART1 serial interface. This program is located in the system memory and is programmed by ST during production. For further details refer to AN2606.
