4. CRC calculation unit

This section applies to the whole STM32L1xxx family, unless otherwise specified.

4.1 CRC introduction

The CRC (cyclic redundancy check) calculation unit is used to get a CRC code from a 32-bit data word and a fixed generator polynomial.

Among other applications, CRC-based techniques are used to verify data transmission or storage integrity. In the scope of the EN/IEC 60335-1 standard, they offer a means of verifying the flash memory integrity. The CRC calculation unit helps compute a signature of the software during runtime, to be compared with a reference signature generated at link-time and stored at a given memory location.

4.2 CRC main features

• Uses CRC-32 (Ethernet) polynomial: 0x4C11DB7
- – $X^{32} + X^{26} + X^{23} + X^{22} + X^{16} + X^{12} + X^{11} + X^{10} + X^8 + X^7 + X^5 + X^4 + X^2 + X + 1$
• Single input/output 32-bit data register
• CRC computation done in 4 AHB clock cycles (HCLK)
• General-purpose 8-bit register (can be used for temporary storage)

The block diagram is shown in Figure 7 .

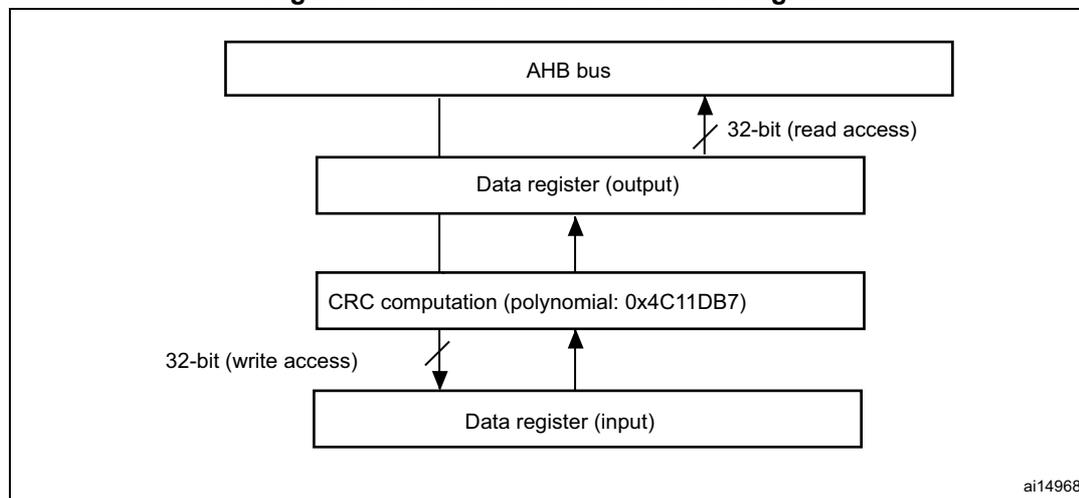

Figure 7. CRC calculation unit block diagram

The block diagram illustrates the internal structure of the CRC calculation unit. At the top is the AHB bus. Below it is the Data register (output), which has a 32-bit (read access) connection to the AHB bus. Below the output register is the CRC computation block, which uses the polynomial 0x4C11DB7. Below the CRC computation block is the Data register (input), which receives a 32-bit (write access) from the left. Arrows indicate the data flow: from the input register to the CRC computation block, and from the CRC computation block to the output register.

Block diagram of the CRC calculation unit. The diagram shows a vertical stack of four components: AHB bus at the top, Data register (output) below it, CRC computation (polynomial: 0x4C11DB7) below that, and Data register (input) at the bottom. Arrows indicate data flow: a 32-bit (read access) arrow from the output register to the AHB bus, an arrow from the input register to the CRC computation block, and an arrow from the CRC computation block to the output register. A 32-bit (write access) arrow points from the left into the input register. The identifier 'ai14968' is in the bottom right corner.

4.3 CRC functional description

The CRC calculation unit mainly consists of a single 32-bit data register, which:

• is used as an input register to enter new data in the CRC calculator (when writing into the register)
• holds the result of the previous CRC calculation (when reading the register)

Each write operation into the data register creates a combination of the previous CRC value and the new one (CRC computation is done on the whole 32-bit data word, and not byte per byte).

The write operation is stalled until the end of the CRC computation, thus allowing back-to-back write accesses or consecutive write and read accesses.

The CRC calculator can be reset to 0xFFFF FFFF with the RESET control bit in the CRC_CR register. This operation does not affect the contents of the CRC_IDR register.

4.4 CRC registers

The CRC calculation unit contains two data registers and a control register. The peripheral The CRC registers have to be accessed by words (32 bits).

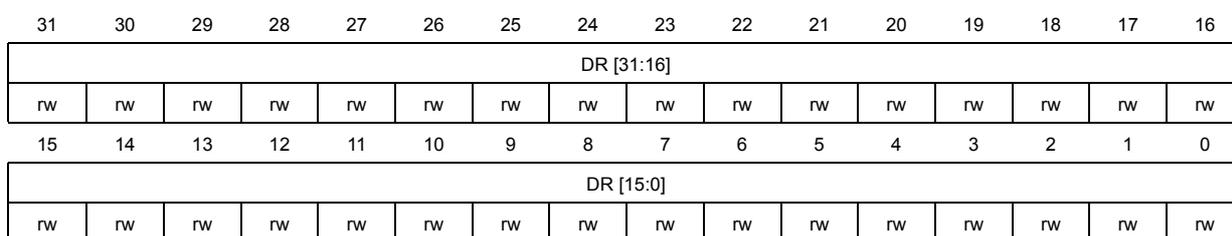

4.4.1 Data register (CRC_DR)

Address offset: 0x00
Reset value: 0xFFFF FFFF

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
DR [31:16]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
DR [15:0]
rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:0 Data register bits

Used as an input register when writing new data into the CRC calculator.
Holds the previous CRC calculation result when it is read.

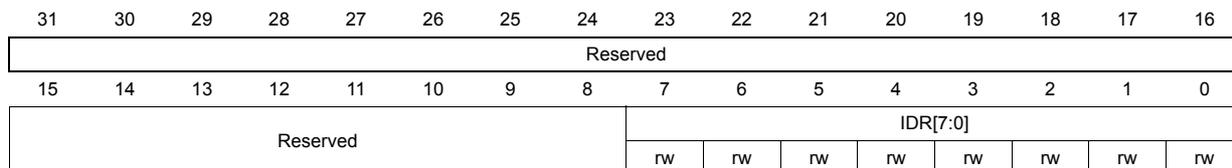

4.4.2 Independent data register (CRC_IDR)

Address offset: 0x04
Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Reserved
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Reserved								IDR[7:0]
Reserved								rw	rw	rw	rw	rw	rw	rw	rw

Bits 31:8 Reserved, must be kept at reset value.

Bits 7:0 General-purpose 8-bit data register bits

Can be used as a temporary storage location for one byte.

This register is not affected by CRC resets generated by the RESET bit in the CRC_CR register.

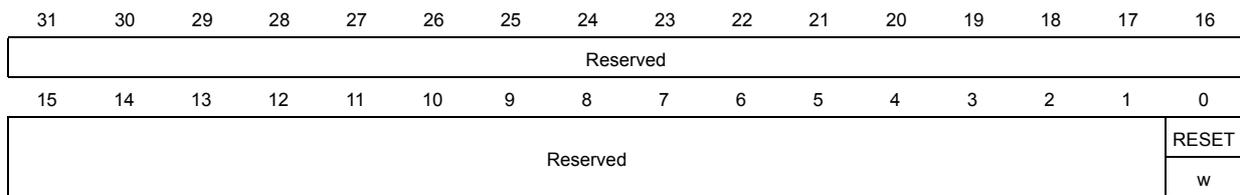

4.4.3 Control register (CRC_CR)

Address offset: 0x08

Reset value: 0x0000 0000

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16
Reserved
15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
Reserved															RESET w

Bits 31:1 Reserved, must be kept at reset value.

Bit 0 RESET bit

Resets the CRC calculation unit and sets the data register to 0xFFFF FFFF.

This bit can only be set, it is automatically cleared by hardware.

4.4.4 CRC register map

The following table provides the CRC register map and reset values. The reserved memory areas are highlighted in gray in the table.

Table 25. CRC calculation unit register map and reset values

Offset	Register	31-24	7	0
0x00	CRC_DR	Data register
0x00	Reset value	0xFFFF FFFF
0x04	CRC_IDR	Reserved	Independent data register
0x04	Reset value	Reserved	0x00
0x08	CRC_CR	Reserved		RESET
0x08	Reset value	Reserved		0
