30. USB on-the-go high-speed (OTG_HS)

This section applies to the whole STM32F20x and STM32F21x family, unless otherwise specified.

30.1 OTG_HS introduction

Portions Copyright (c) 2004, 2005 Synopsys, Inc. All rights reserved. Used with permission.

This section presents the architecture and the programming model of the OTG_HS controller.

The following acronyms are used throughout the section:

References are made to the following documents:

• • USB On-The-Go Supplement, Revision 1.3
• • Universal Serial Bus Revision 2.0 Specification

The OTG_HS is a dual-role device (DRD) controller that supports both peripheral and host functions and is fully compliant with the On-The-Go Supplement to the USB 2.0

Specification . It can also be configured as a host-only or peripheral-only controller, fully compliant with the USB 2.0 Specification . In host mode, the OTG_HS supports high-speed (HS, 480 Mbits/s), full-speed (FS, 12 Mbits/s) and low-speed (LS, 1.5 Mbits/s) transfers whereas in peripheral mode, it only supports high-speed (HS, 480Mbits/s) and full-speed (FS, 12 Mbits/s) transfers. The OTG_HS supports both HNP and SRP. The only external device required is a charge pump for VBUS in OTG mode.

30.2 OTG_HS main features

The main features can be divided into three categories: general, host-mode and peripheral-mode features.

30.2.1 General features

The OTG_HS interface main features are the following:

• • It is USB-IF certified in compliance with the Universal Serial Bus Revision 2.0 Specification
• • It supports 3 PHY interfaces
  • – An on-chip full-speed PHY
  • – An ULPI interface for external high-speed PHY.
• • It supports the host negotiation protocol (HNP) and the session request protocol (SRP)
• • It allows the host to turn \( V_{BUS} \) off to save power in OTG applications, with no need for external components
• • It allows to monitor \( V_{BUS} \) levels using internal comparators
• • It supports dynamic host-peripheral role switching
• • It is software-configurable to operate as:
  • – An SRP-capable USB HS/FS peripheral (B-device)
  • – An SRP-capable USB HS/FS/low-speed host (A-device)
  • – An USB OTG FS dual-role device
• • It supports HS/FS SOFs as well as low-speed (LS) keep-alive tokens with:
  • – SOF pulse PAD output capability
  • – SOF pulse internal connection to timer 2 (TIM2)
  • – Configurable framing period
  • – Configurable end-of-frame interrupt
• • It embeds an internal DMA with shareholding support and software selectable AHB burst type in DMA mode
• • It has power saving features such as system clock stop during USB suspend, switching off of the digital core internal clock domains, PHY and DFIFO power management
• • It features a dedicated 4-Kbyte data RAM with advanced FIFO management:
  • – The memory partition can be configured into different FIFOs to allow flexible and efficient use of RAM
  • – Each FIFO can contain multiple packets
  • – Memory allocation is performed dynamically
  • – The FIFO size can be configured to values that are not powers of 2 to allow the use of contiguous memory locations
• • It ensures a maximum USB bandwidth of up to one frame without application intervention

30.2.2 Host-mode features

The OTG_HS interface features in host mode are the following:

• • It requires an external charge pump to generate \( V_{BUS} \)
• • It has up to 12 host channels (pipes), each channel being dynamically reconfigurable to support any kind of USB transfer
• • It features a built-in hardware scheduler holding:
  • – Up to 8 interrupt plus isochronous transfer requests in the periodic hardware queue
  • – Up to 8 control plus bulk transfer requests in the nonperiodic hardware queue
• • It manages a shared RX FIFO, a periodic TX FIFO, and a nonperiodic TX FIFO for efficient usage of the USB data RAM
• • It features dynamic trimming capability of SOF framing period in host mode.

30.2.3 Peripheral-mode features

The OTG_HS interface main features in peripheral mode are the following:

• • It has 1 bidirectional control endpoint 0
• • It has 5 IN endpoints (EP) configurable to support bulk, interrupt or isochronous transfers
• • It has 5 OUT endpoints configurable to support bulk, interrupt or isochronous transfers
• • It manages a shared Rx FIFO and a Tx-OUT FIFO for efficient usage of the USB data RAM
• • It manages up to 6 dedicated Tx-IN FIFOs (one for each IN-configured EP) to reduce the application load
• • It features soft disconnect capability

30.3 OTG_HS functional description

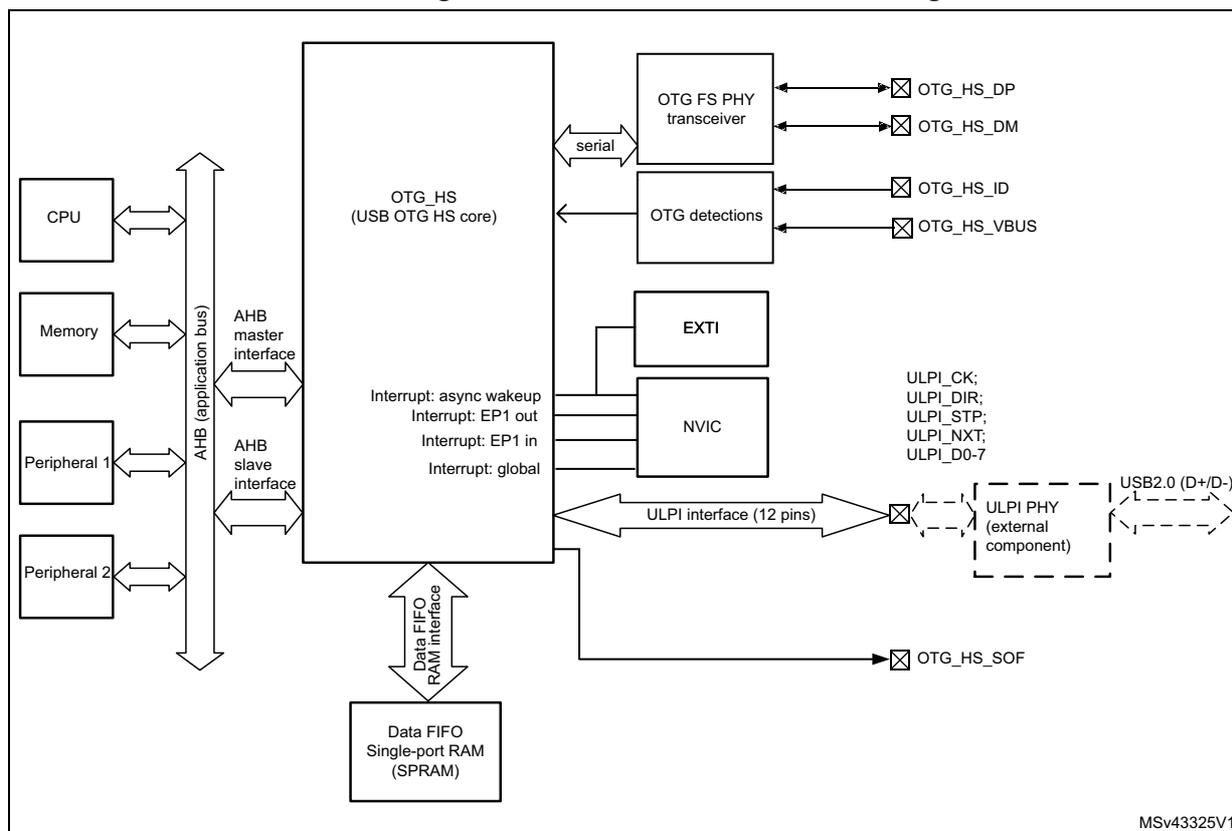

Figure 373 shows the OTG_HS interface block diagram.

Figure 373. USB OTG interface block diagram

MSV43325V1

1. 1. The USB DMA cannot directly address the internal Flash memory.

30.3.1 OTG pins

Table 159. OTG_HS input/output pins

30.3.2 High-speed OTG PHY

The USB OTG HS core embeds an ULPI interface to connect an external HS phy.

30.3.3 Embedded Full-speed OTG PHY

The full-speed OTG PHY includes the following components:

• • FS/LS transceiver module used by both host and Device. It directly drives transmission and reception on the single-ended USB lines.
• • Integrated ID pull-up resistor used to sample the ID line for A/B Device identification.
• • DP/DM integrated pull-up and pull-down resistors controlled by the OTG_HS core depending on the current role of the device. As a peripheral, it enables the DP pull-up resistor to signal full-speed peripheral connections as soon as \( V_{BUS} \) is sensed to be at a valid level (B-session valid). In host mode, pull-down resistors are enabled on both DP/DM. Pull-up and pull-down resistors are dynamically switched when the peripheral role is changed via the host negotiation protocol (HNP).
• • Pull-up/pull-down resistor ECN circuit
  The DP pull-up consists of 2 resistors controlled separately from the OTG_HS as per the resistor Engineering Change Notice applied to USB Rev2.0. The dynamic trimming of the DP pull-up strength allows to achieve a better noise rejection and Tx/Rx signal quality.
• • \( V_{BUS} \) sensing comparators with hysteresis used to detect \( V_{BUS\_VALID} \) , A-B Session Valid and session-end voltage thresholds. They are used to drive the session request protocol (SRP), detect valid startup and end-of-session conditions, and constantly monitor the \( V_{BUS} \) supply during USB operations.
• • \( V_{BUS} \) pulsing method circuit used to charge/discharge \( V_{BUS} \) through resistors during the SRP (weak drive).

Caution: To guarantee a correct operation for the USB OTG HS peripheral, the AHB frequency should be higher than 30 MHz.

30.4 OTG dual-role device

30.4.1 ID line detection

The host or peripheral (the default) role depends on the level of the ID input line. It is determined when the USB cable is plugged in and depends on which side of the USB cable is connected to the micro-AB receptacle:

• • If the B-side of the USB cable is connected with a floating ID wire, the integrated pull-up resistor detects a high ID level and the default peripheral role is confirmed. In this configuration the OTG_HS conforms to the FSM standard described in section 6.8.2. On-The-Go B-device of the USB On-The-Go Supplement, Revision 1.3.
• • If the A-side of the USB cable is connected with a grounded ID, the OTG_HS issues an ID line status change interrupt (CIDSCHG bit in the OTG_HS_GINTSTS register) for host software initialization, and automatically switches to host role. In this configuration the OTG_HS conforms to the FSM standard described by section 6.8.1. On-The-Go A-Device of the USB On-The-Go Supplement, Revision 1.3.

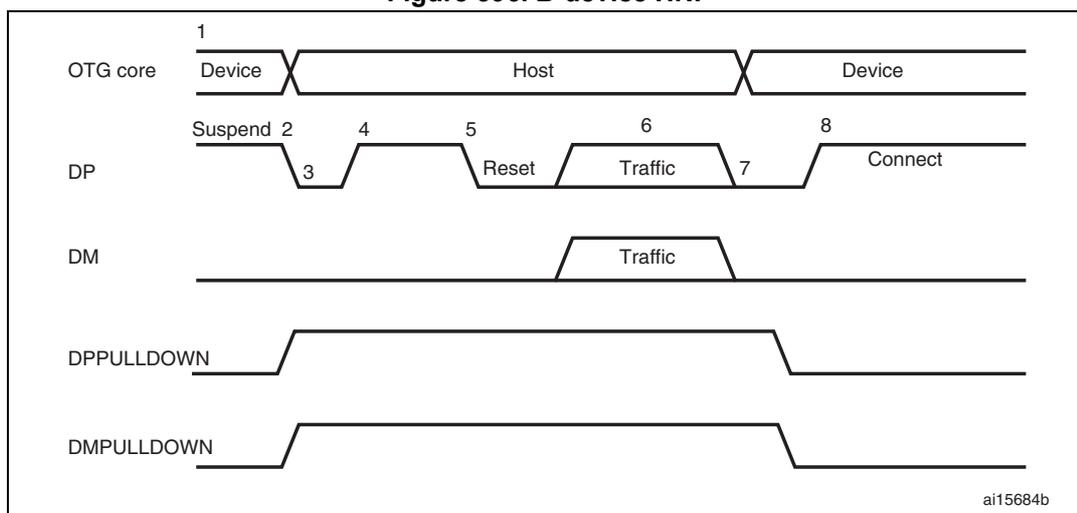

30.4.2 HNP dual role device

The HNP capable bit in the Global USB configuration register (HNPCAP bit in the OTG_HS_GUSBCFG register) configures the OTG_HS core to dynamically change from A-host to A-device role and vice-versa, or from B-device to B-host role and vice-versa, according to the host negotiation protocol (HNP). The current device status is defined by the

combination of the Connector ID Status bit in the Global OTG control and status register (CIDSTS bit in OTG_HS_GOTGCTL) and the current mode of operation bit in the global interrupt and status register (CMOD bit in OTG_HS_GINTSTS).

The HNP programming model is described in detail in Section 30.13: OTG_HS programming model .

30.4.3 SRP dual-role device

The SRP capable bit in the global USB configuration register (SRPCAP bit in OTG_HS_GUSBCFG) configures the OTG_HS core to switch \( V_{BUS} \) off for the A-device in order to save power. The A-device is always in charge of driving \( V_{BUS} \) regardless of the OTG_HS role (host or peripheral). The SRP A/B-device program model is described in detail in Section 30.13: OTG_HS programming model .

30.5 USB functional description in peripheral mode

The OTG_HS operates as an USB peripheral in the following circumstances:

• • OTG B-device
  OTG B-device default state if the B-side of USB cable is plugged in
• • OTG A-device
  OTG A-device state after the HNP switches the OTG_HS to peripheral role
• • B-Device
  If the ID line is present, functional and connected to the B-side of the USB cable, and the HNP-capable bit in the Global USB Configuration register (HNPCAP bit in OTG_HS_GUSBCFG) is cleared (see On-The-Go specification Revision 1.3 section 6.8.3).
• • Peripheral only (see Figure 351: USB peripheral-only connection )
  The force peripheral mode bit in the Global USB configuration register (FDMOD in OTG_HS_GUSBCFG) is set to 1, forcing the OTG_HS core to operate in USB peripheral-only mode (see On-The-Go specification Revision 1.3 section 6.8.3). In this case, the ID line is ignored even if it is available on the USB connector.

Note: To build a bus-powered device architecture in the B-Device or peripheral-only configuration, an external regulator must be added to generate the \( V_{DD} \) supply voltage from \( V_{BUS} \) .

30.5.1 SRP-capable peripheral

The SRP capable bit in the Global USB configuration register (SRPCAP bit in OTG_HS_GUSBCFG) configures the OTG_HS to support the session request protocol (SRP). As a result, it allows the remote A-device to save power by switching \( V_{BUS} \) off when the USB session is suspended.

The SRP peripheral mode program model is described in detail in Section : B-device session request protocol .

30.5.2 Peripheral states

Powered state

The \( V_{BUS} \) input detects the B-session valid voltage used to put the USB peripheral in the Powered state (see USB2.0 specification section 9.1). The OTG_HS then automatically connects the DP pull-up resistor to signal full-speed device connection to the host, and generates the session request interrupt (SRQINT bit in OTG_HS_GINTSTS) to notify the Powered state. The \( V_{BUS} \) input also ensures that valid \( V_{BUS} \) levels are supplied by the host during USB operations. If \( V_{BUS} \) drops below the B-session valid voltage (for example because power disturbances occurred or the host port has been switched off), the OTG_HS automatically disconnects and the session end detected (SEDET bit in OTG_HS_GOTGINT) interrupt is generated to notify that the OTG_HS has exited the Powered state.

In Powered state, the OTG_HS expects a reset from the host. No other USB operations are possible. When a reset is received, the reset detected interrupt (USBRST in OTG_HS_GINTSTS) is generated. When the reset is complete, the enumeration done interrupt (ENUMDNE bit in OTG_HS_GINTSTS) is generated and the OTG_HS enters the Default state.

Soft disconnect

The Powered state can be exited by software by using the soft disconnect feature. The DP pull-up resistor is removed by setting the Soft disconnect bit in the device control register (SDIS bit in OTG_HS_DCTL), thus generating a device disconnect detection interrupt on the host side even though the USB cable was not really unplugged from the host port.

Default state

In Default state the OTG_HS expects to receive a SET_ADDRESS command from the host. No other USB operations are possible. When a valid SET_ADDRESS command is decoded on the USB, the application writes the corresponding number into the device address field in the device configuration register (DAD bit in OTG_HS_DCFG). The OTG_HS then enters the address state and is ready to answer host transactions at the configured USB address.

Suspended state

The OTG_HS peripheral constantly monitors the USB activity. When the USB remains idle for 3 ms, the early suspend interrupt (ESUSP bit in OTG_HS_GINTSTS) is issued. It is confirmed 3 ms later, if appropriate, by generating a suspend interrupt (USBSUSP bit in OTG_HS_GINTSTS). The device suspend bit is then automatically set in the device status register (SUSPSTS bit in OTG_HS_DSTS) and the OTG_HS enters the Suspended state.

The device can also exit from the Suspended state by itself. In this case the application sets the remote wake-up signaling bit in the device control register (RWUSIG bit in OTG_HS_DCTL) and clears it after 1 to 15 ms.

When a resume signaling is detected from the host, the resume interrupt (WKUPINT bit in OTG_HS_GINTSTS) is generated and the device suspend bit is automatically cleared.

30.5.3 Peripheral endpoints

The OTG_HS core instantiates the following USB endpoints:

• • Control endpoint 0

This endpoint is bidirectional and handles control messages only.

It has a separate set of registers to handle IN and OUT transactions, as well as dedicated control (OTG_HS_DIEPCTL0/OTG_HS_DOEPCTL0), transfer configuration (OTG_HS_DIEPTSIZ0/OTG_HS_DOEPTSIZ0), and status-interrupt (OTG_HS_DIEPINTx/OTG_HS_DOEPINT0) registers. The bits available inside the control and transfer size registers slightly differ from other endpoints.

• • 5 IN endpoints

• – They can be configured to support the isochronous, bulk or interrupt transfer type.
• – They feature dedicated control (OTG_HS_DIEPCTLx), transfer configuration (OTG_HS_DIEPTSIZx), and status-interrupt (OTG_HS_DIEPINTx) registers.
• – The Device IN endpoints common interrupt mask register (OTG_HS_DIEPMSK) allows to enable/disable a single endpoint interrupt source on all of the IN endpoints (EP0 included).
• – They support incomplete isochronous IN transfer interrupt (IISOIXFR bit in OTG_HS_GINTSTS). This interrupt is asserted when there is at least one isochronous IN endpoint for which the transfer is not completed in the current frame. This interrupt is asserted along with the end of periodic frame interrupt (OTG_HS_GINTSTS/EOPF).

• • 5 OUT endpoints

• – They can be configured to support the isochronous, bulk or interrupt transfer type.
• – They feature dedicated control (OTG_HS_DOEPCTLx), transfer configuration (OTG_HS_DOEPTSIZx) and status-interrupt (OTG_HS_DOEPINTx) registers.
• – The Device Out endpoints common interrupt mask register (OTG_HS_DOEPMSK) allows to enable/disable a single endpoint interrupt source on all OUT endpoints (EP0 included).
• – They support incomplete isochronous OUT transfer interrupt (INCOMPISOOUT bit in OTG_HS_GINTSTS). This interrupt is asserted when there is at least one isochronous OUT endpoint on which the transfer is not completed in the current frame. This interrupt is asserted along with the end of periodic frame interrupt (OTG_HS_GINTSTS/EOPF).

Endpoint controls

The following endpoint controls are available through the device endpoint-x IN/OUT control register (DIEPCTLx/DOEPCTLx):

• • Endpoint enable/disable
• • Endpoint activation in current configuration
• • Program the USB transfer type (isochronous, bulk, interrupt)
• • Program the supported packet size
• • Program the Tx-FIFO number associated with the IN endpoint
• • Program the expected or transmitted data0/data1 PID (bulk/interrupt only)
• • Program the even/odd frame during which the transaction is received or transmitted (isochronous only)
• • Optionally program the NAK bit to always send a negative acknowledge to the host regardless of the FIFO status
• • Optionally program the STALL bit to always stall host tokens to that endpoint
• • Optionally program the Snoop mode for OUT endpoint where the received data CRC is not checked

Endpoint transfer

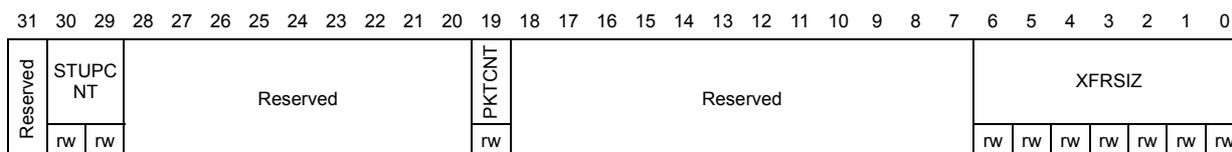

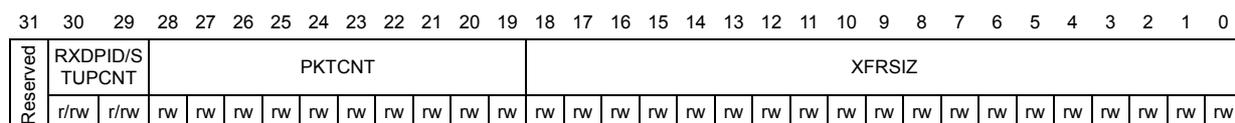

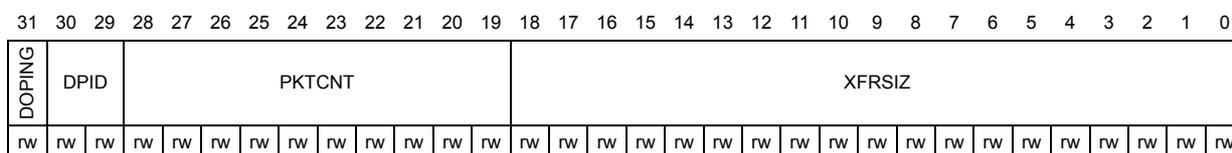

The device endpoint-x transfer size registers (DIEPTSIZx/DOPTSIZx) allow the application to program the transfer size parameters and read the transfer status.

The programming operation must be performed before setting the endpoint enable bit in the endpoint control register.

Once the endpoint is enabled, these fields are read-only as the OTG FS core updates them with the current transfer status.

The following transfer parameters can be programmed:

• • Transfer size in bytes
• • Number of packets constituting the overall transfer size.

Endpoint status/interrupt

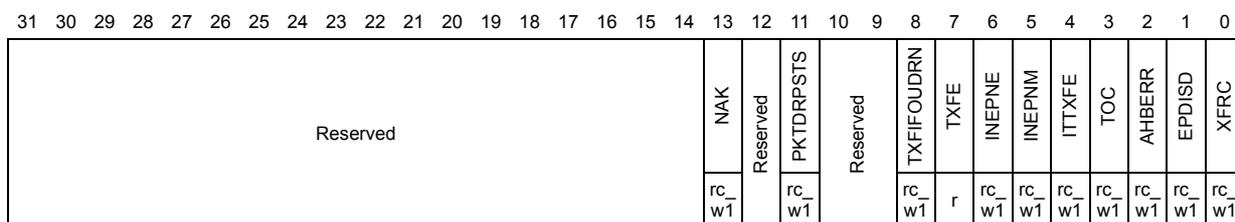

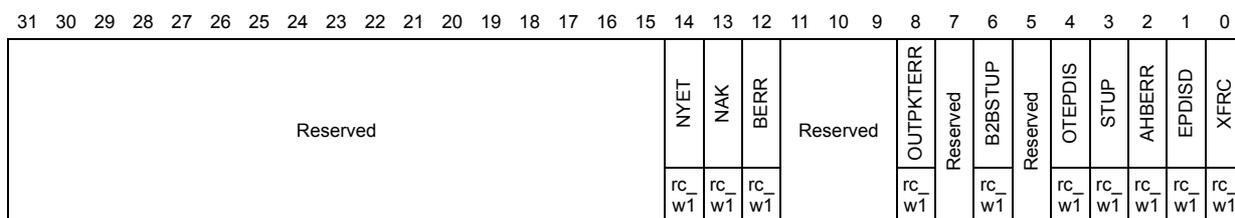

The device endpoint-x interrupt registers (DIEPINTx/DOEPINTx) indicate the status of an endpoint with respect to USB- and AHB-related events. The application must read these registers when the OUT endpoint interrupt bit or the IN endpoint interrupt bit in the core interrupt register (OEPINT bit in OTG_HS_GINTSTS or IEPINT bit in OTG_HS_GINTSTS, respectively) is set. Before the application can read these registers, it must first read the device all endpoints interrupt register (OTG_HS_DAINT) to get the exact endpoint number for the device endpoint-x interrupt register. The application must clear the appropriate bit in this register to clear the corresponding bits in the DAINT and GINTSTS registers.

The peripheral core provides the following status checks and interrupt generation:

• • Transfer completed interrupt, indicating that data transfer has completed on both the application (AHB) and USB sides
• • Setup stage done (control-out only)
• • Associated transmit FIFO is half or completely empty (in endpoints)
• • NAK acknowledge transmitted to the host (isochronous-in only)
• • IN token received when Tx-FIFO was empty (bulk-in/interrupt-in only)
• • OUT token received when endpoint was not yet enabled
• • Babble error condition detected
• • Endpoint disable by application is effective
• • Endpoint NAK by application is effective (isochronous-in only)
• • More than 3 back-to-back setup packets received (control-out only)
• • Timeout condition detected (control-in only)
• • Isochronous out packet dropped without generating an interrupt

30.6 USB functional description on host mode

This section gives the functional description of the OTG_HS in the USB host mode. The OTG_HS works as a USB host in the following circumstances:

• • OTG A-host
  OTG A-device default state when the A-side of the USB cable is plugged in
• • OTG B-host
  OTG B-device after HNP switching to the host role
• • A-device
  If the ID line is present, functional and connected to the A-side of the USB cable, and the HNP-capable bit is cleared in the Global USB Configuration register (HNPCAP bit in OTG_HS_GUSBCFG). Integrated pull-down resistors are automatically set on the DP/DM lines.
• • Host only ( Figure 352: USB host-only connection ).
  The force host mode bit in the global USB configuration register (FHMOD bit in OTG_HS_GUSBCFG) forces the OTG_HS core to operate in USB host-only mode. In this case, the ID line is ignored even if it is available on the USB connector. Integrated pull-down resistors are automatically set on the OTG_HS_FS_DP/OTG_HS_FS_DM lines.

Note: On-chip 5 V V _BUS generation is not supported. As a result, a charge pump or a basic power switch (if a 5 V supply is available on the application board) must be added externally to drive the 5 V V _BUS line. The external charge pump can be driven by any GPIO output. This is required for the OTG A-host, A-device and host-only configurations.

The V _BUS input ensures that valid V _BUS levels are supplied by the charge pump during USB operations while the charge pump overcurrent output can be input to any GPIO pin configured to generate port interrupts. The overcurrent ISR must promptly disable the V _BUS generation.

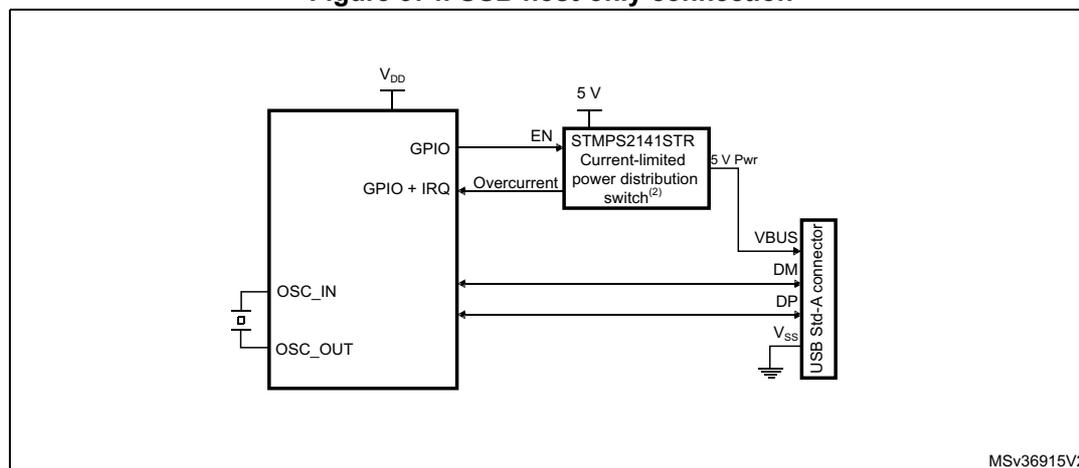

Figure 374. USB host-only connection

30.6.1 SRP-capable host

SRP support is available through the SRP capable bit in the global USB configuration register (SRPCAP bit in OTG_HS_GUSBCFG). When the SRP feature is enabled, the host can save power by switching off the V _BUS power while the USB session is suspended. The

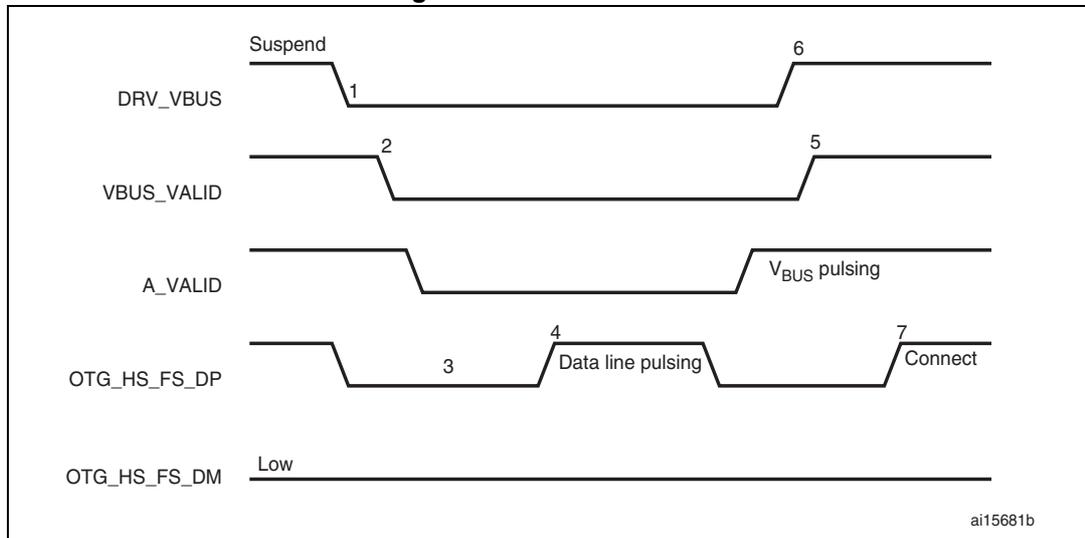

SRP host mode program model is described in detail in Section : A-device session request protocol .

30.6.2 USB host states

Host port power

On-chip 5 V \( V_{BUS} \) generation is not supported. As a result, a charge pump or a basic power switch (if a 5 V supply voltage is available on the application board) must be added externally to drive the 5 V \( V_{BUS} \) line. The external charge pump can be driven by any GPIO output. When the application powers on \( V_{BUS} \) through the selected GPIO, it must also set the port power bit in the host port control and status register (PPWR bit in OTG_HS_HPRT).

\( V_{BUS} \) valid

When SRP or HNP is enabled the \( V_{BUS} \) sensing pin (PB13) pin should be connected to \( V_{BUS} \) . The \( V_{BUS} \) input ensures that valid \( V_{BUS} \) levels are supplied by the charge pump during USB operations. Any unforeseen \( V_{BUS} \) voltage drop below the \( V_{BUS} \) valid threshold (4.25 V) generates an OTG interrupt triggered by the session end detected bit (SEDET bit in OTG_HS_GOTGINT). The application must then switch the \( V_{BUS} \) power off and clear the port power bit.

When HNP and SRP are both disabled, the \( V_{BUS} \) sensing pin (PB13) should not be connected to \( V_{BUS} \) . This pin can be used as GPIO.

The charge pump overcurrent flag can also be used to prevent electrical damage. Connect the overcurrent flag output from the charge pump to any GPIO input, and configure it to generate a port interrupt on the active level. The overcurrent ISR must promptly disable the \( V_{BUS} \) generation and clear the port power bit.

Detection of peripheral connection by the host

If SRP or HNP are enabled, even if USB peripherals or B-devices can be attached at any time, the OTG_HS does not detect a bus connection until the end of the \( V_{BUS} \) sensing ( \( V_{BUS} \) over 4.75 V).

When \( V_{BUS} \) is at a valid level and a remote B-device is attached, the OTG_HS core issues a host port interrupt triggered by the device connected bit in the host port control and status register (PCDET bit in OTG_HS_HPRT).

When HNP and SRP are both disabled, USB peripherals or B-device are detected as soon as they are connected. The OTG_HS core issues a host port interrupt triggered by the device connected bit in the host port control and status (PCDET bit in OTG_HS_HPRT).

Detection of peripheral disconnection by the host

The peripheral disconnection event triggers the disconnect detected interrupt (DISCINT bit in OTG_HS_GINTSTS).

Host enumeration

After detecting a peripheral connection, the host must start the enumeration process by issuing an USB reset and configuration commands to the new peripheral.

Before sending an USB reset, the application waits for the OTG interrupt triggered by the debounce done bit (DBCDNE bit in OTG_HS_GOTGINT), which indicates that the bus is

stable again after the electrical debounce caused by the attachment of a pull-up resistor on OTG_HS_FS_DP (full speed) or OTG_HS_FS_DM (low speed).

The application issues an USB reset (single-ended zero) via the USB by keeping the port reset bit set in the Host port control and status register (PRST bit in OTG_HS_HPRT) for a minimum of 10 ms and a maximum of 20 ms. The application monitors the time and then clears the port reset bit.

Once the USB reset sequence has completed, the host port interrupt is triggered by the port enable/disable change bit (PENCHNG bit in OTG_HS_HPRT) to inform the application that the speed of the enumerated peripheral can be read from the port speed field in the host port control and status register (PSPD bit in OTG_HS_HPRT), and that the host is starting to drive SOFs (full speed) or keep-alive tokens (low speed). The host is then ready to complete the peripheral enumeration by sending peripheral configuration commands.

Host suspend

The application can decide to suspend the USB activity by setting the port suspend bit in the host port control and status register (PSUSP bit in OTG_HS_HPRT). The OTG_HS core stops sending SOFs and enters the Suspended state.

The Suspended state can be exited on the remote device initiative (remote wake-up). In this case the remote wake-up interrupt (WKUPINT bit in OTG_HS_GINTSTS) is generated upon detection of a remote wake-up event, the port resume bit in the host port control and status register (PRES bit in OTG_HS_HPRT) is set, and a resume signaling is automatically issued on the USB. The application must monitor the resume window duration, and then clear the port resume bit to exit the Suspended state and restart the SOF.

If the Suspended state is exited on the host initiative, the application must set the port resume bit to start resume signaling on the host port, monitor the resume window duration and then clear the port resume bit.

30.6.3 Host channels

The OTG_HS core instantiates 12 host channels. Each host channel supports an USB host transfer (USB pipe). The host is not able to support more than 8 transfer requests simultaneously. If more than 8 transfer requests are pending from the application, the host controller driver (HCD) must re-allocate channels when they become available, that is, after receiving the transfer completed and channel halted interrupts.

Each host channel can be configured to support IN/OUT and any type of periodic/nonperiodic transaction. Each host channel has dedicated control (HCCHARx), transfer configuration (HCTSIZx) and status/interrupt (HCINTx) registers with associated mask (HCINTMSKx) registers.

Host channel controls

The following host channel controls are available through the host channel-x characteristics register (HCCHARx):

• • Channel enable/disable
• • Program the HS/FS/LS speed of target USB peripheral
• • Program the address of target USB peripheral
• • Program the endpoint number of target USB peripheral
• • Program the transfer IN/OUT direction
• • Program the USB transfer type (control, bulk, interrupt, isochronous)
• • Program the maximum packet size (MPS)
• • Program the periodic transfer to be executed during odd/even frames

Host channel transfer

The host channel transfer size registers (HCTSIZx) allow the application to program the transfer size parameters, and read the transfer status.

The programming operation must be performed before setting the channel enable bit in the host channel characteristics register. Once the endpoint is enabled, the packet count field is read-only as the OTG HS core updates it according to the current transfer status.

The following transfer parameters can be programmed:

• • Transfer size in bytes
• • Number of packets constituting the overall transfer size
• • Initial data PID

Host channel status/interrupt

The host channel-x interrupt register (HCINTx) indicates the status of an endpoint with respect to USB- and AHB-related events. The application must read these register when the host channels interrupt bit in the core interrupt register (HCINT bit in OTG_HS_GINTSTS) is set. Before the application can read these registers, it must first read the host all channels interrupt (HCAINT) register to get the exact channel number for the host channel-x interrupt register. The application must clear the appropriate bit in this register to clear the corresponding bits in the HCAINT and GINTSTS registers. The mask bits for each interrupt source of each channel are also available in the OTG_HS_HCINTMSK-x register.

The host core provides the following status checks and interrupt generation:

• • Transfer completed interrupt, indicating that the data transfer is complete on both the application (AHB) and USB sides
• • Channel stopped due to transfer completed, USB transaction error or disable command from the application
• • Associated transmit FIFO half or completely empty (IN endpoints)
• • ACK response received
• • NAK response received
• • STALL response received
• • USB transaction error due to CRC failure, timeout, bit stuff error, false EOP
• • Babble error
• • Frame overrun
• • Data toggle error

30.6.4 Host scheduler

The host core features a built-in hardware scheduler which is able to autonomously re-order and manage the USB transaction requests posted by the application. At the beginning of each frame the host executes the periodic (isochronous and interrupt) transactions first, followed by the nonperiodic (control and bulk) transactions to achieve the higher level of priority granted to the isochronous and interrupt transfer types by the USB specification.

The host processes the USB transactions through request queues (one for periodic and one for nonperiodic). Each request queue can hold up to 8 entries. Each entry represents a pending transaction request from the application, and holds the IN or OUT channel number along with other information to perform a transaction on the USB. The order in which the requests are written to the queue determines the sequence of the transactions on the USB interface.

At the beginning of each frame, the host processes the periodic request queue first, followed by the nonperiodic request queue. The host issues an incomplete periodic transfer interrupt (IPXFR bit in OTG_HS_GINTSTS) if an isochronous or interrupt transaction scheduled for the current frame is still pending at the end of the current frame. The OTG HS core is fully responsible for the management of the periodic and nonperiodic request queues. The periodic transmit FIFO and queue status register (HPTXSTS) and nonperiodic transmit FIFO and queue status register (HNPTXSTS) are read-only registers which can be used by the application to read the status of each request queue. They contain:

• • The number of free entries currently available in the periodic (nonperiodic) request queue (8 max)
• • Free space currently available in the periodic (nonperiodic) Tx-FIFO (out-transactions)
• • IN/OUT token, host channel number and other status information.

As request queues can hold a maximum of 8 entries each, the application can push to schedule host transactions in advance with respect to the moment they physically reach the USB for a maximum of 8 pending periodic transactions plus 8 pending nonperiodic transactions.

To post a transaction request to the host scheduler (queue) the application must check that there is at least 1 entry available in the periodic (nonperiodic) request queue by reading the PTXQSAV bits in the OTG_HS_HNPTXSTS register or NPTQXSAV bits in the OTG_HS_HPTXSTS register.

30.7 SOF trigger

The OTG FS core allows to monitor, track and configure SOF framing in the host and peripheral. It also features an SOF pulse output connectivity.

These capabilities are particularly useful to implement adaptive audio clock generation techniques, where the audio peripheral needs to synchronize to the isochronous stream provided by the PC, or the host needs trimming its framing rate according to the requirements of the audio peripheral.

30.7.1 Host SOFs

In host mode the number of PHY clocks occurring between the generation of two consecutive SOF (FS) or keep-alive (LS) tokens is programmable in the host frame interval register (OTG_HS_HFIR), thus providing application control over the SOF framing period. An interrupt is generated at any start of frame (SOF bit in OTG_HS_GINTSTS). The current frame number and the time remaining until the next SOF are tracked in the host frame number register (OTG_HS_HFNUM).

An SOF pulse signal is generated at any SOF starting token and with a width of 20 HCLK cycles. It can be made available externally on the SOF pin using the SOFOOUTEN bit in the global control and configuration register. The SOF pulse is also internally connected to the input trigger of timer 2 (TIM2), so that the input capture feature, the output compare feature and the timer can be triggered by the SOF pulse. The TIM2 connection is enabled through ITR1_RMP bits of TIM2_OR register.

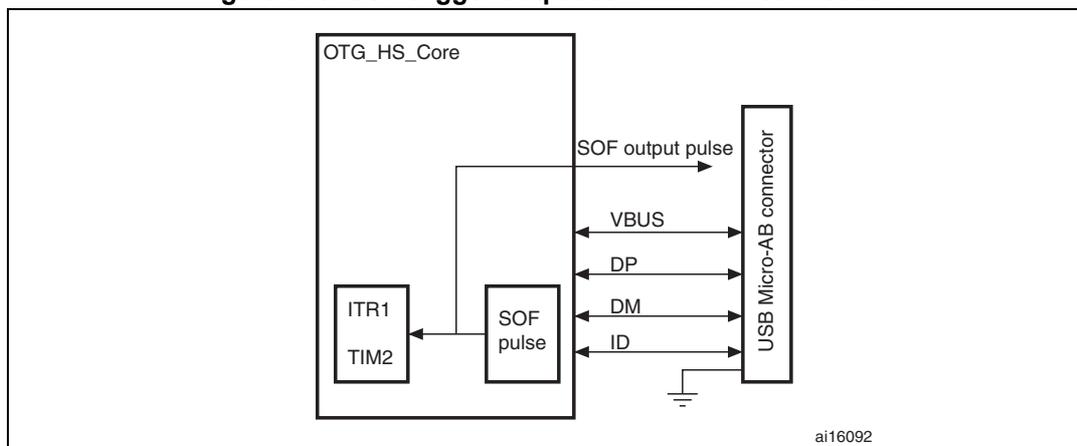

Figure 375. SOF trigger output to TIM2 ITR1 connection

graph LR
    subgraph OTG_HS_Core
        SOF_pulse[SOF pulse]
        TIM2[ITR1 TIM2]
        SOF_pulse --> TIM2
    end
    SOF_pulse -- SOF output pulse --> USB_Conn
    OTG_HS_Core -- VBUS --> USB_Conn
    OTG_HS_Core -- DP --> USB_Conn
    OTG_HS_Core -- DM --> USB_Conn
    OTG_HS_Core -- ID --> USB_Conn
    USB_Conn[USB Micro-AB connector]
    ID_GND[Ground] --- USB_Conn

30.7.2 Peripheral SOFs

In peripheral mode, the start of frame interrupt is generated each time an SOF token is received on the USB (SOF bit in OTG_HS_GINTSTS). The corresponding frame number can be read from the device status register (FNSOF bit in OTG_HS_DSTS). An SOF pulse signal with a width of 20 HCLK cycles is also generated and can be made available externally on the SOF pin by using the SOF output enable bit in the global control and configuration register (SOFOUTEN bit in OTG_HS_GCCFG). The SOF pulse signal is also internally connected to the TIM2 input trigger, so that the input capture feature, the output compare feature and the timer can be triggered by the SOF pulse (see Figure 375). The TIM2 connection is enabled through ITR1_RMP bits of TIM2_OR register.

The end of periodic frame interrupt (GINTSTS/EOPF) is used to notify the application when 80%, 85%, 90% or 95% of the time frame interval elapsed depending on the periodic frame interval field in the device configuration register (PFIVL bit in OTG_HS_DCFG).

This feature can be used to determine if all of the isochronous traffic for that frame is complete.

30.8 OTG_HS low-power modes

Table 160 below defines the STM32 low power modes and their compatibility with the OTG.

Table 160. Compatibility of STM32 low power modes with the OTG

1. 1. Within Stop mode there are different possible settings. Some restrictions may also exist, refer to Section 4: Power control (PWR) to understand which (if any) restrictions apply when using OTG.

The following bits and procedures reduce power consumption.

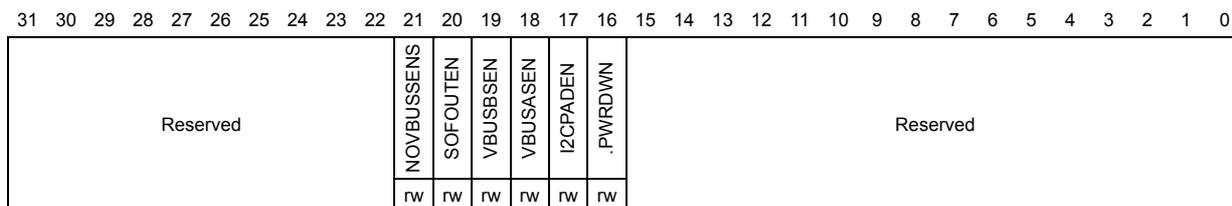

The power consumption of the OTG PHY is controlled by three bits in the general core configuration register:

• • PHY power down (GCCFG/PWRDWN)
  This bit switches on/off the PHY full-speed transceiver module. It must be preliminarily set to allow any USB operation.
• • A-VBUS sensing enable (GCCFG/VBUSASEN)
  This bit switches on/off the \( V_{BUS} \) comparators associated with A-device operations. It must be set when in A-device (USB host) mode and during HNP.
• • B-VBUS sensing enable (GCCFG/VBUSASEN)
  This bit switches on/off the \( V_{BUS} \) comparators associated with B-device operations. It must be set when in B-device (USB peripheral) mode and during HNP.
  Power reduction techniques are available in the USB suspended state, when the USB session is not yet valid or the device is disconnected.
• • Stop PHY clock (STPPCLK bit in OTG_HS_PCGCTL)
  • – When setting the stop PHY clock bit in the clock gating control register, most of the clock domain internal to the OTG high-speed core is switched off by clock gating.

The dynamic power consumption due to the USB clock switching activity is cut even if the clock input is kept running by the application

• – Most of the transceiver is also disabled, and only the part in charge of detecting the asynchronous resume or remote wake-up event is kept alive.

• • Gate HCLK (GATEHCLK bit in OTG_HS_PCGCCTL)

When setting the Gate HCLK bit in the clock gating control register, most of the system clock domain internal to the OTG_HS core is switched off by clock gating. Only the register read and write interface is kept alive. The dynamic power consumption due to the USB clock switching activity is cut even if the system clock is kept running by the application for other purposes.

• • USB system stop

• – When the OTG_HS is in USB suspended state, the application can decide to drastically reduce the overall power consumption by shutting down all the clock sources in the system. USB System Stop is activated by first setting the Stop PHY clock bit and then configuring the system deep sleep mode in the powercontrol system module (PWR).
• – The OTG_HS core automatically reactivates both system and USB clocks by asynchronous detection of remote wake-up (as an host) or resume (as a Device) signaling on the USB.

30.9 Dynamic update of the OTG_HS_HFIR register

The USB core embeds a dynamic trimming capability of micro-SOF framing period in host mode allowing to synchronize an external device with the micro-SOF frames.

When the OTG_HS_HFIR register is changed within a current micro-SOF frame, the SOF period correction is applied in the next frame as described in Figure 376 .

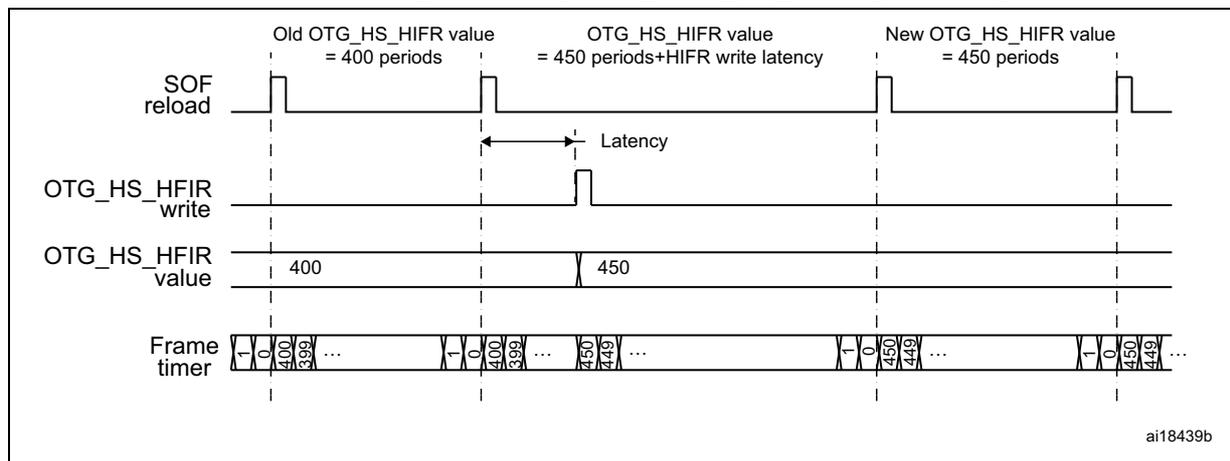

Figure 376. Updating OTG_HS_HFIR dynamically

30.10 FIFO RAM allocation

30.10.1 Peripheral mode

Receive FIFO RAM

For Receive FIFO RAM, the application should allocate RAM for SETUP packets: 10 locations must be reserved in the receive FIFO to receive SETUP packets on control endpoints. These locations are reserved for SETUP packets and are not used by the core to write any other data.

One location must be allocated for Global OUT NAK. Status information are also written to the FIFO along with each received packet. Therefore, a minimum space of \( (\text{Largest Packet Size} / 4) + 1 \) must be allocated to receive packets. If a high-bandwidth endpoint or multiple isochronous endpoints are enabled, at least two spaces of \( (\text{Largest Packet Size} / 4) + 1 \) must be allotted to receive back-to-back packets. Typically, two \( (\text{Largest Packet Size} / 4) + 1 \) spaces are recommended so that when the previous packet is being transferred to AHB, the USB can receive the subsequent packet.

Along with each endpoints last packet, transfer complete status information are also pushed to the FIFO. Typically, one location for each OUT endpoint is recommended.

Transmit FIFO RAM

For Transmit FIFO RAM, the minimum RAM space required for each IN Endpoint Transmit FIFO is the maximum packet size for this IN endpoint.

Note: More space allocated in the transmit IN Endpoint FIFO results in a better performance on the USB.

30.10.2 Host mode

Receive FIFO RAM

For Receive FIFO RAM allocation, Status information are written to the FIFO along with each received packet. Therefore, a minimum space of \( (\text{Largest Packet Size} / 4) + 1 \) must be allocated to receive packets. If a high-bandwidth channel or multiple isochronous channels are enabled, at least two spaces of \( (\text{Largest Packet Size} / 4) + 1 \) must be allocated to receive back-to-back packets. Typically, two \( (\text{Largest Packet Size} / 4) + 1 \) spaces are recommended so that when the previous packet is being transferred to AHB, the USB can receive the subsequent packet.

Along with each host channels last packet, transfer complete status information are also pushed to the FIFO. As a consequence, one location must be allocated to store this data.

Transmit FIFO RAM

For Transmit FIFO RAM allocation, the minimum amount of RAM required for the host nonperiodic Transmit FIFO is the largest maximum packet size for all supported nonperiodic OUT channels. Typically, a space corresponding to two Largest Packet Size is recommended, so that when the current packet is being transferred to the USB, the AHB can transmit the subsequent packet.

The minimum amount of RAM required for Host periodic Transmit FIFO is the largest maximum packet size for all supported periodic OUT channels. If there is at least one High

Bandwidth Isochronous OUT endpoint, then the space must be at least two times the maximum packet size for that channel.

Note: More space allocated in the Transmit nonperiodic FIFO results in better performance on the USB.

When operating in DMA mode, the DMA address register for each host channel (HCDMAN) is stored in the SPRAM (FIFO). One location for each channel must be reserved for this.

30.11 OTG_HS interrupts

When the OTG_HS controller is operating in one mode, either peripheral or host, the application must not access registers from the other mode. If an illegal access occurs, a mode mismatch interrupt is generated and reflected in the Core interrupt register (MMIS bit in the OTG_HS_GINTSTS register). When the core switches from one mode to the other, the registers in the new mode of operation must be reprogrammed as they would be after a power-on reset.

Figure 377 shows the interrupt hierarchy.

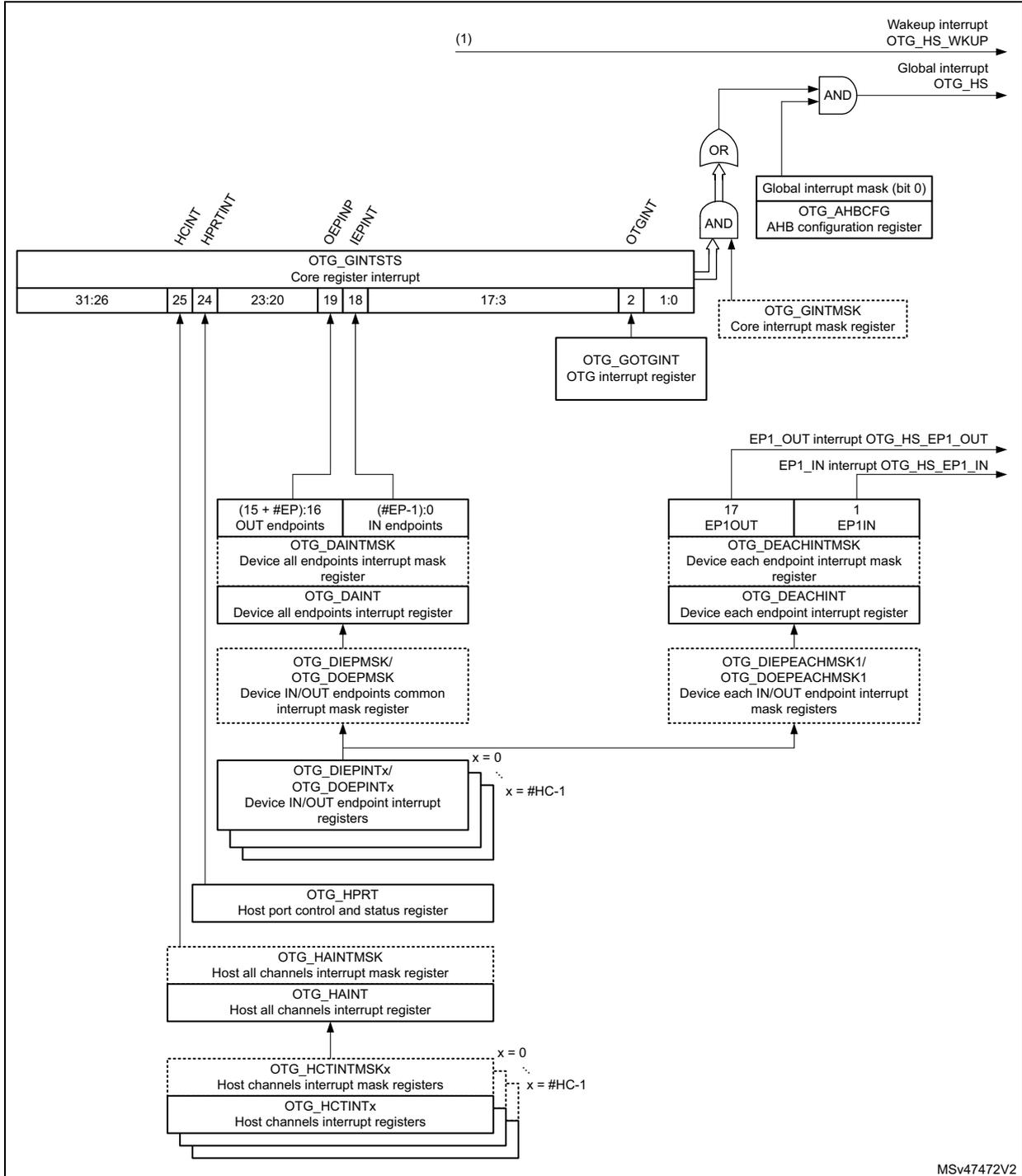

Figure 377. Interrupt hierarchy

1. OTG_HS_WKUP becomes active (high state) when resume condition occurs during L1 SLEEP or L2 SUSPEND states.

30.12 OTG_HS control and status registers

By reading from and writing to the control and status registers (CSRs) through the AHB slave interface, the application controls the OTG_HS controller. These registers are 32 bits wide, and the addresses are 32-bit block aligned. The OTG_HS registers must be accessed by words (32 bits). CSRs are classified as follows:

• • Core global registers
• • Host-mode registers
• • Host global registers
• • Host port CSRs
• • Host channel-specific registers
• • Device-mode registers
• • Device global registers
• • Device endpoint-specific registers
• • Power and clock-gating registers
• • Data FIFO (DFIFO) access registers

Only the Core global, Power and clock-gating, Data FIFO access, and host port control and status registers can be accessed in both host and peripheral modes. When the OTG_HS controller is operating in one mode, either peripheral or host, the application must not access registers from the other mode. If an illegal access occurs, a mode mismatch interrupt is generated and reflected in the Core interrupt register (MMIS bit in the OTG_HS_GINTSTS register). When the core switches from one mode to the other, the registers in the new mode of operation must be reprogrammed as they would be after a power-on reset.

30.12.1 CSR memory map

The host and peripheral mode registers occupy different addresses. All registers are implemented in the AHB clock domain.

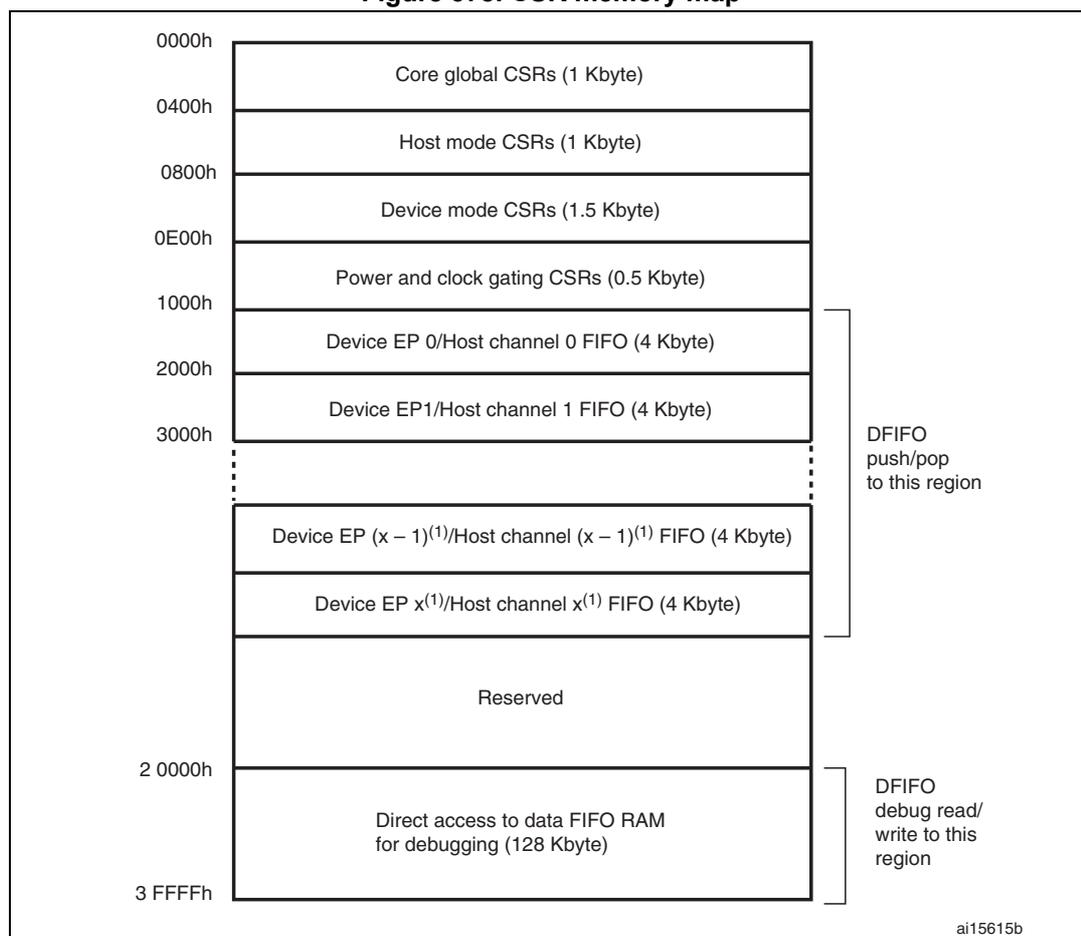

Figure 378. CSR memory map

1. \( x = 5 \) in peripheral mode and \( x = 11 \) in host mode.

Global CSR map

These registers are available in both host and peripheral modes.

Table 161. Core global control and status registers (CSRs)

These registers must be programmed every time the core changes to host mode.

These registers must be programmed every time the core changes to peripheral mode.

Table 163. Device-mode control and status registers (continued)

Data FIFO (DFIFO) access register map

These registers, available in both host and peripheral modes, are used to read or write the FIFO space for a specific endpoint or a channel, in a given direction. If a host channel is of type IN, the FIFO can only be read on the channel. Similarly, if a host channel is of type OUT, the FIFO can only be written on the channel.

1. Where x is 5 in peripheral mode and 11 in host mode.

Power and clock gating CSR map

There is a single register for power and clock gating. It is available in both host and peripheral modes.

30.12.2 OTG_HS global registers

These registers are available in both host and peripheral modes, and do not need to be reprogrammed when switching between these modes.

Bit values in the register descriptions are expressed in binary unless otherwise specified.

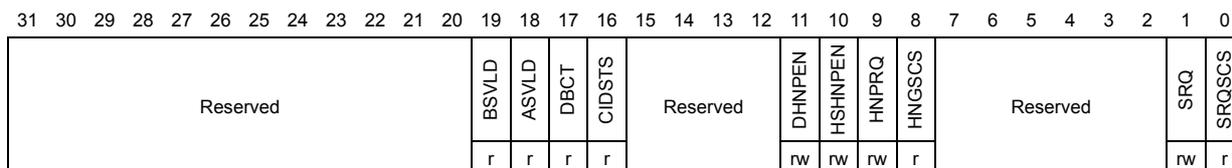

OTG_HS control and status register (OTG_HS_GOTGCTL)

Address offset: 0x000

Reset value: 0x0001 0000

The OTG control and status register controls the behavior and reflects the status of the OTG function of the core.

Bits 31:20 Reserved, must be kept at reset value.

Bit 19 BSVLD : B-session valid

Indicates the peripheral mode transceiver status.

0: B-session is not valid.

1: B-session is valid.

In OTG mode, you can use this bit to determine if the device is connected or disconnected.

Note: Only accessible in peripheral mode.

Bit 18 ASVLD : A-session valid

Indicates the host mode transceiver status.

0: A-session is not valid

1: A-session is valid

Note: Only accessible in host mode.

Bit 17 DBCT : Long/short debounce time

Indicates the debounce time of a detected connection.

0: Long debounce time, used for physical connections (100 ms + 2.5 µs)

1: Short debounce time, used for soft connections (2.5 µs)

Note: Only accessible in host mode.

Bit 16 CIDSTS : Connector ID status

Indicates the connector ID status on a connect event.

0: The OTG_HS controller is in A-device mode

1: The OTG_HS controller is in B-device mode

Note: Accessible in both peripheral and host modes.

Bits 15:12 Reserved, must be kept at reset value.

Bit 11 DHNPEN : Device HNP enabled

The application sets this bit when it successfully receives a SetFeature.SetHNPEnable command from the connected USB host.

0: HNP is not enabled in the application

1: HNP is enabled in the application

Note: Only accessible in peripheral mode.

The application sets this bit when it has successfully enabled HNP (using the SetFeature.SetHNPEnable command) on the connected device.

0: Host Set HNP is not enabled

1: Host Set HNP is enabled

Note: Only accessible in host mode.

The application sets this bit to initiate an HNP request to the connected USB host. The application can clear this bit by writing a 0 when the host negotiation success status change bit in the OTG interrupt register (HNSSCHG bit in OTG_HS_GOTGINT) is set. The core clears this bit when the HNSSCHG bit is cleared.

0: No HNP request

1: HNP request

Note: Only accessible in peripheral mode.

The core sets this bit when host negotiation is successful. The core clears this bit when the HNP Request (HNPRQ) bit in this register is set.

0: Host negotiation failure

1: Host negotiation success

Note: Only accessible in peripheral mode.

Bits 7:2 Reserved, must be kept at reset value.

The application sets this bit to initiate a session request on the USB. The application can clear this bit by writing a 0 when the host negotiation success status change bit in the OTG Interrupt register (HNSSCHG bit in OTG_HS_GOTGINT) is set. The core clears this bit when the HNSSCHG bit is cleared.

If you use the USB 1.1 full-speed serial transceiver interface to initiate the session request, the application must wait until \( V_{BUS} \) discharges to 0.2 V, after the B-Session Valid bit in this register (BSVLD bit in OTG_HS_GOTGCTL) is cleared.

0: No session request

1: Session request

Note: Only accessible in peripheral mode.

The core sets this bit when a session request initiation is successful.

0: Session request failure

1: Session request success

Note: Only accessible in peripheral mode.

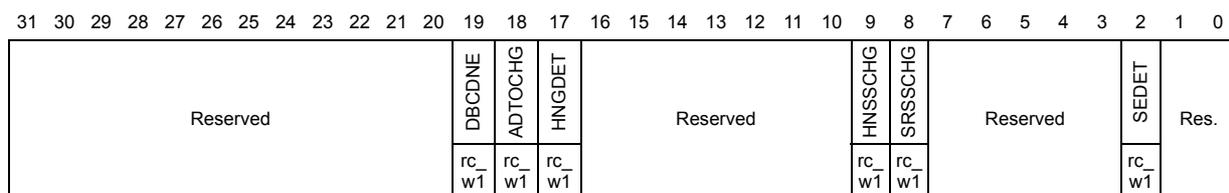

Address offset: 0x04

Reset value: 0x0000 0000

The application reads this register whenever there is an OTG interrupt and clears the bits in this register to clear the OTG interrupt.

Bits 31:20 Reserved, must be kept at reset value.

Bit 19 DBCDNE : Debounce done

The core sets this bit when the debounce is completed after the device connect. The application can start driving USB reset after seeing this interrupt. This bit is only valid when the HNP Capable or SRP Capable bit is set in the Core USB Configuration register (HNPCAP bit or SRPCAP bit in OTG_HS_GUSBCFG, respectively).

Note: Only accessible in host mode.

Bit 18 ADTOCHG : A-device timeout change

The core sets this bit to indicate that the A-device has timed out while waiting for the B-device to connect.

Note: Accessible in both peripheral and host modes.

Bit 17 HNGDET : Host negotiation detected

The core sets this bit when it detects a host negotiation request on the USB.

Note: Accessible in both peripheral and host modes.

Bits 16:10 Reserved, must be kept at reset value.

Bit 9 HNSSCHG : Host negotiation success status change

The core sets this bit on the success or failure of a USB host negotiation request. The application must read the host negotiation success bit of the OTG Control and Status register (HNGSCS in OTG_HS_GOTGCTL) to check for success or failure.

Note: Accessible in both peripheral and host modes.

Bits 7:3 Reserved, must be kept at reset value.

Bit 8 SRSSCHG : Session request success status change

The core sets this bit on the success or failure of a session request. The application must read the session request success bit in the OTG Control and status register (SRQSCS bit in OTG_HS_GOTGCTL) to check for success or failure.

Note: Accessible in both peripheral and host modes.

Bit 2 SEDET : Session end detected

The core sets this bit to indicate that the level of the voltage on \( V_{BUS} \) is no longer valid for a B-device session when \( V_{BUS} < 0.8\text{ V} \) .

Bits 1:0 Reserved, must be kept at reset value.

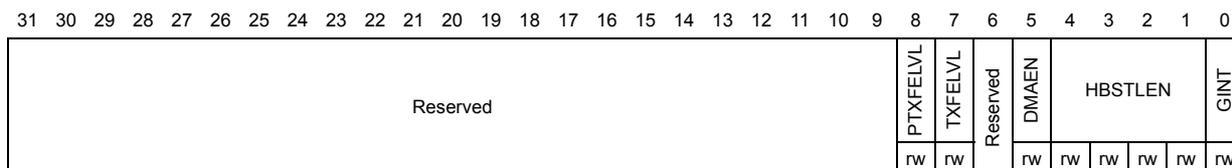

OTG_HS AHB configuration register (OTG_HS_GAHBCFG)

Address offset: 0x008

Reset value: 0x0000 0000

This register can be used to configure the core after power-on or a change in mode. This register mainly contains AHB system-related configuration parameters. Do not change this register after the initial programming. The application must program this register before starting any transactions on either the AHB or the USB.

Bits 31:20 Reserved, must be kept at reset value.

Bit 8 PTXFELVL : Periodic TxFIFO empty level

Indicates when the periodic TxFIFO empty interrupt bit in the Core interrupt register (PTXFE bit in OTG_HS_GINTSTS) is triggered.

0: PTXFE (in OTG_HS_GINTSTS) interrupt indicates that the Periodic TxFIFO is half empty
1: PTXFE (in OTG_HS_GINTSTS) interrupt indicates that the Periodic TxFIFO is completely empty

Note: Only accessible in host mode.

Bit 7 TXFELVL : TxFIFO empty level

In peripheral mode, this bit indicates when the IN endpoint Transmit FIFO empty interrupt (TXFE in OTG_HS_DIEPINTx.) is triggered.

0: TXFE (in OTG_HS_DIEPINTx) interrupt indicates that the IN Endpoint TxFIFO is half empty

1: TXFE (in OTG_HS_DIEPINTx) interrupt indicates that the IN Endpoint TxFIFO is completely empty

Note: Only accessible in peripheral mode.

Bit 6 Reserved, must be kept at reset value.

Bit 5 DMAEN : DMA enable

0: The core operates in slave mode

1: The core operates in DMA mode

Bits 4:1 HBSTLEN : Burst length/type

0000 Single

0001 INCR

0011 INCR4

0101 INCR8

0111 INCR16

Others: Reserved

Bit 0 GINT : Global interrupt mask

This bit is used to mask or unmask the interrupt line assertion to the application. Irrespective of this bit setting, the interrupt status registers are updated by the core.

0: Mask the interrupt assertion to the application.

1: Unmask the interrupt assertion to the application

Note: Accessible in both peripheral and host modes.

OTG_HS USB configuration register (OTG_HS_GUSBCFG)

Address offset: 0x00C

Reset value: 0x0000 1440

This register can be used to configure the core after power-on or a changing to host mode or peripheral mode. It contains USB and USB-PHY related configuration parameters. The application must program this register before starting any transactions on either the AHB or the USB. Do not make changes to this register after the initial programming.

Bit 31 CTXPKT: Corrupt Tx packet

This bit is for debug purposes only. Never set this bit to 1.

Note: Accessible in both peripheral and host modes.

Bit 30 FDMOD: Forced peripheral mode

Writing a 1 to this bit forces the core to peripheral mode irrespective of the OTG_HS_ID input pin.

0: Normal mode

1: Forced peripheral mode

After setting the force bit, the application must wait at least 25 ms before the change takes effect.

Note: Accessible in both peripheral and host modes.

Bit 29 FHMOD: Forced host mode

Writing a 1 to this bit forces the core to host mode irrespective of the OTG_HS_ID input pin.

0: Normal mode

1: Forced host mode

After setting the force bit, the application must wait at least 25 ms before the change takes effect.

Note: Accessible in both peripheral and host modes.

Bits 28:26 Reserved, must be kept at reset value.

Bit 25 ULPIIPD: ULPI interface protect disable

This bit controls the circuitry built in the PHY to protect the ULPI interface when the link tri-states stop and data. Any pull-up or pull-down resistors employed by this feature can be disabled. Refer to the ULPI specification for more details.

0: Enables the interface protection circuit

1: Disables the interface protection circuit

Bit 24 PTCI: Indicator pass through

This bit controls whether the complement output is qualified with the internal V _BUS valid comparator before being used in the V _BUS state in the RX CMD. Refer to the ULPI specification for more details.

0: Complement Output signal is qualified with the Internal V _BUS valid comparator

1: Complement Output signal is not qualified with the Internal V _BUS valid comparator

This bit controls the PHY to invert the ExternalVbusIndicator input signal, and generate the complement output. Refer to the ULPI specification for more details.

0: PHY does not invert the ExternalVbusIndicator signal

1: PHY inverts ExternalVbusIndicator signal

This bit selects utmi_termselect to drive the data line pulse during SRP (session request protocol).

0: Data line pulsing using utmi_txvalid (default)

1: Data line pulsing using utmi_termsel

This bit indicates to the ULPI PHY to use an external V _BUS overcurrent indicator.

0: PHY uses an internal V _BUS valid comparator

1: PHY uses an external V _BUS valid comparator

This bit selects between internal or external supply to drive 5 V on V _BUS , in the ULPI PHY.

0: PHY drives V _BUS using internal charge pump (default)

1: PHY drives V _BUS using external supply.

This bit sets the ClockSuspendM bit in the interface control register on the ULPI PHY. This bit applies only in the serial and carkit modes.

0: PHY powers down the internal clock during suspend

1: PHY does not power down the internal clock

This bit sets the AutoResume bit in the interface control register on the ULPI PHY.

0: PHY does not use AutoResume feature

1: PHY uses AutoResume feature

The application uses this bit to select the FS/LS serial interface for the ULPI PHY. This bit is valid only when the FS serial transceiver is selected on the ULPI PHY.

0: ULPI interface

1: ULPI FS/LS serial interface

This bit selects either 480 MHz or 48 MHz (low-power) PHY mode. In FS and LS modes, the PHY can usually operate on a 48 MHz clock to save power.

0: 480 MHz internal PLL clock

1: 48 MHz external clock

In 480 MHz mode, the UTMI interface operates at either 60 or 30 MHz, depending on whether the 8- or 16-bit data width is selected. In 48 MHz mode, the UTMI interface operates at 48 MHz in FS and LS modes.

These bits allow to set the turnaround time in PHY clocks. They must be configured according to Table 166: TRDT values , depending on the application AHB frequency. Higher TRDT values allow stretching the USB response time to IN tokens in order to compensate for longer AHB read access latency to the Data FIFO.

The application uses this bit to control the OTG_HS controller's HNP capabilities.

0: HNP capability is not enabled

1: HNP capability is enabled

Note: Accessible in both peripheral and host modes.

The application uses this bit to control the OTG_HS controller's SRP capabilities. If the core operates as a nonSRP-capable B-device, it cannot request the connected A-device (host) to activate V _BUS and start a session.

0: SRP capability is not enabled

1: SRP capability is enabled

Note: Accessible in both peripheral and host modes.

Bit 7 Reserved, must be kept at reset value.

0: USB 2.0 high-speed ULPI PHY

1: USB 1.1 full-speed serial transceiver

Bits 5:3 Reserved, must be kept at reset value.

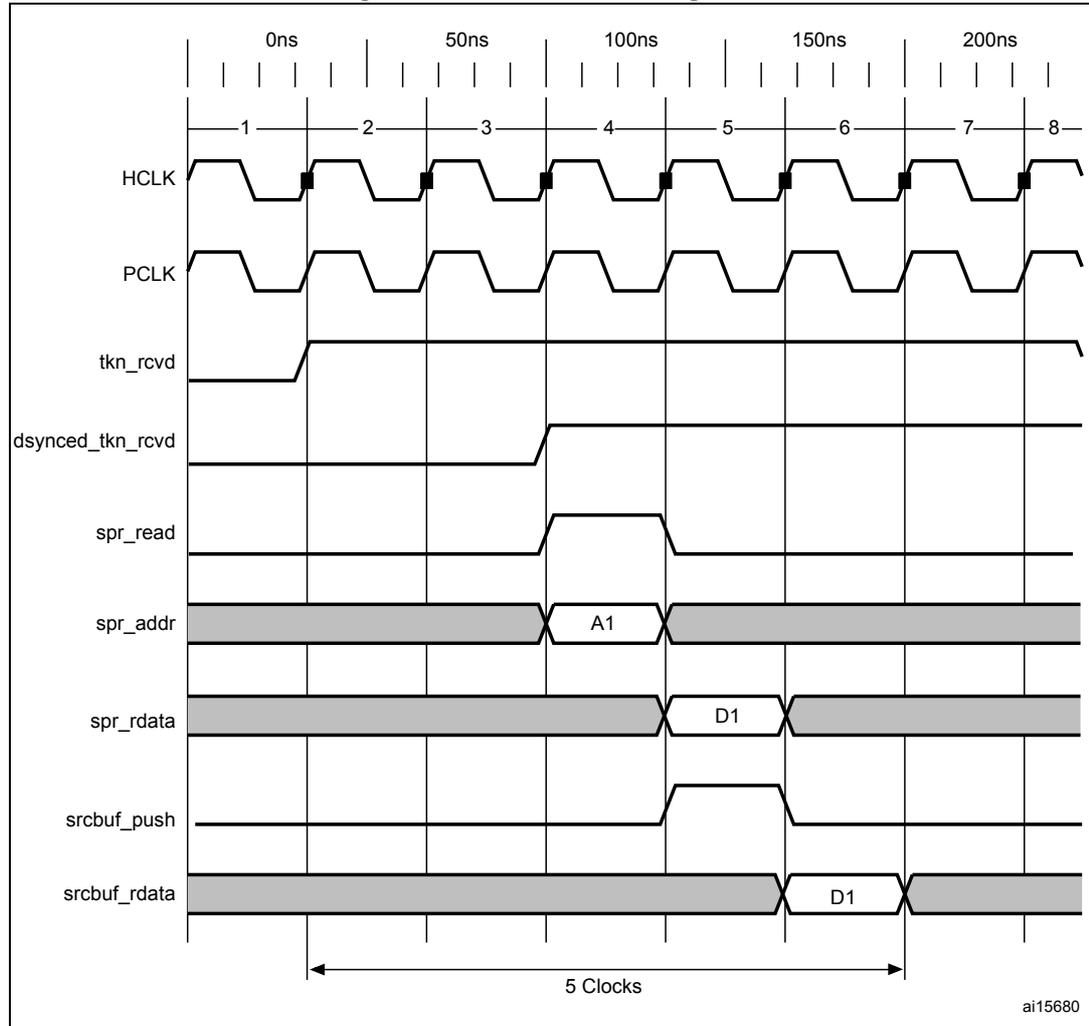

The number of PHY clocks that the application programs in this field is added to the full-speed interpacket timeout duration in the core to account for any additional delays introduced by the PHY. This can be required, because the delay introduced by the PHY in generating the line state condition can vary from one PHY to another.

The USB standard timeout value for full-speed operation is 16 to 18 (inclusive) bit times. The application must program this field based on the speed of enumeration. The number of bit times added per PHY clock is 0.25 bit times.

Table 166. TRDT values

OTG_HS reset register (OTG_HS_GRSTCTL)

Address offset: 0x010

Reset value: 0x8000 0000

The application uses this register to reset various hardware features inside the core.

Bit 31 AHBIDL : AHB master idle

Indicates that the AHB master state machine is in the Idle condition.

Note: Accessible in both peripheral and host modes.

Bit 30 DMAREQ : DMA request signal

This bit indicates that the DMA request is in progress. Used for debug.

Bits 29:11 Reserved, must be kept at reset value.

Bits 10:6 TXFNUM : TxFIFO number

This is the FIFO number that must be flushed using the TxFIFO Flush bit. This field must not be changed until the core clears the TxFIFO Flush bit.

00000:

• - Nonperiodic TxFIFO flush in host mode
• - Tx FIFO 0 flush in peripheral mode

00001:

• - Periodic TxFIFO flush in host mode
• - TXFIFO 1 flush in peripheral mode

00010: TXFIFO 2 flush in peripheral mode

...

00101: TXFIFO 15 flush in peripheral mode

10000: Flush all the transmit FIFOs in peripheral or host mode.

Note: Accessible in both peripheral and host modes.

Bit 5 TXFFLSH : TxFIFO flush

This bit selectively flushes a single or all transmit FIFOs, but cannot do so if the core is in the midst of a transaction.

The application must write this bit only after checking that the core is neither writing to the TxFIFO nor reading from the TxFIFO. Verify using these registers:

• - Read: the NAK effective interrupt ensures the core is not reading from the FIFO
• - Write: the AHBIDL bit in OTG_HS_GRSTCTL ensures that the core is not writing anything to the FIFO

Note: Accessible in both peripheral and host modes.

The application can flush the entire RxFIFO using this bit, but must first ensure that the core is not in the middle of a transaction.

The application must only write to this bit after checking that the core is neither reading from the RxFIFO nor writing to the RxFIFO.

The application must wait until the bit is cleared before performing any other operation. This bit requires 8 clocks (slowest of PHY or AHB clock) to be cleared.

Note: Accessible in both peripheral and host modes.

The application writes this bit to reset the (micro) frame number counter inside the core. When the (micro) frame counter is reset, the subsequent SOF sent out by the core has a frame number of 0.

Note: Only accessible in host mode.

The application uses this bit to flush the control logic in the AHB Clock domain. Only AHB Clock Domain pipelines are reset.

FIFOs are not flushed with this bit.

All state machines in the AHB clock domain are reset to the Idle state after terminating the transactions on the AHB, following the protocol.

CSR control bits used by the AHB clock domain state machines are cleared.

To clear this interrupt, status mask bits that control the interrupt status and are generated by the AHB clock domain state machine are cleared.

Because interrupt status bits are not cleared, the application can get the status of any core events that occurred after it set this bit.

This is a self-clearing bit that the core clears after all necessary logic is reset in the core. This can take several clocks, depending on the core's current state.

Note: Accessible in both peripheral and host modes.

Resets the HCLK and PCLK domains as follows:

Clears the interrupts and all the CSR register bits except for the following bits:

• – RSTPDMODL bit in OTG_HS_PCGCCTL
• – GAYEHCLK bit in OTG_HS_PCGCCTL
• – PWRCLMP bit in OTG_HS_PCGCCTL
• – STPPCLK bit in OTG_HS_PCGCCTL
• – FSLSPCS bit in OTG_HS_HCFG
• – DSPD bit in OTG_HS_DCFG

All module state machines (except for the AHB slave unit) are reset to the Idle state, and all the transmit FIFOs and the receive FIFO are flushed.

Any transactions on the AHB Master are terminated as soon as possible, after completing the last data phase of an AHB transfer. Any transactions on the USB are terminated immediately.

The application can write to this bit any time it wants to reset the core. This is a self-clearing bit and the core clears this bit after all the necessary logic is reset in the core, which can take several clocks, depending on the current state of the core. Once this bit has been cleared, the software must wait at least 3 PHY clocks before accessing the PHY domain (synchronization delay). The software must also check that bit 31 in this register is set to 1 (AHB Master is Idle) before starting any operation.

Typically, the software reset is used during software development and also when you dynamically change the PHY selection bits in the above listed USB configuration registers. When you change the PHY, the corresponding clock for the PHY is selected and used in the PHY domain. Once a new clock is selected, the PHY domain has to be reset for proper operation.

Note: Accessible in both peripheral and host modes.

OTG_HS core interrupt register (OTG_HS_GINTSTS)

Address offset: 0x014

Reset value: 0x0400 0020

This register interrupts the application for system-level events in the current mode (peripheral mode or host mode).

Some of the bits in this register are valid only in host mode, while others are valid in peripheral mode only. This register also indicates the current mode. To clear the interrupt status bits of the rc_w1 type, the application must write 1 into the bit.

The FIFO status interrupts are read-only; once software reads from or writes to the FIFO while servicing these interrupts, FIFO interrupt conditions are cleared automatically.

The application must clear the OTG_HS_GINTSTS register at initialization before unmasking the interrupt bit to avoid any interrupts generated prior to initialization.

Bit 31 WKUPINT : Resume/remote wake-up detected interrupt

In peripheral mode, this interrupt is asserted when a resume is detected on the USB. In host mode, this interrupt is asserted when a remote wake-up is detected on the USB.

Note: Accessible in both peripheral and host modes.

Bit 30 SRQINT : Session request/new session detected interrupt

In host mode, this interrupt is asserted when a session request is detected from the device. In peripheral mode, this interrupt is asserted when V _BUS is in the valid range for a B-device device. Accessible in both peripheral and host modes.

Bit 29 DISCINT : Disconnect detected interrupt

Asserted when a device disconnect is detected.

Note: Only accessible in host mode.

Bit 28 CIDSCHG : Connector ID status change

The core sets this bit when there is a change in connector ID status.

Note: Accessible in both peripheral and host modes.

Bit 27 Reserved, must be kept at reset value.

Bit 26 PTXFE : Periodic TxFIFO empty

Asserted when the periodic transmit FIFO is either half or completely empty and there is space for at least one entry to be written in the periodic request queue. The half or completely empty status is determined by the periodic TxFIFO empty level bit in the Core AHB configuration register (PTXFELVL bit in OTG_HS_GAHBCFG).

Note: Only accessible in host mode.

The core sets this bit to indicate that an interrupt is pending on one of the channels of the core (in host mode). The application must read the host all channels interrupt (OTG_HS_HAINT) register to determine the exact number of the channel on which the interrupt occurred, and then read the corresponding host channel-x interrupt (OTG_HS_HCINTx) register to determine the exact cause of the interrupt. The application must clear the appropriate status bit in the OTG_HS_HCINTx register to clear this bit.

Note: Only accessible in host mode.

The core sets this bit to indicate a change in port status of one of the OTG_HS controller ports in host mode. The application must read the host port control and status (OTG_HS_HPRT) register to determine the exact event that caused this interrupt. The application must clear the appropriate status bit in the host port control and status register to clear this bit.

Note: Only accessible in host mode.

This interrupt is valid only in DMA mode. This interrupt indicates that the core has stopped fetching data for IN endpoints due to the unavailability of TxFIFO space or request queue space. This interrupt is used by the application for an endpoint mismatch algorithm. For example, after detecting an endpoint mismatch, the application:

• – Sets a global nonperiodic IN NAK handshake
• – Disables IN endpoints
• – Flushes the FIFO
• – Determines the token sequence from the IN token sequence learning queue
• – Re-enables the endpoints
• – Clears the global nonperiodic IN NAK handshake If the global nonperiodic IN NAK is cleared, the core has not yet fetched data for the IN endpoint, and the IN token is received: the core generates an “IN token received when FIFO empty” interrupt. The OTG then sends a NAK response to the host. To avoid this scenario, the application can check the FetSusp interrupt in OTG_HS_GINTSTS, which ensures that the FIFO is full before clearing a global NAK handshake. Alternatively, the application can mask the “IN token received when FIFO empty” interrupt when clearing a global IN NAK handshake.

In host mode, the core sets this interrupt bit when there are incomplete periodic transactions still pending, which are scheduled for the current frame.

Note: Only accessible in host mode.

In peripheral mode, the core sets this interrupt to indicate that there is at least one isochronous OUT endpoint on which the transfer is not completed in the current frame. This interrupt is asserted along with the End of periodic frame interrupt (EOPF) bit in this register.

Note: Only accessible in peripheral mode.

The core sets this interrupt to indicate that there is at least one isochronous IN endpoint on which the transfer is not completed in the current frame. This interrupt is asserted along with the End of periodic frame interrupt (EOPF) bit in this register.

Note: Only accessible in peripheral mode.

The core sets this bit to indicate that an interrupt is pending on one of the OUT endpoints of the core (in peripheral mode). The application must read the device all endpoints interrupt (OTG_HS_DAIN) register to determine the exact number of the OUT endpoint on which the interrupt occurred, and then read the corresponding device OUT Endpoint-x Interrupt (OTG_HS_DOEPINTx) register to determine the exact cause of the interrupt. The application must clear the appropriate status bit in the corresponding OTG_HS_DOEPINTx register to clear this bit.

Note: Only accessible in peripheral mode.

The core sets this bit to indicate that an interrupt is pending on one of the IN endpoints of the core (in peripheral mode). The application must read the device All Endpoints Interrupt (OTG_HS_DAIN) register to determine the exact number of the IN endpoint on which the interrupt occurred, and then read the corresponding device IN Endpoint-x interrupt (OTG_HS_DIEPINTx) register to determine the exact cause of the interrupt. The application must clear the appropriate status bit in the corresponding OTG_HS_DIEPINTx register to clear this bit.

Note: Only accessible in peripheral mode.

Bits 17:16 Reserved, must be kept at reset value.

Indicates that the period specified in the periodic frame interval field of the device configuration register (PFIVL bit in OTG_HS_DCFG) has been reached in the current frame.

Note: Only accessible in peripheral mode.

The core sets this bit when it fails to write an isochronous OUT packet into the RxFIFO because the RxFIFO does not have enough space to accommodate a maximum size packet for the isochronous OUT endpoint.

Note: Only accessible in peripheral mode.

The core sets this bit to indicate that speed enumeration is complete. The application must read the device Status (OTG_HS_DSTS) register to obtain the enumerated speed.

Note: Only accessible in peripheral mode.

The core sets this bit to indicate that a reset is detected on the USB.

Note: Only accessible in peripheral mode.

The core sets this bit to indicate that a suspend was detected on the USB. The core enters the Suspended state when there is no activity on the data lines for a period of 3 ms.

Note: Only accessible in peripheral mode.

The core sets this bit to indicate that an Idle state has been detected on the USB for 3 ms.

Note: Only accessible in peripheral mode.

Bits 9:8 Reserved, must be kept at reset value.

Indicates that the Set global OUT NAK bit in the Device control register (SGONAK bit in OTG_HS_DCTL), set by the application, has taken effect in the core. This bit can be cleared by writing the Clear global OUT NAK bit in the Device control register (CGONAK bit in OTG_HS_DCTL).

Note: Only accessible in peripheral mode.

Indicates that the Set global nonperiodic IN NAK bit in the Device control register (SGINAK bit in OTG_HS_DCTL), set by the application, has taken effect in the core. That is, the core has sampled the Global IN NAK bit set by the application. This bit can be cleared by clearing the Clear global nonperiodic IN NAK bit in the Device control register (CGINAK bit in OTG_HS_DCTL).

This interrupt does not necessarily mean that a NAK handshake is sent out on the USB. The STALL bit takes precedence over the NAK bit.

Note: Only accessible in peripheral mode.

This interrupt is asserted when the nonperiodic TxFIFO is either half or completely empty, and there is space in at least one entry to be written to the nonperiodic transmit request queue. The half or completely empty status is determined by the nonperiodic TxFIFO empty level bit in the OTG_HS_GAHBCFG register (TXFELVL bit in OTG_HS_GAHBCFG).

Note: Only accessible in host mode.

Indicates that there is at least one packet pending to be read from the RxFIFO.

Note: Accessible in both host and peripheral modes.

In host mode, the core sets this bit to indicate that an SOF (FS), or Keep-Alive (LS) is transmitted on the USB. The application must write a 1 to this bit to clear the interrupt.

In peripheral mode, in the core sets this bit to indicate that an SOF token has been received on the USB. The application can read the Device Status register to get the current frame number. This interrupt is seen only when the core is operating in FS.

Note: Accessible in both host and peripheral modes.

The core sets this bit to indicate an OTG protocol event. The application must read the OTG Interrupt Status (OTG_HS_GOTGINT) register to determine the exact event that caused this interrupt. The application must clear the appropriate status bit in the OTG_HS_GOTGINT register to clear this bit.

Note: Accessible in both host and peripheral modes.

The core sets this bit when the application is trying to access:

A host mode register, when the core is operating in peripheral mode

A peripheral mode register, when the core is operating in host mode

The register access is completed on the AHB with an OKAY response, but is ignored by the core internally and does not affect the operation of the core.

Note: Accessible in both host and peripheral modes.

Indicates the current mode.

0: Peripheral mode

1: Host mode

Note: Accessible in both host and peripheral modes.

OTG_HS interrupt mask register (OTG_HS_GINTMSK)

Address offset: 0x018

Reset value: 0x0000 0000

This register works with the Core interrupt register to interrupt the application. When an interrupt bit is masked, the interrupt associated with that bit is not generated. However, the Core Interrupt (OTG_HS_GINTSTS) register bit corresponding to that interrupt is still set.

Bit 31 WUIM : Resume/remote wake-up detected interrupt mask

0: Masked interrupt

1: Unmasked interrupt

Note: Accessible in both host and peripheral modes.

Bit 30 SRQIM : Session request/new session detected interrupt mask

0: Masked interrupt

1: Unmasked interrupt

Note: Accessible in both host and peripheral modes.

Bit 29 DISCINT : Disconnect detected interrupt mask

0: Masked interrupt

1: Unmasked interrupt

Note: Accessible in both host and peripheral modes.

Bit 28 CIDSCHGM : Connector ID status change mask

0: Masked interrupt

1: Unmasked interrupt

Note: Accessible in both host and peripheral modes.

Bit 27 Reserved, must be kept at reset value.

Bit 26 PTXFEM : Periodic TxFIFO empty mask

0: Masked interrupt

1: Unmasked interrupt

Note: Only accessible in host mode.

Bit 25 HCIM : Host channels interrupt mask

0: Masked interrupt

1: Unmasked interrupt

Note: Only accessible in host mode.

Bit 24 PRTIM : Host port interrupt mask

0: Masked interrupt

1: Unmasked interrupt

Note: Only accessible in host mode.

Bit 23 Reserved, must be kept at reset value.

1. Bit 22 FSUSPM : Data fetch suspended mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
2. Bit 21 IPXFRM : Incomplete periodic transfer mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in host mode.
3. IISOXFRM : Incomplete isochronous OUT transfer mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
4. Bit 20 IISOIXFRM : Incomplete isochronous IN transfer mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
5. Bit 19 OEPINT : OUT endpoints interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
6. Bit 18 IEPINT : IN endpoints interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
7. Bits 17:16 Reserved, must be kept at reset value.
8. Bit 15 EOPFM : End of periodic frame interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
9. Bit 14 ISOODRPM : Isochronous OUT packet dropped interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
10. Bit 13 ENUMDNEM : Enumeration done mask
    0: Masked interrupt
    1: Unmasked interrupt
    Note: Only accessible in peripheral mode.
11. Bit 12 USBRST : USB reset mask
    0: Masked interrupt
    1: Unmasked interrupt
    Note: Only accessible in peripheral mode.
12. Bit 11 USBSUSPM : USB suspend mask
    0: Masked interrupt
    1: Unmasked interrupt
    Note: Only accessible in peripheral mode.

1. Bit 10 ESUSPM : Early suspend mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
2. Bits 9:8 Reserved, must be kept at reset value.
3. Bit 7 GONAKEFFM : Global OUT NAK effective mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
4. Bit 6 GINAKEFFM : Global nonperiodic IN NAK effective mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Only accessible in peripheral mode.
5. Bit 5 NPTXFEM : Nonperiodic TxFIFO empty mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Accessible in both peripheral and host modes.
6. Bit 4 RXFLVLM : Receive FIFO nonempty mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Accessible in both peripheral and host modes.
7. Bit 3 SOFM : Start of frame mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Accessible in both peripheral and host modes.
8. Bit 2 OTGINT : OTG interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Accessible in both peripheral and host modes.
9. Bit 1 MMISM : Mode mismatch interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt
   Note: Accessible in both peripheral and host modes.
10. Bit 0 Reserved, must be kept at reset value.

OTG_HS Receive status debug read/OTG status read and pop registers (OTG_HS_GRXSTSR/OTG_HS_GRXSTSP)

Address offset for Read: 0x01C

Address offset for Pop: 0x020

Reset value: 0x0000 0000

A read to the Receive status debug read register returns the contents of the top of the Receive FIFO. A read to the Receive status read and pop register additionally pops the top data entry out of the RxFIFO.

The receive status contents must be interpreted differently in host and peripheral modes. The core ignores the receive status pop/read when the receive FIFO is empty and returns a value of 0x0000 0000. The application must only pop the Receive Status FIFO when the Receive FIFO nonempty bit of the Core interrupt register (RXFLVL bit in OTG_HS_GINTSTS) is asserted.

Host mode:

Bits 31:21 Reserved, must be kept at reset value.

Bits 20:17 PKTSTS: Packet status
Indicates the status of the received packet
0010: IN data packet received
0011: IN transfer completed (triggers an interrupt)
0101: Data toggle error (triggers an interrupt)
0111: Channel halted (triggers an interrupt)
Others: Reserved

Bits 16:15 DPID: Data PID
Indicates the Data PID of the received packet
00: DATA0
10: DATA1
01: DATA2
11: MDATA

Bits 14:4 BCNT: Byte count
Indicates the byte count of the received IN data packet.

Bits 3:0 CHNUM: Channel number
Indicates the channel number to which the current received packet belongs.

Peripheral mode:

Bits 31:25 Reserved, must be kept at reset value.

Bits 24:21 FRMNUM : Frame number

This is the least significant 4 bits of the frame number in which the packet is received on the USB. This field is supported only when isochronous OUT endpoints are supported.

Bits 20:17 PKTSTS : Packet status

Indicates the status of the received packet

0001: Global OUT NAK (triggers an interrupt)

0010: OUT data packet received

0011: OUT transfer completed (triggers an interrupt)

0100: SETUP transaction completed (triggers an interrupt)

0110: SETUP data packet received

Others: Reserved

Bits 16:15 DPID : Data PID

Indicates the Data PID of the received OUT data packet

00: DATA0

10: DATA1

01: DATA2

11: MDATA

Bits 14:4 BCNT : Byte count

Indicates the byte count of the received data packet.

Bits 3:0 EPNUM : Endpoint number

Indicates the endpoint number to which the current received packet belongs.

OTG_HS Receive FIFO size register (OTG_HS_GRXFSIZ)

Address offset: 0x024

Reset value: 0x0000 0400

The application can program the RAM size that must be allocated to the RxFIFO.

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 RXFD : RxFIFO depth

This value is in terms of 32-bit words.

Minimum value is 16

Maximum value is 1024

The power-on reset value of this register is specified as the largest Rx data FIFO depth.

OTG_HS nonperiodic transmit FIFO size/Endpoint 0 transmit FIFO size register (OTG_HS_GNPTXFSIZ/OTG_HS_TX0FSIZ)

Address offset: 0x028

Reset value: 0x0000 0200

Host mode:

Bits 31:16 NPTXFD : Nonperiodic TxFIFO depth

This value is in terms of 32-bit words.

Minimum value is 16

Maximum value is 1024

Bits 15:0 NPTXFSA : Nonperiodic transmit RAM start address

This field contains the memory start address for nonperiodic transmit FIFO RAM.

Peripheral mode:

Bits 31:16 TX0FD : Endpoint 0 TxFIFO depth

This value is in terms of 32-bit words.

Minimum value is 16

Maximum value is 256

Bits 15:0 TX0FSA : Endpoint 0 transmit RAM start address

This field contains the memory start address for Endpoint 0 transmit FIFO RAM.

OTG_HS nonperiodic transmit FIFO/queue status register (OTG_HS_GNPTXSTS)

Address offset: 0x02C

Reset value: 0x0008 0400

Note: In peripheral mode, this register is not valid.

This read-only register contains the free space information for the nonperiodic TxFIFO and the nonperiodic transmit request queue.

Bit 31 Reserved, must be kept at reset value.

Bits 30:24 NPTXQTOP : Top of the nonperiodic transmit request queue

Entry in the nonperiodic Tx request queue that is currently being processed by the MAC.

Bits [30:27]: Channel/endpoint number

Bits [26:25]:

• – 00: IN/OUT token
• – 01: Zero-length transmit packet (device IN/host OUT)
• – 10: PING/CSPLIT token
• – 11: Channel halt command

Bit [24]: Terminate (last entry for selected channel/endpoint)

Bits 23:16 NPTQXSAV : Nonperiodic transmit request queue space available

Indicates the amount of free space available in the nonperiodic transmit request queue.

This queue holds both IN and OUT requests in host mode. Peripheral mode has only IN requests.

00: Nonperiodic transmit request queue is full

01: dx1 location available

10: dx2 locations available

bxn : dx n locations available ( \( 0 \leq n \leq dx8 \) )

Others: Reserved

Bits 15:0 NPTXFSAV : Nonperiodic TxFIFO space available

Indicates the amount of free space available in the nonperiodic TxFIFO.

Values are in terms of 32-bit words.

00: Nonperiodic TxFIFO is full

01: dx1 word available

10: dx2 words available

0xn : dx n words available (where \( 0 \leq n \leq dx1024 \) )

Others: Reserved

OTG_HS general core configuration register (OTG_HS_GCCFG)

Address offset: 0x038

Reset value: 0x0000 XXXX

Bits 31:22 Reserved, must be kept at reset value.

Bit 21 NOVBUSSENS : \( V_{BUS} \) sensing disable option

When this bit is set, \( V_{BUS} \) is considered internally to be always at \( V_{BUS} \) valid level (5 V). This option removes the need for a dedicated \( V_{BUS} \) pad, and leave this pad free to be used for other purposes such as a shared functionality. \( V_{BUS} \) connection can be remapped on another general purpose input pad and monitored by software.

This option is only suitable for host-only or device-only applications.

0: \( V_{BUS} \) sensing available by hardware

1: \( V_{BUS} \) sensing not available by hardware.

Bit 20 SOFOUTEN : SOF output enable

0: SOF pulse not available on PAD

1: SOF pulse available on PAD

Bit 19 VBUSBSEN : Enable the \( V_{BUS} \) sensing “B” device

0: \( V_{BUS} \) sensing “B” disabled

1: \( V_{BUS} \) sensing “B” enabled

Bit 18 VBUSASEN : Enable the \( V_{BUS} \) sensing “A” device

0: \( V_{BUS} \) sensing “A” disabled

1: \( V_{BUS} \) sensing “A” enabled

Bit 17 I2CPADEN : Enable \( I^2C \) bus connection for the external \( I^2C \) PHY interface.

0: \( I^2C \) bus disabled

1: \( I^2C \) bus enabled

Bit 16 PWRDWN : Power down

Used to activate the transceiver in transmission/reception

0: Power down active

1: Power down deactivated (“Transceiver active”)

Bits 15:0 Reserved, must be kept at reset value.

OTG_HS core ID register (OTG_HS_CID)

Address offset: 0x03C

Reset value: 0x0000 1100

This is a register containing the Product ID as reset value.

Bits 31:0 PRODUCT_ID : Product ID field

Application-programmable ID field.

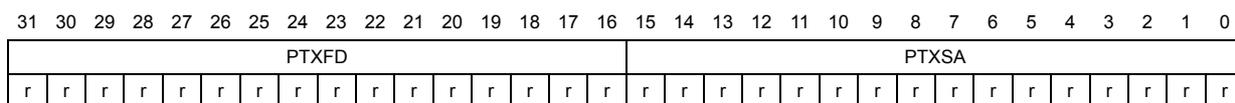

OTG_HS Host periodic transmit FIFO size register (OTG_HS_HPTXFSIZ)

Address offset: 0x100

Reset value: 0x0200 0800

Bits 31:16 PTXFD : Host periodic TxFIFO depth

This value is in terms of 32-bit words.

Minimum value is 16

Maximum value is 512

Bits 15:0 PTXSA : Host periodic TxFIFO start address

The power-on reset value of this register is the sum of the largest Rx data FIFO depth and largest nonperiodic Tx data FIFO depth.

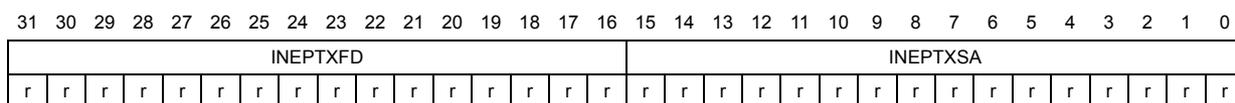

OTG_HS device IN endpoint transmit FIFO size register (OTG_HS_DIEPTXFx)
(x = 1..5, where x is the FIFO_number)

Address offset: 0x104 + 0x04 * (x - 1)

Reset value: 0x02000400

Bits 31:16 INEPTXFD : IN endpoint TxFIFO depth

This value is in terms of 32-bit words.

Minimum value is 16

Maximum value is 512

The power-on reset value of this register is specified as the largest IN endpoint FIFO number depth.

Bits 15:0 INEPTXSA : IN endpoint FIFOx transmit RAM start address

This field contains the memory start address for IN endpoint transmit FIFOx. The address must be aligned with a 32-bit memory location.

30.12.3 Host-mode registers

Bit values in the register descriptions are expressed in binary unless otherwise specified.

Host-mode registers affect the operation of the core in the host mode. Host mode registers must not be accessed in peripheral mode, as the results are undefined. Host mode registers can be categorized as follows:

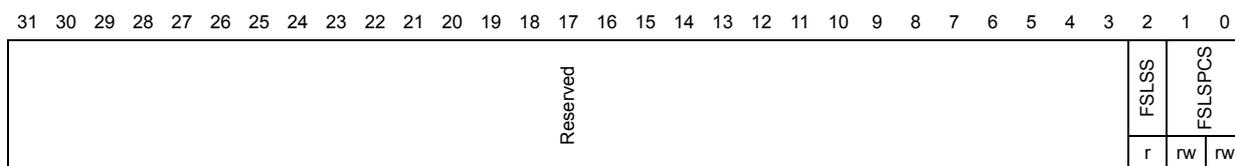

OTG_HS host configuration register (OTG_HS_HCFG)

Address offset: 0x400

Reset value: 0x0000 0000

This register configures the core after power-on. Do not change to this register after initializing the host.

Bits 31:3 Reserved, must be kept at reset value.

Bit 2 FSLSS : FS- and LS-only support

The application uses this bit to control the core's enumeration speed. Using this bit, the application can make the core enumerate as an FS host, even if the connected device supports HS traffic. Do not make changes to this field after initial programming.

0: HS/FS/LS, based on the maximum speed supported by the connected device

1: FS/LS-only, even if the connected device can support HS (read-only)

Bits 1:0 FSLSPCS : FS/LS PHY clock select

When the core is in FS host mode:

01: PHY clock is running at 48 MHz

Others: Reserved

When the core is in LS host mode:

00: Reserved

01: PHY clock is running at 48 MHz.

10: Select 6 MHz PHY clock frequency

11: Reserved

Note: The FSLSPCS bit must be set on a connection event according to the speed of the connected device. A software reset must be performed after changing this bit.

OTG_HS Host frame interval register (OTG_HS_HFIR)

Address offset: 0x404

Reset value: 0x0000 EA60

This register stores the frame interval information for the current speed to which the OTG_HS controller has enumerated.

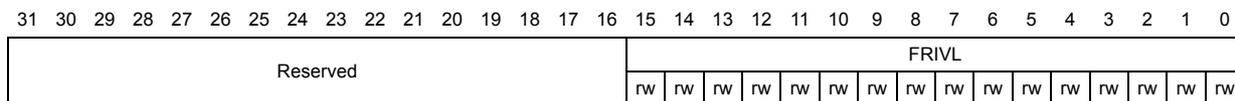

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 FRIVL : Frame interval

The value that the application programs to this field specifies the interval between two consecutive SOFs (FS), micro-SOFs (HS) or Keep-Alive tokens (LS). This field contains the number of PHY clocks that constitute the required frame interval. The application can write a value to this register only after the Port enable bit of the host port control and status register (PENA bit in OTG_HS_HPRT) has been set. If no value is programmed, the core calculates the value based on the PHY clock specified in the FS/LS PHY Clock Select field of the Host configuration register (FSLSPCS in OTG_HS_HCFG):

Note: The FRIVL bit can be modified whenever the application needs to change the Frame interval time.

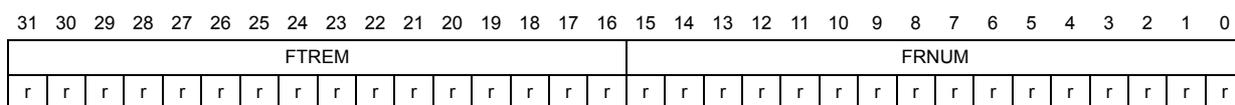

OTG_HS host frame number/frame time remaining register (OTG_HS_HFNUM)

Address offset: 0x408

Reset value: 0x0000 3FFF

This register indicates the current frame number. It also indicates the time remaining (in terms of the number of PHY clocks) in the current frame.

Bits 31:16 FTREM : Frame time remaining

Indicates the amount of time remaining in the current frame, in terms of PHY clocks. This field decrements on each PHY clock. When it reaches zero, this field is reloaded with the value in the Frame interval register and a new SOF is transmitted on the USB.

Bits 15:0 FRNUM : Frame number

This field increments when a new SOF is transmitted on the USB, and is cleared to 0 when it reaches 0x3FFF.

OTG_HS_Host periodic transmit FIFO/queue status register (OTG_HS_HPTXSTS)

Address offset: 0x410

Reset value: 0x0008 0100

This read-only register contains the free space information for the periodic TxFIFO and the periodic transmit request queue.

Bits 31:24 PTXQTOP : Top of the periodic transmit request queue

This indicates the entry in the periodic Tx request queue that is currently being processed by the MAC.

This register is used for debugging.

Bit [31]: Odd/Even frame

• – 0: send in even (micro) frame
• – 1: send in odd (micro) frame

Bits [30:27]: Channel/endpoint number

Bits [26:25]: Type

• – 00: IN/OUT
• – 01: Zero-length packet
• – 11: Disable channel command

Bit [24]: Terminate (last entry for the selected channel/endpoint)

Bits 23:16 PTXQSAV : Periodic transmit request queue space available

Indicates the number of free locations available to be written in the periodic transmit request queue. This queue holds both IN and OUT requests.

00: Periodic transmit request queue is full

01: dx1 location available

10: dx2 locations available

bxn: dxn locations available ( \( 0 \leq dxn \leq PTXFD \) )

Others: Reserved

Bits 15:0 PTXFS AVL : Periodic transmit data FIFO space available

Indicates the number of free locations available to be written to in the periodic TxFIFO.

Values are in terms of 32-bit words

0000: Periodic TxFIFO is full

0001: dx1 word available

0010: dx2 words available

bxn: dxn words available (where \( 0 \leq dxn \leq dx512 \) )

Others: Reserved

OTG_HS Host all channels interrupt register (OTG_HS_HAINT)

Address offset: 0x414

Reset value: 0x0000 000

When a significant event occurs on a channel, the host all channels interrupt register interrupts the application using the host channels interrupt bit of the Core interrupt register (HCINT bit in OTG_HS_GINTSTS). This is shown in Figure 377 . There is one interrupt bit per channel, up to a maximum of 16 bits. Bits in this register are set and cleared when the application sets and clears bits in the corresponding host channel-x interrupt register.

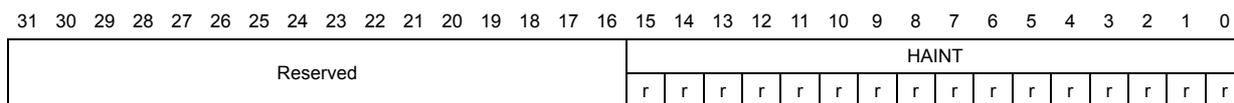

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 HAINT : Channel interrupts

One bit per channel: Bit 0 for Channel 0, bit 15 for Channel 15

OTG_HS host all channels interrupt mask register (OTG_HS_HAINTMSK)

Address offset: 0x418

Reset value: 0x0000 0000

The host all channel interrupt mask register works with the host all channel interrupt register to interrupt the application when an event occurs on a channel. There is one interrupt mask bit per channel, up to a maximum of 16 bits.

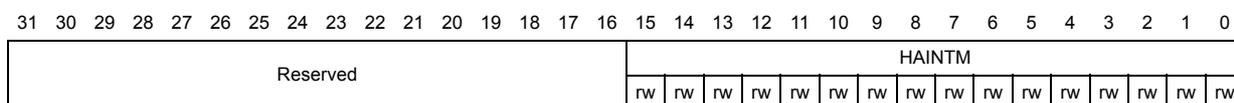

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 HAINTM : Channel interrupt mask

0: Masked interrupt

1: Unmasked interrupt

One bit per channel: Bit 0 for channel 0, bit 15 for channel 15

OTG_HS host port control and status register (OTG_HS_HPRT)

Address offset: 0x440

Reset value: 0x0000 0000

This register is available only in host mode. Currently, the OTG host supports only one port.

A single register holds USB port-related information such as USB reset, enable, suspend, resume, connect status, and test mode for each port. It is shown in Figure 377 . The rc_w1 bits in this register can trigger an interrupt to the application through the host port interrupt bit of the core interrupt register (HPRTINT bit in OTG_HS_GINTSTS). On a Port Interrupt, the application must read this register and clear the bit that caused the interrupt. For the rc_w1 bits, the application must write a 1 to the bit to clear the interrupt.

Bits 31:19 Reserved, must be kept at reset value.

Bits 18:17 PSPD : Port speed

Indicates the speed of the device attached to this port.

• 00: High speed
• 01: Full speed
• 10: Low speed
• 11: Reserved

Bits 16:13 PTCTL : Port test control

The application writes a nonzero value to this field to put the port into a Test mode, and the corresponding pattern is signaled on the port.

• 0000: Test mode disabled
• 0001: Test_J mode
• 0010: Test_K mode
• 0011: Test_SE0_NAK mode
• 0100: Test_Packet mode
• 0101: Test_Force_Enable
• Others: Reserved

Bit 12 PPWR : Port power

The application uses this field to control power to this port, and the core clears this bit on an overcurrent condition.

• 0: Power off
• 1: Power on

Bits 11:10 PLSTS : Port line status

Indicates the current logic level USB data lines

• Bit [10]: Logic level of OTG_HS_FS_DP
• Bit [11]: Logic level of OTG_HS_FS_DM

Bit 9 Reserved, must be kept at reset value.

When the application sets this bit, a reset sequence is started on this port. The application must time the reset period and clear this bit after the reset sequence is complete.

0: Port not in reset

1: Port in reset

The application must leave this bit set for a minimum duration of at least 10 ms to start a reset on the port. The application can leave it set for another 10 ms in addition to the required minimum duration, before clearing the bit, even though there is no maximum limit set by the USB standard.

High speed: 50 ms

Full speed/Low speed: 10 ms

The application sets this bit to put this port in Suspend mode. The core only stops sending SOFs when this is set. To stop the PHY clock, the application must set the Port clock stop bit, which asserts the suspend input pin of the PHY.

The read value of this bit reflects the current suspend status of the port. This bit is cleared by the core after a remote wake-up signal is detected or the application sets the Port reset bit or Port resume bit in this register or the Resume/remote wake-up detected interrupt bit or Disconnect detected interrupt bit in the Core interrupt register (WKUINT or DISCINT in OTG_HS_GINTSTS, respectively).

0: Port not in Suspend mode

1: Port in Suspend mode

The application sets this bit to drive resume signaling on the port. The core continues to drive the resume signal until the application clears this bit.

If the core detects a USB remote wake-up sequence, as indicated by the Port resume/remote wake-up detected interrupt bit of the Core interrupt register (WKUINT bit in OTG_HS_GINTSTS), the core starts driving resume signaling without application intervention and clears this bit when it detects a disconnect condition. The read value of this bit indicates whether the core is currently driving resume signaling.

0: No resume driven

1: Resume driven

The core sets this bit when the status of the Port overcurrent active bit (bit 4) in this register changes.

Indicates the overcurrent condition of the port.

0: No overcurrent condition

1: Overcurrent condition

The core sets this bit when the status of the Port enable bit [2] in this register changes.

Bit 2 PENA : Port enable

A port is enabled only by the core after a reset sequence, and is disabled by an overcurrent condition, a disconnect condition, or by the application clearing this bit. The application cannot set this bit by a register write. It can only clear it to disable the port. This bit does not trigger any interrupt to the application.

0: Port disabled

1: Port enabled

Bit 1 PCDET : Port connect detected

The core sets this bit when a device connection is detected to trigger an interrupt to the application using the host port interrupt bit in the Core interrupt register (HPRTINT bit in OTG_HS_GINTSTS). The application must write a 1 to this bit to clear the interrupt.

Bit 0 PCSTS : Port connect status

0: No device is attached to the port

1: A device is attached to the port

OTG_HS host channel-x characteristics register (OTG_HS_HCCHARx) (x = 0..11, where x = Channel_number)

Address offset: 0x500 + 0x20 * x

Reset value: 0x0000 0000

Bit 31 CHENA : Channel enable

This field is set by the application and cleared by the OTG host.

0: Channel disabled

1: Channel enabled

Bit 30 CHDIS : Channel disable

The application sets this bit to stop transmitting/receiving data on a channel, even before the transfer for that channel is complete. The application must wait for the Channel disabled interrupt before treating the channel as disabled.

Bit 29 ODDFRM : Odd frame

This field is set (reset) by the application to indicate that the OTG host must perform a transfer in an odd frame. This field is applicable for only periodic (isochronous and interrupt) transactions.

0: Even (micro) frame

1: Odd (micro) frame

Bits 28:22 DAD : Device address

This field selects the specific device serving as the data source or sink.

Bits 21:20 MC : Multi Count (MC) / Error Count (EC)

• – When the split enable bit (SPLITEN) in the host channel-x split control register (OTG_HS_HCSPLTx) is reset (0), this field indicates to the host the number of transactions that must be executed per micro-frame for this periodic endpoint. For nonperiodic transfers, this field specifies the number of packets to be fetched for this channel before the internal DMA engine changes arbitration.
  • 00: Reserved This field yields undefined results
  • 01: 1 transaction
  • b10: 2 transactions to be issued for this endpoint per micro-frame
  • 11: 3 transactions to be issued for this endpoint per micro-frame.
• – When the SPLITEN bit is set (1) in OTG_HS_HCSPLTx, this field indicates the number of immediate retries to be performed for a periodic split transaction on transaction errors. This field must be set to at least 01.

Bits 19:18 EPTYP : Endpoint type

Indicates the transfer type selected.

• 00: Control
• 01: Isochronous
• 10: Bulk
• 11: Interrupt

Bit 17 LSDEV : Low-speed device

This field is set by the application to indicate that this channel is communicating to a low-speed device.

Bit 16 Reserved, must be kept at reset value.

Bit 15 EPDIR : Endpoint direction

Indicates whether the transaction is IN or OUT.

• 0: OUT
• 1: IN

Bits 14:11 EPNUM : Endpoint number

Indicates the endpoint number on the device serving as the data source or sink.

Bits 10:0 MPSIZ : Maximum packet size

Indicates the maximum packet size of the associated endpoint.

OTG_HS host channel-x split control register (OTG_HS_HCSPLTx) (x = 0..11, where x = Channel_number)

Address offset: 0x504 + 0x20 * x

Reset value: 0x0000 0000

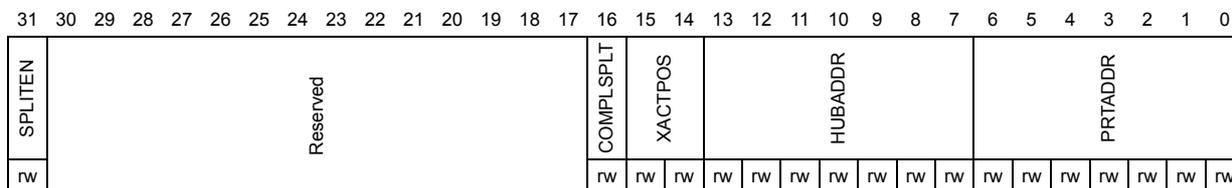

Bit 31 SPLITEN : Split enable

The application sets this bit to indicate that this channel is enabled to perform split transactions.

Bits 30:17 Reserved, must be kept at reset value.

Bit 16 COMPLSPLIT : Do complete split

The application sets this bit to request the OTG host to perform a complete split transaction.

Bits 15:14 XACTPOS : Transaction position

This field is used to determine whether to send all, first, middle, or last payloads with each OUT transaction.

11: All. This is the entire data payload of this transaction (which is less than or equal to 188 bytes)

10: Begin. This is the first data payload of this transaction (which is larger than 188 bytes)

00: Mid. This is the middle payload of this transaction (which is larger than 188 bytes)

01: End. This is the last payload of this transaction (which is larger than 188 bytes)

Bits 13:7 HUBADDR : Hub address

This field holds the device address of the transaction translator's hub.

Bits 6:0 PRTADDR : Port address

This field is the port number of the recipient transaction translator.

OTG_HS host channel-x interrupt register (OTG_HS_HCINTx) (x = 0..11, where x = Channel_number)

Address offset: 0x508 + 0x20 * x

Reset value: 0x0000 0000

This register indicates the status of a channel with respect to USB- and AHB-related events. It is shown in Figure 377 . The application must read this register when the host channels interrupt bit in the Core interrupt register (HCINT bit in OTG_HS_GINTSTS ) is set. Before the application can read this register, it must first read the host all channels interrupt ( OTG_HS_HAINT ) register to get the exact channel number for the host channel-x interrupt register. The application must clear the appropriate bit in this register to clear the corresponding bits in the OTG_HS_HAINT and OTG_HS_GINTSTS registers.

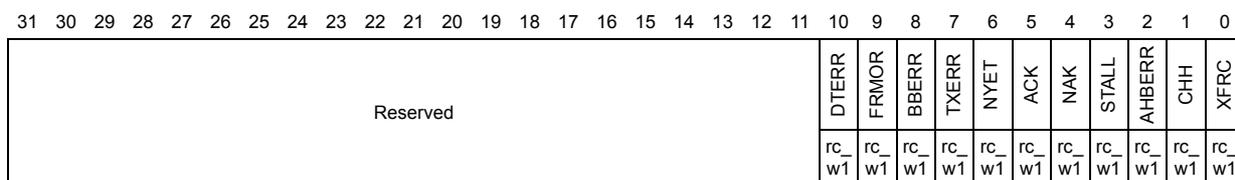

Bits 31:11 Reserved, must be kept at reset value.

Bit 10 DTERR : Data toggle error

Bit 9 FRMOR : Frame overrun

Bit 8 BBERR : Babble error

Bit 7 TXERR : Transaction error

Indicates one of the following errors occurred on the USB.

• CRC check failure
• Timeout
• Bit stuff error
• False EOP

Bit 6 NYET : Response received interrupt

Bit 5 ACK : ACK response received/transmitted interrupt

Bit 4 NAK : NAK response received interrupt

Bit 3 STALL : STALL response received interrupt

Bit 2 AHBERR : AHB error

This error is generated only in Internal DMA mode when an AHB error occurs during an AHB read/write operation. The application can read the corresponding DMA channel address register to get the error address.

Bit 1 CHH : Channel halted

Indicates the transfer completed abnormally either because of any USB transaction error or in response to disable request by the application.

Bit 0 XFRC : Transfer completed

Transfer completed normally without any errors.

OTG_HS host channel-x interrupt mask register (OTG_HS_HCINTMSKx)
(x = 0..11, where x = Channel_number)

Address offset: 0x50C + 0x20 * x

Reset value: 0x0000 0000

This register reflects the mask for each channel status described in the previous section.

Bits 31:11 Reserved, must be kept at reset value.

Bit 10 DTERRM : Data toggle error mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 9 FRMORM : Frame overrun mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 8 BBERRM : Babble error mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 7 TXERRM : Transaction error mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 6 NYET : response received interrupt mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 5 ACKM : ACK response received/transmitted interrupt mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 4 NAKM : NAK response received interrupt mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 3 STALLM : STALL response received interrupt mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 2 AHBERRM : AHB error mask

0: Masked interrupt
1: Unmasked interrupt

Bit 1 CHHM : Channel halted mask

0: Masked interrupt
1: Unmasked interrupt

Bit 0 XFRCM : Transfer completed mask

0: Masked interrupt
1: Unmasked interrupt

OTG_HS host channel-x transfer size register (OTG_HS_HCTSIZx) (x = 0..11, where x = Channel_number)

Address offset: 0x510 + 0x20 * x

Reset value: 0x0000 0000

Bit 31 DOPING : Do ping

This bit is used only for OUT transfers. Setting this field to 1 directs the host to do PING protocol.

Note: Do not set this bit for IN transfers. If this bit is set for IN transfers it disables the channel.

Bits 30:29 DPID : Data PID

The application programs this field with the type of PID to use for the initial transaction. The host maintains this field for the rest of the transfer.

00: DATA0
01: DATA2
10: DATA1
11: MDATA (noncontrol)/SETUP (control)

Bits 28:19 PKTCNT : Packet count

This field is programmed by the application with the expected number of packets to be transmitted (OUT) or received (IN).

The host decrements this count on every successful transmission or reception of an OUT/IN packet. Once this count reaches zero, the application is interrupted to indicate normal completion.

Bits 18:0 XFRSIZ : Transfer size

For an OUT, this field is the number of data bytes the host sends during the transfer.

For an IN, this field is the buffer size that the application has reserved for the transfer. The application is expected to program this field as an integer multiple of the maximum packet size for IN transactions (periodic and nonperiodic).

OTG_HS host channel-x DMA address register (OTG_HS_HCDMAx) (x = 0..11, where x = Channel_number)

Address offset: 0x514 + 0x20 * x

Reset value: 0x0000 0000

Bits 31:0 DMAADDR : DMA address

This field holds the start address in the external memory from which the data for the endpoint must be fetched or to which it must be stored. This register is incremented on every AHB transaction.

30.12.4 Device-mode registers

OTG_HS device configuration register (OTG_HS_DCFG)

Address offset: 0x800

Reset value: 0x0220 0000

This register configures the core in peripheral mode after power-on or after certain control commands or enumeration. Do not make changes to this register after initial programming.

Bits 31:26 Reserved, must be kept at reset value.

Bits 25:24 PERSCHIVL : Periodic scheduling interval

This field specifies the amount of time the Internal DMA engine must allocate for fetching periodic IN endpoint data. Based on the number of periodic endpoints, this value must be specified as 25, 50 or 75% of the (micro)frame.

• - When any periodic endpoints are active, the internal DMA engine allocates the specified amount of time in fetching periodic IN endpoint data
• - When no periodic endpoint is active, then the internal DMA engine services nonperiodic endpoints, ignoring this field
• - After the specified time within a (micro)frame, the DMA switches to fetching nonperiodic endpoints

• 00: 25% of (micro)frame
• 01: 50% of (micro)frame
• 10: 75% of (micro)frame
• 11: Reserved

Bits 23:13 Reserved, must be kept at reset value.

Indicates the time within a (micro) frame at which the application must be notified using the end of periodic (micro) frame interrupt. This can be used to determine if all the isochronous traffic for that frame is complete.

00: 80% of the frame interval

01: 85% of the frame interval

10: 90% of the frame interval

11: 95% of the frame interval

The application must program this field after every SetAddress control command.

Bit 3 Reserved, must be kept at reset value.

The application can use this field to select the handshake the core sends on receiving a nonzero-length data packet during the OUT transaction of a control transfer's Status stage.

1: Send a STALL handshake on a nonzero-length status OUT transaction and do not send the received OUT packet to the application.

0: Send the received OUT packet to the application (zero-length or nonzero-length) and send a handshake based on the NAK and STALL bits for the endpoint in the device endpoint control register.

Indicates the speed at which the application requires the core to enumerate, or the maximum speed the application can support. However, the actual bus speed is determined only after the chirp sequence is completed, and is based on the speed of the USB host to which the core is connected.

00: High speed

01: Full speed using external ULPI PHY

10: Reserved

11: Full speed using internal embedded PHY

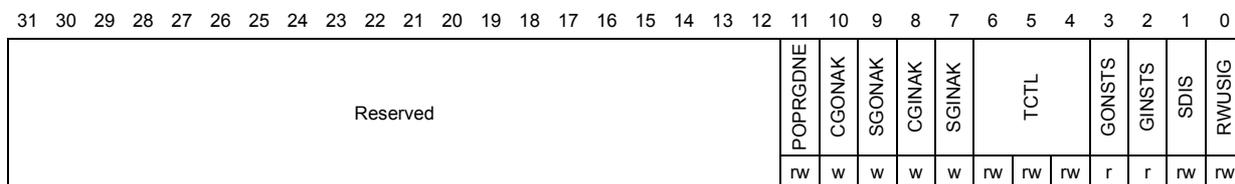

OTG_HS device control register (OTG_HS_DCTL)

Address offset: 0x804

Reset value: 0x0000 0000

Bits 31:12 Reserved, must be kept at reset value.

Bit 11 POPRGDNE : Power-on programming done

The application uses this bit to indicate that register programming is completed after a wake-up from power down mode.

Bit 10 CGONAK : Clear global OUT NAK

Writing 1 to this field clears the Global OUT NAK.

Bit 9 SGONAK : Set global OUT NAK

Writing 1 to this field sets the Global OUT NAK.

The application uses this bit to send a NAK handshake on all OUT endpoints.

The application must set this bit only after making sure that the Global OUT NAK effective bit in the Core interrupt register (GONAKEFF bit in OTG_HS_GINTSTS) is cleared.

Bit 8 CGINAK : Clear global IN NAK

Writing 1 to this field clears the Global IN NAK.

Bit 7 SGINAK : Set global IN NAK

Writing 1 to this field sets the Global nonperiodic IN NAK. The application uses this bit to send a NAK handshake on all nonperiodic IN endpoints.

The application must set this bit only after making sure that the Global IN NAK effective bit in the Core interrupt register (GINAKEFF bit in OTG_HS_GINTSTS) is cleared.

Bits 6:4 TCTL : Test control

000: Test mode disabled

001: Test_J mode

010: Test_K mode

011: Test_SE0_NAK mode

100: Test_Packet mode

101: Test_Force_Enable

Others: Reserved

Bit 3 GONSTS : Global OUT NAK status

0: A handshake is sent based on the FIFO Status and the NAK and STALL bit settings.

1: No data is written to the RxFIFO, irrespective of space availability. Sends a NAK handshake on all packets, except on SETUP transactions. All isochronous OUT packets are dropped.

0: A handshake is sent out based on the data availability in the transmit FIFO.

1: A NAK handshake is sent out on all nonperiodic IN endpoints, irrespective of the data availability in the transmit FIFO.

The application uses this bit to signal the USB OTG core to perform a soft disconnect. As long as this bit is set, the host does not see that the device is connected, and the device does not receive signals on the USB. The core stays in the disconnected state until the application clears this bit.

0: Normal operation. When this bit is cleared after a soft disconnect, the core generates a device connect event to the USB host. When the device is reconnected, the USB host restarts device enumeration.

1: The core generates a device disconnect event to the USB host.

When the application sets this bit, the core initiates remote signaling to wake up the USB host. The application must set this bit to instruct the core to exit the Suspend state. As specified in the USB 2.0 specification, the application must clear this bit 1 ms to 15 ms after setting it.

Table 167 contains the minimum duration (according to device state) for which the Soft disconnect (SDIS) bit must be set for the USB host to detect a device disconnect. To accommodate clock jitter, it is recommended that the application add some extra delay to the specified minimum duration.

OTG_HS device status register (OTG_HS_DSTS)

Address offset: 0x808

Reset value: 0x0000 0010

This register indicates the status of the core with respect to USB-related events. It must be read on interrupts from the device all interrupts (OTG_HS_DAINT) register.

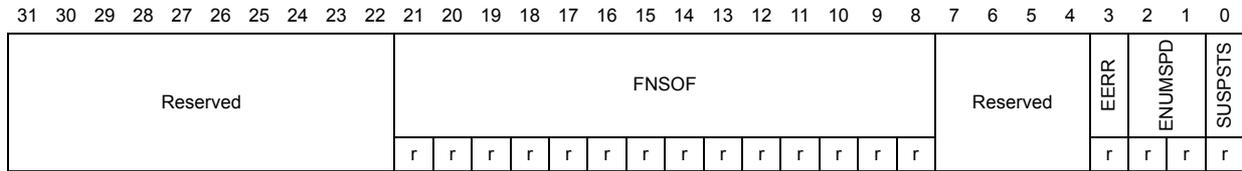

Bits 31:22 Reserved, must be kept at reset value.

Bits 21:8 FNSOF : Frame number of the received SOF

Bits 7:4 Reserved, must be kept at reset value.

Bit 3 EERR : Erratic error

The core sets this bit to report any erratic errors.

Due to erratic errors, the OTG_HS controller goes into Suspended state and an interrupt is generated to the application with Early suspend bit of the Core interrupt register (ESUSP bit in OTG_HS_GINTSTS). If the early suspend is asserted due to an erratic error, the application can only perform a soft disconnect/recover.

Bits 2:1 ENUMSPD : Enumerated speed

Indicates the speed at which the OTG_HS controller has come up after speed detection through a chirp sequence.

00: High speed

01: Reserved

10: Reserved

11: Full speed (PHY clock is running at 48 MHz)

Others: reserved

Bit 0 SUSPSTS : Suspend status

In peripheral mode, this bit is set as long as a Suspend condition is detected on the USB.

The core enters the Suspended state when there is no activity on the USB data lines for a period of 3 ms. The core comes out of the suspend:

• – When there is an activity on the USB data lines
• – When the application writes to the Remote wake-up signaling bit in the Device control register (RWUSIG bit in OTG_HS_DCTL).

OTG_HS device IN endpoint common interrupt mask register (OTG_HS_DIEPMSK)

Address offset: 0x810

Reset value: 0x0000 0000

This register works with each of the Device IN endpoint interrupt (OTG_HS_DIEPINTx) registers for all endpoints to generate an interrupt per IN endpoint. The IN endpoint interrupt for a specific status in the OTG_HS_DIEPINTx register can be masked by writing to the corresponding bit in this register. Status bits are masked by default.

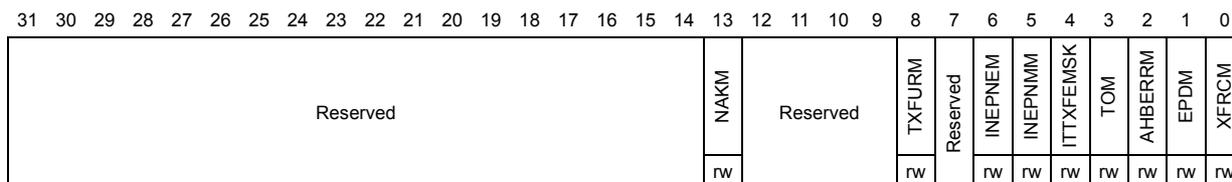

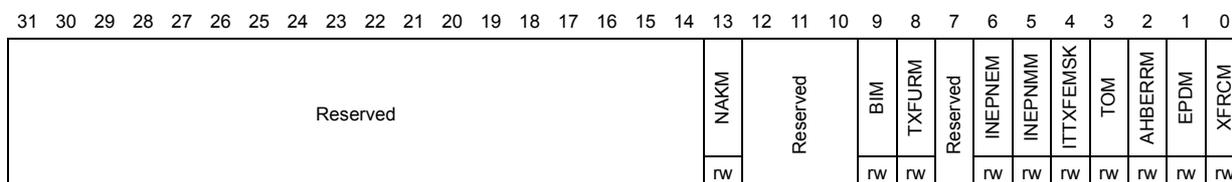

Bits 31:14 Reserved, must be kept at reset value.

Bit 13 NAKM : NAK interrupt mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bits 12:9 Reserved, must be kept at reset value.

Bit 8 TXFURM : FIFO underrun mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 7 Reserved, must be kept at reset value.

Bit 6 INEPNEM : IN endpoint NAK effective mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 5 INEPNMM : IN token received with EP mismatch mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 4 ITTXFEMSK : IN token received when TxFIFO empty mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 3 TOM : Timeout condition mask (nonisochronous endpoints)

• 0: Masked interrupt
• 1: Unmasked interrupt

• Bit 2 AHBERRM : AHB error mask
  • 0: Masked interrupt
  • 1: Unmasked interrupt
• Bit 1 EPDM : Endpoint disabled interrupt mask
  • 0: Masked interrupt
  • 1: Unmasked interrupt
• Bit 0 XFRCM : Transfer completed interrupt mask
  • 0: Masked interrupt
  • 1: Unmasked interrupt

OTG_HS device OUT endpoint common interrupt mask register (OTG_HS_DOEPMSK)

Address offset: 0x814

Reset value: 0x0000 0000

This register works with each of the Device OUT endpoint interrupt (OTG_HS_DOEPINTx) registers for all endpoints to generate an interrupt per OUT endpoint. The OUT endpoint interrupt for a specific status in the OTG_HS_DOEPINTx register can be masked by writing into the corresponding bit in this register. Status bits are masked by default.

Bits 31:15 Reserved, must be kept at reset value.

• Bit 14 NYETMSK : NYET interrupt mask
  • 0: Masked interrupt
  • 1: Unmasked interrupt

• Bit 13 NAKMSK : NAK interrupt mask
  • 0: Masked interrupt
  • 1: Unmasked interrupt

• Bit 12 BERRM : Babble error interrupt mask
  • 0: Masked interrupt
  • 1: Unmasked interrupt

Bits 11:9 Reserved, must be kept at reset value.

• Bit 8 OPEM : OUT packet error mask
  • 0: Masked interrupt
  • 1: Unmasked interrupt

Bit 7 Reserved, must be kept at reset value.

1. Bit 6 B2BSTUP : Back-to-back SETUP packets received mask
   Applies to control OUT endpoints only.
   0: Masked interrupt
   1: Unmasked interrupt
2. Bit 5 STSPHSRXM : Status phase received for control write mask
   0: Masked interrupt
   1: Unmasked interrupt
3. Bit 4 OTEPDM : OUT token received when endpoint disabled mask
   Applies to control OUT endpoints only.
   0: Masked interrupt
   1: Unmasked interrupt
4. Bit 3 STUPM : SETUP phase done mask
   Applies to control endpoints only.
   0: Masked interrupt
   1: Unmasked interrupt
5. Bit 2 AHBERRM : AHB error mask
   0: Masked interrupt
   1: Unmasked interrupt
6. Bit 1 EPDM : Endpoint disabled interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt
7. Bit 0 XFRCM : Transfer completed interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt

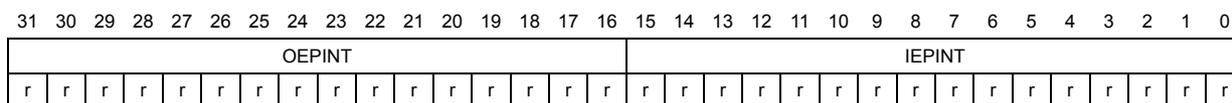

OTG_HS device all endpoints interrupt register (OTG_HS_DAINT)

Address offset: 0x818

Reset value: 0x0000 0000

When a significant event occurs on an endpoint, a device all endpoints interrupt register interrupts the application using the Device OUT endpoints interrupt bit or Device IN endpoints interrupt bit of the Core interrupt register (OEPINT or IEPINT in OTG_HS_GINTSTS, respectively). There is one interrupt bit per endpoint, up to a maximum of 16 bits for OUT endpoints and 16 bits for IN endpoints. For a bidirectional endpoint, the corresponding IN and OUT interrupt bits are used. Bits in this register are set and cleared when the application sets and clears bits in the corresponding Device Endpoint-x interrupt register (OTG_HS_DIEPINTx/OTG_HS_DOEPINTx).

Bits 31:16 OEPINT : OUT endpoint interrupt bits

One bit per OUT endpoint:

Bit 16 for OUT endpoint 0, bit 31 for OUT endpoint 15

Bits 15:0 IEPINT : IN endpoint interrupt bits

One bit per IN endpoint:

Bit 0 for IN endpoint 0, bit 15 for endpoint 15

OTG_HS all endpoints interrupt mask register (OTG_HS_DAINTEMSK)

Address offset: 0x81C

Reset value: 0x0000 0000

The device endpoint interrupt mask register works with the device endpoint interrupt register to interrupt the application when an event occurs on a device endpoint. However, the device all endpoints interrupt (OTG_HS_DAINT) register bit corresponding to that interrupt is still set.

Bits 31:16 OEPINT : OUT EP interrupt mask bits

One per OUT endpoint:

Bit 16 for OUT EP 0, bit 19 for OUT EP 3

0: Masked interrupt

1: Unmasked interrupt

Bits 15:0 IEPINT : IN EP interrupt mask bits

One bit per IN endpoint:

Bit 0 for IN EP 0, bit 3 for IN EP 3

0: Masked interrupt

1: Unmasked interrupt

OTG_HS device V _BUS discharge time register (OTG_HS_DVBUSDIS)

Address offset: 0x0828

Reset value: 0x0000 17D7

This register specifies the V _BUS discharge time after V _BUS pulsing during SRP.

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 VBUSDT : Device V _BUS discharge time

Specifies the V _BUS discharge time after V _BUS pulsing during SRP. This value equals:

V _BUS discharge time in PHY clocks / 1 024

Depending on your V _BUS load, this value may need adjusting.

OTG_HS device V _BUS pulsing time register (OTG_HS_DVBUSPULSE)

Address offset: 0x082C

Reset value: 0x0000 05B8

This register specifies the V _BUS pulsing time during SRP.

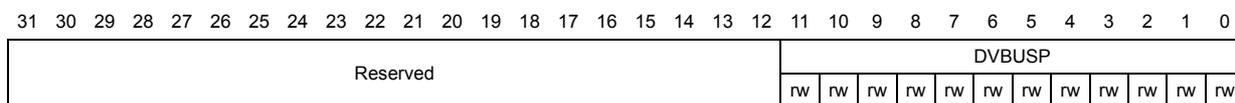

Bits 31:12 Reserved, must be kept at reset value.

Bits 11:0 DVBUSP : Device V _BUS pulsing time
Specifies the V _BUS pulsing time during SRP. This value equals:

OTG_HS Device threshold control register (OTG_HS_DTHRCTL)

Address offset: 0x0830

Reset value: 0x0000 0000

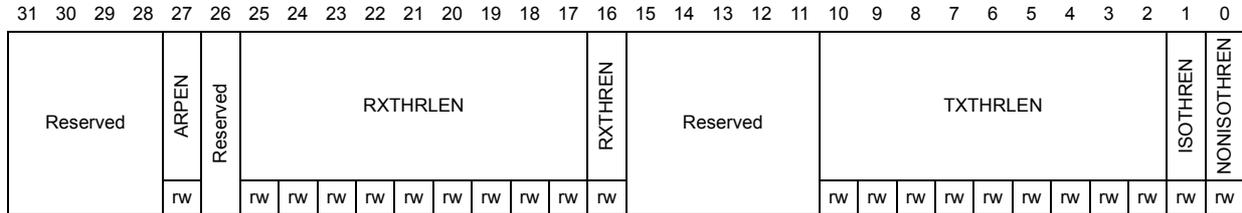

Bits 31:28 Reserved, must be kept at reset value.

Bit 27 ARPEN : Arbiter parking enable

This bit controls internal DMA arbiter parking for IN endpoints. When thresholding is enabled and this bit is set to one, then the arbiter parks on the IN endpoint for which there is a token received on the USB. This is done to avoid getting into underrun conditions. By default parking is enabled.

Bit 26 Reserved, must be kept at reset value.

Bits 25:17 RXTHRLEN : Receive threshold length

This field specifies the receive thresholding size in words. This field also specifies the amount of data received on the USB before the core can start transmitting on the AHB. The threshold length has to be at least eight words. The recommended value for RXTHRLEN is to be the same as the programmed AHB burst length (HBSTLEN bit in OTG_HS_GAHBCFG).

Bit 16 RXTHREN : Receive threshold enable

When this bit is set, the core enables thresholding in the receive direction.

Bits 15:11 Reserved, must be kept at reset value.

Bits 10:2 TXTHRLEN : Transmit threshold length

This field specifies the transmit thresholding size in words. This field specifies the amount of data in bytes to be in the corresponding endpoint transmit FIFO, before the core can start transmitting on the USB. The threshold length has to be at least eight words. This field controls both isochronous and nonisochronous IN endpoint thresholds. The recommended value for TXTHRLEN is to be the same as the programmed AHB burst length (HBSTLEN bit in OTG_HS_GAHBCFG).

Bit 1 ISOTHREN : ISO IN endpoint threshold enable

When this bit is set, the core enables thresholding for isochronous IN endpoints.

Bit 0 NONISOTHREN : Nonisochronous IN endpoints threshold enable

When this bit is set, the core enables thresholding for nonisochronous IN endpoints.

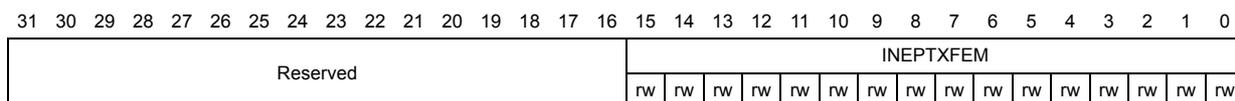

OTG_HS device IN endpoint FIFO empty interrupt mask register:
(OTG_HS_DIEPEMPMSK)

Address offset: 0x834

Reset value: 0x0000 0000

This register is used to control the IN endpoint FIFO empty interrupt generation (TXFE_OTG_HS_DIEPINTx).

Bits 31:16 Reserved, must be kept at reset value.

Bits 15:0 INEPTXFEM : IN EP Tx FIFO empty interrupt mask bits

These bits act as mask bits for OTG_HS_DIEPINTx.

TXFE interrupt one bit per IN endpoint:

Bit 0 for IN endpoint 0, bit 15 for IN endpoint 15

0: Masked interrupt

1: Unmasked interrupt

OTG_HS device each endpoint interrupt register (OTG_HS_DEACHINT)

Address offset: 0x0838

Reset value: 0x0000 0000

There is one interrupt bit for endpoint 1 IN and one interrupt bit for endpoint 1 OUT.

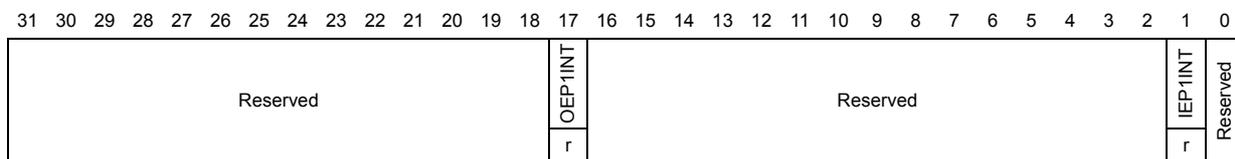

Bits 31:18 Reserved, must be kept at reset value.

Bit 17 OEP1INT : OUT endpoint 1 interrupt bit

Bits 16:2 Reserved, must be kept at reset value.

Bit 1 IEP1INT : IN endpoint 1 interrupt bit

Bit 0 Reserved, must be kept at reset value.

OTG_HS device each endpoint interrupt register mask
(OTG_HS_DEACHINTMSK)

Address offset: 0x083C

Reset value: 0x0000 0000

There is one interrupt bit for endpoint 1 IN and one interrupt bit for endpoint 1 OUT.

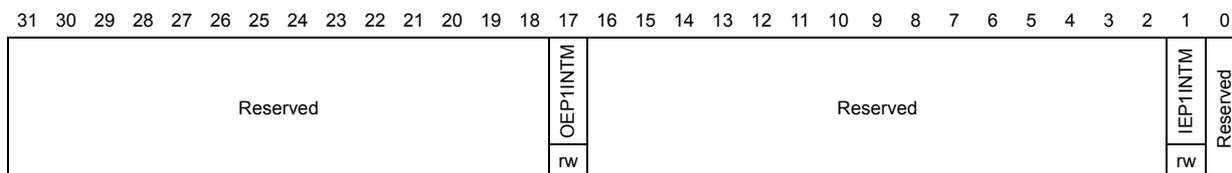

Bits 31:18 Reserved, must be kept at reset value.

Bit 17 OEP1INTM : OUT Endpoint 1 interrupt mask bit

Bits 16:2 Reserved, must be kept at reset value.

Bit 1 IEP1INTM : IN Endpoint 1 interrupt mask bit

Bit 0 Reserved, must be kept at reset value.

OTG_HS device each in endpoint-1 interrupt register
(OTG_HS_DIEPEACHMSK1)

Address offset: 0x844

Reset value: 0x0000 0000

Bits 31:14 Reserved, must be kept at reset value.

Bit 13 NAKM : NAK interrupt mask

0: Masked interrupt
1: unmasked interrupt

Bit 12:10 Reserved, must be kept at reset value.

Bit 9 BIM : BNA interrupt mask

0: Masked interrupt
1: Unmasked interrupt

Bit 8 TXFURM : FIFO underrun mask

0: Masked interrupt
1: Unmasked interrupt

Bit 7 Reserved, must be kept at reset value.

1. Bit 6 INEPNEM : IN endpoint NAK effective mask
   0: Masked interrupt
   1: Unmasked interrupt
2. Bit 5 INEPNMM : IN token received with EP mismatch mask
   0: Masked interrupt
   1: Unmasked interrupt
3. Bit 4 ITTXFEMSK : IN token received when TxFIFO empty mask
   0: Masked interrupt
   1: Unmasked interrupt
4. Bit 3 TOM : Timeout condition mask (nonisochronous endpoints)
   0: Masked interrupt
   1: Unmasked interrupt
5. Bit 2 AHBERRM : AHB error mask
   0: Masked interrupt
   1: Unmasked interrupt
6. Bit 1 EPDM : Endpoint disabled interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt
7. Bit 0 XFRCM : Transfer completed interrupt mask
   0: Masked interrupt
   1: Unmasked interrupt

OTG_HS device each OUT endpoint-1 interrupt register
(OTG_HS_DOEPEACHMSK1)

Address offset: 0x884

Reset value: 0x0000 0000

Bits 31:15 Reserved, must be kept at reset value.

Bit 14 NYETM : NYET interrupt mask

1. 0: Masked interrupt
   1: unmasked interrupt

Bit 13 NAKM : NAK interrupt mask

1. 0: Masked interrupt
   1: Unmasked interrupt

Bit 12 BERRM : Bubble error interrupt mask

1. 0: Masked interrupt
   1: Unmasked interrupt

Bit 11:10 Reserved, must be kept at reset value.

Bit 9 BIM : BNA interrupt mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 8 OPEM : OUT packet error mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bits 7:3 Reserved, must be kept at reset value.

Bit 2 AHBERRM : AHB error mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 1 EPDM : Endpoint disabled interrupt mask

• 0: Masked interrupt
• 1: Unmasked interrupt

Bit 0 XFRCM : Transfer completed interrupt mask

• 0: Masked interrupt
• 1: Unmasked interrupt

OTG device endpoint-x control register (OTG_HS_DIEPCTLx) (x = 0..5, where x = Endpoint_number)

Address offset: 0x900 + 0x20 * x

Reset value: 0x0000 0000

The application uses this register to control the behavior of each logical endpoint other than endpoint 0.

The application sets this bit to start transmitting data on an endpoint.

The core clears this bit before setting any of the following interrupts on this endpoint:

• – SETUP phase done
• – Endpoint disabled
• – Transfer completed

The application sets this bit to stop transmitting/receiving data on an endpoint, even before the transfer for that endpoint is complete. The application must wait for the Endpoint disabled interrupt before treating the endpoint as disabled. The core clears this bit before setting the Endpoint disabled interrupt. The application must set this bit only if Endpoint enable is already set for this endpoint.

Applies to isochronous IN and OUT endpoints only.

Writing to this field sets the Even/Odd frame (EONUM) field to odd frame.

Applies to interrupt/bulk IN endpoints only.

Writing to this field sets the endpoint data PID (DPID) field in this register to DATA0.

Applies to isochronous IN endpoints only.

Writing to this field sets the Even/Odd frame (EONUM) field to even frame.

A write to this bit sets the NAK bit for the endpoint.

Using this bit, the application can control the transmission of NAK handshakes on an endpoint. The core can also set this bit for OUT endpoints on a Transfer completed interrupt, or after a SETUP is received on the endpoint.

A write to this bit clears the NAK bit for the endpoint.

These bits specify the FIFO number associated with this endpoint. Each active IN endpoint must be programmed to a separate FIFO number.

This field is valid only for IN endpoints.

Applies to noncontrol, nonisochronous IN endpoints only (access type is rw).

The application sets this bit to stall all tokens from the USB host to this endpoint. If a NAK bit, Global IN NAK, or Global OUT NAK is set along with this bit, the STALL bit takes priority. Only the application can clear this bit, never the core.

Applies to control endpoints only (access type is rs).

The application can only set this bit, and the core clears it, when a SETUP token is received for this endpoint. If a NAK bit, Global IN NAK, or Global OUT NAK is set along with this bit, the STALL bit takes priority. Irrespective of this bit's setting, the core always responds to SETUP data packets with an ACK handshake.

Bits 19:18 EPType : Endpoint type

This is the transfer type supported by this logical endpoint.

00: Control

01: Isochronous

10: Bulk

11: Interrupt

Bit 17 NAKSTS : NAK status

It indicates the following:

0: The core is transmitting nonNAK handshakes based on the FIFO status.

1: The core is transmitting NAK handshakes on this endpoint.

When either the application or the core sets this bit:

For nonisochronous IN endpoints: The core stops transmitting any data on an IN endpoint, even if there are data available in the TxFIFO.

For isochronous IN endpoints: The core sends out a zero-length data packet, even if there are data available in the TxFIFO.

Irrespective of this bit's setting, the core always responds to SETUP data packets with an ACK handshake.

Bit 16 EONUM : Even/odd frame

Applies to isochronous IN endpoints only.

Indicates the frame number in which the core transmits/receives isochronous data for this endpoint. The application must program the even/odd frame number in which it intends to transmit/receive isochronous data for this endpoint using the SEVNFRM and SODDFRM fields in this register.

0: Even frame

1: Odd frame

DPID : Endpoint data PID

Applies to interrupt/bulk IN endpoints only.

Contains the PID of the packet to be received or transmitted on this endpoint. The application must program the PID of the first packet to be received or transmitted on this endpoint, after the endpoint is activated. The application uses the SD0PID register field to program either DATA0 or DATA1 PID.

0: DATA0

1: DATA1

Bit 15 USBAEP : USB active endpoint

Indicates whether this endpoint is active in the current configuration and interface. The core clears this bit for all endpoints (other than EP 0) after detecting a USB reset. After receiving the SetConfiguration and SetInterface commands, the application must program endpoint registers accordingly and set this bit.

Bits 14:11 Reserved, must be kept at reset value.

Bits 10:0 MPSIZ : Maximum packet size

The application must program this field with the maximum packet size for the current logical endpoint. This value is in bytes.

OTG_HS device control OUT endpoint 0 control register
(OTG_HS_DOEPCTL0)

Address offset: 0xB00

Reset value: 0x0000 8000

This section describes the device control OUT endpoint 0 control register. Nonzero control endpoints use registers for endpoints 1–15.

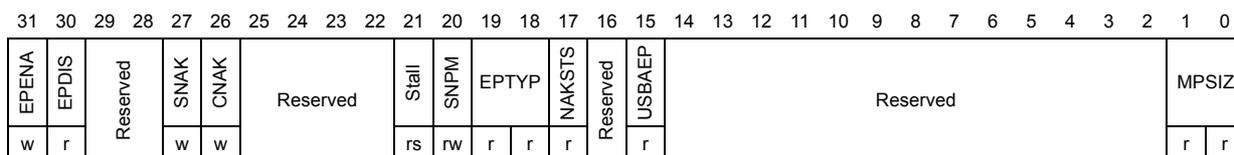

Bit 31 EPENA : Endpoint enable

The application sets this bit to start transmitting data on endpoint 0.

The core clears this bit before setting any of the following interrupts on this endpoint:

• – SETUP phase done
• – Endpoint disabled
• – Transfer completed

Bit 30 EPDIS : Endpoint disable

The application cannot disable control OUT endpoint 0.

Bits 29:28 Reserved, must be kept at reset value.

Bit 27 SNAK : Set NAK

A write to this bit sets the NAK bit for the endpoint.

Using this bit, the application can control the transmission of NAK handshakes on an endpoint. The core can also set this bit on a Transfer completed interrupt, or after a SETUP is received on the endpoint.

Bit 26 CNAK : Clear NAK

A write to this bit clears the NAK bit for the endpoint.

Bits 25:22 Reserved, must be kept at reset value.

Bit 21 STALL : STALL handshake

The application can only set this bit, and the core clears it, when a SETUP token is received for this endpoint. If a NAK bit or Global OUT NAK is set along with this bit, the STALL bit takes priority. Irrespective of this bit's setting, the core always responds to SETUP data packets with an ACK handshake.

Bit 20 SNPM : Snoop mode

This bit configures the endpoint to Snoop mode. In Snoop mode, the core does not check the correctness of OUT packets before transferring them to application memory.

Bits 19:18 EPTYP : Endpoint type

Hardcoded to 2'b00 for control.

Bit 17 NAKSTS : NAK status

Indicates the following:

0: The core is transmitting nonNAK handshakes based on the FIFO status.

1: The core is transmitting NAK handshakes on this endpoint.

When either the application or the core sets this bit, the core stops receiving data, even if there is space in the RxFIFO to accommodate the incoming packet. Irrespective of this bit's setting, the core always responds to SETUP data packets with an ACK handshake.

Bit 16 Reserved, must be kept at reset value.

Bit 15 USBAEP : USB active endpoint

This bit is always set to 1, indicating that a control endpoint 0 is always active in all configurations and interfaces.

Bits 14:2 Reserved, must be kept at reset value.

Bits 1:0 MPSIZ : Maximum packet size

The maximum packet size for control OUT endpoint 0 is the same as what is programmed in control IN endpoint 0.

00: 64 bytes

01: 32 bytes

10: 16 bytes

11: 8 bytes

OTG_HS device endpoint-x control register (OTG_HS_DOEPCTLx) (x = 1..5, where x = Endpoint_number)

Address offset for OUT endpoints: 0xB00 + 0x20 * x

Reset value: 0x0000 0000

The application uses this register to control the behavior of each logical endpoint other than endpoint 0.

Applies to IN and OUT endpoints.

The application sets this bit to start transmitting data on an endpoint.

The core clears this bit before setting any of the following interrupts on this endpoint:

• – SETUP phase done
• – Endpoint disabled
• – Transfer completed

The application sets this bit to stop transmitting/receiving data on an endpoint, even before the transfer for that endpoint is complete. The application must wait for the Endpoint disabled interrupt before treating the endpoint as disabled. The core clears this bit before setting the Endpoint disabled interrupt. The application must set this bit only if Endpoint enable is already set for this endpoint.

Applies to isochronous OUT endpoints only.

Writing to this field sets the Even/Odd frame (EONUM) field to odd frame.

Applies to interrupt/bulk OUT endpoints only.

Writing to this field sets the endpoint data PID (DPID) field in this register to DATA0.

Applies to isochronous OUT endpoints only.

Writing to this field sets the Even/Odd frame (EONUM) field to even frame.

A write to this bit sets the NAK bit for the endpoint.

Using this bit, the application can control the transmission of NAK handshakes on an endpoint. The core can also set this bit for OUT endpoints on a Transfer Completed interrupt, or after a SETUP is received on the endpoint.

A write to this bit clears the NAK bit for the endpoint.

Bits 25:22 Reserved, must be kept at reset value.

Applies to noncontrol, nonisochronous OUT endpoints only (access type is rw).

The application sets this bit to stall all tokens from the USB host to this endpoint. If a NAK bit, Global IN NAK, or Global OUT NAK is set along with this bit, the STALL bit takes priority. Only the application can clear this bit, never the core.

This bit configures the endpoint to Snoop mode. In Snoop mode, the core does not check the correctness of OUT packets before transferring them to application memory.

This is the transfer type supported by this logical endpoint.

00: Control

01: Isochronous

10: Bulk

11: Interrupt

Indicates the following:

0: The core is transmitting nonNAK handshakes based on the FIFO status.

1: The core is transmitting NAK handshakes on this endpoint.

When either the application or the core sets this bit:

The core stops receiving any data on an OUT endpoint, even if there is space in the RxFIFO to accommodate the incoming packet.

Irrespective of this bit's setting, the core always responds to SETUP data packets with an ACK handshake.

Applies to isochronous IN and OUT endpoints only.

Indicates the frame number in which the core transmits/receives isochronous data for this endpoint. The application must program the even/odd frame number in which it intends to transmit/receive isochronous data for this endpoint using the SEVNFRM and SODDFRM fields in this register.

0: Even frame

1: Odd frame

Applies to interrupt/bulk OUT endpoints only.

Contains the PID of the packet to be received or transmitted on this endpoint. The application must program the PID of the first packet to be received or transmitted on this endpoint, after the endpoint is activated. The application uses the SD0PID register field to program either DATA0 or DATA1 PID.

0: DATA0

1: DATA1

Indicates whether this endpoint is active in the current configuration and interface. The core clears this bit for all endpoints (other than EP 0) after detecting a USB reset. After receiving the SetConfiguration and SetInterface commands, the application must program endpoint registers accordingly and set this bit.

Bits 14:11 Reserved, must be kept at reset value.

The application must program this field with the maximum packet size for the current logical endpoint. This value is in bytes.

OTG_HS device endpoint-x interrupt register (OTG_HS_DIEPINTx) (x = 0..5, where x = Endpoint_number)

Address offset: 0x908 + 0x20 * x

Reset value: 0x0000 0080

This register indicates the status of an endpoint with respect to USB- and AHB-related events. It is shown in Figure 377 . The application must read this register when the IN endpoints interrupt bit of the Core interrupt register (IEPINT in OTG_HS_GINTSTS) is set. Before the application can read this register, it must first read the device all endpoints interrupt (OTG_HS_DAINT) register to get the exact endpoint number for the device endpoint-x interrupt register. The application must clear the appropriate bit in this register to clear the corresponding bits in the OTG_HS_DAINT and OTG_HS_GINTSTS registers.

Bits 31:14 Reserved, must be kept at reset value.

Bit 13 NAK : NAK interrupt

The core generates this interrupt when a NAK is transmitted or received by the device. In case of isochronous IN endpoints the interrupt gets generated when a zero length packet is transmitted due to unavailability of data in the Tx FIFO.

Bit 12 Reserved, must be kept at reset value.

Bit 11 PKTDRPSTS : Packet dropped status

This bit indicates to the application that an ISOC OUT packet has been dropped. This bit does not have an associated mask bit and does not generate an interrupt.

Bits 10:9 Reserved, must be kept at reset value.

Bit 8 TXFIFOUDRN : Transmit Fifo Underrun (TxfifoUndrn) The core generates this interrupt when it detects a transmit FIFO underrun condition for this endpoint.

Dependency : This interrupt is valid only when Thresholding is enabled

Bit 7 TXFE : Transmit FIFO empty

This interrupt is asserted when the TxFIFO for this endpoint is either half or completely empty. The half or completely empty status is determined by the TxFIFO empty level bit in the Core AHB configuration register (TXFELVL bit in OTG_HS_GAHBCFG).

Bit 6 INEPNE : IN endpoint NAK effective

This bit can be cleared when the application clears the IN endpoint NAK by writing to the CNAK bit in OTG_HS_DIEPCTLx.

This interrupt indicates that the core has sampled the NAK bit set (either by the application or by the core). The interrupt indicates that the IN endpoint NAK bit set by the application has taken effect in the core.

This interrupt does not guarantee that a NAK handshake is sent on the USB. A STALL bit takes priority over a NAK bit.

Indicates that the data in the top of the non-periodic TxFIFO belongs to an endpoint other than the one for which the IN token was received. This interrupt is asserted on the endpoint for which the IN token was received.

Applies to nonperiodic IN endpoints only.

Indicates that an IN token was received when the associated TxFIFO (periodic/nonperiodic) was empty. This interrupt is asserted on the endpoint for which the IN token was received.

Applies only to Control IN endpoints.

Indicates that the core has detected a timeout condition on the USB for the last IN token on this endpoint.

This is generated only in internal DMA mode when there is an AHB error during an AHB read/write. The application can read the corresponding endpoint DMA address register to get the error address.

This bit indicates that the endpoint is disabled per the application's request.

This field indicates that the programmed transfer is complete on the AHB as well as on the USB, for this endpoint.

OTG_HS device endpoint-x interrupt register (OTG_HS_DOEPINTx) (x = 0..5, where x = Endpoint_number)

Address offset: 0xB08 + 0x20 * x

Reset value: 0x0000 0080

This register indicates the status of an endpoint with respect to USB- and AHB-related events. It is shown in Figure 377 . The application must read this register when the OUT Endpoints Interrupt bit of the Core interrupt register (OEPINT bit in OTG_HS_GINTSTS) is set. Before the application can read this register, it must first read the device all endpoints interrupt (OTG_HS_DAINT) register to get the exact endpoint number for the device Endpoint-x interrupt register. The application must clear the appropriate bit in this register to clear the corresponding bits in the OTG_HS_DAINT and OTG_HS_GINTSTS registers.

Bits 31:15 Reserved, must be kept at reset value.

Bit 14 NYET : NYET interrupt

The core generates this interrupt when a NYET response is transmitted for a nonisochronous OUT endpoint.

Bit 13 NAK : NAK input

The core generates this interrupt when a NAK is transmitted or received by the device. In case of isochronous IN endpoints the interrupt gets generated when a zero length packet is transmitted due to unavailability of data in the Tx FIFO.

Bit 12 BERR : Babble error interrupt

The core generates this interrupt when babble is received for the endpoint.

Bits 11:9 Reserved, must be kept at reset value.

Bit 8 OUTPKTERR : OUT packet error

This interrupt is asserted when the core detects an overflow or a CRC error for an OUT packet. This interrupt is valid only when thresholding is enabled.

Bit 7 Reserved, must be kept at reset value.

Bit 6 B2BSTUP : Back-to-back SETUP packets received

Applies to Control OUT endpoint only.

This bit indicates that the core has received more than three back-to-back SETUP packets for this particular endpoint.

Bit 5 Reserved, must be kept at reset value.

Bit 4 OTEPDIS : OUT token received when endpoint disabled

Applies only to control OUT endpoint.

Indicates that an OUT token was received when the endpoint was not yet enabled. This interrupt is asserted on the endpoint for which the OUT token was received.

Bit 3 STUP : SETUP phase done

Applies to control OUT endpoints only.

Indicates that the SETUP phase for the control endpoint is complete and no more back-to-back SETUP packets were received for the current control transfer. On this interrupt, the application can decode the received SETUP data packet.

Bit 2 AHBERR : AHB error

This is generated only in internal DMA mode when there is an AHB error during an AHB read/write. The application can read the corresponding endpoint DMA address register to get the error address.

Bit 1 EPDISD : Endpoint disabled interrupt

This bit indicates that the endpoint is disabled per the application's request.

Bit 0 XFRC : Transfer completed interrupt

This field indicates that the programmed transfer is complete on the AHB as well as on the USB, for this endpoint.

OTG_HS device IN endpoint 0 transfer size register (OTG_HS_DIEPTSIZ0)

Address offset: 0x910

Reset value: 0x0000 0000

The application must modify this register before enabling endpoint 0. Once endpoint 0 is enabled using the endpoint enable bit in the device control endpoint 0 control registers (EPENA in OTG_HS_DIEPCTL0), the core modifies this register. The application can only read this register once the core has cleared the Endpoint enable bit.

Nonzero endpoints use the registers for endpoints 1–15.

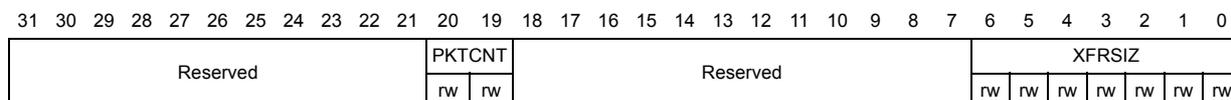

Bits 31:21 Reserved, must be kept at reset value.

Bits 20:19 PKTCNT : Packet count

Indicates the total number of USB packets that constitute the Transfer Size amount of data for endpoint 0.

This field is decremented every time a packet (maximum size or short packet) is read from the TxFIFO.

Bits 18:7 Reserved, must be kept at reset value.

Bits 6:0 XFRSIZ : Transfer size

Indicates the transfer size in bytes for endpoint 0. The core interrupts the application only after it has exhausted the transfer size amount of data. The transfer size can be set to the maximum packet size of the endpoint, to be interrupted at the end of each packet.

The core decrements this field every time a packet from the external memory is written to the TxFIFO.

OTG_HS device OUT endpoint 0 transfer size register (OTG_HS_DOEPTSIZ0)

Address offset: 0xB10

Reset value: 0x0000 0000

The application must modify this register before enabling endpoint 0. Once endpoint 0 is enabled using the Endpoint enable bit in the device control endpoint 0 control registers (EPENA bit in OTG_HS_DOEPCTL0), the core modifies this register. The application can only read this register once the core has cleared the Endpoint enable bit.

Nonzero endpoints use the registers for endpoints 1–15.

Bit 31 Reserved, must be kept at reset value.

Bits 30:29 STUPCNT : SETUP packet count

This field specifies the number of back-to-back SETUP data packets the endpoint can receive.

01: 1 packet

10: 2 packets

11: 3 packets

Bits 28:20 Reserved, must be kept at reset value.

Bit 19 PKTCNT : Packet count

This field is decremented to zero after a packet is written into the RxFIFO.

Bits 18:7 Reserved, must be kept at reset value.

Bits 6:0 XFRSIZ : Transfer size

Indicates the transfer size in bytes for endpoint 0. The core interrupts the application only after it has exhausted the transfer size amount of data. The transfer size can be set to the maximum packet size of the endpoint, to be interrupted at the end of each packet.

The core decrements this field every time a packet is read from the RxFIFO and written to the external memory.

OTG_HS device endpoint-x transfer size register (OTG_HS_DIEPTSIZx) (x = 1..5, where x = Endpoint_number)

Address offset: 0x910 + 0x20 * x

Reset value: 0x0000 0000

The application must modify this register before enabling the endpoint. Once the endpoint is enabled using the Endpoint enable bit in the device endpoint-x control registers (EPENA bit in OTG_HS_DIEPCTLx), the core modifies this register. The application can only read this register once the core has cleared the Endpoint enable bit.

Bit 31 Reserved, must be kept at reset value.

Bits 30:29 MCNT : Multi count

For periodic IN endpoints, this field indicates the number of packets that must be transmitted per frame on the USB. The core uses this field to calculate the data PID for isochronous IN endpoints.

01: 1 packet

10: 2 packets

11: 3 packets

Bit 28:19 PKTCNT : Packet count

Indicates the total number of USB packets that constitute the Transfer Size amount of data for this endpoint.

This field is decremented every time a packet (maximum size or short packet) is read from the TxFIFO.

Bits 18:0 XFRSIZ : Transfer size

This field contains the transfer size in bytes for the current endpoint. The core only interrupts the application after it has exhausted the transfer size amount of data. The transfer size can be set to the maximum packet size of the endpoint, to be interrupted at the end of each packet.

The core decrements this field every time a packet from the external memory is written to the TxFIFO.

OTG_HS device IN endpoint transmit FIFO status register
(OTG_HS_DTXFSTx) (x = 0..5, where x = Endpoint_number)

Address offset for IN endpoints: 0x918 + 0x20 * x

This read-only register contains the free space information for the Device IN endpoint TxFIFO.

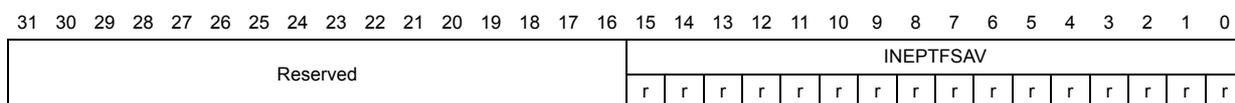

31:16 Reserved, must be kept at reset value.

15:0 INEPTFSAV : IN endpoint TxFIFO space avail ()

Indicates the amount of free space available in the Endpoint TxFIFO.
Values are in terms of 32-bit words:

• 0x0: Endpoint TxFIFO is full
• 0x1: 1 word available
• 0x2: 2 words available
• 0xn: n words available ( \( 0 < n < 512 \) )
• Others: Reserved

OTG_HS device endpoint-x transfer size register (OTG_HS_DOEPTSIZx)
(x = 1..5, where x = Endpoint_number)

Address offset: \( 0xB10 + 0x20 * x \)

Reset value: 0x0000 0000

The application must modify this register before enabling the endpoint. Once the endpoint is enabled using Endpoint Enable bit of the device endpoint-x control registers (EPENA bit in OTG_HS_DOEPCTLx), the core modifies this register. The application can only read this register once the core has cleared the Endpoint enable bit.

Bit 31 Reserved, must be kept at reset value.

Bits 30:29 RXDPID : Received data PID (access type is "r")

Applies to isochronous OUT endpoints only.

This is the data PID received in the last packet for this endpoint.

00: DATA0

01: DATA2

10: DATA1

11: MDATA

STUPCNT : SETUP packet count (access type is "rw")

Applies to control OUT Endpoints only.

This field specifies the number of back-to-back SETUP data packets the endpoint can receive.

01: 1 packet

10: 2 packets

11: 3 packets

Bit 28:19 PKTCNT : Packet count

Indicates the total number of USB packets that constitute the Transfer Size amount of data for this endpoint.

This field is decremented every time a packet (maximum size or short packet) is written to the RxFIFO.

Bits 18:0 XFRSIZ : Transfer size

This field contains the transfer size in bytes for the current endpoint. The core only interrupts the application after it has exhausted the transfer size amount of data. The transfer size can be set to the maximum packet size of the endpoint, to be interrupted at the end of each packet.

The core decrements this field every time a packet is read from the RxFIFO and written to the external memory.

OTG_HS device endpoint-x DMA address register (OTG_HS_DIEPDMAX / OTG_HS_DOEPDMAX) (x = 0..5, where x = Endpoint_number)

Address offset for IN endpoints: 0x914 + 0x20 * x

Reset value: 0xXXXX XXXX

Address offset for OUT endpoints: 0xB14 + 0x20 * x

Reset value: 0xXXXX XXXX

Bits 31:0 DMAADDR : DMA address

This bit holds the start address of the external memory for storing or fetching endpoint data.

Note: For control endpoints, this field stores control OUT data packets as well as SETUP transaction data packets. When more than three SETUP packets are received back-to-back, the SETUP data packet in the memory is overwritten. This register is incremented on every AHB transaction. The application can give only a word-aligned address.

30.12.5 OTG_HS power and clock gating control register (OTG_HS_PCGCTL)

Address offset: 0xE00

Reset value: 0x0000 0000

This register is available in host and peripheral modes.

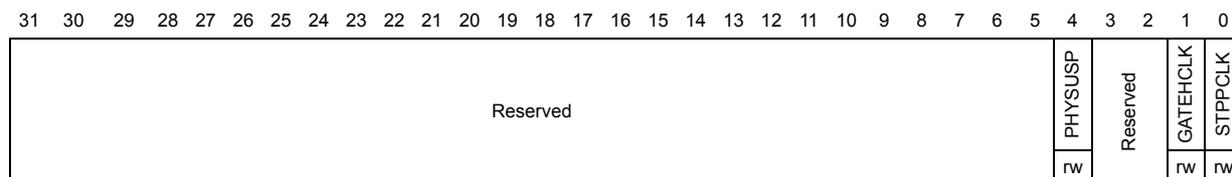

Bit 31:5 Reserved, must be kept at reset value.

Bit 4 PHYSUSP : PHY suspended

Indicates that the PHY has been suspended. This bit is updated once the PHY is suspended after the application has set the STPPCLK bit (bit 0).

Bits 3:2 Reserved, must be kept at reset value.

Bit 1 GATEHCLK : Gate HCLK

The application sets this bit to gate HCLK to modules other than the AHB Slave and Master and wake-up logic when the USB is suspended or the session is not valid. The application clears this bit when the USB is resumed or a new session starts.

Bit 0 STPPCLK : Stop PHY clock

The application sets this bit to stop the PHY clock when the USB is suspended, the session is not valid, or the device is disconnected. The application clears this bit when the USB is resumed or a new session starts.

30.12.6 OTG_HS register map

The table below gives the USB OTG register map and reset values.

Table 168. OTG_HS register map and reset values

Table 168. OTG_HS register map and reset values (continued)

Table 168. OTG_HS register map and reset values (continued)
